2310 Series RC Wood Door Template 2-3-8in BS – T-LS01907

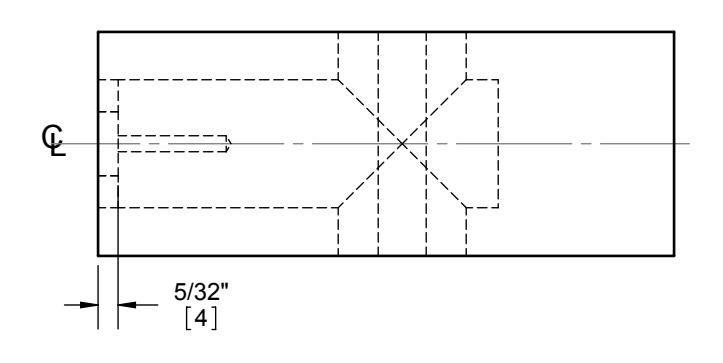

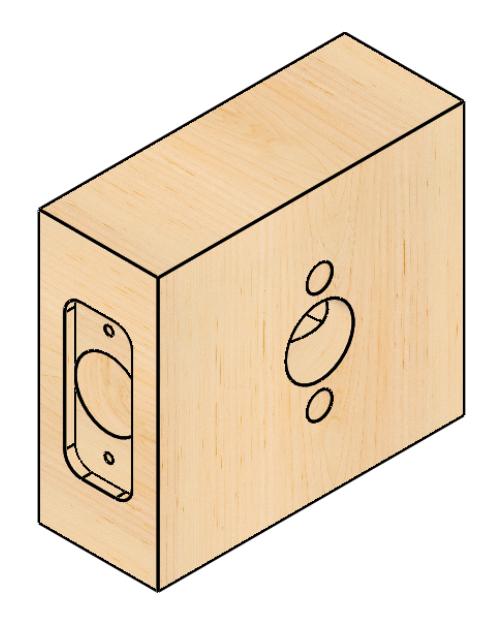

2310 LEVERSET WOOD DOOR PREP TEMPLATE (2-3/8" BACKSET, ROUND CORNER)

DOOR TYPE: WOOD OR COMPOSITE, FLAT

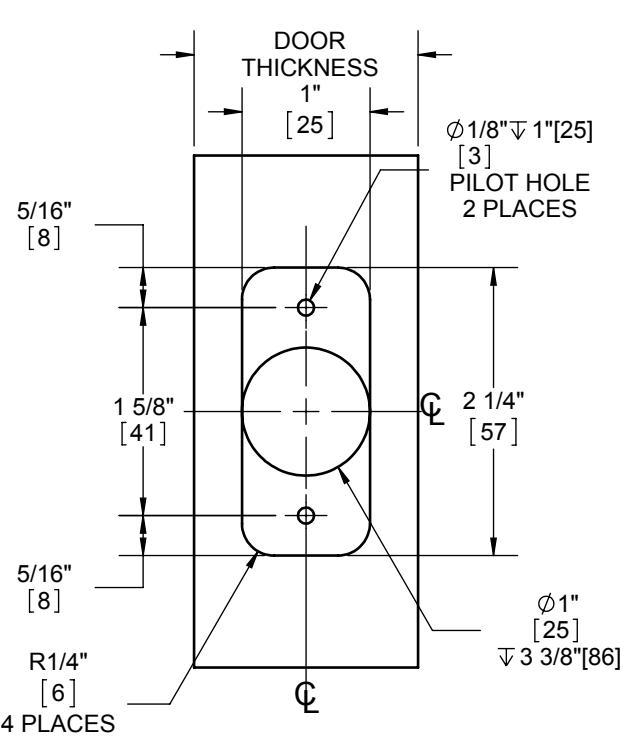

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: 1/4"R, 1"[25] WIDTH

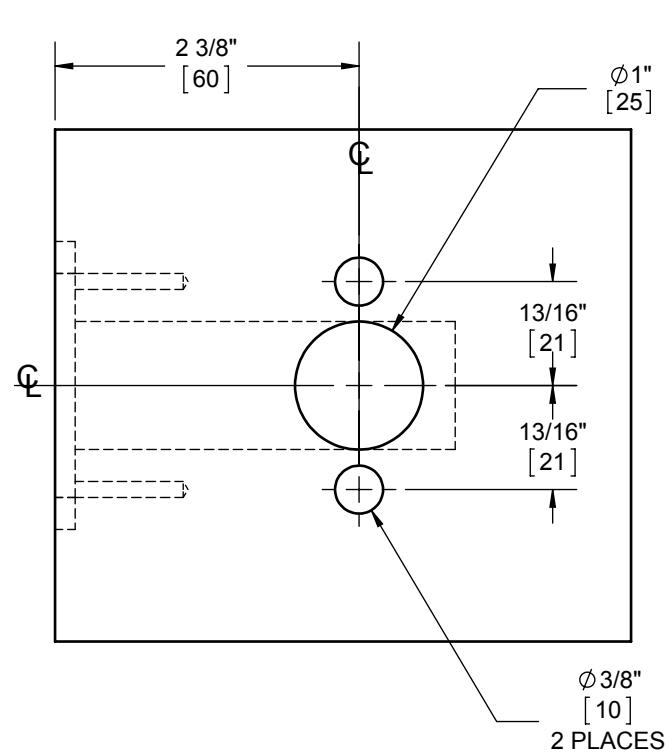

BACKSET: 2 3/8"[60]

DIMENSIONS IN [ ] ARE IN MILLIMETERS

DRAWING NO: T-LS01907 REV: - SHEET 1 OF 1 TEMPLATE NO:
