2310 Series RC Wood Door Template 2-3-4in BS – T-LS01908

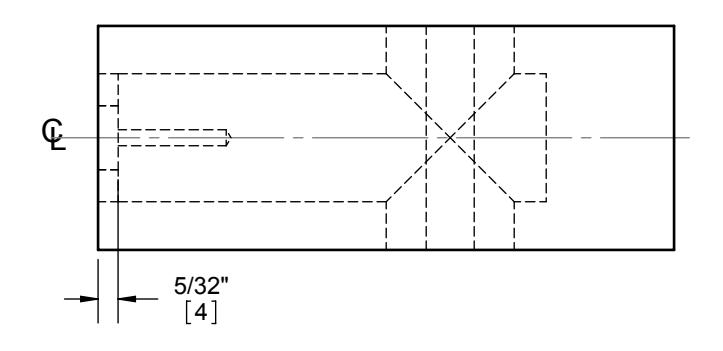

2310 LEVERSET WOOD DOOR PREP TEMPLATE (2-3/4" BACKSET, ROUND CORNER)

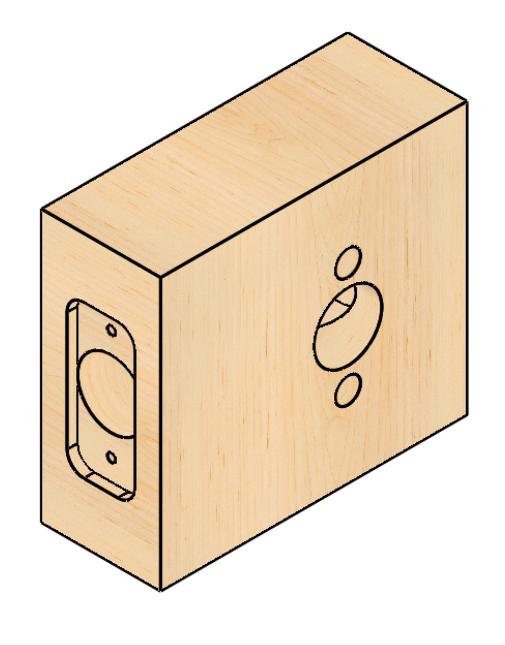

DOOR TYPE: WOOD OR COMPOSITE, FLAT

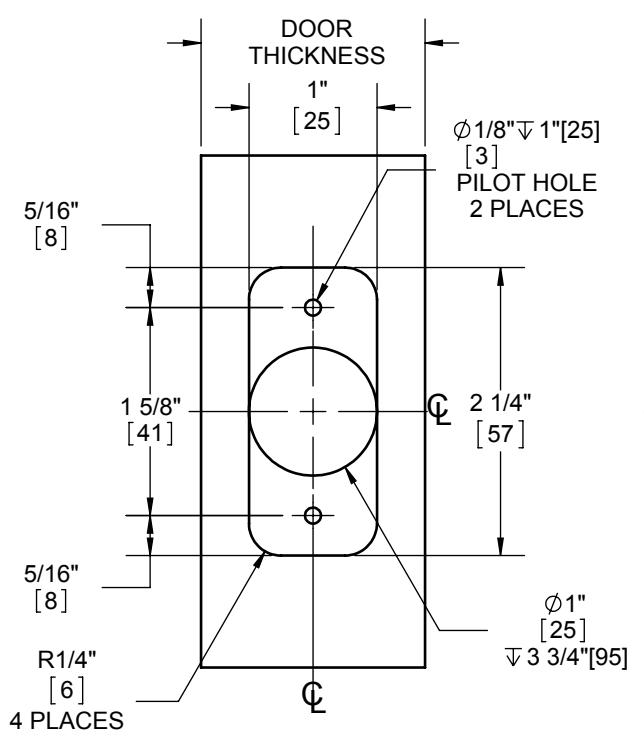

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: 1/4"R, 1"[25] WIDTH

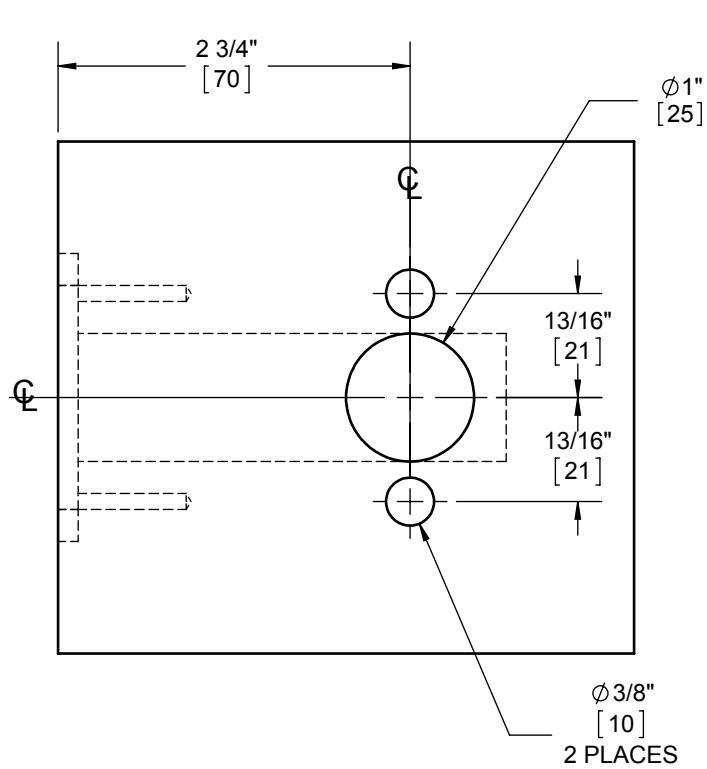

BACKSET: 2 3/4"[70]

DIMENSIONS IN [ ] ARE IN MILLIMETERS

DRAWING NO: T-LS01908 REV: - SHEET 1 OF 1

DO NOT SCALE TEMPLATE HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149 TEMPLATE NO:
