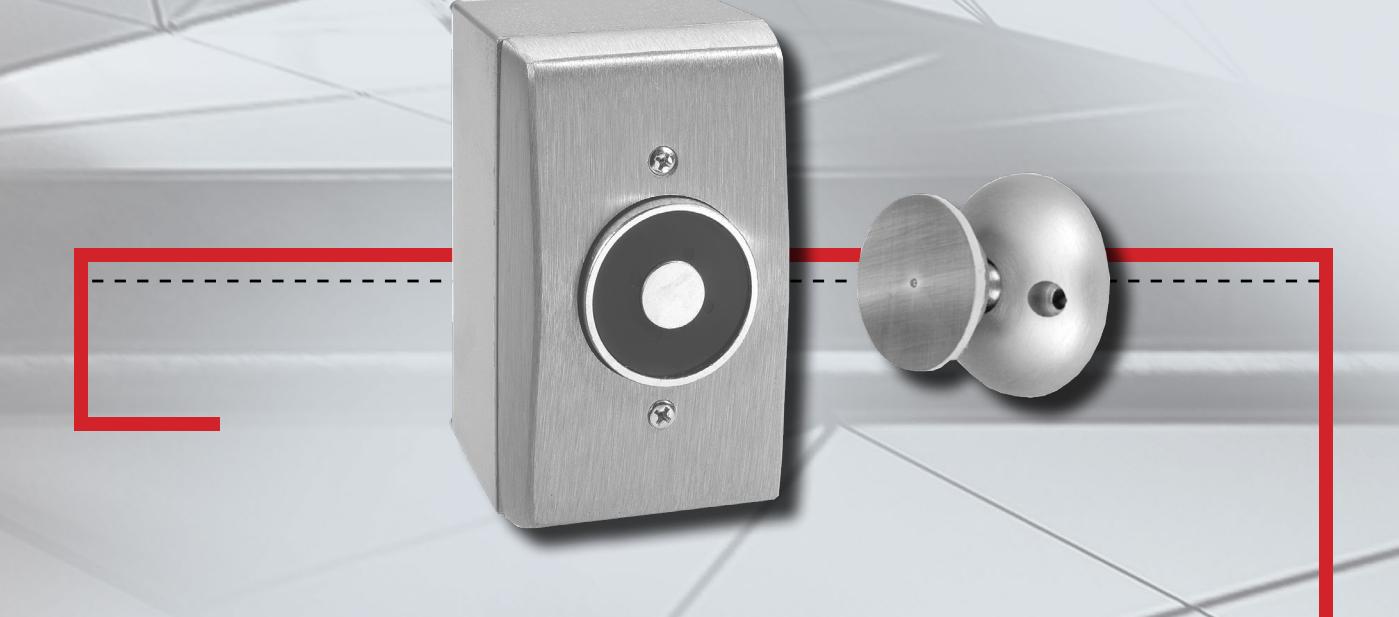

Surface Wall Mount

Standard Features

  • 4- 5 /8 total projection from wall to face of door (5-5 /8 " if using complimentary 1" extension)
  • Tri-voltage units for easy stocking and installation 12V DC, 24 AC/DC or 120V AC
  • Provided with one complimentary 1"extension No charge
  • Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
  • • 35lb. holding force
  • All metal components No plastic parts
  • UL/ULC listed for smoke barrier or labeled fire doors
  • Listed by the California State Fire Marshall
  • Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
  • Positive release button alleviates residual magnetism
  • Average weight per unit = 3lbs.
