2300 ELECTROMAGNETIC DOOR HOLDER, SURFACE WALL MOUNT

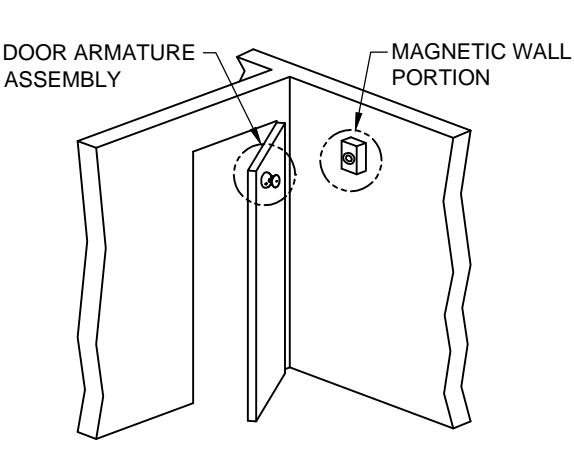

DOOR ARMATURE ASSEMBLY

FRONT VIEW

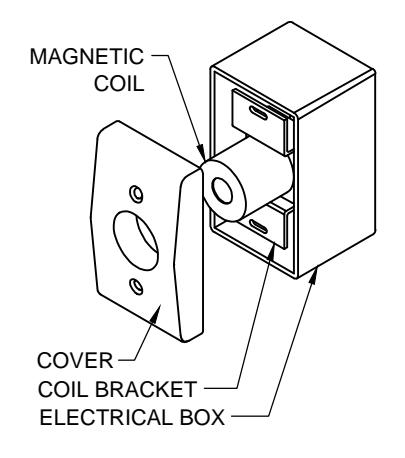

2300 MAGNETIC WALL PORTION

ELECTRICAL DATA:

THIS PRODUCT IS AN ELECTROMAGNETIC HOLDING DEVICE, INTENDED FOR USE IN FIRE DOOR APPLICATIONS, BUT CAN BE USED FOR OTHER MAGNETIC APPLICATIONS. WIRE INTO PROPER TERMINALS AS NOTED BELOW:

SERIES VOLTAGE DC/mA DC/VA AC/mA AC/VA TERMINALS
2300 12 DC 60 .72 Com & 12 v
24 AC/DC 30 .72 30 .72 Com & 24 v
120 AC 30 3.60 Com & 120 v

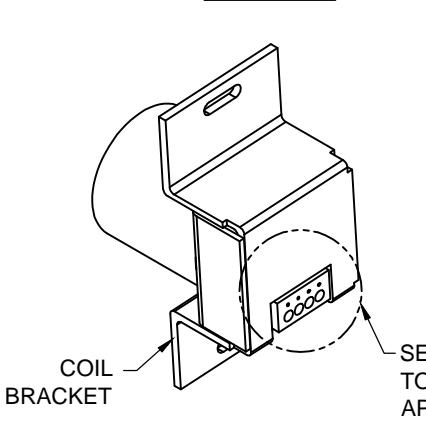

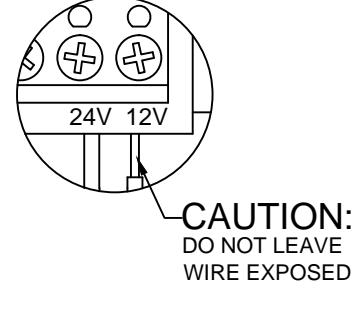

WIRE EXPOSE SEE DIAGRAMS TO THE RIGHT FOR APPROPRIATE WIRING

SCREW DETAIL
QTY SCREW
MAGNETIC WALL PORTION 2 6-32 x 1" OVAL HEAD MACHINE SCREW
MAGNETIC COVER 2 6-32 x 1" FLAT HEAD MACHINE SCREW
DOOR ARMATURE 2 10-32 x 1" PAN HEAD MACHINE SCREW
BOOK ANWATORE 10-32 x 1-1/4" SNB

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

ABH is a minority owned and operated manufacturing company.

2300

2300-1-04.DWG

© 2015 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 REVISED 07-09-15

2300 ELECTROMAGNETIC DOOR HOLDER, SURFACE WALL MOUNT

WALL PORTION INSTALLATION:

  • 1. Measure distance from pivot centerline to wall (Dim. "A").
  • 2. Determine door width (Dim. "B").
  • 3. Use table below to locate magnet box on wall (Dim. "C").
    • a. Example: Dim. "A" = 10" Dim. "B" = 42" Result Dim. "C" = 39".
    • b. If Dim. "A" or Dim. "B" Falls between dimensions listed in the table below, allow for difference.
      • Example: Dim. "A" = 7" Dim. "B" = 36" Estimated Dim. "C" = 33-7/16"
    • c. If Dim. "A" and Dim. "B" intersect in the shaded area, DO NOT INSTALL magnet box. The degree of door opening will not allow for proper alignment between armature and wall magnet.
  • 4. Suggested vertical location is on top rail approximately 5" from top of the door.
  • 5. Check degree of door opening shown in table and coordinate with door closer and other door hardware.

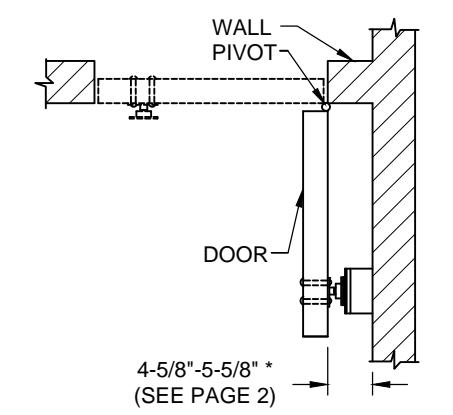

  • 6. Total projection of door hardware must not be more than 5-5/8" on the pull side of door. If greater, you will need to use additional extensions, sold separately.

DIM HOW (DOOD MIDTI) \overline{}
l DIM. "B" (DOOR WIDTH)
Dim. 28 30 32 34 36 38 40 42 44 46 48
A Dim"C" Deg Dim"C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim"C" Deg Dim"C" Deg Dim"C" Deg Dim "C" Deg Dim "C" Deg
2 25-1/4 84° 27-1/4 84° 29-1/4 85° 31-1/4 85° 33-1/4 85° 35-1/4 86° 37-1/4 86° 39-1/4 86° 41-1/4 86° 43-1/4 87° 45-1/4 87°
4 25-3/8 89° 27-3/8 89° 29-3/8 89° 31-3/8 89° 33-3/8 89° 35-3/8 89° 37-3/8 89° 39-3/8 89° 41-3/8 89° 43-3/8 89° 45-3/8 89°
6 25-3/8 93° 27-3/8 93° 29-3/8 93° 31-1/4 93° 33-3/8 92° 35-1/4 92° 37-1/4 92° 39-1/4 92° 41-3/8 92° 43-3/8 92° 45-1/4 92°
8 25-1/4 98° 27-1/8 97° 29-1/8 97° 31-1/4 96° 33-1/4 96° 35-1/4 95° 37-1/4 95° 39-1/4 95° 41-1/4 95° 43-1/4 94° 45-1/4 94°
10 24-3/4 102° 26-7/8 101° 28-7/8 101° 31 100° 33 99° 35 99° 37 98° 39 98° 41 97° 43 97° 45 97°
12 24-3/8 107° 26-1/4 106° 28-3/8 105° 30-1/2 104° 32-1/2 103° 34-5/8 102° 36-5/8 101° 38-5/8 101° 40-3/4 100° 42-3/4 100° 44-3/4 99°
14 23-5/8 112° 25-3/4 110° 27-7/8 109° 30 107° 32 106° 34-1/8 105° 36-1/8 105° 38-1/4 104° 40-1/4 103° 42-3/8 102° 44-3/8 102°
16 22-5/8 117° 24-7/8 115° 27-1/8 113° 29-1/4 111° 31-3/8 110° 33-1/2 109° 35-5/8 108° 37-3/4 107° 39-3/4 106° 41-7/8 105° 43-7/8 105°
18 21-5/8 122° 23-7/8 119° 26-1/8 117° 28-3/8 115° 30-5/8 114° 32-3/4 112° 34-7/8 111° 37 110° 39-1/8 109° 41-1/2 108° 43-1/4 107°
20 22-5/8 124° 25 122° 27-3/8 119° 29-5/8 118° 31-7/8 116° 34 114° 36-1/4 113° 38-1/2 112° 40-1/2 111° 42-3/4 110°
22 26-1/8 124° 28-1/2 121° 30-7/8 119° 33 119° 35-3/8 116° 37-1/2 115° 39-3/4 114° 42 113°
24 29-5/8 123° 32 121° 34-1/4 129° 36-1/2 118° 38-3/4 117° 41 115°
26 33-1/8 123° 35-3/8 121° 37-3/4 120° 40 118°

  • 7. From corner of wall, measure the appropriate Dim. "C" determined in step 3.
  • 8. Proper electrical wire routing must be done before installing electrical box.
  • 9. The electrical box should be installed with reinforcement to withstand a minimum 50 lb. pull.
  • 10. Before installing magnetic wall portion, consult "ELECTRICAL DATA" on page 1.

IMPORTANT : Check that power voltage equals one of the voltages labeled on back of magnet.

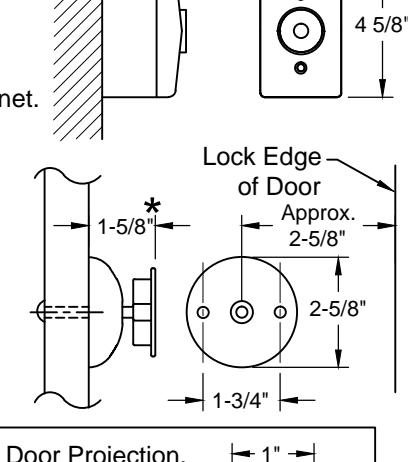

DOOR ARMATURE INSTALLATION:

  • 1. Place and center the door armature on the surface of the magnet with the two holes of the base aligned horizontally.
  • 2. Gently close the door and adjust the angle of the door armature so the base lays flat against the door.
  • 3. While keeping slight pressure on the door, mark location of door armature through the two base holes.
  • 4. Drill through the door where the two marks are located with 5/16" drill. Fasten armature with the (2)10-32 machine screws & sex bolts provided.

NOTE: 1. All dimensions are provided in inches, unless noted otherwise.

2. Additional extensions can be ordered separately to increase the door armature projection: 3/8", 1/2", 3/4", 1", 2", 4" or 6".

3'

Pivot

Magnet Box

Centerline

Centerline

★ For 2-5/8" Door Projection, use 1" Extension provided complimentary

2-3/4"

A:H

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

ABH is a minority owned and operated manufacturing company.

2300

2300-2-04 DWG

© 2015 ABH Mfg., Inc. printed in USA

PAGE 2 OF 2 REVISED 07-09-15
