2317/2327 SINGLE & DOUBLE DUMMY LEVERSET Installation Instructions I-LS01889

Recommended for use on doors 1-3/8"-1-3/4"(35mm-45mm) thick

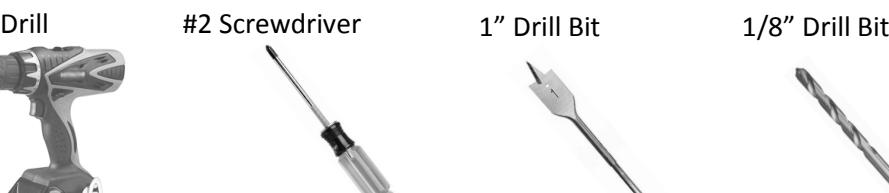

Tools required for installation:

2317 SINGLE DUMMY INSTALLATION INSTRUCTIONS

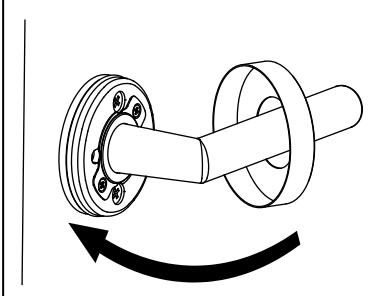

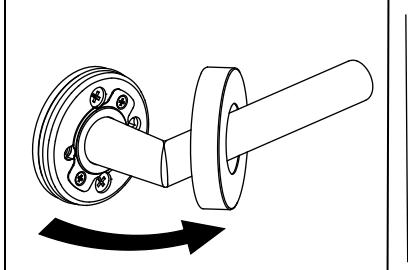

1. REMOVE ROSE 2. PREP DOOR & INSTALL LEVERSET 3. INSTALL ROSE

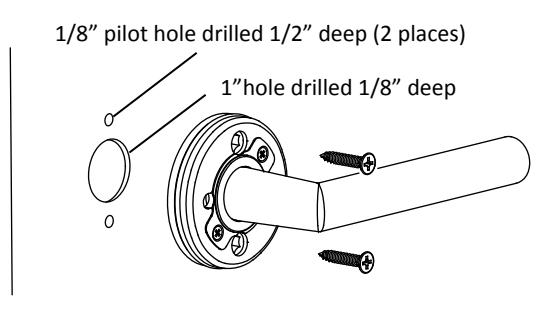

• 1. Drill 1" dia. hole at desired height.
• 2. Using leverset as a guide, mark and drill pilot holes.
• 3. Tighten leverset to the door face using screws provided.

2327 DOUBLE DUMMY INSTALLATION INSTRUCTIONS

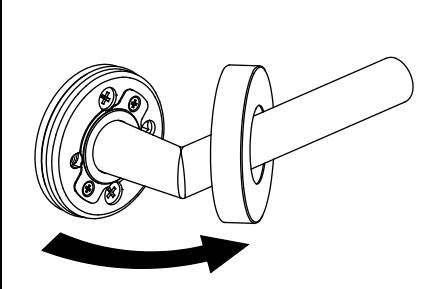

1. REMOVE ROSES 2. PREP DOOR & INSTALL LEVERSETS

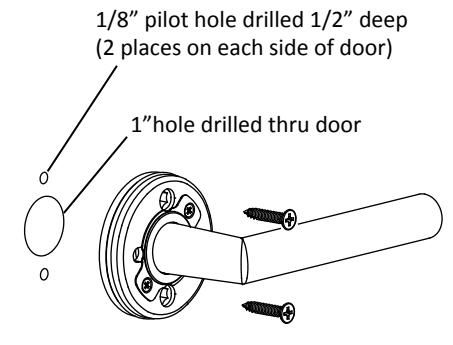

• 1. Drill 1" dia. hole completely thru the door at desired height.
• 2. Using inside leverset as a guide, mark and drill pilot holes on inside door face.
• 3. Repeat step 2 for outside leverset.
• 3. Tighten both leversets to the door face using screws provided.

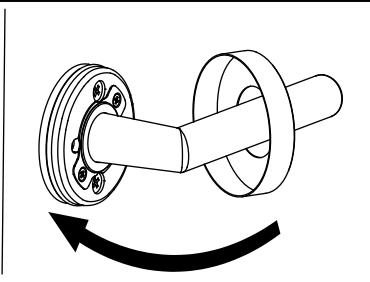

3. INSTALL ROSES

Rev 1, Rev Date: 5/28/2014 Page 1 of 1
