Electromagnetic Door Holders

Innovation, Quality, Customer Service...

Wall Mount

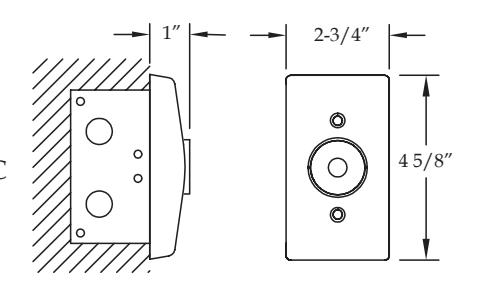

2100 - Recessed Wall Mount

Standard Features

• 2-%" total projection from wall to face of door (3-%" if using complimentary 1" extension)
• Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC or 120V AC
• Provided with one complimentary 1" extension No charge
• Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required (see page D-8)
• 35 lb. holding force
• All metal components No plastic parts
• UL/ULC listed for smoke barrier or labeled fire doors
• Listed by the California State Fire Marshall
• Outlet box required (not provided)
• Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
• Positive release button alleviates residual magnetism
• Average weight per unit = 2.5 lbs.

2300 - Surface Wall Mount

Standard Features

• 4-5/8" total projection from wall to face of door (5-5/8" if using complimentary 1" extension)
• Tri-voltage units for easy stocking and installation 12V DC, 24V AC/ DC or 120V AC
• Provided with one complimentary 1" extension No charge
• Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required (see page D-8)
• 35 lb. holding force
• All metal components No plastic parts
• UL/ULC listed for smoke barrier or labeled fire doors
• Listed by the California State Fire Marshall
• Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
• Positive release button alleviates residual magnetism
• Average weight per unit = 3 lbs.
