2100 ELECTROMAGNETIC DOOR HOLDER, RECESSED WALL MOUNT

ELECTRICAL DATA:

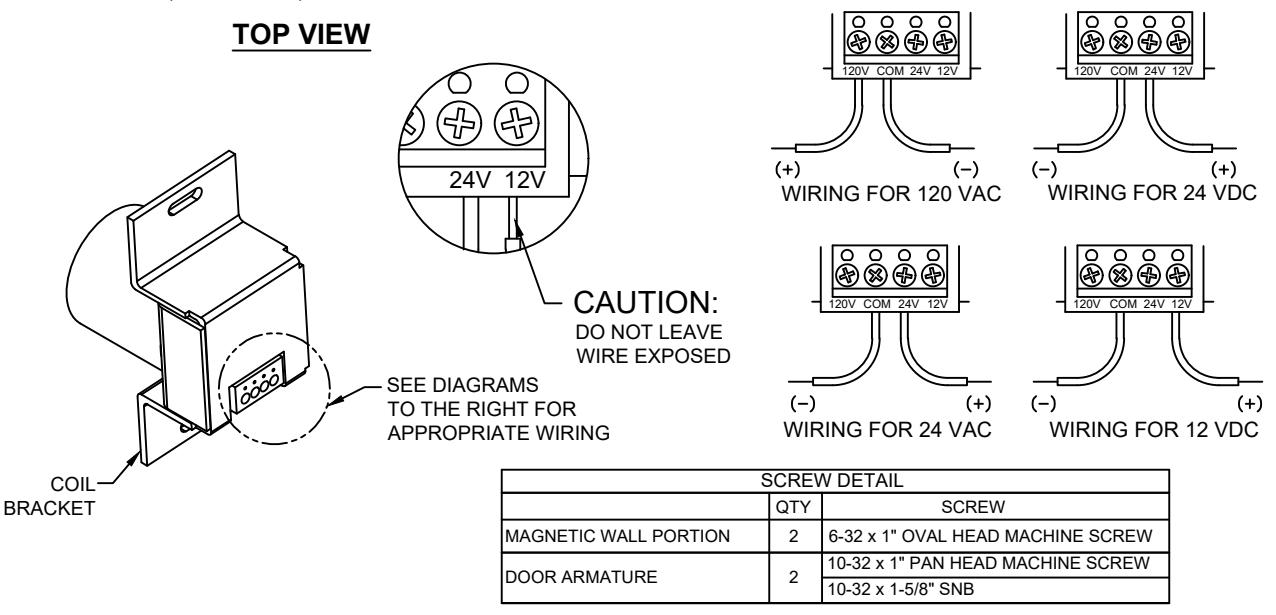

THIS PRODUCT IS AN ELECTROMAGNETIC HOLDING DEVICE, INTENDED FOR USE IN FIRE DOOR APPLICATIONS, BUT CAN BE USED FOR OTHER MAGNETIC APPLICATIONS. WIRE INTO PROPER TERMINALS AS NOTED BELOW:

SERIES VOLTAGE DC/mA DC/VA AC/mA AC/VA TERMINALS
2100 12 DC 60 .72 Com & 12 v
24 AC/DC 30 .72 30 .72 Com & 24 v
120 AC 30 3.60 Com & 120 v

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc.

1222 Ardmore Ave., Itasca, IL 60143

630.875.9900; FAX 800.9FAXABH (932.9224)

ABH is a minority owned and operated manufacturing company.

© 2021 ABH Mfg., Inc. printed in USA

2100-1-04.DWG

2100

PAGE 1 OF 2 REVISED 10-25-21

2100 ELECTROMAGNETIC DOOR HOLDER, RECESSED, WALL MOUNT

WALL PORTION INSTALLATION:

  • 1. Measure distance from pivot centerline to wall (Dim. "A").
  • 2. Determine door width (Dim. "B").
  • 3. Use table below to locate magnet box on wall (Dim. "C").
    • a. Example : Dim. "A" = 10" Dim. "B" = 42" Result Dim. "C" = 38-7/8".
    • b. If Dim. "A" or Dim. "B" falls between dimensions listed in the table below, allow for difference.
      • Example: Dim. "A"= 7" Dim. "B" = 36" Then Dim."C" = 33-1/8".
    • c. If Dim. "A" and Dim. "B" intersect in the shaded area, DO NOT INSTALL magnet box. The degree of door opening will not allow for proper alignment between armature and wall magnet.
  • 4. Suggested vertical location is on top rail approximately 5" from top of the door.
  • 5. Check degree of door opening shown in table and coordinate with door closer and other door hardware.

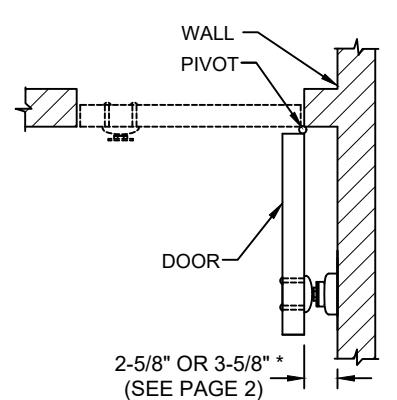

  • 6. Total projection of door hardware must not be more than 3-5/8" on the pull side of door. If greater, you will need to use additional extensions, sold separately.

_
D IM. "E 3" ([ DOOR WII DTH)
Dim. 28 30 32 34 36 38 40 42 44 46 48
"A" Dim"C" Deg Dim"C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim"C" Deg Dim"C" Deg Dim"C" Deg Dim "C" Deg Dim "C" Deg
2 25-3/8 86° 27-1/8 87° 29-3/8 87° 31-3/8 87° 33-3/8 87° 35-3/8 87° 37-3/8 88° 39-3/8 88° 41-3/8 88° 43-3/8 88° 45-3/8 88°
4 25-3/8 91° 27-3/8 91° 29-3/8 91° 31-3/8 91° 33-3/8 91° 35-3/8 91° 37-3/8 91° 39-3/8 91° 41-3/8 91° 43-3/8 90° 45-3/8 90°
6 25-1/4 95° 27-1/4 95° 29-5/8 95° 31-1/4 94° 33-1/4 94° 35-1/4 94° 37-1/4 94° 39-1/4 93° 41-1/4 93° 43-1/4 93° 45-1/4 93°
8 25 100° 27 99° 29 99° 31 98° 33 98° 35-1/8 97° 37-1/8 97° 39-1/8 96° 41-1/8 96° 43-1/8 96° 45-1/8 96°
10 24-1/2 105° 26-5/8 103° 28-5/8 103° 30-3/4 102° 33 101° 34-3/4 100° 36-7/8 100° 38-7/8 99° 41 99° 43 98° 45 98°
12 24 109° 26 108° 28-1/8 107° 30-1/4 105° 32-3/8 105° 34-3/8 104° 36-3/8 103° 38-1/2 102° 40-1/2 102° 42-1/2 101° 44-5/8 101°
14 23-1/8 114° 24-3/8 112° 27-1/2 111° 29-5/8 109° 31-3/4 108° 33-7/8 107° 35-7/8 106° 38 105° 40 105° 42-1/8 104° 44-1/8 103°
16 22-1/8 119° 24-3/8 117° 26-5/8 115° 28-7/8 113° 31 112° 33-1/8 110° 35-1/4 109° 37-3/8 108° 39-1/2 107° 41-5/8 107° 43-5/8 106°
18 24-1/4 122° 25-5/8 119° 27-7/8 117° 30-1/8 116° 32-3/8 114° 34-1/2 113° 36-3/4 111° 38-3/4 110° 41 109° 43 108°
20 26-3/4 123° 29 119° 31-3/8 118° 33-5/8 116° 35-3/4 115° 38 113° 40-1/8 112° 42-3/8 111°
22 27-7/8 123° 30-3/8 121° 32-1/2 119° 34-7/8 118° 37 116° 39-1/4 115° 41-1/2 114°
24 31-3/8 123° 33-3/4 121° 36 120° 38-1/4 118° 40-1/2 117°

  • 7. From corner of wall, measure the appropriate Dim. "C" determined in step 3.
  • 8. Proper electrical wire routing must be done before installing magnet box.
  • 9. The 4" x 2-1/8" x 2" outlet box (not provided with unit) should be installed with reinforcement to withstand a minimum 50 lb. pull.

IMPORTANT : Check that power voltage equals voltage labeled on back of magnet. Consult " ELECTRICAL DATA" on page 1.

DOOR ARMATURE INSTALLATION:

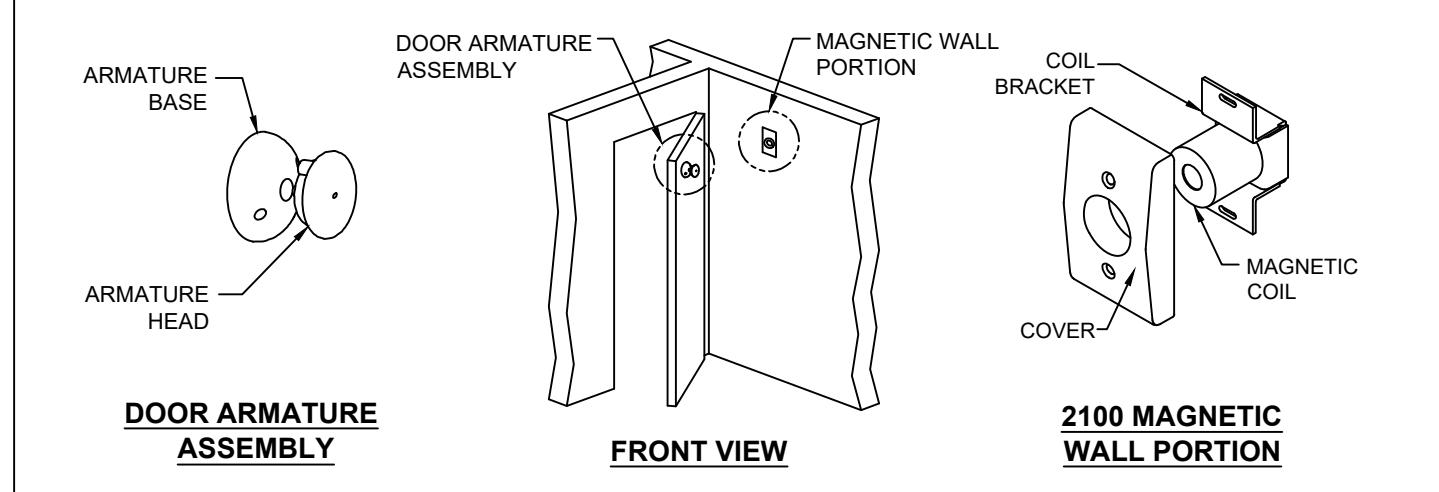

  • 1. Place and center the door armature on the surface of the magnet with the two holes of the base aligned horizontally.
  • 2. Gently close the door and adjust the angle of the door armature so the base lays flat against the door.
  • 3. While keeping slight pressure on the door, mark location of door armature through the two base holes.
  • 4. Drill through the door where the two marks are located with 5/16" drill. Fasten with the (2)10-32 machine screws & sex bolts provided.
  • NOTE: 1. All dimensions are provided in inches, unless noted otherwise.

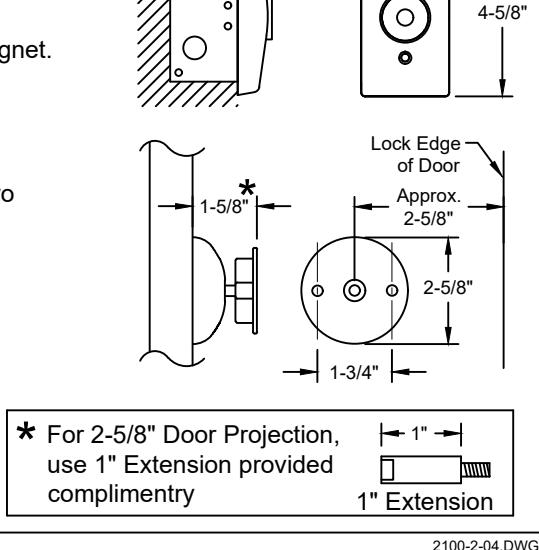

    • 2. Additional extensions can be ordered separately to increase the door armature projection: 3/8", 1/2", 3/4", 1", 2", 4" or 6".

В

Pivot-

Centerline

Magnet Box

Centerline

С

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

ABH is a minority owned and operated manufacturing company.

4-5/8"

© 2021 ABH Mfg., Inc. printed in USA

PAGE 2 OF 2 REVISED 10-25-21
