2020 Schlage Residential Pricebook

Open the original PDF document

Residential Price Book 7

Effective Dec. 1, 2019 n Rev. April 2020

Personal style, perfected.

For more than 95 years, Schlage has offered durable door hardware in a range of unique style combinations to express any personality. So welcome home. Welcome thousands of possibilities. Welcome style.

Quickly install Schlage products with just a Phillips screwdriver

Choose from a range of lever, knob and trim styles to instantly elevate any room

Built with premium metal construction that adds strength, security and long life

Products feature advanced technology to keep the state-of-the-art moving forward

Electronic Locks	Handlesets
Connected deadbolts and levers 7	FC Series	23
Available functions 7	FCT Series	29
Product identification 7	F Series	31
Finish codes & descriptions 7	Available functions	31
Latches & strikes 7	Product identification	31
Standard features / configurations 8	Latches & strikes	31
Packaging & carton specs 8	Standard features / configurations	32
FCE489WBC Series 9	Finish codes & descriptions	32
FE489WBC Series Schlage Encode™ 10	Packaging & carton specs	32
FBE489WBC Series 10	Available styles	33
Schlage Encode Standard features /	Pricing	34
configurations 11	Decorative collection	38
BE479AA Series Schlage Sense™ 12	J Series	39
BR400 Series Schlage Sense Wi-Fi Adapter 12	Available functions	39

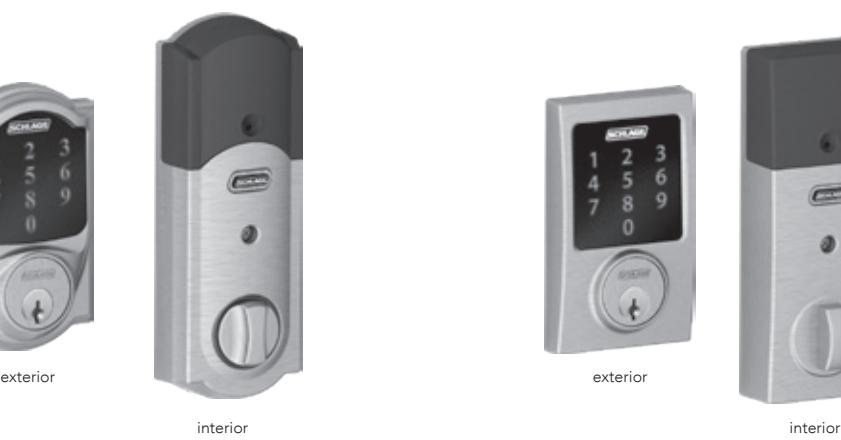

BE469ZP Series Schlage Connect™ 13	Product identification	39
BE468ZP Series 13	Standard features / configurations	40
FE468GBAK Series Connect™	Finish codes & descriptions	40
Touchscreen Deadbolt 14	Packaging & carton specs	40
FE599NX Series Connected Keypad Lever . 14	Pricing	41
Keypad Locks 15	Levers
Code entry locks 15	FC Series	43
Available functions 15	FC Series decorative collection	49
Product indentification 15	F Series	50
Finish codes & descriptions 15	Available functions	50
Standard features / configurations 16	Product information	50
Latches & strikes 16	Latches & strikes	50
Standard features / configurations 17	Standard features / configurations	51
Packaging & carton specs 17	Finish codes & descriptions	51

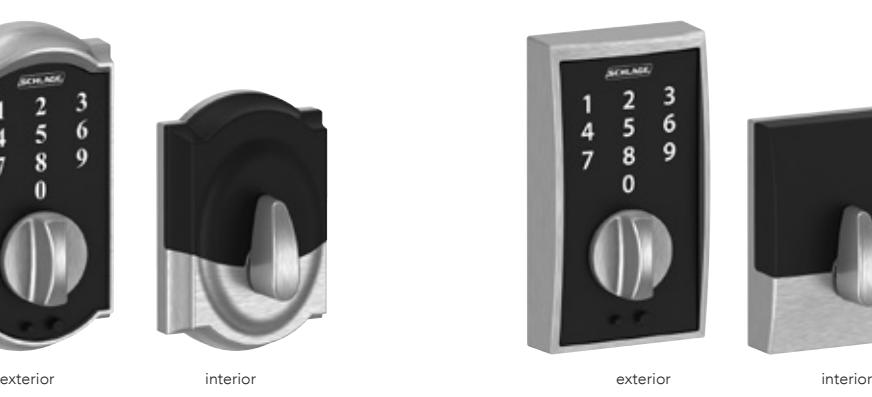

Schlage Touch™ Deadbolts 18	Packaging & carton specs	51
Touch™ Keyless Schlage	Available styles	52

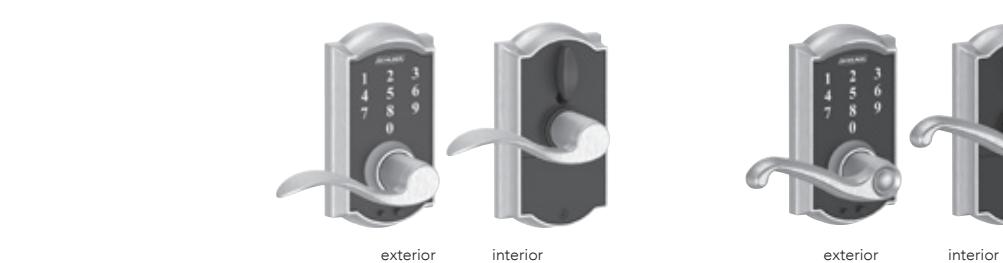

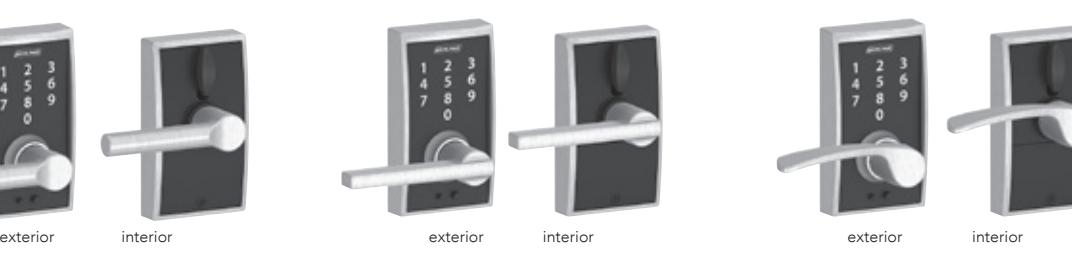

Touchscreen levers 19	Pricing	53

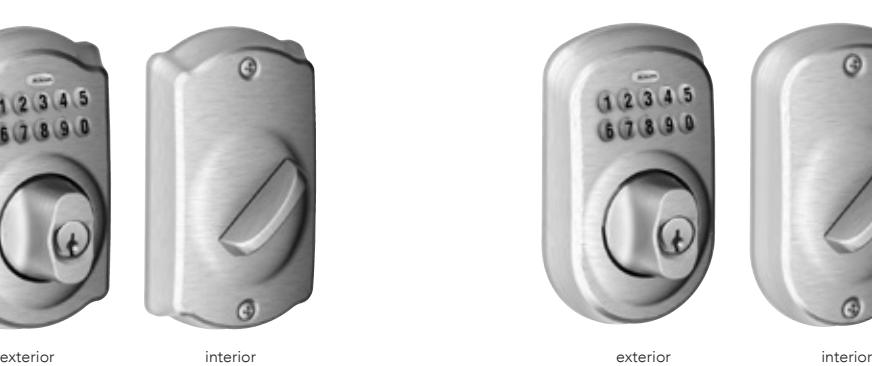

Keypad deadbolts 20	Decorative collection	60

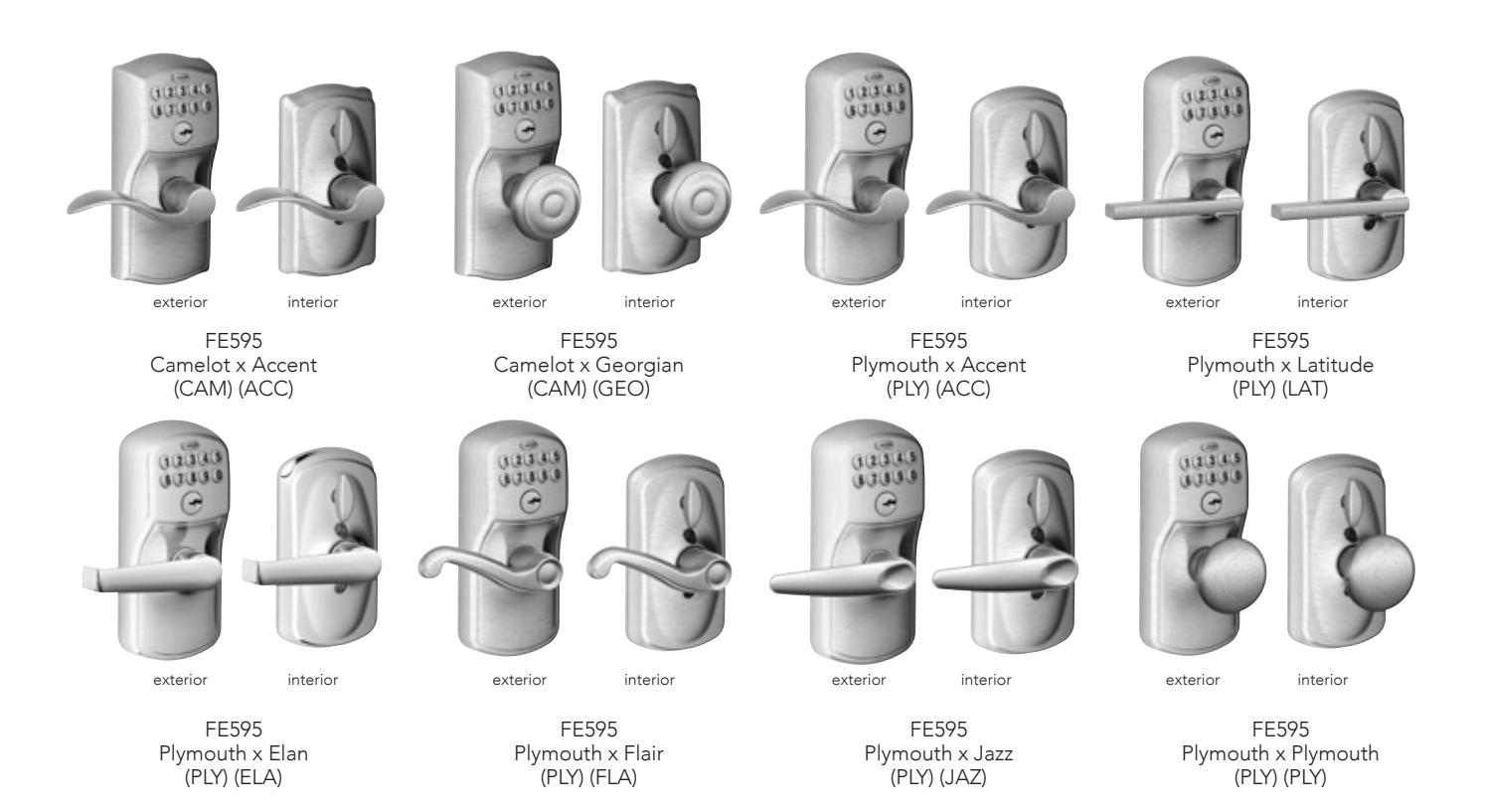

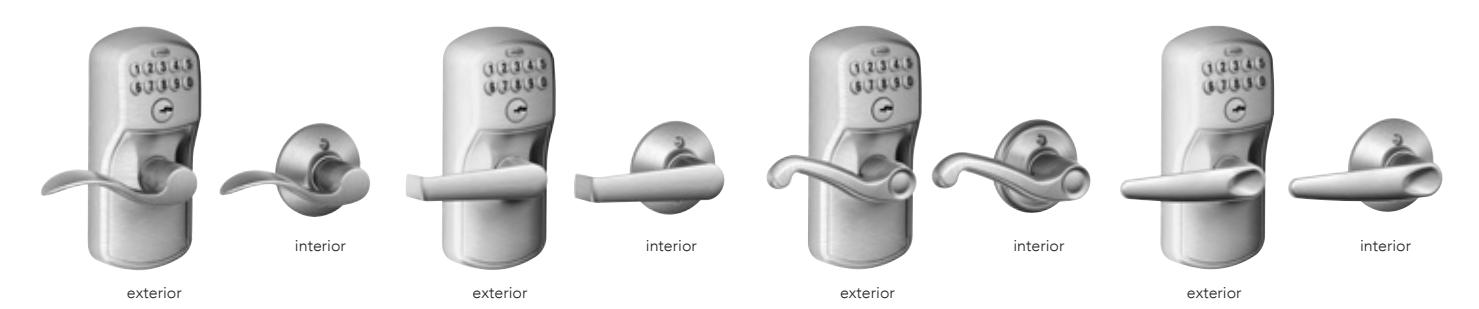

Keypad lever lock 21	J Series	61
Keypad lever auto locks 22	Available functions	61
	Product identification	61
	Latches & strikes	61
	Standard features / configurations	62
	Finish codes & descriptions	62
	Packaging & carton specs	62
	Pricing	63

Knobs	Deadbolts
FC Series 67	B Series	87
FC Series decorative collection 73	Available functions	87
FC Series 75	Product identification	87
Available functions 75	Latches & strikes	87
Product identification 75	Standard features / configurations	88
Latches & strikes 75	Finish codes & descriptions	88
Standard features / configurations 76	Packaging & carton specs	88
Finish codes & descriptions 76	Pricing	89
Available styles 77	Decorative Collection	91
Pricing 78	J Series	93
Decorative collection 82	Available functions	93

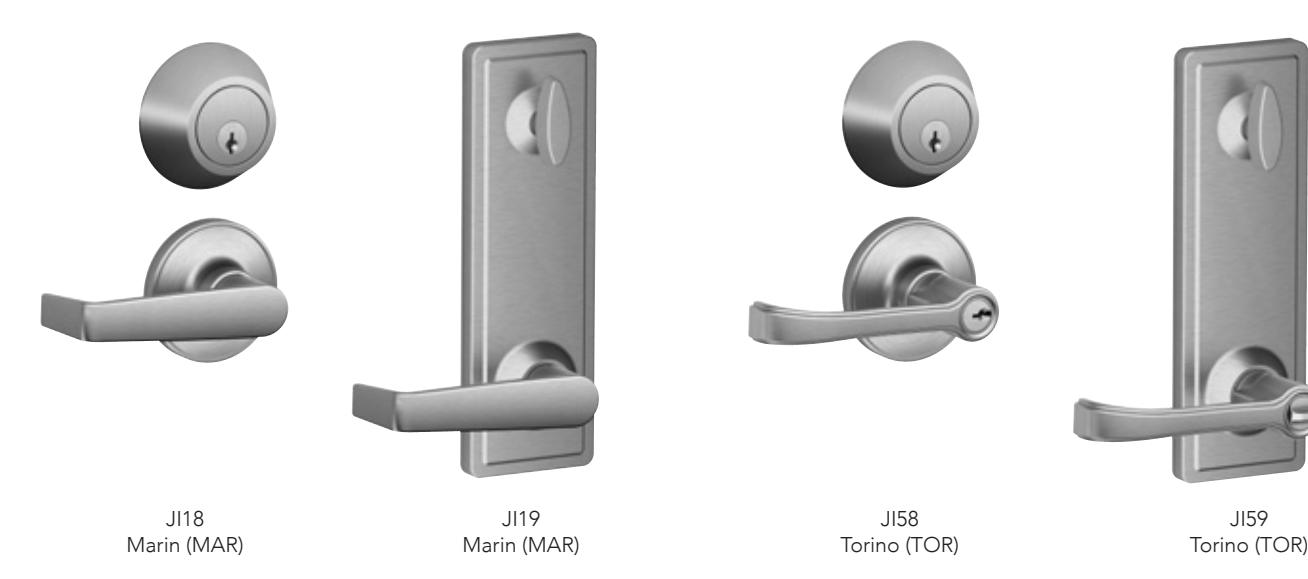

J Series 83	Product identification	93
Available functions 83	Latches & strikes	93
Product identification 83	Standard features / configurations	94
Latches & strikes 83	Finish codes & descriptions	94
Standard features / configurations 84	Packaging & carton specs	94
Finish codes & descriptions 84	Pricing	95
Packaging & carton specs 84	Security sets	96
Pricing 85	Available functions	96
	Product identification	96
	Finish codes & descriptions	96
	Pricing	97

Hardware & Accessories Builder's hardware . . . . . . . . . . . . . . . . . . . . . . . . 99 Barndoor hardware . . . . . . . . . . . . . . . . . . . 100 J Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 Top mount . . . . . . . . . . . . . . . . . . . . . . . . . . 100 Track adapter . . . . . . . . . . . . . . . . . . . . . . . . 100 Handrail brackets, & door stops . . . . . . . . 101 Chain door guards . . . . . . . . . . . . . . . . . . . . 102 Coat, hat & wardrobe hooks . . . . . . . . . . . . 103 Pocket door locks, hinges . . . . . . . . . . . . . . 105 Classic house numbers . . . . . . . . . . . . . . . . 107 Door knockers, push & pull & plates . . . . . 109 Kickplates . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 Window hardware, flush pulls . . . . . . . . . . . 111 Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Latch & strike quick reference guide . . . . . 112 Latches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Strikes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Assembly screw kits . . . . . . . . . . . . . . . . . . . 119 Thick door installation kits, miscellaneous parts . . . . . . . . . . . . . . . . . . . 120 Key & cylinder stamping, residential master & construction keying . . . . . . . . . . . . . . . . . . . 122 Construction core program . . . . . . . . . . . . 124

Cables, Chains & Padlocks

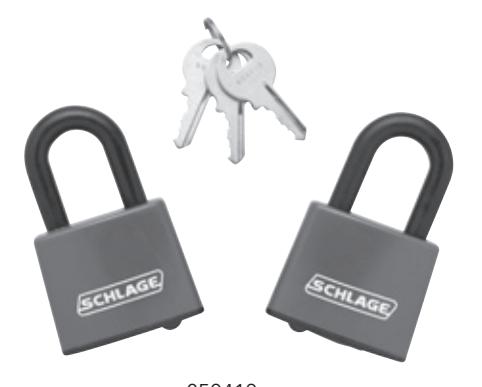

Padlocks	131

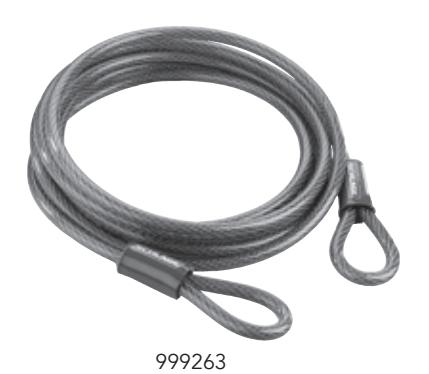

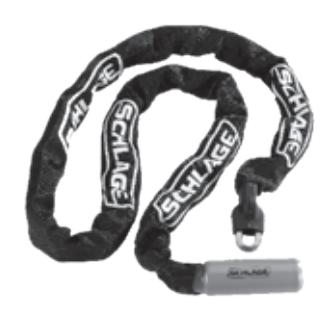

Cables & chains	132

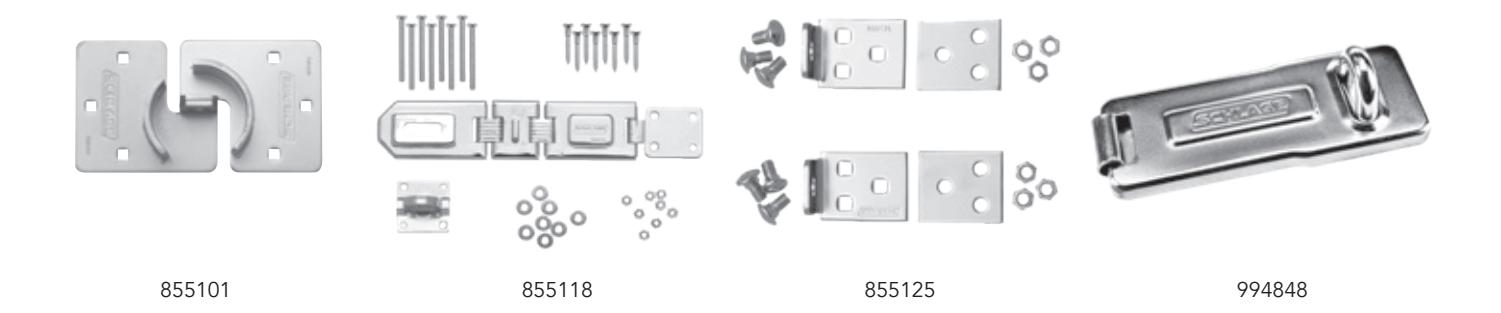

Security hasps	134
Warranties
Product warranties	135
General terms & conditions	142
Standard product terms and conditions	147
How to Order
How to order	149
Visual pack carton specifications	150

Notes

Connected Deadbolts & Levers 7
Code Entry Locks 15

Connected Deadbolts & Levers

AVAILABLE FUNCTIONS

Deadbolts

BE479AA BE469ZP

BE468ZP or BE468GBAK

BE479 - Schlage Sense™ Smart Deadbolt

Share and control access with Schlage Home app for iOS and Android
Remote access available with Schlage Sense Wi-FiAdapter
Works with Apple HomeKit™ technology
App includes access codes schedules and audit trail capability
ANSI/BHMA A156.36-2010 Commercial Grade 1
ANSI/BHMA 156.40-2015 Residential Grade AAA

BE469 - Schlage Connect™ with Alarm

Uses Z-Wave® Plus to connect to an existing smart home or security system
Includes a built-in alarm that detects activity at the door
ANSI/BHMA A156.36-2010 Commercial Grade 1
ANSI/BHMA 156.40-2015 Residential Grade AAA
Auto Lock capability when programmed

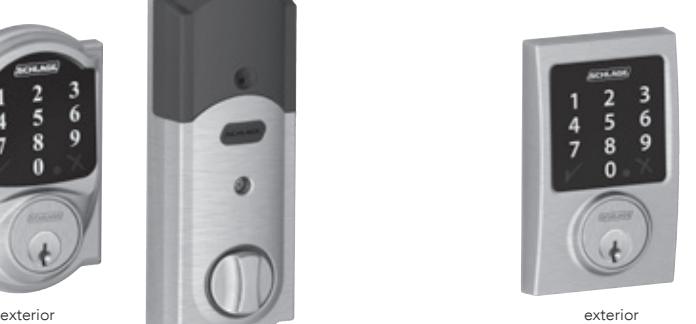

BE468 - Schlage Connect™

Uses Z-Wave® Plus or Zigbee to connect to an existing smart home or security system
ANSI/BHMA A156.36-2010 Commercial Grade 2
ANSI/BHMA 156.40-2015 Residential Grade BAA

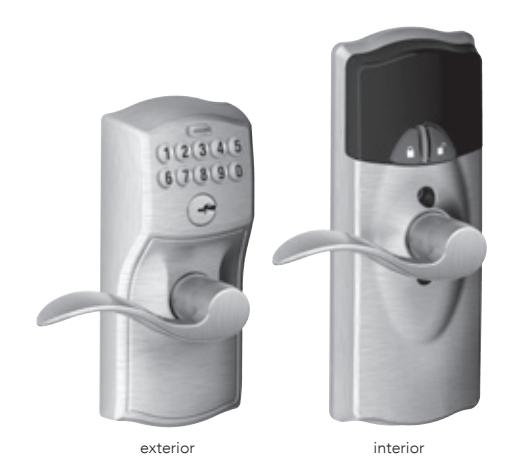

FE599 - Connected Keypad Lever

Uses Z-Wave® to connect to an existing smart home or security system
ANSI/BHMA A156.36-2003 Commercial Grade 2

PRODUCT IDENTIFICATION

BE	469ZP	V	CAM	619	12-342	10-116
Lock Series	Product	Vis Pack	Style	Finish Code	Latch	Strike

FINISH CODES & DESCRIPTIONS

FE599NX

505	530	605	608	609	613	618	619	620	621	622	625	626	716
Lifetime Bright Brass	Black Stainless	Bright Brass (US3)	Satin Brass	Antique Brass (US5)	Oil-Rubbed Bronze (US10B)	Polished Nickel	Satin Nickel (US15)	Antique Pewter (US15A)	Distressed Nickel	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Aged Bronze

Non-standard finishes are not available.

Full-color swatch examples available on inside Electronics tab.

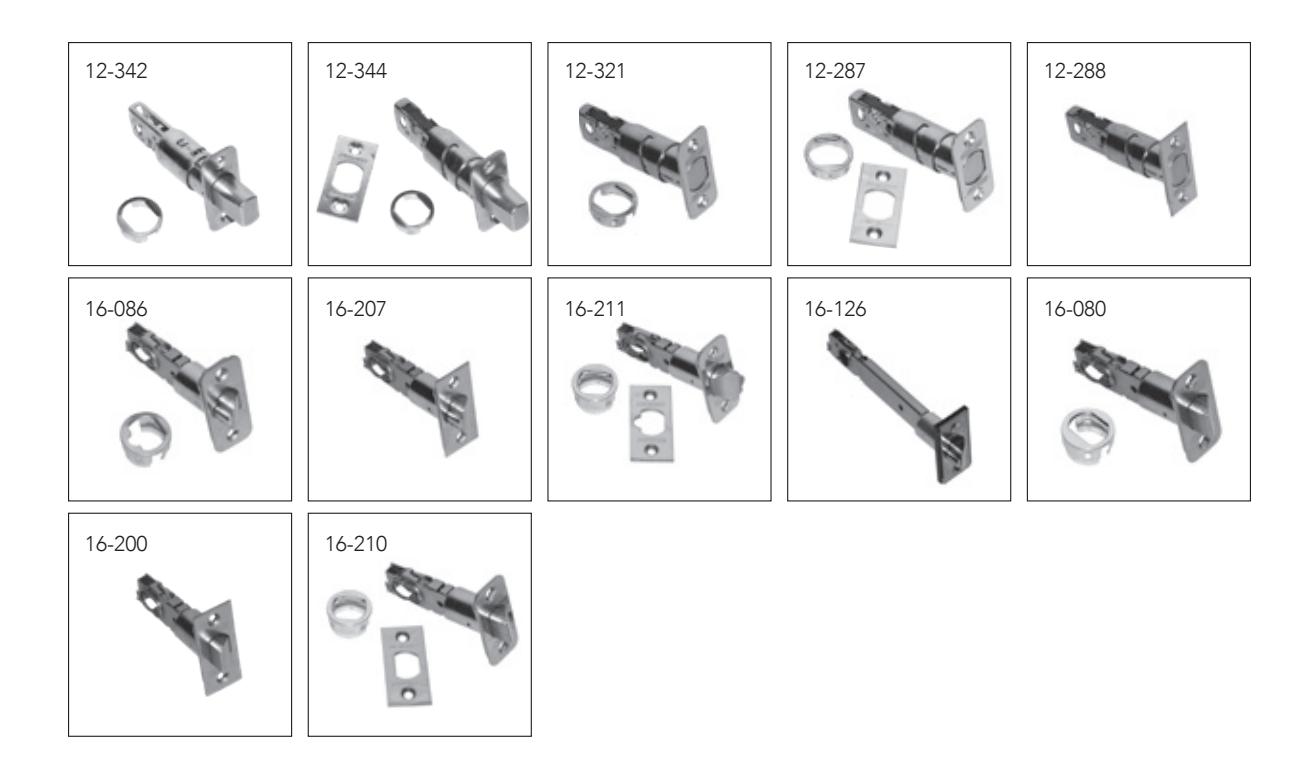

LATCHES & STRIKES

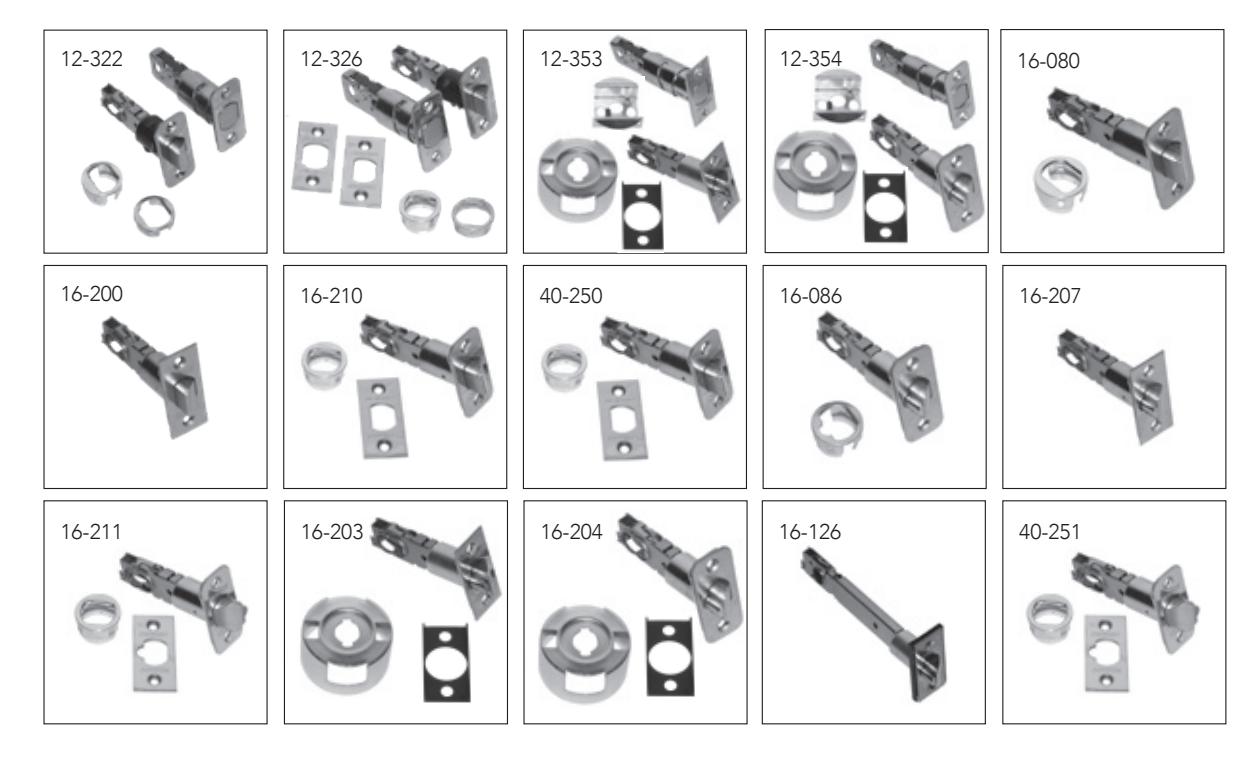

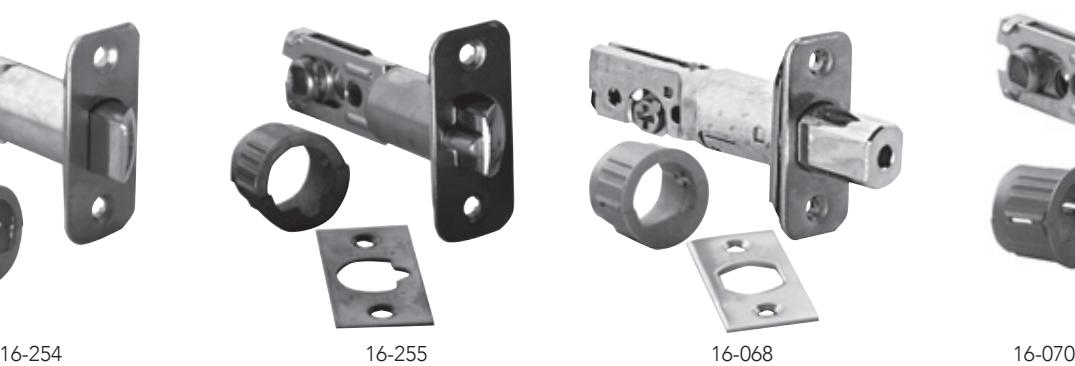

Latches

Motorized Deadbolt Latches

12-342 - Tapered Deadbolt Dual Option (Round, Drive-in) - STANDARD

12-344 - Tapered Deadbolt Triple Option (Round, Square, Drive-in)

Motorized Deadbolt Entry Set Latches

16-264 - Combo Taper Deadbolt & Spring Latch Dual Option (Round, Drive-in) - STANDARD

Non-Motorized Deadbolt Latches

12-321 - Dual Option (Round, Drive-in) - STANDARD 12-287 - Triple Option (Round, Square, Drive-in)

Keyed Latches - Dead Latches

16-086 - Dual Option (Round, Drive-in) - STANDARD 16-211 - Triple Option (Round, Square, Drive-in)

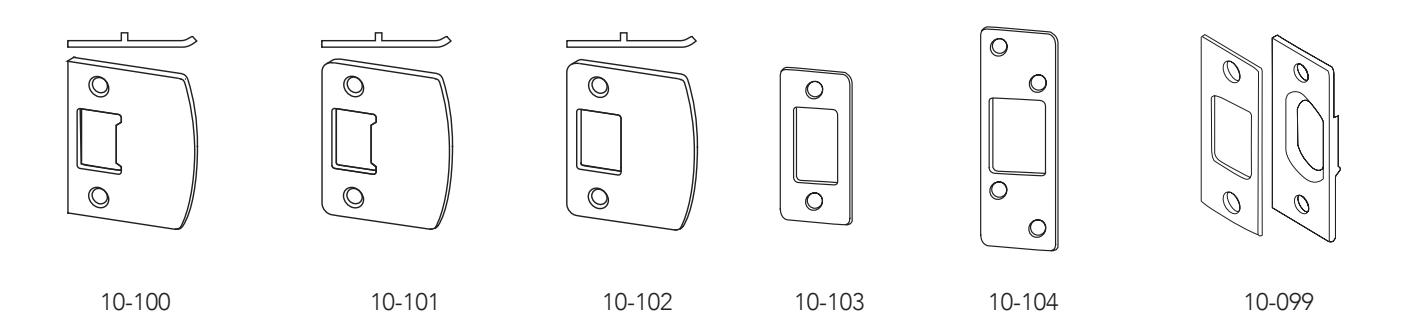

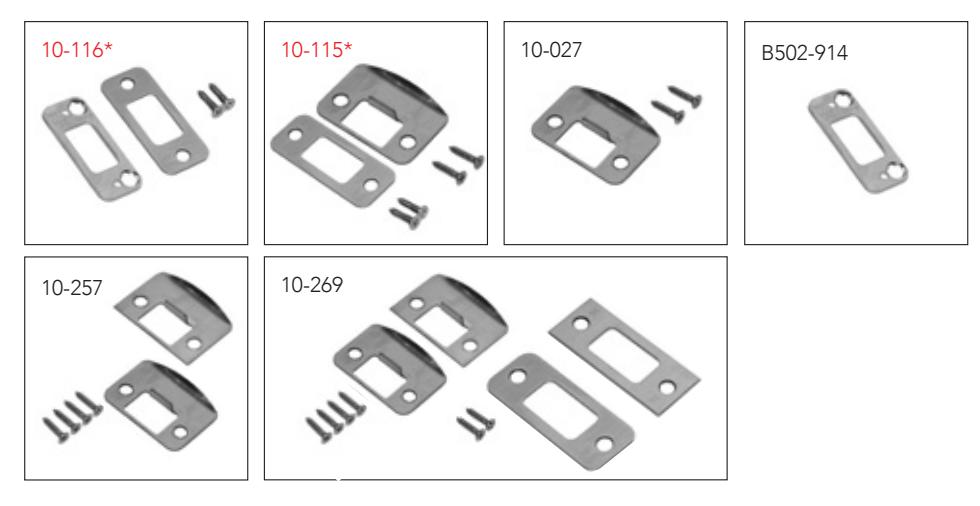

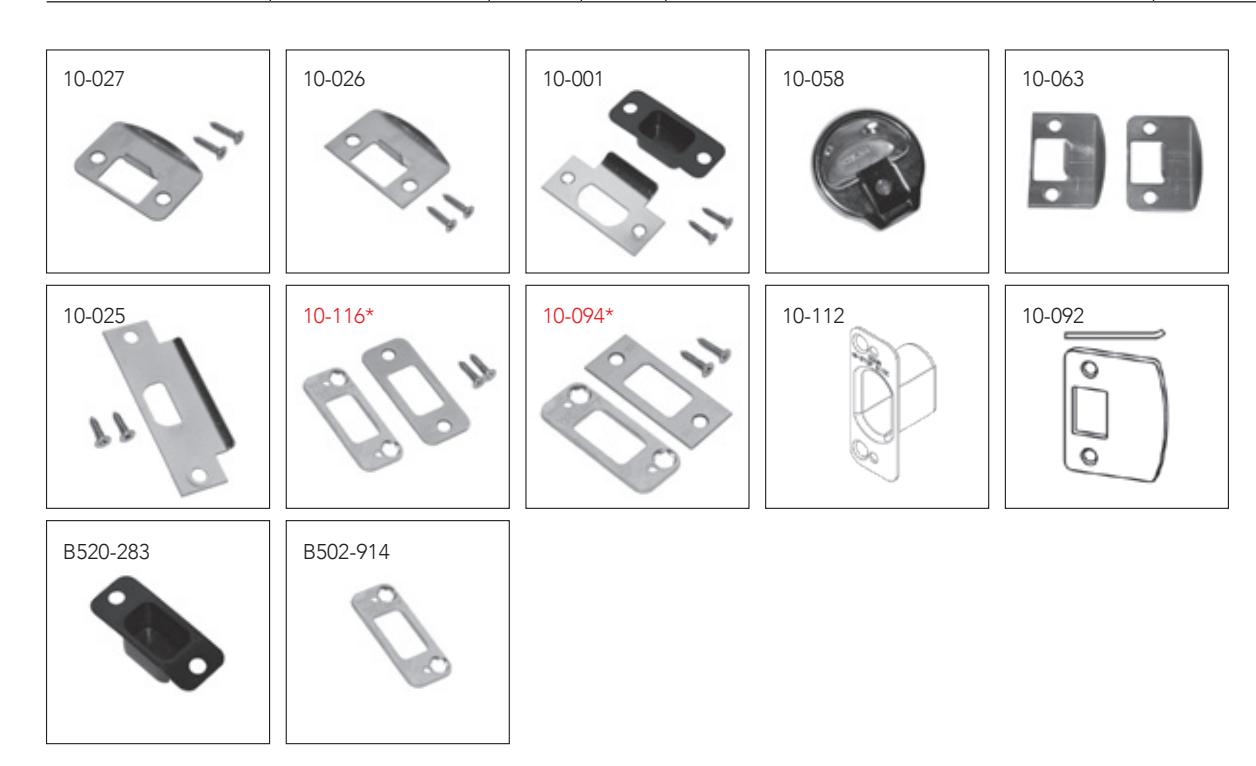

Strikes

Deadbolt Strikes

10-116 - Round Corner Strike with Reinforcer -STANDARD

Deadbolt Entry Set Strikes

10-115 - Round Corner Full Lip Strike Set - STANDARD

Lever Strike

10-027 - Round Corner Full Lip Strike - STANDARD

STANDARD FEATURES / CONFIGURATIONS

	Schlage Sense ^™ BE479AA	Schlage Connect ^™ BE469ZP	Schlage Connect ^™ BE468ZP or BE468GBAK	Connected Keypad Lever FE599NX
Certification:	ANSI/BHMA A156.36-2010 Commercial Grade 1 ANSI/BHMA 156.40-2015 Residential Grade AAA	ANSI/BHMA A156.36-2010 Commercial Grade 1 ANSI/BHMA 156.40-2015 Residential Grade AAA	ANSI/BHMA A156.36-2010 Commercial Grade 2 ANSI/BHMA 156.40-2015 Residential Grade BAA	ANSI/BHMA A156.39 Residential Grade BAA
Product Dimensions: (wxhxd)	ext: 3"x 5"x 1" int: 3"x 8"x 2"	ext: 3"x 5"x 1" int: 3"x 8"x 2"	ext: 3"x 5"x 1" int: 3"x 8"x 2"	ext: 6 ⁷ / ₈ " x 3"x 2 ³ / ₄ " int: 3 ¹ / ₄ " x 8 ¹ / ₄ "x 2 ³ / ₄ "
Weight:	3.5 lbs	3.5 lbs	3.5 lbs	5.2 lbs
Warranty:	3 year electronics, limited lifetime mechanical & finish	3 year electronics, limited lifetime mechanical & finish	3 year electronics, limited lifetime mechanical & finish	3 year electronics, limited lifetime mechanical & finish
Battery:	4 AA	4 AA	4 AA	4 AA
Latch Throw:	1"	1"	1"	1/2"
Key & Cylinder:	1 key, 5-pin, C keyway	1 key, 5-pin, C keyway	1 key, 5-pin, C keyway	1 key, 5-pin, C keyway
Door Thickness:	1 ³ / ₈ " to 1 ³ / ₄ "; Thick door kit extends 1 ⁷ / ₈ " to 2 ¹ / ₂ "	1 ³ / ₈ " to 1 ³ / ₄ "; Thick door kit extends 1 ⁷ / ₈ " to 2 ¹ / ₂ "	1 ³ / ₈ " to 1 ³ / ₄ "; Thick door kit extends 1 ⁷ / ₈ " to 2 ¹ / ₂ "	1 ³ / ₈ " to 1 ³ / ₄ "
Cross Bore Distance:	4" center-to-center minimum	4" center-to-center minimum	4" center-to-center minimum	5 ¹ / ₂ " center-to-center minimum
Cross Bore Diameter:	1 ¹ / ₂ " or 2 ¹ / ₈ "	1 ¹ / ₂ " or 2 ¹ / ₈ "	1 ¹ / ₂ " or 2 ¹ / ₈ "	21/8"
Edge Bore Diameter:	1"	1"	1"	1"
Backset:	2 ³ / ₈ " or 2 ³ / ₄ "	2 ³ / ₈ " or 2 ³ / ₄ "	2 ³ / ₈ " or 2 ³ / ₄ "	2 ³ / ₈ " or 2 ³ / ₄ "
Faceplate Size:	1" × 2 ¹ / ₄ "	1" x 2 ¹ / ₄ "	1" x 2 ¹ / ₄ "	1" x 2 ¹ / ₄ "
Faceplate Options:	Round corner, square corner, and drive-in (dual option standard)	Round corner, square corner, and drive-in (dual option standard)	Round corner, square corner, and drive-in (dual option standard)	Round corner, square corner, and drive-in
Strike:	1 ¹ / ₈ " x 2 ³ / ₄ " round corners, strike reinforcer	$1^{1}/_{8}$ " x $2^{3}/_{4}$ " round corners, strike reinforcer	1 ¹ / ₈ " x 2 ³ / ₄ " round corners, strike reinforcer	1 ¹ / ₈ " x 2 ³ / ₄ " radius corner, full lip, latch strike
Codes:	Pre-set, unique 6 digit programming code, 2 pre- set unique 4-digit access codes, 30 access code capacity (4-8 digits)	Pre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 30 code capacity	Pre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 30 code capacity	Pre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 19 code capacity
Communications:	Bluetooth® Smart***	900 MHz (Z-Wave® RF)**	900 MHz (Z-Wave® RF)**	900 MHz (Z-Wave® RF)**
Operating Temps:	Ext: -35C to 66C Int: -10C to 49C	Ext: -30C to 66C Int: -10C to 49C	Ext: -30C to 66C Int: -10C to 49C	Ext: -30C to 66C Int: -10C to 49C

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Schlage Lock Company, LLC is under license. ^HomeKit™ is a trademark of Apple Inc.

PACKAGING & CARTON SPECS

	INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
BE479	5.2 lbs	9.8 in.	6.5 in.	5.7 in.	1	5.2	0.21	9.8 in.	6.5 in.	5.7 in.
BE469	3.8 lb	9.25 in.	5.125 in.	4.5 in.	4	16.0	0.58	10.0 in.	9.625 in.	10.5 in.
BE468	3.8 lb	9.25 in.	5.125 in.	4.5 in.	4	16.0	0.58	10.0 in.	9.625 in.	10.5 in.
FE599	5.15 lb	8.86 in.	7.42 in.	5.87 in.	2	10.8	0.42	9.55 in.	7.8 in.	12.08 in.

For Vis Pack carton specs, see page 150

Peace of mind from anywhere

Secure remote access from anywhere no hubs or adapters required
One-button enrollment allows for quicker, more convenient installation and set-up for owners

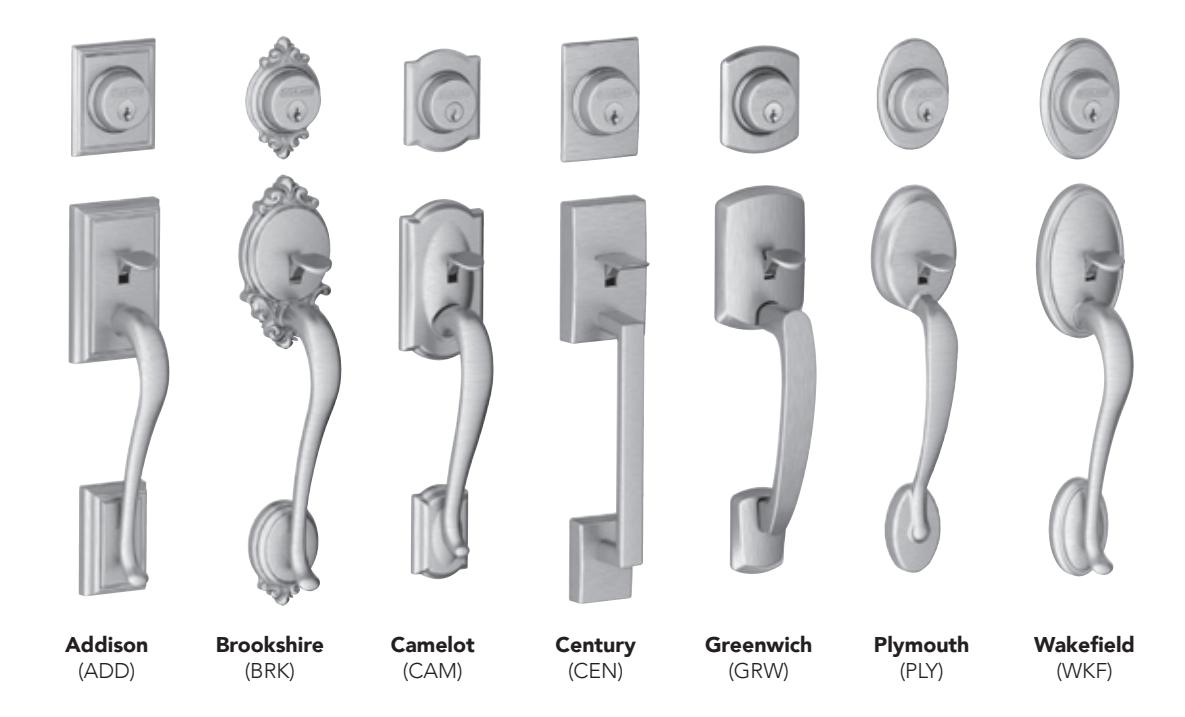

Paired with Schlage Camelot or Century handleset
Works with Schlage Home app, Key by Amazon and Amazon Alexa
· Firmware updates through the app ensure future compatibility

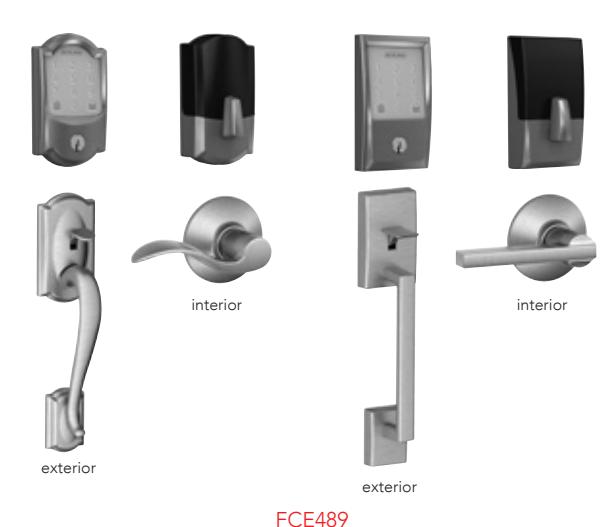

FCE489

Schlage Encode™ Smart WiFi Deadbolt with Schlage Custom handleset exterior

FINISHES

Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot	Box	•	$776	•	•	•	$776	•	•	$776	$776	•	$776	•
(CEN) Century	Box	•	776	•	•	•	776	•	•	776	776	•	776	-

FCE489

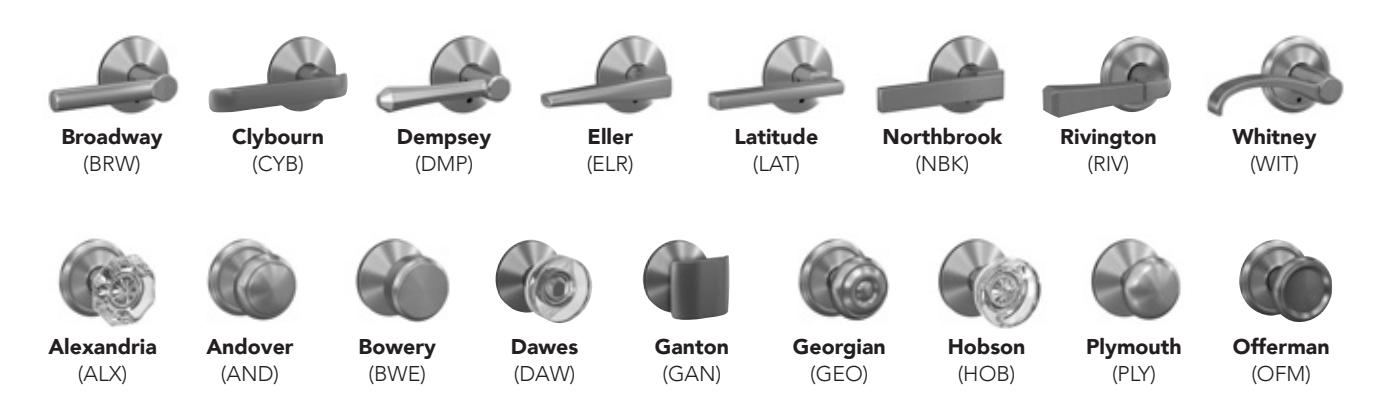

FCE489 Handleset interior	options						FI	NISH	ES
Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613

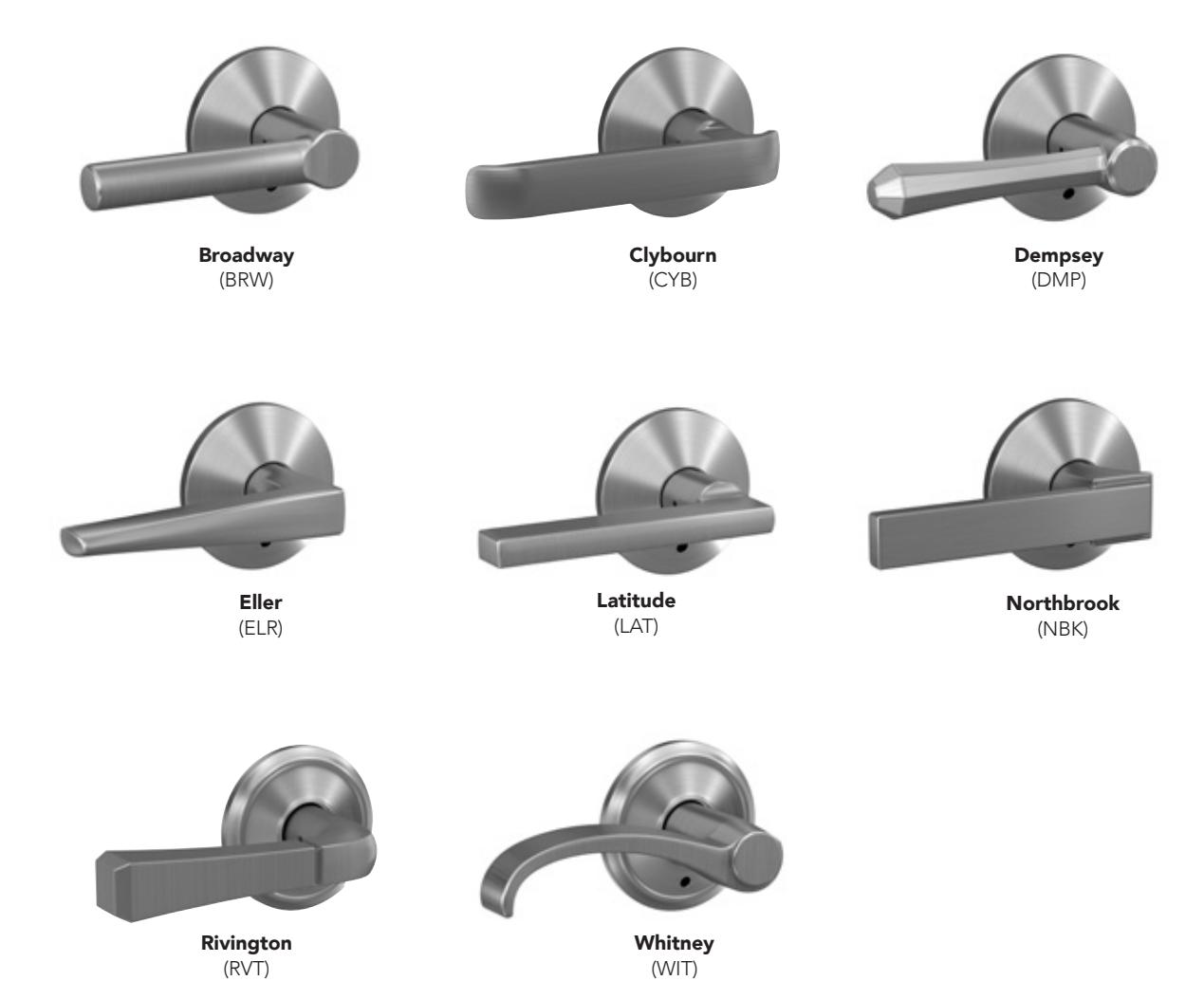

Interior Thumbturn & Interio	or Lever
(LAT) Latitude Lever	Вох	•	/	•	•	•	/	•	•	_	•	•	_
(BRW) Broadway Lever	Box	•		•	•	•	√	•	•			•	_

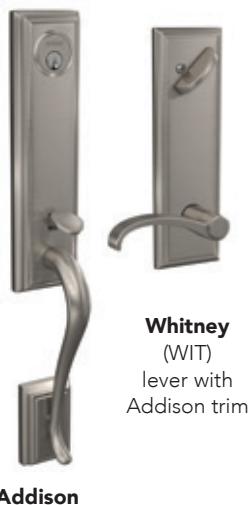

(WIT) Whitney Lever	Вох	•	/	•	•	•	/	•	•	_	•	•	_
(DMP) Dempsey Lever	Box	•		•	•	•	/	•	•	_	•	•	•
(NBK) Northbrook Lever	Box	•		•	•	•	/	•	•	_	_	•	/
(ELR) Eller Lever	Box	•		•	•	•	/	•	•	_	_	•	/
(RVT) Rivington Lever	Вох	•		•	•	•	/	•	•	•	•		/
(CYB) Clybourn Lever	Box	•	· .	•	•	•	/	•	•	/	•	•	•
Interior Thumbturn & Interio	or Knob
(ALX) Alexandria Knob	Box	•	/	•	•	•	/	•	•	_	•	•

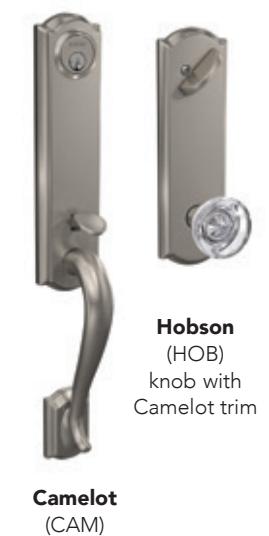

(HOB) Hobson Knob	Box	•		•	•	•	/	•	•	_	•	•
(PLY) Plymouth Knob	Box	•		•	•	•	/	•	•	_		•
(GEO) Georgian Knob	Box	•		•	•	•	/	•	•	_		•
(BWE) Bowery Knob	Box	•	/	•	•	•	/	•	•	/		•	/
(AND) Anover Knob	Box	•		•	•	•	/	•	•	•	•		/
(DAW) Dawes Knob	Box	•		•	•	•	/	•	•	/			•
(GAN) Ganton Knob	Вох	•			•	•	1			1	•	•	•	•
(OFM) Offerman Knob	Box	•		•	•	•	1	•	•	•	•		/	•

Schlage Encode only sold paired with a handleset or a combo pack.

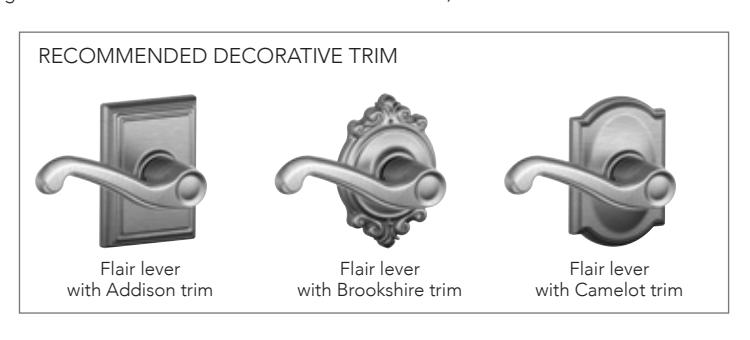

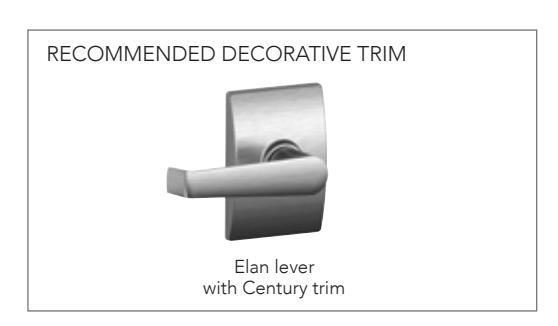

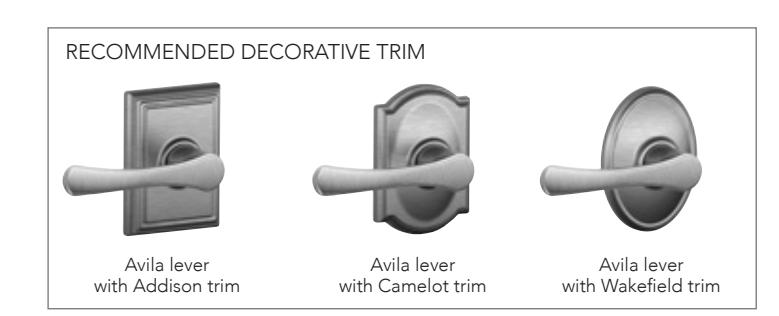

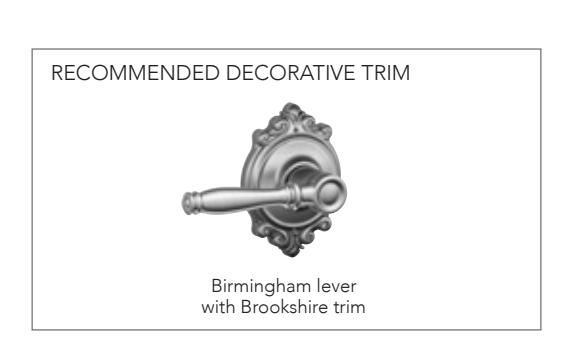

Decorative trim - add $10 to list price. See page 38 for details.

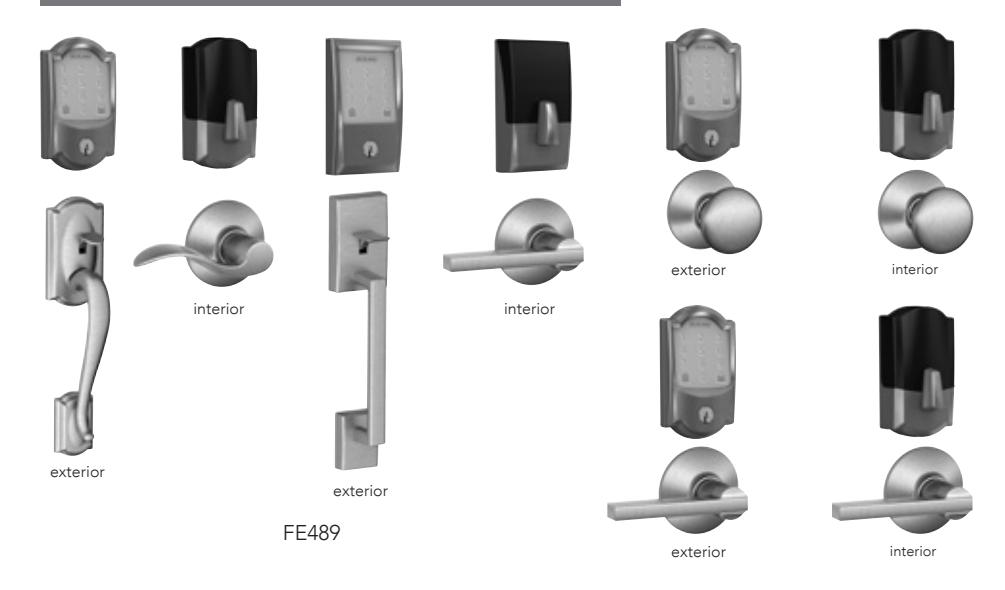

FE489 FBE489 Schlage Encode™ Smart WiFi Deadbolt with handleset exterior FINISHES

Style/Design	Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot	Box	•		•	•	•	•	$760	•	•	$760	$760	•	$760	-
(CEN) Century	Вох					•		760		-	760	760	-	760	•

FBE489

Schlage Encode™ Smart WiFi Deadbolt combo pack FINISHES

Style/Design	Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot	Вох			•	•	•	•	$610	•	•	$610	$610	•	$610	-
(CEN) Century	Вох							610		•	610	610	-	610	•

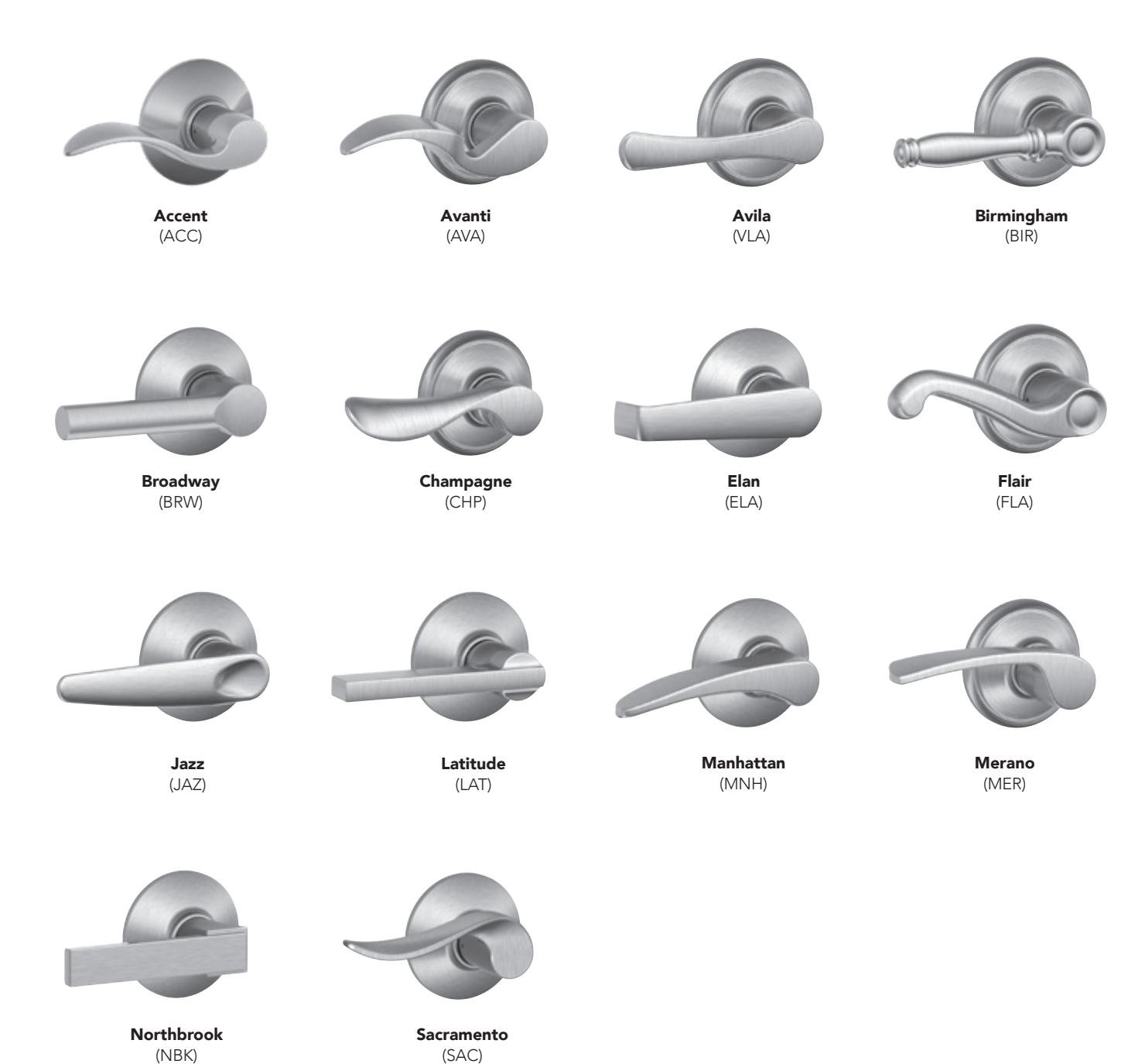

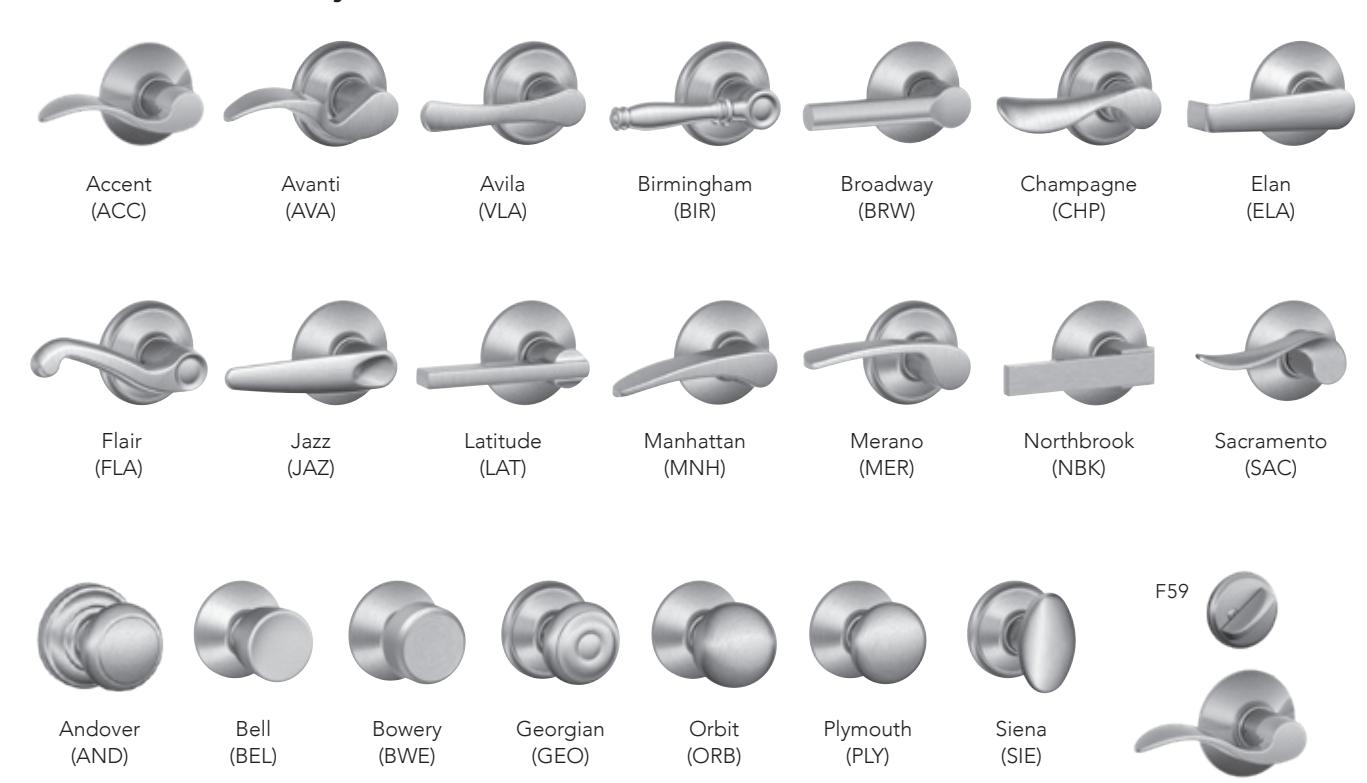

FE489 Handleset interior options FBE489 Knob and Lever options

FINISHES

Style/Design	Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interio	or Lever
(VLA) Avila Lever	Вох		·	•	•	•	•	/	•	•	•	/		/
(SAC) Sacramento Lever	Вох	•		•	•	•		/	•	•	•	/	•	/
(ACC) Accent Lever*	Вох		Ŀ	•	•	•		/	•	•	/	_		/

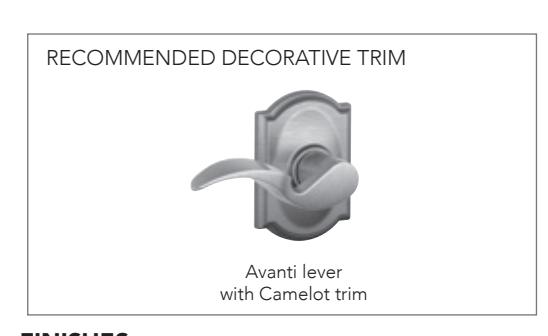

(AVA) Avanti Lever*	Вох		Ŀ	•	•	•	•	/	•	•	•	_	•	/
(BIR) Birmingham Lever	Вох	-	Ŀ	•	•	•	•	/	•	•	•	_	•	/
(BRW) Broadway Lever	Вох	-	Ŀ	•	•	•	•	/	•	•	/	_	•	/	· .
(ELA) Elan Lever	Вох		Ŀ	•	•	•	•	/	•	•	/	_		/	Ŀ
(FLA) Flair Lever*	Вох	•	Ŀ	•	•	•	•	/	•		•	/	•	/
(JAZ) Jazz Lever	Вох		Ŀ	•	•	•	•	/	•	•	•	•

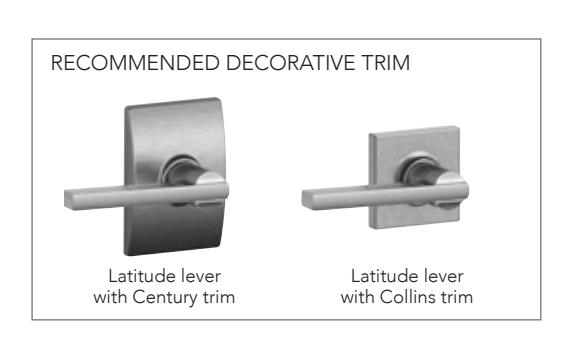

(LAT) Latitude Lever	Вох		Ŀ	•	•	•	•	/	•	•	/	_		/

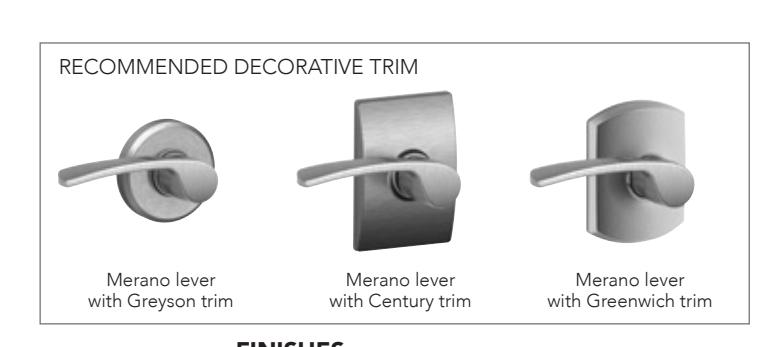

(MER) Merano Lever*	Box					•		/			/	/		/	· .
(MNH) Manhattan Lever*	Вох		Ŀ	•	•	•	•	/	•	•	•	_	•
(NBK) Northbrook lever	Вох			•	•	•	•	_	•	•	•	•	•
(CHP) Champagne Lever*	Вох			•	•	•	•	/	•	•	•	•	•	/
Interior Thumbturn & Interio	or Knob
(BEL) Bell Knob	Вох	•	Ŀ	•	•	•	•	/	•	•	•	_		/
(GEO) Georgian Knob	Вох	•		•	•	•	•	/	•	•	_	_	•	/
(PLY) Plymouth Knob	Вох	•		•	•	•	•	/	•	•	_	_	•	/
(AND) Andover Knob	Вох	•	Ŀ	•	•	•	•	/	•	•	•	_		/
(BWE) Bowery Knob	Вох		Ŀ	•	•	•	•	/	•	•	/	_		/

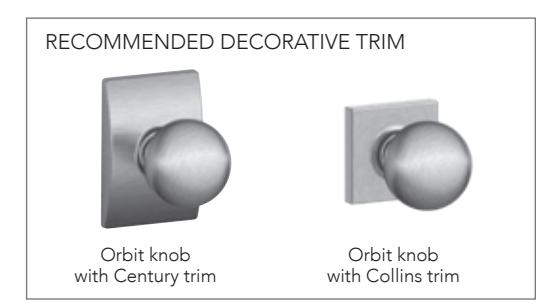

(ORB) Orbit Knob	Вох	•		•	•	•	•	1	•	•	•	1	•	•	_ ·
(SIE) Siena Orbit Knob	Вох	•		•	•		•	1		•	1	1		1

Schlage Encode only sold paired with a handleset or a combo pack.

List Price Adder:

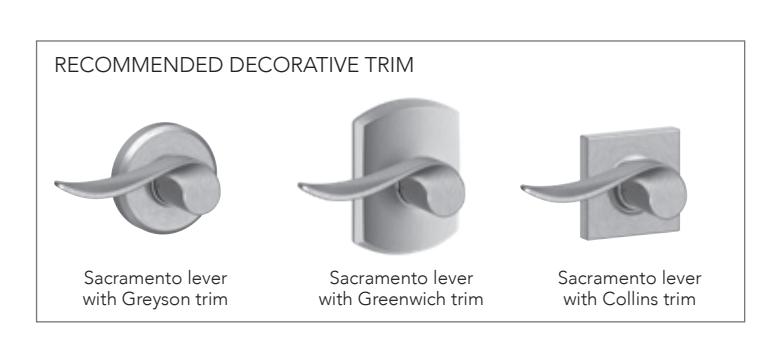

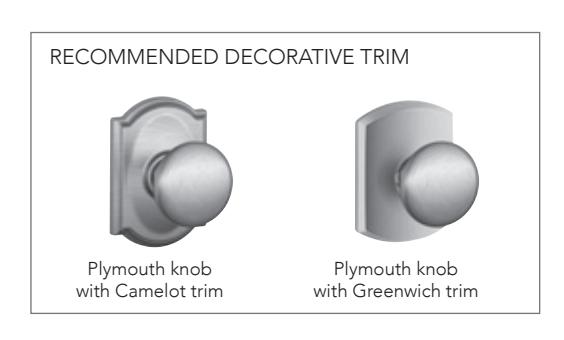

Decorative trim - add $16 to list price. See page 38 for details.

STANDARD FEATURES / CONFIGURATIONS

Schlage	Encode™	BE489WB

	Schage Encode BE40744B
Certification:	ANSI/BHMA A156.36 Commercial Grade 1 ANSI/BHMA 156.40-2015 Residential Grade AAA UL Listed for 20 minute fire door. No hose
Product Dimensions: (wxhxd)	ext: 3" x 5" x 0.9" int: 3" x 5.5" x 2.2"
Weight:	3.4 lbs
Warranty:	3 year electronics, limited lifetime mechanical & finish
Battery:	4 AA
Latch Throw:	1"
Key & Cylinder:	1 key, 5-pin, C keyway
Door Thickness:	$1^3/8$ " to $1^3/4$ "; Thick door kit extends $1^7/8$ " to $2^1/2$ "
Cross Bore Distance:	4" center-to-center minimum
Cross Bore Diameter:	1 ¹ / ₂ " or 2 ¹ / ₈ "
Edge Bore Diameter:	1"
Backset:	2 ³ / ₈ " or 2 ³ / ₄ "
Faceplate Size:	1" x 2 ¹ /4"
Faceplate Options:	Round corner, square corner, and drive-in (triple option standard)
Strike:	$1^{1}/8$ " x $2^{3}/4$ " round corners, strike reinforcer
Codes:	Pre-set, unique 6 digit programming code, 2 pre-set unique 4-digit access codes, 100 access code capacity
Communications:	WiFi
Operating Temps:	Ext: -35C to 66C Int: -10C to 49C

interior

BE479AA Camelot (CAM)

BE479AA Century (CEN)

BE479AA Series Schlage Sense™ Smart Deadbolt FINISHES

Function	Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
BE479AA Camelot	Box/Vis	n	n	$490	n	n	n	$490	n	n	490	$490	n	$490	n
BE479AA Century	Box/Vis	n	n	490	n	n	n	490	n	n	490	490	n	490	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Triple Option Latch - add $2 to list price Split Finish - add $6.50 to highest list price

BR400 Series Schlage Sense Wi-Fi Adapter

With the optional Schlage Sense™ Wi-Fi Adapter users can lock and unlock their Schlage Sense™ Smart Deadbolt from anywhere using iOS and Android™ smartphones.*

Features:

Lock/unlock your Schlage Sense Smart Deadbolt from anywhere*
Easy setup and pairing with smartphone through Schlage Home app
Get lock/unlock push notifications
One Adapter can support up to two Schlage Sense™ Smart Deadbolts
Pairs only with Schlage Sense Smart Deadbolt (Sold Separately)
1-year warranty

back

* For remote capability, Schlage Sense Wi-Fi Adapter should be plugged into power, connected to Wi-Fi and
in Bluetooth range of the Schlage Sense Smart Deadbolt (about 40 feet).

UPC	Part No /Description	List Price
043156638741	BR400 Schlage Sense Wi-Fi Adapter	$ 126

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
BR400	0.4 lbs	4 in.	2.6 in.	4 in.	4	2.2 lbs.	0.15	8.7 in.	9 in.	3.3 in.

BE469ZP Camelot (CAM)

BE469ZP Century (CEN)

BE469ZP Series

Schlage Connect™ FINISHES

Function		Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
BE469ZP*	Camelot	Box/Vis	$440	n	$445	n	n	n	$445	n	n	$445 $445		n	$445	n
BE469ZP	Century	Box/Vis	n	n	445	n	n	n	445	n	n	445	445	445	445	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Triple Option Latch - add $2 to list price Split Finish - add $6.50 to highest list price

BE468ZP Camelot (CAM)

interior interior

BE468ZP Century

(CEN)

Durability, Finish White backlighting

BE468ZP features:

ANSI/BHMA Commercial Grade 2 Security Rating ANSI/BHMA Residential Grade BAA in Security,

No alarm function

BE468ZP Series FINISHES

Function		Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
BE468ZP	Camelot		$390	n	$395	n	n	n	$395	n	n		$395 $395	n	$395	n
BE468ZP	Century		n	n	395	n	n	n	395	n	n	395	395	395	395	n

List Price Adders:

Split Finish - add $6.50 to highest list price

BE468GBAK

Century (CEN)

interior

BE468GBAK features:

ANSI/BHMA Commercial Grade 2 Security Rating
ANSI/BHMA Residential Grade BAA in Security, Durability, Finish
White backlighting
No alarm function

BE468GBAK Camelot (CAM)

BE468GBAK

Schlage Connect™ Touchscreen Deadbolt FINISHES

Function	Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
BE468GBAK Camelot	Box/Vis	$440	n	$445	n	n	n	$445	n	n		$445 $445	n	$445	n
BE468GBAK Century	Box/Vis	n	n	445	n	n	n	445	n	n	445	445	n	445	n

List Price Adders:

Triple Option Latch - add $2 to list price Split Finish - add $6.50 to highest list price

FE599NX Camelot x Accent ((CAM x ACC)

FE599NX Series Connected Keypad Lever FINISHES

Function	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
FE599NX Camelot		n	$420	n	n	n	$420	n	n	n	n	n	$420	n

List Price Adders:

Triple Option Latch - add $2 to list price

Code Entry Locks

AVAILABLE FUNCTIONS

Schlage Touch™ Locks ANSI/BHMA Commercial Grade 2 ANSI/BHMA Residential Grade AAA

BE375 – Touchscreen Deadbolt

Deadbolt retracted by entering valid user code then rotating outside thumbturn, or by inside thumb turn
Deadbolt thrown by using outside thumbturn after pressing Schlage button, or by inside thumbturn

FE695 – Touchscreen Lever

BE365 - Keypad Deadbolt

inside thumbturn

Keypad Locks

Unlocked by valid access code from outside
Inside knob or lever always unlocked
Interior switch sets lock to unlocked or automatic re-locking modes

ANSI/BHMA Commercial Grade 2

Deadbolt thrown from outside by keyway turn after pressing Schlage button or by

BE365

FE595

Key can be used to unlock as backup FE595 - Keypad Entry with Flex-Lock

Deadbolt retracted from outside by entering valid access code then rotating keyway turn or by inside thumbturn

Flex-locking, switch between unlocked or automatic re-locking
Unlocked by valid access code from outside
Inside knob or lever always unlocked
Key can be used to unlock as back-up

NOTE:

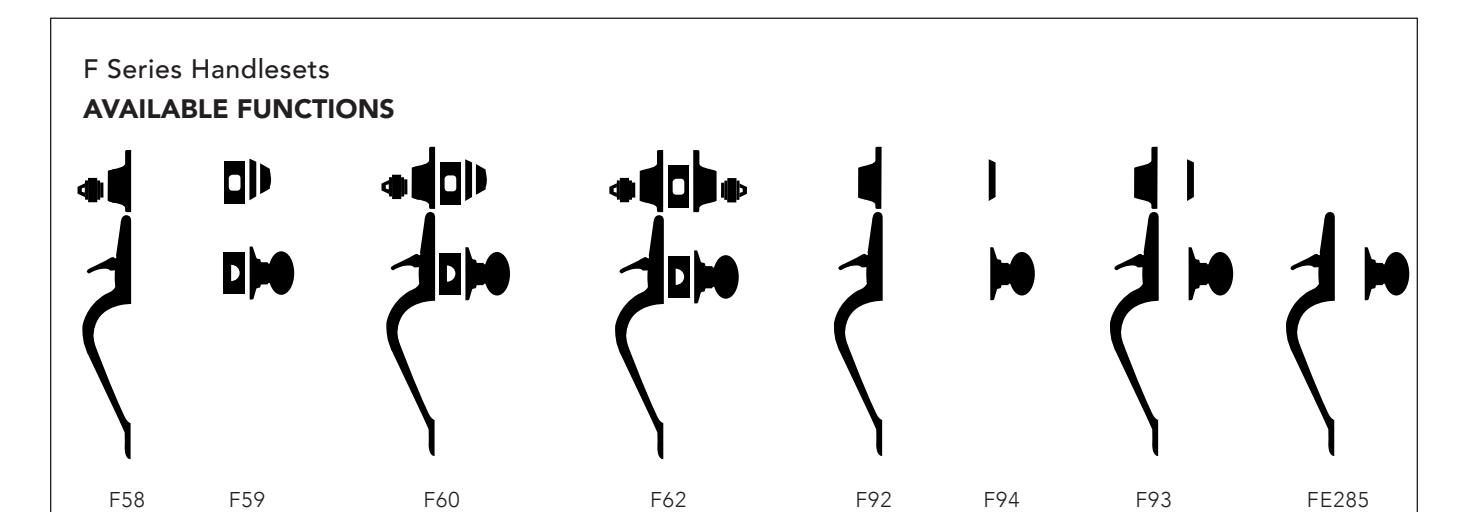

FE285 is now located in the Handleset section of the pricebook

FE575

FE575 - Keypad Entry with Auto-Lock

Auto-locking, automatically re-locks after 5 seconds
Unlocked by valid access code from outside
Inside knob or lever always unlocked
Key can be used to unlock as back-up

PRODUCT IDENTIFICATION

FE	595		PLY	505	FLA		12-322	10-115	KD
Lock Series	Product	Suffix Package	Style	Finish Code	Design	Hand	Latch	Strike	Keying

FINISH CODES & DESCRIPTIONS

505	530	605	608	609	613	618	619	620	621	622	625	626	716
Lifetime Bright Brass	Black Stainless	Bright Brass (US3)	Satin Brass	Antique Brass (US5)	Oil-Rubbed Bronze (US10B)	Polished Nickel	Satin Nickel (US15)	Antique Pewter (US15A)	Distressed Nickel	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Aged Bronze

Non-standard finishes are not available.

Full-color swatch examples available on inside Handleset tab.

CODE ENTRY LOCKS

STANDARD FEATURES / CONFIGURATIONS

Certification	Schlage Touch™ Electronic Deadbolt BE375	Schlage Touch™ Electronic Lever FE695
	ANSI/BHMA Commercial Grade 2 ANSI/BHMA Residential Grade AAA	ANSI/BHMA Commercial Grade 2 ANSI/BHMA Residential Grade AAA
Product Dimensions (inches) (w x h x d)	3 x 5.4 x 5.2	3 x 5.4 x 7.9
Weight	3.4 lbs	4.5 lbs
Warranty	3 year electronics, limited lifetime mechanical and finsh	3 year electronics, limited lifetime mechanical and finsh
Battery	9V battery (1)	9V battery (1)
Latch Throw	1"	1/2" throw, 7/8" housing diameter
Cylinder	None	None
Door Thickness	extends 1 3/8" to 1 3/4" 1 7/8" to 2 1/2"; thick door kit	1 3/8" to 1 3/4"
Cross Bore	2 1/8"	2 1/8"
Latch Faceplate Size	1"	1" x 2 1/4" radius corner
Latch/Backset	2 3/8" to 2 3/4" adjustable	2 3/8" OR 2 3/4" adjustable
Latch Faceplate Size	1" x 2 1/4"	1" x 2 1/4"
Latch Faceplate Options	Springlatch radius corner and circular drive-in faceplates	Springlatch radius corner and circular drive-in faceplates
Strike	1 1/8" x 2 3/4" round corners, strike reinforce	1 5/8" x 2 1/4", radius corner, full lip latch strikes
Keys	None	None
Codes	2 pre-set unique 4-digit access codes, storage of up to 19 access codes	2 pre-set unique 4-digit access codes, storage of up to 19 access codes
Operating Temperatures	Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C	Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C

LATCHES & STRIKES

FE Keypad Levers

Keyed Latches - Dead Latches

16-086 - Dual Option (Round, Drive-in) - STANDARD

16-207 - Square Corner

16-211 - Triple Option (Round, Square, Drive-in)

Strikes

10-027 - Round Corner Full Lip -STANDARD

10-001 - Square Corner T Strike

10-026 - Square Corner Full Lip

10-058 - Circular - Adjustable

10-063 - Dual Strikes (Round & Square Full Lip)

10-025 - ANSI Square Corner

BE Keypad Deadbolts

Latches

12-321 - Dual Option (Round, Drive-in) - STANDARD

12-288 - Square Corner

12-287 - Triple Option (Round, Square, Drive-in)

12-294 - UL Listed Square Corner with Firecup

12-397 - UL Listed Round Corner with Firecup

Strikes

10-116 - Round Corner Strike with Reinforcer -STANDARD

10-092 - Round Corner Full Lip Strike

10-094 - Square Corner Strike with Reinforcer

CODE ENTRY LOCKS

STANDARD FEATURES / CONFIGURATIONS

Certification	Electronic Keypad Lock BE365	Electronic Keypad Lock FE595	Electronic Keypad Lock FE575
	ANSI/BHMA Commercial Grade 2 ANSI/BHMA Residential Grade AAA	ANSI/BHMA Commercial Grade 2 ANSI/BHMA Residential Grade BAA	ANSI/BHMA Commercial Grade 2 ANSI/BHMA Residential Grade BAA
Product Dimensions (inches) (w x h x d)	6.77 x 4.22 x 8.39	3.01 x 6.84 x 6.85	3.01 x 6.84 x 6.85
Weight	5.5 lbs	5.05 lbs	4.25 lbs
Warranty	3 year electronics, limited lifetime mechanical and finsh	3 year electronics, limited lifetime mechanical and finsh	3 year electronics, limited lifetime mechanical and finsh
Battery	9V battery (1)	9V battery (1)	9V battery (1)
Latch Throw	1"	1/2" throw, 7/8" housing diameter	1"
Cylinder	5 pin, C keyway	5 pin, C keyway	5 pin, C keyway
Door Thickness	1 3/8" to 1 3/4"	1 3/8" to 1 3/4"	1 3/8" to 1 3/4"
Cross Bore	2 1/8"	2 1/8"	2 1/8"
Latch Faceplate Size	1"	1" x 2 1/4" radius corner	1"
Latch/Backset	2 3/8" to 2 3/4" adjustable	2 3/8" to 2 3/4" adjustable	2 3/8" to 2 3/4" adjustable
Latch Faceplate Size	1" x 2 1/4"	1" x 2 1/4"	1" x 2 1/4"
Latch Faceplate Options	Round corner, square corner, and drive-in (dual option standard)	Springlatch radius corner and circular drive-in faceplates	Round corner, square corner, and drive-in (dual option standard)
Strike	1 1/8" x 2 3/4" round corners, strike reinforce	1 5/8" x 2 1/4", radius corner, full lip latch strikes	1 1/8" x 2 3/4" round corners, strike reinforce
Keys	1 Key	1 Key	1 Key
Codes	2 pre-set unique 4-digit access codes, storage of up to 19 access codes	2 pre-set unique 4-digit access codes, storage of up to 19 access codes	2 pre-set unique 4-digit access codes, storage of up to 19 access codes
Operating Temperatures	Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C	Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C	Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Levers
FE375	3.31	4.63 in.	9.25 in.	5.00 in.	6	20.80	0.83	9.75 in.	9.50 in.	15.50 in.
FE695	4.04	6.00 in.	6.50 in.	9.13 in.	6	27.00	1.44	9.75 in.	12.75 in.	20.00 in.
BE365	5.50	4.22 in.	6.77 in.	8.39 in.	6	33.00	1.00	9.30 in.	13.50 in.	14.10 in.
FE595	5.05	4.75 in.	8.00 in.	9.50 in.	6	30.30	1.50	10.60 in.	14.00 in.	17.00 in.
FE575	4.25	4.75 in.	8.00 in.	9.50 in.	6	25.50	1.50	10.60 in.	14.00 in.	17.00 in.
FE285	5.00	3.88 in.	8.00 in.	16.25 in.	4	21.00	1.36	8.50 in.	16.00 in.	17.30 in.

For Vis Pack carton specs, see page 150

Schlage Touch™ Deadbolts

BE375 Century (CEN)

BE375 Series Schlage Touch™ Deadbolts FINISHES

Function	Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
BE375	Camelot	Box/Vis	$250	n	n	$255	n	$255	n	n	$255	$255		$255 $255	n
BE375	Century	Box/Vis	n	n	n	n	n	255	n	n	255	255	255	255	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Triple Option Latch - add $2 to list price

Schlage Touch™ Keyless Touchscreen levers

FE695 FE695

Camelot x Accent Camelot x Flair (CAM) (ACC) (CAM) (FLA)

Century x Broadway Century x Latitude Century x Merano

FE695 FE695 FE695 (CEN) (BRW) (CEN) (LAT) (CEN) (MER)

FE695 Series Schlage Touch Keyless Touchscreen Levers FINISHES

Function	Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot
FE695	Accent	Box/Vis	$270	n	n	$275	n	$275	n	n	$275	$275	$275	$275	n
FE695	Flair	Box	270	n	n	275	n	275	n	n	n	n	275	275	n
(CEN) Century
FE695	Broadway	Box	n	n	n	n	n	275	n	n	275	275	275	275	n
FE695	Elan	Box	n	n	n	n	n	n	n	n	n	n	275	n	n
FE695	Latitude	Box/Vis	n	n	n	n	n	275	n	n	275	275	275	275	n
FE695	Merano	Box	n	n	n	n	n	275	n	n	275	275	275	275	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Triple Option Latch - add $2 to list price

Keypad Deadbolts

BE365 Camelot (CAM)

BE365 Plymouth (PLY)

BE Series Keypad Locks FINISHES

Function		Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
BE365	Camelot	Box/Vis	n		$225 $225	n	$225	n	$225 $225		n	n	n		$225 $225	n
BE365	Plymouth	Box/Vis	n	225	n	n	225	n	225	225	n	n	n	225	225	n
BE365F20	Camelot	Box	n	240	n	n	240	n	240	240	n	n	n	240	240	n
BE365F20	Plymouth	Box	n	240	n	n	240	n	240	240	n	n	n	240	240	n
BE365F	Camelot UL	Box	n	280	n	n	280	n	280	280	n	n	n	280	280	n
BE365F	Plymouth UL	Box	n	280	n	n	280	n	280	280	n	n	n	280	280	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Triple Option Latch - add $2 to list price

Keypad Lever Lock

FE595 Series Keypad Locks FINISHES

Function	Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot
FE595	Accent Lever	Box/Vis	n	$245	n	$245	n	$245	$245	n	n	n		$245 $245	n
FE595	Georgian Knob	Box	n	230	n	230	n	230	n	n	n	n	n	230	n
(PLY) Plymouth
FE595	Accent Lever	Box	n	245	n	n	n	245	245	n	n	n	n	245	n
FE595	Latitude Lever	Box/Vis	n	n	n	n	n	245	n	n	n	n	245	n	n
FE595	Elan Lever	Box	n	n	n	n	n		n	n	n	n	245	n	n
FE595	Flair Lever	Box/Vis	n	245	n	245	n	245	245	n	n	n	245	245	n
FE595	Jazz Lever	Box	n	n	n	n	n		n	n	n	n	245	n	n
FE595	Plymouth Knob	Box	n	230	n	n	n	230	n	n	n	n	n	n	n
FE595	Merano Lever	Vis	n	n	n	n	n	245	n	n	n	n	n	n	n
FE595CSV	Elan Lever	Vis	n	n	n	n	n	n	n	n	n	n	245*	245*	n
FE595CSV	Orbit Knob	Vis	n	n	n	n	n	n	n	n	n	n	230*	n	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price

Triple Option Latch - add $2 to list price

^* Contractor Series. Visual Package and Triple Option Latch only - add $13 to list price

Keypad Lever Auto Locks

FE575 Camelot x Accent (CAM) (ACC)

Plymouth x Accent Plymouth x Elan Plymouth x Flair Plymouth x Jazz

FE575 FE575 FE575 FE575 (PLY) (ACC) (PLY) (ELA) (PLY) (FLA) (PLY) (JAZ)

FE575 Series Keypad Entry Auto-Locks (cont.) FINISHES


IAI	C	ш	EC

Function	Style/Design	605	505	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot
FE575	Accent Lever	n	$235	n	$235	n	$235	$235	n	n	n	$235	$235	n
(PLY) Plymouth
FE575	Accent Lever	n	n	n	n	n	235	235	n	n	n	n	235	n
FE575	Elan Lever	n	n	n	n	n	n	n	n	n	n	235	n	n
FE575	Flair Lever	n	235	n	235	n	235	235	n	n	n	235	235	n
FE575	Jazz Lever	n	n	n	n	n	n	n	n	n	n	235	n	n
FE575	Plymouth Knob	n	235	n	n	n	n	n	n	n	n	n	n	n

FC Series 23
FCT Series 29
F Series 31
F Series decorative collection 38
J Series 39

FC Series Handlesets

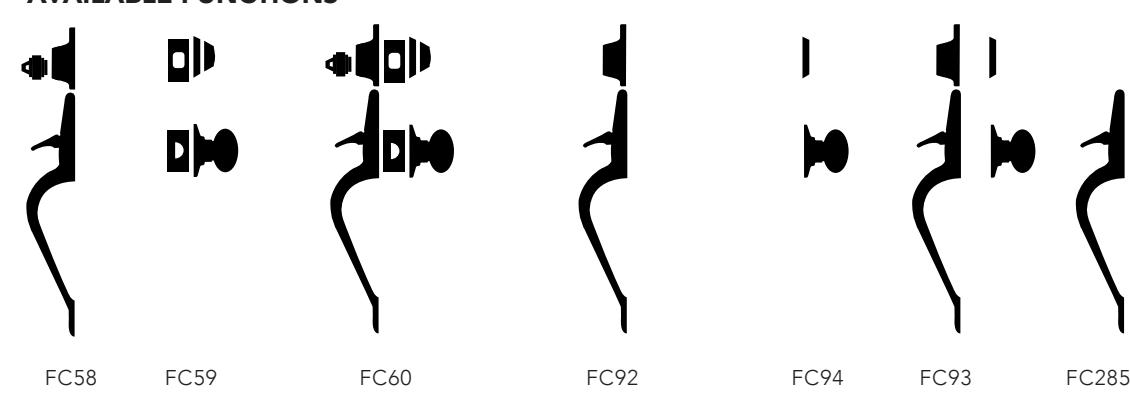

AVAILABLE FUNCTIONS

ANSI/BHMA A156.36 Commercial Grade 1 ANSI/BHMA A156.40 Residential Grade AAA Entrance Handlesets

FC58 – Handleset/Entrance Lock Exterior

Outside grip and deadbolt trim of FC60
Pair with an FC59 for a complete handleset

FC59 – Handleset/Entrance Lock Interior

Inside trim, deadbolt thumbturn, latches, strikes & screws for FC60
Pair with an FC58 for a complete handleset

FC60 – Single Cylinder Deadbolt/Entrance Lock

Deadbolt thrown or retracted by key from outside or by inside thumbturn
Latch retracted by thumbpiece from outside or by inside knob/lever

FC92 – Inactive Handleset Exterior

Outside inactive grip & dummy deadbolt
Pair with an FC94 for a complete inactive handleset

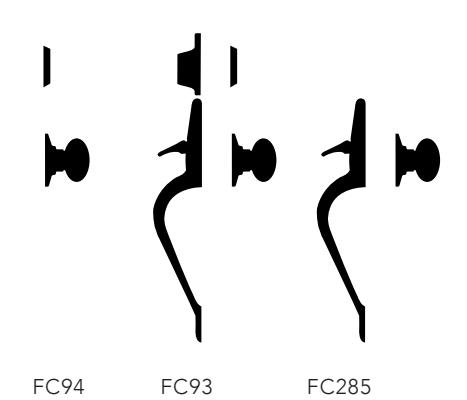

FC94 – Inactive Handleset Interior

Inside inactive knob/lever, blank deadbolt trim & screws
Pair with an FC92 for a complete inactive handleset

FC93 – Inactive Handleset

For use as door pull or as decorative trim on inactive leaf of pair of doors
Fixed thumbpiece and inside knob/lever
Decorative deadbolt with inside trim

FC285 - Lower Half - Front Entry Set

Combine with Electronic Deadbolt for complete Front Entry Set
Latch retracted by thumbpiece from outside or by inside knob/lever

PRODUCT IDENTIFICATION

FC	60	F	CEN	619	LAT	CEN	16-680	10-269	KD
Lock Series	Product	UL Fire Rated	Style	Finish Code	Design	Decorative Trim	Latch	Strike	Keying

LATCHES & STRIKES

Latches

16-680 - Dual Option (Round Corner & Drive-In) STANDARD

Strikes

10-115 - Round Corner Full Lip Strike Set (10-027 + 10-116)

10-269 - Round Corner Strike Set (10-026 + 10-027 + 10-116) STANDARD

STANDARD FEATURES / CONFIGURATIONS

FC-Series Entrance Handlesets*

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1

ANSI/BHMA A156.40-2015 Residential Grade AAA

Latch: 1"x 2 1/4" square corner, 1/4" radius corner faceplate, circular drive-in faceplate, 1" housing

diameter, 1/2" throw springlatch

Deadbolt: 1"x 2 1/4" square corner, 1/4" radius corner faceplate, circular drive-in faceplate, 1" housing

diameter, 1" throw

Strike: Part 10-269, includes: 1 1/4" radius round corner deadbolt strike (10-116), 1 square corner full 1 1/4"

radius round corner full lip strike (10-027)

Reinforcement: Door frame reinforcer with 3" screws

Backset: Universal backset latch and deadbolt, fits either 2 3/8" or 2 3/4" backsets

Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)

Door Range: 1 5/8" - 2 1/4"

Keys: Two cut keys per lock, 5-pin, C section

Adjustable

Throughbolt: Adjustable throughbolt can move up and down 1 1/2" to fit a variety of pre-existing holes

To order locks with non-standard features specify non-standard feature desired

FINISH CODES & DESCRIPTIONS

530	608	618	619	622	625	626	716
Black Stainless	Satin Brass	Polished Nickel	Satin Nickel (US15)	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Aged Bronze

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Handlesets
FC58	4.21	3.88 in.	8.00 in.	16.25 in.	4.00	17.75	0.02	8.38 in.	16.00 in.	16.88 in.
FC59	2.13	3.63 in.	4.25 in.	8.13 in.	8.00	17.95	0.02	6.50 in.	15.25 in.	18.25 in.
FC60	6.34	3.88 in.	8.00 in.	16.25 in.	4.00	26.27	0.02	8.38 in.	16.00 in.	16.88 in.
FC92	3.99	3.88 in.	8.00 in.	16.25 in.	4.00	16.87	0.02	8.38 in.	16.00 in.	18.88 in.
FC94	1.78	3.63 in.	4.25 in.	8.13 in.	8.00	15.15	0.02	6.50 in.	15.25 in.	18.25 in.
FC93	5.77	3.88 in.	8.00 in.	16.25 in.	4.00	23.99	0.02	8.38 in.	16.00 in.	16.88 in.

FCT58	4.49	4.00 in.	8.38 in.	21.00 in.	4.00	18.87	0.03	9.13 in.	16.25 in.	21.50 in.
FCT59	2.71	3.75 in.	4.25 in.	10.75 in.	8.00	22.59	0.02	11.50 in.	9.00 in.	15.75 in.
FCT60	7.20	4.00 in.	8.38 in.	21.00 in.	4.00	29.71	0.03	9.13 in.	16.25 in.	21.50 in.
FCT92	4.61	4.00 in.	8.38 in.	21.00 in.	4.00	19.35	0.02	9.13 in.	16.25 in.	21.50 in.
FCT94	2.57	3.75 in.	4.25 in.	10.75 in.	8.00	21.47	0.02	11.50 in.	9.00 in.	15.75 in.
FCT93	7.18	4.00 in.	8.38 in.	21.00 in.	4.00	29.63	0.03	9.13 in.	16.25 in.	21.50 in.

^* Locks are furnished with standard features unless otherwise specified

AVAILABLE STYLES

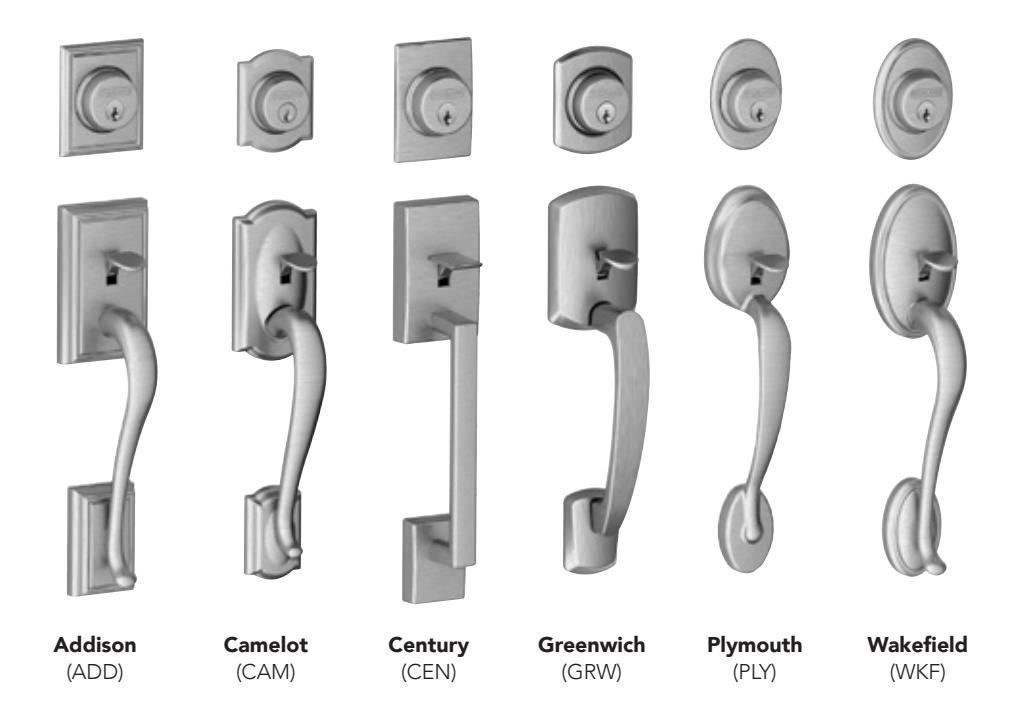

FC58 Available Exterior Styles

FC59 Available Interior Styles


FC58
Handleset Exterior								FINISHES
Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
(PLY) Plymouth	Box	■	■	■	■	■	$183	■	■	■	■	■	$183	■
(CAM) Camelot	Box	■	183	183	■	■	183	■	■	183	183	■	183	■
(CEN) Century	Box	■ ■	183 ■	183 ■	■ ■	183 ■	183	■ ■	■ ■	183	183 ■	183 ■	183	■ ■
(ADD) Addison	Box	■	■	■	c	c	183	■	■	183			183	■
(GRW) Greenwich (WKF) Wakefield	Box Box	■	■	■	■	183	183 183	■	■	183 ■	183 ■	183 ■	183 183	■
FC59 Handleset/Entrance Lock Interior									FINISHES
Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interior Lever
(LAT) Latitude Lever	Box	n	$108	$108	■	108	$108	■	■	$108	$108	$108	$108	n
(BRW) Broadway Lever	Box	n	n	■	■	■	108	■	■	108	108	108	108	n
(WIT) Whitney Lever	Box	n	108	108	■	■	108	■	■	108	■	■	108	n
(DMP) Dempsey Lever	Box	n	n	■	■	108	108	■	■	108	■	■	■
(NBK) Northbrook lever	Box	n	n	■	■	■	108	■	■	108	108	■	108	n
(ELR) Eller Lever	Box	n	n	108	■	■	108	■	■	108	108	■	108	n
(RVT) Rivington Lever	Box	n	n	n	■	■	108	■	■	n	n	■	108	n
(CYB) Clybourn Lever	Box	n	n	n	■	■	108	■	■	108	n	■	■	n
Interior Thumbturn & Interior Knob		n			■			■	■		■	■		n
(ALX) Alexandria Knob (HOB) Hobson Knob	Box Box	n	$131 n	$131 131	■	131 131	$131 131	■	■	$131 131	■	■	$131 131	n
(PLY) Plymouth Knob	Box	n	n	n	■	■	86	■	■	86	86	86	86	n
(GEO) Georgian Knob	Box	n	n	86	■	■	86	■	■	86	86	■	86	n
(BWE) Bowery Knob	Box	n	86	86	■	■	86	■	■	86	86	■	86	n
(AND) Andover Knob	Box	n	n	■	■	■	86	■	■	■	■	■	86	n
(DAW) Dawes Knob	Box	n	n	131	■	■	131	■	■	131	131	■	■	n
(GAN) Ganton Knob	Box	n	n	n	■	■	108	■	■	108	n	■	■	n
(OFM) Offerman Knob	Box	n	n	n	■	■		■	■	n	n	■	108	n
							108
FC92 Inactive Handlesets Exterior								FINISHES

Style/Design	Packaging	605 ■	530 ■	608 ■	609 ■	618 ■	619	620 ■	621 ■	622 ■	625 ■	626 ■	716	613 ■
(PLY) Plymouth	Box	■			■	■	$173	■	■			■	$173	■
(CAM) Camelot	Box	■	173	173	■		173	■	■	173	173		173	■
(CEN) Century	Box	■	173 ■	173 ■	■	173 ■	173	■	■	173	173 ■	173 ■	173	■
(ADD) Addison (GRW) Greenwich	Box Box	■	■	■	c	c	173 173	■	■	173 173	173	173	173 173	■
(WKF) Wakefield	Box	■	■	■	■	173	173	■	■	■	■	■	173	■
FC94
Inactive Handlesets Interior									FINISHES
Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interior Lever
(LAT) Latitude Lever	Box	n	$68	$68	■	■	$68	■	■	$68	$68	$68	$68	n
(BRW) Broadway Lever	Box	n	n	■	■	■	68	■	■	68	68	68	68	n
(WIT) Whitney Lever	Box	n	68	68	■	■	68	■	■	68	■	■	68	n
(DMP) Dempsey Lever	Box	n	n	■	■	■	68	■	■	68	■	■	■
(NBK) Northbrook lever	Box	n n	n n	■	■ ■	■ ■	68	■ ■	■ ■	68	68	■ ■	68	n n
(ELR) Eller Lever	Box	n	n	68 n	■	■	68	■	■	68 n	68 n	■	68	n
(RVT) Rivington Lever	Box	n	n	n	■	■	68	■	■		n	■	68 ■	n
(CYB) Clybourn Lever	Box						68			68
Interior Thumbturn & Interior Knob		n			■			■	■		■	■		n
(ALX) Alexandria Knob	Box	n	$91 n	$91	■	$91 ■	$91	■	■	$91	■	■	$91	n
(HOB) Hobson Knob (PLY) Plymouth Knob	Box Box	n	n	91 n	■	■	91 46	■	■	91 46	46	46	91 46	n
(GEO) Georgian Knob	Box	n	n	46	■	■	46	■	■	46	46	■	46	n
(BWE) Bowery Knob	Box	n	46	46	■	46	46	■	■	46	46	■	46	n
(AND) Andover Knob	Box	n	n	■	■	■	46	■	■	■	■	■	46	n
(DAW) Dawes Knob	Box	n	n	91	■	■	91	■	■	91	91	■	■	n
(GAN) Ganton Knob (OFM) Offerman Knob	Box Box	n n	n n	n n	■ ■	■ ■	68 68	■ ■	■ ■	68 n	n n	■ ■	■ 68	n n

AVAILABLE STYLES

BE479, BE469, BE375, & BE365 pair with Camelot, Century & Plymouth only.

FC285 available exterior styles

Greenwich (GRW)

Wakefield (WKF)

Camelot (CAM)

Century (CEN)

Plymouth (PLY)

FC285 available interior styles

Broadway (BRW)

Clybourn (CYB)

Dempsey (DMP)

Eller (ELR)

Latitude (LAT)

Northbrook (NBK)

Rivington (RIV)

Whitney (WIT)

Alexandria (ALX)

Andover (AND)

Bowery (BWE)

Dawes (DAW)

Ganton (GAN)

Georgian (GEO)

Hobson (HOB)

Plymouth (PLY)

Offerman (OFM)

Handlesets FC Series

For the full FC285 Handleset list price, add the price of the FC285 Exterior Option to the price of the FC285 Interior Option

FC285 Handleset exterior options FINISHES

Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
(PLY) Plymouth	Box	■	■	■	■	■	$153	■	■	■	■	■	$153	■
(CAM) Camelot	Box	■	153	153	■	■	153	■	■	153	■	■	153	■
(CEN) Century	Box	■	153	■	■	■	153	■	■	153	153	■	153	■
(ADD) Addison	Box	■	■	■	■	■	153	■	■	153	153	■	153	■
(GRW) Greenwich	Box	■	■	■	c	■	153	■	■	153	153	■	153	■
(WKF) Wakefield	Box	■	■	■	■	■	153	■	■	■	■	■	153	■

FC285

Handleset interior options FINISHES

Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interior Lever
(LAT) Latitude Lever	Box	n	$78	$78	■	$78	$78	■	■	$78	■	$78	$78	n
(BRW) Broadway Lever	Box	n	n	n	n	n	78	n	n	78	78	78	78	n
(WIT) Whitney Lever	Box	n	78	78	n	n	78	n	n	78	n	n	78	n
(DMP) Dempsey Lever	Box	n	n	n	n	78	78	n	n	78	n	n	n	n
(NBK) Northbrook Lever	Box	n	n	n	n	n	78	n	n	78	78	n	78	n
(ELR) Eller Lever	Box	n	n	78	■	■	78	■	■	78	78	■	78	n
(RVT) Rivington Lever	Box	n	n	n	n	n	78	n	n	n	n	n	78	n
(CYB) Clybourn Lever	Box	n	n	n	n	n	78	n	n	78	n	n	n	n
Interior Thumbturn & Interior Knob
(ALX) Alexandria Knob	Box	n	$118	$118	■	$118	$118	■	■	$118	■	■	$118	n
(HOB) Hobson Knob	Box	n	n	118	■	118	118	■	■	118	■	■	118	n
(PLY) Plymouth Knob	Box	n	n	n	■	n	56	■	■	56	56	56	56	n
(GEO) Georgian Knob	Box	n	n	56	■	n	56	■	■	56	56	■	56	n
(BWE) Bowery Knob	Box	n	56	56	■	56	56	■	■	56	56	■	56	n
(AND) Anover Knob	Box	n	n	n	■	n	56	■	■	■	■	■	56	n
(DAW) Dawes Knob	Box	n	n	118	■	■	118	■	■	118	118	■	■	n
(GAN) Ganton Knob	Box	n	n	n	■	■	78	■	■	78	n	■	■	n
(OFM) Offerman Knob	Box	n	n	n	■	■	78	■	■	n	n	■	78	n

Pair a knob or lever with our inspired decorative trim options to bring your vision to life.

Follow these steps for pricing decorative combinations:

1. Locate the price of the standard knob or lever from the Knobs/Levers section.
2. Use the chart below to find the list price adder for the matching Decorative Collection upgrade.
3. Add the prices tog ether for the total cost of the new combinations. (look at page 36 if you need some guidelines)

Finishes available

Custom trim finish	605	530	608	609	618	619	620	621	622	625	626	716	613
Century (CEN)	■	$10	$10	■	■	$10	■	■	$10	$10	$10	$10	■
Camelot (CAM)	■	10	10	■	■	10	■	■	10	■	■	10	■
Collins (COL)	■	10	10	■	■	10	■	■	10	10	10	10	■
Upland (ULD)	■	■	■	■	■	10	■	■	10	10	■	10	■
Dalton (DLT)	■	■	■	■	■	10	■	■	■	■	■	10	■
Grandville (GDV)	■	■	■	■	■	10	■	■	10	■	■	■	■

AVAILABLE STYLES

Addison (ADD)

Eller (ELR) lever with Centurty trim

Broadway (BRW) lever with Greenwich trim

Century (CEN) Greenwich (GRW)

Handleset Exterior				FINISHES

Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot	Box	n	$188	n	n	n	$188	n	n	$188	$188	n	$188	n
(CEN) Century	Box	n	188	n	n	n	188	n	n	188	188	n	188	n
(ADD) Addison	Box	n	n	n	n	n	188	n	n	188	188	n	188	n
(GRW) Greenwich	Box	n	n	n	n	n	188	n	n	188	188	n	188	n

FCT59

Handleset/Entrance Lock Interior FINISHES


Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interior Lever
(LAT) Latitude Lever	Box	n	$118	■	■	■	$118	■	■	$118	$118	■	$118	n
(BRW) Broadway Lever	Box	n	n	■	■	■	118	■	■	118	118	■	118	n
(WIT) Whitney Lever	Box	n	118	■	■	■	118	■	■	118	■	■	118	n
(DMP) Dempsey Lever	Box	n	n	■	■	■	118	■	■	118	■	■	■
(NBK) Northbrook Lever	Box	n	n	■	■	■	118	■	■	118	118	■	118	n
(ELR) Eller Lever	Box	n	n	■	■	■	118	■	■	118	118	■	118	n
(RVT) Rivington Lever	Box	n	n	n	■	■	118	■	■	n	n	■	118	n
(CYB) Clybourn Lever	Box	n	n	n	■	■	118	■	■	118	n	■	■	n
Interior Thumbturn & Interior Knob
(ALX) Alexandria Knob	Box	n	$141	■	■	■	$141	■	■	$141	■	■	$141	n
(HOB) Hobson Knob	Box	n	n	■	■	■	141	■	■	141	■	■	141	n
(PLY) Plymouth Knob	Box	n	n	■	■	■	96	■	■	96	96	■	96	n
(GEO) Georgian Knob	Box	n	n	■	■	■	96	■	■	96	96	■	96	n
(BWE) Bowery Knob	Box	n	96	■	■	■	96	■	■	96	96	■	96	n
(AND) Andover Knob	Box	n	n	■	■	■	96	■	■	■	■	■	96	n
(DAW) Dawes Knob	Box	n	n	141	■	■	141	■	■	141	141	■	■	n
(GAN) Ganton Knob	Box	n	n	n	■	■	118	■	■	118	n	■	■	n
(OFM) Offerman Knob	Box	n	n	n	■	■	118	■	■	n	n	■	118	n

FCT92

Inactive Handlesets Exterior FINISHES

Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
(CAM) Camelot	Box	n	$178	n	n	n	$178	n	n	$178	$178	n	$178	n
(CEN) Century	Box	n	178	n	n	n	178	n	n	178	178	n	178	n
(ADD) Addison	Box	n	n	n	n	n	178	n	n	178	178	n	178	n
(GRW) Greenwich	Box	n	n	n	n	n	178	n	n	178	178	n	178	n

FCT94

Handleset/Entrance Lock Interior FINISHES

Style/Design	Packaging	605	530	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interior Lever
(LAT) Latitude Lever	Box	n	$78	■	■	■	$78	■	■	$78	$78	■	$78	n
(BRW) Broadway Lever	Box	n	n	■	■	■	78	■	■	78	78	■	78	n
(WIT) Whitney Lever	Box	n	78	■	■	■	78	■	■	78	■	■	78	n
(DMP) Dempsey Lever	Box	n	n	■	■	■	78	■	■	78	■	■	■
(NBK) Northbrook Lever	Box	n	n	■	■	■	78	■	■	78	78	■	78	n
(ELR) Eller Lever	Box	n	n	■	■	■	78	■	■	78	78	■	78	n
(RVT) Rivington Lever	Box	n	n	n	■	■	78	■	■	n	n	■	78	n
(CYB) Clybourn Lever	Box	n	n	n	■	■	78	■	■	78	n	■	■	n
Interior Thumbturn & Interior Knob
(ALX) Alexandria Knob	Box	n	$101	■	■	■	$101	■	■	$101	■	■	$101	n
(HOB) Hobson Knob	Box	n	n	■	■	■	101	■	■	101	■	■	101	n
(PLY) Plymouth Knob	Box	n	n	■	■	■	56	■	■	56	56	■	56	n
(GEO) Georgian Knob	Box	n	n	■	■	■	56	■	■	56	56	■	56	n
(BWE) Bowery Knob	Box	n	56	■	■	■	56	■	■	56	56	■	56	n
(AND) Andover Knob	Box	n	n	■	■	■	56	■	■	■	■	■	56	n
(DAW) Dawes Knob	Box	n	n	101	■	■	101	■	■	101	101	■	■	n
(GAN) Ganton Knob	Box	n	n	n	■	■	78	■	■	78	n	■	■	n
(OFM) Offerman Knob	Box	n	n	n	■	■	78	■	■	n	n	■	78	n

ANSI/BHMA A156.36 Commercial Grade 1 ANSI/BHMA A156.40 Residential Grade AAA Entrance Handlesets

F58 – Handleset/Entrance Lock Exterior

Outside grip and deadbolt trim of F60
Pair with an F59 for a complete handleset

F59 – Handleset/Entrance Lock Interior

Inside trim, deadbolt thumbturn, latches, strikes & screws for F60
Pair with an F58 for a complete handleset

F60 – Single Cylinder Deadbolt/Entrance Lock

Deadbolt thrown or retracted by key from outside or by inside thumbturn
Latch retracted by thumbpiece from outside or by inside knob/lever

F62 – Double Cylinder Handleset/Entrance Lock*

Deadbolt thrown or retracted by key from either side
Latch retracted by thumbpiece from outside or by inside knob/lever

F92 – Inactive Handleset Exterior

Outside inactive grip & dummy deadbolt
Pair with an F94 for a complete inactive handleset

F94 – Inactive Handleset Interior

Inside inactive knob/lever, blank deadbolt trim & screws
Pair with an F92 for a complete inactive handleset

F93 – Inactive Handleset

For use as door pull or as decorative trim on inactive leaf of pair of doors
Fixed thumbpiece and inside knob/lever
Decorative deadbolt with inside trim

FE285 - Lower Half - Front Entry Set

Combine with Electronic Deadbolt for complete Front Entry Set
Latch retracted by thumbpiece from outside or by inside knob/lever
* CAUTION: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

PRODUCT IDENTIFICATION

F	60	F	CEN	619	MER	CEN	RH	12-322	10-115	KD
Lock Series	Product	UL Fire Rated (V - VisPack) (GC - Graphic Cover)	Style	Finish Code	Design	Decorative Trim	Hand	Latch	Strike	Keying

LATCHES & STRIKES

Latches

12-322 - Dual Option - Round Corner + Drive-in (16-080 + 12-321) STANDARD

12-326 - Triple Option - Round Corner + Square Corner + Drive-in (16-210 + 12-287)

12-353 - F60/62 UL Listed, 1" Square Corner

12-354 - F60/62 UL Listed, 1" Round Corner

Strikes

10-115 - Round Corner Full Lip Strike Set (10-027 + 10-116) STANDARD

10-269 - Round Corner Strike Set (10-026 + 10-027 + 10-116)

10-257 - Round Corner Full Lip (10-027 + 10-092)

STANDARD FEATURES / CONFIGURATIONS

F-Series Entrance Handlesets*

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1

ANSI/BHMA A156.40-2015 Residential Grade AAA

Available UL Listed for 3-hour fire door

Latch: 1"x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw springlatch

Deadbolt: 1"x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321 Strike: Part 10-269, includes: 1 1/4" radius corner deadbolt strike (10-116), radius round corner full lip

strike (10-027)

Reinforcement: Door frame reinforcer with 3" screws

Backset: Universal backset latch and deadbolt, fits either 2 3/8" or 2 3/4" backsets

Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)

Door Range**: 1 5/8" - 1 3/4"

Keys: Two cut keys per lock, 5-pin, C section

Adjustable

Throughbolt: Adjustable throughbolt can move up and down 1 1/2" to fit a variety of pre-existing holes

*Locks are furnished with standard features unless otherwise specified To order locks with non-standard features specify non-standard feature desired

FINISH CODES & DESCRIPTIONS

505	605	608	609	613	618	619	620	621	622	625	626	716
Lifetime Bright	Bright Brass	Satin Brass	Antique Brass	Oil-Rubbed Bronze	Polished Nickel	Satin Nickel	Antique Pewter	Distressed Nickel	Matte Black	Bright Chrome	Satin Chrome	Aged Bronze
Brass	(US3)		(US5)	(US10B)		(US15)	(US15A)		(US19)	(US26)	(US26D)

Non-standard finishes are not available.

Full-color swatch examples available on inside Handleset tab.

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Levers
F58	4.30	3.90 in.	7.97 in.	16.25 in.	4.00	22.00	1.36	8.50 in.	16.00 in.	17.25 in.
F59	1.75	3.62 in.	4.31 in.	8.06 in.	8.00	20.00	0.94	6.00 in.	15.00 in.	18.00 in.
F60	6.16	3.90 in.	7.97 in.	16.25 in.	4.00	23.00	1.36	8.50 in.	16.00 in.	17.25 in.
F62	6.36	3.90 in.	7.97 in.	16.25 in.	4.00	24.00	1.36	8.50 in.	16.00 in.	17.25 in.
F92	4.30	3.90 in.	7.97 in.	16.25 in.	4.00	22.00	1.36	8.50 in.	16.00 in.	17.25 in.
F94	1.75	3.62 in.	4.31 in.	8.06 in.	20.00	33.60	1.73	9.13 in.	18.12 in.	18.12 in.
F93	5.75	3.90 in.	7.97 in.	16.25 in.	4.00	22.00	1.36	8.50 in.	16.00 in.	17.25 in.

For Vis Pack carton specs, see page 150

^** Thick door kit available for door thicknesses up to 2 1/4" See Parts sections for item number and pricing

AVAILABLE STYLES

F58 Available Exterior Styles

F59 Available Interior Styles

Handlesets F Series

F58 Series Handleset Exterior FINISHES

Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
(PLY) Plymouth	Box	$140	$175	■	$175	■	$175	$175	■	$175	$175	$175	$175	$205
(CAM) Camelot	Box	148	183	183	183	■	183	183	■	183	183	■	183	■
(CEN) Century	Box	■	■	■	■	183	183	■	■	183	183	183	183	■
(ADD) Addison	Box	■	■	■	188	■	188	188	188	188	188	■	188	■
(BRK) Brookshire	Box	153	■	■	188	■	188	■	■	188	■	■	188	■
(GRW) Greenwich	Box	■	■	■	■	188	188	■	■	188	188	188	188	■
(WKF) Wakefield	Box	■	■	■	■	188	188	188	■	188	188	■	188	■

F59 Series

Handleset/Entrance Lock Interior FINISHES


Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interior Lever
(VLA) Avila Lever	Box	$100	■	■	$105	■	$105	■	■	■	$105	$105	$105	■
(SAC) Sacramento Lever*	Box	■	■	■	■	105	105	■	■	■	105	105	105	■
(ACC) Accent Lever*	Box	103	■	108	108	108	108	108	108	108	108	108	108	111
(AVA) Avanti Lever*	Box	■	■	■	108	■	108	■	■	■	108	■	108	■
(BIR) Birmingham Lever	Box	■	■	■	■	■	108	■	■	■	108	■	108	■
(BRW) Broadway Lever	Box	■	■	■	■	■	108	■	■	108	108	108	108	■
(ELA) Elan Lever	Box	103	■	■	108	■	108	■	■	108	108	108	108	■
(FLA) Flair Lever*	Box	103	■	108	108	■	108	108	■	■	108	108	108	■
(JAZ) Jazz Lever	Box	■	■	■	■	■	108	■	■	108	108	108	108	■
(LAT) Latitude Lever	Box	■	■	■	■	108	108	■	■	108	108	108	108	■
(MER) Merano Lever*	Box	■	■	■	■	■	108	■	■	108	108	108	108	■
(MNH) Manhattan Lever*	Box	■	■	■	■	■	108	■	■	■	108	108	■	■
(NBK) Northbrook lever	Box	■	■	■	■	■	108	■	■	■	■	■	■	■
(CHP) Champagne Lever*	Box	■	■	■	■	■	118	■	■	■	■	■	118	■
Interior Thumbturn & Interior Knob
(BEL) Bell Knob	Box	$83	■	■	$86	■	■	■	■	■	■	$86	■	■
(GEO) Georgian Knob	Box	83	■	86	86	■	86	86	86	86	86	■	86	■
(PLY) Plymouth Knob	Box	83	■	■	86	■	86	86	■	86	86	86	86	■
(AND) Andover Knob	Box	90	■	■	93	■	93	93	■	■	93	93	93	$107
(BWE) Bowery Knob	Box	■	■	■	■	93	93	■	■	93	93	93	93	■
(ORB) Orbit Knob	Box	90	■	■	■	■	93	■	■	■	93	93	■	■
(SIE) Siena Knob	Box	97	■	■	100	■	100	100	■	100	100	100	100	■

^* Specify handing

Note:

For F60 Pricing, combine pricing from F58 Series and F59 Series above.

List Price Adders:

Visual Package Options - add $20 to list price (F60 and F62 Only) Decorative Trim Option - See chart on page 38

Triple Option Latch - add $2 to list price; Box Pack Only

UL Latch - add $12 to list price (F59 and F60 Functions - Box Pack Only)

F92 Series Inactive Handleset Exterior FINISHES

Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
(PLY) Plymouth	Box	$130	$165	■	$165	■	$165	$165	■	$165	$165	$165	$165	$195
(CAM) Camelot	Box	138	173	■	173	■	173	173	■	173	173	■	173	■
(CEN) Century	Box	■	■	■	■	173	173	■	■	173	173	173	173	■
(ADD) Addison	Box	■	■	■	178	■	178	178	178	178	178	■	178	■
(BRK) Brookshire	Box	143	■	■	178	■	178	■	■	178	■	■	178	■
(GRW) Greenwich	Box	■	■	■	■	■	178	■	■	178	178	178	178	■
(WKF) Wakefield	Box	■	■	■	■	178	178	178	■	178	178	■	178	■

F94 Series

Inactive Handleset Interior FINISHES


Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
Interior Lever
(VLA) Avila Lever	Box	$60	■	■	$65	■	$65	■	■	■	$65	$65	$65	■
(SAC) Sacramento Lever*	Box	■	■	■	■	65	65	■	■	■	65	65	65	■
(ACC) Accent Lever*	Box	$63	■	■	$68	$68	$68	$68	$68	$68	$68	$68	$68	$71
(AVA) Avanti Lever*	Box	■	■	■	68	■	68	■	■	■	68	■	68	■
(BIR) Birmingham Lever	Box	■	■	■	■	■	68	■	■	■	68	■	68	■
(BRW) Broadway Lever	Box	■	■	■	■	■	68	■	■	68	68	68	68	■
(ELA) Elan Lever	Box	63	■	■	68	■	68	■	■	68	68	68	68	■
(FLA) Flair Lever*	Box	63	■	■	68	■	68	68	■	■	68	68	68	■
(JAZ) Jazz Lever	Box	■	■	■	■	■	68	■	■	■	■	68	■	■
(LAT) Latitude Lever	Box	■	■	■	■	68	68	■	■	68	68	68	68	■
(MER) Merano Lever*	Box	■	■	■	■	■	68	■	■	68	68	68	68	■
(MNH) Manhattan Lever*	Box	■	■	■	■	■	68	■	■	■	68	68	■	■
(NBK) Northbrook	Box	■	■	■	■	■	68	■	■	■	■	■	■	■
(CHP) Champagne Lever*	Box	■	■	■	■	■	78	■	■	■	■	■	78	■
Interior Knob
(BEL) Bell Knob	Box	$43	■	■	$46	■	■	■	■	■	■	$46	■	■
(GEO) Georgian Knob	Box	43	■	■	46	■	46	46	46	46	46	■	46	■
(PLY) Plymouth Knob	Box	43	■	■	46	■	46	46	■	46	46	46	46	■
(AND) Andover Knob	Box	50	■	■	53	■	53	53	■	■	53	53	53	67
(BWE) Bowery Knob	Box	■	■	■	■	53	53	■	■	■	53	53	53	■
(ORB) Orbit Knob	Box	50	■	■	■	■	53	■	■	■	53	53	■	■
(SIE) Siena Knob	Box	57	■	■	60	■	60	60	■	60	60	60	60	■

^* Specify handing

Note:

For F93 Pricing, combine pricing from F92 Series and F94 Series above.

List Price Adders:

Decorative Trim Option - See chart on page 38

F62 Series Handleset/Entrance Lock Interior & Exterior FINISHES


Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
Plymouth Handleset
(ACC) Accent Lever*	Box	$268	$303	■	$308	■	$308	$308		$308	$308	$308	$308	$341
(BIR) Birmingham Lever	Box	■	■	■	■	■	308	■	■	■	308	■	308	■
(GEO) Georgian Knob	Box	248	283	■	286	■	286	286	■	286	286	■	286	■
(PLY) Plymouth Knob	Box	248	283	■	286	■	286	286	■	286	286	286	286	■
Camelot Handleset
(ACC) Accent Lever*	Box	$276	$311	■	$316	■	$316	$316	■	$316	$316	■	$316	■
(BIR) Birmingham Lever	Box	■		■	■	■	316	■	■	■	316	■	316	■
(GEO) Georgian Knob	Box	256	291	■	294	■	294	294	■	294	294	■	294	■
(PLY) Plymouth Knob	Box	256	291	■	294	■	294	294	■	■	294	■	294	■
Century Handleset
(LAT) Latitude Lever	Box	■	■	■	■	■	$316	■	■	■	$316	$316	$316	■
(MER) Merano Lever*	Box	■	■	■	■	■	316	■	■	■	316	316	316	■
(ORB) Orbit Knob	Box	■	■	■	■	■	301	■	■	■	301	301	■	■
Addison Handleset
(ACC) Accent Lever*	Box	■	■	■	$321	■	$321	$321	$321	$321	$321	■	$321	■
(BIR) Birmingham Lever	Box	■	■	■	■	■	321	■	■	■	321	■	321	■
(GEO) Georgian Knob	Box	■	■	■	299	■	299	299	299	299	299	■	299	■
(PLY) Plymouth Knob	Box	■	■	■	299	■	299	299	■	299	299	■	299	■
Brookshire Handleset
(FLA) Flair Lever*	Box	$281	■	■	$321	■	$321	■	■	■	■	■	$321	■
(GEO) Georgian Knob	Box	261	■	■	299	■	299	■	■	299	■	■	299	■
Wakefield Handleset
(ACC) Accent Lever*	Box	■	■	■	■	■	$321	$321	■	$321	$321	■	$321	■
(AND) Andover Knob	Box	■	■	■	■	■	306	306	■	■	306	■	306	■
(BIR) Birmingham Lever	Box	■	■	■	■	■	321	■	■	■	321	■	321	■
(GEO) Georgian Knob	Box	■	■	■	■	■	299	299	■	299	299	■	299	■

^* Specify handing

F60 Series Handleset Exterior/Interior FINISHES

Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
Plymouth Handleset
(ACC) Accent Lever	Vis	$263	■	■	■	■	$303	■	■	■	■	■	■	■
(FLA) Flair Lever	Vis	263	■	■	303	■	303	■	■	■	■	■	303	■
(GEO) Georgian Knob	Vis	243	■	■	281	■	281	■	■	■	■	■	281	■
(PLY) Plymouth Knob	Vis	243	■	■	281	■	281	■	■	■	■	■	281	■
Camelot Handleset
(ACC) Accent Lever	Vis	$271	■	■	■	■	$311	■	■	■	■	■	$311	■
(AVA) Avanti Lever	Vis	■	■	■	311	■	311	■	■	■	■	■	311	■
(GEO) Georgian Knob	Vis	■	■	289	289	■	289	■	■	■	■	■	289	■
(SIE) Siena Knob	Vis	■	■	■	■	■	289	■	■	■	■	■	289	■
Century Handleset
(LAT) Latitude Lever	Vis	■	■	■	■	■	$311	■	■	■	■	■	■	■
(MER) Merano Lever	Vis	■	■	■	■	■	311	■	■	■	■	■	311	■
Addison Handleset
(ACC) Accent Lever	Vis	■	■	■	■	■	$316	■	■	■	■	■	■	■
(BIR) Birmingham Lever	Vis	■	■	■	■	■	■	■	■	■	■	■	316	■
(GEO) Georgian Knob	Vis	■	■	■	■	■	■	■	■	■	■	■	294	■

FE285 Series

Handleset Exterior Options FINISHES

Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
(PLY) Plymouth	Box	$110	$145	■	$145	■	$145	$145	■	$145	$145	$145	$145	$175
(CAM) Camelot	Box	118	153	153	153	■	153	153	■	153	153	■	153	■
(CEN) Century	Box	■	■	■	■	■	153	■	■	153	153	153	153	■
(ADD) Addison	Box	■	■	■	158	■	158	158	158	158	158	■	158	■
(BRK) Brookshire	Box	123	158	■	158	■	158	■	■	158	■	■	158	■
(GRW) Greenwich	Box	■	■	■	c	■	158	■	■	158	158	158	158	■
(WKF) Wakefield	Box	■	■	■	■	158	158	■	■	158	158	■	158	■

FE285 Series

Handleset Interior Options		FINISHES
Style/Design	Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
Interior Thumbturn & Interior Lever
(VLA) Avila Lever	Box	$70	■	■	$75	■	$75	■	■	■	$75	$75	$75	■
(SAC) Sacramento Lever*	Box	■	■	■	■	75	75	■	■	■	75	75	75	■
(ACC) Accent Lever*	Box	73	■	78	78	78	78	78	78	78	78	78	78	81
(AVA) Avanti Lever*	Box	■	■	■	78	■	78	■	■	■	78	■	78	■
(BIR) Birmingham Lever	Box	■	■	■	■	■	78	■	■	■	78	■	78	■
(BRW) Broadway Lever	Box	■	■	■	■	■	78	■	■	78	78	78	78	■
(ELA) Elan Lever	Box	73	■	■	78	■	78	■	■	78	78	78	78	■
(FLA) Flair Lever*	Box	73	■	78	78	■	78	78	■	■	78	78	78	■
(JAZ) Jazz Lever	Box	■	■	■	■	■	78	■	■	■	■	78	■	■
(LAT) Latitude Lever	Box	■	■	■	■	78	78	■	■	78	78	78	78	■
(MER) Merano Lever*	Box	■	■	■	■	■	78	■	■	78	78	78	78	■
(MNH) Manhattan Lever*	Box	■	■	■	■	■	78	■	■	■	78	78	■	■
(NBK) Northbrook lever	Box	■	■	■	■	■	78	■	■	■	■	■	■	■
(CHP) Champagne Lever*	Box	■	■	■	■	■	88	■	■	■	■	■	88	■
Interior Thumbturn & Interior Knob
(BEL) Bell Knob	Box	$53	■	■	$56	■	■	■	■	■	■	$56	■	■
(GEO) Georgian Knob	Box	53	■	56	56	■	56	56	56	56	56	■	56	■
(PLY) Plymouth Knob	Box	53	■	■	56	■	56	56	■	56	56	56	56	■
(AND) Andover Knob	Box	60	■	■	63	■	63	63	■	■	63	63	63	77
(BWE) Bowery Knob	Box	■	■	■	■	63	63	■	■	63	63	63	63	■
(ORB) Orbit Knob	Box	60	■	■	■	■	63	■	■	■	63	63	■	■
(SIE) Siena Orbit Knob	Box	67	■	■	70	■	70	70	■	70	70	70	70	■

^* Specify handing

Note:

For FE285 Pricing, combine pricing from Exterior Options and Interior Options above.

List Price Adders:

Decorative Trim Option - See chart on page 38 Triple Option Latch - add $2 to list price; Box Pack Only UL Latch - add $6 to list price (Box Pack Only)

Stand out effortlessly.

Schlage's Decorative Collections 1,000 customized design and finish limited by only your imagination.

Pair a knob or lever with our inspired decorative trim options to bring your vision to life.*

* LOCKS SHIP COMPLETE WITH TRIM ATTACHED

Addison (ADD)

Andover (AND)

Brookshire (BRK)

(CAM)

Century (CEN) Camelot

Collins (COL)

Greenwich (GRW)

Greyson (GSN)

Upland (ULD)

Wakefield

(WKF)

Follow these steps for pricing decorative combinations:

1. Locate the list price of the handleset in the Handlesets section.
2. Use the chart below to find the list price adder for the matching Decorative Collection upgrade.
3. Add the list prices together for the total list price of the new combination.

For F60 / F59 / F93 / F94 / FE285 / FE489 / FBE489

Finishes available

Decorative trim finish	605	505	608	609	618	619	620	621	622	625	626	716	613
Addison (ADD)*	■	■	■	$16	■	$16	■	$16	$16	$16	$16	$16	■
Andover (AND)	16	16	■	16	■	16	16	■	16	16	16	16	16
Brookshire (BRK)	■	■	■	16	■	16	■	■	■	■	■	16	■
Camelot (CAM)	16	16	16	16	■	16	16	■	16	16	■	16	■
Century (CEN)	■	■	■	■	16***	16	■	■	16	16	16	16	■
Collins (COL)	■	■	■	■	■	16	■	■	■	■	■	■	■
Greenwich (GRW)	■	■	■	■	16***	16	■	■	16	16	16	16	■
Greyson (GSN)*	■	■	■	■	16***	16	■	■	16	16	■	16	■
Upland (ULD)**	■	■	■	■	■	16	■	■	■	■	■	■	■
Wakefield (WKF)	■	■	■	■	16***	16	■	■	■	16	16*	16	■

EXAMPLE 1: To Price a F59 ACC 619 CAM

Take the list price of a F59 ACC 619 12-321 10-116 at $108.00 and add the Camelot Decorative Trim Adder of $16.00 for a total list price of $124.00

$108 (F59 ACC 619)

+ $16 (Camelot Decorative Trim 619)

$124 Total cost

(F59 ACC 619 CAM)

When ordering a Handleset decorative collection product, specify the trim after the finish code Example: F59 ACC 619 CAM or F59 ACC 619 ADD

* Andover, Greyson & Wakefield trim available on interior knob or lever and not on deadbolt
** ULD trim available on interior knob or lever with COL trim on deadbolt.
*** Trim and finish combination not available for F92, F93, and F94 products.

To order latches and strikes see page 126-127

J Series Handlesets

AVAILABLE FUNCTIONS

ANSI/BHMA A156.36-2010 Commercial Grade 3 J Series Entrance Handlesets

JH58 - Outside Handleset

Outside grip and deadbolt trim

JH59 - Inside Handleset

Inside trim, deadbolt thumbturn, latches, strikes & screws

JI58/59 - Keyed Entrance Lock (Interconnect)

Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown
Outside lever unlocked by key from outside when locked by turn-button in inside lever
Turning inside lever retracts deadbolt and latch simultaneously for immediate exit
Latch automatically deadlocks when door is closed
UL Listed

JI18/19 - Passage Lock with Keyed Deadbolt (Interconnect)

Deadbolt operated by key from outside or by turn unit from inside
Bolt automatically deadlocks when fully thrown
Latch retracted by lever from either side
Turning inside lever retracts deadbolt and latch simultaneously for immediate exit
UL Listed

PRODUCT IDENTIFICATION

JH	59		SEV	619	RH	16-068	10-103
Lock Series	Product	Suffix/Package	Style	Finish Code	Hand	Latch	Strike

LATCHES & STRIKES

Latches

16-258* - JH59/JH60 T riple Option Spring Latch - Round Corner + Square Corner + Drive-in + Dual Option Deadbolt Latch - Round Corner + Drive-in (16-068 + 16-070) - STANDARD

16-057** - JI19/JH59 UL Listed (16-059 + 16-062) 16-065*** - JI59 UL Listed (16-061 + 16-063)

* Sold seperately as 16-068 and 16-070
** Sold separately as 16-059 and 16-063
*** Sold separately as 16-061 and 16-063

NOTE:

1) standard spring latch is Triple Option
2) standard deadbolt latch is Dual Option 1/4" round faceplate and drive-in latch

Strikes

10-268* - Radius Full Lip + Radius Deadbolt (10-101 + 10-102 + 10-103) - STANDARD

10-105 ** - Radius Full Lip + Square Corner Reinforced Deadbolt (10-101 + 10-099)

10-106 *** - JI19/JI59 Radius Full Lip + Radius Full Lip Dead bolt (10-101 + 10-102)

* Sold seperately as 10-101 and 10-102 and 10-103
** Sold separately as 10-101 and 10-099
*** Sold separately as 10-101 and 10-102

STANDARD FEATURES / CONFIGURATIONS

J Series Entrance Handlesets

Certification: ANSI/BHMA A156.36-2010 Commercial Grade 3

Deadbolt Dual Option: 1" x 2 1/4", 1/4" round corner and drive-in Latch: round faceplates, drive-in latch, 1" housing diameter, 1" throw Spring Latch: Triple Option: 1" x 2 1/4", 1/4" round faceplate, drive-in latch

Deadbolt Strike: 1" x 2 1/4", round corner and radius corner, full lip

Latch Strike: 1 5/8" x 2 1/4", radius corner, full lip Backset: Adjustable for 2 3/8" or 2 3/4" Cylinder: 5-pin, C keyway, keyed different (KD)

Door Range: 1 3/8" - 1 3/4"

Keys: Two brass cut keys per lock, 5-pin, C section

FINISH CODES & DESCRIPTIONS

605	609	619	620	622	625	626	630	716
Bright Brass (US3)	Antique Brass (US5)	Satin Nickel (US15)	Antique Pewter (US15A)	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Satin Stainless Steel (US32D)	Aged Bronze

^* Non-standard finishes are not available

Full-color swatch examples available on inside Handleset tab

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Knobs
JH58	3.47	3.46 in.	5.51 in.	12.20 in.	4	13.86	0.754	13.6 in.	8.0 in.	12.0 in.
JH59	1.19	3.11 in.	2.56 in.	7.48 in.	24	28.62	1.142	8.7 in.	13.6 in.	16.8 in.
JI58	0.64	2.76 in.	3.15 in.	13.39 in.	20	12.8	1.64	14.17 in.	13.39 in.	14.96 in.
JI59	2.83	3.15 in.	3.94 in.	9.05 in.	12	33.96	1.1	10.35 in.	13.19 in.	13.89 in.
JI18	1.19	2.79 in.	5.04 in.	6.22 in.	24	28.62	1.8	7.8 in.	18.31 in.	21.77 in.
JI19	2.83	3.15 in.	3.94 in.	9.05 in.	12	33.96	1.1	10.35 in.	13.19 in.	13.89 in.

For Vis Pack carton specs, see page 150

JH58 Series Handleset Exteriors FINISHES

Style/Design		Packaging	605	609	619	620	622	625	626	630	716
	Handlesets Outside Trim, JH58 (JH58 + JH59 = complete handleset)
JH58	(BAR) Barcelona	Box	$97	$97	$97	$97	$97	$97	■	$97	$97
JH58	(PRS) Paris	Box	97	97	97	■	■	97	■	97	97
Handlesets Inside Trim, JH59 (JH58 + JH59 = complete handleset)
JH59	(BYR) Byron Knob	Box	$68	■	■	■	■	■	■	$68	■
JH59	(CNA) Corona Knob	Box	68	68	68	68	■	68	■	68	68
JH59	(DUB) Dublin Knob	Box	■	■	68	■	■	■	■	■	68
JH59	(STR) Stratus Knob	Box	68	■	68	■	■	68	■	68	68
JH59	(DOV) Dover Lever	Box	■	■	79	■	■	■	■	79	79
JH59*	(LAS) LaSalle Lever	Box	79	79	79	■	■	■	■	■	79
JH59	(MAR) Marin Lever	Box	■	■	79	■	■	■	■	79	■
JH59*	(SEV) Seville Lever	Box	■	■	79	■	■	79	■	■	79
JH59	(SOL) Solstice Lever	Box	■	■	83	■	■	83	■	■	83
JH59	(TOR) Torino Lever	Box	■	■	79	79	■	79	■	79	79
JH59	(SOL) Solstice/COL Lever	Box	■	■	89	■	89	89	■	■	89
JH59	(BRW) Broadway/COL Lever	Box	■	■	89	■	89	89	■	■	89

^* Specify handing

JI Series Interconnect Locksets-UL FINISHES

Style/Design		Packaging	605	609	619	620	622	625	626	630	716
JI58	Interconnect, Exterior Torino (TOR)	Box	■	■	■	■	■	■	■	$76	■
JI59	Interconnect, Interior Torino (TOR)	Box	■	■	■	■	■	■	■	97	■
JI18	Interconnect, Exterior Marin (MAR)	Box	■	■	■	■	■	■	■	68	■
JI19	Interconnect, Interior Marin (MAR)	Box	■	■	■	■	■	■	■	87	■

JH60-Series Entrance Handlesets FINISHES

•

Style/Design	Packaging	605	609	619	620	622	625	626	630	716
Barcelona Handleset
(BYR) Byron Knob	Vis	$168	■	■	■	■	■	■	■	■
(CNA) Corona Knob	Vis	168	168	■	■	■	■	■	■	■
(DOV) Dover Lever	Vis	179	179	■	■	■	■	■	■	■
(LAS) LaSalle Lever	Vis	179	179	179	■	■	■	■	■	■
(SEV) Seville Lever	Vis	179	■	■	■	■	■	■	■	■
Paris Handleset
(STR) Stratus Knob	Vis	■	■	$168	■	■	■	■	■	$168
(LAS) LaSalle Lever	Vis	■	■	179	■	■	■	■	■	179
(SEV) Seville Lever	Vis	■	■	179	■	■	■	■	■	179
(TOR) Torino Lever	Vis	179	179	179	■	■	■	■	■	179

FC Series 43
FC Series Decorative Collection 49
F Series 50
F Series Decorative Collection 49
J Series 61

FC Series Levers

AVAILABLE FUNCTIONS

Non-keyed Locks

Schlage FC21

FC172

ANSI/BHMA A156.2-2017 Grade 2 ANSI/BHMA A156.39-2017 Residential Grade AAA

FC21 - Combined Passage Privacy

ⁿ Passage is default function
ⁿ Insert privacy pushbutton on interior side of lock to convert to privacy
ⁿ Can be opened from outside with small emergency unlock tool
ⁿ Turning inside knob/lever releases privacy pushbutton

FC172 – Non-Turning Set

ⁿ Non-turning pair of levers/knobs
ⁿ Used for door pull or matching inactive trim

LATCHES & STRIKES

Non Keyed - Spring Latches

16-600 - FC21 Dual Option (Round Corner & Drive In) STANDARD

16-601 - FC21 Triple Option (Round, Square Corner, & Drive In)

16-620 - UL Listed Square Corner

16-621 - UL Listed Round Corner

Strikes

10-027 - Round Corner Full Lip STANDARD

10-001 - Square Corner T Strike

10-026 - Square Corner Full Lip

10-058 - Circular - Adjustable

10-063 - Dual Strikes (Round & Square Full Lip)

10-025 - ANSI Square Corner

STANDARD FEATURES / CONFIGURATIONS

FC Series Levers/Decorative Trim*

Description

Certification: ANSI/BHMA A156.2-2017 Grade 2

ANSI/BHMA A156.39-2015 Residential Grade AAA

Available UL Listed for 90 minute fire door

Latch: 1"x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw,

circular drive-in included, universal latch

Strike: 1 5/8" x 2 1/4" radius corner, full lip

Backset: Dual backset latches, fits either 2 3/8" or 2 3/4" backsets Cylinder: 5-Pin, C keyway, keyed alike (KA4) on keyed function only

Door Range: 1 3/8" - 1 3/4"

Keys: Two per lock, 5-pin, C section on keyed functions only

* Locks are furnished with standard features unless otherwise specified. To order locks with non-standard features specify non-standard feature desired.

FINISH CODES & DESCRIPTIONS

530	608	618	619	622	625	626	716
Black Stainless	Satin Brass	Polished Nickel	Satin Nickel (US15)	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Aged Bronze

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Levers
FC21	2.3	3.5 in.	5.9 in.	8.1 in.	8	18.00	0.94	8.8 in.	12.8 in.	14.5 in.
FC172	1.5	3.2 in.	4.4 in.	5.8 in.	12	31.00	1.25	6.7 in.	16.1 in.	20.1 in.

AVAILABLE STYLES

SCHLAGE CUSTOM LEVERS

Broadway (BRW)

(NOTE: Kinsler is standard trim)

(BRW) Broadway FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$80	n	n	$80	$80	$80	$80	n
FC172	Non-Turning Set	n	n	n	n	n	74	n	n	74	74	74	74	n
F51A	Keyed Entry	n	n	n	n	n	107	n	n	107	107	107	107	n

Clybourn (CYB)

(NOTE: Kinsler is standard trim)

(CYB) Clybourn FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$80	n	n	$80	n	n	n	n
FC172	Non-Turning Set	n	n	n	n	n	74	n	n	74	n	n	n	n
F51A	Keyed Entry	n	n	n	n	n	107	n	n	107	n	n	n	n

Dempsey (DMP)

(NOTE: Kinsler is standard trim)

(DMP) Dempsey FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	$80	$80	n	n	$80	n	n	n	n
FC172	Non-Turning Set	n	n	n	n	74	74	n	n	74	n	n	n	n
F51A	Keyed Entry	n	n	n	n	107	107	n	n	107	n	n	n	n

Eller (ELR)

(NOTE: Kinsler is standard trim)

(ELR) Eller FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	$80	$80	n	n	$80	n	n	$80	$80	n	$80	n
FC172	Non-Turning Set	n	74	74	n	n	74	n	n	74	74	n	74	n
F51A	Keyed Entry	n	107	107	n	n	107	n	n	107	107	n	107	n

Latitude (LAT)

(NOTE: Kinsler is standard trim)

(LAT) Latitude FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	$80	$80	n	$80	$80	n	n	$80	$80	$80	$80	n
FC172	Non-Turning Set	n	74	74	n	74	74	n	n	74	74	74	74	n
F51A	Keyed Entry	n	107	107	n	107	107	n	n	107	107	107	107	n

Northbrook (NBK)

(NOTE: Kinsler is standard trim)

(NBK) Northbrook FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$80	n	n	$80	$80	n	$80	n
FC172	Non-Turning Set	n	n	n	n	n	74	n	n	74	74	n	74	n
F51A	Keyed Entry	n	n	n	n	n	107	n	n	107	107	n	107	n

Levers FC Series

Rivington (RVT)

(NOTE: Alden is standard trim)

(RVT) Rivington FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$80	n	n	n	n	n	$80	n
FC172	Non-Turning Set	n	n	n	n	n	74	n	n	n	n	n	74	n
F51A	Keyed Entry	n	n	n	n	n	107	n	n	n	n	n	107	n

Whitney (WIT)

(NOTE: Alden is standard trim)

(WIT) Whitney FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	$80	$80	n	n	$80	n	n	$80	n	n	$80	n
FC172	Non-Turning Set	n	74	74	n	n	74	n	n	74	n	n	74	n
F51A	Keyed Entry	n	107	107	n	n	107	n	n	107	n	n	107	n

Flexible. Simple.

Schlage's Custom Series makes it easy to change your door hardware as the style in your home evolves. Simply pair a knob or lever with one of our trims, and you can

Pair a knob or lever with our inspired decorative trim options to bring your vision to life.*

Alden* (ALD)

Kinsler* (KIN)

Camelot (CAM)

Century (CEN)

Collins (COL)

Rosewood (RWD)

Upland (ULD)

Dalton (DLT)

Grandville (GDV)

Finishes available

Custom trim finish	605	530	608	609	618	619	620	621	622	625	626	716	613
Century (CEN)	■	10	10	■	■	10	■	■	10	10	10	10	■
Upland (ULD)	■	■	■	■	■	10	■	■	10	10	■	10	■
Camelot (CAM)	■	10	10	■	■	10	■	■	10	■	■	10	■
Rosewood (RWD)	■	■		■	■	10	■	■	10	■	■	■	■
Collins (COL)	■	10	10	■	■	10	■	■	10	10	10	10	■
Dalton (DLT)	■	■	■	■	■	10	■	■	10	■	■	■	■
Grandville (GDV)	■	■	■	■	■	10	■	■	■	■	■	10	■
Keyed trim finish
Century (CEN)	■	16	16	■	16	16	■	■	16	16	16	16	■
Upland (ULD)	■	■	■	■	■	16	■	■	16	16	■	16	■
Camelot (CAM)	■	16	16	■	■	16	■	■	16	■	■	16	■
Rosewood (RWD)	■	■	■	■	16	16	■	■	16	■	■	■	■
Collins (COL)	■	16	16	■	16	16	■	■	16	16	16	16	■
Dalton (DLT)	■	■	■	■	■	16	■	■	16	■	■	■	■
Grandville (GDV)	■	■	■	■	■	16	■	■	■	■	■	16	■

Please Note: Schlage Custom FC21 and FC172 Decorative Trim list price adders differ from other functions. Please refer to the specific decorative trim tables for F-Series (F10, F40, F51A etc.) on their respective pages.

EXAMPLE 1: To price an Alexandria (ALX) knob with Camelot (CAM) trim in satin nickel: Take the price listed for the Alexandria Knob in Satin Nickel ($111 for FC21) and add the charge for the trim from the table above ($10).

$111 (FC ALX 619)

+ $10 (Camelot Trim for FC21)

$121 Total cost

(FC21 ALX 619 CAM)

When ordering a Schlage Custom product, please specify the trim at the end of the product code. Example: FC21 ELR 619 CAM or FC172 LAT 622 COL

F Series Levers

AVAILABLE FUNCTIONS

Non-keyed Locks Keyed Locks

Schlage F10 F40 F170 F51A F80 ANSI F75 F76 F81 F86

ANSI/BHMA A156.2-2017 Commercial Grade 2 ANSI/BHMA A156.39-2015 Residential Grade AAA

Non-keyed Locks

F10/F75 – Hall & Closet

Both knobs/levers always unlocked

F40/F76 – Bed & Bath

Push-button locking
Can be opened from outside with small circular tool
Turning inside knob/lever releases button

F170 – Non-turning

Non-turning trim for one side of door
Used for door pull or as matching inactive trim

Keyed Locks

F51A/F81 – Keyed Entry

Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit

F80/F86 – Storeroom Lock

Outside knob/lever fixed. Entrance by key only.
Inside knob/lever always unlocked

PRODUCT IDENTIFICATION

F	51A	F	ACC	619	CAM	RH	16-086	10-027	KA4
Lock Series	Product	UL Fire Rated (V - VisPack) (GC - Graphic Cover)	Style	Finish Code	Decorative Trim	Hand	Latch	Strike	Keying

LATCHES & STRIKES

Keyed Latches - Dead Latches

16-086 - Dual Option (Round, Drive-in) STANDARD

16-207 - Square Corner

16-211 - Triple Option (Round, Square, Drive-in)

16-203 - UL Listed Square Corner with Firecup

16-204 - UL Listed Round Corner with Firecup

16-126 - 5" Backset, Square Corner

Non Keyed - Spring Latches

16-080 - Dual Option (Round, Drive-in)

STANDARD

16-200 - Square Corner

16-210 - Triple Option (Round, Square, Drive-in)

16-203 - UL Listed Square Corner with Firecup

16-204 - UL Listed Round Corner with Firecup

16-126 - 5" Backset, Square Corner

Strikes

10-027 - Round Corner Full Lip

STANDARD

10-001 - Square Corner T Strike

10-026 - Square Corner Full Lip

10-058 - Circular - Adjustable

10-063 - Dual Strikes

(Round & Square Full Lip)

10-025 - ANSI Square Corner

STANDARD FEATURES / CONFIGURATIONS

F-Series Levers/Decorative Trim*

Description

Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2

ANSI/BHMA A156.39-2015 Residential Grade AAA

Available UL Listed for 3-hour fire door

Latch: 1"x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw,

circular drive-in included, universal latch

Strike: 1 5/8" x 2 1/4" radius corner, full lip, no box

Backset: Dual backset latches, fits either 2 3/8" or 2 3/4" backsets

Cylinder: 5-Pin, C keyway, keyed alike (KA4)

Door Range: 1 3/8" - 1 3/4"

Keys: Two per lock, 5-pin, C section

FINISH CODES & DESCRIPTIONS

505	605	608	609	613	618	619	620	621	622	625	626	716
Lifetime Bright Brass	Bright Brass (US3)	Satin Brass	Antique Brass (US5)	Oil-Rubbed Bronze (US10B)	Polished Nickel	Satin Nickel (US15)	Antique Pewter (US15A)	Distressed Nickel	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Aged Bronze

Non-standard finishes are not available.

Full-color swatch examples available on inside Levers tab.

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON					SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Levers
F10	1.55	3.25 in.	6.00 in.	7.00 in.	8	12.50	0.760	7.8 in.	12.6 in.	13.5 in.
F40	1.55	3.25 in.	6.00 in.	7.00 in.	8	12.50	0.760	7.8 in.	12.6 in.	13.5 in.
F51A	1.55	3.25 in.	6.00 in.	7.00 in.	8	12.50	0.760	7.8 in.	12.6 in.	13.5 in.
F80	1.55	3.25 in.	6.00 in.	7.00 in.	8	12.50	0.760	7.8 in.	12.6 in.	13.5 in.
F170	0.80	2.86 in.	4.38 in.	5.66 in.	20	16.00	1.000	6.5 in.	15.3 in.	18.3 in.
Decorative Collections Levers
All Levers	1.55	3.25 in.	6.00 in.	7.00 in.	8	19.00	1.090	8.13 in.	12.63 in.	18.4 in.
F170	1.20	2.86 in.	4.38 in.	5.66 in.	20	25.00	1.000	6.5 in.	15.3 in.	18.3 in.

For Vis Pack carton specs, see page 150

^* Locks are furnished with standard features unless otherwise specified. To order locks with non-standard features specify non-standard feature desired.

AVAILABLE STYLES

Accent (ACC)

RECOMMENDED DECORATIVE TRIM Accent lever with Camelot trim Accent Lever with Addison Trim Accent Lever with Collins Trim

29 29 29 29 29 29 29 29 29 29 33

(ACC) Accent FINISHES Function Packaging 605 505 608 609 618 619 620 621 622 625 626 716 613 F10 Hall & Closet Box/Vis $50 $57 $57 $57 $57 $57 $57 $57 $57 $57 $57 $57 $65 F40 Bed & Bath Box/Vis 53 ⁿ 60 60 60 60 60 60 60 60 60 60 68 F51A Keyed Entry Box/Vis 100 107 107 107 107 107 107 107 107 107 107 107 115

F80* Storeroom Box 110 117 117 117 117 117 117 117 117 117 117 117 125

F170* Non-turning Box/Vis 25 ⁿ

Avanti (AVA)

	(AVA) Avanti								FINISHES
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	n	n	n	$71	n	$71	$71	n	n	$71	n	$71	n
F40	Bed & Bath	Box/Vis	n	n	n	74	n	74	74	n	n	74	n	74	n
F51A	Keyed Entry	Box/Vis	n	n	n	121	n	121	121	n	n	121	n	121	n
F80*	Storeroom	Box	n	n	n	131	n	131	131	n	n	131	n	131	n
F170*	Non-turning	Box/Vis	n	n	n	36	n	36	36	n	n	36	n	36	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Decorative Trim Option - See chart on page Levers-15 Triple Option Latch - add $2 to list price; Box Pack Only UL Latch - add $6 to list price (F10, F51A, F80 Functions Box Pack Only) Split Finish/Design - add $6.50 to highest list price; Box Pack Only

* Specify Handing

Stand out effortlessly.

Schlage's Decorative Collections offer thousands of additional design and finish combinations. See page 59 for details.

Levers F Series

Avila (VLA)

(VLA) Avila FINISHES

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box	$40	$44	n	$44	n	$44	n	n	n	$44	$44	$44	n
F40	Bed & Bath	Box	43	n	n	47	n	47	n	n	n	47	47	47	n
F51A	Keyed Entry	Box	70	74	n	74	n	74	n	n	n	74	74	74	n
F80	Storeroom	Box	80	84	n	84	n	84	n	n	n	84	84	84	n
F170	Non-turning	Box	20	n	n	22	n	22	n	n	n	22	22	22	n

Birmingham (BIR)

(BIR) Birmingham FINISHES


Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	n	n	n	n	n	$57	n	n	n	$57	n	$57	n
F40	Bed & Bath	Box/Vis	n	n	n	n	n	60	n	n	n	60	n	60	n
F51A	Keyed Entry	Box/Vis	n	n	n	n	n	107	n	n	n	107	n	107	n
F80	Storeroom	Box	n	n	n	n	n	117	n	n	n	117	n	117	n
F170	Non-turning	Box	n	n	n	n	n	29	n	n	n	29	n	29	n

List Price Adders:

^* Specify Handing

Broadway (BRW)

RECOMMENDED DECORATIVE TRIM

Broadway lever with Greenwich trim

Broadway lever with Greyson trim

Broadway lever with Collins trim

	(BRW) Broadway								FINISHES
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	n	n	n	n	n	$57	n	n	$57	$57	$57	$57	n
F40	Bed & Bath	Box/Vis	n	n	n	n	n	60	n	n	60	60	60	60	n
F51A	Keyed Entry	Box/Vis	n	n	n	n	n	107	n	n	107	107	107	107	n
F80	Storeroom	Box	n	n	n	n	n	117	n	n	117	117	117	117	n
F170	Non-turning	Box	n	n	n	n	n	29	n	n	29	29	29	29	n

Champagne (CHP)

RECOMMENDED DECORATIVE TRIM

Champagne lever with Andover trim

Champagne lever with Wakefield trim

(CHP) Champagne FINISHES


Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box	n	n	n	n	n	$71	n	n	n	n	n	$71	n
F40	Bed & Bath	Box	n	n	n	n	n	74	n	n	n	n	n	74	n
F51A	Keyed Entry	Box	n	n	n	n	n	121	n	n	n	n	n	121	n
F80*	Storeroom	Box	n	n	n	n	n	131	n	n	n	n	n	131	n
F170*	Non-turning	Box	n	n	n	n	n	36	n	n	n	n	n	36	n

List Price Adders:

Stand out effortlessly.

Schlage's Decorative Collections offer thousands of additional design and finish combinations. See page 59 for details.

^* Specify Handing

Levers F Series

Elan (ELA)

(ELA) Elan FINISHES

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box	$50	n	n	$57	n	$57	n	n	$57	$57	$57	$57	n
F40	Bed & Bath	Box	53	n	n	60	n	60	n	n	60	60	60	60	n
F51A	Keyed Entry	Box	100	107	n	107	n	107	n	n	107	107	107	107	n
F80	Storeroom	Box	110	117	n	117	n	117	n	n	117	117	117	117	n
F170	Non-turning	Box	25	n	n	29	n	29	n	n	29	29	29	29	n

NOTE:

1) Elan F10, F40, F51A and F80 in 626 Finish are available as CSV add $11 to list price
2) CSV Contractor Series VisPack (Includes Light Commercial packaging and comes standard with UL fire rated latches.)

Flair (FLA)

(FLA) Flair FINISHES

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	$50	$57	$57	$57	n	$57	$57	n	n	$57	$57	$57	n
F40	Bed & Bath	Box/Vis	53	n	60	60	n	60	60	n	n	60	60	60	n
F51A	Keyed Entry	Box/Vis	100	107	107	107	n	107	107	n	n	107	107	107	n
F80*	Storeroom	Box	110	117	117	117	n	117	117	n	n	117	117	117	n
F170*	Non-turning	Box/Vis	25	n	29	29	n	29	29	n	n	29	29	29	n

List Price Adders:

^* Specify Handing

Jazz (JAZ)

(JAZ) Jazz									FINISHES			Coming Soon
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box	n	n	n	n	n	$57	n	n	$57	$57	$57	$57	n
F40	Bed & Bath	Box	n	n	n	n	n	60	n	n	60	60	60	60	n
F51A	Keyed Entry	Box	n	n	n	n	n	n	n	n	n	n	n	n	n
F80	Storeroom	Box	n	n	n	n	n	n	n	n	n	n	n	n	n
F170	Non-turning	Box	n	n	n	n	n	29	n	n	29	29	29	29	n

Latitude (LAT)

(LAT) Latitude FINISHES

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box /Vis	n	n	n	n	$57	$57	n	n	$57	$57	$57	$57	n
F40	Bed & Bath	Box /Vis	n	n	n	n	60	60	n	n	60	60	60	60	n
F51A	Keyed Entry	Box /Vis	n	n	$107	n	107	107	n	n	107	107	107	107	n
F80	Storeroom	Box	n	n	n	n	117	117	n	n	117	117	117	117	n
F170	Non-turning	Box	n	n	n	n	29	29	n	n	29	29	29	29	n

List Price Adders:

* Specify Handing

Stand out effortlessly.

Schlage's Decorative Collections offer thousands of additional design and finish combinations. See page 59 for details.

Levers F Series

Manhattan (MNH)

RECOMMENDED DECORATIVE TRIM Manhattan lever with Century trim

(MNH) Manhattan FINISHES

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box	n	n	n	n	n	$57	n	n	n	$57	$57	n	n
F40	Bed & Bath	Box	n	n	n	n	n	60	n	n	n	60	60	n	n
F51A	Keyed Entry	Box	n	n	n	n	n	107	n	n	n	107	107	n	n
F80*	Storeroom	Box	n	n	n	n	n	117	n	n	n	117	117	n	n
F170*	Non-turning	Box	n	n	n	n	n	29	n	n	n	29	29	n	n

Merano (MER)

	(MER) Merano								FINISHES
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	n	n	n	n	n	$57	n	n	$57	$57	$57	$57	n
F40	Bed & Bath	Box/Vis	n	n	n	n	n	60	n	n	60	60	60	60	n
F51A	Keyed Entry	Box/Vis	n	n	n	n	n	107	n	n	107	107	107	107	n
F80*	Storeroom	Box	n	n	n	n	n	117	n	n	117	117	117	117	n
F170*	Non-turning	Box/Vis	n	n	n	n	n	29	n	n	29	29	29	29	n

List Price Adders:

Stand out effortlessly.

Schlage's Decorative Collections offer thousands of additional design and finish combinations. See page 59 for details.

^* Specify Handing

Northbrook (NBR)

RECOMMENDED DECORATIVE TRIM Northbrook lever with Upland trim Northbrook lever with Collins trim

(NBR) Northbrook FINISHES


Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	n	n	n	n	n	$57	n	n	n	n	n	n	n
F40	Bed & Bath	Box/Vis	n	n	n	n	n	60	n	n	n	n	n	n	n
F51A	Keyed Entry	Box/Vis	n	n	n	n	n	107	n	n	$107	$107	n	$107	n
F80	Storeroom	Box	n	n	n	n	n	117	n	n	n	n	n	n	n
F170	Non-turning	Box	n	n	n	n	n	29	n	n	n	n	n	n	n

Sacramento (SAC)

(SAC) Sacramento FINISHES Function Packaging 605 505 608 609 618 619 620 621 622 625 626 716 613 F10 Hall & Closet Box/Vis ⁿ ⁿ ⁿ ⁿ $44 $44 ⁿ ⁿ ⁿ $44 $44 $44 ⁿ F40 Bed & Bath Box/Vis ⁿ ⁿ ⁿ ⁿ 47 47 ⁿ ⁿ ⁿ 47 47 47 ⁿ F51A Keyed Entry Box/Vis ⁿ ⁿ ⁿ ⁿ 74 74 ⁿ ⁿ ⁿ 74 74 74 ⁿ F80* Storeroom Box ⁿ ⁿ ⁿ ⁿ 84 84 ⁿ ⁿ ⁿ 84 84 84 ⁿ F170* Non-turning Box ⁿ ⁿ ⁿ ⁿ 22 22 ⁿ ⁿ ⁿ 22 22 22 ⁿ

List Price Adders:

^* Specify Handing

Schlage's Decorative Collections

Stand out effortlessly.

Schlage's Decorative Collections 1,000 customized design and finish limited by only your imagination.

Pair a knob or lever with our inspired decorative trim options to bring your vision to life.*

* LOCKS SHIP COMPLETE WITH TRIM ATTACHED

Addison (ADD)

Andover (AND)

Brookshire (BRK)

Camelot (CAM)

Century (CEN)

Collins (COL)

Greenwich (GRW)

Greyson (GSN)

Upland (ULD)

Wakefield (WKF)

Follow these steps for pricing decorative combinations:

1. Locate the price of the standard knob or lever from the Knobs/Levers section.
2. Use the chart below to find the list price adder for the matching Decorative Collection upgrade.
3. Add the prices together for the total cost of the new combinations.

Finishes available

Decorative trim finish	605	505	608	609	618	619	620	621	622	625	626	716	613
Addison (ADD)	n	n	n	$16	n	$16	$16	$16	$16	$16	$16	$16	n
Andover (AND)*	16	16	n	16	n	16	16	n	16	16	16	16	16
Brookshire (BRK)	16	16	n	16	n	16	n	n	16	n	n	16	n
Camelot (CAM)	16	16	16	16	n	16	16	n	16	16	n	16	n
Century (CEN)	n	n	n	n	16	16	n	n	16	16	16	16	n
Collins (COL)***	n	n	16	n	n	16	n	n	16	16	n	16	n
Greenwich (GRW)	n	n	n	n	16	16	n	n	16	16	16	16	n
Greyson (GSN)*	n	n	n	n	16	16	n	n	16	16	16	16	n
Upland (ULD)**	n	n	n	n	n	16	n	n	n	n	n	n	n
Wakefield (WKF)	n	n	n	n	16	16	16	n	16	16	16	16	n

EXAMPLE 1: To price a Accent passage lever with an Addison trim in Antique Pewter Take the price listed in the price book for the F10 ACC 620 and add the additional charge from the chart above

$57 (F10 ACC 620)

+ $16 (Addison Decorative Trim 620)

$73 Total cost

(F10 ACC 620 ADD)

When ordering a decorative collection product, specify the trim at the end of the product code Example: F40 ACC 716 CAM or F170 LAT 625 CEN

NOTE: The deco trim cost for an F170 is 50% of the cost listed on this chart AND and GSN deco trim are not available for PLY or GEO styles

^*** Collins 608, 622, 625 and 716 finishes are only available on F51A keyed product and Schlage Custom Interiors

^* Decorative trim are staked on the lock chassis for strength and durability and can only be ordered as a complete lock product.

^* Greyson and Andover are not available in B60 or F59 functions

^* Greyson and Andover feature concealed screws

^** ULD unavailable in B60 function. ULD F59 features COL deadbolt.

To order latches and strikes see page 126-127

J Series Levers

AVAILABLE FUNCTIONS

J10 J40 J170 J54 ANSI F75 F77 F82

ANSI/BHMA A156.2-2011 Commercial Grade 3 J Series Levers

Non-keyed Locks

J10/F75 - Hall & Closet

Both levers always unlocked

J40/F77 - Bed & Bath

Turn-button locking. Can be opened from outside by turning outside turn mechanism
From interior, turning inside turn-button releases inside lever

J40P - Bed & Bath (Pushbutton)

Push-button locking. Can be opened from outside with small circular tool.
Turning inside knob/lever releases button
ADA Compliant

J170 - Non-turning

Non-turning trim for one side of door
Used for door pull or as matching inactive trim

Keyed Locks

J54/F82 - Keyed Entry

Unlocked by key from outside when outer knob is locked by turn-button in inside knob
Inside knob is locked and unlocked by turn-button

PRODUCT IDENTIFICATION

J	54	F	SEV	619	SQR	16-255	10-101	KA4
Lock Series	Product	UL Fire Rated	Design	Finish Code	Collins Trim	Latch	Strike	Keying

LATCHES & STRIKES

Keyed Latches - Dead Latches

16-255 - Triple Option (Round, Square, Drive-in) - STANDARD

16-061 - UL Listed, Square Corner

Non Keyed - Spring Latches

16-254 - Dual Option (Round, Drive-in) - STANDARD

16-070 - Triple Option Spring Latch for handlesets

Strikes

10-101 - Round Corner Full Lip - STANDARD

STANDARD FEATURES / CONFIGURATIONS

J Series Levers

Description

Certification: ANSI/BHMA A156.2-2011 Commercial Grade

Latch: Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in

Triple Option: 1" x 2 1/4", square corner and 1/4" round faceplate, drive-in latch (J54)

Strike: 1 5/8" x 2 1/4", radius corner, full lip, no box

Backset: Adjustable for 2 3/8" or 2 3/4" Cylinder: 5-pin, C keyway, keyed alike (KA4)

Door Range: 1 3/8" - 1 3/4"

Keys: Two brass cut keys per lock, 5-pin, C section

FINISH CODES & DESCRIPTIONS

605	609	619	620	622	625	626	630	716
Bright Brass	Antique Brass	Satin Nickel	Antique Pewter	Matte Black	Bright Chrome	Satin Chrome	Satin Stainless Steel	Aged Bronze
(US3)	(US5)	(US15)	(US15A)	(US19)	(US26)	(US26D)	(US32D)

^* Non-standard finishes are not available

Full-color swatch examples available on inside Levers tab

PACKAGING & CARTON SPECS

	INDIVIDUAL CARTON				SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Levers
J10	1.58	3.07 in.	5.71 in.	6.69 in.	24	37.84	2.143	14.8 in.	13.7 in.	18.3 in.
J40	1.58	3.07 in.	5.71 in.	6.69 in.	24	37.84	2.143	14.8 in.	13.7 in.	18.3 in.
J54	1.58	3.07 in.	5.71 in.	6.69 in.	24	37.84	2.143	14.8 in.	13.7 in.	18.3 in.
J170	0.56	2.44 in.	2.64 in.	5.43 in.	50	28.16	1.420	12.2 in.	13.7 in.	14.7 in.
J10F	1.58	3.07 in.	5.71 in.	6.69 in.	24	37.84	2.143	14.8 in.	13.7 in.	18.3 in.
J54F	1.58	3.07 in.	5.71 in.	6.69 in.	24	37.84	2.143	14.8 in.	13.7 in.	18.3 in.

For Vis Pack carton specs, see page 150

J10 Broadway (BRW)

(BRW) Broadway FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box	n	n	$44	n	$44	$44	$44	n	$44
J40	Bed & Bath	Box	n	n	48	n	48	48	48	n	48
J54	Keyed Entry	Box	n	n	60	n	60	60	60	n	60
J170	Non-turning	Box	n	n	23	n	23	23	23	n	23

J10 Dover (DOV)

(DOV) Dover FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box/Vis	$43	$43	$40	n	$40	$40	$40	$40	$40
J40	Bed & Bath	Box/Vis	46	46	43	n	43	43	43	43	43
J54	Keyed Entry	Box/Vis	62	62	59	n	59	59	59	59	59
J170	Non-turning	Box/Vis	24	24	21	n	21	21	21	21	21

J10 Marin (MAR)

(MAR) Marin FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box	n	n	$40	n	$40	$40	$40	$40	$40
J40	Bed & Bath	Box	n	n	43	n	43	43	43	43	43
J54	Keyed Entry	Box	n	n	59	n	59	59	59	59	59
J170	Non-turning	Box	n	n	21	n	21	21	21	21	21

List Price Adders:

Visual Package Options (highlighted) - add $3 to list price Visual Package ONLY (highlighted) - $3 adder included UL Latch - add $6 to list price (J10F, J54F) *Specify handing

NOTE:

1) J10 and J40 standard latch is Dual Option (Round, Drive-in)
2) J54 standard latch is Triple Option (Round, Square, Drive-in)

Levers J Series

J10 Solstice (SOL)

(SOL) Solstice FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box/Vis	n	n	$44	n	$44	$44	$44	n	$44
J40	Bed & Bath	Box/Vis	n	n	48	n	48	48	48	n	48
J54	Keyed Entry	Box/Vis	n	n	60	n	60	60	60	n	60
J170	Non-turning	Box/Vis	n	n	23	n	23	23	23	n	23
J40P	Bed & Bath	Box	n	n	50	n	n	50	n	n	50

J10 LaSalle (LAS)

(LAS) LaSalle FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box/Vis	$40	$40	$40	n	n	n	n	n	$40
J40	Bed & Bath	Box/Vis	43	43	43	n	n	n	n	n	43
J54	Keyed Entry	Box/Vis	59	59	59	n	n	n	n	n	59
J170*	Non-turning	Box/Vis	21	21	21	n	n	n	n	n	21

J10 Seville (SEV)

(SEV) Seville FINISHES

Function		Packaging	605	609	619	620		625	626	630	716
J10	Hall & Closet	Box/Vis	$43	$43	$40	n	n	$40	n	n	$40
J40	Bed & Bath	Box/Vis	46	46	43	n	n	43	n	n	43
J54	Keyed Entry	Box/Vis	62	62	59	n	n	59	n	n	59
J170*	Non-turning	Box/Vis	n	n	21	n	n	21	n	n	21
J40P	Bed & Bath	Box	n	n	45	n	n	45	n	n	45

List Price Adders:

Visual Package Options (highlighted) - add $3 to list price Visual Package ONLY (highlighted) - $3 adder included UL Latch - add $6 to list price (J10F, J54F) *Specify handing

NOTE:

1) J10 and J40 standard latch is Dual Option (Round, Drive-in) 2) J54 standard latch is Triple Option (Round, Square, Drive-in)

J10 Torino (TOR)

(TOR) Torino FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box/Vis	$43	$43	$40	$40	n	$40	n	$40	$40
J40	Bed & Bath	Box/Vis	46	46	43	43	n	43	n	43	43
J54	Keyed Entry	Box/Vis	62	62	59	59	n	59	n	59	59
J170	Non-turning	Box/Vis	24	24	21	21	n	21	n	21	21
J40P	Bed & Bath	Box	n	n	45	n	n	45	n	n	45

J10 Broadway with Collins Trim (BRW/COL)

(BRW/SQR) Broadway with Collins Rose FINISHES


	ıcı	_
ııvı	131	п

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box	n	n	$50	n	$50	$50	$50	n	$50
J40	Bed & Bath	Box	n	n	53	n	53	53	53	n	53
J54	Keyed Entry	Box	n	n	66	n	66	66	66	n	66
J170	Non-turning	Box	n	n	26	n	26	26	26	n	26

J10 Solstice with Collins Trim (SOL/COL)

(SOL/SQR) Solstice with Collins Rose FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box	n	n	$50	n	$50	$50	$50	n	$50
J40	Bed & Bath	Box	n	n	53	n	53	53	53	n	53
J54	Keyed Entry	Box	n	n	66	n	66	66	66	n	66
J170	Non-turning	Box	n	n	26	n	26	26	26	n	26

List Price Adders:

Visual Package Options (highlighted) - add $3 to list price

Visual Package ONLY (highlighted) - $3 adder already included in price

UL Latch - add $6 to list price (J10F, J54F)

*Specify handing

NOTE:

1) J10 and J40 standard latch is Dual Option (Round, Drive-in) 2) J54 standard latch is Triple Option (Round, Square, Drive-in)

Levers J Series

Notes

FC Series 67
FC Series Decorative Collection 73
F Series 75
F Series Decorative Collection 82
J Series 83

FC Series Knobs

AVAILABLE FUNCTIONS

Non-keyed Locks

Schlage FC21

FC172

ANSI/BHMA A156.2-2017 Grade 2 ANSI/BHMA A156.39-2017 Residential Grade AAA

FC21 - Combined Passage Privacy

Passage is default function
Insert privacy pushbutton on interior side of lock to convert to privacy
Can be opened from outside with small emergency unlock tool
Turning inside knob/lever releases privacy pushbutton

FC172 – Non-Turning Set

Non-turning pair of levers/knobs
Used for door pull or matching inactive trim

LATCHES & STRIKES

Non Keyed - Spring Latches

16-600 - FC21 Dual Option (Round Corner & Drive In) STANDARD

16-601 - FC21 Triple Option (Round, Square Corner, & Drive In)

16-620 - UL Listed Square Corner

16-621 - UL Listed Round Corner

Strikes

10-027 - Round Corner Full Lip STANDARD

10-001 - Square Corner T Strike

10-026 - Square Corner Full Lip

10-058 - Circular - Adjustable

10-063 - Dual Strikes (Round & Square Full Lip)

10-025 - ANSI Square Corner

STANDARD FEATURES / CONFIGURATIONS

FC Series Knobs/Decorative Trim*

Description

Certification: ANSI/BHMA A156.2-2017 Grade 2

ANSI/BHMA A156.39-2015 Residential Grade AAA Available UL Listed for 90 minute fire door (Available soon)

Latch: 1"x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw,

circular drive-in included, universal latch

Strike: 1 5/8" x 2 1/4" radius corner, full lip

Backset: Dual backset latches, fits either 2 3/8" or 2 3/4" backsets Cylinder: 5-Pin, C keyway, keyed alike (KA4) on keyed function only

Door Range: 1 3/8" - 1 3/4"

Keys: Two per lock, 5-pin, C section on keyed functions only

* Locks are furnished with standard features unless otherwise specified. To order locks with non-standard features specify non-standard feature desired.

FINISH CODES & DESCRIPTIONS

530	608	618	619	622	625	626	716
Black Stainless	Satin Brass	Polished Nickel	Satin Nickel (US15)	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Aged Bronze

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	QTY. CARTON DEPTH SHIPPER WEIGHT CU. FT. HEIGHT WIDTH DEPTH
Levers
FC21	2.3	3.5 in.	5.9 in.	8.1 in.	8	18.00	0.94	8.8 in.	12.8 in.	14.5 in.
FC172	1.5	3.2 in.	4.4 in.	5.8 in.	20	31.00	1.25	6.7 in.	16.1 in.	20.1 in.

AVAILABLE STYLES

Alexandria

Andover

Bowery

Ganton

Dawes Georgian

Hobson Offerman

Plymouth

Alexandria (ALX)

(NOTE: Alden is standard trim)

(ALX) Alexandria FINISHES

Function	605	530	608	609	618	619	620	621	622	625	626	716	613
FC21 Combined Interior	n	$111	$111	n	$111	$111	n	n	$111	n	n	$111	n
FC172 Non-Turning Set	n	104	104	n	104	104	n	n	104	n	n	104	n

Andover (AND)

(NOTE: Alden is standard trim)

(AND) Andover FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$66	n	n	n	n	n	$66	n
FC172	Non-Turning Set	n	n	n	n	n	62	n	n	n	n	n	62	n
F51A	Keyed Entry	62	n	n	66	n	66	66	n	n	66	66	66	75

Bowery (BWE)

(NOTE: Kinsler is standard trim)

(BWE) Bowery FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	$66	$66	n	$66	$66	n	n	$66	$66	n	$66	n
FC172	Non-Turning Set	n	62	62	n	62	62	n	n	62	62	n	62	n
F51A	Keyed Entry	n	66	66	n	66	66	n	n	66	66	66	66	n

Dawes (DAW)

(DAW) Dawes FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	$111	n	n	$111	n	n	$111	$111	n	n	n
FC172	Non-Turning Set	n	n	104	n	n	104	n	n	104	104	n	n	n

Ganton (GAN)

(NOTE: Alden is standard trim)

(GAN) Ganton FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$80	n	n	$80	n	n	n	n
FC172	Non-Turning Set	n	n	n	n	n	74	n	n	74	n	n	n	n
F51A	Keyed Entry	n	n	n	n	n	107	n	n	107	n	n	n	n

Georgian (GEO)

(GEO) Georgian FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	$66	n	n	$66	n	n	$66	$66	n	$66	n
FC172	Non-Turning Set	n	n	62	n	n	62	n	n	62	62	n	62	n
F51A	Keyed Entry	52	n	56	56	n	56	56	56	56	56	n	56	n

Hobson (HOB)

(NOTE: Kinsler is standard trim)

(HOB) Hobson FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	$111	n	$111	$111	n	n	$111	n	n	$111	n
FC172	Non-Turning Set	n	n	104	n	104	104	n	n	104	n	n	104	n

Offerman (OFM)

(NOTE: Alden is standard trim)

(OFM) Offerman FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$80	n	n	n	n	n	$80	n
FC172	Non-Turning Set	n	n	n	n	n	74	n	n	n	n	n	74	n
F51A	Keyed Entry	n	n	n	n	n	107	n	n	n	n	n	107	n

Plymouth (PLY)

(NOTE: Kinsler is standard trim)

(PLY) Plymouth FINISHES

Function		605	530	608	609	618	619	620	621	622	625	626	716	613
FC21	Combined Interior	n	n	n	n	n	$66	n	n	$66	$66	$66	$66	n
FC172	Non-Turning Set	n	n	n	n	n	62	n	n	62	62	62	62	n
F51A	Keyed Entry	52	n	n	56	n	56	56	n	56	56	56	56	n

Flexible. Simple.

Schlage's Custom Series makes it easy to change your door hardware as the style in your home evolves. Simply pair a knob or lever with one of our trims, and you can

Pair a knob or lever with our inspired decorative trim options to bring your vision to life.*

Alden* (ALD)

Kinsler* (KIN)

Camelot (CAM)

Century (CEN)

Collins (COL)

(RWD)

Rosewood

Upland (ULD)

Dalton (DLT)

Grandville (GDV)

Follow these steps for pricing decorative combinations:

1. Locate the price of the standard knob or lever from the Knobs/Levers section.
2. Use the chart below to find the list price adder for the matching Decorative Collection upgrade.
3. Add the prices tog ether for the total cost of the new combinations.

Finishes available

Custom trim finish	605	530	608	609	618	619	620	621	622	625	626	716	613
Century (CEN)	■	$10	$10	■	■	$10	■	■	$10	$10	$10	$10	■
Upland (ULD)	■	■	■	■	■	10	■	■	10	10	■	10	■
Camelot (CAM)	■	10	10	■	■	10	■	■	10	■	■	10	■
Rosewood (RWD)	■	■		■	■	10	■	■	10	■	■	■	■
Collins (COL)	■	10	10	■	■	10	■	■	10	10	10	10	■
Dalton (DLT)	■	■	■	■	■	10	■	■	10	■	■	■	■
Grandville (GDV)	■	■	■	■	■	10	■	■	■	■	■	10	■
Keyed trim finish
Century (CEN)	■	16	16	■	16	16	■	■	16	16	16	16	■
Upland (ULD)	■	■	■	■	■	16	■	■	16	16	■	16	■
Camelot (CAM)	■	16	16	■	■	16	■	■	16	■	■	16	■
Rosewood (RWD)	■	■	■	■	16	16	■	■	16	■	■	■	■
Collins (COL)	■	16	16	■	16	16	■	■	16	16	16	16	■
Dalton (DLT)	■	■	■	■	■	16	■	■	16	■	■	■	■
Grandville (GDV)	■	■	■	■	■	16	■	■	■	■	■	16	■

$111 (FC ALX 619)

+ $10 (Camelot Trim for FC21)

$121 Total cost

(FC21 ALX 619 CAM)

When ordering a Schlage Custom product, please specify the trim at the end of the product code. Example: FC21 ELR 619 CAM or FC172 LAT 622 COL

^* Standard trim with no upcharge

Notes

F Series Knobs

AVAILABLE FUNCTIONS

Non-keyed Locks Keyed Locks

Schlage F10 F40 F170 F51A F80 ANSI F75 F76 F81 F86

ANSI/BHMA A156.2-2017 Commercial Grade 2 ANSI/BHMA A156.39-2015 Residential Grade AAA

Non-keyed Locks

F10/F75 – Hall & Closet

Both knobs/levers always unlocked

F40/F76 – Bed & Bath

Push-button locking
Can be opened from outside with small circular tool
Turning inside knob/lever releases button

F170 – Non-turning

Non-turning trim for one side of door
Used for door pull or as matching inactive trim

Keyed Locks

F51A/F81 – Keyed Entry

Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit

F80/F86 – Storeroom Lock

Outside knob/lever fixed. Entrance by key only.
Inside knob/lever always unlocked

PRODUCT IDENTIFICATION

F	51A	F	PLY	619	CAM	RH	16-086	10-027	KA4
Lock Series	Product	UL Fire Rated (V - VisPack) (GC - Graphic Cover)	Style	Finish Code	Decorative Trim	Hand	Latch	Strike	Keying

LATCHES & STRIKES

Keyed Latches - Dead Latches

16-086 - Dual Option (Round, Drive-in) STANDARD

16-207 - Square Corner

16-211 - Triple Option (Round, Square, Drive-in)

16-203 - UL Listed Square Corner with Firecup

16-204 - UL Listed Round Corner with Firecup

16-126 - 5" Backset, Square Corner

Non Keyed - Spring Latches

16-080 - Dual Option (Round, Drive-in) STANDARD

16-200 - Square Corner

16-210 - Triple Option (Round, Square, Drive-in)

16-203 - UL Listed Square Corner with Firecup

16-204 - UL Listed Round Corner with Firecup

16-126 - 5" Backset, Square Corner

Strikes

10-027 - Round Corner Full Lip STANDARD

10-001 - Square Corner T Strike

10-026 - Square Corner Full Lip

10-058 - Circular - Adjustable

10-063 - Dual Strikes

(Round & Square Full Lip)

10-025 - ANSI Square Corner

STANDARD FEATURES / CONFIGURATIONS

F-Series Knobs/Decorative Trim*

Description

Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2

ANSI/BHMA A156.39-2015 Residential Grade AAA

Available UL Listed for 3-hour fire door

Latch: 1"x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw,

circular drive-in included, universal latch

Strike: 1 5/8" x 2 1/4" radius corner, full lip, no box

Backset: Dual backset latches, fits either 2 3/8" or 2 3/4" backsets

Cylinder: 5-Pin, C keyway, keyed alike (KA4)

Door Range: 1 3/8" - 1 3/4"

Keys: Two per lock, 5-pin, C section

* Locks are furnished with standard features unless otherwise specified. To order locks with non-standard features specify non-standard feature desired.

FINISH CODES & DESCRIPTIONS

505	605	608	609	613	618	619	620	621	622	625	626	716
Lifetime Bright Brass	Bright Brass (US3)	Satin Brass	Antique Brass (US5)	Oil-Rubbed Bronze (US10B)	Polished Nickel	Satin Nickel (US15)	Antique Pewter (US15A)	Distressed Nickel	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Aged Bronze

Non-standard finishes are not available.

Full-color swatch examples available on inside Knobs tab.

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON					SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Knobs
F10	1.55	3.06 in.	4.37 in.	8.14 in.	20	31.00	1.520	9.0 in.	15.6 in.	18.8 in.
F40	1.55	3.06 in.	4.37 in.	8.14 in.	20	31.00	1.520	9.0 in.	15.6 in.	18.8 in.
F51A	1.55	3.06 in.	4.37 in.	8.14 in.	20	31.00	1.520	9.0 in.	15.6 in.	18.8 in.
F80	1.55	3.06 in.	4.37 in.	8.14 in.	20	31.00	1.520	9.0 in.	15.6 in.	18.8 in.
F170	0.45	2.77 in.	3.60 in.	3.88 in.	20	9.00	0.575	4.8 in.	14.5 in.	15.0 in.

F170 1.20 2.86 in. 4.38 in. 5.66 in. 20 25.00 1.000 6.5 in. 15.3 in. 18.3 in.

Decorative Collections Knobs

All Knobs* 1.55 3.25 in. 6.00 in. 7.00 in. 8 15.00 1.090 8.13 in. 12.63 in. 18.4 in.

For Vis Pack carton specs, see page 150 * AND and COL Decorative knobs use same cartons and shippers as the Standard Knobs in first table above.

AVAILABLE STYLES

Bell (BEL)

Bowery (BWE)

Georgian (GEO)

Orbit (ORB)

Plymouth (PLY)

Siena (SIE)

Knobs F Series

Andover (AND)

RECOMMENDED DECORATIVE TRIM

Andover knob with Addison trim

Andover knob with Andover trim

(AND) Andover FINISHES

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box	$40	$42	n	$42	n	$42	$42	n	n	$42	$42	$42	$55
F40	Bed & Bath	Box	43	n	n	45	n	45	45	n	n	45	45	45	58
F51A	Keyed Entry	Box	62	66	n	66	n	66	66	n	n	66	66	66	75
F80	Storeroom	Box	72	76	n	76	n	76	76	n	n	76	76	76	85
F170	Non-turning	Box	20	n	n	21	n	21	21	n	n	21	21	21	28

Bell (BEL)

(BEL) Bell									FINISHES
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	$30	$32	n	$32	n	n	n	n	n	n	$32	n	n
F40	Bed & Bath	Box/Vis	33	n	n	35	n	n	n	n	n	n	35	n	n
F51A	Keyed Entry	Box/Vis	52	56	n	56	n	n	n	n	n	n	56	n	n
F80	Storeroom	Box	62	66	n	66	n	n	n	n	n	n	66	n	n
F170	Non-turning	Box/Vis	15	n	n	16	n	n	n	n	n	n	16	n	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Decorative Trim Option - See chart on page Knobs-12 Triple Option Latch - add $2 to list price; Box Pack Only UL Latch - add $6 to list price (F10, F51A, F80 Functions Box Pack Only) Split Finish - add $6.50 to list price; Box Pack Only

Bowery (BWE)

RECOMMENDED DECORATIVE TRIM

Bowery knob with Greyson trim

Bowery knob with Century trim

(BWE) Bowery FINISHES

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	n	n	n	n	$42	$42	n	n	$42	$42	$42	$42	n
F40	Bed & Bath	Box/Vis	n	n	n	n	45	45	n	n	45	45	45	45	n
F51A	Keyed Entry	Box/Vis	n	n	n	n	66	66	n	n	66	66	66	66	n
F80	Storeroom	Box	n	n	n	n	76	76	n	n	76	76	76	76	n
F170	Non-turning	Box/Vis	n	n	n	n	21	21	n	n	21	21	21	21	n

Georgian (GEO)

RECOMMENDED DECORATIVE TRIM

Georgian knob with Brookshire trim

	(GEO) Georgian								FINISHES
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	$30	$32	$32	$32	n	$32	$32	$32	$32	$32	n	$32	n
F40	Bed & Bath	Box/Vis	33	n	35	35	n	35	35	35	35	35	n	35	n
F51A	Keyed Entry	Box/Vis	52	56	56	56	n	56	56	56	56	56	n	56	n
F80	Storeroom	Box	62	66	66	66	n	66	66	66	66	66	n	66	n
F170	Non-turning	Box/Vis	15	n	16	16	n	16	16	16	16	16	n	16	n

List Price Adders:

Stand out effortlessly.

Schlage's Decorative Collections offer thousands of additional design and finish combinations. See page 72 for details.

(ORB) Orbit									FINISHES
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box	$40	$42	n	n	n	$42	n	n	n	$42	$42	n	n
F40	Bed & Bath	Box	43	n	n	n	n	45	n	n	n	45	45	n	n
F51A	Keyed Entry	Box	62	66	n	n	n	66	n	n	n	66	66	n	n
F80	Storeroom	Box	72	76	n	n	n	76	n	n	n	76	76	n	n
F170	Non-turning	Box	20	n	n	n	n	21	n	n	n	21	21	n	n

Note: 1) Orbit F10, F40, F51A and F80 in 626 Finish are available as CSV - add $11 to list price 2) CSV - Contractor Series VisPack (Includes Light Commercial packaging and comes standard with UL fire rated latches.)

Plymouth (PLY)

(PLY) Plymouth FINISHES Function Packaging 605 505 608 609 618 619 620 621 622 625 626 716 613 F10 Hall & Closet Box/Vis $30 $32 ⁿ $32 ⁿ $32 $32 ⁿ $32 $32 $32 $32 ⁿ F40 Bed & Bath Box/Vis 33 ⁿ ⁿ 35 ⁿ 35 35 ⁿ 35 35 35 35 ⁿ F51A Keyed Entry Box/Vis 52 56 ⁿ 56 ⁿ 56 56 ⁿ 56 56 56 56 ⁿ F80 Storeroom Box 62 66 ⁿ 66 ⁿ 66 66 ⁿ 66 66 66 66 ⁿ F170 Non-turning Box/Vis 15 ⁿ ⁿ 16 ⁿ 16 16 ⁿ 16 16 16 16 ⁿ

List Price Adders:

Siena (SIE)

RECOMMENDED DECORATIVE TRIM

Siena knob with Wakefield trim

Siena knob with Collins trim

(SIE) Siena									FINISHES
Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
F10	Hall & Closet	Box/Vis	$41	$49	n	$49	n	$49	$49	n	$49	$49	$49	$49	n
F40	Bed & Bath	Box/Vis	44	n	n	52	n	52	52	n	52	52	52	52	n
F51A	Keyed Entry	Box/Vis	72	69	n	69	n	69	69	n	69	69	69	69	n
F80	Storeroom	Box	82	79	n	79	n	79	79	n	79	79	79	79	n
F170	Non-turning	Box/Vis	21	n	n	25	n	25	25	n	25	25	25	25	n

Note: Siena 626, 605, and 505 knobs available while supplies last

List Price Adders:

Stand out effortlessly.

Schlage's Decorative Collections offer thousands of additional design and finish combinations. See page 72 for details.

Schlage's Decorative Collections

Decorative collection is only available with F Series

Stand out effortlessly.

Schlage's Decorative Collections 1,000 customized design and finish limited by only your imagination.

Pair a knob or lever with our inspired decorative trim options to bring your vision to life.*

* LOCKS SHIP COMPLETE WITH TRIM ATTACHED

Addison (ADD)

Andover (AND)

Brookshire (BRK)

Camelot (CAM)

Century (CEN)

Collins (COL)

Greenwich (GRW)

Greyson (GSN)

Upland (ULD)

Wakefield (WKF)

Follow these steps for pricing decorative combinations:

1. Locate the price of the standard knob or lever from the Knobs/Levers section.
2. Use the chart below to find the list price adder for the matching Decorative Collection upgrade.
3. Add the prices together for the total cost of the new combinations.

Finishes available

Decorative trim finish	605	505	608	609	618	619	620	621	622	625	626	716	613
Addison (ADD)	n	n	n	$16	n	$16	$16	$16	$16	$16	$16	$16	n
Andover (AND)*	16	16	n	16	n	16	16	n	16	16	16	16	16
Brookshire (BRK)	16	16	n	16	n	16	n	n	16	n	n	16	n
Camelot (CAM)	16	16	16	16	n	16	16	n	16	16	n	16	n
Century (CEN)	n	n	n	n	16	16	n	n	16	16	16	16	n
Collins (COL)***	n	n	16	n	n	16	n	n	16	16	n	16	n
Greenwich (GRW)	n	n	n	n	16	16	n	n	16	16	16	16	n
Greyson (GSN)*	n	n	n	n	16	16	n	n	16	16	16	16	n
Upland (ULD)**	n	n	n	n	n	16	n	n	n	n	n	n	n
Wakefield (WKF)	n	n	n	n	16	16	16	n	16	16	16	16	n

EXAMPLE 1: To price a Siena passage knob with an Addison trim in Antique Pewter Take the price listed in the price book for the F10 SIE 620 and add the additional charge from the chart above

$49 (F10 SIE 620)

+ $16 (Addison Decorative Trim 620)

$65 Total cost

(F10 SIE 620 ADD)

When ordering a decorative collection product, specify the trim at the end of the product code Example: F40 ACC 716 CAM or F170 LAT 625 CEN

NOTE: The deco trim cost for an F170 is 50% of the cost listed on this chart AND and GSN deco trim are not available for PLY or GEO styles

^*** Collins 608, 622, 625 and 716 finishes are only available on F51A keyed product and Schlage Custom Interiors Collins deco trim not available on F80 function

^* Decorative trim are staked on the lock chassis for strength and durability and can only be ordered as a complete lock product.

^* Greyson and Andover are not available in B60 or F59 functions

^* Greyson and Andover feature concealed screws and are not available with the BEL , GEO, PLY, and ORB knobs.

^** ULD unavailable in B60 function. ULD F59 features COL deadbolt.

To order latches and strikes see page 126-127

AVAILABLE FUNCTIONS

Non-keyed Locks Keyed Locks

J10 J40 J170 J54

ANSI F75 F77 F82

ANSI/BHMA A156.2-2011 Commercial Grade 3

Non-keyed Locks

J10/F75 - Hall & Closet

ⁿ Both knobs always unlocked

J40/F77 - Bed & Bath

ⁿ Turn-button locking. Can be opened from outside by turning outside turn mechanism
ⁿ From interior, turning inside turn-button releases inside knob

J170 - Non-turning

ⁿ Inactive trim for one side of door
ⁿ Used for door pull or as matching inactive trim

Keyed Locks

J54/F82 - Keyed Entry

ⁿ Unlocked by key from outside when outer knob is locked by turn-button in inside knob
ⁿ Inside knob is locked and unlocked by turn-button

PRODUCT IDENTIFICATION

J	54	F	BYR	619	16-255	10-101	KA4
Lock Series	Product	UL Fire Rated	Design	Finish Code	Latch	Strike	Keying

LATCHES & STRIKES

Keyed Latches - Dead Latches

16-255 - Triple Option (Round, Square, Drive-in) - STANDARD

16-061 - UL Listed, Square Corner

Non Keyed - Spring Latches

16-254 - Dual Option (Round, Drive-in) - STANDARD

16-070 - Triple Option Spring Latch for handlesets

Strikes

10-101 - Round Corner Full Lip - STANDARD

STANDARD FEATURES / CONFIGURATIONS

J Series Knobs

Description

Certification: ANSI/BHMA A156.2-2011 Commercial Grade 3

Latch: Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in

Triple Option: 1" x 2 1/4", square corner and 1/4" round faceplate, drive-in latch (J54)

Strike: 1 5/8" x 2 1/4", radius corner, full lip, no box

Backset: Adjustable for 2 3/8" or 2 3/4" Cylinder: 5-pin, C keyway, keyed alike (KA4)

Door Range: 1 3/8" - 1 3/4"

Keys: Two brass cut keys per lock, 5-pin, C section

FINISH CODES & DESCRIPTIONS

605	609	619	620	622	625	626	630	716
Bright Brass (US3)	Antique Brass (US5)	Satin Nickel (US15)	Antique Pewter (US15A)	Matte Black (US19)	Bright Chrome (US26)	Satin Chrome (US26D)	Satin Stainless Steel (US32D)	Aged Bronze

^* Non-standard finishes are not available

Full-color swatch examples available on inside Levers tab

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON					SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Knobs
J10	1.04	2.76 in.	3.23 in.	6.77 in.	24	24.86	1.175	15.0 in.	10.9 in.	12.4 in.
J40	1.04	2.76 in.	3.23 in.	6.77 in.	24	24.86	1.175	15.0 in.	10.9 in.	12.4 in.
J54	1.04	2.76 in.	3.23 in.	6.77 in.	24	24.86	1.175	15.0 in.	10.9 in.	12.4 in.
J170	0.34	3.03 in.	2.60 in.	2.68 in.	50	16.94	0.923	7.6 in.	14.4 in.	14.6 in.
J10F	1.04	2.76 in.	3.23 in.	6.77 in.	24	24.86	1.175	15.0 in.	10.9 in.	12.4 in.
J54F	1.04	2.76 in.	3.23 in.	6.77 in.	24	24.86	1.175	15.0 in.	10.9 in.	12.4 in.

For Vis Pack carton specs, see page 150

(BYR) Byron FINISHES

J10 Byron (BYR)

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box/Vis	$25	$28	n	n	n	n	n	$25	n
J40	Bed & Bath	Box/Vis	29	32	n	n	n	n	n	29	n
J54	Keyed Entry	Box/Vis	38	41	n	n	n	n	n	38	n
J170	Non-turning	Box/Vis	14	17	n	n	n	n	n	14	n

J10 Corona (CNA)

(CNA) Corona FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box/Vis	$25	$25	$25	$25	n	$25	n	$25	$25
J40	Bed & Bath	Box/Vis	29	29	29	29	n	29	n	29	29
J54	Keyed Entry	Box/Vis	38	38	38	38	n	38	n	38	38
J170	Non-turning	Box/Vis	14	14	14	14	n	14	n	14	14

J10 Dublin (DUB)

(DUB) Dublin FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box	n	n	$25	n	n	n	n	n	$25
J40	Bed & Bath	Box	n	n	29	n	n	n	n	n	29
J54	Keyed Entry	Box	n	n	38	n	n	n	n	n	38
J170	Non-turning	Box	n	n	14	n	n	n	n	n	14

List Price Adders:

Visual Package Options (highlighted) - add $3 to list price

Visual Package ONLY (highlighted) - $3 adder already included in price UL Latch - add $6 to list price (J10F, J54F)

NOTE:

1) J10 and J40 standard latch is Dual Option (Round, Drive-in) 2) J54 standard latch is Triple Option (Round, Square, Drive-in)

Knobs J Series

J10 Stratus (STR)

(STR) Stratus FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
J10	Hall & Closet	Box/Vis	$25	$28	$25	n	n	$25	n	$25	$25
J40	Bed & Bath	Box/Vis	29	32	29	n	n	29	n	29	29
J54	Keyed Entry	Box/Vis	38	41	38	n	n	38	n	38	38
J170	Non-turning	Box/Vis	14	17	14	n	n	14	n	14	14

List Price Adders:

Visual Package Options (highlighted) - add $3 to list price Visual Package ONLY (highlighted) - $3 adder already included in price UL Latch - add $6 to list price (J10F, J54F)

NOTE:

1) J10 and J40 standard latch is Dual Option (Round, Drive-in) 2) J54 standard latch is Triple Option (Round, Square, Drive-in)

B Series 87
B Series Decorative Collection 91
J Series 93

B Series Deadbolts

AVAILABLE FUNCTIONS

Schlage B60 B62 B80 B81

ANSI E2152 E2142 E2192

ANSI/BHMA A156.36-2016 Commercial Grade 1 ANSI/BHMA A156.40-2015 Residential Grade AAA

B80 and B81 are not graded

B60 / E2152 - Single Cylinder Deadbolt Lock

Deadbolt thrown or retracted by key from outside or by inside turn unit
Bolt automatically deadlocks when fully thrown

B62 / E2142 - Double Cylinder Deadbolt Lock*

Deadbolt thrown or retracted by key from either side
Bolt automatically deadlocks when fully thrown

B80 / E2192 - One-Sided Deadbolt

Deadbolt thrown or retracted from interior side only
No exterior plate or exposed trim
Non-graded

B81 - One-sided Deadbolt with Exterior Plate

Deadbolt thrown or retracted from interior side only
Exterior plate covers exposed prep on outside
Non-graded

*Caution. Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Note: Double cylinder locks are not available as UL Listed

PRODUCT IDENTIFICATION

B	60	F	CAM	619	12-321	10-116	KA4
Lock Series	Product	UL Fire Rated (V - VisPack) (GC - Graphic Cover)	Decorative Trim	Finish Code	Latch	Strike	Keying

LATCHES & STRIKES

Latches

12-321 - Dual Option (Round, Drive-in) - STANDARD

12-288 - Square Corner

12-287 - Triple Option (Round, Square, Drive-in)

12-294 - UL Listed Square Corner with Firecup

12-397 - UL Listed Round Corner with Firecup

12-355 - Tapered Deadbolt Triple Option (Round, Square, Drive-in)

Strikes

10-116 - Round Corner Strike with Reinforcer - STANDARD

10-092 - Round Corner Full Lip Strike

10-094 - Square Corner Strike with Reinforcer

STANDARD FEATURES / CONFIGURATIONS

B-Series Deadbolts/Decorative Trim*

Grade 1 / AAA deadbolt standard features / configurations

B80 and B81 are not graded

Models: B60, B62, B80, B81

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1

ANSI/BHMA A156.40-2015 Residential Grade AAA Available UL Listed for 3-hour fire door (B60 only)

Deadbolt: 1" x 2 1/4", radius corner, 1" housing diameter, 1" throw, latch number 12-321

Strike: 1 1/8" x 2 3/4", 1/4" radius corner, strike number 10-116

Backset: Adjustable for 2 3/8" or 2 3/4"

Cylinder: 5-pin, keyed 5-pin, C keyway, keyed alike (KA4)

Door Range: Standard 1 3/8" - 1 3/4", Optional door thickness available up to 2.1/4" for B60 and B62.

Keys: Two keys per lock, 5-pin, keyed 5-pin, C section Reinforcement: Door frame strike reinforcer with 3" screws

Locks are furnished with standard features unless otherwise specified. To order locks with non-standard features, specify non-standard feature desired.

FINISH CODES & DESCRIPTIONS

505	605	608	609	613	618	619	620	621	622	625	626	716
Lifetime Bright	Bright Brass	Satin Brass	Antique Brass	Oil-Rubbed Bronze	Polished Nickel	Satin Nickel	Antique Pewter	Distressed Nickel	Matte Black	Bright Chrome	Satin Chrome	Aged Bronze
Brass	(US3)		(US5)	(US10B)		(US15)	(US15A)		(US19)	(US26)	(US26D)

Non-standard finishes are not available.

Full-color swatch examples available on inside Deadbolts tab.

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON						SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	DEPTH	QTY. SHIPPER	CARTON WEIGHT	CU. FT.	HEIGHT	WIDTH	DEPTH
Deadbolts
B60	1.60	2.86 in.	4.38 in.	5.66 in.	20	33.50	1.047	6.5 in.	15.3 in.	18.3 in.
B62	1.60	2.86 in.	4.38 in.	5.66 in.	20	33.50	1.047	6.5 in.	15.3 in.	18.3 in.
B80	1.08	2.86 in.	4.38 in.	5.66 in.	12	17.00	0.630	6.5 in.	15.3 in.	18.3 in.
B81	1.08	2.86 in.	4.38 in.	5.66 in.	12	17.00	0.630	6.5 in.	15.3 in.	18.3 in.
Decorative Collections Deadbolts
	2.10	3.06 in.	4.37 in.	8.14 in.	20	42.10	1.520	9.0 in.	15.6 in.	18.8 in.

For Vis Pack carton specs, see page 150

B60 B62

B Series

Deadbolts FINISHES

Function		Packaging	605	505	530	608	609	618	619	620	621	622	625	626	716	613
B60	Single Cylinder	Box/Vis	$56	$62	$62	$62	$62	$62	$62	$62	$62	$62	$62	$62	$62	$71
B62	Double Cylinder	Box/Vis	81	87	n	87	87	87	87	87	87	87	87	87	87	96
B80	One-sided	Box	38	n	n	44	44	44	44	44	44	44	44	44	44	53
B81	One-sided w/ trim	Box	40	47	n	47	47	47	47	47	47	47	47	47	47	55
	B60R6 Single Cylinder Interchgbl. Core-6 Pin	Box	n	161	n	n	n	n	159	n	n	n	n	159	161	n

List Price Adders:

Visual Package Options (highlighted) - add $5 to list price Decorative Trim Option - See chart on page B-5 (availalbe only with B60) Triple Option Latch - add $2 to list price; Box Pack Only UL Latch - add $6 to list price (B60, B80, B81 Functions Box Pack Only)

B62 NOT AVAILABLE WITH UL LATCH

Split Finish - add $6.50 to highest list price; Box Pack Only

Stand out effortlessly.

Schlage's Decorative Collections offer thousands of additional design and finish combinations. See page 89 for details.

B Series Deadbolt Combo Packs FINISHES

F	IN	ISI	HE	S

Function		Packaging	605	505	608	609	618	619	620	621	622	625	626	716	613
	Single Cylinder Deadbolt & Lever
FB50V	(SAC) Sacramento	Vis	n	n	n	n	n	$126	n	n	n	n	$126	n	n
FB50V	(ACC) Accent	Vis	149	n	n	159	n	159	n	n	n	n	n	159	n
FB50V	(AVA) Avanti	Vis	149	n	n	159	n	159	n	n	n	n	n	159	n
FB50V	(BIR) Birmingham	Vis	n	n	n	n	n	n	n	n	n	n	n	159	n
FB50V	(FLA) Flair	Vis	149	n	n	159	n	159	n	n	n	n	n	159	n
FB50V	(LAT) Latitude	Vis	n	n	n	n	n	159	n	n	n	n	n	n	n
	Single Cylinder Deadbolt & Knob
FB50V	(BEL) Bell	Vis	$109	n	n	n	n	n	n	n	n	n	119	n	n
FB50V	(GEO) Georgian	Vis	109	n	n	119	n	119	n	n	n	n	n	119	n
FB50V	(PLY) Plymouth	Vis	109	n	n	119	n	119	n	n	n	n	n	n	n
FB50V	(BWE) Bowery	Vis	n	n	n	n	n	129	n	n	n	n	n	129	n
FB50V)	(SIE) Siena	Vis	125	n	n	135	n	135	n	n	n	n	n	n	n
	Double Cylinder Deadbolt & Knob
FB52V	(BEL) Bell	Vis	$129	n	n	n	n	n	n	n	n	n	n	n	n
FB52V	(PLY) Plymouth	Vis	129	n	n	n	n	n	n	n	n	n	n	n	n

Schlage's Decorative Collections

Stand out effortlessly.

Schlage's Decorative Collections 1,000 customized design and finish limited by only your imagination.

Pair a deadbolt with our inspired decorative trim options to bring your vision to life.*

* LOCKS SHIP COMPLETE WITH TRIM ATTACHED

Camelot

Century

Addison (ADD)

Brookshire (BRK)

Collins (COL)

Greenwich (GRW)

Wakefield (WKF)

Follow these steps for pricing decorative combinations:

1. Locate the list price of the deadbolt in the Deadbolt section.
2. Use the chart below to find the list price adder for the matching Decorative Collection upgrade.
3. Add the list prices together for the total list price of the new combination.
4. Photos shown are represenative of the design only.

Finishes available

Decorative trim finish	605	505	608	609	618	619	620	621	622	625	626	716	613
Addison (ADD)	n	n	n	$16	n	$16	n	$16	$16	$16	n	$16	n
Brookshire (BRK)	n	n	n	16	n	16	n	n	n	n	n	16	n
Camelot (CAM)	16	16	16	16	n	16	16	n	16	16	n	16	n
Century (CEN)	n	n	n	n	16	16	n	n	16	16	16	16	n
Collins (COL)	n	n	n	n	16	16	n	n	16	16	16	16	n
Greenwich (GRW)	n	n	n	n	16	16	n	n	16	16	16	16	n
Wakefield (WKF)	n	n	n	n	16	16	n	n	n	16	n	16	n

EXAMPLE 1: To Price a B60 CAM 619 12-321 10-116

Take the list price of a B60 619 12-321 10-116 at $62.00 and add the Camelot Decorative Trim Adder of $16.00 for a total list price of $78.00

$62 (B60 619 12-321 10-116)

+ $16 (Camelot Decorative Trim 619)

$78 Total cost

(B60 CAM 619 12-321 10-116)

When ordering a decorative collection product, specify the trim after the function code Example: B60 CAM 619 or B60 ADD 716

Only available in B60 function

Split finish - add $6.50 to highest list price; Box pack only

Deadbolts B Series

Notes

To order latches and strikes see page 126-127

J Series Deadbolts

AVAILABLE FUNCTIONS

JD60 JD80 JD81

ANSI/BHMA A156.36-2010 Commercial Grade 3

JD60 - Single Cylinder Deadbolt Lock

Deadbolt thrown or retracted by key from outside or by inside turn unit
Bolt automatically deadlocks when fully thrown

JD80 - One Sided Deadbolt

Deadbolt thrown or retracted from interior side only

JD81 - One-sided Deadbolt Lock with Exterior Plate

Deadbolt thrown or retracted from interior side only

* Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

PRODUCT IDENTIFICATION

JD	60	F	605	16-068	10-103	KA4
Lock Series	Product	Suffix/Package	Finish Code	Latch	Strike	Keying

LATCHES & STRIKES

Latches

16-068 - Dual Option (Round, Drive-in) - STANDARD

Strikes

10-267 - One Radius Deadbolt Full Lip Strike (10-102) & One Radius Deadbolt Strike (10-103) - STANDARD

10-099 - Square Strike Plate & Strike Frame Reinforcer

STANDARD FEATURES / CONFIGURATIONS

J Series Deadbolts

Description

Certification: ANSI/BHMA A156.36-2010 Commercial Grade 3

Deadbolt Latch: Dual Option: 1" x 2 1/4", 1/4" round faceplate, drive-in latch,

1" housing diameter, 1" throw

Strike: 1" x 2 1/4" round corner and radius corner, full lip

Backset: Adjustable for 2 3/8" or 2 3/4" Cylinder: 5-pin, C keyway, keyed alike (KA4)

Door Range: 1 3/8" - 1 3/4"

Keys: Two brass cut keys per lock, 5-pin, C section

FINISH CODES & DESCRIPTIONS

605	609	619	620	622	625	626	630	716
Bright Brass	Antique Brass	Satin Nickel	Antique Pewter	Matte Black	Bright Chrome	Satin Chrome	Satin Stainless Steel	Aged Bronze
(US3)	(US5)	(US15)	(US15A)	(US19)	(US26)	(US26D)	(US32D)

^* Non-standard finishes are not available

Full-color swatch examples available on inside Deadbolts tab

PACKAGING & CARTON SPECS

		INDIVIDUAL CARTON					SHIPPER
	CARTON WEIGHT	HEIGHT	WIDTH	QTY. CARTON DEPTH SHIPPER WEIGHT CU. FT. HEIGHT WIDTH
Levers
JD60	1.49	3.15 in.	3.74 in.	3.74 in.	24	35.86	0.886	8.9 in.	12.4 in.	13.8 in.
JD80	1.05	2.80 in.	3.11 in.	3.31 in.	24	25.30	0.595	8.0 in.	10.4 in.	12.3 in.
JD81	1.05	2.80 in.	3.11 in.	3.31 in.	24	25.30	0.595	8.0 in.	10.4 in.	12.3 in.
JD60F	1.49	3.15 in.	3.74 in.	3.74 in.	24	35.86	0.886	8.9 in.	12.4 in.	13.8 in.

For Vis Pack carton specs, see page 150

J Series Deadbolts FINISHES

Function		Packaging	605	609	619	620	622	625	626	630	716
JD60	Single Cylinder Deadbolt	Box	$34	$34	$34	$34	$34	$34	$34	$34	$34
JD80	One-Sided Cylinder Deadbolt	Box	30	30	30	n	n	n	n	30	30
JD81	One-Sided Deadbolt with trim	Box	30	30	30	n	n	n	n	30	n
JD60F	Single Cylinder UL Version	Box	40	40	40	40	40	40	40	40	40

JD60	Single Cylinder Deadbolt	Vis	37	37	37	n	n	n	n	37	37
JD62	Double Cylinder Deadbolt	Vis	47	47	47	n	n	n	n	47	47

NOTE:

¹⁾ standard latch is Dual Option (Round, Drive-in)

Security Sets

J Series Security Sets

AVAILABLE FUNCTIONS

JC60V JCT60V

ANSI/BHMA A156.36-2010 Commercial Grade 3

ANSI/BHMA A156.2, 2011, Grade 3 J Series Entrance Locks

JC60V - Single Cylinder Deadbolt Lock

Deadbolt thrown or retracted by key from outside or by inside turn unit
Bolt automatically deadlocks when fully thrown

JCT60V - Twin Pack

• 2 single cylinder deadbolts and 2 keyed entry knobs all keyed alike

PRODUCT IDENTIFICATION

JC	60	V	605			KA4
Lock Series	Product	Vis Package	Finish Code	Latch	Strike	Keying

FINISH CODES & DESCRIPTIONS

605	609	619	630	716
Bright Brass (US3)	Antique Brass (US5)	Satin Nickel (US15)	Satin Stainless Steel (US32D)	Aged Bronze

^* Non-standard finishes are not available Full-color swatch examples available on inside Deadbolts tab

^* Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

SECURITY SETS


Function	Pkg.	Style/Design	605	609	619	620	622	625	626	630	716
		Twin Security Sets - 2 Knobs + 2 Deadbolts - Keyed Alike
JCT60V	Vis Only	(BYR ) Byron Knob Twin Security Set	$147	$147	n	n	n	n	n	n	n
JCT60V	Vis Only	(CNA) Corona Knob Twin Security Set	147	147	n	n	n	n	n	147	n
		Security Sets - Knob + Deadbolt - Keyed 1 Side
JC60V	Vis Only	(STR) Stratus Knob Security Set	$75	$75	$75	n	n	n	n	$75	$75
JC60V	Vis Only	(BYR) Byron Knob Security Set	75	75	n	n	n	n	n	75	n
JC60V	Vis Only	(CNA) Corona Knob Security Set	75	75	75	n	n	n	n	75	75
		Security Sets - Lever + Deadbolt
JC60V	Vis Only	(DOV) Dover Lever Security Set	$96	$96	n	n	n	n	n	$96	n
JC60V	Vis Only	(LAS) LaSalle Lever Security Set	96	96	96	n	n	n	n	n	n
JC60V	Vis Only	(SEV) Seville Lever Security Set	96	96	96	n	n	n	n	n	96
JC60V	Vis Only	(TOR) Torino Lever Security Set	96	96	96	n	n	n	n	n	96
JC60V	Vis Only	(SOL) Solstice Lever Security Set	n	n	97	n	n	n	n	n	97

Deadbolts J Series

Notes

Hardware & accessories Builder's hardware

Builder's Hardware 99
Barn Door Hardware 100
Handrail Brackets,
Door Stops & Chain Door Guards 101
Coat, Hat & Wardrobe Hooks,
Mail Slots, Viewers 103
Pocket Door Locks, Hinges 105
Classic House Numbers 107
Door Knockers, Push,
Pull & Kick Plates 109
Window Hardware, Flush Pulls 111
Parts 112
Latch & Strike Quick Reference Guide 112
Latches 113
Strikes 116
Cylinders 118
Thick Door Installation Kits
Miscellaneous Parts 120
Key & Cylinder Stamping
Residential Master & Construction Keying . 122
Construction Core Program 124

FINISH CODES & DESCRIPTIONS

28	32D	605/3	609/5	619	620	716
Satin Aluminum	Satin Stainless Steel	Bright Brass (US3)	Antique Brass (US5)	Satin Nickel (US15)	Antique Pewter (US15A)	Aged Bronze

Full-color swatch examples available on inside Hardware & Accessories tab.

Hardware & accessories Builder's hardware

Barndoor Hardware

J STRAP

Description	Finish	Track Length	SKU	Price
SD10-6.6 619 JSTP N N SL, SATIN NICKEL J STRAP	619	6FT 6IN	043156002634	$275.00
SD10-6.6 622 JSTP N N SL, BLACK J STRAP	622	6FT 6IN	043156002641	$174.00
SD10-6.6 630 JSTP N N SL, STAINLESS STEEL J STRAP	630	6FT 6IN	043156002658	$347.00
SD10-6.6 716 JSTP N N SL, AGED BRONZE J STRAP	716	6FT 6IN	043156002672	$268.00
SD10-8.0 619 JSTP N N SL, SATIN NICKEL J STRAP	619	8FT	043156002832	$283.00
SD10-8.0 622 JSTP N N SL, BLACK J STRAP	622	8FT	043156002849	$179.00
SD10-8.0 630 JSTP N N SL, STAINLESS STEEL J STRAP	630	8FT	043156002856	$354.00
SD10-8.0 716 JSTP N N SL, AGED BRONZE J STRAP	716	8FT	043156002870	$265.00

TOP MOUNT

Description	Finish	Track Length	SKU	Price
SD10-6.6 619 TMNT N N SL, SATIN NICKEL TOP MOUNT	619	6FT 6IN	043156002788	$275.00
SD10-6.6 622 TMNT N N SL, BLACK TOP MOUNT	622	6FT 6IN	043156002795	$174.00
SD10-6.6 630 TMNT N N SL, STAINLESS STEEL TOP MOUNT	630	6FT 6IN	043156002801	$347.00
SD10-6.6 716 TMNT N N SL, AGED BRONZE TOP MOUNT	716	6FT 6IN	043156002825	$268.00
SD10-8.0 619 TMNT N N SL, SATIN NICKEL TOP MOUNT	619	8FT	043156002986	$283.00
SD10-8.0 622 TMNT N N SL, BLACK TOP MOUNT	622	8FT	043156002993	$179.00
SD10-8.0 630 TMNT N N SL, STAINLESS STEEL TOP MOUNT	630	8FT	043156003006	$354.00
SD10-8.0 716 TMNT N N SL, AGED BRONZE TOP MOUNT	716	8FT	043156003020	$265.00

TRACK ADAPTER

DESCRIPTION	FINISH	SKU	PRICE
SD10 619 ADPTR N N SL, SATIN NICKEL TRACK ADAPTER	619	043156003051	$14.40
SD10 622 ADPTR N N SL, BLACK TRACK ADAPTER	622	043156003068	12.30
SD10 630 ADPTR N N SL, STAINLESS STEEL TRACK ADAPTER	630	043156003075	15.00
SD10 716 ADPTR N N SL, AGED BRONZE TRACK ADAPTER x	716	043156003099	14.40

Handrail Brackets, Door Stops & Chain Door Guards

Handrail Bracket

HANDRAIL BRACKETS

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074681567	SPS059B 605 N N (HANDRAIL BRACKETS, BRIGHT BRASS)	059	BRASS	10	SLIM PACK	$18.70
044074681598	SPS059B 619 N N (HANDRAIL BRACKETS, SATIN NICKEL)	059	BRASS	10	SLIM PACK	21.50
044074681604	SPS059B 620 N N (HANDRAIL BRACKETS, ANTIQUE PEWTER)	059	BRASS	10	SLIM PACK	21.50
044074681581	SPS059B 716 N N (HANDRAIL BRACKETS, AGED BRONZE)	059	BRASS	10	SLIM PACK	21.50
044074680904	SC059B 716 N N (HANDRAIL BRACKET, AGED BRONZE)	059	BRASS	5	CARDED	21.50

SOLID DOOR STOPS

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074683172	SC61Z* 605 N N (SOLID DOOR STOP, BRIGHT BRASS)	61	ZINC	5	CARDED	$3.40
044074681369	SPS61MB 605 N N (SOLID DOOR STOP, BRIGHT BRASS)	61	BRASS	20	SLIM PACK	11.40
044074681376	SPS61MB 609 N N (SOLID DOOR STOP, ANTIQUE BRASS)	61	BRASS	20	SLIM PACK	11.40
044074681390	SPS61MB 619 N N (SOLID DOOR STOP, SATIN NICKEL)	61	BRASS	20	SLIM PACK	15.40
044074681406	SPS61MB 620 N N (SOLID DOOR STOP, ANTIQUE PEWTER)	61	BRASS	20	SLIM PACK	15.40
044074681383	SPS61MB 716 N N (SOLID DOOR STOP, AGED BRONZE)	61	BRASS	20	SLIM PACK	15.40
044074680782	SC61MB 605 N N (SOLID DOOR STOP, BRIGHT BRASS)	61	BRASS	20	CARDED	11.40
044074680799	SC61MB 609 N N (SOLID DOOR STOP, ANTIQUE BRASS)	61	BRASS	20	CARDED	11.40
044074680812	SC61MB 619 N N (SOLID DOOR STOP, SATIN NICKEL)	61	BRASS	20	CARDED	15.40
044074680805	SC61MB 716 N N (SOLID DOOR STOP, AGED BRONZE)	61	BRASS	20	CARDED	15.40

^* While supplies last

Hardware & accessories Builder's hardware

Hinge Pin Door Stop

Wall Stop Convex Floor Door Stop

SOLID DOOR STOPS (cont)

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074680584	SC70Z* 716 N N (HINGE PIN DOOR STOP, AGED BRONZE)	70	ZINC	5	CARDED	$3.50
044074683189	SC70Z* 605 N N (HINGE PIN DOOR STOP, BRIGHT BRASS)	70	ZINC	5	CARDED	3.10
044074681413	SPS70B 605 N N (HINGE PIN DOOR STOP, BRIGHT BRASS)	70	BRASS	15	SLIM PACK	10.90
044074681444	SPS70B 619 N N (HINGE PIN DOOR STOP, SATIN NICKEL)	70	BRASS	15	SLIM PACK	13.50
044074681451	SPS70B 620 N N (HINGE PIN DOOR STOP, ANTIQUE PEWTER)	70	BRASS	15	SLIM PACK	13.50
044074681437	SPS70B 716 N N (HINGE PIN DOOR STOP, AGED BRONZE)	70	BRASS	15	SLIM PACK	13.50
044074680836	SC70B 605 N N (HINGE PIN DOOR STOP, BRIGHT BRASS)	70	BRASS	5	CARDED	10.90
044074680850	SC70B 716 N N (HINGE PIN DOOR STOP, AGED BRONZE)	70	BRASS	5	CARDED	13.50
044074680867	SC70B 619 N N (HINGE PIN DOOR STOP, SATIN NICKEL)	70	BRASS	5	CARDED	13.50
44074680874	SC70B 620 N N (HINGE PIN DOOR STOP, ANTIQUE PEWTER)	70	BRASS	5	CARDED	13.50

044074681468	SPS407B* 605 N N (WALL DOOR STOP- CONVEX, BRIGHT BRASS)	407	BRASS	15	SLIM PACK	3.90
044074681482	SPS407B* 716 N N (WALL DOOR STOP- CONVEX. AGED BRONZE)	407	BRASS	15	SLIM PACK	4.30
044074681505	SPS407B* 620 N N (WALL DOOR STOP- CONVEX, ANTIQUE PEWTER)	407	BRASS	15	SLIM PACK	4.30

044074681970	SPS436B 605 N N (FLOOR DOOR STOP, BRIGHT BRASS)	436	BRASS	15	SLIM PACK	6.20
044074682007	SPS436B 619 N N (FLOOR DOOR STOP, SATIN NICKEL)	436	BRASS	15	SLIM PACK	6.60
044074681994	SPS436B 716 N N (FLOOR DOOR STOP, AGED BRONZE)	436	BRASS	15	SLIM PACK	6.60

^* While supplies last

Chain Door Guard

CHAIN DOOR GUARDS


UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074679076	SC481F 3 N N (CHAIN DOOR GUARD, BRIGHT BRASS)	481	STEEL	5	CARDED	$6.60
044074682113	SC481F 619 N N (CHAIN DOOR GUARD, SATIN NICKEL)	481	STEEL	5	CARDED	6.60
044074683158	SC481F 716 N N (CHAIN DOOR GUARD, AGED BRONZE)	481	STEEL	5	CARDED	6.60

Coat, Hat & Wardrobe Hooks, Mail Slots, Viewers

Coat & Hat Hook Wardrobe Hook - Single Wardrobe Hook - Double

COAT, HAT & WARDROBE HOOKS

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074681048	SC571MB 619 N N (COAT & HAT HOOK, SATIN NICKEL)	571	BRASS	5	CARDED	$9.80
044074681611	SPS571MB 605 N N (COAT & HAT CEILING HOOKS, BRIGHT BRASS)	571	BRASS	25	SLIM PACK	8.00
044074681628	SPS571MB 609 N N (COAT & HAT CEILING HOOKS, ANTIQUE BRASS)	571	BRASS	25	SLIM PACK	10.10
044074681642	SPS571MB 619 N N (COAT & HAT CEILING HOOKS, SATIN NICKEL)	571	BRASS	25	SLIM PACK	10.10
044074681659	SPS571MB 620 N N (COAT & HAT CEILING HOOKS. ANTIQUE PEWTER)	571	BRASS	25	SLIM PACK	10.10
044074681635	SPS571MB 716 N N (COAT & HAT CEILING HOOKS, AGED BRONZE)	571	BRASS	25	SLIM PACK	10.10

044074681666	SPS581MB 605 N N (WARDROBE HOOK, BRIGHT BRASS)	581	BRASS	25	SLIM PACK	5.50
044074681673	SPS581MB 609 N N (WARDROBE HOOK, ANTIQUE BRASS)	581	BRASS	25	SLIM PACK	6.80
044074681703	SPS581MB 619 N N (WARDROBE HOOK, SATIN NICKEL)	581	BRASS	25	SLIM PACK	6.80
044074681710	SPS581MB 620 N N (WARDROBE HOOK, ANTIQUE PEWTER)	581	BRASS	25	SLIM PACK	6.80
044074681680	SPS581MB 716 N N (WARDROBE HOOK, AGED BRONZE)	581	BRASS	25	SLIM PACK	6.80
044074681093	SC581MB 619 N N (SINGLE WARDROBE HOOK, SATIN NICKEL)	581	BRASS	5	CARDED	6.80

044074681123	SC582MB 609 N N (DOUBLE WARDROBE HOOK, ANTIQUE BRASS)	582	BRASS	5	CARDED	8.70
044074681147	SC582MB 619 N N (DOUBLE WARDROBE HOOK, SATIN NICKEL)	582	BRASS	5	CARDED	8.70
044074681130	SC582MB 716 N N (DOUBLE WARDROBE HOOK, AGED BRONZE)	582	BRASS	5	CARDED	8.70
044074681727	SPS582MB 605 N N (WARDROBE HOOK, BRIGHT BRASS)	582	BRASS	25	SLIM PACK	7.00
044074681734	SPS582MB 609 N N (WARDROBE HOOK, ANTIQUE BRASS)	582	BRASS	25	SLIM PACK	8.70
044074681741	SPS582MB 619 N N (WARDROBE HOOK, SATIN NICKEL)	582	BRASS	25	SLIM PACK	8.70
044074681758	SPS582MB 620 N N (WARDROBE HOOK, ANTIQUE PEWTER)	582	BRASS	25	SLIM PACK	8.70
044074681963	SPS582MB 716 N N (WARDROBE HOOK, AGED BRONZE)	582	BRASS	25	SLIM PACK	8.70

Hardware & accessories Builder's hardware

Mail Slot

MAIL SLOTS

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074008333	C620PA 28 2 X 11 N N (MAIL SLOT, SATIN ALUMINUM)	620	ALUMINUM	2	CARDED	$43.70
044074678642	SC620B 3 2 x 11 N N (MAIL SLOT, BRIGHT BRASS)	620	BRASS	2	CARDED	72.10
044074678659	SC620B 619 2 x 11N N (MAIL SLOT, SATIN NICKEL)	620	BRASS	2	CARDED	88.60
044074681239	SC620B 716 2 x 11N N (MAIL SLOT, AGED BRONZE)	620	BRASS	2	CARDED	88.60

190° Viewer 120° Viewer

Viewers

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074678536	SC698P* B 619 N N (190 DEGREE VIEWER, SATIN NICKEL)(1 3/8 - 2 1/8")	698	BRASS	5	CARDED	$19.80

044074678550	SC700P* B 605 N N (120 DEGREE VIEWER, BRIGHT BRASS)(1 3/8 - 2 1/16")	700	BRASS	5	CARDED	7.50

^* While supplies last

Pocket Door Locks, Hinges

Pocket Door Lock Privacy

POCKET DOOR LOCKS


UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074681260	SC990B 605 N N (SLIDING DOOR PULL, BRIGHT BRASS)	990	BRASS	5	CARDED	$9.20
044074681277	SC990B 609 N N (SLIDING DOOR PULL, ANTIQUE BRASS)	990	BRASS	5	CARDED	11.00
044074681284	SC990B 716 N N (SLIDING DOOR PULL, AGED BRONZE)	990	BRASS	5	CARDED	11.00
044074681291	SC990B 619 N N (SLIDING DOOR PULL, SATIN NICKEL)	990	BRASS	5	CARDED	11.00
044074681307	SC990B 620 N N (SLIDING DOOR PULL, ANTIQUE PEWTER)	990	BRASS	5	CARDED	11.00

044074681314	SC991B 605 N N (SLIDING DOOR LOCK, BRIGHT BRASS)	991	BRASS	5	CARDED	15.20
044074681321	SC991B 609 N N (SLIDING DOOR LOCK, ANTIQUE BRASS)	991	BRASS	5	CARDED	16.80
044074681338	SC991B 716 N N (SLIDING DOOR LOCK, AGED BRONZE)	991	BRASS	5	CARDED	16.80
044074681345	SC991B 619 N N (SLIDING DOOR LOCK, SATIN NICKEL)	991	BRASS	5	CARDED	16.80
044074681352	SC991B 620 N N (SLIDING DOOR LOCK, ANTIQUE PEWTER)	991	BRASS	5	CARDED	16.80

3.5" Square Hinge

3.5" Radial Hinge 5/8" Radius

HINGES

UPC	Part No./Description	Model		Substrate Case Qty.	Pkg. Type	Price
043156557646	SC3P1010F 622 N N SL (3.5" SQ HINGE 3PK, MATTE BLACK)	1010	STEEL	3	CARDED	$22.80
044074677577	SC3P1010F 605 N N (3.5" SQ HINGE 3PK, BRIGHT BRASS)	1010	STEEL	3	CARDED	19.00
044074677584	SC3P1010F 619 N N (3.5" SQ HINGE 3PK, SATIN NICKEL)	1010	STEEL	3	CARDED	22.80
044074677591	SC3P1010F 716 N N (3.5" SQ HINGE 3PK, AGED BRONZE)	1010	STEEL	3	CARDED	19.70
044074680935	SC3P1010F 609 N N (3.5" SQ HINGE 3PK, ANTIQUE BRASS)	1010	STEEL	3	CARDED	22.80
043156548736	SC3P1010F-608E (SATIN BRASS)	1010	STEEL	3	CARDED	22.80

043156557653	SC3P1011F 622 N N SL (3.5" RD HINGE 3PK 5/8 RAD, MATTE BLACK)	1011	STEEL	3	CARDED	22.80
044074677607	SC3P1011F 605 N N (3.5" RD HINGE 3PK, 5/8 RAD, BRIGHT BRASS)	1011	STEEL	3	CARDED	19.00
044074677614	SC3P1011F 619 N N (3.5" RD HINGE 3PK, 5/8 RAD, SATIN NICKEL)	1011	STEEL	3	CARDED	22.80
044074677621	SC3P1011F 716 N N (3.5" RD HINGE 3PK, 5/8 RAD, AGED BRONZE	1011	STEEL	3	CARDED	22.80
044074680959	SC3P1011F 609 N N (3.5" RD HINGE 3PK, 5/8 RAD, ANTIQUE BRASS)	1011	STEEL	3	CARDED	22.80
044074680966	SC3P1011F 620 N N (3.5" RD HINGE 3PK, 5/8 RAD, ANTIQUE PEWTER)	1011	STEEL	3	CARDED	22.80
043156548743	SC3P1011F-608E (SATIN BRASS)	1011	STEEL	3	CARDED	22.80

Hardware & accessories Builder's hardware

4" Square Hinge 4" Radial Hinge 5/8" Radius

HINGES (cont)

UPC	Part No./Description	Model		Substrate Case Qty.	Pkg. Type	Price
043156557660	SC3P1012F 622 N N SL (3.5" RD HINGE 3PK 1/4 RAD, MATTE BLACK)	1012	STEEL	3	CARDED	$22.80
043156548750	SC3P1012F-608E (SATIN BRASS)	1012	STEEL	3	CARDED	22.80
044074683103	SC3P1012F 605 N N (3.5" RD HINGE 3PK, 1/4 RAD, BRIGHT BRASS)	1012	STEEL	3	CARDED	19.00
044074683127	SC3P1012F 619 N N (3.5" RD HINGE 3PK, 1/4 RAD, SATIN NICKEL)	1012	STEEL	3	CARDED	22.80
044074683110	SC3P1012F 716 N N (3.5" RD HINGE 3PK, 1/4 RAD, AGED BRONZE)	1012	STEEL	3	CARDED	22.80
044074683912	SC3P1012F 609 N N (3.5" RD HINGE 3PK, 1/4 RAD, ANTIQUE BRASS)	1012	STEEL	3	CARDED	22.80

044074677638	SC3P1020F 605 N N (4" SQ HINGE 3PK, BRIGHT BRASS)	1020	STEEL	3	CARDED	22.80
044074677645	SC3P1020F 619 N N (4" SQ HINGE 3PK, SATIN NICKEL)	1020	STEEL	3	CARDED	24.50
044074677652	SC3P1020F 716 N N (4" SQ HINGE 3PK, AGED BRONZE)	1020	STEEL	3	CARDED	24.50
044074680973	SC3P1020F 609 N N (4" SQ HINGE 3PK, ANTIQUE BRASS)	1020	STEEL	3	CARDED	24.50

044074677676	SC3P1021F 619 N N (4" RD HINGE 3PK, 5/8 RAD, SATIN NICKEL)	1021	STEEL	3	CARDED	24.50
044074677683	SC3P1021F 716 N N (4" RD HINGE 3PK, 5/8 RAD, AGED BRONZE)	1021	STEEL	3	CARDED	24.50
044074681000	SC3P1021F 620 N N (4" RD HINGE 3PK, 5/8 RAD, ANTIQUE PEWTER)	1021	STEEL	3	CARDED	24.50

Classic House Numbers

4" Classic House Numbers

4" CLASSIC HOUSE NUMBERS

UPC	Part No./Description
		Model	Substrate	Case Qty.	Pkg. Type	Price
044074678666	SC2 3006 605 N N (4" CLASSIC HOUSE NUMBER 0, BRIGHT BRASS)	3006	BRASS	5	CARDED	$7.70
044074678772	SC2 3006 619 N N (4" CLASSIC HOUSE NUMBER 0, SATIN NICKEL)	3006	BRASS	5	CARDED	10.00
044074680485	SC2-3006 716 N N (4" CLASSIC HOUSE NUMBER 0, AGED BRONZE)	3006	BRASS	5	CARDED	10.00

044074678673	SC2 3016 605 N N (4" CLASSIC HOUSE NUMBER 1, BRIGHT BRASS)	3016	BRASS	5	CARDED	7.70
044074678789	SC2 3016 619 N N (4" CLASSIC HOUSE NUMBER 1, SATIN NICKEL)	3016	BRASS	5	CARDED	10.00
044074680492	SC2 3016 716 N N (4" CLASSIC HOUSE NUMBER 1. AGED BRONZE)	3016	BRASS	5	CARDED	10.00

044074678697	SC2 3026 605 N N (4" CLASSIC HOUSE NUMBER 2, BRIGHT BRASS)	3026	BRASS	5	CARDED	7.70
044074678796	SC2 3026 619 N N (4" CLASSIC HOUSE NUMBER 2, SATIN NICKEL)	3026	BRASS	5	CARDED	10.00
044074680508	SC2 3026 716 N N (4" CLASSIC HOUSE NUMBER 2, AGED BRONZE)	3026	BRASS	5	CARDED	10.00

044074678703	SC2 3036 605 N N (4" CLASSIC HOUSE NUMBER 3, BRIGHT BRASS)	3036	BRASS	5	CARDED	7.70
044074678802	SC2 3036 619 N N (4" CLASSIC HOUSE NUMBER 3, SATIN NICKEL)	3036	BRASS	5	CARDED	10.00
044074680515	SC2 3036 716 N N (4" CLASSIC HOUSE NUMBER 3, AGED BRONZE)	3036	BRASS	5	CARDED	10.00

044074678710	SC2 3046 605 N N (4" CLASSIC HOUSE NUMBER 4, BRIGHT BRASS)	3046	BRASS	5	CARDED	7.70
044074678819	SC2 3046 619 N N (4" CLASSIC HOUSE NUMBER 4, SATIN NICKEL)	3046	BRASS	5	CARDED	10.00
044074680522	SC2 3046 716 N N (4" CLASSIC HOUSE NUMBER 4, AGED BRONZE)	3046	BRASS	5	CARDED	10.00

4" Classic House Numbers

4" CLASSIC HOUSE NUMBERS

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074678727	SC2 3056 605 N N (4" CLASSIC HOUSE NUMBER 5, BRIGHT BRASS)	3056	BRASS	5	CARDED	$7.70
044074678826	SC2 3056 619 N N (4" CLASSIC HOUSE NUMBER 5, SATIN NICKEL)	3056	BRASS	5	CARDED	10.00
044074680539	SC2 3056 716 N N (4" CLASSIC HOUSE NUMBER 5, AGED BRONZE)	3056	BRASS	5	CARDED	10.00

044074678734	SC2 3066 605 N N (4" CLASSIC HOUSE NUMBER 6, BRIGHT BRASS)	3066	BRASS	5	CARDED	7.70
044074678833	SC2 3066 619 N N (4" CLASSIC HOUSE NUMBER 6, SATIN NICKEL)	3066	BRASS	5	CARDED	10.00
044074680546	SC2 3066 716 N N (4" CLASSIC HOUSE NUMBER 6, AGED BRONZE)	3066	BRASS	5	CARDED	10.00

044074678741	SC2 3076 605 N N (4" CLASSIC HOUSE NUMBER 7, BRIGHT BRASS)	3076	BRASS	5	CARDED	7.70
044074678840	SC2 3076 619 N N (4" CLASSIC HOUSE NUMBER 7, SATIN NICKEL)	3076	BRASS	5	CARDED	10.00
044074680553	SC2 3076 716 N N (4" CLASSIC HOUSE NUMBER 7, AGED BRONZE)	3076	BRASS	5	CARDED	10.00

044074678758	SC2 3086 605 N N (4" CLASSIC HOUSE NUMBER 8, BRIGHT BRASS)	3086	BRASS	5	CARDED	7.70
044074678857	SC2 3086 619 N N (4" CLASSIC HOUSE NUMBER 8, SATIN NICKEL)	3086	BRASS	5	CARDED	10.00
044074680560	SC2 3086 716 N N (4" CLASSIC HOUSE NUMBER 8, AGED BRONZE)	3086	BRASS	5	CARDED	10.00

044074678765	SC2 3096 605 N N (4" CLASSIC HOUSE NUMBER 9, BRIGHT BRASS)	3096	BRASS	5	CARDED	7.70
044074678864	SC2 3096 619 N N (4" CLASSIC HOUSE NUMBER 9, SATIN NICKEL)	3096	BRASS	5	CARDED	10.00
044074680577	SC2 3096 716 N N (4" CLASSIC HOUSE NUMBER 9, AGED BRONZE)	3096	BRASS	5	CARDED	10.00

Door Knockers, Push, Pull & Kick Plates

3107 Door Knocker

3125 Door Knocker

DOOR KNOCKERS

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074678475	SC2 3107 605 N N (DOOR KNOCKER, BRIGHT BRASS)	3107	BRASS	2	CARDED	$45.80
044074680461	SC2 3107 619 N N (DOOR KNOCKER, SATIN NICKEL)	3107	BRASS	2	CARDED	56.60

044074678499	SC2 3125 605 N N (DOOR KNOCKER, BRIGHT BRASS)	3125	BRASS	5	CARDED	25.40
044074678505	SC2 3125 619 N N (DOOR KNOCKER, SATIN NICKEL)	3125	BRASS	5	CARDED	30.50
044074680478	SC2 3125 716 N N (DOOR KNOCKER, AGED BRONZE)	3125	BRASS	5	CARDED	30.50
044074680768	SC2 3125 609 N N (DOOR KNOCKER, ANTIQUE BRASS)	3125	BRASS	5	CARDED	30.50

Push Plate Pull Pull Plate

PUSH AND PULL PLATES

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074008371	C8112 5PA 28 N N (DOOR PULL, SATIN ALUMINUM)	8112	ALUMINUM	2	CARDED	$23.40

044074008395	C8200PA 28 3X12 N N (PUSH PLATE, SATIN ALUMINUM)	8200	ALUMINUM	5	CARDED	8.90
044074008418	C8200PA 28 3.5X15 N N (PUSH PLATE, SATIN ALUMINUM)	8200	ALUMINUM	5	CARDED	9.20
044074679014	SC8200B 3 3.5X15 N N (PUSH PLATE, BRIGHT BRASS)	8200	BRASS	5	CARDED	21.20
044074008425	CGC8200S32D 3.5X15 N N (PUSH PLATE, STAINLESS STEEL)	8200	STAINLESS	5	CARDED	15.20

044074008432	C8302 6PA 28 3.5X15G N N (PULL PLATE, SATIN ALUMINUM)	8302	ALUMINUM	2	CARDED	34.00

044074008456	C8311 5PA 28 3.5X15G N N (PULL PLATE, SATIN ALUMINUM)	8311	ALUMINUM	5	CARDED	36.90
044074589498	CGC8311-5B26D 3.5X15 (PULL PLATE, SATIN CHROME)	8311	BRASS	5	CARDED	71.20
043156253258	SC8311-5 PA3 3.5X15 N N (PULL PLATE, BRIGHT BRASS)	8311	ALUMINUM	5	CARDED	39.60
044074681253	SC8311 5B 3 3.5X15G N N (PULL PLATE, BRIGHT BRASS)	8311	BRASS	5	CARDED	64.50

Kick Plate

KICKPLATES


UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074006940	C8400B 3 6X30 N N (KICKPLATE, BRIGHT BRASS)	8400	BRASS	5	CARDED	$50.40
044074008623	C8400PA 28 6X30 N N (KICKPLATE, SATIN ALUMINUM)	8400	ALUMINUM	5	CARDED	22.30
044074051087	C8400B 3 6X34 N N (KICKPLATE, BRIGHT BRASS)	8400	BRASS	5	CARDED	53.40
044074051063	C8400PA 28 6X34 N N (KICKPLATE, SATIN ALUMINUM)	8400	ALUMINUM	5	CARDED	23.80
044074589337	CGC8400S 32D 8X34 N N (KICKPLATE, STAINLESS STEEL)	8400	STAINLESS	5	CARDED	33.40
044074678581	SC8400B 3 8X34 N N (KICKPLATE, BRIGHT BRASS)	8400	BRASS	5	CARDED	59.30
044074678611	SC8400PA 28 8X34 N N (KICKPLATE, SATIN ALUMINUM)	8400	ALUMINUM	5	CARDED	29.70
044074678628	SC8400PA 3 8X34 N N (KICKPLATE, BRIGHT BRASS))	8400	BRASS	5	CARDED	41.50
044074681185	SC8400B 619 6X30 N N (KICKPLATE, SATIN NICKEL)	8400	BRASS	5	CARDED	53.40
044074681178	SC8400B 716 6X30 N N (KICKPLATE, AGED BRONZE)	8400	BRASS	5	CARDED	53.40
044074682038	SC8400PA 716 8X34 N N (KICKPLATE, AGED BRONZE)	8400	ALUMINUM	5	CARDED	40.80
044074678574	SC8400PA 3 6X34 N N (KICKPLATE, BRIGHT BRASS)	8400	ALUMINUM	5	CARDED	34.10
044074678567	SC8400PA 3 6X30 N N (KICKPLATE, BRIGHT BRASS)	8400	ALUMINUM	5	CARDED	32.60
044074678598	SC8400PA 619 8X34 N N (KICKPLATE, SATIN NICKEL)	8400	ALUMINUM	5	CARDED	41.70

Window Hardware, Flush Pulls

Window Lock Bar Window Lift

WINDOW HARDWARE

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074681765	SPS07MB 605 N N (WINDOW LOCKS, BRIGHT BRASS)	07	BRASS	20	SLIM PACK	$18.80
044074681772	SPS07MB 609 N N (WINDOW LOCKS, ANTIQUE BRASS)	07	BRASS	20	SLIM PACK	18.80
044074681796	SPS07MB 619 N N (WINDOW LOCKS, SATIN NICKEL)	07	BRASS	20	SLIM PACK	18.80
044074681802	SPS07MB 620 N N (WINDOW LOCKS, ANTIQUE PEWTER)	07	BRASS	20	SLIM PACK	18.80
044074681789	SPS07MB 716 N N (WINDOW LOCKS, AGED BRONZE)	07	BRASS	20	SLIM PACK	18.80

044074681819	SPS026MB 605 N N (WINDOW LIFTS, BRIGHT BRASS)	026	BRASS	20	SLIM PACK	8.00
044074681826	SPS026MB 609 N N (WINDOW LIFTS, ANTIQUE BRASS)	026	BRASS	20	SLIM PACK	9.50
044074681840	SPS026MB 619 N N (WINDOW LIFTS, SATIN NICKEL)	026	BRASS	20	SLIM PACK	9.50
044074681857	SPS026MB 620 N N (WINDOW LIFTS, ANTIQUE PEWTER)	026	BRASS	20	SLIM PACK	9.50
044074681833	SPS026MB 716 N N (WINDOW LIFTS, AGED BRONZE)	026	BRASS	20	SLIM PACK	9.50

Flush Pull

FLUSH PULLS

UPC	Part No./Description	Model	Substrate	Case Qty.	Pkg. Type	Price
044074681512	SPS221B* 605 N N (DOOR PULL, BRIGHT BRASS)	221	BRASS	25	SLIM PACK	$3.30
044074681529	SPS221B* 609 N N (DOOR PULL, ANTIQUE BRASS)	221	BRASS	25	SLIM PACK	4.30

^* While supplies last

111

Latch & Strike Quick Reference Guide Deadbolt & Latches

LATCH & STRIKE QUICK REFERENCE GUIDE

LATCH REFERENCE GUIDE

Latches / Configuration		Spring Latches
	B60/B62/B80/ B81	BE365 BE369NX BE375	F51/F80	FE575/FE595/ FE599NX/ FE695	FE285
Dual Option (Round, Drive-in) STANDARD	12-321	12-321	16-086	16-086	16-080
Square	12-288	12-288	16-207	16-207	16-200
Triple Option	12-287	12-287	16-211	16-211	16-210
UL Square	12-294	n/a	16-203	n/a	n/a
UL Round	12-397	n/a	16-204	n/a	n/a
5"	12-349*	n/a	16-126	16-126	n/a

^* Must be ordered separately

STRIKE REFERENCE GUIDE

Latches / Configuration	Handlesets	Deadbolt	Dead Latches	Spring Latches	Tapered Deadbolt
	F59/F60/F62	BE375/BE365/ BE369NX B60/B62/B80/ B81	FE595/FE575/ FE695/ FE599NX F51/F80	FE285/F10	BE469
Round Corner Full Lip	10-115	10-092	10-027	10-027	10-115
Round Corner		10-116*			10-116*
Square Corner Full Lip	n/a	10-094	10-026	10-026	10-094
Square Corner - T	n/a	n/a	10-001	10-001	n/a
Circular - Adjustable	n/a	n/a	10-058	10-058	n/a
Dual - Square & Round	10-269	n/a	10-063	10-063	n/a
ANSI Square	n/a	n/a	10-025	10-025	n/a
Dustbox (Black Plastic)	B520-283	B520-283	n/a	n/a	B520-283
Reinforcement Strike Plate	B502-914	B502-914	n/a	n/a	B502-914
3" Reinforcement Screws (2ea)	B502-873	B502-873	n/a	n/a	B502-873

^* Includes Reinforcement Strike Plate & Screws

F Series Parts Latches

LATCHES (does not include Multi-Family product)

Category	Part Product	Specify Number	Finish	Description	Price Sold Separately	Add To Lock Price
Electronics/ Connected & Light	BE469NX/ BE468/ BE479	12-342	х	Tapered Deadbolt Dual Option (Round, Drive- in) (Standard Configuration)	$37.30	$2.00
Commercial		12-344	х	Tapered Deadbolt Triple Option (Round, Square, Drive-in)	37.30	2.00
	BE375/BE365/ BE369NX	12-321	х	1" x 2 1/4" Dual Option - Round Corner + Drive-in (Standard Configuration)	32.20	NC
		12-287	х	1" x 2 1/4" Triple Option - Round Corner + Square Corner + Drive-in	41.70	2.00
		12-288	Х	1" x 2 1/4" Square Corner Faceplate	36.00	NC
	FE595/FE575/ FE695/ FE599NX	16-086	х	1" x 2 1/4" Dual Option - Round Corner + Drive-in (Standard Configuration)	16.50	NC
		16-207	Х	1" x 2 1/4" Square Corner Faceplate	14.90	NC
		16-211	х	1" x 2 1/4" Triple Option - Round Corner + Square Corner + Drive-in	18.50	2.00
		16-126	Х	1" x 2 1/4" Square Corner Faceplate - 5" backset	14.90	5.40
	FE285	16-080	х	1" x 2 1/4" Dual Option - Round Corner + Drive-in (Standard Configuration)	14.60	NC
		16-200	Х	1" x 2 1/4" Square Corner Faceplate	13.50	NC
		16-210	х	1" x 2 1/4" Triple Option -Round Corner + Square Corner + Drive-in	16.60	2.00

^* Sold with complete UL lockset; not available for individual purchase

LATCHES CONT. (does not include Multi-Family product)

Category	Part Product	Specify Number	Finish	Description	Price Sold Separately	Add To Lock Price
F Series Handlesets	F59/F60/F62	12-322	x	1" x 2 1/4" Dual Option - Round Corner (16-080) + Drive-in (12-321) (Standard Configuration)	47.10	NC
		12-353	X	1" x 2 1/4" Square Corner – UL (12-294 + 16-203) (Standard Configuration-UL Listed)	*	12.00
		12-326	х	1" x 2 1/4" Triple Option - Round Corner + Square Corner (16-210) + Drive-in (12-287)	54.70	2.00
		12-354	Х	1" x 2 1/4" Round Corner UL (12-397 + 16-204)	*	12.00
F SeriesKnobs/Levers /Light Commercial	F10/F40 Levers/ Knobs	16-080	Х	1" x 2 1/4" Dual Option - Round Corner + Drive-in (Standard Configuration)	14.60	NC
/Light Commercial					16-203	X	1" x 2 1/4" Square Corner Faceplate + Firecup + 1 1/8" Adaptor – UL (Standard Configuration-UL LISTED)	*	6.00
		16-204	х	1" x 2 1/4" Radius Corner Faceplate + Firecup + 1 1/8" Adaptor – UL	*	6.00
		16-207	Х	1" x 2 1/4" Square Corner Faceplate	14.90	NC
		16-200	Х	1" x 2 1/4" Square Corner Faceplate	13.50	NC
		16-210	х	1" x 2 1/4" Triple Option - Round Corner + Square Corner + Drive-in	16.60	2.00
		40-250	х	1" x 2 1/4" Triple Option - Round Corner + Square Corner + Drive-in VisPack ONLY (order in qtys of 4)	20.00	N/A

*Sold with complete UL lockset; not available for individual purchase

F Series Parts Latches

LATCHES CONT. (does not include Multi-Family product)

Category	Part Product	Specify Number	Finish	Description	Price Sold Separately	Add To Lock Price
F Series Knobs/Levers /	F51A/F80 Levers/Knobs	16-086	х	1" x 2 1/4" Dual Option - Round Corner + Drive-in (Standard Configuration)	$16.50	NC
Light Commercial (cont.)		16-203	x	1" x 2 1/4" Square Corner Faceplate + Firecup + 1 1/8" Adaptor – UL (Standard Configuration-UL LISTED)	*	6.00
		16-207	Х	1" x 2 1/4" Square Corner Faceplate	14.90	NC
		16-211	x	1" x 2 1/4" Triple Option - Round Corner + Square Corner + Drive-in	18.50	2.00
		16-204	х	1" x 2 1/4" Radius Corner Faceplate + Firecup + 1 1/8" Adaptor – UL	*	6.00
		16-126	Х	1" x 2 1/4" Square Corner Faceplate - 5" Backset	14.90	5.40
		40-251	x	1" x 2 1/4" Triple Option - Round Corner + Square Corner + Drive-in VisPack ONLY (order in qtys of 4)	20.00	N/A
B-Series	B60/B62/B80/B81	12-294	X	1" x 2 1/4" Square Corner Faceplate + Firecup n/a with B62 (Standard Configuration-UL LISTED)	*	6.00
		12-288	Х	1" x 2 1/4" Square Corner Faceplate	36.00	NC
		12-287	х	1" x 2 1/4" Triple Option - Round Corner + Square Corner + Drive-in	41.70	2.00
		12-321	х	1" x 2 1/4" Dual Option-Round Option + Drive-In (Standard Configuration)	32.20	NC
		12-349	х	1" x 2 1/4" Square Corner Faceplate - 5" backset	65.40	N/A
		12-355	х	Tapered Deadbolt Triple Option	37.30	2.00
		12-397	х	1" x 2 1/4" Round Corner Faceplate + Firecup UL Listed n/a with B62	*	6.00

^* Sold with complete UL lockset; not available for individual purchase

Strikes F Series Parts

STRIKES (does not include Multi-Family product)

Category	Part Product	Specify Number	Finish	Description	Price Sold Separately	Add To Lock Price
Electronics/ Connected & Light	BE469NX/BE369NX/ BE375/BE365/BE468/	10-116	Х	Round Corner Strike 1 1/8" x 2 3/4" (Standard Configuration)	$13.70	NC
Commercial	BE479	10-115	X	Round Corner Full Lip Strike Set (10-027 + 10- 116) (Round, Square, Drive-in) (Standard Configuration-Entry Sets)	17.70	NC
		B502- 914		Reinforcement Strike Plate	2.00	NC
			B502- 873		3" Reinforcement Screws (2 ea.)	0.54	NC
		All strike	All strikes available for B60/B62/B80/B81
	FE695/FE595/FE575/ FE285/ FE599NX	10-027	Х	10-027 Round Corner Full Lip Strike 1 5/8" x 2 1/4" (Standard Configuration)	7.60	NC
		All strike	s availab	le for F10/F40/F51/F80 Levers/Knobs
F Series Handlesets	F59/F60/F62	10-115	x	Round Corner Full Lip Strike Set (10-027 + 10-116) (Standard Configuration)	17.70	NC
		10-257	Х	Round Corner Full Lip (10-027 + 10-092)	15.50	NC
		10-269	X	Round & Square Corner Strike Set (10-026 + 10-027 + 10-094 + 10-116)	24.40	2.00
			B502- 914		Reinforcement Strike Plate	2.00	NC
		B502- 873		3" Reinforcement Screws (2 ea.)	0.54	NC

^* Picture represents what is provided when ordered with a lock. When purchasing accessories, the kit includes strike plate and screws only. Reinforcement strike plate and reinforcement screws need to be purchased separately.

F Series Parts Strikes

STRIKES CONT. (does not include Multi-Family product)

Category	Part Product	Specify Number	Finish	Description	Price Sold Separately	Add To Lock Price
F Series Knobs/ Levers/Light	F10/F40/F51A/F80 Levers/Knobs	10-027	Х	10-027 Round Corner Full Lip Strike 1 5/8" x 2 1/4" (Standard Configuration)	$7.60	NC
Commercial		10-026	Х	Square Corner Full Lip Strike 1 5/8" x 2 1/4"	7.60	NC
		10-001	Х	10-001* Square Corner T Strike 1 1/8" x 2 3/4" + Box	6.50	NC
		10-058	Χ	Circular - Adjustable 1 3/4" Diameter (605 and 626 finish only)	10.90	NC
		10-063	Х	Dual Strikes (10-026 + 10-027) 1 5/8" x 2 1/4"	10.00	2.00
		10-025	Х	ANSI Square Corner T Strike 1 1/4" x 4 7/8"	15.20	5.40
B-Series Deadbolts/ Light Commercial	B60/ B62/B80/B81	10-116	Х	Round Corner Strike 1 1/8" x 2 3/4" (Standard Configuration)	13.70	NC
		10-094	Х	Square Corner Strike 1 1/8" x 2 3/4"	12.20	NC
		B502- 914		Reinforcement Strike Plate	2.00	NC
		B502- 873		3" Reinforcement Screws (2 ea.)	0.54	NC
		B520- 283		Black Plastic Dustbox for Standard Strike 1 1/8" x 2 3/4"; 3" Reinforcement Screws (2 ea,)	2.00	NC
		10-112		Metal Dust Box	12.10	N/A
		10-092		Full lip strike radius	7.90	NC

Cylinders F Series Parts

CYLINDER PINS

Part Number	Description	Price
34-101*	Top Pin - #1	$0.08
34-102*	Top Pin - #2	0.08
34-103*	Top Pin - #3	0.08
34-202*	Master Pin - #2	0.08
34-203*	Master Pin - #3	0.08
34-204*	Master Pin - #4	0.08
34-205*	Master Pin - #5	0.08
34-206*	Master Pin - #6	0.08
34-207*	Master Pin - #7	0.08
34-208*	Master Pin - #8	0.08
34-209*	Master Pin - #9	0.08
34-300*	Bottom Pin - #0	0.08
34-301*	Bottom Pin - #1	0.08
34-302*	Bottom Pin - #2	0.08
34-303*	Bottom Pin - #3	0.08
34-304*	Bottom Pin - #4	0.08
34-305*	Bottom Pin - #5	0.08
34-306*	Bottom Pin - #6	0.08
34-307*	Bottom Pin - #7	0.08
34-308*	Bottom Pin - #8	0.08
34-309*	Bottom Pin - #9	0.08

REKEY PARTS

Part Number	Description	Price
F506-451*	Top T Pin - Compressible F Series	$0.12
F506-452*	Removable Top Cap - Compressible F Series	0.19
F506-453*	Top T Pin Spring- Compressible F Series	0.19
34-401	Construction Balls (Pack of 1000)	32.00
40-104	Key Gage	14.80
M540-051	Follower Bar	3.30
M540-056	Cylinder Cap Removal Tool	57.50
40-132	Retail Metal ReKey Kit	236.00
40-133	Home Secure RCK ReKey Kit	407.00
40-229	Rekeying Training Kit	93.40

^* Order in multiples of 100

ASSEMBLY SCREW KITS (does not include Multi-Family product)

Category	Part Product	Specify Number	Finish	Description	Price
Connected	BE469NX/468/479	24283962	x	Screw Kit, Mtg Screws & Wood Screws	$5.00
	BE369NX/BE375	B220-279	x	(2) B520-621 Finish Screws	10.10
	BE365			(2) B600-100 Internal Screws	10.10
Electronic/ Light	FE595/FE575	F206-450	x	Mtg Screw Kit	5.50
Commercial	FE285	F206-450	x	Mtg Screw Kit	5.50
		F506-828		(1) Thru Bolt	1.30
		F605-339		(1) Washer	0.56
B-Series	B60	33815664	605	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
Deadbolts/F Series Knobs & Levers/		33815671	625	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
F Series Handlesets		33815688	716	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
	B62	33815725	605	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815732	625	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815749	716	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
	B80	33815756	605	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815763	625	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815770	716	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
	F60	33815787	605	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815794	625	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815800	716	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
	F62	33815817	605	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815824	625	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
		33815831	716	Screw Kit, Mtg. Screws, Strike Reinforcement	10.10
	F10/F40/F51A	33815848	605	Screw Pack	10.10
		33815855	625	Screw Pack	10.10
		33815862	716	Screw Pack	10.10
	F170	33815879	605	Screw Pack	10.10
		33815886	625	Screw Pack	10.10
		33815893	716	Screw Pack	10.10

Hardware & accessories Parts

Thick Door Installation Kits Miscellaneous Parts

THICK DOOR INSTALLATION KITS (does not include Multi-Family product)

Category	Part Product	Specify Number	Finish	Description	Price
Connected	BE468/469/479	23997877	x	1 7/8" – 2 1/2" Thick	$24.90
	BE489	B489-106	x	1 7/8" – 2 1/2" Thick (Coming Soon)	24.90
Electronic/ Light	BE365	02-007	x	1 7/8" – 2 ½" Thick	24.90
Commercial	FE285	61-075	x	1 7/8" – 2 1/4" Thick	15.00
Touch	BE375	24666356	x	1 7/8" - 2 1/2" Thick	24.90
F Series Handlesets	F58 (old)	61-075	x	2" - 2 1/4" - Includes mounting screws, thick door grip chassis, and thick door driver bar (Used for Old Style F58 shipped before 3/1/19)	15.00
	F58(new)/F60	61-076	x	2" - 2 1/4" - Includes mounting screws and thick door driver bar Used for New Style F58 shipped after 3/1/19)	12.00
B-Series Deadbolts/ Light Commercial	B60	61-072	x	2" - 2 1/4" - Includes longer mounting screws only for deadbolt	5.00
		61-073	x	2 1/4" - 4" - Includes longer mounting screws and longer driver bar	10.00

MISCELLANEOUS PARTS

Category	Specify Finish	Description	Price
B202-578	x	Latch/Bolt/Strike Screw Kit(4) C604-246 Latch/Bolt/Strike Wood Screw	$4.80
M504-271		(Emergency Key) F40 Function	1.60
02-035	x	Throughbolt Cap	1.60
06-133	X	Handleset Slider Assembly	2.00
B300-208	x	F62 & B62 Drive Pins (deadbolt screw covers)	1.30
B302-043	x	Trim and Turn Unit, F60 (inside trim)	30.00
F506-828		(1) Thru Bolt	1.30
F605-339		(1) Washer	0.56

LESS LOCK COMPONENTS

Description	Specify	Price
Less Springlatch	LLL for Springlatch	$4.10	(subtract from list price of lock)
Less Deadlatch	LLL for Deadlatch	4.50	(subtract from list price of lock)
Less Handleset Deadbolt	LLL for Handleset Deadbolt	8.10	(subtract from list price of lock)
Less Handleset Deadbolt Strike	LLL for Handleset Deadbolt Strike	3.20	(subtract from list price of lock)
Less Handleset Latch Strike	LLL for Handleset Latch Strike	2.10	(subtract from list price of lock)
Less Deadbolt	LLL for Deadbolt	8.30	(subtract from list price of lock)
Less Deadbolt Strike	LLL for Deadbolt Strike	3.30	(subtract from list price of lock)
Less Knob Strike	LLL for Knob Strike	2.10	(subtract from list price of lock)
Less Lever Strike	LLL for Lever Strike	2.10	(subtract from list price of lock)

Thick Door Installation Kits Miscellaneous Parts

35 - BLANK KEYS

Part No.	Description	Price
35-100*	5 Pin - Standard Bow - Embossed Both Sides	$1.50
35-101*	6 Pin - Standard Bow - Embossed Both Sides	2.00
35-130*	5 Pin - Standard Bow - Unembossed Both Sides - No Stamping	1.50
35-131*	6 Pin - Standard Bow - Unembossed Both Sides - No Stamping	2.00
35-140	5 Pin - Large Bow - Embossed Both Sides	5.90
35-141	6 Pin - Large Bow - Embossed Both Sides	5.90
35-143	5 Pin - Access Bow - Embossed Both Sides	5.90
35-144	6 Pin - Access Bow - Embossed Both Sides	5.90

^* Order in multiples of 50

48 - CUT KEYS

Part No.	Description	Price
48-130	Cut Key - 5 Pin - Standard Bow - Unembossed Both Sides - No Stamping	$6.20
48-140	Cut Key - 5 Pin - Large Bow - Embossed Both Sides	8.90
48-143	Cut Key - 5 Pin - Access Bow - Embossed Both Sides	8.90
48-180*	Cut Key - 5 Pin - Standard Bow - Embossed Both Sides / Construction Key	6.20
48-181	Cut Key - 6 Pin - Standard Bow - Embossed Both Sides	6.20

^*48-180 is used for standard cut keys and residential construction keys

49 - MASTER KEYS

Part No.	Description	Price
49-130	Master Key - 5 Pin - Standard Bow - Embossed Both Sides	$10.80
49-140	Master Key - 5 Pin - Large Bow - Embossed Both Sides	14.60
49-143	Master Key - 5 Pin - Access Bow - Embossed Both Sides	14.60
49-180	Schlage Cut Master Key - 5-Pin - Standard with Key Symbol & Registry Number	12.50
49-181	Master Key - 6 Pin - Standard Bow - Unembossed Both Sides - Standard with Key Symbol & Registry Number	10.40

50 - KEY CHARGES

Part No.	Description	Add To Price
50-001	Conventional Cylinder Keyed to Specific Combination	$10.00
50-215	Extra Cut Standard Bow Keys Ordered on Lock or Cylinder	4.30
50-227	Extra Cut Large or Access Bow Keys Ordered on Lock or Cylinder	6.70
50-228	Cut Large Bow or Access Bow Keys Substituted for Standard Bow Keys	3.10

^* Key Charges are added to the list price of the lock

60 - KEY PACKAGING

Part No.	Description	Price
60-000	Pack Change Keys Independently - PKI - for Split Key Construction Keying	NC
60-001	Pack Change Keys Independently (PKI)	0.60

Key & Cylinder Stamping Residential Master & Construction Keying

KEY STAMPING

Description	Notes	Кеу Туре	Specify	Part Number	Price Ea. Key
Visual Key Control (VKC)	1	Classic Conventional	Stamp Key Symbol on Key	50-217	$2.80
Non-Standard Code	1, 5, 8	All Conventional	Non-Standard Code	50-003	7.40/side
DO NOT DUPLICATE		Classic Conventional	Stamp Key "Do Not Duplicate"	XQ06-878	N/C
Delete Key Section From Bow		Classic Conventional	Delete Key Section	50-220	5.00
Bitting Not Stamped		Classic Conventional	Delete Key Combination	50-221	2.80
Stamp Bitting		Classic Conventional	(Furnished as Standard)	N/A	N/A

Notes:

1. Maximum of 6 characters for VKC, Non-Standard Code or serial number stamping
5. Only available on unembossed keys8. Sequential stamping will be charged as Non-Standard Code (example: AA1-1, AA1-2)

KEY STAMPING

Description	Notes	Кеу Туре	Specify	Part Number	Price Ea. Key
Visual Key Control (VKC) with standard key symbols or Non- standard codes	1	Classic Conventional	Stamp key symbol or non- conventional code on face (VKC) or Cylinder core.	50-002	$6.80
Concealed Key Control (CKC) with standard key symbols or Non-standard codes	1	Classic Conventional	Stamp key symbol or non- conventional code on side (CKC) of core.	50-216	6.80

$1.\ Maximum\ of\ 6\ characters\ for\ VKC,\ Non-Standard\ Code\ or\ serial\ number\ stamping$

Residential Master Keying (RMK) and/or Residential Construction Keying (RCK)

Qualifications:

Residential projects
• RMK and/or RCK must be specified on the order
- Systems are available in 5-Pin C keyway only
- Systems cannot be combined with Contract Master Key Systems
- Two levels of keying (Change Key and Master Key levels only)
- Three levels of keying allowed if complete expansion requirements are submitted (Grandmaster, Master Key, and Change Key levels)
• Maison keying allowed
• Door detailing and labeling allowable as listed below
- Master keys must be ordered separately and are not added by default

RESIDENTIAL MASTER KEYING (RMK)

Part No.	Description	Price
50-223*	Cylinder Residential Master Keyed (RMK)	2.60
50-009	Cylinder Residential Master keyed with Door ID Labeling (RMKID)	N/C
49-180	Residential Master Key – Not offered for commercial products	12.50

RESIDENTIAL CONSTRUCTION KEYING (RCK) – LOST BALL CONSTRUCTION KEYING

Part No.	Description	Price
50-224*	Cylinder Residential Construction Keyed (RMK)	2.60
50-010	Cylinder Residential Construction keyed with Door ID Labeling (RCK)	N/C
48-180	Residential Construction Key – Not offered for commercial products	6.20

Notes: Lost ball construction device is triggered by the highest level permanent key unless otherwise specified. Change keys packed in envelopes and packed in lock box. PKI packing available for additional charge of $0.60. If you desire a masterkey with your RCK (50-224), you must add the RMK (50-223) charge listed above.

Master Keys and Construction Keys ship UPS 2nd Day Air and will require a signature upon delivery. Standard freight terms apply.

BITTING LISTS (TRANSCRIPTS)

Part No.	Description	Price
50-123	Bitting list for factory master keyed products (requires a written authorization from end-user).	$233.00**
50-120	Establish new master key system for field master keying (one-time charge). Each bitting is assessed a 50-121 or 50-122 charge below.	34.80
50-121	New master key bitting for cylinders keyed in the field. 50-120 charge assessed if this bitting establishes a new system.	4.50
50-122	New change key bitting for cylinders keyed in the field.	3.50

Notes **Can be used for SiteMaster download (keying and bitting details) if ordered as such. Please specify SiteMaster download file if applicable in the details column. Information required: Structure or original order number, end user name, city and state (used to verify the structure number). Also required is an email address for the end user, include their full name to address the email and a "Letter Of Authorization".

^* If Door Labeling is required, the 50-009 RMK with labeling and/or 50-010 RCK with labeling charges will apply

Construction Core Program

F Series Parts

FULL-SIZE CONSTRUCTION CORE PROGRAM

Temporary construction cores may be ordered with full size interchangeable core locks, mortise cylinders and rim cylinders These cores may also be ordered separately. All construction cores are assessed a non-refundable handling charge (50-231) See Terms & Conditions for more information

48-101-ICX

Features:

6 Pin C keyway
· Construction cores have a two-tone face: the faceplate is a flat black finish (622) and the plug is unfinished brass
· Back of each core is marked with the letter that identifies the keyed alike group: A, B or C
· Construction cores are furnished with no keys (NCK). Cut keys must be ordered separately
· A control key is required to install and remove construction cores. Control keys must be ordered separately. If a control key is not ordered, one will be supplied at a charge of $13
· Construction cores may be returned for credit. Contact your Schlage representative for return authorization. Credit is issued upon receipt of cores at our factory

Part No.	Description	Specify	Price (ea.)
23-030-ICX	Construction core	New jobs: Specify "ICX"	$73.00
48-101-ICX	Cut key for construction phase (order separately)	Existing jobs: Specify "ICA"	8.20
48-056-ICX	Cut control key (order separately)	"ICB" or "ICC"	16.30
50-231	Non-refundable handling charge (per core)		10.40

Notes:

1) To order mortise and rim cylinders with full-size construction cores for a new job, suffix ICX to non-Primus cylinder number Example: 30-008 ICX. For existing construction core combinations, specify ICA, ICB, or ICC
Construction cores for a given project are keyed alike to one of a limited number of combinations nationwide Other Schlage projects in the same area using the same or different contractors may use the same key

Example: For construction core charges and credits: distributor XYZ ordered 150 construction cores with 20 keys and one control key The following charges apply to this order:

1. 23-030-ICX construction cores (150 units)
2. 48-101-ICX cut keys (20 units)
3. 48-056-ICX cut control key (1 unit)
4. 50-231 non-refundable handling charge (150 units-one per core ordered)

Upon return of the cores to the factory the distributor will be credited for the following:

1. 23-030-ICX construction cores (150 units)

There is no credit for the keys or handling fee

B60 Cylinder Options


FI	N	ısı	ΗF	ς

		605	608	609	618	619	625	626	505	716	613	620	621	622
B60J	B60 less IC core		$89		$89	$89		$89	$91	$91		•
B60T	B60 with Full Size Construction core		132.00		132.00	132.00		132.00	134.00	134.00		•

Latches

J Series Parts Latches

LATCHES	FINISHES

Function	Pkg.	Style/Design	605	609	619	625	626	630	620	716
16-254	Poly Bag	Dual Option Adjustable Spring Latch	$6.50	$6.50	n	n	n	$6.50	n	$6.50
16-255	Poly Bag	Triple Option Adjustable Dead Latch	8.90	8.90	n	n	n	8.90	n	8.90
16-068	Poly Bag	Triple Option Adjustable Deadbolt Latch	9.20	9.20	n	n	n	9.20	n	9.20
16-070	Poly Bag	Triple Option Adjustable Spring Latch	8.90	8.90	n	n	n	8.90	n	8.90
16-059*	Poly Bag	UL-Springlatch, 2 3/8" or 2 3/4"	6.00	6.00	n	n	n	6.00	n	6.00
16-061*	Poly Bag	UL-Deadlatch, 2 3/8" or 2 3/4"	6.00	6.00	n	n	n	6.00	n	6.00
16-063*	Poly Bag	UL-Deadbolt, 2 3/8" or 2 3/4"	6.00	6.00	n	n	n	6.00	n	6.00
16-057*	Poly Bag	UL-Springlatch 16-059 and UL-Deadbolt 16-063	11.50	11.50	n	n	n	11.50	n	11.50

^* Sold with complete UL lockset; not available for individual purchase

Strikes J Series Parts

STRIKES FINISHES

Part No. w/Lock	Part. No. Sold Separately	Style/Design	605	609	619	625	626	630	620	716
10-100	J250-008	Poly Bag , Square Full Lip Strike Knobs and Levers Including 2 Screws	$2.00	$2.00	n	n	n	$2.00	n	$2.00
10-101	J250-009	Poly Bag , Radius Full Lip Strike Knobs and Levers Including 2 Screws	2.00	2.00	n	n	n	2.00	n	2.00
10-102	J250-010	Poly Bag , Radius Full Lip Strike Deadbolts Including 2 Screws	2.00	2.00	n	n	n	2.00	n	2.00
10-103	J250-026	Poly Bag , Radius Deadbolt Strike 1" x 2 1/4" Round Corner	2.00	2.00	n	n	n	2.00	n	2.00
10-104	J250-027	Poly Bag , Radius Deadbolt Strike 1 1/4" x 3 5/8" Round Corner	2.40	2.40	n	n	n	2.40	n	2.40
10-099	J250-003	Poly Bag , Sq. Strike Plate & Strike Frame Reinforcer 1 1/8" x 2 3/4" Square Corner DeadboltsIncluding 2 Screws + 2 x 3" Screws	2.40	2.40	n	n	n	2.40	n	2.40

REKEYING PINNING PARTS & ACCESSORIES

Function	Style Design	Price
J750-002	#1 Top Pin, 200 pcs/per poly bag	$0.06
J750-003	#2 Top Pin, 200 pcs/per poly bag	0.06
J750-004	#3 Top Pin, 200 pcs/per poly bag	0.06
J750-005	#0 Bottom Pin, 200 pcs/per poly bag	0.06
J750-006	#1 Bottom Pin, 200 pcs/per poly bag	0.06
J750-007	#2 Bottom Pin, 200 pcs/per poly bag	0.06
J750-008	#3 Bottom Pin, 200 pcs/per poly bag	0.06
J750-009	#4 Bottom Pin, 200 pcs/per poly bag	0.06
J750-010	#5 Bottom Pin, 200 pcs/per poly bag	0.06
J750-011	#6 Bottom Pin, 200 pcs/per poly bag	0.06
J750-012	#7 Bottom Pin, 200 pcs/per poly bag	0.06
J750-013	#8 Bottom Pin, 200 pcs/per poly bag	0.06
J750-014	#9 Bottom Pin, 200 pcs/per poly bag	0.06
J750-015	#2 Master Pin, 200 pcs/per poly bag	0.06
J750-016	#3 Master Pin, 200 pcs/per poly bag	0.06
J750-017	#4 Master Pin, 200 pcs/per poly bag	0.06
J750-018	#5 Master Pin, 200 pcs/per poly bag	0.06
J750-019	#6 Master Pin, 200 pcs/per poly bag	0.06
J750-020	#7 Master Pin, 200 pcs/per poly bag	0.06
J750-021	#8 Master Pin, 200 pcs/per poly bag	0.06
J750-022	#9 Master Pin, 200 pcs/per poly bag	0.06
J750-023	Pin Tumbler Key Gauge	3.80
J750-024	Plug Clip, 50 pcs/per poly bag	0.06
J750-025	Pin Spring, 100 pcs/per poly bag	0.12
J750-026	Cylinder Cap, 50 pcs/per poly bag	0.12
J750-027	Deadbolt Spring, 100 pcs/per poly bag	0.12
J750-028	Deadbolt Cap Pin, 100 pcs/per poly bag	0.06
J750-029	Follower Tool	4.20
J750-030	Cylinder Removing Tool	3.40
J750-001	RCK Lost Balls, 200 pcs/per poly bag	0.04
J250-029	Spanner Wrench for removing cylinder face	1.10
Key Kits
J250-006	Master Rekeying Kit	$167.00
J250-007	Retail Key Kit	135.00

HANDLESET THROUGHBOLT KITS		FINISHES
Function	Style/Design	605	609	619	625	626	630	620	716
							for use with 619/625/626/630 finishes
J250-036	Handleset Throughbolt Kit - throughbolt screw, washer, and cap	$2.30	$2.30	n	n	n		$2.30 $2.30 $2.30

^- Ordering part includes interior and exterior tailpiece Notes: 1) 630 throughbolt cap also used for 619/625/626

• Master keys must be ordered separately and are not added by default

REKEYING PINNING PARTS & ACCESSORIES

Function	Style Design	Price
	Keys Ordered with Locks or Cylinders
50-001	Lock Keyed to a Specific Combination	$10.00
50-215	Extra Cut Keys Ordered on Lock with Cylinder	4.30
	Residential Master Keying (RMK)
50-223	Cylinder Residential Master Keyed	2.60
49-155	Residential Master Key	10.50
	Residential Construction Keying (RCK)
50-224	Cylinder Residential Construction Keyed	2.60
48-155	Residential Construction Key	6.20
Key Blanks
J750-061	5-Pin Standard Bow, Embossed Both Sides, No Stamping, C-Section Only, (order in quantities of 50)	0.80

Hardware & accessories Parts

Notes

Cables, Chains & Padlocks

Padlocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 Cables & Chains . . . . . . . . . . . . . . . . . . . . . . . 132 Security Hasps . . . . . . . . . . . . . . . . . . . . . . . . 134

Padlocks

KS72F Steel Padlock

Commercial Security - Rekeyable Padlocks

UPC	Description	Shackle Height (in.)	Schackle Cable Link Dia. (in.)	Size (in.)	Size (mm)	Price
720018997412	Brass Padlock 23 Series, K-N-K Cyl 1 1/2" Shackle, KD	1 1/2	5/16	1 25/32	45mm	$62.60
720018997405	Brass Padlock 23 Series Brass K-N-K Cyl 2" Shackle, KD	2	5/16	1 25/32	45mm	62.80
720018997290	Brass Padlock 43 Series Brass K-N-K Cyl 1 1/2" Shackle, KD	1 1/2	3/8	1 15/16	50mm	66.60
720018997283	Brass Padlock 43 Series Brass K-N-K Cyl 2" Shackle, KD	2	3/8	1 15/16	50mm	67.00
720018997764	Steel Padlock - 72 Round body, K-N-K Cyl 2", KD	2	7/16	2 5/8	67.5mm	72.10

850410 Laminated Padlock

855156 Steel Padlock

851226 Steel Padlock

FlexSecurity - Non Rekeyable Padlocks

UPC	Description	Shackle Height (in.)	Schackle Cable Link Dia. (in.)	Size (in.)	Size (mm)	Price
720018850410	Covered Laminated Steel Padlock, 2 Pack - KA	1 1/8	1/4	1 1/2	38mm	$26.20
720018999232	Extra Large "U" Steel Padlock 4" x 11", - KD	11	1/2	7 1/8	181mm	38.00
720018855156	Shackle-less Steel, Round body Padlock - KD	n	3/8	2 7/8	73mm	47.60
720018851226	Steel Padlock, Round body 2" Shackle - KA	2	7/16	2 1/2	63.5mm	37.80
720018994831	Steel Padlock, Round body 2" Shackle - KA, 2-Pack	2	7/16	2 1/2	63.5mm	52.60

Cables, Chains & Padlocks

Cables & Chains

999218 Locking Cable

994862 Double Looped Cable & Padlock

999225 Locking Resettable Combination Cable

001140 Locking Chain

FlexSecurity - Cables & Chains

UPC	Description	Shackle Cable Link Dia. (in.)	Loop Height (in.)	Loop Width (in.)	Chain/Cable Length (ft.)	Price
720018001140	Locking Chain - 5' x 5/16" (7mm)	5/16	n	n	5	$42.80
720018001157	Locking Chain - 4' x 3/16" (5mm)	7/32	n	n	4	26.10
720018994800	Double Looped Cable & Padlock - 4' x 3/8" with Covered Weather-proof Padlock	3/8	2 1/4	n	4	27.20
720018994862	Double Looped Cable & Padlock - 15' x 3/8" with Covered Weather-proof Padlock	3/8	2 1/4	n	15	42.70
720018999201	Rekeyable Locking Cable - 6' x 5/8"	5/8	n	n	6	70.00
720018999218	Locking Cable - 5' x 1/2"	1/2	n	n	5	29.00
720018999225	Locking Resettable Combination Cable - 5' x 3/8"	3/8	n	n	5	30.10

132

999461 Cinch Chain

FlexSecurity - Double Looped Cables

Double Loop Cable

UPC	Description	Shackle Cable Link Dia. (in.)	Loop Height (in.)	Loop Width (in.)	Chain/Cable Length (ft.)	Price
720018820406	Double Looped Cable - 7' x 5/8"	5/8	n	3 3/8	7	$43.00
720018999249	Double Looped Cable - 4' x 3/8"	3/8	n	1 1/8	4	15.80
720018999256	Double Looped Cable - 7' x 3/8"	3/8	n	1 1/8	7	20.20
720018999263	Double Looped Cable - 15' x 3/8"	3/8	n	1 1/8	15	34.20
720018999270	Double Looped Cable - 30' x 3/8"	3/8	n	1 1/8	30	55.00

FlexSecurity - Cinch Chains

UPC	Description	Shackle Cable Link Dia. (in.)	Loop Height (in.)	Loop Width (in.)	Chain/Cable Length (ft.)	Price
720018999461	Cinch Ring Security Chain - 3' 3" - (No lock)	1/2	n	n	3.25	$49.70
720018999478	Cinch Ring Security Chain - 5' - (No Lock)	1/2	n	n	5	94.00

Cables, Chains & Padlocks

Security Hasps

FlexSecurity - Hasps

UPC	Description	Body Size (in.)	Body Size (mm)	Locking Eye Dia. (in.)	Price
720018855101	Vehicle Security Hasp	8 1/2 x 4 1/2	21.6cm x 11.4cm	5/8	$39.20
720018855118	Flexible Double-Hinged Security Hasp	7 3/4 x 1 3/4	19.7cm x 4.4cm	1/2	12.50

Product Warranties 135
General Terms & Conditions 142
Standard Product Terms & Conditions 147

PRODUCT WARRANTIES

COMMERCIAL APPLICATIONS

Limited Warranty

Schlage Lock Company, LLC (the "Company") extends a three year limited warranty to the original user of the products manufactured by the Company (the "Products") against defects in material and workmanship from the date of purchase. Certain Products contain restrictions to this limited warranty, additional warranties, or different warranty periods. Please see below for specific Product warranty information.

What The Company Will Do: Upon return of the defective Product to the Company or its authorized distributor for inspection, free and clear of all liens and encumbrances and accompanied by the statement of defects of proof of purchase, the Company will replace the Product.

Original User: These warranties only apply to the Original User of Products. These warranties are not transferable.

What Is Not Covered: The following costs, expenses and damages are not covered by the provisions of this limited warranty: (i) labor costs including, but not limited to, such costs as the removal and reinstallation of Product; (ii) shipping and freight expenses required to return Product to Schlage; (iii) failures, defects, or damage (including, but not limited to, any security failure or loss of data) caused by any third party product, service, or system connected or used in conjunction with the Product; and (iv) any other incidental, consequential, indirect, special and/ or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages.

The provisions of these limited warranties do not apply to Products: (i) used for purposes for which they are not designed or intended; (ii) which have been subjected to alteration, misuse, abuse, negligence, or accident; (iii) which have been improperly stored, installed, maintained, repaired or operated; (iv) which have been used in violation of written instructions provided by Schlage; (v) which have been subjected to improper temperature, humidity, or other environmental

conditions (i.e., corrosion); or (vi) which, based on the Company's examination, do not disclose to the Company's satisfaction non-conformance to the warranties. Additionally, the Company will not warrant ANSI A156.2 Grade 2 lever Product installed in educational facilities and student housing.

Additional Terms: The Company does not authorize any person to create for it any obligation or liability in connection with the Products. The Company's maximum liability under these warranties is limited to the purchase price of the Product. No action arising out of any claimed breach of these warranties by the Company may be brought by the Original User more than one (1) year after the cause of action has arisen.

How Local Law Applies: These warranties give you specific legal rights, and you may also have other rights permitted by law.

SPECIFIC PRODUCT WARRANTY RESTRICTIONS/ ADDITIONAL WARRANTIES:

ND-Series Levers 7-Year Mechanical Warranty

The limited warranty is for a period of seven (7) years from the date of purchase and is subject to the restrictions of these limited warranties.

Small Format Interchangeable Core (SFIC) Warranty The limited warranty also applies to Schlage locks and housings when used with another manufacturer's cores, or to Schlage cores (i.e, SFIC) when used in another manufacturer's locks and housings. The use of unauthorized cylinder cams or other components with the Products shall void these warranties.

Everest® Primus® and Everest Primus XP Limited Lifetime Key Breakage Warranty

A limited lifetime warranty is provided to the original user against breakage and is subject to the restrictions of these limited warranties.

Portable Security Limited Lifetime Warranty

A limited lifetime warranty is provided to the original user and is subject to the restrictions of these limited warranties.

RESIDENTIAL APPLICATIONS

Lifetime Limited Mechanical & Finish Warranty and 3-Year Limited Electronics Warranty

Subject to the terms and conditions of this warranty, Schlage extends a lifetime limited mechanical and finish warranty and a three-year limited electronics warranty to the original consumer user ("Original User") of our Schlage brand product ("Product") against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed.

What Schlage will do: Upon return of the defective Product to Schlage, Schlage's sole obligation, at its option, is to either repair or replace the Product, or refund the original purchase price in exchange for the Product. Original User: This warranty only applies to the Original User of Products. This warranty is not transferable.

The provisions of this warranty do not apply to Products: (i) used in commercial applications; (ii) used in common area applications; (iii) used for purposes for which they are not designed or intended; (iv) which have been subjected to alteration, abuse, misuse, negligence or accident; (v) which have been improperly stored, installed, maintained or operated; (vi) which have been used in violation of written instructions provided by Schlage; (vii) which have been subjected to improper temperature, humidity or other environmental conditions; or (viii) which, based on Schlage's examination, do not disclose to Schlage's satisfaction non-conformance to the warranty. Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to the use of paints, solvents or other chemicals.

liability here under is limited to the original purchase price of the Product. No action arising out of any claimed breach of this warranty by Schlage may be brought by the Original User more than one (1) year after the cause of action has arisen.

How local law applies: This warranty gives you specific legal rights, and you may also have other rights as otherwise permitted by law. If this Product is considered a consumer product, please be advised that some local laws do not allow limitations on incidental or consequential damages or how long an implied warranty lasts, so that the above limitations may not fully apply. Refer to your local laws for your specific rights under this warranty.

Guaranteed Fit Program: Schlage products are designed to fit standard residential door preparations and retrofit existing tubular locks. Note: Mortise locks and preparations are not considered standard and are not guaranteed under this program. During the initial installation, if there is a problem with the Product's performance, the Original User may simply contact Schlage Customer Service at 888-805-9837 in the U.S. and Canada or 800-506-7866 in Mexico for assistance.

Program and warranty claims: If you encounter a residential door preparation or fit issue under the Guaranteed Fit Program or have a claim under this warranty, please contact Schlage Customer Service for repair, replacement or refund of the original purchase price in exchange for the return of the Product to Schlage.

J-Series Lifetime Mechanical Warranty and 5-year Finish Warranty

Subject to the terms and conditions of this warranty, Schlage Lock Company, LLC ("Schlage") extends a lifetime limited mechanical and 5-year finish warranty to the original consumer user ("Original User") of Dexter by Schlage products ("Product") against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed.

What is not covered: The following costs, expenses and damages are not covered by the provisions of this limited Warranty: (i) labor costs including, but not limited to, such costs as the removal and reinstallation of Product; (ii) shipping and freight expenses required to return Product to Schlage; and (iii) any other incidental, consequential, indirect, special and/ or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some local laws do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

PRODUCT WARRANTIES, ADDITIONAL TERMS & CONDITIONS:

Commercial and Residential Applications

How Local Law Applies: This warranty gives you specific legal rights, and you may also have other rights as otherwise permitted by law.

Note: Should the Product be considered a consumer product as may be covered by the Magnusson Moss Federal Warranty Act, please be advised that: (1) Some states do not allow limitations or incidental consequential damages or how long an implied warranty lasts so that the above limitations may not fully apply; and (2) This warranty gives specific legal rights and a user may have other rights which may vary from state to state.

For warranty service and shipping instructions contact:

Schlage Customer Commitment Center 2119 East Kansas City Road Olathe, KS 66061 (800) 847-1864, Option 1 (888) 805-9837 Consumer Fax (800) 366-5625

The Schlage Lock Company, LLC reserves the right to make changes in designs and specifications or to make additions or improvements on its products without notice and without incurring any obligation to incorporate them on products previously manufactured. The Schlage Lock Company, LLC is not responsible for any modification, addition or alteration to our products by others.

DISTRIBUTION FUNCTION AND LOCATION POLICY

The Schlage customer relationship includes the nonexclusive area of primary sales responsibility and the channel of distribution assigned by Schlage. It is vital to our success and for the effective management of the distribution of our products that the Schlage customer relationship, once it is satisfactorily established between us, should not be changed without our approval. Therefore, after selection by Schlage as a distributor of one or more of Schlage products, a customer should continue to perform that distribution function from the location of its business at the place or places utilized at the time of selection. A customer should not change its Schlage distribution function or establish a different or additional location without the prior written consent of Schlage.

Schlage reserves the right to discontinue, after appropriate notice, sale of its products to any customer which refuses to adhere to this policy. Schlage also reserves the right to change, in its sole discretion, the number and locations of the distributors authorized to distribute its products in any area. This determination will be based upon, among other considerations, the success or failure in developing the market for Schlage products.

HARDWARE FINISHES

Schlage Lock finishes are durable, top quality finishes obtained by the careful processing of solid brass, bronze, stainless steel or other materials. Where required, a protective clear coating is applied and cured under high temperature. It is important that climatic conditions and usage be taken under consideration when selecting finishes. This is especially true in areas subjected to strong corrosive vapors, humid

climate or sea air which, in a short time, may have a damaging effect on metal finishes. The longevity and preservation of the finish appearance is determined by base metal and finishing process. Clear protective coating or other organic finishing applications may require different methods of cleaning and care. As an example, non-clear coated finishes should not be cleaned with soaps or any solvents; organically coated surfaces should periodically be cleaned with a mild, nonabrasive soap and buffed lightly with a clean cloth. The type of base metal and finishing techniques must be considered when applying any cleaning or preservative method. Contact the Schlage Technical Services Department for further information on the care of finished hardware.

In some instances, for customer convenience, the most appropriate BHMA finish symbols are used to indicate similarity of appearance, regardless of base metal of finishing process. A, AL, D, ND, F, FA, H, S, S200-Series and Dexter by Schlage levers are zinc-based material and are plated to match finishes indicated. Finishes of latches, strikes, cylinders/cores, and visible mounting screws, though similar in appearance, may differ from the finish of the trim. Finish numbers in the 600-Series are the BHMA (Builders Hardware Manufacturers Association) industry standard.

Finish Codes and Descriptions:

The nearest old U.S. equivalent code designations are shown in parenthesis ( ).

shown in parenthesis ( ).
Code	Description
505	Bright Brass
605 (3)	BRIGHT BRASS, Clear Coated
608	Satin Brass
609 (5)	ANTIQUE BRASS, Satin Brass,
	Blackened, Satin Relieved, Clear Coated
613* (10B)	OIL RUBBED BRONZE, Oxidized Satin
	Bronze, Oil Rubbed, No Coating
618	Polished Nickel
619 (15)	SATIN NICKEL, Satin Nickel Plated,
	Clear Coated
620 (15A)	ANTIQUE PEWTER, Satin Nickel Plated,
	Blackened, Satin Relieved, Clear Coated
621	Distressed Nickel, Clear Coated
622	MATTE BLACK, Coated
625 (26)	BRIGHT CHROMIUM PLATED, No
	Coating
626 (26D)	SATIN CHROMIUM PLATED, No
	Coating
630 (32D)	SATIN STAINLESS STEEL, No Coating
716	AGED BRONZE, Clear Coated

* Oil rubbed bronze (613) is considered a category "B" finish by ANSI/BHMA and will vary in color when applied to different alloys and forms of base material. 613 will also vary from production lot and additionally from one manufacturer to another. Oil rubbed bronze will wear off over time due to the "rubbed" finishing method that has no protective coating or plating.

Dexter J Series Grade 3 finishes have durable, top quality finishes obtained by the careful processing of solid brass, stainless steel or other materials. Where required, a protective clear coating is applied and cured under high temperature. It is important that climatic conditions and usage be taken under consideration when selecting finishes. This is especially true in areas subjected to strong corrosive vapors, humid climate or sea air which, in a short time, may have a damaging effect on metal finishes. The longevity and preservation of the finish appearance is determined by base metal and finishing process. Clear protective coating or other organic finishing applications may require different methods of cleaning and care. As an example, non-clear coated finishes should not be cleaned with soaps or any solvents; organically coated surfaces should periodically be cleaned with a mild, non-abrasive soap and buffed lightly with a clean cloth. The type of base metal and finishing techniques must be considered when applying any cleaning or preservative method. Contact the Schlage Technical Service Department for further information on the care of finished hardware.

In some instances, for customer convenience, the most appropriate Builders Hardware Manufacturers Association (BHMA) finish symbols are used to indicate similarity of appearance, regardless of base metal of finishing process. J-Series levers are zinc-based material and are plated to match finishes indicated. Finish numbers in the 600-Series are the BHMA industry standard. The nearest old U.S. equivalent code designations are shown in parentheses. Refer to each lock series section for standard finish

availability.

Finish Codes and Descriptions:

Code	Description
605 (US3)	BRIGHT BRASS, Clear Coated
609 (US5)	ANTIQUE BRASS, Satin Brass,
	Blackened, Satin Relieved, Clear Coated
619 (US15)	SATIN NICKEL, Clear Coated
	620 (US15A) ANTIQUE PEWTER, Clear Coated
625 (US26)	BRIGHT CHROME, Clear Coated
	626 (US26D) SATIN CHROME, No Coating
	630 (US32D) SATIN STAINLESS STEEL, No Coating
716	Aged Bronze, Clear Coated

Lifetime Mechanical Warranty

Schlage Lock Company, LLC ("Schlage") extends a lifetime Mechanical Warranty to the original user ("User") of Dexter by Schlage products ("Product") against mechanical defects in material and workmanship as long as the User occupies the residential premises in which the Product was originally installed.

This warranty DOES NOT COVER (i) product finish, (ii) abused or misused Products, or (iii) Products used in commercial applications. Upon return of a defective Product to Schlage, Schlage shall either replace the Product or refund the purchase price in exchange for the Product.

SCHLAGE MAKES NO OTHER WARRANTY, CONDITION OR REPRESENTATION OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, STATUTORY OR OTHERWISE, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES AND CONDITIONS RELATING TO MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. IN NO EVENT SHALL SCHLAGE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, PUNITIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE SALE, USE OR MISUSE OF THIS PRODUCT. Note: Some states do not allow limitations on incidental, special, or consequential damages, so the above limitations may not fully apply. This warranty gives specific legal rights, and you may

5-Year Finish Warranty

Schlage Lock Company, LLC ("Schlage") extends a 5-Year Finish Warranty to the original user ("User") of Dexter by Schlage products ("Product") against tarnishing, and damage from corrosives like salt, sun, humidity and cleaning products for a period of 5 years provided that the User continues to occupy the residential premises in which the Product was originally installed.

also have other rights which vary from state to state.

This warranty DOES NOT COVER (i) scratches or abrasion, (ii) abused or misused Products, or (iii) Products used in commercial applications. Upon return of a defective Product to Schlage, Schlage shall either replace the Product or refund the purchase price in exchange for the Product.

Note: Some states do not allow limitations on incidental, special, or consequential damages, so the

above limitations may not fully apply. This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranties, Additional Terms and Conditions

THE COMPANY MAKES NO OTHER WARRANTY, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. THE COMPANY'S MAXIMUM LIABILITY HEREUNDER IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, INCIDENTAL OR SPECIAL DAMAGES OF ANY NATURE ARISING FROM THE SALE OR USE OF THIS PRODUCT, WHETHER IN CONTRACT, TORT, STRICT LIABILITY OR OTHERWISE.

Should the Product be considered a consumer product as may be covered by the Magnusson Moss Federal Warranty Act, please be advised that:

(1) Some states do not allow limitations on incidental consequential damages or how long an implied warranty lasts so that the above limitations may not fully apply; (2) This warranty gives specific legal rights and a buyer may also have other rights which may vary from state to state.

For warranty service and shipping instructions, contact the:

Schlage Customer Commitment Center 2119 East Kansas City Road Olathe, KS 66061 (800) 847-1864, option 1 (888) 805-9837, consumer fax (800) 366-5625

Schlage reserves the right to make changes in designs and specifications or to make additions or improvements on its products without notice and without incurring any obligation to incorporate them on products previously manufactured. Schlage is not responsible for any modification, addition or alteration to our products by others.

Distribution Function and Location Policy

The Schlage customer relationship includes the nonexclusive area of primary sales responsibility and the channel of distribution assigned by Schlage. Each member of the Schlage channel of distribution is free to sell in any area and at any price. It is vital to our success and for the effective management of the distribution of our products that the Schlage customer relationship, once it is satisfactorily established between us, should not be changed without our approval. Therefore, after selection by Schlage as a distributor of one or more of Schlage products, a customer should continue to perform that distribution function from the location

of its business at the place or places utilized at the time of selection. A customer should not change its Schlage distribution function or establish a different or additional location without the prior written consent of Schlage.

CONNECTED HOME PRODUCTS WARRANTY

PATENT NOTICE: Schlage® products and those of its subsidiary companies and licensees may be covered by both issued and pending U.S. and foreign patents, copyrights and trademarks.

Manufactured items are covered by one or more of the following patents:


5070715	5152558	5308131	5395144	5593193
5598726	5640863	5683127	5715717	5765412
5769472	5809816	5816086	5820290	5881590
5918916	6286347	6297725	6523375	6533336
6540274	6581426	6802546	6905773	6926319
7143477	7159424	D372417	D372854	D406056
D406528	D426452	D428324	D450558	D457048
D457049	D458829	D467155	D472788	D487388
D520331	D520332	D537702	D541620	D543435

LOCK PRODUCT: Lifetime Limited Mechanical and Finish Warranty and 3-Year Limited Electronics Warranty Subject to the terms and conditions of this warranty, Schlage extends a lifetime limited mechanical and finish warranty and a three- year limited electronics warranty to the original consumer user ("Original User") of our Schlage brand lock product ("Lock Product") against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Lock Product was originally installed. Guaranteed Fit Program: Schlage Lock Products are designed to fit standard residential door preparations and retrofit existing tubular locks. Note: Mortise locks and preparations are not considered standard and are not guaranteed under this program. During the initial installation, if there is a problem with the Lock Product's performance, the Original User may simply contact Schlage Customer Service at 877-288- 7707 in the U.S. and Canada.

NON-LOCK PRODUCT: 1-Year Limited Mechanical and Electronics Warranty

Subject to the terms and conditions of this warranty, Schlage extends a 1-year limited mechanical and electronics warranty to the original consumer user ("Original User") of our Schlage brand non-lock

product used in conjunction with our Lock Product ("Non- Lock Product") against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Lock Product was originally installed. "Lock Product" and "Non-Lock Product" are collectively referred to herein as "Product".

Original User: This warranty only applies to the Original User of Products. This warranty is not transferable. What is not covered: The following costs, expenses and damages are not covered by the provisions of this limited warranty: (i) labor costs including, but not limited to, such costs as the removal and reinstallation of Product; (ii) shipping and freight expenses required to return Product to Schlage; (iii) failures, defects, or damage (including, but not limited to, any security failure or loss of data) caused by any third party product, service, or system connected or used in conjunction with the Product; and (iv) any other incidental, consequential, indirect, special and/ or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. The provisions of this warranty do not apply to Product: (i) used in commercial applications; (ii) used in common area applications; (iii) used for purposes for which they are not designed or intended; (iv) which have been subjected to alteration, abuse, misuse, negligence or accident; (v) which have been improperly stored, installed, maintained or operated; (vi) which have been used in violation of written instructions provided by Schlage; (vii) which have been subjected to improper temperature, humidity or other environmental conditions; or (viii) which, based on Schlage's examination, do not disclose to Schlage's satisfaction non-conformance to the warranty. Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to the use of paints, solvents or other chemicals.

Exclusions: Oil Rubbed Bronze finish (613) is designed to improve over time and change in appearance, creating a living finish through daily use and thus, finish discoloration is not applicable to the above warranty. Additional terms: Schlage does not authorize any person to create for it any obligation or liability in connection with the Product. Schlage's maximum liability hereunder is limited to the original purchase price of the Product. No action arising out of any claimed breach of this warranty by Schlage may be brought by the Original User more than one (1) year after the cause of action has arisen.

GENERAL TERMS & CONDITIONS

SCHLAGE GENERAL TERMS AND CONDITIONS OF SALE AND SERVICE

1. GENERAL. (a) This Agreement contains the terms and conditions by which Company will quote and sell its Products and Services to Customer. (b) The terms "purchase order" or "order" for the purposes of this Agreement include the term "request for quotation," as appropriate. (c) This Agreement supersedes all pre-printed and boilerplate terms and conditions set forth in any purchase order issued by Customer. (d) No reference herein to Customer's purchase order will in any way incorporate different or additional terms and conditions which are hereby objected to. (e) ANY ACCEPTANCE BY COMPANY OF CUSTOMER'S PURCHASE ORDER IS EXPRESSLY CONDITIONED ON THE CUSTOMER'S ASSENT TO AND ACCEPTANCE OF THE TERMS AND CONDITIONS CONTAINED IN THIS AGREEMENT. (f) In the event of a conflict between this Agreement and a purchase order issued by Customer, the terms of this Agreement will prevail. In the event of a conflict between this Agreement and any specific Product or Service terms and conditions, the specific Product or Service terms and conditions will prevail.

2. SCOPE OF PRODUCTS AND SERVICES AND ORDERS.

(a) Scope of Products and Services. The scope of the Products and Services (including, but not limited to location) are (i) attached to this Agreement, (ii) separately furnished by Company to Customer, or (iii) subject to Section 1 herein, contained in an order submitted by Customer. Non-standard finishes and special items may be available. Contact Company for such availability. All Products that come in "kits" cannot be sold as individual pieces. See the specific product terms and conditions for exceptions. (b) Orders. All orders submitted by Customer must be in written form acceptable to Company. A minimum net Product or Service order value, excluding freight charges, may be required for each order. Such minimum net Product or Service order value will be (i) attached to this Agreement; (ii) separately identified in the specific Product Price Book; or (iii) separately furnished by Company to Customer. In the event the order value does not meet any required minimum net Product or Service value, Company will, at its sole discretion, either (i) increase the quantity of items in the order to meet the minimum net Product or Service value provided herein; (ii) apply a minimum order charge; or (iii) reject the order. (c) Receipt of an Order. Company will acknowledge receipt of each order issued in

accordance with this Agreement and will notify Customer whether such order has been accepted or rejected, in whole or in part, by Company. If Company fails to acknowledge receipt of an order, within a reasonable time period, such failure to acknowledge receipt will be deemed a rejection of the entire order. (d) Changes to Orders. Any changes to orders must be acknowledged by Company in writing. Company reserves the right to deny any changes to orders, which have been previously acknowledged by Company. The time period for making any changes to orders for Products will be (i) attached to this Agreement; (ii) separately identified in the specific Product Price Book; or (iii) separately furnished by Company to Customer. All changes to orders are subject to a change order charge of 25% of the net Product or Service value or $25.00, whichever is greater, plus the cost of fabrication or raw material that will need to be purchased for the change order. Unless otherwise specified by Company in writing, any changes to orders acknowledged by Company that affect the delivery date will be deemed a new order and will require acknowledgement by Company as provided in this Section 2. (e) Cancellation of Orders. All cancelled orders are subject to Company's written acknowledgement to be valid. The time period for order cancellations will be (i) attached to this Agreement; (ii) separately identified in the specific Product Price Book; or (iii) separately furnished by Company to Customer. All cancelled orders acknowledged by Company are subject to a cancellation charge of 25% of the net Product or Service value or $25.00, whichever is greater, plus the cost of any fabrication or raw materials that have purchased for the order.

3. PRICES AND PAYMENT. (a) Prices. The prices specified by Company are subject to change, without notice, to Company's prices in effect at the time of each shipment of Products or performance of Services. Additional charges may be applied for product modification or engineering services. Oral prices specified by Company are null and void. (b) Invoices. Company will submit invoices to Customer stating amounts due. (c) Payment Terms. Payment terms are 2% cash discount 20 days, net 35 days from date of invoice. Payment will be made in United States dollars. (d) Credit Terms. All orders are subject to Company's credit limit and terms of credit required by Company or contained in Company's credit application, which is subject to change by Company at any time either before or after

142

delivery of any part of the order. Company reserves the right to request payment in advance of shipment or any order or to request adequate assurances for Customer's payment of an order and may withhold or stop shipment, without any liability to Company, until Customer submits payment or assurance of payment, as required by Company. (e) Default. If Customer is in default in payment or otherwise with respect to any order for Products or Services or any other contract with Company, Company shall have the right, in addition to all other legal remedies and without prejudice to any of its right hereunder, to defer further shipments until such default is corrected and to declare all outstanding bills of Customer to be immediately due and payable. (f) Taxes. Any taxes, charges, or duties imposed by any governmental authority on the sale of Products or Services will be paid by Customer, in addition to the selling price specified by Company. (g) Late Payment Charge. A late payment charge of 1.5% per month equivalent to 18% per annum will be charged on past due balances owed Company. Provided however, that in the event that applicable governmental law sets a maximum rate for late payment fees which is less than 18% per annum, then the late payment charge assessed will be set at the maximum rate permitted by law.

4. INSPECTION, DELIVERY, SHIPPING, FREIGHT CHARGES, CLAIMS, AND PACKING. (a) Inspection.

Inspection of Products and Services will be done by Customer immediately after receipt of Products or completion of Services. Inspection of Products or Services by Customer at Company's facility is not permitted. (b) Delivery. Product delivery schedules are based upon current production capacities, material or component availability, and inventory, and may be changed by Company as conditions require. Service delivery schedules are based upon prompt receipt of, and prompt access to, Customer's equipment and all information necessary to complete the Services. In no event will Product or Service delivery dates be construed as falling within the meaning of "time is of the essence." Partial delivery shall be accepted by Customer and paid for at the price and on the terms stated herein. Any partial delivery of Products or Services, shall constitute a separate sale and payment shall be separately made when due. If any part of the Products or Services are not delivered by Company in accordance with Customer's order, this Agreement shall not be affected thereby. (c) Shipping. Unless otherwise specified by Company, (i) where the Customer is located in the United States, all Products will be sold "Uniform Commercial Code, F.O.B. Origin, Company's factory"; and (ii) where the Customer is

located outside of the United States, all Products will be sold "Incoterms 2000, Ex-works, Company's factory." In either instance, title and risk of loss will pass to Customer upon delivery to the carrier at Company's factory. Provided however, a security interest will remain in the Products, regardless of mode of attachment to realty or other property, until full payment has been made therefore, and Customer agrees, upon request, to do all things and acts necessary to protect Company's interest by adequately insuring the Products against loss from damage from any cause and to have Company named as an additional insured. Copies of all Certificates of Insurance will be provided to Company upon request. Customer will also assist Company in providing all necessary documents or signatures required to file any documents to perfect Company's interest in such Products. (d) Freight Charges. All freight charges will be (i) attached to this Agreement; (ii) separately identified in the specific Product Price Book; or (iii) separately furnished by Company to Customer. (e) Claims. All claims for loss or damage to Products while in the care, custody, and/or control of a carrier will be the responsibility of Customer, who will submit any claims.. (f) Packing. Company will pack, mark, and ship the Products according to its standard procedures for shipment, unless the parties agree, in writing, that Company will comply with any special instructions provided by Customer. Compliance with special instructions may result in an increased price. 5. CLAIMS. (a) All claims must be submitted in writing to Company as follows: (i) All claims for prices must be submitted within thirty (30) days from the date of invoice. (ii) All claims for Product quantity or incorrect orders must be submitted within ten (10) days from the date of delivery. (iii) All claims for damage to Products (while in the care, custody, and control of Company) must be submitted within thirty (30) days from the date

of invoice. 6. PRODUCT CHANGES. Company reserves the right to change without notice the design of, or the process of manufacturing, the Products covered by this Agreement; provided that the foregoing will not be construed as relieving Company from its obligation to deliver Products which conform to the specifications which Company may have furnished to Customer.
7. PRODUCT RETURNS. Products may not be returned unless Customer receives written authorization from Company. If returns are authorized by Company, a return merchandise authorization ("RMA") number must be provided by Company. Products identified under such RMA must be returned to Company within 90 days of issuance of the RMA. Such RMA number and any accompanying RMA documents,

the original invoice number, and a written explanation for the return must be included with the returned Products in order for Company to inspect and approve a credit for the return. Such credit will only be issued if, after Company's receipt and inspection of Products, Company approves the return. Only those Products which have been in Customer's inventory no more than 180 days from the date of shipment by Company and which are current, standard, non-obsolete, non-specially manufactured, unused, in their original condition as at the time of sale by Company to Customer, and are in their original packaging may be considered by Company for return. In the event Company approves a return, a credit will be made to Customer's account less freight, and a handling and reprocessing charge of 35% of the net material value on the original invoice. Products requiring reconditioning to return the Products to a saleable condition may be credited to Customer's account less freight and a handling and reprocessing charge of 50% of the net material value and less 2% for the cash discount allowance on the original invoice.

8. TECHNICAL INFORMATION AND ADVICE.

(a) All designs, data, and specifications provided by Company are proprietary and will not be disclosed or reused by Customer without the prior written consent of Company. (b) Company assumes no obligation or liability for any advice given by Company, the results obtained, or damages incurred, and all such advice is given and accepted at Customer's risk.
9. LIMITED WARRANTY. (a) Company's Standard Limited Warranty(ies) relating to Products or Services are applicable to this Agreement. The limited warranty(ies) are (i) attached to this Agreement; (ii) separately identified in the specific Product Price Book; or (iii) separately furnished by Company to Customer. (b) (i) In the event that certain Product warranties are not attached to this Agreement or separately furnished, Company warrants only to Customer that Products will be free from defects in material and workmanship for a period of 12 months from the date of shipment of the Products. Company's sole obligation under this warranty is limited to repairing or replacing, at its option, the defective Products. (ii) The provisions of this limited Product warranty do not apply to Products: (A) used for the purposes for which they are not designed or intended; (B) which have been repaired or altered without Company's prior written consent; (C) which have been subjected to misuse, abuse, negligence, or accident; (D) which have been improperly stored, installed, maintained, or operated; (E) which have been used in violation of written instructions provided by Company to Customer; (F) which have subjected

to improper temperature, humidity, or other environmental conditions; (G) which have been affected by normal wear and tear; or (H) which, based on Company's examination, do not disclose to Company's satisfaction nonconformance to the warranty. (c)(i) In the event that certain Service warranties are not attached to this Agreement or separately furnished, Company warrants only to Customer that the Services will be free from defects in material and workmanship for a period of 6 months from the date of completion of the particular items of Service. Company's sole obligation under this warranty is limited to repairing or reperformance, at its option, of the Service; provided however, if repair or reperformance is either impractical or impossible, the Company will refund to Customer that portion of the price paid to the Company for the defective item of Service. This warranty only applies if the company is given written notice of the defect or nonconformance by the Customer within 30 days of discovery. (ii) The provisions of this limited Service warranty does not apply to any defects or issues with the design or performance of equipment or products not manufactured by Company, nor does it apply to any code compliance or permit requirements for the assembly, installation, erection, or construction of any goods.

(d) NO OTHER WARRANTIES, EXPRESS OR IMPLIED, ARE MADE WITH RESPECT TO THE PRODUCTS OR SERVICES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
(e) The following costs and expenses are not covered by the provisions of these limited warranties: (i) labor costs for the removal and reinstallation of Products or other manufacturer's products; (ii) shipping and freight expenses required to return Products to Company; (iii) normal maintenance; and (iv) economic losses. In addition, the provisions of this warranty are not applicable to anything other than defects in Company's material (products only) or workmanship.
10. CUSTOMER'S REMEDIES. THE CUSTOMER'S EXCLUSIVE AND SOLE REMEDY ON ACCOUNT OF, OR IN RESPECT OF, THE FURNISHING OF PRODUCTS OR SERVICES THAT DO NOT CONFORM TO THIS AGREEMENT WILL BE TO (A) SECURE REPAIR OR REPLACEMENT OF THE PRODUCTS; OR (B) SECURE REPAIR OR REPER-FORMANCE OF THE SERVICES OR TO OBTAIN A REFUND OF THE PRICE PAID FOR THE DEFECTIVE SERVICE, ALL AT COMPANY'S OPTION. IN NO EVENT WILL THE COMPANY'S MAXIMUM LIABILITY EXCEED THE SELLING PRICE FOR THE PRODUCTS OR ITEM OF SERVICE.

LOSS OF USE OF THE PRODUCTS, SERVICE INTERRUPTION, LOSS OF PROFITS, LOSS OF REVENUE, INTEREST, LOST GOODWILL,WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, LOSS BY REASON OF SHUTDOWN OR NON-OP-ERATION, INCREASED EXPENSES OF OPERATION, OR CLAIMS OF CUSTOMER'S CUSTOMERS, WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO, STRICT LIABILITY OR NEGLIGENCE), PATENT INFRINGE-MENT, OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. 12. STATUTE OF LIMITATIONS. NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS AGREEMENT BY COMPANY MAY BE BROUGHT BY CUSTOMER MORE THAN ONE (1) YEAR AFTER THE CAUSE OF ACTION HAS ARISEN. 13. CONSUMER PRODUCTS. With respect to "consumer products" as defined under the Magnuson-Moss Warranty Act ("MMWA"), the following statements are made. (a) Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. IF ANY IMPLIED WARRANTY IS PROVIDED UNDER THE MMWA, IT IS LIMITED TO THE DURATION OF THE WARRANTY PROVIDED IN SECTION 9 ABOVE. (b) Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. (c) This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 14. FORCE MAJEURE. Any delay or failure of Company to perform its obligations hereunder will be excused to the extent that it is caused by an event or occurrence beyond its control such as, by way of example and not by way of limitation, acts of God, actions by any governmental authority (whether valid or invalid), governmental laws and regulations not presently in effect, fires, floods, windstorms, explosions, riots, natural disasters, wars, sabotage, accidents, labor problems (including, but not limited to, lockouts, strikes, and slowdowns) at Company's facility, its source plant or their suppliers, inability to obtain power, material, labor equipment, or transportation, or court injunction or order. The delivery date will be extended for a time equal to that of the delay and the schedule for Company's performance will be deemed adjusted in the individual order(s) to that effect.

11. LIMITATION OF LIABILITY. IN NO EVENT WILL COMPANY BE LIABLE FOR INCIDENTAL, CONSE-QUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES INCLUDING, BUT NOT LIMITED TO,

15. ENTIRE AGREEMENT AND AMENDMENT.

This Agreement, together with any attachments or supplements specifically referenced in this Agreement, constitutes the entire agreement between the parties hereto and supersedes all previous communications, representations, or agreements, either oral or written, between the parties hereto with respect to the subject matter hereof. No agreement or understanding varying or expanding this Agreement will be binding upon either party hereto unless it is in writing and signed by a duly authorized representative thereof.

16. TERMINATION. (a) This Agreement may be terminated by either party by giving 30 days' written notice to the other party in the event of failure by such other party to fulfill any of its obligations hereunder. However, if during the period of such notice, such other party remedies such failure, this Agreement will continue with the same force and effect as if such notice had not been given. (b) This Agreement may be terminated upon the written mutual consent of the parties. (c) Either party may immediately terminate this Agreement by giving written notice to the other party in the event of the happening of any of the following or any other comparable event: (i) insolvency of the other party; (ii) filing of a petition in bankruptcy by or against the other party; (iii) appointment of a receiver or trustee for the other party; or (iv) execution of an assignment for the benefit of creditors by the other party, all of which will allow Company to demand reclamation of all affected orders. (d) Except as provided in this section 16, Customer may not terminate this Agreement, in whole or in part, unless Company's prior written consent is obtained and Customer agrees to pay all of Company's cancellation charges. 17. GOVERNING LAW; VENUE; AND EXPENSES. (a) This Agreement and any disputes or controversies arising hereunder will be governed by and construed according to the internal laws of the State of Indiana, United States of America, without regard to its conflict of law principles, and not including the United Nations Convention on Contracts for the International Sale of Goods. (b) Jurisdiction and venue with respect to any action, proceeding, or suit in connection with this Agreement will reside in the courts of the State of Indiana. (c) Customer agrees to pay for all expenses (including attorney's fees) incurred by Company in enforcing the obligations of Customer under this Agreement.

18. COMPLIANCE WITH LAWS, EXPORT CONTROLS, CERTIFICATIONS, AND NUCLEAR LIABILITY. (a) This Agreement is be subject to, and Company and Customer will comply with, all laws and export controls, regulations, rules, orders, licenses, requirements, and governmental requests now or

hereafter in effect in the United States of America that pertain to the Products or the initial sale of the Products or that pertain to Services. Provided however, Company is not responsible for obtaining or maintaining any permits for the performance of Services or the verification or compliance with any code requirements relative to the performance of Services. To the extent any sale of Products or Services pursuant to this Agreement may require approval of the U.S. Government, Company's obligations under this Agreement are conditioned upon the grant of such approval and upon compliance by Customer with any restrictions imposed by the U.S. Government in connection with such approval. (b) Certain Products are noted by Company as tested by independent laboratories for compliance with UL and/or ANSI standards. Any and all modifications or alterations to such Products will void such certification, and Company is not liable to Customer to certify any modified or altered Product. (c) In the event the Products are to be used in a nuclear facility, the Customer shall, prior to such use, arrange for insurance or governmental indemnity protecting Company against liability. The Customer hereby releases and agrees to indemnify Company and its suppliers for any nuclear damage including, but not limited to, loss of use, in any manner arising out of the nuclear incident, whether alleged to be due, in whole or in part by Company or its suppliers.

19. NO INDUCEMENTS. The parties hereto represent to each other and each agrees that, neither it nor any person acting on its behalf has, in contravention of any applicable law, given or offered to give, or will give or offer to give, any sum of money or other material consideration to any person, directly or indirectly, as an inducement to obtain business hereunder or to influence the granting of licenses or other governmental permissions to enter into this Agreement or perform obligations hereunder.

20. SEVERABILITY. If any provision of this Agreement is held to be invalid, illegal, or unenforceable under any statute, regulation, ordinance, executive order, or other rule of law, that provision will be deemed severed to the extent necessary to comply with such statute, regulation, ordinance, order, or rule. In the event such provision is deemed severed, the parties will negotiate in good faith to arrive at an alternative arrangement approximating the original business objective of the parties. The remaining terms and conditions of this Agreement will remain in effect.

21. NO IMPLIED WAIVER. The failure of either party at any time to require performance by the other party of any provision of this Agreement will in no way affect the right to require such performance at any time

thereafter, nor will the waiver of either party of a breach of any provision of this Agreement constitute a waiver of any succeeding breach of the same or any other provision.

22. MISCELLANEOUS. (a) This Agreement does not constitute either party the agent or legal representative of the other party. Neither party is authorized to create any obligation on behalf of the other party including, but not limited to, the obligation for payment of any service or warranty obligation hereunder. (b) Neither this Agreement nor any right or obligation hereunder may be transferred or assigned by either party without the prior written approval of the other party, except that Company can transfer or assign this Agreement or any right or obligation (including, but not limited to the right to receive payments for any orders) to Schlage Lock Company, LLC or a Schlage Lock Company, LLC entity without first obtaining Customer's consent. (c) The rights and remedies herein reserved to Company will be cumulative and additional to any other or further rights and remedies provided at law or equity. (d) Customer does not have the right to setoff or to back charge against any amounts which become payable to Company under this Agreement or otherwise. (e) The official text of this Agreement is in the English language. If this Agreement is translated into another language, the English text will govern any question with respect to interpretation. (f) The headings in this Agreement are for convenience of reference only and do not affect the meaning of this Agreement in any manner.

23. DEFINITIONS. (a) "Agreement" means Schlage General Terms and Conditions of Sale and Service. (b) "Company" means Schlage Lock Company, LLC, . (c) "Customer" means the Buyer. (d) "Buyer" means the purchaser of products or Services from Company. (e) "U.S." means United States of America.

146

STANDARD PRODUCT TERMS AND CONDITIONS

Residential

The following specific product terms and conditions supersede the general terms and conditions of sale and service only to the extent provided herein. All other terms and conditions contained in the General Terms and Conditions of Sale and Service provided in this Price Book will govern the sale of products identified in this Price Book.

Residential Patent Numbers:

			D458829
			D467155
			D472788
			D487388
			D520331
			D520332
			D537702
			D541620
6297725	7159424	D457049	D543435
	5765412 5769472 5809816 5816086 5820290 5881590 5918916 6286347	6523375 6533336 6540274 6581426 6802546 6905773 6926319 7143477	D372417 D372854 D406056 D406528 D426452 D428324 D450558 D457048

The price list in this price book supersedes and cancels all previous price lists contained in any other price books or versions thereafter. Prices shown are subject to change without notice. All prices are subject to discount. Products considered "Specials" ("X" designated part numbers) fall outside of standard discount terms. Contact customer service for clarification.

Service Charges: Service charges on past due invoices (except validly disputed items) will be assessed as follows: 1 1/2% per month or the maximum allowable by law on past due amounts open as of the last day of each calendar month until the past due amounts are paid.

Changes or Cancellations: Changes or cancellations to an order must be in writing and may result in additional charges for labor and/or materials. Changes may result in a delay in the scheduled ship date. Additions to orders will be entered as separate stand-alone orders and must qualify for all terms of sale, including discounts, on an individual basis. Changes or deletions resulting in an order size of less than our minimum will not be accepted. Orders for non-cataloged, special or nonstandard items may not be canceled. Factory orders may not be changed within 7 days.

Claims and Returns: Claims for shortages and/or incorrectly filled orders must be filed with Customer Service within 10 days of receipt of material. Price adjustments must also be made in writing to Customer Service within 30 days from receipt of invoice. No returned goods will be accepted without written approval from Schlage. Credit will be based upon the written authorization of the IR Schlage represen-

tative and final acceptance by Schlage. Such returns must be prominently marked with the return goods authorization number and shipped prepaid. Returns, if approved, will be subject to a minimum restocking charge of 35% for unopened cases received in the same condition as when sold by Schlage. Non-stock materials are not returnable. Charge-backs will not be allowed.

Shipping: a. Freight Charges. Company will ship all Deliverables in accordance with Company's freight shipment guidelines, which are set forth on the My Allegion Portal ("Freight Shipping Guidelines"), WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN. b. Rush Charges. Expedited order options are available as set forth in Company's Freight Shipping Guidelines. c. Packing and Marking. Company will pack, mark, and ship Deliverables according to its standard procedures for shipment, unless the parties agree, in writing, that Company will comply with any special instructions provided by Customer. Special instructions may result in an increased price. d. International Shipments. For all international orders, a Shipper's letter of instruction must be submitted in writing with the order. Failure to do so will result in the order being rejected. Complete adherence to this order requirement will be strictly enforced. Company will not be held liable for any charges resulting from delays due to lack of complete required information being supplied. e. Once received by the Company, a purchase order cannot be combined with any other order to increase average order size as it relates to Company's Freight Shipping Guidelines. However, for orders placed under Company's FastTrack 24 Hour/5 Day Program (available for Schlage, Von Duprin, LCN and Glynn-Johnson products); ii) FastTrack 24 Hour/3 Day Program (available for Ives products); or ProExpress (available for specific product lines stated in the ProExpress price book for Falcon, Ives, Glynn Johnson, LCN, Schlage and Von Duprin products), the applicable brands or product categories may, subject to certain order requirements identified by Company, be combined on a single order to increase average order size used in Company's Freight Shipping Guidelines.

Taxes: Prices do not include any present or future Federal, State or local property, license, privilege, sales, use, excise, gross receipts or other like taxes or assessments which may result from transactions or any services performed in connection therewith.

Delivery: Orders will be assigned ship dates and acknowledged accordingly, based on estimates of availability of products. Specific scheduled ship dates are not guaranteed by Schlage because of the nature of

STANDARD PRODUCT TERMS AND CONDITIONS

product, labor, availability of material or manufacturing conditions that might be beyond our control. Schlage will not be liable for back charges incurred based on availability of product in accordance with acknowledged ship dates.

Certifications: Schlage products, as noted in our catalog, are produced and tested by independent laboratories for compliance with UL and ANSI standards. Any field modification or alteration of product will void certification.

148

How to Order 149
Visual Pack Carton Specifications 150

Thank you for your order.

Thank you for your order and continuing business. Please submit purchase orders to res_contact_center@allegion.com In order to expedite order processing, please include the following information on purchase orders:

Schlage account number
Product UPC numbers (if available)
Quote number (if applicable)
Specific keying requirements

Note: Line quantities of keyed products must be divisible by KA quantities.

Example: 20 locks ordered KA4 results in 5 groups of 4 locks keyed alike, however, 20 locks ordered KA3 is not divisible and results in order processing delays as Schlage seeks clarification

Door handing

How to identify door handing:

Handing of all doors is determined from the exterior of the room's entrance.

ⁿ If the hinge is on the left side of the door, the door is "left hand" (LH)
ⁿ If the hinge is on the right side of the door, the door is "right hand" (RH)
ⁿ To order a handed product, please specify LH or RH
ⁿ To order a handleset, handing is still determined from the exterior of the door
ⁿ We will use that information to determine the handing for the inside of the door

Lever Handing Diagram

VISUAL PACK CARTON SPECIFICATIONS

			MASTER CARTON							INDIVIDUAL CARTON
PRODUCT	PKG. TYPE	CASE QTY	HEIGHT (IN.)	WIDTH (IN.)	DEPTH (IN.)	CUBIC FEET	WEIGHT (LBS.)	PKG. TYPE	HEIGHT (IN.)	WIDTH (IN.)	DEPTH (IN.)	CUBIC FEET	WEIGHT (LBS.)
ELECTRONICS CONNECTED DEADBOLTS & LEVERS
BE365	Box	2	10.05	5.90	12.60	0.43	9.87	Carton	9.30	5.25	6.19	0.17	4.75
BE375	Box	2	9.70	5.60	9.90	0.31	8.09	Carton	4.50	5.00	9.30	0.12	3.87
BE468	Box	2	9.75	5.60	10.10	0.32	9.05	Carton	9.25	4.50	5.00	0.12	4.35
BE469IR/NX/WK	Box	2	9.75	5.60	10.10	0.32	9.05	Carton	9.25	4.50	5.00	0.12	4.35
BE479AA	Box	1	6.75	6.05	10.00	0.24	5.49	Carton	9.50	5.38	5.38	0.16	5.14
FBE365	Box	3	23.63	11.60	10.63	1.69	21.40	Carton	7.88	10.70	9.75	0.48	6.45
FBE375	Box	3	10.63	11.25	23.63	1.64	19.40	Carton	9.75	10.70	7.88	0.48	5.92
FE595	Box	2	10.00	7.00	16.88	0.68	10.29	Carton	9.25	8.25	6.63	0.29	4.86
FE695	Box	2	10.10	7.05	12.60	0.52	9.96	Carton	9.40	6.65	6.20	0.22	4.72
F SERIES HANDLESETS
F60 V	Box	1	21.38	8.30	7.00	0.72	8.00	Carton	20.5	8.0	6.5	0.617	8.0
F62 V	Box	1	22.88	8.30	7.00	0.77	8.00	Carton	22.0	8.0	6.5	0.662	8.0
B SERIES DEADBOLTS
B60 V	Shroud	4	8.6	5.88	16.00	0.56	9.00	Carton	7.7	5.1	3.6	0.105	2.0
B62 V	Shroud	4	8.6	5.88	16.00	0.56	9.80	Carton	7.7	5.1	3.6	0.105	2.2
FB50 V	Shroud	4	10.125	8.875	15.625	0.81	17.20	Carton	9.5	7.875	3.625	0.16	3.60
FB52 V	Shroud	4	10.125	8.875	15.625	0.81	18.00	Carton	9.5	7.875	3.625	0.16	3.80
F SERIES KNOBS/LEVERS
Knobs
F10 V	Shroud	4	10.125	5.875	13.125	0.45	9.40	Carton	9.5	4.875	3.125	0.08	2.10
F40 V	Shroud	4	10.125	5.875	13.125	0.45	9.40	Carton	9.5	4.875	3.125	0.08	2.10
F51A V	Shroud	4	10.125	5.875	13.125	0.45	9.40	Carton	9.5	4.875	3.125	0.08	2.10
F170 V	Shroud	4	9.38	5.75	13.25	0.41	3.00	Carton	8.8	4.8	3.3	0.078	0.4
Levers
F10 V	Shroud	4	11.00	7.375	14.25	0.67	11.40	Carton	5.25	6.50	6.50	0.13	2.60
F40 V	Shroud	4	11.00	7.375	14.25	0.67	11.40	Carton	5.25	6.50	6.50	0.13	2.60
F51A V	Shroud	4	11.00	7.375	14.25	0.67	11.40	Carton	5.25	6.50	6.50	0.13	2.60
F170 V	Shroud	4	9.38	5.75	13.25	0.41	3.00	Carton	8.8	4.8	3.3	0.078	0.4
F SERIES DECORATIVE COLLECTIONS
Knobs
F10 V	Shroud	4	11.00	5.875	14.25	0.53	9.40	Carton	5.25	5.125	6.50	0.10	2.10
F40 V	Shroud	4	11.00	5.875	14.25	0.53	9.40	Carton	5.25	5.125	6.50	0.10	2.10
F51A V	Shroud	4	11.00	5.875	14.25	0.53	9.40	Carton	5.25	5.125	6.50	0.10	2.10
Levers
F10 V	Shroud	4	11.00	7.375	14.25	0.67	11.40	Carton	5.25	6.50	6.50	0.13	2.60
F40 V F51A V	Shroud Shroud	4 4	11.00 11.00	7.375 7.375	14.25 14.25	0.67 0.67	11.40 11.40	Carton Carton	5.25 5.25	6.50 6.50	6.50 6.50	0.13 0.13	2.60 2.60

DEXTER J SERIES GRADE 3 LOCKS
JD60 V	Box	4	7.50	5.90	17.50	0.45	9.80	Carton	6.80	5.00	2.60	0.05	1.20
JD62 V	Box	4	7.50	5.90	17.50	0.45	9.80	Carton	6.80	5.00	2.60	0.05	1.40
JH60 V	Box	1	18.00	8.00	5.60	0.47	5.80	Carton	17.20	7.50	5.20	0.39	5.00
J54 V	Box	4	7.50	8.60	18.00	0.67	10.20	Carton	6.90	7.70	2.70	0.08	1.20
J40 V	Box	4	7.50	8.60	18.00	0.67	9.40	Carton	6.90	7.70	2.70	0.08	1.00
J10 V J170 V	Box Box	4 4	7.50 7.80	8.60 5.40	18.00 12.00	0.67 0.29	9.40 1.80	Carton Carton	6.90 6.90	7.70 7.70	2.70 2.70	0.08 0.08	1.00 0.20
J54 V	Box	4	7.50	8.60	18.00	0.67	10.20	Carton	6.90	7.70	2.70	0.08	1.20
J40 V	Box	4	7.50	8.60	18.00	0.67	9.40	Carton	6.90	7.70	2.70	0.08	1.00

NOTE: Vispack products must be ordered in full case quantities.

PORTABLE SECURITY

					Master Carton						Inner Pack Individual Selling Unit (ea.)
Product			Type Qty. (in.)	(in.)	Pkg. Case Ht. Wid. Dpt. Cubic Wt. (in.)	Ft.	(lbs.)		Inner	Type Qty. (in.) (in.)		Pkg. Case Ht. Wid. Dpt. (in.)	Pkg. Type	Ht. (in.)	(in.)	(lbs.)	Wid. Dpt. Cubic Wt. Ft.	(lbs.)
Padlock 23 Series Brass K-N-K Cyl 1 1/2" Shackle, KD	Box			24 7.17 10.39			8.70 0.37 26.49	Box	6		2.76 7.76	4.53	Box	4.13	2.31	1.00	0.006	1.10
Padlock 23 Series Brass K-N-K Cyl 2" Shackle, KD	Box			24 7.17 11.34			8.70 0.41 26.49	Box	6		2.76 7.76	5.00	Box	4.63	2.31	1.00	0.006	1.10
Padlock 43 Series Brass K-N-K Cyl 1 1/2" Shackle, KD	Box			24 7.17 10.39		8.70 0.37	28.7	Box	6		2.76 7.76	4.53	Box	4.13	2.31	1.00	0.006	1.21
Padlock 43 Series Brass K-N-K Cyl 2" Shackle, KD	Box			24 7.17 11.34		8.70 0.41	28.7	Box	6		2.76 7.76	5.00	Box	4.63	2.31	1.00	0.006	1.21
Padlock 72 Round Steel K-N-K Cyl 2", KD	Box			18 4.27 17.27			9.79 0.42 54.95	Box	6		3.27 9.29	5.59	Box	4.94	2.81	1.19	0.010	0.85
Covered Laminated Steel Padlock - 2 Pack - KA	Box		18 14.50 9.00			19.25 1.45	24	Display 3			7.10 8.27	5.31	Blister	6.50	7.75	2.00	0.058	1.12
Extra Large "U" Padlock 4" x 11", KD	Box	n	n	n	n	n	n	Display 4			14.00 7.30	8.70	Bulk/ Belly-Band	12.50	7.00	1.75	0.089	2.30
Shackle-less Padlock, KD	Box				36 19.25 12.25 20.75 2.83		88	Display 6				8.75 6.50 11.25	Blister	7.75	5.00	2.00	0.045	2.25
Padlock Round Steel, 2" Shackle, KA	Box		18 19.50 7.50			19.75 1.67	36	Box	3		9.00 6.70	6.30	Box	7.50	4.75	1.50	0.031	1.60
Padlock Round Steel, 2" Shackle, KA - 2-Pack	Box				18 19.00 10.00 18.75 2.06		64	Box	3		9.00 8.70	6.30	Box	7.50	7.50	1.50	0.049	3.20
Rekeyable Locking Cable 6' x 5/8" Replaced item 997719)	Box	n	n	n	n	n	n	Display 5				12.75 7.75 17.25	Bulk/ Insert Card		12.00 10.00 1.50		0.104	3.00
Double Looped Cable 4' x 3/8" with Covered Weather-proof Padlock	Box	n	n	n	n	n	n	Display 4				9.45 11.40 8.66	Bulk/ Insert Card	10.00	8.50	1.50	0.074	1.30
Double Looped Cable 15' x 3/8" with Covered Weather-proof Padlock	Box	n	n	n	n	n	n	Display 4				10.60 12.20 9.40	Bulk/ Insert Card	11.00	9.50	1.50	0.091	2.70
Locking Cable 5' x 1/2"	Box	n	n	n	n	n	n	Display 4			12.00 5.10	7.28	Bulk/ Insert Card	10.00	3.75	1.25	0.027	1.00
Locking Resettable Combination Cable 5' x 3/8"	Box	n	n	n	n	n	n	Display 4			10.25 5.75	7.25	Bulk/ Insert Card	10.00	5.25	1.25	0.038	1.16

PORTABLE SECURITY (cont)

		Master Carton								Inner Pack			Individual Selling Unit (ea.)
Product			Pkg. Case Ht. Wid. Dpt. Cubic Wt. Type Qty. (in.)	(in.)	(in.)	Ft.	(lbs.)		Inner	Pkg. Case Ht. Wid. Dpt. Type Qty. (in.) (in.)		(in.)	Pkg. Type	Ht. (in.)	(in.)	(lbs.)	Wid. Dpt. Cubic Wt. Ft.	(lbs.)
Locking Chain 5' x 5/16" (7mm)	Box		3 11.75 9.25		14.00	n	16.70	Display 3		11.25 9.25		14.00	Blister	13.50	8.25	1.75	n	4.95
Locking Chain 4' x 7/32" (3.5mm)	Box	3		9.75 8.25	10.00	n	7.55	Display 3		9.25	7.75	9.25	Blister	10.50	7.00	1.35	n	2.20
Double Looped Cable 7' x 5/8"	Box	n	n	n	n	n	n	Display 5				11.25 12.00 10.75	Bulk/ Insert Card		10.50 11.50 2.00		0.140	2.70
Double Looped Cable 30' x 3/8"	Box	n	n	n	n	n	n	Display 4				10.50 11.75 10.75	Bulk/ Insert Card		10.50 10.00 3.00		0.182	4.40
Double Looped Cable 15' x 3/8"	Box	n	n	n	n	n	n	Display 4		12.38 9.79		7.88	Bulk/ Insert Card	9.00	9.00	2.00	0.094	2.26
Double Looped Cable 7' x 3/8"	Box	n	n	n	n	n	n	Display 4		13.91 6.20		5.75	Bulk/ Insert Card	12.00	7.00	1.00	0.049	1.21
Double Looped Cable 4' x 3/8"	Box	n	n	n	n	n	n	Display 4		11.75 6.20		5.25	Bulk/ Insert Card	10.50	5.50	1.00	0.033	0.60
Cinch Ring Security Chain 3' 3" - (No lock)	Box	2	7.50	4.25		7.25 0.13	14	Box	1	3.60	3.85	3.50	Bulk/ Hang Tag	22.50	3.50		2.00 0.091	6.85
Cinch Ring Security Chain 5' - (No Lock)	Box	2	7.75	4.25		7.25 0.14	20	Box	1	3.60	3.85	3.50	Bulk/ Hang Tag	33.00	3.50		2.00 0.134	10.60
Vehicle Hasp	Box		18 11.50 17.25 26.00 2.98				59	Display 3		10.50 8.25		8.25	Blister	9.75	5.25	2.25	0.067	2.95
Flexible Dbl-Hinged Hasp 7 3/4" x 1 3/4"	Box		36 22.50 14.50			17.50 3.30	49	Display 6		10.50 5.25		14.00	Blister	9.50	3.75		1.75 0.036	1.05
Center Hole Hasp 5" x 2"	Box		36 21.00 17.50 19.00 4.04				65	Display 6				10.00 5.50 18.00	Blister	9.50	3.75	2.50	0.052	1.33
90 Degree Hasp 4 1/4" x 1 5/8"	Box		36 20.75 15.50			19.50 3.63	64	Display 6		9.50	6.00	15.00	Blister	8.50	4.25		2.50 0.052	1.29
Heavy Duty Steel Bar Hasp 7 1/4" x 1 5/8"	Box		36 22.50 14.50 17.50 3.30				63	Display 6				10.50 5.25 13.75	Blister	9.50	4.00	2.75	0.060	1.40
Steel Bar Hasp 4 1/2" X 1 5/8"	Box		24 11.00 10.25 20.00 1.30				13	Display 6		10.25 5.00		9.50	Blister	7.75	3.75	1.25	0.021	0.35
Repl Accessory Service Repair Kit, SFIC, KNK, Specialty	Box		6 14.75 18.25 11.25 1.75				63.7	Box	1			2.38 18.25 11.25	Box	n	n	n	n	n

About Allegion

Allegion (NYSE: ALLE) is a global pioneer in safety and security, with well-known brands like CISA® , Interflex® LCN® , Schlage® and Von Duprin® . Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products in more than 120 countries around the world.

For more, visit www.allegion.com

2020 Schlage Residential Pricebook

Residential Price Book 7

Personal style, perfected.

Table of contents

Cables, Chains & Padlocks

Table of contents

Connected Deadbolts & Levers

AVAILABLE FUNCTIONS

Deadbolts

BE469 - Schlage Connect™ with Alarm

BE468 - Schlage Connect™

FE599 - Connected Keypad Lever

PRODUCT IDENTIFICATION

FINISH CODES & DESCRIPTIONS

LATCHES & STRIKES

Latches

Strikes

STANDARD FEATURES / CONFIGURATIONS

PACKAGING & CARTON SPECS

Peace of mind from anywhere

FCE489

FINISHES

FCE489

FBE489

Schlage Encode™ Smart WiFi Deadbolt combo pack FINISHES

FE489 Handleset interior options FBE489 Knob and Lever options

FINISHES

STANDARD FEATURES / CONFIGURATIONS

BE479AA Series Schlage Sense™ Smart Deadbolt FINISHES

List Price Adders:

BR400 Series Schlage Sense Wi-Fi Adapter

Features:

PACKAGING & CARTON SPECS

BE469ZP Series

Schlage Connect™ FINISHES

List Price Adders:

Durability, Finish White backlighting

List Price Adders:

Schlage Connect™ Touchscreen Deadbolt FINISHES

List Price Adders:

FE599NX Series Connected Keypad Lever FINISHES

List Price Adders:

Code Entry Locks

AVAILABLE FUNCTIONS

Schlage Touch™ Locks ANSI/BHMA Commercial Grade 2 ANSI/BHMA Residential Grade AAA

BE375 – Touchscreen Deadbolt

FE695 – Touchscreen Lever

Key can be used to unlock as backup FE595 - Keypad Entry with Flex-Lock

NOTE:

FE575 - Keypad Entry with Auto-Lock

PRODUCT IDENTIFICATION

FINISH CODES & DESCRIPTIONS

CODE ENTRY LOCKS

STANDARD FEATURES / CONFIGURATIONS

LATCHES & STRIKES

BE Keypad Deadbolts

CODE ENTRY LOCKS

STANDARD FEATURES / CONFIGURATIONS

PACKAGING & CARTON SPECS

Schlage Touch™ Deadbolts

BE375 Series Schlage Touch™ Deadbolts FINISHES

Schlage Touch™ Keyless Touchscreen levers

FE695 Series Schlage Touch Keyless Touchscreen Levers FINISHES

List Price Adders:

Keypad Deadbolts

BE Series Keypad Locks FINISHES

Keypad Lever Lock

List Price Adders:

Keypad Lever Auto Locks

FC Series Handlesets

AVAILABLE FUNCTIONS

ANSI/BHMA A156.36 Commercial Grade 1 ANSI/BHMA A156.40 Residential Grade AAA Entrance Handlesets

FC58 – Handleset/Entrance Lock Exterior

FC59 – Handleset/Entrance Lock Interior

FC60 – Single Cylinder Deadbolt/Entrance Lock

FC92 – Inactive Handleset Exterior

FC94 – Inactive Handleset Interior

FC93 – Inactive Handleset

FC285 - Lower Half - Front Entry Set

PRODUCT IDENTIFICATION
