Section A1

This Price Schedule is effective January 7, 2019.

Vehicular Traffic Control

Date	Page	Comment
1-2-19	All	January, 2019 Price Schedule update.
1-16-19	30	Removed partial open bullet point.

Solar Tax Credit

Homeowners who purchase a solar powered gate operator manufactured by DoorKing, Inc. after December 31, 2008, may qualify for a 30% Federal Tax Credit off the installed cost of the system. This tax credit is available for the installed cost of the solar powered gate operator on the homeowner's Federal tax return.

The 30% Investment Tax Credit (ITC) for residential and commercial solar systems will expire on December 31, 2019, the ITC then steps down to 26 percent in 2020 and 22 percent in 2021. After 2021, the residential credit will drop to zero while the commercial and utility credit will drop to a permanent 10 percent. Commercial and utility projects which have commenced construction before December 31, 2021 may still qualify for the 30, 26 or 22 percent ITC if they are placed in service before December 31, 2023. The Treasury and IRS are currently drafting guidance which will inform solar developers of which percentage of ITC they will qualify for depending on when they started their project.

The solar powered Gate Operator is considered a "Qualified Solar Electric Property" authorized by the Internal Revenue Code Section 25D under the definition provided in paragraph d.2 and as such qualifies for the Residential Energy Efficient Tax Credit. You will need to complete Federal Form 5695 and attach it to your personal tax return in order to claim this credit. If you have any questions regarding this Federal Tax Credit, Form 5695 or its instructions, please consult your tax adviser. You should also check with your state tax agency to see if your state offers any additional solar energy tax incentives.

What is Covered:

The solar system tax credit applies to the total installed cost of the solar gate operator system. This includes the related solar panel, gate operator, solar control box, access control device, remote controls, obstruction detection device(s), etc.

DoorKing Model 6005 Swing Gate Actuator (P/N 6005-380)*

DoorKing Model 6006 Swing Gate Actuator (P/N 6006-380)*

DoorKing Model 6004 Swing Gate Operator (P/N 6004-380)*

DoorKing Model 6400 Swing Gate Operator (P/N 6400-380)*

DoorKing Model 6524-381 Swing Gate Operator DoorKing Model 9024-381 Slide Gate Operator

DoorKing Solar Kit (P/N 2000-070)

DoorKing Solar Panel (P/N 2000-076 or 2600-077)

Batteries; two (2) 18 Amp Hour (P/N 1801-004) or two (2) 35 Amp Hour (P/N 1801-005)

What is Not Covered:

The cost of the gate itself, or work required to place the physical gate into proper working order (leveling, replacing hinges, etc.).

Qualifications:

• The installation of a DoorKing Solar Powered Gate System
• Effective for tax years beginning after December 31, 2008
• Homeowners will need to use The Federal Tax Credit form 5695, Residential Energy Efficient Property Credit
• Homeowners will need to provide a copy of th e "Manufacturer's Certification for Credit"
• The dwelling must be located in the United States and used as a residence by the taxpayer
• This offer is only available in the United States

^* To qualify, must be installed with 4302‐313, 4302‐314 or 4302‐315 Solar Control Box

Page Rev 1/2/19

UL 325 – August 2018 Update

Requirements mandated by the safety standard (UL 325) that DKS gate operators are listed to require that photo-beams and contact edges used for entrapment protection must be monitored. Entrapment protection must be provided for the gate system where the risk of entrapment exist. The gate operator will not run without one or more external entrapment protection devices installed in each direction of travel. Check the gate operator installation manual for a list of external entrapment protection devices that can be used with DKS gate operator products.

The August 2018 update to the safety standard requires that a minimum of two (2) independent means of entrapment protection must be provided in each direction of travel where the risk of entrapment exists. The inherent system in DKS gate operators is active in both directions of travel, so this qualifies as one means of entrapment protection in each direction. The second means will be an external device, such as a non-contact (Type B1) or a contact (Type B2) sensor as required in each direction. The actual number of external devices required is dependent on the gate system layout and the number of entrapment areas that will need to be protected. Installers will have to identify all potential areas where the risk of entrapment exist and how best to protect those areas. For example, some gates may require two (or more) external devices in each direction of travel to protect all potential areas of entrapment. The standard also mandates that all components used for monitoring purposes for external devices must be factory installed internally within the device.

There is an exception for swing gates and vertical lift gates regarding the minimum of two entrapment protection devices in each direction of travel. For example, if on a swing gate system there is no potential for entrapment in the opening direction, then only the close direction will require a minimum of two means of entrapment protection. Installers will have to determine if any entrapment hazards exist in the opening direction, and if so, then those areas will have to be protected with external devices.

Vertical lift gates require two means of entrapment protection in the down cycle, but will only require one means of entrapment protection in the up cycle. The model 1175 is considered to be a vertical lift gate operator for entrapment protection means requirements.

Barrier gate operators that are installed in such a way that the barrier arm does not come closer than 16 inches to a rigid object are not required to protect against entrapment.

The table below shows the minimum entrapment protection requirements for each type of gate operator in the scope of the UL 325 Standard for Safety.

	Opening	Closing
Horizontal Slide Gate	2	2
Horizontal Swing Gate	2*	2*
Vertical Pivot Gate	2	2
Vertical Lift gate	1	2

^* For a horizontal swing gate operator, at least two independent entrapment protection means are required in each direction of travel. Except, if there is no entrapment zone in one direction of travel, only one means of entrapment protection is required in that direction of travel; however, the other direction must have two independent entrapment protection means.

Blank Page

Table of Contents

Overhead / Barrier Gate Operators / Traffic Spike Systems
Model 1175	6
Model 1601
Model 1602	10
Model 1603
Traffic Control Spikes
Warning Signs / Traffic Signals
Overhead / Barrier Gate Operator Parts	16
Swing Gate Operators
Model 6005, 6006, 6004, 6400	18
Model 6050 / 6100	20
Model 6300	22
Model 6500 / 6550	24
Model 6524	26
Swing Gate Accessories	28
Swing Gate Operator Parts
Slide Gate Operators
Model 9000	30
Model 9024	32
Model 9050 / 9100	34
Model 9150	36
Slide Gate Accessories	38
Slide Gate Operator Parts	40
Entrapment Protection
Entrapment Protection Devices Non-Contact Type B1	42
Entrapment protection Devices Contact Type B2	43
Vehicle Detection
Loop Detectors and Loops	44
Accessories
Control Stations	45
Back-up Power Inverters
Madal 1000	14

1175 Overhead Operator

Indoor Use Only

1175

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Gate Tracker Data Output

• Steel Frame
• #40 Roller Chain
• Heavy-duty 3-in (76.2 mm) Rails
• Up to 14 Ft (4.27 m) high gate

Model	Maximum Gate Height	Overall Length	Mount Options1	Class of Operation2	Voltage	HP	Power Outlets	Maximum Cycles / Day	Loop Ports3	Adjustable Clutch4
	8 Ft 2.43 m	12.25 Ft 3.73 m
	10 Ft 3.05 m	14.25 Ft 4.34 m	Ceiling
1175	12 Ft 3.66 m	16.25 Ft 4.95 m			II, III, IV	115 VAC	1/2	N/A	Continuous	2	No
	14 Ft 4.27 m	18.25 Ft 5.56 m

• 1. If the operator is mounted less than 8 feet above the ground, the optional powerhead cover (1175-020) is required.
• 2. II = Commercial; III = Limited Access; IV = Restricted Access.
• 3. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 4. Operator is equipped with a Type A inherent detection system.

January 2019 PRICE SCHEDULE A 2.0 Vehicular Traffic Control

Page Rev 1/2/19

1175 Overhead Operator

Indoor Use Only

Powerhead Assembly

1175-380.................................................................... 2096.00

Optional Powerhead Cover

1175-020...................................................................... 318.00

Required if powerhead assembly is mounted less than 8 feet (2.43m) above the ground.

Rail Assembly

1150-225 (8 ft. high gate) 884.00
1150-226 (10 ft. high gate) 964.00
1150-227 (12 ft. high gate) 1236.00
1150-228 (14 ft. high gate) 1308.00

Entrapment Protection (required)

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See page 42 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Surge Suppression

1879-080 High Voltage (120 VAC)................................ 156.00

Backup Power Inverters

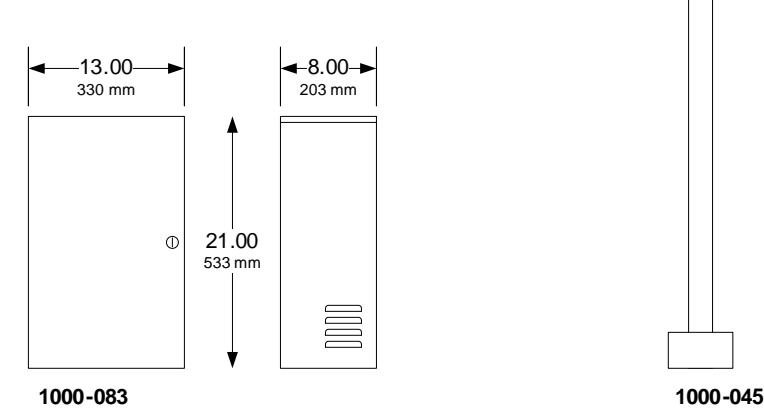

1000-083 1000 Watt, Pure Sine Wave .......................2148.00 1000-045 Inverter Post Mount Kit................................270.00

Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.

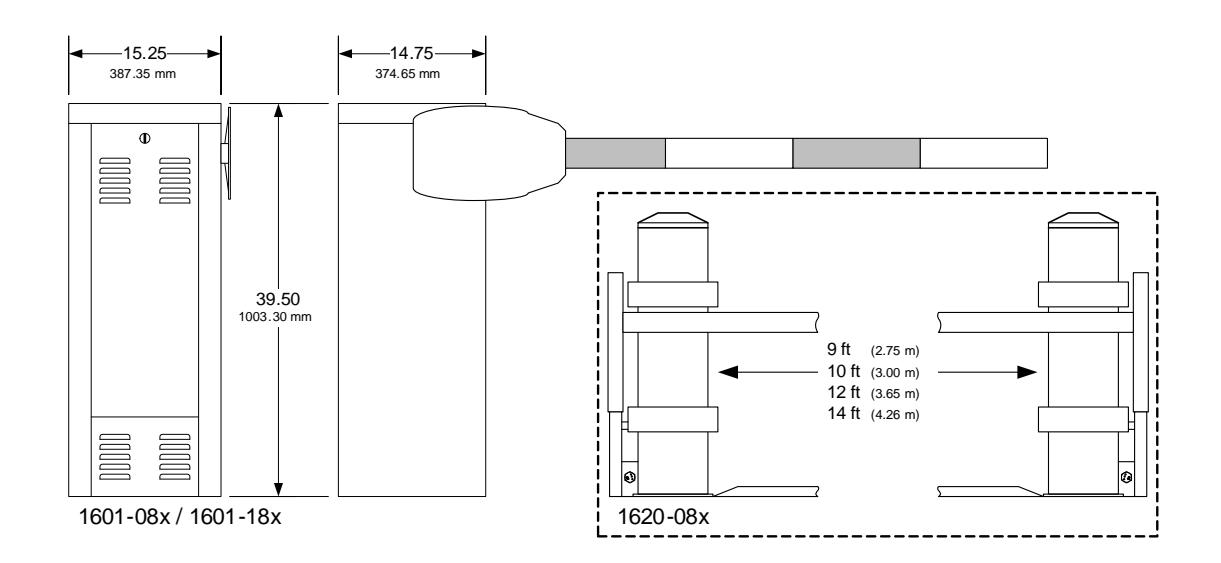

1601 Barrier Gate Operator

Magnetic Limits

1601

• Magnetic Limits
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Up input memory buffer
• Down memory buffer

• Built-in power and operate switches
• Two convenience outlets
• Left or right hand mount
• Galvanized steel housing
• 90° in approximately 1.5 sec.

Model 1	Mount Options	Class of Operation2	Voltage3	HP	Power Outlets	Cycles / Day	Loop Ports4	Arm Type5	Maximum Length	Fold Option6	Breakaway Option	Lighted Option5
								Aluminum	14 Ft. 4.27 m	Yes	Yes	Yes
1601	Left or Right	II, III, IV	115 208 230 460 575 VAC	1/2		2		Continuous			2	Wood	14 Ft. 4.27 m	Yes	No	No
							Plastic	12 Ft. 3.66 m	Yes	No	No

• 1. 1601 is available with white housing (1601-08x) or gray housing (1601-18x). Gray housing includes stainless steel door.
• 2. II = Commercial; III = Limited Access; IV = Restricted Access.
• 3. High voltage kit (P/N 2600-266) required for 208 Volt and higher.
• 4. Plug-in loop detector ports; up loop and down loop. DoorKing plug-in loop detectors only.
• 5. Always use lighted aluminum arm when using the lane barrier (1620-08x) add-on option.
• 6. Maximum arm length using the fold option is 12 Ft. (3.66 m).

Page Rev 1/2/19

Choose an Operator

AC power has failed.

High Voltage

source voltage.

exist - see pages 42-43.

Surge Suppression

Backup Power Inverters

Accessories

Loops and Loop Detectors

loops and loop accessories available.

1601 Barrier Gate Operator

1601-080 1/2 HP White Housing................................ 3322.00 1601-081 1/2 HP w/COO1 White Housing .................. 4312.00 1601-180 1/2 HP Gray Housing.................................. 3690.00 1601-181 1/2 HP w/COO1Gray Housing..................... 4432.00 1. Convenience Open Option provides a method to raise the arm when

2600-266 High Voltage Kit............................................ 640.00 Allows the operator to be powered from 208, 230, 460 or 575 VAC

Choose Entrapment Protection (required) Devices Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment

See page 42 for a complete list of all loop detectors, prefabricated

1879-080 High Voltage (120 VAC)................................ 156.00

1000-083 1000 Watt, Pure Sine Wave ....................... 2148.00 1000-045 Inverter Post Mount Kit................................ 270.00 Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.

1601-281 Arm Hub Cover White1................................... 95.42 1601-283 Arm Hub Cover Gray1 ..................................... 95.42 1603-210 Traffic Signal & Mount Kit.......................... 1096.00 1601-092 Heater Kit2.................................................... 270.00 1601-093 Fan Kit3 ......................................................... 270.00 1601-270 Manual Crank Kit.......................................... 278.00 1. Arm hub cover is included with the 1601 operator. Shown here for

Magnetic Limits Aluminum Arm – Standard 1601-242 Hardware Kit - Required...............................172.00 Choose one arm from below 1601-516 Arm 14 Ft (4.27 m) .......................................324.00 1601-524 Arm 14 Ft (4.27 m), 2-Piece1.........................392.00 1601-610 Arm Folding 12 Ft (3.66 m)...........................532.00 1. Ships in 7-ft (2.13 m) long box to reduce shipping cost. Aluminum Arm – LED Lighted 1601-242 Hardware Kit - Required...............................172.00 1601-535 Power Harness – Required ...........................164.00 Choose one arm from below 1601-518 Arm 14 Ft (4.27 m) Lighted...........................580.00 1601-600 Arm Folding Lighted 12 Ft (3.66 m)............1004.00 Aluminum Arm – Breakaway 1601-285 Breakaway Hardware Kit - Required.............934.00 Choose one arm from below 1601-522 Arm 14 Ft (4.27 m) .......................................328.00 1601-528 Arm 14 Ft (4.27 m), 2-Piece1.........................430.00 1601-520 Arm 14 Ft (4.27 m) Lighted...........................580.00 1. Ships in 7-ft (2.13 m) long box to reduce shipping cost. Wood Arm 1601-240 Hardware Kit - Required...............................144.00 Choose one arm from below 1601-348 Arm 14 Ft (4.27 m) .......................................256.00 1601-384 Arm Folding 12 Ft (3.66 m)...........................442.00 Plastic Arm 1601-241 Hardware Kit - Required...............................144.00 Choose one arm from below 1601-571 Arm 12 Ft (3.66 m) .......................................150.00 1601-383 Arm Folding 12 Ft (3.66 m)...........................442.00 Lane Barrier Add-On1 1620-080 9 ft (2.75 m) opening width..................... 27,052.00 1620-081 10 ft (3.00 m) opening width................... 27,682.00 1620-083 12 ft (3.65 m) opening width................... 29,258.00 1620-085 14 ft (4.26 m) opening width................... 29,992.00

1. Requires 1601 operator, 1601-242 hardware kit, 1601-535 power harness and 1601-518 arm – not included in the lane barrier pricing.

For passenger cars and light trucks only.

3. Use in hot, humid environments.

replacement purposes only.

2. Use if temperature routinely falls below 10°F (-12°C).

1602 Barrier Gate Operator

Magnetic Limits

1602

• Magnetic Limits
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Up input memory buffer
• Down memory buffer

• Built-in power and operate switches
• Two convenience outlets
• Left or right hand mount
• Galvanized steel housing
• 90° in approximately 5.5 sec.

Model	Mount Options	Class of Operation1	Voltage2	HP	Power Outlets	Cycles / Day	Loop Ports3	Arm Type	Maximum Length	Fold Option	Breakaway Option	Lighted Option
									20 Ft. 6.09 m	No	No	Yes
	Left or		115 208					Aluminum	24 Ft. 7.31 m	No	No	Yes
1602	Right	II, III, IV	230 460 575 VAC	1	2	Continuous	2		27 Ft. 8.23 m	No	No	Yes
								Wood	20 Ft. 6.09 m	No	No	No

• 1. II = Commercial; III = Limited Access; IV = Restricted Access.
• 2. High voltage kit (P/N 2600-266) required for 208 Volt and higher.
• 3. Plug-in loop detector ports; up loop and down loop. DoorKing plug-in loop detectors only.

Page Rev 1/2/19

1602 Barrier Gate Operator

Magnetic Limits

Choose an Operator

1602-090 1 HP 4912.00
1602-091 1 HP w/COO1 5902.00
1. Convenience Open Option provides a method to raise the arm when AC power has failed.

High Voltage

2600-266 High Voltage Kit 640.00

Allows the operator to be powered from 208, 230, 460 or 575 VAC source voltage.

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices. See pages 40-41 for a complete list of all entrapment protection devices available.

Loops and Loop Detectors

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.

Surge Suppression

1879-080 High Voltage (120 VAC)................................ 156.00

Backup Power Inverters

1000-083 1000 Watt, Pure Sine Wave 2148.00
1000-045 Inverter Post Mount Kit 270.00

Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.

Accessories

1603-210 Traffic Signal & Mount Kit 1096.00
1601-092 Heater Kit1 270.00
1601-093 Fan Kit2 270.00
1602-170 Manual Crank Kit 470.00

• 1. Use if temperature routinely falls below 10°F (-12°C).
• 2. Use in hot, humid environments.

1602-162 3-Piece, 20 Ft (6.09 m)3604.00
1602-164 3-Piece, 24 Ft (7.31 m)3768.00
1602-166 3-Piece, 27 Ft (8.23 m)3876.00
Aluminum Arms – LED Lighted
1602-172 3-Piece, 20 Ft (6.09 m)3952.00
1602-174 3-Piece, 24 Ft (7.31 m)4188.00
1602-176 3-Piece, 27 Ft (8.23 m)4350.00
Wood Arm

1602-340 3-Piece, 20 Ft (6.09 m) .................................554.00 1602-041 Hardware Kit - Required.............................1012.00

Aluminum Arms

1603 Barrier Gate / Auto-Spikes

Magnetic Limits

1603

• Magnetic Limits
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Up input memory buffer
• Down memory buffer

• Built-in power and operate switches
• Two convenience outlets
• Left or right hand mount
• Galvanized steel housing
• 90° in approximately 1.5 sec.

Model	Mount Options	Class of Operation1	Voltage2	HP	Power Outlets	Cycles / Day	Loop Ports3	Arm Type	Maximum Length	Fold Option4	Breakaway Option	Lighted Option
								Aluminum	14 Ft. 4.27 m	Yes	Yes	Yes
1603	Left or Right	II, III, IV	115 208 230 460 575 VAC	1/2	2	Continuous	2	Wood	14 Ft. 4.27 m	Yes	No	No
								Plastic	12 Ft. 3.66 m	Yes	No	No

• 1. II = Commercial; III = Limited Access; IV = Restricted Access.
• 2. High voltage kit (P/N 2600-266) required for 208 Volt and higher.
• 3. Plug-in loop detector ports; up loop and down loop. DoorKing plug-in loop detectors only.
• 4. Maximum arm length using the fold option is 12 Ft. (3.66 m).

Page Rev 1/2/19

1603 Barrier Gate / Auto-Spikes

Magnetic Limits

Choose an Operator	Aluminum Arm – Standard
1603-180 1/2 HP 4756.00	1601-242 Hardware Kit - Required172.00
1603-181 1/2 HP w/COO1 5742.00	Choose one arm from below
1. Convenience Open Option provides a method to raise the arm when	1601-516 Arm 14 Ft (4.27 m)324.00
AC power has failed.	1601-524 Arm 14 Ft (4.27 m), 2-Piece1392.00
	1601-610 Arm Folding 12 Ft (3.66 m)532.00
High Voltage	1. Ships in 7-ft (2.13 m) long box to reduce shipping cost.
2600-266 High Voltage Kit 640.00
Allows the operator to be powered from 208, 230, 460 or 575 VAC	Aluminum Arm – LED Lighted
source voltage.	1601-242 Hardware Kit - Required172.00
	1601-535 Power Harness – Required164.00
Choose Entrapment Protection (required) Devices	Choose one arm from below
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment	1601-518 Arm 14 Ft (4.27 m) Lighted580.00
protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.	1601-600 Arm Folding Lighted 12 Ft (3.66 m)1004.00
Loops and Loop Detectors	Spike Components
See page 42 for a complete list of all loop detectors, prefabricated	1603-168 Drive Ext 18 in (457 mm) - Required1134.00
loops and loop accessories available.	Choose spike components from below
	1603-165 Spike Section 3 Ft (0.91 m)2022.00
Warning Sign - Required	1603-170 Tunnel Extension 18 in (457 mm)1134.00
1615-081 Auto-Spike Warning Sign 1166.00	1610-240 End Cap446.00
Illuminated warning sign MUST be used with the auto-spike system.
Warning sign mounts on a 3.5 in (89 mm) post.	Accessories
	1601-281 Arm Hub Cover195.42
Traffic Signal - Recommended	1615-081 Warning Sign21166.00
1603-210 1096.00	1603-210 Traffic Signal & Mount Kit1096.00
	1601-092 Heater Kit3270.00
Surge Suppression	1601-093 Fan Kit4270.00
1879-080 High Voltage (120 VAC) 156.00	1601-270 Manual Crank Kit278.00
	1. Arm hub cover is included with the 1603 operator. Shown here for replacement purposes only.
Backup Power Inverters	2. Warning sign advises drivers that a one-way lane condition exist and
1000-083 1000 Watt, Pure Sine Wave 2148.00	must be installed with the auto-spike system.
	3. Use if temperature routinely falls below 10°F (-12°C).

1000-045 Inverter Post Mount Kit ............................... 270.00 Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.

3. Use if temperature routinely falls below 10°F (-12°C).

4. Use in hot, humid environments.

Model 1610

Stand-Alone Traffic Control Spikes

Surface Mount Spikes
1610-088 Assembly3252.00
1610-087 Extension2290.00
1610-240 End Cap446.00
1610-010 Lock Down Tool170.00
• Surface mount spikes use spring retraction and have a lock down feature (requires 1610-010).
• 1610-088 assembly includes one (1) 1610-087 and two (2) 1610-240.
Speed Bump
1610-150 Speed Bump390.00
Warning Sign - Required
1615-080 Warning Sign1166.00
• Warning signs are mandatory when spike systems are installed. See next page for more options.

Flush Mount Spikes
1610-080 Spring Retraction1626.00
1610-090 Spring Retraction HD11926.00
1610-081 Weighted Retraction1626.00
1610-091 Weighted Retraction HD11926.00
Flush Mount Spikes with Lock-Down Feature
1610-082 Spring Retraction21896.00
1610-092 Spring Retraction HD1, 22196.00
1610-083 Weighted Retraction31896.00
1610-093 Weighted Retraction HD1, 32196.00
1. HD = Heavy-duty, ¼ in (6 mm) top plate.
2. Includes 1610-012 lock-down tool.
3. Includes 1610-013 lock-down tool
Replacement Lock-Down Tools
1610-012 Use with Spring Retraction spikes84.28
1610-013 Use with Weighted Retraction spikes138.00

January 2019 PRICE SCHEDULE A 2.0 Vehicular Traffic Control

Traffic Control

Warning Sign, Traffic Signal

Illuminated Warning Signs

1615-080 1166.00
1615-082 (Spanish) 1166.00
• Use these signs with surface and flush mount spike systems. Signs mount on a 3.5 in (89 mm) post.
Illuminated Auto-Spike Warning Sign
1615-081 1166.00
• Use this sign with the 1603 auto-spike system. Sign mounts on a 3.5 in (89 mm) post.
Replacement Components
1615-022 LED T8 Tube, 12W, 700 Lumens 73.08
1615-023 LED Flood Lamp, 9W, 655 Lumens 128.00
1615-032 RED panel 144.00
1615-034 GREEN panel 144.00
1615-035 RED Auto-spike panel 144.00

Traffic Signal
1603-208 932.00
1603-2101 1096.00
1. Same as 1603-208 with mounting post kit for the 1603 auto-spike system.
Replacement Components
1603-550 LED Bulb, 10W, 1300 Lumens 27.52

Overhead / Barrier Operator Parts & Replacement Items

Miscellaneous Parts & Accessories

Circuit Boards
1601-010638.00
Used in models 1601, 1602 and 1603
4405-018638.00
Used in model 1175
1473-121 Convenience Open kit348.00
Used in pre-2016 models 1150, 1601, 1602 and 1603

Replacement Barrier Arms Yellow/Black Marking (These arms ARE NOT MUTCD compliant) 1601-048 Wood Arm 14 Ft (4.27 m).............................218.00 1601-084 Folding Wood Arm........................................412.00 1601-271 Plastic Arm 12 Ft (3.66 m).............................122.00 1601-083 Folding Plastic Arm.......................................412.00 1601-216 Aluminum Arm 14 Ft (4.27 m) ......................288.00 1601-310 Folding Aluminum Arm.................................506.00 1602-040 3-Piece, 20 Ft (6.09 m) wood........................452.00 1602-041 Hardware Kit for 1602-040 .........................1012.00

Spike System Replacement Components
1610-03112.04
Replacement spring for 1610-080 spike set
1610-03031.30
Replacement spike for 1610-080 spike set
1610-03531.30
Replacement spike for 1610-083 spike set
1610-03731.30
Spike spring lockdown assembly
1610-04530.34
Spike, weighted assembly

Barrier Operator Replacement Parts
1601-281 95.42
Barrier arm hub cover - white
1601-283 95.42
Barrier arm hub cover - gray
2599-101 21.34
Replacement Warning Sign
1601-069 42.14
Wood arm mounting bracket
1601-068 62.24
Plastic arm mounting bracket
1601-202 74.98
Aluminum arm mounting bracket
1601-079 144.00
Arm mounting hub
1801-009 91.52
12 Volt, 3 AH replacement battery

Warning Sign Replacement Components
1615-032 144.00
Warning sign replacement panel – RED (use with 1610-080 warning sign)
1615-034 144.00
Warning sign replacement panel – GREEN (use with 1610-080 warning sign)
1615-035 144.00
Auto-spike warning sign replacement panel (use with 1610-081 warning sign)
1615-038 144.00
Warning Sign panel – Entrapment Alert
1615-022 73.08
T8 LED Tube Lamp, 12 Watt, 700 Lumens (warning sign replacement bulbs)
1615-023 128.00
LED Flood Lamp, 9 Watt, 655 Lumens
1603-550 27.52
LED Bulb 10W, 1300 Lumens (traffic signal replacement bulb)

January 2019 PRICE SCHEDULE A 2.0 Vehicular Traffic Control

Page Rev 1/2/19

Blank Page

6005, 6003, 6004, 6400 Operators

Residential

Operators

• 24 VDC continuous duty motor
• Built-in magnetic limit switches
• Slow-Start / Slow-Stop
• Small, compact designs

Control Box

• 115 VAC or 24 VDC / Solar input power
• Includes batteries
• Single and Dual (bi-parting) gate operation
• 18 Ah or 35 Ah battery options

Model	Max Gate	Max Gate	Max Cycles	Maximum Cycles on Backup Power2
	Weight1	Length1	per Day2	3.5 Ah	18 Ah	35 Ah
6005	500 lbs. (227 kg)	14 ft. (4.26 m)	100	100	600	1200
6003	300 lbs. (136 kg)	10 ft. (3.05m)	100	100	600	1200
6004	500 lbs. (227 kg)	8 ft. (2.44 m)	100	100	600	1200
6400	300 lbs. (136 kg)	8 ft. (2.44 m)	100	100	600	1200

• 1. Assumes gate to be in good condition and swinging in a level plane.
• 2. Cycles shown are for single operators when solar panel(s) are not providing a charge to the batteries. Actual number of cycles will vary depending on usage, accessories connected, gate weight, operating condition of gate, temperature, geographic location, weather (cloud coverage) and charge state of the batteries.

Page Rev 1/2/19

6005, 6003, 6004, 6400 Operators

Residential

Actuators	115 VAC Control Box
6005-380 1494.00	4302-311 Standard830.00
6003-380 1086.00	4302-312 Deluxe1000.00
	Both Include two (2) 3.5 Ah batteries
Operators	Deluxe control box includes three (3) 115 VAC convenient outlets
6004-380 Column Mount 1626.00
6400-380 In-Ground 1806.00	Solar Control Box
	4302-313 (No batteries)1000.00
Entrapment Protection (required)	4302-314 (Two 18 Ah batteries)1432.00
	4302-315 (Two 35 Ah batteries)1552.00
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.
Actuator/Operator will not run without entrapment protection	Solar Panels
device(s) connected to the controller board.	2000-076 24-Volt, 20-Watt722.00
	Use with 35 Ah batteries
Loops and Loop Detectors	2000-077 24-Volt, 10-Watt364.00
See page 42 for a complete list of all loop detectors, prefabricated	Use with 18 Ah batteries
loops and loop accessories available.	2000-110 Solar Panel Mount Bracket61.72
Flange Bearing Hinge	Batteries
1200-009 3000 Lb. (1360 kg) Weight Capacity 152.00	1801-009 12-volt, 3.5 Ah91.52
Includes mounting bracket and hardware, two required per gate (top,	1801-004 12-volt, 18 Ah218.00
bottom), designed for use with 2" (50.8 mm) gate frame.	1801-005 12-volt, 35 Ah278.00
Sealed Bearing Hinge
	Surge Suppression
1200-019 2000 Lb. (907 kg) Weight Capacity 152.00	1879-080 High Voltage (120 VAC)156.00
1200-039 3000 Lb. (1360 kg) Weight Capacity 180.00
Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with round or square gate frames.	Bi-Parting (Dual) Gate Connection Cable
	2600-755 30-Ft. (9.1 m)218.00
Torsion Rod Assembly	2600-756 40-Ft. (12.2 m)288.00
1203-084 348.00	2600-757 50-Ft. (15.2 m)364.00
2600-299 Additional Torsion Rods 122.00	2600-754 500-Ft. (152.4 m)2890.00

Counter-balances uphill swing gates, includes top bracket, bottom bracket and one (1) torsion rod. Up to five (5) additional torsion rods

can be added.

6050 / 6100 Swing Gate Operators

Automatic Magnetic Limits

6050 / 6100

• Self-Adjusting Magnetic Limits
• Type A inherent reverse system
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Built-in power and reset switches
• Tamper protect feature

• Polyurethane cover
• Galvanized steel frame
• Pad or Post mounted
• Opens gate 90° in approximately 12 sec.
• Magnetic lock output
• Overlap feature for bi-parting gates

Model	Maximum Gate Weight	Maximum Gate Length	Mount Options1	Class of Operation2	Voltage	HP	Power Outlets	Maximum Cycles / Day	Loop Ports4	Adjustable Clutch5
6050	400 Lbs 181 KG	10 Ft 3.05 m	Pad / Post	I	115 VAC	1/2 3	N/A	100	2	Yes
6100	500 Lbs 226 KG	14 Ft 4.26 m	Pad / Post	I, II	115 VAC	1/2	N/A	Continuous	2	Yes

• 1. Select pad or post mount hardware kit when ordering.
• 2. I = Residential; II = Commercial.
• 3. This is an intermittent duty cycle motor.
• 4. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 5. Clutch is not applicable as an entrapment protection device.

Page Rev 1/2/19

6050 / 6100 Swing Gate Operators

Automatic Magnetic Limits

Step 1: Choose an Operator or Operator Set	Backup Power Inverters
6050-380 Primary 2554.00	1000-083 1000 Watt, Pure Sine Wave2148.00
6050-381 Secondary 1890.00	1000-045 Inverter Post Mount Kit270.00
Secondary operator includes 30 feet (9.1 m) of interconnection cable.	Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.
6100-380 Primary 2804.00
6100-381 Secondary 2144.00	Bi-Parting (Dual) Gate Interconnection Cable
Secondary operator includes 40 feet (12.2 m) of interconnection cable.	2600-755 30-Ft. (9.1 m)218.00
	2600-756 40-Ft. (12.2 m)288.00
Step 2: Choose a Mounting Kit (Includes Arms)	2600-757 50-Ft. (15.2 m)364.00
2600-671 Pad Mount Kit 554.00	2600-754 500-Ft. (152.4 m)2890.00
2600-674 Post Mount Kit 458.00
	Flange Bearing Hinge
Step 3: Choose Entrapment Protection (required) Devices	1200-009 3000 Lb. (1360 kg) Weight Capacity152.00
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.	Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with 2" (50.8 mm) gate frame.
Operator will not run without entrapment protection device(s) connected to the controller board.	Sealed Bearing Hinge
	1200-019 2000 Lb. (907 kg) Weight Capacity152.00
Loops and Loop Detectors	1200-039 3000 Lb. (1360 kg) Weight Capacity180.00
See page 42 for a complete list of all loop detectors, prefabricated loops and loop accessories available.	Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with round or square gate frames.
Post Mount Base Plate	Uphill Arm Pivot Assembly
2600-664 212.00	6500-490240.00
Use to mount 6050 and 6100 operators onto an existing concrete pad.	Use with 1203-084 Torsion Rod Assembly.
Surge Suppression	Torsion Rod Assembly
	1203-084348.00
1879-080 High Voltage (120 VAC) 156.00	2600-299 Additional Torsion Rods122.00
	Counter-balances uphill swing gates, includes top bracket, bottom
Heater Kit	bracket and one (1) torsion rod. Up to five (5) additional torsion rods can be added.

1601-154 120 VAC ....................................................... 484.00

Use if temperature routinely falls below 10°F (-12°C).

6300 Swing Gate Operators

Automatic Magnetic Limits

6300

• Self-Adjusting Magnetic Limits
• Type A inherent reverse system
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Built-in power and reset switches
• Tamper protect feature

• Polyurethane cover
• Galvanized steel frame
• Pad or Post mounted
• Opens gate 90° in approximately 16 sec.
• Magnetic lock output
• Overlap feature for bi-parting gates

Model	Maximum Gate Weight	Maximum Gate Length	Mount Options1	Class of Operation2	Voltage3	HP	Power Outlets	Maximum Cycles / Day	Loop Ports3	Adjustable Clutch4
6300	700 Lbs 317 KG	18 Ft 5.48 m	Pad / Post	I, II, III, IV	115 208 230 460 575 VAC	1/2	2	Continuous	2	Yes
6300	800 Lbs 362 KG	22 Ft 6.70 m	Pad / Post	I, II, III, IV	115 208 230 460 575 VAC	1	2	Continuous	2	Yes

• 1. Select pad or post mount hardware kit when ordering.
• 2. I = Residential; II = Commercial; III = Limited Access; IV = Restricted Access
• 3. High voltage kit (P/N 2600-266) required for 208 Volt and higher.
• 4. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 5. Clutch is not applicable as an entrapment protection device.

Page Rev 1/2/19

6300 Swing Gate Operators

Automatic Magnetic Limits

Step 1: Choose an Operator or Operator Set	Backup Power Inverters
6300-380 Primary ½ HP 3130.00	1000-083 1000 Watt, Pure Sine Wave2148.00
6300-381 Secondary ½ HP 2528.00	1000-045 Inverter Post Mount Kit270.00
6300-384 Primary 1 HP 3768.00 6300-385 Secondary 1 HP 3108.00	Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.
Secondary operators includes 50 feet (15.2 m) of interconnection cable.	Bi-Parting (Dual) Gate Interconnection Cable
	2600-755 30-Ft. (9.1 m)218.00
High Voltage Kit	2600-756 40-Ft. (12.2 m)288.00
2600-266 640.00	2600-757 50-Ft. (15.2 m)364.00
Allows the operator to be powered from 208, 230, 460 or 575 VAC source voltage. In dual gate applications, only one (1) kit is required.	2600-754 500-Ft. (152.4 m)2890.00
	Flange Bearing Hinge
Step 2: Choose a Mounting Kit (Includes Arms)	1200-009 3000 Lb. (1360 kg) Weight Capacity152.00
2600-264 Pad Mount Kit 712.00 2600-263 Post Mount Kit 712.00	Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with 2" (50.8 mm) gate frame.
Step 3: Choose Entrapment Protection (required) Devices	Sealed Bearing Hinge
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment	1200-019 2000 Lb. (907 kg) Weight Capacity152.00
protection devices to protect all areas where the risk of entrapment	1200-039 3000 Lb. (1360 kg) Weight Capacity180.00
exist - see pages 42-43. Operator will not run without entrapment protection device(s) connected to the controller board.	Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with round or square gate frames.
Loops and Loop Detectors	Uphill Arm Pivot Assembly
See page 42 for a complete list of all loop detectors, prefabricated	6500-490240.00
loops and loop accessories available.	Use with 1203-084 Torsion Rod Assembly.
Surge Suppression	Torsion Rod Assembly
1879-080 High Voltage (120 VAC) 156.00	1203-084348.00
	2600-299 Additional Torsion Rods122.00
Heater Kit	Counter-balances uphill swing gates, includes top bracket, bottom bracket and one (1) torsion rod. Up to five (5) additional torsion rods

can be added.

Use if temperature routinely falls below 10°F (-12°C).

1601-154 120 VAC........................................................ 484.00 1601-197 208 / 230 VAC ............................................ 1012.00 1601-198 460 VAC...................................................... 1012.00

6500 / 65505 / 65555 Swing Gate Operators

Adjustable Limit Swing Gate Operators

6500 / 65505 / 65555

• Adjustable Magnetic Limits
• Type A inherent reverse system
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Built-in power and reset switches

• Polyurethane cover
• Galvanized steel frame
• Opens gate 90° in approximately 16 sec.
• Magnetic lock output
• Overlap feature for bi-parting gates

Model	Maximum Gate Weight	Maximum Gate Length	Mount	Class of Operation1	Voltage2	HP	Power Outlets	Maximum Cycles / Day	Loop Ports2	Adjustable Clutch
6500	700 Lbs 317 KG	18 Ft 5.48 m	Pad	I, II, III, IV	115 208 230 460 575 VAC	1/2	2	Continuous	2	No
6500	800 Lbs 362 KG	22 Ft 6.70 m	Pad	I, II, III, IV	115 208 230 460 575 VAC	1	2	Continuous	2	No
65505	2000 Lbs 907 KG	25 Ft 7.62 m	Pad	II, III, IV	115 208 230 460 575 VAC	1	2	Continuous	2	No
65554,5	2000 Lbs 907 KG	25 Ft 7.62 m	Pad	II, III, IV	230 VAC	1	2	Continuous	2	No

• 1. I = Residential; II = Commercial; III = Limited Access; IV = Restricted Access
• 2. High voltage kit (P/N 2600-266) required for 208 Volt and higher.
• 3. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 4. This operator has a variable speed drive.
• 5. Models 6550 and 6555 are not listed to the UL 325 standard at this time.

Page Rev 1/2/19

6500 / 6550 / 6555 Swing Gate Operators

Adjustable Limit Swing Gate Operators

Step 1: Choose an Operator or Operator Set	Backup Power Inverters
6500-380 Primary ½ HP 3928.00	1000-083 1000 Watt, Pure Sine Wave2148.00
6500-381 Secondary ½ HP 3252.00	1000-045 Inverter Post Mount Kit270.00
Secondary operator includes 50 feet (15.2 m) of interconnection cable.	Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.
6500-384 Primary 1 HP 4490.00
6500-385 Secondary 1 HP 3928.00	Bi-Parting (Dual) Gate Interconnection Cable
Secondary operator includes 50 feet (15.2 m) of interconnection cable.	2600-755 30-Ft. (9.1 m)218.00
	2600-756 40-Ft. (12.2 m)288.00
6550-380 Primary 1 HP 6178.00	2600-757 50-Ft. (15.2 m)364.00
6550-384 Secondary 1 HP 5538.00 Secondary operator includes 50 feet (15.2 m) of interconnection cable. Model 6550 is not listed to UL 325 at this time.	2600-754 500-Ft. (152.4 m)2890.00
	Flange Bearing Hinge
6555-381 Primary 1 HP 230 VAC Variable Speed 8830.00	1200-009 3000 Lb. (1360 kg) Weight Capacity152.00
Model 6555 is not listed to UL 325 at this time.	Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with 2" (50.8 mm) gate frame.
High Voltage Kit
2600-266 640.00	Sealed Bearing Hinge
Allows the operator to be powered from 208, 230, 460 or 575 VAC	1200-019 2000 Lb. (907 kg) Weight Capacity152.00
source voltage. In dual gate applications, only one (1) kit is required. Not available on 6555-081 operator.	1200-039 3000 Lb. (1360 kg) Weight Capacity180.00
	Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with round or square gate frames.
Step 2: Choose Entrapment Protection (required) Devices
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment	Uphill Arm Pivot Assembly
protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.	6500-490240.00

connected to the controller board.

Loops and Loop Detectors

See page 42 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Operator will not run without entrapment protection device(s)

Surge Suppression

1879-080 High Voltage (120 VAC)................................ 156.00

Heater Kit

1601-154 120 VAC 484.00
1601-197 208 / 230 VAC 1012.00
1601-198 460 VAC 1012.00

Use if temperature routinely falls below 10°F (-12°C).

operators or one (1) 1 HP operator. This version is suitable to be used

with all brands of gate operators. See page 46 for more information.
Bi-Parting (Dual) Gate Interconnection Cable

1200-009 3000 Lb. (1360 kg) Weight Capacity152.00
Includes mounting bracket and hardware, two required per gate (top,

1200-019 2000 Lb. (907 kg) Weight Capacity152.00
1200-039 3000 Lb. (1360 kg) Weight Capacity180.00
Includes mounting bracket and hardware, two required per gate (top,

6500-490240.00
Use with 6500 operator and 1203-084 Torsion Rod Assembly.
6550-490240.00
Use with 6550 operator and 1203-084 Torsion Rod Assembly.

Torsion Rod Assembly

1203-084348.00
2600-299 Additional Torsion Rods122.00

Counter-balances uphill swing gates, includes top bracket, bottom bracket and one (1) torsion rod. Up to five (5) additional torsion rods can be added.

6524 DC Swing Gate Operator

Adjustable Limit Swing Gate Operator

6524

• Input 115/230 VAC or 24 VDC (Solar)
• Adjustable Magnetic Limits
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Built-in power and reset switches

• Built-in Battery Backup
• Galvanized steel frame
• Opens gate 90° in approximately 16 sec.
• Magnetic lock output
• Overlap feature for bi-parting gates

Model	Maximum Gate Weight	Maximum Gate Length	Mount	Class of Operation 1	Voltage	HP	Power Outlets	Maximum Cycles / Day	Loop Ports 2	Adjustable Clutch
6524	800 Lbs 362 KG	16 Ft 4.88 m	Pad	I, II, III, IV	115/230 VAC	1/2	2	Continuous 3,4	2	No
6524 5	800 Lbs 362 KG	16 Ft 4.88 m	Pad	I, II, III, IV	24 VDC (Solar)	1/2	0	Up to 150 4	2	No

• 1. I = Residential; II = Commercial; III = Limited Access; IV = Restricted Access
• $\{\backslash it\; 2.\}\; \backslash qquad\; \{\backslash it\; Plug-in\backslash \; loop\backslash \; detector\backslash \; ports;\backslash \; open\backslash \; and\backslash \; reverse.\backslash \; DoorKing\backslash \; plug-in\backslash \; loop\backslash \; detectors\backslash \; only.\}$
• 3. Continuous operation is when AC power is present. Operation on battery backup (7.5 Ah batteries) is limited to approximately 40 cycles.
• 4. Up to 150 cycles with 18 Ah batteries. Actual number of cycles will vary depending on usage, accessories connected, gate weight, operating condition of gate, temperature and charge state of the batteries. Charge state of batteries is affected by geographical location of the product when using solar to recharge the batteries.
• 5. Solar powered operators will not support bi-parting (dual) gate operation.

Page Rev 1/2/19

6524 DC Swing Gate Operators

Adjustable Limit Swing Gate Operator

1203-084......................................................................348.00 2600-299 Additional Torsion Rods ...............................122.00 Counter-balances uphill swing gates, includes top bracket, bottom bracket and one (1) torsion rod. Up to five (5) additional torsion rods

Bi-Parting (Dual) Gate Interconnection Cable RS 485

9024-136 50-Ft. (15 m)...................................................42.00 9024-137 984-Ft. (300 m).............................................662.00

can be added.

Step 1: Choose an Operator 6524-380 115/230 VAC.............................................. 3508.00 Includes two 7.5 Ah batteries for limited backup operation. Order 18 Ah batteries to extend the backup operation cycles. Includes 50 feet (15 m) of RS 485 interconnection cable for bi-parting (dual) gate operation. 6524-381 24 VDC (Solar)............................................ 3298.00 24 VDC solar input power only (supply your own batteries and solar charging system or use DKS solar kit). Solar powered operators will not support bi-parting (dual) gate operation. Step 2: Choose Entrapment Protection (required) Devices Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see pages 42-43. Operator will not run without entrapment protection device(s) connected to the controller board. Battery / Solar Options 1801-004 12-Volt, 18 Ah Battery1 ................................ 218.00 2000-077 24-Volt, 10 Watt Solar Panel........................ 364.00 2000-070 Solar Kit2 ...................................................... 850.00 1. Two required for 24 Volt operation. 2. Kit includes two (2) 18 Ah batteries, 10 Watt solar panel and bracket. Loops and Loop Detectors See page 42 for a complete list of all loop detectors, prefabricated loops and loop accessories available. Backup Power Inverters 1000-083 1000 Watt, Pure Sine Wave .......................2148.00 1000-045 Inverter Post Mount Kit................................270.00 Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information. Bi-Parting (Dual) Gate Interconnection Cable 2600-755 30-Ft. (9.1 m)................................................218.00 2600-756 40-Ft. (12.2 m)..............................................288.00 2600-757 50-Ft. (15.2 m)..............................................364.00 2600-754 500-Ft. (152.4 m)........................................2890.00 Flange Bearing Hinge 1200-009 3000 Lb. (1360 kg) Weight Capacity .............152.00 Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with 2" (50.8 mm) gate frame. Sealed Bearing Hinge 1200-019 2000 Lb. (907 kg) Weight Capacity ...............152.00 1200-039 3000 Lb. (1360 kg) Weight Capacity .............180.00 Includes mounting bracket and hardware, two required per gate (top, bottom), designed for use with round or square gate frames. Uphill Arm Pivot Assembly 6500-490......................................................................240.00 Use with 1203-084 Torsion Rod Assembly. Torsion Rod Assembly

Heater Kit
6500-480 120 VAC 554.00
1601-197 208 / 230 VAC 1012.00

1879-080 High Voltage (120 VAC)................................ 156.00

Surge Suppression

Use if temperature routinely falls below 10°F (-12°C). Cannot be used with solar powered operators.

Swing Gate Accessories

Hinges, Torsion Rod Counter-Balance

Flange Bearing Hinge

1200-009 3000 Lb. (1360 Kg) weight capacity ..............152.00 1200-010 Replacement bearing......................................91.74

• Designed for use with 2 inch (51 mm) gate frame.
• Includes mounting bracket and hardware.
• Zert grease fitting.
• Two required (top, bottom) per gate.

Sealed Bearing Hinge

1200-019 2000 Lb. (907 Kg) weight capacity ................152.00 1200-039 3000 Lb. (1360 Kg) weight capacity ..............180.00

• Designed for use with round or square gate frame.
• Includes mounting bracket and hardware.
• Two required (top, bottom) per gate.

Torsion Rod Counter-Balance Assembly

1203-0841 Torsion Rod Assembly .................................348.00 2600-2992 Torsion Rods................................................122.00

• 1. Includes one (1) 2600-299 torsion rod.
• 2. Up to five (5) additional rods can be added to the 1203-084 assembly.

Swing Gate Operator Parts & Accessories

Miscellaneous Parts & Accessories

Circuit Boards
4100-018542.00
Used in model 6524
4302-018602.00
Used in models 6005, 6003, 6004 and 6400
4405-018638.00
Used in model 6500, 6550
4502-018638.00
Used in models 6050, 6100 and 6300

Base Plate, Mounting Pipes, Pivot Arm
2600-664 Concrete Base Plate 180.00
Use to mount the 6050 or 6100 post mount operators onto an existing concrete pad
6500-490 Uphill Arm Pivot Assembly 240.00 Use with 6050, 6100, 6300 and 6500 operators when the gate opens on an uphill or downhill slope. Should be used with 1203-084 Torsion Rod Assembly.
6550-490 Uphill Arm Pivot Assembly 240.00 Use with 6550 operator when the gate opens on an uphill or downhill slope. Should be used with 1203-084 Torsion Rod Assembly.
Bi-Parting Connection Cable
2600-754 Primary / Secondary Cable 2890.00
500-ft (152.4 m) roll

Batteries
1801-009 Battery 91.52
12 Volt, 3.5 Amp Hour
1801-004 Battery 218.00
12 Volt, 18 Amp Hour
1801-005 Battery 278.00
12 Volt, 35 Amp Hour

Adjustable Limit Slide Gate Operator

9000

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Selectable stop/ reverse function

• 30:1 Gear Reducer Drive Train
• Steel frame
• Polyurethane cover
• 20-Feet (6 m) #40 Chain
• Gate tracker data output

Model	Maximum Gate Weight	Maximum Gate Length	Mount	Class of Operation 1	Voltage 2	HP	Power Outlets	Maximum Cycles / Day	Loop Ports 2	Adjustable Clutch
9000	1000 Lbs 453 KG	35 Ft 10.7 m	Pad or Post 4	I, II	115 208 230 460 575 VAC	1/2	2	Continuous	2	No
9000	1500 Lbs 680 KG	35 Ft 10.7 m	Pad or Post 3	I, II, III, IV	115 208 230 460 575 VAC	1	2	Continuous	2	No

• 1. I = Residential; II = Commercial; III = Limited Access; IV = Restricted Access.
• 2. High voltage kit (P/N 2600-266) required for 208 Volt and higher.
• 3. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• Requires post mounting kit.

Adjustable Limit Slide Gate Operator

Page Rev 1/2/19

9000 Slide Gate Operators

Choose an Operator	Backup Power Inverters
9000-380 ½ HP Primary 115 VAC 3420.00	1000-083 1000 Watt, Pure Sine Wave2148.00
9000-381 ½ HP Secondary 115 VAC 2818.00	1000-045 Inverter Post Mount Kit270.00
9000-385 1 HP Primary 115 VAC 4264.00	Includes two (2) 35 AH SLA batteries and can power up to two ½ HP
9000-386 1 HP Secondary 115 VAC 3540.00	operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.
High Voltage	Bi-Parting (Dual) Gate Interconnection Cable
2600-266 High Voltage Kit 640.00	2600-755 30-Ft. (9.1 m)218.00
Allows the operator to be powered from 208, 230, 460 or 575 VAC	2600-756 40-Ft. (12.2 m)288.00
source voltage.	2600-757 50-Ft. (15.2 m)364.00
Choose Entrapment Protection (required) Devices	2600-754 500-Ft. (152.4 m)2890.00
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment	Guarded Guide Rollers & Bracket Assembly
protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.
Operator will not run without entrapment protection device(s)	1204-120 Single 3-in (76.2 mm)78.26
connected to the controller board.	1204-122 Dual 3-in (76.2 mm)138.00
	1204-121 Single 6-in (152.4 mm)96.30
Loops and Loop Detectors	1204-123 Dual 6-in (152.4 mm)170.00
See page 42 for a complete list of all loop detectors, prefabricated loops and loop accessories available.	1204-005 Replacement Roller 3-in (76.2 mm)18.06 See page 37 for more information.
Surge Suppression	V-Wheels - Max Gate Weight
1879-080 High Voltage (120 VAC) 156.00	1201-102 UHMW 4-in (101.6 mm) 500 lb. (227 kg)79.46
	1201-105 UHMW 4-in (101.6 mm) 750 lb. (340 kg)108.00
	1201-117 Steel 4-in (101.6 mm) 1500 lb. (680 kg)144.00
Accessories	See page 36 for more information.
9000-015 Post Mount Kit1 662.00
2600-961 Chain Link Fence Gate Bracket 81.88	V-Wheels Tandem – Max Gate Weight
1601-154 Heater Kit 120 VAC2 484.00
1601-197 Heater Kit 208/230 VAC2 1012.00	1201-012 UHMW 4-in (101.6 mm) 1500 lb. (680 kg)204.00
1601-198 Heater Kit 480 VAC2 1012.00	1201-010 Steel 4-in (101.6 mm) 3000 lb. (1360 kg)364.00
1. Includes base plate, mounting posts and hardware.	1201-210 Steel 6-in (152.4 mm) 5000 lb. (2268 kg)532.00 See page 36 for more information.
2. Use if temperature routinely falls below 10°F (-12°C).
Chain	Chain Idler Assembly
	2600-818102.34
2600-442 #40 Chain, 20-Ft (6 m) 156.00	Use with rear-mounted operators.
	End Catch

Designed for gates with 2-inch (50.8 mm) frame.

Adjustable Limit Slide Gate Operator

9024

• Input 115/230 VAC or 24 VDC (Solar)
• Adjustable Limits
• Plug-in Loop Detector Ports
• Gate Tracker Data Output
• Built-in power and reset switches
• 20-Feet (6 m) #40 Chain

• 30:1 Gear Reducer Drive Train
• Built-in Battery Backup
• Galvanized steel frame
• Opens gate 90° in approximately 16 sec.
• Magnetic lock output
• Overlap feature for bi-parting gates

Model	Maximum Gate Weight	Maximum Gate Length	Mount	Class of Operation 1	Voltage	HP	Power Outlets	Maximum Cycles / Day	Loop Ports 2	Adjustable Clutch
9024	1000 Lbs 453 KG	40 Ft 12.2 m	Pad or Post 5	I, II, III, IV	115/230 VAC	1/2	2	Continuous 3,4	2	No
90246	1000 Lbs 453 KG	40 Ft 12.2 m	Pad or Post 5	I, II, III, IV	24 VDC (Solar)	1/2	0	Up to 150 4	2	No

• 1. I = Residential; II = Commercial; III = Limited Access; IV = Restricted Access
• $\{\backslash it\; 2.\}\; \backslash qquad\; \{\backslash it\; Plug-in\backslash \; loop\backslash \; detector\backslash \; ports;\backslash \; open\backslash \; and\backslash \; reverse.\backslash \; DoorKing\backslash \; plug-in\backslash \; loop\backslash \; detectors\backslash \; only.\}$
• 3. Continuous operation is when AC power is present. Operation on battery backup (7.5 Ah batteries) is limited to approximately 40 cycles.
• 4. Up to 150 cycles with 18 Ah batteries. Actual number of cycles will vary depending on usage, accessories connected, gate weight, operating condition of gate, temperature and charge state of the batteries. Charge state of batteries is affected by geographical location of the product when using solar to recharge the batteries.
• 5. Requires post mounting kit.
• 6. Solar powered operators will not support bi-parting (dual) gate operation.

Page Rev 1/2/19

9024 DC Slide Gate Operator

Adjustable Limit Slide Gate Operator

Choose an Operator	Backup Power Inverters
9024-380 115/230 VAC 3066.00	1000-083 1000 Watt, Pure Sine Wave2148.00
Includes two 7.5 Ah batteries for limited backup operation. Order 18	1000-045 Inverter Post Mount Kit270.00
Ah batteries to extend the backup operation cycles. Includes 50 feet (15 m) of RS 485 interconnection cable for bi-parting (dual) gate operation.	Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.
9024-381 24 VDC (Solar) 2856.00	Bi-Parting (Dual) Gate Interconnection Cable RS 485
24 VDC solar input power only (supply your own batteries and solar charging system or use DKS solar kit).	9024-136 50-Ft. (15 m)42.00
Solar powered operators will not support bi-parting (dual) gate operation.	9024-137 984-Ft. (300 m)662.00
	Guarded Guide Rollers & Bracket Assembly
Choose Entrapment Protection (required) Devices	1204-120 Single 3-in (76.2 mm)78.26
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment	1204-122 Dual 3-in (76.2 mm)138.00
protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.	1204-121 Single 6-in (152.4 mm)96.30
Operator will not run without entrapment protection device(s)	1204-123 Dual 6-in (152.4 mm)170.00
connected to the controller board.	1204-005 Replacement Roller 3-in (76.2 mm)18.06
	See page 37 for more information.
Battery / Solar Options
1801-004 12-Volt, 18 Ah Battery1 218.00	V-Wheels - Max Gate Weight
2000-077 24-Volt, 10 Watt Solar Panel 364.00	1201-102 UHMW 4-in (101.6 mm) 500 lb. (227 kg)79.46
2000-070 Solar Kit2 850.00	1201-105 UHMW 4-in (101.6 mm) 750 lb. (340 kg)108.00
1. Two required for 24 Volt operation.	1201-117 Steel 4-in (101.6 mm) 1500 lb. (680 kg)144.00
2. Kit includes two (2) 18 Ah batteries, 10 Watt solar panel and bracket.	See page 36 for more information.
Loops and Loop Detectors	V-Wheels Tandem – Max Gate Weight
See page 42 for a complete list of all loop detectors, prefabricated	1201-012 UHMW 4-in (101.6 mm) 1500 lb. (680 kg)204.00
loops and loop accessories available.	1201-010 Steel 4-in (101.6 mm) 3000 lb. (1360 kg)364.00
	1201-210 Steel 6-in (152.4 mm) 5000 lb. (2268 kg)532.00
Surge Suppression	See page 36 for more information.
1879-080 High Voltage (120 VAC) 156.00
	Chain Idler Assembly
Accessories	2600-818102.34
9000-015 Post Mount Kit1 662.00	Use with rear-mounted operators.
2600-961 Chain Link Fence Gate Bracket 81.88
1601-154 Heater Kit 120 VAC2 484.00	End Catch
1601-197 Heater Kit 208/230 VAC2 1012.00	1204-00460.18
1. Includes base plate, mounting posts and hardware.	Designed for gates with 2-inch (50.8 mm) frame.
2. Use if temperature routinely falls below 10°F (-12°C).

2600-442 #40 Chain, 20-Ft (6 m).................................. 156.00

Chain

9050 / 9100 Slide Gate Operators

Automatic Magnetic Limits

9050 / 9100

• Self-Adjusting Magnetic Limits
• Built-in clutch
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Fail-Safe Configuration

9100

• G90 Galvanized steel frame
• Steel cover
• 20-Feet (6 m) #40 Chain
• Gate tracker data output (9100 only)
• Selectable stop/ reverse function (9100 only)
• Partial open / anti-tailgate feature (9100 only)

Model	Maximum Gate Weight	Maximum Gate Length	Mount	Class of Operation1	Voltage	HP	Power Outlets	Maximum Cycles / Day	Loop Ports2	Adjustable Clutch3
9050	500 Lbs 227 KG	16 Ft 4.88 m	Pad or Post4	I	115 VAC	1/25	2	100	2	Yes
9100	1000 Lbs 453 KG	30 Ft 9.14 m	Pad or Post4	I, II, III, IV	115 VAC	1/2	2	Continuous	2	Yes

• 1. I = Residential; II = Commercial; III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 3. Clutch is not applicable as an entrapment protection device.
• 4. Requires post mount steel base plate.
• 5. This is an intermittent duty cycle motor.

Page Rev 1/2/19

9050 / 9100 Slide Gate Operators

Automatic Magnetic Limits

	Choose an Operator

9050-380 ½ HP 1984.00
9100-380 ½ HP 2890.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See page 42 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Surge Suppression

Accessories

2600-418 Steel Base Plate 90.30
2600-970 Base Plate Stop Bracket1 60.18
2600-862 Fail-Secure Lock Kit2 31.30
2600-961 Chain Link Fence Gate Bracket 81.88
1601-154 Heater Kit 120 VAC3 484.00
1. Use with 2600-418 base plate.

• 2. Operators come standard in a Fail-Safe configuration.
• 3. Use if temperature routinely falls below 10°F (-12°C).

Chain

2600-442 #40 Chain, 20-Ft (6 m) 156.00
2600-271 Chain Stop #40, #41 Chain 30.12

Backup Power Inverters

1000-083 1000 Watt, Pure Sine Wave 2148.00
1000-045 Inverter Post Mount Kit 270.00

Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.

Bi-Parting (Dual) Gate Interconnection Cable

2600-755 30-Ft. (9.1 m) 218.00
2600-756 40-Ft. (12.2 m) 288.00
2600-757 50-Ft. (15.2 m) 364.00
2600-754 500-Ft. (152.4 m) 2890.00

Guarded Guide Rollers & Bracket Assembly

1204-120 Single 3-in (76.2 mm) 78.26
1204-122 Dual 3-in (76.2 mm) 138.00
1204-121 Single 6-in (152.4 mm) 96.30
1204-123 Dual 6-in (152.4 mm) 170.00
1204-005 Replacement Roller 3-in (76.2 mm) 18.06
See page 37 for more information.

V-Wheels - Max Gate Weight

1201-102 UHMW 4-in (101.6 mm) 500 lb. (227 kg) ....... 79.46 1201-105 UHMW 4-in (101.6 mm) 750 lb. (340 kg) ..... 108.00 1201-117 Steel 4-in (101.6 mm) 1500 lb. (680 kg) ....... 144.00 See page 36 for more information.

V-Wheels Tandem – Max Gate Weight

1201-012 UHMW 4-in (101.6 mm) 1500 lb. (680 kg) ... 204.00 1201-010 Steel 4-in (101.6 mm) 3000 lb. (1360 kg) ..... 364.00 1201-210 Steel 6-in (152.4 mm) 5000 lb. (2268 kg) ..... 532.00 See page 36 for more information.

Chain Idler Assembly

2600-818 102.34
Use with rear-mounted operators.

End Catch

1204-004 60.18

Designed for gates with 2-inch (50.8 mm) frame.

Automatic Magnetic Limits

9150

• Self-Adjusting Magnetic Limits
• Built-in clutch
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Fail-Safe Configuration

• G90 Galvanized steel frame
• Steel cover
• 20-Feet (6 m) #40 Chain
• Gate tracker data output
• Selectable stop/ reverse function
• Partial open / anti-tailgate feature

Model	Maximum Gate Weight	Maximum Gate Length	Mount	Class of Operation1	Voltage2	HP	Power Outlets	Maximum Cycles / Day	Loop Ports2	Adjustable Clutch3
9150	1000 Lbs 454 KG	30 Ft 9.14 m	Pad or Post4	I, II, III, IV	115 208 230 460 575 VAC	1/2	2	Continuous	2	Yes
9150	1500 Lbs 680 KG	45 Ft 13.7 m	Pad or Post4	I, II, III, IV	115 208 230 460 575 VAC	1	2	Continuous	2	Yes

• 1. I = Residential; II = Commercial; III = Limited Access; IV = Restricted Access.
• 2. High voltage kit (P/N 2600-266) required for 208 Volt and higher.
• 3. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 4. Clutch is not applicable as an entrapment protection device.
• 5. Requires post mount steel base plate.

Page Rev 1/2/19

9150 Slide Gate Operators

Automatic Magnetic Limits

Choose an Operator	Backup Power Inverters
9150-384 ½ HP 3094.00	1000-083 1000 Watt, Pure Sine Wave 2148.00
9150-380 1 HP 3732.00	1000-045 Inverter Post Mount Kit 270.00
High Voltage	Includes two (2) 35 AH SLA batteries and can power up to two ½ HP operators or one (1) 1 HP operator. This version is suitable to be used with all brands of gate operators. See page 46 for more information.
2600-266 High Voltage Kit 640.00
Allows the operator to be powered from 208, 230, 460 or 575 VAC	Bi-Parting (Dual) Gate Interconnection Cable
source voltage.	2600-755 30-Ft. (9.1 m) 218.00
	2600-756 40-Ft. (12.2 m) 288.00
Choose Entrapment Protection (required) Devices	2600-757 50-Ft. (15.2 m) 364.00
Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see pages 42-43.	2600-754 500-Ft. (152.4 m) 2890.00
Operator will not run without entrapment protection device(s)	Guarded Guide Rollers & Bracket Assembly
connected to the controller board.	1204-120 Single 3-in (76.2 mm) 78.26
Loops and Loop Detectors	1204-122 Dual 3-in (76.2 mm) 138.00
	1204-121 Single 6-in (152.4 mm) 96.30
See page 42 for a complete list of all loop detectors, prefabricated loops and loop accessories available.	1204-123 Dual 6-in (152.4 mm) 170.00
	1204-005 Replacement Roller 3-in (76.2 mm) 18.06
Surge Suppression	See page 37 for more information.
1879-080 High Voltage (120 VAC) 156.00
	V-Wheels - Max Gate Weight
Accessories	1201-102 UHMW 4-in (101.6 mm) 500 lb. (227 kg) 79.46
	1201-105 UHMW 4-in (101.6 mm) 750 lb. (340 kg) 108.00
2600-495 Steel Base Plate 302.00	1201-117 Steel 4-in (101.6 mm) 1500 lb. (680 kg) 144.00
2600-970 Base Plate Stop Bracket1 60.18	See page 36 for more information.
2600-865 Fail-Secure Lock Kit2 38.54
2600-961 Chain Link Fence Gate Bracket 81.88	V-Wheels Tandem – Max Gate Weight
1601-154 Heater Kit 120 VAC3 484.00 1601-197 Heater Kit 208/230 VAC3 1012.00	1201-012 UHMW 4-in (101.6 mm) 1500 lb. (680 kg) 204.00
1601-198 Heater Kit 480 VAC3 1012.00	1201-010 Steel 4-in (101.6 mm) 3000 lb. (1360 kg) 364.00
1. Use with 2600-495 base plate.	1201-210 Steel 6-in (152.4 mm) 5000 lb. (2268 kg) 532.00
2. Operators come standard in a Fail-Safe configuration.	See page 36 for more information.
3. Use if temperature routinely falls below 10°F (-12°C).
	Chain Idler Assembly
Chain	2600-818 102.34
2600-442 #40 Chain, 20-Ft (6 m) 156.00	Use with rear-mounted operators.
2600-271 Chain Stop #40, #41 Chain 30.12
	End Catch

1204-004........................................................................ 60.18

Designed for gates with 2-inch (50.8 mm) frame.

Slide Gate Accessories

V-Wheels

V-Wheel Assembly

1201-004 UHMW w/sleeve bearing..

• 500 Lb. (226 Kg) maximum weight

1201-006 UHMW w/sealed bearing ......60.18

• 750 Lb. (340 Kg) maximum weight

1201-016 Steel w/sealed bearing ......108.00

• 1500 Lb. (680 Kg) maximum weight

4-Inch (102 mm) V-Wheel Assemblies1

1201-102 UHMW w/sleeve bearing......79.46

• 500 Lb. (226 Kg) maximum weight

1201-105 UHMW w/sealed bearing ......108.00

• 750 Lb. (340 Kg) maximum weight

1201-117 Steel w/sealed bearing ......144.00

• 1500 Lb. (680 Kg) maximum weight

$\{\backslash bf\; 1.\}\; \backslash \; \{\backslash bf\; Assemblies\}\; \backslash \; \{\backslash bf\; include\}\; \backslash \; \{\backslash bf\; wheel\}\; \backslash \; \{\backslash bf\; guarding\}\; \backslash \; \{\backslash bf\; as\}\; \backslash \; \{\backslash bf\; required\}\; \backslash \; \{\backslash bf\; by\}\; \backslash \; \{\backslash bf\; industry\}\; \backslash \; \{\backslash bf\; safety\}\; \backslash \; \{\backslash bf\; standards\}.$

4-Inch (102 mm) Tandem V-Wheel Assemblies

1201-012 UHMW w/sealed bearing ......204.00

• 1500 Lb. (680 Kg) maximum weight

1201-010 Steel w/sealed bearing ......364.00

• 3000 Lb. (1360 Kg) maximum weight

6-Inch (152 mm) V-Wheels

1201-000 Steel w/sealed bearing ...... 212.00

2500 Lb. (1133 Kg) maximum weight

6-Inch (152 mm) Tandem V-Wheel Assembly

1201-210 Steel w/sealed bearing ...... 532.00

5000 Lb. (2267 Kg) maximum weight

PRICE SCHEDULE A 2.0 Vehicular Traffic Control

Page Rev 1/2/19

Slide Gate Accessories

Guide Rollers, Chain Idler, End Catch

3-Inch (76 mm) Guide Roller Assemblies¹ 1204-120 Single ....................................

Chain Idler Assembly 2600-818..................................

Slide Gate Operator Parts & Accessories

Miscellaneous Parts & Accessories

Circuit Boards
4100-018516.00
Used in model 9024
4405-018608.00
Used in model 9000
4602-018744.00
Used in models 9100, 9150
4702-018516.00
Used in models 9050

Chain
2600-441 #41 Chain – 20 Ft (6 m)122.00
2600-442 #40 Chain – 20 Ft (6 m)156.00
2600-443 #41 Chain Nickel Plated – 10 Ft (3 m)106.00
2600-444 #40 Chain Nickel Plated – 10 Ft (3 m)142.00
2600-271 Chain Stop for #40 and #41 Chain30.12
2600-961 Chain Link Fence Gate Bracket81.88
Base Plates
2600-418 Steel Base Plate90.30
Use with 9050 and 9100 operators
2600-495 Steel Base Plate302.00
Use with 9150 operator
2600-970 Base Plate Stop Bracket60.18
Use with 2600-418 and 2600-495
Bi-Parting Connection Cable
2600-754 Primary / Secondary Cable2890.00
500-ft (152.4 m) roll
9024-137 RS 485 Cable662.00
984-ft (300 m) roll

January 2019 PRICE SCHEDULE A 2.0 Vehicular Traffic Control

Page Rev 1/2/19

Blank Page

Entrapment Prevention Devices

Non-contact Sensors Type B1

Thru-Beam Devices
8080-050 (ME-PG)546.00
• 100 Ft. (30 m) maximum sensing distance.
• Receiver (RX-R) 7-30 VAC / 10-42 VDC.
• Transmitter (EM-W) 7-30 VAC / 10-42 VDC.
8080-052 (EMX MON)546.00
• 115 Ft. (35 m) maximum sensing distance.
• 12-24 VAC / 6-35 VDC.
• Includes hood.
8080-054 (Seco-Larm E960-D90GQ)546.00
• 90 Ft. (27 m) maximum sensing distance.
• 12-30 VAC / VDC.

Photo-Reflective Devices
8080-051 (ME-RG) 502.00
• 30 Ft. (9 m) maximum sensing distance.
• Receiver 7-30 VAC / 10-42 VDC.
8080-053 (EMX IRB-RET) 502.00
• 60 Ft. (18 m) maximum sensing distance.
• 12-24 VAC / 6-35 VDC.
8080-055 (Seco-Larm E936-S45RRGQ) 502.00
• 45 Ft. (14 m) maximum sensing distance.
• 12-30 VAC / VDC.
8080-056 (Omron E3K) 502.00
• 33 Ft. (10 m) maximum sensing distance.
• 24-240 VAC / VDC.

January 2019 PRICE SCHEDULE A 2.0 Vehicular Traffic Control

Page Rev 1/2/19

Entrapment Prevention Devices

Contact Sensors Type B2

2-Wire Contact Edge with 10K Termination

8080-071 6 Ft. (1.8 m) ME111-T2 ................................ 384.00

• Ideal for barrier arms, includes mounting channel.

8080-070 5 Ft. (1.5 m) ME123-T2 ................................ 384.00

• Includes mounting channel.

8080-065 5 Ft. (1.5 m) MGR20-T2................................ 422.00

• Fits on 2 in (51 mm) round post.

8080-066 5 Ft. (1.5 m) MGS20-T2................................ 422.00

• Fits on 2 in (51 mm) square post.

4-Wire Contact Edge1

8080-091 6 Ft. (1.8 m) ME111 ..................................... 384.00

• Ideal for barrier arms, includes mounting channel.

8080-090 5 Ft. (1.5 m) ME123 ..................................... 384.00

• Includes mounting channel.

8080-085 5 Ft. (1.5 m) MGR20..................................... 422.00

• Fits on 2 in (51 mm) round post.

8080-086 5 Ft. (1.5 m) MGS20..................................... 422.00

• Fits on 2 in (51 mm) square post.

1. 4-wire edges do not have 10K termination and are designed to be used wired in series with the 2-wire T2 edges.

Contact Sensor Accessories

8080-079 Multiple Input Module (MIM 62)................. 870.00

• Monitors up to six (6) external contact edges.

8080-008 Wireless Monitored Link (RB-G-K10)1 .......... 526.00

• Receiver: 12-24 VAC / VDC.

• Transmitter: 3.6 VDC / 2 AA Lithium.

• Receiver can monitor up to six (6) edges.

1. Kit includes receiver and one (1) RB-TX-10 transmitter.

8080-006 Monitored Transmitter (RB-TX-10) .............. 262.00

Vehicle Protection

Loop Detectors and Loops

DKS Plug-In Loop Detectors
9411-010 Single Channel + Aux Relay250.00
9410-010 Single Channel232.00
9409-010 Two Channel436.00
9415-010 Two Channel Low Power Draw458.00
9416-010 Single Channel Low Power Draw262.00
Reno A&E Wired Loop Detectors1, 2
9402-045 24 VAC / 12-24 VDC302.00
9402-047 120 VAC302.00
9402-061 Wire Harness26.50
Carlo Gavazzi Wired Loop Detectors1, 2
9402-044 24 VAC / VDC222.00
9402-061 Wire Harness26.50
Diablo Wired Loop Detectors
9402-050 10-30 VAC / VDC Low Power Draw302.00
1. Detectors have two (2) relay outputs.
2. 9402-061 harness required.

Loop Wire – 18 AWG – XLPE Insulation
9402-076 500 Ft. (152 m) Black 194.00
9402-077 1000 Ft. (304 m) Black 302.00
9402-078 500 Ft. (152 m) Blue 194.00
9402-079 1000 Ft. (304 m) Blue 302.00
9402-080 500 Ft. (152 m) Red 194.00
9402-081 1000 Ft. (304 m) Red 302.00
Prefabricated Loops1
9401-060 Blue Wire 302.00
9401-061 Yellow Wire 302.00
9401-062 Red Wire 302.00
24 Ft. (7 m) circumference, 50 Ft. (15 M) lead-in wire.
Loop Accessories
9401-045 Meg-Ohm Test Meter 542.00

Page Rev 1/2/19

Control Stations

Manual Control

3-Button Control1

1200-007 Indoor use only...............................................90.30

• Mounts into single-gang electrical box.

1200-006 Indoor or Outdoor use..................................164.00

• Wall mount

1. These control stations use a normally open stop circuit and can only be used with the following models: 6050, 6100, 9100, 9150.

Toggle Control

1200-017 Indoor use only...............................................54.18

• Mounts into single-gang electrical box

Model 1000

Back-up Power / Inverter

Model 1000 Power Inverter

1000-083 Pure Sine Wave, 1000 Watt........................2148.00

• Includes two (2) batteries.
• Will power two (2) ½ HP operators or a single 1 HP operator.
• Suitable for use with all DoorKing gate operators and most other brands.

Accessories
1000-045 Post Mount Kit 270.00
1801-005 12-Volt, 35 Ah SLA Battery 278.00
1000-044 Battery Cable Set 51.32

Section A2

This Price Schedule is effective January 7, 2019.

Telephone Entry & Access Control Systems

Date	Page	Comment
1-2-19	All	January, 2019 Price Schedule update.

Entry System Connection Options – Your Choice

For more information, please visit:

http://www.doorking.com/connect and http://www.doorking.com/imserver and http://www.doorking.com/cellular

4G-LTE Cellular Service (Plug & Play)

• Voice and Programming (wireless via the cellular network)
• DKS Cellular (subscription based service)

Internet (VoIP) Connection (Plug & Play)

• Voice and Programming (wired connection)
• DKS Internet or VoIP subscription service required
• Requires 1830-186 Network Adapter for programming¹
• Requires 1815-530 VoIP adapter for DKS VoIP¹ or use third party VoIP adapter²
• Plug & Play for LAN and WAN connections 2334-080³
  • 1: Subscription service.
  • 2: DoorKing does not guarantee third party VoIP service. Third party VoIP subscription may be required.
  • 3: Combines 1830-186, 1815-530 and Ethernet switch into a single enclosure.

Internet (VoIP) Connection (Manual IP Configuration)

• Voice and Programming (wired connection)
• Manual setup requires 1830-185 Network adapter
• Manual setup required: determine Default Gateway, set your IP address, setup Port Forwarding, configure Firewall for access, order Static IP address from internet provider or setup DDNS host account
• Compatible with most VoIP providers¹
  • 1: DoorKing does not quarantee third party VoIP service. Third party VoIP subscription may be required.

Land Line Telephone Service³ (POTS line, Cable or Fiber¹)

• Voice and Programming (wired connection)
• Programming options:
  • IM Server Modem (subscription based service)
  • Modem to Modem²
  • 1: Not applicable if Cable or Fiber is a cloud based telephone service.
  • 2: Not compatible with all modems. Requires phone line and modem at programming PC.
  • 3: DoorKing does not recommend using POTS (Plain Old Telephone Service) as a connection option and does not guarantee modem connections as many phone company services and switches no longer support modem communications.

TTY Connection Options

• Allows hearing impaired persons to connect their TTY device to the telephone entry system.
• P/N 1830-310 is factory installed at time of order.
• P/N 1830-315 is an add-on device that can be added to the telephone entry system at any time.

Table of Contents

Model 1802	4
Model 1803	6
Model 1808	8
Model 1810	10
Model 1812	12
Model 1819	14
Model 1816/1820	16
Model 1833 80 Series	18
Model 1834 90 Series	20
Model 1834 80 Series	22
Model 1835 90 Series	24
Model 1835 80 Series	26
Model 1837 90 Series	28
Model 1837 80 Series	30
Model 1838	32
Model 1838 Access Plus	34
Accessories
Connection Options	36
Elevator Control	37
Tracker Expansion Boards	38
Wireless Kits for Tracker Expansion Boards	39
Telephone Entry Systems Mounting Kits	40
Light Kits	41
Add-on Directories	42
Utility Enclosures	43
Accessories	44
Replacement Components	45

Residential, Commercial

1802 / 1802 EPD

• Hands free full duplex voice communication
• Programmable Directory Codes (1-4 digits)
• 16-digit dialing
• Includes 16 VAC power transformer
• Backlit keypad and A-Z-CALL buttons (EPD only)

1802 AP (Access Plus) ONLY

• Control up to 8 entry points
• IP Addressable
• PC Programmable
• 2-Digit directory codes
• 20-digit dialing
• Includes 16 VAC power transformer

Model	Phone Numbers	Directory6 Names	Entry Codes1	Device Codes2	Relays	Auxiliary Inputs3	Expansion4	PC Programmable5	Temporary Codes	Holiday Schedules
1802	600	N/A	1000	0	2	1	No	No	5	No
1802EPD	100	100	100	0	2	1	No	No	5	No
1802AP	27	N/A	50	100	2	2	6 Max	Yes	10	Yes

• 1. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit RS-485 device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1802 and 1802EPD, auxiliary input allows a switch closure to activate relay 2, or can be set to auto-dial a preprogrammed telephone number. 1802 AP uses a standard RS-485 data input.
• 4. Six (6) additional entry points can be controlled via RS-485 card readers, AVID tag readers, RF receivers or digital keypads.
• 5. AP Programming software available for free download at doorking.com.
• 6. Single line 16 character 5/16 LCD display.

Residential, Commercial

1802 Telephone Entry Systems	1802 AP (ACCESS PLUS ONLY) Expansion Options
1802-082 Surface Mount 1230.00	2354-010 Conversion Board180.00
1802-089 Flush Mount 1542.00	1815-235 Conversion Board w/Enclosure316.00
1802-090 Surface Mount EPD 1506.00	Converts 26-bit Wiegand to RS-485. Requires 12-16 VDC power.
1802-091 Flush Mount EPD 1818.00
1802-092 Surface Mount AP (Access Plus) 1926.00	1812-020 12-VDC, 1A Transformer51.62
	1200-080 Transformer Box234.00
Service Connection Options
1800-081 Cellular Voice + Data1,2 654.00	1816-083 Intercom Phone Expansion1144.00
1801-080 Cellular Voice Only1,3 434.00	The 1816-083 expands the "No Phone Line" telephone intercom
1 - Cellular service plan required (provided by DoorKing).	interface on Access Plus systems from a single phone line up to 11 phone lines. The system can be further expanded to interface with up
2 - Use with 1802 AP model.	to a maximum of 23 phone lines.
3 - Use with 1802 and 1802 EPD models.
	RS-485 Card Readers (ACCESS PLUS ONLY)
1802 Lobby Panel	1815-332 DK Prox Reader432.00
1802-083 916.00	1815-232 ID Tech Reader504.00
1802-094 1226.00	1815-233 AWID Reader516.00
Lobby panels can only be used with the 1816 or 1820 telephone intercom system. They cannot be connected directly to telephone	1815-234 HID Reader916.00
service.	RS-485 Keypads (ACCESS PLUS ONLY)
Accessories	1513-081 Surface Mount542.00
1701-080 20-Name Directory 156.00	1513-082 Flush Mount674.00
1702-080 60-Name Directory 228.00	RS-485 RF Controls (ACCESS PLUS ONLY)
1710-080 200-Name Directory Surface Mount 484.00
1710-081 200-Name Directory Flush Mount 484.00	8053-080 MicroPlus Receiver218.00
1506-081 Secondary Keypad surface mount 444.00
1506-091 Secondary Keypad flush mount 576.00
1804-193 External Speaker 202.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52
2600-588 Heater Kit (1802, 1802 AP) 238.00
2600-582 LCD Heater (1802 EPD) 52.98
1812-145 CCTV Color Camera 1022.00
1807-012 Handset Kit (surface mount only) 422.00

1. Required if mounting 1802 to gooseneck post.

1802-111 Post Mount Adapter Plate1 .......................... 166.00

1830-310 TTY Add-on Factory Installed ....................... 312.00 1830-315 TTY Add-on Kit ............................................. 348.00

Residential, Commercial

1803

• Hands free full duplex voice communication
• Programmable Directory Codes (1-4 digits)
• 16-digit dialing
• Includes 16 VAC power transformer

• Stainless steel faceplate
• Galvanized steel sub-plate
• Metal keypads and buttons
• Postal lock provision

Flush Mount

Model	Phone Numbers	Directory Names	Entry Codes 1	Device Codes 2	Relays	Auxiliary Inputs 3	Expansion 4	PC Programmable⁵	Temporary Codes	Holiday Schedules
1803	600	N/A	1000	0	2	1	No	No	5	No

• 1. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes are not used with the 1803.
• 3. 1803 auxiliary input allows a switch closure to activate relay 2, or can be set to auto-dial a preprogrammed telephone number.

Residential, Commercial

1830-310 TTY Add-on Factory Installed........................312.00 1830-315 TTY Add-on Kit..............................................348.00

1803 Telephone Entry Systems	Mounting Accessories
1803-080 Surface Mount 1614.00	1803-150 Surface Mount Trim Ring Black236.00
1803-084 Flush Mount 1614.00	1814-165 Flush Mount Kit Stainless Steel396.00
1803 Lobby Panels	Accessories
1803-090 Surface Mount 1072.00	1701-080 20-Name Directory156.00
1803-092 Flush Mount 1072.00	1702-080 60-Name Directory228.00
Lobby panels can only be used with the 1816 or 1820 telephone	1710-080 Large Directory Surface Mount484.00
intercom system. They cannot be connected directly to telephone service.	1710-081 Large Directory Flush Mount484.00
Service Connection Options 1801-080 Cellular Voice Only1 434.00 1 - Cellular service plan required (provided by DoorKing)	1506-081 Secondary Keypad surface mount444.00 1506-091 Secondary Keypad flush mount576.00 1720-080 LED Light Kit444.00 1804-193 External Speaker202.00 1801-008 Backup Battery 12-Volt .8 Ah91.52 2600-584 Heater Kit170.00 1812-145 CCTV Color Camera1022.00 1807-012 Handset Kit (surface mount only)422.00

Residential, Commercial

1808

• Hands free full duplex voice communication
• Programmable Directory Codes (1-4 digits)
• 16-digit dialing
• Includes 16 VAC power transformer

Surface Mount 1808

1808 AP (Access Plus) ONLY

• Control up to 8 entry points
• IP Addressable
• PC Programmable
• 2-Digit directory codes
• 20-digit dialing
• Includes 16 VAC power transformer

Surface Mount w/Directory 1808 / 1808 AP

Model	Phone Numbers	Directory Names	Entry Codes 1	Device Codes 2	Relays	Auxiliary Inputs 3	Expansion 4	PC Programmable⁵	Temporary Codes	Holiday Schedules
1808	600	N/A	1000	0	2	1	No	No	5	No
1808AP	27	N/A	50	100	2	2	6 Max	Yes	10	Yes

• Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit RS-485 device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1808 auxiliary input allows a switch closure to activate relay 2, or can be set to auto-dial a preprogrammed telephone number. 1808 AP uses a standard RS-485 data input.
• 4. Six (6) additional entry points can be controlled via RS-485 card readers, AVID tag readers, RF receivers or digital keypads.
• 5. AP Programming software available for free download at doorking.com.

Residential, Commercial

1808 Telephone Entry Systems	1808 AP (ACCESS PLUS ONLY) Expansion Options
1808-082 Surface Mount w/Directory 1614.00	2354-010 Conversion Board180.00
1808-084 Surface Mount 1506.00	1815-235 Conversion Board w/Enclosure316.00
1808-085 Surface Mount AP (Access Plus) 1926.00	Converts 26-bit Wiegand to RS-485. Requires 12-16 VDC power.
1808 Lobby Panels	1812-020 12-VDC, 1A Transformer51.62
1808-081 Surface Mount 1048.00	1200-080 Transformer Box234.00
1808-083 Surface Mount w/Directory 1144.00
Lobby panels can only be used with the 1816 or 1820 telephone	1816-083 Intercom Phone Expansion1144.00
intercom system. They cannot be connected directly to telephone service.	The 1816-083 expands the "No Phone Line" telephone intercom interface on Access Plus systems from a single phone line up to 11 phone lines. The system can be further expanded to interface with up to a maximum of 23 phone lines.
Service Connection Options
1800-081 Cellular Voice + Data1,2 654.00	RS-485 Card Readers (ACCESS PLUS ONLY)
1801-080 Cellular Voice Only1,3 434.00	1815-332 DK Prox Reader432.00
1 - Cellular service plan required (provided by DoorKing).	1815-232 ID Tech Reader504.00
2 - Use with 1808 AP model.	1815-233 AWID Reader516.00
3 - Use with 1808 model.	1815-234 HID Reader916.00
Accessories	RS-485 Keypads (ACCESS PLUS ONLY)
1701-080 20-Name Directory 156.00
1702-080 60-Name Directory 228.00	1513-081 Surface Mount542.00
1710-080 200-Name Directory Surface Mount 484.00	1513-082 Flush Mount674.00
1710-081 200-Name Directory Flush Mount 484.00	RS-485 RF Controls (ACCESS PLUS ONLY)
1506-081 Secondary Keypad surface mount 444.00	8053-080 MicroPlus Receiver218.00
1506-091 Secondary Keypad flush mount 576.00
1804-193 External Speaker 202.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52
2600-588 Heater Kit (1802, 1802 AP) 238.00
1812-145 CCTV Color Camera 1022.00
1830-310 TTY Add-on Factory Installed 312.00

1830-315 TTY Add-on Kit ............................................. 348.00

Residential, Commercial

1810

• Hands free full duplex voice communication
• Programmable Directory Codes (1-4 digits)
• 16-digit dialing
• Includes 16 VAC power transformer

285.75 mm 120.65 mm

Surface Mount 1810 / 1810 AP

1810 AP (Access Plus) ONLY

• Control up to 8 entry points
• IP Addressable
• PC Programmable
• 2-Digit directory codes
• 20-digit dialing
• Includes 16 VAC power transformer

Flush Mount 1810 / 1810 AP

Model	Phone Numbers	Directory Names	Entry Codes1	Device Codes2	Relays	Auxiliary Inputs3	Expansion4	PC Programmable5	Temporary Codes	Holiday Schedules
1810	600	N/A	1000	0	2	1	No	No	5	No
1810AP	27	N/A	50	100	2	2	6 Max	Yes	10	Yes

• 1. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit RS-485 device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1810 auxiliary input allows a switch closure to activate relay 2, or can be set to auto-dial a preprogrammed telephone number. 1810 AP uses a standard RS-485 data input.
• 4. Six (6) additional entry points can be controlled via RS-485 card readers, AVID tag readers, RF receivers or digital keypads.
• 5. AP Programming software available for free download at doorking.com.

Residential, Commercial

1810 Telephone Entry Systems	1810 AP (ACCESS PLUS ONLY) Expansion Options
1810-080 Surface Mount 1566.00	2354-010 Conversion Board180.00
1810-084 Flush Mount 1566.00	1815-235 Conversion Board w/Enclosure316.00
1810-095 Surface Mount AP (Access Plus) 2050.00	Converts 26-bit Wiegand to RS-485. Requires 12-16 VDC power.
1810-096 Flush Mount AP (Access Plus) 2050.00
	1812-020 12-VDC, 1A Transformer51.62
1810 Lobby Panels	1200-080 Transformer Box234.00
1810-088 Surface Mount 1216.00
1810-090 Flush Mount 1206.00	1816-083 Intercom Phone Expansion1144.00
Lobby panels can only be used with the 1816 or 1820 telephone intercom system. They cannot be connected directly to telephone service.	The 1816-083 expands the "No Phone Line" telephone intercom interface on Access Plus systems from a single phone line up to 11 phone lines. The system can be further expanded to interface with up to a maximum of 23 phone lines.
Service Connection Options	RS-485 Card Readers (ACCESS PLUS ONLY)
1800-081 Cellular Voice + Data1,2 654.00	1815-332 DK Prox Reader432.00
1801-080 Cellular Voice Only1,3 434.00	1815-232 ID Tech Reader504.00
1 - Cellular service plan required (provided by DoorKing).	1815-233 AWID Reader516.00
2 - Use with 1810 AP model.	1815-234 HID Reader916.00
3 - Use with 1810 model.
	RS-485 Keypads (ACCESS PLUS ONLY)
Accessories	1513-081 Surface Mount542.00
1803-150 Surface Mount Trim Ring Black 236.00	1513-082 Flush Mount674.00
1814-165 Flush Mount Kit Stainless Steel 396.00
1814-152 Surface Mount Ring for Flush Units 236.00	RS-485 RF Controls (ACCESS PLUS ONLY)
1701-080 20-Name Directory 156.00	8053-080 MicroPlus Receiver218.00
1702-080 60-Name Directory 228.00
1710-080 200-Name Directory Surface Mount 484.00
1710-081 200-Name Directory Flush Mount 484.00
1506-081 Secondary Keypad surface mount 444.00
1506-091 Secondary Keypad flush mount 576.00
1720-080 LED Light Kit 444.00
1804-193 External Speaker 202.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52
2600-584 Heater Kit 170.00
1812-145 CCTV Color Camera 1022.00
1807-012 Handset Kit (surface mount only) 422.00

1830-310 TTY Add-on Factory Installed ....................... 312.00 1830-315 TTY Add-on Kit ............................................. 348.00

Residential

1812 (Classic)

• 2-Digit directory codes
• 11-digit dialing
• Includes 24 VAC power transformer
• Call Forward Time Zones
• Do Not Disturb
• Analog Voice Circuit

1812 P (Plus) and 1812 AP (Access Plus)

• 2-Digit directory codes
• 20-digit dialing
• Includes 16 VAC power transformer
• Call Forward Time Zones
• Do Not Disturb Feature
• HD Digital Voice Circuit

Model	Phone Numbers	Directory Names	Entry Codes 1	Device Codes 2	Relays	Auxiliary Inputs 3	Expansion 4	PC Programmable⁵	Temporary Codes	Holiday Schedules
1812	3	N/A	50	0	2	1	No	No	5	No
1812P	27	N/A	0	50	2	0	No	No	10	No
1812AP	27	N/A	0	100	2	2	6 Max	Yes	10	Yes

• 1. Entry codes are four (4) digits on the 1812. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit RS-485 device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used as entry codes and are used on the system keypad.
• 3. 1810 auxiliary input allows a switch closure to activate relay 2, or can be set to auto-dial a preprogrammed telephone number. 1810 AP uses a standard RS-485 data input.
• 4. Six (6) additional entry points can be controlled via RS-485 card readers, AVID tag readers, RF receivers or digital keypads.
• 5. AP Programming software available for free download at doorking.com.

Residential

1812 Classic Systems	1812 AP (ACCESS PLUS ONLY) Expansion Options
1812-081 Surface Mount 1598.00	2354-010 Conversion Board180.00
1812-097 Surface Mount w/Camera 2536.00	1815-235 Conversion Board w/Enclosure316.00
1812-087 Flush Mount 1808.00	Converts 26-bit Wiegand to RS-485. Requires 12-16 VDC power.
1812-088 Wall Mount 1808.00
	1812-020 12-VDC, 1A Transformer51.62
1812 Plus Systems	1200-080 Transformer Box234.00
1812-095 Surface Mount Curved 1930.00
1812-089 Surface Mount 1710.00	1816-083 Intercom Phone Expansion1144.00
1812-098 Surface Mount w/Camera 2646.00	The 1816-083 expands the "No Phone Line" telephone intercom interface on Access Plus systems from a single phone line up to 11
1812-091 Flush Mount 1920.00	phone lines. The system can be further expanded to interface with up
1812-093 Wall Mount 1920.00	to a maximum of 23 phone lines.
	RS-485 Card Readers (ACCESS PLUS ONLY)
1812 Access Plus Systems	1815-332 DK Prox Reader432.00
1812-096 Surface Mount Curved 2040.00	1815-232 ID Tech Reader504.00
1812-090 Surface Mount 1818.00	1815-233 AWID Reader516.00
1812-099 Surface Mount w/Camera 2758.00	1815-234 HID Reader916.00
1812-092 Flush Mount 2028.00
1812-094 Wall Mount 2028.00	RS-485 Keypads (ACCESS PLUS ONLY)
Service Connection Options	1513-081 Surface Mount542.00
1800-081 Cellular Voice + Data1,2 654.00	1513-082 Flush Mount674.00
1801-080 Cellular Voice Only1,3 434.00
1 - Cellular service plan required (provided by DoorKing).	RS-485 RF Controls (ACCESS PLUS ONLY)
2 - Use with 1812 AP model.	8053-080 MicroPlus Receiver218.00
3 - Use with 1812 Classic and Plus models.
Accessories
1812-105 Stainless Steel Surface Mount Housing1 266.00
1506-081 Secondary Keypad surface mount 444.00
1506-091 Secondary Keypad flush mount 576.00
2600-588 Heater Kit (for surface mount units) 238.00
2600-582 Heater Kit (for flush mount units) 52.98
1812-145 CCTV Color Camera 1022.00
1812-074 Conversion Kit2 1776.00
1 – Replaces the black steel housing.

2 - Upgrades older 1812 units to an 1812 Access Plus unit.

1830-310 TTY Add-on Factory Installed ....................... 312.00 1830-315 TTY Add-on Kit ............................................. 348.00

1819 Information Telephone System

Commercial

1819

• Full duplex voice communication
• Stores a single phone number
• 10 and 11 digit dialing
• Call button

Surface Mount

Model	Phone Numbers	Directory	Entry Codes	Device Codes	Relays	Auxiliary Inputs	Expansion4	PC Programmable	Elevator Control	Transaction Buffer
1819	1	N/A	0	0	1	0	0	No	No	No

^1. The 1819 is designed as an information phone only. Pressing the CALL button causes the system to dial to a preprogrammed telephone number.

1819 Information Telephone System

Commercial

1819 Telephone Entry System
1819-080 Surface Mount 1422.00
Service Connection Options
1801-080 Cellular Voice1 434.00
1 – DKS Cellular subscription required.
Accessories
1801-008 Backup Battery 12-Volt .8 Ah 91.52
2600-588 Heater Kit 238.00
1812-145 CCTV Color Camera 1022.00
1802-111 Post Mount Adapter Plate1 166.00

1 - Required if mounting the unit to a goose neck post.

1816 / 1820 Telephone Intercom Systems

Commercial

1816

• Full duplex voice communication
• Interfaces with up to 1200 phone lines
• Tennant C.O. phone service not required
• Programmable directory codes
• Lobby panel / Doorman caller ID
• Built-in call waiting
• Do Not Disturb feature

1820

• Full duplex voice communication
• Interfaces with up to 1200 phone lines
• Tennant C.O. phone service not required
• Programmable directory codes
• Resident Call Down feature
• Resident programmable Call Forward feature
• Resident programmable Do-Not-Disturb Feature

Model	Phone Numbers	Directory Names	Entry Codes1	Caller ID	Relays	Doorman Phone	Resident Call-Down2	Resident Features3	Call Out Numbers	Directory Codes
1816	1200	N/A	1200	Yes	1	Yes	No	No	10	Programmable
1820	1200	N/A	1200	Yes	1	Yes	Yes	Yes	10	Programmable

• 1. Entry codes are four (4) digits. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. The resident call-down feature allows the resident to contact the doorman directly from their telephone.
• 3. Resident programmable features include: Call Waiting; Do-Not-Disturb; Call Forwarding.

1816 / 1820 Telephone Intercom Systems

Commercial

1816 Systems

Step 1: Main Control Cabinet

1816-080 Houses 13 Relay Boards (156 lines)............ 2216.00 1816-082 Houses 5 Relay Boards (60 lines) ............... 1954.00 Main control cabinets do not include relay boards.

Step 2: Relay Boards

interfaced.

1982-010
1 – 13 Boards 712.00
14 – 29 Boards 672.00
30 + Boards 632.00
One (1) relay board is required for every 12 phone lines to be

Step 3: Decoder Board (if required)

1881-010 Decoder Board ............................................. 326.00

Decoder board(s) are required if the system expands beyond five (5) relay boards. One (1) decoder board is required for every eight (8) relay boards beyond the first five (5) relay boards.

Step 4: Auxiliary Cabinet (if required)

1816-081 Auxiliary Cabinet.......................................... 652.00 Holds up to 16 relay boards and two (2) decoder boards.

Step 5: Phone Blocks and Cables

2370-010 RJ71C Phone Block 286.00
One (1) RJ71C is required for each relay board in the system.
1882-042 Connecting Cable 144.00
One (1) connecting cable is required for each relay board in the system.
1882-044 Connecting Cable Special Length 5.20 / ft.
Add cost per foot to 1882-042.

Step 6: Lobby Panels

Select lobby panels from the 1802, 1803, 1808, 1810 series pages.

1820 Systems

Step 1: Main Control Cabinet

1820-080 Houses 9 Relay Boards (108 lines)..............2216.00 1820-082 Houses 4 Relay Boards (48 lines)................1954.00 Main control cabinets do not include relay boards.

Step 2: Line Interface Boards

1884-010....................................................................1542.00 One (1) relay board is required for every 12 phone lines to be interfaced.

Step 3: Power Supply Boards (if required)

1886-010......................................................................260.00 Only required if more than 21 line interface boards are used; then one (1) required for every 21 line interface boards in the system thereafter. 1508-060........................................................................57.80 One (1) required for each 1886-010 power supply board.

Step 4: Auxiliary Cabinet (if required)

1820-081 Large Auxiliary Cabinet.................................652.00 Holds up to 12 line interface boards and one (1) power supply board. 1820-083......................................................................396.00 Holds up to eight (8) line interface boards or seven (7) line interface boards and one (1) power supply board.

Step 5: Phone Blocks and Cables

2370-010 RJ71C Phone Block .......................................286.00 One (1) RJ71C is required for each relay board in the system. 1882-042 Connecting Cable .........................................144.00 One (1) connecting cable is required for each relay board in the system. 1882-044 Connecting Cable Special Length............... 5.20 / ft. Add cost per foot to 1882-042.

Step 6: Lobby Panels

Select lobby panels from the 1802, 1803, 1808, 1810 series pages.

1833 Telephone Entry System - 80 Series

Residential, Commercial

1833

• Full duplex voice communication
• Stores up to 3000 phone numbers
• 255 area codes
• Programmable directory codes
• 10 and 11 digit dialing
• Built-in clock/calendar

Surface Mount

• Three (3) built-in relays
• Two (2) 26-bit wiegand inputs
• Expandable to control up to 24 entrances
• 31 security (permission) levels
• 32 holiday schedules
• True anti-pass back features

Flush Mount

Model	Phone Numbers	Directory	Entry Codes 1	Device Codes 2	Relays	Auxiliary Inputs 3	Expansion 4	PC Programmable⁵	Elevator Control	Transaction Buffer
1833	3000	N/A	3000	8000	3	2	48 Max	Yes	Yes	8000

• Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1833 has two 26-bit wiegand inputs.
• 4. Up to 48 additional entry points can be controlled via card readers, AVID tag readers, RF receivers or digital keypads using tracker expansion boards.
• $5.\; \backslash qquad\; \backslash hbox\{Programming\; and\; transaction\; analysis\; software\; available\; for\; free\; download\; at\; doorking.com\}.$

1833 Telephone Entry Systems – 80 Series

Residential, Commercial

1833 Telephone Entry System	Expansion Options
1833-080 Surface Mount 3406.00	2358-010 Tracker Expansion Board 516.00
1833-084 Flush Mount 3406.00	2351-080 Sgl Box1 (1 board max) 698.00
	2351-084 Sgl Box1 + 1489-080 2.4 GHz RF Module 1142.00
Service Connection Options	2351-085 Sgl Box1 + 1490-080 900 MHz RF Module 1142.00
1800-080 Cellular Voice + Data1 654.00	2351-082 QUAD Box1 Pre-wired (4 boards max) 1206.00
2334-080 VoIP - TCP/IP Control Box3,5 522.00	1 – Includes one (1) 2358-010 board and 16V, 40 VA transformer.
1815-568 VoIP Adapter2,4 128.00
1830-186 Plug & Play3,4 (Plug & Play) 228.00	Expansion Option Wireless Kits
1830-185 Network Adapter (Manual Setup) 228.00	2361-080 Base Board Kit1 2.4 GHz 576.00
1 – DKS Cellular subscription required.	2333-080 Base Board Kit1 900 MHz 620.00
2 – DKS VoIP subscription required.	1489-080 Expansion Board Kit2 2.4 GHZ 304.00
3 – DKS VoIP or Data over IP subscription required.	1470-080 Expansion Board Kit2 900 MHZ 368.00
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required	2364-080 Single channel repeater 2.4 GHz 306.00
for data	2372-080 Dual channel repeater 2.4 GHz 440.00
5 – Combines the 1815-568 and 1830-186 into a common housing with built-in ethernet switch.	2332-080 Dual channel repeater 900 MHz 578.00
	1 - One (1) base board kit is installed in the 1833 controller.
Programming Only Connection Options	2 – Expansion board kit(s) are installed on each 2358 tracker board.
1508-055 RS232 to RS422 Conversion Kit 1264.00
1815-037 USB to RS232 Adapter 180.00	1514-075 2.4 GHz antenna extension kit 60.18
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16	1514-079 900 MHz antenna extension kit 60.18
	8064-046 Coax cable extension 13-ft (3.9m) 49.38
Accessories	1514-004 Disk antenna 2.4 GHz 36.12
	1514-003 Six inch (152mm) antenna 2.4 GHz 54.60
1803-150 Surface Mount Trim Ring Black 236.00	1514-028 Disk antenna 900 MHz 33.60
1814-165 Flush Mount Kit Stainless Steel 396.00	1514-019 Six inch (152mm) antenna 900 MHz 33.60
1814-152 Surface Mount Ring for Flush Units 236.00	1514-130 Wireless range test kit 2.4 GHz 838.00
1701-080 20-Name Directory 156.00
1702-080 60-Name Directory 228.00	Elevator Control
1710-080 Large Directory Surface Mount 484.00	2348-0401 Elevator control board + hardware 2216.00
1710-081 Large Directory Flush Mount 484.00	2348-0802 Lockable enclosure 2868.00
	2348-0813 Lockable enclosure large 3130.00
1506-081 Secondary Keypad surface mount 444.00	1 – Includes board and mounting hardware.
1506-091 Secondary Keypad flush mount 576.00	2 – Includes one (1) 2348-010 board. Room for two (2) boards' total.
1720-080 LED Light Kit 444.00	3 – Includes one (1) 2340-010 board. Room for four (4) boards' total.
1804-193 External Speaker 202.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52
2600-584 Heater Kit 170.00

1812-145 Camera....................................................... 1022.00 1807-012 Handset Kit (surface mount only) ..................... 422.00 1830-315 TTY Add-on kit.............................................. 348.00

1834 Telephone Entry System – 90 Series

Residential, Commercial

1834

• Larger cabinet, one design
• Dual locks, double weather seal
• Space for card reader, IP camera, TCP-IP adapter
• Optional 10 ga. hood, stainless steel or black
• Stainless steel flush kit

• Full duplex voice communication
• 255 area codes
• Programmable directory codes
• 10 and 11 digit dialing
• Eight (8) hold open time zones

Model1	Phone Numbers	Directory	Entry Codes2	Device Codes3	Relays	Auxiliary Inputs4	Expansion	PC Programmable5	Elevator Control	Transaction Buffer
1834	3000	1-Line

Electronic ^{3000 0 2 0} No Yes No ⁸⁰⁰⁰

• 1. Card reader mounting will accommodate the following card readers only: 1815-302 (DK Prox), 1815-380 (HID), 1815-215 (ID-Teck). Note that the 1834 does not have inputs for the card reader. Any card reader installed in the 1834 will have to be connected to another access controller. See 1835 if a built-in card reader is desired.
• 2. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 3. Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 4. 1834 does not have any 26-bit wiegand inputs.
• 5. Programming and transaction analysis software available for free download at doorking.com.

1834 Telephone Entry Systems – 90 Series

Residential, Commercial

1834 Telephone Entry System
1834-090 3118.00
Service Connection Options
1800-080 Cellular Voice + Data1 654.00
2334-080 VoIP - TCP/IP Control Box3,5 522.00
1815-568 VoIP Adapter2,4 128.00
1830-186 Plug & Play3,4 (Plug & Play) 228.00
1830-185 Network Adapter (Manual Setup) 228.00
1 – DKS Cellular subscription required.
2 – DKS VoIP subscription required.
3 – DKS VoIP or Data over IP subscription required.
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required for data
5 – Combines the 1815-568 and 1830-186 into a common housing with built-in ethernet switch.
Programming Only Connection Options
1508-055 RS232 to RS422 Conversion Kit 1264.00
1815-037 USB to RS232 Adapter 180.00
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16
Accessories
1814-180 Stainless Steel Hood (10 ga) 430.00
1814-185 Black Hood (10 ga) 214.00
1814-200 Flush Kit (Rough-in box + trim ring) 606.00
1506-081 Secondary Keypad surface mount 444.00
1506-091 Secondary Keypad flush mount 576.00
1720-080 LED Light Kit 444.00
1804-193 External Speaker 202.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52
2600-584 Heater Kit 170.00 1812-147 Camera 1022.00

1830-315 TTY Add-on kit.............................................. 348.00

1834 Telephone Entry System – 80 Series

Residential, Commercial

1834

• Full duplex voice communication
• Stores up to 3000 phone numbers
• 255 area codes
• Programmable directory codes

• 10 and 11 digit dialing
• Two (2) built-in relays
• Eight (8) hold open time zones
• Built-in clock/calendar

Surface Mount Flush Mount

Model	Phone Numbers	Directory	Entry Codes1	Device Codes2	Relays	Auxiliary Inputs3	Expansion	PC Programmable4	Elevator Control	Transaction Buffer
1834	3000	1-Line Electronic	3000	0	2	0	No	Yes	No	8000

• 1. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1834 does not have any 26-bit wiegand inputs.
• 4. Programming and transaction analysis software available for free download at doorking.com.

1834 Telephone Entry Systems – 80 Series

Residential, Commercial

1834 Telephone Entry System
1834-080 Surface Mount 2852.00
1834-084 Flush Mount 2852.00
1834-089 Wall Mount 3118.00
Service Connection Options
1800-080 Cellular Voice + Data1 654.00
2334-080 VoIP - TCP/IP Control Box3,5 522.00
1815-568 VoIP Adapter2,4 128.00
1830-186 Plug & Play3,4 (Plug & Play) 228.00
1830-185 Network Adapter (Manual Setup) 228.00
1 – DKS Cellular subscription required.
2 – DKS VoIP subscription required.
3 – DKS VoIP or Data over IP subscription required.
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required for data
5 – Combines the 1815-568 and 1830-186 into a common housing with built-in ethernet switch.
Programming Only Connection Options
1508-055 RS232 to RS422 Conversion Kit 1264.00
1815-037 USB to RS232 Adapter 180.00
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16
Accessories
1803-150 Surface Mount Trim Ring Black 236.00
1814-165 Flush Mount Kit Stainless Steel 396.00
1814-152 Surface Mount Ring for Flush Units 236.00
1506-081 Secondary Keypad surface mount 444.00
1506-091 Secondary Keypad flush mount 576.00
1720-080 LED Light Kit 444.00
1804-193 External Speaker 202.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52
2600-584 Heater Kit 170.00
1812-145 Camera (use with flush & wall mount) 1022.00
1812-147 Camera (use with surface mount) 1022.00
1807-012 Handset Kit (surface mount only) 422.00

1830-315 TTY Add-on kit.............................................. 348.00

1835 Telephone Entry System – 90 Series

Residential, Commercial

1835

• Larger cabinet, one design
• Dual locks, double weather seal
• Space for card reader, IP camera, TCP-IP adapter
• Optional 10 ga. hood, stainless steel or black
• Optional stainless steel flush kit

• 31 security (permission) levels
• 32 holiday schedules
• True anti-pass back features
• 10 and 11 digit dialing
• Eight (8) hold open time zones

Model1	Phone Numbers	Directory	Entry Codes2	Device Codes3	Relays	Auxiliary Inputs4	Expansion5	PC Programmable6	Elevator Control	Transaction Buffer
1835	3000	1-Line Electronic	3000	8000	3	2	48 Max	Yes	Yes	8000

• 1. Card reader mounting will accommodate the following card readers only: 1815-302 (DK Prox), 1815-380 (HID), 1815-215 (ID-Teck).
• 2. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 3. Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 4. 1835 has two 26-bit wiegand inputs.
• 5. Up to 48 additional entry points can be controlled via card readers, AVID tag readers, RF receivers or digital keypads using tracker expansion boards.
• 6. Programming and transaction analysis software available for free download at doorking.com.

1835 Telephone Entry Systems – 90 Series

Residential, Commercial

1835 Telephone Entry System	Expansion Options
1835-090 4434.00	2358-010 Tracker Expansion Board 516.00
	2351-080 Sgl Box1 (1 board max) 698.00
Service Connection Options	2351-084 Sgl Box1 + 1489-080 2.4 GHz RF Module 1142.00
1800-080 Cellular Voice + Data1 654.00	2351-085 Sgl Box1 + 1490-080 900 MHz RF Module 1142.00
2334-080 VoIP - TCP/IP Control Box3,5 522.00	2351-082 QUAD Box1 Pre-wired (4 boards max) 1206.00
1815-568 VoIP Adapter2,4 128.00	1 – Includes one (1) 2358-010 board and 16V, 40 VA transformer.
1830-186 Plug & Play3,4 (Plug & Play) 228.00
1830-185 Network Adapter (Manual Setup) 228.00	Expansion Option Wireless Kits
1 – DKS Cellular subscription required.	2361-080 Base Board Kit1 2.4 GHz 576.00
2 – DKS VoIP subscription required.	2333-080 Base Board Kit1 900 MHz 620.00
3 – DKS VoIP or Data over IP subscription required.	1489-080 Expansion Board Kit2 2.4 GHZ 304.00
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required for data	1470-080 Expansion Board Kit2 900 MHZ 368.00
5 – Combines the 1815-568 and 1830-186 into a common housing with	2364-080 Single channel repeater 2.4 GHz 306.00
built-in ethernet switch.	2372-080 Dual channel repeater 2.4 GHz 440.00
	2332-080 Dual channel repeater 900 MHz 578.00
Programming Only Connection Options	1 - One (1) base board kit is installed in the 1833 controller.
1508-055 RS232 to RS422 Conversion Kit 1264.00	2 – Expansion board kit(s) are installed on each 2358 tracker board.
1815-037 USB to RS232 Adapter 180.00
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16	1514-075 2.4 GHz antenna extension kit 60.18
	1514-079 900 MHz antenna extension kit 60.18
Accessories	8064-046 Coax cable extension 13-ft (3.9m) 49.38
1814-180 Stainless Steel Hood (10 ga) 430.00	1514-004 Disk antenna 2.4 GHz 36.12
1814-185 Black Hood (10 ga) 214.00	1514-003 Six inch (152mm) antenna 2.4 GHz 54.60
	1514-028 Disk antenna 900 MHz 33.60
1814-200 Flush Kit (Rough-in box + trim ring) 606.00	1514-019 Six inch (152mm) antenna 900 MHz 33.60
1506-081 Secondary Keypad surface mount 444.00	1514-130 Wireless range test kit 2.4 GHz 838.00
1506-091 Secondary Keypad flush mount 576.00
1720-080 LED Light Kit 444.00	Elevator Control
1804-193 External Speaker 202.00	2348-0401 Elevator control board + hardware 2216.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52	2348-0802 Lockable enclosure 2868.00
	2348-0813 Lockable enclosure large 3130.00
2600-584 Heater Kit 170.00	1 – Includes board and mounting hardware.
1812-145 Camera 1022.00	2 – Includes one (1) 2348-010 board. Room for two (2) boards' total.
1807-012 Handset Kit (surface mount only) 422.00	3 – Includes one (1) 2340-010 board. Room for four (4) boards' total.

1830-315 TTY Add-on kit.............................................. 348.00

1835 Telephone Entry System – 80 Series

Residential, Commercial

1835

• Full duplex voice communication
• Stores up to 3000 phone numbers
• 255 area codes
• Programmable directory codes
• 10 and 11 digit dialing
• Built-in clock/calendar

• Three (3) built-in relays
• Two (2) 26-bit wiegand inputs
• Expandable to control up to 24 entrances

Wall Mount

• 31 security (permission) levels
• 32 holiday schedules
• True anti-pass back features

Model Phone Numbers

Surface Mount Flush Mount

Device Codes2

Expansion4	PC Programmable5	Elevator Control	Transaction Buffer

1.	Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or
	secondary keypad) only.

Electronic ^{3000 8000 3 2} 48 Max Yes Yes ⁸⁰⁰⁰

Relays Auxiliary Inputs3

• 2. Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1835 has two 26-bit wiegand inputs.

^{1835 3000} 1-Line

• 4. Up to 48 additional entry points can be controlled via card readers, AVID tag readers, RF receivers or digital keypads using tracker expansion boards.
• 5. Programming and transaction analysis software available for free download at doorking.com.

Directory Entry

Codes1

1835 Telephone Entry Systems – 80 Series

Residential, Commercial

1835 Telephone Entry System	Expansion Options
1835-080 Surface Mount 4180.00	2358-010 Tracker Expansion Board 516.00
1835-084 Flush Mount 4180.00	2351-080 Sgl Box1 (1 board max) 698.00
1835-089 Wall Mount 4434.00	2351-084 Sgl Box1 + 1489-080 2.4 GHz RF Module 1142.00
	2351-085 Sgl Box1 + 1490-080 900 MHz RF Module 1142.00
Service Connection Options	2351-082 QUAD Box1 Pre-wired (4 boards max) 1206.00
1800-080 Cellular Voice + Data1 654.00	1 – Includes one (1) 2358-010 board and 16V, 40 VA transformer.
2334-080 VoIP - TCP/IP Control Box3,5 522.00
1815-568 VoIP Adapter2,4 128.00	Expansion Option Wireless Kits
1830-186 Plug & Play3,4 (Plug & Play) 228.00	2361-080 Base Board Kit1 2.4 GHz 576.00
1830-185 Network Adapter (Manual Setup) 228.00	2333-080 Base Board Kit1 900 MHz 620.00
1 – DKS Cellular subscription required.	1489-080 Expansion Board Kit2 2.4 GHZ 304.00
2 – DKS VoIP subscription required.	1470-080 Expansion Board Kit2 900 MHZ 368.00
3 – DKS VoIP or Data over IP subscription required.	2364-080 Single channel repeater 2.4 GHz 306.00
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required for data	2372-080 Dual channel repeater 2.4 GHz 440.00
5 – Combines the 1815-568 and 1830-186 into a common housing with	2332-080 Dual channel repeater 900 MHz 578.00
built-in ethernet switch.	1 - One (1) base board kit is installed in the 1833 controller.
	2 – Expansion board kit(s) are installed on each 2358 tracker board.
Programming Only Connection Options
1508-055 RS232 to RS422 Conversion Kit 1264.00	1514-075 2.4 GHz antenna extension kit 60.18
1815-037 USB to RS232 Adapter 180.00	1514-079 900 MHz antenna extension kit 60.18
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16	8064-046 Coax cable extension 13-ft (3.9m) 49.38
	1514-004 Disk antenna 2.4 GHz 36.12
Accessories	1514-003 Six inch (152mm) antenna 2.4 GHz 54.60
1803-150 Surface Mount Trim Ring Black 236.00	1514-028 Disk antenna 900 MHz 33.60
	1514-019 Six inch (152mm) antenna 900 MHz 33.60
1814-165 Flush Mount Kit Stainless Steel 396.00	1514-130 Wireless range test kit 2.4 GHz 838.00
1814-152 Surface Mount Ring for Flush Units 236.00
1506-081 Secondary Keypad surface mount 444.00	Elevator Control
1506-091 Secondary Keypad flush mount 576.00	2348-0401 Elevator control board + hardware 2216.00
1720-080 LED Light Kit 444.00	2348-0802 Lockable enclosure 2868.00
	2348-0813 Lockable enclosure large 3130.00
1804-193 External Speaker 202.00	1 – Includes board and mounting hardware.
1801-008 Backup Battery 12-Volt .8 Ah 91.52	2 – Includes one (1) 2348-010 board. Room for two (2) boards' total.
2600-584 Heater Kit 170.00	3 – Includes one (1) 2340-010 board. Room for four (4) boards' total.
1812-145 Camera (use with flush & wall mount) 1022.00
1812-147 Camera (use with surface mount) 1022.00

1807-012 Handset Kit (surface mount only) ..................... 422.00 1830-315 TTY Add-on kit.............................................. 348.00

1837 Telephone Entry System – 90 Series

Residential, Commercial

1837

• Larger cabinet, one design
• Dual locks, double weather seal
• Space for card reader, IP camera, TCP-IP adapter
• Optional 10 ga. hood, stainless steel or black
• Stainless steel flush kit

• 31 security (permission) levels
• 32 holiday schedules
• True anti-pass back features
• 10 and 11 digit dialing
• Eight (8) hold open time zones

Model1	Phone Numbers	Directory	Entry Codes2	Device Codes3	Relays	Auxiliary Inputs4	Expansion5	PC Programmable6	Elevator Control	Transaction Buffer
1837	3000	8-Line Electronic	3000	8000	3	2	48 Max	Yes	Yes	8000

• 1. Card reader mounting will accommodate the following card readers only: 1815-302 (DK Prox), 1815-380 (HID), 1815-215 (ID-Teck).
• 2. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 3. Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 4. 1837 has two 26-bit wiegand inputs.
• 5. Up to 48 additional entry points can be controlled via card readers, AVID tag readers, RF receivers or digital keypads using tracker expansion boards.
• 6. Programming and transaction analysis software available for free download at doorking.com.

1837 Telephone Entry Systems – 90 Series

Residential, Commercial

1837 Telephone Entry System	Expansion Options
1837-090 6406.00	2358-010 Tracker Expansion Board 516.00
	2351-080 Sgl Box1 (1 board max) 698.00
Service Connection Options	2351-084 Sgl Box1 + 1489-080 2.4 GHz RF Module 1142.00
1800-080 Cellular Voice + Data1 654.00	2351-085 Sgl Box1 + 1490-080 900 MHz RF Module 1142.00
2334-080 VoIP - TCP/IP Control Box3,5 522.00	2351-082 QUAD Box1 Pre-wired (4 boards max) 1206.00
1815-568 VoIP Adapter2,4 128.00	1 – Includes one (1) 2358-010 board and 16V, 40 VA transformer.
1830-186 Plug & Play3,4 (Plug & Play) 228.00
1830-185 Network Adapter (Manual Setup) 228.00	Expansion Option Wireless Kits
1 – DKS Cellular subscription required.	2361-080 Base Board Kit1 2.4 GHz 576.00
2 – DKS VoIP subscription required.	2333-080 Base Board Kit1 900 MHz 620.00
3 – DKS VoIP or Data over IP subscription required.	1489-080 Expansion Board Kit2 2.4 GHZ 304.00
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required for data	1470-080 Expansion Board Kit2 900 MHZ 368.00
5 – Combines the 1815-568 and 1830-186 into a common housing with	2364-080 Single channel repeater 2.4 GHz 306.00
built-in ethernet switch.	2372-080 Dual channel repeater 2.4 GHz 440.00
	2332-080 Dual channel repeater 900 MHz 578.00
Programming Only Connection Options	1 - One (1) base board kit is installed in the 1833 controller.
1508-055 RS232 to RS422 Conversion Kit 1264.00	2 – Expansion board kit(s) are installed on each 2358 tracker board.
1815-037 USB to RS232 Adapter 180.00
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16	1514-075 2.4 GHz antenna extension kit 60.18
	1514-079 900 MHz antenna extension kit 60.18
Accessories	8064-046 Coax cable extension 13-ft (3.9m) 49.38
1814-180 Stainless Steel Hood (10 ga) 430.00	1514-004 Disk antenna 2.4 GHz 36.12
1814-185 Black Hood (10 ga) 214.00	1514-003 Six inch (152mm) antenna 2.4 GHz 54.60
1814-200 Flush Kit (Rough-in box + trim ring) 606.00	1514-028 Disk antenna 900 MHz 33.60
	1514-019 Six inch (152mm) antenna 900 MHz 33.60
1506-081 Secondary Keypad surface mount 444.00	1514-130 Wireless range test kit 2.4 GHz 838.00
1506-091 Secondary Keypad flush mount 576.00
1720-080 LED Light Kit 444.00	Elevator Control
1804-193 External Speaker 202.00	2348-0401 Elevator control board + hardware 2216.00
1801-008 Backup Battery 12-Volt .8 Ah 91.52	2348-0802 Lockable enclosure 2868.00
2600-584 Heater Kit 170.00	2348-0813 Lockable enclosure large 3130.00
1812-145 Camera 1022.00	1 – Includes board and mounting hardware.
1807-012 Handset Kit (surface mount only) 422.00	2 – Includes one (1) 2348-010 board. Room for two (2) boards' total.
	3 – Includes one (1) 2340-010 board. Room for four (4) boards' total.

1830-315 TTY Add-on kit.............................................. 348.00

1837 Telephone Entry System – 80 Series

Residential, Commercial

1837

• Full duplex voice communication
• Stores up to 3000 phone numbers
• 255 area codes
• Programmable directory codes
• 10 and 11 digit dialing
• Built-in clock/calendar

• Three (3) built-in relays
• Two (2) 26-bit wiegand inputs
• Expandable to control up to 24 entrances
• 31 security (permission) levels
• 32 holiday schedules
• True anti-pass back features

Surface Mount Flush Mount

Wall Mount

Model	Phone Numbers	Directory	Entry Codes1	Device Codes2	Relays	Auxiliary Inputs3	Expansion4	PC Programmable5	Elevator Control	Transaction Buffer
1837	3000	8-Line Electronic	3000	8000	3	2	48 Max	Yes	Yes	8000

• 1. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1837 has two 26-bit wiegand inputs.
• 4. Up to 48 additional entry points can be controlled via card readers, AVID tag readers, RF receivers or digital keypads using tracker expansion boards.
• 5. Programming and transaction analysis software available for free download at doorking.com.

1837 Telephone Entry Systems – 80 Series

Residential, Commercial

1837 Telephone Entry System	Expansion Options
1837-080 Surface Mount 6140.00	2358-010 Tracker Expansion Board 516.00
1837-084 Flush Mount 6140.00	2351-080 Sgl Box1 (1 board max) 698.00
1837-089 Wall Mount 6406.00	2351-084 Sgl Box1 + 1489-080 2.4 GHz RF Module 1142.00
	2351-085 Sgl Box1 + 1490-080 900 MHz RF Module 1142.00
Service Connection Options	2351-082 QUAD Box1 Pre-wired (4 boards max) 1206.00
1800-080 Cellular Voice + Data1 654.00	1 – Includes one (1) 2358-010 board and 16V, 40 VA transformer.
2334-080 VoIP - TCP/IP Control Box3,5 522.00
1815-568 VoIP Adapter2,4 128.00	Expansion Option Wireless Kits
1830-186 Plug & Play3,4 (Plug & Play) 228.00	2361-080 Base Board Kit1 2.4 GHz 576.00
1830-185 Network Adapter (Manual Setup) 228.00	2333-080 Base Board Kit1 900 MHz 620.00
1 – DKS Cellular subscription required.	1489-080 Expansion Board Kit2 2.4 GHZ 304.00
2 – DKS VoIP subscription required.	1470-080 Expansion Board Kit2 900 MHZ 368.00
3 – DKS VoIP or Data over IP subscription required.	2364-080 Single channel repeater 2.4 GHz 306.00
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required for data	2372-080 Dual channel repeater 2.4 GHz 440.00
5 – Combines the 1815-568 and 1830-186 into a common housing with	2332-080 Dual channel repeater 900 MHz 578.00
built-in Ethernet switch.	1 - One (1) base board kit is installed in the 1833 controller.
	2 – Expansion board kit(s) are installed on each 2358 tracker board.
Programming Only Connection Options
1508-055 RS232 to RS422 Conversion Kit 1264.00	1514-075 2.4 GHz antenna extension kit 60.18
1815-037 USB to RS232 Adapter 180.00	1514-079 900 MHz antenna extension kit 60.18
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16	8064-046 Coax cable extension 13-ft (3.9m) 49.38
	1514-004 Disk antenna 2.4 GHz 36.12
Accessories	1514-003 Six inch (152mm) antenna 2.4 GHz 54.60
	1514-028 Disk antenna 900 MHz 33.60
1803-150 Surface Mount Trim Ring Black 236.00	1514-019 Six inch (152mm) antenna 900 MHz 33.60
1814-165 Flush Mount Kit Stainless Steel 396.00	1514-130 Wireless range test kit 2.4 GHz 838.00
1814-152 Surface Mount Ring for Flush Units 236.00
1506-081 Secondary Keypad surface mount 444.00	Elevator Control
1506-091 Secondary Keypad flush mount 576.00	2348-0401 Elevator control board + hardware 2216.00
	2348-0802 Lockable enclosure 2868.00
1720-080 LED Light Kit 444.00	2348-0813 Lockable enclosure large 3130.00
1804-193 External Speaker 202.00	1 – Includes board and mounting hardware.
1801-008 Backup Battery 12-Volt .8 Ah 91.52	2 – Includes one (1) 2348-010 board. Room for two (2) boards' total.
2600-584 Heater Kit 170.00	3 – Includes one (1) 2340-010 board. Room for four (4) boards' total.
1812-145 Camera (use with flush & wall mount) 1022.00
1812-147 Camera (use with surface mount) 1022.00

1807-012 Handset Kit (surface mount only) ..................... 422.00 1830-315 TTY Add-on kit.............................................. 348.00

1838 Access Controller

Commercial

1838

• Stores up to 3000 user names
• Programmable directory codes
• Built-in clock/calendar
• Voice communication capability
• Optional plug-in programming display

• Two (2) built-in relays control relays
• Two (2) 26-bit wiegand inputs
• Expandable to control up to 24 entrances
• 31 security (permission) levels
• 32 holiday schedules
• True anti-pass back features

Model	User Names	Directory	Entry Codes1	Device Codes2	Relays	Auxiliary Inputs3	Expansion4	PC Programmable5	Elevator Control	Transaction Buffer
1838	3000	N / A	3000	8000	2	2	48 Max	Yes	Yes	8000

• 1. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit 26-bit wiegand device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1838 has two 26-bit wiegand inputs.
• 4. Up to 48 additional entry points can be controlled via card readers, AVID tag readers, RF receivers or digital keypads using tracker expansion boards.
• 5. Programming and transaction analysis software available for free download at doorking.com.

1838 Access Controller

Commercial

1838 Access Controller	Expansion Options
1838-081 Surface Mount 2098.00	2358-010 Tracker Expansion Board 516.00
	2351-080 Sgl Box1 (1 board max) 698.00
Service Connection Options	2351-084 Sgl Box1 + 1489-080 2.4 GHz RF Module 1142.00
1800-080 Cellular Voice + Data1 654.00	2351-085 Sgl Box1 + 1490-080 900 MHz RF Module 1142.00
2334-080 VoIP - TCP/IP Control Box3,5 522.00	2351-082 QUAD Box1 Pre-wired (4 boards max) 1206.00
1815-568 VoIP Adapter2,4 128.00	1 – Includes one (1) 2358-010 board and 16V, 40 VA transformer.
1830-186 Plug & Play3,4 (Plug & Play) 228.00
1830-185 Network Adapter (Manual Setup) 228.00	Expansion Option Wireless Kits
1 – DKS Cellular subscription required.	2361-080 Base Board Kit1 2.4 GHz 576.00
2 – DKS VoIP subscription required.	2333-080 Base Board Kit1 900 MHz 620.00
3 – DKS VoIP or Data over IP subscription required.	1489-080 Expansion Board Kit2 2.4 GHZ 304.00
4 – 1815-568 is required for voice, 1830-186 or 1830-185 is required	1470-080 Expansion Board Kit2 900 MHZ 368.00
for data 5 – Combines the 1815-568 and 1830-186 into a common housing with	2364-080 Single channel repeater 2.4 GHz 306.00
built-in Ethernet switch.	2372-080 Dual channel repeater 2.4 GHz 440.00
	2332-080 Dual channel repeater 900 MHz 578.00
Programming Only Connection Options	1 - One (1) base board kit is installed in the 1833 controller.
1508-055 RS232 to RS422 Conversion Kit 1264.00	2 – Expansion board kit(s) are installed on each 2358 tracker board.
1815-037 USB to RS232 Adapter 180.00
1818-040 RS232 Connecting Cable 6-ft (1.8m) 48.16	1514-075 2.4 GHz antenna extension kit 60.18
	1514-079 900 MHz antenna extension kit 60.18
Call Stations1, 2	8064-046 Coax cable extension 13-ft (3.9m) 49.38
	1514-004 Disk antenna 2.4 GHz 36.12
1838-120 Call station w/keypad 868.00	1514-003 Six inch (152mm) antenna 2.4 GHz 54.60
1838-121 Call Station w/ID Tech card reader 700.00	1514-028 Disk antenna 900 MHz 33.60
1838-122 Call station w/AWID card reader 686.00	1514-019 Six inch (152mm) antenna 900 MHz 33.60
1838-123 Call station w/HID card reader 926.00	1514-130 Wireless range test kit 2.4 GHz 838.00
1838-124 Call station w/DK Prox card reader 602.00
1494-010 Microphone combiner3 72.24	Elevator Control
1 – Provides voice communication via telephone communication. 2 – Requires active telephone line.	2348-0401 Elevator control board + hardware 2216.00
3 – Use if two call stations will share the same telephone line.	2348-0802 Lockable enclosure 2868.00
	2348-0813 Lockable enclosure large 3130.00
	1 – Includes board and mounting hardware.
Accessories	2 – Includes one (1) 2348-010 board. Room for two (2) boards' total.
1838-220 1 x 20 LCD Programming Display 868.00	3 – Includes one (1) 2340-010 board. Room for four (4) boards' total.
1506-081 Secondary Keypad surface mount 444.00

1506-091 Secondary Keypad flush mount.................... 576.00 1801-008 Backup Battery 12-Volt .8 Ah ......................... 91.52

1838 Access Plus Controller

Residential, Commercial

1838 AP

• Stores up to 100 user names
• Programmable directory codes
• Built-in clock/calendar
• Voice communication capability
• Optional plug-in programming display
• 12.25 4.25 311.15 mm 107.95 mm 10.25 260.35 mm

• Control up to 8 entry points
• IP Addressable
• PC Programmable
• 2-Digit directory codes
• 20-digit dialing
• Includes 16 VAC power transformer

Model	Phone Numbers	Directory Names	Entry Codes1	Device Codes2	Relays	Auxiliary Inputs3	Expansion4	PC Programmable5	Temporary Codes	Holiday Schedules
1838 AP	27	N/A	50	100	2	2	6 Max	Yes	10	Yes

• 1. Entry codes are four (4) digits only and are not the same as device codes. Entry codes grant access when entered on the entry system keypad (or secondary keypad) only.
• 2. Device codes refer to any five (5) digit RS-485 device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad.
• 3. 1838 AP uses a standard RS-485 data input.
• 4. Six (6) additional entry points can be controlled via RS-485 card readers, AVID tag readers, RF receivers or digital keypads.
• 5. AP Programming software available for free download at doorking.com.

1838 Access Plus Controller

Residential, Commercial

8053-080 MicroPlus Receiver....................................... 218.00

1838 Access Plus Controller	1838 AP (ACCESS PLUS ONLY) Expansion Options
1838-095 Surface Mount 1866.00	2354-010 Conversion Board 180.00
	1815-235 Conversion Board w/Enclosure 316.00
Service Connection Options	Converts 26-bit Wiegand to RS-485. Requires 12-16 VDC power.
1800-081 Cellular Voice + Data1 654.00 1815-568 VoIP Adapter2 128.00 1 – DKS Cellular subscription required.	1812-020 12-VDC, 1A Transformer 51.62 1200-080 Transformer Box 234.00
2 – DKS VoIP subscription required.	1816-083 Intercom Phone Expansion 1144.00
	The 1816-083 expands the "No Phone Line" telephone intercom interface on Access Plus systems from a single phone line up to 11 phone lines. The system can be further expanded to interface with up to a maximum of 23 phone lines.
	RS-485 Card Readers (ACCESS PLUS ONLY)1815-332 DK Prox Reader 412.00
	1815-232 ID Tech Reader 504.00
	1815-233 AWID Reader 516.00
	1815-234 HID Reader 916.00
	RS-485 Keypads (ACCESS PLUS ONLY)
	1513-081 Surface Mount 542.00
	1513-082 Flush Mount 674.00
	RS-485 RF Controls (ACCESS PLUS ONLY)

Connection Options

Cellular, TCP/IP Network, VoIP

Cellular1
1800-080 Voice + Data654.00
1800-081 Voice + Data (AP models only)654.00
1801-080 Voice only434.00
1. Cellular subscription required.
VoIP – TCP/IP Control Box1,2
2334-080 VoIP – TCP/IP Control Box522.00
1 – DKS VoIP or Data over IP subscription required.
2 – Combines the 1815-568 and 1830-186 into a common housing with built-in ethernet switch.

TCP/IP Network Adapters
1830-185 (Manual setup)228.00
1830-1861 (Plug & Play)228.00
1. DKS VoIP or Data over IP subscription required.
VoIP Adapter
1815-5681128.00
1. DKS VoIP subscription required.

Model 2348

Elevator Control

Elevator Control Board

2348-040 ....................................................................2216.00

• Includes mounting hardware.

Enclosures1

2348-080 ....................................................................2868.00

• Maximum two (2) 2348 boards.

2348-081 ....................................................................3130.00

• Maximum four (4) 2348 boards.

1. Includes one (1) 2348 control board and power transformer.

Expansion Boards

Tracker Expansion Boards

Tracker Expansion Board

2358-010...................................................................... 516.00

Enclosures

2351-080...................................................................... 698.00

• Includes one (1) 2358-010 board and 16V, 20 VA transformer.

2351-084.................................................................... 1142.00

• Includes one (1) 2358-010 board, 1489-080 RF Module, 2.4 GHz and 16V, 20 VA transformer.

2351-085.................................................................... 1018.00

• Includes one (1) 2358-010 board, 1470-080 RF Module, 900 MHz and 16V, 20 VA transformer.

2351-082.................................................................... 1206.00

• Includes one (1) 2358-010 board and 16V, 40 VA transformer.
• Can hold a maximum four (4) 2358-010 boards.
• Pre-wired.

Wireless Kits

Tracker Expansion Board Wireless Kits

Baseboard Kits
2361-080 2.4 GHz576.00
2333-080 900 MHz620.00
• Plugs into the 1830 series control board.
• Includes antenna kit and vandal resistant disk antenna.
Expansion Board Kits
1489-080 2.4 GHz304.00
1470-080 900 MHz368.00

• Plugs into the 2358 expansion board.
• Includes 6-inch and vandal resistant disk antenna.

Single Channel Repeater

2364-080 2.4 GHz.........................................................306.00

• Extends the range when a single 1489 kit is in use.

Dual Channel Repeaters

2372-080 2.4 GHz440.00
2332-080 900 MHz578.00

• Extends the range when multiple 1470 or 1489 kits are in use.

Accessories

1514-075 Antenna Kit 2.4 GHz....................................... 60.18 1514-079 900 MHz......................................................... 60.18

• Includes 6-inch antenna, mounting bracket and 13-feet cable.

8064-046 Extension Cable.............................................. 49.38

• Use with 1514-075 and 1514-079.

Antennas

1514-003 6-inch Antenna 2.4 GHz 54.60
1514-004 Disk Antenna 2.4 GHz 36.12
1514-019 6-inch Antenna 900 MHz 33.60
1514-028 Disk Antenna 900 MHz 33.60

Field Range Test Kit 2.4 GHz only

1514-130...................................................................... 838.00

• Includes a simulated Baseboard Kit, simulated Expansion Board Kit and 1514-075 Antenna Kit.
• Use to verify a good wireless connection between base and remote stations.

Mounting Kits

Telephone Entry System Mounting Kits

Use with 1803, 1810 and 1833, 1834, 1835, 1837 - 80 Series only

Use with 1834, 1835, 1837 - 90 Series only

80 Series Only

Surface Mount Trim Ring - Black

1803-150 ......................................................................236.00

• Use with surface mount 1803, 1810, 1833, 1834, 1835 and 1837 80 Series only.

Flush Kit Stainless Steel

1814-165 ......................................................................396.00

• Use with flush mount 1803, 1810, 1833, 1834, 1835 and 1837 80 Series only.

Surface Mount Adapter for Flush Units

1814-152 ......................................................................236.00

• Allows a flush mount unit to be mounted directly to a flat surface. Indoor use only.
• Use with flush mount 1803, 1810, 1833, 1834, 1835 and 1837 80 Series only.

90 Series Only

Hood – Stainless Steel

1814-180...................................................................... 430.00

• Use with 1834-090, 1835-090 and 1837-090 systems only.

Hood – Black

1814-185...................................................................... 214.00

• Use with 1834-090, 1835-090 and 1837-090 systems only.

Flush Kit Stainless Steel (rough-in box + trim ring)

1814-200...................................................................... 606.00

• Use with 1834-090, 1835-090 and 1837-090 systems only.

Model 1720

Telephone Entry System LED Light Kit

Model 1701 / 1702 / 1710

Add-On Directories

Add-On Directories – Non-Lighted

1701-080 ......................................................................156.00

• 20 name capacity.

1702-080 ......................................................................228.00

• 60 name capacity.

Add-On Directories – LED Lighted

1710-080 Surface Mount..............................................484.00 1710-081 Flush Mount .................................................484.00

• These directories use 8-1/2 x 11 sheet paper. Make your own directory with a word processor program.

Lighted Directory Mounting Accessories

1803-150 Surface Mount recess kit.............................. 236.00

• Use with the 1710-080 directory.

1814-165 Flush Mount kit............................................ 396.00

• Use with the 1710-081 directory.

General Purpose Utility Enclosures

Telephone Entry System Accessories

General purpose enclosures have no power receptacles or terminal strips, carry no warranty and are not listed.

0102-080 Small lockable metal enclosure136.00
0102-081 Large lockable metal enclosure378.00
0102-082 Medium lockable metal enclosure184.00
0102-083 Small lockable plastic enclosure164.00
0102-084 Medium lockable plastic enclosure184.00

Part Number	Height	Width	Depth	Material	Lockable
0102-080	9.00 (229mm)	6.00 (152mm)	3.63 (92mm)	Metal	Yes
0102-081	24.38 (619mm)	14.25 (362mm)	4.00 (102mm)	Metal	Yes
0102-082	10.25 (260mm)	12.25 (311mm)	4.25 (108mm)	Metal	Yes
0102-083	9.88 (251mm)	6.63 (168mm)	4.00 (102mm)	Plastic	Yes
0102-084	12.25 (311mm)	11.50 (292mm)	6.00 (152mm)	Plastic	Yes

Accessories

Handset Kits, Isolation Transformers, Miscellaneous, CCTV Camera Kits

Handset Conversion Kit
1807-012422.00
Handset, adapter, hanger and speaker cover
Replacement Handset
1807-006328.00

Isolation Transformers
1830-14077.04
Use with 1810, 1833, 1838
1808, 1810, 1812 Access Plus Systems
1830-14277.04
Use with 1834, 1835, 1837

Miscellaneous
1506-081 Secondary Keypad surface mount444.00
1506-091 Secondary Keypad flush mount576.00
1801-008 Backup Battery 12-Volt .8 AH91.52
1804-193 External Speaker202.00
Use in high noise areas
2600-584 Heater Kit170.00
2600-588 Heater Kit238.00
2600-582 LCD Heater Kit52.98
1816-070 Line Sense Relay52.98
2600-657 Replacement Key 161207.60

Key Lock Sets (Lock + 2 Keys)
4001-035 Lock #16120 (standard key lock) 21.24
4001-038 Lock #16121 21.24
4001-039 Lock #16122 21.24
4001-041 Lock #16123 21.24
4001-042 Lock #16124 21.24
4001-043 Lock #16125 21.24
4001-044 Lock #16126 21.24
4001-045 Lock #16127 21.24
4001-046 Lock #16128 21.24
4001-047 Lock #16129 21.24
4001-048 Lock #16130 21.24

CCTV Camera Kit – High Resolution
1812-1451022.00
High resolution color camera kit (camera, mounting bracket, wire harness, power supply)
Use this camera with the following models:
1504-080, 1504-081, 1504-082, 1504-083, 1504-084, 1504-085, 1504-086, 1504-090, 1504-091, 1504-120, 1504-121, 1504-122, 1504-123, 1504-124
1802-082, 1802-089, 1802-090, 1802-091, 1802-092
1803-080, 1803-084, 1803-090, 1803-092
1808-081, 1808-082, 1808-083, 1808-084, 1808-085
1810-084, 1810-090, 1810-096
1812-083, 1812-084, 1812-088, 1812-093, 1812-094
1819-080
1833-080, 1833-084
1834-084, 1834-089
1835-084, 1835-089
1837-080, 1837-084, 1837-089
1838-120, 1838-021, 1838-122, 1838-123, 1838-124
CCTV Camera Kit – High Resolution
1812-1471022.00
High resolution color camera kit (camera, mounting bracket, wire harness, power supply)
Use this camera with the following models:
1810-080, 1810-088, 1810-095
1812-076, 1812-077, 1812-078, 1812-079, 1812-081, 1812-085, 1812-086, 1812-087, 1812-089, 1812-090, 1812-091, 1812-092, 1812-095, 1812-096, 1812-097
1815-247, 1815-248, 1815-249, 1815-250, 1815-251
1834-080, 1834-090
1835-080, 1835-090
1837-090
1838-228
Video Adapter 1812-039506.00

Replacement Components

Circuit Boards 1862-010 ....................................................................1012.00 Use with 1802, 1802-EPD, 1803, 1808, 1810, 1819 1863-010 ......................................................................722.00 Use with all "P" series lobby panels 1871-010 ....................................................................1474.00 Use with 1812 Classic only 1971-010 ....................................................................1474.00 Use with 1812 Plus only 1885-010 ....................................................................1806.00 Use with 1816 and 1820 only 1833-010 ....................................................................1806.00 Use with 1833 only 1834-010 ....................................................................1926.00 Use with 1834-080 and 1834-084 only 1834-009 ....................................................................1926.00 Use with 1834-089 and 1834-090 only 1835-010 ....................................................................2216.00 Use with 1835-080 and 1835-084 only 1835-009 ....................................................................2216.00 Use with 1835-089 and 1835-090 only 1837-010 ....................................................................1806.00 Use with 1837 only 1838-010 ....................................................................1832.00 Use with 1838 only 1970-010 ....................................................................1714.00 Use with 1802 AP, 1808 AP, 1810 AP, 1812 AP, 1838 AP 2354-010 ......................................................................180.00 RS-485 to Wiegand interface board

Electronic Components

Keypads
	1895-016 140.00
Keypad with letters
	1895-017 140.00
Keypad no letters
	1895-019 132.00
Keypad 10-pin
	1804-038 25.28
Ribbon cable for 1895-016 & 1895-017
	1804-155 156.00
Keypad (no letters) & ribbon cable
	1804-156 156.00
Keypad (with letters) & ribbon cable
Keypad, green back lighted	1895-032 150.00
	1895-060 328.00 Lighted keypad-green, A-Z-CALL button retrofit kit
Lighted keypad-green, retrofit kit	1804-158 158.00

LCD Displays 1891-010 Single-Line 20 Character .............................. 842.00 Use with 1834, 1835 1896-012 Eight-Line 20 Character................................ 842.00 Use with 1837 only 1890-010 Single-Line 8 Character ................................ 278.00 Use with 1802, 1803 and 1810 1902-010 Single-Line 16 Character .............................. 402.00 Use with 1802 EPD only

LED Light Kits
1804-700 62.62
Use with 1810 surface mount
1804-701 24.08
Use with 1802
1804-702 43.34
Use with 1808, 1834, 1835 surface mount
1804-703 43.34
Use with 1710 directory
1804-704 24.08
Use with 1812
1804-707 43.34
Use with 1810 flush mount

Blank Page

Section A3

This Price Schedule is effective January 7, 2019. Access Control Devices

Date	Page	Comment
1-2-19	All	January, 2019 Price Schedule update.

Table of Contents

Card Readers
DK Prox Proximity Card Readers	4
HID Card Readers	6
AWID Card Readers	8
ID-Teck Card Readers	10
Keypads
Digital Key Pads	12
RF Controls
MicroPlus RF Controls	14
MicroClik RF Controls	16
Miscellaneous Controls
Key Switches	18
Exit Push Buttons	19
Postal & Fire Department Lock Boxes	20
Door and Gate Locks
1200 Lb. Magnetic Door Locks	22
600 Lb. Magnetic Door Locks	23
300 Lb. Mini-locks, 2000 Lb. Shear Lock	24
1200 Lb, 600 Lb. Magnetic gate Locks	25
Electric Dead-bolts and Door Strikes	26
Magnetic Door Backup Power Supplies	27

DK Prox Card Readers

26-Bit Wiegand Output
1815-300 Up to 3-inch range138.00
1815-301 Up to 4-inch range138.00
1815-302 Up to 2-inch range138.00
1815-330 (1815-300 reader w/enclosure)258.00
1815-333 (1815-330 w/expansion board)836.00
1815-350 Up to 25-feet range2948.00
1504-124 (1815-300 w/intercom substation)614.00
RS-485 Output (ACCESS PLUS ONLY)
1815-332 Up to 3-inch range432.00
1815-235 (2354-010 w/enclosure)316.00
2354-010 (26-Bit Wiegand to RS-485 converter)180.00

Relay Output (Stand Alone)
1520-084 782.00
1520-081 Controller only 722.00
• 1520 reader/controller can store up to 1000 card codes
• 3600 event history buffer
• Built-in programming keypad
• Timed anti-pass back, hold open time zones
1524-080 (1524-331 w/enclosure) 470.00
1524-331 348.00
1815-340 Replacement Programmer 57.34
• 1524 reader can store up to 1000 card codes
• Use 1815-340 hand held programmer to add / delete individual cards or blocks of cards

Page Rev 1/2/19

DK Prox Cards

These cards are factory pre-coded. Card numbers may, or may not be, in numerical sequence.

1508-120 Clamshell Cards

50-100 5.06
150-500 4.66
550-950 4.26
1000+ 3.86
1508-121 ISO Graphics Cards
50-100 7.00
150-500 6.60
550-950 6.20
1000+ 5.80
1508-123 Key Tags
50-100 7.48
150-500 7.08
550-950 6.68
1000+ 6.28

UHF DK Prox Cards

These cards are factory pre-coded. Card numbers may, or may not be, in numerical sequence.

1508-191 ISO Card UHF Only 12.02
1508-198 ISO Card UHF/DK Prox Dual Tech 14.20
1815-318 Windshield Holder 4.36
1815-319 Rearview Mirror Holder 4.36

1508-191 can only be used with 1815-350 card reader. 1508-198 dual technology card can be used with both 1815-350 and all other DK Prox card readers.

DKProx Card Identifier for PC

1815-640...................................................................... 126.00

This stand-alone accessory connects to a PC via a USB cable and will read the card code when presented to the identifier. This is useful for cards that have no numbers printed on them or the card number has worn off.

Requires software, for free download go to:

http://www.doorking.com/accessories/access-control accessories/dkprox-card-identifier

Cards are sold in blocks of 50 only. Special Order cards are sold in blocks of 100 only.

DK Prox Cards - Special Order1

These cards include sequential coding, specific card numbers and specific start / stop numbering sequences.

1508-127 Clamshell Cards

50-100 7.48
150-500 7.08
550-950 6.68
1000+ 6.28
1508-128 ISO Graphics Cards
50-100 9.40
150-500 9.00
550-950 8.60
1000+ 8.20
1508-129 Key Tags
50-100 9.90
150-500 9.50
550-950 9.10

UHF DK Prox Cards – Special Order1

These cards include sequential coding, specific card numbers and specific start / stop numbering sequences.

1000+ ............................................................................... 8.70

1508-190 ISO Card UHF Only 14.20
1508-197 ISO Card UHF/DK Prox Dual Tech 16.38
1815-318 Windshield Holder 4.36
1815-319 Rearview Mirror Holder 4.36

1508-195 Headlight Tag

1-50 13.10
51-150 12.30
151-500 11.50
501-999 10.70
1000+ 9.90

1508-199 License Plate Tag

1-50 13.10
51-150 12.30
151-500 11.50
501-999 10.70
1000+ 9.90

1508-191, 1508-195 and 1508-199 can only be used with 1815-350 card reader. 1508-198 dual technology cards can be used with both 1815-350 and all other DK Prox card readers.

Note 1: Special orders cannot be returned for credit.

HID Proximity Card Readers

	26-Bit Wiegand Output

1815-380 (ProxPoint Plus) Up to 3-inch range326.00
1815-381 (MiniProx) Up to 5-inch range638.00
1815-382 (ThinLine) Up to 5-inch range612.00
1815-390 (1815-382 reader w/enclosure)704.00
1815-392 (1815-390 w/expansion board)1222.00
1504-123 (1815-382 w/intercom substation)796.00
1815-395 (MaxiProx) Up to 6-feet range1926.00

• Use 1508-014 Active Tags with 1815-395

RS-485 Output (ACCESS PLUS ONLY)

1815-234 (ThinLine) Up to 5-inch range916.00
1815-235 (2354-010 w/enclosure)316.00
2354-010 (26-Bit Wiegand to RS-485 converter)180.00

Relay Output (Stand Alone)

1520-082.................................................................... 1058.00 1520-081 Controller only ............................................. 722.00

• 1520 reader/controller can store up to 1000 card codes
• 3600 event history buffer
• Built-in programming keypad
• Timed anti-pass back, hold open time zones

Page Rev 1/2/19

HID Prox Cards

Cards are sold in blocks of 50 only.

Special order cards are sold in blocks of 100 only.

HID Prox Cards

These cards are factory pre-coded. Card numbers may, or may not be, in numerical sequence.

1508-018 ProxCard Clamshell Cards

50-100	11.82
1508-017 Prox ISO Graphics Cards
1000+	6.28
550-950	6.68
150-500	7.08
50-100	7.48

150-500.................................

1508-016 ProxKey Key Tags
50-100	12.30
150-500	11.90
550-950	11.50
1000+	11.10

HID Prox Cards - Special Order¹

These cards include sequential coding, specific card numbers and specific start / stop numbering sequences.

1508-143 ProxCard Clamshell Cards

50-100	9.90
150-500	9.50
550-950	9.10
1000+	8 70

1508-144 Prox ISO Graphics Cards

50-100	14.22
150-500	13.82
550-950	13.42
1000+	13.02

1508-145 ProxKey Key Tags

50-100
150-500.	14.30
550-950.
1000+	13 50

1508-014 ProxPass Active Tags (use with 1815-395 only)

1-9	95.86
10-30	92.86
40-100	89.96
110-490	86.96
500+	83.96

Note 1: Special orders cannot be returned for credit.

AWID Proximity Card Readers

26-Bit Wiegand Output

1815-280 (SR 2400) Up to 4-inch range218.00
1815-281 (SP 6820) Up to 8-inch range390.00
1815-282 (MM 6800) Up to 2-inch range390.00
1815-290 (1815-280 reader w/enclosure)326.00
1815-292 (1815-290 w/expansion board)842.00
1815-283 (MR 1824) Up to 24 inch range782.00
1815-284 (MR 1824 MC) Up to 16 inch range964.00
1504-122 (1815-281 w/intercom substation)694.00

RS-485 Output (ACCESS PLUS ONLY)

1815-233 Up to 3-inch range 516.00
1815-235 (2354-010 w/enclosure) 316.00
2354-010 (26-Bit Wiegand to RS-485 converter) 180.00

Relay Output (Stand Alone)

1520-080 868.00
1520-081 Controller only 722.00

• 1520 reader/controller can store up to 1000 card codes
• 3600 event history buffer
• Built-in programming keypad
• Timed anti-pass back, hold open time zones

Page Rev 1/2/19

AWID Prox Cards

AWID Prox Cards These cards are factory pre-coded. Card numbers may, or may not be, in numerical sequence.

1508-020 Prox-Linc Clamshell Cards
50-100 6.26
150-500 5.86
550-950 5.46
1000+ 5.06
1508-021 Prox-Linc GR ISO Graphics Cards
50-100 9.52
150-500 9.12
550-950 8.72
1000+ 8.32
1508-022 Prox-Linc KT Key Tags
50-100 10.12
150-500 9.72
550-950 9.32
1000+ 8.92

Cards are sold in blocks of 50 only. Special order cards are sold in blocks of 100 only.

AWID Prox Cards - Special Order1 (minimum 100) These cards include sequential coding, specific card numbers and specific start / stop numbering sequences.

1508-132 Prox-Linc Clamshell Cards

50-100 8.68
150-500 8.28
550-950 7.88
1000+ 7.48
1508-133 Prox-Linc GR ISO Graphics Cards
50-100 11.92
150-500 11.52
550-950 11.12
1000+ 10.72
1508-134 Prox-Linc KT Key Tags
50-100 12.52
150-500 12.12
550-950 11.72

Note 1: Special orders cannot be returned for credit.

1000+ ............................................................................. 11.32

ID-Teck Proximity Card Readers

1815-215 (RF Tiny) Up to 3-inch range228.00
1815-216 (RF 10) Up to 3-inch range228.00
1815-217 (RF 20) Up to 3-inch range228.00
1815-218 (RF 30) Up to 12 inch range626.00
1815-230 (1815-216 reader w/enclosure)322.00
1815-231 (1815-230 w/expansion board)826.00
1504-121 (1815-217 w/intercom substation)700.00

RS-485 Output (ACCESS PLUS ONLY)

1815-232 Up to 3-inch range504.00
1815-235 (2354-010 w/enclosure)316.00
2354-010 (26-Bit Wiegand to RS-485 converter)180.00

Relay Output (Stand Alone)

1520-081 Controller only ............................................. 722.00

• 1520 reader/controller can store up to 1000 card codes
• 3600 event history buffer
• Built-in programming keypad
• Timed anti-pass back, hold open time zones

Page Rev 1/2/19

ID-Teck Prox Cards

Note: cards will work with the following ID-Teck Prox readers only: 1815-215, 1815-216, 1815-217, 1815-218, 1815-230, 1815-231, 1504-121

ID-Teck Prox Cards These cards are factory pre-coded. Card numbers may, or may not be, in numerical sequence. 1508-110 RF 170 Clamshell Cards 50-100.............................................................................. 7.32 150-500............................................................................ 6.92 550-950............................................................................ 6.52 1000+............................................................................... 6.12 1508-111 RF 80 ISO Graphics Cards 50-100............................................................................ 11.82 150-500.......................................................................... 11.42 550-950.......................................................................... 11.02 1000+............................................................................. 10.62 1508-112 RF 50 Key Tags 50-100............................................................................ 12.52 150-500.......................................................................... 12.12 550-950.......................................................................... 11.72 1000+............................................................................. 11.32

Cards are sold in blocks of 50 only. Special order cards are sold in blocks of 100 only.

ID-Teck Prox Cards - Special Order1 These cards include sequential coding, specific card numbers and specific start / stop numbering sequences.
1508-136 RF 170 Clamshell Cards
50-100 9.74
150-500 9.34
550-950 8.94
1000+ 8.54
1508-137 RF 80 ISO Graphics Cards
50-100 14.22
150-500 13.82
550-950 13.42
1000+ 13.02
1508-138 RF 50 Key Tags
50-100 14.94
150-500 14.54
550-950 14.14
1000+ 13.74
Note 1: Special orders cannot be returned for credit.

Keypads

Page Rev 1/2/19

Keypads

	26-Bit Wiegand Output

These keypads must be connected to a 26-bit wiegand controller, such as the DK 1830 Series. They are not standalone devices.

1815-053 (Silver finish) 890.00
1815-054 (Black finish) 890.00

• Vandal resistant, piezoelectric, 5-12 VDC.
• Mounts on single-gang electric box.

1815-059 Surface Mount ............................................. 412.00

• NFC programming with DK Manager app (free from Google Play store), Android only.
• Low power solar mode.

1815-051 Surface Mount 532.00
1815-052 Flush Mount 662.00
1504-120 Surface Mount w/intercom substation 808.00
1815-247 Surface Mount 1034.00
• Keypad with ID Tech (1815-216) card reader.
1815-248 Surface Mount 1072.00
• Keypad with AWID (1815-281) card reader.
1815-249 Surface Mount 1192.00
• Keypad with HID (1815-382) card reader.

• Keypad with DK Prox (1815-300) card reader.

RS-485 Output (ACCESS PLUS ONLY)

These keypads must be connected to a RS-485 controller, such as the DK Access Plus Series. They are not stand-alone devices.

1815-250 Surface Mount ............................................. 990.00

1513-081 Surface Mount 542.00
1513-082 Flush Mount 674.00
1815-235 (2354-010 w/enclosure) 316.00
2354-010 (26-Bit Wiegand to RS-485 converter) 180.00

Relay Output (Stand Alone)

These keypads use a dry relay(s) contact and are designed to be used as a stand-alone device.

1506-086 Surface Mount 662.00
1506-096 Flush Mount 796.00
1504-086 Surface Mount w/intercom substation 820.00
1504-096 Flush Mount w/intercom substation 1012.00

• 2 Form C dry contact relays.
• 1000 four (4) digit entry codes.
• 6 five (5) digit entry codes.
• Hold open codes.
• Time zone inputs.

1515-080 Surface Mount 390.00
1515-081 Surface Mount 520.00
1515-082 Flush Mount 642.00
1504-081 Surface Mount w/intercom substation 668.00
1504-091 Flush Mount w/intercom substation 732.00

• 1 Form C dry contact relay.
• 400 four (4) or five (5) digit entry codes.
• Hold open codes.
• NFC programming with DK Manager app (free from Google Play store), Android only.
• Low power solar mode.

Secondary Keypad

These keypads can only be used with DK telephone entry systems.

1506-081 Surface Mount 444.00
1506-091 Flush Mount 576.00

MicroPLUS RF Controls

26-Bit Wiegand Output

8040-080 ......................................................................194.00

• 5300 Transmitter codes.
• 26, 30 or 31-bit wiegand format.

8040-090 ......................................................................194.00

• 5300 Transmitter codes.
• 26, 30 or 31-bit wiegand format.
• Compatible with Elite Series1 DT-418 transmitters. 1. Elite Series is a registered trademark of The Chamberlain Group, Inc.

RS-485 Output (ACCESS PLUS ONLY)

8053-080 ......................................................................218.00

• 5300 Transmitter codes.

Relay Output (Stand Alone)

8040-080 100 Transmitter codes................................. 194.00

• Program via the "learn" method.
• Individual codes cannot be deleted.

8054-081 50 Transmitter codes 390.00
8054-082 100 Transmitter codes 458.00
8054-083 250 Transmitter codes 520.00
8054-084 500 Transmitter codes 584.00
8054-085 1000 Transmitter codes 652.00
8054-086 1250 Transmitter codes 714.00

• Built-in time clock, 10 programmable time zones.
• 2300 event history buffer.
• Can be connected to a serial printer.

Receiver Accessories

8057-110 Lockable outdoor enclosure 116.00
1514-073 Coax Antenna kit 57.80
1514-072 High Gain antenna 318 MHz 208.00
8052-080 Antenna Amplifier 318 MHz 240.00

Page Rev 1/2/19

MicroPlus Transmitters / ProxMitters (Transmitter w/proximity card reader built-in)

IMPORTANT! The prices shown are for <u>block-coded</u> transmitters ordered in multiples of 10 only. Add $3.00 per transmitter for any order specifying transmitter numbering sequence or facility codes.

8069-080 1 Button
10-30	)
40-100	)
110+	1
8070-080 2 Button
10-30	)
40-100	)
110+	)
8071-080 3 Button
10-30	)
40-100	)
110+	)

8069-087 1 Button w/DK Prox Tag
10-30
40-100
110+41.26
8070-087 2 Button w/DK Prox tag
10-30
40-100
110+43.36
8071-087 3 Button w/DK Prox Tag
10-3051.46
40-100
110+45.46

8069-082 1 Button w/AWID Tag
10-30
40-100
110+41.26
8070-082 2 Button w/AWID Tag
10-30
40-100
110+
8071-082 3 Button w/AWID Tag
10-30
40-100
110+

8069-084 1 Button w/HID Tag
10-3047.26
40-10045.26
110+41.26
8070-084 2 Button w/HID Tag
10-30
40-10047.36
110+43.36
8071-084 3 Button w/HID Tag
10-3051.46
40-100
110+45.46

8069-086 1 Button w/IDTeck Tag
10-30
40-100
110+41.26
8070-086 2 Button w/IDTeck Tag
10-30
40-100
110+
8071-086 3 Button w/IDTeck Tag
10-30
40-100
110+45.46

MicroPlus Visor Clips (Black)
8069-075
1-30
31-1003.46
101+2.96

MicroClik RF Controls

26-Bit Wiegand Output

8040-080 ......................................................................194.00

• 5300 Transmitter codes.
• 26, 30 or 31-bit wiegand format.

8040-090 ......................................................................194.00

• 5300 Transmitter codes.
• 26, 30 or 31-bit wiegand format.
• Compatible with Elite Series1 DT-418 transmitters.
  • 1. Elite Series is a registered trademark of The Chamberlain Group, Inc.

Relay Output (Stand Alone)

8040-080 100 Transmitter codes................................. 194.00

• Program via the "learn" method.
• Individual codes cannot be deleted.

8057-081 50 Transmitter codes 326.00
8057-082 100 Transmitter codes 390.00
8057-083 250 Transmitter codes 452.00
8057-084 500 Transmitter codes 520.00
8057-085 1000 Transmitter codes 584.00
8057-086 5000 Transmitter codes 652.00
8057-088 16,000 Transmitter codes 714.00

• Built-in time clock, 10 programmable time zones.
• 2300 event history buffer.
• Can be connected to a serial printer.

Receiver Accessories

8057-110 Lockable outdoor enclosure 116.00
1514-073 Coax Antenna kit 57.80
1514-072 High Gain antenna 318 MHz 208.00
8052-080 Antenna Amplifier 318 MHz 240.00

Page Rev 1/2/19

MicroClik Transmitters / ProxMitters (Transmitter w/proximity card reader built-in)

IMPORTANT! The prices shown are for <u>block-coded</u> transmitters ordered in multiples of 10 only. Add $3.00 per transmitter for any order specifying transmitter numbering sequence or facility codes.

8066-085 1 Button w/DK Prox Tag
10-30
40-10047.36
110+43.36
8067-085 2 Button w/DK Prox Tag
10-3051.46
40-100
110+45.46
8068-085 3 Button w/DK Prox Tag
10-3053.56
40-10050.56
110+46.56

8066-082 1 Button w/AWID Tag
10-30	б
40-100	ô
110+	ô
8067-082 2 Button w/AWID Tag
10-30	ô
40-100	ô
110+	ô
8068-082 3 Button w/AWID Tag
10-30	ô
40-100	ô
110+	ô

8066-083 1 Button w/HID Tag
10-30
40-10047.36
110+43.36
8067-083 2 Button w/HID Tag
10-3051.46
40-10049.46
110+45.46
8068-083 3 Button w/HID Tag
10-3053.56
40-10050.56
110+46.56

8066-084 1 Button w/IDTeck Tag
10-30	;
40-100	;
110+	;
8067-084 2 Button w/IDTeck Tag
10-3051.46	;
40-100	;
110+45.46	;
8068-084 3 Button w/IDTeck Tag
10-3053.56	;
40-10050.56	;
110+	;

MicroClik Visor Clips (Gray)
8066-075
1-30
31-1003.46
101+2.96

Key Switches

Mortise Key Cylinder

1206-080 ........................................................................99.34

• N.O. or N.C. operation.
• Mounts in single-gang electric box.
• Indoor use only.

1207-080 ......................................................................260.00

• N.O. or N.C. operation.
• Surface mount non-lighted enclosure.
• Indoor or outdoor use.

1209-080 ......................................................................444.00

• N.O. or N.C. operation.
• Surface mount lighted enclosure.
• Indoor or outdoor use.
• Intercom substation.

Ace Key Cylinder

1210-080...................................................................... 260.00

• N.O. or N.C. operation.
• Surface mount non-lighted enclosure.
• Indoor or outdoor use.

January 2019 PRICE SCHEDULE A 2.0 Access Control Devices

Push Buttons

Push Button Switch

1211-080........................................................................ 62.62

• Stainless steel faceplate.
• Mounts in single-gang electric box.
• Requires 12-VDC power to illuminate exit button.
• Indoor use only.

1211-081........................................................................ 57.80

• Stainless steel faceplate.
• Mullion mount.
• Requires 12-VDC power to illuminate exit button.
• Indoor use only.

1211-083...................................................................... 108.00

• No Touch exit button.
• Stainless steel faceplate.
• Mounts in single-gang electric box.
• Requires 12-VDC power.
• Indoor use only.

Piezoelectric Switch

1211-090...................................................................... 360.00

• Vandal resistant stainless steel faceplate.
• Selectable illumination status (red, green).
• Mounts in single-gang electric box.
• Requires 12-24 VDC power.

1211-091...................................................................... 360.00

• Vandal resistant stainless steel faceplate.
• Selectable illumination status (red, green).
• Mullion mount.
• Requires 12-24 VDC power.

Lock Boxes

Fire Department Lock Box

1400-080.......................................................................122.00

• Accepts Fire Department padlock.
• Surface or post mounted.
• Painted bright red.
• Constant contact switch when padlock is removed and the door is open.

1401-080.......................................................................122.00

• Accepts Knox 3501 key switch.
• Surface or post mounted.
• Faceplate painted bright red.

Postal Service Lock Box

1402-080...................................................................... 132.00

• Accepts standard postal key lock.
• Surface or post mount.
• Painted Postal blue.
• Postal lock can be installed to either activate a door or gate, or simply open the postal box.

January 2019 PRICE SCHEDULE A 2.0 Access Control Devices

Page Rev 1/2/19

Replacement Components

Electronic Components

LED Light Kits
1804-701 24.08
Use with 1209, 1504, 1506
1804-705 24.08
Use with 1520 and lighted card readers
1804-706 24.08
Use with 1503

Magnetic Door Locks

1200 Lb (544 Kg) Door Locks

_
	Single Door Locks Surface Mount
	DKML-S12-1	374.00
	DKML-S12-1L	462.00
	DKML-S12-1LT	490.00
	Dual Door Locks Surface Mount
	DKML-S12-2	732.00
	DKML-S12-2L	912.00
	DVML $12-2LT	058.00

• Locks operate on 12 or 24 Volt DC power.
• "L" includes LED status indicator.
• "T" includes built-in time delay.

Mounting Brackets
BO1-S12 Armature Bracket 57.80
BO2-S12 L Bracket 57.80
BO4-S12S6 Angle Bracket 64.22
BO5-S12S6 Spacer Bar 51.96
BO3-S12 L & Z Bracket Kit
Back-up Power Supply / Charger
1215-130 12/24 Volt @ 1 Amp 288.00
1215-131 12/24 Volt @ 2.5 Amp 494.00
1215-132 12/24 Volt @ 3 Amp 614.00
1215-133 12/24 Volt @ 6 Amp 890.00
Requires two (2) 12 Volt, 7 Ah SLA batteries (not included).
DC Lock Power Transformers
1812-020 12 Volt, 1000 mA 51.62
1812-139 24 Volt, 500 mA 55.56

Page Rev 1/2/19

Magnetic Door Locks

600 Lb (272 Kg) Door Locks

Single Door Locks Surface Mount DKML-S6-1....................................................................344.00 DKML-S6-1L ..................................................................384.00 DKML-S6-1LT ................................................................424.00

Single Door Locks Mortise Mount

DKML-M6-1284.00
DKML-M6-1L310.00
DKML-M6-1LT338.00

Dual Door Locks Surface Mount

DKML-S6-2670.00
DKML-S6-2L758.00
DKML-S6-2LT820.00

• Locks operate on 12 or 24 Volt DC power.
• "L" includes LED status indicator.
• "T" includes built-in time delay.

Mounting Brackets
BO1-S6 Armature Bracket 57.80
BO2-S6 L Bracket 57.80
BO4-S12S6 Angle Bracket 64.22
BO5-S12S6 Spacer Bar 51.96
BO3-S6 L & Z Bracket Kit 142.00
Back-up Power Supply / Charger
1215-130 12/24 Volt @ 1 Amp 288.00
1215-131 12/24 Volt @ 2.5 Amp 494.00
1215-132 12/24 Volt @ 3 Amp 614.00
1215-133 12/24 Volt @ 6 Amp 890.00
• Requires two (2) 12 Volt, 7 Ah SLA batteries (not included).
DC Lock Power Transformers
1812-020 12 Volt, 1000 mA 51.62

1812-139 24 Volt, 500 mA ............................................. 55.56

Magnetic Door Locks

300 Lb (136 Kg) Mini-locks and 2000 Lb (907 Kg) Shear Lock

300 Lb. Door Locks DKML-S3-1 Surface Mount ...........................................286.00

DKML-M3-1 Mortise Mount .........................................286.00

2000 Lb. Shear Lock Surface Mount

DKSL-M20-1L ................................................................548.00

• Locks operate on 12 or 24 Volt DC power.
• Shear lock includes LED status indicator and built-in signal relay.

Back-up Power Supply / Charger

1215-130 12/24 Volt @ 1 Amp 288.00
1215-131 12/24 Volt @ 2.5 Amp 494.00
1215-132 12/24 Volt @ 3 Amp 614.00
1215-133 12/24 Volt @ 6 Amp 890.00

• Requires two (2) 12 Volt, 7 Ah SLA batteries (not included).

DC Lock Power Transformers

1812-020 12 Volt, 1000 mA 51.62
1812-139 24 Volt, 500 mA 55.56

Page Rev 1/2/19

Magnetic Gate Locks

600 Lb (272 Kg) and 1200 Lb (544 Kg) Gate Locks

1200 Lb. Gate Lock Kits Surface Mount 1216-080...................................................................... 474.00 1216-081...................................................................... 560.00 • 1216-081 has built-in signal relay. • Kits include predrilled and tapped mounting brackets, BO1-GL12 and BO2-GL12. 1200 Lb. Gate Locks Top, Bottom or Face Mount DKGL-S12-1.................................................................. 396.00 DKGL-S12-1L w/Signal Relay ........................................ 486.00 600 Lb. Gate Lock Face Mount Only DKGL-S6-1 w/Signal Relay............................................ 368.00

Mounting Brackets
BO1-GL12 Lock Bracket80.26
BO2-GL12 Armature Bracket68.80
DC Lock Power Transformers - Regulated
1812-020 12 Volt, 1000 mA51.62
1812-139 24 Volt, 500 mA55.56

• Gate locks operate on 12 or 24 Volt DC power.

Electric Door Locks

Dead-bolts and Strikes

Dead-bolt Door Locks DKEB-M-1 .....................................................................404.00 DKEB-M-1L....................................................................424.00 DKEB-M-1D...................................................................424.00 DKEB-M-1LD .................................................................444.00

• "L" includes sensor to indicate locked or unlocked condition.
• "D" includes door sensor to indicate an open or closed door.

Electric Strikes 11/32 inch (8.74 mm) keeper
DKES-C1-1FX 69.82
DKES-C1-1FS 72.24

Electric Strikes 20/32 inch (15.88 mm) keeper DKES-C2-1FX................................................................... 86.68 DKES-C2-1FS................................................................... 90.30

• FX = Fail Secure
• FS = Fail Safe

Magnetic Door Lock Power Supply

Power Supply / Battery Charger

Magnetic Door Lock Power Supplies1

1215-130 12/24 Volt @ 1 Amp .....................................288.00 1215-131 12/24 Volt @ 2.5 Amp ..................................494.00 1215-132 12/24 Volt @ 3 Amp.....................................614.00 1215-133 12/24 Volt @ 6 Amp.....................................890.00

• Requires two (2) 12 Volt, 7 Ah SLA batteries (not included).

Agency Listings
Agency	1215-130	1215-131	1215-132	1215-133
UL 294 Access Control Systems	X	X	X	X
CSA C22.2 No. 205-M1983	X	X	X	X
MEA NYC Dept. of Building Safety	X	X	X	X
NFPA 101 Life Safety	X
UL 603 Burglar Alarm Systems		X	X
UL 1069 Hospital Signaling / Nurse Call Equipment		X	X
UL 1481 Power Supply for Fire Signaling Systems		X	X	X
CSFM California State Fire Marshall Approved		X	X	X
NFPA 72		X	X	X
FM Approved			X	X

Blank Page

Section A4

This Price Schedule is effective January 7, 2019. Accessories

Date	Page	Comment
1-2-19	All	January, 2019 Price Schedule update.

Table of Contents

Mounting Posts
Standard & Heavy-Duty Posts	4
Designer Style Posts	5
Kiosks	6
Transformers
Transformer Box	7
Transformers	7
Surge Suppressers / Timers
Surge Suppressers
7-Day Timer	8

Mounting Posts

Standard & Heavy-Duty Posts

Standard Posts

1200-045 Pad Mount	258.00
1200-046 In-Ground Mount	258.00
1200-049 Dual Height Pad Mount	542.00

• Standard posts are constructed from 2 x 2 (51 mm) steel stock
• In-ground mount posts do not have a baseplate and extend an additional 24 inches (610 mm) in length.

In-Ground Adapter

1200-057 (use with 1200-045)....................................

In-ground adapters provide a mount for posts with a baseplate.

1802 Adapter Plate

1802-111..................................

Use this plate with when mounting 1802, 1802-EPD and 1819 systems to these posts.

Heavy-Duty Posts

1200-036 Pad Mount	564.00
1200-037 Pad Mount	602.00
1200-038 In-Ground Mount	520.00
1200-050 Pad Mount	496.00
1200-051 In-Ground Mount	432.00

• Heavy-duty posts are constructed from 4 x 4 (102 mm) steel stock.
• In-ground mount posts do not have a baseplate and extend an additional 24 inches (610 mm) in length.

In-Ground Adapter

1200-056 (use with pad mount posts) .......348.00

In-ground adapters provide a mount for posts with a baseplate.

January 2019 PRICE SCHEDULE A 2.0 Accessories

Page Rev 1/2/19

Mounting Posts

Designer Style Mounting Posts

Designer Style Posts

1200-085 Pad Mount..................................................1724.00 1200-086 Pad Mount..................................................1806.00

• Standard posts are constructed from 4 x 8 (102 mm x 203 mm) steel stock.
• Electrical compartment has four (4) accessory outlets and room for surge suppressers and RF receiver.

In-Ground Adapter

1200-058 ......................................................................712.00

• In-ground adapters provide a mount for posts with a baseplate.

1802 Adapter Plate

1802-111 ......................................................................166.00

• Use this plate with when mounting 1802, 1802-EPD and 1819 systems to these posts.

Accessories

1200-087 Light Tower Extension.................................. 700.00 1200-150 Light Assembly ............................................. 470.00

• Tower extension does not include light assembly.
• Fluorescent light with photocell for automatic dusk to dawn operation.

Replacement Post Cap

1200-053...................................................................... 132.00

Mounting Posts

Kiosks

Kiosk Style Posts1

1200-160 ....................................................................4284.00

• Use with 1802 and 1802-EPD flush mount systems only.

1200-170 ....................................................................4516.00

• Use with 1803, 1810, 1833, 1834, 1835 and 1837 flush mount systems 80 Series systems only.

1200-175 ....................................................................4516.00

• Use with 1812 Classic, 1812 Plus and 1812 Access Plus flush mount systems only.

1. All kiosks include LED illumination and have an electrical compartment has four (4) accessory outlets and room for surge suppressers and RF receiver.

Transformers

12, 16, 24 Volt AC & DC

1804-060 16-Volt AC Output

40 VA Transformer 1508-060 16-Volt AC Output

DC Transformers - Regulated 1812-020 12-Volt 1000 mA 1812-136 24-Volt 1000 mA

Transformer Box 1200-080 ......................................................................234.00

• Holds up to four (4) 20-VA transformers.
• Suitable for indoor or outdoor use.

20-VA Transformers
1215-061 12-VAC 45.16
1804-059 24-VAC 52.38
1804-060 16-VAC 52.38
40-VA Transformers
1508-060 16-VAC 57.80
DC Transformers - Regulated
1812-020 12-VDC, 1000 mA 51.62
1812-136 24-VDC, 1000 mA 64.22

Accessories

Timers / Surge Suppressers

Surge Suppressers 1877-010 Phone Line ....................................

7-Day Timer 2600-791....................................

Section A5

This Price Schedule is effective January 7, 2019. Advanced Replacement & Repair

Date	Page	Comment
1-2-19	All	January, 2019 Price Schedule update.

Table of Contents

Advance Replacement & Repair Policy5
Telephone Entry System Main Circuit Board Reference Table6
Telephone Entry System Circuit Boards8
Telephone Entry System Circuit Board Upgrades10
Access Control Products Circuit Board Reference Table11
Access Control Systems Major Components12
Access Control Products Circuit Boards13
Gate Operator Circuit Board Reference Table14
Gate Operator Circuit Boards16
Counter and Accessory Boards17
Loop Detectors18

Page Rev 1/2/19

Circuit Board Advance Replacement and Repair Policy

Repair and Return

All repairs must be issued an RMA number before they can be returned to DoorKing. Repairs that are returned without prior authorization are subject to lengthy delays. Prior to returning any item to DoorKing, please contact our RMA department for an RMA number and have the following information available: the model number of the product and the circuit board number, the serial number, and the revision letter.

Standard flat rate repair charges that are listed on the following pages apply only to products manufactured by DoorKing that are beyond the warranty period and became defective because of random component failure. Standard flat rate repair charges apply only to products that are returned to DoorKing for repair and return. The standard flat rate repair charge does not apply to products that are returned under an advance replacement RMA .

The standard repair charges do not apply to products or parts that are deemed by DoorKing to be un-repairable because of vandalism, abuse, improper installation including connection to an improper voltage source, power surges, lightning damage or natural disasters. Additional repair charges will be assessed to replace missing parts or parts damaged beyond repair. Boards that are deemed to be beyond repair will be returned to the owner or scrapped upon written authorization from the owner.

Advance Replacements

Defective or un-used parts that have been advanced to you must be returned to DoorKing within thirty (30) days from the date of the advance replacement invoice.

Not all circuit boards are available for advance replacement. Advance replacement boards are not guaranteed to be available. You must know the serial number and the revision level of the board that you are requesting an advance replacement for prior to our shipping an advance replacement board to you.

Out of warranty advance replacement repair charges are billed at a higher rate than the standard flat rate repair and return charge.

Obsolete Board Repair and Replacement (Upgrade) Information

Many early model circuit boards are not available for advance replacement and cannot be repaired. These boards are identified in the tables on the following pages.

Upgrade: The upgrade option allows you to replace an old circuit board with a new current production circuit board at a reduced rate. When choosing this option, the upgrade charge includes any additional parts required to install the new circuit board into the telephone entry / access control system. The upgrade option also carries a two-year warranty on the circuit board.

If you choose the upgrade option as an advance replacement, the reduced rate upgrade charge will not be applicable until the replaced circuit board and memory chips are returned to DoorKing. Otherwise, you will be responsible for payment in full of the new circuit board and memory chips sent to you under the advance replacement program.

Shipping Charges

DoorKing pays UPS ground shipping charges one way only on warranty advance replacement items. If any other means of shipping (UPS red, blue, etc.) is requested, you are responsible for the difference between that method and UPS ground charges. Shipping charges for the return of advance replacement items are the responsibility of the customer. All shipping charges for non-warranty repair items are the responsibility of the customer.

Repair Warranty

Circuit boards repaired by DoorKing are warranted for a period of ninety (90) days from the date of repair. This warranty covers bench repairs only. For this warranty to be in effect, any product or parts must be returned to DoorKing freight prepaid. DoorKing is not responsible for any cost incurred involving on site service calls, or labor charges incurred in the removal or replacement of any parts. This warranty does not apply to products or parts damaged because of vandalism, abuse, improper installation including connection to an improper voltage source, power surges, lightning damage or natural disasters.

Telephone Entry System Circuit Boards

Circuit	Model(s)	DE1/		Options Ava	ailable
Board	Used On	REV	Repair	Advance	Replace	Notes
1800-009 1800-010 1801-010	1800-081 1800-080 1801-080	All	Yes	Yes	Yes	Cellular system circuit boards.
1802-010	1802, 1804-1 1808, 1810-1	All	No	No	No	No upgrade available.
1804-010	1803-2, 1804-2 1810-2	All	No	No	No	No upgrade available.
1833-010	1833	D – R	No	No	Upgrade Schedule K	Use upgrade option.
1833-010	1833	S or Higher	Yes	Yes		Upgrade K replaces board with the most current level board revision.
1834-010	1834	D - Q	No	No	Upgrade Schedule K	Use upgrade option.
1834-010	1834	R or Higher	Yes	Yes
1834-009	1834 Wall Mount Only	D - Q	No	No	Upgrade Schedule K	Use upgrade option.
1834-009	1834 Wall Mount 1834 90 Series	R or Higher	Yes	Yes		Upgrade K replaces board with the most current level board revision.
1835-010	1835	D – R	No	No	Upgrade Schedule K	Use upgrade option.
1835-010	1835	S or Higher	Yes	Yes		Upgrade K replaces board with the most current level board revision.
1835-009	1835 Wall Mount Only	D – Q	No	No	Upgrade Schedule K	Use upgrade option.
1835-009	1835 Wall Mount 1835 90 Series	R or Higher	Yes	Yes		Upgrade K replaces board with the most current level board revision.
1837-010	1837	D – R	No	No	Upgrade Schedule K	Use upgrade option.
1837-010	1837	S or Higher	Yes	Yes		Upgrade K replaces board with the most current level board revision.
1840-010	1815	All	No	No	Upgrade Schedule A	Use upgrade option.
1841-010	1817	All	No	No	No	No upgrade available.
1842-010	1818	All	No	No	Upgrade Schedule C	Use upgrade option.
1843-010	1814	All	No	No	Upgrade Schedule D	Use upgrade option.
1844-010	1803 PC	All	No	No	Upgrade Schedule I	Use upgrade option.
1850-010	1814	A - I	No	No	No	No upgrade available.
1850-010	1814	J – R	No	No	Upgrade Schedule D	Use upgrade option.
1851-010	1814 P	All	No	No	Upgrade Schedule D	Use upgrade option.
1852-010	1815	All	No	No	Upgrade Schedule A	Use upgrade option.
1853-010	1817	All	No	No	Upgrade Schedule B	No upgrade available.
1854-010	1818	All	No	No	Upgrade Schedule C	Use upgrade option.
1855-010	1815	All	No	No	Upgrade Schedule A	Use upgrade option.
1856-010	1817	All	No	No	Upgrade Schedule B	No upgrade available.
1857-010	1818	All	No	No	Upgrade Schedule C	Use upgrade option.
1860-010	1802, 1803-1 1804-1, 1808 1810-1	All	No	No	Upgrade Schedule E	Use upgrade option.

Telephone Entry System Circuit Boards

Circuit	Model(s)		Op	Options Available		·
Board	Used On	REV	Repair	Advance	Replace	Notes
1862-010	1802, 1803 1808, 1810	A - M	No	No	Upgrade Schedule N	Use upgrade option.
1862-010	1802, 1803 1808, 1810	N or Higher	Yes	Yes
1863-010	1802P, 1803P 1808P, 1810P	A - H	No	No
1863-010	1802P, 1803P 1808P, 1810P	I or Higher	Yes	Yes
1865-010	1803-2, 1804-2 1810-2	All	No	No	Upgrade Schedule F	Use upgrade option.
1870-010	1812	All	No	No	Upgrade Schedule H	Use upgrade option.
1871-010	1812	A – Z	No	No	Upgrade Schedule J	Use upgrade option.
1871-010	1812	AA - Higher	Yes	Yes
1880-010	1816	All	No	No	No
1885-010	1816 / 1820	H - R	No	No
1885-010	1816 / 1820	S - Higher	Yes	Yes
1971-010	1812 Plus	A – N O - Higher	Yes Yes	No Yes
1970-010	1802AP,1808AP, 1810AP, 1812AP, 1838AP	A –N O - Higher	Yes Yes	No Yes
1597-010	1814-075	All	No	No	Yes	Secondary keypad board. Replace if faulty.
1598-010	All	All	No	No	Yes	Secondary keypad interface board. Replace if faulty.
1807-010	1803, 1804 1810	All	No	No	No	Old style programming display. No replacement available.
1875-010	1812	All	No	Yes	Yes	By-pass switch. Replace if faulty.
1881-010	1816	D - F	No	No		1816 decoder board.
1881-010	1816	G - Higher	Yes	Yes		1816 decoder board.
1882-010	1816	All	No	No	No	1816 relay board.
1884-010	1820	All	Yes	Yes		1820 Line Interface Board
1886-010	1820	All	Yes	Yes		1820 Power Supply Board
1890-010	1802, 1803, 1810	All	Yes	Yes		Programming display for 1862 board.
1896-010	1814	All	No	No	No	Old style small directory. No replacement available.
1897-010	All	All	No	No	No	Microphone board. Replace with 1998-010 if faulty.
1982-010	1816	All	Yes	Yes		1816 relay board
1998-010	All	All	No	Yes	Yes	Microphone board. Replace if faulty.
1898-010	1803, 1804 1810	All	No	No	No	Vacuum fluorescent programming display. No replacement available.
1899-010	1704, 1720, 1804	All	No	No	No	Fluorescent light kit ballast assembly.
2348-010	1833, 1835 1837, 1838	A-C	No	No		Elevator control board.
2348-010	1833, 1835 1837, 1838	D - Higher	Yes	Yes		Elevator control board.
2351-010	1833, 1835 1837, 1838	All	No	No		Tracker expansion board - Obsolete
2354-010	RS-485 Devices	All	Yes	Yes		RS-485 Wiegand Interface Board
2358-010	1833, 1835 1837, 1838	All	Yes	Yes		Tracker expansion board
2360-010	1833, 1835 1837, 1838	All	Yes	Yes		Wireless baseboard
1489-010	2358-010	All	Yes	Yes		Wireless expansion board
2366-010		All	Yes	Yes		Wireless repeater

Telephone Entry System Circuit Boards

Code	Description	List
Repair A	1801-010 Repair and return only.	240.00
1830 Series Boards
Repair A	1833-010 Repair and return.	240.00
XCHG A	1833-010 Advance replacement.	320.00
Repair A	1834-010 Repair and return.	240.00
XCHG A	1834-010 Advance replacement.	320.00
Repair A	1834-009 Repair and return.	240.00
XCHG A	1834-009 Advance replacement.	320.00
Repair A	1835-010 Repair and return.	240.00
XCHG A	1835-010 Advance replacement.	320.00
Repair A	1835-009 Repair and return.	240.00
XCHG A	1835-009 Advance replacement.	320.00
Repair A	1837-010 Repair and return.	240.00
XCHG A	1837-010 Advance replacement.	320.00
Repair A	1838-010 Repair and return.	240.00
XCHG A	1838-010 Advance replacement.	320.00
1860 Series Boards
Repair A	1862-010 Repair and return.	240.00
XCHG A	1862-010 Advance replacement.	320.00
Repair A	1863-010 Repair and return.	240.00
XCHG A	1863-010 Advance replacement.	320.00
1870 Series Boards
	1871-010 Repair and return.	240.00

Repair A 1881-010 Repair and return. 240.00 Repair D 1882-010 Repair and return. 140.00

1880 Series Boards

1884-010 Repair and return. 1884-010 Advance replacement.

1885-010 Repair and return. 1885-010 Advance replacement.

1982-010 Repair and return. 1982-010 Advance replacement.

Repair D XCHG D

Repair A XCHG A

Repair D XCHG D

140.00 180.00

240.00 320.00

140.00 180.00

Telephone Entry System Miscellaneous Boards

1890 Series Boards
Code	Description
Repair E XCHG E	1890-010 Repair and return. 1890-010 Advance replacement.	80.00 100.00
Repair E	1896-010 Repair and return only.	80.00
2300 Series Boards
Repair A XCHG A	2348-010 Repair and return. 2348-010 Advance replacement.	240.00 320.00
	Miscellaneous Boards
Repair E	1807-010 Repair and return only.	80.00
XCHG G	1875-010 Replacement only.	95.00
Keypads
XCHGKP01	1804-055, 1804-056, 1805-155, 1804-156 Replacement only.	121.50
XCHGKP02	1895-016, 1895-017 Replacement only.	104.00

Telephone Entry System Circuit Board Upgrades

1830 Series Upgrade
Code	Description	List
Upgrade M	1834 to 1835 Upgrade Replaces 1834 circuit board with the 1835 circuit board. Memory chip included.	1300.00
Upgrade K	1833, 1834, 1835, 1837, 1838 Board Upgrade Replaces older 1830 series circuit board with current 1830 series circuit board. Memory chips (same size) included.	1300.00

	1850 / 1840 Series Board Upgrades
Upgrade A	1852, 1855, 1840 Board Upgrade Replaces 1852, 1855 or 1840 circuit board (1815 systems) with 1835 circuit board. Software and memory chips (same size) included.	1300.00
Upgrade C	1854, 1857, 1842 Board Upgrade Replaces 1854, 1857 or 1842 circuit board (1818 systems) with 1838 circuit board. Software and memory chips (same size) included.	1300.00
Upgrade D	1850, 1851, 1843 Board Upgrade Replaces 1850, 1851 or 1843 circuit board (1814 systems) with 1834 circuit board. Software and memory chips (same size) included.	1300.00
Upgrade I	1844 Board Upgrade Replaces 1844 circuit board (1803 PC systems) with 1833 circuit board. Software and memory chips (same size) included.	1300.00

1860 Series Board Upgrades
Upgrade E	1860 Board Upgrade Replaces 1860 circuit board with 1862 circuit board. Includes display & memory chips of same size as those in board being upgraded.	670.00
Upgrade F	1865 Board Upgrade Replaces 1865 circuit board with 1862 circuit board. Includes display, terminal strip & memory chips of same size as those in board being upgraded.	638.00
Upgrade N	1862 Board Upgrade Replaces older 1862 circuit board with current 1862 circuit board. Includes display, terminal strip & memory chips of same size as those in board being upgraded.	670.00

1870 Series Board Upgrades
Upgrade H	1870 Board Upgrade Replaces 1870 circuit board with 1871 circuit board. Includes 1812-075 conversion kit.	976.00
Upgrade J	1871 Board Upgrade Replaces 1871 Rev A – Z circuit board with current 1871 circuit board.	866.00

1970 Series Board Upgrades
Upgrade J	1970 Board Upgrade Replaces 1970 Rev A – K3 circuit board with current 1970 circuit board.	866.00
Upgrade J	1971 Board Upgrade Replaces 1971 Rev A – K3 circuit board with current 1971 circuit board.	866.00

Access Control Products Circuit Boards

Circuit	Model(s)		Options Available
Board	Used On	REV	Repair	Advance	Replace	Notes
1500-009	Wiegand Keypads	All	No	No	1515-009	New circuit board.
1500-010	1503, 1504	All	No	No	1515-010	New circuit board.
1502-010	1502, 1504	All	No	No	1515-010	New circuit board.
1503-010	1503, 1504	All	No	No	1515-010	New circuit board.
1505-009	1520	A - D	No	No
1505-009	1520	E – Higher	Yes	Yes
1506-010	1506, 1504	A – K	No	No	No
1506-010	1506, 1504	L – Higher	Yes	Yes
1508-010	1508	All	No	No	No
1513-010	1513	A – D	Yes	No
1513-010	1513	E – Higher	Yes	Yes
1515-009	Wiegand Keypads	All	Yes	Yes	Yes
1515-010	1515	All	Yes	Yes
1587-010	Printer Interface	All	No	No	Yes	Replace if faulty.
1588-010	1508	All	No	No	No
1589-010	1508	All	No	No	No
1596-010	1507, 1514	All	No	No	No
1597-010	Secondary Keypad Interface	All	No	No	Yes	Replace if faulty.
1599-010	1506, 1504	F - Higher	No	No	Yes	Replace if faulty.
1838-010	1838	A – Q	No	No	Upgrade Schedule K	Use upgrade option.
1838-010	1838	R or Higher	Yes	Yes	Upgrade Schedule K	Upgrade K replaces board with the most current level board revision.
1842-010	1818	All	No	No	Upgrade Schedule C	Use upgrade option.
1854-010	1818	All	No	No	Upgrade Schedule C	Use upgrade option.
1857-010	1818	All	No	No	Upgrade Schedule C	Use upgrade option.
2348-010	Elevator Control	A - C	Yes	No	Yes
2348-010	Elevator Control	D – Higher	Yes	Yes	Yes
2351-010	Tracker Expansion	All	No	No	Yes	Replace with 2358-010 tracker board
2354-010	RS-485 Devices	E - F	Yes	No		RS-485 Wiegand Interface Board
2354-010	RS-485 Devices	G - Higher	Yes	Yes		RS-485 Wiegand Interface Board
2358-010	Tracker Expansion	All	Yes	Yes
8040-080	8040	All	Yes	Yes
8054-xxx	8054	All	Yes		Yes
8055-xxx	8055	All	Yes		Yes
8056-xxx	8056	All	No	No		Replace with 8040 receiver
8057-xxx	8057	All	Yes		Yes
8059-xxx	8059	All	No	No		Replace with 8040 receiver

Access Systems Major Components

Circuit	Model(s)	DEM	Options Available Repair Advance Replace		ailable	Notes
Board	Used On	REV			Notes
1894-040	Color CCTV Camera	All		Yes
1812-145	Color CCTV Camera	All		Yes		Cameras are sent to the vendor for warranty repair replacement.
1812-147	Color CCTV Camera	All		Yes

Access Control System Circuit Boards

Code	Description	List
Repair D	1515-010 Repair and return.	140.00
XCHG D	1515-010 Advance replacement.	180.00
Repair D	1506-010 Repair and return.	140.00
XCHG D	1506-010 Advance replacement.	180.00
Repair D	1513-010 Repair and return.	140.00
XCHG D	1513-010 Advance replacement.	180.00
Repair D	1505-009 Repair and return.	140.00
XCHG D	1505-009 Advance replacement.	180.00
1800 Series Boards
Repair A	1838-010 Repair and return.	240.00
XCHG A	1838-010 Advance replacement.	320.00
2300 Series Boards
Repair A	2348-010 Repair and return.	240.00
XCHG A	2348-010 Advance replacement.	320.00
Repair D	2354-010 Repair and return.	140.00
XCHG D	2354-010 Advance replacement.	180.00
Repair D	2358-010 Repair and return.	140.00
XCHG D	2358-010 Advance replacement.	180.00

Gate Operator Circuit Boards

Circuit	Model(s)		Options Available		ailable
Board	Used On	REV	Repair	Advance	Replace	Notes
1473-010	Pre-2016 operators only	All	Yes	Yes		Replaces 2340 circuit board. Use Kit P/N 1473-121.
1601-010	1601	D - Y	No	No	Yes	Replace with current production board.
1601-010	1601, 1602	Z - AH - Higher	Yes	Yes
2340-010	1601, 1602, 1603, 6100, 6300, 9150, 9300, 9310	All	No	No		Replace with 1473-121 board kit.
2355-010	1000	A - J	No	No		Replace with current production board.
2355-010	1000	K - Higher	Yes	Yes	Yes	Model 1000 Inverter circuit board.
4001-010	240, 480, 600, 800, 1000	All	No	No	Yes	Replace with new 4502-009 board.
4100-010	6524, 9024	AA - AF	Yes	Yes		Replace with 4100-018.
4100-012	6524, 9024	H - O	Yes	Yes		Use with Pre 2016 models only.
4100-018	6524, 9024	All	Yes	Yes
4201-010	605, 805 mfg. prior to 6/93	All	No	No	Yes	Replace with new 4502-009 board (requires 4001- 020 terminal strip and rewire).
4302-010	6002, 6003, 6004, 6400	AA - AC	Yes	Yes		Replace with 4302-018
4302-012	6002, 6003, 6004, 6005, 6400	D - M	No	No		Use with pre 2016 models only.
4302-012	6002, 6003, 6004, 6005, 6400	N or Higher	Yes	Yes		Use with Pre 2016 models only.
4302-018	6003, 6004, 6005, 6400	All	Yes	Yes	Yes
4402-012	1150, 9200, 9300	B - H	No	No		Use with pre 2016 models only.
4402-012	1150, 9200, 9300	I or Higher	Yes	Yes		Use with pre 2016 models only.
4403-012	9310	C - N	No	No		Use with pre 2016 models only.
4403-012	9310	M or Higher	Yes	Yes		Use with pre 2016 models only.
4404-010	9210, 9220 9230, 9235, 9240, 9530 9550, 9555, 9575	AA - AB	Yes	Yes		Replace with 4404-018.
4404-012	9210, 9220 9230, 9235, 9240, 9530 9550, 9555, 9575	B - E	No	No		Use with Pre 2016 models only.
4404-012	9210, 9220 9230, 9235, 9240, 9530 9550, 9555, 9575	F or Higher	Yes	Yes		Use with Pre 2016 models only.
4404-018	9210, 9220 9230, 9235, 9240, 9530 9550, 9555, 9575	All	Yes	Yes
4405-010	6500, 6550, 9000	AA - AB	Yes	Yes		Replace with 4405-018.
4405-012	1175, 6500, 6550, 9000	A - F	No	NO		Use with Pre 2016 models only.
4405-012	1175, 6500, 6550, 9000	G - Higher	Yes	Yes		Use with Pre 2016 models only.
4405-018	1175, 6500, 6550, 9000	All	Yes	Yes

Gate Operator Circuit Boards

Circuit	Model(s)			Options Available
Board	Used On	REV	Repair	Advance	Replace	Notes
4501-010	240, 480, 600, 601, 602, 605,610, 615, 620, 625, 805, 810, 815	All	No	No		Replace with 4502-009.
4502-009	240, 480, 600, 601, 602, 605,610, 615, 620, 625, 805, 810, 815	N - Higher	Yes	Yes
4502-010	6050, 6100, 6300	AA - AC	Yes	Yes		Replace with 4502-018.
4502-012	6050, 6100, 6300	A - J	No	No		Use with Pre 2016 models only.
4502-012	6050, 6100, 6300	K or Higher	Yes	Yes		Use with Pre 2016 models only.
4502-018	6050, 6100, 6300	All	Yes	Yes
4601-010	910, 915, 920, 1100	All	No	No		Replace with 4602-009.
4602-009	910, 915, 920, 1100	S - Higher	Yes	Yes
4602-010	9100, 9150	AA - AB	Yes	Yes		Replace with 4602-018.
4602-012	9100, 9150	A - Q	No	No		Use with Pre 2016 models only.
4602-012	9100, 9150	R or Higher	Yes	Yes		Use with Pre 2016 models only.
4602-018	9100, 9150	All	Yes	Yes
4701-010	905, 907	All	No	No		Replace with 4702-009.
4702-009	905, 907	J - Higher	Yes	Yes
4702-010	9050, 9070	AA - AB	Yes	Yes		Replace with 4702-018.
4702-012	9050, 9070	A - H	No	No		Use with pre 2016 models only.
4702-012	9050, 9070	I or Higher	Yes	Yes		Use with pre 2016 models only.
4702-018	9050	All	Yes	Yes

Gate Operator Circuit Boards

Code	Description	List
Repair A	4302 All boards - Repair and return.	240.00
XCHG A	4302 All boards - Advance replacement.	320.00
Repair A	4405 All boards - Repair and return.	240.00
XCHG A	4405 All boards - Advance replacement (Rev M and higher only).	320.00
Repair A	4502 All boards - Repair and return.	240.00
XCHG A	4502 All boards - Advance replacement.	320.00
	Slide Gate Operators
Repair A	4402 All boards - Repair and return.	240.00
XCHG A	4402 All boards - Advance replacement.	320.00
Repair A	4403 All boards - Repair and return.	240.00
XCHG A	4403 All boards - Advance replacement.	320.00
Repair A	4404 All boards - Repair and return.	240.00
XCHG A	4404 All boards - Advance replacement.	320.00
Repair A	4602 All boards - Repair and return.	240.00
XCHG A	4602 All boards - Advance replacement.	320.00
Repair A	4702 All boards - Repair and return.	240.00
XCHG A	4702 All boards - Advance replacement.	320.00
	Barrier and Overhead Gate Operators
Repair A	1601 All boards - Repair and return.	240.00
XCHG A	1601 All boards - Advance replacement (Rev W and higher only).	320.00
Repair A	4402 All boards (1150 operator) - Repair and return.	240.00
XCHG A	4402 All boards (1150 operator) - Advance replacement.	320.00
Repair A	4405 All boards (1175 operator) - Repair and return.	240.00
XCHG A	4405 All boards (1175 operator) - Advance replacement.	320.00
	Power Inverter / Backup
Repair D	2355-010 Repair and return.	140.00
XCHG D	2355-010 Advance replacement (Rev W and higher only).	180.00

Counter and Accessory Boards

	Magnetic Counter Boards
Repair E	3003-010 Repair and return.	80.00
XCHG E	3003-010 Advance replacement.	100.00
Repair E	3003-012 Repair and return.	80.00
XCHG E	3003-012 Advance replacement.	100.00
Repair E	3003-013 Repair and return.	80.00
XCHG E	3003-013 Advance replacement.	100.00
Repair E	3003-014 Repair and return.	80.00
XCHG E	3003-014 Advance replacement.	100.00
Repair E XCHG E	3003-015 Repair and return. 80.00 3003-015 Advance replacement. 100.00
Counter Probe
XCHG B	3004-010 Replacement only.	148.00
Accessory Boards
Repair D	1473-010 Repair and return.	140.00
XCHG D	1473-010 Advance replacement.	180.00
Repair D	2355-010 Repair and return.	140.00
XCHG D	2355-010 Advance replacement.	180.00

Loop Detectors

Circuit	Model(s)			Options Available
Board	Used On	REV	Repair	Advance	Replace	Notes
9409-010	Loop Detector	A - G	No	No		Replace detector.
9409-010	Loop Detector	H - Higher	Yes	Yes
9410-010	Loop Detector	A - G	No	No		Replace detector.
9410-010	Loop Detector	H - Higher	Yes	Yes
9411-010	Loop Detector	All	Yes	Yes

Loop Detector Boards
Code	Description	List
Repair E	9409-010 Repair and return.	80.00
XCHG E	9409-010 Advance replacement.	100.00
Repair E	9410-010 Repair and return.	80.00
XCHG E	9410-010 Advance replacement.	100.00

Section B1

This Price Schedule is effective January 7, 2019.

Maximum Security Slide Gate Operators

Date	Page	Comment
1-2-19	All	January, 2019 Price Schedule update.

Maximum Security Operators

9200 and 9500 series operators are designed to operate vehicular sliding gates used in Limited (Class III) and Restricted (Class IV) industrial and maximum security applications only. These operators must never be used in Residential (Class I) or Commercial (Class II) applications, or in any application where the gate is operated by the General Public.

These operators must be installed with external entrapment prevention devices, Type B1 (non-contact) or Type B2 (contact), or a combination of both to insure all entrapment hazard areas are protected. Refer to the Installation Manual for important safety information.

Minimum Gate Length

Most 9200 and 9500 Series operators have variable speed capability which allows the user to adjust the speed of the gate. On most operators, the speed can be set for speeds up to 2 Ft/sec., and on certain models the gate speed can be set up to 4 Ft/sec. When using these higher speeds, there is a time factor to consider during the start-up and the slow-down of the gate. For this reason, you will see a minimum gate length on operators design to move a gate at the higher speeds.

UL 325 – August 2018 Update

Requirements mandated by the safety standard (UL 325) that DKS gate operators are listed to require that photo-beams and contact edges used for entrapment protection must be monitored. Entrapment protection must be provided for the gate system where the risk of entrapment exist. The gate operator will not run without one or more external entrapment protection devices installed in each direction of travel. Check the gate operator installation manual for a list of external entrapment protection devices that can be used with DKS gate operator products.

The August, 2018 update to the safety standard requires that a minimum of two independent means of entrapment protection must be provided, in each direction of travel, where the risk of entrapment exists. The inherent system in DKS gate operators is active in both directions of travel, so this qualifies as one means of entrapment protection in each direction. The second means will be an external device (a non-contact or a contact sensor) as required in each direction. The actual number of external devices required is dependent on the gate system layout and the number of entrapment areas that will need to be protected. Installers will have to identify all potential areas where the risk of entrapment exist and how best to protect those areas. For example, some gates may require two (or more) external devices in each direction of travel to protect all potential areas of entrapment.

There is an exception for swing gates and vertical lift gates regarding the minimum of two entrapment protection devices in each direction of travel. For example, if on a swing gate system there is no potential for entrapment in the opening direction, then only the close direction will require a minimum of two means of entrapment protection. Installers will have to determine if any entrapment hazards exist in the opening direction, and if so, then those areas will have to be protected with external devices.

Vertical lift gates require two means of entrapment protection in the down cycle, but will only require one means of entrapment protection in the up cycle. The model 1175 is considered to be a vertical lift gate operator for entrapment protection means requirements.

Barrier gate operators that are installed in such a way that the barrier arm does not come closer than 16 inches to a rigid object are not required to protect against entrapment.

The table below shows the minimum entrapment protection requirements for each type of gate operator in the scope of the UL 325 Standard for Safety.

	Opening	Closing
Horizontal Slide Gate	2	2
Horizontal Swing Gate	2*	2*
Vertical Pivot Gate	2	2
Vertical Lift gate	1	2

^* For a horizontal swing gate operator, at least two independent entrapment protection means are required in each direction of travel. Except, if there is no entrapment zone in one direction of travel, only one means of entrapment protection is required in that direction of travel; however, the other direction must have two independent entrapment protection means.

Blank Page

Table of Contents

•
Maximum	Security	Slide Gate	Operators

Model 9210	4
Model 9220
Model 9230
Model 9235
Model 9240
Heavy-Duty Maximum Security Slide Gate Operators
Model 9530	14
Model 9550
Model 9555

Maximum Security Slide Gate Operator

9210

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Fixed Speed
• 20-Feet (6m) #50 / #60 Chain
• Gate tracker data output
• Selectable stop/ reverse function

Model	Chain	Speed Fixed	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation 1	Voltage VAC	HP	Power Outlets	Loop Ports 2
9210	#50	1 Ft/sec	2000 Lbs 3 907 Kg	100 Ft	10 Ft	Pad or	III IV	115, 208,	1	2	2
9210	#60	.3m/sec	3000 Lbs 3 1360 Kg	30m	3m	Pedestal 3	III, IV	230, 460	1	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 3. Requires 9200-135 pedestal.

Maximum Security Slide Gate Operator

Operators w/#50 Chain 9210-380 1 HP, 115V (9.7A)....................................... 4890.00

9210-382 1 HP, 208V 1° (5.0A) 4942.50
9210-384 1 HP, 230V 1° (4.9A) 4942.50
9210-386 1 HP, 208V 3° (3.4A) 5160.00
9210-388 1 HP, 230V 3° (3.3A) 5160.00

9210-390 1 HP, 460V 3° (1.7A)................................... 5160.00

Operators w/#60 Chain

9210-381 1 HP, 115V (9.7A) 4965.00
9210-383 1 HP, 208V 1° (5.0A) 5025.00
9210-385 1 HP, 230V 1° (4.9A) 5025.00
9210-387 1 HP, 208V 3° (3.4A) 5242.50
9210-389 1 HP, 230V 3° (3.3A) 5242.50
9210-391 1 HP, 460V 3° (1.7A) 5242.50

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

9200-135 Mounting Pedestal894.00
2601-270 Chain Tray Kit 10 Ft (3m)1399.00
1601-195 Heater Kit 120 VAC2759.00
1601-197 Heater Kit 208/230 VAC2 Note 3
1601-198 Heater Kit 480 VAC2 Note 3

• 1. 9200-135 required if chain tray is used.
• 2. Use if temperature routinely falls below 10°F (-12°C).
• 3. See Section A1, page 31 for pricing.

Chain

2600-485 #50 Chain, 20-Ft (6 m)165.00
2600-448 #60 Chain, 20-Ft (6 m)264.00

Maximum Security Slide Gate Operator

9220

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #60 Chain
• Gate tracker data output
• Selectable stop/ reverse function

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation 1	Voltage VAC	HP	Power Outlets	Loop Ports 2
9220	#60	1-2 Ft/sec .36m/sec	2000 Lbs 3 907 Kg	100 Ft 30m	20 Ft 6m	Pad or Pedestal 3	III, IV	208, 230, 460	2	2	2

• 1. III = Limited Access; IV = Restricted Access
• $2.\; \backslash qquad\; \backslash hbox\{Plug-in\; loop\; detector\; ports;\; open\; and\; reverse.\; DoorKing\; plug-in\; loop\; detectors\; only.\}$
• 3. Requires 9200-135 pedestal.

Maximum Security Slide Gate Operator

Operators w/#60 Chain

9220-381 2 HP, 208V 1° (11.7A) 6052.50
9220-383 2 HP, 230V 1° (11.5A) 6052.50
9220-385 2 HP, 208V 3° (6.6A) 6270.00
9220-387 2 HP, 230V 3° (6.2A) 6270.00
9220-389 2 HP, 460V 3° (3.1A) 6270.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

9200-135 Mounting Pedestal894.00
2601-270 Chain Tray Kit 10 Ft (3m)1399.00
1601-197 Heater Kit 208/230 VAC2 Note 3
1601-198 Heater Kit 480 VAC2 Note 3

• 1. 9200-135 required if chain tray is used.
• 2. Use if temperature routinely falls below 10°F (-12°C).
• 3. See Section A1, page 31 for pricing.

Chain

2600-448 #60 Chain, 20-Ft (6 m)..................................264.00

Maximum Security Slide Gate Operator

9230

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #60 Chain
• Gate tracker data output
• Selectable stop/ reverse function

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation1	Voltage VAC	HP	Power Outlets	Loop Ports2
9230	#60	1-2 Ft/sec .36m/sec	5000 Lbs3 2267 Kg	100 Ft 30m	20 Ft 6m	Pedestal3	III, IV	208, 230	3	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 3. 9200-135 pedestal included.

Maximum Security Slide Gate Operator

Operators w/#60 Chain

9230-380 3 HP, 208V 3° (9.8A) 8730.00
9230-381 3 HP, 230V 3° (9.6A) 8730.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

2601-270 Chain Tray Kit 10 Ft (3m)399.00
1601-197 Heater Kit 208/230 VAC1 Note 2
1. Use if temperature routinely falls below 10°F (-12°C).

2. See Section A1, page 31 for pricing.

Chain

2600-448 #60 Chain, 20-Ft (6 m)..................................264.00

Maximum Security Slide Gate Operator

9235

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #60 Chain
• Gate tracker data output
• Selectable stop/ reverse function

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation1	Voltage VAC	HP	Power Outlets	Loop Ports2
9235	#60	1-4 Ft/sec .3-1.2m/sec	3000 Lbs3 1360 Kg	100 Ft 30m	30 Ft 9m	Pedestal3	III, IV	208, 230	3	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 3. 9200-135 pedestal included.

Maximum Security Slide Gate Operator

Operators w/#60 Chain

9235-380 3 HP, 208V 3° (12.8A) 13,005.00
9235-381 3 HP, 230V 3° (12.6A) 13,005.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

2601-270 Chain Tray Kit 10 Ft (3m)399.00
1601-197 Heater Kit 208/230 VAC1 Note 2
1. Use if temperature routinely falls below 10°F (-12°C).

2. See Section A1, page 31 for pricing.

Chain

2600-448 #60 Chain, 20-Ft (6 m)..................................264.00

Maximum Security Slide Gate Operator

9240

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #80 Chain
• Gate tracker data output
• Selectable stop/ reverse function

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation1	Voltage VAC	HP	Power Outlets	Loop Ports2
9240	#80	1-2 Ft/sec .36m/sec	8000 Lbs3 3628 Kg	100 Ft 30m	25 Ft 7.6m	Pedestal3	III, IV	208, 230	3	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.
• 3. 9200-135 pedestal included.

Maximum Security Slide Gate Operator

Operators w/#80 Chain

9240-380 3 HP, 208V 3° (9.8A) 13,005.00
9240-381 3 HP, 230V 3° (9.6A) 13,005.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

2601-270 Chain Tray Kit 10 Ft (3m)399.00
1601-197 Heater Kit 208/230 VAC1 Note 2
1. Use if temperature routinely falls below 10°F (-12°C).
2. See Section A1, page 31 for pricing.

Chain

2601-268 #80 Chain, 10-Ft (3 m)249.00
2601-269 #80 Chain, 20-Ft (6 m)501.00

Heavy-Duty Maximum Security Slide Gate Operator

9530

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #80 Chain
• Gate tracker data output
• Selectable stop/ reverse function

95xx-xxx with optional 10ga. Steel housing

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation 1	Voltage VAC	HP	Power Outlets	Loop Ports 2
9530	#80	1-2 Ft/sec .36m/sec	8000 Lbs 3 3628 Kg	160 Ft 48m	25 Ft 7.6m	Pad	III, IV	208, 230, 460	3	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.

Heavy-Duty Maximum Security Slide Gate Operator

Operators w/#80 Chain

9530-380 3 HP, 208V 3° (9.8A) 14,595.00
9530-381 3 HP, 230V 3° (9.6A) 14,595.00
9530-382 3 HP, 460V 3° (4.8A) 14,595.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

2601-270 Chain Tray Kit 10 Ft (3m)399.00
1601-197 Heater Kit 208/230 VAC1 Note 2
1601-198 Heater Kit 480 VAC1 Note 2
9550-205 10 Ga. Steel Housing34095.00

• 1. Use if temperature routinely falls below 10°F (-12°C).
• 2. See Section A1, page 31 for pricing.
• 3. Special order. Contact the factory for lead time.

Chain

2601-268 #80 Chain, 10-Ft (3 m)249.00
2601-269 #80 Chain, 20-Ft (6 m)501.00

Heavy-Duty Maximum Security Slide Gate Operator

9550

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #100 Chain
• Gate tracker data output
• Selectable stop/ reverse function

95xx-xxx with Standard Polyurethane housing

95xx-xxx with optional 10ga. Steel housing

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation 1	Voltage VAC	HP	Power Outlets	Loop Ports 2
9550	#100	.5-1 Ft/sec .153m/sec	15,000 Lbs³ 6803 Kg	160 Ft 48m	25 Ft 7.6m	Pad	III, IV	208, 230, 460	5	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.

Heavy-Duty Maximum Security Slide Gate Operator

Operators w/#100 Chain

9550-380 5 HP, 208V 3° (12.9A) 25,215.00
9550-381 5 HP, 230V 3° (12.8A) 25,215.00
9550-382 5 HP, 460V 3° (6.4A) 25,215.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

2601-270 Chain Tray Kit 10 Ft (3m)399.00
1601-197 Heater Kit 208/230 VAC1 Note 2
1601-198 Heater Kit 480 VAC1 Note 2
9550-205 10 Ga. Steel Housing34095.00

• 1. Use if temperature routinely falls below 10°F (-12°C).
• 2. See Section A1, page 31 for pricing.
• 3. Special order. Contact the factory for lead time.

Chain

2601-272 #100 Chain, 20-Ft (6 m)................................543.00

Heavy-Duty Maximum Security Slide Gate Operator

9555

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #80 Chain
• Gate tracker data output
• Selectable stop/ reverse function

95xx-xxx with Standard Polyurethane housing	95xx-xxx with optional 10ga. Steel housing

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation1	Voltage VAC	HP	Power Outlets	Loop Ports2
9555	#80	1-2 Ft/sec .36m/sec	10,000 Lbs3 4535 Kg	160 Ft 48m	25 Ft 7.6m	Pad	III, IV	208, 460	5	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.

Heavy-Duty Maximum Security Slide Gate Operator

Operators w/#80 Chain

9555-380 5 HP, 208V 3° (12.9A) 20,835.00
9555-382 5 HP, 460V 3° (6.4A) 20,835.00

These operators include a mechanical disc braking system. A brake auto-release can be factory ordered with this operator.

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

2601-270 Chain Tray Kit 10 Ft (3m)399.00
1601-197 Heater Kit 208/230 VAC1 Note 2
1601-198 Heater Kit 480 VAC1 Note 2
9550-205 10 Ga. Steel Housing34095.00

• 1. Use if temperature routinely falls below 10°F (-12°C).
• 2. See Section A1, page 31 for pricing.
• 3. Special order. Contact the factory for lead time.

Chain

2601-268 #80 Chain, 10-Ft (3 m)249.00
2601-269 #80 Chain, 20-Ft (6 m)501.00

Heavy-Duty Maximum Security Slide Gate Operator

9575

• Adjustable Limits
• Plug-in Loop Detector Ports
• Built-in power and reset switches
• Two 115 VAC convenience outlets
• Partial open / anti-tailgate feature

• 40:1 Gear Reducer Drive Train
• Variable Speed
• 20-Feet (6m) #100 Chain
• Gate tracker data output
• Selectable stop/ reverse function

Model	Chain	Speed Variable	Maximum Gate Weight	Maximum Gate Length	Minimum Gate Length	Mount	Class of Operation1	Voltage VAC	HP	Power Outlets	Loop Ports2
9575	#100	1-2 Ft/sec .36m/sec	25,000 Lbs3 11,339 Kg	160 Ft 48m	25 Ft 7.6m	Pad	III, IV	208	7.5	2	2

• 1. III = Limited Access; IV = Restricted Access
• 2. Plug-in loop detector ports; open and reverse. DoorKing plug-in loop detectors only.

Heavy-Duty Maximum Security Slide Gate Operator

Operators w/#100 Chain

9575-380 7.5 HP, 208V 3° (22.6A)........................... 32,850.00

Choose Entrapment Protection (required) Devices

Use Type B1 (non-contact) and/or Type B2 (contact) entrapment protection devices to protect all areas where the risk of entrapment exist - see Section A1, pages 42-43.

Operator will not run without entrapment protection device(s) connected to the controller board.

Loops and Loop Detectors

See section A1, page 44 for a complete list of all loop detectors, prefabricated loops and loop accessories available.

Accessories

2601-270 Chain Tray Kit 10 Ft (3m)399.00
1601-197 Heater Kit 208/230 VAC1Note 2
9550-205 10 Ga. Steel Housing34095.00

• 1. Use if temperature routinely falls below 10°F (-12°C).
• 2. See Section A1, page 31 for pricing.
• 3. Special order. Contact the factory for lead time.

Chain

2601-272 #100 Chain, 20-Ft (6 m)................................543.00

Blank Page

DKS® (DoorKing®) Connection Options Fee Schedule

Programming your DKS telephone entry / access control system using legacy modem-to-modem connections (a modem and phone line at your PC) is becoming difficult to maintain. Modems are essentially obsolete and their performance is affected by the type of telephone service at your PC. There are also many variable factors that can affect the modem, including the brand and model of the programming PC, which OS version is in use, is the modem connected directly to the PC or through a USB Hub, brand and chipset versions of the modem and modem driver updates. Existing modem-to-modem connections may become unreliable as telephone providers update their systems and infrastructure and as your PC performs updates. These factors are beyond the control of DoorKing.

Beginning January 1, 2017 DoorKing will no longer offer technical support for communication failures between a PC modem and the DKS entry system modem. If the modem connection is found to be functional at the DKS entry system and DoorKing tech support personnel can connect to it via the DKS IM Server connection service, then this will be the recommended corrective action. Alternately, troubleshooting the PC modem will be the responsibility of the owner and their IT (Information Technology) personnel.

Because of these reasons, DoorKing offers a variety of connection options for our telephone entry and access control systems. These options offer a simple plug & play method to program your entry system via an internet or cellular connection and we also offer options for voice communications as well. The type of service you choose should be based on your particular needs, the application that the system is installed in and overall costs associated with these options. In many cases, you will find that the DoorKing options are less costly than legacy options such as a POTS (Plain Old Telephone Service) business line, VoIP (Voice over Internet Protocol) service providers or the time and cost of IT (Information Technology) personnel setting up routers, firewalls, port forwarding, DDNS (Dynamic Domain Name System) charges or static IP addresses.

DKS Cellular OptionTM DKS Cellular is a wireless option that replaces standard telephone lines and internet connections and offers voice communication and/or data (programming) to the DKS telephone entry / access control system via the AT&T 4G LTE cellular network (where available). DKS Cellular is available in all states including Alaska and Hawaii and is also available in Puerto Rico, all U.S. territories, Canada and Mexico. This is a monthly cellular subscription service without any long term contracts. DKS Cellular plans include all taxes, fees and charges for voice and data communication, including long distance charges.

• Plug & Play installation. Requires DKS cellular adapter: 1800-080 for 1830 series; 1800-081 for Access Plus series; 1801-080 for 1800 series.
• Monthly fees range from $39.95 to $75.95 depending on minutes and/or data used, so your monthly fees may vary from month to month. In many cases, DKS cellular fees will be less than POTS (Plain Old Telephone Service) line charges.
• No phone lines or internet connection cables to run no trenching or conduits to install.
• No obsolete slow modems entry systems program much faster.
• Cellular offers crystal clear sound no hums or buzzes.
• Cellular is practically immune to power surges and lightning damage.
• Use Voice + Data with PC programmable 1830 Series and Access Plus systems. Use Voice only with 1800 Series systems. Use Data only with 1838 Series access controllers.

DKS Cellular1
Voice + Data		Monthly Fee	Voice Only2	Monthly Fee	Data Only	Monthly Fee
Voice Minutes/Month	Data Transfers/Month		Voice Minutes/Month		Data Transfers/Month
Up to 100	Up to 6	39.95	Up to 100	34.95	Up to 60	28.95
101 - 450	7 - 60	49.95	101 - 450	41.95	61 - 120	38.95
451 - 1200	61 - 90	59.95	451 - 1200	49.95	121 +	48.95
1201 - 2500	91 - 120	69.95	1201 - 2500	57.95
2500 +	121 +	75.95	2500 +	64.95

^1. DKS Cellular is provided by AT&T 4G-LTE (where available). $45.00 one-time activation fee applies.

^2. Voice only cellular option will not support modem communication.

DKS VoIP and Data Options DKS VoIP and Data services allow you to replace POTS (Plain Old Telephone Service) lines with your internet connection and offers voice communication and/or data (programming) to the DKS telephone entry / access control system. This is a flat rate monthly subscription service without any long term contracts and includes all taxes, fees and charges for voice and/or data communication.

• Plug & Play installation. Requires DKS 1830-186 TCP/IP adapter for programming. DKS 1815-568 VoIP adapter required for voice service. As an option, use the DKS 1830-185 TCP/IP1 adapter and your own VoIP3 provider.
• Data + VoIP combination simplifies installation. Requires DKS 2334-080 with VoIP + Data subscription.
• Flat rate monthly fee: voice and data $23.952, voice only $19.952; data only $4.95.
• Requires a network (internet) connection at the system distance limitations on network wiring do apply.
• You can use your own VoIP service3 and the DKS Data only option for programming.
• 1. There is a no fee option that will allow you to connect to the entry system via the internet without using DKS data services. This adapter requires manual configuration and fees or charges may be incurred for a static IP address or DDNS (Dynamic Domain Name System) host service. You will also need to use your own VoIP service for communication.
• 2. VoIP service provided by DKS.
• 3. If you use your own VoIP service, you will responsible for all charges for this service including hardware, subscription, taxes and other fees.

DKS VoIP and Data Options
VoIP + Data	Monthly Fee4	VoIP Only	Monthly Fee4	Data Only	Monthly Fee
Flat Rate	23.95	Flat Rate	19.95	Flat Rate	4.95

^4. Includes VoIP service provided by DKS.

DKS IM Server ModemTM (Pat: 9,049,306) DKS IM Server utilizes the POTS (Plain Old Telephone Service) line connected to the telephone entry system to provide data (programming) transfer to the DKS telephone entry / access control system via the internet connection at your programming computer. Voice communication is provided over the POTS line. This service is useful if your programming PC does not have a modem, or if your modem cannot communicate with the entry system modem1. This is a monthly subscription service without any long term contracts and includes taxes and charges for the data communication only. DKS IM Server Modem is only available for use with 1830 series and Access Plus series systems.

• Plug & Play Data transfer connection voice service provided by local telephone company.
• Monthly fees range from $6.95 to $15.45 depending on the number of residents in the system database.
• DoorKing maintains the right to determine excessive usage (data transfers) at any time and may require you to reduce your usage (data transfers). Failure to comply may result in service termination.
• Requires a POTS (Plain Old Telephone Service) line1 at the entry system. User is responsible for all phone company charges including local and long distance charges, taxes and other fees for this line.
• 1. DoorKing can no longer guarantee modem connections as some phone company services and switches no longer support modem communications since these devices are considered to be obsolete technology. The telephone line at the entry system must support G.711 level service for the IM Server Modem to work. You should also be aware that modem communications will not work over cellular or VoIP connections.

DKS IM Server ModemPat: 9,049,306 (Existing Phone Line Service2)

Voice + Data	Pay per Month	Pay per Year
Up to 100 Residents	6.95	76.45
101 – 250 Residents	9.45	103.95
251 – 500 Residents	11.95	131.45
501 + Residents	15.45	169.95

^2. POTS (Plain Old Telephone Service) line at the entry system provided by the local telephone company. User is responsible for all phone company charges including local and long distance charges, taxes and other fees for this line.
