This price list supersedes and cancels all previous price lists. Prices shown are subject to change without notice.

Administrative Offices

Allegion Administrative Office 11819 N. Pennsylvania St. Carmel, IN 46032 allegion.com/us

Placing orders

You can place orders with Allegion via the fax numbers or emails listed below:

Mechanical Locks & Key Systems Fax#: 1-800-452-0665

Email: Order_Entry_Schlage_Commercial@allegion.com

Residential Locks Fax#: 1-800-366-5625

Email: Res Contact Center@allegion.com

FastTrack

Fax#: 1-800-288-4242

Email: Order_Fasttrack@allegion.com

Customer Care

Our Customer Care Representatives are available for questions or assistance. You can reach them at 877-671-7011 (Press 1 for Sales Support | Press 2 for Product Support | Press 3 for RSO) or through the email addresses listed below:

Sales Support

support@allegion.com

Technical Product Support

Mechanical Locks/Keying Systems Mechanical_Locks_TechProdSupport@allegion.com

Request for Quote

Carolinas

(North Carolina, South Carolina, Virginia) Carolinas.Quotes@allegion.com

Central

(Arkansas, Illinois, Iowa, Kansas, Missouri, Nebraska, Oklahoma) Central.Quotes@allegion.com

Chicago

(Illinois-Northern, Wisconsin) Chicago.Quotes@allegion.com

Florida

Florida.Quotes@allegion.com

Great Lakes (New York, Pennsylvania) GreatLakes.Quotes@allegion.com

Metro New York

Metro.Quotes@allegion.com

Michigan

Michigan.Quotes@allegion.com

Mid Atlantic North

(New York, Pennsylvania) Mid.Atlantics.north.guotés@allegion.com

Mid Atlantic South

(Delware, Maryland, New Jersey) Mid.Atlantics.south.quotes@allegion.com

(Indiana, Kentucky, Ohio, West Virginia) Midwest.Quotes@allegion.com

Mountain States

(Colorado, Idaho, Montana, Nevada, Utah, Wyoming) Mtn.States.Quotes@allegion.com

New England

(Connecticut, Main, Massachusetts, New Hampshire, Rhode Island, Vermont) NewEngland.Quotes@allegion.com

North Central

(Minnesota, North Dakota, South Dakota) NorthCentral.Quotes@allegion.com

Northern California

NoCal.Quotes@allegion.com

Northwest

(Alaska, Oregon, Washington) Northwest.Quotes@allegion.com

South

(Alabama, Georgia, Louisiana, Mississippi, Tennessee) South.Quotes@allegion.com

Southern California

(California-Southern, Hawaii) SoCal.Quotes@allegion.com

Southwest

(Arizona, New Mexico) Southwest.Quotes@allegion.com

Texas.Quotes@allegion.com

Terms & Conditions	10-28
Allegion General Tems & Conditions	10
Schlage Standard Terms	14
Product Warranties	17
Commercial Applications	17
Residential Applications	17
Distributor Function and Location Policy	18
Distributor Function and Location Policy	20
Cylinder Policies	21

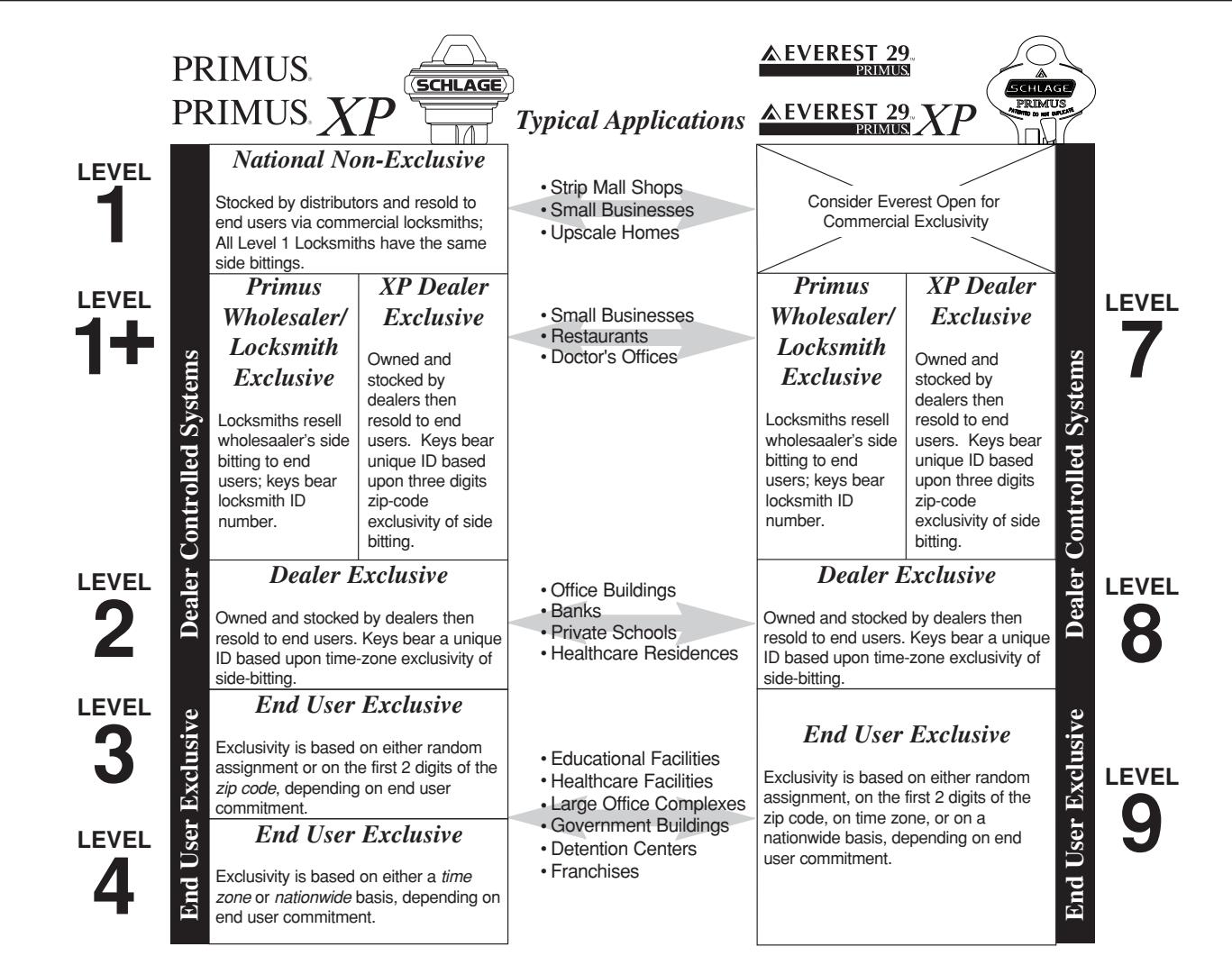

Primus® Sales Policy	21
Everest® Sales Policy	21
Everest Small Format Interchangeable	21
Core Key Control Policies	21
Restricted Keyway Policy	21
Construction Core Program PolicyPolicy	21
Master Key Shipment Policy	23
Hardware Finishes	24
Forms & Examples	29-56
How To Order	30
Ordering Examples	31
Order Forms	32
Using Order Forms	33
Sequential List of Order Forms

C'	YLINDRICAL	57-116
Α-	Series	57-70
	Functions	.60
	Complete Locks	.61
	Options	.63
	Parts	.65
ΑL	-Series	71-84
	Functions	.74
	Options	.77
	Parts	.79
D-	Series Knobs	85-96
	Functions	.88
	Coomplete Locks	.89
	Options
	Parts	.92
NI	)-Series Levers	97-116
	Functions	100
	Complete Locks	.103
	Options	.105
	Conversion Guide
	Parts	.110
		117-150
B2	250-Series
	Functions
	Complete Locks
	Options	.122
	Parts
B5	i00-Series
	Functions
	Complete Locks
	Options
_	Parts
Be	600/700/800-Series
	Functions
	Complete Locks
	Options
	Parts	146-
N //	ORTISE	151-196
L-:	Series
	Complete Locks
	Options
	Distributor Pack Program
	Parts
	raits	102
M	ULTIPOINT	197-220
	19200-Series
-11	Functions
	Complete Locks
	Options
	Parts
		_ 1 -

Table of Contents

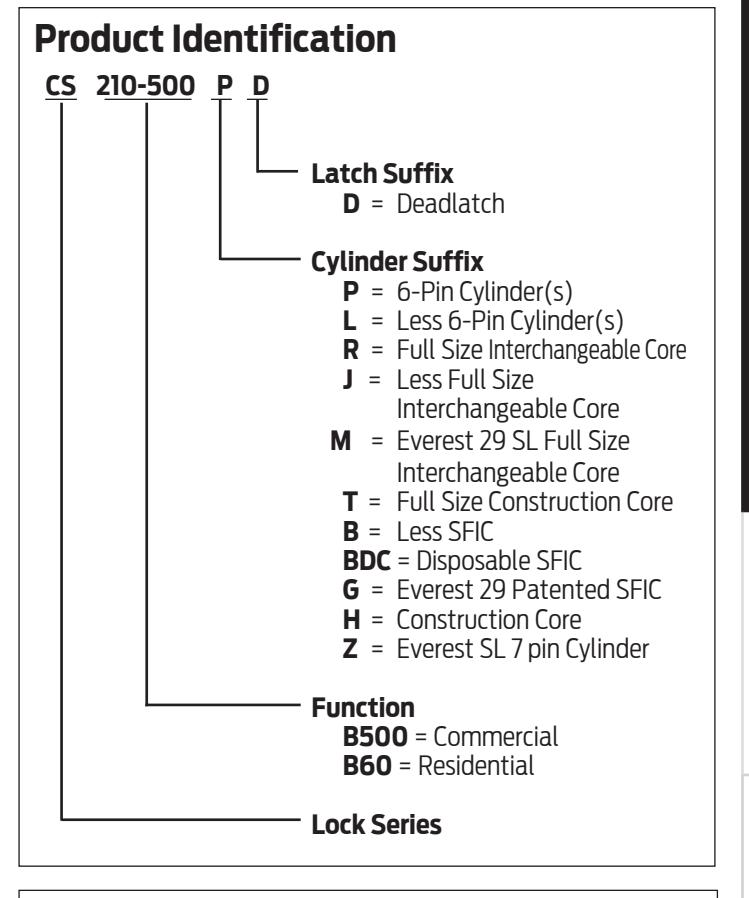

INTERCONNECTED	221-254	CYLINDRICAL / KEYS / AUXILIARY	303-416

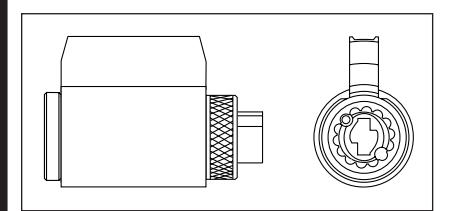

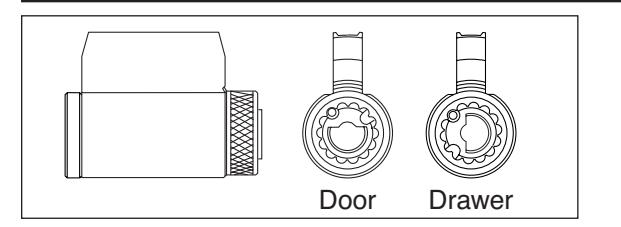

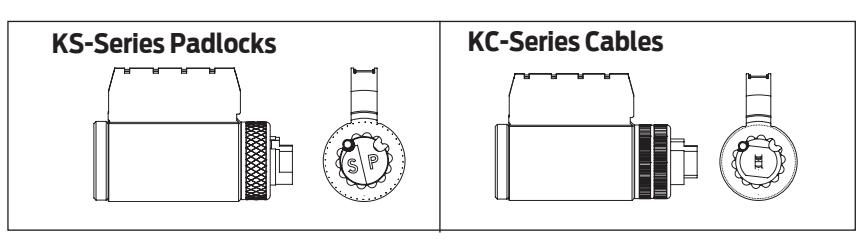

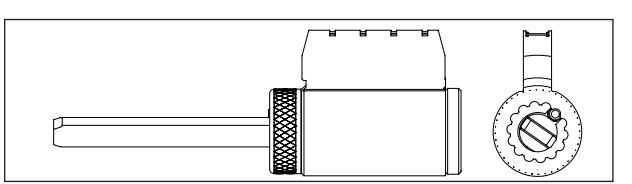

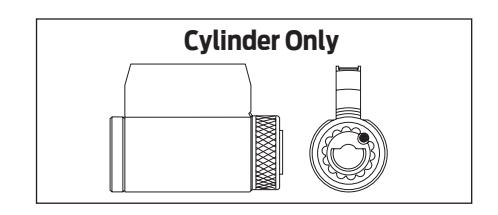

CS210-Series	221-230	Cylinders	303
Functions	224	Multiple Tailpiece Cylinders

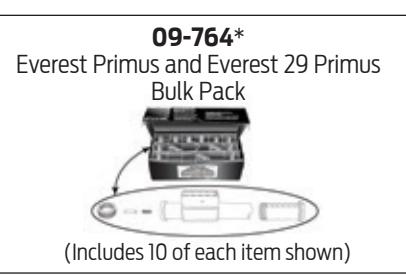

Complete Locks		Bulk Pack Cylinders
Options		Unassembled Multiple Tailpiece Cylinders
Parts		Bulk Pack Cylinders
H-Series (Discontinued)		Primus Cylinders-Sub Assembled
$200-Series		A & H, AD, AL CL, D, ND, F, FA, PL, S & S200
Functions		B500
Complete Locks		B250, B400, E/B, F100, H, MD, S200
Options		B600/700/800
Parts		Mortise
		Schlage cylinders for Falcon & Von Duprin
TUBULAR	255-274	Rim Cylinders
LT-Series	255-264	Interchangeable Cores
Functions		Competitor Retrofit Cylinders
Completre Locks		Mailbox
Options		Special Cylinders
Parts		Pins, Springs & Pinning Compoents
S-Series		Plugs
Functions		Shells
Complete Locks		Keys & Keying
Options		Keys Ordered Separately
Parts		Key Stamping
		Cylinder Stamping
SPECIALTY	275-286	Construction Core Program

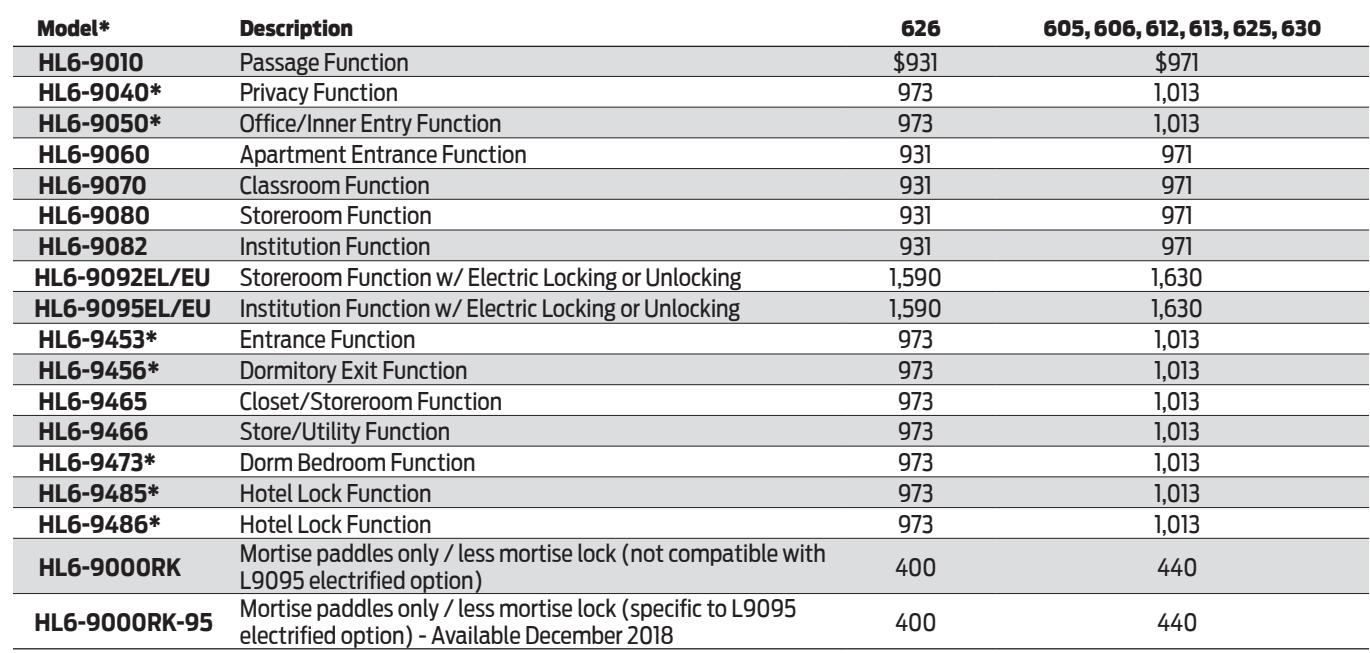

HL-Series		Keying Charges
Functions		Sitemaster 200®

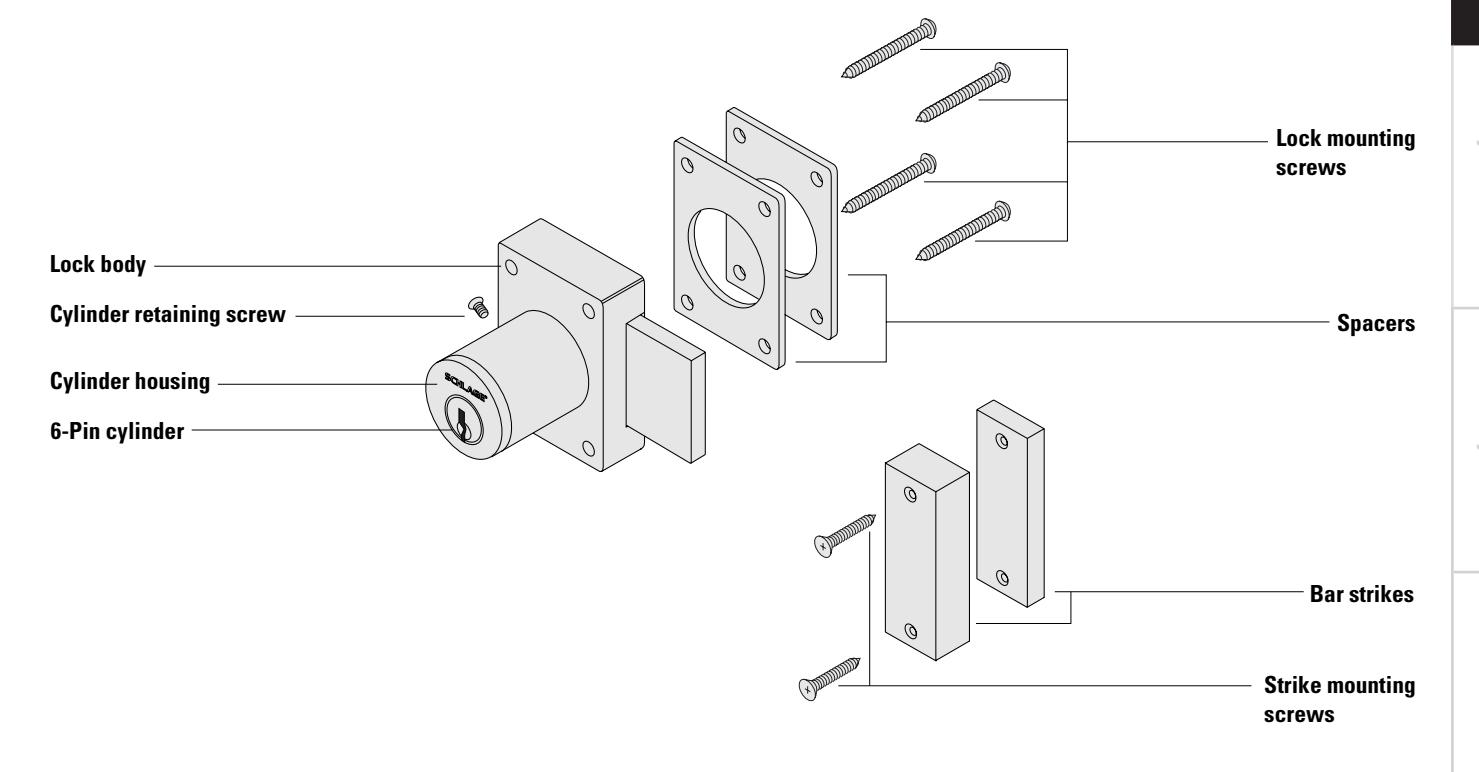

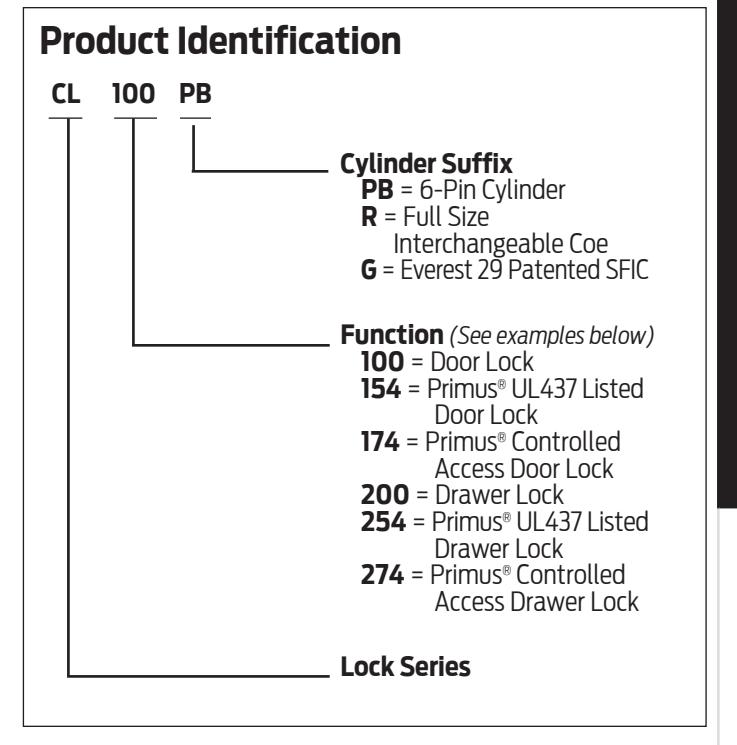

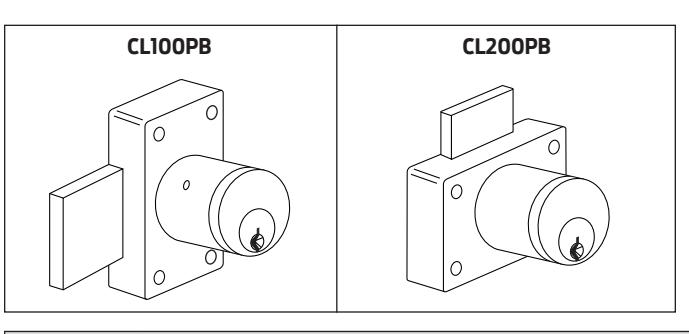

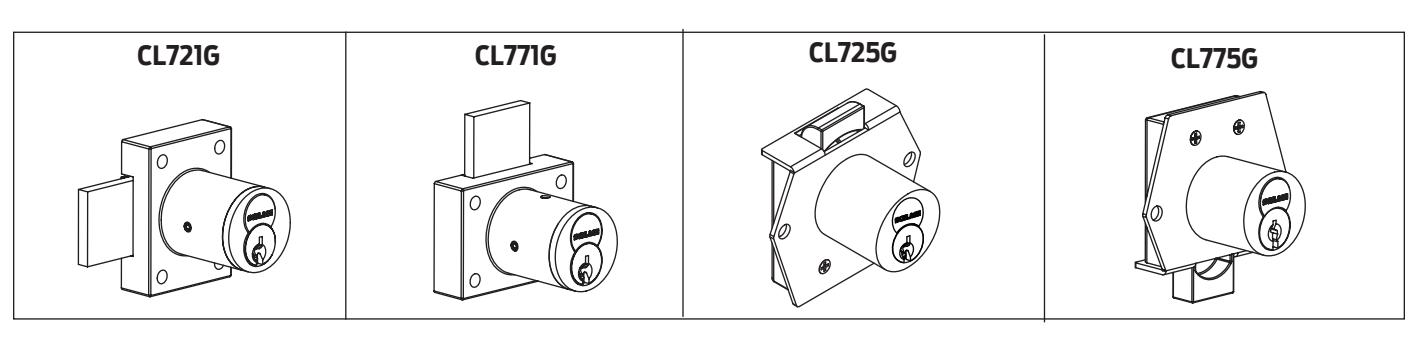

Parts		CL-Series
		Complete Locks

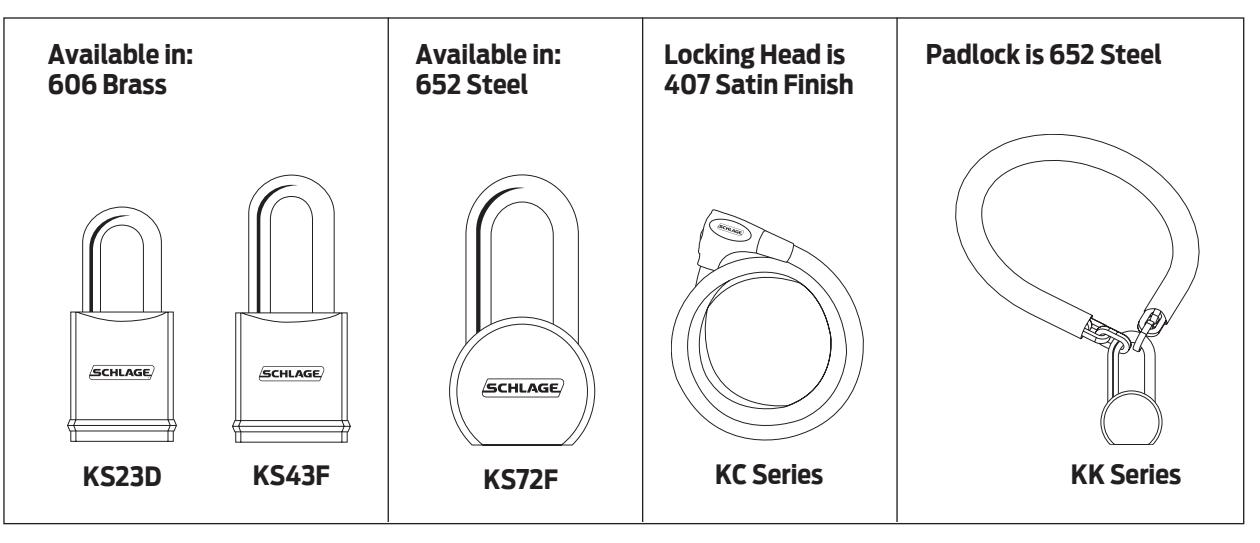

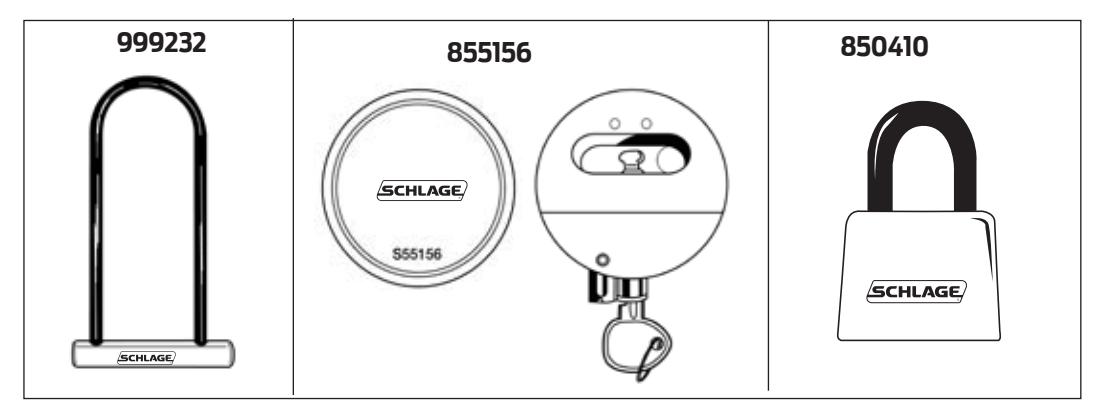

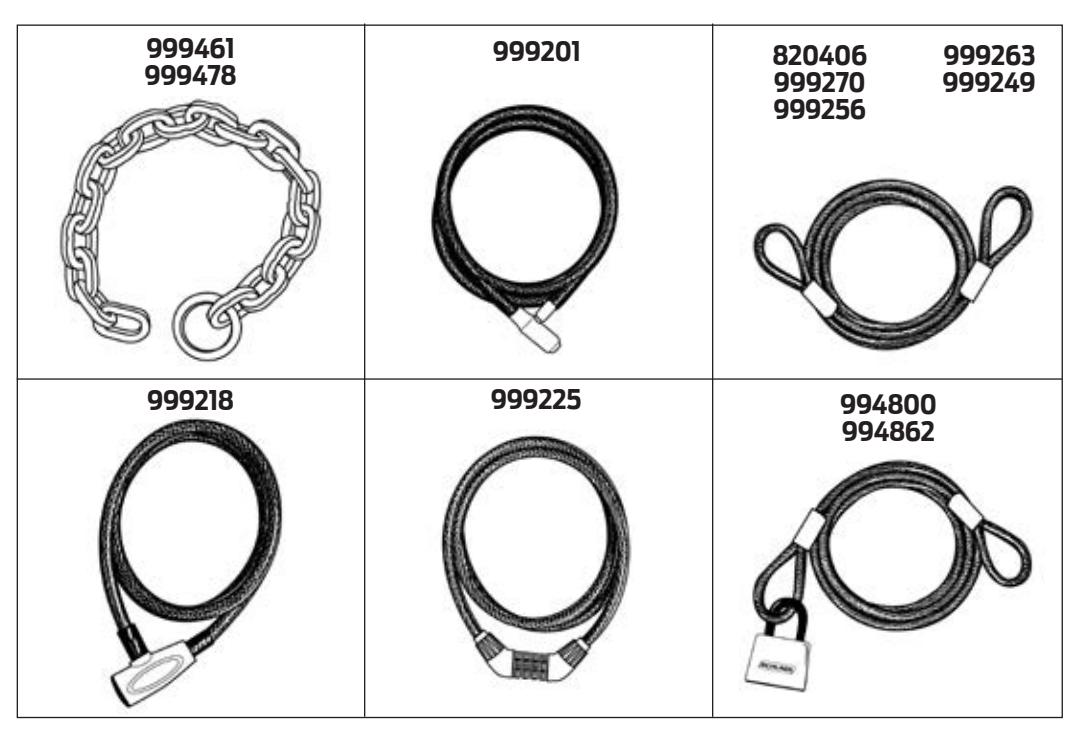

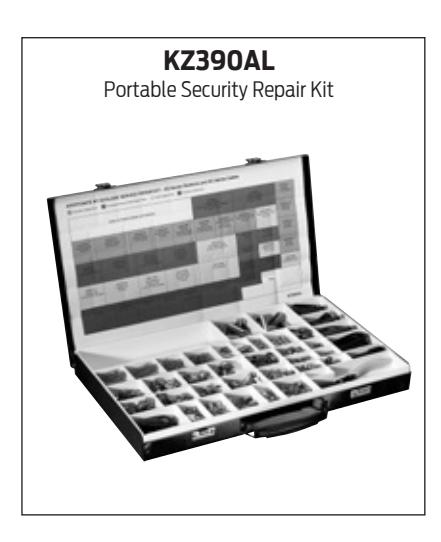

PORTABLE SECURITY	287-302	Options
Portable Security		Parts
PL Series Cross Reference

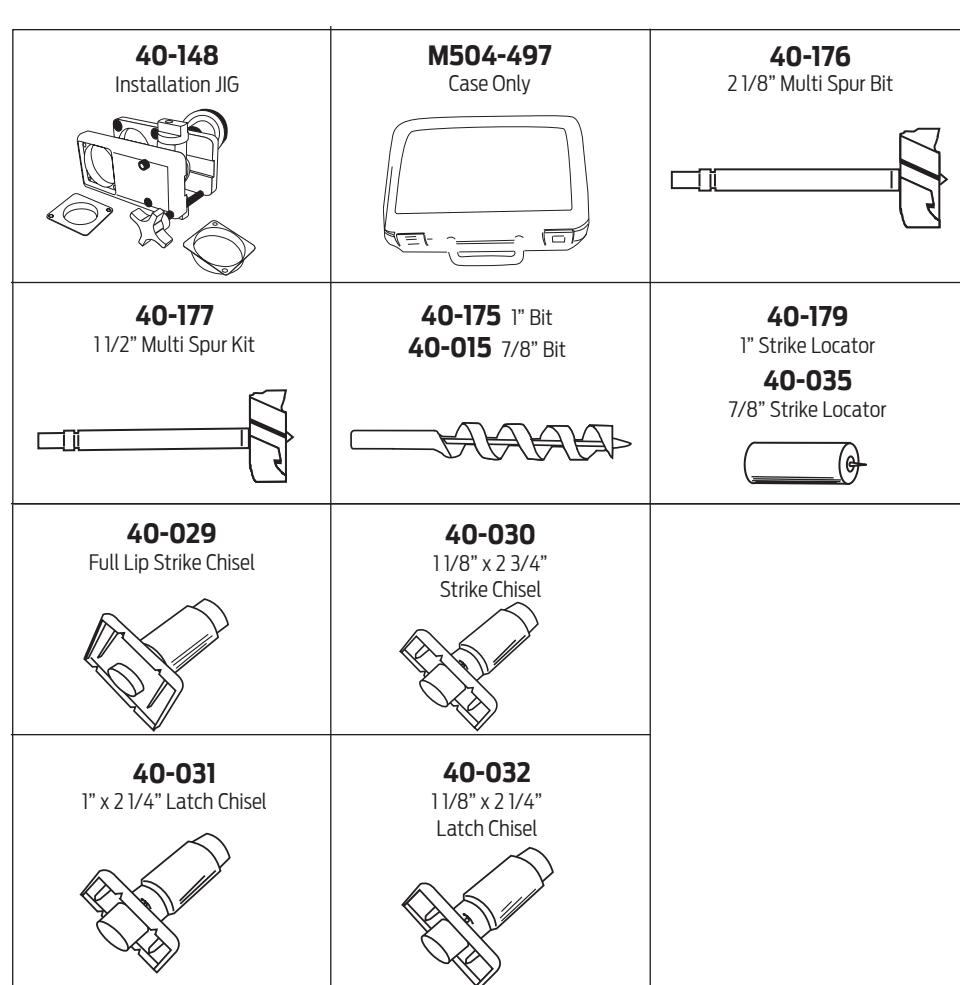

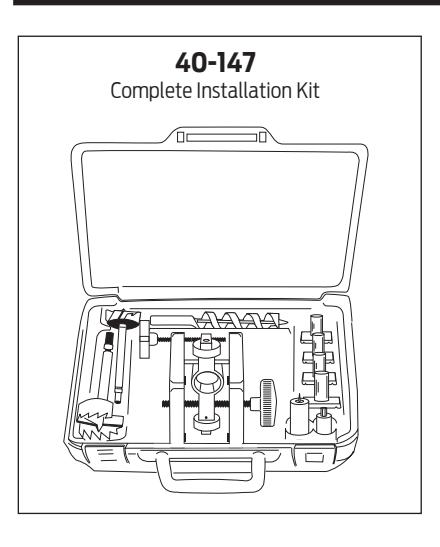

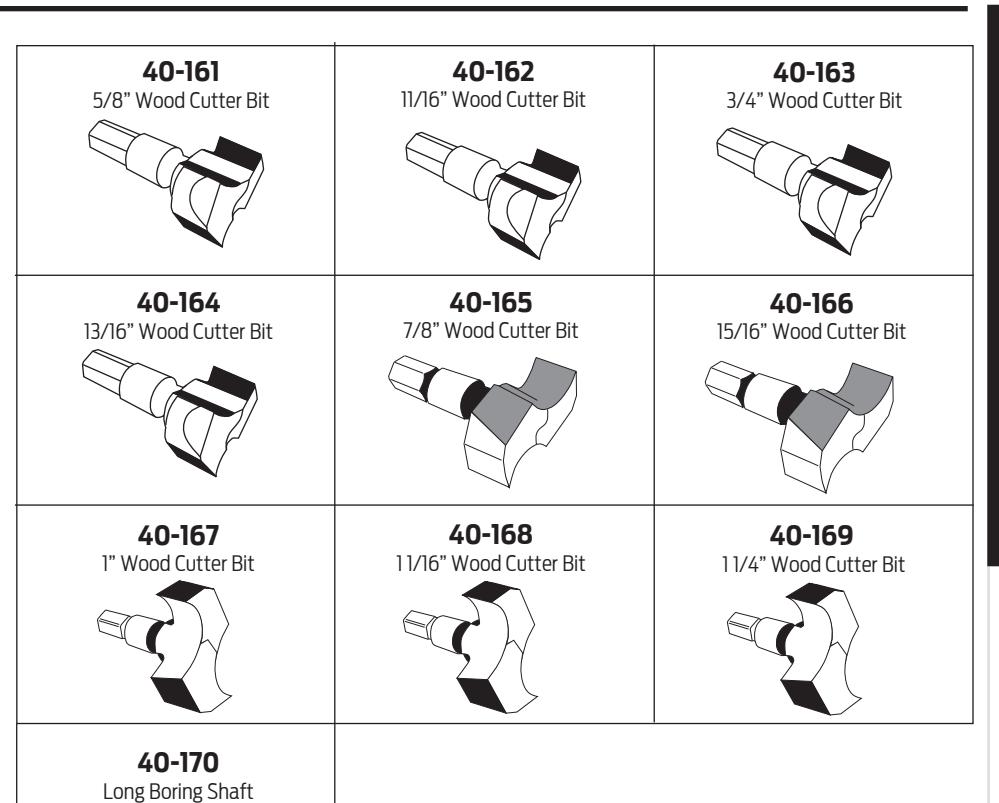

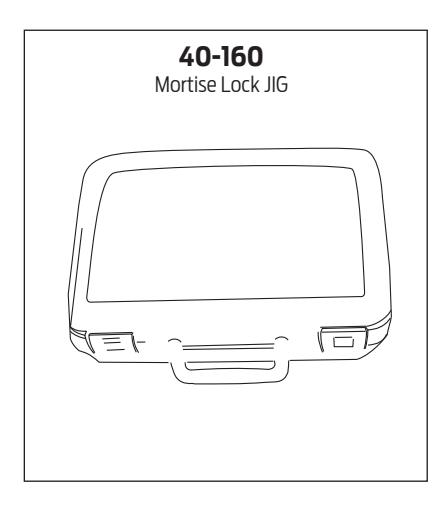

Key-in-Lever with Cylinder		TOOLS AND KITS	417-430
Key-in-Lever Less Cylinder		Tools & Kits
SFIC Less Cylinder		Keying Tools & Kits	418
Full Size IC Core		Tools	421

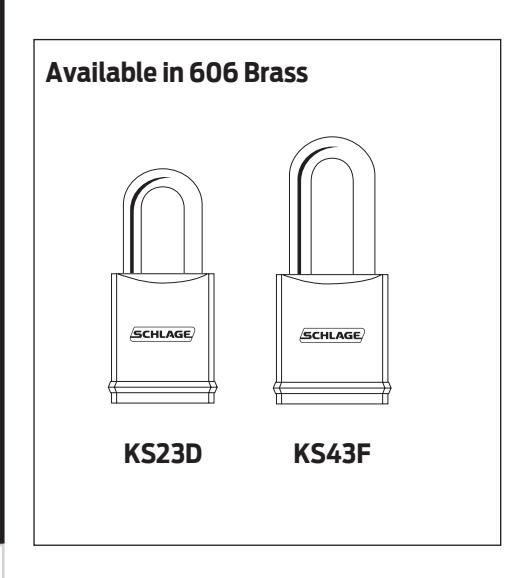

Custom Engraving Brass Padlocks and		Tools
Chrome Plated Brass Padlocks	295	Kits
Parts and Accessories		Merchandising Aids
Special Security		Display Mounts
Special Secondy	222	Miscellaneious
		PARTS INDEX	431-445
		FARIS INDEA	771747

	Ordering Options	Form Name and Number	Notes
	1. Standard Orders These orders are for the comprehensive listing of the current product offering shown in this price book.	Your Purchase Order See information required on your order in "Forms & Examples" price book tab.	All orders will be processed based on normal factory lead times. An anticipated ship date will be included with each order acknowledgement.
Commercial Products *	2. Schlage Innovation Center Orders (RFQ) These orders are for Request For Quote (RFQ) orders which are not covered in the price book and are subject to longer lead times. These orders may not be combined with any Master Keyed or Non-Master Keyed products. Use this process for custom logo requests.	Schlage Innovations Center Product Request Form See the "Innovation Center Product Request Process" on Page 6.	These products are not in the price book and must be requested for consideration. Instructions are included in the Innovations Center Product Request Process in this section.
	3. FastTrack Orders These orders are for products in the FastTrack price book and qualify for expedited order processing. This program includes Schlage and Allegion brand products. Please consult your sales representative for FastTrack program availability in your area.	Refer to FastTrack price book.	See current FastTrack price book. Phone number 1-877-671-7011 or fax number 1-800-288-4242.
	1. Master Keyed Orders These orders are subject to standard lead time and process. Please attach the necessary forms if a restricted key system or Primus order.	Master Keyed Order Form ms-i100.01 Rev. 3/14 ms-i100.02 Rev. 3/14 ms-i150 Rev. 3/14	Use of order forms other than Schlage order forms can result in an increased lead time. An anticipated ship date will be included with each order acknowledgement.
	2. Non-Master Keyed Orders These orders are subject to standard lead time and process. If you are ordering a restricted key system or Primus order, please attach the necessary forms.	Non-Master Keyed Order Form ms-i250 Rev. 3/14 ms-i300 Rev. 3/14	Use of order forms other than Schlage order forms can result in an increased lead time.
Keys	3. Primus Face Sheet Original signed form must accompany any Primus or Primus XP level 3, 4, or 9 order.	Primus Face Sheet ms-e120 Rev. 3/14	Must submit original forms, copies are not accepted.
	4. Primus Signature Card Original signed form must accompany any NEW Primus or Primus XP level 3, 4, or 9 order.	Primus Signature Form ms-e130 Rev. 03/14	Please make sure the form identifies the key sys- tem as NEW or EXISTING If removeable cores, make sure control keys are ordered. Do not forget to mark the type of keys, stamping information, etc.
	5. Key System Summary Please fill in all appropriate fields. Contact your local RSO sales office for help.	Key System Summary ms-i200 Rev. 3/14 All 4 Pages	All orders will be processed based on normal factory lead times. An anticipated ship date will be included with each order acknowledgement.
Residential	1. Standard Order Plan All residential Schlage, and Dexter by Schlage prod- ucts currently listed in this price book.	Your Purchase Order see information required on your order in "Forms & Examples" price book tab.	All orders will be processed based on normal factory lead times. An anticipated ship date will be included with each order acknowledgement.

Standard Products

In each tabbed section of this Price Book you will find a comprehensive listing of our current offering per product series. Products should be ordered via the traditional method by designating the product, design, finish, handing, and options for each line item (refer to "How to Order" in the Forms & Examples section of the price book). All orders will be processed based on normal factory lead times. These lead times vary throughout the year and are affected by production volumes, supplier schedules and quantity demands. An anticipated ship date will be included with each order acknowledgement.

Some of the products listed in these sections require extended lead times. You will find the hourglass symbol (6) associated with products that require extended lead times so that you are aware of this condition prior to placing your order. Products included in this classification are those items that represent a unique combination of product attributes (i.e. finish, trim, function, etc.) that typically require additional manufacturing care and attention. Products marked "6" will routinely exceed normal factory lead times and anticipated ship dates will be indicated with each order acknowledgement.

Schlage Innovation Center Product Request Process

Schlage Innovation Products are products that are not in the price book and are formally requested through the Schlage Innovation Center Product Request Process. Examples of these products include:

• · Products which at one time were offered for sale by Schlage but are no longer available in the current price book.
• · Finishes not listed as standard for a product in the price book.
• · "True" custom products, which are new variations on current or past products.
• · Custom logo requests.

How to Request a Quote for a Custom Lock Product

• Custom lock products can only be ordered by and shipped to current Allegion Channel Partners
• · Innovation Center Product Request Form can be obtained by:
• Sending an email request to Mechanical_Locks_TechProdSupport@allegion.com
• Searching Knowledge Center tool at http://kc.allegion.com/ for Innovation Center Product Request Form
• Contact Schlage Product Support at 877-671-7011, option 2, option 1
• · Send the completed request form to Mechanical_Locks_TechProdSupport@allegion.com
• · Upon receipt the Innovation Center Product Request Form coordinator will assign an RFQ#, review, and clarify the request as needed
• · Within 5-working days your request will be either denied or approved
• If approved, Schlage will communicate the RFQ#, NET pricing, and lead time
• If denied you will be notified with an explanation
• · RFQ# is valid for 6 months
• · To place an order submit the approved RFQ form and purchase order with the RFQ# prominently displayed to Order_Entry_Schlage_Commercial@allegion.com
• · Changes to the original request after a quote approval may incur additional charges and affect lead time
• Prior to PO submittal send all change requests to Mechanical_Locks_TechProdSupport@allegion.com
• · RFQ items must be ordered on a separate stand-alone purchase order and cannot be on an order with NON-RFQ items

For additional information, please contact Technical Product Support at 877-671-7011.

Commercial Master Keyed Orders

MASTER KEYED ORDERS	LEAD	TIMES
Schlage Forms (MS-I200, MS-I100, MS-I150)	Factory Lead Time
Non-Schlage Forms	Extended Lead Time	Additional 5 Working Days Minimum

In an effort to expedite the process of managing our growing volume of Master Keyed order requests, Master Keyed orders submitted in the following choice of formats will receive factory lead times based on the following criteria:

• Orders submitted on the Key System Summary form (MS-I200) and the Master Keyed Order forms (MS-I100 and MS-I150)

OR

• Orders submitted on the Key System Summary form (MS-I200) and your purchase order with information specified in the following sequence:

Qty	Product	Design	Finish	Hand	Latch	Strike	Add'l Details
	Door Detail Information					DHI Key Symbol

Lead times for Master Keyed orders in any other format will be extended at least 5 additional working days. In all cases, allow additional lead time for clarifications and complex keying requirements. The Master Keyed order forms are located in the Forms & Examples/Keys and Keying sections of the price book. For your convenience you can download the Master Keyed order forms from our web site at allegion.com/us

Residential Keying

Residential Master Key (RMK): RMK is a single key that will grant access to all opening with in the facility (i.e. master key). Additionally, each tenant would need to be provided with a key that will grant them access to their apartment only. The same keying situation would exist in any form of a multi family housing complex.

Residential Construction Keying (RCK): RCK (also referred to as loss ball) by design allows the use of a temporary master key during the construction phase of a project. At the end of the construction phase, the use of the homeowner key will trigger the lost ball construction device, thus eliminating the temporary master key used during construction.

	Common Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	Engineering specials are denoted by a part number beginning with "X".
5.	6 denotes a lock or part that requires an extended lead time.

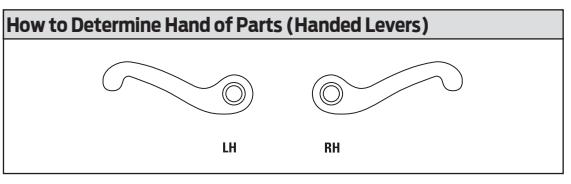

6.	I denotes a handed product and requires handing to be specified.
7.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
8.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
9.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
10.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
11.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
12.	Locks specified with "C" keyway and KD or 0-bitted will receive 6 pin cylinders.
13.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
14.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
15.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
16.	Specify LKB if 0-bitted Primus cylinders are required "Less Key Blanks." Deduct $16.40 per cylinder.
17.	Cut keys ordered with locks are priced according to appropriate extra cut key charge listed on page Keys-26
18.	Grand master sections L, LP (Primus) and Y are supplied in stainless steel only and are recommended to be cut at the factory only

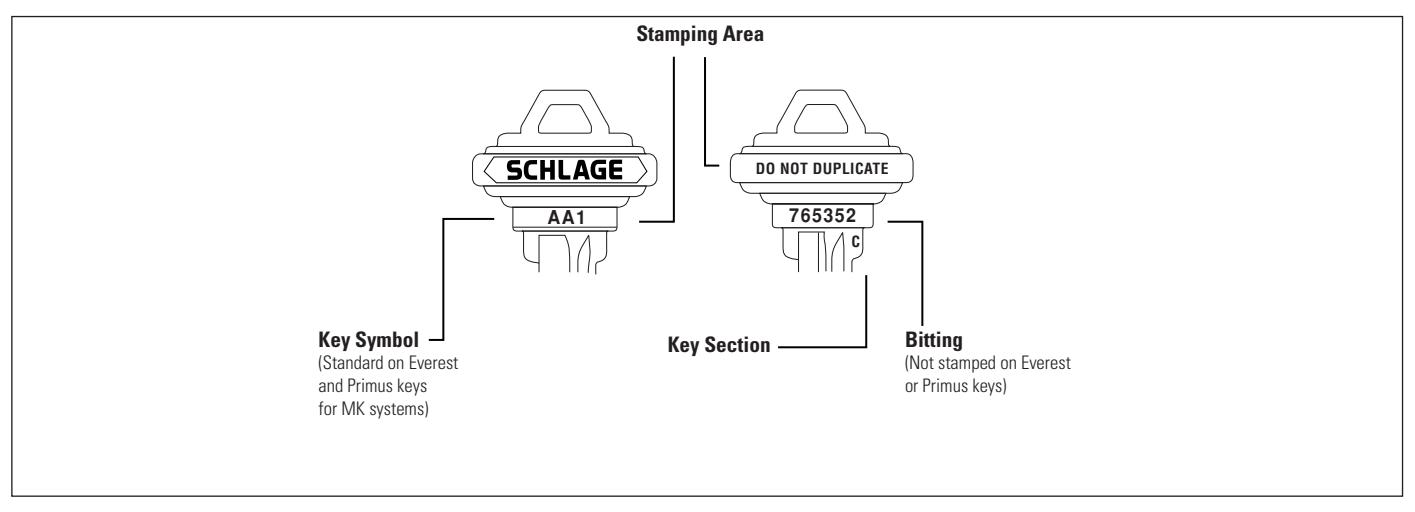

18.	Stamping standards and charges are listed on page Keys-18
20.	Keying services and associated charges are listed on page Keys-22
21.	All Primus 1+ key orders must contain the locksmith ID
22.	All restricted key orders are subject to the restricted keyway sales policies are listed in Terms & Conditions
23.	For hotel function cylinders: Not available in Primus. Furnished 0-bitted. Emergency keys must be ordered separately.
24.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents

General Terms and Conditions for Sales and Service Terms-2 Standard Schlage Product Terms and Conditions Terms-6

Product Warranties Terms-9 Commercial Applications. . Terms-9 Distributor Function and Location Policy Terms-10 Cylinder Policies Terms-11

Schlage Key Systems. . Terms-11 Restricted Keyway Policy. . . Terms-12 Construction Core Program Policy. . . Terms-13 Primus® Sales Policy. . . Terms-13

Master Key Shipment Policy Terms-15 Hardware Finishes Terms-16 How To Order Forms and Examples

Allegion General Terms and Conditions of Sale and Service

1. GENERAL/ACCEPTANCE. (a) This Agreement contains the only terms and conditions by which Company will quote and sell Deliverables to Customer; (b) The terms "purchase order" or "order" for the purposes of this Agreement include the term "request for quotation," as appropriate; (c) This Agreement supersedes all pre-printed or boilerplate terms and conditions set forth in any purchase order issued by Customer; (d) No reference herein to Customer's purchase order will in any way incorporate different or additional terms and conditions, all of which Company hereby expressly objects to; (e) ANY ACCEPTANCE BY COMPANY OF CUSTOMER'S PURCHASE ORDER IS EXPRESSLY CONDITIONED ON THE CUSTOMER'S ASSENT TO AND ACCEPTANCE OF THE TERMS AND CONDITIONS CONTAINED IN THIS AGREEMENT; (f) Company reserves the right to decline any order, in whole or in part, for any reason.

2. ORDERS.

a. Order Processing. When Customer wishes to place an order for Deliverables, it will deliver to Company a purchase order. All such purchase orders must (i) be in a written format acceptable to Company, (ii) be legible, (iii) include a purchase order number, (iv) include Customer's account number, invoice address, ship to address, shipping method, shipper's letter of instruction for international shipments, part number, pricing, and designated contact information, (v) include, if applicable, any special configuration ID numbers, necessary programming information, special factory instructions, and requested specifications regarding a particular finish, handing, design, backset, or strike, (vi) reference any applicable pricing discounts under an ongoing buying program or based on a written quote from Company, along with the applicable buying program number or quotation number, and (vii) not combine buying program and quoted product on the same order.

b. Minimum Orders. In the event the order value does not meet any required minimum net Deliverable value, Company may, at its sole discretion, (i) increase the quantity of items in the order to meet the minimum net Deliverable value requirement; (ii) apply a minimum order charge; (iii) reject the order, or (iv) waive the requirement, provided that the waiver of a requirement for one order shall not constitute a waiver of the requirement for any future orders.

c. Acceptance of Purchase Orders. Company will endeavor to (i) acknowledge receipt of each purchase order issued in accordance with this Agreement, and (ii) notify Customer whether Company accepts or rejects the purchase order. If Company fails to accept or reject a purchase order within a reasonable time period, such failure to respond will be deemed a rejection of the entire order. Orders that combine buying program and quoted product on the same order will be routed back to your local RSO office in order to review subject purchase order.

d. Changes to Order/ Cancellation of Orders. Additional terms and conditions regarding order changes and cancellations are available on the Allegion customer website, WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE. Unless otherwise provided herein, Customer acknowledges that (i) requesting a Change Order may cause a delay in the scheduled shipment date, a longer lead time or result in a new scheduled shipment date; (ii) Orders may not be changed after 48 hours of Company's order acknowledgment; (iii) After 48 hours of Company's order acknowledgment, all changes to an accepted purchase order will be subject to a Change Order charge of 25% of the net Deliverable value, plus the cost of labor and fabrication or raw material that Company incurred prior to the receipt of the Change Order from Customer, or that may be required due to the Change Order; (iv) the requested change may result in additional charges for labor, fabrication, and raw material, and (v) if Customer cancels an order or portion of an order that includes Deliverables that have been manufactured and prepped for shipping, a 45% restocking fee will apply. Notwithstanding the foregoing, Customer cannot change or cancel credential orders, reader orders, biometrics orders or any non-cataloged, special, Custom or nonstandard items once they have been placed. All cancelled orders for a Non Recurring Expense (NRE), credential orders, reader orders, biometrics orders, and/or Custom orders will be subject to a cancellation charge of 100% of the acknowledged price.

e. Add-ons. Add-on orders will not be accepted. Additions to orders will be entered as separate stand-alone orders and must qualify for all terms of sale, including discounts, on an individual basis.

f. Fast-Track Orders. No changes or cancellations will be accepted on the 24-Hour Fast Track Program. For 3-day Fast Track orders, changes and cancellations may only be requested by Customer within 24 hours of Company's order acknowledgment if the order has not shipped. For 5-Day Fast Track orders, changes and cancellations may only be requested by Customer if the order has not shipped and if the request is made to Company within 48 hours of Company's order acknowledgment. Return Material Authorization (RMA) for Deliverables must be processed through Fast Track Customer Service.

g. Steelcraft Orders. For all Steelcraft orders, changes or cancellations are allowed without penalty only if made within 48 hours of Company's order acknowledgment, and provided that the order has not shipped. Some exceptions do apply – please consult the factory. Changes are not allowed on Rapid Program orders after the order has been entered and acknowledged. After 48 hours of Company's order acknowledgment, all changes or cancellations are subject to a charge of 25% of the order. Unless otherwise specified by Company in writing, any changes to orders acknowledged by Company that affect the delivery date will be deemed a new order and will require acknowledgement by Company as provided in this Section. Additional products, features, terms and conditions regarding the Rapid Program are available on the Allegion customer website, WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE.

3. PRICES, INVOICES AND PAYMENT.

a. Prices. The prices in Company's Price Book are subject to change at any time, without notice to Customer. Company may charge Customer additional amounts if Customer requests special packing, marking, shipment, product modification, or engineering services. Oral prices specified by Company are null and void. Quote numbers must be referenced on Customer's purchase order in order for the Company's quoted pricing to apply. Orders that do not reference a quote number will receive buy program pricing or book net pricing. Quoted prices are for those specific products quoted for a specified job, and are subject to the Price Book in effect at the time Company receives the order.

b. Taxes. Prices do not include any present or future federal, state or local property, license, privilege, sales, use, excise, gross receipts or other like taxes or assessments which may result from transactions or any services performed in connection therewith. Any taxes, charges, or duties imposed by any governmental authority on the sale of Deliverables will be paid by Customer, in addition to the selling price specified by Company. Credits for U.S. sales tax applied to invoices will only be granted if valid exemption documentation is provided within 30-days of the invoice date and a case is initiated by customer service. Exemption documentation may be emailed to sales.tax.certificates@allegion.com, this e-mail address cannot be used to request a credit for sales tax charged all such requests must be made with customer service. All certificates sent to the e-mail address must include the following information: (1) Customer account number(s); (2) Customer name; and (3) Allegion brand(s) the certificate should be applied to.

c. Payment Terms. Company will deliver to Customer an invoice with each shipment of Deliverables hereunder. Customer will pay all invoiced amounts within 35 days of the invoice date (subject to any early pay discounts that may be offered to Customer by Company in its sole discretion). Customer will make all payments in United States dollars. Past due invoices will be subject to a late payment service charge of 1.5% per month on any overdue unpaid balance, equivalent to 18% per annum, or the maximum rate permitted by law, whichever is less. Customer shall reimburse Company for all costs of collection, including, without limitation, reasonable attorneys' fees, for any overdue amount owed by Customer to Company, and such collection costs shall also be subject to interest charges.

4. QUOTATIONS.

a. Project Quotations. Project or new construction quotes are restricted to the specific project quoted for the quantities, finishes, and series of Deliverables referenced on the quote. Company reserves the right to require proof of sale of Company products for any quoted project.

b. Stock Quotations. Deliverables fulfilling stock quotations may only be used for the following: i) Stocking of the Customer's shelves for small, quick-turn, discretionary projects, or ii) Sale to a general contractor or installer for new construction. Stock quotations may not be used for any project containing any Company no-substitution, specified products. Deliverables purchased under Stock Quotations cannot be redistributed to other Customer branch locations or re-sold to other resellers or used for aftermarket sales, end-user annual contracts or sold over the counter to any walk in trade.

c. General. All quotes are subject to this Agreement, unless otherwise specified by Company, and are subject to change at any time prior to Company's acceptance of a purchase order referencing the applicable quote number. Company, its representatives and employees reserve the right, in their sole discretion and for any reason, to refuse a Customer's request to quote a price other than the standard list price, regardless of whether Company or its representatives or employees have previously quoted discounted prices to the Customer on some or all of its orders. Customer's failure to comply with this Section 4 will be considered a material breach of this Agreement, and will entitle Company to immediately terminate any purchase orders and/or Customer's ability to distribute Company's products.

5. SECURITY INTEREST. Customer grants Company, and Company retains, a purchase money security interest and lien on any and all of Customer's rights, title and interest in each Deliverable sold by Company to Customer, wherever located, until the invoice for the applicable Deliverable(s) is paid in full, including any late charges and costs of collection. Customer authorizes Company to, and will assist Company in, taking all necessary steps to perfect and maintain Company's interest in such Deliverables.

6. CREDIT TERMS. . Unless Customer pre-pays all of its purchase orders in advance, its purchase orders will be subject to the credit limit and other terms of credit ("Credit Terms") set forth in Company's credit application, which Credit Terms Customer acknowledges are subject to change by Company at any time. Company reserves the right to request payment in advance of shipment or any order or to request adequate assurances for Customer's payment of an order and may withhold or stop shipment, without any liability to Company, until Customer submits payment or adequate assurance of payment.

7. RESALE OF DELIVERABLES. Customer agrees and warrants that it will offer Company products in support of Company-written specifications and will maintain sufficient inventory to adequately support End Users, installers, and/or general contractors' needs. Company may implement an MSRP or a resale pricing programs at any time in its sole discretion. Failure to comply with such program(s) will be considered a material breach of this Agreement, and will entitle Company to immediately terminate any purchase order and/or Customer's ability to distribute Company's products. Customer shall, at its own expense, gain and maintain sufficient knowledge of the industry and products competitive with Deliverables so as to be able to (a) explain in detail to End Users, installers, and/or general contractors the differences between the Deliverables and competing products, (b) ensure that an adequate number of trained, capable and qualified technical personnel with sufficient knowledge of the Deliverables and who have obtained all necessary licenses and permits are available to assist End Users, installers, and/or general contractors, and (c) respond to such End Users, installers, and/or general contractors with respect to the general operation and use of the Deliverables including, but not limited to, (1) acting as a liaison between the End Users, installers and/or general contractors and Company in matters requiring Company participation, (2) providing general product information and configuration support on standard protocols and features, (3) collecting relevant technical problem identification information, and (4) posting and distributing any warranty information concerning the Products in accordance with Company's instructions. Customer is responsible for all service and support resulting from the re-sale of any Deliverable to End-Users, installers and/ or general contractors, examples of which may include, but are not limited to, support activities such as installation, initialization, software set-up, training, trouble-shooting, technical support and field service. In the event Customer is unwilling or unable to perform said support activities, Company reserves the right to recover from Customer any and all expenses incurred by Company to resolve the afore-mentioned End-User, installer and/or general contractor issues. Technical product training is recommended for Customer in order to fully service and support Deliverables purchased from Company that are resold to End-Users, installers and/or general contractors.

8. DEFAULT. If Customer is in default of payment or otherwise with respect to any purchase order or other contract with Company, Company shall have the right, in addition to all other legal remedies and without prejudice to any of its right hereunder, to defer further shipments under that or any other purchase order until such default is corrected and to declare all outstanding bills of Customer to be immediately due and payable.

9. INSPECTION AND DELIVERY.

a. Inspection. Customer will inspect all Deliverables immediately after receiving them. Customer will be deemed to have accepted the Deliverables unless Customer notifies Company in writing of any nonconformance within 10 days of delivery and provides Company written evidence reasonably documenting that nonconformance. Inspection of Deliverables at Company's facility is not permitted.

b. Delivery. Delivery schedules for Deliverables are based upon current production capacities, material or component availability, and inventory, and may be changed by Company as conditions require. Delivery schedules for services are based upon Company's prompt receipt of, and prompt access to, Customer's equipment and all information necessary to complete the services. In no event will any delivery date be construed as falling within the meaning of "time is of the essence." Partial delivery shall be accepted by Customer and paid for at the price and on the terms stated herein. Any partial delivery shall constitute a separate sale, and payment shall be separately made when due. If any part of a delivery hereunder is not delivered by Company in accordance with Customer's purchase order, this Agreement shall not be affected thereby.

10. TITLE & RISK OF LOSS. Unless otherwise specified by Company, (i) where the Customer is located in the United States, all Deliverables will be sold "Uniform Commercial Code, FOB Origin, Company's factory"; and (ii) where the Customer is located outside of the United States, all Products will be sold "Ex-works, Company's factory (Incoterms 2010)." In either instance, title and risk of loss will pass to Customer upon delivery to the carrier at Company's factory, provided, however, as set forth herein, Company shall retain a security interest in the Deliverables until full payment has been made therefore, and Customer agrees, upon request, to do all things and acts necessary to protect Company's interest by adequately insuring the Deliverables against loss or damage from any cause and to have Company named as an additional insured. Customer will promptly provide Company with a copy of the relevant certificate of insurance upon Company's request.

11. SHIPPING.

• a. Freight Charges. Company will ship all Deliverables in accordance with Company's freight shipment guidelines, which are set forth on the My Allegion Portal ("Freight Shipping Guidelines"), WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN.
• b. Rush Charges. Expedited order options are available as set forth in Company's Freight Shipping Guidelines.
• c. Packing and Marking. Company will pack, mark, and ship Deliverables according to its standard procedures for shipment, unless the parties agree, in writing, that Company will comply with any special instructions provided by Customer. Special instructions may result in an increased price.
• d. International Shipments. For all international orders, a Shipper's letter of instruction must be submitted in writing with the order. Failure to do so will result in the order being rejected. Complete adherence to this order requirement will be strictly enforced. Company will not be held liable for any charges resulting from delays due to lack of complete required information being supplied.
• e. Once received by the Company, a purchase order cannot be combined with any other order to increase average order size as it relates to Company's Freight Shipping Guidelines. However, for orders placed under Company's FastTrack 24 Hour/5 Day Program (available for Schlage, Von Duprin, LCN and Glynn-Johnson products); ii) FastTrack 24 Hour/3 Day Program (available for Ives products); or ProExpress (available for specific product lines stated in the ProExpress price book for Falcon, Ives, Glynn Johnson, LCN, Schlage and Von Duprin products), the applicable brands or product categories may, subject to certain order requirements identified by Company, be combined on a single order to increase average order size used in Company's Freight Shipping Guidelines.
• 12. CLAIMS. All claims must be submitted in writing to Company as follows: (i) All claims for prices must be submitted within thirty (30) days from the date of invoice; (ii) All claims regarding Deliverable quantity or incorrect orders must be submitted within ten (10) days from the date of delivery; (iii) All claims for damage to Deliverables (while in the care, custody, and control of Company) must be submitted within thirty (30) days from the date of invoice; (iv) All claims for loss or damage to Deliverables while in the care, custody, and/or control of a carrier will be the responsibility of Customer, unless otherwise agreed by the parties.
• 13. PRODUCT CHANGES. Company's product policy is one of ongoing update and revision, and accordingly, Company reserves the right to change, without notice, the design of, or the process of manufacturing, the Deliverables covered by this Agreement.
• 14. PRODUCT USAGE LIMITATION. Customer agrees: (i) not to sell or use a Deliverable in any manner contrary to the manner in which the Deliverable is intended to be used; and/or (ii) not to modify the design of any Deliverable for use with another product without the prior written consent of Company.
• 15. PRODUCT RETURNS. Unless otherwise agreed by the parties in writing, Deliverables that are correctly furnished by Company per the purchase order may not be returned unless Customer receives written authorization from Company. If returns are authorized by Company, a return merchandise authorization ("RMA") number must be provided by Company. Deliverables identified under such RMA must be returned to Company within 90 days of issuance of the RMA. Such RMA number and any accompanying RMA documents, the original invoice number, and a written explanation for the return must be included with the returned Deliverables in order for Company to inspect and approve a credit for the return. For warranty returns , a credit in the amount of the original purchase price will only be issued if, after Company's receipt and inspection of the returned Deliverables, Company confirms, in its sole discretion, the defect is valid and approves the return. For non-warranty returns/convenience returns , in the event Company approves such a return, in its sole discretion, the following shall apply: (a) the total amount of Deliverables requested to be returned shall be a minimum of $250.00; (b) a credit will be made to Customer's account in the amount of the original purchase price less freight and a handling charge of 45% of the net material on the original invoice; and (c) only Deliverables that are new, current, standard, non-obsolete, non-specially manufactured, unused, in their original condition as at the time of sale by Company to Customer, in their original packaging and in Customer's inventory less than 180 days from the date of shipment by the Company, and not ordered as part of a master key solution may be considered by Company for return. Such credit will only be issued if, after Company's receipt and inspection of Deliverables, Company approves the return. The amount of final credit will be determined upon receipt at the factory and following Company's inspection and analysis of the condition of the returned material. Company retains the right to deny credit to anyone for any reason.

16. CONFIDENTIAL INFORMATION.

• a. Non-Use And Non-Disclosure. Customer shall not use the Confidential Information of the Company except for the purpose of performing its obligations under this Agreement or exercising the rights granted herein (the "Purpose"). Customer shall protect Confidential Information of the Company from disclosure and unauthorized use in the same manner that it protects its own Confidential Information, but in no event shall such standard of care be less than reasonable care. Customer may disclose Confidential Information of the Company only to its employees who require such information for the Purpose and who are subject to confidentiality obligations at least as protective as those set forth herein.
• b. Proprietary Information and Advice. (a) All designs, data, and specifications provided by Company are proprietary and may not be disclosed or reused by Customer without the prior written consent of Company; (b) Company assumes no obligation or liability for any advice given by Company, the results obtained, or damages incurred as a result of such advice, and all such advice is given and accepted at Customer's risk.
• c. Return. Upon the termination or expiration of a purchase order or this Agreement or upon the request of the Company, the Customer agrees to end all further use of, to immediately return to the Company the original version of, and to delete or destroy all copies of, any and all Confidential Information of the Company.

17. TRADEMARKS. Except as agreed to by Company in writing, Customer agrees not to (a) use Company's name in any form of publicity; or (b) use, create, register or market, directly or indirectly, in whole or in part, Company's names, logos, brands, or any other trademarks, or names that are now or may hereafter be owned by Company, as part of Customer's corporate or business name, as part of an internet domain name, uniform resource locator (URL), or in any way connected with Customer's business, trade address or other designations. Upon termination of this Agreement or upon the request of company for any reason, any use of Company's trademarks or names will be immediately discontinued.

18. LIMITED WARRANTY.

COMPANY MAKES NO OTHER WARRANTIES EXCEPT THOSE STATED IN COMPANY'S LIMITED WARRANTY IN EFFECT ON THE DATE COMPANY ACCEPTS EACH APPLICABLE PURCHASE ORDER ("LIMITED WARRANTY"). THE LIMITED WARRANTY MAY BE FOUND IN THE APPLICABLE PRICE BOOK AND ON THE ALLEGION CUSTOMER WEBSITE, WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE. COMPANY WILL MAIL CUSTOMER A HARD COPY OF THIS WARRANTY UPON CUSTOMER'S WRITTEN REQUEST. IN THE EVENT THAT CERTAIN DELIVERABLE WARRANTIES ARE NOT FURNISHED BY THE COMPANY TO CUSTOMER, COMPANY WARRANTS ONLY TO CUSTOMER THAT THE DELIVERABLES WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF 12 MONTHS FROM THE DATE OF SHIPMENT OF THE DELIVERABLES. COMPANY'S SOLE OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING, AT COMPANY'S OPTION, THE DEFECTIVE DELIVERABLE, PROVIDED WRITTEN NOTICE OF THE DEFECT OR NONCONFORMANCE IS PROVIDED BY CUSTOMER WITHIN 30 DAYS OF DISCOVERY OF THE DEFECT OR NONCONFORMANCE. COMPANY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE DELIVERABLES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.

a. Exclusions. The provisions of this Limited Warranty do not apply to Deliverables that: (A) are not the proper size for the application; (B) are not installed in accordance with Company's published installation instructions; (C) are installed with improper or incorrect parts and/or are used for purposes for which they are not designed or intended; (D) have been repaired or altered without the Company's prior written consent; (E) have been subjected to misuse, abuse, negligence or accident; (F) have been improperly stored, installed, maintained or operated; (G) have been used in violation of written instructions provided by Company to Customer; (H) have been subjected to improper temperature, humidity, or other environmental conditions, or (I) have been affected by normal wear and tear. In addition, the provisions of this Limited Warranty do not apply to any defects or issues with the design or performance of equipment or products not manufactured by Company, nor does it apply to any code compliance or permit requirements for the assembly, installation, erection or construction of any goods. Company is not responsible for loss or damage resulting from use of Deliverables in conjunction with parts or systems not manufactured by Company. Accessories or products furnished by the Company, but manufactured by others, shall carry whatever warranty the manufacturers have conveyed to the Company and which can be passed to Customer.

b. Services. Company warrants that its services will be free from defects in material and workmanship for a period of 12 months from the date of completion of the particular items of service. Company's sole obligation under this service warranty is limited to repair or reperformance, at its option of the service, provided however, if repair or reperformance is either impractical or impossible, the Company will refund to Customer that portion of the price paid to Company for any defective service, provided written notice of the defect or nonconformance is provided by Customer within 30 days of discovery of the nonconformance.

c. Notification. Customer agrees to immediately notify Company in writing if any claim is made against Customer for any damages caused by any modules, parts, products, service or other Deliverables which may be the direct result of any defect in the manufacture of such aforementioned products. Customer agrees to cooperate with Company and its counsel in the defense of such claim and Customer agrees not to settle such claim without Company's written consent. If Customer fails to notify Company of such claim or fails to cooperate in such defense as aforesaid, then Company shall be discharged from any obligations under this Section and shall have no further liability to Customer.

d. Exceptions. The following costs and expenses are not covered by the provisions of these limited warranties: (i) labor costs for the removal and reinstallation of Deliverables or other manufacturer's products; (ii) shipping and freight expenses required to return Deliverables to Company; (iii) normal maintenance; and (iv) economic losses. In addition, the provisions of this warranty are not applicable to anything other than defects in Company's material (products only) or workmanship.

19. LIMITATION OF REMEDIES.

CUSTOMER'S EXCLUSIVE AND SOLE REMEDY ON ACCOUNT OF, OR IN RESPECT OF, THE FURNISHING OF NON-CONFORMING DELIVERABLES, SHALL BE TO (A) SECURE REPAIR OR REPLACEMENT OF THE PRODUCTS; OR (B) SECURE REPAIR OR RE-PERFORMANCE OF THE SERVICES OR TO OBTAIN A REFUND OF THE PRICE PAID FOR THE DEFECTIVE SERVICE, ALL AT COMPANY'S OPTION. IN NO EVENT WILL THE COMPANY'S MAXIMUM LIABILITY EXCEED THE SELLING PRICE FOR THE DELIVERABLE. THE WARRANTY, OBLIGATIONS AND LIABILITIES OF COMPANY (INCLUDING ITS SUPPLIERS) AND THE RIGHTS AND REMEDIES OF CUSTOMER ARE EXCLUSIVE AND ARE IN LIEU OF AND CUSTOMER HEREBY WAIVES AND RELEASES ALL OTHER WARRANTIES, OBLIGATIONS, REPRESENTATIONS OR LIABILITIES EXPRESS OR IMPLIED ARISING BY LAW, IN CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE, INCLUDING BUT NOT LIMITED TO (I) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTY IMPLIED THROUGH COURSE OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE OR (II) CLAIMS ARISING OUT OF THE NEGLIGENCE OF COMPANY OR COMPANY'S SUPPLIERS OR (III) ANY OTHER CLAIM ARISING OUT OF, CONNECTED WITH, OR RESULTING FROM THE PERFORMANCE OF COMPANY OR FROM THE DESIGN, MANUFACTURE, SALE, REPAIR, LEASE OR USE OF THE DELIVERABLE, OR ANY COMPONENT THEREOF, DELIVERED OR RENDERED HEREUNDER OR OTHERWISE.

20. INDEMNIFICATION AND LIMITATION OF LIABILITY . a. Customer shall indemnify, defend and hold Company, and its officers, directors, employees, customers, Affiliates, suppliers, users and agents, (collectively the "Indemnitees") harmless from and against any and all damages, claims, losses, expenses, costs, obligations, liabilities, including without limiting the generality of the foregoing, liabilities for court costs and attorneys' fees, suffered directly or indirectly by an Indemnitee by reason of, or arising out of any injury, death or loss to any person, or injury to any property (collectively, "Damages"), received or sustained by any person(s) or property, arising out of, occasioned by, attributable or related to i) any breach of any representation or warranty made by Customer, its officers, directors, employees, affiliates, users, agents, representatives or customers to Company or any third party, (ii) any failure by

TERMS & CONDITIONS

Customer to perform or fulfill any of its covenants, acts and/or omissions to Company or to any third party, or (iii) any litigation, proceeding or claim by any third party relating in any way to the obligations of Customer and/or the Deliverables sold by Company to Customer hereunder. Customer shall not consummate any settlement of any indemnified claim without the Indemnitees' prior written consent. Customer's obligation to indemnify Indemnitees will continue in full force and effect notwithstanding the termination or expiration of any order under this Agreement. In any claim against an Indemnitee by an employee of Customer or any subcontractor or anyone directly or indirectly employed by any of them or anyone for whose acts they may be liable, the indemnification obligations set forth in this Section shall not be limited in any way by or for Customer or any subcontractor under any applicable worker's compensation act, disability or other employee benefit act, or insurance coverage. This provision shall survive termination of any order or Agreement. IN NO EVENT WILL COMPANY, ITS OFFICERS, DIRECTORS, EMPLOYEES, CUSTOMERS, AFFILIATES, USERS AND AGENTS, (NOR COMPANY'S SUPPLIERS) BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND OR NATURE UNDER ANY CIRCUMSTANCES INCLUDING, BUT NOT LIMITED TO, LOSS OF USE OF THE PRODUCTS, SERVICE INTERRUPTION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF INTEREST, LOST GOODWILL, LOSS OF DATA, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, LOSS BY REASON OF SHUTDOWN OR NON-OPERATION, INCREASED EXPENSES OF OPERATION, OR CLAIMS OF CUSTOMER'S CUSTOMERS, OR ANY OTHER LOSSES OR DAMAGES ARISING OUT OF ANY LACK OR LOSS OF USE OF THE DELIVERABLES WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO, STRICT LIABILITY OR NEGLIGENCE), PATENT INFRINGEMENT, OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

b) INTELLECTUAL PROPERTY INDEMNITY. Company makes no representation or warranty to the Customer that the Deliverables shall not infringe any intellectual property rights including, without limitations, claims arising from patent, copyright, trademark, trade secret, or other intellectual property infringement. Customer agrees to hold Company harmless from and defend the Company against any such claim of intellectual property infringement, including any Damages resulting from that claim, the cost of complying with any preliminary or permanent injunction, and all other costs of defense (including the attorneys' fees and costs), in connection with the foregoing.

c) To the extent that applicable law does not permit any limitations set out in this Agreement, such limitation shall not be applied or invoked. Nothing in this Agreement will be interpreted to disclaim liability of Company or the Indemnitees for gross negligence or willful misconduct. The limitations of remedy and liability herein shall not be interpreted to affect Company's obligations, if any, for claims for (i) property damage, (ii) personal injury, or (iii) wrongful death asserted by persons who are not parties to or beneficiaries of this Agreement. Further, the limitations of remedy and liability herein shall not be interpreted to limit Company's or Customer's right, if permitted by applicable law, to assert a claim for contribution among joint tortfeasors in connection with a claim by a person who is not a party to this Agreement.

21. CERTIFICATIONS. Certification of Deliverables for compliance with UL and ANSI standards are tested and performed by third-party independent laboratories. Any field modification or alteration of certified Deliverables will void certification and Company is not liable to Customer to certify any modified or altered Deliverable.

22. TERM FOR CLAIMS. NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS AGREEMENT BY COMPANY MAY BE BROUGHT BY CUSTOMER MORE THAN ONE (1) YEAR AFTER THE CAUSE OF ACTION HAS ARISEN.

23. CONSUMER PRODUCTS

WITH RESPECT TO "CONSUMER PRODUCTS" AS DEFINED UNDER THE MAGNUSON-MOSS WARRANTY ACT ("MMWA"), THE FOLLOWING STATEMENTS ARE MADE. (A) SOME STATES OR LOCAL LAWS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU; (B) IF ANY IMPLIED WARRANTY IS PROVIDED UNDER THE MMWA, IT IS LIMITED TO THE DURATION OF THE WARRANTY PROVIDED IN SECTION 18 ABOVE. (C) SOME STATES OR LOCAL LAWS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU; AND (D) THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR LOCATION TO LOCATION.

• 24. FORCE MAJEURE/EXCUSABLE DELAY. Any delay or failure of Company to perform its obligations hereunder will be excused to the extent that it is caused by an event or occurrence beyond Company's control such as, by way of example and not by way of limitation, acts of God, acts by any governmental authority (whether valid or invalid), governmental laws and regulations not presently in effect, fires, floods, windstorms, explosions, riots, natural disasters, wars, sabotage, accidents, labor problems (including, without limitation, lockouts, strikes, and slowdowns) at Company's facility, its source plant or their suppliers, inability to obtain power, material, labor equipment, or transportation, or court injunction or order. The delivery date will be extended for a time equal to that of the delay and the schedule for Company's performance will be deemed adjusted to that effect.
• 25. ENTIRE AGREEMENT AND AMENDMENT. This Agreement, together with the attachments, exhibits, webpages, or supplements specifically referenced and incorporated herein, constitute the entire agreement between Company and Customer with respect to the matters contained herein and supersede all previous communications, representations, or agreements, either oral or written between Company and Customer. No agreement or understanding varying or expanding this Agreement will be binding upon either party unless it is in writing and signed by a duly authorized representative of each party hereto.
• 26. CONFLICTS. In the event of any conflict or inconsistency between the terms of any agreement, or any part of an agreement or the various documents (including, but not limited to, electronic documents) between Company and Customer, unless the parties agree otherwise in writing, the various components of the agreements shall be given the following precedence (in descending order of precedence): a) any master agreement or long term agreement between Company and Customer; b) any specific terms, conditions and/or warranties of the individual products or Deliverables; c) the terms and conditions of this Agreement, and d) any purchase order.

27. UNSATISFACTORY CREDIT/TERMINATION FOR INSOLVENCY OR DEFAULT.

Customer shall furnish Company with statements evidencing Customer's financial condition as Company may, from time to time, reasonably request, and shall notify Company immediately of any and all events that may have a material adverse effect on Customer's business or financial

condition. If Company determines, in its sole discretion, that Customer's financial condition or creditworthiness is inadequate or unsatisfactory, then in addition to Company's other rights, Company may without liability or penalty, take any of the following actions: (i) modify the payment terms for any outstanding and/or future purchases; (ii) cancel any previously accepted orders; (iii) delay any further shipment of Deliverables to Customer; or (iv) any combination of the above.

Company may immediately terminate an order from Customer by giving written notice to Customer in the event of the happening of any of the following or any other comparable event: (i) insolvency of the Customer; (ii) filing of a petition in bankruptcy by or against the Customer; (iii) appointment of a receiver or trustee for the Customer; (iv) execution of an assignment for the benefit of creditors by the Customer, all of which will allow Company to demand reclamation of all affected orders; (v) Customer ceases or threatens to cease to trade; (vi) Company determines that Customer does not meet or no longer meets the credit requirements of Company or Customer's credit account is closed; (vii) any Customer violation of law, specifically including, without limitation, those laws set forth in this Agreement.

In the event of termination in accordance with this section, Company will not be obligated to accept any existing or additional orders from Customer and Company will be released from its obligation to deliver under orders accepted prior to such termination. The rejection or termination of any order by Company will not entitle Customer to any termination or severance compensation, or to any payment in respect to any goodwill established by Customer, or render Company liable for damages on account of the loss of prospective profits, or on account of any loss, expenditure, investment or obligation incurred or made by Customer.

No action taken under this Section 27 by Company (nor any failure of Company to act under this Section 27) will constitute a waiver by Company of any of its rights to enforce Customer's obligations, including the obligation of Customer to make payments as required under this Agreement. Upon termination of any order, all amounts owed by Customer to Company will become immediately due and payable, whether or not otherwise then due or payable.

• 28. CREDIT RISK ON RESALE OF DELIVERABLES. Customer is responsible for all credit risks with respect to, and for collecting payment for, all Deliverables sold to third parties (including End Users, installers, and/or general contractors) whether or not Customer has made full payment to Company for such Deliverables. The inability of Customer to collect payment for any Deliverable shall not affect Customer's obligation to pay Company for any Deliverable.
• 29. GOVERNING LAW; VENUE; AND EXPENSES. Any dispute or claim relating to this Agreement shall be governed by and construed according to the laws of the State of Indiana (excluding its conflict of laws principles); and not by the provisions of the 1980 United Nations Convention on the International Sale of Goods. Any disputes or claims shall be instituted and maintained in the courts of the State of Indiana. Customer consents to the exercise of jurisdiction over it by such courts and agrees that Indiana is not an inconvenient forum for any action arising from or relating to this Agreement. Customer agrees to pay for all expenses (including, but not limited to, collection costs, court costs and attorneys' fees) incurred by Company in enforcing the obligations of Customer under this Agreement.
• 30. RELATIONSHIP OF THE PARTIES. Nothing in this Agreement or any other document creates an employment, partnership, joint venture, or agency relationship between Company and Customer, including that of franchisee/franchisor. No party will have any power or authority to enter into any commitment on behalf of or otherwise bind the any other party on any matter. No employee of Customer will be deemed to be an employee of Company. If any provision of this Agreement is deemed to create a franchise relationship or business opportunity between the Parties, then Company may terminate any purchase order or this Agreement or the Parties shall negotiate in good faith to modify this Agreement so as to effect the original intent of the Parties as closely as possible in a mutually acceptable manner in order that the transactions contemplated hereby are consummated as a reseller agreement and not a franchise or business opportunity agreement.
• 31. SETOFF. Customer does not have the right to setoff or to back charge against any amounts which become payable to Company under this Agreement or otherwise. Company will not accept responsibility for backcharges for the cost of material or labor by Customer or any third party.
• 32. ELECTRONIC COMMUNICATIONS AND ELECTRONIC SIGNATURES. Both parties expressly agree to electronic transactions and acknowledge that documents they sign electronically will bind them to the same extent as a paper signature. Customer represents and warrants to Company that only employees authorized to bind Customer legally shall electronically sign any document under this Agreement. Customer shall comply with any method of electronic communication/payment processing specified by Company, including electronic funds transfer, pay-on-receipt processes/systems, order transmission, releases, electronic signature, and electronic communication systems, including, without limitation, the use of electronic data interchange ("EDI") portals. Notwithstanding the foregoing, e-mails, even those containing a signature block of one of Company's representatives, shall not constitute a signed writing.

33. COMPLIANCE WITH APPLICABLE LAWS.

a. General. Company and Customer will comply with all applicable federal, state and municipal laws, regulations, codes, ordinances and orders that pertain to the Deliverables, including but not limited to full compliance with any applicable provisions of The Health Insurance Portability and Accountability Act. Where the Customer is located outside the United States, or where the customer intends to ship the product outside the United States, the Customer shall be responsible for compliance with all U.S. export laws, and for filing all U.S. Electronic Export Information, as applicable.

b. The Customer acknowledges and agrees that: (i) it shall not violate applicable laws and regulations in performing its duties under this Agreement; (ii) it does not and shall not engage in any conduct that shall violate any applicable anti-bribery or anti-corruption laws or regulations; (iii) it (and its owners, officers, directors, employees and agents) shall not pay, offer, promise or authorize the payment of, either directly or indirectly, anything of value (including but not limited to cash, gifts and entertainment) to (a) any government official or employee of any government; (b) any official or employee of any department, agency, or instrumentality of a government; (c) any employee of any corporation or entity owned or controlled by a government; (d) any family member of such officials or employees; (e) any political party, party official, or political candidate; or (f) any other persons, owners, officers, directors, employees and agents of any corporation or entity; to improperly or illegally assist in obtaining or retaining business (including but not limited to any contracts, avoidance of duties or reduction of tariffs, reduction of taxes or

to obtain money owed, or to obtain regulatory approval) or for the purpose of causing, soliciting or inducing the sale and purchase of the Deliverables by any party, and (iv) it has full knowledge of and will comply with the Company's Code of Conduct for Business Partners as set forth on the Allegion customer website, WHICH IS HEREBY INCORPORATED BY REFERENCE.

c. The Customer shall indemnify and hold the Company harmless from any claim, demand, expense or cost arising from any breach of this Article.

d. The Customer shall permit the Company to conduct an audit or review of the Customer's financial books and records and business operations at such other times that the Company considers it necessary to confirm compliance with this provision. Such audit may be conducted by representatives of the Company or, at the Company's sole discretion, by a certified public accounting firm selected by the Company. The Customer shall cooperate with any inquiries from the Company's Ethics & Compliance Group.

e. A violation of this provision constitutes a material breach of this Agreement and the Company may terminate any purchase order or this Agreement immediately, with no opportunity

to cure, in accordance with Section 27 of this Agreement.

f. Notwithstanding the foregoing provisions of this Section 33, (i) Company is not responsible for obtaining or maintaining any permits for the performance of services or the verification or compliance with any code requirements relative to the performance of services, (ii) to the extent any sale of Deliverables pursuant to this Agreement may require approval of the U.S. Government, Company's obligations under this Agreement are conditioned upon the grant of such approval and upon compliance by Customer with any restrictions imposed by the U.S. Government in connection with such approval, and (iii) in the event the Deliverables are to be used in a nuclear facility, the Customer shall, prior to such use, arrange for insurance or governmental indemnity protecting Company against liability. The Customer hereby releases and agrees to indemnify Company and its suppliers for any nuclear damage including, but not limited to, loss of use, in any manner arising out of the nuclear incident, whether alleged to be due, in whole or in part by Company or its suppliers.

g. No Inducements. Each party represents to each other that neither it nor any person acting on its behalf has, in contravention of any applicable law, given or offered to give or will give or offer to give, any sum of money or other material consideration to any person, directly or indirectly, as an inducement to obtain business hereunder or to influence the granting of licenses or other governmental permissions to enter into this Agreement or perform obligations hereunder.

h. Equal Employment Opportunity. Company is a U.S. federal contractor that complies with Executive Order 11246, as amended, and applicable regulations in 41 CFR Parts 60-1 through 60-60, 29 U.S.C. § 793 and applicable regulations in 41 CFR § 60-741; and 38 U.S.C. § 4212 and applicable regulations in 41 CFR Part 60-250 and 60-300. THE FOLLOWING PROVISIONS ARE INCORPORATED HEREIN BY REFERENCE: Executive Order 11246, as amended by Executive Order 13672, and 41 CFR § 60-4.3(a); Executive Order 11701 and 41 CFR §§ 60-250.5(a), 60-300.5; Executive Order 11758 and 41 CFR § 60-741.5(a); U.S. immigration laws, including the L-1 Visa Reform Act of 2004 and the H-1B Visa Reform Act of 2004; and Executive Order 13496.

i. Ethical Business Conduct. Customer shall adopt and comply with Company's Business Partner Code of Conduct which is EXPRESSLY INCORPORATED HEREIN BY REFERENCE.

34. REPRESENTATIONS AND WARRANTIES. Customer represents, warrants and covenants to Company that: (a) it has the right, power, and authority to enter into this Agreement and fully perform its obligations hereunder; (b) it has all necessary rights in and to its respective Content and Marks for use within the scope of this Agreement, including the licenses granted herein; and (c) it complies, and at all times shall comply, with all laws, rules, and regulations in effect that are applicable to its performance under this Agreement, including obtaining all such approvals and/or permits as may be required hereunder.

35. NO THIRD-PARTY BENEFICIARY. Each party is entering into this Agreement solely based on the representations contained herein for its own purposes and not for the benefit of any third party.

36. NOTICES AND CHANGE OF ADDRESS. All notices or other communications under this Agreement shall be in writing and delivered in person, or sent by receipted courier, express mail, e-mail, or postage prepaid certified or registered mail, addressed to the party for whom it is intended, at the addresses set forth in this Agreement. Either party may change its address for notice by giving written notice to the other party. Any notice or other communication shall be deemed given no later than the date actually received. Notice by courier, express mail, certified mail, or registered mail shall be deemed given on the date it is officially recorded as delivered and, in the absence of such record of delivery, it shall be rebuttably presumed to have been delivered on the third Business Day after it was deposited. Notices sent by e-mail require tangible confirmation of receipt from addressee.

37. ASSIGNMENT. Customer may not assign this Agreement without the prior written consent of Company. Company may assign its rights and delegate its duties under this Agreement, without the prior consent of Customer, to an Affiliate, or to a third party in the event of a spinoff, merger, business combination, consolidation or sale of all, or substantially all, of its assets or business that are related to this Agreement. The rights and duties in this Agreement shall bind and inure to the benefit of any such assignee.

38. SEVERABILITY. If any provision of this Agreement is held to be invalid, illegal, or unenforceable under any statute, regulation, ordinance, executive order, or other rule of law, that provision will be deemed severed to the extent necessary to comply with such statute, regulation, ordinance, order, or rule. In the event such provision is deemed severed, the parties will negotiate in good faith to arrive at an alternative arrangement approximating the original business objective of the parties. The remaining terms and conditions of this Agreement will remain in effect.

39. NO IMPLIED WAIVER. The failure of either party at any time to require performance by the other party of any provision of this Agreement will in no way affect the right to require such performance at any time thereafter, nor will the waiver of either party of a breach of any provision of this Agreement constitute a waiver of any succeeding breach of the same or any other provision.

40. MISCELLANEOUS. (a) This Agreement does not make either party the agent or legal representative of the other party. Neither party is authorized to create any obligation on behalf of the other party including, but not limited to, the obligation for payment of any service or warranty obligation hereunder; (b) The rights and remedies herein reserved to Company are cumulative and additional to any other rights and remedies provided at law or equity; (c) The official text of this Agreement is in the English language. If this Agreement is translated into another language, the English text will govern any question with respect to interpretation;

(d) The headings in this Agreement are for convenience of reference only and do not affect the meaning of this Agreement in any manner.

DEFINITIONS.

Capitalized terms have the meanings set forth in this Section, or in the Section in which they first appear in this Agreement.

"Agreement" means these Allegion Terms and Conditions of Sale and Service, together with any applicable Country Supplement or Region Supplement provided by Company, and all of the documents referenced herein or therein.

"Affiliate" means any Person that directly or indirectly, through one or more intermediaries, controls, is controlled by, or is under common control with, the Company. The term "control" (including the terms "controlled by" and "under common control with") means the possession, directly or indirectly, of the power to direct or cause the direction of the management and policies of a Person, whether through the ownership of voting securities, by contract or otherwise. "Business Day" means any day except Saturday, Sunday or any other day on which commercial

banks located in the United States are authorized or required by Law to be closed for business. "Company" means Schlage Lock Company, LLC or any subsidiary or affiliate thereof selling products that are part of the Allegion product portfolio. Schlage Lock Company and/or its subsidiary or affiliates will be severally but not jointly liable under the Agreement.

"Company Marks" refers to the Marks of Company.

"Confidential Information" shall mean any and all information provided by either party to the other party pertaining to the disclosing party's business. Confidential Information shall include, but not be limited to, any bitting lists, formulae for products, manufacturing processes, production techniques, packaging processes, methods, research materials, ideas, marketing plans and related materials, quality standards, test results and data, apparatus, engineering drawings, contract documents, computer software, hardware, or firmware, business activities information such as financial information, reports, projections, books and records, customer and supplier information, and operations, customer and supplier lists and data, specifications, know how, and other Proprietary Information or Trade Secrets (as defined herein) that either party may furnish to the other party. Confidential Information shall not include information that: (a) is or becomes publicly known if such public knowledge or disclosure is not the result of any act or failure to act on the part of the receiving party; (b) is, at the time of disclosure, already known to the Receiving Party without utilizing the Confidential Information; (c) is information disclosed to the Receiving Party by a third party which is not to the Receiving Party's knowledge, after inquiry of the third party, under a duty of confidentiality to the Disclosing Party; or (d) is independently developed by the Receiving Party without the use of Confidential Information. The Receiving Party shall have the burden of proof as to prior knowledge and absence of breach. Confidential Information may be furnished in any tangible or intangible form including, but not limited to, writings, drawings, computer and other electronic media, logic diagrams, component specifications, graphs, prototypes, samples, or verbal communications and regardless of whether such information is marked or designated as "confidential." For the avoidance of doubt, all information, knowledge or data disclosed by Company to Customer, regardless of whether disclosed in written, tangible, oral, visual or other form, including, without limitation, sample products, equipment, software, or other objects or material, provided by Company to Customer, and all information, knowledge or data which was obtained by Customer from visits to Company's facilities, shall be considered "Confidential Information" under this Agreement.

"Content" means all information (including without limitation any text, music, sound, photographs, video, graphics, data or software), in any medium, on a particular Company Web

page or Website or in Marketing Materials.

"Customer" means the purchaser of Deliverables from Company.

"Deliverables" means any good or service or both purchased by Customer from Company under these General Terms and Conditions of Sale and Service.

"End Users" means the purchaser that (a) has acquired a Deliverable from Customer for (i) its own and its Affiliate's/Affiliates' internal use and not for resale, remarketing or distribution or (ii) incorporation into its own products and (b) is an individual or entity, other than any federal, state or local agency, office or division.

"IP" means all intellectual property and industrial property rights comprising or relating to/ of the following: (a) Patents; (b) Trademarks; (c) internet domain names, whether or not Trademarks, registered by any authorized private registrar or Governmental Authority, web addresses, web pages, website and URLs; (d) works of authorship, expressions, designs and design registrations, whether or not copyrightable, including copyrights and copyrightable works, software and firmware, application programming interfaces, architecture, files, records, schematics, data, data files, and databases and other specifications and documentation; (e) Trade Secrets; and (f) all other intellectual property and industrial property rights, and all rights, interests and protections that are associated with, equivalent or similar to, or required for the exercise of, any of the foregoing, however arising, in each case whether registered or unregistered and including all registrations and applications for, and renewals or extensions of, such rights or forms of protection pursuant to the Laws of any jurisdiction throughout in any part of the world. "Marketing Materials" means all marketing brochures, buckslips, pamphlets, emails, text, call scripts or other material, whether in printed format, audio or audiovisual format, or in any other

format, that contain any (i) Content relating to the Company Deliverables or (ii) Company Marks. "Marks" means collectively the domain names, trademarks, trade names, service marks, trade dress, logos, and the like used or provided by either party for use in connection with this Agreement.

"Patents" means all patents (including all reissues, divisionals, provisionals, continuations and continuations-in-part, re-examinations, renewals, substitutions and extensions thereof), patent applications, and other patent rights and any other Governmental Authority-issued indicia of invention ownership (including inventor's certificates, petty patents and patent utility models). "Person" means a person or entity.

"Price Books" mean Company's current Price Book in effect for the applicable Deliverable being purchased by Customer.

"Trade Secrets" means and includes business or technical information of either party, including processes, formulas, devices, techniques, compilations and other material that a party attempts to maintain in secret and that derive commercial value for such party from not being generally known to the public or readily ascertainable through independent development or reverse engineering.

TERMS & CONDITIONS• Standard Schlage Product Terms and Conditions

Commercial

The following specific product terms and conditions are applicable only to the extent provided herein. All other terms and conditions contained in the General Terms and Conditions of Sale and Service provided in this Price Book will govern the sale of products identified in this Price Book.

This price list supersedes and cancels all previous price lists. Prices shown are subject to change without notice. All prices may be subject to discount. Contact Customer Care for clarification. Minimum Order Size for Channel Discount:

All orders less than $500.00 list shall be discounted at book net.

Due to Schlage error: Due to Customer error:

• Claims for shortages and/or incorrectly filled orders must be filed with Customer Service within 30-days of receipt of material.
• Incorrect order acknowledgments must be changed by emailing request to Customer Care territory email box upon receipt of acknowledgment. Refer to inside cover of this book.
• Invoice adjustments must be faxed to Credit Adjustments @ (317) 810-3048 within 30-days of receipt of invoice.
• Returned goods will not be accepted without prior written approval from Schlage. Credit will be based upon the Return Material Authorization (RMA) issued by Customer Service or the Allegion Consultant and final acceptance by Schlage. Returns must be prominently marked with the RMA number and follow return guidelines on the RMA form.
• Product considered being defective after review by the Allegion Consultant must be returned to the Schlage Lock Company facility in Security, Colorado accompanied by an RMA. Replacement orders for defective product will be entered by Customer Service at the time of notification.

Claims and Returns: Claims and Returns:

• It is the policy of the Schlage Lock Company to not accept returns of any materials that are correctly furnished as per the dealer's purchase order.
• Return of product due to customer order error or accommodation must be pre-arranged with the Allegion Consultant and approved by Business Unit Manager.
• Returns are subject to a minimum restocking charge of 35% for unopened cases.
• Materials are not returnable.
• Product must be received in original factory condition and certified as such by Schlage Receiving.

Under no circumstances is Schlage liable for incidental or consequential damages. Charge-backs will not be allowed.

Standard Schlage Product Terms and Conditions •TERMS & CONDITIONS

Commercial

Delivery:	Claims and Returns:
For the following:	Expect this delivery:
Non-Master Keyed orders	Factory items will individually be assigned ship dates based on current lead times.
Master Keyed orders or Non-Master Keyed orders prominently marked on the order to "Ship Complete"	The entire order will be assigned ship dates grouped by factory location. Items with longest current lead times determine ship date for other items from that location.

All orders will be acknowledged with scheduled ship dates. Specific scheduled ship dates are not guaranteed by Schlage because of the nature of product, labor, availability of product or manufacturing conditions that might be beyond our control. Schlage will not be liable for back charges incurred based on availability of product in accordance with acknowledged ship dates. Selected Products are available to specific channels of distribution for 1 and 5-day delivery through the Allegion FastTrack Program. The Allegion FastTrack Program is subject to separate terms and conditions.

Order Changes or Cancellations:

		Type of Product
Type of Change	• Primus® Keys	Normal Factory Lead Time items	6 Extended Factory Lead Time items
1. Change to: – Product, creating a different SKU number – Keying	Not Accepted	• OK within first 2-days from receipt of order. • If after 2-days, item must be deleted from order (see 3, 25% handling charge will apply) and entered as a new order (see 2).	• OK within first 10-days from receipt of order. • If after 10-days, item must be deleted from order (see 3, 50% handling charge will apply) and entered as a new order (see 2).
2. Change to: – Increase quantity of existing item(s) – Add new item(s)	Not Accepted	• New order with normal lead-time must be generated for additions. Same terms & conditions will be applied if • Additions received after the original order ships must be entered as a new order and will stand-alone for lead-time and terms & conditions.	requested so long as the original order has not been shipped.
3. Change to: – Delete item(s) – Reduce quantity of existing item(s) – Cancel order	Not Accepted	• OK within first 2-days from receipt of order. • If after 2-days, subject o handling charge of 25% of the net price of the deleted item(s).**	• OK within first 10-days from receipt of order. • If after 10-days, subject o handling charge of 50% of the net price of the deleted item(s).**

^* Includes any change to key symbol, door identification and/or cylinder pinning.

Notes: 1) Change orders must be emailed to your Customer Care territory email box. Please state change order request in subject line. For questions call (877) 671-7011.

• 2) Customer Care will acknowledge receipt of change orders and action taken.
• 3) Change orders resulting in handling charges require customer review prior to change being made.

^** Handling charges are billed on the original order.

TERMS & CONDITIONS • Standard Schlage Product Terms and Conditions

Residential

The following specific product terms and conditions supersede the general terms and conditions of sale and service only to the extent provided herein. All other terms and conditions contained in the General Terms and Conditions of Sale and Service provided in this price book will govern the sale of products identified in this price book.

The price list in this price book supersedes and cancels all previous price lists contained in any other price books or versions thereafter. Prices shown are subject to change without notice. All prices are subject to discount. Contact customer service for clarification.

Service Charges:

Service charges on past due invoices (except validly disputed items) will be assessed as follows: 1 1/2% per month or the maximum allowable by law on past due amounts open as of the last day of each calendar month until the past due amounts are paid.

Changes or Cancellations:

Changes or cancellations to an order must be in writing and may result in additional charges for labor and/or materials. Changes may result in a delay in the scheduled ship date. Additions to orders will be entered as separate stand-alone orders and must qualify for all terms of sale, including discounts, on an individual basis. Changes or deletions resulting in an order size of less than our minimum will not be accepted. Orders for non-cataloged, special or nonstandard items may not be canceled. Factory orders may not be changed within 7 days.

Claims and Returns:

Claims for shortages and/or incorrectly filled orders must be filed with Customer Service within 10 days of receipt of material. Price adjustments must also be made in writing to Customer Service within 30 days from receipt of invoice. No returned goods will be accepted without written approval from Schlage. Credit will be based upon the written authorization of the Schlage representative and final acceptance by Schlage. Such returns must be prominently marked with the return goods authorization number and shipped prepaid. Returns, if approved, will be subject to a minimum restocking charge of 35% for unopened cases received in the same condition as when sold by Schlage. Materials are not returnable. Charge-backs will not be allowed.

Taxes:

Prices do not include any present or future Federal, State or local property, license, privilege, sales, use, excise, gross receipts or other like taxes or assessments which may result from transactions or any services performed in connection therewith.

Delivery:

Orders will be assigned ship dates and acknowledged accordingly, based on estimates of availability of products. Specific scheduled ship dates are not guaranteed by Schlage because of the nature of product, labor, availability of material or manufacturing conditions that might be beyond our control. Schlage will not be liable for back charges incurred based on availability of product in accordance with acknowledged ship dates.

Certifications:

Schlage products, as noted in our catalog, are produced and tested by independent laboratories for compliance with UL and ANSI standards. Any field modification or alteration of product will void certification.

Copyright 2014, Allegion All rights reserved. Printed in U.S.A.

Complete Locks • TERMS & CONDITIONS

Product Warranties: Commercial Applications

3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty

Schlage Lock Company, LLC (the "Company") extends a three year limited mechanical warranty and one year limited electromechanical warranty to the original user of the products manufactured by the Company (the "Products") against defects in material and workmanship from the date of purchase. Certain Products contain restrictions to this limited warranty, additional warranties, or different warranty periods. Please see below for specific Product warranty information.

What The Company Will Do: Upon return of the defective Product to the Company or its authorized distributor for inspection, free and clear of all liens and encumbrances and accompanied by the statement of defects of proof of purchase, the Company will replace the Product.

Original User: These warranties only apply to the Original User of Products. These warranties are not transferable.

What Is Not Covered: The following costs, expenses and damages are not covered by the provisions of these limited warranties: (i) labor costs including, but not limited to, such costs for the removal and reinstallation of Products; (ii) shipping and freight expenses required to return the Products to the Company; or (iii) any other incidental, consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

The provisions of these limited warranties do not apply to Products: (i) used for purposes for which they are not designed or intended; (ii) which have been subjected to alteration, misuse, abuse, negligence, or accident; (iii) which have been improperly stored, installed, maintained, repaired or operated; (iv) which have been used in violation of written instructions provided by Schlage; (v) which have been subjected to improper temperature, humidity, or other environmental conditions (i.e., corrosion); or (vi) which, based on the Company's examination, do not disclose to the Company's satisfaction non-conformance to the warranties. Additionally, the Company will not warrant ANSI A156.2 Grade 2 lever Product installed in educational facilities and student housing.

Additional Terms: The Company does not authorize any person to create for it any obligation or liability in connection with the Products. The Company's maximum liability under these warranties is limited to the purchase price of the Product. No action arising out of any claimed breach of these warranties by the Company may be brought by the Original User more than one (1) year after the cause of action has arisen.

How State Law Applies: These warranties give you specific legal rights, and you may also have other rights which vary from state to state.

SPECIFIC PRODUCT WARRANTY RESTRICTIONS/ADDITIONAL WARRANTIES:

ND-Series Levers 10-Year Mechanical Warranty

The limited warranty is for a period of seven (7) years for products shipped prior to January 2012. 10-year for products shipped after January 2012.

Small Format Interchangeable Core (SFIC) Warranty

The limited warranty also applies to Schlage locks and housings when used with another manufacturer's cores, or to Schlage cores (i.e, SFIC) when used in another manufacturer's locks and housings. The use of unauthorized cylinder cams or other components with the Products shall void these warranties.

Everest 29, Everest 29 Primus, Everest 29 Primus XP, Everest, Everest Primus, and Everest Primus XP Limited Lifetime Key Breakage Warranty A limited lifetime warranty is provided to the original user against breakage and is subject to the restrictions of these limited warranties.

Portable Security Limited Lifetime Warranty

A limited lifetime warranty is provided to the original user and is subject to the restrictions of these limited warranties.

Exclusions: Oil Rubbed Bronze finish (613) is designed to improve over time and change in appearance, creating a living finish through daily use and thus, finish discoloration is not applicable to the above warranty.

Product Warranties: Residential Applications

Lifetime Limited Mechanical & Finish Warranty and 1-Year Limited Electronics Warranty

Subject to the terms and conditions of this warranty, Schlage extends a lifetime limited mechanical and finish warranty and a one-year limited electronics warranty to the original consumer user ("Original User") of our Schlage brand product ("Product") against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed.

What Schlage will do: Upon return of the defective Product to Schlage, Schlage's sole obligation, at its option, is to either repair or replace the Product, or refund the original purchase price in exchange for the Product. Original User: This warranty only applies to the Original User of Products. This warranty is not transferable.

What is not covered: The following costs, expenses and damages are not covered by the provisions of this limited Warranty: (i) labor costs including, but not limited to, such costs as the removal and reinstallation of Product; (in) shipping and freight expenses required to return Product to Schlage; and (iii) any other incidental, consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some local laws do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

The provisions of this warranty do not apply to Products: (i) used in commercial applications; (ii) used in common area applications; (iii) used for purposes for which they are not designed or intended; (iv) which have been subjected to alteration, abuse, misuse, negligence or accident; (v) which have been improperly stored, installed, maintained or operated; (vi) which have been used in violation of written instructions provided by Schlage; (vii) which have been subjected to improper temperature, humidity or other environmental conditions; or (viii) which, based on Schlage's examination, do not disclose to Schlage's satisfaction non-conformance to the warranty. Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to the use of paints, solvents or other chemicals.

Exclusions: Oil Rubbed Bronze finish (613) is designed to improve over time and change in appearance, creating a living finish through daily use and thus, finish discoloration is not applicable to the above warranty. Additional terms: Schlage does not authorize any person to create for it any obligation or liability in connection with the Product. Schlage's maximum liability here under is limited to the original purchase price of the Product. No action arising out of any claimed breach of this warranty by Schlage may be brought by the Original User more than one (1) year after the cause of action has arisen.

How local law applies: This warranty gives you specific legal rights, and you may also have other rights as otherwise permitted by law. If this Product is considered a consumer product, please be advised that some local laws do not allow limitations on incidental or consequential damages or how long an implied warranty lasts, so that the above limitations may not fully apply. Refer to your local laws for your specific rights under this warranty.

TERMS & CONDITIONS • Product Warranties and Distribution Policy

Product Warranties: Residential Applications (Cont.)

Guaranteed Fit Program: Schlage products are designed to fit standard residential door preparations and retrofit existing tubular locks. Note: Mortise locks and preparations are not considered standard and are not guaranteed under this program. During the initial installation, if there is a problem with the Product's performance, the Original User may simply contact Schlage Customer Service at 888-805-9837 in the U.S. and Canada or 800-506-7866 in Mexico for assistance.

Program and warranty claims: If you encounter a residential door preparation or fit issue under the Guaranteed Fit Program or have a claim under this warranty, please contact Schlage Customer Service for repair, replacement or refund of the original purchase price in exchange for the return of the Product to Schlage.

Lifetime Mechanical Warranty and 5-year Finish Warranty

Subject to the terms and conditions of this warranty, Schlage Lock Company ("Schlage") extends a lifetime limited mechanical and 5-year finish warranty to the original consumer user ("Original User") of Schlage J Series products ("Product") against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed.

What Schlage will do: Upon return of the defective Product to Schlage, Schlage's sole obligation, at its option, is to either repair or replace the Product, or refund the original purchase price in exchange for the Product. Original User: This warranty only applies to the Original User of Products. This warranty is not transferable.

What is not covered: The following costs, expenses and damages are not covered by the provisions of this limited Warranty: (i) labor costs including, but not limited to, such costs as the removal and reinstallation of Product; (in) shipping and freight expenses required to return Product to Schlage; and (iii) any other incidental, consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages. Some local laws do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.

The provisions of this warranty do not apply to Products: (i) used in commercial applications; (ii) used in common area applications; (iii) used for purposes for which they are not designed or intended; (iv) which have been subjected to alteration, abuse, misuse, negligence or accident; (v) which have been improperly stored, installed, maintained or operated; (vi) which have been used in violation of written instructions provided by Schlage; (vii) which have been subjected to improper tem perature, humidity or other environmental conditions; or (viii) which, based on Schlage's examination, do not disclose to Schlage's satisfaction non-conformance to the warranty. Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to the use of paints, solvents or other chemicals.

Product Warranties, Additional Terms & Conditions: Commercial and Residential Applications

Additional Terms: The Company does not authorize any person to create for it any obligation or liability in connection with the Products. The Company's maximum liability under these warranties is limited to the purchase price of the Product. No action arising out of any claimed breach of these warranties by the Company may be brought by the Original User more than one (1) year after the cause of action has arisen.

How State Law Applies: These warranties give you specific legal rights, and you may also have other rights which vary from state to state.

Note: Should the Product be considered a consumer product as may be covered by the Magnusson Moss Federal Warranty Act, please be advised that: (1) Some states do not allow limitations or incidental consequential damages or how long an implied warranty lasts so that the above limitations may not fully apply; and (2) This warranty gives specific legal rights and a user may have other rights which may vary from state to state.

For warranty service and shipping instructions contact:

Schlage and Portable Security Commercial Customers

Schlage Customer Care 3899 Hancock Expressway Colorado Springs, CO 80911

(877) 671-7011 Fax (800) 452-0665

Schlage and Portable Security Residential and Retail Customers

Schlage Customer Care 2119 East Kansas City Road Olathe, KS 66061

(800) 847-1864 (option 1) Consumer Fax (800) 366-5625

The Schlage Lock Company reserves the right to make changes in designs and specifications or to make additions or improvements on its products without notice and without incurring any obligation to incorporate them on products previously manufactured. The Schlage Lock Company is not responsible for any modification, addition or alteration to our products by others.

Distribution Function and Location Policy

The Schlage customer relationship includes the nonexclusive area of primary sales responsibility and the channel of distribution assigned by Schlage. It is vital to our success and for the effective management of the distribution of our products that the Schlage customer relationship, once it is satisfactorily established between us, should not be changed without our approval. Therefore, after selection by Schlage as a distributor of one or more of Schlage products, a customer should continue to perform that distribution function from the location of its business at the place or places utilized at the time of selection. A customer should not change its Schlage distribution function or establish a different or additional location without the prior written consent of Schlage.

Schlage reserves the right to discontinue, after appropriate notice, sale of its products to any customer which refuses to adhere to this policy. Schlage also reserves the right to change, in its sole discretion, the number and locations of the distributors authorized to distribute its products in any area. This determination will be based upon, among other considerations, the success or failure in developing the market for Schlage products.

Schlage Key Systems Sales Policy • TERMS & CONDITIONS

Schlage Key Systems Sales Policy

Definition-

Standard keyways are C, CE, E, EF, F, FG, G, H, J, K, L. All other keyways are considered restricted.

Everest, Everest Primus, Classic Primus and all other restricted keyway products (Quad, Reversed, Numbered) manufactured by the Schlage Lock Company are offered for sale by policies set forth per product type and security levels through specific channels of distribution. Possession of this price book or any other Schlage price book does not constitute "the right to purchase" these products. Please refer to the sales policy below for terms and condition. The term keyway(s) refer(s) to keyway, key sections or side bit milling.

Standard Classic (Obverse) Key Sections- no restriction

Standard keyways are Classic (Obverse) C, CE, E, EF, F, FG, G, H, J, K, L.

Everest and Everest 29 Open (C and S Key Sections)

Everest and Everest 29 Open (C & S keyways) include non-Primus products with Everest C and Everest 29 S keyways and key sections. Schlage only sells Everest and Everest 29 Open products to commercial security professionals. Commercial security professionals purchasing Everest and Everest 29 Open products from Schlage are permitted to stock and to originate or duplicate keys without signature verification.

Purchasers of Everest and Everest 29 open (C & S) are permitted to resell the products in accordance with their distribution agreement to end users and to other commercial security dealers who have a professional locksmith on staff but are expressly prohibited from selling to:

• i) Any residential retail outlet.
• ii) Any individual or entity purchasing or selling products through any method of auction.

End User Keyways - Primus / Primus XP levels 3, 4 & 9, Everest D, Everest B, Everest 29 T, Everest 29 R, Quad, Reversed, Numbered.

End user restricted keyways are manufactured and sold by Schlage for use within the end user facilities only and are not for dealer or locksmith's use or distribution. The facilities are described as the "ship-to" address pre-authorized by the end user via a letter of authorization (LOA) or face sheet (depending upon the key system type).

End user keyway products may be stocked at the end user location only, unless authorized otherwise in writing by the end user. Every new end user system, using these restricted keyways, requires prior approval from the local RSO sales office management.

Restricted end user keyways may not be sold to any contract hardware dealer or wholesale distributor not open as a direct Schlage account as the time of the sale, unless authorization has been granted in writing by the local RSO sales office management where the end user reside.

Locksmiths/ dealers' keyways - Primus/ Primus XP levels 1, 1+, 2, 7, 8, Everest B234 & B235, Everest 29 R234 & R235. Locksmith/ dealer key section can be sold to commercial locksmiths/ dealers only.

Right to stock and sell locksmiths/ dealers restricted keyways requires the appropriate written agreement with Schlage and approval by the local RSO sale office management. Please contact your local RSO sale office for a copy of these contracts and additional information.

Schlage hereby reserves the right to terminate or take any other legal action against any party that violates this policy.

TERMS & CONDITIONS • Restricted Keyway Policy

Restricted Keyway Policy

Everest B, Everest 29 R

All Everest and Everest 29 SFIC (B and R Families) keyways are restricted.

When ordering a new keying system, include the following:

• Job (end-user) name, city, state and zip code.
• Letter of Authorization (LOA) Authorized ship-to address for key blanks, cores and cut keys on end-user's official stationery. See Forms & Examples for sample letter of authorization.
  • Numerically defined specifications for expansion of all branches of the key system.

The factory will assign a "facility code" which will appear on all keys and blanks for this job. When ordering additions to an existing keying system, include the following:

• Job (end-user) name, city, state and zip code.
• Facility code previously assigned by Schlage and stamped on all existing keys and blanks.
• Registry number of the keying system as established by Schlage.
• Letter of authorization on end-user's official stationery is required when:
• End-user places order with new dealer.
• Order is to be drop shipped to a different ship-to address than originally authorized by the end-user.
• See Forms & Examples for sample letter of authorization.

Bitting list (transcript) orders require a letter of authorization on the end-user's official stationery. Prevailing prices apply.

Everest D, Everest 29 T

All Everest D and Everest 29 T keyways are restricted.

When ordering a new keying system, include the following:

• Job (end-user) name, city, state and zip code.
• Letter of Authorization (LOA) Authorized ship-to address for all products on end-user's official stationery. See Forms & Examples for sample letter of authorization.
  • Numerically defined specifications for expansion of all branches of the key system.

The factory will assign a "facility code" which will appear on all keys and blanks for this job. When ordering additions to an existing keying system, include the following:

• Job (end-user) name, city, state and zip code.
• Facility code previously assigned by Schlage and stamped on all existing keys and blanks.
• Registry number of the keying system as established by Schlage.
• Letter of authorization on end-user's official stationery is required when:
• End-user places order with new dealer.
• Order is to be drop shipped to a different ship-to address than originally authorized by the end-user.
• See Forms & Examples for sample letter of authorization.

Quad, Numbered ("Paracentric") and Reverse Keyway Family Policy

A letter of authorization from the end-user is required for all orders for restricted keyway plugs, 0-bitted and 1-bitted products and all key blanks. Restricted keyway products are not available keyed random. The letter of authorization must include the address in which the materials will be shipped. Keyway or keyway family must be referenced in the letter. Letters must be dated and signed by the end user. Letters dated more than 6 months prior to the order submission date will not be accepted. Letters for projects that are ongoing may be older than six months if effective dates are referenced in the letter. With the exception of the signature, all other information must be typed.

Allowable End User Authorizations for Restricted Keyways:

The end user can authorize a dealer or distributor to order and inventory products if they so choose. This authorization requires the submission of a fully completed "Letter of Authorization" or "Signature Card", depending on the product type requirements, by the end user to Schlage.

Construction Core Program Policy

Full size and small format construction cores will be invoiced under standard payment terms. Credit for these cores, less the handling charge, will be issued upon their return to the factory. Please contact customer service for return authorization. Customers may not deduct payment for construction cores prior to completion of their authorized return.

Control Keys for Interchangeable Cores

A single control key will be added to orders containing interchangeable cores where a new masterkey system, master key system expansions requiring a different control key and all construction core orders are placed and does not include a control key on the purchase order. Construction core orders will include both a control and user key.

Cylinder Policies • TERMS & CONDITIONS

Primus®/ Primus XP Sales Policy

Primus High Security cylinder products manufactured by the Schlage Lock Company are offered for sale through specific channels of distribution, based on stocking requirements and security levels. Possession of this price book or any other Schlage price book does not constitute "the right to purchase" Primus products.

Important: In stocking levels where purchase agreements are required, a fully executed purchase agreement, including initial minimum inventory order, must be in place before any Primus products may be quoted or purchased. Contact your RSO Consultant for specific details.

The prices contained herein apply to Primus Levels 1 through 9 with respect to the actual product. Availability of product is subject to additional conditions as follows:

PRIMUS/PRIMUS XP LEVEL 1: For retail locksmiths and Schlage dealers. Standard nationwide side bitting by keyway. Stocking level requires a separate Primus/Primus XP agreement. Initial inventory commitment required for distributors but not for participating locksmiths. Obverse keyways only. HP, JP and LP section keys are not available.

PRIMUS LEVEL 1 PLUS: For retail locksmiths. A side bitting is assigned on a nationwide exclusive basis to a specific Schlage wholesale distributor. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory purchase by the wholesaler and the locksmith. Obverse keyways only. HP, JP and LP section keys are not available. Cylinders are always furnished less key blanks (LKB).

PRIMUS XP LEVEL 1 PLUS: For retail locksmiths. An exclusive side bitting is assigned to dealer within the first three digits of the dealer physical location zip-code. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory purchase. Obverse keyways only. Cylinders can be ordered LKB, KD, KA or MK.

PRIMUS/PRIMUS XP LEVEL 2: For Schlage dealers and large commercial locksmith businesses. Exclusive side bitting is assigned to dealer by time zone. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory purchase. Obverse keyways only.

PRIMUS/PRIMUS XP LEVEL 3: End user level not stocked by dealers. Key systems are assigned a side bitting exclusive within 2-digit zip code (Level 3G) for orders of 60 - 1,999 Primus cylinders. Orders of fewer than 60 Primus cylinders are randomly assigned a side bitting from a small nationwide pool of side bittings (Level 3U). Distribution through Schlage dealers and Schlage wholesale distributors. Obverse and Quad keyways only.

PRIMUS/PRIMUS XP LEVEL 4: End user level not stocked by dealers. Key systems are assigned a side bitting exclusive within a time zone (Level 4Z) for orders of 2,000 - 3,999 Primus cylinders. A nationwide exclusive side biting (Level 4N) is assigned to key systems of 4,000 or more Primus cylinders. This exclusivity can be purchased for a separate fee for smaller quantities of cylinders. This price book does not contain the fee schedule. Contact your RSO Consultant for specific information. Distribution through Schlage dealers and Schlage wholesale distributors. Obverse and Quad keyways only.

PRIMUS LEVEL 7: For retail locksmiths. Side bitting is assigned on a nationwide exclusive basis to a specific Schlage wholesale distributor. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory purchase by the Schlage wholesaler and the locksmith. Same as Level 1 PLUS above, but with Everest S Family keyways only.

PRIMUS XP LEVEL 7: For retail locksmiths. An exclusive side bitting is assigned to dealer within the first three digits of of the dealer physical location zip-code. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory purchase. All Everest 29 key sections. Cylinders can be ordered MK, KA, KD or LKB.

PRIMUS/PRIMUS XP LEVEL 8: For Schlage dealers and large commercial locksmith businesses. Exclusive side bitting is assigned to dealer by time zone. Distribution through direct Schlage dealers. Stocking level which requires a separate Primus purchase agreement and an initial minimum inventory purchase. Equivalent to Level 2 above, but with Everest S Family keyways only.

PRIMUS/PRIMUS XP LEVEL 9: End user level not stocked by dealers. Key systems are assigned varying degrees of geographically exclusive side bittings based on a sliding scale of purchase commitment or separate fees. This price book does not contain the fee schedule. Contact your RSO Consultant for specific information. Distribution through Schlage dealers and Schlage wholesale distributors. Level 9U, 9G, 9Z, and 9N are equivalent to Levels 3U, 3G, 4Z, and 4N above, but with Everest S and T Family keyways.

The following side bit milling exclusivity criteria apply to both levels 3, 4 & 9:

• 1- 60 cylinders-Random assignment
• 61-1999 cylinders-First two digits of zip-code
• 2000-3999 cylinders-Time-Zone Exclusivity (also available for $10,000 fee for an organization who would like this exclusivity and doesn't meet cylinders quantity requirement).
• 4000 + cylinders-Nation Wide Exclusivity.(also available for $40,000 fee for an organization who would like this exclusivity and doesn't meet cylinders quantity requirement).

Important Ordering Information

Classic Keyways

Everest® Keyways

See Forms & Examples: Primus and Everest 29 Primus Ordering Checklist for a checklist of information required to process a Primus order. Note that, for security reasons, all end user Primus levels (Level 3, 4 and 9) require a Facesheet (MS-E120) bearing an original signature. Opening orders for end user Primus levels also require a Signature Card (MS-E130) bearing original signatures. Facesheets and signature cards are used to authenticate the end user request for product, therefore orders received without the correct supporting documents (or without original signatures) are subject to delays or cancellations. Blank Facesheets and Signature Cards are included in the Forms & Examples section of this price book for your reference. Additionally, electronic version of these forms are available at allegion.com/us.

The Schlage Lock Company reserves the right to make changes in designs and specifications, to make additions or improvements on its products, or to discontinue products without incurring any obligation. The Schlage Lock Company is not responsible for any modification, addition, or alteration to our products by others.

Inventory commitment Requirements-Commercial Locksmiths Levels
Primus XP		Everest 29 Primus XP
Level 1	None	N/A	N/A
Level 1+	$7,500	Level 7 XP	$7,500
Level 2	25,000	Level 8	$25,000

Electronic Validation from Schlage

Electronic Validation (e-validation) is an online system for the use of the end user to create electronic authorizations replacing the letter of authorization (LOA) and Primus Facesheet processes. This online validation system is designed to ease the burden of an end user providing authorizations for ordering restricted key and cylinder products on their behalf. Through this system, the end user can register for an online account with Schlage that will allow them to manage their shipping addresses, shipping contacts and additional authorized users for their restricted products. Through this system, they can then generate an electronic Facesheet that they can provide to the distributor of their choice to allow an order for restricted products to proceed. Enrolling in and using this feature will reduce the overall time for an order to be processed from the time that the end user has determined the need for product. The electronic Facesheet provided by the e-validation system can be faxed or emailed along with a distributors order reducing the time and energy required for original copies of Facesheets previously required. The system is for both new and existing restricted key system owners. For new restricted systems, a registration process will provide the ability to create the initiating Facesheet for the project.

Products/key systems eligible for e-validation:

Everest – B and D restricted family of keyways

Everest 29 – R and T restricted family of keyways

Primus – All keyway families that include the Primus feature

Primus XP – All keyway families that include the Primus XP feature

E-validation can be accessed at the following web address: HTTPS://mycredentials.allegion.com

Keyway Family of Master Key System	Standard Method of Shipment
• Classic Restricted (Numbered, Quad and Reverse) • Classic Primus (Obverse and Quad) • Everest Restricted (B and D Family) • Everest 29 Restricted (R and T Family) • Everest Primus (C and D Family) • Everest 29 Primus and Primus XP (S and T Family) • Classic Open (Obverse) • Everest Open (C Family) • Everest 29 Open (S Family)	2-Day Air • Tracking number is assigned to shipment • Recipient's signature is required upon delivery

All goods are shipped F.O.B. factory and become the customer's property when they pass into the hands of the transportation company. Schlage reserves the right to use our choice of carrier.

Note: Master keys need to be ordered separately and are not included by default, cylinders are shipped with operating keys standard.

Schlage Default Keyways

Schlage Commercial products (excluding Portable Security)

Default keyway is Everest 29 S123

For other optional keyways, please specify

Schlage Electronics

Default keyway is Everest 29 S123 For other optional keyways, please specify

Portable Security - Kryptonite:

default to C keyway KD

For made to order products, please specify the keying and keyway

Schlage Residential: (F, B60, Dexter)

Default keyway is C

TERMS & CONDITIONS •Hardware Finishes

Hardware Finishes:

Schlage Lock finishes are durable, top quality finishes obtained by the careful processing of solid brass, bronze, stainless steel or other materials. Where required, a protective clear coating is applied and cured under high temperature. It is important that climatic conditions and usage be taken under consideration when selecting finishes. This is especially true in areas subjected to strong corrosive vapors, humid climate or sea air which, in a short time, may have a damaging effect on metal finishes. The longevity and preservation of the finish appearance is determined by base metal and finishing process. Clear protective coating or other organic finishing applications may require different methods of cleaning and care. As an example, non-clear coated finishes should not be cleaned with soaps or any solvents; organically coated surfaces should periodically be cleaned with a mild, nonabrasive soap and buffed lightly with a clean cloth. The type of base metal and finishing techniques must be considered when applying any cleaning or preservative method. Contact the Schlage Technical Services Department for further information on the care of finished hardware.

In some instances, for customer convenience, the most appropriate BHMA finish symbols are used to indicate similarity of appearance, regardless of base metal of finishing process. A, AL, CS, D, ND, F, FA, H, S, S200-Series and Dexter by Schlage levers are zinc-based material and are plated to match finishes indicated. L-Series will utilize a brass material for 612 and 613 finishes. Finishes of latches, strikes, cylinders/cores, and visible mounting screws, though similar in appearance, may differ from the finish of the trim. Finish numbers in the 600-Series are the BHMA (Builders Hardware Manufacturers Association) industry standard.

Commercial Finish Codes and Descriptions:

The nearest old U.S. equivalent code designations are shown in parenthesis ( ).

Symbol 605 (3) 606 (4) 609 (5) 612 (10) 613* (10B) 619 (15)	Description BRIGHT BRASS, Clear Coated SATIN BRASS, Clear Coated ANTIQUE BRASS, Satin Brass, Blackened, Satin Relieved, Clear Coated SATIN BRONZE, Clear Coated OIL RUBBED BRONZE, Oxidized Satin Bronze, Oil Rubbed, No Coating SATIN NICKEL, Satin Nickel Plated, Clear Coated	Symbol 622 (19) 625 (26) 626 (26D) 629 (32) 630 (32D) 643e	Description Matte Black BRIGHT CHROMIUM PLATED, No Coating SATIN CHROMIUM PLATED, No Coating BRIGHT STAINLESS STEEL, No Coating SATIN STAINLESS STEEL, No Coating AGED BRONZE, Clear Coated

^* Oil rubbed bronze (613) is considered a category "B" finish by ANSI/BHMA and will vary in color when applied to different alloys and forms of base material. 613 will also vary from production lot and additionally from one manufacturer to another. Oil rubbed bronze will wear off over time due to the "rubbed" finishing method that has no protective coating or plating.

Forms-1

Table of Contents
How to Order	Forms-2
How to Determine Hando of Door	Forms-2
How to Determine Hand of Parts (Handed Levers)	Forms-2
Ordering Examples	Forms-3
Sample Letter of Authorization
for Everest™ Restricted Products	Forms-4
Primus Checklist	Forms-5
Order Forms	Forms-6
Using Order Forms	Forms-6

To order Schlage products, descriptive data should be in the same sequence as shown:

LINE				OUTSIDE		INSIDE			DR
ITEM	QTY	PRODUCT	DES	FIN	DES	FIN	HAND	LATCH	STRIKE	THK	EXT	DIM	ADDITIONAL DETAILS
1	2	3	4	5	6	7	8	9	10	11	12	13	14

• 1. LINE ITEM: Line item number
• 2. QTY: Quantity
• 3. PRODUCT: Complete lock product or part number
• 4. OUTSIDE DES: Outside design code
• 5. OUTSIDE FIN: Outside finish code
• 6. INSIDE DES: Inside design code. Leave blank if same as outside design code.
• 7. INSIDE FIN: Inside finish code. Leave blank if same as outside finish code.
• 8. HAND: Hand of door. Only one hand allowed per line item. Example: RH=Right Hand, LH=Left Hand, RR=Right Reverse, LR=Left Reverse.

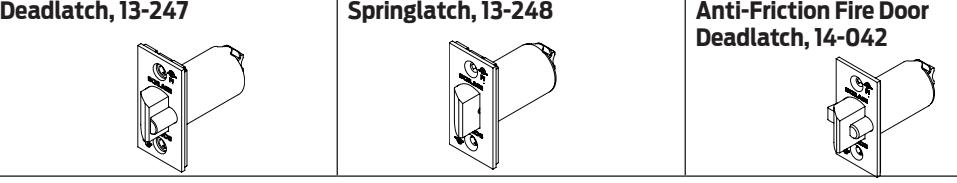

• 9. LATCH: Latch. Leave blank for standard or specify part number if non-standard latch is required. LLL=Less Latch.

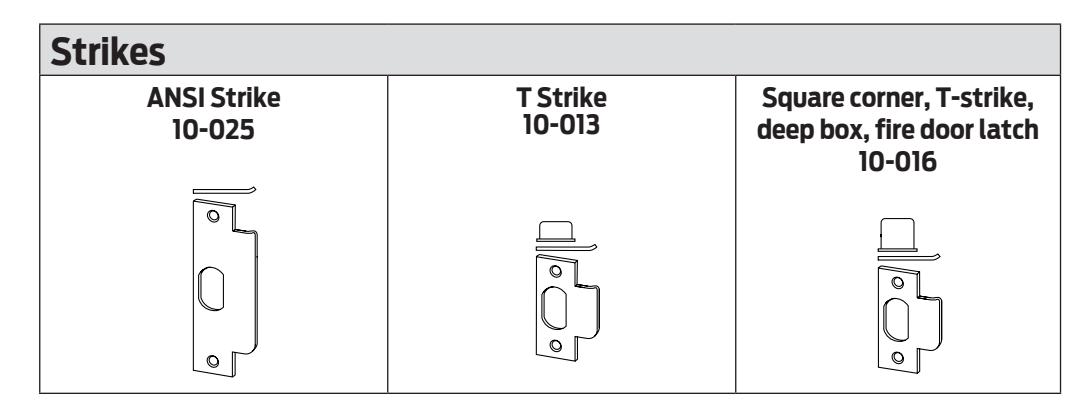

• 10. STRIKE: Strike. Leave blank for standard or specify part number if non-standard strike is required. LLL=Less Strike.
• 11. DR THK: Door Thickness. Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4", 212=2 1/2".
• 12. EXT: Extension. Enter one of the following when doors 2" thick or greater are specified:
  • EE = Extended Equally
  • EI = Extended Inside
  • EO = Extended Outside
  • ED = Extended Differently

EI or EO assumes the latch will be centered on a 1 3/4" door, to which material has been added.

13. DIM: Enter dimension for non-standard strike lip length and mortise cylinder or blocking ring length.

012 = 1/8"	118 = 1 1/8"
018 = 3/16"	114 = 1 1/4"
025 = 1/4"	138 = 1 3/8"
031 = 5/16"	112 = 1 1/2"
037 = 3/8"	158 = 1 5/8"
050 = 1/2"	134 = 1 3/4"
078 = 7/8"	200 = 2"
100 = 1"	400 = 4"

14. ADDITIONAL DETAILS: Enter detail for keying information and for special requirements.

Ordering Examples • FORMS & EXAMPLES

OUTSIDE INSIDE LINE DR ITEM QTY PRODUCT DES FIN DES FIN HAND LATCH STRIKE THK EXT DIM ADDITIONAL DETAILS

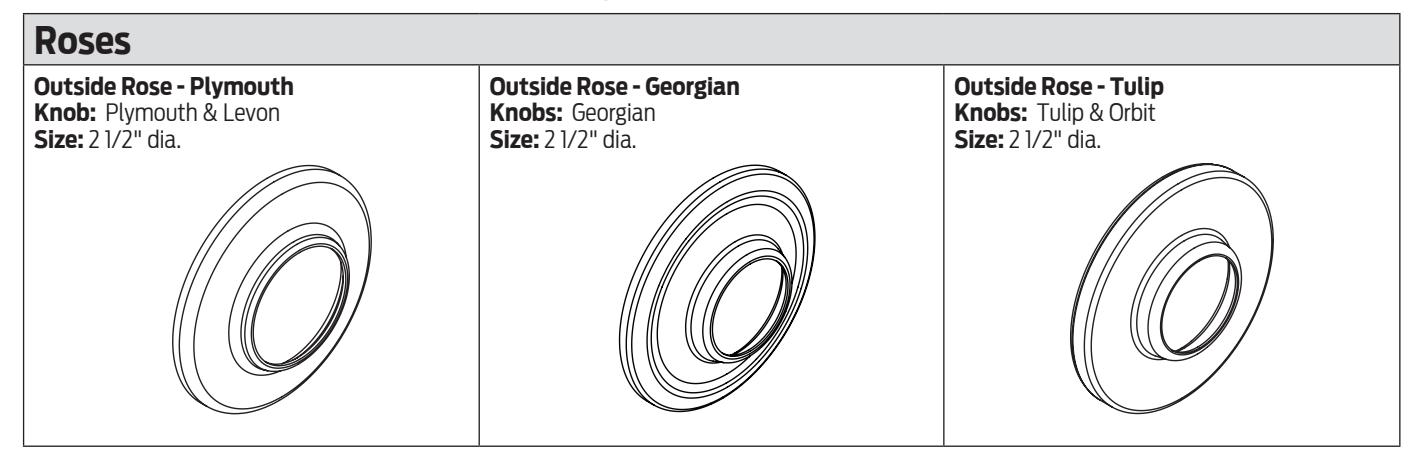

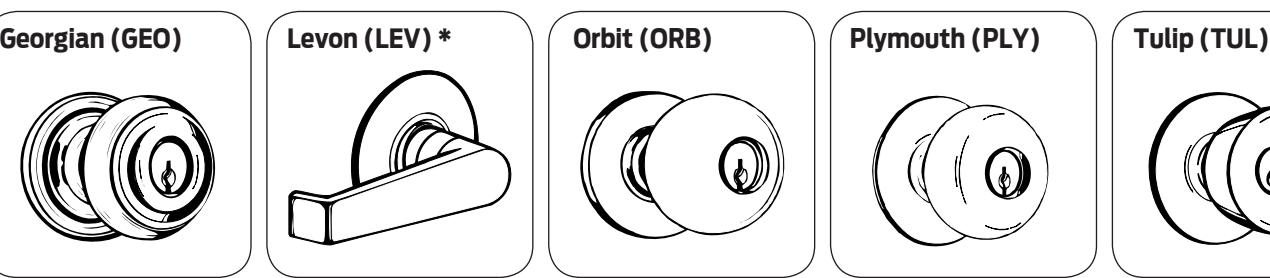

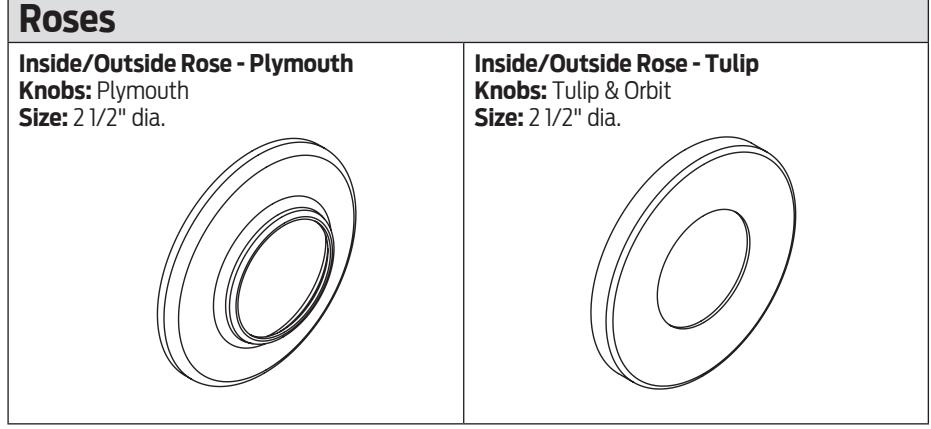

One A or F-Series passage lock with a Georgian knob & rose in 609 on the outside and a Plymouth knob & rose in 605 on the inside, drive-in latch and strike.
1	1	A10S	GEO	609	PLY	605		11-110	10-058

One D-Series classroom lock with Orbit interchangeable core knob for a 2 1/4˝ thick door, extended equally, E keyway. Also furnish one control key blank.
2	3	D70RD	ORB				RH			214	EE	138	E-111111
3	1	35-056											E section

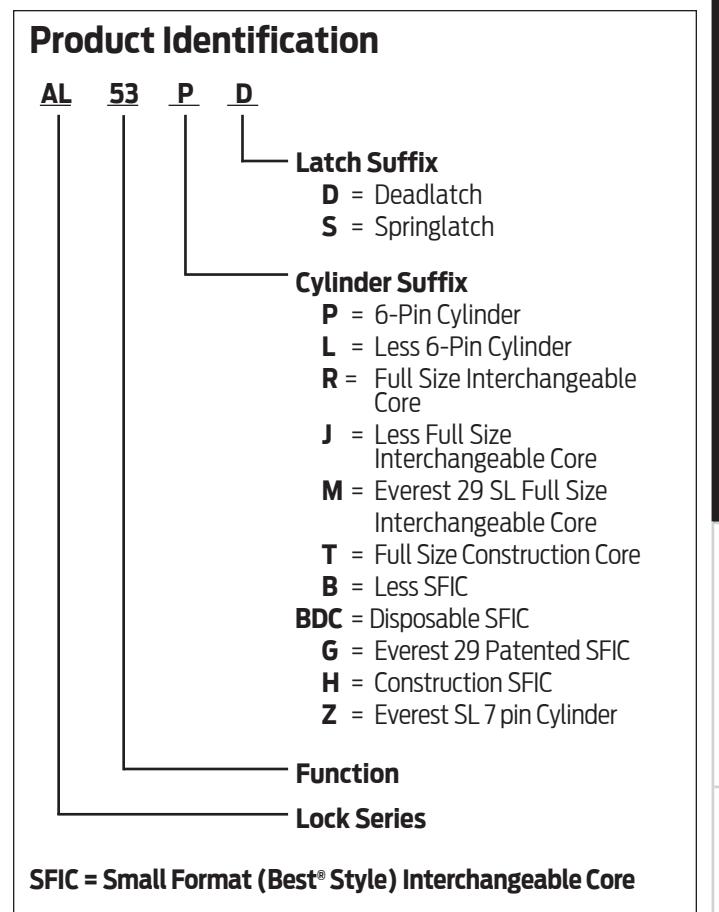

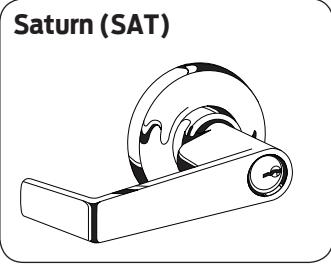

keyed alike.		Two AL-Series entrance locks with Saturn levers in US 10B with knurling on the outside, tamper resistant screws and
4	2	AL53PD	8SA	613	SAT				KA Torx screws

		One S-Series storeroom lock with Saturn levers in 612, four keys per lock.
5	1	S80PD	SAT	612					4 keys total
6	2	50-215							Charge for extra cut keys

		One L-Series passage lock with 05L 630 trim, with lead lined chassis.
7	1	L9010	05L	630		RH			Lead lined per XL11-515

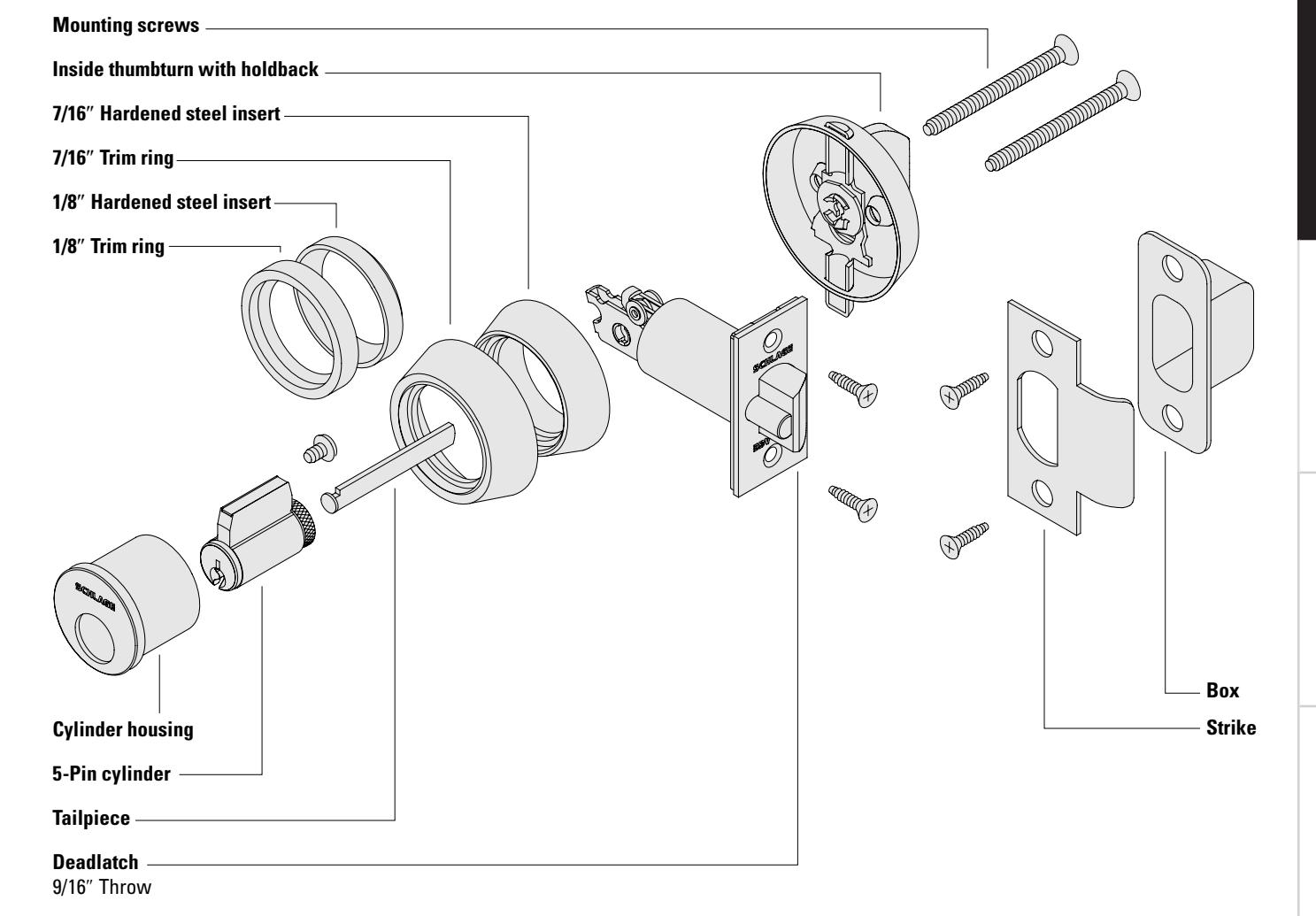

	or change keys.	One B600-Series single cylinder deadbolt in US 26D outside, US 3 inside, less the strike, with construction core. No control
8	1	B660T	626		LLL		ICX
9	1	50-231					Handling Charge

		One ND-Series lever lock in RHO 612, classroom function on the outside, storeroom on the inside. Construction and master keyed to new system. Furnish one master key and one construction master key.*
10	Per XN12-006 1 ND70x80PD RHO 612
11	1	49-101										Master Key
12	1	48-104										Construction Master Key
13	2	50-210										Master keying charge (1/cyl)
14	2	50-211										Constr. keying charge (1/cyl)

		One A-Series lock with an Orbit knob in US 3, entrance function, and Primus level 1 cylinder, CP keyway, 0-bitted, no keys.
15	1	A53LD	ORB	605
16	1	20-724		606				122	Primus #000367, CP-000000, LKB

		One mortise cylinder, 1 1/4˝ long, which will operate a Von Duprin exit device
17	1	20-001	626				114

		One hotel function L-Series lock with 17B trim in 625, large bow change keys and one large bow emergency key, F section, 0-bitted. Left hand door.
18	1 L9485P 17B 625 LH F-000000, 35-141 Keys
19	2	50-228										Charge for large bow keys substituted for standard bow keys
20	1	35-101										F section

^* Use Master Keyed order form and Key System Summary when ordering.

DISTRICT 10

End User Letterhead - REQUIRED

District 10 Schools 555 Main Street End User City, State 55555 (555) 555-5555

May 1, 2003 Date - REQUIRED

To: Schlage Dealer 100 East Avenue Dealer City, State 11111

Dealer Name - RECOMMENDED

RE: District 10, Jones Elementary School

Facility Name - REQUIRED

Include Registry Number & Facility Code (stamped on keys) for existing key systems

Please consider this authorization to ship product for the above-referenced project.

Jones Elementary School is to be keyed using a new Everest 29 T Restricted Key System. For security reasons, we would like to have all keys for this facility shipped to a location other than the job site. Master keyed products, however, can be shipped directly to the site. This letter authorizes Schlage to ship our restricted products to the following addresses:

Master Keyed Products, Construction Keys, Locks Less

Cylinders, and Locks with Construction Cores

Attn: Building Project Manager District 10 Schools 555 Main Street End User City, State 55555

Master Keys, Change Keys, Control Keys, and Key Blanks

Attn: Locksmith District 10 Lockshop 1201 Fifth Avenue End User City, State 55555

Authorized Ship-To Addresses - REQUIRED

These two addresses above serve as our only authorized shipment addresses for all orders placed for our facility. We understand that this letter will be kept on file and referenced for our future orders and that a new letter is only required to add, remove, or change authorized shipping locations.

Sincerely,

End User Representative Facilities Manager

End User Representative Signature - REQUIRED

Letter may be mailed or faxed to Schlage

Schlage Restricted Order Processing 3899 Hancock Expressway Colorado Springs, CO 80911

PRIMUS AND EVEREST 29 PRIMUS ORDERING CHECKLIST

TO FACILITATE ORDER ENTRY FOR KEYS, CYLINDERS, AND CARDS

IMPORTANT NOTES

To expedite processing of all Primus orders, it is highly recommended that Primus products be ordered separately

For Level One Plus and 7, All Cylinder Orders Will Be Supplied LESS KEYBLANKS Unless Otherwise Specified

For All Other Levels, All Cylinder Orders Will Be Supplied WITH KEYBLANKS Unless Otherwise Specified

PRIMUS	EVEREST 29 PRIMUS
FOR LEVEL ONE	FOR LEVEL SEVEN
3 The Distributor's Primus number MUST be provided 3 The Sequence number MUST be provided FOR LEVEL ONE PLUS 3 The Distributor's Primus number MUST be provided 3 The Sequence number MUST be provided 3 The Locksmith number MUST be provided	3 The Distributor's Primus number MUST be provided 3 The Locksmith's Facility code MUST be provided 3 The Keyway MUST be provided
FOR LEVEL TWO	FOR LEVEL EIGHT
3 The Dealer's Primus number MUST be provided 3 The Sequence number and/or Section MUST be Provided	3 The Distributor's Primus number MUST be provided 3 The Keyway MUST be provided
FOR LEVELS THREE & FOUR	FOR LEVEL NINE
3 Orders Originating a System MUST include both an Original Facesheet and a Signature Card 3 An Original Facesheet MUST accompany all succeeding orders 3 The Primus number MUST be indicated on the Facesheet	3 Orders Originating a System MUST include both an Original Facesheet and a Signature Card 3 An Original Primus Facesheet MUST accompany all succeeding orders 3 The Primus number MUST be indicated on the Facesheet
3 ALL fields on the Facesheet MUST be completed where applicable	3 ALL fields on the Facesheet MUST be completed where applicable

All Primus Orders & Supporting Documentation Should be Sent To:

Schlage Attn: Primus Order Processing 3899 Hancock Expressway Colorado Springs, CO 80911

Using Order Forms

We recommend using the order forms included with this price book when placing purchase orders for Schlage products. The following 14 pages of order forms are available for copying prior to placing your order. Bulk supplies of blank forms are also available upon request. Contact Customer Service to order bulk supplies of forms. Specify form number.

Sequential List of Order Forms
Description	Form Number	Rev Date	Total Pages	Available on allegion.com/us
Non-Master Keyed Order Form, First Page	MS-I250	3/14	1 page	•
Non-Master Keyed Order Form, Additional Page	MS-I300	3/14	1 page	•
Master Keyed Order Form, First Page	MS-I100	3/14	1 page	•
Master Keyed Order Form, Additional Page	MS-I150	3/14	1 page	•
Key System Summary	MS-I200	3/14	5 pages	•
Primus® Facesheet	MS-E120	3/14	1 page	•
Primus® Signature Card	MS-E130	3/14	1 page	•

70		P.O. NO. DATE					ADDITIONAL DETAILS Use for Key Section and Bitting Information,	ups, Primus® No., Locksmith ID No., etc
Ve	>						Sn .	KA Gro
Ke		NO.	| |				Δ
er		ACCOUNT NO.	SHIP TO:				EX
st		¥	S				문
n-Ma	ORDER						STRIKE
							ГАТСН
	5		ADDRESS:				Hand
-	Z						H Z
	ALLEGION (1)		CUSTOMER NAME AND				INSIDE DES P
-	ALL	MARK CARTONS:	TOMER				OUTSIDE ES FIN
	1	MARK	SNO	1			OUT
PRICE BOOK#	- SN			FOR FURTHER INFORMATION, CONTACT: Name:			PRODUCT
	SHIPPING INSTRUCTIONS	REQUESTED SHIPDATE	ORDER WRITTEN BY	HER INFORM				,
QUOTE#	SHIPPING	REQUEST	ORDER W	FOR FURT Name:	Phone:	Fax :	LINE

Page 1 of __________________________________

ADDITIONAL DETAILS	Use for Key Section and Bitting Information, KA Groups, Primus® No., Locksmith ID No., etc.												SCHLAGE
	DIM
	EXT												ı
R	Ŧ
	STRIKE												Pageof
	ГАТСН												a .
	HAND
DE	Z Z
INSIDE	DES
SIDE	DES FIN												P.O. No.
OUT	DES												Ф
	PRODUCT
	QTY												t No.
LINE	ITEM												ccount No.

Non-Master Keyed Order Add'l Page MS-I300 Rev. 3/14

MASTER KEYED ORDER

This form must be attached to the MASTER KEY SYSTEM SUMMARY FORM

Please provide as complete and accurate as possible so we can provide what you need for your Key System

### Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | | | | | | | | | | | | | | | | | | |						_				5			NCy 03222			Г
| Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons: | Mark Cartons	#					ACCO	UNT NO.:					F.O. #:
thritten By: Customer Name and Address: Ship to: the Information Contact: Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instantactions Instan	oing In:	struction	ns:			| Mark	Cartons:					Date:
| Tierrs Ordered	ır Writte	en By:				Custr	omer Name	and Address				Ship to:
| Team Ordered	For Further Name: Phone: Fax:	Informa	tion Contact:
Lock Details DESIGN FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH FINISH F		Items Or	dered	LNO	TSIDE		SNI	IDE			L		Enter	Dimen-
Key/Label Instructions HadND (Only one Intent) (Only one Intent) HadND (Expension of Intent) Had (Intent) (Intent) PRODUCT Annot (Intent) (Intent) Intent (Intent) (Intent) Intent (Intent) (Intent) Intent (Intent) (Intent) Intent (Intent) (Intent) (Intent) Intent (Intent) (Intent) (Intent) Intent (Intent) (Intent) (Intent) Intent (Intent) (Intent) (Intent) (Intent) Intent (Intent) (Intent) (Intent) (Intent) Intent (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) Intent (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (Intent) (In		Lock De	etails	DESIGN	FINISH			FINISH		LAICH			when	sion for
QTY PRODUCT QTY Heading DOOR # Symbol Sign DR THK EXT I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I	Key	/Label In	structions			HAND (Only one hand per line item)				\ \ \ \			thickness is greater/equal to 2″	mortise cylinder, blocking ring, etc.	ADDITIONAL DETAILS
	LINE	ŲΤΥ	PRODUCT				ΛĬ	Heading	D00R#	Symbol- (s)	Symbol- (s)	DR THK	EXT	MIQ
	_

	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS
cymidel,	blocking ring, etc.	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc.
if not is greater/ standard equal to 2"		DR THK EXT	ОВ ТНК ЕХТ	ОКТНК ЕХТ	рк тик ехт	рктик ехт	DR ТНК EXT	DR ТНК ЕХТ	DR THK EXT	рвтнк ехт	рктнк ехт	рвтик ехт	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT
¥	Symbol(s)
KEY	DOOR # Symbol(s)	_
	Heading DOOI
nand per line item)	YTQ
line it
Ney/Labet Histinctions	PRODUCT
	PRODI		_

		MASTER KEY SYSTEM SUMMARY	This form must be attached to the Master Key Order form and P.O. Please provide as complete and accurate as possible so we can provide what you need for your Key System.
Job Name Address City / State Country			Account No. P.O.#
		For detailed instructions on how to complete this form please refer to pages 4 & 5
System Overview
o New		o Existing (provide info below)
o	Attached Dealer Specified Combinations	Registry #
		Structure or Factory Order #
1. Select System
Schlage o Classic o Classic Primus * Everest ® o o C (Open) o Primus® * o D (Restricted *) o Primus® * Everest 29™ o o S (Open) o Primus® * o T (Restricted *) o Primus® *	B (Small Format IC, Restricted *) R (Small Format IC, Restricted *)	Falcon o Standard o Schlage C o Restricted * o Interchangeable Core A2 o Interchangeable Core A4 keyways and have the following relationships:	Everest 29 key sections are backwards compatible to Everest R family sections > B family keyways S family sections > C family keyways T family sections > D family keyways
Type o 5-pin o 6-pin See compatibility chart on page 5 Keyway Specified **:	o 7-pin	o Yes o No Construction Keyed Full Size Construction Cores o ICA (Schlage Only) Small Format Construction Cores o Brown	o ICB o ICC o Green
decision in the selection of key sections	** = The Commercial Master Key Department makes the final	Construction Keyed Type o o CK (BOK) Falcon o o CK (Split) Schlage	o Lost Ball o RCK ( 5-Pin C only )

2. Select Keys & Key Stamping
Change Keys No. Of Keys per Symbol	No. Of Keys per Cylinder
Type
o Standard Bow	o Standard Bow (Unembossed)	o Access Bow (Schlage Only)	o Large Bow
Key Stamp Details
o Keyset Symbol	o Do Not Duplicate (DND)	o With Custom Die (Specify)
o Non-standard Code (Specify)
Change Key Packaging and Shipping Instructions
Pack Keys Independently (PKI) of Lock or Cylinder ***			*** = Furnished standard at no charge with Split-Key construction keying
o o Yes No
If PKI, ship change keys to:
o Dealer	o Other
o See Primus Facesheet
3. Select Cylinder Stamping
Cylinder Stamp Details
o With Industry Standard Key Symbol	o Non-Standard Code (Specify)
Cylinder Stamping Location
o Plug Face (N/A in Primus) - VKC		o Concealed (N/A in Falcon STD) - CKC

4. Select Key Quantities	•
Level	Qty. Per	Master Key Symbol (s)	Total Quantity
GGM
GM
MK or RMK	_
Control
Emergency
Others
Ship Master Keys To:
🖵 Dealer 📮 See Primus	s Facesheet 🔲	Other
Special Function	Qty. Per		Qty. Per
RCK (Lost Ball) ****		Full Size Construction Core Keys (Schlage Only)
CK (Split Key) ****		Full Size Construction Core Control Keys (Schlage Control Keys)	Only)
Extractor Tools ****		Small Format Construction Core Keys
		Small Format Construction Core Control Keys
		**** = Use with Construction Keying
5. Master Kev Future Fx	nansion
5. Master Key Future Ex List Future MK Symbols		Approx. # of Change Key Syn	nbols Under Each Future MK
List Future MK Symbols		Approx. # of Change Key Syn	nbols Under Each Future MK
	5	Approx. # of Change Key Syn
List Future MK Symbols Example: MK	5
List Future MK Symbols Example: MK GGM	5
List Future MK Symbols Example: MK GGM GM	5
List Future MK Symbols Example: MK GGM GM MK	5
List Future MK Symbols Example: MK GGM GM MK MK	5
List Future MK Symbols Example: MK GGM GM MK MK MK MK	5
List Future MK Symbols Example: MK GGM GM MK MK	5
List Future MK Symbols Example: MK GGM GM MK MK MK MK	5
Example: MK	B	J, BK 40 each
Example: MK	B
Example: MK	B	J. BK 40 each
Example: MK	B	naster keys will operate cross-keyed cylinders)
Example: MK	B	naster keys will operate cross-keyed cylinders)	is operated by
Example: MK	B	naster keys will operate cross-keyed cylinders) Cross Keyed Cylinder X X	is operated by
Example: MK	s B A B A B A B B B B B B B	naster keys will operate cross-keyed cylinders) Cross Keyed Cylinder X X	is operated by these change keys
Example: MK	s B A B A B A B B B B B B B	naster keys will operate cross-keyed cylinders) Cross Keyed Cylinder X X X	is operated by these change keys

7. Instructions and Compatibility

General Information

If you do not know the registry number (R#), structure number or the original factory order number for an existing system, contact Customer Service prior to placing the order:

Tel. 1-877-671-7011 Fax 1-800-452-0663

• Only one structure may be ordered on the same purchase order
• Classic refers to Obverse, Numbered (Paracentric), Quad, and Reverse key section families
• Classic Primus refers to Primus Obverse and Primus Quad key section families

Section 1: Select System

Full Size Construction Cores

• Schlage only

Small Format Construction Cores

• 7-pin only for Schlage
• 6- and 7-pin for Falcon

CK (Split)

• 6-pin for Schlage and Falcon
• Split key construction keying is not available for Classic Primus or Everest 29 Primus

RCK (Lost Ball)

• 5-pin (C keyway) only for Schlage
• 5-, 6-, and 7-pin for Falcon

System Selection

• Refer to the compatibility chart

Section 2: Select Keys and Key Stamping

Stamp Details

• Unless otherwise specified, industry standard key symbols are stamped on Everest 29™ and Primus® keys
• For custom die, attach RFQ approval for Schlage

Section 3: Select Cylinder Stamping

Type

• For cylinder type refer to the compatibility chart

Keyway (specify)

• Schlage Commercial's default key section for new Master Key Systems is Everest™ S145

Section 4: Key Quantities

Level

• Unless otherwise specified, the control key has the same cut as the highest-level key in the system (Except SFIC systems)

Special Function

• Construction keys are not furnished unless specified

Change Keys

• Unless otherwise specified 2 change keys are furnished per lock or cylinder

Section 5: Master Key Future Expansion

• Do not use the letters "I", "O", "CK", "KA, or "KD" for any master key symbols

Section 6: Operating Instructions

• Cross keying reduces the security and expansion of key systems
• Unless otherwise specified, all hierarchical master keys will operate cross-keyed cylinders

Compatibility Chart

	5 Pin	6 Pin	7 Pin	Split Key	Block O-Key	Lost Ball	Temp Core	A2	A4	0.025	0.018
Schlage
Classic	X	X		X		X	X
Everest 29 S		X		X			X
Everest 29 T		X		X			X
Everest 29 R			X				X	X
Classic Primus (XP)		X					X
Everest 29 Primus (XP)		X					X
Falcon
Open	X	X	X		X	X					X
Restricted		X	X		X	X				X
Schlage C		X		X
SFIC Open		X	X				X	X	X
SFIC Restricted		X	X				X	X	X

IF SOLD TO ANY ENTITY/INDIVIDUAL OTHER THAN END-USER SPECIFY NAME:
	PRIMUS SECURITY LEVEL:
	29

Ingersoll Rand Security Technologies Allegion

Schlage

Attn.: Primus Order Processing 3899 Hancock Expressway Security, CO. 80911

For Internal Use Only
Primus#	Order#
G/Z/E	S/M

Level 3, 4, and 9 Order Authorization

THIS SIGNA TURE CARD EST ABLISHES AUTHORIZA TION TO PURCHASE ADDITIONAL PRIMUS HIGH SECURITY PRODUCT FOR THE SECURITY SYSTEM INST ALLED A T THE ADDRESS BELOW .

THIS ORIGINAL FORM MUST BE MAILED TO SCHLAGE COMMERCIAL DIVISION WITH YOUR ORDER – F AXED COPIES NOT ACCEPT ABLE –

		PRIMUS SECURITY LEVEL:
	3U (no exclusivity) 3G (2-digit zip exclusivity)	4Z (time exclusivity) 4N (nationwide exclusivity)	9U (no exclusivity) 9G (2-digit zip exclusivity)	9Z (time exclusivity) 9N (nationwide exclusivity)
	C l a s s i c K e y w a y s		E v e r e s t 2 9	K e y w a y s
	PROJECT INFORMA TION
	Project Name (please print or type)
	Street Address (no P .O. Box)
City			State Zip Code
	AUTHORIZED OWNER SIGNA TURE(S): other signers on this form.		If restrictions are not indicated and in multiple signature cases, the first signature will be regarded as the primary authorit y able to control
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code

Signature Date Phone Number

DEALER OR LOCKSMITH AUTHORIZATION (OPTIONAL WITH OWNER AUTHORIZATION/SIGNATURE)

Dealer or Locksmith Account #	Primus #		Address (no P.O. Box)
Dealer or Locksmith Company Name			City	State	Zip Code
Phone Number	Fax Number		Contact 2 (Please print or type)
Contact 1 (Please print or type)			Contact 2 Signature
Contact 1 Signature
Effective From:	Date	to Date
Owners Authorization By (Please print or type)
Owners Authorization Signature		Date
	the material.		SPECIAL NOTE: In the case where the end user / owner has assigned the Dealer or Primus Locksmith Signature authorization (as noted above), the Dealer or Primus Locksmith agrees to take full responsibility for validating the owner' s signature as identified on the Primus Signature Card before ordering
SPECIAL INSTRUCTIONS:		additional Primus product or duplicating keys.	Please indicate any restrictions to authorized individuals listed on this form when purchasing
			Please fill out a new Primus Signature Card in the event of changes, additions or deletions in authorized signatures and send w ith letter requesting changes to Schlage at the address below . Primus Signature Cards are available from authorized Schlage Primus distrib utors
this card will not be accepted.			and Schlage Commercial upon request. W e suggest that you make a copy of this completed form for your records. A photo copy or fax of
Please mail the original copy to: Please mail the original copy to:		IR Schlage	Schlage Attn: Key Control Department Attn.: Master Key Control Department

2315 Briargate Parkway, Suite 700 Colorado Springs, CO 80920 3899 Hancock Expressway Colorado Springs, CO 80911

MS-E130 Rev . 8/05 MS-E130 Rev. 3/14

A Series

GRADE 2 CYLINDRICAL KNOB LOCK

A Series

Ordering Procedures

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	A53PD	PLY	626	LEV	613	-	11-085	10-001	178	EE	-	KA

Line Item: Line item number

Qty: Quantity

Product: Product function + Cylinder code

Outside Des: Outside lever design Outside Fin: Outside finish

Inside Des: Inside lever design: Specify only if different from the outside lever design Inside Fin: Inside lever finish: Specify only if different from the outside finish

Hand: Hand of door: N/A for A lock

Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required. Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.

Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=13/8", 214=21/4"

Ext: Extension: Enter for doors 17/8" or greater. Example: EE=extended equally, EI=extended inside,

EO=extended outside, ED=extended differently

Dim: Dimension: Enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	denotes a lock or part that requires an extended lead time.
5.	b denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents
Functions A-4
Complete Locks A-5
Options A-7
Latches A-7
Strikes A-7
Lock Less Components A-8
Non-Standard Door Thickness A-8
Tamper Resistant Torx® Screws A-8
Special Functions A-8
Parts A-9
Knobs and Related Components A-9
Roses A-9
Latches and Related Components A-9
Strikes A-10
Plunger Parts A-11
Reinforcements and Adapters A-11
Finished Miscellaneous Parts A-12
Miscellaneous Parts A-12
Screws A-13
Screw Packs A-13
Torx Screw Packs A-13
Cylinder Reference Table A-13
Complete Cylinders See Cylinders Section

How To Order Forms & Examples

	and Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Antique Brass
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated
629	(US 32)	Bright Stainless Steel
630	(US 32D)	Satin Stainless Steel
643e	(US 11)	Aged Bronze

Finish Codes

Standard Features

Latch 1" x 2 1/4", Square corner faceplate, 7/8" housing diameter, 1/2" throw

Strike 1 1/8" x 2 3/4", Square corner, T-strike, box

Backset 2 3/8"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range 1 3/8" – 1 7/8"

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.

Non-Keyed Locks Keyed Locks

SCHLAGE ANSI

A10S F75 Passage Latch A53PD F109

Both knobs always unlocked.

A25D Exit Lock

Blank plate outside. Inside knob always unlocked. Specify door thickness.

A30D F77 Patio Lock

Push-button locking. Turning inside knob or closing door releases button, preventing lock-out.

A40S F76 Bath/Bedroom Privacy Lock

Push-button locking. Can be unlocked from outside with small screwdriver. Turning inside knob or closing door releases button.

A43D F79 Communicating Lock

Turn-button in outer knob locks and unlocks knob and inside thumbturn.

A170 Single Dummy Trim

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

Entrance Lock

Turn/push-button locking; pushing and turning button locks outside knob, requiring use of key until button is manually unlocked. Pushbutton locking; pushing button locks outside knob until unlocked by key or by turning inside knob.

A70PD F84 Classroom Lock

Outside knob locked and unlocked by key. Inside knob always unlocked.

A79PD Communicating Lock With Blank Plate

Locked or unlocked by key from outside. Blank plate inside.

A80PD F86 Storeroom Lock

Outside knob fixed. Entrance by key only. Inside knob always unlocked.

A85PD F93 Faculty Restroom Lock (with Indicator Cylinder)

Outside knob fixed. Entrance by key only. Push-button in inside knob activates visual occupancy indicator, allowing only emergency master key to operate. Turning inside knob or closing door releases visual occupancy indicator. Rotation of inside spanner-button provides lock-out feature by keeping indicator activated.

* The Levon lever is available on inside trim for the following functions: 25, 30, 53, 70, 80 & 85.

		Designs and Finishes ORB PLY GEO TUL LEV***				Primary Cylinder Adjustments Available Levers Available Finishes
Function	Description	626	605 6606 6609 612* 6625 643e*	613 6629** 630**	LD	RD TD	JD
Keyless					ALL	ORB
A10S	Passage
A25D	Exit, blank plate x lever	128	140	158
A40S	Privacy					605 6606 6609 612 613 6625 626
A30D	Privacy, hospital				6629 630 643e
A43D	Privacy, hospital	172	184	202
A170	Single dummy	64	70	80
Keyed, Single Cylinder						RD TD****	JD
A53PD	Entrance
A70PD	Classroom	227	239	257		38	-35
A80PD	Storeroom				-64
A79PD	Communicating
A85PD	Faculty Restroom Lock	262	274	292	-95	N/A
	Everest And Restricted Keyway - does not apply to Primus
	Everest D & T Family & Restricted Keyways (Quad, Numbered, Reverse)				+17.50
SECONDARY	SL Cylinder with Everest B or Everest R keyways					+17.50
CYLINDER ADJUSTMENTS	Primus/Primus XP - order the lock less cylinder and the cylinder separately (prices below)
	Single Kil Example: 1 Ea. A53LD & 1 Ea. 20-724(-XP)					+141
	Single Fsic Example: 1 Ea. A53JD & 1 Ea. 20-740(-XP)					+152
*	Not available for GEO LEV TUL
**	Finishes only available in PLY
***	The Levon lever is available on inside trim for the following functions: 25, 30, 53, 70, 80 & 85
****	Temporary cores (TD and HD options) require non-refundable core handling charge (50-231) of $10.40 and will be added to the price of the lock.

Latches
Part Number	Lock Adjustment
Spring Latch
11-068	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-069	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-111	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"	N/C
11-112	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-118	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"	+13.60
Deadlatch
11-085	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-088	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-091	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"	N/C
11-092	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-103	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"	+13.60
41-005	5" - 7/8" - Backset extension link - require reinforcement when used in hollow metal door applications; must be used with 2 3/8" backset latches	+21.70

Strikes Part Number	Lip Length - Description	Lock Adjustment
	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"	N/C
	1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
	1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001	1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"	+7.70
	1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
	2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004	1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4"	N/C
	1 3/16" - ANSI, no box, 1 1/4" x 4 7/8"	N/C
10-025	1 3/8" - ANSI, no box, 1 1/4" x 4 7/8"
	1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"	+28.00
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"
10-027	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"
10-058	Circular, adjustable, 1 3/4" diameter - 605 and 626 finishes only	N/C
K510-066	Box for ANSI strike, must be specified

Description	Specify	Lock Adjustment
Less each knob	LLL for knob design Example: A53PD LLL/PLY x PLY	-8.00
Less each rose or turn	LLL for rose design Example: A53PD PLY x PLY/LLL	-6.30
Less springlatch	LLL for latch Example: A40S PLY 605 LLL 10-004	-10.30
Less deadlatch	LLL for latch Example: A53PD PLY 626 LLL 10-025	-17.20
Less strike	LLL for strike Example: A53PD PLY 612 11-096 LLL	-3.70
Lock chassis and spring cages only	Less all possible components Example: A53LD LLL 626 LLL LLL	Sum of deducts

Non-Standard Door Thickness
Description	Specify	Lock Adjustment
Extended Inside (EI), 2" thru 2 1/2"	Door thickness and how door is extended. Example: 2 1/2", EI	+53.70

	Tamper Resistant Torx® Screws
Specify/ Part Number	Description	Lock Adjustment
Torx Screws	Screws - Latch and Strike	+21.30

		Special Functions - Extended Lead Times
Part Number
Lock Function	"X" Number	Description	Base Lock	Lock Adjustment
A53PD	XA11-297	A53PD with restoring slide	A53PD	+164.00

	Knobs and Related Components
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
	01-008 ORB PLY; 01-009 ORB PLY; 01-026 ORB	•	6	6	•	•	6	•	6	•	•
	01-008 TUL GEO LEV; 01-009 TUL GEO LEV	• • • 6 6 6
Part Number	Description						Price Each
01-008*	Closed Knob or Lever - GEO LEV ORB PLY TUL
01-009*	Open Knob or Lever - GEO LEV ORB PLY TUL						$41.40
01-018*	Open Knob - with sleeve for cylinders - GEO ORB PLY TUL						57.60
01-026*	Full Size Core Knob - ORB						77.60
01-053	Full size core driver and retainer - finish not required						13.40
A501-941	Full size core retainer - finish not required						5.00
C604-307	Full size core driver, universal - finish not required						9.70
*	Specify part number, knob style, finish. Ex: 01-009 GEO 626 (open knob, Georgian design, 626 finish)

Roses
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
	01-001 TUL PLY, 01-002 TUL PLY, A201-558, A501-766	•	6	6	•	•	6	•	6	•	•
01-001 GEO, 01-002 GEO		•	6	6		•	6	•
Part Number	Description						Price Each
01-001**	Outside Rose - TUL PLY GEO
01-002**	Inside Rose - TUL PLY GEO						$31.20
A201-558	Rose, out A25						54.90
A501-766	Rose, ins A79						49.10
**	Specify part number & finish. Ex: 01-002 PLY 626 Plymouth design, 626 finish)

	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
11-092, 11-096, 11-105, 11-103	11-068, 11-069, 11-110, 11-111, 11-112, 11-116, 11-113, 11-118, 11-085, 11-088, 11-104, 11-091,	•	•	•	•	•	•	•	6	•	•
39-030		•						•
Part Number	Backset - Hsg Dia Description	Price Each
Spring Latch
11-068	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-069	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-111	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"	$60.20
11-112	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-118	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"						64.70
Dead Latch
11-085	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-088	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-091	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"						60.20
11-092	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-103	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"						64.70
41-005	5" - Backset extension link - require reinforcement when used in hollow metal door applications; backset link must be used with 2 3/8" backset latches.	22.80
39-030	Rabbeted latch and strike kit - adapts square corner latches and 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preparations.						58.20

Strikes
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
	10-001, 10-004, 10-025, 10-026, 10-027	•	•	•	•	•	•	•	6	•	•
10-058		•						•
Part Number	Lip Length - Description						Price Each
10-001 118	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"	$6.50
10-001 100	1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 114	1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 112	1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"						13.90
10-001 134	1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 200	2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004	1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4"						11.10
10-025 1316	1 3/16" - ANSI, no box, 1 1/4" x 4 7/8"						15.20
10-025 138	1 3/8" - ANSI, no box, 1 1/4" x 4 7/8"
10-025 112	1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"						43.70
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"	7.60
10-027	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"						7.60
10-058	Circular, adjustable, 1 3/4" diameter						10.90

K510-066 Box for ANSI strike - finish not required 6.80

Plunger	Parts
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
01-055, 01-056,	01-057, 01-058, 01-060, 01-063		2	2			2		2
Part Number	Dimension - Design - Door Range - Description			•	•	Price	• 2 • 2		•	•
	360 - Non-ORB - 13/8" – 17/8" - Plunger unit, ins A30
	424 - Non-ORB - over 17/8" – 21/4", EI - Plunger unit, ins A30	1
01.055*	449 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A30	1				Price Each $16.30
01-055*	428 - ORB - 13/8" – 17/8" - Plunger unit, ins A30	]
	492 - ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins A30	]
	517 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A30	]
	360 - Non-ORB - 13/8" – 17/8" - Plunger unit, ins A40	1
	424 - Non-ORB - over 17/8" – 21/4", EI - Plunger unit, ins A40	]
01.056*	449 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A40	]
01-056*	428 - ORB - 1 3/8" – 1 7/8" - Plunger unit, ins A40	1			$16.30
	492 - ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins A40	]			$16.30
	517 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A40	1
	070 - Non-ORB - 13/8" – 21/2", EI - Plunger unit, out A40	]				Ć1C	20
01.057*	135 - Non-ORB - 1 3/8" – 2 1/2", EI - Plunger unit, out A40	1				$10	.30
01-057*	070 - ORB - 1 3/8" – 2 1/2", EI - Plunger unit, out A40	]
	135 - ORB - 1 3/8" – 2 1/2", EI - Plunger unit, out A40	]
	281 - Non-ORB - 1 3/8" – 2 5/8", EI - Plunger unit, out A43
01-058*	349 - Non-ORB - 13/8" – 25/8", EI - Plunger unit, out A43
01-030	281 - ORB - 13/8" – 25/8", EI - Plunger unit, out A43	]
	349 - ORB - 1 3/8" – 2 5/8", EI - Plunger unit, out A43
	360 - Non-ORB - 13/8" - 17/8" - Plunger unit, ins A53
	424 - Non-ORB - over 17/8" – 21/4", EI - Plunger unit, ins A53	]
01-060*	449 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A53
01-000**	428 - ORB - 13/8" – 17/8" - Plunger unit, ins A53
	492 - ORB - over 17/8" – 21/4", EI - Plunger unit, ins A53
	517 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A53
	363 - Non-ORB - 13/8" - 17/8" - Plunger unit, ins A85
	427 - Non-ORB - over 1 7/8" – 2 1/4", EI - Plunger unit, ins A85
01-063*	452 - Non-ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A85					22	30
01 000	431 - ORB - 1 3/8" – 1 7/8" - Plunger unit, ins A85					J3.	.50
	497 - ORB - over 17/8" – 21/4", EI - Plunger unit, ins A85
	520 - ORB - over 2 1/4" – 2 1/2", EI - Plunger unit, ins A85
*	Specify part number, dimension, design & finish. Ex: 01-060 492 ORB 626

Reinforc	ements and Adapters
Part Number	Description	Price Each
37-001	Metal door reinforcer kit, fits both 7/8" and 1" diameter housings - Specify door thickness, includes A501-567 and A501-565 or A501-566.	39.30
A501-565	Reinforcer for 1 3/8" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.	10.00
A501-566	Reinforcer for 1 3/4" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.	19.80
A501-567	3 1/2" Long latch housing sleeve used to reinforce joint between latch and backset link or to hold latch in metal doors.	12.30
A501-878**	Faceplate adapter to adapt 1" faceplate to 1 1/8" door preparation	0.78
G506-815	1" Long latch housing sleeve to adapt 7/8" housing to 1" bore	6.90
**	Order in multiples of 100

	Finished Miscellaneous Parts
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
A301-404, A301-405, A301-406	38-018, A201-330, A201-399, A201-406, A201-684, A201-688, A301-403,	•	6	6	•	•	6	•	6	•	•
Part Number	Description	Price Each
38-018	Thin door extension ring (2 required per lock)						13.20
A201-330	Non-threaded chassis, less knob & rose - A170						44.70
A201-399	Hub & cap, out. (except A10, A25, A40, A43)
A201-406	Hub & cap, out A10, A40, A43						32.10
A201-684	Threaded chassis, less knob & rose - A170						44.70
A201-688	Turn unit, ins A43						54.90
A301-403	Housing & cap, 1 3/8" thru 1 7/8" door (except A43, A79)
A301-404	Housing & cap, 1 7/8" thru 2 1/4" door, EI (except A43, A79)	12.10
A301-405	Housing & cap, 2 1/4" thru 2 1/2" door, EI (except A43, A79)
A301-406	Threaded housing & cap, ins. (except A43, A79)						12.20

	Miscellaneous Parts
Part Number	Description	Price Each
A201-370	Cam & driver - A80	$9.80
A201-377	Mounting plate, ins. (except A43, A79)
A301-386*	Spindle & catch, ins. (except A43, A79)
A301-387	Spindle & catch, out. (except A25, A43)	10.00
A301-391*	Cam unit - A30
A301-402	Cam unit, out A40, A53, A85
A301-409*	Spindle, 1 7/8" thru 2 1/4" door, EI (except A43, A79)
A301-410*	Spindle, 2 1/4" thru 2 1/2" door, EI (except A43, A79)	41.50
A500-001	Spindle, ins, 2" thru 2 1/4" door, EI - A43
A500-002	Spindle, ins., 2 1/2" door, EI - A43	16.90
A501-167	Threaded rod for mounting A170s as double dummy set	16.90
A501-305	Hub plate, ins. (except A79)	7.90
A501-498	Hub, 1 3/8" door - A25	11.90
A501-499	Hub, 1 3/4" door - A25	12.10
A501-615	Spindle wedge - A80, A85	7.40
A501-633	Spindle, ins A43	8.80
A501-710	Swivel sleeve - A85 (except ORB design)	7.50
A501-721	Cam plug - A70, A79	22.70
A501-767	Mounting plate - A79
A501-768	Hub plate, ins A79	7.50
A501-791	Cam & plug spacer - A70, A79	4.60
A501-874	Hub plate, out A25	11.90
A501-901	Plate, out A80, A85	5.30
A508-399	Plate, out. (except A25, A80, A85)	10.10
A508-597	Spring separator (except A10, A25, A40, A43) - require frame A508-598	7.50
A700-017	Spiral cam - A70, A79	11.20
A508-598	Frame	12.10
A508-600	Housing - A43, A79	16.70
A508-605	Slide spring	7.50
A508-640	Spacer, ORB knob	8.40
A508-641	Slide stop - A43	30.60
A590-158*	Slide, restoring - A30, A85
A590-159	Slide, non-restoring - A43, A53, A70, A79, A80
A590-180	Slide, restoring - A40	7.50
A590-181	Slide, non-restoring - A10, A25
C503-008**	Cotter pin	0.70
G570-232	Plug, spindle, lever designs only - A10	13.80
*	Parts that are not directly interchangeable with locks manufactured before 1984
**	Order in multiples of 100

Screws	5
	Available Finishes - Speci	ify for Listed Parts		605	606	609	612	613	625	626	629	630	643e
A508-649, A	508-650, C603-256, C603-897				$	$			2		2
Part Number	Door Thickness - Description	Type	Size	Price Each
A501-161*	13/8" – 17/8" - Mounting, All (except A43, A79)	POH Mach	10-32 x 1 1/8"					1.4	00
A501-818*	2" – 21/2", EI - Mounting, All (except A43, A79)	POH Mach	10-32 x 2 1/16"					1.	20
A501-769*	13/8" – 2" - Mounting, A79	POMH 1-way	10-32 x 1 1/8"					1.	40
A501-770*	2" – 2 3/4", EI - Mounting, A79	POMH 1-way 10-32 x 2" 1.40				-way 10-32 x 2" 1.40
A508-649*		Torx screw (T-20) 10-32 x 1 1/8"			Torx screw (T-20) 10-32 x 1 1/8"
A508-650*	2" – 21/2", EI - Mounting, A43	3 Torx screw (T-20) 10-32 x 2" 26.20
C603-256*	ANSI strike	PFH Combo	12-24 x 1"	1.00								1.00			1.00		1.00		1.00
C603-897*	Latch and strike	PFH Combo	8-32 x 3/4"	0.90
*	Order in multiples of 100										, in the second

Screw	Packs
	Available Finishes - Speci	fy for Listed Parts	605 606 609 612 613 625 626 629 630 64									643e
A201-811, A	201-812			$	2			Z		Z
Part
Number	Description	Contents					Price	Each
A201-811	Mounting, latch and strike (except	(2) A501-161					ĊO	.30
AZUI-OII	A43, A170)	(4) C603-897					Şo	.50
A201-812	Mounting, A170	(3) C603-897	6.40
A201-814	Mounting, A43	(2) A508-649					5.	00

Torx So	rew Packs
	Available Finishes - Speci	fy for Listed Parts	605	606	609	612	613	625	626	629	630	643e
C203-311, C203-312										2
Part
Number	Description	Contents					Price	Each
C203-311**	Latch and strike	(4) C503-766 (T-15)
C203-312**	(2) C503-766 (T-15)						$21	.30
C2U3-312***	Latch and ANSI strike	(2) L583-371 (T-20)	4250
**	Torx screw packs are furnished with app	propriate T-xx installation tool(s)

Cylinder	Reference Table
_	Available Finishes - Speci	fy for Listed Parts		604	5 676
21-002/122, 20-7	724/XP/122, 20-524/XP/122, 21-0	03/168, 91-052, 91-752->	(P, 91-552-XP	606, 626
Part Number	Cylinder Mechanism	Function	Design	Price Each	Price Each - Restricted
21-002	Standard			$64.00	$81.50
91-004	Everest SL (R/B Keyways only)
20-724	Primus			141.00
20-724-XP	Primus XP			141.00
91-704-XP	Everest SL Primus XP (R/B		Except Orbit		141.00
	Keyways only)		Lxcept Orbit		141.00
20-524	Primus UL437			174.00
20-524-XP	Primus UL437 XP			174.00
91-504-XP	Everest SL Primus XP UL 437				174.00
31-JU4-VL	(R/B Keyways only)				174.00
21-002-122	Standard			64.00	81.50
91-005	Everest SL (R/B Keyways only)				81.50
20-724-122	Primus	Standard		1/1.00
20-724-XP-122	Primus XP	Functions		141.00
01.705.VD	Everest SL Primus XP (R/B		Orbit Except		1/1.00
91-705-XP	Keyways only)		A73 Function		141.00
20-524-122	Primus UL437			17/ 00
20-524-XP-122	Primus UL437 XP			174.00
91-505-XP	Everest SL Primus XP UL 437				174.00
91-202-88	(R/B Keyways only)				174.00
Complete	Standard
cylinder	Primus
discontinued	Primus XP		A 72 Orbit
but may be	Primus UL437		A73 Orbit
assembled in the field	Primus UL437 XP
21-003	Ctdd	4.05	Except Orbit	95.00	112.50
21-003-168	Standard	A85	Orbit	95.00	112.50

Inside lever
Driver cap
Driver
Rose
Castle nut	Plastic
Inside spring cage	insert
Lock chassis
Outside lever	Mounting screws
6-Pin cylinder	ANSI strike
Rose and outside spring cage
Reversible deadlatch
¹⁄₂" Throw

Indicates products that have EPD documentation available and meet LEED v4.

54 mm

AL Series

Ordering Procedures

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line		Outside Inside								Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	AL53PD	SAT	626	NEP	619	-	11-096	10-025	200	EE	-	-

Line Item: Line item number

Qty: Quantity

Product: Product function + Cylinder code

Outside Des: Outside lever design Outside Fin: Outside finish

Inside Des: Inside lever design: Specify only if different from the outside lever design Inside Fin: Inside lever finish: Specify only if different from the outside finish

Hand: Hand of door: N/A for AL lock

Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required. Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.

Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4"

Ext: Extension: Enter for doors 17/8" or greater. Example: EE=extended equally, EI=extended inside, EO=extended

outside, ED=extended differently

Dim: Dimension: Enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	🕏 denotes a lock or part that requires an extended lead time.
5.	denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

	Table of Contents
Functions		AL-4
	Complete Locks	AL-5
Options		AL-7
	Latches	AL-7
	Strikes	AL-7
	Lock Less Components	AL-8
	Non-Standard Door Thickness	AL-8
	Miscellaneous Lock Options	AL-8
	Special Functions	AL-8
Parts		AL-9
	Levers and Related Components	AL-9
	Roses	AL-9
	Latches and Related Components	AL-10
	Strikes	AL-10
	Plunger Parts	AL-11
	Reinforcements and Adapters	AL-11
	Parts for 2" Doors	AL-11
	Hub, Frame and Housing Kits —
	For Locks Manufactured before May, 2003	AL-11
	Miscellaneous Parts	AL-12
	Special Parts	AL-12
	Screws	AL-13
	Screw Packs	AL-13
	Torx Screw Packs	AL-13
	Cylinder Reference Table	AL-13
	Complete Cylinders See Cylinders Section

How To Order Forms & Examples

	Finish Codes and Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Antique Brass
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
619	(US 15)	Satin Nickel
622	(US 19)	Matte Black
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated
626AM		Antimicrobial Coating on
		Satin Chromium
643e	(US11)	Aged Bronze

Standard Features

Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.

Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw

Strike 1 1/4" x 4 7/8", ANSI, Square corner, no box

Backset 2 3/4"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range 1 3/8" – 1 7/8"

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

Indicates products that have EPD documentation available and meet LEED v4.

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.

Non-Keyed Locks Keyed Locks

SCHLAGE ANSI

AL10S F75

Passage Latch

Both levers always unlocked.

SCHLAGE ANSI

AL50PD F82 Entrance/Office Lock

Push-button locking. Push-button locks outside lever until unlocked with key or by rotating inside lever.

AL25D Exit Lock

Blank plate outside. Inside lever always unlocked. Specify door thickness.

AL53PD F109 Entrance Lock

Turn/push-button locking; pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever.

AL40S F76 Bath/Bedroom Privacy Lock

Push-button locking. Can be unlocked from outside with small screwdriver, not included. Turning inside lever or closing door releases button.

AL70PD F84 Classroom Lock

Outside lever locked and unlocked by key. Inside lever always unlocked.

AL44S Hospital Privacy Lock

Push-button locking. Unlocked from outside by turning emergency turn-button. Turning inside lever or closing door releases button.

AL80PD F86 Storeroom Lock

Outside lever fixed. Entrance by key only. Inside lever always unlocked.

AL170 Single Dummy Trim

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

AL85PD F93 Faculty Restroom Lock (with Indicator Cylinder)

Outside lever fixed. Entrance by key only. Push-button in inside lever activates visual occupancy indicator, allowing only emergency masterkey to operate. Turning inside lever or closing door releases visual occupancy indicator. Rotation of inside spanner-button provides lock-out feature by keeping indicator activated.

Commercial Lever Suite
AL Lock	L Lock Levers	98/99 Exit	ND Levers	S Lock
Jupiter	07	07	Athens	Jupiter
Omega	Omega	16	Omega
Neptune	17	17	Sparta	Neptune
Saturn	06	06	Rhodes	Saturn

Latches
11-068	11-088	11-096 Standard	11-104	11-116

Strikes
10-001	10-025 Standard	10-027	10-058

AL · Complete Locks

		Do	esigns and Fin	ishes
		J	UP NEP OME	SAT	PRIMARY CYLINDER ADJUSTMENTS
Function	Decription	626	605 606 609 612 619 622 625 643e	613 $626AM	AVAILABLE LEVERS AVAILABLE FINISHES
Keyless			•
AL10S	Passage	192	204	222	LD	RD TD**	JD	BD BDC	GD	HD**
AL25D	Exit, blank plate x lever	209	221	239				|
AL40S	Privacy	218	230	248	ALL		JUF	NEP S	AT*
AL44S	Privacy, hospital	210	230	240				9 612 6
AL170	Single dummy	111	117	127	622 625 626 643e 6626AM
Keyed, Single Cylind	der				LD CD	RD TD	JD	BD BDC	GD	HD
AL50PD	Entrance/Office
AL53PD	Entrance	1	291	201	201	200	_ ,	7.0	25	N /6	0,
AL70PD	Classroom	279		309	309 -64	38	-35	N/C	84	44
AL80PD	Storeroom
AL85PD	Faculty Restroom Lock	321	333	351	-95		No	t Availal	ole
	EVEREST AND RESTRICTED KEYWAY - DO	DES NOT	APPLY TO PRI	MUS
	EVEREST D & T FAMILY & RESTRICTED KEYW	AYS (QUA	AD, NUMBERED,	REVERSE)	+17.50
Secondary Cylinder	SL Cylinder with Everest B or Everest R keyway	/S			+17.50
Adjustments	PRIMUS/PRIMUS XP - ORDER THE LOCK	LESS CY	LINDER AND T	HE CYLINDE	R SEPAR	ATELY (P	RICES BE	LOW)
	SINGLE KIL EXAMPLE: 1EA. AL53LD & 1EA. 2	0-728(-X	P)				+141	1.00
	SINGLE FSIC EXAMPLE: 1 EA. AL53JD & 1 EA. 20-740(-XP)						+152	2.00
*	Only lever available in 609 finish for FSIC and 1	SFIC
**	Temporary cores (TD and HD options) require	non-refur	ndable core han	dling charge (	(50-231) o	f $10.40 ar	nd will be a	added to t	he price of	the lock.

Latches
Part Number	Backset - Hsg Dia - Description	Lock Adjustment
Spring Latch
11-068	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-069	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-111	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"	N/C
11-112	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-118	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"	+13.60
Deadlatch
11-085	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-088	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-091	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"	N/C
11-092	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-103	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"	+13.60
41-005	5" - Backset extension link - require reinforcement when used in hollow metal door applications; backset link must be used with 2 3/4" backset latches	+21.70

Strikes
Part Number	Lip Length - Description	Lock Adjustment
	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"	N/C
	1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
	1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001	1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"	+7.70
	1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
	2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004	1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4"	N/C
	1 3/16" - ANSI, no box, 1 1/4" x 4 7/8"	N/C
10-025	1 3/8" - ANSI, no box, 1 1/4" x 4 7/8"
	1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"	+28.00
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"
10-027	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"
10-058	Circular, adjustable, 1 3/4" diameter - 605 and 626 finishes only	N/C
K510-066	Box for ANSI strike, must be specified

Locks Less Components
Description	Specify	Lock Adjustment
Less each lever	LLL for lever design Example: AL53PD LLL/JUP x SAT	-9.60
Less each rose	LLL for rose design Example: AL53PD SAT x SAT/LLL	-11.90
Less springlatch	LLL for latch Example: AL40S SAT 605 LLL 10-025	-11.90
Less deadlatch	LLL for latch Example: AL53PD SAT 626 LLL 10-025	-19.30
Less strike	LLL for strike Example: AL53PD ATH 612 11-096 LLL	-4.60
Lock chassis and spring cages only	Less all possible components Example: AL53LD LLL 626 LLL LLL, lever chassis	Sum of deducts

Non-Standard Door Thickness
Description	Specify	Lock Adjustment
Extended Equally (EE), over 17/8" – 2" (SFIC not available for 17/8" - 2" door thickness)	Door thickness and how door is extended. Example: 2", EE	+5.00

Miscellaneou	s Lock Options
Specify/Part Number	Description	Lock Adjustment
8SA	Tactile Lever - Saturn	+45.80*
Torx Screws	Screws - Latch and Strike	+21.30
*	Per lever

Special Fu	nctions - Ext	ended Lead Times
Part I	Number		Base	Lock Adjustment
Lock Function	"X" Number	Function - Description	Lock	(Base Lock)
AL50PD	XA11-297	AL50PD with restoring slide	AL50PD	184.00
AL53PD	XA11-297	AL53PD with restoring slide	AL53PD	104.00

	Available Finishes - Specify for Listed Parts	605	606	609	612	613	619	622	625	626		643e 626AM
	51-021, 51-023, 51-025, 51-026, 51-022 SAT, 51-024 SAT, A700-041	•	•	6	•	•	•	•	•	•	•	6
	51-022 JUP NEP, 51-024 JUP NEP	•	•		•	•	•	•	•	•	•	6
Part Number	Description						Price Each
51-021*	Closed Lever - JUP NEP OME SAT - locks man. before June 2003
51-023*	Open Lever - JUP NEP OME SAT - locks man. before June 2003
51-025*	Closed Lever - JUP NEP OME SAT - locks man. after June 2003						$90.40
51-026*	Open Lever - JUP NEP OME SAT - locks man. after June 2003
51-022*	Full Size Core Lever - JUP NEP SAT	77.60
51-024*	Small Format Core Lever & lever insert- JUP NEP SAT						85.30
A700-041	Driver cap, 1 3/8" - 1 7/8" doors - for locks man. after May 2002						4.40
A700-039	Driver, 1 3/8" - 1 7/8" doors - for locks man. after May 2002						20.80
A700-045	Lever insert for SFIC						7.20
A700-052	FSIC Core Driver, Universal						9.50
A700-021	SFIC Core Retainer						7.40
C604-381	SFIC Core Throw Member						8.70
D500-000	SFIC Core Spacer - 2 spacers required for 6-pin, 1 spacer required for 7-pin						1.60
A700-047	Interchangeable core lever insert, 1 3/8" - 1 7/8" doors						7.20
A700-044	Lever insert, 1 3/8" - 1 7/8" doors for locks man. after May 2002	6.70

Roses
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	619	622	625	626		643e 626AM
04-060		•	•	6	•	•	•	•	•	•	•	6
C604-402		•	•	6	•	•	•	•	•	•	•
Part Number	Description						Price Each
04-060**	Outside / Inside Rose - RHO OME	$104.00
C604-402	Blank Plate, AL25 106.00
	** Specify part number, lever style, finish. Ex: 04-060 RHO 626 (Rhodes design, 626 finish)

* Specify part number, lever style, finish. Ex: 51-025 NEP 626 (closed lever, Jupiter design, 626 finish)

	Available Finishes - Specify for Listed Parts	605	606	609	612	613	619	622	625	626		643e 626AM
	11-068, 11-069, 11-110, 11-111, 11-112, 11-116, 11-113, 11-118, 11-085, 11-088, 11-104, 11-091, 11-092, 11-096, 11-105, 11-103	•	•	•	•	•	•	•	•	•	•
39-030		•								•
Part Number	Backset - Hsg Dia - Description						Price Each
Spring Latch
11-068	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-069	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-110	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-111	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"						$60.20
11-112	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-116	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-113	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-118	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"						64.70
Dead Latch
11-085	2 3/8" - 7/8" - Square corner, 1" x 2 1/4"
11-088	2 3/8" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-104	2 3/8" - 1" - Circular drive in - 605 & 626 finishes only
11-091	2 3/4" - 7/8" - Square corner, 1" x 2 1/4"						60.20
11-092	2 3/4" - 7/8" - 1/4" Radius round corner, 1" x 2 1/4"
11-096	2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
11-105	2 3/4" - 1" - Circular drive in - 605 & 626 finishes only
11-103	3 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"						64.70
41-005	5" - Backset extension link - require reinforcement when used in hollow metal door applications						22.80
39-030	Rabbeted latch and strike kit - adapts square corner latches and 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preparations.						58.20

Strikes
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	619	622	625	626		643e 626AM
	10-001, 10-004, 10-025, 10-026, 10-027	•	•	•	•	•	•	•	•	•	•
10-058		•								•
Part Number	Lip Length - Description						Price Each
10-001 118	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"						$6.50
10-001 100	1" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 114	1 1/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 112	1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"						13.50
10-001 134	1 3/4" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-001 200	2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-004	1 1/8" - 1/4" Radius round corner, T-strike, box, 1 1/8" x 2 3/4"						11.10
10-025 1316	1 3/16" - ANSI, no box, 1 1/4" x 4 7/8"						15.20
10-025 138	1 3/8" - ANSI, no box, 1 1/4" x 4 7/8"
10-025 112	1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"						43.70
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"						7.60
10-027	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"						7.60
10-058	Circular, adjustable, 1 3/4" diameter						10.90
K510-066	Box for ANSI strike						6.80

Plunger	Parts
	Available Finishes - Specify for Listed Parts	605	609	612	613	619	622	625	626	643e	626AM
51-037, 51-038,	51-039, 51-040, 51-041		$
Part Number	Description		,			Price	Each
51-037	Plunger unit, inside - AL53
51-038	Plunger unit, inside - AL85
51-039	Plunger unit, inside - AL40, AL44, AL50					$10	5.60
51-040	Plunger unit, outside - AL40
51-041	Plunger unit, outside - AL44

Reinford	ements and Adapters
Part Number	Description	Price Each
37-001	Metal door reinforcer kit, fits both 7/8" and 1" diameter housings - Specify door thickness, includes A501-567 and A501-565 or A501-566	$39.30
A501-565	Reinforcer for 13/8" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.	19.80
A501-566	Reinforcer for 1 3/4" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.	19.80
A501-567	3 1/2" Long latch housing sleeve used to reinforce joint between latch and backset link or to hold latch in metal doors	12.30
A501-878*	Faceplate adapter to adapt 1" faceplate to 11/8" door preparation	0.80
G506-815	1" Long latch housing sleeve to adapt 7/8" housing to 1" bore	6.90
*	Order in multiples of 100

Parts fo	r 2" Doors
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	619	622	625	626	643e	626AM
				2
Part Number	Description		•	•		F	Price Ea	ch
A700-043	Driver, 2" door						$72.30	)
A700-028*	Hub, 2" door, for inside and outside - for locks manufactured after May 2003	ured 33.90
A700-029*	Hub, out., 2" doors - AL70 - for locks manufactured after May 2003						41.90
A700-030*	Hub, out., 2" doors - AL25
A700-033*	Full size interchangeable core lever insert, 2" door	720
A700-034*	Lever insert, 2" door	1					7.20
(SFIC not availa	able for 1 7/8" - 2" door thickness)	•

(SFIC not available for 17/8" - 2" door thickness) * No finish specification required

Hub, Fra	me and Housi	ng Kits — For Lock	ks Manufactured before May, 2003
Part Number			Description	Price Each
A700-048	All (except	13/8" - 17/8"	(2) A700-032 Chassis screws (1) A700-056 Frame, hub (2) A700-046 Hub (1) A700-057 Housing	$87.40
A700-050	AL25 ® AL70)	2"	(2) A700-032 Chassis screws (1) A700-056 Frame, hub (2) A700-028 Hub (1) A700-057 Housing
A700-049	AL70	13/8" -17/8"	(2) A700-032 Chassis screws (1) A700-056 Frame, hub (1) A700-046 Hub (1) A700-057 Housing (1) A700-014 Hub	89.70
A700-051		2"	(2) A700-032 Chassis screws (1) A700-056 Frame, hub (2) A700-028 Hub (1) A700-057 Housing

	Miscellaneous Parts
Part Number	Description	Price Each
A100-053	Spring cage, ins 4 prong for locks manufactured after May 2002
A100-054	Spring cage, out 4 prong for locks manufactured after May 2002	$67.30
A201-370	Cam - AL80	9.80
A301-402	Cam - AL40, AL50, AL53, AL85	10.00
A501-167	Threaded rod for mounting AL170s as double dummy set	16.80
A501-305	Hub plate, ins.	7.90
A501-311	Slide spring	7.50
A501-615	Spindle wedge - AL80, AL85	7.40
A501-721	Cam plug - AL70	22.70
A501-791	Cam spacer - AL70	4.60
A501-874	Hub plate, out AL25	11.90
A501-901	Hub plate, out AL80, AL85	5.30
A508-597	Spring seat - AL50, AL53, AL70, AL80, AL85
A590-158	Slide - AL85
A590-159	Slide - AL50, AL53, AL70, AL80
A590-180	Slide, restoring - AL40, AL44	7.50
A590-181	Slide, non-restoring - AL10, AL25
A700-003	Spindle sleeve - AL85
A700-004	Hub plate, out. (except AL25, AL80, AL85)
A700-014	Hub, out AL70 - for locks manufactured after May 2003	33.90
A700-015	Lever insert, 1 3/8" - 1 7/8" doors - for locks manufactured before May 2002	7.20
A700-016	Hub, out., 1 3/8" – 1 7/8" doors - AL25	33.90
A700-017	Spiral cam - AL70	11.90
A700-036	Spring - AL40, AL44	10.00
A700-046	Hub, 1 3/8" - 1 7/8" doors - for locks manufactured after May 2003*	6.60
A700-047	Interchangeable core lever insert, 1 3/8" - 1 7/8" doors	7.20
A700-056	Frame, hub - for locks manufactured after May 2003
A700-057	Housing - for locks manufactured after May 2003	12.10
A710-001	Spindle & catch, out. (except AL10, AL40)
A710-004	Spindle & catch, ins.	9.80
A710-007	Spindle & hub - AL170	30.90
A710-008	Small Format Interchangeable Core spindle & catch, outside - AL50, AL53, AL70, AL80	26.10
A710-020	Spindle & catch, out AL10, AL40	9.80
C503-308	Anchor spring (except AL25)	7.50
C604-273	Rose pin - AL25	1.60
C604-354	Castle nut	17.80
C604-400	Mounting plate - AL170	22.50

	Special Parts - Extended Lead Times
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	619	622	625	626		643e 626AM
XQ07-351		•	•	6	•	•	•	•	•	•	•
Part Number	Description Price Each
	10-025 Strike, 7/8" flat lip						$42.70
XQ07-351*	10-025 Strike, lips thru 6" (except 7/8", 1 3/16", 1 3/8", and 1 1/2") 206.00
	* Specify lip length

Screws
	Available Finishes - Specify for Listed Parts			605	606	609	612	613	619	622	625	626		643e 626AM
	A501-171, A501-746, C603-256, C603-897			•	•	6	•	•	•	•	•	•	•
Part Number	Description	Type	Size						Price Each
A501-171*	Washer, thru bolt - AL170	—	—
A501-746*	Mounting, thru bolt - AL170 POH Machine		1/4" 20 x 2 1/2"	$1.20
A700-032*	Chassis	PFH Cross Recess	10-32 x 3/8"
C603-256*	ANSI strike	PFH Combo	12-24 x 1"						1.00
C603-897*	Latch and strike	PFH Combo	#8 x 3/4"						0.90
C604-395*	Spring cage screws	PFH Machine	8-32 x 2 1/8"	1.90
L583-133*	Mounting surface - AL170	Sheet Metal	#8 x 1"						0.92
*	Order in multiples of 100

	Screw Packs
	Available Finishes - Specify for Listed Parts		605	606	609	612	613	619	622	625	626		643e 626AM
	B202-517, C203-736, C303-029, C303-421		•	•	6	•	•	•	•	•	•	•
Part Number	Description	Contents						Price Each
B202-517	Latch and strike	(4) C603-897						$8.30
C203-736	ANSI strike	(2) C603-256	6.60
C303-438	Spring cage screws	(2) C604-395	4.80
C303-029	Mounting	(4) C603-897 (2) C603-256 (2) C604-395 (1) M504-271						16.60
C303-421	Mounting, AL170	(1) A501-167 (1) A501-171 (1) A501-746 (2) L583-133 (1) M504-271						12.20

Torx Screw Packs
	Available Finishes - Specify for Listed Parts		605	606	609	612	613	619	622	625	626		643e 626AM
C203-311, C203-312			•	•	6	•	•	•	•	•	•	•
Part Number	Description	Contents	Price Each
C203-311**	Latch and strike	(4) C503-766 (T-15)
C203-312**	Latch and ANSI strike	(2) C503-766 (T-15) (2) L583-371 (T-20)	$21.90
** Torx screw packs are furnished with appropriate T-xx installation tool(s)

	Cylinder Reference Table
	Available Finishes - Specify for Listed Parts			606	626
	21-020, 20-728/XP, 20-528/XP, 12-021
Part Number	Cylinder Mechanism	Function	Design	Price Each - Open	Price Each - Restricted
21-020	Standard			$64.00	$81.50
91-006	Everest SL (R/B Keyways only)				81.50
20-728	Primus
20-728-XP	Primus XP	Standard Functions	All		141.00
91-706-XP	Everest SL Primus XP (R/B Keyways only)				141.00
20-528	Primus UL437
20-528-XP	Primus UL437 XP			174.00
21-021	Standard	AL85		95.00	112.50

D Series

GRADE 1 CYLINDRICAL KNOB LOCK

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	D53PD	ORB	625	PLY	625	-	13-247	10-025	214	EE	-	KA

Line Item: Line item number

Qty: Quantity

Product: Product function + Cylinder code

Outside Des: Outside lever design Outside Fin: Outside finish

Inside Des: Inside lever design: Specify only if different from the outside lever design Inside Fin: Inside lever finish: Specify only if different from the outside finish

Hand: Hand of door: N/A for D lock

Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required. Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.

Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4"

Ext: Extension: Enter for doors 2" or greater. Example: EE=extended equally, EI=extended inside, EO=extended outside,

ED=extended differently

Dim: Dimension: Enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	denotes a lock or part that requires an extended lead time.
5.	be denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents
Functions	D-4
Complete Locks	D-5
Options	D-7
Latches	D-7
Strikes	D-7
Locks Less Components	D-7
Non-Standard Door Thickness	D-7
Tamper Resistant Torx ScrewsD-7
Special Functions	D-7
Parts	D-8
Knobs and Related Components Roses	D-8 D-8
Latches and Related Components	D-8
Strikes	D-9
Plunger Parts	D-9
Reinforcements	D-9
Finished Miscellaneous Parts	D-9
Special Parts	D-10
Miscellaneous Parts	D-10
Screws	D-11
Screw Packs	D-11
Torx Screw Packs	D-11
Cylinder Reference Table	D-11
Complete Cylinders See Cylinders Section
How To Order Forms & Examples

	Product Identification
D	53	P	D	Latch Suffix
			D	= Deadlatch
			S	= Springlatch
				Cylinder Suffix
			P	= 6-Pin Cylinder
			L	= Less 6-Pin Cylinder
			C	= Less 6-Pin Cylinder*
			R	= Full Size Interchangeable Core
			J	= Less Full Size Interchangeable Core
			M	= Everest 29 SL Full Size Interchangeable Core
			T	= Full Size Construction Core
			Z	= Everest SL 7 pin Cylinder
				Function
				Lock Series
	* Used for double cylinder functions.

Finish Codes	and Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Antique Brass
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated
629	(US 32)	Bright Stainless Steel
630	(US 32D)	Satin Stainless Steel
643e	(US 11)	Aged Bronze

Standard Features

Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.

Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw

Strike 1 1/4" x 4 7/8", ANSI, Square corner, no box

Backset 2 3/4"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range 1 3/8" – 2"

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.

Non-Keyed Locks

SCHLAGE ANSI

D10S F75 Passage Latch

Both knobs always unlocked.

D25D Exit Lock Blank plate outside. Inside knob always unlocked.

D40S F76 Bath/Bedroom Privacy Lock Push-button locking. Can be opened from outside with small screwdriver. Turning inside knob or closing door releases button.

D44S Hospital Privacy Lock

Push-button locking. Unlocked from outside by turning emergency turn-button. Turning inside knob or closing door releases button.

D170 Single Dummy Trim

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

Keyed Locks

SCHLAGE ANSI

D70PD F84 Classroom Lock

Outside knob locked and unlocked by key. Inside knob always unlocked.

D72PD F80 Communicating Lock

Key in either knob locks or unlocks each knob independently.

D73PD F90 Corridor Lock

Locked or unlocked by key from outside. Push-button locking from inside. Turning inside knob or closing door releases button.

D80PD F86 Storeroom Lock

Outside knob fixed. Entrance by key only. Inside knob always unlocked.

D80PDEL Electrically Locked (Fail Safe)

Outside knob continuously locked electrically. Unlocked by key outside or by switch or power failure. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob always free for immediate exit.

SCHLAGE ANSI Keyed Locks

D53PD F109 Entrance Lock

Turn/push-button locking; pushing and turning button locks outside knob, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside knob until unlocked by key or by turning inside knob.

D60PD F88 Vestibule/Classroom Security Lock

Latch retracted by key from outside when outside knob is locked by key in inside knob. Inside knob is always unlocked.

D66PD F91 Store Lock

Key in either knob locks or unlocks both knobs.

D82PD F87 Institution Lock

D80PDEU Electrically Unlocked (Fail Secure)

Outside knob continuously locked until unlocked by key or electric current. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob always free for immediate exit.

Both knobs fixed. Entrance by key in either knob.

D85PD F93 Faculty Restroom Lock (with Indicator Cylinder)

Outside knob fixed. Entrance by key only. Push-button in inside knob activates visual occupancy indicator, allowing only emergency masterkey to operate. Turning inside knob or closing door releases visual occupancy indicator. Rotation of inside spanner-button provides lockout feature by keeping indicator thrown.

Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

D Knobs · Complete Locks

		1	Design and Finish ORB PLY TUL**		Primary Cylinder Adjustments
Function	Description	626 605 $606 609 612 625 643e 630*		Available Levers Available Finishes
Keyless					LD	RD	JD
D10S	Passage	F/6	FFO	F76	CD TD ORB		טנ
D25D	Exit, blank plate x lever	546	558	576			RB
D40S	Privacy	683	695	713	4050
D44S	Privacy, hospital	003	095	/15		606 609 612 6 5 ₹629 630* 6
D170	Single dummy	240	246	256	626 $629 630* 643e
Keyed, Single Cylind	der				LD	RD TD**	JD
D53PD	Entrance
D70PD	Classroom	795 807		825
D73PD	Corridor	795	807	025	-64	38	-35
D80PD	Storeroom
D80PD EL/EU	Electrically locked or unlocked	1,245	1,257	1,275
D85PD	Faculty Restroom Lock	864	876	894	-95	NOT AV	NOT AVAILABLE
Keyed, Double Cylin	der				CD	RD TD**	JD
D60PD	Vestibule
D66PD	Store	969	001		120	76	70
D72PD	Classroom Security	869	881	899	-128	76	-70
D82PD	Institution
	EVEREST AND RESTRICTED KEYWAY	- DOES NOT AI	PPLY TO PRIMUS	•
	EVEREST D & T FAMILY & RESTRICTE	D KEYWAYS (QL	JAD, NUMBERED, R	EVERSE)		+17.50
	SL Cylinder with Everest B or Everest F	SL Cylinder with Everest B or Everest R keyways
Secondary	PRIMUS/PRIMUS XP - ORDER THE L	OCK LESS CYL	INDER AND THE	CYLINDER SEPA	ARATELY (PRIC	ES BELOW)
Cylinder Adjustment	SINGLE KIL EXAMPLE: 1 EA. D53LD &	1EA. 20-748(-X	P)			+141
,	DOUBLE KIL EXAMPLE: 1 EA. D72CD	& 2 EA. 20-748(-	-XP)			+282
	SINGLE FSIC EXAMPLE: 1 EA. D53JD 8	SINGLE FSIC EXAMPLE: 1 EA. D53JD & 1 EA. 20-740(-XP)
	DOUBLE FSIC EXAMPLE: 1 EA. D72JD	& 2 EA. 20-740(	-XP)			+304
	* Finish only available in PLY knob
	** Temporary cores (TD and HD options) requ	uire non-refundable	core handling charge	(50-231) of $10.40	and will be added	d to the price of the	e lock.
**	** TUL knobs not available stainless steel fini	shes

Latches
Part Number	Backset - Description	Lock Adjustment
Spring Latch
13-248	2 3/4" - Square corner, 1 1/8" x 2 1/4"	N/C
14-010	3 3/4" - Square corner, 1 1/8" x 2 1/4"	+10.70
Deadlatch
14-047	2 3/8" - Square corner, 1 1/8" x 2 1/4"	N/C
14-048	2 3/8" - Square corner, 1 x 2 1/4"	N/C
13-247	2 3/4" - Square corner, 1 1/8" x 2 1/4"	N/C
14-042	2 3/4"" - Anti-friction fire door latch Square corner, 11/8" x 21/4", 3/4" throw, modified latch prep for anti-friction tongue pivot	+181.00
14-028	3 3/4" - Square corner, 1 1/8" x 2 1/4"	+10.70
43-005	5" - Backset extension link - require reinforcement when used in hollow metal door applications, must be used with 2 3/4" backset latches	+33.10

Strikes
Part Number	Lip Length - Description	Lock Adjustment
10, 013	11/8" - Square corner, T-strike, box, 11/8" x 2 3/4"	N/C
10-013	11/2" - Square corner, T-strike, box, 11/8" x 2 3/4"	+4.60
10-016	11/8" - Square corner, T-strike, deep box, fire door latch	N/C
	13/16" - ANSI, no box, 11/4" x 4 7/8"	N/C
10-025	13/8" - ANSI, no box, 11/4" x 4 7/8"	.30.00
	11/2" - ANSI, no box, 11/4" x 4 7/8"	+28.00
K510-066	Box for ANSI strike, must be specified	N/C

Locks Less Components
Description	Specify	Lock Adjustment
Less each knob	LLL for lever design Example: D53PD LLL/RHO x ATH	-22.80
Less each rose	LLL for rose design Example: D53PD RHO x RHO/LLL	-15.80
Less springlatch	LLL for latch Example: D40S RHO 605 LLL 10-025	-27.30
Less deadlatch	LLL for latch Example: D53PD SPA 626 LLL 10-025	-36.50
Less strike	LLL for strike Example: D53PD ATH 612 13-047 LLL	-5.40
Lock chassis and spring cages only	Less all possible components Example: D53LD LLL 626 LLL LLL, lever chassis	Sum of deducts

Non-Standard Door Thickne	SS
Description	Specify	Lock Adjustment
Extended Equally (EE), over 2" – 21/2"	Door thickness and how door is extended.	+75.20
Extended Differently (ED), over 2" – 21/2"	Example: 2", ED	+352.00
Note: For door thicknesses not listed please use the Schlage Innovation Center Process

Tamper Resistant Torx® Screws
Specify/ Part Number	Description	Lock Adjustment
Torx Screws	Screws - Latch and Strike	+21.30

Special Fu	Special Functions - Extended Lead Times
Part N	umber		Base	Lock Adjustment
Lock Function	"X" Number	Function - Description	Lock	(Base Lock)
D25x80	XC03-543	D25x80 - Blank plate outside, fixed knob inside. Key in knob retracts latch.	D80	+530.00
D60	XC03-928	D60 - Closed outside knob.	D70	+341.00
D70x80	XC07-960	D70x80 - Key locks or unlocks outside knob. Key in fixed inside knob retracts latch.	D82	+469.00
D25x70	XC11-577	D25x70 - Blank plate outside. Key locks or unlocks inside knob.	D70	+530.00

	Knobs and Related Components
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629		630 643e
04-006 PLY, 04-007 PLY		•	6	•	•	•	•	•	6	•	•
	04-006 ORB TUL, 04-007 ORB TUL, 04-030, 04-031, 04-034	•	• • • • • 6 6								•
Part Number	Description	Price Each
04-006*	Closed Lever - ORB PLY TUL
04-007*	Open Lever - ORB PLY TUL	$112.00
04-030*	Full size core knob, driver, retainer (converts PD to JD) - ORB	94.10
04-031*	Full size core knob - ORB						79.30
04-034*	Full size core knob, core, driver, and retainer (converts PD to RD) - ORB						173.00
C503-403
C503-746
C503-940	Cylinder sleeve						11.90
C603-262
04-033	Full size core driver and retainer						13.10
C603-569	Full size core retainer	4.40
C604-333	Full size core driver, universal						8.80
*	Specify part number, knob style, finish. Ex: 04-007 ORB 626 (open lever, Orbit design, 626 finish)

Roses
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629		630 643e
04-001 PLY, 04-002 PLY, C503-775		•	6	•	•	•	•	•	6	•	•
04-001 TUL, 04-002 TUL		•	6	•	•	•	•	•	6		•
Part Number	Description	Price Each
04-001**	Outside Rose - PLY TUL
04-002**	Inside Rose - PLY TUL						$104.00
C503-775	Blank Rose, D25	47.70
**	Specify part number & finish. Ex: 04-002 PLY 626 (Plymouth design, 626 finish)

	Latches and Related Components
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629		630 643e
	13-248, 14-010, 14-047, 14-048, 13-247, 14-042, 14-028, 43-005	•	6	•	•	•	•	•	6	•	•
39-030										•
Part Number	Backset - Description						Price Each
Spring Latch
13-248	2 3/4" - Square corner, 1 1/8" x 2 1/4"						$90.10
14-010	3 3/4" - Square corner, 1 1/8" x 2 1/4"	108.00
Dead Latch
14-047	2 3/8" - Square corner, 1 1/8" x 2 1/4"						117.00
14-048	2 3/8" - Square corner, 1" x 2 1/4"						117.00
13-247	2 3/4" - Square corner, 1 1/8" x 2 1/4"						90.10
14-042	2 3/4" - Anti-friction Fire Door Latch 1" Square corner, 1 1/8" x 2 1/4", 3/4" throw, modified latch prep for anti-friction tongue pivot						358.00
14-028	3 3/4" - Square corner, 1 1/8" x 2 1/4"						108.00
43-005	5" - Backset extension link - require reinforcement when used in hollow metal door applications; backset link must be used with 2 3/4" backset latches	33.10
39-030	Rabbeted latch and strike kit - adapts square corner latches and 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preparations.						58.10

Strikes
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
10-013, 10-016, 10	-025		2		•				2
Part Number	Lip Length - Description				,	Price	Each
10-013-118	11/8" - Square corner, T-strike, box, 11/8" x 2 3/4"					$11	.80
10-013-112	11/2" - Square corner, T-strike, box, 11/8" x 2 3/4"	16.50
10-016	11/8"" - Square corner, T-strike, deep box, 11/8" x 2 3/4" 11/8" Use with fire door latch					15	.70
10-025-1316	13/16" - ANSI, no box, 11/4" x 4 7/8"					15.	.20
10-025-138	13/8" - ANSI, no box, 11/4" x 4 7/8"					/3	70
10-025-112	11/2" - ANSI, no box, 11/4" x 4 7/8"	43.70
K510-066	Box for ANSI strike	7.20

Plunger F	Parts
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
04-020, 04-021,	04-022, 04-023, 04-025, 04-026,		2						2
Part Number	Dimension - Door Range - Description	Price Each
04-020*	443 - 13/8" – 2" - Plunger, ins - D40, D44	$82.80
04-020	468 - over 2" – 21/2", EE - Plunger, ins - D40, D44	$83.80
0/ 021*	170 - 1 3/8" – 2" - Plunger unit, out - D40	66.00
04-021*	195 - over 2" – 2 1/2", EE - Plunger unit, out - D40	66.00
0/ 022*	170 - 1 3/8" – 2" - Plunger unit, out - D44					07	10
04-022*	195 - over 2" – 2 1/2", EE - Plunger unit, out - D44					02	.10
0/ 022*	443 - 13/8" – 2" - Plunger unit, ins - D53
04-023*	468 - over 2" – 21/2", EE - Plunger unit, ins - D53					65	00
0/ 035*	443 - 13/8" – 2" - Plunger unit, ins - D73					03	.90
04-025*	468 - over 2" – 2 1/2", EE - Plunger unit, ins - D73
04-026*	443 - 13/8" – 2" - Plunger unit, ins - D85	151.00
U4-UZU**	468 - over 2" – 2 1/2", EE - Plunger unit, ins - D85					ISI	.00
k	* Specify part number, dimension, design & finish. Ex: 04-022 170 626

Reinforce	ements
Part Number	Description	Price Each
37-001	Metal door reinforcer kit, fits both 7/8" and 1" diameter housings - Specify door thickness, includes A501-567 and A501-565 or A501-566	$39.30
A501-565	Reinforcer for 13/8" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.	10.00
A501-566	Reinforcer for 13/4" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.	19.80
A501-567	3 1/2" Long latch housing sleeve used to reinforce joint between latch and backset link or to hold latch in metal doors	12.30
A501-878**	Faceplate adapter to adapt 1" faceplate to 11/8" door preparation	0.76
G506-815	1" Long latch housing sleeve to adapt 7/8" housing to 1" bore	6.90
**	Order in multiples of 100

Finished	Miscellaneous Parts
	Available Finishes - Specify for Listed Parts	605	606	609	612	613	625	626	629	630	643e
C102-522, C102-52	4, C102-541, C102-542, C102-570, C102-572	•	2	•	•	•	•	•	$		•
Part Number	Description				,	Price	Each		•
C102-522	Hub and cap, out (except D80, D80 EL/EU, D82, D85)	$94.20
C102-524	Hub and cap, ins (except D82)					70	.70
C102-541	Hub and cap, ins - D170					51	.70
C102-542	Hub and cap, out - D80 EL/EU		94.20
C102-570	Hub and cap, out - D80, D82, D85	150.00
C102-572	Hub and cap, ins - D82	150.00

	Special Parts - Extended Lead Times
	Available Finishes	605	606	609	612	613	625	626	629		630 643e
	XQ02-309, XQ03-494, XQ07-351, 38-018	•	6	•	•	•	•	•	6	•	•
Part Number	Description						Price Each
XQ02-309	10-013 Strike, 7/8" flat lip						$40.60
XQ03-494*	10-013 Strike, 1 5/8" – 6" lip	170.00
	10-013 Strike, 6 1/8" – 12" lip						216.00
XQ07-351*	10-025 Strike, 7/8" flat lip						42.70
	10-025 Strike, lips thru 6" (except 7/8", 1 3/16", 3/8" and 1 1/2")						206.00
XC03-069	Backset Link, range: 5" - 42", specify backset (not adjustable); NOTE: This extension link must be used with a 2-3/4" backset latch.	760.00
38-018	Thin door extension ring (2 required per lock)	13.20
*	Specify lip length

Part Number	Description	Lock Adjustment
A501-167	Threaded rod for mounting D170s as double dummy set	$15.90
C100-059	Spindle unit, out and ins - D66
C100-062	Spindle unit, out - D70, out and ins - D72	160.00
C102-540	Hub and frame - D25	53.40
C102-837	Locking plug, out - D73	76.10
C102-840	Key spindle - D40, D44, D53, D60	65.90
C203-034	Spindle and catch, ins (except D60, D66, D72, D80EL/EU, D82)	52.40
C203-376	Plug - D85	16.60
C203-390	Spindle and key cam, out - D70, D72	65.90
C203-391	Spindle and key cam - D60
C203-411	Key spindle and spring - D85	54.00
C203-733	Locking plug - D70, D72
C203-858	Spindle and hammer, ins - D85	65.90
C203-947	Spindle and catch, out - D40, D44	54.00
C203-948	Spindle and catch, out - D53, D60, D73, D80
C303-006	Slide and roller	62.50
C303-400	Spindle and catch, ins - D80EL/EU	59.00
C303-439	AC Rectifier	69.40
C503-008**	Cotter pin	0.70
C503-019	Slide spring	6.70
C503-308	Anchor spring (except D25, D170)	7.50
C503-314	Slide spring seat	7.30
C503-324	Spindle washer - D60, D70, D72, D85	7.20
C503-334	Plunger hammer - D85	15.30
C503-335	Plunger hammer spring - D85	7.10
C503-339	Key spindle - D80, D82, D85	28.40
C503-359	Key cam - D60	15.50
C503-360	Key cam rider - D60	16.00
C503-361	Key cam pin - D60	7.10
C503-362	Plunger - D60	7.30
C503-368	Key cam sleeve, out - D70, D72	7.10
C503-371	Plunger - D66	7.10
C503-400	Key cam pin - D70, D72	7.10
C503-768	Spacer - D80 EL/EU	3.50
C503-965	Plunger sleeve, out - D40, D44	15.80
C603-500	Housing	15.30
C604-187	Slide catch, restoring - D40, D44, D73, D85
C604-188	Slide catch, non-restoring - D53	7.40
C604-191	Slide catch spring - D40, D44, D53, D73, D85
C604-204	Spindle, keyed - D80 EL/EU	28.40
C604-205	Solenoid retaining clip - D80 EL/EU	9.00
C604-273	Rose pin - D25	1.50
C604-312	Anchor (except D25)	7.30

Screws
	Available Finishes - Specify for Listed Parts				605	606	609	612	613	625	626	629		630 643e
	A501-171, A501-746, C603-256, C603-897		•	6	•	•	•	•	•	6	•	•
Part Number	Description	Door Thickness	Type	Size						Price Each
A501-171*	D170, washer	—	Washer	—						$1.20
A501-746*	D170, mounting screw	1 1/2" – 2"	POH Machine	1/4" 20 x 2 1/2"						1.20
C603-256*	ANSI strike	—	PFH Combo	12-24 x 1"						1.00
C603-897*	Latch and strike — PFH Combo #8 x 3/4" 0.90
*	Order in multiples of 100

Screw Packs
	Available Finishes - Specify for Listed Parts		605	606	609	612	613	625	626	629		630 643e
	B202-517, C303-007, C203-736, C303-028		•	6	•	•	•	•	•	6	•	•
Part Number	Description	Contents	Price Each
B202-517	Latch and strike	(4) C603-897	$8.30
C303-007	Mounting, D170	(1) A501-171 (1) A501-746 (3) C603-897	9.70
C203-736	ANSI strike	(2) C603-256	6.60
C303-028	Mounting, all except D170	(4) C603-897 (2) C603-256						12.20

	Torx Screw Packs
	Available Finishes - Specify for Listed Parts		605	606	609	612	613	625	626	629		630 643e
C203-311, C203-312			•	6	•	•	•	•	•	6	•	•
Part Number	Description	Contents	Price Each
C203-311**	Latch and strike	(4) C503-766 (T-15)
C203-312**	Latch and ANSI strike	(2) C503-766 (T-15) (2) L583-371 (T-20)	$21.30
**	Torx screw packs are furnished with appropriate T-xx installation tool(s)

	Cylinder Reference Table
	Available Finishes - Specify for Listed Parts
	21-002, 23-001, 23-002, 23-003-098, 20-748/XP, 20-548/XP, 20-724/XP, 20-524/XP				606	626
Part Number	Cylinder Mechanism	Function	Design	Door Thickness	Price Each	Price Each - Restricted
23-001	Standard				$64.00	$81.50
91-016	Everest SL (R/B Keyways only)					81.50
20-748	Primus
20-748-XP	Primus XP			Standard	141.00
91-714-XP	Everest SL Primus XP (R/B Keyways only)					141.00
20-548	Primus UL437
20-548-XP	Primus UL437 XP	Standard			174.00
21-002	Standard	Functions			54.00	81.50
91-004	Everest SL (R/B Keyways only)		All			81.50
20-724	Primus
20-724-XP	Primus XP			2" - 2 1/2"	141.00
91-704-XP	Everest SL Primus XP (R/B Keyways only)					141.00
20-524	Primus UL437
20-524-XP	Primus UL437 XP				174.00
23-003	Standard			Standard	95.00	112.50
23-003-098	Standard	D85		2" - 2 1/2"	95.00	112.50

Ordering Procedures

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	ND53PD	RHO	622	OME	-	-	13-247	10-025	214	EE	138	KA

Line Item: Line item number

Qty: Quantity

Product: Product function + Cylinder code

Outside Des: Outside lever design Outside Fin: Outside finish

Inside Des: Inside lever design: Specify only if different from the outside lever design Inside Fin: Inside lever finish: Specify only if different from the outside finish

Hand: Hand of door: N/A for ND lock

Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required. Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.

Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=1 3/8", 214=2 1/4"

Ext: Extension: Enter for doors 2 1/8" or greater. Example: EE=extended equally, EI=extended inside, EO=extended

outside, ED=extended differently

Dim: Dimension: Enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Con	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	$\backslash overline\{\backslash mathbb\{Z\}\}$ denotes a lock or part that requires an extended lead time.
5.	be denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Functions ND-4 Complete Locks ND-7 Options ND-9 Latches. . . ND-9 Strikes. . . ND-9 Locks Less Components. . . ND-9 Non-Standard Door Thickness. . . ND-9 Indicator Rose. . . ND-10 Miscellaneous Lock Options. . . ND-10 Tactile Options. . . ND-10 School Upgrade Kits. . . ND-11 Parts ND-14 Levers. . . ND-14 Spring Cages. . . ND-15 Conversion Kits. . . ND-15 Roses. . . ND-15 Buttons / Plunger Assemblies. . . ND-15 Strikes. . . ND-16 Cylinder Reference Table. . . ND-16 Tail Pieces. . . ND-16 Chassis Kits. . . ND-17 Key Assemblies. . . ND-18 Slide / Related Components. . ND-18 Spindles. . . ND-18 Hollow Metal Door Reinforcements. . . ND-19 Screws. . ND-19 Screw Packs, Standard. . ND-19 Torx Screw Packs. . ND-19 Screw Packs. . ND-20 Screws Packs, Torx. . ND-20 Allegion Connect Harnesses. . ND-20 Complete Cylinders See Cylinders Section How To Order Forms & Example BAA/ARRA

Contact your local RSO or Sales Rep. for ordering details

Product Identification ND 53 P D

Interchangeable Core

M = Everest 29 SL Full Size Interchangeable Core T = Full Size Construction Core

B = Less SFIC

BDC = Disposable SFIC

G = Everest 29 Patented SFIC

H = Construction SFIC

Z = Everest SL 7 pin Cylinder

Function Lock Series

SFIC = Small Format (Best® Style) Interchangeable Core

^* Used for double cylinder functions.

		Finish Codes and Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
619	(US 15)	Satin Nickel
622	(US 19)	Matte Black
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chrome
626AM		Antimicrobial Coating
		on Satin Chromium
643e	(US 11)	Aged Bronze

Standard Features

Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.

Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw

Strike 1 1/4" x 4 7/8", ANSI Square corner, no box

Backset 2 3/4"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD) Door Range 1 5/8" – 2 1/8" for all functions except ND85; 1 3/4" – 2" for ND85

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.

Non-Keyed Locks

SCHLAGE ANSI

ND10S F75 Passage Latch

Both levers always unlocked. Inside lever is always free for immediate egress. Also available with Request to Exit (RX) function.

ND12D F89 Exit Lock

Outside lever always fixed. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX) function.

ND12DEL Electrically Locked (Fail Safe)

Outside lever continuously locked electrically. Unlocked by switch or power failure. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always always unlocked for immediate egress. Also available with Request to Exit (RX) function.

ND12DEU Electrically Unlocked (Fail Secure)

Outside lever continuously locked until unlocked by electric current. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX) function.

ND25D F89 Exit Lock

Blank plate outside. Inside lever always unlocked for immediate egress.

ND40S F76 Bath/Bedroom Privacy Lock

Push-button locking. Can be opened from outside with small screwdriver. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress.

ND44S Hospital Privacy Lock

Push-button locking. Unlocked from outside by turning emergency turn-button. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress.

ND170 Single Dummy Trim

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

Keyed Locks

SCHLAGE ANSI

ND50PD F82 Entrance/Office Lock

Push-button locking. Push-button locks outside lever until unlocked with key or by turning inside lever. Inside lever is always free for immediate egress.

ND53PD F109 Entrance Lock

Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Pushbutton locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.

ND60PD F88 Vestibule Lock

Latch retracted by key from outside when outside lever is locked by key in inside lever. Inside lever always unlocked for immediate egress.

ND66PD F91 Store Lock

Key in either lever locks or unlocks both levers.

ND70PD F84 Classroom Lock

Outside lever locked and unlocked by key. Inside lever always unlocked for immediate egress.

ND73PD F90 Corridor Lock

Locked or unlocked by key from outside. Push-button locking from inside. Turning inside lever or closing door releases button. When outside lever is locked by key it can only be unlocked by key. Inside lever always unlocked for immediate egress.

ND75PD F110 Classroom Security Lock

Key in either lever locks or unlocks outside lever. Inside lever always unlocked for immediate egress.

Safe School Locks

Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade Vandlgard Functions: 1. UL Listed for 3-hour fire door.

Keved Locks

SCHLAGE ANSI

ND80PD F86

Storeroom Lock

Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX) function.

ND80PDEL

Electrically Locked (Fail Safe)

Outside lever continuously locked electrically. Unlocked by key outside or by switch or power failure. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX) function.

ND80PDEU

Electrically Unlocked (Fail Secure)

Outside lever continuously locked until unlocked by key or electric current. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX) function.

ND82PD F87

Institution Lock

Both levers fixed. Entrance by key in either lever

ND85PD F93

Faculty Restroom Lock

Outside lever fixed. Entrance by key only. Push-button in inside lever activates visual "occupancy" indicator, allowing only emergency master key to operate. Turning inside lever or closing door releases visual occupancy indicator. Rotation of inside spinner-button by spanner key provides lock-out feature by keeping indicator thrown. Inside lever is always free for immediate egress.

Safe School Locks

Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Designed to disengage outside spindle from latch when in locked condition. Inside lever is always free for immediate egress.

SCHLAGE ANSI

ND91PD F82

Entrance/Office Lock

Push-button locking. Push-button disengages outside Tever until unlocked with key or by turning inside lever.

ND92PD F109

Entrance Lock

Turn/push-button locking; pushing and turning button disengages outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button disengages outside lever until unlocked by key as by turning. until unlocked by key or by turning inside lever.

ND93PD F88

Vestibule Lock

Latch retracted by key from outside when outside lever is disengaged by key in inside lever. Inside lever is always unlocked for immediate egress.

ND94PD F84

Classroom Lock

Outside lever disengaged and unlocked by key. Inside lever always unlocked for immediate egress.

ND95PD F110

Classroom Security Lock

Key in either lever disengages or unlocks outside lever. Inside lever always unlocked for immediate egress.

ND96PD F86

Storeroom Lock

Outside lever always disengaged. Entrance by key only. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX).

ND96PDEL

Electrically Locked (Fail Safe)

Outside lever continuously disengaged electrically. Unlocked by key outside or by switch or power failure. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate egress. Also available with Request to Exit (RX).

ND96PDEU

ND97PD F90

Electrically Unlocked

(Fail Secure) Outside lever continuously disengaged until unlocked by key or electric current. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate egress. Also available with Request to Exit (RX).

Corridor Lock

Locked or unlocked by key from outside. Push-button locking from inside. Turning inside lever or closing door releases button. When outside lever is locked by key it can only be unlocked by key. Inside lever is always unlocked for immediate egress.

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.

Pricing for all Speciality functions can be found on ND-10

Non-Keyed Locks

SCHLAGE ANSI

ND30D

F77

Patio Lock

Push button locking. Turning inside lever or closing door releases button, preventing a lock-out. Inside lever always unlocked for immediate egress. Specify per XN12-007.

ND45

Time Out Lock

Caretaker Side Pushing and holding button will lock inside lever (detention side) until released. Lever always retracts latch. Detention Side

Lever retracts latch unless outside button is depressed. Vandlgard allows inside spindle to disengage from latch when locked.

Keyed Locks

SCHLAGE ANSI

ND25 x 80PD

Storeroom Exit Lock

Blank plate outside. Key in fixed inside lever retracts latch. Specify per XN12-005.

ND70 x 80PD

Classroom by Storeroom Lock

Key locks and unlocks outside lever. Key in fixed inside lever retracts latch. Specify per XN12-006.

ND25 x 70PD

Classroom Exit Lock

Blank plate outside. Key locks or unlocks inside lever. Specify per XN12-004.

ND72PD F80

Communicating Lock

Key in either lever locks and unlocks own lever. Specify per XN12-002.

ND60PD

Vestibule with Closed Outside Lever

Same as ND60 except outside lever is closed. Inside lever always unlocked for immediate egress. Specify per XN12-001.

Keyed Locks

SCHLAGE ANSI

Vandlgard Functions:

Designed to disengage outside spindle from latch when in locked condition. Inside lever is always free for immediate egress.

ND72PD

Vandlgard Communicating Lock

Communicating, ND72, lock with Vandlgard. Key in either lever locks and unlocks own lever. Both inside and outside levers are clutching. Specify per XN12-003.

Athens (ATH)

Sparta (SPA)

Rhodes (RHO)

	Commercial Lever Suite
ND Levers	L Lock Levers	98/99 Exit	AL Lock	S Lock	F Lock
Athens	07	07	Jupiter	Jupiter
Omega	Omega	16	Omega
Sparta	17	17	Neptune	Neptune	Jazz
Rhodes	06	06	Saturn	Saturn	Elan
Tubular	03	03
Latitude	Latitude	Latitude			Latitude
Longitude	Longitude	Longitude
Broadway
Boardwalk

Roses
Inside/Outside Rose, 03-042 RHO Levers: ATH, SPA, RHO, TLR, LAT, LON, BRW, BWK Size: 3 7/16" dia.	Omega Inside/Outside Rose, 03-042 OME Levers: OME Size: 3 7/16" dia.	Blank Outside Rose, N523-002 Outside Plate for: ND25, ND25X70 & ND25X80 Size: 3 1/2" dia.	Indicator Rose (Rhodes) XN12-035 Functions: ND75, ND95, ND60 & ND93 Levers: ATH, SPA, RHO, TLR, LAT, LON, BRW, BWK Size: 3 7/16" dia. Finish: 626 only	Indicator Rose (Omega) XN12-045 Functions: ND75, ND95, ND60 & ND93 Levers: OME Size: 3 7/16" dia. Finish: 626 only

Strikes

ANSI Strike, 10-025

T Strike, 10-013

Square corner, T-strike, deep box, fire door latch, 10-016

		I	Designs a	ınd Finishe	S
			OME RI		HSLR**	1
Function	Decription	626	605 606 612 619 622 625 643e	613 $626AM	630			PRI	A۱	CYLINI /AILAB AILABI	SLE LE \		ITS
Keyless	•												JD-SAR
ND10S ND12D	Passage Exit, lever x lever	437	449	467	1,865	CD	RD TD*	JD	BDC BDC	GD	HD*	LD-SAR LD-CO6	JD-CO6 JD-YA6 JD-MED	JD-YA
ND12D EL/EU	Electrically locked or unlocked	680	692	710	2,108	A1	ГН ОМ	E SPA	RHO T	LR HSI	LR	ATH RHO		RHO
ND25D	Exit, blank plate x lever	437	449	467	1,865
ND40S ND44S	Privacy	503	515	533	1,931				06 612 513 $6				606 $61 622 $62
	Privacy, hospital					ļ	025	J4JE (	ال دار	ZUAIVI		$643e $626AM
ND170	Single dummy	187	193	203	NA								1
Keyed, Single C	Cylinder					LD CD	RD TD*	JD	BD BDC	GD	HD	LD-SAR LD-CO6	JD-SAR JD-CO6 JD-YA6 JD-MED	JD-CO
ND50PD	Entrance/Office
ND53PD	Entrance	1				i
ND70PD	Classroom	595	607	625	2,023	-64	38	-35	N/C	84	44	-64	-35	-35
ND73PD	Corridor	1			|	l
ND80PD	Storeroom	1				ı
ND85PD	Faculty Restroom Lock	722	734	752		-95				NO	Γ ΔVΔΙ	LABLE
ND91PD	Vandlgard® Entrance/Office	7	75.	752				1	T	|	| AtA
ND92PD	Vandlgard® Entrance	1
ND94PD	Vandlgard® Classroom	651	663	681	2.079						44	-64	-35	-35
ND96PD	Vandlgard® Storeroom	- 55.			2,075
ND97PD	Vandlgard® Corridor	1				-64	38	-35	N/C	84
ND80PD EL/EU	Electrically locked or unlocked	797	809	827	2,225	ł
ND96PD EL/EU	Vandlgard® Electrically locked or unlocked	876	888	906	2,304	ĺ
Keyed, Double	Cylinder					LD CD	RD TD	JD	BD BDC	GD	HD	LD-SAR LD-CO6	JD-SAR JD-CO6 JD-YA6 JD-MED	JD-CO JD-YA
ND60PD	Vestibule	-
ND66PD	Store	709	721	739	2,137
ND75PD	Classroom Security	-				-128	76	-70	N/C	168	88	-128	-70	-70
ND82PD	Institution					|-120	/6	-70	14/6	100	00	-120	-70	-70
ND93PD	Vandlgard® Vestibule Class- room Security	767	775	702	2 101		1	1	1	I	1	1	I
	room Security	763	775	793	2,191
ND95PD	room Security Vandlgard® Classroom Security				,	MUS
	room Security	EYWAY	- DOES N		,	MUS				+1	7.50
ND95PD	room Security Vandlgard® Classroom Security EVEREST AND RESTRICTED K EVEREST D & T FAMILY & RESTR	KEYWAY RICTED KE	- DOES N		,	MUS					7.50
	room Security Vandlgard® Classroom Security EVEREST AND RESTRICTED K EVEREST D & T FAMILY & RESTR (QUAD, NUMBERED, REVERSE	KEYWAY RICTED KE rest R key	- DOES NEYWAYS	IOT APPLY	TO PRII		LINDEI	R SEPA	RATEL	+1	7.50	ELOW)
ND95PD Secondary	room Security Vandlgard® Classroom Security EVEREST AND RESTRICTED K EVEREST D & T FAMILY & RESTR (QUAD, NUMBERED, REVERSE SL Cylinder with Everest B or Eve	KEYWAY RICTED KE rest R key	- DOES NEYWAYS	IOT APPLY	TO PRII		LINDEI	R SEPA	RATEL	+1 .Y (PRI	7.50	ELOW)
ND95PD Secondary Cylinder	room Security Vandlgard® Classroom Security EVEREST AND RESTRICTED K EVEREST D & T FAMILY & RESTR (QUAD, NUMBERED, REVERSE SL Cylinder with Everest B or Eve PRIMUS/PRIMUS XP - ORDE	KEYWAY RICTED KE rest R key R THE LO 3LD & 11	- DOES N EYWAYS Tways DCK LESS EA. 20-76!	S CYLINDE	TO PRII		LINDE	R SEPA	RATEL	+1 .Y (PRI	7.50 CES BI	ELOW)
ND95PD Secondary Cylinder	room Security Vandlgard® Classroom Security EVEREST AND RESTRICTED K EVEREST D & T FAMILY & RESTR (QUAD, NUMBERED, REVERSE SL Cylinder with Everest B or Eve PRIMUS/PRIMUS XP - ORDEI SINGLE KIL EXAMPLE: 1 EA. ND5	KEYWAY RICTED KE rest R key R THE LO 3LD & 11 75CD & 2	- DOES N EYWAYS Ways DCK LESS EA. 20-765	S CYLINDE 5(-XP) 65(-XP)	TO PRII		LINDEI	R SEPA	RATEL	+1 .Y (PRI +	7.50 CES BI	ELOW)
ND95PD Secondary Cylinder	room Security Vandlgard® Classroom Security EVEREST AND RESTRICTED K EVEREST D & T FAMILY & RESTR (QUAD, NUMBERED, REVERSE SL Cylinder with Everest B or Eve PRIMUS/PRIMUS XP - ORDEI SINGLE KIL EXAMPLE: 1 EA. ND5 DOUBLE KIL EXAMPLE: 1 EA. ND5	REYWAY RICTED KE rest R key R THE LC 3LD & 11 75CD & 2 53JD & 1	- DOES N EYWAYS Ways DCK LESS EA. 20-769 EA. 20-74	5 CYLINDE 5 (-XP) 6 5(-XP) 0 (-XP)	TO PRII		LINDEI	R SEP#	RATEL	+1 -Y (PRI + +	7.50 CES BI 141 282	ELOW)
ND95PD Secondary Cylinder	room Security Vandlgard® Classroom Security EVEREST AND RESTRICTED K EVEREST D & T FAMILY & RESTR (QUAD, NUMBERED, REVERSE SL Cylinder with Everest B or Eve PRIMUS/PRIMUS XP - ORDEI SINGLE KIL EXAMPLE: 1 EA. ND: SINGLE FSIC EXAMPLE: 1 EA. ND	KEYWAY PICTED KE rest R key R THE LO 3LD & 11 75CD & 2 53JD & 1 075JD &	- DOES N YWAYS ways DCK LESS EA. 20-76! P. EA. 20-74 EA. 20-74 2 EA. 20-74	5 CYLINDE 5(-XP) 65(-XP) 0(-XP) 740(-XP)	TO PRII	HE CYI				+1 Y (PRI + + +	7.50 CES BI 141 282 152 304

Latches
Part Number	Backset - Description	Lock Adjustment
Spring Latch*
13-248	2 3/4" - Square corner, 1 1/8" x 2 1/4"	N/C
14-010	3 3/4" - Square corner, 1 1/8" x 2 1/4"	+10.70
Deadlatch*
14-047	2 3/8" - Square corner, 1 1/8" x 2 1/4"	N/C
14-048	2 3/8" - Square corner, 1 x 2 1/4"	N/C
13-247	2 3/4" - Square corner, 1 1/8" x 2 1/4"	N/C
14-042	2 3/4" - Anti-friction fire door latch 3/4" throw, modified latch prep for anti-friction tongue pivot	+181.00
14-028	3 3/4" - Square corner, 1 1/8" x 2 1/4"	+10.70
43-005	5" - Backset extension link2 - use with 2 3/4" backset latches	+33.10
*	All latch extensions require reinforcement when used in hollow metal door applications

Strikes
Part Number	Lip Length - Description	Lock Adjustment
10-013	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"	N/C
10-013	1 1/2" - Square corner, T-strike, box, 1 1/8" x 2 3/4"	+4.60
10-016	1 1/8" - Square corner, T-strike, deep box, fire door latch	N/C
	1 3/16" - ANSI, no box, 1 1/4" x 4 7/8"	N/C
10-025	1 3/8" - ANSI, no box, 1 1/4" x 4 7/8"	+28.00
	1 1/2" - ANSI, no box, 1 1/4" x 4 7/8"	+28.00
K510-066	Box for ANSI strike, must be specified	N/C

Locks Less Components
Description	Specify	Lock Adjustment
Less each lever	LLL for lever design Example: ND53PD LLL/RHO x ATH	-23.40
Less each rose	LLL for rose design Example: ND53PD RHO x RHO/LLL	-13.40
Less springlatch	LLL for latch Example: ND40S RHO 605 LLL 10-025	-24.90
Less deadlatch	LLL for latch Example: ND53PD SPA 626 LLL 10-025	-32.70
Less strike	LLL for strike Example: ND53PD ATH 612 13-047 LLL	-4.50
Lock chassis and spring cages only	Less all possible components Example: ND53LD LLL 626 LLL LLL, lever chassis	Sum of deducts

Non-Standard Door Thickness*
Description	Specify	Lock Adjustment
13/8" thick doors - 2 chassis spacers (XN12-012) required; see ND-18		+59.30
Extended Inside (EI)**, over 2" – 6"	Door thickness and how door is extended.	+305.00
Extended Outside (EO)**, over 2" – 6"	Example: 3", EO	+303.00
Extended Equally (EE)**, over 2 1/8" – 6"		. 503.00
Extended Differently (ED)**, over 2" – 6"		+502.00
*	If not specified orders will default to EE
**	For ND85, EE range is from over 2" to 6". EI, EO, and ED ranges are from over 17/8" to 6"

Indicator Rose ("LOCK" printed on inside rose)
Part Number	Description	Lock Adjustment
XN12-035*	Indicator Rose - Rhodes	+33.90
XN12-045*	Indicator Rose - Omega	+33.90
*	Intended for the inside rose on double cylinder applications
	Available in 626 only - other finishes receive a standard rose.
	75 & 95 - Standard Option - Lock adjustment does not apply; standard rose is available
	60 & 93 - Optional - Lock adjustment does apply

Miscella	neous Lock Options
Specify/ Part Number	Description	Lock Adjustment
8AT	Tactile Lever - Athens
8RO	Tactile Lever - Rhodes
8SP	Tactile Lever - Sparta
8TR	Tactile Lever - Tubular	+45.90**
8BK	Tactile Lever - Boardwalk	T43.9U**
8BY	Tactile Lever - Broadway
8LT	Tactile Lever - Latitude
8LN	Tactile Lever - Longitude
XN13-052***	Break-Away Lever - Rhodes KIL (P,L,C,Z)
XN13-054***	Break-Away Lever - Rhodes FSIC (R,J,T)	770.00
XN13-053***	Break-Away Lever - Rhodes SFIC (B,BDC,G,H)	330.00
XN13-145***	Break-Away Lever - Rhodes Closed
Torx Screws	Screws - Latch and Strike	+21.30
RX	Request to Exit Feature (Available on ND10, ND12, ND12EL/EU, ND80, ND80EL/EU, ND96, & ND96EL/EU functions) Ready to be used in a Normally Open or Normally Closed application.	+70.10
XN12-307	Lead Lining	+636.00
**	Per lever
***	Break-Away levers have extended lead times
	The following secure functions are available with breakaway options for the exterior lever (When ordered, the correct lever must functions – Closed, KIL, FSIC, SFIC): ND12, ND12EL/EU, ND30, ND50, ND53, ND60 (for both keyed and closed levers), ND66, ND7C ND80, ND80EL/EU, ND82, ND91, ND92, ND93, ND94, ND95, ND96, ND96EL/EU, ND97
	Interior breakaway levers must be ordered via the following process – Lock(s) are ordered Less Lever for the interior lever and bre ordered separately. Applicable functions include: ND66, ND70X80, ND72, ND82	akaway lever(s) are

Special Fu	Special Functions - Extended Lead Times
Part I	Number		Base	Lock Adjustment
Lock Function	"X" Number	Function - Description	Lock	(Base Lock)
ND25x80	XN12-005	ND25x80 - Blank plate outside, fixed lever inside. Key in lever retracts latch.	ND80	$426.00
ND70x80	XN12-006	ND70x80 - Key locks or unlocks outside lever. Key in fixed inside lever retracts latch.	ND82	392.00
ND25x70	XN12-004	ND25x70 - Blank plate outside. Key locks or unlocks inside lever.	ND70	426.00
ND60	XN12-001	ND60 - Closed outside lever.	ND70	495.00
ND72	XN12-002	ND72 - Double cylinder communicating lock.	ND70	495.00
ND30D	XN12-007	ND30D - Patio lock.	ND40S	455.00
ND72	XN12-003	ND72 - Vandlgard® levers on inside and outside.	ND94	519.00
ND45	XN12-317	ND45 - Time out lock.	ND91LD	343.00

	School Upgrade Kits
Part Number	Description	All Designs and Finishes
	+ + + +
Classroom to Corridor
40-300	KIT, ND70 TO 73 CONVERSION	$103.00
40-309	KIT, ND94 TO 97 CONVERSION	156.00
Order Example: 40-300 TLR 613
Classroom to Classroom Security	+ +
40-301	KIT, ND70 TO 75 CONVERSION, KIL
40-302	KIT, ND70 TO 75 CONVERSION, FSIC
40-303	KIT, ND70/60 TO 75 CONVERSION, SFIC
40-304 6	KIT, ND70 TO 75 CONVERSION, KIL SAR	$217.00
40-305 6	KIT, ND70 TO 75 CONVERSION, FSIC SAR
40-306 6	KIT, ND70 TO 75 CONVERSION, FSIC YA6
40-307 6	KIT, ND70 TO 75 CONVERSION, FSIC CO6
40-310	KIT, ND94 TO 95 CONVERSION, KIL
40-311	KIT, ND94 TO 95 CONVERSION, FSIC
40-312	KIT, ND94/93 TO 95 CONVERSION, SFIC
40-313 6	KIT, ND94 TO 95 CONVERSION, KIL SAR	271.00
40-314 6	KIT, ND94 TO 95 CONVERSION, FSIC SAR
40-315 6	KIT, ND94 TO 95 CONVERSION, FSIC YA6
40-316 6	KIT, ND94 TO 95 CONVERSION, FSIC CO6
Order Example: 40-312 RHO 626
	+ +	SFIC ONLY
Vestibule to Classroom Security
40-308	KIT, ND60 TO 75 CONVERSION	$134.00
40-303	KIT, ND70/60 TO 75 CONVERSION, SFIC	217.00
	KIT, ND93 TO 95 CONVERSION	186.00
	KIT, ND94/93 TO 95 CONVERSION, SFIC	271.00
40-317 40-312 Order Example: 40-303 SPA 606
	+	+ + +
	Classroom/Classroom Security to Entrance/Storeroom
40-325	KIT, ND70, ND94 TO ND50 CONVERSION
40-326	KIT, ND75, ND95 TO ND50 CONVERSION	$103.00
40-327	KIT, ND70, 94 to ND80 CONVERSION
40-329	KIT, ND75, ND95 TO ND80 CONVERSION
40-332	KIT, ND70, ND94 to ND91 CONVERSION
40-330 40-328	KIT, ND75, ND95 to ND91 CONVERSION KIT, ND70, ND94 to ND96 CONVERSION	156.00

Conversion Guide		Outside Spring Cage		Inside Spring Cage		Levers - see chart
Lock Structure	Function	Original	New	Original	New	Outside	Inside
	ND10	N123-043	N523-218	N123-032	N523-221	Closed	Closed
	ND12	N123-022	N523-218	N123-032	N523-221	Closed	Closed
Non-Keyed Locks	ND25	-	-	N123-032	N523-221	-	Closed
	ND170	-	-	63-104	N523-223	-	Closed
	ND30*	N123-022	N523-218	N123-032	N523-221	Closed	Push Button
Non-Keyed w/ Push Button	ND40*	N123-022	N523-218	N123-032	N523-221	Privacy	Push Button
	ND44**	N123-022	N523-218	N123-032	N523-221	Privacy	Push Button
	ND45*	N123-022	N523-218	N123-032	N523-221	Privacy	Closed
	ND60	N123-022	N523-218	N123-021	N523-222	Closed	Cylinder
	ND70	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed
	ND80	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed
Single Cylinder Locks	ND25X80	-	-	N123-021	N523-222	-	Cylinder
	ND25X70	-	-	N123-021	N523-222	-	Cylinder
	ND94	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed
	ND96	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed
Single Cylinder w/ Push Button	ND50*	N123-022	N523-218	N123-032	N523-221	Cylinder	Push Button
	ND53*	N123-022	N523-218	N123-032	N523-221	Cylinder	Push & Turn Button
	ND73*	N123-022	N523-218	N123-032	N523-221	Cylinder	Push Button
	ND85*	N123-022	N523-218	N123-032	N523-221	Cylinder	Push Button
	ND91*	N123-022	N523-218	N123-032	N523-221	Cylinder	Push Button
	ND92*	N123-022	N523-218	N123-032	N523-221	Cylinder	Push & Turn Button
	ND97*	N123-022	N523-218	N123-032	N523-221	Cylinder	Push Button
	ND60	N123-022	N523-218	N123-021	N532-222	Cylinder	Cylinder
	ND66	N123-022	N523-218	N123-021	N523-222	Cylinder	Cylinder
	ND75	N123-022	N523-218	N123-021	N523-222	Cylinder	Cylinder
	ND82	N123-022	N523-218	N123-021	N523-222	Cylinder	Cylinder
Double Cylinder Locks	ND70X80	N123-022	N523-218	N123-021	N523-222	Cylinder	Cylinder
	ND72	N123-022	N523-218	N123-021	N523-222	Cylinder	Cylinder
	ND93	N123-022	N523-218	N123-021	N523-222	Cylinder	Cylinder
	ND95	N123-022	N523-218	N123-021	N523-222	Cylinder	Cylinder
	ND12EL	N123-022	N523-218	N123-032	N523-221	Closed	Closed
	ND12EU	N123-022	N523-218	N123-032	N523-221	Closed	Closed
	ND80EL	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed
Electrified	ND80EU	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed
	ND96EL	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed
	ND96EU	N123-022	N523-218	N123-032	N523-221	Cylinder	Closed

Lever Type	Original	New	Available Designs**
Closed	03-030	03-230	ATH, RHO, SPA, TLR, OME
Privacy	03-031	03-231	ATH, RHO, SPA, TLR, OME
Push or Push & Turn Button	03-031	03-233	ATH, RHO, SPA, TLR, OME
Cylinder - Schlage KIL (P,L)	03-031	03-231	ATH, RHO, SPA, TLR, OME
Cylinder - Schlage FSIC (R,J,T)	03-032	03-232	ATH, RHO, SPA, TLR, OME
Cylinder - Schlage SFIC (B, BDC, G, H)	03-000	03-200	ATH, RHO, SPA, TLR, OME
Cylinder - CR* KIL (L-CO6)	-	03-234	ATH, RHO, SPA, TLR
Cylinder - CR* FSIC (J-CO6)	03-066	03-266	ATH, RHO, SPA, TLR
Cylinder - CR* 7-pin FSIC (J-CO7)	-	03-235	RHO
Cylinder - Medeco 31 (J-YA6)	03-055	03-255	ATH, RHO, SPA, TLR
Cylinder - Medeco 32 (J-MED)	-	03-237	ATH, RHO, SPA, TLR
Cylinder - Sargent KIL (L-SAR)	03-044	03-244	ATH, RHO, SPA, TLR
Cylinder - Sargent FSIC (J-SAR)	03-077	03-277	ATH, RHO, SPA, TLR
Cylinder - Yale FSIC (J-YA6)	03-055	03-255	ATH, RHO, SPA, TLR
Cylinder - Yale 7-pin FSIC (J-YA7)	-	03-236	RHO
Cylinder - Best	03-000	03-200	RHO, SPA, ATH, TLR, OME
CR*: Corbin Russwin

Spring Cage Conversion
	Outside S	pring Cages	Inside S	oring Cages
Cylinder Format	Original	New	Original	New
PD, ZD, LD, JD, RD	N123-022		N123-021
BDC, BD, GD, HD	N123-056	NE33 310	N123-057	NE22 222
LD SAR, LD CO6	N123-064	N523-218	N123-067	N523-222
JD CO6, JD SAR, JD CO7	N123-066		N123-069
JD YA6. JD YA7. JD MED	N123-065	N523-224	N123-068	N523-225

Button Conve	rsion
	Original	New
Push	N523-000	N523-209
Push & Turn Button	N523-001	N523-210
85 Function	N523-124	N523-211

Tailpiece	Kits
SCH-FSIC	N523-127	SCH-SFIC	N523-091
LD SAR	09-060	LD CO6	10-140
JD YA6	09-061	JD CO7	10-141
JD CO6	09-062	JD YA7	10-142
JD SAR	09-063	JD MED	10-143

Plunger Assembly Conversion
	Original	New
Push and Turn Button Plunger Bar (ND53, ND91)	N123-017	N123-085
Push Button Plunger Bar (ND30,ND40,ND44,ND50,ND73,ND91,ND97)	N123-028	N123-086
Push Button Plunger Bar (ND85)	24071920	N123-087

Levers			605 606	612	613	619	622	625			626 643e 626AM
	Available Finishes	•	•	•	•	•	•	•	•	•	•
Part Number*	Description						Price Each
	New Product beginning February 2017
03-230	Lever - Closed; ATH, RHO, SPA, TLR, OME
03-233	Lever - Push or Push & Turn Button; ATH, RHO, SPA, TLR, OME
03-231	Lever - Cylinder - Schlage KIL (P,L,C,Z); ATH, RHO, SPA, TLR, OME						$136.00
03-232	Lever - Cylinder - Schlage FSIC (R,J,T); ATH, RHO, SPA, TLR, OME
03-200	Lever - Cylinder - Schlage SFIC (B,BDC,G,H); ATH, RHO, SPA, TLR, OME
03-234	Lever - Cylinder - CR KIL (L-CO6); ATH, RHO, SPA, TLR
03-266	Lever - Cylinder - CR FSIC (J-CO6); ATH, RHO, SPA, TLR
03-235	Lever - Cylinder - CR 7-pin FSIC (J-CO7); RHO
03-255	Lever - Cylinder - Medeco 31 (J-YA6); ATH, RHO, SPA, TLR
03-237	Lever - Cylinder - Medeco 32 (J-MED); ATH, RHO, SPA, TLR						252.00
03-244	Lever - Cylinder - Sargent KIL (L-SAR); ATH, RHO, SPA, TLR
03-277	Lever - Cylinder - Sargent FSIC (J-SAR); ATH, RHO, SPA, TLR
03-255	Lever - Cylinder - Yale FSIC (J-YA6); ATH, RHO, SPA, TLR
03-236	Lever - Cylinder - Yale 7-pin FSIC (J-YA7); RHO
Original Product**
03-030	Lever - Closed; ATH, RHO, SPA
03-031	Lever - Cylinder - Schlage Open (P,L,C,Z); ATH, RHO, SPA
03-032	Lever - Cylinder - Schlage FSIC (R,J,T); ATH, RHO, SPA						136.00
03-000	Lever - Cylinder - Schlage SFIC (B,BDC,G,H); ATH, RHO, SPA
	* Specify part number and finish. Ex: 03-231 ATH 626
	** All lever service items for original product supporting Non-SCHLAGE cores and TLR and OME need to convert to the new product.

	New Lever Options
	Available Finishes				605 606	612	613	619	622	625			626 643e 626AM
				•	•	•	•	•	•	•	•	•	•
Part Number	Description								Price Each
	Suffix	Design	Design Code
47258044	Lever - Closed	BOARDWALK	BRK
47258056	Lever - Push or Push & Turn Button	BOARDWALK	BRK
47258052	Lever - Cylinder - Schlage FSIC (R,J,T)	BOARDWALK	BRK
47258048	Lever - Cylinder - Schlage KIL (P,L,C,Z)	BOARDWALK	BRK
47258040	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	BOARDWALK	BRK
47258043	Lever - Closed	BROADWAY	BRW
47258055	Lever - Push or Push & Turn Button	BROADWAY	BRW
47258051	Lever - Cylinder - Schlage FSIC (R,J,T)	BROADWAY	BRW
47258047	Lever - Cylinder - Schlage KIL (P,L,C,Z)	BROADWAY	BRW
47258039	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	BROADWAY	BRW						$136.00
47258045	Lever - Closed	LATITUDE	LAT
47258057	Lever - Push or Push & Turn Button	LATITUDE	LAT
47258053	Lever - Cylinder - Schlage FSIC (R,J,T)	LATITUDE	LAT
47258049	Lever - Cylinder - Schlage KIL (P,L,C,Z)	LATITUDE	LAT
47258041	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	LATITUDE	LAT
47258046	Lever - Closed	LONGITUDE	LON
47258058	Lever - Push or Push & Turn Button	LONGITUDE	LON
47258054	Lever - Cylinder - Schlage FSIC (R,J,T)	LONGITUDE	LON
47258050	Lever - Cylinder - Schlage KIL (P,L,C,Z)	LONGITUDE	LON
47258042	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	LONGITUDE	LON
47260554*	Lever - Closed	BOARDWALK	BRK
47260542*	Lever - Push or Push & Turn Button	BOARDWALK	BRK
47260546*	Lever - Cylinder - Schlage FSIC (R,J,T)	BOARDWALK	BRK
47260550*	Lever - Cylinder - Schlage KIL (P,L,C,Z)	BOARDWALK	BRK
47260538*	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	BOARDWALK	BRK
47260553*	Lever - Closed	BROADWAY	BRW
47260541*	Lever - Push or Push & Turn Button	BROADWAY	BRW
47260545*	Lever - Cylinder - Schlage FSIC (R,J,T)	BROADWAY	BRW
47260549*	Lever - Cylinder - Schlage KIL (P,L,C,Z)	BROADWAY	BRW
47260537*	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	BROADWAY	BRW
47260555*	Lever - Closed	LATITUDE	LAT						$182.00
47260543*	Lever - Push or Push & Turn Button	LATITUDE	LAT
47260547*	Lever - Cylinder - Schlage FSIC (R,J,T)	LATITUDE	LAT
47260551*	Lever - Cylinder - Schlage KIL (P,L,C,Z)	LATITUDE	LAT
47260539*	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	LATITUDE	LAT
47260556*	Lever - Closed	LONGITUDE	LON
47260544*	Lever - Push or Push & Turn Button	LONGITUDE	LON
47260548*	Lever - Cylinder - Schlage FSIC (R,J,T)	LONGITUDE	LON
47260552*	Lever - Cylinder - Schlage KIL (P,L,C,Z)	LONGITUDE	LON
47260540* *Specifies Tactile Lever	Lever - Cylinder - Schlage SFIC (B,BDC,G,H)	LONGITUDE	LON

Spring Cages
Part
Number	Description	Price Each
	New Product beginning February 2017
N523-218	Springcage & Lever Catch Assy Outside Standard (P, L, C, Z, R, J, T, B, BDC, G, H, L-SAR , L-CO6, J-C06, J-SAR, J-CO7)	$69.40
N523-222	Springcage & Lever Catch Assy Inside with Cylinder (P, L, C, Z, R, J, T, B, BDC, G, H, L-SAR , L-CO6, J-C06, J-SAR, J-CO7)	69.40
N523-224	Springcage & Lever Catch Assy Outside Competitor Cores (J-YA6, J-YA7, J-MED)	144.00
N523-225	Springcage & Lever Catch Assy Inside Competitor Cores (J-YA6, J-YA7, J-MED)	144.00
N523-221	Springcage & Lever Catch Assy Inside Less Cylinder	48.80
N523-223	Springcage & Lever Catch Assy Dummy Function	119.00
Original Product***
N123-021	Inside spring cage for all double cylinder functions except SFIC	$69.40
N123-022	Outside spring cage for all functions except SFIC and ND10	69.40
N123-032	Inside Spring Cage for all functions except double cylinder functions	50.10
N123-043	Outside spring cage ND10	58.90
N123-056	Outside spring cage for all SFIC functions	72.60
N123-057	Inside spring cage for all SFIC double cylinder functions	45.90
***	All spring cage service items for the original product supporting Non-SCH cores need to convert to the new product.

Conversion Kits
		605	606	612	613	619	622	625			626 643e 626AM
	Available Finishes	•	•	•	•	•	•	•	•	•
Part Number	Backset - Description						Price Each
40-400	Outside Spring Cage / Lever Conversion Kit
40-600	Inside Spring Cage / Lever Conversion Kit						$221
Notes:	All kits will contain a spring cage and lever. Some kits will contain a button or tailpiece. Kits are limited to previously offered product - KIL, FSIC, SFIC, L-SAR, J-SAR, J-CO6, J-YA6 When ordering specify: Function, Trim, Finish and Core (if applicable)

Roses
		605	606	612	613	619	622	625			626 643e 626AM
	Available Finishes	•	•	•	•	•	•	•	•	•	•
Part Number	Description						Price Each
03-042*	Outside / Inside Rose - RHO OME	104.00
N523-002*	Blank Plate, ND25 (not available in 626AM)						107.00
XN12-035	Indicator Rose - Rhodes (626 Only)
XN12-045	Indicator Rose - Omega (626 Only)						128.00
	* Specify part number and finish. Ex: 03-042 OME 626

	Buttons / Plunger Assemblies
		605	606	612	613	619	622	625			626 643e 626AM
	Available Finishes	• • • • • • • • •
Part Number	Description						Price Each
	New Product beginning February 2017
N123-034*	Emergency Button and Plunger (ND40 outside)						$69.90
N123-035*	Emergency Turn Button and Plunger (ND44 outside)						131.00
N523-209*	Button - Push (ND30,ND40,ND44,ND50,ND73,ND91,ND97) 9.80
N523-210*	Button - Push & Turn Button (ND53,ND92)						18.70
N523-211*	Button - Push (ND85)						11.10
N123-085**	Push and Turn Plunger Bar (ND53, ND91)						12.50
N123-086**	Push Button Plunger Bar (ND30,ND40,ND44,ND50,ND73,ND91,ND97)						13.80
N123-087**	Push Button Plunger Bar (ND85)						12.20
Original Product
N523-000*	Button - Push (ND30,ND40,ND44,ND50,ND73,ND91,ND97)						$9.80
N523-001*	Button - Push & Turn Button (ND53,ND92)						18.70
N523-124*	Button - Push (ND85)						11.10
*	Specify part number and finish. Ex: N523-210 626
**	Plunger assemblies will support both new (smaller dia.) and old (larger dia.) buttons; finish specification is not required

	Available Finishes	605	606	612	613	619	622	625	626	643e	626AN
	Available Finisnes
Part Number*	Description					Pric	e Each	ì
Spring Latch
13-248	2 3/4" - Square corner, 1 1/8" x 2 1/4"					$9	0.10
14-010 3 3/4" - Square corner, 11/8" x 2 1/4"						10	8.00
Dead Latch
14-047	2 3/8" - Square corner, 1 1/8" x 2 1/4"					117	7.00
14-048	2 3/8" - Square corner, 1" x 2 1/4"					11	7.00
13-247	2 3/4" - Square corner, 1 1/8" x 2 1/4"					9	0.10
14-042	23/4" - Anti-friction Fire Door Latch 1" Square corner, 11/8" x 21/4", 3/4" Throw					35	8.00
14-028	3 3/4" - Square corner, 1 1/8" x 2 1/4"					10	8.00
43-005	5" - Backset extension link - use with 2 3/4" backset latches	33.10
39-030	Rabbeted latch and strike kit - adapts square corner latches and 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preparations. (Available in 626 and 605)					5	8.10
*	Specify part number and finish, Ex: 13-248 622

Strikes
	Available Finishes	605	606	612	613	619	622	625	626	643e	626AM
	Available Fillibries		•		•	•		•	•
Part Number	Lip Length - Description					Pric	e Each	1
10-013-118*	11/8" - Square corner, T-strike, box, 11/8" x 2 3/4"					$1	1.80
10-013-112* | 11/2" - Square corner, T-strike, box, 11/8" x 2 3/4"						16.50
10-016*	11/8"" - Square corner, T-strike, deep box, 11/8" x 2 3/4" 11/8"					15	5.70
	Use with fire door latch
10-025-1316*	13/16" - ANSI, no box, 11/4" x 4 7/8"					15	5.20
10-025-138*	13/8" - ANSI, no box, 11/4" x 4 7/8"						2 70
10-025-112*	11/2" - ANSI, no box, 11/4" x 4 7/8"	43.70
K510-066	Box for ANSI strike	7.20
*	Specify part number and finish. Ex: 10-025-1316 626								* | Specify part number and finish. Ex: 10-025-1316 626

	Available Finishes			606	626
	Available Fillisties			•
Part Number*	Cylinder Mechanism	Function	Design	Price Each Open	Price Each Restricted
23-065	Standard			$64.00	$81.50
91-018	Everest SL (R/B Keyways only)				81.50
20-765	Primus	61 1 1		141.	00
20-765-XP	Primus XP	Standard Function	All	141	.00
91-718-XP	Everest SL Primus XP (R/B Keyways only)	Toriction	All		141.00
20-565	Primus UL437			17/	00
20-565-XP	Primus UL437 XP			174	.00
23-000	Standard	ND85		95.00	112.50
*	Specify part number and finish. Ex: 23-065 62	б

Tailpiec	es
Part Number	Description	Price Each
N523-127	Core Driver - SCH FSIC	$2.70
N523-091	Core Driver - SCH SFIC	12.20
09-060	Core Driver - LD SAR	2.90
09-061	Core Driver - JD YA6	24.00
09-062	Core Driver - JD CO6	12.00
09-063	Core Driver - JD SAR	13.00
10-140	Core Driver - LD CO6	11.00
10-141	Core Driver - JD CO7	5.80
10-142	Core Driver - JD YA7	23.00
10-143	Core Driver - JD MED	23.00
09-774	SFIC Core Driverand Spacer	15.00
D500-000	SFIC Core Spacer - Spacer required for 6-pin, no spacer required for 7-pin	1.60
XN12-292	Tail piece Sargent XC SFIC	13.00

Chassis Kits Function	Description	Number	Name	Price Each
ND10		S00031721271-KIT	24088254 ND10 CHASSIS ONLY	$94.00
ND10 RX	Passage latch	S00031769709-KIT	24088429 ND10RX CHASSIS ONLY	190.00
ND12	Exit lock	S00031721363-KIT	24088262 ND12/80 CHASSIS ONLY	107.00
ND12EL		S00033868134-KIT	63-180 ND12/80EL CHASSIS ONLY	424.00
ND12EL RX	Electrically locked exit lock	S00033868172-KIT	63-184 ND12/80EL RX CHASSIS ONLY	464.00
ND12EU		S00033868141-KIT	63-181 ND12/80EU CHASSIS ONLY	424.00
ND12EU RX	Electrically unlocked exit lock	S00033868189-KIT	63-185 ND12/80EU RX CHASSIS ONLY	464.00
ND25	Exit lock	S00031721394-KIT	24088296 ND25 CHASSIS ONLY	60.00
ND25X70	Classroom exit lock	S00031720557-KIT	24088213 ND25X70 CHASSIS ONLY	74.00
ND25X80	Storeroom exit lock	S00031720946-KIT	24088221 ND25X80 CHASSIS ONLY	75.00
ND30	Patio lock
ND40	Bath/Bedroom privacy lock	S00031733663-KIT	24088304 ND30/40/44 CHASSIS ONLY	151.00
ND44	Hospital privacy lock
ND45	Time out lock	S00031969024-KIT	24210718 ND45 CHASSIS ONLY	104.00
ND50	Entrance/office lock
ND53	Entrance lock	S00031721097-KIT	24088247 ND50/53 CHASSIS ONLY	105.00
ND60	Vestibule with closed outside lever	S00031733762-KIT	24088320 ND60/XN12-001 CHASSIS ONLY	109.00
ND66	Store lock	S00031733793-KIT	24088338 ND66 CHASSIS ONLY	237.00
ND70	Classroom lock	S00031733809-KIT	24088346 ND70 CHASSIS ONLY	99.00
ND70X80	Classroom by storeroom lock	S00031720984-KIT	24088239 ND70X80 CHASSIS ONLY	96.00
ND72	Communicating lock	S00031720328-KIT	24088197 ND72 XN12-002 CHASSIS ONLY	93.00
ND73	Corridor lock	S00031733830-KIT	24088353 ND73 CHASSIS ONLY	82.00
ND75	Classroom security lock	S00031719902-KIT	24088163 ND75 CHASSIS ONLY	222.00
ND80	Storeroom lock	S00031721363-KIT	24088262 ND12/80 CHASSIS ONLY	107.00
ND80EL		S00033868134-KIT	63-180 ND12/80EL CHASSIS ONLY	424.00
ND80EL RX	Electrically locked storeroom lock	S00033868172-KIT	63-184 ND12/80EL RX CHASSIS ONLY	464.00
ND80EU		S00033868141-KIT	63-181 ND12/80EU CHASSIS ONLY	424.00
ND80EU RX	Electrically unlocked storeroom lock	S00033868189-KIT	63-185 ND12/80EU RX CHASSIS ONLY	464.00
ND82	Institution lock	S00031733847-KIT	24088361 ND82 CHASSIS ONLY	99.00
ND85	Faculty restroom lock	S00031733977-KIT	24088411 ND85 CHASSIS ONLY	108.00
ND72	Communicating lock	S00031720458-KIT	24088209 ND72 XN12-003 CHASSIS ONLY	148.00
ND 91	Entrance/office lock
ND92	Entrance lock	S00031733861-KIT	24088379 ND91/92 CHASSIS ONLY	161.00
ND93	Vestibule lock	S00031733878-KIT	24088387 ND93 CHASSIS ONLY	165.00
ND94	Classroom lock	S00031733892-KIT	24088395 ND94 CHASSIS ONLY	155.00
ND95	Classroom security lock	S00031720168-KIT	24088171 ND95 CHASSIS ONLY	278.00
ND96	Storeroom lock	S00031733922-KIT	24088403 ND96 CHASSIS ONLY	163.00
ND96EL		S00033868158-KIT	63-182 ND96EL CHASSIS ONLY	480.00
ND96EL RX	Electrically locked storeroom lock	S00033868196-KIT	63-186 ND96EL RX CHASSIS ONLY	519.00
ND96EU		S00033868165-KIT	63-183 ND96EU CHASSIS ONLY	480.00
ND96EU RX	Electrically unlocked storeroom lock	S00033868202-KIT	63-187 ND96EU RX CHASSIS ONLY	519.00
ND97	Corridor lock	S00031720281-KIT	24088189 ND97 CHASSIS ONLY	138.00

EXAMPLE: ND10 PASSAGE LATCH KIT # S00031721271-KIT

INCLUDES

1 SLIDE SPRING 30 SLIDE CLIP

6 CHASSIS SCREW 37 ADJUSTMENT PLATE

23 OUTSIDE HOUSING 38 SPINDLE

24 INSIDE HUB 52 GAUGE INSERT

29 SLIDE 53 INSERT, INSIDE HUB

VANDLGARD

	Keycam Assemblies
Part Number	Description	Price Each
N223-066	Electrified Keycam Assembly (Motor) - ND12EL/EU, ND80EL/EU, & ND96EL/EU	$35.40
N123-045	Keycam Assembly ND40, ND44	7.20
N123-007	Keycam Assembly ND50, ND53, ND60	17.00
N123-010	Keycam Assembly ND73, ND70, ND72, ND25x70, ND70x80 Outside	17.10
N123-059	Keycam Assembly ND75, ND95 Inside	74.40
N123-008	Keycam Assembly ND82, ND12, ND80, ND25x80, ND70x80 Inside	20.60
N123-055	Keycam Assembly ND85	99.80
N123-011	Keycam Assembly ND91, ND92, ND93	23.20
N123-012	Keycam Assembly ND94	23.20
N123-098	Keycam Assembly ND95 Outside	99.80
N123-013	Keycam Assembly ND96	19.00
N123-097	Keycam assembly ND97	19.20
N523-065	Cam pin for ND60 and ND93	5.30
N523-066	Cam for inside ND60 and ND93	56.90
N123-076	Keycam Assembly ND66 Outside and Inside, and ND75 Outside	96.10

	Slide / Related Components
Part Number	Description	Price Each
C503-019	Slide Spring	$6.70
C604-187	Slide Catch Restoring	7.40
C604-188	Slide Catch Non-restoring	7.40
C604-191	Slide Catch Spring	7.40
N523-025	Slide Clip	4.50
N523-149	Slide (previous part number was N523-024)	21.40

	Spindles
Part Number	Description	Price Each
N523-013	Outside Spindle	$12.10
N523-019	Outside Electrified Spindle	11.60
N523-177	Inside Spindle	3.80

Electrified Chassis Components
Part Number	Description	Price Each
24088551	Outside Electrified Housing	$12.40
N623-017	Inside Electrified Hub	7.00
N223-062	Motor Assembly Non-Vandlgard	303.00
N223-063	Motor Assembly Vandlgard	333.00
N523-131	Anti-rotation plate - RX product	8.50
N523-194	RX Switch	61.10
N123-062	RX Upgrade Kit	70.10

	Misc. Chassis Components
Part Number	Description	Price Each
C503-331	Plunger Spring (order in multiples of 50)	$0.14
24088544	Outside Housing	11.90
24085037	Inside Hub for all Non-electrified functions except the ND66 and ND82	5.20
24085060	Inside Hub for ND66 & ND82 Functions	5.20
N523-020	Emergency cylinder for ND40 & ND44 functions	5.50
N523-041	Catch stop	5.40
N523-054	Adjustment Plate	5.40
N523-055	Anti-rotation plate	5.40
N523-063	Plunger Sleeve for ND60 and ND93	3.90
N523-064	Plunger for ND60 and ND93	13.60
N523-067	Plunger Bar for ND66	3.90
N523-069	Dummy Insert for ND170	13.60
N523-105	Threaded rod for mounting ND170s as double dummy set	5.40

Special Parts
	Available Finishes	605	606	612	613	619	622	625			626 643e 626AM
		•	•	•	•	•	•	•	• • •
Part Number	Description						Price Each
XQ02-309* **	10-013 Strike, 7/8" flat lip						40.60
XQ03-494* **	10-013 Strike, 1 5/8" – 6" lip						170.00
	10-013 Strike, 6 1/8" – 12" lip	216.00
XQ07-351* **	10-025 Strike, 7/8" flat lip						42.70
	10-025 Strike, lips thru 6" (except 7/8", 1 3/16", 3/8" and 1 1/2")						206.00
XC03-069	Extension Links, used with 2-3/4" backset latch, range over 5" - 42"; not adjustable						760.10
XN12-012*	Chassis Spacer for 1 3/8" door (2 required)						79.00
XN13-052	Lever - Break-Away - Schlage KIL (P,L,C,Z); RHO
XN13-054	Lever - Break-Away - Schlage FSIC (R,J,T); RHO						394.00
XN13-053	Lever - Break-Away - Schlage SFIC (B,BDC,G,H); RHO
*	Specify part number and finish. Ex: XN12-012 626
**	Specify lip length.

Hollow Metal Door Reinforcements
Part Number	Description	Price Each
37-001	Metal door reinforcer kit, fits both 7/8" and 1" diameter housings - Specify door thickness, includes A501-567 and A501-565 or A501-566	$39.30
24483760	Latch Spacer – fits 1" diameter latch housing and 1-3/4" hollow metal doors (steel & aluminum)	5.40
A501-565	Reinforcer for 1 3/8" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.
A501-566	Reinforcer for 1 3/4" thick non-reinforced metal doors. Fits both 7/8" and 1" diameter housings.	19.80
A501-567	3 1/2" Long latch housing sleeve used to reinforce joint between latch and backset link or to hold latch in metal doors	12.30

Screws
					605	606	612	613	619	622	625			626 643e 626AM
		Available Finishes			• • • • • • • • •
Part Number	Description	Door Thickness	Type	Size						Price Each
A501-171* **	ND170, washer	—	Washer	—						$1.20
N523-092* **	ND170, mounting screw	1 1/2" – 2"	POH Machine	1/4" 20 x 2 1/2"	1.40
L583-133* **	ND170, mounting surface	—	Sheet Metal	1#8 x 1"	0.90
C603-256* **	ANSI strike	—	PFH Combo	12-24 x 1"	1.00
C603-897* **	Latch and strike	—	PFH Combo	#8 x 3/4"						0.90
N523-021**	Spring cage screws	1 3/8" – 2"	PFH Machine	#10 x 32 x 2 1/8"						1.90
N623-030	Motor assembly	—	PFH Combo	#4-40 X 3/16						5.40
N523-135	RX switch	—	Hex B.H.	#2-56 x 3/8"						0.60
N523-240	Chassis to spring cage	—	PFH Combo	#8-32 X 1/4"						0.58
L583-454	Chassis	—	PFH	#8-32 X 3/8"	1.50
*	Specify part number and finish. Ex: C603-256 626
**	Order in multiples of 100

Screw Packs
	Available Finishes		605	606	612	613	619	622	625			626 643e 626AM
			•	•	•	•	•	•	•	•	•
Part Number*	Description	Contents						Price Each
B202-517	Latch and strike	(4) C603-897	$8.30
C203-736	ANSI strike	(2) C603-256		6.60
N123-020	Mounting, all except ND170	(4) C603-897 (2) C603-256 (2) N523-021 (1) M504-271						8.70
N123-040	Mounting, ND170	(2) L583-133 (1) N523-092 (1) A501-171 (1) M504-271						10.20
*	Specify part number and finish. Ex: N123-020 626

	Screws Packs, Torx
			605	606	612	613	619	622	625			626 643e 626AM
	Available Finishes	•	•	•	•	•	•	•	•	•
Part Number*	Description	Contents	Price Each
C203-311	Latch and strike (T-15 installation tool included)	(4) C503-766 (T-15)
C203-312	Latch and ANSI strike (T-xx installation tool included)	(2) C503-766 (T-15) (2) L583-371 (T-20)	$21.30
*	Specify part number and finish. Ex: C203-311 626

Part Number	Description	Price Each
	Harnesses with Molex Connectors on both ends (for use with Hollow Metal Doors)
CON-6	6" Wire Harness (internal p/n 106190-00)	$10.50
CON-12	12" Wire Harness (internal p/n 106191-00)	14.00
CON-26	26" Wire Harness (internal p/n 106192-00)	15.80
CON-32	32" Wire Harness (internal p/n 106193-00)	16.90
CON-38	38" Wire Harness (internal p/n 106194-00)	18.50
CON-44	44" Wire Harness (internal p/n 106195-00)	18.00
CON-50	50" Wire Harness (internal p/n 106196-00)	18.50
CON-192	192" Wire Harness (internal p/n 106197-00)	44.20
	Harnesses with Molex Connector on one end, crimped pins on other w/ attachable Molex connector (for use with Wood Doors)
CON-6P	6" Wire Harness (internal p/n 106201-00)	$13.40
CON-12P	12" Wire Harness (internal p/n 106202-00)	16.90
CON-26P	26" Wire Harness (internal p/n 106203-00)	18.50
CON-32P	32" Wire Harness (internal p/n 106204-00)	19.80
CON-38P	38" Wire Harness (internal p/n 106205-00)	20.30
CON-44P	44" Wire Harness (internal p/n 106206-00)	20.90
CON-50P	50" Wire Harness (internal p/n 106207-00)	21.50
CON-192P	192" Wire Harness (internal p/n 106208-00)	46.50
	Harness with Molex Connector on one end, stripped leads on other (for connection to power supply)
CON-6W	6" extension to power supply (internal p/n 106210-00)	$13.40
Service Kit
CON-KIT	Connector Service Kit (internal p/n 050823-00-00) contains: -100 each male & female terminals -10 each 4-pin and 8-pin male connectors -10 each 4-pin and 8-pin female connectors - 1 extraction tool"	$111.00

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Outside		Inside		Inside								Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	B252P		626		613		12-103	10-025	214	EE	1316	KA

Line Item: Line item number

Qty: Quantity

Product: Product function + cylinder code

Outside Des: Outside lever design, not applicable for deadbolts. Leave blank

Outside Fin: Outside finish

Inside Des: Inside lever design, not applicable for deadbolts. Leave blank Inside Fin: Inside finish, specify only if different from the outside finish Hand: Hand of door, not applicable for deadbolts. Leave blank

Latch: Product latch, leave blank for standard latch or specify part number if non-standard latch is required. LLL = less latch Strike: Product strike, leave blank for standard strike or specify part number if non-standard strike is required. LLL = less strike Dr Thk: Door thickness, leave blank for standard thickness or specify if non-standard. Example: 138 = 13/8", 214 = 21/4"

Ext: Extension, enter one of the following when door thicknesses 2" or greater are specified: EE = Extended Equally, EI = Extended

Inside, EO = Extended Outside

Dim: Dimension, enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Con	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	Engineering specials are denoted by a part number beginning with "X".
5.	a denotes a lock or part that requires an extended lead time.
6.	be denotes a handed product and requires handing to be specified.
7.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
8.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
9.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
10.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
11.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
12.	Locks specified with "C"keyway and KD or 0-bitted will receive 6 pin cylinders.
13.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
14.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
15.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
16.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Functions B250-4 Complete Locks B250-4 Options B250-6 Deadlatches. . . B250-6 Stikes. . . B250-6 Locks Less Components. . . B250-6 Tamper-Resistant Screws and Torx® Screws. . . B250-6 Special Options. . . B250-6 Parts B250-7 Latches & Strikes. . B250-7 Cylinders. . B250-7 Trim. . B250-7 Adapters. . B250-7 Door Reinforcements. . B250-7 Screws. . . B250-8 Tailpiece and Screw Packs. . . B250-9 Torx® Screw Packs. . . B250-9 Special Parts. . . B250-9 Cylinders Only (B100, B250, B400 E/B). . . B250-9

Finish Codes and Descriptions Code Description 605 (US 3) Bright Brass 606 (US 4) Satin Brass 609 (US 5) Antique Brass 613 (US 10B) Oil Rubbed Bronze 622 (US 19) Matte Black

625 (US 26) Bright Chromium Plated 626 (US 26D) Satin Chromium Plated

Standard Features

Certification ANSI/BHMA Certified A156.36-2010, Grade 2 auxiliary lock.

Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 9/16" throw deadlatch

Strike 1 1/8" x 2 3/4", Square corner, T-strike, box

Backset 2 3/8"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range 1 1/2" – 1 3/4" standard cylinder, 1 1/2" - 2 1/8" interchangeable core cylinder

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

Trim Rings 7/16" and 1/8" Wrought brass or bronze, reinforced with security inserts

ANSI/BHMA Certified A156.36-2010, Grade 2 auxiliary lock.

Bored Deadlatch Locks

SCHLAGE ANSI

B250PD E0122 Single Cylinder Deadlatch (Night Latch)

Deadlocking latchbolt retracted by key from outside or by inside turn unit. Rotating turn unit and activating hold-back feature keeps latch retracted.

B252PD E0112 Double Cylinder Deadlatch*

Deadlocking latchbolt retracted by key from either side. No hold-back feature.

^* Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

			Finishes			Cylinder Adjustments
		626	605	613	JD = Less Full Size Core
			6 606 609		RD* = FSIC (Full Size Interchangable Core) TD** = Full Size Construction Core
Function	Description		622 625		JD	RD	TD**
Single Cylinder Function
B250PD	Single Cylinder Outside, Holdback Turn Inside	$274	$280	$290	-$35		$38
Double Cylinder Function
B252PD	Double Cylinder	304	310	320	-70		76
*	Full size core furnished 1-bitted with two 6-pin keys unless otherwise specified. Not available with 0-bitted interchangeable cores.
**	Temporary cores (TD) require non-refundable core handling charge (50-231) of $10.40 and will be added to the price of the lock.
	Control Keys are not furnished with locks and must be ordered separately. See Keys & Keying.
	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders.
SL Cylinder with Everest B or Everest R keyways add $17.50
	See Terms and Conditions for ordering information and requirements.
	"Ordering instructions: To change cylinder type from default 6-pin standard, change lock suffix as appropriate Ex: B250RD 626 for B250 function with FSIC in 626 finish".

DeadLatches
Specify	Description	List Price Adjustment
12-100	Square corner, 1 1/8" x 2 1/4", 2 3/8" backset, 1" housing diameter, standard latch	N/C
12-103	Square corner, 1 1/8" x 2 1/4", 2 3/4" backset, 1" housing diameter
	Ordering instructions: specify desired latch on order only if requesting different from standard.

Strikes
Specify	Description	List Price Adjustment
10-001	Square corner, T-strike, box, 1 1/8" x 2 3/4", 1 1/8" lip length, standard strike	N/C
10-001 xx	Square corner, T-strike, box, 1 1/8" x 2 3/4", specify lip length (xx) as 1", 1 1/4", 1 1/2", 1 3/4", 2"	+$7.70
10-004	Round corner (1/4" radius), T-strike, box 1 1/8" x 2 3/4", 1 1/8" lip length	N/C
10-025 1316	ANSI, no box, 1 1/4" x 4 7/8", 1 3/16" lip length	8.50
10-025 xx	ANSI, no box, 1 1/4" x 4 7/8", specify lip length (xx) as 1 3/8" or 1 1/2"	36.60
K510-066	Box for ANSI strike	N/C
	Ordering instructions: specify desired strike on order only if requesting different from standard.

	Locks Less Components
Specify	Description	List Price Adjustment
LLL for deadlatch	Less deadlatch Example: B250PD 605 LLL 10-001	-21.00
LLL for strike	Less strike Example: B250PD 605 12-100 LLL	-6.60
	Ordering instructions: specify on order only if requesting different from standard.

	Non-Standard Door Thickness
Specify	Description	List Price Adjustment
Door Thickness	Over 1 3/4" - 2 1/4"	N/C
Door Thickness	Over 2 1/4" - 2 3/4"	$104.00
	Ordering instructions: Specify desired thickness on order only if requesting different from standard. EX: B250PD 626 2"

	Tamper Resistant and Torx® Screws
Specify	Description	List Price Adjustment
X suffix	Cross recessed mounting screws and drive pins for B250PD	N/C
Torx Screws	Latch and strike screws	$21.30
	Ordering instructions: specify on order only if desired option. EX: B250PDX 626 Torx Screws.

Special Options	6 Extended Lead Time
Specify	Description	List Price Adjustment
Door Thickness + XB03-330	B250PD for doors over 2 3/4" - 5 9/16"	$285.00
Door Thickness + XB03-427	B252PD for doors over 2 3/4" - 5 9/16"	318.00
	B250PD less holdback function (substitutes B400 turn)	51.60
	Ordering instructions: specify on order only if desired option. EX: B250PD 626 5" XB03-330.

Latches & Strikes
		605	606	609	612	613	622	625	626
	Available Finishes	•	•	•	•	•	•	•	•
Part Number	Description Price Each
Deadlatches
12-100	Square corner, 1 1/8" x 2 1/4", 2 3/8" backset, 1" housing diameter, standard latch
12-103	Square corner, 1 1/8" x 2 1/4", 2 3/4" backset, 1" housing diameter	$87.90
39-030	Rabbeted latch and strike kit, 605 and 626 finish only (adapts square corner & 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preps)	58.10
Strikes
10-001	Square corner, T-strike, box, 1 1/8" x 2 3/4", 1 1/8" lip length (standard strike)				6.50
10-001 xx	Square corner, T-strike, box, 1 1/8" x 2 3/4", specify lip length (xx) as 1", 1 1/4", 1 1/2", 1 3/4", 2"				14.80
10-004	Round corner (1/4" radius), T-strike, box 1 1/8" x 2 3/4", 1 1/8" lip length				11.10
10-025 1316	ANSI, no box, 1 1/4" x 4 7/8", 1 3/16" lip length				15.20
10-025 xx	ANSI, no box, 1 1/4" x 4 7/8", specify lip length as 1 3/8" or 1 1/2"				43.70
C603-623	Box for T-strike (finish not applicable)	0.70
K510-066 Box for ANSI strike (finish not applicable) 6.80
	Ordering Instructions: Specify part number and finish.

Trim
	605 606 609 612 613 622 625
	•	•	•	•	•	•	•	•
Part Number	Description	Price Each
B202-671	Rose and turn without holdback				$51.60
B202-672	Rose and turn with holdback	79.60
B502-815	Blank inside rose with exposed screws for B251, available 605 and 626 finish only	30.10
	Ordering Instructions: Specify part number and finish if applicable.

Adapters
		605	613	626
	Available Finishes	•	•	•
Part Number	Description	Price Each
38-016	Adapter ring kit for double cylinder locks used in 2 1/8" hole contains: (2) 38-031		$31.70
38-017	Adapter ring kit for single cylinder locks used in 2 1/8" hole contains: (1) 38-031 and (1) 38-032		41.60
38-031	2 1/2" diameter adapter ring for 2 1/8" door prep, mounted under cylinder		19.00
38-032	2 7/8" diameter adapter ring for 2 1/8" door prep, mounted under turn units/blank roses	27.20
	Ordering Instructions: Specify part number and finish.

A501-566

	Door Reinforcements
Part Number	Description
A501-565	Reinforcer for 1 3/8" thick nonreinforced metal doors, fits both 7/8" and 1" diameter housings (2 required per lock)	Price Each $19.80
A501-566	Reinforcer for 1 3/4" thick nonreinforced metal doors, fits both 7/8" and 1" diameter housings (2 required per lock)
	Ordering Instructions: Specify part number.

Screw	/S
			Av	ailable Finishes			605	606	609	612	613	622	625	626
Part	Specify	Descript	ion		Applica	ation				Price	Each	l	1
Number	Finish	Size	Type	Use with:		Door Thickness			(Orde	in mul	tiples	of 100)	)
Single Cyli	inder, B2	50PD
				7/16" & 1/8" trim rings		15/16" – under 111/16"			-
DE30 006		10 22 21 // "		7/16" trim ring	5-Pin	111/16" – 115/16"
B520-086		10-32 x 2 1/4"		(2) 1/8" trim rings	- 6-Pin	15/16" – under 17/16"
				7/16" & 1/8" trim rings	0-PIII	17/16" – 113/16"
			POH machine	7/16" trim ring	5-Pin	over 1 15/16" – 2 1/4"				$1.	.00
			macmine	1/8" trim ring	5-PIN	over 2 1/4" – 2 9/16"
B520-087		10-32 x 2 5/8"		7/16" & 1/8" trim rings		over 1 13/16" – 1 15/16"
				7/16" trim ring	6-Pin	over 1 15/16" – 2 9/16"
				1/8" trim ring	1	over 2 9/16" – 2 3/4"
Double Cy	linder, B	252PD
				7/16" & 1/8" trim rings		15/16" – under 111/16"
B520-267		10-32 x 2 1/2"		7/16" trim ring	5-Pin	111/16" – 115/16"
				1/8" trim ring	1	27/16" – 211/16"
			]	7/16" & 1/8" trim rings		over 1 7/16" – under 1 11/16"		$2.50
				7/16" trim ring	5-Pin	over 1 15/16" – under 2 7/16"
B520-268		10-32 x 2 3/4"		1/8" trim ring	1	over 2 11/16" – 2 7/8"			$2.50
D32U-200		10-32 X 2 3/4	Cross recess	7/16" & 1/8" trim rings		17/16" – under 19/16"
			100033	7/16" trim ring	6-Pin	over 1 11/16" – 2 3/16"			$2.50
				1/8" trim ring	1	over 2 11/16" – 2 13/16"
				(4) 1/8" trim rings		13/16" – under 17/16"
B520-269		10-32 x 3"		7/16" & 1/8" trim rings	6 Din	19/16" – 115/16"
B320-209		10-32 X 3		7/16" trim ring	- 6-Pin	over 2 13/16" – 2 11/16"
				1/8" trim ring	1	over 2 13/16" – 3 1/8"
B520-271		Drive p	in	_		_				1.0	00
Interchan	geable C	ore, Single Cyl	inder, B25	50RD
B520-086		10-32 x 2 1/4"		1" & 1/8" trim rings		15/16" – 11/2"
B320-000		10-32 X 2 1/4	5611	1" trim ring		over 1 1/2" – 2 1/8"
			POH machine	1" trim ring		over 2 1/8" – 2 3/8"				$1.	.00
B520-087		10-32 x 2 5/8"	macrime	7/16" & 1/8" trim rings		over 2 3/8" – 2 5/8"
		10 32 12 37 0		7/16" trim ring		over 2 5/8" – 3 1/8"
Interchan	geable C	ore, Double Cy	linder, B2	52RD
				1" & 1/8" trim rings		15/16" – 1 5/8"
B520-269		10-32 x 3"	Cross	1" trim ring		over 1 5/8" – 2 1/8"				¢ο	ΕO
מסבט-209		10-27 ¥ 2	recess	7/16" & 1/8" trim rings		over 2 1/8" – 2 3/8"		$2.50
				1" trim ring		over 2 3/8" – 2 5/8"
B520-271		Drive pin		_		_				1.0	00
All Function	ons
C603-256		12-24 x 1"	PFH	ANSI strike		_					.00
C603-897		8 x 3/4"	combo	Latch and strike		_				0.	90

	Tailpiece and Screw Packs
				605 606 609		612	613	622	625	626
	Available Finishes		•	•	•	•	•	•	•	•
Part Number	Description		Price Each
Single Cylinder, B250PD
B202-509	For 1 3/8" - 1 3/4" doors	contains: (1) B202-558 tailpiece (2) B520-086 screws		$21.30
Double Cylinder, B252PD
B202-560	5 pin cyl, for 1 1/2"- 1 3/4" doors	contains: (2) B202-370 tailpiece (2) B202-580 tailpieces (2) B520-267 screws (2) B520-271 screws					$18.50
B220-043	6 pin cyl, for 1 3/4" doors only	contains: (2) B202-369 tailpieces (2) B520-269 screws
	Latch & Strike Screws, All functions, Standard T Strike
B202-517	Latch and strike screws	contains: (4) C603-897 screws					$8.30
	Ordering Instructions: Specify part number and finish.

	Torx Screw Packs
				605 606 609		612	613	622	625	626
	Available Finishes		•	•	•	•	•	•	•	•
Part Number	Description			Price Each
C203-311	Latch and standard strike	contains: (4) C503-766 (T-15)
C203-312	Latch and ANSI strike	contains: (2) C503-766 (T-15) (2) L583-371 (T-20)		$21.30
Notes:	Torx screw packs are furnished with the appropriate T-xx installation tool(s)
	Ordering Instructions: Specify part number and finish.

	Special Parts 6 Extended Lead Time
				605 606 609	612	613	622	625	626
	Available Finishes	•	•	•	•	•	•	•	•
Part Number	Description		Price Each
XQ07-351 xx	10-025 strike, lips through 6" (except 7/8", 11 3/16", 1 3/8" and 1 1/2"). Specify (xx) lip length in part number.		$206.00
XQ03-493 xx	10-001 strike, lips over 2" through 6". Specify (xx) lip length in part number.	123.00
	Ordering Instructions: Specify part number and finish.

Cylinders Only, B100, B250, B400 E/B				Cylinder Only
			Price Each
Description	Part Number		Restricted
5-Pin C, CE, E, F only	22-001
6-Pin Standard	22-002	$64.00	$81.50
Everest SL (R/B Keyways only)	91-008		81.50
Primus®	20-729*
Primus XP	20-729-XP*		141.00
Everest SL Primus XP (R/B Keyways only)	91-707-XP		141.00
Primus UL 437	20-529*
Primus XP UL437	20-529-XP*		174.00
* Must be used in locks with universal housings (B202-824 or B202-825).

Ordering Procedures

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Additional Details
1	10	B560P		626		613		12-289	10-092	214	EE		KA

Line Item: Line item number

Qty: Quantity

Product: Product function + cylinder code

Outside Des: Outside lever design, not applicable for deadbolts. Leave blank

Outside Fin: Outside finish

Inside Des: Inside lever design, not applicable for deadbolts. Leave blankInside Fin: Inside finish, specify only if different from the outside finishHand of door, not applicable for deadbolts. Leave blank

Latch: Product latch, leave blank for standard latch or specify part number if non-standard latch is required. LLL = less latch Strike: Product strike, leave blank for standard strike or specify part number if non-standard strike is required. LLL = less strike Dr Thk: Door thickness, leave blank for standard thickness or specify if non-standard. Example: 138 = 13/8", 214 = 21/4"

Ext: Extension, enter one of the following when door thicknesses 2" or greater are specified: EE = Extended Equally, EI = Extended

Inside, EO = Extended Outside

Dim: Dimension for non-standard strike lip length, not applicable for the B500. Leave blank

Additional

Details: Enter additional detail for keying information or special requirements

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	Engineering specials are denoted by a part number beginning with "X".
5.	denotes a lock or part that requires an extended lead time.
6.	b denotes a handed product and requires handing to be specified.
7.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
8.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
9.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
10.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
11.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
12.	Locks specified with "C"keyway and KD or 0-bitted will receive 6 pin cylinders.
13.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
14.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
15.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
16.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Functions B500-4 Complete Locks B500-5 Options B500-7 Deadbolts. . B500-7 Strikes. . B500-7 Locks Less Components. . B500-7 Non-Standard Door Thickness. . B500-7 Antimicrobial Coating. . B500-7 Parts B500-8 Deadbolts. . . B500-8 Strikes. . . B500-8 Trim. . B500-8 Adapters. . . B500-9 Door Reinforcements. . . B500-9 Occupancy Indicator Emergency Key. . . B500-9 Individual Screws. . . B500-10 Individual Screw Packs. . . B500-11 Cylinders. . . B500-11 Complete Cylinders See Cylinders Section

How To Order Forms & Examples

Finish Codes and Descriptions Code Description

605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Antique Brass
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
619	(US 15)	Satin Nickel
622	(US 19)	Matte Black
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated
626AM		Antimicrobial Coating
		on Satin Chromium
643e		Aged Bronze

Standard Features

Certification ANSI A156.36, 2010, Grade 2. Available UL Listed for 3-hour fire door (except B562 and B571)

With FSIC Interchangeable Core Cylinders: Grade 2

With SFIC Interchangeable Core Cylinders: Grade 3

Deadbolt 1" x 2 1/4", Square corner faceplate, 1" housing diameter, 1" throw

Strike 1 1/8" x 2 3/4", Square corner, box Backset Adjustable for 2 3/8" or 2 3/4"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range 1 3/8" – 1 7/8" standard cylinder or thumbturn only, 1 5/8" - 2" interchangeable core cylinder

Keys Two cut keys per lock, 6-pin, S123 section Reinforcement Metal dust box reinforcer with three - 3" screws

Trim Ring 1" Wrought brass or bronze, reinforced with security insert

ANSI A156.36-2010, Grade 2. Available UL Listed for 3-hour fire door.

Bored Deadbolt Locks

SCHLAGE ANSI

B560P E0152 Single Cylinder Deadbolt Lock

Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown.

B561P E0162 One-Way Deadbolt Lock

Deadbolt thrown or retracted by key only. Blank plate inside. Bolt automatically deadlocks when fully thrown.

B562P E0142 Double Cylinder Deadbolt Lock*

Deadbolt thrown or retracted by key either side. Bolt automatically deadlocks when fully thrown.

B563P E0172 Classroom Deadbolt Lock

Deadbolt thrown or retracted by key outside. Inside turn unit will retract bolt only. Bolt automatically deadlocks when fully thrown.

B571 Door Bolt Occupancy Indicator

Deadbolt thrown or retracted by inside turn unit. Occupancy indicator on outside (reads either in use or vacant). Can use either 2 1/8" or 1 1/2" cross bore prep. Not UL Rated.

B580 E0192 Door Bolt

Deadbolt thrown or retracted by turn unit only. No outside trim. Bolt automatically deadlocks when fully thrown. Can use either 2 1/8" or 1 1/2" cross bore prep.

B581 E01112 Door Bolt with Trim

Deadbolt thrown or retracted by turn unit only. Outside blank plate. Bolt automatically deadlocks when fully thrown. 1 1/2" cross bore prep.

* Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Strikes
10-094 Standard	10-064	10-087	10-092	10-095	10-108

				Cylinder Adjustments
				J = Less FSIC (Full Size Interchangable Core)
		606 609 612 619
		625
							GD HD***
Occupancy indicator x thumbturn
One-way cylinder x blank plate, fire rated	90	96	106	-19	29	105	113
Classroom cylinder outside, retraction turn inside	87	93	103
Classroom cylinder outside, retraction turn inside, fire rated	94	100	110
Double Cylinder	$111			-38	58	210	226
Interchangeable cores available 1 5/8" - 2" doors only.
See Terms and Conditions for ordering information and requirements.
SL Cylinder with Everest B or Everest R keyways add $17.50.
	Description No trim x thumbturn No trim x thumbturn, firerated Blank plate x thumbturn Blank plate x thumbturn, firerated (includes 61-509 emergency release key) Keyed, Single Cylinder Cylinder x thumbturn Cylinder x thumbturn, fire rated One-way cylinder x blank plate Keyed, Double Cylinder	$64 71 64 71 67 83 90 83	605 622 626 643e $70 77 70 77 73 $89 96 89	Finishes 613 $80 87 80 87 83 $99 106 99 $117 $127 Control Keys are not furnished with locks and must be ordered separately. See Keys & Keying.	L L	BDC = Disposable SFIC J BD BDC Interchangeable construction core locks assessed a one-time non-refundable handling charge (50-231) per core.	= Less Standard Cylinder R* = FSIC (Full Size Interchangable Core) T** =Full Size Construction Core BD = Less SFIC (Small Format Interchangeable Core) GD = Everest 29 Patented SFIC HD ** = Construction SFIC R T*** Full size core furnished 1-bitted with two 6-pin keys unless otherwise specified. Not available with 0-bitted interchangeable cores. Temporary cores (TD and HD options) require non-refundable core handling charge (50-231) of $10.40 and will be added to the price of the lock. For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders.

Deadbolts
Specify	Description	List Price Adjustment
12-288	Square corner, 1" x 2 1/4", adjustable 2 3/8" or 2 3/4" backset, 1" housing dia., standard deadbolt
12-289	Round corner (1/4" radius), 1" x 2 1/4", adjustable 2 3/8" or 2 3/4" backset, 1" housing dia.
12-290	Circular drive in deadbolt, adjustable 2 3/8" or 2 3/4" backset, 626 finish only	N/C
12-287	Non fire-rated locks Triple Option - 1/4" radius round corner faceplate w/ 1" x 2 1/4" square corner and circular faceplates, adjustable 2 3/8" or 2 3/4" backset, 1" housing dia. Square corner, 1 1/8" x 2 1/4", adjustable 2 3/8" or 2 3/4" backset. 1" housing dia. Fire-rated (UL Listed) locks
12-291
12-294	Square corner, 1" x 2 1/4", adjustable 2 3/8" or 2 3/4" backset, 1" housing dia., standard fire-rated (UL Listed) deadbolt	N/C
12-633	Square corner, 1" x 2 1/4", 5" backset, 1" housing dia.	26.30
	Ordering instructions: specify desired deadbolt on order only if requesting different from standard.

Strikes
Specify	Description	List Price Adjustment
10-064	Circular drive-in, thimble strike, 1 3/16" dia., 626 finish only.	N/C
10-087	ANSI, box, 1 1/4" x 4 7/8", 1 3/16" lip	$6.20
10-092	Round corner (1/4" radius), 1 1/8" full lip, no box, 1 5/8" x 2 1/4"
10-094	Square corner, no box, 1 1/8" x 2 3/4", standard
10-095	Square corner, full 1 1/8" lip, no box, 1 5/8" x 2 1/4"
10-103	Round corner (1/4"" radius), 1" x 2 1/4", no reinforcement strike provided 605, 609, 630 only	N/C
10-104	Round corner (1/4" radius), 1 1/4" x 3 5/8", 4 hole, no reinforcement strike provided. 605, 609, 620, 630 only
10-108	Round corner, 1 1/8" x 2 3/4", no box
J250-028	2" strike reinforcement screws. 605, 609, 630, 643e only
37-016	Strike reinforcer, use with 10-094 or 10-108
	Ordering instructions: specify desired strike on order only if requesting different from standard.

Locks Less Components
Description	Specify	List Price Adjustment
Less deadbolt	LLL for deadbolt Example: B560P 605 LLL 10-092	-$13.50
Less strike	LLL for strike Example: B560P 605 12-288 LLL	-5.40
Less standard cylinder (B560)	L cylinder suffix Example: B560L	-18.60
Less standard cylinder (B562)	L cylinder suffix Example: B562L	-37.30
Ordering instructions: specify on order only if requesting different from standard.

	Non-Standard Door Thickness
Specify	Description	List Price Adjustment
Door Thickness	Extended Equally (EE) for over 1 3/4" - 2 1/4" doors (except interchangable core locks)	N/C
Door Thickness	Extended Equally (EE) for 1 3/8" to 1 5/8" doors (for interchangable core locks)	$9.10
	Ordering instructions: specify desired thickness on order only if requesting different from standard. EX - B560P 626 2"

	Antimicrobial Coating	6Extended Lead Time
Specify	Description	List Price Adjustment
Finish as 626AM	Antimicrobial coating applied to inside thumbturn and rose, outside trim ring and cylinder faceplate	$18.70
	Ordering instructions: specify on order only if desired option. Ex: B560P 626AM

Deadbolt	ts
		605	606	609	612	613	619	622	625	626	6436
	Available Finishes			•						•
Part Number	Description					Price	Each
12-288	Square corner, 1" x 2 1/4", adjustable 2 3/8" or 2 3/4" backset, 1" housing dia., standard deadbolt					¢26	. 00
12-289	Round corner (1/4" radius), 1" x 2 1/4", adjustable 2 3/8" or 2 3/4" backset, 1" housing dia.					$30	5.00
12-290	Circular drive in deadbolt, adjustable 2 3/8" or 2 3/4" backset, 1" housing dia., 626 finish only	42.00
12-287	Triple Option - 1/4" radius round corner faceplate w/ 1" x 2 1/4" square corner and circular faceplates, adjustable 2 3/8" or 2 3/4" backset, 1" housing dia.					41	.70
12-291	Square corner, 11/8" x 2 1/4", adjustable 2 3/8" or 2 3/4" backset, 1" housing dia.					42	.00
12-633	Square corner, 11/8" x 21/4", 5" backset, 1" housing dia.					92	.80
39-030	Rabbeted deadbolt and strike kit, adapts square corner latches and 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preparations, 605 and 626 only					58	3.10
Ordering Instruction	s: Specify part number and finish.

Strikes
		605	606	609	612	613	619	622	625	626	6436
	Available Finishes	•	•		•						•
Part Number	Description	Price Each
10-064	Circular drive-in, thimble strike, 13/16" diameter, 626 finish only	16.70
10-087	ANSI, box, 11/4" x 4 7/8", 1 3/16" lip	22.90
10-092	Round corner (1/4" radius), 11/8" full lip, no box, 15/8" x 21/4"					7.	90
10-094	Square corner, no box, 11/8" x 2 3/4", standard					12	.20
10-095	Square corner, full 11/8" lip, no box, 15/8" x 21/4"	8.10
10-103	Round corner (1/4" radius), 1" x 2 1/4", no reinforcement strike provided (Available 605, 609, 630 only)					2.	.00
10-104	Round corner (1/4" radius), 11/4" x 3 5/8", 4 hole, no reinforcement strike provided. 605,609, 620, 630 only					2	.40
10-108	Round corner, 11/8" x 2 3/4", no box					17	.60
10-112	Metal dust box and 3 screws, use with 10-094 and 10-108. Finish not applicable					11	.70
37-016	Strike reinforcer, use with 10-094 and 10-108. Finish not applicable					15	.70
Ordering Instruction	s: Specify part number and finish if applicable

Trim	Trim
		605	606	609	612	613	619	622	625	626	643e
	Available Finishes			•			•	•	•	•	•
Part Number	Description					Price	Each
B302-041	Rose and turn		$44.50
B600-018	Mounting plate for rose and turn. Finish not applicable					10.	.30
12-626	Blank rose, exposed screws					25	.30
38-034	Blank mounting plate kit for use on one side of B580					96	.70
B302-045	Classroom rose and turn					44	.50
Ordering Instructions	: Specify part number and finish if applicable.

	Accessories and Adapters
			605 606 609		612	613	619	622	625		626 643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•
Part Number Description Price Each
38-031	2 1/2" diameter adapter ring for 2 1/8" door prep, mounted under cylinder		$19.00
B520-649	Trim ring w/ shield for B560/B562						23.50
B520-650	Trim ring w/ shield for Interchangeable Core functions						23.50
A501-878 Faceplate adapter to adapt 1" faceplate to 1 1/8" door preparation 0.76 (order in multiples of 100)
	Ordering Instructions: Specify part number and finish if applicable.

Door Reinforcements
Part Number	Description	Price Each
A501-565	Reinforcer for 1 3/8" thick nonreinforced metal doors, fits both 7/8" and 1" diameter housings (2 required per lock)	$19.80
A501-566	Reinforcer for 1 3/4" thick nonreinforced metal doors, fits both 7/8" and 1" diameter housings (2 required per lock)
37-016	Door frame strike reinforcer	15.70
Ordering Instructions: Specify part number.

Occupancy Indicator Emergency Key
Part Number	Description	Price Each
61-509	Emergency release key, standard size, for B571 occupancy indicator deadbolt. Includes one key, ring, and instruction tag	$11.00
61-510	Emergency release key, large size, for B571 occupancy indicator deadbolt. Includes one key, ring, and instruction tag	20.90
	Ordering Instructions: Specify part number.

			Available Finishes			605	606	609	612	613	619	622	625		626 643e
		Description		Application		•	•	•	•	•	• Price Each	•	•	•	•
Part Number	Specify Finish	Size	Type	Use with:	Door Thickness						(Order in multiples of 100)
Keyless, B580
B600-066	•	6-32 x 1/4"	PH mach.	Turn	—						$2.40
B600-048		8-32 x 1/2"	PH mach.	Mounting plate	—						1.00
F506-359		8 x 3/4"	RH wood	Mounting plate	—						0.46
		Keyed, Single Cylinder, B560P, B563P
B600-100		1/4"-28 x 1 15/16"	POH mach.	Mounting	1 3/8" - 1 3/4"
B600-101		1/4"-28 x 2 1/2"	POH mach.	Mounting	over 1 3/4" - 2 1/4"						2.40
B600-066	•	6-32 x 1/4"	PH mach.	Turn	—
B520-298		10-32 x 3/8"	PH mach.	Anti-pry shield	—						0.78
		Keyed, Single Cylinder, B560GD, B563GD, B560R, B563R
B600-100		1/4"-28 x 1 15/16"	POH mach.	Mounting	1 3/8" - 2 1/4"
B600-066	•	6-32 x 1/4"	PH mach.	Turn	—						$2.40
		Keyed, Double Cylinder, B562P
B600-047		1/4"-28 x 3 13/64"	PH mach.	Mounting	1 3/8" - 1 3/4"
B600-078		1/4"-28 x 3 29/64"	PH mach.	Mounting	over 1 3/4" - 2 1/4"						$2.40
B520-298		10-32 x 3/8"	PH mach.	Anti-pry shield	—						0.78
		Keyed, Double Cylinder, B562GD, B562R
B600-053		1/4"-28 x 2 61/64"	PH mach.	Mounting	1 3/8" - 2"						$2.40
B520-298		10-32 x 3/8"	PH mach.	Anti-pry shield	—						0.78
Keyless, B571, B581
B520-662		10-32 x 1 1/8"	POH mach.	Mounting	1 3/8" - 1 3/4"
B520-663		10-32 x 1 3/4"	POH mach.	Mounting	over 1 3/4" - 2 1/4"						$2.40
B600-066	•	6-32 x 1/4"	PH mach.	Turn	—
All Functions
C603-897	•	8 x 3/4"	PFH combo	Deadbolt and strike screw	—						$0.90
J250-028		8 x 2"	PFH wood	2˝ strike screw	—						2.00
R525-256		12 x 3"	PFH wood	3˝ Metal dust box screw	—						2.00

	Individual Screw Packs
			605	606	609	612	613	619	622	625		626 643e
		Available Finishes	•	•	•	•	•	•	•	•	•	•
Part Number	Door Thickness	Contents						Price Each
Keyless, B580
61-506	1 3/8" – 2 1/4"	(2) B600-048 (2) F605-359 (4) C603-897 (1) B600-018 (2) B600-066						$17.80
	Keyed, Single Cylinder, B560P, B563P
61-500	1 3/8" – 1 3/4"	(1) B600-018 (2) B600-100 (2) B600-066 (4) C603-897
61-501	over 1 3/4" – 2 1/4"	(1) B600-018 (2) B600-101 (2) B600-066 (4) C603-897						$14.60
		Keyed, Single Cylinder, B560GD, B563GD, B560R, B563R
61-500	1 3/8" – 2"	(1) B600-018 (2) B600-100 (2) B600-066 (4) C603-897						$14.60
	Keyed, Double Cylinder, B562P
61-502	1 3/8" – 1 3/4"	(2) B600-047 (4) C603-897
61-503	over 1 3/4" – 2 1/4"	(2) B600-078 (4) C603-897						$11.10
	Keyed, Double Cylinder, B562GD, B562R
61-507	1 3/8" – 2"	(2) B600-053 (4) C603-897						$11.10
Keyless, B581, B571
61-504	1 3/8" – 1 3/4"	(2) B520-662 (4) C603-897 (2) B600-066 (1) B600-018						$23.10
61-505	over 1 3/4" – 2 1/4"	(2) B520-663 (4) C603-897 (2) B600-066 (1) B600-018
	Ordering instructions: specify part number and finish.

	B500 Series Cylinders - Single Cylinder Deadbolts
				Price Each
Part Number	Description	Door Thickness	Open	Restricted
22-003	Standard	1 3/8" - 1 3/4"
22-004	Standard	1 3/4" - 2 1/4"	$64.00	$81.50
20-188	Primus	1 3/8" – 1 7/8"
20-188-XP	Primus XP	1 3/8" – 1 7/8"
20-189	Primus	1 7/8" – 2 1/4"		141.00
20-189-XP	Primus XP	1 7/8" – 2 1/4"
20-190	Primus UL	1 3/8" – 1 7/8"
20-190-XP	Primus XP UL	1 3/8" – 1 7/8"
20-191	Primus UL	1 7/8" – 2 1/4"		174.00
20-191-XP	Primus XP UL	1 7/8" – 2 1/4"

				Price Each
Part Number	Description	Door Thickness	Open	Restricted
22-645	Standard	1 3/8" - 1 3/4"
22-646	Standard	1 3/4" - 2 1/4"	$64.00	$81.50
20-745	Primus	1 3/8" – 1 7/8"
20-745-XP	Primus XP	1 3/8" – 1 7/8"
20-746	Primus	1 7/8" – 2 1/4"		141.00
20-746-XP	Primus XP	1 7/8" – 2 1/4"
20-545	Primus UL	1 3/8" – 1 7/8"
20-545-XP	Primus XP UL	1 3/8" – 1 7/8"
20-546	Primus UL	1 7/8" – 2 1/4"		174.00
20-546-XP	Primus XP UL	1 7/8" – 2 1/4"

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	B660P		626		613		12-630	10-094	214	EE		KA

Line Item: Line item number

Qty: Quantity

Product: Product function + cylinder code

Outside Des: Outside lever design, not applicable for deadbolts. Leave blank

Outside Fin: Outside finish

Inside Des: Inside lever design, not applicable for deadbolts. Leave blankInside Fin: Inside finish, specify only if different from the outside finishHand of door, not applicable for deadbolts. Leave blank

Latch: Product latch, leave blank for standard latch or specify part number if non-standard latch is required. LLL = less latch Strike: Product strike, leave blank for standard strike or specify part number if non-standard strike is required. LLL = less strike Dr Thk: Door thickness, leave blank for standard thickness or specify if non-standard. Example: 138 = 13/8", 214 = 21/4"

Ext: Extension, enter one of the following when door thicknesses 2" or greater are specified: EE = Extended Equally, EI = Extended

Inside, EO = Extended Outside

Dim: Dimension for non-standard strike lip length, not applicable for the B6/7/8. Leave blank

Additional

Details: Enter additional detail for keying information or special requirements

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	Engineering specials are denoted by a part number beginning with "X".
5.	🕏 denotes a lock or part that requires an extended lead time.
6.	denotes a handed product and requires handing to be specified.
7.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
8.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
9.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
10.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
11.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
12.	Locks specified with "C" keyway and KD or 0-bitted will receive 6 pin cylinders.
13.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
14.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
15.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
16.	Specify LKB if 0-bitted Primus cylinders are required "Less Key Blanks." Deduct $16.40 per cylinder.
17.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Functions B600-4 Complete Locks B600-5 Options B600-7 Deadbolts. . B600-7 Strikes. . B600-7 Locks Less Components. . B600-7 Non-Standard Door Thickness. . B600-7 Antimicrobial Coating. . B600-7 Tamper Resistant Torx Screws. . . . . . . . . . . . . .B600-7 Parts B600-8 Deadbolts. . B600-8 Strikes . B600-8 Trim. . . B600-9 Door Reinforcements. . . B600-9 Screws. . . B600-10 Screw and Ball Bearing Packs. . . B600-10 Torx Screw Packs. . . B600-11 Special Parts. . . B600-11 Cylinders. . B600-12 Complete Cylinders See Cylinders Section How To Order Forms & Examples

		Finish Codes and Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Satin Brass, Blackened
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
619	(US 15)	Satin Nickel
622	(US 19)	Matte Black
625	(US 26)	Bright Chromium Plated
626	(US26D)	Satin Chromium Plated
626AM		Antimicrobial Coating
		on Satin Chromium
643e	(US11)	Aged Bronze

Standard Features

Locks are furnished with standard features unless otherwise specified.

Certification ANSI/BHMA Certified A156.36-2010, Grade 1 auxiliary lock. With FSIC Interchangeable Core Cylinders: Grade 2 With SFIC Interchangeable Core Cylinders: Grade 3 UL Listed for 3-hour fire door, B800-Series is UL437 listed.

Deadbolt 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1" throw

Strike 1 1/8" x 2 3/4", Square corner, box

Backset 2 3/4"

Door Range 1 5/8" - 2" standard cylinder or FSIC; 1 3/4" - 2" SFIC; 1 3/8" - 2 1/2" door bolt only

Reinforcement Metal dust box reinforcer with two 3" screws

Trim Rings 7/8" Solid brass or bronze

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

ANSI/BHMA Certified A156.36-2010, Grade 1 auxiliary lock. UL Listed for 3-hour fire door, B800-Series is UL437 listed.

Bored Deadbolt Locks

SCHLAGE ANSI

B660P B760P

B860P E0151 Single Cylinder Deadbolt Lock

Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown.

B661P B761P

B861P E0161 One-Way Deadbolt Lock

Deadbolt thrown or retracted by key only. Blank plate inside. Bolt automatically deadlocks when fully thrown.

B662P B762P

B862P E0141 Double Cylinder Deadbolt Lock*

Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.

B663P B763P

B863P E0171 Classroom Deadbolt Lock

Deadbolt thrown or retracted by key outside. Inside turn unit will retract bolt only. Bolt automatically deadlocks when fully thrown.

B664P B764P

B864P E0101 Cylinder Lock

Deadbolt thrown or retracted by key from one side. No inside trim. Bolt automatically deadlocks when fully thrown. Requires 1 1/2" cross bore only.

B680 E0191 Door Bolt

Deadbolt thrown or retracted by turn unit only. No outside trim. Bolt automatically deadlocks when fully thrown. Requires 1 1/2" cross bore only. Door range is 1 3/8" - 2 1/2".

* Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Strikes
10-094 Standard	10-064	10-087	10-092	10-095

								Cylinder Adjustments
			Finishes		J			= Less FSIC (Full Size Interchangable Core) R* = FSIC (Full Size Interchangable Core)
			605			T** =Full Size Construction Core		BD = Less SFIC (Small Format Interchangeable Core)
			606 609 612 619 622 625		BDC = Disposable SFIC GD = Everest 29 Patented SFIC HD** = Construction SFIC
Function	Description	626	643e	613	J	R	T**	BD BDC	GD	HD**
B600 Series
Keyless
B680	No trim x thumbturn		$159 $165 $175
Keyed, Single Cylinder
B660P	Cylinder x thumbturn
B661P	One-way cylinder x blank plate		$204 $210 $220		-35		38	N/C	+84	+44
B663P	Classroom cylinder outside, retraction turn inside	212	218	228
B664P	Cylinder x no trim	204	210	220
Keyed, Double Cylinder
B662P	Double Cylinder		$261 $267 $277		-70		+76	N/C	+168	+88
	B700 SERIES: Primus® Controlled Access Cylinder
Keyed, Single Cylinder
B760P	Cylinder x thumbturn
B761P	One-way cylinder x blank plate		$281 $287 $297			+38
B763P	Classroom cylinder outside, retraction turn inside	292	298	308
B764P	Cylinder x no trim	281	287	297
Keyed, Double Cylinder
B762P	Double Cylinder	411	417	427		+76
	B800 SERIES: Primus® High Security Controlled Access Cylinder
Keyed, Single Cylinder
B860P	Cylinder x thumbturn		$307 $313 $323
B861P	One-way cylinder x blank plate
B863P	Classroom cylinder outside, retraction turn inside	325	331	341
B864P	Cylinder x no trim	307	313	323
Keyed, Double Cylinder
B862P	Double Cylinder			$432 $438 $448
Notes	B600, 700, 800 not available less standard cylinder. Control Keys are not furnished with locks and must be ordered separately. See Keys & Keying.
	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
	SL Cylinder with Everest B or Everest R keyways add $17.50.
	* B600R Full Size Core locks furnished 1-bitted with two 6-pin keys unless otherwise specified. Not available with 0-bitted interchangeable cores B700R Full Size Core locks furnished 0-bitted with two 6-pin keys entered as separate line item.
	** Non-disposable construction core locks assessed a one-time non-refundable handling charge (50-231) of $10.40 per core.

Ex: B660R 626 for B660 function with FSIC in 626 finish.

Deadbolts
Specify	Description	List Price Adjustments
12-630	2 3/8" backset, square corner, 1 1/8" x 2 1/4", 1" housing dia.
12-640	2 3/8" backset, circular, drive-in, 1 1/16" housing dia., 626 only
12-631	2 3/4" backset, square corner, 1 1/8" x 2 1/4", 1" housing dia., standard deadbolt	N/C
12-641	2 3/4" backset, circular, drive-in, 1 1/16" housing dia., 626 only
12-632	3 3/4" backset, square corner, 1 1/8" x 2 1/4", 1" housing dia.
12-642	3 3/4" backset, circular, drive-in, 1 1/16" housing dia., 626 only
12-633	5" backset, square corner, 1 1/8" x 2 1/4", 1" housing dia.	$28.10
12-643	5" backset, circular, drive-in, 1 1/16" housing dia., 626 only
12-297	Adjustable 2 3/8" or 2 3/4" backset, square corner, 1 1/8" x 2 1/4", 1" housing dia.
12-317	Adjustable 2 3/8" or 2 3/4" backset, Circular, drive-in, 1" housing dia., 626 only	N/C
	Ordering instructions: specify desired deadbolt on order only if requesting different from standard.

Strikes
Specify	Description	List Price Adjustments
10-094	Square corner, no box, 1 1/8" x 2 3/4", standard
10-064	Circular drive-in, thimble strike, 1 3/16" diameter, 626 finish only
10-087	ANSI, 1 1/4" x 4 7/8", 1 3/16" lip length, box
10-092	Round corner (1/4" radius), 1 5/8" x 2 1/4", 1 1/8" full lip, no box
10-095	Square corner, 1 5/8" x 2 1/4", 1 1/8" full lip, no box	N/C
10-104	Round corner (1/4" radius), 1 1/4" x 3 5/8", 4 hole, 605, 609, 620, 630 finishes only
10-103	Round corner (1/4" radius), 1" x 2 1/4", 605, 609, 630 finishes only
37-016	Strike reinforcer, use with 10-094
J250-028	2" strike reinforcement screws. 605, 609, 630 finishes only
	Ordering instructions: specify desired strike on order only if requesting different from standard.

Locks Less Components
Description	Specify	List Price Adjustment
Less deadbolt	LLL for deadbolt Example: B660P 605 LLL 10-064	-18.90
Less strike	LLL for strike Example: B660P 605 12-630 LLL	-5.90
Less key blanks, B700 and B800 only	LKB	-16.80
Less Cylinder	Not available B600, B700, B800	N/A
Ordering instructions: specify on order only if requesting different from standard.

	Non-Standard Door Thickness
Specify	Description	List Price Adjustments
1 3/8" Door Thickness	1 3/8" door thickness. Not available for interchangeable core locks.	$10.00
Door Thickness	Extended Equally (EE), over 2"-2 1/2" thick doors (not available SFIC; see Special Parts for SFIC conversion kits)	N/C
Note:	For doors over 2 1/2" - 4" thick, see Special Parts for conversion kits.
	Ordering instructions: specify desired thickness on order only if requesting different from standard. EX: B660P 626 1 3/8"

	Antimicrobial Coating	6Extended Lead Time
Specify	Description		List Price Adjustments
Finish as 626AM		Antimicrobial coating applied to inside thumbturn and rose, outside trim ring and cylinder faceplate	$18.60
	Ordering instructions: specify on order only if desired option. Ex: B560P 626AM.

	Tamper Resistant Torx® Screws
Specify	Description	List Price Adjustments
X suffix	Torx latch, strike, and mounting screws. Not available SFIC locks.	$21.90
	Ordering instructions: Add X suffix to lock. Ex: B660PX.

Deadbolt	ts
		605	6	06	609	612	61	3	619	622	625	626	6436
	Available Finishes	•		•	•		•		•	•	•	•	•
Part Number	Description						Pri	ce E	ach
Complete Dead	bolts
12-297	Square corner, adjustable 2 3/8" or 2 3/4" backset, 11/8" x 2 1/4", 1" housing dia.							E0:	70
12-317	Circular, drive-in, adjustable 2 3/8" or 2 3/4" backset, 1" housing dia., 626 only						۶	59.7	/0
12-630	Square corner, 23/8" backset, 11/8" x 21/4", 1" housing dia.
12-640	Circular, drive-in, 2 3/8" backset, 11/16" housing dia., 626 only
12-631	Square corner, 2 3/4" backset, 11/8" x 2 1/4", 1" housing dia., standard deadbolt						!	53.0	0
12-641	Circular, drive-in, 2 3/4" backset, 1 1/16" housing dia., 626 only
12-632	Square corner, 3 3/4" backset, 11/8" x 2 1/4", 1" housing dia.
12-642	Circular, drive-in, 3 3/4" backset, 1 1/16" housing dia., 626 only							92.8
12-633	Square corner, 5" backset, 11/8" x 2 1/4", 1" housing dia						•	72.0	0
12-643	Circular, drive-in, 5" backset, 11/16" housing dia., 626 only
39-030	Rabbeted deadbolt and strike kit (adapts square corner latches and 2 3/4" high square coner strikes to 1/2" rabbeted door and frame preparations). 605 and 626 finish only.							58.1	0
Deadbolts Less	Faceplates
12-650	2 3/8" backset deadbolt unit less faceplate, 1" housing dia.							41.4	0
12-651	2 3/4" backset deadbolt unit less faceplate, 1" housing dia.							+1.4
12-652	3 3/4" backset deadbolt unit less faceplate, 1" housing dia.							31.8	0
12-653	5" backset deadbolt unit less faceplate, 1" housing dia.							01.0
Faceplate kits
12-627	Square corner faceplate, 11/8" x 21/4", includes backplate and screws							0.6
12-628	Circular drive-in faceplate and collar, 626 finish only							0.0
Ordering Instruction	s: Specify part number and finish.

10-094 Standard	10-064	10-087	10-092	10-095
O

Strikes
		605	606	609	612	613	619	622	625	626	643e
	Available Finishes								•
Part Number	Description					Price	Each
10-064	Circular drive-in, thimble strike, 1 3/16" diameter, 626 finish only					$16	5.70
10-087	ANSI, box, 11/4" x 4 7/8", 1 3/16" lip					22.	.90
10-092	Round corner (1/4" radius), 11/8" full lip, no box, 15/8" x 21/4"					7.9	90
10-094	Square corner, no box, 11/8" x 2 3/4", standard					12.	.20
10-095	Square corner, full 1 1/8" lip, no box, 1 5/8" x 2 1/4"					8.	10
10-103	Round corner (1/4" radius), 1" x 2 1/4", no reinforcement strike provided (Available 605, 609, 630 only)					2.0	00
10-104	Round corner (1/4" radius), 11/4" x 3 5/8", 4 hole, no reinforcement strike provided. 605,609, 620, 630 only					2.	40
10-112	Metal dust box and 3 screws, use with 10-094 and 10-108. Finish not applicable.					11.	70
37-016	Strike reinforcer, use with 10-094 and 10-108. Finish not applicable.					15.	.70
K510-066	Plastic dust box for ANSI strike. Finish not applicable.					7.2	20
Ordering Instruction	s: Specify part number and finish if applicable.

Trim
		605	606	609	612	613	619	622	625	626	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•
Part Number	Description					Price	Each
12-617	Rose and turn					$47	7.40
12-618	Rose and turn, classroom function	52.80
12-625	Classroom driver kit. Finish not applicable	10.50
12-626	Blank inside rose, exposed screws, B661					25.	.30
38-034	Blank mounting plate kit for use on one side of B664 or B680					96.	.70
B600-017	Security shield, 21/8" door preparation. Finish not applicable	10.50
B600-018	Mounting plate, turn. Finish not applicable					10.	.30
B610-035	Support (anchor) and mounting screws, B664. Finish not applicable					27.	40
Ordering Instructions	: Specify part number and finish if applicable.

Door Rei	nforcements
Part Number	Description	Price Each
A501-565	Reinforcer for 1 3/8" thick nonreinforced metal doors, fits both 7/8" and 1" diameter housings (2 required per lock)	$19.80
A501-566	Reinforcer for 1 3/4" thick nonreinforced metal doors, fits both 7/8" and 1" diameter housings (2 required per lock)	213.00
37-016	Door frame strike reinforcer	15.70
Ordering Instruction	is: Specify part number.

Screws
					605	606	609	612	613	619	622	625		626 643e
			Available Finishes		•	•	•	•	•	•	•	•	•	•
Part	Specify		Description							Price Each
Number	Finish	Size	Type	Application							(Order in multiples of 100)
C603-256	•	12-24 x 1"	PFH	ANSI strike						$1.00
C603-897	•	8 x 3/4"	combo	Deadbolt and strike						0.90

		Screw and Ball Bearing Packs
				605	606	609	612	613	619	622	625		626 643e
		Available Finishes		•	•	•	•	•	•	•	•	•	•
Part Number	Specify Finish	Door Thickness	Contents						Price Each
Keyless
B610-066	•	Rose trim, B680	(2) Mounting screws						$8.40
	Keyed, Single Cylinder
B610-049		1 3/8" – 2 1/2", B664	2) Mounting screws
B610-050		1 3/8" – 2", B660, 661, 663	(2) Mounting screws						19.60
B610-051		over 2" – 2 1/2", B660, 661, 663	(2) Ball bearings
B610-066	•	Rose trim, B660, 661, 663	(2) Mounting screws						8.40
		Keyed, Double Cylinder (except Interchangeable Core)
B610-053		1 3/8" – 2", B662P	(2) Mounting screws
B610-055		over 2" – 2 1/2", B662P	(2) Ball bearings						19.60
		Keyed, Double Cylinder, Interchangeable Core
B610-054		1 5/8" – 2", B662R	(2) Mounting screws
B610-056		over 2" – 2 1/2", B662R	(2) Ball bearings						19.60
Note:		Above screw packs are also used for B700 and B800 series locks.

				605	606	609	612	613	619	622	625	626	643
D	6	Available Finish	es	•	•	•	•	•	-	•	•	•	•
Part Number	Specify Finish	Door Thickness	Contents					Price	Each
Keyless
B610-066		Rose trim, B680	(2) Mounting screws (T-20)					$9	.70
Keyed, Sin	gle Cylinde	r
B610-059		1 3/8" – 2 1/2", B664	2) Mounting screws (T-30)					20.	.80
B610-065		Rose trim, B660, 661, 663	(2) Mounting screws (T-10)					9.	70
Keyed, Dou	uble Cylinde	er (except Interchangeable C	ore)
B610-061		13/8" – 2", B662P	(2) Mounting screws (T-30)					20	.80
B610-063		over 2" – 2 1/2", B662P	(2) Ball bearings						.00
Keyed, Dou	uble Cylinde	er, Interchangeable Core
B610-062		15/8" – 2", B662R	(2) Mounting screws (T-30)					20	.80
B610-064		over 2" – 2 1/2", B662R	(2) Ball bearings						.00
All Functio	ons
C203-311		Deadbolt and strike	(4)C503-766 (1) T-15 size Torx Bit 8-32 x 1/2"
C203-312		Deadbolt and ANSI strike	(2)C503-766 (1) T-15 size Torx Bit 8-32 x 1/2" (2)L583-371 (1) T-20 size Torx Bit 12-24 x 1/2"					21.	.30
Notes	Torx screw	packs are furnished with approp	riate T-xx installation tool(s).
	Ahove screv	w packs are also used for B700 a	nd R800-Series locks

	🛮 Extended Fa	ctory Lead Time
Part Number	Door Range	Function	Description	Price Each
XB11-916	2"-4"	B660P, B663P		$168.00
XB11-917	2"-3"	B662P		105.00
XB11-918	2"-4"	B760P, B763P B860P, B863P	Screw and tailpiece conversion kit for B600/	168.00
XB11-919	2"-3"	B762P, B862P	700/800-Series Locks to fit doors Extended Equally (EE), over 2" - 4" thick. Specify	168.00
XB11-920	2"-4"	B660R, B660J, B660T, B663R, B663J, B663T, B760R, B763R	door thickness.	105.00
XB11-921	2"-4"	B662R, B662J, B662T, B762R		105.00
XB11-922	2"-4"	B660BD, B660GD, B660HD, B663BD, B663GD, B663HD	Screw and tailpiece conversion kit for B600-Series locks to fit doors Extended Equally (EE), over 2" - 4" thick. Specify door thickness.	105.00
Notes:	: For door thickr	ness and locks not listed above, please use the Innov	vation Center (RFQ) request form

B600/700-Series Cylinder Reference Table
			Cylinder Less		Price Each
Cylinder Mechanism	Function	Door Thickness	Housing	Open	Restricted
B600-Series Standard	B660, B663	1 3/8" – 2 1/2"	22-644	$64.00
B600-Series SL (R/B Keyways only)	B660, B663	1 3/8" – 2 1/2"	91-032
B600-Series Standard	B661, B664	1 3/8" – 2"	22-642	64.00
B600-Series SL (R/B Keyways only)	B661, B664	1 3/8" – 2"	91-030
B600-Series Standard	B661, B664	2" – 2 1/2"	22-643	64.00
B600-Series SL (R/B Keyways only)	B661, B664	2" – 2 1/2"	91-031		$81.50
B600-Series Standard	B662	1 3/8" – 2"	22-085	64.00
B600-Series SL (R/B Keyways only)	B662	1 3/8" – 2"	91-028
B600-Series Standard	B662	2" – 2 1/2"	22-086	64.00
B600-Series SL (R/B Keyways only)	B662	2" – 2 1/2"	91-029
	B760, B763	1 3/8" – 2 1/2"	20-744
		1 3/8" – 2"	20-742	141.00
B700-Series Primus	B761, B764	2" – 2 1/2"	20-743
		1 3/8" – 2"	20-745
	B762	2" – 2 1/2"	20-746
	B760-XP, B763-XP	1 3/8" – 2 1/2"	20-744-XP
	B760-XP, B763-XP (R/B Keyways only)	1 3/8" – 2 1/2"	91-711-XP		141.00
	B761-XP, B764-XP	1 3/8" – 2"	20-742-XP		141.00
B700-Series Primus XP	B761-XP, B764-XP (R/B Keyways only)	1 3/8" – 2"	91-709-XP		141.00
	B761-XP, B764-XP	2" – 2 1/2"	20-743-XP		141.00
	B761-XP, B764-XP (R/B Keyways only)	2" – 2 1/2"	91-710-XP		141.00
	B762-XP	1 3/8" – 2"	20-745-XP		141.00
B700-Series SL Primus XP (R/B Keyways only)	B762-XP	1 3/8" – 2"	91-712-XP		141.00
B700-Series Primus XP	B762-XP	2" – 2 1/2"	20-746-XP		141.00
B700-Series SL Primus XP (R/B Keyways only)	B762-XP	2" – 2 1/2"	91-713-XP		141.00

				Price Each
Cylinder Mechanism	Function	Door Thickness	Cylinder Less Housing	Open	Restricted
	B860, B863	1 3/8" – 2 1/2"	20-544
B800-Series Primus UL437		1 3/8" – 2"	20-542
	B861, B864	2" – 2 1/2"	20-543
		1 3/8" – 2"	20-545
	B862	2" – 2 1/2"	20-546
	B860-XP, B863-XP	1 3/8" – 2 1/2"	20-544-XP		$174.00
		1 3/8" – 2"	20-542-XP
B800-Series Primus-XP UL437	B861-XP, B864-XP	2" – 2 1/2"	20-543-XP
		1 3/8" – 2"	20-545-XP
	B862-XP	2" – 2 1/2"	20-546-XP

Indicates products that have EPD documentation available and meet LEED v4.

Ordering Procedures

To order Schlage products, descriptive data should be in the sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	L9050P	12A	626	06B	613	RH	09-669	10-072	2	EE	134	KA

Line Item: Line item number

Qty: Quantity

Product: Product function + cylinder code

Outside Des: Outside lever design + rose/escutcheon code

Outside Fin: Outside finish

Inside Des: Inside lever design + rose/escutcheon code, specify only if different from the outside lever design

Inside Fin: Inside lever finish, specify only if different from the outside finish

Hand: Hand of door, specify only for handed lever designs or for LM9300 MultiPoint lock

Latch: Product armor front, leave blank for standard armor or specify part number if non-standard armor is required. LLL = less armor front

Strike: Product strike, leave blank for standard strike or specify part number if non-standard strike is required. LLL = less strike Dr Thk: Door thickness, leave blank for standard thickness (13/4") or specify if non-standard. Example: 138 = 13/8", 214 = 21/4" Ext: Extension, enter one of the following when door thicknesses 2" or greater are specified: EE = Extended Equally, EI = Extended Inside, EO = Extended Outside

Dim: Dimension; for locks enter only for non-standard strike lip length, for parts enter for non-standard strike lip length, mortise

cylinder or blocking ring length

Additional

Details: Enter additional detail for keying information or special requirements

Cor	mmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	≅ denotes a lock or part that requires an extended lead time.
5.	denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Functions L-4 L-12 Complete Locks Standard Lever Collection A, B or C Rose Trim.....L-12 Standard Lever Collection Escutcheon Trim . . . . . . . L-14 M Lever Collection A, B or C Rose Trim. L-16 M Lever Collection Escutcheon Trim.....L-18 Commercial Lever Suites . . . . . L-20 L9000-Series Deadbolt Locks.....L-21 L400-Series Deadbolt Locks . . . . . . L-21 cylinder Options L-22 L-22 Options Armor Fronts and Strikes.....L-23 Locks Less Components.....L-24 Locks Less Lock Case.....L-24 Non-Standard Door Thickness .....L-25 Indicators (for Sectional (rose) or N Escutcheon Trim) ....L-26 Tamper-resistant screws.....L-26 Tactile Warning .....L-26 ADA Thumbturn .....L-26 Lever Trak .................................... Special Functions . . . . . . . . . . . . . . . . . . . Anti-Microbial Coating ......L-27 Lead Lining .....L-27 RX .....L-27 Distributor Pack Program Lock Cases . . . . L-29 Trim Packs..... L-30 Armor Fronts, Strikes, Cylinders ......L-31 Parts Miscellaneous Parts.....L-32 Levers & Knobs, Roses, Escutcheons ......L-33 Outside Lever/Knob Assemblies. L-34 Armor Fronts & Strikes .................................... Occupancy Indicators .....L-37 Thru-Bolts . . . . . . . . . . . . . . . . . . . Mounting Posts ......L-38 Springs & Spindles .....L-38 L Lock Cases . . . . . . . . . . L-39 Electrified Lock Cases . . . . L-40 Miscellaneous Parts.....L-41 Classroom Security Function Conversion Kits . . . . . . . L-43 Vandlegard Retrofit kit.....L-43 Screw Packs ..... L-44 Special Parts.....L-44 Mortise Cylinders.....L-45 Allegion Connect Harnesses.....L-46 Complete Cylinders See Cylinders Section How To Order Forms & Examples

BAA/ARRA

Contact your local RSO or Sales Rep. for ordering details

Product Identification L/LV 9 4 53 P Cvlinder Suffix = 6-Pin Full Face Mortise Cylinder with Schlage Logo* = Less Full Face Cylinder = Concealed Mortise Cylinder = Less Concealed Cylinder R = Full Size Interchangeable Core with Schlage Logo J = Less Full Size Interchangeable Core M = Everest 29 SL Full Size Interchangeable Core F = Full Size Interchangeable Core Less Schlage Logo Т = Full Size Construction Core = Less SFIC BDC = Disposable SFIC = Everest 29 Patented SFIC G Н = Construction SFIC = Everest SL 7 pin Cylinder Function 0 = No Deadbolt = Dummy Trim 1 4 = With Deadbolt 0 = Dummy Trim without Lock Case

Finish Codes and Descriptions

SFIC = Small Format (Best® Style) Interchangeable Core

Code			Description
605		(US 3)	Bright Brass
606		(US 4)	Satin Brass
			Antique Brass
			Satin Bronze
			Oil Rubbed Bronze
			Satin Nickel
	4.5		Matte Black
			Bright Chromium Plated
		(US 26D)	Satin Chromium Plated
	40		Antimicrobial Coating on Satin Chromium
	' _'	(US 32)	Bright Stainless Steel
		(US 32D)	Satin Stainless Steel
630AM			Antimicrobial Coating on
			Satin Stainless Steel
643e		(US 11)	Aged Bronze
	605	605 606 609 612 613 619 622 625 626 626AM 629 630 630AM	605 (US 3) 606 (US 4) 609 (US 5) 612 (US 10) 613 (US 10B) 619 (US 15) 622 (US 26) 626 (US 26D) 626AM 629 (US 32D) 630AM

Lock Series Prefix

= Standard

= Vandlgard

Standard Features

L/LV9000: ANSI/BHMA Certified A156.13-2012. Series 1000. Grade 1 Operational. Certifications

Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).

With FSIC Interchangeable Core Cylinders: Grade 2 Security. With SFIC Interchangeable Core Cylinders: Grade 3 Security. L400: ANSI/BHMA Certified A156.36-2010, Grade 1, UL Listed for 3-hour fire door.

L/LV9000: 4 7/16" x 6 1/16" x 1": L400: 4 7/16" x 3 5/8" x 1"

Case Size

L/LV9000: 1 1/4" x 8"; L400: 1 1/4" x 5 9/16" Armor Front

Deadbolt 1" Throw stainless steel

Latchbolt 3/4" Throw stainless steel with anti-friction tongue

L/LV9000:1 1/4" x 4 7/8" Square corner, 1 3/16" lip, box; L400:1 1/8" x 3 5/8" square corner, box Strike

Backset

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range 1 3/4"

Two nickel silver cut keys per lock, 6-pin, S123 section Kevs

= Functions with Lock Case

ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational, Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).

SCHLAGE ANSI L9010 F01

Passage Latch Latchbolt retracted by knob/lever

from either side at all times. Inside knob/lever is always free for immediate egress.

L9025 F31

Exit Lock

No outside trim. Aux Latch. Inside knob/lever only always free for immediate egress.

L9040 F22 LV9040

Bath/Bedroom Privacy Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by inside thumbturn.Turning inside knob/lever or closing door unlocks outside knob/lever. To unlock from outside, remove emergency button, insert emergency thumbturn(furnished) in access hole and rotate. Inside knob/lever is always free for immediate egress.

L9044 LV9044

Privacy With Coin Turn Outside

Latchbolt retracted by knob/lever from either side unless outside is locked by inside thumbturn or outside coin turn. Operating inside knob/lever, closing door, rotating inside thumbturn or rotating outside cointurn unlocks outside knob/lever.

Specify per L283-056 for Torx® screws. Available with rose trim only.

L9440 F19 LV9440

Privacy With Deadbolt

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by inside thumbturn. Throwing deadbolt locks outside knob/lever. Rotating inside knob/ lever simultaneously retracts deadbolt and latchbolt, and unlocks outside knob/lever. To unlock from outside, remove emergency button, insert emergency thumbturn in access hole and rotate. Inside knob/lever is always free for immediate egress.

Mortise Locks Non-Keyed Mortise Locks Non-Keyed

L9444 LV9444

Privacy With Deadbolt and Coin Turn Outside

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by inside thumbturn or outside coin turn. Throwing deadbolt locks outside knob/lever. Rotating inside knob/lever simultaneously retracts deadbolt and latchbolt, and unlocks outside knob/lever. Rotating outside coin turn retracts deadbolt and unlocks outside knob/lever. Specify per L283-056 for Torx screws. Available with rose trim only. Inside knob/lever is always free for immediate egress.

Mortise Locks Non-Keyed Dummy

SCHLAGE ANSI

L0170 Half Dummy Trim

Knob/lever on one side fixed by mounting bar. Not for use on wood doors, or with L escutcheon recommend L9175.

L0172 Full Dummy Trim

Knob/lever on both sides fixed by mounting bar.

L9175 Half Dummy Trim w/ Lock Case

Fixed knob/lever on one side inoperable. Includes lock case and armored front. Options same as L9176 below.

L9176 Full Dummy Trim w/ Lock Case*

Fixed knob/lever on both sides. Includes lock case and blank armor front. May be ordered with optional XL11-743 armored front with cutout to receive deadbolt.

LV - Vandlgard function allows exterior lever to rotate freely down, while remaining securely locked.

^* In a double door application where the dummy will be used as the strike, order 10-091 Armored Front Strike separately.

180 degree messaging indicator available. See options section for details.

SCHLAGE ANSI

L9026

Exit Lock with Cylinder

No outside trim. Inside knob/lever always free for immediate egress. Outside cylinder retracts latchbolt. Auxiliary latch deadlocks latchbolt when door is locked.

L9050 F04 LV9050

Entrance/Office Lock

Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

L9056 LV9056

L9050 With Automatic Unlocking

Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by rotating inside thumbturn. Outside knob/lever unlocked by key outside, thumbturn or closing door. Rotating inside knob/lever simultaneously retracts latchbolt and unlocks outside knob/lever. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

L9060 F09 LV9060

Apartment Entrance Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key from inside. When locked, latchbolt retracted by key outside or knob/lever inside. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

L9070 F05 LV9070

Classroom Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key. Unlocked from outside by key. Inside knob/lever always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

L9071 F32 LV9071

Classroom Security Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/ lever is always free for immediate egress.

Mortise Locks-Keyed Mortise Locks-Keyed

SCHLAGE ANSI

L9076 F06 LV9076

Classroom Holdback Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key. When locked, latchbolt retracted by key outside or knob/lever inside. Auxiliary latch deadlocks latchbolt when door is locked. Depress inside knob/lever and turn key 360º for holdback feature. Inside lever is always free for immediate egress.

L9077 LV9077

Classroom Security Holdback Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. When locked, latchbolt retracted by key outside or knob/lever inside. Auxiliary latch deadlocks latchbolt when door is locked. In locked state, depress inside knob/lever and turn key 360º to engage holdback and unlock door. Inside knob/lever is always free for immediate egress.

L9080 F07 LV9080

Storeroom Lock

Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

L9082 F30 LV9082

Institution Lock*

Latchbolt retracted by key from either side. Knob/lever on both sides always inoperative. Auxiliary latch deadlocks latchbolt when door is locked.

• LV Vandlgard function allows exterior lever to rotate freely down, while remaining securely locked.
• * Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Mortise Locks-Keyed with Deadbolt

SCHLAGE

ANSI

L9453 LV9453

F20

Entrance/Office Lock with Deadbolt

Latchbolt retracted by knob/lever from either side unless outside is locked by 20° rotation of thumbturn. Deadbolt thrown or retracted by 90° rotation of thumbturn. When locked, key outside or knob/lever inside retracts deadbolt and latchbolt simultaneously. Outside knob/lever remains locked until thumbturn is restored to vertical position. Throwing deadbolt automatic

position. Throwing deadbolt automatically locks outside knob/lever. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

L9456 LV9456

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside or inside thumbturn. Throwing deadbolt locks outside knob/lever. Turning inside knob/lever simultaneously retracts deadbolt and latchbolt and unlocks outside knob/lever. Inside knob/lever is always free for immediate egress.

L9457 F33 LV9457

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key from either side. Throwing deadbolt locks outside knob/lever. Turning inside knob/lever simultaneously retracts deadbolt and latchbolt and unlocks outside knob/lever. Inside knob/lever is always free for immediate egress.

L9458 F34 LV9458

Classroom Security Lock w/ Deadbolt and Auxiliary Latch

Latchbolt operated by lever from either side except when outside lever is lock from inside or outside by key. Deadbolt retracted by key from inside or outside. Operating inside lever retracts both bolts and unlocks outside. Auxiliary deadlatch when door is locked. Inside knob/lever is always free for immediate egress.

L9465

Closet/Storeroom Lock

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside.

* Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

0

180 degree messaging indicator available. See options section for details.

Mortise Locks-Keyed with Deadbolt

SCHLAGE ANSI

L9466 F14

Store/Utility Room Lock*

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key from either side.

L9473 F21

Dormitory/Bedroom Lock

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside or thumbturn inside.

L9480 LV9480

Storeroom Lock With Deadbolt

Latchbolt retracted by key outside or by lever or knob inside. Outside knob/lever always fixed. Deadbolt thrown or retracted by key outside or thumbturn inside. Turning inside knob/lever simultaneously retracts both deadbolt and latchbolt. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

L9485 LV9485

Faculty Restroom Lock

Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always fixed. Deadbolt thrown or retracted by inside thumbturn. When deadbolt is thrown, all keys become inoperative except emergency key. Turning inside knob/lever retracts both deadbolt and latchbolt simultaneously. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress. Not available in SFIC or Everest SL.

L9486 LV9486

L/LV9485 with 09-611 indicator Adds 09-611 "Do Not Disturb" indicator

Adds 09-611 "Do Not Disturb" indicator to L/LV9485. Specify L583-375 for "Occupied". NOTE: This is the "old style" indicator, not the 180 degree indicator available on most other functions.

L9496 LV9496

L/LV9456 with 09-611 indicator Adds 09-611 "Occupied" indicator to L/ LV9456. NOTE: This is the "old style" indicator, not the 180 degree indicator

available on most other functions

LV - Vandlgard function allows exterior lever to rotate freely down, while remaining securely locked.

ANSI/BHMA Certified A156.5-2001, Grade 1, UL Listed for 3-hour fire door.

L460 E06071 Cylinder x Thumbturn Lock

Mortise Locks-Small Case Deadbolts

Mortise Locks-Keyed Deadbolts

SCHLAGE ANSI

L9460 F17 Cylinder x Thumbturn Lock

Deadbolt operated by key

Deadbolt thrown or retracted by key outside or thumbturn inside.

SCHLAGE ANSI

L462 E06061 Double Cylinder Lock*

Deadbolt operated by key from either side.

Deadbolt thrown or retracted by key outside or thumbturn inside.

L9463 F29 Classroom Lock

from either side.

Deadbolt thrown or retracted by key from outside. Inside thumbturn cylinder retracts deadbolt but cannot project it.

Deadbolt thrown or retracted by key from outside. Inside thumbturn cylinder retracts deadbolt but cannot project it.

Deadbolt thrown or retracted by key from one side. No trim on oppo- site side.

LV - Vandlgard function allows exterior lever to rotate freely down, while remaining securely locked.

Deadbolt thrown or retracted by key from one side. No trim on opposite side.

Deadbolt thrown or retracted by thumbturn from one side. No trim on opposite side.

L496 Deadbolt With "OCCUPIED" Indicator

Deadbolt thrown or retracted by key outside or thumbturn inside. When deadbolt is thrown "OCCUPIED" plate is displayed.

* Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

180 degree messaging indicator available. See options section for details.

Special Functions

SCHLAGE

L9040 x XL11-446 LV9040

L9110 x XL11-741 Double Dummy With Active Trim

Knob/lever both sides always active. Includes lock case and armor front. Specify per XL11-741. May be ordered with optional XL11-743 armor front with cutout to receive deadbolt only.

Privacy With Turns Both Sides

Latchbolt retracted by knob/lever from either side unless outside is locked by inside or outside thumbturn. Operating inside knob/ lever, closing door or rotating either thumbturn unlocks outside knob/lever. Specify per XL11-446.

L9066 x XL11-897 Storeroom Lock*

Key in either cylinder locks or unlocks both levers. When locked, latchbolt retracted by key either side. Specify per XL11-897.

Special Functions

SCHLAGE

L9482 x XL11-543 LV9482

L9485 x XL11-557 Prison Function Lock

locked. Specify per XL11-543.

Latch retracted by key outside or knob inside. Outside knob always free spinning. Deadbolt only thrown or retracted by guard's key. Inside knob becomes fixed when deadbolt is thrown. Auxiliary latch deadlocks latchbolt when door is locked. Prisoner's key only retracts latchbolt. Furnished standard with

Institution Lock With Deadbolt* Latchbolt retracted by key from either side. Knob/lever on both sides always inoperative. Deadbolt thrown or retraced by key either side. Auxiliary latch deadlocks latchbolt when door is

tamper resistant Torx® screws. Specify per XL11-557. Only available in knob trim.

L9412 x XL11-907 Exit Lock With Deadbolt

Latchbolt retracted by knob/lever inside. Outside knob/lever always fixed. Deadbolt thrown or retracted by inside thumbturn. Turning inside knob/ lever retracts both deadbolt and latchbolt simultaneously. Auxiliary latch deadlocks latchbolt when door is locked. Specify per XL11-907.

L9460 x XL11-635 L9460 With Fixed Dummy Trim

Knob/lever both sides fixed. Deadbolt thrown or retracted by key outside or thumbturn inside. Specify per XL11-635.

L9460, L9462, L9464 x XL11-886

Deadbolt With Retraction By Inside Lever or Knob

L9460: Deadbolt thrown or retracted by key outside or thumbturn inside. Outside knob/lever always fixed. Inside knob/lever active when deadbolt is extended. Rotating inside knob/lever will retract deadbolt. L9462: Same as above, except deadbolt thrown or retracted by key from either side. L9464 (shown): Same as above, except deadbolt thrown or retracted by key from one side. Specify desired function per XL11-886.

Note: 1) For pricing on special functions, see "Special Options" page

• LV Vandlgard function allows exterior lever to rotate freely down, while remaining securely locked.
• * Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

L909x EL/EU Electrified Locks

All locks feature automatic detection and operation with 12 or 24V DC, and a case-mounted switch that allows customer selection of EL (fail safe - power failure allows either knob/lever to retract latchbolt and/or deadbolt) or EU (fail secure - power failure locks both knobs/levers) operation. Please specify lock function as EL or EU for default switch postion. Locks also come standard with Allegion Connect molex connector with 3" lead. Allegion Connect is a molex connector system that allows rapid installation of locks when used with Allegion Connect Harnesses (see page 193) and Allegion Connect Hinges (see Ives pricebook). For more information speak with your sales representative. The molex connector can also be cut off so that the lock can be installed with traditional splicing.

Available options for electrified functions:

Request to Exit .....specify RX in the option string Latchbolt Monitor......specify LX in the option string

Door Position Sensor ... specify DPS in the option string (non deadbolt models only) Deadbolt Monitor ....... specify DM in the option string (deadbolt models only)

L9090EL L9090EU

Electrically locking/unlocking outside lever, no cylinder

Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Inside lever always free for immediate egress.

L9492EL L9492EU

Electrically locking/unlocking outside lever, outside cylinder, inside thumbturn, with deadbolt

Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Deadbolt thrown or retracted by key outside or thumbturn inside. Turning inside knob/lever retracts deadbolt and opens door. When unlocked, rotating outside lever retracts deadbolt and opens door. Aux latch deadlocks latchbolt when door is shut. Inside lever always free for immediate egress.

L9091EL L9091EU

Electrically locking/unlocking both levers, no cylinder

Inside and outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC.

L9493EL L9493EU

Electrically locking/unlocking both levers, outside cylinder, inside thumbturn, with deadbolt

Inside and outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Deadbolt thrown or retracted by key outside or thumbturn inside. When unlocked, rotating inside or outside lever retracts deadbolt and opens door. Aux latch deadlocks latchbolt when door is shut.

L9092EL L9092EU

Electrically locking/unlocking outside lever, Outside cylinder (replaces L9080EL/EU)

levers, Outside cylinder

when door is locked

Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key outside or knob/lever inside. Aux latch deadlocks latchbolt when door is locked. Inside lever always free for immediate egress.

Electrically locking/unlocking both L9494EL L9494EU Inside and outside knob/lever continu-

Electrically locking/unlocking outside lever, inside and outside cylinders, with deadbolt

Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Deadbolt thrown or retracted by key outside or inside. Turning inside knob/lever retracts deadbolt and opens door. When unlocked, rotating outside lever retracts deadbolt and opens door. Aux latch deadlocks latchbolt when door is shut. Inside lever always free for immediate egress.

L9093EL L9093EU

L9094EL

L9094EU

Electrically locking/unlocking outside lever, Inside and outside cylinder

ously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key

outside. Aux latch deadlocks latchbolt

Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key inside or outside or knob/lever inside. Aux latch deadlocks latchbolt when door is locked. Inside lever always free for immediate egress.

L9495EL L9495EU

L9095EL L9095EU

Electrically locking/unlocking both levers, Inside and outside cylinder (replaces L9082EL/EU)

Inside and outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key inside or outside. Aux latch deadlocks latchbolt when dooris locked.

Electrically locking/unlocking both levers, inside and outside cylinders, with deadbolt

Inside and outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Deadbolt thrown or retracted by key outside or inside. When unlocked, rotating inside or outside lever retracts deadbolt and opens door. Aux latch deadlocks latchbolt when door is shut.

LM9300 MultiPoint Lock

For use only with MultiPoint Lock Tornado, Tornado Shutter, Hurricane, or Security solution. Solution requires door and rod set sold through Steelcraft. Please contact your local sales representative for more details. Please specify handing on order (LM9300 handing not field reversible).

LM9310

Passage Latch

Latchbolt retracted by knob/lever from either side at all times. Inside and outside knob/lever Is always free for immediate egress. Auxiliary latch deadlocks latchbolt when door is closed.

LM9370 LMV9370

Classroom Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key. When outside is locked, latchbolt is retracted by key and knob/lever outside or by knob/lever inside. Inside knob/lever is always free for immediate egress. Auxiliary latch deadlocks latchbolt when door is closed.

LM9325

Exit Lock

Latchbolt retracted by knob/lever from inside at all times. No trim on outside. Auxiliary latch deadlocks latchbolt when door is closed.

LM9371 LMV9371

Classroom Security Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. When outside is locked, latchbolt is retracted by key and knob/lever outside or by knob/lever inside. Inside knob/lever is always free for immediate egress. Auxiliary latch deadlocks latchbolt when door is closed.

LM9350 LMV9350

Office and Inner Entry Lock

Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key and knob/lever outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Inside knob/lever is always free for immediate egress. Auxiliary latch deadlocks latchbolt when door is closed.

LM9380 LMV9380

Storeroom Lock

Latchbolt retracted by outside knob/ lever after key inserted and turned 280° or anytime by inside lever. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is always free for immediate egress. Specify handing on order.

180 degree messaging indicator available. See options section for details.

Cast or Forged Lever Designs with Wrought Roses

Note: Above images shown with A Rose (except for ligature resistant trim). Ligature Resistant trim not available for L9496 and L9486 functions.

Wrought Rose Designs

			L-Series (A, B or C Rose Trim) - Standard Collection levers
						Lever or Knob Designs and Finishes
				03	06 07 12I 17 OME	03 06 07 12I 17 OME		Ligature Resistant SK1#	Ligature Resistant SL1#
	Add $98 for Vandlgard Option	Add $975 MultiPoint Lock				6: 01, 02, 05, 18, 41, 42, LAT*, LON* ACCI†, ASTI†, MERI† * Not available 612, 613 † Not available 612, 613, 629, 630
						Finishes
				626	626	605 606 609 612 619 622	613 629 630	630	630
Function			Description			625 643e
Keyless Functions
L9010		LM9310	Passage	$578	$688	$700	$718	$1,510	$1,738
L9025			Exit Lock	449	559	571	589	-	-
LM9325			Exit - MultiPoint Lock Only	1,646	1,756	1,768	1,786	-	-
L9040	LV9040		Privacy	681	791	803	821	1,613	1,841
L9044	LV9044		Privacy w/ coin turn	749	859	871	889	-	-
L9090&91 EL&EU			Electrified Lock (keyless)	997	1,107	1,119	1,137	1,929	2,157
L9440	LV9440		Privacy w/ deadbolt	801	911	923	941	1,733	1,961
L9444	LV9444		Privacy w/ deadbolt and coin turn	866	976	988	1,006	-	-
L0170			Single dummy	191	246	252	262	-	-
L0172			Double dummy	390	500	512	530	-	-
L9175			Single dummy with case	314	369	375	385	-	-
L9176			Double dummy with case	498	608	620	638	-	-
Keyed Single Cylinder Functions
L9026P			Exit Lock with Cylinder	$646	$756	$768	$786	-	-
L9050P	LV9050P	LM9350P	Entrance/Office	772	882	894	912	1,704	1,932
L9056P	LV9056P		Entrance/Office with auto unlocking	853	963	975	993	1,785	2,013
L9070P	LV9070P	LM9370P	Classroom
L9076P	LV9076P		Classroom holdback	772	882	894	912	1,704	1,932
L9080P	LV9080P	LM9380P	Storeroom
L9092P&93P EL&EU			Electrified Lock (outside cylinder)	1,085	1,195	1,207	1,225	2,017	2,245
	LV9453P
L9453P			Entrance w/ deadbolt
L9456P	LV9456P		Corridor w/ deadbolt	801	911	923	941	1,733	1,961
L9465P			Closet/Storeroom w/ deadbolt
L9473P			Dorm/Bedroom w/ deadbolt
L9480P	LV9480P		Storeroom w/ deadbolt	888	998	1,010	1,028	1,820	2,048
L9485P**	LV9485P		Faculty Restroom	853	963	975	993	1,785	2,013
L9486P			Faculty restroom with 09-611 "Do not disturb" indicator	887	997	1,009	1,027	-	-
L9492P&93P EL&EU			Electrified lock (outside cylinder, inside thumbturn, deadbolt)	1,111	1,221	1,233	1,251	2,043	2,271
L9496P	LV9496P		Privacy w/ Deadbolt & 09-611 L583-375 "Occupied" indicator	887	997	1,009	1,027	-	-
Keyed Double Cylinder Functions
L9060P	LV9060P		Apartment entrance
L9071P	LV9071P	LM9371P	Classroom security	$859	$969	$981	$999	$1,791	$2,019
L9077P	LV9077P		Classroom security holdback
L9082P	LV9082P		Institution
L9094P&95P EL&EU			Electrified Lock (Inside and outside cylinder)	1,172	1,282	1,294	1,312	2,104	2,332
L9457P	LV9457P		Classroom security w/ deadbolt	886	996	1,008	1,026	1,818	2,046
L9458P	LV9458P		Classroom security w/ deadbolt & aux latch
L9466P L9494P&95P EL&EU			Storeroom w/ deadbolt Electrified lock (inside and outside cylinder, deadbolt)	859 1,199	969 1,309	981 1,321	999 1,339	1,791 2,131	2,019 2,359
**			Specify door hand for faculty restroom locks. Faculty Restroom locks are furnished 0-bitted with two 6-pin keys unless otherwise specified.
#			Emergency keys must be ordered separately. Specify XL11-000 in comments when ordering ligature-resistant knob and XL12-482 when ordering ligature-resistant lever. Price includes lever/knob, thumbturn & cylinder ring as appropriate. Not available less components or cylinders; less core is available. Mixed trim ligature resistant knob and lever available - specify both XL11-000 and XL12-482 in comments. SL1 and SK1 trim not available with Vandlgard option. SL1 and SK1 trim not available on LM9300 Multi-Point Locks.

Notes: 1) For the Everest 29 T and Everest D family of restricted keyways (Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families. See Terms and Conditions for more information.

Cast or Forged Lever Designs with Cast, Forged, or Wrought Escutcheons

Note: Above images shown with L Escutcheon.

Cast/Forged (L) or Wrought (N)

			L-Series (L or N Escutcheon) - Standard Collection Levers		Lever or Knob Designs and Finishes
					Standard Lead time: 03, 06, 07, 12I, 17, OME
	Add $98 for Vandlgard Option	Add $975 MultiPoint Lock		MER I†, * Not available 612, 613 † Not available 612, 613, 629, 630	6: 01, 02, 05, 18, 41, 42, LAT*, LON*, ACCI† , AST I†,
Function			Description	626	Finishes 605 606 609 612 619 622 625 643e	613 629 630
Keyless Functions
L9010		LM9310	Passage	$715	$727	$745
L9025			Exit Lock	586	598	616
L9040	LV9040		Privacy	818	830	848
L9044*	LV9044		Privacy w/ Coin Turn and Outside Indicator (N Escutcheon Only)	861	873	891
L9444*	LV9444		Privacy w/ Deadbolt, Coin Turn and Outside Indicator (N Escutcheon Only)	1,003	1,015	1,033
L9090&91 EL&EU			Electrified Lock (keyless)	1,134	1,146	1,164
L9440	LV9440		Privacy w/ Deadbolt	938	950	968
L0170			Single Dummy (N Escutcheon Only)	273	279	289
L0172			Double Dummy	527	539	557
L9175			Single Dummy with Case	396	402	412
L9176			Double Dummy with Case	635	647	665
Keyed Single Cylinder Functions
L9026P			Exit Lock with Cylinder	$783	$795	$813
L9050P	LV9050P	LM9350P	Entrance/Office	909	921	939
L9056P	LV9056P		Entrance/Office w/ Auto Unlocking	990	1,002	1,020
L9070P	LV9070P	LM9370P	Classroom		921	939
L9076P	LV9076P		Classroom Holdback	909
L9080P	LV9080P	LM9380P	Storeroom
L9092P&93P EL&EU			Electrified Lock (outside cylinder)	1,222	1,234	1,252
L9453P	LV9453P		Entrance/Office w/ Deadbolt
L9456P	LV9456P		Corridor w/ Deadbolt
L9465P			Closet/Storeroom w/ Deadbolt	938	950	968
L9473P			Dorm/Bedroom w/ Deadbolt
L9480P	LV9480P		Storeroom w/ Deadbolt	1,025	1,037	1,055
L9485P**	LV9485P		Faculty Restroom	990	1,002	1,020
L9492P&93P EL&EU			Electrified lock (outside cylinder, inside thumbturn, deadbolt)	1,248	1,260	1,278
Keyed Double Cylinder Functions
L9060P	LV9060P		Apartment Entrance
L9071P	LV9071P	LM9371P	Classroom Security
L9077P	LV9077P		Classroom Security Holdback	$996	$1,008	$1,026
L9082P	LV9082P		Institution
L9094P&95P EL&EU			Electrified Lock (Inside and outside cylinder)	1,309	1,321	1,339
L9457P	LV9457P		Classroom Security w/ Deadbolt
L9458P	LV9458P		Classroom Security w/ Deadbolt & Aux Latch	1,023	1,035	1,053
L9466P			Storeroom w/ Deadbolt	996	1,008	1,026
L9494P&95P EL&EU			Electrified lock (inside and outside cylinder, deadbolt)	1,336	1,348	1,366
*			Not available less indicator or in 612, 613 finish. Indicator price already included.

• Notes: 1) For the Everest 29 T and Everest D family of restricted keyways (Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families See Terms and Conditions for more information.
  • 2) L escutcheon available 1 3/8"- 2 1/2" doors non-Vandlgard functions, 1 3/4"-2 1/2" doors on Vandlgard functions. N escutcheon available 1 3/4" 2 1/4" non-Vandlgard and Vandlgard functions

Cast or Forged Lever Designs with Wrought Roses

Wrought Rose Designs

Note: Above images shown with A Rose.

Function Keyless Functions L9010 L9025 LM9325 L9040 L9044 L9090&91 EL&EU L9440 L9444 L0170 L0172 L9175 L9176 Keyed Single Cylinder Functions L9026P L9050P L9056P L9070P LV9070P L9076P L9080P L9092P&93P EL&EU L9453P L9456P L9465P L9473P L9480P L9485P** L9486P L9492P&93P EL&EU L9496P	Add $98 for Vandlgard Option LV9040 LV9044 LV9440 LV9444 LV9050P LV9056P	Add $975 MultiPoint Lock Description LM9310 Passage Exit Lock Exit - MultiPoint Lock Only Privacy Privacy w/ Coin Turn Electrified Lock (keyless) Privacy w/ Deadbolt Privacy w/ Deadbolt and Coin Turn Single Dummy Double Dummy Single Dummy with Case Double Dummy with Case Exit Lock with Cylinder LM9350P Entrance/Office Entrance/Office w/ Auto Unlocking LM9370P Classroom	Lever Designs Standard Lead time: M51, M52, M81 6: M54, M56, M61I, M63I, M83, M84, M85 6: M53, M55, M57†, M62I†, M82, ME1I, ME2I, ME3 † Available 629 and 630 only Finishes 605 606 609 619 622 625 626 629 630 643e $718 589 1,786 821 889 1,137 941 1,006 262 530 385 638 $786 912 993
	LV9076P	Classroom Holdback	912
	LV9080P	LM9380P Storeroom
		Electrified Lock (outside cylinder)	1,225
	LV9453P	Entrance/Office w/ Deadbolt
	LV9456P	Corridor w/ Deadbolt	941
		Closet/Storeroom w/ Deadbolt
		Dorm/Bedroom w/ Deadbolt
	LV9480P	Storeroom w/ Deadbolt	1,028
	LV9485P	Faculty Restroom	993
		Faculty restroom with 09-611 "Do not disturb" indicator Electrified lock (outside cylinder, inside thumbturn, deadbolt)	1,027 1,251
	LV9496P	Privacy w/ Deadbolt & 09-611 L583-375 "Occupied" indicator	1,027
Keyed Double Cylinder Functions
L9060P	LV9060P	Apartment Entrance
L9071P	LV9071P	LM9371P Classroom Security	$999
L9077P	LV9077P	Classroom Security Holdback
L9082P	LV9082P	Institution
L9094P&95P EL&EU		Electrified Lock (Inside and outside cylinder)	1,312
L9457P	LV9457P	Classroom Security w/ Deadbolt
L9458P		Classroom Security w/ Deadbolt & Aux Latch	1,026
L9466P		Storeroom w/ Deadbolt	999
L9494P&95P	LV9458P
EL&EU		Electrified lock (inside and outside cylinder, deadbolt)	1,339

Notes: 1) For the Everest 29 T and Everest D family of restricted keyways (Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families. See Terms and Conditions for more information.

Cast or Forged Lever Designs with Cast, Forged, or Wrought Escutcheons

Note: Above images shown with L escutcheon.

Cast/Forged (L) or Wrought (N)

				Lever Designs
				Standard Lead time: M51, M52, M81
	Add $98 for Vandlgard Option	Add $975 MultiPoint Lock		6: M54, M56, M61I, M63I, M83, M84, M85 6: M53, M55, M57†, M62I†, M82, ME1I, ME2I, ME3 † Available 629 and 630 only
				Finishes
Function			Description	605 606 609 619 622 625 626 629 630 643e
Keyless Functions
L9010		LM9310	Passage	$745
L9025			Exit Lock	616
L9040	LV9040		Privacy	848
L9044*	LV9044		Privacy w/ Coin Turn and Outside Indicator (N Escutcheon Only)	891
L9444*	LV9444		Privacy w/ Deadbolt, Coin Turn and Outside Indicator (N Escutcheon Only)	1,033
L9090&91 EL&EU			Electrified Lock (keyless)	1,164
L9440	LV9440		Privacy w/ Deadbolt	968
L0170			Single Dummy (N Escutcheon only)	289
L0172			Double Dummy	557
L9175			Single Dummy with Case	412
L9176			Double Dummy with Case	665
Keyed Single Cylinder Functions
L9026P			Exit Lock with Cylinder	$813
L9050P	LV9050P	LM9350P	Entrance/Office	939
L9056P	LV9056P		Entrance/Office w/ Auto Unlocking	1,020
L9070P	LV9070P	LM9370P	Classroom
L9076P	LV9076P		Classroom Holdback	939
L9080P	LV9080P	LM9380P	Storeroom
L9092P&93P EL&EU			Electrified Lock (outside cylinder)	1,252
L9453P	LV9453P		Entrance/Office w/ Deadbolt
L9456P	LV9456P		Corridor w/ Deadbolt
L9465P			Closet/Storeroom w/ Deadbolt	968
L9473P			Dorm/Bedroom w/ Deadbolt
L9480P	LV9480P		Storeroom w/ Deadbolt	1,055
L9485P**	LV9485P		Faculty Restroom	1,020
L9492P&93P EL&EU			Electrified lock (outside cylinder, inside thumbturn, deadbolt)	1,278
Keyed Double Cylinder Functions
L9060P	LV9060P		Apartment Entrance
L9071P	LV9071P	LM9371P	Classroom Security	$1,026
L9077P	LV9077P		Classroom Security Holdback
L9082P	LV9082P		Institution
L9094P&95P EL&EU			Electrified Lock (Inside and outside cylinder)	1,339
L9457P	LV9457P		Classroom Security w/ Deadbolt	1,053
L9458P	LV9458P		Classroom Security w/ Deadbolt & Aux Latch
L9466P			Storeroom w/ Deadbolt	1,026
L9494P&95P EL&EU			Electrified lock (inside and outside cylinder, deadbolt)	1,366
*			Not available less indicator or in 612, 613 finish. Indicator price already included.

• Notes: 1) For the Everest 29 T and Everest D family of restricted keyways (Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families. See Terms and Conditions for more information.
  • 2) L escutcheon available 1 3/8"- 2 1/2" doors non-Vandlgard functions, 1 3/4"-2 1/2" doors on Vandlgard functions. N escutcheon available 1 3/4" - 2 1/4" non-Vandlgard and Vandlgard functions

Commercial Lever Suite

Standard Levers

L Mortise	LT Tubular	ND Cylindrical	AL Cylindrical	S Tubular	33A/35A, 94/95, 98/99 Exit Devices (Von Duprin)
01	01				01
02	02				02
03	03	Tubular			03
05	05				05
06	06	Rhodes	Saturn	Saturn	06
07	07	Athens	Jupiter	Jupiter	07
12	12				12
17	17	Sparta	Neptune	Neptune	17
18	18				18
Latitude	Latitude				Latitude
Longitude	Longitude				Longitude
Omega	Omega	Omega	Omega		16
Asti	Asti			Flair	Asti
Merano	Merano				Merano
Accent	Accent				Accent
M52*	M52*	Broadway
M81*	M81*	Boardwalk

^* The M52 is equivalent to the Broadway lever and the M81 is equivalent to the Boardwalk lever.

M Collection Levers
L Mortise	LT Tubular	33A/35A, 94/95, 98/99 Exit Devices (Von Duprin)
M51	M51	M51
M52	M52	M52
M53	M53	M53
M54	M54	M54
M55	M55	M55
M56	M56	M56
M57	M57	M57
M61	M61	M61
M62	M62	M62
M63	M63	M63
M81	M81	M81
M82	M82	M82
M83	M83	M83
M84	M84	M84
M85	M85	M85
ME1	ME1	ME1
ME2	ME2	ME2
ME3	ME3	ME3

	L9000-Series Deadbolt Locks				Ligature Resistant Cylinder Blocking Ring
				Finishes
Part Number	Description	626	605 606 609 612 619 622 625 643	613 629 630	630
Keyed
L9460P	Single cylinder outside, turn inside	$437	$443	$453	$836
L9462P	Double cylinder	530	536	546	786
L9463PI	Single cylinder outside, classroom turn inside	530	536	546	-
L9464P	Single cylinder outside, blank inside	362	368	378	500

For the Everest 29 T and Everest D family of restricted keyways (Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families. See Terms and Conditions for more information.

	L400-Series Deadbolt Locks
				Finishes
Part Number	Description	626	605 606 609 612 619 622 625 643	613 629 630	630
Keyed
L460P	Single cylinder outside, turn inside	$288	$294	$304	$686
L462P	Double cylinder	340	346	356	594
L463PI	Single cylinder outside, classroom turn inside	340	346	356	-
L464P	Single cylinder outside, blank inside	279	285	295	416
L496P	L460 with 09-611 L583-375 "Occupied" indicator	417	423	433	-
Keyless
L480	Door bolt	240	246	256	524

For the Everest 29 T and Everest D family of restricted keyways (Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families. See Terms and Conditions for more information.

^# Specify XL11-000 in comments when ordering ligature-resistant option.

Cylinder Adjustments
Specify	Description	Lock Price Adjustment (per cylinder)
	Concealed Cylinder (L Escutcheon only)
C Suffix	Concealed cylinder for L escutcheon	$26.00
Full Size Interchangeable Core (FSIC)
R Suffix	Full size core (furnished 1-bitted w/ two 6-pin keys unless otherwise specified)	$73.00
J Suffix	Less full size core	N/C
Full Size Construction Core
T Suffix	Full size construction core (assessed handing charge 50-231 per core)	$73.00
	Small Format Interchangeable Core (SFIC) (Not available with Hotel Functions L9485 or L9486)
GD Suffix	Everest patented core (specify key symbol; see Terms & Conditions for more details)	$84.00
BD Suffix	Less small format core	N/C
	Small Format Construction Core & Disposable Core
HD Suffix	Small format construction core (assessed handing charge 50-231 per core)	$44.00
BDC Suffix	Small format disposable core	N/C
Construction Core Handling Charge
50-231	Handing charge for construction core (assessed per core, non-refundable)	$10.40
Notes	Control keys are not furnished with locks and must be purchased separately. See Keys & Keying. Interchangeable cores are not available with concealed cylinders.
	Ordering instructions: Add suffix to lock function. Ex: L9050J (L9050 function less full size core)

	Primus / Primus XP - available through specific channels based on security levels. See Terms & Conditions for details.
Specify	Description	Lock Price Adjustment
Full-Face Primus Cylinders
L Suffix	Order lock less cylinder; order Primus cylinder 20-787 or 20-793 separately	-$85 per cylinder
20-787	Full-face Primus cylinder w/ compression ring & spring (for use with rose trim)	164.00
20-793	Full-face Primus cylinder only (for use with escutcheon trim)	154.00
Concealed Primus Cylinders
W Suffix	Order lock less concealed cylinder; order Primus cylinder 20-589 separately	$27.00
20-589	Concealed Primus cylinder (for use with L escutcheon w/ concealed cylinder only)	218.00
	Full-Size Interchangeable Primus Core
J Suffix	Order lock less full size core; order full-size Primus core 20-740 separately	N/C for J Suffix
20-740	Full-size interchangable Primus core	$152.00
	Notes Primus not available for Faculty Restroom function (L9485, L9486)
	Ordering instructions: Add suffix to lock function, order Primus cylinder separately. Ex: L9050W (L9050 function less concealed cylinder) order 20-589 on separate line.

Specify	Armor Fronts, L9000 & L400-Series Description	Lock Price Adjustment
	1 1/4" Wide (Standard armor size for 1 3/4" and larger door thicknesses)
09-661	Blank (L9175, L9176)
09-662	Latch only (L9010, L9040, L9044)
09-663	Latch x aux latch (L9050, L9056, L9060, L9070, L9071, L9080, L9082, L9090/91/92/93/95/95*)
09-713	Latch x aux latch (L9076, L9077)
09-664	Latch x deadbolt (L9440, L9444, L9456, L9457, L9465, L9466, L9473, L9496)	N/C
09-665	Deadbolt (L9460, L9462, L9463, L9464)
09-666	Latch x aux latch x deadbolt (L9453, L9458, L9480, L9485, L9486, L9492/93/94/95)
09-717	Deadbolt armor (L460, L462, L463, L464, L480, L496)
	1 1/16" Wide (recommended armor size for doors thinner than 1 3/4", including 1 3/8" doors)
09-667	Blank (L9175, L9176)
09-668	Latch only (L9010, L9040, L9044)
09-669	Latch x aux latch (L9050, L9056, L9060, L9070, L9071, L9080, L9082, L9090/91/92/93/94/95*)
09-718	Latch x aux latch (L9076, L9077)	N/C
09-670	Latch x deadbolt (L9440, L9444, L9456, L9457, L9465, L9466, L9473, L9496)
09-671	Deadbolt (L9460, L9462, L9463, L9464)
09-672	Latch x aux latch x deadbolt (L9453, L9458, L9480, L9485, L9486, L9492/93/94/95)
	*For L9090/91/92/93/94/95 with DPS use armor 09-666 (1 1/4" wide) or 09-670 ( 1 1/16 wide)
	Ordering instructions: Specify on order only if requesting other than default.

10-072 L9000 Standard	10-073 L9000 Deadbolt Standard	XL11-820	XL11-821	10-079 L400 Deadbolt Standard	10-078

	Strikes, L9000 and L400 Series
Specify	Description	Lock Price Adjustment
Strikes, L9000 Series
10-072	1 1/4" x 4 7/8" square corner strike + box, 1 3/16" lip length, standard L9000 strike
10-072 xx	1 1/4" x 4 7/8" square corner strike + box; specify lip length (xx) as 7/8", 1" or 1 1/2"	N/C
10-072 xx	1 1/4" x 4 7/8" square corner strike + box; specify lip length (xx) as 1 3/4" or 2"	$31.30
10-073	Deadbolt lock strike, standard for L9460, L9462, L9463 and L9464	N/C
10-075	1/2" rabbeted strike	108.00
37-015	Door frame strike reinforcer (finish not applicable)	N/C
XL11-8206	One hole strike for latching functions, RH & LHR doors
XL11-8216	One hole strike for latching functions, LH & RHR doors	13.40
Strikes, L400 Series
10-078	1 1/4" x 4 7/8" square corner strike + box
10-079	1 1/8" x 3 1/2" square corner strike + box, ANSI 115.5 prep, standard L400 strike	N/C
	Ordering instructions: Specify on order only if requesting other than default.

Locks Less Compone	nts
Description	Specify	Lock Price Adjustment
Less each knob or lever	LLL for knob/lever design Example: L9050P LLL/03A x 03A	-$27.50
Less each rose or escutcheon	LLL for rose/escutcheon design Example: L9050P 03A x 03A/LLL	-27.50
Less complete trim one side* (Less inside trim not recommended as additional parts may be required)	LLL for complete trim outside Example: L9050P LLL x 03A	-55.00
Less full face cylinder (rose trim)	L suffix Example: L9050L 03A	-85.00 per cylinder
Less full face cylinder	L suffix Example: L9050L 03L	-74.00 per cylinder
Less concealed cylinder (L escutcheon only)	W suffix Example: L9050W 03L	-74.00 per cylinder
Less hotel cylinder (rose trim)	L suffix, Faculty Restroom Function (L9485 or L9486) Example: L9485L 03A	-123.00
Less hotel cylinder (escutcheon trim)	L suffix, Faculty Restroom Function (L9485 or L9486) Example: L9485L 03L	-117.00
Less armor front	LLL for armor front Example: L9050P 03A 626 LLL 10-072	-16.80
Less strike	LLL for strike Example: L9050P 03A 612 09-663 LLL	-13.20
Less complete trim both sides	LLL for complete trim both sides Example: L9050L LLL 626 LLL 626 09-663 LLL Lock case, strike and armor front only	Sum of applicable deducts, use 06A design and specified finish for base price.
*	L283-150 furnished to mount inside trim when lock is ordered less outside trim for rose	designs only. Add $40.40 per lock.

Note:

L-Series locks ordered less all components are furnished as lock cases. See L Parts: Lock Cases. Not available with ligature resistant knob (SK1, XL11-000 option) or ligature resistant lever (SL1, XL12-482 option).

Locks Less Lock Case (Trim Kits)
Function	Specify	Lock Price Adjustment
L9010	Function, design, finish, LLL for armor, LLL for strike and "less lock case"	-$176.00
L9040, L9044, L9440, L9444	Example: L9010 O3A 626 LLL LLL, less lock case	-220.00
L9050, L9056, L9070, L9076, L9080		-295.00
L9453, L9456, L9465, L9473, L9480, L9485, L9486, L9486 "Occupied", L9496	Function less cylinder (use L suffix), design, finish, LLL for armor, LLL for strike, and "less lock case" Example: L9050L 06L 613 LLL LLL, less lock case	-320.00
L9060, L9071, L9077, L9082, L9457, L9466	- Example. E3030E OOL OI3 EEE EEE, 1633 lock case	-362.00

3) Locks less lock case are furnished less cylinder(s), armor front, and strike. Included are complete sets of outside and Notes: inside trim with spring cages, spindles, mounting screws and thru-bolts as required for the function specified.

• 4) Deductions are applied to complete lock prices.
• 5) Not available with SK1, XL11-000 ligature resistant knob trim or SL1, XL12-482 ligature resistant lever trim.

	Non Standard Door Thickness
Specify	Description	Lock Price Adjustment
Keyless Functions
1 3/8"	1 3/8" door thickness (not available with LV (Vandlgard) functions)	N/C
thickness &	For > 1 3/4" - 2 1/2" thick doors, specify (xx) Extended Inside (EI), Outside (EO), Equally (EE) or Differently (ED)
how applied (xx)	For > 2 1/2" - 4" thick doors, specify (xx) Extended Inside (EI), Outside (EO), Equally (EE) or Differently (ED)	$102.00
Single Cylinder Functions
1 3/8"	1 3/8" door thickness (not available with LV (Vandlgard) functions)	N/C
thickness &	For > 1 3/4" - 2 1/2" thick doors
how applied (xx)	For > 2 1/2" - 4" thick doors - specify (xx) Extended Inside (EI)	$102.00
	For > 2 1/2" - 4" thick doors - specify (xx) Extended Outside (EO), Equally (EE), or Differently (ED)	501.00
Double Cylinder Functions
1 3/8"	1 3/8" door thickness (not available with LV (Vandlgard) functions)	N/C
thickness &	For > 1 3/4" - 2 1/2" thick doors
how applied (xx)	For > 2 1/2" - 4" thick doors - specify (xx) Extended Inside (EI) or Extended Outside (EO)	$501.00
	For > 2 1/2" - 4" thick doors - specify (xx) Extended Equally (EE) or Extended Differently (ED)	895.00
L400 Deadbolt Functions
Thickness	For 1 3/4" - 3" thick doors, Extended Equally only	N/C
Notes	Price keyed locks less cylinders (L or W suffix) same as keyless locks
	Locks furnished Extended Equally unless otherwise specified
	Door thickness must be specified in 1/4" increments only, except for 1 3/8" thick doors
	Locks w/ N Escutcheon only available for 1 3/4" - 2 3/8" thick doors
	Locks with small format interchangable cores (BD, BDC, GD, HD suffix) only available for 1 3/8" - 2 1/4" thick doors, EE & EO only
	L9463 function is only available for doors up to 3 5/8" thick extended equally
	LV (Vandlgard) option only available for 1 3/4" - 3" thick doors
	Ligature resistant knob (SK1) and lever (SL1) only available on 1 3/4" doors

Indicators (180 degree visibility - for Sectional (rose) or N Escutcheon Trim)
Specify	Description	Lock Price Adjustment
9371, 460, 462, 463, 480	Inside indicators: Available for L/LV9040, 9044, 9050, 9056, 9060, 9071, 9077, 9440, 9444, 9456, 9457, 9458, 9460, 9462, 9463, 9466, 9473, 9480, 9485, 9350,
L283-711	LOCKED/UNLOCKED indicator for inside of door	$108.00
L283-712	VACANT/OCCUPIED indicator for inside of door	108.00
L283-713	DO NOT DISTURB indicator for inside of door	108.00
L283-714	symbols only indicator for inside of door	108.00
9485, 9350, 9370, 9371, 460, 462, 463, 464	Outside indicators: L/LV9040, 9044, 9050, 9056, 9060, 9070, 9071, 9076, 9077, 9440, 9444, 9456, 9457, 9458, 9460, 9462, 9463, 9464, 9465, 9466, 9473, 9480,
L283-721	LOCKED/UNLOCKED indicator for outside of door	$108.00
L283-722	VACANT/OCCUPIED indicator for outside of door	108.00
L283-723	DO NOT DISTURB indicator for outside of door	108.00
L283-724	symbols only indicator for outside of door	108.00
Notes:	1) Indicators available in all finishes except 612 and 613
	2) Indicators used on L9040/L9440 functions use screwdriver for privacy override instead of emergency key
	3) Indicator option available either inside or outside of door only.
	4) Cylinder and sectional indicators require additional door preparation.
	5) For N Escutcheon Trim, inside indicator is not available for use when an outside coin turn is selected.

Tamper Resistant Torx® Screws
Specify	Description	Lock Price Adjustment
Torx Screws	Torx screws - compatible with armor, strike, rose trim, thumbturns, L escutcheon trim (1 3/4" doors only)	$22.20
Torx Screws + XL11-8486	Torx screws for armor, strike, and N escutcheon trim (1 3/4" doors only)
	Ordering instructions: include in order under "Additional Details".

Tactile Warning
Specify	Description	Lock Price Adjustment
'8' lever prefix	Tactile warning applied to outside lever; available on 01, 02, 03, 05, 06, 07, 12, 17, 18, M51, M52, M81, ME1, ME2, ME3 lever designs	$47.80
Ordering instructions: Preface lever design code with 8. EX - 803, for 03, 806 for 06, 851 for M51, etc.

ADA Thumbturn*
Specify	Description	Lock Price Adjustment
L583-363	ADA Disability thumbturn option	$16.80
* Available w/ all thumbturn functions except L9463 and L463. Not available with ligature-resistant knob (SK1) or lever (SL1)
Ordering instructions: include in order under "Additional Details".

Folger Adam Co® Lever Trak™
Specify	Description	Lock Price Adjustment
503 Lever Design	Modified inside and outside 03 lever for Folger Adam Co. ® Lever Trak™. Available rose trim only, not available 629 or 630 finish.	$105.00
Ordering instructions: Specify lever design as 503.

	Special Options
Specify	Description	Lock Price Adjustment
XL11-422	Nylon latchbolt insert, for use with electric strikes	$107.00
XL11-446	L9040 with thumbturn both sides (not available with N escutcheon trim)	449.00
XL11-543	L9482 (L9082 with deadbolt)	L9082 + 596.00
XL11-557	L9485 prison function lock. Latch retracted by key outside or knob inside. Outside knob always free spinning. Deadbolt only thrown or retracted by guard's key. Inside knob becomes fixed when deadbolt thrown. Prisoner's key only retracts latchbolt. Furnished standard with Torx® screws	706.00
XL11-635	L9460 with fixed double dummy trim	L9456+390.00
XB11-720	L9463 or L463 with B100-series style thumbturn	205.00
XL11-741	L9110 active double dummy trim	L9010 +295
XL11-743	Armor front with cutout to receive deadbolt only, for use with dummy functions	132.00
XL11-886	L9460 with trim. Inside knob or lever retracts deadbolt. Outside knob or lever fixed.	L9456 +$390.00
XL11-886	L9462 with trim. Inside knob or lever retracts deadbolt. Outside knob or lever fixed.	L9082 + $416.00
XL11-886	L9464 with trim. Inside knob or lever retracts deadbolt. Outside knob or lever fixed.	L9456 +$390.00
XL11-907	L9412 exit lock with deadbolt for escutcheon designs only	L9080 +$378.00
XL11-897	L9066 storeroom lock, latchbolt retracted by key either side	L9060 + 444.00
	Ordering instructions: Add XL/XB number under "Additional Details" section of order.

Antimicrobial Coating
Specify	Description	Lock Price Adjustment
626AM or 630AM	Rose Trim: Adds silver-ion based anti-microbial coating to inside lever, bushing, rose & thumbturn and outside lever, bushing, rose, cylinder ring, and cylinder faceplate
626AM or 630AM	Escutcheon Trim: Adds silver-ion based anti-microbial coating to inside lever, bushing, escutcheon & thumbturn and outside lever, bushing, escutcheon, and cylinder face plate	$50.90
Ordering instructions: Specify finish as either 626AM or 630AM.

Lead Lining
Specify	Description	Lock Price Adjustment
XL11-515 xx	Lead lining, 1/8" thick installed on L9000 mortise lock case cover. Specify handing (xx) as RH, RR, LH, LR
XL12-216 xx	Lead lining, 1/8" thick installed on L400 mortise deadbolt case cover. Specify handing (xx) as RH, RR, LH, LR	$507.00
Ordering instructions: add lock handing and appropriate XL # to order. EX: L9050P 03A 626 RH XL11-515 (L9050P, 03A trim, 626, Right Handed, Lead Lining).

Monitor (DM)	Request to Exit (RX), Latchbolt Monitor (LX), Door Position Sensor (DPS), Deadbolt
Specify	Description	Lock Price Adjustment
	L909x and L949x Electrified Mortise Options + specified mechanical functions
RX	Request to Exit (available all L909x and L949x electrified + L9010/50/56/70/71/80 and L9453/56/58/65/66/80/85 mechanical functions)
LX	Latchbolt Monitor (available all L909x and L949x electrified + L9010/50/56/70/71/80/82 and L9453/56/65/66/80/85 mechanical functions)	$187.00
DPS	Door Position Sensor (available L909x electrified + L9010/80/82 mechanical functions)
DM	Deadbolt Monitor (available L949x electrified + L9453/56/58/80/85 mechanical functions)
	Ordering instructions: include in order under "Additional Details".

Features

The Schlage Distributor Pack stocking program provides "flexible inventory" for the L-Series mortise lock. The Distributor Pack combines the versatile Schlage mortise lock with a variety of knob or lever options and finishes all for the same list price as a complete lockset. This allows you to maximize your mortise lock inventory dollars and meet your changing customer requirements.

The Distributor Pack is also easy to use. By combining a few different component parts, you can build a complete Schlage mortise lock.

How to Build a Mortise Lock with the Schlage Distributor Pack

STEP 1: Choose lock case required. Schlage mortise cases must be ordered in multiples of 10 units each. (Quantity of 1 = 1 lock case.)

STEP 2: Choose the knob/lever and rose/escutcheon trim designs and finishes. Order one design and finish in multiples of 4 or 10 units each. (Quantity of 1 = 1 set of outside and inside trim.)

STEP 3: Choose the armor front.

(Quantity of 1 = 10 armor fronts, packed 10 to a box)

STEP 4: Choose the strike.

(Quantity of 1 = 10 strikes, packed 10 to a box)

STEP 5: Choose the cylinder (if required).

(Quantity of 1 = 10 cylinders, packed 10 to a box)

These are the only component parts required to build a Schlage mortise lock. With five easy steps you can build your mortise inventory to be flexible and to respond quickly to your customers.

Miscellaneous parts in bulk quantities are also available for Schlage mortise locks with the Distributor Pack Program. (See page L-32 for availability.)

Functions Available	Product Identification
Function	Description
L9010B	Passage
L9040B	Privacy
L9050LB	Entrance/Office
L9056LB	Entrance/Office w/ Auto Unlocking
L9070LB	Classroom
L9080LB	Storeroom
L9082LB	Institution
L9453LB	Entrance
L9456LB	Corridor
L9465LB	Closet/Storeroom
L9473LB	Dormitory/Bedroom
L9480LB	Storeroom with Deadbolt

Suffix

L9485LB Faculty Restroom

B = Distributor Pack Lock Case L = Less Full Face Cylinder

	Available Designs and Finishes
	Knob/Lever Designs	Rose/ Escutcheon	Finishes
Standard	01, 02,03, 05, 06, 07, 12, 17, 18, ACC, AST, LAT, LON, MER, STA, OME	A, B, C or L	605, 606, 609, 612, 613, 619, 625, 626, 629, 630, 643e (not all lever
M Collection	M51, M52, M53, M54, M55, M56, M57, M62, M62, M63, M81, M82, M83, M84, M85, ME1, ME2, ME3		designs available in each finish, see product tables for exact list)

Part Number	Description	Price Each
Standard (non-Vandlgard) lock cases
L9010B	Passage	$144.00
L9040B	Privacy	213.00
L9050LB	Entrance/office	233.00
L9056LB	Entrance/office with auto unlocking	314.00
L9070LB	Classroom
L9080LB	Storeroom	233.00
L9082LB	Institution	263.00
L9090LB	Electrified chassis for L9090/L9092/L9094 functions. Specify EL or EU*
L9091LB	Electrified chassis for L9091/L9093/L9095 functions. Specify EL or EU*	545.00
L9453LB	Entrance/office with deadbolt
L9456LB	Corridor
L9465LB	Closet/Storeroom
L9473LB	Dormitory/Bedroom	263.00
L9480LB	Storeroom with deadbolt
L9485LB	Faculty Restroom
Vandlgard lock cases
LV9040B	Privacy	313.00
LV9050LB	Entrance/office	335.00
LV9056LB	Entrance/office with auto unlocking	414.00
LV9070LB	Classroom
LV9080LB	Storeroom	335.00
LV9082LB	Institution
LV9453LB	Entrance/office with deadbolt
LV9456LB	Corridor	365.00
LV9480LB	Storeroom with deadbolt
LV9485LB	Faculty Restroom
	Notes Lock cases furnished with mounting screws and templates only
	Lock cases furnished right hand only

	Standard levers with A or B roses
			06 07 12I 17 OME	03 06 07 12I 17 OME
		03	6: 01, 02, 05, 18, 41, 42, LAT*, LON* ACCI†, ASTI†, MERI† *not avail 612, 613 †not avail 612, 613, 629, 630
			Finishes
Part Number	Knob/Lever design with rose for use with	626	626	605 606 609 612 619 622 625 643e	613 629 630
09-454	L9010, L/LV9070, L/LV9080, L9090, L9091, L9092, L9093, L9094, L9095, L9465	$375	$485	$497	$515
09-455	L/LV9040	385	495	507	525
09-456	L/LV9050, L/LV9056, L/LV9456, L9473, L/LV9480, L/LV9485	376	486	498	516
	Decorative levers with A or B roses
			Standard Lead time: M51, M52, M81 6: M54, M56, M61I, M63I, M83, M84, M85 6: Available 05/2014: M53, M55, M57†, M62I†, M82, ME1I, ME2I, ME3 † Available 629 and 630 only
			Finishes
Part Number	Knob/Lever design with rose for use with		605, 606, 609, 619, 622, 625, 626, 629, 630, 643e
09-454	L9010, L/LV9070, L/LV9080, L9090, L9091, L9092, L9093, L9094, L9095, L9465		$515
09-455	L/LV9040		525
09-456	L/LV9050, L/LV9056, L/LV9456, L9473, L/LV9480, L/LV9485		516
	Standard Levers with L or N Escutcheons
			03 06 07 12I 17 OME
			6: 01, 02, 05, 18, 41, 42, LAT*, LON* ACCI†, ASTI†, STAI†, MERI† *not avail 612, 613 †not avail 612, 613, 629, 630
			Finishes
		626	605 606 609 612 619 622 625	613 629
Part Number	Knob/Lever design with rose for use with		643e	630
09-446	L9010, L9090, L9091	$530	$542	$560
09-447 09-449	L/LV9040 L/LV9070, L/LV9080, L9092, L9093, L9465	543	555	573
09-451	L/LV9050, L/LV9056, L/LV9453, L/LV9473, L/LV9480, L/LV9485	524	536	554
	Decorative Levers with L or N Escutcheons
			Standard Lead time: M51, M52, M81 6: M54, M56, M61I, M63I, M83, M84, M85 6: Available 05/2014: M53, M55, M57†, M62I†, M82, ME1I, ME2I, ME3 † Available 629 and 630 only
			Finishes
Part Number	Knob/Lever design with rose for use with		605, 606, 609, 619, 622, 625, 626, 629, 630, 643e
09-446	L9010, L9090, L9091		$560
09-447	L/LV9040		573
09-449	L/LV9070, L/LV9080, L9092, L9093, L9465		554
09-451	L/LV9050, L/LV9056, L/LV9453, L/LV9473, L/LV9480, L/LV9485
Notes	Split designs/finishes are not available mounting posts on page L-32.	Includes mounting screws, mounting plates, spring cages, L mounting posts, and strike boxes. For additional vandal resistance, order Vandlgard
	Components are for 1 3/4" thick doors only.

	STEP 3 - Armor Fronts (part numbers listed are boxes of 10)	605	606	609	612	613	619	622	625	626	629	630	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description	Price per box of 10
	1 1/4" Wide (Standard armor size for 1 3/4" and larger door thicknesses)
09-473	10 each 09-662 latch only armor for L9010, L/LV9040
09-474	10 each 09-663 Latch x aux latch for L/LV9050, L/LV9056, L/LV9070, L/LV9080, L/LV9082, L9090/91/92/93/94/95*
09-475	10 each 09-664 Latch x deadbolt for L/LV9456, L9465, L9473							$370.00
09-477	10 each 09-666 latch x aux latch x deadbolt for L/LV9453, L/LV9480, L/LV9485, L9492/93/94/95
Notes	Includes mounting screws
	*For L9090/91/92/93/94/95 with DPS use distributor pack armor 09-477
	Ordering instructions: Specify part number and finish. Ex: 09-473 626. Each box includes 10 armor fronts.

		605	606	609	612	613	619	622	625	626	629	630	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description							Price per box of 10
	10 each 10-072, 1 1/4" x 4 7/8" square corner strikes, no box
09-494	10 each 10-072 strikes with 1" lip
09-494 1316	10 each 10-072 strikes with 1 3/16" lip							$225.00
09-494 112	10 each 10-072 strikes with 1 1/2" lip
Notes	strike box included with distributor pack trim set

	STEP 5 - Cylinders (part numbers listed are boxes of 10)
	Available Finishes	605	606	609	612	613	619	622	625	626	629	630	643e
		•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description							Price per box of 10
	For use with L9060 keyed functions only
09-484 118	10 each 20-001 cylinders with 1 1/8" cylinder length (use with rose trim on 1 3/8" -2" thick doors or escutcheon trim on 1 3/8" thick doors)
09-484 114	10 each 20-001 cylinders with 1 1/4" cylinder length (use with escutcheon trim on 1 3/4" thick doors)	$850.00
09-484 138	10 each 20-001 cylinders with 1 3/8" cylinder length (use with escutcheon trim on 2" thick doors)
	For use with all keyed functions other than L9060
09-485 118	10 each 30-001 cylinders with 1 1/8" cylinder length (use with rose trim on 1 3/8" -2" thick doors or escutcheon trim on 1 3/8" thick doors)
09-485 114	10 each 30-001 cylinders with 1 1/4" cylinder length (use with escutcheon trim on 1 3/4" thick doors)							$850.00
09-485 138	10 each 30-001 cylinders with 1 3/8" cylinder length (use with escutcheon trim on 2" thick doors)
Notes	Cylinders are C keyway, 6 pin cylinder keyed 5, 0 bitted, and furnished with two 5-pin 0-bitted keys
	Ordering instructions: Specify part number and finish. Ex: 09-485 114 619. Each box includes 10 cylinders with compression springs and blocking rings.

	Miscellaneous Distributor Pack Parts: Escutcheon thru-bolts
		605	606	609	612	613	619	622	625	626	629	630	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description Price per box of 50
Box of 50 L escutcheon thru bolts
09-483 138	L escutcheon thru-bolts for 1 3/8" thick doors
09-483 134	L escutcheon thru-bolts for 1 3/4" thick doors
09-483 200	L escutcheon thru-bolts for 2" thick doors							$370.00
09-483 214	L escutcheon thru-bolts for 2 1/4" thick doors
09-483 212	L escutcheon thru-bolts for 2 1/2" thick doors
	Ordering instructions: Specify part number and finish. Ex: 09-483 134 626. Each box includes 50 thru bolts.

	Miscellaneous Distributor Pack Parts: Mounting Posts & Mounting Screws
		605	606	609	612	613	619	622	625	626	629	630	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description	Price per box of 50
	Mountings posts for Standard L functions (box of 50)
09-488 138	L escutcheon thru-bolts for 1 3/8" thick doors
09-488 134	L escutcheon thru-bolts for 1 3/4" thick doors
09-488 200	L escutcheon thru-bolts for 2" thick doors							$583.00
09-488 214	L escutcheon thru-bolts for 2 1/4" thick doors
09-488 212	L escutcheon thru-bolts for 2 1/2" thick doors
	Mountings posts for LV Vandlgard functions (box of 50).
Contact Technical Support
	Mounting Screws (box of 100)
09-493	100 each mounting screw L583-066							$41.50
	Ordering instructions: Specify part number Ex: 09-488 200 626.

	Electrified Distributor Pack Parts: RX Modules and Solid Spindles
Part Number	Description	List Price
L283-412	10 pack RX modules p/n L283-452	$1,499.00
L283-450	10 pack solid spindle and spring p/n L283-054 (for use with L9091, L9093, L9095 only; supports 1 3/8" - 3" door thickness)	37.50

	Levers & Knobs
Style	Lever & Knob Design		605 606 609		612	613	619	622	625	626			629 630 643e
Standard	016, 026, 03*, 056, 06, 07, 12I, 17, 18, 416, 426, OME6	•	•	•	•	•	•	•	•	•	•	•	•
	LAT6, LON6	•	•	•			•	•	•	•	•	•	•
	ACCI, ASTI, MERI	•	•	•			•	•	•	•			•
Decorative	M51, M52, M536, M546, M556, M566, M616I, M636I, M81, M826, M836, M846, M856I, ME16I, ME26I, ME36	•	•	•			•	•	•	•	•	•	•
	M576I, M626I										•	•
6Extended Factory Lead Time Ispecify handing

6Extended Factory Lead Time Ispecify handing

Part Number	Description	Standard Levers	Decorative Levers
09-401	Outside lever, retaining clip, insertion tool
09-402 Inside lever+bushing, mounting plate, screw pack, spanner wrench		$181	$196
* Available modified for Folger Adam Co.® Lever Track™. Specify 503 design and add $51.00. Not available in 629 or 630 finish.
**	Knobs and levers default for 1 3/4" doors. Knobs also available for 1 3/8" doors, levers for 1 3/8", 2", 2 1/4" and 2 1/2" doors.

Ordering instructions: Specify part number, lever style, finish, door thickness if not 1 3/4". Ex: 09-401 03 626.

Roses
Style	Rose Design		605 606 609		612	613	619	622	625	626			629 630 643e
Standard	A, B, C	•	•	•	•	•	•	•	•	•	•	•	•
Decorative	MER, AVA	•	•	•			•	•	•	•			•
Part Standard and Decorative Number Description
09-403	Inside Rose (includes mounting plate and screws)
09-404	Outside Rose+Bushing							$102.00
09-508	Blank Outside Rose (not available MER or AVA)
	Ordering instructions: Specify part number, lever design + rose, finish. Ex: 09-404 03A 626. Lever design must be specified for proper bushing.

Escutcheons
			605 606 609		612	613	619	622	625	626			629 630 643e
	Available finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description				L Escutcheon					N Escutcheon
	Outside Escutcheon & Bushing
09-614	O/S (add finish) 00L Escutcheon x Full Face Cylinder	$181 $181
09-615	O/S 630 00L Escutcheon Blank x Concealed Cylinder	181 181
09-636	Blank x lever or knob
09-637	Emergency turn x lever or knob	181 181
09-638	Concealed cylinder x lever or knob
09-639	Full face cylinder x lever or knob
Inside Escutcheon
09-632	Blank x lever or knob									181
09-633**	Thumbturn x lever or knob
09-634**	Thumbturn x blank			181
09-635	Full face cylinder x lever or knob									181
L583-187	Concealed cylinder x lever or knob
**	Specify door thickness: 1 3/8" or 1 3/4"
	Ordering instructions: Specify part number, lever + escutcheon style, finish. Ex: 09-639 03L 626 (full face cylinder, 03 lever, L escutcheon, 626 finish).

Style	Lever & Knob Design		605 606 609		612	613	619	622	625	626			629 630 643e
Standard	016, 026, 03, 056, 06, 07, 12I, 17, 18, 416, 426, OME6	•	•	•	•	•	•	•	•	•	•	•	•
	LAT6, LON6	•	•	•			•	•	•	•	•	•	•
	ACCI, ASTI, MERI	•	•	•			•	•	•	•			•
Decorative	M51, M52, M536, M546, M556, M566, M616I, M636I, M81, M826, M836, M846, M856I, ME16I, ME26I, ME36	•	•	•			•	•	•	•	•	•	•
	M576I, M626I										•	•
	6Extended Factory Lead Time Ispecify handing
Part Number	Description	Standard Levers Decorative Levers
With A, B or C rose
09-506	Outside Lever assembly				$201						$216
	With Avanti or Merano Rose
09-655	Outside lever assembly for AST w/Avanti rose or MER w/Merano rose only				201						N/A
With L or N Escutcheon
09-550	Blank
09-551	Emergency turn	267 282
09-552	Concealed cylinder (L escutcheon only)
	Full face cylinder

	Available Finishes		605 606 609		612	613	619	622	625	626	629		630 643e
Part Number	Description	•	•	•	•	•	•	• Price Each	•	•	•	•	•
	1 1/4" Wide (Standard armor size for 1 3/4" and larger door thicknesses)
09-661	Blank (L9175, L9176)
09-662	Latch only (L9010, L9040, L9044)
09-663	Latch x aux latch (L9050, L9056, L9060, L9070, L9071, L9080, L9082, L9090/91/92/93/94/95*)
09-713	Latch x aux latch (L9076, L9077)
09-664	Latch x deadbolt (L9440, L9444, L9456, L9457, L9465, L9466, L9473, L9496)							$37.00
09-665	Deadbolt (L9460, L9462, L9463, L9464)
09-666	Latch x aux latch x deadbolt (L9453, L9458, L9480, L9485, L9486, L9492/93/94/95)
09-717	Deadbolt armor (L460, L462, L463, L464, L480, L496)
	1 1/16" Wide (armor size for doors thinner than 1 3/4", including 1 3/8" doors)
09-667	Blank (L9175, L9176)
09-668	Latch only (L9010, L9040, L9044)
09-669	Latch x aux latch (L9050, L9056, L9060, L9070, L9071, L9080, L9082L9090/91/92/93/94/95*)
09-718	Latch x aux latch (L9076, L9077)							37.00
09-670	Latch x deadbolt (L9440, L9444, L9456, L9457, L9465, L9466, L9473, L9496, L9492/93/94/95)
09-671	Deadbolt (L9460, L9462, L9463, L9464)
09-672	Latch x aux latch x deadbolt (L9453, L9458, L9480, L9485, L9486)
	*For L9090/91/92/93/94/95 models with DPS, use armor 09-666 (1 1/4" wide) or 09-670 ( 1 1/16 wide)

	Strikes, L9000 and L400 Series
			605 606 609		612	613	619	622	625	626	629		630 643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description							Price Each
Strikes, L9000 Series
10-072 1316	1 1/4" x 4 7/8" square corner strike + box. 1 3/16" lip length , standard L9000 strike							$22.50
10-072 xx	1 1/4" x 4 7/8" square corner strike + box; specify lip length (xx) as 7/8", 1" or 1 1/2"							22.50
10-072 xx	1 1/4" x 4 7/8" square corner strike + box; specify lip length (xx) as 1 3/4" or 2"							57.50
10-073	Deadbolt lock strike, standard for L9460, L9462, L9463 and L9464							27.40
10-075	1/2" rabbeted strike (for 1 3/4" doors, use with 1 1/16" armor front. Use 1 1/4" armor front for over 1 3/4"-2 1/4" doors extended equally)							148.00
10-091I	1 1/4" x 8" square corner armor strike, no box. Specify handing to inactive door							101.00
K510-066	Strike box (finish not applicable)							6.80
37-015	Door frame strike reinforcer (finish not applicable)							25.00
Strikes, L400 Series
10-078	1 1/4" x 4 7/8" square corner strike + box,
10-079	1 1/8" x 3 1/2" square corner strike + box, ANSI 115.5 prep , standard L400 strike							$22.60
K510-053	Strike box for 10-079 strike (finish not applicable)
K510-066	Strike box for 10-078 strike (finish not applicable)							6.80
	Ordering instructions: Specify part number, lip length if required, and finish. Ex: 10-072 1316 626.

K510-330	09-509	09-509 w/ ADA Thumbturn (L583-363)	L283-124	09-900

	Emergency Button, Thumbturns, Coin Turns & Cylinder Turns
					605 606 609 612	613						619 622 625 626 629 630 643e
	Available Finishes	•	•	•	•	•		•	•	•	•	•	•	•
Part
Number	Description Emergency Button & Emergency Turn Tool								Price Each
K510-330	Emergency Button, L9040 and L9440								$15.20
L583-233	Emergency turn tool for L9040 and L9440. Specify finish as 458.								19.10
Thumbturns
09-509 027	Thumbturn for rose trim, 1 3/8"- 1 7/8" door range, extended equally
09-509 033	Thumbturn for rose trim, >1 7/8"- 2 3/8" door range, extended equally
09-509 040	Thumbturn for rose trim, >2 3/8"- 2 7/8" door range, extended equally								71.10
09-509 047	Thumbturn for rose trim, >2 7/8"- 3 5/8" door range, extended equally
L583-363 Suffix	ADA thumbturn upgrade, specify thumbturn p/n + L583-363									Add $16.80 to 09-509 price
Coin Turns
L283-124 19	Coin turn, L9044 and L9444, 1 3/8" - 1 1/2" door range, extended equally (EE)
L283-124 23	Coin turn, L9044 and L9444, 1 5/8" - 1 7/8" door range, extended equally (EE)
L283-124 25	Coin turn, L9044 and L9444, >1 7/8" - 2 1/8" door range, extended equally (EE)
L283-124 31	Coin turn, L9044 and L9444, >2 1/8" - 2 5/8" door range, extended equally (EE)								123.00
L283-124 37	Coin turn, L9044 and L9444, >2 5/8" - 2 7/8" door range, extended equally (EE)
L283-124 43	Coin turn, L9044 and L9444, >2 7/8" - 3 3/8" door range, extended equally (EE)
L283-124 48	Coin turn, L9044 and L9444, >3 3/8" - 3 5/8" door range, extended equally (EE)
L283-056 19	Coin turn w/ torx screws, L9044 and L9444, 1 3/8" - 1 1/2" door range, EE
L283-056 23	Coin turn w/ torx screws, L9044 and L9444, 1 5/8" - 1 7/8" door range, EE
L283-056 25	Coin turn w/ torx screws, L9044 and L9444, >1 7/8" - 2 1/8" door range, EE
L283-056 31	Coin turn w/ torx screws, L9044 and L9444, >2 1/8" - 2 5/8" door range, EE								134.00
L283-056 37	Coin turn w/ torx screws, L9044 and L9444, >2 5/8" - 2 7/8" door range, EE
L283-056 43	Coin turn w/ torx screws, L9044 and L9444, >2 7/8" - 3 3/8" door range, EE
L283-056 48	Coin turn w/ torx screws, L9044 and L9444, >3 3/8" - 3 5/8" door range, EE
	EE = Extended Equally
Note:	Coin turns not available in 612 or 613 finish
Cylinder Turns I
09-487 xx	Cylinder coin turn, specify dimension (xx) as 1 1/8", 1 1/4" or 1 3/8" (replaces XL12-196)								$124.00
09-900 xx	Cylinder turn, specify dimension (xx) as 1 1/8", 1 1/4" or 1 3/8"								121.00
09-900 xx	Cylinder turn, specify dimension (xx) as 1 1/2", 1 5/8" or 1 3/4"								184.00
09-904 xx	Cylinder turn w/ compression ring, specify dimension (xx) as 1 1/8", 1 1/4" or 1 3/8"								131.00
09-904 xx	Cylinder turn w/ compression ring, specify dimension (xx) as 1 1/2", 1 5/8" or 1 3/4"								192.00
09-905	Cylinder turn w/ compression ring and 1/8" blocking ring for 1 3/4" doors								142.00
I	Specify door hand for cylinder turns if used with L463 or L9463.
Note:	Cylinder turns not available in 629 or 630 finish

Sectional Indicator	N Escutcheon Indicator			Available Messages LOCKED/OCCUPIED/DO NOT DISTURB/ lock symbol is white text on red background UNLOCKED/VACANT/unlocked symbol is black text on white background
		LOCKED	OCCUPIED	DO NOT DISTURB
		UNLOCKED	VACANT

			UNLOCKED	VACANT
			Occupancy Indicators - 180 degree visibility (for Sectional (rose) or N Escutcheon trim)	605 606 609 619			622 625 626 629 630 643e
Part Number	Description			• •	•	•	• •	•	•	•	•
Sectional trim - cylinder trim, for inside or outside of door
L283-413 L283-414	Indicator, Sectional, Cylinder - LOCKED/UNLOCKED Indicator, Sectional, Cylinder - OCCUPIED/VACANT
L283-415	Indicator, Sectional, Cylinder - DO NOT DISTURB						$108.00
L283-416	Indicator, Sectional, Cylinder - symbols only
Sectional trim - thumbturn, for inside of door
L283-417	Indicator, Sectional, Thumbturn - LOCKED/UNLOCKED
L283-418 L283-419	Indicator, Sectional, Thumbturn - OCCUPIED/VACANT Indicator, Sectional, Thumbturn - DO NOT DISTURB						$108.00
L283-420	Indicator, Sectional, Thumbturn - symbols only
Sectional trim - cointurn, for outside of door
L283-421	Indicator, Sectional, Cointurn - LOCKED/UNLOCKED
L283-422	Indicator, Sectional, Cointurn - OCCUPIED/VACANT
L283-423	Indicator, Sectional, Cointurn - DO NOT DISTURB						$108.00
L283-424	Indicator, Sectional, Cointurn - symbols only
			Sectional trim - privacy, for outside of door (NOTE: emergency override by small screwdriver, not emergency key)
L283-425 L283-426	Indicator, Sectional, Privacy - LOCKED/UNLOCKED Indicator, Sectional, Privacy - OCCUPIED/VACANT
L283-427	Indicator, Sectional, Privacy - DO NOT DISTURB						$108.00
L283-428	Indicator, Sectional, Privacy - symbols only
Escutcheon trim - cylinder trim, for inside of door
L283-433			Indicator, N Escutcheon, Inside Cylinder - LOCKED/UNLOCKED
L283-434			Indicator, N Escutcheon, Inside Cylinder - OCCUPIED/VACANT				$247.00
L283-435			Indicator, N Escutcheon, Inside Cylinder - DO NOT DISTURB
L283-436	Indicator, N Escutcheon, Inside Cylinder - symbols only
Escutcheon trim - thumbturn trim, for inside of door
L283-437 L283-438	Indicator, N Escutcheon, Thumbturn -OCCUPIED/VACANT		Indicator, N Escutcheon, Thumbturn - LOCKED/UNLOCKED
L283-439	Indicator, N Escutcheon, Thumbturn - DO NOT DISTURB						$247.00
L283-440	Indicator, N Escutcheon, Thumbturn - symbols only
			Escutcheon trim -cylinder trim, for outside of door. (NOTE: Available 626 or 630 finish, with 03, 06, or 17 levers. Other levers/finishes require extended leadtimes.)
L283-429			Indicator, N Escutcheon, Outside Cylinder - LOCKED/UNLOCKED
L283-430			Indicator, N Escutcheon, Outside Cylinder - VACANT/OCCUPIED				$331.00
L283-431 L283-432	Indicator, N Escutcheon, Outside Cylinder - symbols only		Indicator, N Escutcheon, Outside Cylinder - DO NOT DISTURB
			Escutcheon trim -cointurn, for outside of door. (NOTE: Available 626 or 630 finish, with 03, 06, or 17 levers . Other levers/finishes require extended leadtimes.)
L283-441	Indicator, N Escutcheon, Cointurn - LOCKED/UNLOCKED
L283-442	Indicator, N Escutcheon, Cointurn - VACANT/OCCUPIED						$331.00
L283-443	Indicator, N Escutcheon, Cointurn - DO NOT DISTURB
L283-444	Indicator, N Escutcheon, Cointurn - symbols only		Escutcheon trim -privacy, for outside of door. (NOTE: Available 626 or 630 finish, with 03, 06, or 17 levers. Other levers/finishes require extended leadtimes.)
L283-445	Indicator, N Escutcheon, Privacy - LOCKED/UNLOCKED
L283-446	Indicator, N Escutcheon, Privacy - VACANT/OCCUPIED						$331.00
L283-447	Indicator, N Escutcheon, Privacy - DO NOT DISTURB
L283-448	Indicator, N Escutcheon, Privacy - symbols only
ADA Thumbturn L583-363 suffix			ADA thumbturn upgrade; specify indicator w/ thumbturn p/n + L583-363				Add $16.80 to price
Note:			Addition of indicator may require additional door preparation. See installation instructions on-line for details
			Ordering Instructions: Specify part number and finish. EX: L283-437 L583-363 626 for N Esctuchen Locked/Unlocked indicator w/ ADA thumbturn in 626. Outside escutcheon indicators also
			require lever design EX: L283-441 03 626 for N escutcheon cointurn indicator with 03 lever in 626 finish . Only available for doors up o 2-1/4" thick EE.
Parts
L583-709			Message sign, LOCKED/UNLOCKED, for 180 degree indicator
L583-710			Message sign, OCCUPIED/VACANT, for 180 degree indicator				$30.10
L583-711			Message sign, DO NOT DISTURB/blank, for 180 degree indicator
L583-712 L583-705	Message sign, symbols only, for 180 degree indicator		Cam, 180 degree indicator, thumbturn and cointurn indicators				3.00
L283-561			Cam and retaining ring kit, 180 degree indicator, cylinder and privacy indicators				3.90
			Screw pack consisting of (2)L583-579 Mounting Plate Screws, (2)L583-
L283-736			899 Mounting Plate Screws, and (2)L583-755 Trim Screws(specify finish)				19.30
L583-579	Sectional mounting plate screw, top						3.60
L583-899	Sectional mounting plate screw, bottom						3.60
L583-717	Sectional mounting plate, cylinder indicator						48.00
L583-752			Sectional mounting plate, coin/privacy/thumbturn indicator				48.00

	Occupancy Indicator - "old style" (for Sectional (rose) trim)
				605 606 609 612		613		619 622 625 626 629 630 643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number	Description							Price Each
09-611							$114.00
	09-611 L583-375 "Occupied" occupancy indicator for rose trim. Includes driver bar L583-245
09-611 XL11-986	"Locked" occupancy indicator for rose trim. Includes driver bar L583-245							134.00
L583-245	Occupancy indicator driver bar							5.70

Ordering instructions: Specify part number and finish. Ex: 09-611 L583-375 626

	Escutcheon Thru-Bolts
	Available Finishes	605 606 609 612 613 619 622 625 626 629 630 643e
		• • • • • • • • • • • •
Part Number	Description	Price Each
	L Escutcheon Thru-bolts: two required per lock
L583-119	L escutcheon thru bolts for 1 3/8" door thickness
L583-120	L escutcheon thru bolts for 1 3/4" door thickness	$6.20
L583-121	L escutcheon thru bolts for 2" door thickness
L583-122 L escutcheon thru bolts for 2 1/4" door thickness
L583-123	L escutcheon thru bolts for 2 1/2" door thickness	7.30
L583-287	L escutcheon mounting screws for L9175 half-dummy function	5.50
	N Escutcheon Thru-Bolts: two required per lock
K510-389	N escutcheon thru bolts for 1 3/4" door thickness
K510-390	N escutcheon thru bolts for 2" to 2 1/4" door thickness	7.30
L583-133	N Escutcheon mounting screws for L0170 single dummy function	0.94
	Ordering instructions: Specify part number and finish. Ex: L583-120 626.

	Mounting Posts (Ferrules)
Part
Number	Description	Price Each
	L Mounting Posts (Ferrules): two required per lock
L583-211	Mounting post for 1 3/8" door thickness
L583-212	Mounting post for 1 3/4" door thickness
L583-213	Mounting post for 2" door thickness
L583-214	Mounting post for 2 1/4" door thickness	$11.70
L583-215	Mounting post for 2 1/2" door thickness
L583-216	Mounting post for 2 3/4" door thickness
L583-217	Mounting post for 3" door thickness
L583-218	Mounting post for 3 1/4" door thickness
L583-219	Mounting post for 3 1/2" door thickness	30.00
	LV Mounting Posts (Ferrules): two required per lock
L583-497	LV mounting post for 1 3/4" door thickness
L583-498	LV mounting post for 2" door thickness
L583-499	LV mounting post for 2 1/4" door thickness
L583-500	LV mounting post for 2 1/2" door thickness	$24.60
L583-501	LV mounting post for 2 3/4" door thickness
L583-502	LV mounting post for 3" door thickness
L583-503	LV mounting post for 3 1/4" door thickness
L583-504	32.40 LV mounting post for 3 1/2" door thickness
	Ordering instructions: Specify part number.

	Spindle & Springs
Part
Number	Description	Price Each
	Spindle & Spring Kits (qty two each)
L283-198	Spindles and springs for 1-3/8" - 1 7/8" doors	$16.00
L283-199	Spindles and springs for 2" - 3 1/2" doors 18.80
	Spindles & Springs (qty one each)
L283-060	Spindle and spring for 1 3/8" - 1 7/8" doors (two required per lock)	$8.00
L283-061	Spindle and spring for 2" - 3 1/2" doors (two required per lock)	9.90
L283-064	Spindle and spring, L0172, L9091/93/95, L9493/95 (one required per lock)	14.10
L283-065	Spindle and spring, L0170 half dummy (one required per lock)	7.50
	Ordering instructions: Specify part number.

Part Number	Lock Function and Description	Price Each
L283-039	L9076, Classroom holdback	$384.00
	L9077, Classroom security holdback
L283-062	L9440, Privacy with deadbolt	337.00
	L9444, Privacy with deadbolt and coin turn
L283-099	L460, L462, L463, L464, L480, L496, Deadbolt	227.00
L283-126	L9056, Entrance w/ simultaneous retraction	384.00
L283-131	L9010, Passage	221.00
L283-132	L9040, Privacy	323.00
	L9044 Privacy with Coin turn
	L9050, Office
L283-133	L9060, Apartment entrance	384.00
	L9070, Classroom
	L9071, Classroom security
L283-134	L9080, Storeroom	384.00
	L9026 Exit Lock with Cylinder
L283-137	L9453, Entrance	420.00
	L9456, Corridor
L283-138	L9457, Classroom security	562.00
	L9496, Privacy w/ "Occupied" indicator
L283-139	L9460, L9462, L9463, L9464, Deadbolt	290.00
	L9465, Closet
L283-140	L9466, Storeroom	420.00
	L9473, Dormitory
	L9480, Storeroom with deadbolt
L283-141	L9485, Faculty Restroom	529.00
	L9486, Faculty Restroom
L283-144	L9175, Single dummy	327.00
L283-145	L9176, Double dummy	327.00
L283-146	L9082, Institution	384.00
L283-310	L9458, Classroom security w/ deadbolt and aux latch	420.00
L283-314	LM9310, Passage	1193.00
	LM9325, Exit
	LM9350, Office and Inner Entry
L283-316	LM9370, Classroom	1398.00
	LM9371, Classroom Security
	LM9380, Storeroom
L283-750	L9025 Exit Lock	264.00
	1) Includes lock case only. Armors, strikes, mounting screws, and cylinders must be ordered separately. Notes
	2) All lock cases are shipped right hand.
	Lock Function and Description	Price Each
	LV9050, Office and Inner Entry Lock
	LV9060, Apartment Entrance Lock
	LV9070, Classroom Lock	$483.00
	LV9071, Classroom Security Lock
	LV9040, Bath/Bedroom Privacy Lock
	LV9044, Privacy Lock With Coin Turn Outside	424.00
	LV9076, Classroom Holdback Lock
	LV9077, Classroom Security Holdback Lock	483.00
	LV9080, Storeroom Lock	483.00
	LV9453, Entrance Lock	521.00
	LV9456, Corridor Lock
	LV9457, Classroom Security Lock	521.00
	LV9496, LV9486 Lock With "OCCUPIED" Indicator
	LV9480, Storeroom Lock With Deadbolt
	LV9485, Faculty Restroom	628.00
	LV9486, Faculty Restroom w/"Do Not Disturb" Indicator
	LV9056, LV9050 Lock With Simultaneous Retraction	483.00
	LV9440, Privacy Lock With Deadbolt	446.00
	LV9444, Privacy Lock With Deadbolt and Coin Turn Outside
LV Lock Cases Part Number L283-170 L283-171 L283-172 L283-173 L283-176 L283-177 L283-178 L283-180 L283-181 L283-182	LV9082, Institution Lock	483.00
L283-311	LV9458, Classroom security w/ deadbolt and aux latch	521.00
	LMV9350, Office and Inner Entry
L283-317	LMV9370, Classroom LMV9371, Classroom Security	1,498.00

	Electrified Lock Cases
Part Number	Lock Function and Description	Price Each
L283-347	L9090/L9092/L9094 electrified chassis. Specify EL (electrically locking) or EU (electrically unlocking)	695.00
L283-392	L9090/92/94 electrified chassis w/ RX. Specify EL or EU operation	882.00
L283-393	L9090/92/94 electrified chassis w/ LX. Specify EL or EU operation	882.00
L283-479	L9090/92/94 electrified chassis w/ DPS. Specify EL or EU operation.	882.00
L283-394	L9090/92/94 electrified chassis w/ RX & LX. Specify EL or EU operation	1,069.00
L283-481	L9090/92/94 electrified chassis w/ RX & DPS. Specify EL or EU operation	1,069.00
L283-483	L9090/92/94 electrified chassis w/ RX, LX & DPS. Specify El or EU operation	1,259.00
L283-395	L9091/L9093/L9095 electrified chassis. Specify EL (electrically locking) or EU (electrically unlocking)	695.00
L283-396	L9091/93/95 electrified chassis w/ RX. Specify EL or EU operation	882.00
L283-397	L9091/93/95 electrified chassis w/ LX. Specify EL or EU operation	882.00
L283-480	L9091/93/95 electrified chassis w/ DPS. Specify EL or EU operation	882.00
L283-398	L9091/93/95 electrified chassis w/ RX & LX. Specify EL or EU operation	1,069.00
L283-482	L9091/93/95 electrified chassis w/ RX & DPS. Specify EL or EU operation	1,069.00
L283-484	L9091/93/95 electrified chassis w/ RX, LX & DPS. Specify EL or EU operation	1,259.00
L283-467	L9492/94 electrified chassis. Specify EL or EU operation	733.00
L283-469	L9492/94 electrified chassis w/ RX. Specify EL or EU operation	922.00
L283-471	L9492/94 electrified chassis w/ DBM. Specify EL or EU operation	922.00
L283-473	L9492/94 electrified chassis w/ RX & DBM. Specify EL or EU operation	1,108.00
L283-475	L9492/94 electrified chassis w/ RX, LX & DBM. Specify EL or EU operation	1,296.00
L283-468	L9493/95 electrified chassis. Specify EL or EU operation	733.00
L283-470	L9493/95 electrified chassis w/ RX. Specify EL or EU operation	922.00
L283-472	L9493/95 electrified chassis w/ DBM. Specify EL or EU operation	922.00
L283-474	L9493/95 electrified chassis w/ RX & DBM. Specify EL or EU operation	1,108.00
L283-476	L9493/95 electrified chassis w/ RX, LX & DBM. Specify EL or EU operation	1,296.00

	Miscellaneous Parts
Part Number	Description	Price Each
36-080	O-ring, L9080 EL/EU	$3.10
39-042	Plastic lock case cover for display - for locks manufactured after January, 1998	94.90
K110-550	Pack of truarc ring (1), spacer (2), knobs	8.70
K510-320	Wood plug, dummy, L0170, L0172	8.90
K510-842	Electrified lock bushing, L9080 EL/EU	1.20
L283-003	Deadbolt (except L9453, L9465, L9466, L9473)	58.00
L283-004	Entrance deadbolt, L9453	58.00
L283-006	Auxiliary latchbolt assembly	18.40
L283-008	Latchbolt assembly (except L9076)	58.00
L283-010	Locking link, L9076	18.70
L283-029	(2) Spacers for ANSI A115.1 metal door preparations	37.00
L283-030	Pack of 20 truarc rings, levers	21.90
L283-031	Mounting plate, inside lever	20.10
L283-040	Spring cage (1 required per lever)	9.90
L283-049	Latchbolt assembly, L9076	58.00
L283-055	Cylinder retainer plate and screw - for locks manufactured after April, 1994	18.40
L283-057	(2) Mounting Post, (2) Screws, L-Series, OSU	28.80
L283-075	Deadbolt, L9465, L9466, L9473	58.10
L283-112	Lock case, L9000-Series - for locks manufactured after January, 1998.	58.10
L283-127	Lock case and cover, L400-Series	83.30
L283-128	Lock case, L400-Series. See L283-127 for sellable part.	—
L283-150	Mounting plate for inside rose trim on one side of door only	40.40
L283-452	RX Module for L909x series electrified mortise	188.00
L583-004	Standoff post	2.50
L583-015	Latchbolt guide	3.80
L583-748	Retractor hub (2 required per lock) - replaces L583-019	4.30
L583-020	Retractor hub spacer	4.50
L583-021	Retractor lever	3.90
L583-022	Retractor rocker	3.10
L583-023	Blocking plates	3.80
L583-024	Retractor link	8.00
L583-025	Retractor crank	8.00
L583-026	Hub spring	1.50
L583-027	Fire door fuse	2.60
L583-028	Fire door catch	3.10
L583-029	Turn hub	19.70
L583-030	Entrance hub	15.90
L583-031	Cam follower	10.60
L583-035	Turn hub spring	3.80
L583-038	Auxiliary bar guide	3.00
L583-043	Locking catch, L9080 EL/EU	19.60
L583-044	Stop spring	1.90
L583-045	Locking catch (except L9080 EL/EU)	20.10
L583-047	Catch spring	4.50
L583-048	Locking link (except L9076)	4.50
L583-049	Entrance link	7.50
L583-050	Link pin	1.90
L583-051	Transfer lever	1.90
L583-053	Simultaneous retractor (except L9040 and L9056)	8.00
L583-056	Catch pin	3.90
L583-057	Spindle anchor	31.50
L583-058	Simultaneous retractor, L9040, L9056	8.40
L583-063	Spring retainer, L9080 EL/EU	8.80
L583-064	Solenoid spring, L9080 EL/EU	2.90

Part Number	Description	Price Each
L583-065	Electrified link, L9080 EL/EU	12.20
L583-066	Mounting plate screw (2 required per lock)	1.40
L583-156	Transfer lifter	7.40
L583-174	Holdback dog, L9076	6.20
L583-192	Dog spring, L9076	0.60
L583-196	Auxiliary stop	6.10
L583-286	Mounting bar, L0170, L0172	24.60
L583-290	Mounting plate screw, knob dummy trim, L0170, L9175	1.50
L583-291	Mounting plate screw, lever dummy trim, L0170, L9175	1.50
L583-321	Mounting plate, inside knob	7.40
L583-322	Spacer for fixed levers	3.90
L583-426	Faceplate tab 1 1/4" - for locks manufactured after July, 1994	5.30
L583-427	Faceplate tab 1 1/16" - for locks manufactured after July, 1994	6.10
L583-454	Case cover screw (4 required per L9000-Series lock case; 3 required per L400-Series lock case)	1.50
L583-468	Dummy spindle anchor	134.00
L583-481	Cylinder retainer screw - for locks manufactured after April, 1994	2.90
L583-485	Lock handing screw - for locks manufactured after April, 1994	1.80
L583-490	Cylinder retainer - for locks manufactured after January, 1998	7.20
L583-492	Cylinder retainer screw plate - for locks manufactured after April, 1994	3.50
L583-494	Lock case cover, L400-Series. See L283-127 for sellable part.	25.80
L583-496	Lock case cover, L9000-Series - for locks manufactured after January, 1998	40.10
L583-760	DPS magnet	15.70
L583-761	DPS magnet tray	15.70

Part Number	Converts	Contents	Conversion Instructions	Price Each
Convert to SK1 Ligatu	re Resistant Knob
09-155	L9010, L9060, L9070, L9071, L9076, L9077, L9080, L9092EL/EU L9082, L9095EL/EU, L9176, L9457, L9458, L9465, L9466, L9482, to ligature resistant	(2) ligature resistant knob assemblies (2) ligature resistant blocking rings		$1,248.00
09-156	L9050, L9056, L9412, L9453, L9456, L9460 w/ pull, L9473, L9480, L9485, to ligature resistant	(2) ligature resistant knob assemblies (1) ligature resistant blocking ring (1) ligature resistant thumbturn assembly	See instruction sheet 1,56
09-159	L9040, L9440 to ligature resistant	(2) ligature resistant knob assemblies (1) ligature resistant thubturn assembly (1) emergency ADA turn (1) emergency button		1,564.00
Convert to SL1 Ligatu	re Resistant Lever		·
09-138	L9010, L9060, L9070, L9071, L9076, L9077, L9080, L9092EL/EU, L9082, L9095EL/EU, L9176, L9457, L9458, L9465, L9466, L9482, to ligature resistant	(2) ligature resistant lever assemblies (2) ligature resistant blocking rings (2) trim ferrules		$1,627.00
09-139	L9050, L9056, L9412, L9453, L9456, L9460 w/ pull, L9473, L9480, L9485, to ligature resistant	(2) ligature resistant lever assemblies (1) ligature resistant blocking ring (1) ligature resistant thumbturn assembly (2) trim ferrules	See instruction sheet	1,943.00
09-189	L9040, L9440 to ligature resistant	ligature resistant lever assemblies (1) ligature resistant thubturn assembly (1) emergency ADA turn (1) emergency button (2) trim ferrules		1,943.00
Deadbolt conversion	to Ligature Resistant
09-157	L462, L464, L9462, L9464 to ligature resistant	(2) ligature resistant blocking rings		$148.00
09-158	L460, L480, L9460 to ligature resistant	(1) ligature resistant blocking ring (1) ligature resistant thumbturn assembly		779.00
Note	es 1) For 1 3/4" doors w/ sectional trim only.
	3) If applicable please specify "P" for (P) cy	or 630AM (Satin Stainless Steel Anti-Microbial) linder types, "R" for (R,J,F,T) cylinder types, and e with the "L" cylinder option (lock less cylinder)	"BD" for (BD, BDC, GD, F	HD) cylinder types

Part Number	Converts	Contents	Conversion Instructions	Price Each
Rose Trim
38-090	L9070P to L9071P L9076P to L9077P	(1) 30-001-118 Cylinder (2) 36-082-018 Blocking Ring	Add cylinder and 1 blocking ring to inside. Add 1 blocking ring to outside.	$124.00
38-091	L9070R to L9071R L9076R to L9077R	(1) 30-008 Cylinder (2) 36-082-050 Blocking Ring	Add cylinder and 1 blocking ring to inside. Use 1 blocking ring to replace	200.00
38-092	L9070BD to L9071BD L9076BD to L9077BD	(1) 80-108 Cylinder (2) 36-082-050 Blocking Ring	existing outside blocking ring.	124.00
L Escutcheon Trim
38-093	L9070P to L9071P L9076P to L9077P	(1) 30-001-118 Cylinder (includes Compression Spring and Ring) (1) 36-082-012 Blocking Ring (1) 09-635 Escutcheon	Replace existing inside escutcheon. Add cylinder and compression spring only to inside. Add compression ring only to outside.*	$279.00
38-094	L9070R to L9071R L9076R to L9077R	(1) 30-008 Cylinder (1) 36-082-012 Blocking Ring (1) 09-635 Escutcheon	Replace existing inside escutcheon. Add cylinder and blocking ring to inside.	279.00
38-095	L9070BD to L9071BD L9076BD to L9077BD	(1) 80-108 Cylinder (1) 09-635 Escutcheon	Replace existing inside escutcheon. Add cylinder to inside.	199.00
		* Also add blocking ring to outside of 1 5/8" doors. Use compression spring only on outside of 1 7/8" doors.
Notes	1) Specify finish and keying.
		2) Subject to same discount as L-Series Locks.
		3) Use of these kits requires drilling hole in door for inside cylinder.

Part Number	Converts	Contents	Conversion Instructions	Note	Price Each
Rose Trim
39-034	L to LV L9040 L9076 L9496 L9044 L9080 L9060 L9440 L9453 L9071 L9444 L9456 L9077 L9050 L9480 L9082 L9056 L9485 L9457 L9070 L9486	(1) L283-200 Mounting Post Pack (1) L583-345 24061897 Catch Retractor (1) L283-147 Retractor Assembly (1) L583-383 Crank Retractor (1) L583-386 Bottom Hub (1) L583-387 Top Hub (1) P515-528 Handing Label (1) P515-683 Instruction Sheet	Please refer to instruction sheet.	For L9080, L9480, L9485 and L9486 functions, add to kit (1) L283-040 Spring Cage.	$63.80
39-234	L9082 and L9482 to LV9082 and LV9482	(1) L283-200 Mounting Post Pack (1) L583-346 Spacer (1) L583-386 Bottom Hub (1) L583-387 Top Hub (1) P515-528 Handing Label (1) P515-683 Instruction Sheet	Please refer to instruction sheet. For first time users, an instructional video is available.	Add to kit (2) L283-040 Spring Cages	58.50

LM9300 Three-Point Lock Parts
Part Number		Description	List
24358830		LM9300 rodset 6' 8" - 8' 0" doors, 39" centerline	$2,350.00
24457715		LM9300 rodset 4' 0" - 5' 11" doors, 26" centerline	2,350.00
24457723		LM9300 rodset 3' 1" - 3' 11" doors, 15" centerline	2,350.00
24353625		LM9300 strike package (top and bottom strikes, floor, anchors, screws)	113.00
	Note	LM9300 rodsets require specially prepped door from Steelcraft

Screw Packs
	Available Finishes	605		606	609	612	613	619	622	625	626	629	630	643e
		•		•	•	•	•	•	•	•	•	•	•	•
Part Number	Description								Price Each
Standard Screw Packs
C203-736	Lock Case Screws: contains (2) C603-256, #12-24 WMS PFH. Specify 455 Finish.								$6.60
C203-736	Strike Screws: Contains: (2) C603-256, #12-24 WMS PFH.
K110-020	Armor Front Screws: Contains (2) K510-210, #8-32 x 1/4" MS PFH								0.90
K110-947	Rose Trim Thumbturn screws: Contains: (2) K510-445, #4 x 1/2" POH AB								8.20
L283-100	Trim Mount Screws & Posts, 1 3/4" door: Contains: (2) L583-066, #8-32 x 1/2" PFH (2) L583-212, 1 3/4" posts. Finish not required.								28.80
L283-101	L escutcheon thru-bolts, 1 3/4" doors Contains: (2) L583-120								11.50
L283-154 xx	Part pack for L mortise. Specify finish (xx) Contains: (2) spindles, (2) spindle spring, (2) ferrules, (2) ferrule screws, (2) mounting screws, (2) armor screws, (2) strike screws								45.00
L583-585	Set screw, SK1 knob / SL1 lever								4.60
	MS = Metal Screw WMS = Wood/Metal Screw PFH = Phillips Flat Head POH = Phillips Oval Head
Torx® Screw Packs*
L283-121	Rose trim w/o thumbturn. Contains: (2) armor screws, #8-32 x 1/4" (T-15) (2) strike screws, #12-24 x 1/2" (T-20)
L283-122	Rose trim w/ thumbturn. Contains: (2) armor screws, #8-32 x 1/4" (T-15) (2) strike screws, #12-24 x 1/2" (T-20) (2) thumbturn screws, #4 x 1/2" (T-8)
L283-123	L Escutcheon for 1 3/4" doors. Contains: (2) armor screws, #8-32 x 1/4" (T-15) (2) esc. screws, 1/4-28 x 2 1/8" (T-30) (2) strike screws, #12-24 x 1/2" (T-20)	$22.10
XL11-8486	N Escutcheon for 1 3/4" doors. Contains: (2) armor screws, #8-32 x 1/4" (T-15) (2) strike screws, #12-24 x 1/2" (T-20) (2) esc. screws, #8-32 x 1 1/2" (T-20)
*	Torx screw packs furnished with appropriate T-xx installation tool.
6	Extended lead time
	Ordering instructions: Specify part number and finish. Ex: L283-123 626.
	Special Parts
		605		606	609	612	613	619	622	625	626	629	630	643e
	Available Finishes	•		•	•	•	•	•	•	•	•	•	•	•
Part Number	Description								Price Each
XL11-422	Solid latchbolt (nylon insert) for use with electric strikes. Finish not required. Price listed is adder to lock								$107.00
XB11-720	Mortise cylinder turn unit with ADA compliant style thumbturn. Price listed is adder to 09-900, 09-904, 09-905 or 09-907	121.00
XK10-992	10-072 strike with >2" thru 6" lip. Specify lip length on order	203.00
XL11-515	1/8" thick lead plate. Specify lock function and door hand on order	507.00
XL11-634	Blank inside L escutcheon	316.00
XL11-636	Blank outside L or N escutcheon. Specify L or N on order.	434.00
XL11-743	Armor front with cutout to receive deadbolt only, for use with L9110, L9175 and L9176 dummy functions	132.00
XL11-820 Strike, 1 3/16" lip, one hole for latching functions, RH & LHR doors									42.70
XL11-821	Strike, 1 3/16" lip, one hole for latching functions, LH & RHR doors

Mortise Cylinders	Parts · L

Mortise Cylind	lers
	Available Finishes		605	606	609	612	613	619	622	625	626	629	630	643e
	Available Finishes				•	•	•	•	•				•	•
											P	rice I	Each
Cam	Description	Cylinder Mechanism				Con	plete	Cylin	der	(	pen		Rest	ricted
L583-474		Standard				30-02				$	74.00		$9	1.50
For cyl. length 1 1/8", 1 3/8", 1 5/8"		Primus Controlled Access					}			153.00
1	Cylinder Only:	Primus XP Controlled Access				20-793	3-XP
	L & N Escutcheons	Primus UL437				20-593				_		186.	00
1/6 3/6 5/6		Primus XP UL437				20-593
Dim. X = .261		Hotel Function (Standard)				30-02				+	7.00	$\backslash dashv$		4.50
Y = .644		Standard	1. 1			30-00				8	5.00			2.50
		Everest 29 SL (R/B Keyways Primus Controlled Access	only)			91-062							$10	2.50
L583-475		Primus XP Controlled Access				20-787				-		163.	00
For cyl. length 1 1/4", 1 1/2", 1 3/4"		Everest 29 SL Primus XP (R/		avs onl	( )	91-757							$16	3.00
· //2 ,1 3/ 1	Cylinder With Compression	Primus UL437	D Neywo	ays or it	y)	20-58							710	3.00
\ _\ \_\ \_x	Ring & Spring:	Primus XP UL437				20-58				1		195.	00
1/4 1/2 3/4	Rose Trim	Primus Lockout				20-717
Dim. X = .261		Primus XP Lockout 20-717-XP								220.00
Y = .644		Primus UL437 Lockout		20-517
		Primus XP UL437 Lockout					-XP			1		237.	00
		Hotel Function (Standard)				30-00	2%			12	23.00		140	0.50
Schlage L9060 Outside	and Other Straight Cam Ap	plications
L583-476		Standard				26-02				$74.00			¢α	1.50
For cyl. length 1 1/8", 1 3/8", 1 5/8"		Everest 29 SL (R/B Keyways	only)			91-059				791.30			1.50
. 3, 3 , . 3, 3	Cylinder Only:	Primus Controlled Access				20-701				153.00
Y	L & N Escutcheons	Primus XP Controlled Access				20-701
10 20 80		Primus XP Everest 29 SL (R/	B Keywa	ays onl	y)	91-759							186	5.00
DIM X = 0.35" DIM Y = 0.72"		Primus UL437				20-50				-		186.	00
		Primus XP UL437		20-50				١.,	F 00		101
L583-477		Standard Everest 29 SL (R/B Keyways	only)			20-00 91-051				-	5.00			2.50 2.50
For cyl. length 1 1/4", 1 1/2", 1 3/4"		Primus Controlled Access	Urity)			20-70							102	2.50
| X |		Primus XP Controlled Access				20-700				1		163.	00
Y	Cylinder With	Primus XP Everest 29 SL (R/		avs onl	v)	91-751							186	5.00
1 ( )	Compression	Primus UL437			,,	20-50
DIM X = 0.35" DIM Y = 0.72"	Ring & Spring: Rose Trim	Primus XP UL437				20-50	D-XP			1		195.	00
		Primus Lockout				20-715
		Primus XP Lockout				20-715	-XP			220.00
		Primus UL437 Lockout 20-515									דכר	nn
		Primus XP UL437 Lockout				20-515	-XP			237.00
Notes:	Prices apply to 11/8", 11/4" a	nd 1 3/8". For 1 1/2", 1 5/8" and	13/4" a	dd $4!	5.30.	See Spe	cial Cy	linders	for 2"	- 5" lor	ng cylir	nders
	11/8" (Dim = 118) cylinders ar See page CYL-36 for required	re furnished unless otherwise s d dimension.	pecified.	Cylind	er len	gths de	oend o	n func	tion, tr	im and	door t	hickr	ness.
	SL cylinders available in 1 1/8	and 11/4" lengths only

Part Number	Description	Price Each
	Harnesses with Molex Connectors on both ends (for use with Hollow Metal Doors)
CON-6	6" Wire Harness (internal p/n 106190-00)	$10.50
CON-12	12" Wire Harness (internal p/n 106191-00)	14.00
CON-26	26" Wire Harness (internal p/n 106192-00)	15.80
CON-32	32" Wire Harness (internal p/n 106193-00)	16.90
CON-38	38" Wire Harness (internal p/n 106194-00)	18.50
CON-44	44" Wire Harness (internal p/n 106195-00)	18.00
CON-50	50" Wire Harness (internal p/n 106196-00)	18.50
CON-192	192" Wire Harness (internal p/n 106197-00)	44.20
	Harnesses with Molex Connector on one end, crimped pins on other w/ attachable Molex connector (for use with Wood Doors)
CON-6P	6" Wire Harness (internal p/n 106201-00)	$13.40
CON-12P	12" Wire Harness (internal p/n 106202-00)	16.90
CON-26P	26" Wire Harness (internal p/n 106203-00)	18.50
CON-32P	32" Wire Harness (internal p/n 106204-00)	19.80
CON-38P	38" Wire Harness (internal p/n 106205-00)	20.30
CON-44P	44" Wire Harness (internal p/n 106206-00)	20.90
CON-50P	50" Wire Harness (internal p/n 106207-00)	21.50
CON-192P	192" Wire Harness (internal p/n 106208-00)	46.50
	Harness with Molex Connector on one end, stripped leads on other (for connection to power supply)
CON-6W	6" extension to power supply (internal p/n 106210-00)	$13.40
Service Kit
CON-KIT	Connector Service Kit (internal p/n 050823-00-00) contains: -100 each male & female terminals -10 each 4-pin and 8-pin male connectors -10 each 4-pin and 8-pin female connectors - 1 extraction tool"	$111.00

Concealed two-point latching system for wood or hollow metal doors

NOTE: LM9200 series requires unique factory-prepped doors; please contact sales representative for list of compatible door manufacturers.

Ordering Procedures

To order Schlage products, descriptive data should be in the sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	1	LM9250P	06A	626	17B	643e	RH	LBL	_	134	-	7'0"	KA

Line Item: Line item number Oty: Ouantity

Product: Product function + cylinder code. No suffix is required for non-firerated wood or hollow metal doors; use 'F' suffix for firerated

wood doors and 'M' suffix for firerated hollow metal doors.

Outside Des: Outside lever design + rose/escutcheon code

Outside Fin: Outside finish

Inside Des: Inside lever design + rose/escutcheon code; specify only if different from outside

Inside Fin: Inside finish; specify only if different from outside

Hand: Hand of door (LH, LR, RH, RR)

Latch: specify LBL (Less Bottom Latch) if top-latch only solution desired Strike: Not applicable; product ships with standard strikes only

Dr Thk: Door Thickness; leave blank for standard thickness (13/4") or specify if non standard. Example: 200 = 2", 214 = 21/4"

Ext: Extension, enter one of the following when door thckness 2" or greater are specified: EE = Extended Equally, EI = Extended Inside,

EO = Extended Outside

Dim: Height of door (6'8"-10'0" for non-fire rated openings, 6'8"-8'0" for fire rated openings)

Additional Enter additional detail for keying information or special requirements

Details:

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	$\{\backslash mathbb\; Z\}$ denotes a lock or part that requires an extended lead time.
5.	denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents

i abte of contents
Functions LM-4
Complete Locks LM-6
Standard Lever Collection A, B or C Rose TrimLM-6
Standard Lever Collection Escutcheon TrimLM-8
M Lever Collection A, B or C Rose TrimLM-10
M Lever Collection Escutcheon TrimLM-12
Options LM-14
Cylinder Options LM-14
Locks Less ComponentsLM-15
Non-Standard Door Thickness LM-15
Indicators (for Sectional (rose) or N Escutcheon Trim) LM-16
Tactile WarningLM-16
ADA Thumbturn LM-16
Lever TrakLM-16
Anti-Microbial Coating LM-16
Parts LM-17
Levers & Knobs, Roses, Escutcheons LM-17
Outside Lever/Knob AssembliesLM-18
Armor Fronts & StrikesLM-18
Buttons, Thumbturns, Coin Turns, Cylinder TurnsLM-19
Occupancy Indicators LM-19
Thru-BoltsLM-20
Mounting Posts
Springs & Spindles
Lock Cases LM-21
Latch KitsLM-21
Strikes LM-21
Cables LM-21
Fire Rated ComponentsLM-21
Miscellaneous PartsLM-22
Mortise CylindersLM-23
Allegion Connect Harnesses I M-24
Complete Cylinders See Cylinders Section

BAA/ARRA

Contact your local RSO or Sales Rep. for ordering details

Product Identification

SFIC = Small Format (Best® Style) Interchangeable Core

Finish Codes and Descriptions

Code 605 606 609 612	(US 3) (US 4) (US 5) (US10)	Description Bright Brass Satin Brass Antique Brass Satin Bronze
613 619 622 625 626	(US10B) (US15) (US19) (US26) (US26D)	Oil Rubbed Bronze Satin Nickel Matte Black Bright Chromium Plated Satin Chromium Plated
626AM (A) 629 630 630AM (A)	(US 32) (US 32D)	Antimicrobial Coating on Satin Chromium Bright Stainless Steel Satin Stainless Steel Antimicrobial Coating on Satin Stainless Steel
643e	(US 11)	Aged Bronze

Standard Features

How To Order

rtifications Wood door applications: available UL listed for 60 minute fire door with two point latch

Forms & Examples

or 20 minute fire door with top latch only. (Does not meet Canada UL 20-minute wood door requirement)

Hollow metal door applications: available UL listed for 90 minute fire door with two point latch, one point latch,

or double egress with astragal.

Case Size 4 7/16" x 12 3/8" x 1" Armor Front 1 1/4" x 15 7/8"

Backset 2 3/4"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different

Door Range 13/4

Keys Two nickel silver cut keys per lock, 6 pin, S123 section

NOTE: LM9200 only available in US and Canada

Mechanical Functions

LM9210 Passage Lock

Latches retracted by lever from either side at all times. Inside lever always free for immediate egress.

LM9270 Classroom Lock

Latches retracted by lever from either side unless outside is made inoperative by key outside. Outside lever remains locked until unlocked by key. Inside lever always free for immediate egress.

LM9225 Exit Lock

Latches retracted by lever from inside at all times. No trim on outside. Not available escutcheon trim.

LM9271 Classroom Security Lock

Latches retracted by lever from either side unless outside is made inoperative by key from either side. Outside lever remains locked until unlocked by key either side. Inside lever always free for immediate egress.

LM9250 Office/Entry Lock

Latches retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. Outside lever remains locked until thumbturn is returned to vertical or unlocked by key. Inside lever always free for immediate egress.

LM9280 Storeroom Lock

Latches retracted by outside lever after key inserted and turned 280° or by inside lever. Inside lever always free for immediate egress. Specify handing on order.

LM9256 Office/Entry with automatic unlocking

Latches retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. Outside lever remains locked until thumbturn is returned to vertical, unlocked by key, or rotating inside lever. Inside lever always free for immediate egress.

All electrified locks feature automatic detection and operation with 12 or 24V DC, and a case-mounted switch that allows customer selection of EL (fail safe) or EU (fail secure) operation. Please specify lock function as EL or EU for default switch position. Locks also come standard with Allegion Connect molex connector with 3" lead. Allegion Connect is a molex connector system that allows rapid installation of lock when used with Allegion connect harnesses (see last page of this section of pricebook) and Allegion connect Hinges (see Ives pricebook). For more information speak to your sales representative. The molex connector can also be cut off so that the lock can be installed with traditional splicing. Request to Exit (RX) is not an available option for the LM9200 series.

LM9290EL LM9290EU

Electrically locking/unlocking outside lever, no cylinder

Outside lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. EL is fail safe (power failure allows outside lever to retract latchbolt); EU is fail secure (power failure locks outside lever). Inside lever always free for immediate egress.

LM9293EL LM9293EU

Electrically locking/unlocking both levers, Outside cylinder

Inside and outside lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key outside. EL is fail safe (power failure allows either lever to retract latchbolt); EU is fail secure (power failure locks both levers).

LM9291EL LM9291EU

Electrically locking/unlocking both levers, no cylinder

Inside and outside lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. EL is fail safe (power failure allows either lever to retract latchbolt); EU is fail secure (power failure locks both levers).

LM9294EL LM9294EU

Electrified outside levers lock two-point latch (inside and outside cylinder)

Electrically locking/unlocking outside lever only. Latchbolt(s) retracted by outside key and lever, by electrically unlocking door, and by outside lever when electrically unlocking or anytime by inside lever. Inside lever is always free for immediate egress. Requires doors specifically designed for two-point latch system.

LM9292EL LM9292EU

Electrically locking/unlocking outside lever, Outside cylinder

Outside lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key outside or lever inside. EL is fail safe (power failure allows outside lever to retract latchbolt); EU is fail secure (power failure locks outside lever). Inside lever always free for immediate egress.

LM9295EL LM9295EU

Electrically locking/unlocking both levers, Inside and outside cylinder

Inside and outside lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key inside or outside. EL is fail safe (power failure allows either lever to retract latchbolt); EU is fail secure (power failure locks both levers).

Cast or Forged Lever Designs with Wrought Roses

Note: Above images shown with A Rose. (except for ligature resistant trim)

Wrought Rose Designs

LM9200 (	A, B or C Rose Trim) - Standard Colle	ction lev	ers/
-			Lever Designs
		03	03 06 07 03 12*9 17 OME		2 17
			ACC®†, As * Not avai	05, 18, LAT*, LON ' ST®†, MER®† lable 612, 613 lable 629, 630	k
				Finishes	;
		626	626	605 606 609 612 619	613 629	Adjustment for Less Bottom Latch
Function	Description			622 625 643e	630	(LBL option code)
FOR NON FIRERAL Keyless Functions	ED WOOD AND HOLLOW METAL DOORS (6'8" - 10'0 door range, s	pecify height o	n order)
LM9210	Passage			T .
LM9225	Exit	$2,971	$3,081	$3,093	$3,111
LM9290EL or EU	Electrified lock, no cylinders, outside lever locks			2 / 22		-119
LM9291EL or EU	Electrified lock, no cylinders, both levers locks	3,347	3,457	3,469	3,487
Keyed Single Cylin	der Functions
LM9250P	Office/Entry	$3,142	3,252	$3,264	$3,282
LM9256P	Office/Entry w/Automatic Unlocking	3,211	3,321	3,333	3,351
LM9270P	Classroom	3,142	3,252	3,264	3,282	-119
LM9280P	Storeroom (specify handing on order)	5,142	3,232	5,204	3,202	-119
LM9292ELP or EUP	Electrified lock, outside cylinder, outside lever locks	3,627	3,737	3,749	3,767
LM9293EPL or EUP	Electrified lock, outside cylinder, both levers lock	3,027	3,737	3,749	3,707
Keyed Double Cylin	nder Functions
LM9271	Classroom Security	$3,218	$3,328	$3,340	$3,358	-119
LM9293ELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,503	3,613	3,625	3,643	-115

FOR UL FIRERATED	D WOOD DOORS (6'8" - 8'0" door range, specify height on order)
Keyless Functions
LM9210F	Passage	¢2 121	¢2 221	¢2 7/2	¢2 261
LM9225F	Exit	$3,121	$3,231	$3,243	$3,261	-119
LM9290FEL or EU	Electrified lock, no cylinders, outside lever locks	3.497	3,607	3,619	2 627	-119
LM9291FEL or EU	Electrified lock, no cylinders, both levers locks	3,497	3,007	5,019	3,637
Keyed Single Cylin	der Functions
LM9250FP	Office/Entry	$3,292	$3,402	$3,414	$3,432
LM9256FP	Office/Entry w/Automatic Unlocking	3,361	3,471	3,483	3,501
LM9270FP	Classroom	3,292	3,402	3,414	3,432	-119
LM9280FP	Storeroom (specify handing on order)	3,292	3,402	5,414	3,432	-119
LM9292FELP or EUP	Electrified lock, outside cylinder, outside lever locks	3,777	3,887	3,899	3,917
LM9293FELP or EUP	Electrified lock, outside cylinder, both levers lock	3,///	3,007	3,099	3,917
Keyed Double Cylin	der Functions		·
LM9271FP	Classroom Security	$3,368	$3,478	$3,490	$3,508	110
LM9295FEPL or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,653	3,763	3,775	3,793	-119

FOR UL FIRERATEI	D HOLLOW METAL DOORS (6'8" to 8'0" door range; specify height	on order)
Keyless Functions		·
LM9210M	Passage	$2,971	$3,081	$3,093	$3,111
LM9225M	Exit	$2,971	$3,001	$3,093	$5,111	-119
LM9290MEL or EU	Electrified lock, no cylinders, outside lever locks	2 2/7	2 /57	3 /60	2 / 07	-119
LM9291MEL or EU	Electrified lock, no cylinders, both levers locks	3,347	3,457	3,469	3,487
Keyed Single Cylin	der Functions
LM9250MP	Office/Entry	$3,142	$3,252	$3,264	$3,282
LM9256MP	Office/Entry w/Automatic Unlocking	3,211	3,321	3,333	3,351
LM9270MP	Classroom	21/2	2 252	2.764	2 202
LM9280MP	Storeroom (specify handing on order)	3,142	3,252	3,264	3,282	-119
LM9292MELP or EUP	Electrified lock, outside cylinder, outside lever locks	3,627	3,737	3,749	3,767
LM9293MELP or EUP	Electrified lock, outside cylinder, both levers lock
Keyed Double Cylin	der Functions
LM9271MP	Classroom Security	$3,218	$3,328	$3,340	$3,358
LM9294MELP or EUP	Electrified lock, inside and outside cylinders, outside lever locks	3,503	3,613	3,625	3,643	-119
LM9295MELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,303	3,013	3,025	3,043

Cast or Forged Lever Designs with Cast, Forged, or Wrought Escutcheons

Note: Above images shown with L Escutcheon.

Cast/Forged (L) or Wrought (N)

	LM9200 (L or N Escutcheon) - Standard Collection levers
			Lever Designs
		03 06 07 12I 17 OME	03 06 07 12I 17 OME
			6: 01, 02, 05, 18, LAT*, LON * ACCI†, ASTI†, MERI† * Not Available 612, 613 † Not available 629, 630
				Finishes
		626	605 606 609 612 619	613 629	Adjustment for Less Bottom Latch
Function	Description		622 625 643e	630	(LBL option code)
Keyless Functions	FOR NON FIRERATED WOOD AND HOLLOW METAL DOORS (6'8" to 10'0" door range; specify height on order)
LM9210	Passage	$3,108	$3,120	$3,138
LM9290EL or EU	Electrified lock, no cylinders, outside lever locks				-119
LM9291EL or EU	Electrified lock, no cylinders, both levers locks	3,484	3,496	3,514
Keyed Single Cylinder Functions
LM9250P	Office/Entry	$3,279	$3,291	$3,309
LM9256P	Office/Entry w/Automatic Unlocking	3,348	3,360	3,378
LM9270P	Classroom
LM9280P	Storeroom	3,279	3,291	3,309	-119
LM9292ELP or EUP	Electrified lock, outside cylinder, outside lever locks
LM9293ELP or EUP	Electrified lock, outside cylinder, both levers lock	3,764	3,776	3,794
Keyed Double Cylinder Functions
LM9271P	Classroom Security	$3,355	$3,367	$3,385
LM9295ELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,640	3,652	3,670	-119

	FOR UL FIRERATED WOOD DOORS (6'8" - 8'0" door range; specify height on order)
Keyless Functions
LM9210F	Passage	$3,258	$3,270	$3,288
LM9290FEL or EU	Electrified lock, no cylinders, outside lever locks				-119
LM9291FEL or EU	Electrified lock, no cylinders, both levers locks	3,634	3,646	3,664
Keyed Single Cylinder Functions
LM9250FP	Office/Entry	$3,429	$3,441	$3,459
LM9256FP	Office/Entry w/Automatic Unlocking	3,498	3,510	3,528
LM9270FP	Classroom
LM9280FP	Storeroom	3,429	3,441	3,459	-119
	LM9292FELP or EUP Electrified lock, outside cylinder, outside lever locks
	LM9293FELP or EUP Electrified lock, outside cylinder, both levers lock	3,914	3,926	3,944
Keyed Double Cylinder Functions
LM9271FP	Classroom Security	$3,505	$3,517	$3,535
	LM9295FELP or EUP Electrified lock, inside and outside cylinders, both levers lock	3,790	3,802	3,820	-119

	FOR UL FIRERATED HOLLOW METAL DOORS (6'8" to 8'0" door range; specify height on order)
Keyless Functions
LM9210M	Passage	$3,108	$3,120	$3,138
LM9290MEL or EU	Electrified lock, no cylinders, outside lever locks				-119
LM9291MEL or EU	Electrified lock, no cylinders, both levers locks	3,484	3,496	3,514
Keyed Single Cylinder Functions
LM9250MP	Office/Entry	$3,279	$3,291	$3,309
LM9256MP	Office/Entry w/Automatic Unlocking	3,348	3,360	3,378
LM9270MP	Classroom
LM9280MP	Storeroom	3,279	3,291	3,309	-119
LM9292MELP or EUP	Electrified lock, outside cylinder, outside lever locks
LM9293MELP or EUP	Electrified lock, outside cylinder, both levers lock	3,764	3,776	3,794
Keyed Double Cylinder Functions
LM9271MP	Classroom Security	$3,355	$3,367	$3,385
LM9294MELP or EUP	Electrified lock, inside and outside cylinders, outside lever locks				-119
LM9295MELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,640	3,652	3,670

Cast or Forged Lever Designs with Wrought Roses

Wrought Rose Designs

Note: Above images shown with A Rose.

		Complete Locks	·LIVI9ZU
LM9200 (	A, B or C Rose Trim) - M Collection leve	rs
•	Ţ	Lever Designs
		Standard Lead-time: M51	M52 M81
		© M53, M54, M55, M56, M57†, M61® M82, M83, M84, M85, ME1®, ME2®, † Available 629 and 630 only	, M62♥†, M63♥,
		Finishes
Function	Description	605 606 609 619 622 625 626 629 630 643e	Adjustment for Less Bottom Late (LBL option code
FOR NON FIRERAT	FED WOOD AND HOLLOW METAL DOORS (6'8" to 10'0" door range; sp	ecify height on order)	·
Keyless Functions
LM9210	Passage	4
LM9225	Exit	$3,111
LM9290EL or EU	Electrified lock, no cylinders, outside lever locks		-119
LM9291EL or EU	Electrified lock, no cylinders, both levers locks	3,487
Keyed Single Cylin
LM9250P	Office/Entry	$3,282
LM9256P	Office/Entry w/Automatic Unlocking	3,351	1
LM9270P	Classroom	·	1
LM9280P	Storeroom	3,282	-119
LM9292ELP or EUP	Electrified lock, outside cylinder, outside lever locks		1
LM9293ELP or EUP	Electrified lock, outside cylinder, both levers lock	3,767
Keyed Double Cyli
LM9271P	Classroom Security	$3,358
LM9295ELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,643	-119
LIVIDED SELECTION LOT	Electrifica tock, inside and obeside cylinders, both levels tock	3,043
FOR III FIRERATE	D WOOD DOORS (6'8" to 8'0" door range; specify height on order)
Keyless Functions
LM9210F	Passage
LM9225F	Exit	$3,261
LM9290FEL or EU	Electrified lock, no cylinders, outside lever locks		-119
LM9291FEL or EU	Electrified lock, no cylinders, both levers locks	3,637
Keyed Single Cylin
LM9250FP	Office/Entry	$3,432	1
LM9256FP	Office/Entry w/Automatic Unlocking	3,501	-
LM9270FP	Classroom	·	-
LM9280FP	Storeroom	3,432	-119
LM9292FELP or EUF			-
	Electrified lock, outside cylinder, both levers lock	3,917
Keyed Double Cyli	•
LM9271FP	Classroom Security	$3,508	T
LM9295FELP or EUF		3,793	-119
CIVIDED SI ELI OI LOF	Electrifica tock, fibriae and obtaine cythiaets, both levels tock	3,123	1
EODIII FIDEDATE	D HOLLOW METAL DOORS (6'8" to 8'0" door range; specify height on c	order)
Keyless Functions		nuci j
LM9210M	Passage
LM9225M	Exit	$3,111
LM9290MEL or EU	Electrified lock, no cylinders, outside lever locks		-119
LM9290MEL OF EU	Electrified lock, no cylinders, both levers locks	3,487
LIVIDZDIIVIEL UI EU	I LIECUTHEU LUCK, HU CYLITUELS, DUUT LEVELS LUCKS	I .	1

Keyless Functions
LM9210M	Passage	62.111
LM9225M	Exit	$3,111	110
LM9290MEL or EU	Electrified lock, no cylinders, outside lever locks	2 / 07	-119
LM9291MEL or EU	Electrified lock, no cylinders, both levers locks	3,487
Keyed Single Cylind	ler Functions
LM9250MP	Office/Entry	$3,282	-119
LM9256MP	Office/Entry w/Automatic Unlocking	3,351
LM9270MP	Classroom	3 393
LM9280MP	Storeroom	3,282
LM9292MELP or EUP	Electrified lock, outside cylinder, outside lever locks	3 767
LM9293MELP or EUP	Electrified lock, outside cylinder, both levers lock	3,767
Keyed Double Cylin	der Functions
LM9271MP	Classroom Security	$3,358
LM9294MELP or EUP	Electrified lock, inside and outside cylinders, outside lever locks	3,643	-119
LM9295MELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	5,045

Cast or Forged Lever Designs with Cast, Forged, or Wrought Escutcheons

Note: Above images shown with L escutcheon.

Cast/Forged (L) or Wrought (N)

	LM9200 (L or N Escutcheon) - M Collection levers
		Lever Designs
		Standard Lead-time: M51, M52, M81
		6: M53, M54, M55, M56, M57†, M61I, M62I†, M63I, M82, M83, M84, M85, ME1I, ME2I, ME3 † Available 629 and 630 only
		Finishes
Function	Description	605 606 609 619 622 625 626 629 630 643e	Adjustment for Less Bottom Latch (LBL option code)
	FOR NON FIRERATED WOOD AND HOLLOW METAL DOORS (6'8" to 10'0" door range; specify height on order)
Keyless Functions
LM9210	Passage	$3,138
LM9290EL or EU	Electrified lock, no cylinders, outside lever locks		-119
LM9291EL or EU	Electrified lock, no cylinders, both levers locks	3,514
Keyed Single Cylinder Functions
LM9250P	Office/Entry	$3,309
LM9256P	Office/Entry w/Automatic Unlocking	3,378
LM9270P	Classroom
LM9280P	Storeroom	3,309	-119
LM9292ELP or EUP	Electrified lock, outside cylinder, outside lever locks
LM9293ELP or EUP	Electrified lock, outside cylinder, both levers lock	3,794
Keyed Double Cylinder Functions
LM9271P	Classroom Security	$3,385
LM9295ELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,670	-119

	FOR UL FIRERATED WOOD DOORS (6'8" to 8'0" door range; specify height on order)
Keyless Functions
LM9210F	Passage	$3,288
LM9290FEL or EU	Electrified lock, no cylinders, outside lever locks		-119
LM9291FEL or EU	Electrified lock, no cylinders, both levers locks	3,664
Keyed Single Cylinder Functions
LM9250FP	Office/Entry	$3,459
LM9256FP	Office/Entry w/Automatic Unlocking	3,528
LM9270FP	Classroom
LM9280FP	Storeroom	3,459	-119
	LM9292FELP or EUP Electrified lock, outside cylinder, outside lever locks
	LM9293FELP or EUP Electrified lock, outside cylinder, both levers lock	3,641
Keyed Double Cylinder Functions
LM9271FP	Classroom Security	$3,535
	LM9295FELP or EUP Electrified lock, inside and outside cylinders, both levers lock	3,820	-119

	FOR UL FIRERATED HOLLOW METAL DOORS (6'8" to 8'0" door range; specify height on order)
Keyless Functions
LM9210M	Passage	$3,138
LM9290MEL or EU	Electrified lock, no cylinders, outside lever locks		-119
LM9291MEL or EU	Electrified lock, no cylinders, both levers locks	3,514
Keyed Single Cylinder Functions
LM9250MP	Office/Entry	$3,309
LM9256MP	Office/Entry w/Automatic Unlocking	3,378	-119
LM9270MP	Classroom
LM9280MP	Storeroom	3,309
LM9292MELP or EUP	Electrified lock, outside cylinder, outside lever locks
LM9293MELP or EUP	Electrified lock, outside cylinder, both levers lock	3,794
Keyed Double Cylinder Functions
LM9271MP	Classroom Security	$3,385
LM9294MELP or EUP	Electrified lock, inside and outside cylinders, outside lever locks		-119
LM9295MELP or EUP	Electrified lock, inside and outside cylinders, both levers lock	3,670

Cylinder Adjustments
Specify	Description	Lock Price Adjustment (per cylinder)
	Concealed Cylinder (L Escutcheon only)
C Suffix	Concealed cylinder for L escutcheon	$26.00
Full Size Interchangeable Core (FSIC)
R Suffix	Full size core (furnished 1-bitted w/ two 6-pin keys unless otherwise specified)	$73.00
J Suffix	Less full size core	N/C
Full Size Construction Core
T Suffix	Full size construction core (assessed handing charge 50-231 per core)	$73.00
	Small Format Interchangeable Core (SFIC) (Not available with Hotel Functions L9485 or L9486)
GD Suffix	Everest patented core (specify key symbol; see Terms & Conditions for more details)	$84.00
BD Suffix	Less small format core	N/C
	Small Format Construction Core & Disposable Core
HD Suffix	Small format construction core (assessed handing charge 50-231 per core)	$44.00
BDC Suffix	Small format disposable core	N/C
Construction Core Handling Charge
50-231	Handing charge for construction core (assessed per core, non-refundable)	$10.40
Notes	Control keys are not furnished with locks and must be purchased separately. See Keys & Keying. Interchangeable cores are not available with concealed cylinders.
	Ordering instructions: Add suffix to lock function. Ex: LM9250J (LM9250 function less full size core)

Specify	Description	Lock Price Adjustment
Full-Face Primus Cylinders
L Suffix	Order lock less cylinder; order Primus cylinder 20-787 or 20-793 separately	-$85 per cylinder
20-787	Full-face Primus cylinder w/ compression ring & spring (for use with rose trim)	164.00
20-793	Full-face Primus cylinder only (for use with escutcheon trim)	154.00
Concealed Primus Cylinders
W Suffix	Order lock less concealed cylinder; order Primus cylinder 20-589 separately	$27.00
20-589	Concealed Primus cylinder (for use with L escutcheon w/ concealed cylinder only)	218.00
	Full-Size Interchangeable Primus Core
J Suffix	Order lock less full size core; order full-size Primus core 20-740 separately	N/C for J Suffix
20-740	Full-size interchangable Primus core	$152.00
	Notes Primus not available for Faculty Restroom function (L9485, L9486)
	Ordering instructions: Add suffix to lock function, order Primus cylinder separately. Ex: LM9250W (LM9250 function less concealed cylinder) order 20-589 on separate line.

Locks Less Components
Description	Specify	Lock Price Adjustment
Less each knob or lever	LLL for knob/lever design Example: LM9250P LLL/03A x 03A	-$27.50
Less each rose or escutcheon	LLL for rose/escutcheon design Example: LM9250P 03A x 03A/LLL	-27.50
Less complete trim one side*	LLL for complete trim outside Example: LM9250P LLL x 03A	-55.00
Less full face cylinder (rose trim)	L suffix Example: LM9250L 03A	-85.00 per cylinder
Less full face cylinder	L suffix Example: LM9250L 03L	-74.00 per cylinder
Less concealed cylinder (L escutcheon only)	W suffix Example: LM9250W 03L	-74.00 per cylinder

Specify	Description	Lock Price Adjustment
Keyless Functions
thickness &	For > 1 3/4" - 2 1/2" thick doors, specify (xx) Extended Inside (EI), Outside (EO), Equally (EE) or Differently (ED)	N/C
how applied (xx)	For > 2 1/2" - 4" thick doors, specify (xx) Extended Inside (EI), Outside (EO), Equally (EE) or Differently (ED)	$102.00
Single Cylinder Functions
thickness &	For > 1 3/4" - 2 1/2" thick doors	N/C
how applied (xx)	For > 2 1/2" - 4" thick doors - specify (xx) Extended Inside (EI)	$102.00
	For > 2 1/2" - 4" thick doors - specify (xx) Extended Outside (EO), Equally (EE), or Differently (ED)	501.00
Double Cylinder Functions
thickness &	For > 1 3/4" - 2 1/2" thick doors	N/C
how applied (xx)	For > 2 1/2" - 4" thick doors - specify (xx) Extended Inside (EI) or Extended Outside (EO)	$501.00
	For > 2 1/2" - 4" thick doors - specify (xx) Extended Equally (EE) or Extended Differently (ED)	895.00
Notes	Price keyed locks less cylinders (L or W suffix) same as keyless locks
	Locks furnished Extended Equally unless otherwise specified
	Locks w/ N Esctucheon only available for 1 3/4" - 2 3/8" thick doors
	Locks with small format interchangable cores (BD, BDC, GD, HD suffix) only available for 1 3/8" - 2 1/4" thick doors

Specify	Description	Lock Price Adjustment
	inside indicators available for: LM9250, LM9256, LM9271
L283-711	LOCKED/UNLOCKED indicator for inside of door	$108.00
L283-712	VACANT/OCCUPIED indicator for inside of door	108.00
L283-713	DO NOT DISTURB indicator for inside of door	108.00
L283-714	symbols only indicator for inside of door
	outside indicators available for: LM9250, LM9256, LM9270, LM9271
L283-721	LOCKED/UNLOCKED indicator for outside of door	108.00
L283-722	VACANT/OCCUPIED indicator for outside of door	108.00
L283-723	DO NOT DISTURB indicator for outside of door	108.00
L283-724	symbols only indicator for outside of door	108.00
Notes:	1) Indicators available in all finishes except 612 and 613
	2) Sectional indicators available for cylinder functions only until May 2015
	3) Indicator option available either inside or outside of door only.
	4) Cylinder and sectional indicators require additional door preparation.

Tactile Warning
Specify	Description	Lock Price Adjustment
'8' lever prefix	Tactile warning applied to outside lever; available on 01, 02, 03, 05, 06, 07, 12, 17, 18, M51, M52, M81 lever designs	$47.80
	Ordering instructions: Preface lever design code with 8. EX - 803 for 03, 806 for 06, 851 for M51, etc.

ADA Thumbturn*
Specify	Description	Lock Price Adjustment
L583-363	ADA Disability thumbturn option	$16.80
Ordering instructions: include in order under "Additional Details".

Folger Adam Co® Lever Trak™
Specify	Description	Lock Price Adjustment
503 Lever Design	Modified inside and outside 03 lever for Folger Adam Co. ® Lever Trak™. Available rose trim only, not available 629 or 630 finish.	$105.00
Ordering instructions: Specify lever design as 503.

Antimicrobial Coating
Specify	Description	Lock Price Adjustment
626AM or 630AM	Rose Trim: Adds silver-ion based anti-microbial coating to inside lever, bushing, rose & thumbturn and outside lever, bushing, rose, cylinder ring, and cylinder faceplate
626AM or 630AM	Escutcheon Trim: Adds silver-ion based anti-microbial coating to inside lever, bushing, escutcheon & thumbturn and outside lever, bushing, escutcheon, and cylinder face plate	$50.90
Ordering instructions: Specify finish as either 626AM or 630AM.

Levers
Style	Lever Design		605 606 609		612	613	619	622	625				626 629 630 643e
Standard	016, 026, 03*, 056, 06, 07, 12I, 17, 18, OME6	•	•	•	•	•	•	•	•	•	•	•	•
	LAT6, LON6	•	•	•			•	•	•	•	•	•	•
	ACCI, ASTI, MERI, STAI	•	•	•			•	•	•	•			•
Decorative	M51, M52, M536, M546, M556, M566, M616I, M636I, M81, M826, M836, M846, M856I, ME16I, ME26I, ME36	•	•	•			•	•	•	•	•	•	•
	M576I, M626I										•	•
	6Extended Factory Lead Time Ispecify handing
Part Number	Description			Standard Levers							Decorative Levers
09-401	Outside lever, retaining clip, insertion tool
09-402	Inside lever+bushing, mounting plate, screw pack, spanner wrench	$181 $196
*	Available modified for Folger Adam Co.® Lever Track™. Specify 503 design and add $51.00. Not available in 629 or 630 finish.
	Ordering instructions: Specify part number, lever style + rose, finish. Ex: 09-401 03A 626.

Roses
Style	Rose Design		605 606 609		612	613	619	622	625		626 629 630 643e
Standard	A, B, C	•	•	•	•	•	•	•	•	•	•	•	•
Decorative	MER, AVA	•	•	•			•	•	•	•			•
Part Number	Description	Standard and Decorative
09-403	Inside Rose (includes mounting plate and screws)
09-404	Outside Rose+Bushing	$102.00
09-508	Blank Outside Rose (not available MER or AVA)
	Ordering instructions: Specify part number, lever design + rose, finish. Ex: 09-404 03A 626. Lever design must be specified for proper bushing.

Escutcheons
	Available finishes	•	605 606 609 •	•	612 •	613 •	619 •	622 •	625 •	•	626 629 630 643e •	•	•
Part Number	Description	L Escutcheon						N Escutcheon
	Outside Escutcheon & Bushing
09-636	Blank x lever
09-637	Emergency turn x lever	$181
09-638	Concealed cylinder x lever							$181
09-639	Full face cylinder x lever
09-640*	Concealed cylinder x occupancy indicator x lever	207
09-641*	Full face cylinder x occupancy indicator x lever
Inside Escutcheon
09-632	Blank x lever
09-633**	Thumbturn x lever										181
09-634**	Thumbturn x blank				181
09-635	Full face cylinder x lever										181
L583-187	Concealed cylinder x lever
*	Available with 'occupied" indicator. Specify with L583-375 and add $17.90
**	Specify door thickness: 1 3/8" or 1 3/4"
	Ordering instructions: Specify part number, lever + escutcheon style, finish. Ex: 09-639 03L 626 (full face cylinder, 03 lever, L escutcheon, 626 finish).

Style	Lever Design		605 606 609		612	613	619	622		625 626 629 630 643e
Standard	016, 026, 03, 056, 06, 07, 12I, 17, 18, OME6	•	•	•	•	•	•	•	•	•	•	•	•
	LAT6, LON6	•	•	•			•	•	•	•	•	•	•
	ACCI, ASTI, MERI, STAI	•	•	•			•	•	•	•			•
Decorative	M51, M52, M536, M546, M556, M566, M616I, M636I, M81, M826, M836, M846, M856I, ME16I, ME26I, ME36	•	• • •		•	•	•	•	•	•
	M576I, M626I										•	•
	6Extended Factory Lead Time Ispecify handing
Part Number	Description	Standard Levers Decorative Levers
With A, B or C rose
09-506	Outside Lever assembly				$201			$216
	With Avanti or Merano Rose
09-655	Outside lever assembly for AST w/Avanti rose or MER w/Merano rose only				201			N/A
	With L or N Escutcheon
09-550	Blank
09-551	Emergency turn
09-552	Concealed cylinder (L escutcheon only)				267						282
09-553	Full face cylinder
09-554*	concealed cylinder w/ indicator (L escutcheon only)
09-555*	Full face cylinder w/ indicator (L escutcheon only)

	Armor Fronts, LM9200 Series
Part Number	Description	Price Each
24594970	LM9200 Armor Front	$71.30
K110-020 xx	Armor front screws; contains (2) K510-210, #8-32 x 1/4" MS PFH; specify finish as xx	0.90

Ordering instructions: Specify part number, lever style, rose/escutcheon, finish. Ex: 09-506 M53A 626 (outside assembly, M53 lever, A rose, 626 finish).

Note: Please specify finish when ordering armor fronts (605, 606, 609, 619, 625, 626, 629, 643e, 630)

K510-330	09-509	09-509 w/ ADA Thumbturn (L583-363)	L283-124	09-900

	Emergency Button, Thumbturns, Coin Turns & Cylinder Turns
					605 606 609 612	613				619 622 625 626 629 630 643e
	Available Finishes	•	•	•	•	•	•		•	•	•	•	•	•
Part
Number	Description								Price Each
	Emergency Button & Emergency Turn Tool
K510-330	Emergency Button, L9040 and L9440							$15.20
L583-233	Emergency turn tool for L9040 and L9440. Specify finish as 458.							19.10
Thumbturns
09-509 027	Thumbturn for rose trim, 1 3/8"- 1 7/8" door range, extended equally
09-509 033	Thumbturn for rose trim, >1 7/8"- 2 3/8" door range, extended equally							71.00
09-509 040	Thumbturn for rose trim, >2 3/8"- 2 7/8" door range, extended equally
09-509 047	Thumbturn for rose trim, >2 7/8"- 3 5/8" door range, extended equally
L583-363 Suffix	ADA thumbturn upgrade, specify thumbturn p/n + L583-363									Add $16.80 to 09-509 price
Coin Turns
L283-124 19	Coin turn, L9044 and L9444, 1 3/8" - 1 1/2" door range, extended equally (EE)
L283-124 23	Coin turn, L9044 and L9444, 1 5/8" - 1 7/8" door range, extended equally (EE)
L283-124 25	Coin turn, L9044 and L9444, >1 7/8" - 2 1/8" door range, extended equally (EE)
L283-124 31	Coin turn, L9044 and L9444, >2 1/8" - 2 5/8" door range, extended equally (EE)	123.00
L283-124 37	Coin turn, L9044 and L9444, >2 5/8" - 2 7/8" door range, extended equally (EE)
L283-124 43	Coin turn, L9044 and L9444, >2 7/8" - 3 3/8" door range, extended equally (EE)
L283-124 48	Coin turn, L9044 and L9444, >3 3/8" - 3 5/8" door range, extended equally (EE)
L283-056 19	Coin turn w/ torx screws, L9044 and L9444, 1 3/8" - 1 1/2" door range, EE
L283-056 23	Coin turn w/ torx screws, L9044 and L9444, 1 5/8" - 1 7/8" door range, EE
L283-056 25	Coin turn w/ torx screws, L9044 and L9444, >1 7/8" - 2 1/8" door range, EE
L283-056 31	Coin turn w/ torx screws, L9044 and L9444, >2 1/8" - 2 5/8" door range, EE	134.00
L283-056 37	Coin turn w/ torx screws, L9044 and L9444, >2 5/8" - 2 7/8" door range, EE
L283-056 43	Coin turn w/ torx screws, L9044 and L9444, >2 7/8" - 3 3/8" door range, EE
L283-056 48	Coin turn w/ torx screws, L9044 and L9444, >3 3/8" - 3 5/8" door range, EE
	EE = Extended Equally
Note:	Coin turns not available in 612 or 613 finish
Cylinder Turns I,*
09-487 xx	Cylinder coin turn, specify dimension (xx) as 1 1/8", 1 1/4" or 1 3/8" (replaces XL12-196)								$124.00
09-900 xx	Cylinder turn, specify dimension (xx) as 1 1/8", 1 1/4" or 1 3/8"							121.00
09-900 xx	Cylinder turn, specify dimension (xx) as 1 1/2", 1 5/8" or 1 3/4" 184.00
09-904 xx	Cylinder turn w/ compression ring, specify dimension (xx) as 1 1/8", 1 1/4" or 1 3/8" 131.00
09-904 xx	Cylinder turn w/ compression ring, specify dimension (xx) as 1 1/2", 1 5/8" or 1 3/4" 192.00
09-905	Cylinder turn w/ compression ring and 1/8" blocking ring for 1 3/4" doors
09-907	142.00 Cylinder turn w/ compression ring and 1/4" blocking ring for 1 3/8" doors
I	Specify door hand for cylinder turns if used with L463 or L9463.
*	Cylinder turns not available in 612, 613, 629 or 630 finish
	Ordering instructions: Specify part number, dimension if required, finish, handing. Ex: 09-900 112, 626, RH.

	Escutcheon Thru-Bolts
					612	613	619	622	625	626	629	630	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•	•	•
Part Number Description				Price Each
	L Escutcheon Thru-bolts: two required per lock
L583-119	L escutcheon thru bolts for 1 3/8" door thickness
L583-120 L escutcheon thru bolts for 1 3/4" door thickness			$6.20
L583-121 L escutcheon thru bolts for 2" door thickness
L583-122	L escutcheon thru bolts for 2 1/4" door thickness
L583-123	L escutcheon thru bolts for 2 1/2" door thickness		7.30
L583-287	L escutcheon mounting screws for L9175 half-dummy function	5.50
	N Escutcheon Thru-Bolts: two required per lock
K510-389	N escutcheon thru bolts for 1 3/4" door thickness
K510-390	N escutcheon thru bolts for 2" to 2 1/4" door thickness			7.30
L583-133 N Escutcheon mounting screws for L0170 single dummy function			0.90
	Ordering instructions: Specify part number and finish. Ex: L583-120 626.

	Mounting Posts (Ferrules)
Part Number	Description	Price Each
	L Mounting Posts (Ferrules): two required per lock
L583-211	Mounting post for 1 3/8" door thickness
L583-212	Mounting post for 1 3/4" door thickness
L583-213	Mounting post for 2" door thickness
L583-214	Mounting post for 2 1/4" door thickness	$11.70
L583-215	Mounting post for 2 1/2" door thickness
L583-216	Mounting post for 2 3/4" door thickness
L583-217	Mounting post for 3" door thickness
L583-218	Mounting post for 3 1/4" door thickness
L583-219	Mounting post for 3 1/2" door thickness	30.00
	LV Mounting Posts (Ferrules): two required per lock
L583-497	LV mounting post for 1 3/4" door thickness
L583-498	LV mounting post for 2" door thickness
L583-499	LV mounting post for 2 1/4" door thickness
L583-500	LV mounting post for 2 1/2" door thickness	$24.60
L583-501	LV mounting post for 2 3/4" door thickness
L583-502	LV mounting post for 3" door thickness
L583-503	LV mounting post for 3 1/4" door thickness
L583-504	32.40 LV mounting post for 3 1/2" door thickness
	Ordering instructions: Specify part number.

	Spindle & Springs
Part Number	Description	Price Each
	Spindle & Spring Kits (qty two each)
L283-198	Spindles and springs for 1-3/8" - 1 7/8" doors	$16.00
L283-199	Spindles and springs for 2" - 3 1/2" doors 18.80
	Spindles & Springs (qty one each)
L283-060	Spindle and spring for 1 3/8" - 1 7/8" doors (two required per lock)	$8.00
L283-061	Spindle and spring for 2" - 3 1/2" doors (two required per lock)	9.90
L283-064	Spindle and spring, L0172 full dummy (one required per lock)	14.10
L283-065	Spindle and spring, L0170 half dummy (one required per lock) 7.50
	Ordering instructions: Specify part number.

Lock Cases
Part Number	Lock Function and Description	Price Each
24759599	LM9210, Passage
	LM9225, Exit	$1,540.00
	LM9250, Office/Entry
	LM9270, Classroom
24759623	LM9271, Classroom Security	1,711.00
	LM9280, Storeroom
24616914	LM9256, Office/Entry w/ auto unlock	1,781.00
24759656	LM9290/LM9292/LM9294 Electrified	1,996.00
24759664	LM9291/LM9293/LM9295 Electrified	1,996.00

Latch Kits
Part Number	Lock Function and Description	Price Each
24721714	Top Latch Kit	$171.00
24721722	Bottom Latch Kit	137.00

Cables
Part Number	Lock Function and Description	Price Each
24665002	Top strike - includes strike, strike shims and screw pack (VD 23945223)	$42.20
24664997	Bottom strike - includes strike, anchors and screw pack (VD 24664997)	23.90
24647265	LM9200 bottom cable	51.30
24691750	LM9200 top cable, 6'8-7'0" door opening	51.30
24691768	LM9200 top cable, 7'1"-8'0" door opening	51.30
24691776	LM9200 top cable, 8'1"-9'0" door opening	57.10
24691784	LM9200 top cable, 9'1"-10'0" door opening	57.10

Fire-rated components
Part Number	Lock Function and Description	Price Each
24750408	Fire barrier	$146.00
24756504	Intumescent for fire barrier	68.20
24792558	Intumescent for armor front	68.20
48968887	Fire pin kit - includes fire pin, fire pin sleeve, fire pin strike, and screws	153.00

Miscellaneous Parts
Part Number	Lock Function and Description	Price Each
24616922	Link, top, LM9200	$17.30
24302960	Electrified locking catch, LM9200	15.10
24511081	Spool assembly, LM9200	72.50
24624892	Hub spring, LM9200	12.70
24625642	Retractor, LM9200	14.70
24683542	Tilting link compression spring, LM9200	1.40
24865057	Faceplate tab, LM9200 1 1/4"	28.20
24869893	Electrified link, LM9200	92.00
24869901	Electrified hub, LM9200	77.80
49001704	Capacitor holder, LM9200	20.40
24616930	Link, bottom, LM9200	15.70
24625667	Bell crank cover, LM9200	73.00
24625717	Tilting link, LM9200	20.30
24641714	Turn hub spring, LM9200	15.50
24653917	Lock Case, Subassembly, LM9200	307.00
24653925	Link subassembly, LM9200	304.00
L283-055	Cylinder retainer plate and screw	18.40
L283-344	L909x/LM929x PCB assembly	210.00
L283-680	L909x/LM929x motor assembly	95.70
L583-015	Latchbolt guide	3.80
L583-748	Retractor hub (2 required per lock)	4.30
L583-020	Retractor hub spacer	4.50
L583-021	Retractor lever	3.90
L583-022	Retractor rocker	3.10
L583-023	Blocking plate	3.80
L583-024	Retractor link	8.00
L583-025	Retractor Crank	8.00
L583-029	Turn Hub	19.70
L583-045	Locking catch	20.10
L583-048	Locking link	4.50
L583-050	Link pin	1.90
L583-454	Case cover screw (7 required)	1.50
L583-485	Lock handing screw	1.80
L583-490	Cylinder retainer	7.20
L283-030	Pack of 20 truarc rings, levers	21.90
L283-031	Mounting Plate, inside lever	20.10
L283-040	Spring Cage (1 required per lever)	9.90
L283-150	Mounting Plate for inside rose trim on one side of door only	40.40
L583-066	Mounting plate screw (2 required per lock)	1.40

Mortise Cylinders
				Price	Each
Cam	Description	Cylinder Mechanism	Complete Cylinder	Open	Restricted
L583-474		Standard	30-021	$74.00	$91.50
For cyl. length 1 1/8", 1 3/8", 1 5/8"		Primus Controlled Access	20-793	154	4.00
1 3/0 , 1 3/0	Cylinder Only: I & N Escutcheons	Primus XP Controlled Access	20-793-XP	154	4.00
1/8 3/8 5/8	E d W Escotcheons	Primus UL437	20-593	187	7.00
		Primus XP UL437	20-593-XP	187	7.00
Dim. X = .261		Standard	30-001	85.00	102.50
Y = .644		Primus Controlled Access	20-787	164	4.00
L583-475		Primus XP Controlled Access	20-787-XP	164.00
For cyl. length 1 1/4",	Cylinder With	Primus UL437	20-587	196	5.00
1 1/2",1 3/4"	Compression Ring & Spring:	Primus XP UL437	20-587-XP	196	5.00
| _\_x	Rose Trim	Primus Lockout	20-717	221.00
1/4 1/2 3/4		Primus XP Lockout	20-717-XP	221.00 238.00 238.00
Dim. X = .261		Primus UL437 Lockout	20-517
Y = .644		Primus XP UL437 Lockout	20-517-XP

Part Number	Description	Price Each
	Harnesses with Molex Connectors on both ends (for use with Hollow Metal Doors)
CON-6	6" Wire Harness (internal p/n 106190-00)	$10.50
CON-12	12" Wire Harness (internal p/n 106191-00)	14.00
CON-26	26" Wire Harness (internal p/n 106192-00)	15.80
CON-32	32" Wire Harness (internal p/n 106193-00)	16.90
CON-38	38" Wire Harness (internal p/n 106194-00)	18.50
CON-44	44" Wire Harness (internal p/n 106195-00)	18.00
CON-50	50" Wire Harness (internal p/n 106196-00)	18.50
CON-192	192" Wire Harness (internal p/n 106197-00)	44.20
Harnesses with Molex Connector on one end, crimped pins on other w/ attachable Molex connector (for use with Wood Doors)
CON-6P	6" Wire Harness (internal p/n 106201-00)	$13.40
CON-12P	12" Wire Harness (internal p/n 106202-00)	16.90
CON-26P	26" Wire Harness (internal p/n 106203-00)	18.50
CON-32P	32" Wire Harness (internal p/n 106204-00)	19.80
CON-38P	38" Wire Harness (internal p/n 106205-00)	20.30
CON-44P	44" Wire Harness (internal p/n 106206-00)	20.90
CON-50P	50" Wire Harness (internal p/n 106207-00)	21.50
CON-192P	192" Wire Harness (internal p/n 106208-00)	46.50
	Harness with Molex Connector on one end, stripped leads on other (for connection to power supply)
CON-6W	6" extension to power supply (internal p/n 106210-00)	$13.40
Service Kit
CON-KIT	Connector Service Kit (internal p/n 050823-00-00) contains: -100 each male & female terminals -10 each 4-pin and 8-pin male connectors -10 each 4-pin and 8-pin female connectors - 1 extraction tool"	$111.00

CS Series GRADE 2 INTERCONNECT LOCK

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Cul	Out	side	Ins	ide	Escut	cheon	D.,		Latch		Strike
Item	Qty	Function	Cyl Type	DES	FIN	DES	FIN	DES	FIN	Dr Thk	Handing	DES	FIN	DES	FIN
1	10	CS210-B60	Р	SAT	626	ACC	605	CAM	605	134	RH	12-339	606	10-109	605

Line Item: Line item number Qty: Quantity

Product: Product function + Cylinder code

Outside Des: Outside lever design Outside Fin: Outside finish

Inside Des: Inside lever design: Specify only if different from the outside lever design Inside Fin: Inside lever finish: Specify only if different from the outside finish

Hand: Default handing for the CS210 is right hand (RH). Handing is field reversible. Handing instructions are required on the following

levers due to their design: Accent, Avanti, Callington, Champagne, Flair, Manhattan, Merano and St. Annes. When specifying handing, only one handing allowed per line item. Example: RH = right hand, LH = left hand, RR = right reverse, LR = left reverse.

Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required. Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.

Dr Thk: Door thickness: Enter door thickness if non-standard. Example: 138=13/8"

Ext: Extension: Enter for 13/8" doors. Example: EE=extended equally, EI=extended inside, EO=extended outside, ED=extended

differently

Dim: Dimension: Enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Con	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	denotes a lock or part that requires an extended lead time.
5.	be denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Functions CS210-4 Complete Locks CS210-5 Options CS210-8 Deadbolts/Deadlatches. . CS210-8 Deadbolt Strikes. . CS210-8 Strike Combinations. . CS210-8 Locks Less Components. . CS210-8 Parts CS210-9 Deadbolts. . CS210-9 Deadlatches. . CS210-9 Deadbolt/Deadlatch Combinations. . CS210-9 Deadbolt Strikes. . CS210-9 Deadlatch Strikes. . CS210-9 Deadbolt/Deadlatch Strike Combinations. . CS210-9 Components. . . CS210-10 Miscellaneous Subassemblies/ Components. . . CS210-10 Screw/Screw Packs. . . CS210-10 Cylinders. . . CS210-10 Complete Cylinders See Cylinders Section

How To Order Forms & Examples

Finish Codes and Descriptions
Code		Description
605	(US 3)	Bright Brass
609	(US 5)	Antique Brass
619	(US 15)	Satin Nickel
622	(US 19)	Matte Black
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated
643e	(US 11)	Aged Bronze

Standard Features

Certification: ANSI/BHMA Certified A156.12-2013, Grade 2, UL listed for 3-hour fire door

With SFIC interchangable core cylinders: Grade 3 Security

Deadbolt: 1 X 2-1/4", dual option faceplate, (square corner standard, round corner included in package),

1" housing diameter, 1" throw

Latch 1" x 2-1/4" dual option faceplate (square corner standard, round corner included in package).

1" edge bore required

Strikes: 1-1/8" X 2-3/4", Square corner (deadbolt) and 1-5/8" X 2-1/4",

Square corner, full lip, no box, 1 5/8" x 2 1/4" (Deadlatch)

Backset: Adjustable backset, fits 2-3/8" or 2-3/4"

Cylinders: 6-pin, solid brass, keyed 6-pin, S123 keyway, keyed different (KD) Door Range: 1-3/4" to 2" standard (1-3/8" available, must be specified)

Keys: Nickel silver cut keys, 6-pin, S123 section

Center to Center: Fits 4" or 5 1/2" (factory default) center to center door preps

ANSI/BHMA Certified A156.12-2013, Grade 2, UL Listed for 3-hour fire door.

SCHLAGE ANSI

CS210PD F95 Entrance, Single Locking

Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown. Latch retracted by lever from either side. Turning inside lever retracts deadbolt and latch simultaneously for immediate exit.

Function	Description		Design and Finishes		Ā	vailab	er Adjus le Lever e Finish	S	5
		alle ACC alle A		LD CD	RD TD*	JD	BD BDC	GD	HD*
			.VA VLA ♥CLT ♥CHP ELA ♥FLA Z JUP LAT ♥MNH ♥MER			Α	LL
		NEP	SAT ®STA BRK BRW LON		605 60	9 619	625 62	6 6436	ة
Keyed, Single Cylinde	r	626	605 609 619 622 625 643e	LD CD	RD TD	JD	BD BDC	GD	HD
CS210-B500	Entrance with Commercial Spin Ring	/12	424	-64	38	-35	N/C	84	44
CS210-B60**	Entrance with Residential Spin Ring	412	424	-04	30	-55	N/A	N/A	N/A
SECONDARY	EVEREST AND RESTRICTED KEYWA	ΙΥ
CYLINDER	EVEREST D & T FAMILY & RESTRICTED	KEYWAYS (QL	IAD, NUMBERED, REVERSE)			+17	.50
ADJUSTMENT	SL Cylinder with Everest B or Everest R k	R keyways +17.50
*	* Temporary cores (TD and HD options) require non-refundable core handling charge (50-231) of $10.40 and will be added to the price of the lock.
**	B60 spin ring accepts the KIL and FSIC forma	its only

	Deadbolts/Deadlatches
Combo Part Number	Deadbolt	Deadlatch	Backset - Hsg Dia Description	Lock Adjustment
12-339	12-340	16-260	2 3/8" or 2 3/4" - 1" - Dual Option, 1" x 2 1/4", standard (square corner standard, round corner included in the package)	N/C

	Deadbolt Strikes
Part Number	Lip Length - Description	Lock Adjustment
10-094	N/A - Square corner, 1 1/8" x 2 3/4"
10-092	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"
10-095	1 1/8" - 1/4" Square corner, full lip, no box, 1 5/8" x 2 1/4"	N/C
10-116	N/A - Round corner strike, no lip, 1 1/8" X 2 3/4"

Deadlatch Strikes
Part Number	Lip Length - Description	Lock Adjustment
10-001	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"	N/C
10-027	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"

	Strike Combinations
Deadbolt Strike	Deadlatch Strike	Specify Combo Number	Add to Lock Price
10-094	10-001	10-109
10-094	10-026	10-121
10-116	10-027	10-122	N/C
10-092	10-027	10-123
10-095	10-026	10-124

Locks Less Components
Description	Specify	Lock Adjustment
Less deadbolt strike	LLL for deadbolt strike Example: CS210PD SAT 12-339 LLL/10-001	N/C
Less deadlatch strike	LLL for deadlatch strike Example: CS210PD SAT 12-339 LLL/10-094	N/C
Less both levers	LLL for both Levers Example: CS210PD LLL/SAT LLL	-$12.10

Deadbolts
	Available Finishes - Specify for Listed Parts	605	609	619	622	625		626 643e
12-340, 12-291, 12-633		•	•	•	•	•	•	•
Part Number	Backset - Description	Price Each
12-340	2 3/8" or 2 3/4" - Square corner, 1" x 2 1/4 Round corner, 1"x 2 1/4", included				$42.00
12-291	2 3/8" or 2 3/4" - Square corner, 1 1/8" x 2 1/4"	42.00
12-633	5" - Square corner, 1 1/8" x 2 1/4"	92.80

Deadlatches
	Available Finishes - Specify for Listed Parts	605	609	619	622	625		626 643e
16-260, 16-228, 16-132		• • • • • •					•
Part Number	Backset - Description	Price Each
16-260	2 3/8" or 2 3/4" - Square corner, 1" x 2 1/4" Round corner, 1"x 2 1/4", included	$37.40
16-228	2 3/8" or 2 3/4" - Square corner, 1 1/8" x 2 1/4"	35.90
16-132	5" - Square corner, 1 1/8" x 2 1/4"	46.60

Deadbolt/Deadlatch Combinations
	Available Finishes - Specify for Listed Parts			605	609	619	622	625		626 643e
12-339, 16-483, 16-484				•	•	•	•	•	•	•
Part Number	Backset - Description	Deadbolt	Deadlatch				Price Each
12-339	2 3/8" or 2 3/4" - Dual Option, 1" x 2-1/4"	12-340	16-260	$78.00
16-483	2 3/8" or 2 3/4" - Square corner, 1 1/8" x 2 1/4"	12-291	16-228
16-484	5" - Square corner, 1" x 2 1/4"	12-633	16-132	139.00

Deadbolt Strikes
	Available Finishes - Specify for Listed Parts	605	609	619	622	625		626 643e
10-094, 10-092, 10-095		•	•	•	•	•	•	•
Part Number	Lip Length - Description Price Each
10-094	N/A - Square corner, 1 1/8" x 2 3/4"				$12.20
10-092	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"
7.90 10-095 1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"
10-116 N/A - Round corner strike, no lip, 1 1/8" X 2 3/4" 13.70
37-016 Strike reinforce, use with 10-094 and 10-116 15.70

Deadlatch Strikes
	Available Finishes - Specify for Listed Parts							626 643e
10-001, 10-026, 10-027		•	•	•	•	•	•	•
Part Number	Lip Length - Description	Price Each
10-001	Square corner, T-strike, box, 1 1/8" x 2 3/4"				$6.50
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"
10-027	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"	7.60

	Deadbolt/Deadlatch Strike Combinations
	Available Finishes - Specify for Listed Parts		605	609	619	622	625		626 643e
10-109, 10-121, 10-122, 10-123, 10-124			•	•	•	•	•	•	•
Part Number	Deadbolt Strike	Deadlatch Strike
10-109	10-094	10-001 1 1/8" lip				$18.70
10-121	10-094	10-026				19.80
10-122	10-116	10-027		21.30
10-123	10-092	10-027		15.50
10-124	10-095	10-026

	Available Finishes - Specify for Listed Parts	605	609	619	622	625		626 643e
	S206-501, S206-516, S206-515, S206-518, S206-517, 08-029, F506-864, F206-493 06-242	•	•	•	•	•	•	•
Part Number	Description				Price Each
S206-501	Assembly, cylinder, DB, OUTSIDE, CS200	$60.00
S206-516	Assembly, housing, cylinder, IC, THIN DOOR, CS200				235.00
S206-515	Assembly, housing, cylinder, IC, CS200				223.00
S206-518	Assembly, housing, cylinder, SFIC, THIN DOOR, CS200				150.00
S206-517	Assembly, housing, cylinder, SFIC, CS200				131.00
S206-523	Assembly, outside cylinder housing, SFIC, CS200				115.00
08-029* **	Rose SAT PLY (Snap On Only)				13.00
B300-057	Assembly, outside cylinder housing, FSIC CS200				115.00
B300-058	Assembly, outside cyliinder housing, CS200				115.00
F506-864	Escutcheon CAM PLY				94.70
F206-493	Plate, escutcheon assembly				47.70
06-242**	Kit, levers				58.50
F506-864	Escutcheon CAM PLY				91.90
F206-493	Plate, escutcheon assembly				47.70
06-242**	Kit, levers				58.50
*	Rose - Lever Combination
	Saturn - Saturn, Neptune, Jupiter
	Plymouth - Accent, Avanti, Avila, Callington, Champagne, Elan, Flair, Jazz, Jupiter, Latitude, Manhattan, Merano, St. Annes
**	The CS200 product line transitined from crimp-on roses (not removeable) to snap on roses (removable) in AUGUST 2015. The Rose - Lever Combination needs to be considered for changing levers for locks with crimp-on roses. Snap-on roses can be identified by retention dimples at the base of the rose.
	If not compatible, an outside chassis with a crimp-on rose can be updated with the following items:
	- 06-242 Kit, levers
	- 08-029 Rose SAT PLY (Snap on)
	- A501-945 Ring reinf rose
	- F206-496 Outside Chassis Assy, Interconnect

Miscellaneous Subassemblies/Components
Part Number	Description	Price Each
S206-502	Interconnect assembly, mechanical	$99.30
F206-494	Inside chassis assembly, interconnect	37.70
F206-496	Outside chassis assy, interconnect	35.30
A501-945	Ring reinf rose, LUN-ORB-TUL	0.54
F506-878	Driver bar	3.40
F506-867	Handing Plate	6.40

	Screw/Screw Packs
	Available Finishes - Specify for Listed Parts		605	609	619	622	625		626 643e
B202-578, S206-504			•	•	•	•	•	•	•
Part Number	Description	Contents		Price Each
B202-578	Latch and strike	(4) C603-897		$8.30
S206-504	Chassis & trim	(2) B600-101 (2) B520-621 (2) F506-278				6.50
S206-505	Chassis & Trim, Thick Door	(2) B600-10 (2) B520-621 (2) F506-278				6.50
B502-873*	Screw, reinf. strike	-				0.58
*	Order in multiples of 100

	Cylinder Reference Table
	Available Finishes - Specify for Listed Parts			606 613	626 613
22-093				622 643e	622 643e
Part Number	Cylinder Mechanism	Function	Design	Price Each Open	Price Each Restricted
22-093	Standard	Standard Functions	All	$64.00	$81.50

S200-Series S200 Series INTERCONNECT LOCK

INTERCONNECT LOCK

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	S251PD	NEP	626	FLA	613	RH	12-339	10-109	_	-	-	-

Line Item: Line item number

Qty: Quantity

Product: Product function + Cylinder code

Outside Des: Outside lever design (Choice of lever determines escutcheon. Saturn, Neptune and Jupiter levers default to the Saturn escutcheon.

The Flair lever defaults to the Flair escutcheon.)

Outside Fin: Outside finish

Inside Des: Inside lever design: Specify only if different from the outside lever design

Inside Fin: Inside lever finish: Specify only if different from the outside finish (Lever selection determines escutcheon)

Hand: Hand of door: Only one hand allowed per line item. Example: RH=right hand, LH=left hand, RR=right reverse, LR=left reverse

Latch: Product latch: Leave blank for standard latch or specify part number if non-standard latch is required. Strike: Product strike: Leave blank for standard strike or specify part number if non-standard strike is required.

Dr Thk: Door thickness: N/A for S200 line Ext: Extension: N/A for S200 line

Dim: Dimension: Enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	denotes a lock or part that requires an extended lead time.
5.	be denotes a handed product and requires handing to be specified.
6.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
7.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
8.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
9.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
10.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
11.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
12.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
13.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
14.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
15.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Functions S200-4 Complete Locks S200-5 Options S200-7 Deadbolts/Deadlatches. . . S200-7 Deadbolt Strikes. . . S200-7 Deadlatch Strikes . . S200-7 Strike Combinations. . . S200-7 Locks Less Components. . . S200-7 Primus® / Primus XP. . . S200-7 Parts S200-8 Levers and Related Parts. . . S200-8 Escutcheons. . . S200-8 Trim Combinations. . . S200-8 Deadbolts. . . S200-8 Deadlatch. . . S200-9 Deadbolt/Deadlatch Combinations. . . S200-9 Deadbolt Strikes. . . S200-9 Deadlatch Strikes. . . S200-9 Deadbolt/Deadlatch Strike Combinations. . . S200-9 Miscellaneous Parts/Adapters. . S200-10 Screws. . S200-10 Screw Packs. . S200-10 Cylinders. . S200-10

Complete Cylinders See Cylinders Section How To Order Forms & Examples

Finish Codes and Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Antique Brass
613	(US 10B)	Oil Rubbed Bronze
619	(US 15)	Satin Nickel
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated

Standard Features

Certification UL Listed for 3-hour fire door.

Deadbolt 1 x 2 1/4", Square corner faceplate, 1" housing diameter, 1" throw Deadlatch 1 x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw

Strikes 1 1/8" x 2 3/4", Square corner, box (deadbolt) and 1 1/8" x 2 3/4", Square corner, T-strike, box

(deadlatch)

Reinforcement Metal dust box reinforcer with three – 3" screws

Backset Adjustable for 2 3/8" or 2 3/4"

Cylinder(s) 6-Pin upper cylinder and 6-pin lower cylinder, solid brass, keyed 6-pin, S123 keyway, keyed different

(KD) — upper and lower cylinders are keyed alike

Door Range 1 3/8" – 2"

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

UL Listed for 3-hour fire door.

SCHLAGE ANSI

S210PD F95

Entrance, Single Locking

Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown. Latch retracted by lever from either side. Turning inside lever retracts deadbolt and latch simultaneously for immediate exit.

S280PD F98 Storeroom Lock

Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown. Outside lever fixed when locked. Entrance by key unlocking lever for access. Turning inside lever retracts deadbolt and latch simultaneously for immediate exit. Latch automatically deadlocks when door is closed.

S251PD F97

Entrance, Double Locking

Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown. Outside lever unlocked by key from outside when locked by turn button in inside lever. Turning inside lever retracts deadbolt and latch simultaneously for immediate exit. Latch automatically deadlocks when door is closed.

S290 Single Dummy Trim

Dummy trim for inside of door. Used for door pull or as matching inactive trim.

S270PD Classroom Lock

Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown. Outside lever is locked and unlocked by key from outside. Turning inside lever retracts deadbolt and latch simultane- ously for immediate exit. Latch automatically deadlocks when door is closed.

Commercial Lever Suite
S200 Lock	S Lock	98/99 Exit	ND Levers	AL Lock	L Lock Levers
Jupiter	Jupiter	07	Athens	Jupiter	07
Neptune	Neptune	17	Sparta	Neptune	17
Saturn	Saturn	06	Rhodes	Saturn	06
Flair	Flair	Asti			Asti

Strikes, Deadbolts
10-094	10-064	10-092	10-095	10-112

		D	esign and Finish	es		y Cylinder Adjus
		SA	AT JUP NEP ®F	LA	1		~
Function	Description	626	605 606 $609 619 625	613	LD	Available Lever Available Finish RD TD* SAT JU 506 $609 613 6 RD TD 38 RD TD 76 +17.50	JD
Keyless					ALL	SAT JU	JP NEP
S290	Single Dummy	325	331	341	605 6	06 $609 613 6	519 625
Keyed, Single Cylin	der				LD		JD
S210PD	Entrance	497	509	527	-64	38	-35
Keyed, Double Cylii	nder				LD CD	1	JD
S251PD	Entrance
S270PD	Classroom	649	661	679	-128	76	-70
S280PD	Storeroom
	EVEREST AND RESTRICTED KEYWAY -	DOES NOT AP	PLY TO PRIMUS
	EVEREST D & T FAMILY & RESTRICTED	KEYWAYS (QUA	AD, NUMBERED, R	EVERSE)	+17.50
	SL Cylinder with Everest B or Everest R k	eyways				+17.50
Secondary	PRIMUS/PRIMUS XP - ORDER THE LO	CK LESS CYLII	NDER AND THE (	YLINDER SEP	PERATELY (PRI	CES BELOW)
Cylinder	SINGLE KIL EXAMPLE: 1 EA. S210LD &	1 EA. 24-769(-X	P)			+141.00
Adjustment	DOUBLE KIL EXAMPLE: 1 EA. S251LD &	DOUBLE KIL EXAMPLE: 1EA. S251LD & 1EA. 24-769(-XP) 1EA. 20-752(-XP)					+282.00
	SINGLE FSIC EXAMPLE: 1EA. S280JD 8	ι 1EA. 20-740(-	XP)			+152.00
	DOUBLE FSIC EXAMPLE: 1 EA. S251JD 8	½ 2 EA. 20-740(	-XP)			+304.00
	* Temporary cores (TD option) require non-refu	undable core hand	lling charge (50-231)	of $10.40 and wi	l be added to the	orice of the lock.

	Deadbolts/Deadlatches
Combo Part Number	Deadbolt	Deadlatch	Backset - Hsg Dia Description	Lock Adjustment
16-481	12-288	16-480	2 3/8" or 2 3/4" - 1" - Square corner, 1" x 2 1/4"
16-482	12-289	16-204	2 3/8" or 2 3/4" - 1" - Round corner, 1" x 2 1/4"	N/C
16-483	12-291	16-228	2 3/8" or 2 3/4" - 1" - Square corner, 1 1/8" x 2 1/4"
16-484	12-633	16-132	5" - 1" - Square corner, 1 1/8" x 2 1/4", deadbolt, and square corner, 1" x 2 1/4", deadlatch (Includes G506-815 housing sleeve for latch and bolt for 1 1/8" preparation	+33.10

Deadbolt Strikes
Part Number	Lip Length - Description	Lock Adjustment
10-094	N/A - Square corner, 1 1/8" x 2 3/4"
10-064	N/A - Circular drive-in, thimble strike, 1 3/16" diameter, 494 (626 only)
10-092	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"	N/C
10-095	1 1/8" - 1/4" Square corner, full lip, no box, 1 5/8" x 2 1/4"

Deadlatch Strikes
Part Number	Lip Length - Description	Lock Adjustment
10-001	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"
10-027	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"	N/C
10-058	1 7/32" - Circular, adjustable, 1 3/4" diameter (605 & 626 only)

	Strike Combinations
Deadbolt Strike	Deadlatch Strike	Specify Combo Number	Lock Adjustment
10-094	10-001, 1 1/8" Lip	10-109
10-064	10-001, 1 1/8" Lip	10-251
10-094	10-026	10-110
10-064	10-026	10-253
10-094	10-027	10-111	N/C
10-064	10-027	10-256
10-092	10-027	10-257
10-064	10-058	10-258
10-095	10-026	10-259

Locks Less Components
Description	Specify	Lock Adjustment
Less deadbolt	LLL for deadbolt strike Example: S251PD NEP 626 LLL/16-480 10-109	-21.20
Less deadlatch	LLL for deadlatch strike Example: S251PD NEP 626 12-288/LLL 10-109	-24.40
Less deadbolt strike	LLL for deadbolt strike Example: S251PD NEP 626 16-481 LLL/10-001	-2.40
Less deadlatch strike	LLL for deadlatch strike Example: S251PD NEP 626 16-481 10-094/LLL	-5.40

	Levers and Related Parts
	Available Finishes - Specify for Listed Parts	605	606	609	613	619	625	626
08-020, 08-027, 08-030		•	• • • • 6		•
Part Number	Description		Price Each
08-020*	Lever - keyed, JUP NEP SAT IFLA		$78.30
08-027*	Lever - FSIC, JUP NEP SAT		78.70
08-030*	Lever - FSIC, driver, retainer (converts PD to JD), JUP NEP SAT				95.00
S605-242	Full size core driver				9.60
S605-241	Full size core retainer		4.40
S605-194	Lever insert for FSIC		4.10
*	Specify part number, style & finish. Ex: 08-020 SAT 626

	Escutcheons
	Available Finishes - Specify for Listed Parts	605	606	609	613	619	625	626
08-032		•	•	6	•	•	•	•
Part Number	Description				Price Each
08-032	Inside escutcheon assembly SAT FLA				$116.00

	Trim Combinations
	Available Finishes - Specify for Listed Parts	605	606	609	613	619	625	626
	68-001, 68-003, 68-004, 08-034, 08-035	•	•	6	•	•	•	•
Part Number	Description				Price Each
68-001*	S210 - Outside Chassis, Rose and Lever JUP NEP SAT IFLA				$111.00
68-003*	S251, S270 - Outside chassis and rose assembly for S51 and S70 function. Requires outside lever				85.90
68-004*	S280 - Outside Chassis and Rose SAT
08-034*	S210, S270, S280 - Inside Chassis and Lever JUP NEP SAT IFLA				117.00
08-035*	S251 - Inside Chassis and Lever JUP NEP SAT IFLA				132.00
*	Specify part number, style & finish. Ex: 68-001 JUP 626

	Deadbolts
	Available Finishes - Specify for Listed Parts	605	606	609	613	619	625	626
12-288, 12-289, 12-091, 12-633		•	•	6	•	•	•	•
39-030		•				•
Part Number	Backset - Description				Price Each
12-288	2 3/8" or 2 3/4" - Square corner, 1" x 2 1/4"
12-289	2 3/8" or 2 3/4" - Round corner, 1"x 2 1/4"				$33.80
12-291	2 3/8" or 2 3/4" - Square corner, 1 1/8" x 2 1/4"				42.00
12-633	5" - Square corner, 1 1/8" x 2 1/4"	92.50
39-030	Rabbeted latch and strike kit - adapts square corner latches and 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preparations.				58.10

Deadlatch
	Available Finishes - Specify for Listed Parts	605	606	609	613	619	625	626
16-480, 16-204, 16-228, 16-132		•	•	6	•	•	•	•
39-030		•				•
Part Number	Backset - Description				Price Each
16-480	2 3/8" or 2 3/4" - Square corner, 1" x 2 1/4"
16-204	2 3/8" or 2 3/4" - Round corner, 1"x 2 1/4"				$35.90
16-228	2 3/8" or 2 3/4" - Square corner, 1 1/8" x 2 1/4"
16-132	5" - Square corner, 1 1/8" x 2 1/4"				46.60
Rabbeted latch and strike kit - adapts square corner latches and 2 3/4" high square corner 39-030 58.10 strikes to 1/2" rabbeted door and frame preparations.

Deadbolt/Deadlatch Combinations
	Available Finishes - Specify for Listed Parts 605 606 609 613 619 625 626
16-481, 16-482, 16-483, 16-484		•	•	6	•	•	•	•
Part Number	Backset - Description Deadbolt Deadlatch Price Each
16-481	2 3/8" or 2 3/4" - Square corner, 1" x 2 1/4"	12-288	16-480				$69.70
16-482	2 3/8" or 2 3/4" - Round corner, 1"x 2 1/4"	12-289	16-204				69.70
16-483	2 3/8" or 2 3/4" - Square corner, 1 1/8" x 2 1/4"				77.90
16-484	5" - Square corner, 1" x 2 1/4"				139.00

Deadbolt Strikes
	Available Finishes - Specify for Listed Parts	605	606	609	613	619	625	626
10-094, 10-064, 10-092, 10-095		•	•	6	•	•	•	•
Part Number	Lip Length - Description				Price Each
10-094	N/A - Square corner, 1 1/8" x 2 3/4"				$12.20
10-064	N/A - Circular drive-in, thimble strike, 1 3/16" diameter, 494 (626 only)				16.70
10-092	1 1/8" - 1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"
10-095	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4"				7.90
10-112	N/A - Metal dust box with screws				11.70

Deadlatch Strikes
	Available Finishes - Specify for Listed Parts	605	606	609	613	619	625	626
10-001, 10-026, 10-027		•	•	6	•	•	•	•
10-058		•				•
Part Number	Lip Length - Description				Price Each
10-001	1 1/8" - Square corner, T-strike, box, 1 1/8" x 2 3/4"				$6.50
10-026	1 1/8" - Square corner, full lip, no box, 1 5/8" x 2 1/4",
10-027	1/4" Radius round corner, full lip, no box, 1 5/8" x 2 1/4"				7.60
10-058	1 7/32" - Circular, adjustable, 1 3/4" diameter, 605 and 626 only				10.90

	Deadbolt/Deadlatch Strike Combinations
	Available Finishes - Specify for Listed Parts		605	606	609	613	619	625	626
	10-109, 10-251, 10-110, 10-253, 10-111, 10-256, 10-257, 10-258, 10-259		•	•	6	•	•	•	•
Part Number	Deadbolt Strike				Price Each
10-109	10-094	10-001, 1 1/8" lip				$18.70
10-251	10-064	10-001, 1 1/8" lip				23.20
10-110	10-094	10-026				19.80
10-253	10-064	10-026				24.30
10-111	10-094	10-027				19.80
10-256	10-064	10-027				24.30
10-257	10-092 10-027
10-258	10-064 10-058
10-259	10-095 10-026

Miscellaneous Parts/Adapters
Part Number	Description Price Each
G506-815	1" Long bolt or latch housing sleeve to adapt 7/8" diameter housing to 1" bore $6.90
08-000	Interconnect assembly	109.00
F506-867	Rotational stop	4.60

Screws
	Available Finishes - Specify for Listed Parts			605	606	609	613	619	625	626
C603-897, S605-297		•	•	6	•	•	•	•
Part Number	Description	Type	Size				Price Each
B502-998*	Mounting, upper cylinder	10-32 x 2 1/4"				$1.40
C603-897*	Latch and strike	PFH Combo	#8 x 3/4"				0.90
S605-289*	Mounting, lower chassis	PFH	8-32 x 1 1/4"				1.60
S605-297*	Escutcheon (2 req.)	POH	6-32 x 3/8"				1.80
*	Order in multiples of 100

Screw Packs
	Available Finishes - Specify for Listed Parts		605	606	609	613	619	625	626
S306-151			•	•	6	•	•	•	•
Part Number	Description	Contents				Price Each
S306-151	Mounting screws	(2) S605-289 (2) B502-998				$10.00

Torx Screw Packs
Available Finishes - Specify for Listed Parts 605 606 609 613 619 625 626
• • • • • • 6 C203-311
Part Number	Description Contents Price Each
C203-311*	Latch and strike (2 req.) (4) C503-766 (T-15) $21.30
	* Torx screw packs are furnished with appropriate T-xx installation tool(s)

Cylinder Reference Table
	Available Finishes - Specify for Listed Parts
	21-059, 20-752/XP, 20-552/XP, 22-081, 24-769/XP, 24-569/XP			606	626
Part Number	Cylinder Mechanism	Design	Price Each Open	Price Each Restricted
21-059	Standard			$64.00
91-007	Standard SL				$81.50
20-752	Primus
20-752-XP	Primus-XP	Keyed Levers		141.00
91-722-XP	Everest SL Primus XP (R/B Keyways only)				141.00
20-552	Primus UL437
20-552-XP	Primus UL437-XP		All	174.00
22-081	Standard - 6-pin			64.00	81.50
24-769	Primus
24-769-XP	Primus-XP			141.00
91-729-XP	Everest SL Primus XP (R/B Keyways only)	Deadbolts			141.00
24-569	Primus UL437
24-569-XP	Primus UL437-XP			174.00

Ordering Procedures

To order Schlage LT locks, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	LT40	M63B	630				THP-8201	10-004	2"

Line Item: Line item number Qty: Quantity Product: Product function Outside Des: Lever design + rose code

Outside Fin: Finish

Inside Des: Not applicable for the LT Series, leave blank. (mixed trim not available) Inside Fin: Not applicable for the LT Series, leave blank. (mixed trim not available)

Hand: Specify RH or LH for single dummy functions only (universal design does not require handing on functions with two levers)

Latch: Product latch, leave blank for standard latch or specify part number if non-standard Strike: Product strike, leave blank for standard strike or specify part number if non-standard Door thickness, leave blank for standard thickness or specify if non-standard (2" maximum)

Ext: Not applicable for the LT series, leave blank. Dim: Not applicable for the LT Series, leave blank.

Additional

Details: Enter any special requirements

Cor	Common Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs are not available for the LT Series.
4.	Engineering specials are denoted by a part number beginning with "X".
5.	a denotes a lock or part that requires an extended lead time.
6.	ndenotes a handed product and requires handing to be specified.

Table of Contents

Functions LT-4 Complete Locks LT-4 Options LT-8 Parts LT-9 Levers, Roses, and Latches & Strikes. . LT-9 Miscellaneous Parts. . LT-10 How To Order Forms & Examples

Finish Codes and Descriptions Code Description 605 (US3) Bright Brass 606 (US4) Satin Brass 609 (US5) Antique Brass 619 (US15) Satin Nickel 622 (US19) Matte Black 625 (US26) Bright Chromium Plated 626 (US26D) Satin Chromium Plated 626AM Antimicrobial Coating on Satin Chromium 629 (US32) Bright Stainless Steel 630 (US32D) Satin Stainless Steel 630AM Antimicrobial Coating on Satin Stainless Steel 643e (US11) Aged Bronze

Standard Features

Locks are furnished with standard features unless otherwise specified.

Certification ANSI/BHMA Certified ANSIA156.2-2011, Series 4000, Grade 2. Available UL Listed for 20 minute fire door.

Latch 1 1/8" x 2 1/4", Square corner faceplate, 7/8" housing diameter, 1/2" throw

Strike 1 1/8" x 2 3/4", Square corner, T-strike, Box

Backset 2 3/4" standard, 2 3/8" optional

Door Range 1 3/8" - 1 3/4"

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, Available UL listing

Non-Keyed Locks

SCHLAGE ANSI

LT10 Passage Latch

Both levers always unlocked.

LT170 Single Dummy Trim

Dummy trim for one side of door.

LT40 Privacy Lock

Both levers unlocked unless outside lever locked by push-button on inside rose. Turning inside lever or inserting emergency key into outside rose unlocks outside lever. Restoring feature unlocks outside lever by closing the door.

LT172 Pair Dummy Trim

Dummy trim for both sides of door.

LT • Complete Locks*

Standard Lever Collection*B or C Rose Trim

	LT-Series (B or C Rose Trim) - Standard Levers
		Lever Designs
		Standard Lead time: 03, 06, 07, 12, 17, OME
		6: 01, 02, 05, 18, LAT, LON, ACC† , AST† , MER† † Not available 629, 630
		Finishes
Function	Description	605 606 609 619 622 625 626 629 630 643e
Keyless Functions
LT10	Passage	$266.00
LT10F	Passage, Firerated	275.00
LT40	Privacy	281.00
LT40F	Privacy, Firerated	288.00
LT170	Single Dummy	126.00
LT172	Pair Dummy	255.00

Cast or Forged Lever Designs with Wrought Roses

2⁹⁄₁₆" Wrought Rose Designs

Note: Above images shown with B Rose. Design of LT lock allows the inside and outside levers to be interchanged; as a result, it is not necessary to specify handing.

	LT-Series (B or C Rose Trim) - M Collection Levers
		Lever Designs
		Standard Lead time: M51, M52, M81
		6: ME1, ME2, ME3, M53, M54, M55, M56, M57† , M61, M62† , M63, M82, M83, M84, M85 † Available 629 and 630 only
		Finishes
Function	Description	605 606 609 619 622 625 626 629 630 643e
Keyless Functions
LT10	Passage	$266.00
LT10F	Passage, Firerated	275.00
LT40	Privacy	281.00
LT40F	Privacy, Firerated	288.00
LT170	Single Dummy	126.00
LT172	Pair Dummy	255.00

Cast or Forged Lever Designs with Wrought Roses

Wrought Rose Designs

Note: Above images shown with B Rose. Design of LT lock allows the inside and outside levers to be interchanged; as a result, it is not necessary to specify handing except with single dummy function.

Latches
Specify	Description	List Price Adjustment
Non-Firerated Latches
THP-8301	Passage Latch, 2 3/4" backset. 1 1/8" x 2 1/4" square faceplate. Standard, typical for > 1 3/4" thick doors.
THP-8201
THP-8319	N/C
THP-8219	Privacy Latch, 2 3/8" backset. 1" x 2 1/4" square faceplate. Typical for 1 3/8" thick doors.
Firerated Latches
THP-8301-F	Passage Latch, 2 3/4" backset. 1 1/8" x 2 1/4" square faceplate. Standard, typical for > 1 3/4" thick doors.
THP-8201-F	Passage Latch, 2 3/8" backset. 1" x 2 1/4" square faceplate. Typical for 1 3/8" thick doors.	N/C
THP-8319-F Privacy Latch, 2 3/4" backset. 1 1/8" x 2 1/4" square faceplate. Standard, typical for > 1 3/4" thick doors.
THP-8219-F	Privacy Latch, 2 3/8" backset. 1" x 2 1/4" square faceplate. Typical for 1 3/8" thick doors.

Strikes
Specify	Description	List Price Adjustment
10-001	Square corner, T-strike, box, 1 1/8" x 2 3/4", 1 1/8" lip length (standard strike)	N/C
10-001 xx	Square corner, T-strike, box, 1 1/8" x 2 3/4", specify lip length (xx) as 1", 1 1/4", 1 1/2", 1 3/4", 2"	$8.00
10-004	Round corner (1/4" radius), T-strike, box 1 1/8" x 2 3/4", 1 1/8" lip length
10-025 1316	ANSI, no box, 1 1/4" x 4 7/8", 1 3/16" lip length	N/C
10-025 xx	ANSI, no box, 1 1/4" x 4 7/8", specify lip length as 1 3/8" or 1 1/2"	28.80
K510-066	Box for 10-025 ANSI strike
10-026	Square corner, full lip, no box, 1 5/8" x 2 1/4", 1 1/8" lip length
10-027	N/C
C603-623
	Ordering instructions: specify desired strike on order only if requesting different from standard

Non Standard Door Thickness
Description	Specify	List Price Adjustment
Door thickness	Extension kit for doors > 1 3/4" up to 2" thick, extended equally	10.70
Ordering instructions: Include thickness dimension in order. EX: LT40 06B 626 2" (LT40 function, 06B trim, 626, 2" door thickness)

Antimicrobial Coating
Specify	Description	List Price Adjustment
626AM or 630AM	Adds silver-ion based antimicrobial coating to inside and outside lever, bushing, rose, and privacy pin (if applicable)	$52.40
	Ordering instructions: Specify finish as either 626AM or 630AM

Levers
Levers & Knobs
Style	605 606 609 619 622 625 626 629 Lever & Knob Design										643e
Standard	016, 026, 03, 056, 06, 07, 12I, 17, 18, OME6	•	•	•	•	•	•	•	•	•	•
	LAT6, LON6	•	•	•	•	•	•	•	•	•	•
	ACCI, ASTI, MERI	•	•	•	•	•	•	•			•
Decorative	M51, M52, M536, M546, M556, M566, M616I, M636I, M81, M826, M836, M846, M856I, ME16I, ME26I, ME36	•	•	•	•	•	•	•	•	•	•
	M576I, M626I								•	•
	6Extended Factory Lead Time Ispecify handing
Part Number	Description	Standard Levers Decorative Levers
09-502	Lever with bushing only $181 $196
	Ordering instructions: Specify part number, lever style, finish. Ex: 09-502 03 626

Roses
Roses
	605	606	609	619	622	625	626	629	630	643e
	•	•	•	•	•	•	•	•	•	•
Part Number	Description		Price Each
09-403 xx	Passage Rose; specify (xx) as either B or C Rose design
09-486 Privacy Rose, 'B' design $102.00
09-459 Privacy Rose, 'C' design
	Ordering instructions: Specify part number + finish. Ex: 09-403 B 626

Latches & Strikes		605	606	609	619	622	625	626	629	630	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•
Part Number	Description						Price Each
Springlatches
THP-8301-CH	Passage Latch Assembly, 2 3/4" backset, 1 1/8" x 2 1/4" square faceplate. Typical for > 1 3/4" doors. Includes screws.	65.00
THP-8301-F-CH	Passage Latch Assembly, 2 3/4" backset, 1 1/8" x 2 1/4" square faceplate. Typical for > 1 3/4" doors. Includes screws. UL-20 minute firerated.						68.70
THP-8201-CH	Passage Latch Assembly, 2 3/8" backset, 1 " x 2 1/4" square faceplate. Typical for 1 3/8" doors. Includes screws.						65.00
THP-8201-F-CH	Passage Latch Assembly, 2 3/8" backset, 1 " x 2 1/4" square faceplate. Typical for 1 3/8" doors. Includes screws. UL 20 minute firerated.						71.20
THP-8319-CH	Privacy Latch Assembly, 2 3/4" backset, 1 1/8" x 2 1/4" square faceplate. Typical for > 1 3/4" doors. Includes screws.						65.00
THP-8319-F-CH	Privacy Latch Assembly, 2 3/4" backset, 1 1/8" x 2 1/4" square faceplate. Typical for > 1 3/4" doors. Includes screws. UL 20 minute firerated.	71.20
THP-8219-CH	Privacy Latch Assembly, 2 3/8" backset, 1 " x 2 1/4" square faceplate. Typical for 1 3/8" doors. Includes screws.	65.00
THP-8219-F-CH	Privacy Latch Assembly, 2 3/8" backset, 1 " x 2 1/4" square faceplate. Typical for 1 3/8" doors. Includes screws. UL 20 minute firerated.	71.20
Strikes
10-001	Square corner, T-strike, box, 1 1/8" x 2 3/4", 1 1/8" lip length (standard strike)						$6.50
10-001 xx	Square corner, T-strike, box, 1 1/8" x 2 3/4", specify lip length (xx) as 1", 1 1/4", 1 1/2", 1 3/4", 2"	14.80
10-004	Round corner (1/4" radius), T-strike, box 1 1/8" x 2 3/4", 1 1/8" lip length						11.10
10-025 1316	ANSI, no box, 1 1/4" x 4 7/8", 1 3/16" lip length						15.20
10-025 xx	ANSI, no box, 1 1/4" x 4 7/8", specify lip length as 1 3/8" or 1 1/2"	43.70
K510-066	Box for ANSI strike (finish not applicable)						7.20
10-026	Square corner, full lip, no box, 1 5/8" x 2 1/4", 1 1/8" lip length
10-027	Round corner (1/4" radius), full lip, no box, 1 5/8" x 2 1/4", 1 1/8" lip length	7.60
C603-623	Box for 10-026 or 10-001 T-strike (finish not applicable)	0.68

	Miscellaneous Parts
		605	606	609	619	622	625	626	629	630	643e
	Available Finishes	•	•	•	•	•	•	•	•	•	•
Part Number	Description						Price Each
THP-022	Privacy Pin						$20.80
THP-021	Privacy Pin Stand off (for > 1 3/4" to 2" thick doors) (finish not applicable)						6.50
THP-S88806-IR	Spindle Assembly (finish not applicable)						20.70
L583-685	Latch Alignment Collar (finish not applicable)						20.10
L283-031	Inside Mounting Plate	39.00
L283-340	Outside Mounting Plate Assembly, 1 3/8" - 1 3/4" thick doors (finish not applicable)	39.00
L283-378	Outside Mounting Plate Assembly, > 1 3/4" - 2" thick doors (finish not applicable)						45.50
L283-341	LT Springcage (finish not applicable)	23.40
L583-682	Door Plate (finish not applicable)	15.70
L583-684	Dummy Springcage for LT0170 & LT0172 functions (finish not applicable)	31.30
L583-708	Wrench, pin (emergency pin for privacy function) (finish not applicable)	2.70
B202-517	Strike and Latch Screws (4 screw total)						8.30
L583-584	Mounting Plate screws (requires 2 per lock)	3.80
F506-455	Screw, Combination wood/metal	0.70
	Ordering Instructions: Specify part number and finish. if applicable

Ordering Procedures

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Outside		Inside								Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	S51PD	FLA	626	FLA	613	RH	16-204	10-025			1316	KA

Line Item: Line item number

Qty: Quantity

Product: Product function + cylinder code

Outside Des: Outside lever design Outside Fin: Outside finish

Inside Des: Inside lever design, specify only if different from the outside lever design Inside Fin: Inside lever finish, specify only if different from the outside finish

Hand: Hand of door, specify only for Flair (FLA) lever design

Latch: Product latch, leave blank for standard latch or specify part number if non-standard latch is required. LLL = less latch Strike: Product strike, leave blank for standard strike or specify part number if non-standard strike is required. LLL = less strike Dr Thk: Door thickness, leave blank (S lock only has standard compatibility with 13/8" -2" doors except for S40D, 13/8" - 17/8")

Ext: Extension, leave blank for S lock

Dim: Dimension, enter only for non-standard strike lip length

Additional

Details: Enter additional detail for keying information or special requirements

Cor	nmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	Engineering specials are denoted by a part number beginning with "X".
5.	$\backslash Xi$ denotes a lock or part that requires an extended lead time.
6.	be denotes a handed product and requires handing to be specified.
7.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
8.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements.
9.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
10.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
11.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
12.	Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys.
13.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
14.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
15.	Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
16.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents
Functions	S-4
Complete Locks	S-5
Options	S-7
DeadLatches	S-7
Strikes	S-7
Locks Less Components	S-7
Tactile Warning and Tamper Resistant
Torx® Screws	S-7
Parts	S-8
Levers, Roses, and Chassis Parts	S-8
Latches & Strikes	S-8
Adapters	S-9
Screws	S-9
Standard Screw Packs	S-9
Torx Screw Packs	S-9
Special Parts	S-9
Cylinders	S-10
Complete Cylinders	See Cylinders Section
How To Order	Forms & Examples

	Finish Codes and Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Antique Brass
613	(US 10B)	Oil Rubbed Bronze
619	(US 15)	Satin Nickel
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated

Standard Features

Certification ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.

Latch 1" x 2 1/4", Square corner faceplate, 7/8"housing diameter, 1/2" throw

Strike 1 1/8"x 2 3/4", Square corner, T-strike, box

Backset Dual backset latch, fits either 2 3/8" or 2 3/4" backsets

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range 1 3/8" – 2" (except S40D: 1 3/8" – 1 7/8")

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.

Non-Keyed Locks

SCHLAGE ANSI

S10D F75 Passage Latch

Both levers always unlocked.

S40D F76 Bath/Bedroom Privacy Lock

Push-button locking. Can be unlocked from outside with small circular tool. Turning inside lever releases button. Closing the door does not release button.

S170 Single Dummy Trim

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

Keyed Locks

SCHLAGE ANSI

S51PD F81 Entrance Lock

Outside lever locked and unlocked by key or by thumbturn inside. Inside lever always unlocked for immediate egress. Turning inside lever does not unlock outside lever.

S70PD F84 Classroom Lock

Outside lever locked and unlocked by key. Inside lever always unlocked for immediate egress.

S80PD F86 Storeroom Lock

Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress.

Commercial Lever Suite
S Lock (tubular)	L Lock (mortise)	ND Lock (cylindrical)	AL Lock (cylindrical)	Von Duprin (Exit Devices)
Saturn	06	Rhodes	Saturn	06
Neptune	17	Sparta	Neptune	17
Jupiter	07	Athens	Jupiter	07
Flair	Asti			Asti

S · Complete Locks

		Desi	igns and Fin	ishes		PRIMARY CYLIND	ER ADJUSTMENTS
		SAT NEP JUP FLA® LD = Less standard 6-pin cylinder
Function	Description	626	605 606 619 625 2609	613	JD = Less Full Size Core RD = FSIC (Full Size Interchangable Core) TD* = Full Size Construction Core
Keyless
S10D	Passage	$206	$218	$236	SAT NEP JUP FLA®	SAT NEP JUP
S40D	Privacy	254	266	284
S170	Single Dummy	96	102	112	1
Keyed, Single C	ylinder				LD	JD	RD	TD*
S51PD	Entrance
S70PD	Classroom	$322	$334	$352	-64	-35	38	3
S80PD	Storeroom
Notes	For all restricted keyways (Everest D See Terms and Conditions for orderi					). This does not appl	y to Primus cylinders.
	SL Cylinder with Everest B or Everest	R keywa	ys add $17.50	).
*	Full size construction core locks are a	assessed	a one-time n	on-refund	able handing charge	(50-231) per core
	Ordering instructions: To change cylinder type from default 6-pn standard, change lock suffix as appropriate. x: S51JD for S51 function less full size core.

Primus /	Primus / Primus XP - available through specific channels based on security levels. See Terms & Conditions for details.
Specify	Description	Price Each
Primus Cylinders	5
LD Suffix	Order lock less cylinder; order Primus cylinder 20-752 separately	-$64 (deduct from lock price)
20-752	Primus Cylinder	141
Full-Size Interch	angeable Primus Core
JD Suffix	Order lock less full size core; order Primus core 20-740 separately	-$35 (deduct from lock price)
20-740	Full-size interchangable Primus core	152
Ordering instruction	ons: Add suffix to lock function, order Primus cylinder separately.

DeadLatches
Specify	Description	List Price Adjustment
16-203	Adjustable 2 3/8" or 2 3/4" backset, 1" x 2 1/4" square corner (standard latch) (includes A501-878 latch adapter for 1 1/8" prep & G506-815 sleeve for 1" housing)	N/C
16-204	Adjustable 2 3/8" or 2 3/4" backset, 1" x 2 1/4" round corner (1/4" radius)
16-132	5" backset, 1" x 2 1/4" square corner (includes A501-897 latch adapter for 1 1/8" prep & G506-815 sleeve for 1" housing)	$9.90
	Ordering instructions: specify desired latch on order only if requesting different from standard.

Strikes
Specify	Description	List Price Adjustment
10-001	Square corner, T-strike, box, 1 1/8" x 2 3/4", 1 1/8" lip length (standard strike)	N/C
10-001 xx	Square corner, T-strike, box, 1 1/8" x 2 3/4", specify lip length (xx) as 1", 1 1/4", 1 1/2", 1 3/4", 2"	$7.30
10-004	Round corner (1/4" radius), T-strike, box 1 1/8" x 2 3/4", 1 1/8" lip length
10-025 1316	ANSI, no box, 1 1/4" x 4 7/8", 1 3/16" lip length	N/C
10-025 xx	ANSI, no box, 1 1/4" x 4 7/8", specify lip length as 1 3/8" or 1 1/2"	14.80
K510-066	Box for ANSI strike
10-026	Square corner, full lip, no box, 1 5/8" x 2 1/4", 1 1/8" lip length	N/C
10-027	Round corner (1/4" radius), full lip, no box, 1 5/8" x 2 1/4", 1 1/8" lip length
	Ordering instructions: specify desired strike on order only if requesting different from standard.

Locks Less Components
Description	Specify
Less standard cylinder	LD cylinder suffix Example: S51LD Sat 626	-$64.00
Less deadlatch	LLL for latch Example: S51PD Sat 626 LLL 10-001	-21.10
Less strike	LLL for strike Example: S51PD Sat 626 16-203 LLL	-4.70
	Ordering instructions: specify on order only if requesting different from standard.

	Tactile Warning and Tamper Resistant Torx® Screws
Specify	Description	List Price Adjustment
'8' lever prefix	Tactile warning applied to outside lever; specify lever design as 8SA for tactile on Saturn lever, 8JU for tactile on Jupiter, etc.	$46.40
Torx screws	Tamper-resistant Torx screws; specify under "additional details"	21.30

	Available Finishes	605	606	609	613	625 •	626
Part Number	Description			Price	Each
Inside Chassis &	Lever Assembly, Inside Rose
68-011 xxx	Inside chassis & lever assembly for S10, S70, S80 function. Specify (xxx) as SAT NEP JUP FLA lever design			$113	.00
68-012 xxx	Inside chassis & lever assembly for the S40 function. Specify (xxx) as SAT NEP JUP FLA® lever design			124.	00
68-013 xxx	Inside chassis & lever assembly for the S51 function. Specify (xxx) as SAT NEP JUP FLA® lever design			124.	.00
08-021	Rose for inside chassis & lever assembly			27.	50
Outside Chassis	, Rose and Lever (NON-KEYED)
68-001 xxx	Outside chassis, rose & lever assembly for the S10 function. Specify (xxx) as SAT NEP JUP FLA® lever design			$111	.00
68-002 xxx	Outside chassis, rose & lever assembly for the S40 function Specify (xxx) as SAT NEP JUP FLA® lever design			111.	00
Outside Chassis	& Rose (KEYED)
68-003	Outside chassis and rose assembly for S51 and S70 function. Requires outside lever (see section below)			$75	.60
68-004	Outside chassis and rose assembly for S80 function. Requires outside lever (see section below)
Outside Keyed L	ever, Standard Cylinder
08-020 xxx	Outside lever for use with standard cylinder. specify (xxx) as SAT NEP JUP FLA®			$78	.30
Outside Keyed L	ever, Interchangeable Core, and Related Parts
08-027 xxx	Full size core lever, specify (xxx) as SAT NEP JUP only			$78	.70
08-030 xxx	Full size core lever, driver, retainer (converts PD to JD). Specify (xxx) as SAT NEP JUP only			95.	00
S605-241	Full size core retainer			4.4	40
S605-242	Full size core driver			9.6	50
S605-194	Lever insert for FSIC			4.	10

	Available Finishes	605	606	609	613	625	62
		•	•	• 🎖	•	•	•
Part Number	Description			Price	Each
Deadlatches
16-203	Adjustable 2 3/8" or 2 3/4" backset, 1" x 2 1/4" square corner (standard latch) (includes A501-878 latch adapter for 1 1/8" prep & G506-815 sleeve for 1" housing)			$37	.40
16-204	Adjustable 2 3/8" or 2 3/4" backset, 1" x 2 1/4" round corner (1/4" radius)
16-132	5" backset, 1" x 2 1/4" square corner (includes A501-897 latch adapter for 1 1/8" prep & G506-815 sleeve for 1" housing)	48.50
39-030	Rabbeted latch and strike kit, 605 and 626 finish only (adapts square corner & 2 3/4" high square corner strikes to 1/2" rabbeted door and frame preps)		58.20
Strikes
10-001	Square corner, T-strike, box, 11/8" x 2 3/4", 11/8" lip length (standard strike)			$6.	.50
10-001 xx	Square corner, T-strike, box, 11/8" x 2 3/4", specify lip length (xx) as 1", 11/4", 11/2", 13/4", 2"			7.6	50
10-004	Round corner (1/4" radius), T-strike, box 11/8" x 2 3/4", 11/8" lip length			11.5	50
10-025 1316	ANSI, no box, 11/4" x 47/8", 13/16" lip length			15.	20
10-025138	ANSI, no box, 11/4" x 47/8", 13/8" lip length			43.	80
K510-066	Box for ANSI strike			7.2	20
10-026	Square corner, full lip, no box, 15/8" x 2 1/4", 11/8" lip length			7.0
10-027	Round corner (1/4" radius), full lip, no box, 1 5/8" x 2 1/4", 11/8" lip length	7.60

Adapters
605			606	609	613	625	626
	Available Finishes					•	•
Part Number	Description	• • • 6 • Price Each
38-018	Thin door extension ring (2 required per lock)				$13.20
A501-878	Latch front adapter (use with 1" faceplate in 1 1/8" door prep). Order in multiples of 100. Finish not applicable.	0.78
G506-815	1" long latch housing sleeve to adapt 7/8" diameter housing to 1" bore. Finish not applicable.				7.00
	Ordering Instructions: Specify part number and finish if applicable.

Screws
	Available Finishes		605	606	609	613	625	626
			•	•	• 6	•	•	•
Part Number	Description					Price Each
Individual Screws
C603-256	ANSI Strike screws, PFH combo, 12-24 x 1"				(order multiples of 100)	$1.00
C603-897	Latch or standard strike screws, PFH combo, 8-32 x 3/4"				(order multiples of 100)	0.90
F506-278	Mounting screws, RPH Machine, 8-32 x 1 1/2" (finish not applicable)		1.20 (order multiples of 100)
F506-237	Mounting screws, wood, #8 x 3/4" (finish not applicable)					0.80 (order multiples of 100)
	PFH = Phillips Flat Head RPH = Round Phillips Head
Screw Packs
Part Number	Description					Price Each
S306-180	Mounting Screws, S170 Contains: (2) S506-960 (finish not applicable)					5.00
S306-182	Mounting Screws, latch & strike Contains: (2) F506-278 (4) C603-897 (1) M504-271					11.70
S306-183	Mounting screws, latch & ANSI Strike Contains: (2) F506-278 (4) C603-256 (2) C603-897 (1) M504-271					11.70
Torx Screw Packs
C203-311	Latch and standard strike Contains: (4) C503-766 (T-15)
C203-312	Latch and ANSI strike Contains: (2) C503-766 (T-15) (2) L583-371 (T-20)		21.30
Notes	Torx screw packs are furnished with the appropriate T-xx installation tool(s)
	Ordering Instructions: Specify part number and finish if applicable.

Special Parts 6Extended Lead Time
	Available Finishes	605	606	609	613	625	626
						•	•
Part Number	Description	•	•	• 6 Price Each	•
XQ07-351	10-025 strike, 7/8" flat lip			$42.70
XQ07-351 xxx	10-025 strike, lips through 6" (except 7/8", 11 3/16", 1 3/8" and 1 1/2"). Specify (xxx) lip length in part number		206.00
	Ordering Instructions: Specify part number and finish.

Cylinder Reference
				Price Each
Cylinder Mechanism	Design	Complete Cylinder	Open	Restricted
Standard		21-059	$64.00	$81.50
Everest SL (R/B Keyways only)		91-007		81.50
Primus®		20-752		141.00
Primus XP	Keyed Levers	20-752-XP		141.00
Everest SL Primus XP (R/B Keyways only)		91-722-XP		141.00
Primus UL437		20-552		174.00
Primus UL437-XP		20-552-XP		174.00

HOSPITAL LATCH, TUBULAR AND MORTISE

Hospital Latch

Ordering Procedures

To order Schlage Hospital Latch product, descriptive data should be in the same sequence as shown below

	Line Item	Qty	Function-Backset	Finish	Option	Engraving	Strike
Tubular (bored)	1	10	HL6-5	626	B	E6	A
Mortise	1	10	HL6-9070	626	B	E6	BT

Line Item Line item number

Qty Quantity

Function - Backset Tubular Model: HL6 (passage), PL7 (privacy, thumbturn on push side), PL8 (privacy, thumbturn on pull side)

Tubular Backset: -2 (2 3/4" backset), -3 (3 3/4" backset), -5 (5" backset), -7 (7"backset)

Mortise Model: Choose from list page HL-4

Mortise Backset: leave blank (backset always 2 3/4")

Finish 605 (US3, Bright Brass); 606 (US4, Satin Brass), 612 (US10, Satin Bronze), 613 (US10B, Oil Rubbed Bronze)

625 (US26, Bright Chrome), 626 (US26D, Satin Chrome), 626AM (Satin Chrome anti-microbial),

629 (US32, Bright Stainless Steel), 630 (US32D, Satin Stainless Steel)

Option B (brass lever material for 626 finish); EN (pull-side paddle only); EO (push-side paddle only); L (lead lined); SOC (pin-in-socket

security screws)

Engraving style If applicable - E1, E2, E3, E4, E5, E6, see page HL-8 for details

Strike Tubular: leave blank for standard strike, A for ASA strike, AS for both standard and ASA strike

Mortise: leave blank for standard strike, specify BT for bent-tab strike

Table of Contents

Functions HL-4 Hospital latch HL-6 HL6/PL7/PL8 Tubular (bored) Hospital Latch HL-6 HL6 Mortise Hospital Latch. . HL-7 Push/Pull Latches Engraving Guide. . . HL-8 Parts HL-9

Standard Features

Certifications Tubular (bored): UL Listed for 3-hour fire door, 4.0' x 8.0'

Mortise: UL listed for 3-hour fire door, 4.0' x 10.0'

Latchbolt Tubular (bored): 1/2" throw stainless steel

Mortise: 3/4" throw stainless steel

Backset Tubular (bored): specify as 2-3/4", 3-3/4", 5", 7"

Mortise: 2 3/4" only

Door Range 1-3/4" only

Finish Codes and Descriptions

Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated
626AM		Antimicrobial Coating on Satin Chromium
629	(US 32)	Bright Stainless Steel
630	(US 32D	Satin Stainless Steel
630AM		Antimicrobial Coating on Satin Stainless Steel

Tubular (Bored) • Lock Functions

HL6 Passage

Latchbolt retracted by paddle from either side Inside paddle always free for immediate egress

PL8 Privacy, pull-side thumbturn

Latchbolt retracted by paddle from either side unless outside locked by inside thumbturn or outside cointurn. Actuating inside padde, rotating inside thumbturn or outside cointurn unlocks door. Inside paddle always free for immediate egress.

PL7 Privacy, push-side thumbturn

Latchbolt retracted by paddle from either side unless outside locked by inside thumbturn or outside cointurn. Actuating inside padde, rotating inside thumbturn or outside cointurn unlocks door. Inside paddle always free for immediate egress.

Mortise • Lock Functions

HL6-9010 F01 Passage Latch

Latchbolt retracted by paddle from either side at all times. Inside paddle is always free for immediate egress.

HL6-9070 F05 Classroom Lock

Latchbolt retracted by paddle from either side unless outside is locked by key. Unlocked from outside by key. Inside paddle always free for immediate exit. Auxiliary latch deadlocks latchbolt when door is locked. Inside paddle is always free for immediate egress.

HL6-9040 F22 Bath/Bedroom Privacy Lock

Latchbolt retracted by paddle from either side unless outside is locked by inside thumbturn. Actuating inside paddle or closing door unlocks outside paddle. To unlock from outside, remove emergency button, insert emergency thumbturn(furnished) in access hole and rotate. Inside paddle is always free for immediate egress.

HL6-9080 F07 Storeroom Lock

Latchbolt retracted by key outside or by paddle inside. Outside paddle always inoperative. Auxiliary latch deadlocks latchbolt when door is locked. Inside paddle is always free for immediate egress.

HL6-9050 F04 Entrance/Office Lock

Latchbolt retracted by paddle from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by paddle inside. Outside paddle remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is locked. Inside paddle is always free for immediate egress.

HL6-9082 F30 Institution Lock*

Latchbolt retracted by key from either side. Paddle on both sides always inoperative. Auxiliary latch deadlocks latchbolt when door is locked.

HL6-9060 F09 Apartment Entrance Lock

Latchbolt retracted by paddle from either side unless outside is locked by key from inside. When locked, latchbolt retracted by key outside or paddle inside. Auxiliary latch deadlocks latchbolt when door is locked. Inside paddle is always free for immediate egress.

HL6-9092EL HL6-9092EU

Electrically locking/unlocking outside lever, Outside cylinder (replaces HL6-9080EL/EU)

Outside paddle continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key outside or paddle inside. Aux latch deadlocks latchbolt when door is locked. Inside lever always free for immediate egress.

HL6-9095EL HL6-9095EU

Electrically locking/unlocking both levers, Inside and outside cylinder (replaces HL6-9082EL/EU)

Inside and outside paddle continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key inside or outside. Aux latch deadlocks latchbolt when door is locked.

HL6-9466 F14 Store/Utility Room Lock*

Latchbolt retracted by paddle from either side. Deadbolt thrown or retracted by key from either side.

HL6-9453 F20 Entrance/Office Lock with Deadbolt

Latchbolt retracted by paddle from either side unless outside is locked by 20° rotation of thumbturn. Deadbolt thrown or retracted by 90° rotation of thumbturn. When locked, key outside or paddle inside retracts deadbolt and latchbolt simultaneously. Outside paddle remains locked until thumbturn is restored to vertical position. Throwing deadbolt automatically locks outside paddle. Auxiliary latch deadlocks latchbolt when door is locked. Inside paddle is always free for immediate egress.

HL6-9473 F21 Dormitory/Bedroom Lock

Latchbolt retracted by paddle from either side. Deadbolt thrown or retracted by key outside or thumbturn inside.

HL6-9456 Corridor Lock

Latchbolt retracted by paddle from either side. Deadbolt actuation by key or thumbturn ratation. Throwing deadbolt locks outside paddle. Actuating inside paddle retracts both deadbolt and latchbolt and unlocks outside paddle. Inside paddle always free for immediate egress.

HL6-9485 Faculty/Hotel/Restroom Lock

Latchbolt retracted by outside key or inside paddle. Outside paddle always fixed. Deadbolt actuation by thumbturn. When deadbolt is thrown, all keys become inoperative except emergency key. Inside paddle retracts both deadbolt and latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate egress.

HL6-9465 Closet/Storeroom Lock

Latchbolt retracted by paddle from either side. Deadbolt thrown or retracted by key outside.

HL6-9486 L/LV9485 with 09-611 indicator

Adds 09-611 "Do Not Disturb" indicator to L/ LV9485. Specify L583-375 for "Occupied". NOTE: This is the "old style" indicator, not the 180 degree indicator.

* In a double door application where the dummy will be used as the strike, order 10-091 Armored Front Strike separately.

HL6/PL7/PL8 • Tubular (bored) hospital latch

HL6 Push/Pull Latch and PL7 and PL8 Privacy Function Push/Pull Latch

Note: see page HL-3 for ANSI finish conversion to US nomenclature (e.g., 626= US26D/Satin Chrome) 626 finish defaults to zinc paddles unless specified with 'B' (Brass) option. All other finishes use brass or stainless steel paddles.

						606	605
Item*	Description	626	630	625	629	612	613
HL6-2	Push/Pull Latch - 2-3/4˝ Backset	$337**	$387	$414	$410	$397	$423
HL6-3	Push/Pull Latch - 3-3/4˝ Backset	337	387	414	410	397	423
HL6-5	Push/Pull Latch - 5˝ Backset	337**	387	414	410	397	423
HL6-7	Push/Pull Latch - 7" Backset	387	437	464	460	447	473
PL7-2	Push Side Thumbturn - 2-3/4˝ Backset	439	500	522	532	514	534
PL7-3	Push Side Thumbturn - 3-3/4˝ Backset	439	500	522	532	514	534
PL7-5	Push Side Thumbturn - 5˝ Backset	439	500	522	532	514	534
PL8-2	Pull Side Thumbturn - 2-3/4˝ Backset	439	500	522	532	514	534
PL8-3	Pull Side Thumbturn - 3-3/4˝ Backset	439	500	522	532	514	534
PL8-5	Pull Side Thumbturn - 5˝ Backset	439	500	522	532	514	534
PL7-7	Push Side Thumbturn - 7" Backset	489	550	572	582	564	584
PL8-7	Pull Side Thumbturn - 7" Backset	489	550	572	582	564	584

^** Note: HL6-2 US26D, HL6-2-A US26D, HL6-5 US26D, and HL6-5-A US26D available in Fast Track and ProXpress

Options and Engraving

Item	Description	List Adjustment
A	ASA Strike, ANSI 115.1 (1-1/4" x 4-7/8"), when ordered with latch	N/C
AS	Both Standard & ASA Strikes	29.40
B	Brass base material on US26D	54.60
E1-E6	Engraved Push and Pull. (See page HL-8 for ordering guide)	54.60
EN	Pull Only Latch	-66.20
EO	Push Only Latch	-66.20
L	Lead Lining	101.00
SOC	Pin-in-Socket Security Screws	29.40

Anti-Microbial Coating

Available on 626 (US26D/Satin Chrome) and 630 (US32D/Satin Stainless Steel) finishes only;
specify finish as 626AM or 630AM	$29.40

Push/Pull Mortise Lock Combination

• Schlage L Series mortise lock Included.
• Cylinders must be ordered separate†
• See page HL-3 for ANSI finish conversion to US nomenclature (e.g., 626= US26D/Satin Chrome)
• 626 finish defaults to zinc paddles unless specified with 'B' (Brass) option. All other finishes use brass or stainless steel paddles
• On functions with cylinders, handles must be mounted in down position on key side or horizontally on both sides.
• On functions with thumbturns, handles must be mounted in the horizontal position
• All units 2-3/4˝ backset
• ASA strike furnished with all units. Bent-tab strike optional

^* Thumbturn functions

Options

Item	Description	List Adjustment
B	Brass base material on US26D	$54.60
BT	Bent Tab for Mortise Lock Strike	63.00
E1-E6	Engraved Push and Pull. (See page 18 for ordering guide)	54.60
EN	Pull Side Only Latch	-153.00
EO	Push Side Only Latch	-153.00
L	Lead Lining	280.00
RX	Request to Exit (RX) option for HL6-9092 or HL6-9095	171.00
SOC	Pin-in-Socket Security Screws	29.40

Anti-Microbial Coating

Available on 626 (US26D/Satin Chrome) and 630 (US32/Satin Stainless Steel) finishes only;
specify finish as 626AM or 630AM	$29.00

† Cylinders

NOTE: Cylinders are not included with mortise push-pull latches and must be ordered separate. See Schlage PB4 pages CYL-28 (standard cylinder), CYL-33 (FSIC) and CYL-35 (SFIC) for pricing and ordering information

Engraving Guide

Hospital Latch Paddle Assemblies

Reference diagram below when ordering engraved push/pull paddles listed below

Engraved Away

Part Number	Description	List
	ddle Assemblies - NON ENGRAVED
(NOTE: additional fin	ishes available upon request. Lever material either brass or stainless steel unless otherwise noted)
HANDLE.10155	HL6 Push Handle Assy, 605/US3/Bright Brass Finish	$150.00
HANDLE.10179	HL6 Pull Handle Assy, 605/US3/Bright Brass Finish	150.00
HANDLE.10156	HL6 Push Handle Assy, 606/US4/Satin Brass Finish	139.00
HANDLE.10180	HL6 Pull Handle Assy, 606/US4/Satin Brass Finish	139.00
HANDLE.10157	HL6 Push Handle Assy, 612/US10/Satin Bronze Finish	139.00
HANDLE.10181	HL6 Pull Handle Assy, 612/US10/Satin Bronze Finish	139.00
HANDLE.10158	HL6 Push Handle Assy, 613/US10B/Oil Rubbed Bronze Finish	150.00
HANDLE.10182	HL6 Pull Handle Assy, 613/US10B/Oil Rubbed Bronze Finish	150.00
HANDLE.10159	HL6 Push Handle Assy, 625/US26/Bright Chrome Finish	148.00
HANDLE.10183	HL6 Pull Handle Assy, 625/US26/Bright Chrome Finish	148.00
HANDLE.10160	HL6 Push Handle Assy, 626/US26D/Satin Chrome Finish, Zinc Paddle	122.00
HANDLE.10184	HL6 Pull Handle Assy, 626/US26D/Satin Chrome Finish, Zinc Paddle	122.00
HANDLE.10215	HL6 Push Handle Assy, 626/US26D/Satin Chrome Finish	134.00
HANDLE.10275	HL6 Pull Handle Assy, 626/US26D/Satin Chrome Finish	134.00
HANDLE.10161	HL6 Push Handle Assy, 629/US32/Bright Stainless Steel	144.00
HANDLE.10185	HL6 Pull Handle Assy, 629/US32/Bright Stainless Steel	144.00
HANDLE.10162	HL6 Push Handle Assy, 630/US32D/Satin Stainless Steel	139.00
HANDLE.10186	HL6 Pull Handle Assy, 630/US32D/Satin Stainless Steel	139.00
HANDLE.10225	HL6 Push Handle Eo Assy 626/US26D/Satin Chrome Finish, Zinc Paddle	122.00
HANDLE.10308	HL6 Pull Handle En Assy 626/US26D/Satin Chrome Finish, Zinc Paddle	122.00
HANDLE.10248	HL6 Push Handle Eo Assy 630/US32D/Satin Stainless Steel	135.00
HANDLE.10306	HL6 Pull Handle En Assy 630/US32D/Satin Stainless Steel	135.00
HANDLE.10168	PL7 Push Handle Assy, 626/US26D/Satin Chrome Finish, Zinc Paddle	158.00
HANDLE.10176	PL8 Push Handle Assy, 626/US26D/Satin Chrome Finish, Zinc Paddle	158.00
HANDLE.10192	PL7 Pull Handle Assy, 626/US26D/Satin Chrome Finish, Zinc Paddle	158.00
HANDLE.10200	PL8 Pull Handle Assy, 626/US26D/Satin Chrome Finish, Zinc Paddle	158.00
HANDLE.10170	PL7 Push Handle Assy, 630/US32D/Stainless Steel	180.00
HANDLE.10178	PL8 Push Handle Assy, 630/US32D/Stainless Steel	180.00
HANDLE.10194	PL7 Pull Handle Assy, 630/US32D/Stainless Steel	180.00
HANDLE.10202	PL8 Pull Handle Assy, 630/US32D/Stainless Steel	180.00

Parts

Hospital Latch Paddles (continued)

Part Number	Description	List
	Tubular (Bored) Paddle Assemblies - ENGRAVED
	(NOTE: additional finishes and engravings available upon request. Lever material either brass or stainless steel unless otherwise noted)
HANDLE.10211	HL6 Push Handle Assy Engraved Down, 626/US26D/Satin Chrome, Zinc Paddle	$137.00
HANDLE.10212	HL6 Push Handle Assy Engraved Up, 626/US26D/Satin Chrome, Zinc Paddle	137.00
HANDLE.10213	HL6 Push Handle Assy Engraved Away, 626/US26D/Satin Chrome, Zinc Paddle	137.00
HANDLE.10271	HL6 Pull Handle Assy Engraved Down, 626/US26D/Satin Chrome, Zinc Paddle	137.00
HANDLE.10272	HL6 Pull Handle Assy Engraved Up, 626/US26D/Satin Chrome, Zinc Paddle	137.00
HANDLE.10273	HL6 Pull Handle Assy Engraved Towards, 626/US26D/Satin Chrome, Zinc Paddle	137.00
HANDLE.10217	HL6 Push Handle Assy Engraved Down, 626/US26D/Satin Chrome, Brass Paddle	150.00
HANDLE.10254	HL6 Push Handle Assy Engraved Up U,626/US26D/Satin Chrome, Brass Paddle	150.00
HANDLE.10297	HL6 Pull Handle Assy Engraved Down, 626/US26D/Satin Chrome, Brass Paddle	150.00
HANDLE.10277	HL6 Pull Handle Assy Engraved Up, 626/US26D/Satin Chrome, Brass Paddle	150.00
HANDLE.10218	HL6 Push Handle Assy Engraved Down, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10238	HL6 Push Handle Assy Engraved Up, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10219	HL6 Push Handle Assy Engraved Away, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10220	HL6 Push Handle Assy Engraved Toward, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10278	HL6 Pull Handle Assy Engraved Down, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10296	HL6 Pull Handle Assy Engraved Up, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10280	HL6 Pull Handle Assy Engraved Away, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10279	HL6 Pull Handle Assy Engraved Towards, 630/US32D/Satin Stainless Steel	154.00
HANDLE.10262	PL7 Push Handle Assy Engraved Down, 630/US32D/Satin Stainless Steel	195.00
HANDLE.10318	PL7 Pull Handle Assy Engraved Down, 630/US32D/Satin Stainless Steel	195.00
HANDLE.10261	PL8 Push Handle Assy Engraved Down, 630/US32D/Satin Stainless Steel	195.00
HANDLE.10317	PL8 Pull Handle Assy Engraved Down, 630/US32D/Satin Stainless Steel	195.00
	Mortise Paddle Assemblies - NON ENGRAVED (NOTE: additional finishes available upon request. Lever material either brass or stainless steel unless otherwise noted)
HANDLE.10203	HL6 Push Handle Mortise Assy, 605/US3/Bright Brass	$150.00
HANDLE.10264	HL6 Pull Handle Mortise Assy, 605/US3/Bright Brass	150.00
HANDLE.10205	HL6 Push Handle Mortise Assy, 612/US10/Satin Bronze	139.00
HANDLE.10266	HL6 Pull Handle Mortise Assy, 612/US10/Satin Bronze	139.00
HANDLE.10206	HL6 Push Handle Mortise Assy, 613/US10B/Oil Rubbed Bronze	150.00
HANDLE.10267	HL6 Pull Handle Mortise Assy, 613/US10B/Oil Rubbed Bronze	150.00
HANDLE.10207	HL6 Push Handle Mortise Assy, 625/US26/Bright Chrome	148.00
HANDLE.10268	HL6 Pull Handle Mortise Assy, 625/US26/Bright Chrome	148.00
HANDLE.10208	HL6 Push Handle Mortise Assy, 626/US26D/Satin Chrome, Zinc Paddles	122.00
HANDLE.10269	HL6 Pull Handle Mortise Assy, 626/US26D/Satin Chrome, Zinc Paddles	122.00
HANDLE.10229	HL6 Push Handle Mortise Assy, 626/US26D/Satin Chrome	134.00
HANDLE.10289	HL6 Pull Handle Mortise Assy,626/US26D/Sating Chrome	134.00
HANDLE.10209	HL6 Push Handle Mortise Assy, 630/US32D/Stainless Steel	139.00

HANDLE.10270 HL6 Pull Handle Mortise Assy, 630/US32D/Stainless Steel 139.00

Hospital Latch Paddles (continued)

Part Number	Description	List
	Mortise Paddle Assemblies - ENGRAVED (NOTE: additional finishes and engravings available upon request. Lever material either brass or stainless steel unless otherwise noted)
HANDLE.10236	HL6 Push Handle Mortise Assy Engraved Down, 626/US26D/Satin Chrome, Zinc Paddles	$137.00
HANDLE.10230	HL6 Push Handle Mortise Assy Engraved Up, 626/US26D/Satin Chrome, Zinc Paddles	137.00
HANDLE.10226	HL6 Push Handle Mortise Assy Engraved Away, 626/US26D/Satin Chrome, Zinc Paddles	137.00
HANDLE.10290	HL6 Pull Handle Mortise Assy Engraved Down, 626/US26D/Satin Chrome, Zinc Paddles	137.00
HANDLE.10298	HL6 Pull Handle Mortise Assy Engraved Up, 626/US26D/Satin Chrome, Zinc Paddles	137.00
HANDLE.10286	HL6 Pull Handle Mortise Assy Engraved Towards, 626/US26D/Satin Chrome, Zinc Paddles	137.00
HANDLE.10325	HL6 Push Handle Mortise Assy Engraved Up, 626/US26D/Satin Chrome	150.00
HANDLE.10326	HL6 Pull Handle Mortise Assy Engraved Down, 626/US26D/Satin Chrome	150.00
HANDLE.10221	HL6 Push Handle Mortise Assy Engraved Down, 630/US32D/Stainless Steel	154.00
HANDLE.10243	HL6 Push Handle Mortise Assy Engraved Up, 630/US32D/Stainless Steel	154.00
HANDLE.10222	HL6 Push Handle Mortise Assy Engraved Towards, 630/US32D/Stainless Steel	154.00
HANDLE.10231	HL6 Push Handle Mortise Assy Engraved Away, 630/US32D/Stainless Steel	154.00
HANDLE.10285	HL6 Pull Handle Mortise Assy Engraved Down, 630/US32D/Stainless Steel	154.00
HANDLE.10281	HL6 Pull Handle Mortise Assy Engraved Up, 630/US32D/Stainless Steel	154.00
HANDLE.10291	HL6 Pull Handle Mortise Assy Engraved Towards, 630/US32D/Stainless Steel	154.00
HANDLE.10282	HL6 Pull Handle Mortise Assy Engraved Away, 630/US32D/Stainless Steel	154.00
COVER ASSEMBLIES
	(NOTE: additional finishes available upon request)
840964-03	HL6 Cover, 605/US3/Bright Brass	$86.10
840964-04	HL6 Cover, 606/US4/Satin Brass	77.70
840964-25	HL6 Cover, 612/US10/Satin Bronze	77.70
840964-13	HL6 Cover, 613/US10B/Oil Rubbed Bronze	86.10
840964-25	HL6 Cover, 625/US26/Bright Chrome	86.10
840967-64	HL6 Cover, 626/US26D/Satin Chrome, Zinc	68.30
840964-26	HL6 Cover, 626/US26D/Satin Chrome	77.70
840965-31	HL6 Cover, 629/US32/Bright Stainless Steel	81.90
840965-32	HL6 Cover, 630/US32D/Satin Stainless Steel	77.70
840956-04	PL7/PL8 Coin Turn Cover Assy, 605/US4/Bright Brass	110.00
840956-25	PL7/PL8 Coin Turn Cover Assy, 625/US26/Bright Chrome	122.00
840956-26	PL7/PL8 Coin Turn Cover Assy, 626/US26D/Satin Chrome	111.00
840956-32	PL7/PL8 Coin Turn Cover Assy, 630/US32D/Satin Stainless Steel	117.00
840957-04	PL7/PL8 Thumbturn Cover Assy, 605/US4/Bright Brass	190.00
840957-25	PL7/PL8 Thumbturn Cover Assy, 625/US26/Bright Chrome	196.00
840957-26	PL7/PL8 Thumbturn Cover Assy, 626/US26D/Satin Chrome	180.00
840957-32	PL7/PL8 Thumbturn Cover Assy, 630/US32D/Satin Stainless Steel	190.00
STRIKES
	(NOTE: additional finishes available upon request)
HLPART.10040	Standard Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 605/US3/Bright Brass	$29.40
HLPART.10041	Standard Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 606/US4/Satin Brass	29.40
HLPART.10042	Standard Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 612/US10/Satin Bronze	29.40
HLPART.10043	Standard Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 613/US10B/Oil Rubbed Bronze	29.40
HLPART.10044	Standard Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 625/626/629/630/US26/US26D/US32/US32D	29.40
HLPART.10045	Asa Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 605/US3/Bright Brass	29.40
HLPART.10051	Asa Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 606/US4/Satin Brass	29.40
HLPART.10047	Asa Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 612/US10/Satin Bronze	29.40
HLPART.10048	Asa Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 613/US10B/Oil Rubbed Bronze	29.40
	Asa Strike, HL6/PL7/PL7 Tubular (Bored) Lock, 625/626/629/630/US26/US26D/US32/US32D	29.40

Parts

Hospital Latch Paddles (continued)

Part Number	Description	List
LATCHBOLTS	(NOTE: additional finishes available upon request)
HLPART.10060	HL6/PL7PL8 2.75" Latchbolt Pkg 605/US3/Bright Brass	$52.50
HLPART.10061	HL6/PL7PL8 2.75" Latchbolt Pkg 606/US4/Satin Brass	52.50
HLPART.10062	HL6/PL7PL8 2.75" Latchbolt Pkg 612/US10/Satin Bronze	52.50
HLPART.10063	HL6/PL7PL8 2.75" Latchbolt Pkg 613/US10B/Oil Rubbed Bronze	52.50
HLPART.10064	HL6/PL7PL8 2.75" Latchbolt Pkg 625/629/US26/US32	52.50
HLPART.10065	HL6/PL7PL8 2.75" Latchbolt Pkg 626/630/US26D/US32D	52.50
HLPART.10066	HL6/PL7PL8 3.75" Latchbolt Pkg 625/629/US26/US32	54.60
HLPART.10068	HL6/PL7/PL8 3.75" Latchbolt Pkg 612/US10/Satin Bronze
HLPART.10067	HL6/PL7PL8 3.75" Latchbolt Pkg 626/630/US26D/US32D	54.60
HLPART.10069	HL6/PL7/PL8 3.75" Latchbolt Pkg 613/US10B/Oil Rubbed Bronze
HLPART.10070	HL6/PL7/PL8 3.75" Latchbolt Pkg 625/629/US26/US32
HLPART.10072	HL6/PL7PL8 5.0" Latchbolt Pkg 605/US3/Bright Brass	55.70
HLPART.10071	HL6/PL7/PL8 3.75" Latchbolt Pkg 626/630/US26D/US32D
HLPART.10073	HL6/PL7PL8 5.0" Latchbolt Pkg 606/US4/Satin Brass	55.70
HLPART.10074	HL6/PL7PL8 5.0" Latchbolt Pkg 612/US10/Satin Bronze	55.70
HLPART.10075	HL6/PL7PL8 5.0" Latchbolt Pkg 613/US10B/Oil Rubbed Bronze	55.70
HLPART.10076	HL6/PL7PL8 5.0" Latchbolt Pkg 625/629/US26/US32	55.70
HLPART.10077	HL6/PL7PL8 5.0" Latchbolt Pkg 626/630/US26D/US32D	55.70
HLPART.10078	HL6/PL7/PL8 7.0" Latchbolt Pkg 605/US3/Bright Brass
HLPART.10079	HL6/PL7/PL8 7.0" Latchbolt Pkg 604/US4/Satin Brass
HLPART.10080	HL6/PL7PL8 7.0" Latchbolt Pkg 612/US10/Satin Bronze	109.00
HLPART.10081	HL6/PL7/PL8 7.0" Latchbolt Pkg 613/US10B/Oil Rubbed Bronze
HLPART.10082	HL6/PL7/PL8 7.0" Latchbolt Pkg 625/629/US26/US32
HLPART.10083	HL6/PL7PL8 7.0" Latchbolt Pkg 626/630/US26D/US32D	109.00

LEAD LINING

HLPART.10153	HL6/PL7/PL8 Tubular (Bored) Lock Lead Lining, for use with 2 3/4" Backset	$101.00
HLPART.10154	HL6/PL7/PL8 Tubular (Bored) Lock Lead Lining, for use with 3 3/4" Backset	101.00
HLPART.10155	HL6/PL7/PL8 Tubular (Bored) Lock Lead Lining, for use with 5" Backset	101.00
HLPART.10156	HL6/PL7/PL8 Tubular (Bored) Lock Lead Lining, for use with 7" Backset	101.00

SCREW PACKS

840613-00	HL6/PL7/8 Security Screw Pkg 3, 2D	10.50
829632-26	HL6eo Screw Pkg 625/626/US26/US26D	10.50
HLPART.10158	HL6/HL6M/PL7/PL8 Spring & Rivet Pkg	13.70
HLPART.10159	"OLD STYLE" SPRING & RIVET PKG	13.70
K110-020	Cover Screws, Contains (2) K510-210, #8-32 x 1/4" MS PFH (Specify finish when ordering)	0.88

MORTISE LOCK COMPONENTS

840088-00	HLM6 Mounting Plate	$2.60
Strikes		See page L-35
Armor fronts		See page L-35
Chassis		See page L-39
36-371-89	EL/EU SPINDLE (Qty 1)	$1.00

KS-Series Padlock Parts

KS-Series Cable

Important Portable Security Ordering Information

All products in this section are stocked and must be ordered in case quantities. Case quantity is listed with each product. All prices listed are unit prices.

Note: Keyed different products ship with key in knob cylinders.

All cylinders ordered for use with Less Cylinder products will ship separately.

Common Pricing Information 1. Locks are furnished with standard features unless otherwise specified. 2. Keyed different products ship with Key in Knob keyed different cylinders only. For other Key in Knob cylinder options order less cylinder padlocks from page PS-6 and cylinders separately. 3. For Custom Engraving, see page PS-9. 4. Key in Knob less cylinder padlocks ship with key stop, cylinder housing, and cylinder housing screw. 5. For cylinder and keying options, refer to Cylinders and Keys & Keying sections. 6. SFIC less cylinder product is shipped without cylinder.

7. Padlocks with cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge

appropriate for the cylinder/key type

Table of Contents
PL Series Cross Reference	PS-4
Key-In-Knob with Cylinder	PS-5
Keyed Different	PS-5
Chain Only	PS-5
Key-In-Knob Less Cylinder PS-6
SFIC Less Cylinder	PS-7
Full Size IC Core	PS-8
Less Cylinder - Brass	PS-8
Custom Engraving Brass Padlocks and Chrome Plated Brass Padlocks	PS-9
Parts and Accessories	PS-11
Specialty Security	PS-13
Flex Security	PS-14
Padlocks	PS-14
Security Chains	PS-15
Security Cables and Locking Cables	PS-15

Standard Features for Commercial Series Padlocks

Certification Meets or exceeds ASTM standards for standard steel shackle, shackle cutting and

corrosion resistance=

Lock Body Solid steel, brass and chrome plated brass - Solid steel resists impact, solid brass and

chrome plated brass resist corrosion=

Shackle Hardened alloy steel, double deadbolt locking mechanism

Cylinder* Conventional Key-In-Lever, 6-pin solid brass, pinned 5, C keyway, keyed different (KD) unless

otherwise specified

Cylinder Finish 606 Satin Brass

Keys Two nickel silver cut keys per lock, branded Schlage

Standard Features for Commercial Series Cables

Lock Head Die-cast zinc, 407 satin finish=

Cable Braided steel vinyl coated for greater cut resistance than twisted cables

Cylinder* Conventional Key-In-Lever , 6-pin solid brass, pinned 5, C keyway, keyed different (KD)

Cylinder Finish 606 Satin Brass

Keys Two nickel silver cut keys per lock, branded Schlage

Standard Features for Commercial Series Chains

Certification Padlock meets or exceeds ASTM standards for tensile force, shock, shackle cutting,

cycle test and corrosion

Padlock* Recommended for use with KS72F2300 - Round style padlock with 2" shackle

Lock Body 2 5/8" Solid steel resists impact

Shackle Molybdenum hardened steel, patented interchangeable design, double deadbolt locking mechanism

Cylinder Conventional Key-In-Lever , 6-pin solid brass, pinned 5, C keyway, keyed different (KD)

Cylinder Finish 606 Satin Brass

Keys Two nickel silver cut keys per lock, branded Schlage

Chain Triple heat treated Boron Manganese steel; unique six-sided chain links resist attack

^* Padlocks and chains must be ordered separately.

^* Cylinders must be ordered as a separate line item for all products except conventional key in lever KD stocked.

^* Cylinders must be ordered as a separate line item for all products except conventional key in lever KD stocked.

PL Part #/KS I	Part #
PL Series Part #	KS Series Part #
PL1001J	KS23D2200
PL1002J	KS23F2200
PL1003J	KS23F2200
PL2001J	KS43D2200
PL2002J	KS43F2200
PL2003J	KS43F2200
PL3001J	KS43D2200
PL3002J	KS43F2200
PL4001J	KS43D3200
PL4002J	KS43F3200
PL4003J	KS43F3200

PL Serie	s - Disco	ntinued
		Body Size		Sha	ackle Dimens	ion	Shackle	Dimension (	metric)
Part #	Width	Height	Depth	A	В	С	A	В	С	Cylinder Type
PL1001J					11/8"			29mm
PL1002J	13/4"	21/8"	3/4"	5/16"	2"	3/4"	8mm	51mm	19mm	KNK
PL1003J					3"			76mm
PL2001J					11/8"			29mm
PL2002J	2"	21/8"	3/4"	3/8"	2"	3/4"	9.5mm	51mm	19mm	KNK
PL2003J					3"			76mm
PL3001J	21/4"	2 3/8"	7/8"	7/16"	11/8"	5/16"	11mm	29mm	24mm	KNK
PL3002J	Z 1/4	2 3/0	//0	//10	2"	3/10	| | | | | | | | | |	51mm	24111111	NINN
PL4001J					11/8"			29mm
PL4002J	2"	21/4"	7/8"	3/8"	2"	3/4"	9.5mm	51mm	19mm	IC
PL4003J					3"			76mm

KS Serie	es - Repl	acement
		Body Size		Sha	ackle Dimens	ion	Shackle	Dimension (	metric)
Part #	Width	Height	Depth	A	В	С	A	В	С	Cylinder Type
KS23D2200	125/32"	2 3/16"	7/8"	5/16"	11/2"	3/4"	0mm	38mm	19mm	KNK
KS23F2200	1 23/ 32	2 3/10	//0	5/10	2"	3/4	8mm	51mm	19111111	NINN
KS43D2200	115/16"	2 3/16"	7/8"	3/8"	11/2"	2 //."	0.Emm	38mm	10mm	KNK
KS43F2200	1 15/10	2 3/10	//0	3/0	2"	3/4"	9.5mm	51mm	19mm	| NINN
KS43D3200	115/16"	2 3/16"	7/8"	2 /0"	11/2"	2//,"	0.Emm	38mm	19mm	IC
KS43F3200	1 13/10	2 3/10	//8	3/8"	2"	3/4"	9.5mm	51mm	ווווופו	IC.

NOTES: 1) Padlocks must be ordered and are shipped less cylinder

• Keys & Keying must appear as a separate line item
• 2) Reference Schlage Keys & Keying section for specific opitions and cylinders
  • All Key & Keying adders and deducts apply
• 3) Key retaining cams for Classic KNK padlocks KZ32CB1 ordered as separate line item and ships separately
• 4) Key retaining is not an option on Full Size IC products

Shackle Dimensions

		Body Size				Shackle imensio			Shackle nsion (m
UPC 720018-	Part #	Width	Height	Depth	A	В	С	A	В	C	Cylinder Type	Case Pack	Master Pack	List Price Each
KEYED DIFFER	ENT - BRASS	5
997412	KS23D2300	1 25/32"	2 3/16"	7/8"	5/16"	11/2"	3/4"	8mm	38mm	19mm	KNK	6	24	$62.60
997405	KS23F2300	1 25/32"	2 3/16"	7/8"	5/16"	2"	3/4"	8mm	51mm	19mm	KNK	6	24	62.80
997290	KS43D2300	115/16"	2 3/16"	7/8"	3/8"	11/2"	3/4"	9.5mm	38mm	19mm	KNK	6	24	66.60
997283	KS43F2300	115/16"	2 3/16"	7/8"	3/8"	2"	3/4"	9.5mm	51mm	19mm	KNK	6	24	67.00
KEYED DIFFER	KEYED DIFFERENT - STEEL
997764	KS72F2300	2 5/8"	2 3/8"	13/32"	7/16"	2"	7/8"	11mm	51mm	22mm	KNK	б	18	$72.10

		Cable	e Size	Cable Size	e (metric)
UPC 720018-	Part #	Length	Diameter	Length	Diameter	Cylinder Type	Case Pack	Master Pack	List Price Each
KEYED DIFFER	ENT
997719	KC215E220	6'	5/8"	182cm	15mm	KNK	1	5	$96.70

		Chain Size	Chain Size (metric)	Shaci	kle Dime	nsion		ckleSha nsion (m
UPC 720018-	Part #	Length	Length	A	В	С	A	В	С	Cylinder Type	Case Pack	Master Pack	List Price Each
CHAIN ONLY
999478	999478	5'	150 cm		N/A			N/A		N/A	1	1	$94.00
999461	999461	3' 3"	100 cm		N/A			N/A		N/A	1	1	49.70

NOTE: 1) For master keyed or keyed alike products, order chain, padlocks and cylinders separately.

Order chains #999478 or #999461 with padlock KS72F2300.

Prices are for chains only.

Chains and Padlocks must be ordered separately.

Shackle Dimensions

		E	Body Size	2		Shackle imensio			Shackle nsion (m
UPC 720018-	Part #	Width	Height	Depth	A	В	С	A	В	С	Cylinder Type	Case Pack	Master Pack	List Price Each
LESS CYLINDE	R - BRASS
000259	KS23D2200	1 25/32"	2 3/16"	7/8"	5/16"	11/2"	3/4"	8mm	38mm	19mm	KNK	6	24	$52.20
000266	KS23F2200	125/32"	2 3/16"	7/8"	5/16"	2"	3/4"	8mm	51mm	19mm	KNK	6	24	52.50
000297	KS43D2200	1 15/16"	2 3/16"	7/8"	3/8"	11/2"	3/4"	9.5mm	38mm	19mm	KNK	6	24	56.20
000303	KS43F2200	115/16"	2 3/16"	7/8"	3/8"	2"	3/4"	9.5mm	51mm	19mm	KNK	6	24	56.50

Portable Security

		E	Body Size Shackle Dimension					Shackle nsion (m
UPC 720018-	Part #	Width	Height	Depth	A	В	С	Α	В	С	Cylinder Type	Case Pack	Master Pack	List Price Each
LESS CYLINDER	R - CHROME P	LATED B	RASS
997658	KS11D1200	1 25/32"	2 3/16"	7/8"	1/4"	11/2"	3/4"	6.4mm	38mm	19mm	SFIC	6	24	$31.10
997641	KS11F1200	1 25/32"	2 3/16"	7/8″	1/4"	2"	3/4"	6.4mm	51mm	19mm	SFIC	6	24	32.50
997498	KS21D1200	1 25/32"	2 3/16"	7/8"	5/16"	11/2"	3/4"	8mm	38mm	19mm	SFIC	6	24	33.00
997481	KS21F1200	1 25/32"	2 3/16"	7/8"	5/16"	2"	3/4"	8mm	51mm	19mm	SFIC	6	24	34.60
997375	KS41D1200	1 15/16"	2 3/16"	7/8"	3/8"	11/2"	3/4"	9.5mm	38mm	19mm	SFIC	6	24	33.00
997368	KS41F1200	1 15/16"	2 3/16"	7/8"	3/8"	2"	3/4"	9.5mm	51mm	19mm	SFIC	6	24	34.60

		Cable	e Size	Cable Size	e (metric)
UPC 720018-	Part #	Length	Diameter	Length	Diameter	Cylinder Type	Case Pack	Master Pack	List Price Each
LESS CYLINDER	R - SMALL FOR	MAT INTERCH	ANGEABLE CO	RE
998747	KC215A130	2'	5/8"	60cm	15mm	SFIC	1	5	$62.60
998754	KC215B130	4'	5/8"	121cm	15mm	SFIC	1	5	67.00

		В	ody Size	:		Shackle imensio			Shackle nsion (m
UPC 720018-	Part #	Width	Height	Depth	A	В	С	A	В	С	Cylinder Type	Case Pack	Master Pack	List Price Each
LESS CYLINDER	R-BRASS
999140	KS43D3200	115/16"	2 3/16"	7/8"	3/8"	11/2"	3/4"	9.5mm	38mm	19mm	IC	6	24	$64.80
999157	KS43F3200	115/16"	2 3/16"	7/8"	3/8"	2"	3/4"	9.5mm	51mm	19mm	IC	6	24	68.60

Custom Engraving - Optional

KSxxxxx XKS-000-xxx CLR Assigned Number per Technical Services Brass Padlock/Chrome Plated Brass Padlock Stock

NOTES: 1) A one time set up cost of $85 net will be added to the first order under part number 50-020.

• 2) A $8.00 net per piece engraving fee will be added to net product cost.
• 3) Custom engraving requires submission of completed "Custom Logo Request" form (see Forms ) and scaleable logo line art in DXF format to LOCKSUPPORT@ALLEGION.COM.
• 4) Minimum order quantity is 6.
• 5) XKS-000-XXX part number is assigned by Technical Services and is keyed in the accessory field as part of the product part number.

Custom engraving is available on the following parts.

Brass Padlocks - Listed on page		Chrome Plated Brass Padlocks - Listed on page
KS23D2300		KS11D1200
KS23F2300		KS11F1200
KS43D2300	PS-5	KS21D1200
KS43F2300		KS21F1200	PS-7
KS23D2200		KS41D1200
KS23F2200		KS41F1200
KS43D2200	PS-6
KS43F2200
KS43D3200
KS43F3200	PS-8

FEATURES & SPECIFICATIONS

• Parts and Accessories discounted at full lock discount.
• Must be ordered in box quantity.

			Shackle Dimension		Dim	Shackle ension (me	tric)
UPC 720018-	Part #	A	В	С	A	В	С	Box Quantity	Carton Quantity	List Price Each
HARDENED ST	TEEL SHACKLES -	FOR USE W	ITH 10 SER	IES PADLOC	KS
997214	KZ11A10	1/4"	3/4"	3/4"	6.4mm	19mm	19mm	6	36	$5.20
997184	KZ11D10	1/4"	11/2"	3/4"	6.4mm	38mm	19mm	6	36	6.40
997153	KZ11F10	1/4"	2"	3/4"	6.4mm	51mm	19mm	6	36	6.50
997122	KZ11G10	1/4"	4"	3/4"	6.4mm	102mm	19mm	6	36	9.10
HARDENED ST	TEEL SHACKLES -	FOR USE W	ITH 20 SER	IES PADLO	:KS
997177	KZ11D20	5/16"	11/2"	3/4"	8mm	38mm	19mm	6	36	$8.00
997115	KZ11G20	5/16"	4"	3/4"	8mm	102mm	19mm	б	36	11.60
HARDENED ST	EEL SHACKLES -	FOR USE W	ITH 40 SER	IES PADLO	:KS
997139	KZ11F40	3/8"	2"	3/4"	9.5mm	51mm	19mm	6	36	$10.30
997108	KZ11G40	3/8"	4"	3/4"	9.5mm	102mm	19mm	6	36	14.20
BRASS SHACK	(LES - FOR USE W	/ITH 10 SER	IES PADLOC	KS		·
997061	KZ12D10	1/4"	11/2"	3/4"	6.4mm	38mm	19mm	6	36	$6.40
997009	KZ12G10	1/4"	4"	3/4"	6.4mm	102mm	19mm	6	36	9.10
BRASS SHACK	(LES - FOR USE W	/ITH 20 SER	IES PADLO	:KS
997054	KZ12D20	5/16"	11/2"	3/4"	8mm	38mm	19mm	6	36	$7.50
996996	KZ12G20	5/16"	4"	3/4"	8mm	102mm	19mm	6	36	$11.50
BRASS SHACK	(LES - FOR USE W	/ITH 40 SER	IES PADLO	CKS
997047	KZ12D40	3/8"	11/2"	3/4"	9.5mm	38mm	19mm	6	36	$10.00
996989	KZ12G40	3/8"	4"	3/4"	9.5mm	102mm	19mm	6	36	14.20
STAINLESS ST	EEL SHACKLES -	FOR USE W	ITH 10 SERI	ES PADLOCI	KS
001270	KZ13D10	1/4"	11/2"	3/4"	6.4mm	38mm	19mm	6	36	$6.00
001287	KZ13F10	1/4"	2"	3/4"	6.4mm	51mm	19mm	6	36	6.40
STAINLESS ST	EEL SHACKLES -	FOR USE W	ITH 20 SERI	ES PADLOC	KS
001294	KZ13D20	5/16"	11/2"	3/4"	8mm	38mm	19mm	6	36	$8.00
001300	KZ13F20	5/16"	2"	3/4"	8mm	51mm	19mm	6	36	8.30
STAINLESS ST	EEL SHACKLES -	FOR USE W	ITH 40 SERI	ES PADLOC	KS			,	,	,
001317	KZ13D40	3/8"	11/2"	3/4"	9.5mm	38mm	19mm	6	36	$10.00
001324	KZ13F40	3/8"	2"	3/4"	9.5mm	51mm	19mm	6	36	10.30

	Specialty Security Products
HASPS - HIGH-SECURITY
UPC	Part Number	Description	Body Dimension	Carton Quantity	List Price Each
855101	855101	Vehicle or Gate Security Hasp	8-1/2" x 4-1/2"	3	$39.20
855118	855118	Flexible Double-Hinge Steel Security Hasp	7-3/4" x 1-3/4"	6	12.50
855125	855125	Center Hole Security Hasp	5" x 2"	6	11.90
	HASP - MODERATE-SECURITY
994848	994848	Steel Bar Hasp	4-1/2" x 1-5/8"	6	$6.40

FLEX SECURITY FEATURES & SPECIFICATIONS

• · Non rekeyable
• Retail vis-packed
• Must be ordered in case quantity multiples

Special L	Special Use Padlocks
LIDE	Dout Number	Sha	ckle Dimen	sion	Shackle Dimension (metric)			Padlock	Case	Price
UPC	Part Number	Α	В	С	Α	В	С	Width	Qty	Each
Extra Large Pag	Extra Large Padlock
720018999232	999232	1/2"	11"	4"	12mm	275mm	102mm	7 1/4"	5	$38.00
Shackle-less Pa	adlock	`					`			•
720018855156	855156	_	_	_	_	_	-	2 7/8"	6	$47.60

Covered Laminated Steel Padlocks
LIDC	Part Number	Sha	ckle Dimen	sion	Padlock	Case	Price
UPC	Part Nomber	Α	В	С	Width	Qty	Each
Covered Lamin	Covered Laminated Steel Padlocks
720018850410*	850410*	1/4"	11/8"	3/4"	11/2"	3	$26.20

^{* 2} KA units per pack. 6 Packs keyed different per case.

Shackle Dimensions

FLEX SECURITY FEATURES & SPECIFICATIONS

• · Non rekeyable
• · Retail vis-packed
• Must be ordered in case quantity multiples

Security	Security Chains
UPC	Part Number	Shackle Dimension	Chain	Case	Price
UPC	Part Number	Α	Length	Qty	Each
Cinch Ring Sec	urity Chains
720018999478	999478	1/2"	5'	1	$94.00
720018999461	999461	1/2"	3' 3"	1	49.70

Security Cables and Locking Cables
LIDE	Part Number	Cable Dia.	Loop Di	mension	Cable	Case	Price
UPC	Part Number	Α	В	С	Length	Qty	Each
Heavy Duty Loc	king Cable - Sch	lage Rekeya	ble
720018999201	999201	5/8"	-	_	6'	5	$70.00
Heavy Duty Flexible Steel Cables
720018820406	820406	5/8"	3 3/8"	15/8"	7'	5	$43.00
Flexible Steel C	ables
720018999270	999270	3/8"	2 1/4"	11/8"	30'	4	$55.00
720018999263	999263	3/8"	2 1/4"	11/8"	15'	4	34.20
720018999256	999256	3/8"	2 1/4"	11/8"	7'	4	20.20
720018999249	999249	3/8"	2 1/4"	11/8"	4'	4	15.80
Key Cable
720018999218	999218	1/2"	-	_	5'	4	$29.00
Resettable Con	nbination Cable
720018999225	999225	3/8"	_	_	5'	4	$30.10
Flexible Steel Cable and Covered Laminated Steel Padlock
720018994800	994800	3/8"	2 1/4"	11/8"	4'	4	$27.20
720018994862	994862	3/8"	2 1/4"	11/8"	15'	4	42.70

Loop Dimensions

Exploded View - Everest Key-in-Knob/Lever Cylinder

Ordering Procedures

To order Schlage products, descriptive data should be in the same sequence as shown below.

Line			Out	side	Ins	ide							Additional
Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
1	10	20-001 S125		626								118

Line Item: Line item number

Qty: Quantity

Product: Product number + keyway

Outside Des: Not Applicable

Outside Fin: Cylinder face finish color (for Key in Lever cylinders, choose plug face color - 606 or 626)

Inside Des: Not Applicable Inside Fin: Not Applicable Hand: Not Applicable Latch: Not Applicable Strike: Not Applicable Dr Thk: Not Applicable Ext: Not Applicable

Dim: for mortise cylinder length (Written as 11/8" = 118, 13/4" - 134 etc.)

Additional

Details: Keying instructions (KA, KD, 0-bitted), Primus XP #, Everest 29 Facility Code, Locksmith ID#, Additional stamping instructions

Cor	mmon Pricing Information
1.	Locks are furnished with standard features unless otherwise specified.
2.	Door thickness is 1 ¾" unless otherwise specified.
3.	Split finishes and designs will be priced at the highest list price of the design and/or finish.
4.	Engineering specials are denoted by a part number beginning with "X".
5.	🕏 denotes a lock or part that requires an extended lead time.
6.	denotes a handed product and requires handing to be specified.
7.	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements.
8.	Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for th specific requirements.
9.	Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems.
10.	Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation.
11.	Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately.
12.	Locks specified with "C" keyway and KD or 0-bitted will receive 6 pin cylinders.
13.	Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores.
14.	Conventional standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted.
15.	Available plug face finishes are 606 and 626, 643e, 622. For brass or satin bronze finish colors, the plug face finish is 606. For oil rubbed or aged bronze finish colors, the 643e plug face will be furnished. For chrome, nickel or stainless steel finish colors, the plug face finish is 626.
16.	Specify LKB if 0-bitted Primus cylinders are required "Less Key Blanks." Deduct $16.40 per cylinder.
17.	For hotel function cylinders: Not available in Primus. Furnished 0-bitted. Emergency keys must be ordered separately.
18.	Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Table of Contents Multiple Tailpiece Cylinders CYL-4 Bulk Pack Cylinders CYL-5 Primus Cylinders-Sub-Assembled CYL-9 A & H. AD. AL. CL. D. ND. KS. S & S200 CYL-10 Tailpieces & Actuators . . . . . . . . . . . . . . . . . . . Miscellaneous Parts......CYL-17 R500 CYL-18 Conventional Cylinders & Housings................................... Tailpieces, Drivers & Parts......CYL-19 B250, B400, E/B, F100, H, MD, S200 Deadbolt Cylinders.................................... IC Cylinders & Miscellaneous Parts .................................... B600/700/800 Reference Table .................................... Miscellaneous Parts and Tailpieces......CYL-26 IC Housings and Parts .................................... Conventional Cylinders, L-Series ......CYL-28 Conventional Cylinders for Adams Rite, Adams Rite, Lori & Corbin Russwin .......CYL-29 Concealed Shell Cylinders.................................... Cams, Cam Screws, Dummy Cylinder .................................... Full Size Interchangeable Core .................................... Small Format Interchangeable Core......CYL-35 Cylinder Lengths and Collars By Application.................................... Blocing Ring Requirements......CYL-38 Schlage cylinders for Falcon & Von Duprin CYL-39 Rim Cylinders CYL-41 Full Size Interchangeable Cores .................................... Interchangeable Cores Small Format Interchangeable Cores .................................... Competitor Retrofit Cylinders Corbin Russwin, Sargent, Yale Key-in-Knob/Lever..... CYL-45 Reference Tables .................................... Corbin Russwin Master Ring...... CYL-47 Cams to Operate Competitor Locks ...... CYL-48 Letter/Mail Box Special Cylinders Pins, Springs & Pinning Components Full Size....................................

Product Identification

Full Size Cylinders and Cores

When ordering full size cylinders, specify the standard or Primus cylinder number, dimension (where required), keyway (e.g. C, CP, C123, S123 etc ) or keyway family (e.g. Obverse, Everest® Family, Everest D Family, Everest 29 T) and finish. If no keyway is specified. master keved products will default to Everest 29 S145 and non-master keyed products will default to S123.

Small Format Interchangeable Cores

Small format cores are available only in Everest and Everest 29 restricted keyways and certain Best® keyways. Small format cores cannot be keyed into the same system as full size cylinders and cores because the keyways are different.

See Schlage Cylinder & Keyway Terminology for more details on Schlage's terminology.

Finish (	Codes and [	Descriptions
Code		Description
605	(US 3)	Bright Brass
606	(US 4)	Satin Brass
609	(US 5)	Antique Brass
612	(US 10)	Satin Bronze
613	(US 10B)	Oil Rubbed Bronze
619	(US 15)	Satin Nickel
622	(US 19)	Matte Black
625	(US 26)	Bright Chromium Plated
626	(US 26D)	Satin Chromium Plated
629	(US 32)	Bright Stainless Steel
630	(US 32D)	Satin Stainless Steel
643e	(US11)	Aged Bronze

Standard Features*

Plugs

Shells

SFIC

Certification BHMA certified to ANSI A156.5, 2001, Grade 1 Operational

Small Format ...... CYL-53

Kev Patents Primus XP keys are protected against unauthorized duplication by U S utility patents 7 159 424 Everest and Everest Primus XP keys are protected by U S design patents 428,324 and 426,452. Everest 29 and Everest 29 Primus XP keys are protected

by U S patent US 7,665,337

Solid Brass 6 pin plugs and shells. Mortise and Rim cylinders utilize a two piece Stainless Steel sintered housing secured by Standard 2 Torx® screws. Standard keyway is Everest 29 S123, furnished Keyed Different (KD) with two 6 pin nickel silver keys Cylinder

(except F series knobs and levers). Mortise cylinder standard lengths are 11/8" for conventional cylinders, 11/2" for large format interchangeable core and 13/8" for small format interchangeable core.

Everest 29 R and Everest B combinated cores includes 2 change keys. Small format cores are available

either uncombinated or combinated. Control keys must be ordered separately.

Full size standard pinned cores are furnished 1-bitted. Primus cores are furnished 0-bitted. Primus FSIC

CYL-56 CYL-57

XP cylinders are furnished MK, KA, KD, or Less Key Blank (LKB). See Terms & Conditions: Primus Sales Policy for Primus

additional details.

Conventional standard pinned cylinders: Available 0-Bitted, 1-Bitted is not available and if specified, 0-bitted will be furnished. Standard pinned FSIC cylinders: Furnished 1-bitted. 0-Bitted is not available and if specified, 1-bitted will be furnished. Primus cylinders: Furnished 0-bitted. 1-Bitted is not available and if specified, 0-bitted is furnished.

Reduce Cylinder Inventory

Multiple tailpiece cylinders allow high inventory flexibility with low investment. Included with each cylinder are tailpieces to suit these locks:

• A-Series (all designs)
• AL-Series
• D-Series Knobs
• H-Series Knobs (all designs)
• ND-Series Levers

Cylinders are furnished 0-bitted. Standard pinned cylinders are furnished with two (2) blank keys. Not available in Faculty Restroom (hotel) function.

	Multiple Tailpiece Key-in-Knob/Lever Cylinders
		Part	Price Each
Keyway	Contents	Number	Open	Restricted
All Keyways Everest, Everest 29 and Classic Families	(1) Pre-assembled cylinder 0-bitted, less tailpiece (1) A301-338 tailpiece, A & H-Series Orbit (1) A700-031 tailpiece, A, AL, H-Series (except Orbit) (1) C603-524 tailpiece, D-Series Knobs (1) N523-022 tailpiece, ND-Series Levers (yellow) (2) C503-115 cap pin springs (2) C503-116 cap pins (2) Key Blanks 35-009 (Everest C) OR 35-002 (Everest D) OR 35-270 (Everest 29 S) OR 35-268 (Everest 29 T)	40-100	64.00	81.50
Primus / Primus XP All Keyways	(1) Pre-assembled cylinder 0-bitted, less tailpiece, LESS keys (1) A301-338 tailpiece, A & H-Series Orbit	40-700* / 40-700-XP Controlled Access	142.00	142.00
(Classic, Everest and Everest 29)	(1) A700-031 tailpiece, AL-Series (1) C603-524 tailpiece, D-Series Knobs (1) N523-022 tailpiece, ND-Series Levers (yellow) (2) C503-115 cap pin springs (2) C503-116 cap pins ****Primus Keys must be ordered separately****	40-500* / 40-500-XP UL437 Listed	174.00	174.00
Order Examples:	40-100 626 S123
	40-700-XP 606 S123 (must specify Primus account information and provide necessary Primus documents)

^* Primus key blanks must be ordered separately.

Key Large Jobs Faster!

Bulk Packs are kits that contain all of the components needed to build 10 cylinders. For added convenience the shells are pre-loaded with pins and springs and slid onto a follower. Cams and tailpieces are sold separately in economical 10-packs to maximize flexibility. Keys and Primus components are also sold separately. The unit price of the unassembled cylinder is up to 15% less than buying it completely assembled. In addition to this savings, labor time is reduced since cylinders don't have to be taken apart before being pinned in the field. Not available in Faculty Restroom (hotel) functions. Must specify finish color, length and keyway.

	10-Piece Bulk Pack Key-in-Knob/Lever Cylinders
			Cylinder	Keyway	Bulk Pack	Price Each Pack
	Contents (10 each)			Type	Number	Open	Restricted
Loaded shells	Cap pins	Check pins		Classic	09-409	$503.00	$678.00
Caps	Plugs Cap pin springs (Everest and Everest 29 standard pinned only) Check pin springs		Standard	Everest and Everest 29 Family	09-751	503.00	675.00
			Primus/Primus XP	Everest and Everest 29	09-764	995.00
			Primus/Primus XP	Classic	09-833	995.00

10-Piece Bulk Pack Mortise Cylinders
		Cylinder	Keyway			Price Each Pack
Contents (10 each)		Mechanism	Type	Bulk Pack Number	Open	Restricted
Loaded shells	Check pins (Everest and Everest 29		Classic	09-412	$593.00	$768.00
Plugs Cam Screws	standard pinned only) Check pin springs		Everest and Everest 29 Family	09-754	593.00	768.00
See next page for cams, collars sold separately. Available in 1 1/8" and 1 1/4" only.		Primus/Primus XP	Everest and Everest 29	09-767		1,023.00
		Primus/Primus XP	Classic	09-835		1,023.00

10-Piece Bulk Pack Rim Cylinders
		Cylinder	Keyway	Bulk Pack	Price Each Pack
Contents (10 each)		Mechanism	Type	Number	Open	Restricted
Loaded shells	Drivers		Classic	09-410	$689.00	$864.00
Plugs Caps Cap Pins	Cap pin springs Screws & back plate packs Check pins (Everest and	Standard	Everest and Everest 29 Family	09-752	689.00	864.00
Collars Tailpieces	Everest 29 standard pinned only) Check pin springs	Primus/Primus XP	Everest and Everest 29	09-765	1,128.00
		Primus/Primus XP	Classic	09-834	1,128.00

	10-Piece Bulk Pack Interchangeable Cores
		Cylinder	Keyway	Bulk Pack		Price Each Pack
	Contents (10 each)	Mechanism	Type	Number	Open	Restricted
Loaded shells	Actuating rings		Classic	09-411	$608.00	$783.00
Plugs Caps Cap pins & springs	Actuating pins Control pins Check pins (Everest and	Standard	Everest and Everest 29 Family	09-753	608.00	783.00
	Everest 29 standard pinned only) Check pin springs	Primus/Primus XP	Everest and Everest 29	09-766		1,040.00
		Primus/Primus XP	Classic	09-836		1,040.00

		Part	Price Each
Keyway	Contents	Number	Restricted
Everest B and Everest 29 R Families of keyways	"(1) 33-213 Plug (1) A508-660 Body (1) C604-471 Retaining Clip (1) 90-210 Locking Sidebar for SL (2) C604-472 SL Sidebar Springs (1) 34-950 R/B Everest Check Pin (1) C504-116 R/B Everest Check Pin Spring (1) 90-212 SL Plug cover (1) 90-211 End Cap for SL Cylinders (1) 90-002 SL End Cap Pin (1) C603-952 SL End Cap Spring (1) A301-338 tailpiece, A & H-Series Orbit (1) A700-031 tailpiece, A, AL, H-Series (except Orbit) (1) C603-524 tailpiece, D-Series Knobs (1) N523-022 tailpiece, ND-Series Levers (yellow)	91-200	$54.00
	***Cylinder Is Shipped Unassembled In The Box*** ****Does Not Include L Pins, L Pin Springs Or Key Blanks****"
Primus XP Everest B and Everest 29 R Families of keyways	"(1) Plug for SL Primus XP (1) A508-661 SL Primus XP Body (1) C604-471 Retaining Clip (1) 90-210 Locking Sidebar for SL (2) C604-472 SL Sidebar Springs (1) C603-950 Primus Sidebar (2) C603-952 Primus Side Bar Springs (1) 90-212 SL Plug cover	91-700 Controlled Access	98.00
	(1) 90-211 End Cap for SL Cylinders (1) 90-002 SL End Cap Pin (1) C603-952 SL End Cap Spring (1) A301-338 tailpiece, A & H-Series Orbit (1) A700-031 tailpiece, A, AL, H-Series (except Orbit) (1) C603-524 tailpiece, D-Series Knobs (1) N523-022 tailpiece, ND-Series Levers (yellow) ***Cylinder Is Shipped Unassembled In The Box*** ****Does Not Include L Pins, L Pin Springs, Primus Finger Pins, Primus Finger Pin Springs Or Key Blanks****"	91-500 UL 437 Listed	132.00

10-Pied	e Bulk Packs for Unass	embled Everest and Eve	rest 29	SL Cyli	nders
Cylinder	Contents		Cylinder	Keyway	Bulk Pack	Price Each Pack
Туре	(10) 33-213 Plug (10) A508-660 Body (10) C604-471 Retaining Clip (10) 90-210 Locking Sidebar for SL (20) C604-472 SL Sidebar Springs (10) 34-950 R/B Everest Check Pin ***Cylinder Is Shipped Unassembled In Th	(10) C504-116 R/B Everest Check Pin Spring (10) 90-212 SL Plug cover (10) 90-211 End Cap for SL Cylinders (10) 90-002 SL End Cap Pin (10) C603-952 SL End Cap Spring	Mechanism SL Cylinder	Everest B or Everest R Keyway Families	Number 91-451	Restricted $527.00
Key-inLever	****Does Not Include L Pins, L Pin Springs (10) Plug for SL Primus XP (10) A508-661 SL Primus XP Body (10) C604-471 Retaining Clip (10) 90-210 Locking Sidebar for SL (20) C604-472 SL Sidebar Springs (10) C603-950 Primus Sidebar ***Cylinder is shipped unassembled in the ***Does not include L pins, L pin springs, or key blanks****	6 Or Key Blanks**** (20) C603-952 Primus Side Bar Springs (10) 90-212 SL Plug cover (10) 90-211 End Cap for SL Cylinders (10) 90-002 SL End Cap Pin (10) C603-952 SL End Cap Spring box*** Primus finger pins, Primus finger pin springs	SL Primus XP	Everest B or Everest R Keyway Families	91-551	971.00
Mortise	(10) 33-213 Plug (10) A508-660 Body (10) C604-471 Retaining Clip (10) 90-210 Locking Sidebar for SL (20) C604-472 SL Sidebar Springs (10) 34-950 R/B Everest Check Pin ***Cylinder is shipped unassembled in the Cams and collars sold seperately*** ****Does not include L pins, L pin springs	(10) C504-116 R/B Everest Check Pin Spring (10) 90-212 SL Plug cover (10) Front and Back Mortise Housings with Screws (Specify Finish and Length) (10) 90-002 SL End Cap Pin (10) C603-952 SL End Cap Spring expox. See SL cams table for available cams.	SL Cylinder	Everest B or Everest R Keyway Families	91-452	617.00
WOLUSE	(10) Plug for SL Primus XP (10) A508-661 SL Primus XP Body (10) C604-471 Retaining Clip (10) 90-210 Locking Sidebar for SL (20) C604-472 SL Sidebar Springs (10) C603-950 Primus Sidebar ***Cylinder is shipped unassembled in the Cams and collars sold seperately***	(20) C603-952 Primus Side Bar Springs (10) 90-212 SL Plug cover (10) Front and Back Mortise Housings with Screws (Specify Finish and Length) (10) 90-002 SL End Cap Pin (10) C603-952 SL End Cap Spring box. See SL cams table for available cams. Primus finger pins, Primus finger pin springs	SL Primus XP	Everest B or Everest R Keyway Families	91-552	1,067.00
Rim	(10) 33-213 Plug (10) A508-660 Body (10) C604-471 Retaining Clip (10) 90-210 Locking Sidebar for SL (20) C604-472 SL Sidebar Springs (10) 34-950 R/B Everest Check Pin (10) C504-116 R/B Everest Check Pin Spring ***Cylinder is shipped unassembled in the ****Does not include L pins, L pin springs		SL Cylinder	Everest B or Everest R Keyway Families	91-453	659.00
	(10) Plug for SL Primus XP (10) A508-661 SL Primus XP Body (10) C604-471 Retaining Clip (10) 90-210 Locking Sidebar for SL (20) C604-472 SL Sidebar Springs (10) C603-950 Primus Sidebar (20) C603-952 Primus Side Bar Springs ***Cylinder is shipped unassembled in the ****Does not include L pins, L pin springs, or key blanks****	(10) 90-212 SL Plug cover (10) Front and Back Rim Housings with Screws (Specify Finish) (10) Rim Cylinder Driver and Tailpiece (10) 90-211 End Cap for SL Cylinders (10) 90-002 SL End Cap Pin (10) C603-952 SL End Cap Spring box*** Primus finger pins, Primus finger pin springs	SL Primus XP	Everest B or Everest R Keyway Families	91-553	1,103.00

Keyway Type	Туре	Contents (10 each)	Bulk Pack Part Number	Price Each Pack
	Straight Cam - Modular cylinders length (1-1/8; 1-3/8; 1-5/8)	L583-476	09-195	$31.00
All (Classic /	Straight Cam - Modular cylinders length (1-1/4; 1-1/2; 1-3/4)	L583-477	09-196	31.00
Everest C, D,	L-Series Cam - Modular cylinders length (1-1/8; 1-3/8; 1-5/8)	L583-474	09-197	31.00
everest 29 S, T &	L-Series Cam - Modular cylinders length (1-1/4; 1-1/2; 1-3/4)	L583-475	09-198	31.00
Primus, etc)	Adam's Rite Kit - Modular cylinders length (1-1/8; 1-3/8; 1-5/8)	L583-446 36-079-037 B220-050	09-199*	155.00
	Adam's Rite Kit - Modular cylinders length (1-1/4; 1-1/2; 1-3/4)	L583-447 36-079-037 B220-050	09-200*	155.00
Everest SL	Straight Cam - Twist and Lock Design for 1-1/8"	L583-802	91-194	48.00
Cylinders	Straight Cam - Twist and Lock Design for 1-1/4"	L583-803	91-195	48.00
using Everest B	L Series Cam - Twist and Lock Design for 1-1/8"	L583-800	91-196	48.00
and	L Series Cam - Twist and Lock Design for 1-1/4"	L583-801	91-197	48.00
01/11/21/6	Adams Rite Cam - Twist and Lock Design for 1-1/8"	L583-773 36-079-037 B220-050	91-198	171.00
	Adams Rite Cam - Twist and Lock Design for 1-1/4"	L583-774 36-079-037 B220-050	91-199	171.00

^* Specify finish 605, 606, 612, 613, 625 or 626.

10-Piece Tailpiece Packs for Bulk Pack Cylinders (Classic, Everest, Everest 29 & Primus)
Cylinder Mechanism	Description	Contents (10 each)	Bulk Pack Part Number	Price Each Pack
	A-Series (except Orbit)	A301-337 with C603-098 security disc	09-756	$65.00
	A-Series Orbit (except A73)	A301-338	09-757	$05.00
All Modular	AL-Series	A700-031	09-416
Cylinders (Classic, Everest & Primus)	D-Series Levers	C604-243	09-418	13.40
´ [	D-Series Knob	C603-524	09-417	13.40
	ND-Series Levers	N523-022 (yellow)	09-019	]

Part Number		Туре	Price Each
20-200		Primus classic Key in Lever sub-assembled multiple tailpiece (A & H series Orbit A301-338, AL-Series A700-031, D-Series Levers and knobs C604-243, ND Series N523-022). *	$98.00
20-201		Primus Classic Mortise Cylinder (specify 1-1/4" or 1-1/8") sub assembled multiple cams — Schlage (L583-474 or L583-475), AR (L583-476 or L583-477) and Straight (L583-446 or L583-447).*	113.00
20-202	7	Primus Classic Rim Cylinder sub-assembled. *	116.00
20-203	Primus Classic, Everest or Everest 29	Primus Classic FSIC sub-assembled.	104.00
20-204	(Specify Keyway)	Primus Everest and Primus Everest 29 Key in Lever sub-assembled multiple tailpiece. (A & H-Series Orbit A301-338, AL-Series A700-031, D-Series Levers and knobs C604-243, ND-Series N523-022). *	98.00
20-205		Primus Everest and Primus Everest 29 Mortise Cylinder (1-1/4" or 1-1/8") sub-assembled multiple cams-Schlage (L583-474 or L583-475), AR (L583-476 or L583-477) and Straight (L583-446 or L583-447).	113.00
20-206		Primus Everest and Primus Everest 29 Rim Cylinder sub-assembled. *	116.00
20-207		Primus Everest and Primus Everest 29 FSIC sub-assembled. *	104.00
20-208		Primus Classic UL437 Key in Lever sub-assembled multiple tailpiece. (A & H -Series Orbit A301-338, AL-Series A700-031, D-Series Levers and knobs C604-243, ND-Series N523-022). *	124.00
20-209	— Primus Classic,	Primus Classic UL437 Mortise Cylinder (specify 1-1/4" or 1-1/8") sub assembled. Multiple cams – Schlage (L583-474 or L583-475), AR (L583-476 or L583-477) and Straight (L583-446 or L583-447).*	138.00
20-210	Everest or Everest 29	Primus Classic UL 437 Rim Cylinder sub-assembled. *	142.00
20-211	UL437 (Specify Keyway)	Primus Everest and Primus Everest 29 UL 437 Key in Lever sub-assembled. Multiple tailpiece (A & H-Series Orbit A301-338, AL-Series A700-031, D-Series Levers and knobs C604-243, ND-Series N523-022). *	124.00
20-212		Primus Everest and Primus Everest 29 UL437 Mortise Cylinder (specify 1-1/4" or 1-1/8") sub assembled. Multiple cams – Schlage (L583-474 or L583-475), AR (L583-476 or L583-477) and Straight (L583-446 or L583-447).*	138.00
20-213		Primus Everest and Primus Everest 29 UL 437 Rim Cylinder sub-assembled. *	142.00

^* Please order separately: Keys, plug pins, Primus finger pins and finger pins springs, side bar and side bar springs.

Part Number		Туре	Price Each
20-221		Primus, sub-assembly, key-in-lever cylinder for Corbin Russwin CL3300 C
20-219		Primus, sub-assembly, key-in-lever cylinder for Corbin Russwin CL3400, CL3600
20-218		Primus, sub-assembly, key-in-knob cylinder for Corbin Russwin CK4200
20-214	Primus Classic, Everest or Everest 29	Primus, sub-assembly, key-in-lever cylinder for Sargent 7, 8, 10 Line Levers	$104.00
20-215	(Specify Keyway)	Primus, sub-assembly, key-in-knob cylinder for Sargent 7, 8, 9 Line Knobs	$104.00
20-216	(Specify Neyway)	Primus, sub-assembly, key-in-knob cylinder for Sargent 6 Line Except B Knob
20-220		Primus, sub-assembly, key-in-lever for Yale 5300LN, 5400LN Levers
20-217		Primus, sub-assembly, key-in-knob Yale 5300, 5400, 6200 Knobs
20-222		Primus, sub-assembly, key-in-lever cylinder for Sargent 7, 8, 10 Line Levers
20-223		Primus, sub-assembly, key-in-knob cylinder for Sargent 7, 8, 9 Line Knobs
20-224	Primus Classic.	Primus, sub-assembly, key-in-knob cylinder for Sargent 6 Line Except B Knob
20-225	Everest or Everest 29	Primus, sub-assembly, key-in-knob Yale 5300, 5400, 6200 Knobs	142.00
20-228	UL437 (Specify	Primus, sub-assembly, key-in-lever for Yale 5300LN, 5400LN Levers	142.00
20-226	Keyway)	Primus, sub-assembly, key-in-knob cylinder for Corbin Russwin CK4200
20-227		Primus, sub-assembly, key-in-lever cylinder for Corbin RusswinCL3400, CL3600
20-229		Primus, sub-assembly, key-in-lever cylinder for Corbin Russwin CL3300

		Cylinder	Complete	Pric	e Each	Keyway	Plug	Shell	Tailpiece
Function	Design	Mechanism	Cylinder	Open	Restricted	Type	(See CYL-53)	(See CYL-55)	(See CYL-14)
		Standard	21-002	¢67.00	$81.50	Classic	33-137	AE00 6E2
				$64.00	$81.50		33-138	A508-653
		Everest SL (B/R keyways only)	91-004		81.50	Everest B & Everest 29 R	33-213	A508-660
	Except Orbit	Primus	20-724	1/	1.00	Classic	33-136	A508-655	A301-337
	Except Orbit	Primus-XP	20-724-XP	14	1.00	Everest & Everest 29	33-119	A300-033	A301-337
		Everest SL Primus XP (B/R keyways only)	91-704-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	20-524	174.00		Classic	33-154	A508-655	1
		Primus UL437-XP	20-524-XP	17	4.00	Everest & Everest 29	33-221	A3U8-033
		Standard	21-002-122	64.00	81.50	Classic	33-137	A508-653
	Standard |			04.00	01.50	Everest & Everest 29	33-138	AJ00-0J3
Standard Functions	Everest SL (B/R keyways only)	91-005		81.50	Everest B & Everest 29 R	33-213	A508-660
	Orbit Except	Primus	20-724-122	141.00		Classic	33-136	A508-655	A301-338
	A73 Function	Primus-XP	20-724-122-XP			Everest & Everest 29	33-119	A300-033
		Everest SL Primus XP (B/R keyways only)	91-705-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	20-524-122	17	4.00	Classic	33-154	A508-655
		Primus UL437-XP	20-524-122-XP		4.00	Everest & Everest 29	33-221	A300-033
		Standard	Complete			Classic	33-137	A508-653
		Primus	cylinder discontinued			Everest & Everest 29	33-138	A300-033
	A73 Orbit	Primus-XP	but may be		-	Classic	33-136		A301-339
		Primus UL437	assembled in the field.			Everest & Everest 29	33-119	A508-655
		Primus UL437-XP	ti io iiotai			Everest & Everest 29	33-221
	Except Orbit		21-003	05.00	112 50	Classic	33-216		A501-991
A85, H185 Faculty	Except Orbit	Standard		95.00 | 112.50 |	Everest & Everest 29	33-235	A508-653	& C503-767
Restroom	Orbit	Stariualu	21-003-168	95.00 112.50	Classic	33-216	A508-653	A501 602
	OIDIL				00 112.50	Everest & Everest 29	33-235		A501-693

				Drico	Each		Pl	Ch-II	Tailpioco
Function	Design	Cylinder Mechanism	Complete Cylinder	Open	Restricted	Keyway Type	Plug (See CYL-53)	Shell (See CYL-55)	Tailpiece (See CYL-14
						Classic	33-137
		Standard	23-013	$64.00	$81.50	Everest & Everest 29	33-138	A508-653
		Everest SL (B/R keyways only)	91-017		81.50	Everest B and Everest 29 R	33-213	A508-660
ll Cylindrical		Primus	20-750	141	00	Classic	33-136
Exit		PIIIIUS	20-730	141	.00	Everest & Everest 29	33-134	A508-655	ı
993R, 993S, 993M) with	All	Primus XP	20-750-XP	141.00		Classic	33-136	CC0 00CA	C604-243
ATH,	All	1 111103 XI	20 /30 XI	171		Everest & Everest 29	33-134		C004 243
BAT design only		Everest SL Primus XP (B/R keyways only)	91-715-XP	141.00		Everest B and Everest 29 R	33-214	A508-661
		Primus UL437	20-550	174.00		Classic	33-154
		1 111103 OL437	20 330	1/4		Everest & Everest 29	33-221	A508-655
		Primus UL437 XP	20-550-XP	174	00	Classic	33-154	A200-022
		TITIO3 OL437 XI	20 330 XI	1/4		Everest & Everest 29	33-221
		Standard	23-118	64.00	81.50	Classic	33-137	A508-653
		Standard	25 110	04.00	01.50	Everest & Everest 29	33-138	A300 033
		Everest SL (B/R keyways only)	91-019		81.50	Everest B and Everest 29 R	33-213	A508-660
		Primus	20-854	141.	00	Classic	33-136
		FIIIIIUS	20-034	141	.00	Everest & Everest 29	33-134	A508-655
		Primus XP	20-854-XP	1/1	00	Classic	33-136	AJ00-0JJ	23538085
MS, MD	All	FIIIII03 AF	20-034-XF	141.00		Everest & Everest 29	33-134		23330003
		Everest SL Primus XP (B/R keyways only)	91-721-XP		141.00	Everest B and Everest 29 R	33-214	A508-661
		Primus UL437	20-554	174	00	Classic	33-154
		Primus UL437	20-334	1/4	.00	Everest & Everest 29	33-221	4E00 6EE
		Driver of H / 27 VD	30 FF/ VD	17/	00	Classic	33-154	A508-655
		Primus UL437 XP	20-554-XP	174	.00	Everest & Everest 29	33-221
		Standard	23-118	64.00	81.50	Classic	33-137	1500 SE2
		Stariualu	25-110	04.00	01.30	Everest & Everest 29	33-138	A508-653
		Everest SL (B/R keyways only)	91-019		81.50	Everest B and Everest 29 R	33-213	A508-660
		Primus	20-854	141.	00	Classic	33-136
		1 111103	20 034	1-71		Everest & Everest 29	33-134	A508-655
993R 993S	Except	Primus XP	20-854-XP	141.	00	Classic	33-136	A300 033	23538085
993M	ATH, 8AT	1 111103 XI	20 034 XI	171		Everest & Everest 29	33-134		23330003
993M |		Everest SL Primus XP (B/R keyways only)	91-721-XP		141.00	Everest B and Everest 29 R	33-214	A508-661
		Primus UL437	20-554	174	00	Classic	33-154
		1 111103 OL4J/	70 JJ4	1/4		Everest & Everest 29	33-221	A508-655	5
		Primus UL437 XP	20-554-XP	17/	00	Classic	33-154	W700-077
		1 111103 OF#31 VL	Δ0 JJ4-VL	174.00 E	Everest & Everest 29	33-221

313

AL-Serie	s Cylind	er Reference	Table
		Cylinder	Complete	Pric	e Each	Keyway	Plug	Shell	Tailpiece
Function	Design	Mechanism	Cylinder	Open	Restricted	Туре	(See CYL-53)	(See CYL-55)	(See CYL-14)
		Standard	21-020	$64.00	$81.50	Classic	33-137	A508-653
				$04.00	$61.50	Everest & Everest 29	33-138	AJU0-0J3	A700-031
		Everest SL (B/R keyways only)	91-006		81.50	Everest B & Everest 29 R	33-213	A508-660	7.000 00.
Standard		Primus	20-728	141.00		Classic	33-136	A508-655
Functions	All	Primus-XP	20-728-XP	14	1.00	Everest & Everest 29	33-119	A300-033
	All	Everest SL Primus XP (B/R keyways only)	91-706-XP		141.00	Everest B & Everest 29 R	33-214	A508-661	A700-031
		Primus UL437	20-528	17	, oo	Classic	33-154	AE00 655
		Primus UL437-XP	20-528-XP	17	4.00	Everest & Everest 29	33-221	A508-655
AL85 Faculty		Ctandard	21-021	05.00	112.50	Classic	33-216	AE00 6E2	A700 022
Restroom		Standard	| 21-021	95.00 112	112.50	Everest & Everest 29	33-235	A508-653	A700-023

D-Series Knob Cylinder Reference Table
				Pric	e Each	Keyway	Plug	Shell	Tailpiece
Function	Door Thickness	Cylinder Mechanism	Complete Cylinder	Open	Restricted	Туре	(See CYL-53)	(See CYL-55)	(See CYL- 14)
		Standard	23-001	¢67.00	$81.50	Classic	33-137	4500 653
				$64.00	$81.50	Everest & Everest 29	33-138	A508-653
		Everest SL (B/R keyways only)	91-016		81.50	Everest B & Everest 29 R	33-213	A508-660
	Ctandard	Primus	20-748	1/	1.00	Classic	33-136	4500 GEE	C603 F3/
	Standard	Primus-XP	20-748-XP	] 14	1.00	Everest & Everest 29	33-119	A508-655	C603-524
		Everest SL Primus XP (B/R keyways only)	91-714-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	20-548	174.00		Classic	33-154	4E00 6EE
Standard		Primus XP UL437	20-548-XP	174.00		Everest & Everest 29	33-221	A508-655
Functions		Standard	21-002	64.00	81.50	Classic	33-137	A508-653
				04.00 01.50		Everest & Everest 29	33-138	A300 033
		Everest SL (B/R keyways only)	91-004		81.50	Everest B & Everest 29 R	33-213	A508-660
	2" - 21/2"	Primus	20-724	1/	1.00	Classic	33-136	A508-655	A301-337
	2 - 2 1/ 2	Primus-XP	20-724-XP	14	11.00	Everest & Everest 29	33-119	A200-022	A301-337
		Everest SL Primus XP (B/R keyways only)	91-704-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	20-524	17	4.00	Classic	33-154	A508-655
		Primus XP UL437	20-524-XP	17	4.00	Everest & Everest 29	33-221	A300-033
	Standard	Standard	23-003	95.00	112.50	Classic	33-216
D85 Faculty	Statiualu			95.00	112.50	Everest & Everest 29	33-235	A508-653	C604-106
Restroom	2" - 21/2"	Standard	23-003-		Classic	33-216	W100-012	3 w/ C503- 767
	2 - 2 1/ 2	Stariualu	098	95.00 112.50		Everest & Everest 29	33-235

D-Seri	es Leve	r Cylinder Ref	erence	Table
	Door		Complete	Pric	e Each	Keyway	Plug	Shell	Tailpiece (See CYL-14)
Function	Thickness	Cylinder Mechanism	Cylinder	Open	Restricted	Type	(See CYL-53)	(See CYL-55)
		Standard	23-013	$64.00	$81.50	Classic	33-137	A508-653
				$64.00	$61.50	Everest & Everest 29	33-138	A3U8-033
	Standard	Everest SL (B/R keyways only)	91-017		81.50	Everest B & Everest 29 R	33-213	A508-660
Standard		Primus	20-750	141.00		Classic	33-136	AE00 655	C604-243
Functions	Ctandard	Primus-XP	20-750-XP	| 14	11.00	Everest & Everest 29	33-119	A508-655	C004-243
	Standard	Everest SL Primus XP (B/R keyways only)	91-715-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	20-550			Classic	33-154	AE00 CEE
	Primus UL437-XP	20-550-XP	] ''	4.00	Everest & Everest 29	33-221	A508-655
D85 Faculty		Chandard	23-014	05.00	112 50	Classic	33-216	AE00 6E2	C604-348
Restroom		Standard	25-014	95.00 112.50	Everest & Everest 29	33-235	A508-653	w/ C503-767

ND-Se	ries Lev	er Cylinder R	eferenc	e Tabl	е
	_			Pric	e Each	Keyway	Plug	Shell	Tailpiece
Function	Door Thickness	Cylinder Mechanism	Complete Cylinder	Open	Restricted	Туре	(See CYL-53)	(See CYL-55)	(See CYL-14)
		Standard	23-065	$64.00	$81.50	Classic	33-137	- A508-653
				$64.00	$61.50	Everest & Everest 29	33-138	A300-033
		Everest SL (B/R keyways only)	91-018		81.50	Everest B & Everest 29 R	33-213	A508-660
Standard	Standard	Primus	20-765	141.00		Classic	33-136	- A508-655	N523-022
Functions		Primus-XP	20-765-XP			Everest & Everest 29	33-119	A300-033	N323-U22
	Standard	Everest SL Primus XP (B/R keyways only)	91-718-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	20-565	17	4.00	Classic	33-154	- A508-655
		Primus UL437-XP	20-565-XP	] 1/	4.00	Everest & Everest 29	33-221	A3U8-033
ND85						Classic	33-216		N523-123
Faculty Restroom		Standard	23-000	95.00	112.50	Everest & Everest 29	33-235	A508-653	w/ C503-767

S, S200 (Le	S, S200 (Lever Only) Cylinder Reference Table
Cylinder		Complete	Price	Each	Keyway	Plug	Shell	Tailpiece	Cleave
Mechanism	Design	Cylinder	Open	Restricted	Type	(See CYL-53)	(See CYL-55)	(See CYL-14)	Sleeve
Standard		21-059	$64.00	$81.50	Classic	33-137	A508-653
			$04.00	$61.30	Everest & Everest 29	33-138	A300-033
Everest SL (B/R keyways only)		91-007		81.50	Everest B & Everest 29 R	33-213	A508-660
Primus	Keyed	20-752	1/1	.00	Classic	33-136	A508-655	S605-231	S605-192
Primus-XP	Levers	20-752-XP	141	.00	Everest & Everest 29	33-119	A300-033	3000-231	3003-192
Everest SL Primus XP (B/R keyways only)		91-772-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
Primus UL437		20-552	17/	.00	Classic	33-154	A508-655
Primus UL437-XP		20-552-XP	1/4		Everest & Everest 29	33-221	A306-033

CL-Serie:	s Cabinet Lock	Cylinde	Refere	nce Tabl	e
		Complete	Price	Each		Plug	Shell	Actuator
Application	Cylinder Mechanism	Cylinder	Open	Restricted	Keyway Type	(See CYL-53)	(See CYL-55)	(See CYL-15)
	Standard	20-172	$64.00	$81.50	Classic	33-137	A508-653
	Statiualu	20-1/2	304.00	301.30	Everest & Everest 29	33-138	4 AJUU-UJJ
	Everest SL (B/R keyways only)	91-001		81.50	Everest B & Everest 29 R	33-213	A508-660
Door	Primus	20-772	.,,		Classic	33-136	4500 655
DOOL	Primus XP	20-772-XP	141	.00	Everest & Everest 29	33-119	A508-655
	Everest SL Primus XP (B/R keyways only)	91-719-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
	Primus UL437	20-572	17/	.00	Classic	33-154	AE00 CEE
	Primus XP UL437	20-572-XP	1/4	.00	Everest & Everest 29	33-221	A508-655	CL10-360
Drawer	Standard	20-174	64.00	81.50	Classic	33-137	A508-653	02.0 000
	Statiualu	20-1/4	04.00	01.50	Everest & Everest 29	33-138	A200-023
	Everest SL (B/R keyways only)	91-002		81.50	Everest B & Everest 29 R	33-213	A508-660
	Primus	20-774	1/1	.00	Classic	33-136	AE00 655
	Primus XP	20-774-XP	141	.00	Everest & Everest 29	33-119	A508-655
	Everest SL Primus XP (B/R keyways only)	91-720-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
	Primus UL437	20-574	174.00	17/ 00		Classic	33-154	1500 SEE
	Primus XP UL437	20-574-XP	1/4	.00	Everest & Everest 29	33-221	A508-655

Portable S	ecurity Cylin	ders
	Cylinder	Complete	Price	Each		Plug	Shell	Actuator
Application	Mechanism	Cylinder	Open	Restricted	Keyway Type	(See CYL-53)	(See CYL-55)	(See CYL-15)
	Standard	47-413	$64.00	$81.50	Classic	33-137	A508-653
	Standard	4/ 413	Ş04.00	Ç01.50	Everest & Everest 29	33-138	A300 033
KS-Series	Primus®	47-743	.,,		Classic	33-136		KZ32DA0
V2-261162	Primus XP	47-743-XP	141	1.00	Everest & Everest 29	33-119	A508-655	NZJZDAU
	Primus UL437	47-542	174.00		Classic	33-154	A300 033
	Primus XP UL437	47-542-XP			Everest & Everest 29	33-221
	Standard	47-414	64.00	81.50	Classic	33-137	A508-653
	Statiualu	47-414	04.00	61.50	Everest & Everest 29	33-138	A300-033
KC-Series	Primus	47-744	1/1	.00	Classic	33-136		KZ34DA0
VC-Selles	Primus XP	47-744-XP	141	1.00	Everest & Everest 29	33-119	A508-655	NZ34DAU
	Primus UL437	47-543	17/	.00	Classic	33-154	A300-033
	Primus XP UL437	47-543-XP	1/4		Everest & Everest 29	33-221

For pins, springs, etc., see CYL-50.

Tailpieces an	nd Actuators
Part Number	Lockset	Description	Price Each
A201-934	A73 Orbit	Classic conventional non modular cylinders	$9.50
A301-337	A, H		9.50
A301-338	A, H Orbit	Modular cylinders all keyway families (Classic, Everest, Everest 29 & Primus) A301-337 requires C503-767 driver.	9.50
A301-339	A73 Orbit	7.507.557 regulated edges 7.57 differin	9.50
A501-693	A85, H185 Orbit	Faculty Restroom function. Requires C503-767 driver.	10.00
A501-991	A85, H185	Faculty Restroom function. Requires C503-767 driver.	10.00
A508-606	A, H	Classic conventional non modular.	3.20
A508-614	Orbit	Classic conventional non modular.	1.90
A700-031	AL	All except hotel function.	1.90
A700-023	AL85	Faculty Restroom function for Modular Cylinder. Requires C503-767 driver.	6.40
C503-524	D	Knobs (Modular, Primus and Everest), Levers (Classic keyways prior to June 2010)	1.90
C604-243	D	Levers (Modular, Primus and Everest), Knobs (Classic keyways prior to June 2010)	1.90
C604-106	D85	Knobs, hotel function. Requires C503-767 driver.	6.40
C604-107	D85	Knobs, hotel function, thick door. Requires C503-767 driver.	11.20
C604-348	D85	Levers, hotel function. Requires C503-767 driver.	6.60
N523-022	ND	Modular cylinders all keyway families (Classic, Everest, Everest 29 & Primus).	1.90
N523-023	ND	Classic Conventional (silver) non modular.	1.90
N523-123	ND85	Faculty Restroom function. Requires C503-767 driver.	6.10
S605-228	S, S200	Classic Conventional non modular.	2.90
S605-231	S, S200	Modular cylinders all keyway families (Classic, Everest, Everest 29 & Primus).	10.00

Hotel Fu	Hotel Function Indicator Pins, Etc.
Part Number	Description	Price Each
C503-767	Driver for hotel tailpieces	$2.10
C603-195*	Obstruction pin, Classic	1.60
C604-144	Indicator pin spring, Classic (order in multiples of 100)	0.28
C604-362	Obstruction pin, Everest & Everest 29	1.60
C604-368	Indicator pin, Everest & Everest 29	5.00
C604-369	Indicator pin spring, Everest & Everest 29 (order in multiples of 100)	0.58
C604-371	Indicator pin, Classic (except Reverse sections)	5.30
C604-372	Indicator pin, Classic (Reverse sections)	5.30

^* Not compatible with Quad keyway cylinders manufactured before 1999.

AD Series Lock - Tailpieces
Part Number	Description	Keyway	Lever Style	Price Each
C603-524	All AD Cylindrical Locks - CY	Classic	All	$1.90
C0U3-324	AD Exit -993R, 993S, 993M	non modular	ATH, 8AT	$1.90
C604-243	All AD Cylindrical Locks	Modular Cylinders all keyway families	All	1.90
C0U4-243	AD Exit - 993R, 993S, 993M	(Classic, Everest, Everest 29 & Primus)	ATH, 8AT	1.90
22520077	All AD Mortise locks - MS, MD	Classic	All	100
23538077	AD Exit - 993R, 993S, 993M	non modular	Except ATH, 8AT	1.90
22520005	All AD Mortise locks - MS, MD	Modular Cylinders all keyway families	All	1.90
23538085	AD Exit - 993R, 993S, 993M	(Classic, Everest, Everest 29 & Primus)	Except ATH, 8AT	1.90

For pins, springs, etc., see CYL-50.

Part Number	Description	Price Each
CL10-301	CL-Series cylinder retaining screw	$0.46
CL10-360	CL-Series driver	2.70
CL10-361	CL-Series actuator, 7/8" to 11/8" door or drawer	2.70
CL10-362	CL-Series actuator, 1 3/8" door or drawer	2.70
F605-038	F Series plug retainer (order in multiples of 100)	0.20
KZ32BB0	KS Padlocks-Series cylinder housing screw (order in multiples of 30)	1.20
KZ32DAO	KS Padlocks-Series cylinder driver(order in multiples of 30)	2.50
KZ33DC0	KC Cable-Series driver mounting screw (order in multiples of 30)	1.50
KZ34CAO	KC Cable-Series cylinder cap (order in multiples of 30)	2.20
KZ34ED0	KC Cable-Series cylinder cap pin (order in multiples of 30)	0.80
KZ34DA0	KC Cable -Series driver (order in multiples of 30)	2.70
	KS Padlocks 20, 40, 70, 80, 90 and KC-Series cylinder housing (order in multiples of 20)	8.80
	KS Padlock10 and KC-Series cylinder housing (order in multiples of 20)	8.80
5605-192	S, S200 sleeve	2.00
605-228	S, S200 driver	2.90
(A10-594*	Spacer for 5-pin cylinder in 6-pin A or H-Series knob	11.00

^** KC-Series Cables accept both the KZ38BA1 and the KZ38BA2 cylinder housings.

B500 Series Cylinders - Single Cylinder Deadbolts
			Price	Each
Part Number	Description	Door Thickness	Open	Restricted
22-003	Standard	13/8" - 13/4"	$64.00	$81.50
91-009	Everest SL (R/B Keyways only)	13/8" - 13/4"		81.50
22-004	Standard	1 3/4" - 2 1/4"	64.00	81.50
91-010	Everest SL (R/B Keyways only)	1 3/4" - 2 1/4"		81.50
20-188	Primus	13/8" – 17/8"	1/1	1.00
20-188-XP	Primus XP	13/8" – 17/8"	141.00
91-702-XP	Everest SL Primus XP (R/B Keyways only)	13/8" - 17/8"		141.00
20-189	Primus	17/8" – 21/4"	1/	1.00
20-189-XP	Primus XP	17/8" – 21/4"	14	1.00
91-703-XP	Everest SL Primus XP (R/B Keyways only)	17/8" - 21/4"		141.00
20-190	Primus UL	13/8" – 17/8"	17/	4.00
20-190-XP	Primus XP UL	13/8" – 17/8"	1/2	4.00
20-191	Primus UL	17/8" – 21/4"	174.00
20-191-XP	Primus XP UL	17/8" – 21/4"	1/2	+.00

B500 Series Cylinders - Double Cylinder Deadbolts*
			Price	Each
Part Number	Description	Door Thickness	Open	Restricted
22-645	Standard	13/8" - 13/4"	$64.00	$81.50
91-014	Everest SL (R/B Keyways only)	13/8" -13/4"		81.50
22-646	Standard	1 3/4" - 2 1/4"	64.00	81.50
91-015	Everest SL (R/B Keyways only)	1 3/4" - 2 1/4"		81.50
20-745	Primus	13/8" – 17/8"	1/1
20-745-XP	Primus XP	13/8" – 17/8"	141	.00
91-712-XP	Everest SL Primus XP (R/B Keyways only)	13/8" - 17/8"		141.00
20-746	Primus	17/8" – 21/4"	1/1	00
20-746-XP	Primus XP	17/8" – 21/4"	141	.00
91-713-XP	Everest SL Primus XP (R/B Keyways only)	17/8" - 21/4"		141.00
20-545	Primus UL	13/8" –17/8"	174	.00
20-545-XP	Primus XP UL	13/8" –17/8"	174	.00
20-546	Primus UL	17/8" – 21/4"	17/	00
20-546-XP	Primus XP UL	17/8" – 21/4"	1/4	.00
* Part numbers for double si	ded cylinders represent one cylinder only.

B500 Series Cylinders - B561 One-Way Deadbolt
			Price	Each
Part Number	Description	Door Thickness	Open	Restricted
22-069	Standard	13/8" - 21/4"	$64.00	$81.50
91-011	Everest SL (R/B Keyways only)	1 3/8" - 2 1/4"		81.50
20-071	Primus	13/8" - 21/4"
20-071-XP	Primus XP	13/8" - 21/4"	174	.00
91-701-XP	Everest SL Primus XP (R/B Keyways only)	13/8" - 21/4"
20-072	Primus UL	13/8" - 21/4"	174.00
20-072-XP	Primus XP UL	13/8" - 21/4"	1/4

B500 Series Cylinder Parts
Cylinder Mechanism	Complete Cylinder	Keyway Type	Plug	Shell
Standard		Classic	33-137	A508-653
Stariuaru		Everest & Everest 29	33-138	A300-033
Everest SL (B/R keyways only)		Everest 29 (R/B Keyways only)	33-213	A508-660
Primus/Primus XP	See single & double cylinder part	Classic	33-136	A508-655
T TITTOS/T TITTOS XI	numbers listed above	Everest & Everest 29	33-119	A500 055
Everest SL Primus XP (B/R keyways only)		Everest 29 (R/B Keyways only)	33-214	A508-661
Primus UL/Primus XP UL		Classic	33-154	1500 655
		Everest & Everest 29	33-221	A508-655

Tailpieces
Part Number	Description	Door Thickness	Price Each
Single Cylinder DECOD DECOD	B520-651	13/8" -13/4"
Single Cylinder, B560P, B563P	B520-652	<13/4" - 21/4"
Single Cylinder, B560GD, B560BD, B563GD, B563BD	B202-957	13/8" - 21/4"
Single Cylinder, B560R, B563R	B600-041	13/8" - 21/4"
Single Cylinder, B561	B520-667	13/8" - 21/4"
Double Cylinder DEGOD (Classis Non-Medular)	B600-045*	13/8" - 13/4"
Double Cylinder, B562P (Classic Non-Modular)	B600-046*	<13/4" - 21/4"	$2.70
Double Cylinder DESCO / Everect / Drimus Classic Medular	B600-085*	13/8" - 13/4"
Double Cylinder, B562P (Everest/Primus, Classic Modular)	B600-086*	<1 3/4" - 2 1/4"
Double Cylinder, B562GD, B562BD	B202-580*	13/8" - 2"
Double Cylinder, B562R	B600-040*	13/8" - 21/4"
Keyless B580, B581	B600-041	13/8" - 21/4"
Keyless B571	B520-653	13/8" - 21/4"
* Order two of each for double cylinder deadbolts.

Miscellar	Miscellaneous Parts
Part Number	Description	Price Each
36-086*	Collar (Trim ring)	$9.60
B600-071	Washer	0.82
B300-108	Cylinder Retaining Screw	1.40
B520-541	Security insert for collar	11.20
B302-043*	Housing, outside cylinder, conventional	33.00
B520-648	Housing, inside cylinder, conventional 33.00
B600-092*	side snap-on faceplate only, for all non-IC double cylinder deadlocks 2.80
* Specify finis	sh: 605, 606, 609, 612, 613, 619, 625, 626, and 643e.

B500 Series IC Housings
Cylinder Type	Housing	Part Number*	Door Thickness	Price Each
Single Cylinder, Small Format Interchangeable Core	Outside	B610-204	13/8" - 21/4"	$57.40
Single Cylinder, Full Size Interchangeable Core	Outside	B610-203	13/8" - 21/4"	61.80
Double Colleges Coroll Format Intershangeable Coro	Outside	B610-204	13/8" - 21/4"	57.40
Double Cylinder, Small Format Interchangeable Core	Inside	B610-281**	13/8" - 21/4"	57.40
Double Cylinder Full Size Interchangeable Core	Outside	B610-205	13/8" - 21/4"	61.80
Double Cylinder, Full Size Interchangeable Core	Inside	B610-028**	13/8" - 21/4"	59.10

^* Specify finish: 605, 606, 609, 612, 613, 619, 625, 626, and 643e.

^** Inside housing does not include snap-on faceplate.

Part	Description	Price
Number		Each
B600-029	Driver, B560/562J	$5.30
B610-032	Cotter pin for tailpiece, B560/562J (1 = pack of 50)	45.30
B600-106	Driver, SFIC	16.90
B600-107	Throw member, SFIC	3.10
B600-108	Waldes retaining ring, B560/562BD (multiples of 100)	0.36
B610-014*	Inside snap-on faceplate for SFIC double cylinder deadlocks	9.50
B610-031*	Inside snap-on faceplate for full size IC double cylinder deadlocks	10.10
B610-040	Tailpiece and cotter pin, B562J	14.70
B610-041	Tailpiece and cotter pin, B560J	14.40

Cylinders Only S200 ordered after Feb, 2008

* Must be used in locks with universal housings (B202-824 or B202-825).

			Price Each
Description	Part Number	Open	Restricted
6-Pin Standard	22-081	$64.00	$81.50
Primus	24-769
Primus XP	24-769-XP		141.00
Primus UL 437	24-569
Primus XP UL437	24-569-XP		174.00

Cylinders CS200-Series Description Part Number Price Each Open Restricted 6-Pin Standard 22-093 $64.00 $81.50

Housings With and Without Cylinders (S200 ordered before Feb, 2008)

					Price Each
Series	Housing	Description	Outside	Inside	Open	Restricted
		5-Pin C, CE, E, F	22-017	22-018	$95.00
B250, B400,		6-Pin Standard	22-019	22-020	95.00 Universal
E/B (Primus		Primus	20-730	20-731	Housing 173.00 (steel)
only),	Universal (steel)	Primus XP	20-730-XP	20-731-XP	173.00
H (except H160),		Primus UL437	20-530	20-531	5-Pin Cylinder Retaining Screw Location 205.00
S200		Primus UL437 XP	20-530-XP	20-531-XP	205.00
		Housing only	B202-824	B202-825	28.30

Cylinders & Housings, S200-Series (For Locks after Feb 26, 2008)

		Price Each
Description	Part Number	Open Restricted
6-Pin Standard	22-082	$95.00
Primus	24-770	173.00
Primus XP	24-770-XP	173.00
Primus UL437	24-570	205.00
Primus XP UL437	24-570-XP	205.00
Housing only	B202-824	28.30

Cylinder Retaining Screw

Description	Part Number	Price Each
B520-298	Retaining screw for all models above	$0.78

B250, H and S200-Series Interchangeable Core Cylinders
Series Core Mechanism Side Part Pric
B250. H. S200	Housing Loss Coro	Outside	22-061	$69.00
D230, FI, S200	Housing Less Core	Inside	22-062	$69.00
Finishes: 605, 606, 600, 612	613 625 and 626 for housings: 606	and 676 for cores and	cylinders only

Finishes: 605, 606, 609, 612, 613, 625 and 626 for housings; 606 and 626 for cores and cylinders only.

Cylinders S200-Series (For Locks after Feb 26, 2008)
Description	Part Number	Price Each
Housing Less Core	S306-135	$72.10
Finishes: 605, 606, 609, 612, 613, 625 and cylinders only.	Finishes: 605, 606, 609, 612, 613, 625 and 626 for housings; 606 and 626 for cores

Miscellaneous Parts for B250 Series IC Cylinders
Part Number	Description	Price Each
36-086*	Collar (Trim ring)	$9.60
B520-235	Driver	5.30
B520-240	Waldes retainer (order in multiples of 100)	0.56
B520-541	Security insert for collar	11.20
* Specify finish	n: 605, 609, 612, 613, 625, 626.

Miscellan	Miscellaneous S200-Series (For Locks after Feb 26, 2008)
Part Number	Description	Price Each
36-086*	Collar (Trim ring)	$9.60
B520-541	Security insert for collar	11.20
B600-029	Driver	5.30
B600-032	Cotter Pin (order in multiples of 100)	0.54
B600-041	Tailpiece (IC)	2.70
B520-685	Tailpiece	2.70
B600-071	Washer	0.82

For cores, see CYL-42

Collars (Trim Rings and Security Inserts), B250, H, and S200-Series
Part Number	Specify Finish	Description	Price Each
02-037	•	MD160 Series decorative cylinder rose, specify design	$10.50
36-066	•	Trim ring, 1/8"	9.10
36-067	•	Trim ring, 7/16"	12.80
36-068		Security insert, 1/8"	5.70
36-069		Security insert, 7/16"	10.90
36-070		Security insert pack, 36-068 1/8" and 36-069 7/16"	16.80
36-071	•	Trim ring and security insert pack, 36-066 and 36-068 1/8"	14.60
36-072	•	Trim ring and security insert pack, 36-067 and 36-069 7/16"	23.40
B520-541		Security insert, 1" for interchangeable core	11.20
36-085	•	Trim ring and security insert pack, B520-541 and 36-086 1"	27.10
36-086	•	Trim ring, 1"	9.60

	Lazy Tailpieces, B250, H, and S200-Series
Part Number	Description	Price Each	Part Number	Description	Price Each
B202-269	Double cylinder 0.810"	2.40	B220-036	Double cylinder 1.375"	$7.20
B202-369	Double cylinder 0.685"	2.40	B502-999	S200 2.500"	3.70
B202-370	Double cylinder 0.550"	2.40	B520-236	Double cylinder 1.325"	5.30
B202-453	Double cylinder 0.622"	8.30	B520-237	Double cylinder 1.100"	5.30
B202-557	Single cylinder 1.850"	2.40	B520-242	Single cylinder 2.200"	12.20
B202-558	Single cylinder 2.000"	2.40	B520-243	Single cylinder 2.600"	12.20
B202-580	Double cylinder 0.450"	2.70	B590-443	Single cylinder 1.470"	2.80
B202-957	Single cylinder 1.410"	2.70	E205-204	Single cylinder 3" breakoff	8.70
B220-032	Double cylinder 1.031"	2.70

Part Number	Description	Price Each	Part Number	Description	Price Each
B202-269	Double cylinder 0.810"	2.40	B220-036	Double cylinder 1.375"	$7.20
B202-369	Double cylinder 0.685"	2.40	B502-999	S200 2.500"	3.70
B202-370	Double cylinder 0.550"	2.40	B520-236	Double cylinder 1.325"	5.30
B202-453	Double cylinder 0.622"	8.30	B520-237	Double cylinder 1.100"	5.30
B202-557	Single cylinder 1.850"	2.40	B520-242	Single cylinder 2.200"	12.20
B202-558	Single cylinder 2.000"	2.40	B520-243	Single cylinder 2.600"	12.20
B202-580	Double cylinder 0.450"	2.70	B590-443	Single cylinder 1.470"	2.80
B202-957	Single cylinder 1.410"	2.70	E205-204	Single cylinder 3" breakoff	8.70

Drivers for Lazy Tailpieces
Part Number	Description	Price Each
B520-375	Classic Non Modular	$2.80
B502-949	Modular Cylinder All Keyway Families (Classic, Everest, Everest 29 & Primus)	1.60

Model/Function	Cylinder	Door Thickness	Tailpiece	Collar(s)
		15/16" – 15/8"	(See CYL-20) B202-558	(See CYL-20)
	E Din
	5-Pin	111/16" – 21/4"	B202-558	7/16"
		over 2 1/4" – 2 9/16"	B202-558	1/8"
		15/16" – 13/8"	B202-558	Two 1/8" & One 7/16"
	6.0	17/16" – 115/16"	B202-558	7/16" + 1/8"
	6-Pin	2" – 2 3/8"	B202-558	7/16"
250		over 2 3/8" – 2 9/16"	E205-204	7/16"
		2 5/8" – 2 3/4"	B202-558	1/8"
		15/16" – 11/2"	B520-242	1" + 1/8"
		over 1 1/2" – 2 1/8"	B520-242	]"
	IC	over 2 1/8" – 2 3/8"	B520-243
		over 2 3/8" – 2 5/8"	B520-243	7/16" + 1/8"
		over 2 5/8" – 3 1/8"	B520-242	7/16"
		15/16" – 13/8"	B202-370	7/16" + 1/8"
		11/2" – 15/8"	B202-269
	5-Pin	111/16" – 115/16"	B202-580	7/16"
		2" – 2 3/8"		B202-269
		2 7/16" – 2 11/16"	B202-453	1/8"
		2 3/4" – 2 7/8"	B202-269
		13/16" – 13/8"	B202-269	Two 1/8"
		17/16" – 11/2"	B202-370	7/16" + 1/8"
252		19/16" – 115/16"	B202-369
252	6-Pin	2" – 2 3/16"	B202-370	7/16"
		21/4" – 211/16"	B202-269
		2 3/4" – 2 13/16"	B202-370	1/8"
		27/8" – 31/8"	B202-369
		15/16" – 15/8"	B520-237	1" + 1/8"
		over 1 5/8" – 1 7/8"	B520-237	]"
	IC	over 1 7/8" – 2 1/8"	B520-236	]"
		over 2 1/8" – 2 3/8"	B520-236	7/16" + 1/8"
		over 2 5/8" – 3 1/8"	B520-236	7/16"
		13/8"		7/16" + 1/8"
	5-Pin	13/4"	-	7/16"
		13/8"	B202-558	7/16" + two 1/8"
except discontinued H160	6-Pin	13/4"	-	7/16" + 1/8"
		13/8"		1" + 1/8"
	IC	13/4"	B520-242	]"
		13/8" – 15/8"		1" + 1/8"
200 (for locks ordered	6-Pin	15/8" – 2"	B502-999	]"
pefore February 2008)			DE20.2/2	'
	IC	13/8" – 15/8" 15/8" – 2"	B520-242 B520-243	1" + 1/8"

		Door	Cylinder Less	Pric	e Each	Keyway	Plug	Shell	Tailpiece
Cylinder Mechanism	Function	Thickness	Housing	Open	Restricted	Type	(See CYL-53)	(See CYL-55)	(See CYL-26
B600-Series		13/8" – 21/2"	22-644	¢6 ( 00		Classic	33-167	AE00 (E2
Standard	B660, B663			$64.00		Everest & Everest 29	33-186	A508-653	B610-084
Everest SL (B/R keyways only)	, 5000, 5003		91-032			Everest B & Everest 29 R	33-213	A508-660	D010 004
B600-Series		13/8" – 2"	22-642	64.00		Classic	33-167	A508-653
Standard				04.00		Everest & Everest 29	33-186	A300-033	B610-082
Everest SL (B/R keyways only)	B661, B664		91-030			Everest B & Everest 29 R	33-213	A508-660	5010 002
B600-Series	0001, 0004		22-643	64.00		Classic	33-167	A508-653
Standard		2" – 2 1/2"	22 043	04.00	$81.50	Everest & Everest 29	33-186	M300 033	B610-083
Everest SL (B/R keyways only)			91-031		-	Everest B & Everest 29 R	33-213	A508-660	50.0 000
B600-Series			22-085	64.00		Classic	33-167	A508-653
Standard		13/8" – 2"	22 003	04.00		Everest & Everest 29	33-186	A300 033	B610-085
Everest SL (B/R keyways only)	B662		91-028			Everest B & Everest 29 R	33-213	A508-660
B600-Series	D002		22-086	64.00		Classic	33-167	A508-653
Standard		2" – 21/2"	22 000	04.00		Everest & Everest 29	33-186		B610-086
Everest SL (B/R keyways only)			91-029			Everest B & Everest 29 R	33-213	A508-660
	B760, B763	13/8" – 21/2"	20-744			Classic	33-136		B610-084
	B700, B703	13/0 21/2	20 711	2	Everest & Everest 29	33-119		B610-082
		13/8" – 2"	20-742		Classic	33-136
	B761, B764				Everest & Everest 29	33-119
B700 -Series	270,,270	2" – 21/2"	1/2" | 20-7/₁3 | 1/41 ∩∩ ⊨	Classic	33-136	A508-655	B610-083
Primus				ļ		Everest & Everest 29	33-119	7.555 555
		13/8" – 2"	20-745			Classic	33-136		B610-085
	B762			ļ		Everest & Everest 29	33-119
		2" – 21/2"	20-746			Classic	33-136		B610-086
						Everest & Everest 29	33-119
B700 -Series			20-744-XP	14	41.00	Classic	33-136	A508-655
Primus-XP	B760-XP,	13/8" – 21/2"				Everest & Everest 29	33-119		B610-084
Everest SL Primus XP (B/R keyways only)	B763-XP		91-711-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
B700 -Series			20-742-XP	14	41.00	Classic	33-136	A508-655
Primus-XP		13/8" – 2"	20 7 12 711	-		Everest & Everest 29	33-119		B610-082
Everest SL Primus XP (B/R keyways only)	B761-XP,		91-709-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
B700 -Series	B764-XP		20-743-XP	14	41.00	Classic	33-136	A508-655
Primus-XP		2" – 21/2"	20 7 13 70	•		Everest & Everest 29	33-119	7,500 055	B610-083
Everest SL Primus XP (B/R keyways only)			91-710-XP		141.00	Everest B & Everest 29 R	33-214	A508-661
B700 -Series			20-745-XP	1/	41.00	Classic	33-136	A508-655
Primus-XP		13/8" – 2"	20 745 XI		+1.00	Everest & Everest 29	33-119	CC0 00CA	B610-085
Everest SL Primus XP (B/R keyways only)	B762-XP	13,6 2	91-712-XP		141.00	Everest B & Everest 29 R	33-214	A508-661	5010 003
B700 -Series	D/UZ-XP		20-746-XP	1/	41.00	Classic	33-136	A508-655
Primus-XP		2" – 21/2"	2U-/4U-λΡ		+1.00	Everest & Everest 29	33-119	CC0-00CH	B610-086
Everest SL Primus XP (B/R keyways only)		2 21/2	91-713-XP		141.00	Everest B & Everest 29 R	33-214	A508-661	2010 000

				Dri	ice Each	Variation	Dive	Chall	Tallalasa
Cylinder Mechanism	Function	Door Thickness	Cylinder Less Housing	Open	Restricted	Keyway Type	Plug (See CYL-53)	Shell (See CYL-55)	Tailpiece (See CYL-26)
	B860, B863	13/8" – 21/2"	20-544			Classic	33-154		DC10_00/
						Everest & Everest 29	33-221		B610-084
		13/8" – 2"	20-542			Classic	33-154		D610, 003
	B861. B864					Everest & Everest 29	33-221		B610-082
B800-Series	8001, 8004	2" – 2 1/2"	20-543			Classic	33-154	A508-655	B610-083
Primus UL437				2 - 2 1/2	20-343			Everest & Everest 29	33-221	A300-033	0010-003
					13/8" – 2"	20-545			Classic	33-154		B610-085
	B862	13/0 -2	20-343			Everest & Everest 29	33-221	]	D010-003
	8802	DOUZ	DOOZ	DOOZ	DOOZ	2" – 2 1/2"	20-546			Classic	33-154		B610-086
								2 - 2 1/2	20-340	ė	174.00	Everest & Everest 29	33-221		B010-000
	B860-XP,	13/8" – 21/2"	20-544-XP	۰	174.00	Classic	33-154		B610-084
	B863-XP	B863-XP	B863-XP	B863-XP	B863-XP	R863-XP	B863-XP	B863-XP	B863-XP	13/0 -21/2	ZU-J44-AP			Everest & Everest 29	33-221		B010-004
		13/8" – 2"	20-542-XP			Classic	33-154		B610-082
	B861-XP,	13/0 -2	ZU-J4Z-XF			Everest & Everest 29	33-221		D010-002
B800-Series Primus-XP	B864-XP	2" – 2 1/2"	20-543-XP			Classic	33-154	A508-655	B610-083
UL437		2 -21/2	ZU-J4J-VL			Everest & Everest 29	33-221	A300-033	D010-003
		13/8" – 2"	20-545-XP			Classic	33-154		B610-085
	B862-XP	13/0 - 2	. ZU-343-XP			Everest & Everest 29	33-221		הסוח-חחח
	ם מטעב-אף	2" – 21/2"	20-546-XP			Classic	33-154		B610-086
		2 -21/2	20-340-75			Everest & Everest 29	33-221		טטט-טטט

Miscellaneous Parts, B600/700/800-Series
Part Number	Description	Price Each
B520-298	Cylinder retaining screw	$0.78
B600-070*	7/8" Collar (trim ring) for 15/8" – 21/2" door (standard)	62.30
B600-089*	11/8" Collar (trim ring) for 13/8" – 15/8" door	66.10
B600-090	Inside housing only (for B662, B762 & B862)	32.50
B600-092*	Inside snap-on face plate	2.80
B610-024*	Dummy cylinder faceplate and outside housing	51.40
B610-025*	Housing, outside	32.50
B610-071	Washer	0.82
C603-098	Security disc (Order in multiples of 100)	0.38
* Specify finish: 605, 609, 612, 613, 625 and 626.

Tailpiece	Tailpiece and Retainer Packs, B600/700/800-Series
Part Number	Description	Price Each
B610-041	B680 (non-keyed)	$14.40
B610-042	B661, B664 Classic Conventional Non Modular	7.40
B610-043	B661, B664 Classic Conventional thick door Non Modular	7.40
B610-044	B660, B663 Classic Conventional Non Modular	7.40
B610-045	B662 Classic Conventional Non Modular	9.90
B610-046	B662 Classic Conventional thick door Non Modular	9.90
B610-082	B661, B664 Classic Conventional Modular	7.00
B610-083	B661, B664 Classic Conventional thick door Modular	8.40
B610-084	B660, B663 Classic Conventional Modular	13.60
B610-085	B662 Classic Conventional Modular	13.60
B610-086	B662 Classic Conventional thick door Modular	13.60

Cylinder Type	Housing	Part Number*	Price Each
FII C!	Outside B660, B661, B663	B610-203*†	¢61.00
Full Size Interchangeable Core	Outside B662	B610-205†	$61.80 59.10
interchangeable core	Inside	B610-028
Small Format	Outside	B610-204*†	E7.40
Interchangeable Core	Inside	B610-281	57.40

^& lt;sup>†</sup> For deadbolts purchased before 10/01/2012, also requires firecups B520-657.

Part	Description	Price
Number	Description	Each
B202-370	Tailpiece, B662BD	$2.40
B202-453	Tailpiece, B662BD thick door	8.30
B202-557	Tailpiece, B660BD	2.40
B220-032	Tailpiece, B661BD	2.70
B600-089*	11/8" Collar, B600 all IC models	66.10
B520-240	Waldes retaining ring B662J (order in multiples of 100)	0.56
B600-029	Driver, B660/662J/663J	5.30
B610-032	Cotter pin for tailpiece, B660/662J/663J (1 = pack of 50)	45.30
B600-106	Driver, SFIC	16.90
B600-107	Throw member for SFIC models	3.10
B600-108	Waldes retaining ring B660/662BD (order in multiples of 100)	0.36
B610-014*	Inside snap-on faceplate for SFIC double cylinder deadlocks	9.50
B610-031*	Inside snap-on faceplate for full size IC double cylinder deadlocks	10.10
B610-040	Tailpiece and cotter pin, B662J	14.70
B610-041	Tailpiece and cotter pin, B660J, B661J, B663J	14.40

For pins, springs, etc., see CYL-50.

Prices apply to 11/8" - 13/8", additional charges for cylinders 11/2" or greater.

	Inder Only Cylinder With Compre				for cylinders 1 1/2" or greater.
Mortise Cylin
Schlage L-Series (exce	pt L9060 outside)
			Complete	Finishes A 605, 606, 609, 612, 613, 619, 6 Price	22, 625, 626, 629, 630, 643e
Cam	Description	Cylinder Mechanism	Cylinder	Open	Restricted
L583-474		Standard	30-021	$74.00	$91.50
For cyl. length 1 1/8",		Primus Controlled Access	20-793	154.	00
1 3/8", 1 5/8"	Cylinder Only:	Primus XP Controlled Access	20-793-XP	154.	00
↓ → / ×	L & N Escutcheons	Primus UL437	20-593	187.	00
1/8 3/8 5/8		Primus XP UL437	20-593-XP	187.
		Hotel Function (Standard)	30-022®	118.00	135.50
Dim. X = .261 Y = .644		Standard	30-001	85.00	102.50
		Primus Controlled Access	20-787	164.
L583-475 For cyl. length 1 1/4",		Primus XP Controlled Access	20-787-XP	164.
1 1/2",1 3/4"	Cylinder With	Primus UL 437	20-587	196.
	Compression	Primus XP UL437	20-587-XP	196.
14 1/2 3/4	Ring & Spring:	Primus Lockout	20-717	221.
' ( • ) )	Rose Trim	Primus XP Lockout	20-717-XP	221.
		Primus UL437 Lockout	20-517	238.
Dim. X = .261 Y = .644		Primus XP UL437 Lockout	20-517-XP	238.
1502.000		Hotel Function (Standard)	30-002∜	123.00	140.50
L583-800 For cylinder length 1- 1/8"	For modular SL cylinders introducted May 2016	Everest SL (B/R keyways only)	91-062		104.00
L583-801 For cylinder length 1 -1/4"	Cylinder With Compression Ring and Spring: Rose Trim	Everest SL Primus XP (B/R keyways only)	91-757-XP		164.00
Schlage L9060 Outsid	e and Other Straight Cam	Applications
L583-476	1	Standard	26-021	$74.00	$91.50
For cyl. length 1 1/8",	Cylinder with compression	Primus Controlled Access	20-701	154.
13/8",1 5/8"	spring:	Primus XP Controlled Access	20-701-XP	154.
	L & N Escutcheons	Primus UL437	20-501	187.	00
Υ )		Primus XP UL437	20-501-XP	187.	00
19 109 109		Standard	20-001	85.00	102.50
DIM X = 0.35" DIM Y = 0.72"		Primus Controlled Access	20-700	164.	00
	Cylinder With	Primus XP Controlled Access	20-700-XP	164.	00
L583-477	Cylinder With Compression	Primus UL437	20-500	196.
	Ring & Spring:	Primus XP UL437	20-500-XP	196.
For cyl. length 1 1/4",	Rose Trim	Primus Lockout	20-715	221.
1 1/2", 1 3/4"	Nose min	Primus XP Lockout	20-715-XP	221.
→		Primus UL437 Lockout	20-515	238.
Y 18 18 39		Primus XP UL437 Lockout	20-515-XP	238.	.00
DIM X = 0.35" DIM Y = 0.72"	Cylinder with Comp. Ring & 1/8" Blocking Ring: Adams Rite 2331	Standard (available in 1-1/8" only)	20-002	95.00	112.50
L583-802 For cylinder length 1- 1/8"	For modular SL cylinders	Everest SL	91-051		103.00
L583-803	introducted May 2016	(B/R keyways only)
E583-803 For cylinder length 1-1/4"	Cylinder With Compression Ring and Spring: Rose Trim	Everest SL Primus XP (B/R keyways only)	91-751-XP		164.00
k1-+	For inverted caree for decition	Lindore add VOII 0/0
Note:	For inverted cams for dogging
	Also for Schlage K-Series (disconti	nued), Falcon® non-deadbolt functions, A	dams Rite® 2331 dea	dlocks,Baldwin® mortise locks, Corbin Russ	win® ML2242 inside and ML2255.

Prices apply to 11/8" - 13/8", additional charges

				Price	Each
Cam	Description	Cylinder Mechanism	Complete Cylinder	Open	Restricted
Adams Rite MS, 4500 a	and 4700 Series; Lori 4500 and	Corbin Russwin DL3000 Series		1
L583-446 For cyl. length 11/8", 13/8", 15/8"	Cylinder	Standard	26-072	$74.00	$91.50
15 30 50 X		Standard	20-013	85.00	102.50
Dim. X = .19 Y = .57		Primus Controlled Access	20-706	163	3.00
L583-447 For cyl. length 1 1/4",	Cylinder With 3/8" Blocking Ring	Primus XP Controlled Access	20-706-XP	163	3.00
1 1/2", 1 3/4"		Primus UL437	20-506	195	i.00
Dim. X = .19 Y = .57		Primus XP UL437	20-506-XP	195	i.00
B502-944		Primus Lockout	20-718	220	0.00
		Primus XP Lockout	20-718-XP	220	).00
Dim. X = .187	Cylinder With Compression Ring and Spring	Primus UL437 Lockout	20-518	237.00
Y = .562 Cylinders with these cams include set screw pack B220-050 for Adams Rite locks.		Primus XP UL437 Lockout	20-518-XP	237	7.00
Adams Rite 4070 Series	s
B520-743 For cyl. length 11/8", 13/8", 15/8"		Standard	26-073	$74.00	$91.50
V — X IN SECOND		Primus Controlled Access	20-708	153	3.00
Y = .63	Cylinder with compression spring	Primus XP Controlled Access	20-708-XP	153.00
B520-744 For cyl. length 1 1/4", 11/2", 1 3/4" Dim. X = .33 Y = .63		Primus UL437	20-508	195.00
		Primus XP UL437	20-508-XP	195	i.00
Notes	:: Prices apply to 11/8", 11/4" and	d	d $45.00. See Special Cylinders fo	r 2" - 5" long cyli	nders.
	See page CYL-36 for required of
	Primus Lockout cylinders do no	ot use the modular design see the cams	s for non-modular table on page 3	3 for the require	d cams
	SL Cylinders available in 11/8"	and 11/4" lengths only

For keying in the field, order 10-piece Bulk Pack Cylinders.

Cylinders are sub-assembled to save time!

See CYL-5

	Adams Rite MS, 4500 and 4700 Series; Lori 4500 and Corbin Russwin DL3000 Series
Cam	Description	Cylinder Mechanism	Complete Cylinder	Price Each Restricted
L583-773 For cylinder length 1-1/8"	For modular SL cylinders introduced May 2016	Everest SL (B/R keyways only)	91-060	$103.00
L583-774 For cylinder length 1-1/4"	Cylinder with 3/8" Blocking Ring	Everest SL Primus XP (B/R keyways only)	91-758-XP	163.00
	Adams Rite 4070 Series Modular Cams
B520-788 For cylinder length 1-1/8"	For modular SL cylinders introduced May 2016	Everest SL (B/R keyways only)	91-061	$103.00
B520-789 For cylinder length 1-1/4"	Cylinder Only	Everest SL Primus XP (B/R keyways only)	91-759-XP	163.00

		Concealed Shell Mortise Cylinders				Finishes Available: 606, 626
				Complete		Price Each
Cam		Description	Cylinder Mechanism	Cylinder	Open	Restricted
	Schlage L-Series (except L9060 outside)
L583-254 Classic Standard	L583-153 Everest & Primus		Standard	30-004	$95.00	$112.50
			Primus Controlled Access	20-789		184.00
X Y	X Y		Primus XP Controlled Access	20-789-XP		184.00
		Cylinder Only:	Primus UL437	20-589		218.00
		L Escutcheon	Primus XP UL437	20-589-XP		218.00
Dim. X = .252 Y = .638	Dim. X = .252 Y = .638		Hotel Function (Conventional)	30-005*		142.00
Schlage L9060 Outside
B502-191 Classic Standard	B502-948 Everest & Primus		Standard	26-023	$95.00	$112.50
	X		Primus Controlled Acess	24-767		184.00
X Y	Y	Cylinder Only:	Primus Controlled Acess-XP	24-767-XP		184.00
		L Escutcheon	Primus UL437	24-567		218.00
Dim. X = .338 Y = .71	Dim. X = .338 Y = .71		Primus XP UL437	24-567-XP		218.00
			* Specify hand for hotel function cylinders. Not available in Primus. Emergency keys must be ordered separately.
Notes:			Prices apply to 1 1/8", 1 1/4" and 1 3/8". For 1 1/2", 1 5/8" and 1 3/4" add $45.00. Extended lengths are available. See Special Cylinders.

1 1/8" (Dim = 118) cylinders are furnished unless otherwise specified. Cylinder lengths depend on function, trim and door thickness.

Cams for Competitors' Cylinders in Schlage Locks* L583-197 Sargent and Yale non-IC (was XL11-758)

L583-198

See page CYL-36 for required dimension.

Corbin Russwin non-IC (was XL11-545)

XL11-895 Corbin Russwin

Finishes: 606 and 626.

* Sold separately only.

Cams Non Modular Cylinders
Part	Description	Price
Number	·	Each
B502-191	L9060 Straight Classic Standard	$3.50
B502-292	Adams Rite MS Classic Standard	3.50
B502-380	Adams Rite 4070 Classic Standard	12.30
B502-944	Adams Rite MS Everest® & Primus®	3.50
B502-945	Adams Rite 4070 Everest & Primus	12.30
B502-948	L9060 Straight Everest & Primus	3.50
L583-153	L-Series Everest & Primus	3.50
L583-197	L-Series for Sargent and Yale non-IC cylinders	12.30
L583-198	L-Series for Corbin Russwin non-IC cylinders	12.30
L583-254	L-Series Classic Standard	3.50
XQ11-935*	Inverted straight Everest and Primus (dogging)	5.50
XL11-895	L-Series for Corbin Russwin	12.30
B520-254	Cam for Falcon Exit Trim	12.30
* Subject to S	Specials discounting and extended factory lead time.

Cams - M	Cams - Modular Cylinders
Part Number	Description	Price Each
L583-476	L9060 for cylinder lengths 1-1/8", 1-3/8" and 1-5/8"	$3.10
L583-477	L9060 for cylinder lengths 1-1/4", 1-1/2" and 1-3/4"	3.10
B520-743	Cam, Cylinder Mortise. A/R 4070 for cylinder lengths 1-1/8", 1-3/8" and 1-5/8"	12.30
B520-744	Cam, Cylinder Mortise. A/R 4070 for cylinder lengths 1-1/4", 1-1/2" and 1-3/4"	12.30
L583-446	Adams Rite MS for cylinder lengths 1-1/8", 1-3/8" and 1-5/8"	3.10
L583-447	Adams Rite MS for cylinder lengths 1-1/4", 1-1/2" and 1-3/4"	3.10
L583-474	L-Series for cylinder lengths 1-1/8", 1-3/8" and 1-5/8"	3.10
L583-475	L-Series for cylinder lengths 1-1/4", 1-1/2" and 1-3/4"	3.10

Cam Scre	ws For Non Modular Cylinders
Part	Part Description
Number	Description	(Order in multiples of 100)
B502-468	Classic Standard up to 13/8"	$0.34
B502-942	Everest & Primus up to 1 3/8"	0.48
B502-943	Everest & Primus over 13/8"	0.66
B590-295	Classic Standard over 13/8"	0.48

Cam Screv	vs For Modular Cylinders
Part Number	Description	Price Each (Order in multiples of 100)
B520-690	Camscrew, (5-40 x 1/2") for 1-1/8" & 1-1/4" cylinder length	$0.24
B520-691	Camscrew, (5-40 x 3/4") for 1-3/8" & 1-1/2" cylinder length	0.44
B520-692	Camscrew, (5-40 x 1") for 1-5/8" & 1-3/4" cylinder length	0.60
Modular Cylinder	Housing Screws
B520-693	Modular Housing Screw (8-32 x 7/8")	$1.70
B590-295	Classic Standard over 13/8"	0.48

Dummy Cy	vlinder et la la la la la la la la la la la la la
Part Number	Description	Length	Price Each
38-070	Dummy cylinder only, less ring and cam	11/8",11/4",13/8",11/2"	$61.00
Note: 1) For t	Note: 1) For thumbturn cylinders see page L-36.

Cylinder Only

Cylinder with Compression Ring & Spring

Cylinder with Compression Ring & Spring, Blocking Ring

	ingeable Core			Finish	nes Available:
				605, 606,	609, 612, 613, 61 25, 626, 643e
			Complete	Р	rice Each
Cam	Description	Cylinder Mechanism	Cylinder	Open	Restricted
chlage L-Series (except L90	60 outside)
L583-255	Housing Only	Housing Less Core	30-016		$61.00
-		Standard Core	30-008*	142.00	159.50
1 -( )-x	Cylinder With Compression	Everest SL Core (B/R keyways only) Primus® Core	91-163 20-798		159.50 238.00
↓ ⊃	Ring & Spring: L & N	Primus® XP Core	20-796 20-798-XP	-	238.00
	Escutcheons	Everest SL Primus XP Core (B/R keyways only)	91-863-XP		238.00
*( ( (O) )	ESCUTCHEOLIS	Faculty Res. Function Core	30-010**		142.00
		Housing Less Core	30-007		69.00
Dim.		Standard Core	30-138*	157.00	174.50
X = .252		Everest SL Core (B/R keyways only)	91-169		174.50
Y = .638	Cylinder With Compression	Primus Core	20-776		254.00
	Ring, Spring &3/8" Blocking	Primus XP Core	20-776-XP		254.00
	Ring Rose Trim	Everest SL Primus XP Core (B/R keyways only)	91-869-XP		254.00
		Faculty Res. Function Core	30-140**		157.00
		Housing Less Core	30-137		83.00
chlage L9060 Outside
K510-680	Housing Only	Housing Less Core	30-032		$61.00
		Standard Core	30-030*	142.00	159.50
1.	Cylinder With Compression	Everest SL Core (B/R keyways only)	91-165		159.50
\ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \	Ring & Spring: L & N	Primus Core	20-782		238.00
i ) (	Escutcheons	Primus XP Core	20-782-XP		238.00
Dim.		Everest SL Primus XP Core (B/R keyways only)	91-865-XP		238.00
√ ( ) X = .338	Cylinder With Compression	Primus Core	20-783		254.00
Y = .778	Ring, Spring & 1/2" Blocking Ring Rose Trim	Primus XP Core	20-783-XP		254.00
M, LMV-Series LM9280 and	LM9380/LMV9380
L583-509 L583-589 (RH) (LH)		FSIC housing and core (specify handing)	26-101*
$\backslash mathcal\{N\}$	Cylinder with compression ring and spring	FSIC housing less core (specify handing)	26-102
		FSIC housing less logo core (specify handing)	26-103
on Duprin, Monarch and Oth	er Straight Cam Applications
K510-730	Housing Only	Housing Less Core	20-059		$61.00
*		Standard Core	26-091*	142.00	159.50
→ | - X			91-171	1-2.00	159.50
Ý /	Cylinder With Compression	Everest SL Core (B/R keyways only)		|
\(\left(\left(\)\)	Ring & Spring	Primus Core	20-763	1	238.00
	0 ~ 5511110	Primus XP Core	20-763-XP		238.00
Dim.		Everest SL Primus XP Core (B/R keyways only)	91-871-XP		238.00
X = .338 Y = .71	Housing Only with compression ring and spring	Housing Less Core	26-064		71.00
so for Schlage K-Series (discontinued),	compression mig und spring	Standard Core	20-061*	158.00	175.50
con® non-deadbolt functions,				155.00
n Duprin & Monarch exit devices, Adams e® 2331 deadlocks, Baldwin® mortise		Everest SL Core (B/R keyways only)	91-173	1	175.00
ks, Corbin Russwin® ML2242 inside and	Cylinder With Compression	Primus Core	20-771		254.00
.2255, Best 30H latch function.	Ring, Spring & 3/8" Blocking	Primus XP Core	20-771-XP		254.00
dogging cylinders for Von Duprin exit	Ring	Everest SL Primus XP Core (B/R keyways only)	91-873-XP		254.00
vices, specify complete cylinder (with re) and XQ11-948.**** Available at no		Housing Less Core	26-094		82.00

^* To order with construction core, see Keys and Keying: Full Size Construction Core Program for additional details. ** Specify hand for hotel function cylinders. Not available in Primus. Emergency key must be ordered separately. *** For this configuration with standard full size interchangeable core, order 30-030 cylinder and 36-082-050 blocking ring. **** Extended factory lead time.

				Price	Each
Cam	Description	Cylinder Mechanism	Complete Cylinder	Open	Restricted
dams Rite MS, 4500, 4700	O Series		,		•
K510-711	Cylinder Only	Housing Less Core	20-060	$6	1.00
↑ → × X	Cylinder With Compression Ring & Spring	Standard Core	26-098*	142.00	159.50
(( ))	Everest 29 SL Core	Housing Less Core	91-172	159	0.50
	Cylinder With Compression Ring, Spring 3/16" and 3/8" Blocking Rings	Standard Core	20-062*	167.00	184.50
Dim. X = .187		Everest SL Core (B/R keyways only)	91-174	184	.50
Y = .562		Primus® Core	20-766	270	0.00
		Primus® XP Core	20-766-XP	270.00
linders with this cam include t screw pack B220-050 for Jams Rite locks.		Everest SL Primus XP Core (B/R keyways only)	91-874-XP	270	0.00
dams Rite 4070 Series
B520-378	Cylinder Only	Housing Less Core	20-090	$6	1.00
1	Cylinder With Compression Ring, Spring 3/16" and 3/8"	Standard Core	20-091*	167.00	184.50
Y X	Blocking Rings	Everest SL Core (B/R keyways only)	91-175	184	.50
( ())		Primus Core	20-722	270	0.00
Dim.		Primus XP Core	20-722-XP	270	0.00
X = .323 Y = .627		Everest SL Primus XP Core (B/R keyways only)	91-175-XP	270.00
	* To order with construction co	re, see Keys and Keying: Full Size Constr	uction Core Program for addition	al details.
No	ote: 21/4" through 5" cylinders are a	"through 5" cylinders are available. See Special Cylinders CYL-51 for more information.

Interchar	Interchangeable Core Cams
Part Number	Description	Price Each
B520-378	Adams Rite 4070	$12.30
K510-680	L9060 Outside	3.50
K510-711	Adams Rite MS	3.50
K510-730	Straight cam	3.50
L583-255	L-Series (except L9060 outside)	3.50
B520-698	Falcon Series MA Mortise Lock	12.80
K510-730	Cam for Falcon Exit Device Trims	3.50

Other Full Size IC Mortise Cylinder Parts
Part	Description	Price
Number	Description	Each
L583-200	Cam screw (order in multiples of 100)	$0.40
C604-334**	Driver, universal	6.30
K510-474 Friction washer 2.80
** Will upgrade hou	sings manufactured before March 1992 to accept Everest a	nd Primus cores.

For plugs, shells, pins, springs, etc., see CYL-51 , CYL-52 , CYL-53 , CYL-55 .

Cam	Small Format Interchangeable Core Description		Cylinder Mechanism	Complete Cylinder	Price Each
Schlage L-Series (except L9060 outside)
L583-255		(B/R keyways only)	Everest & Everest 29 Combinated Core	80-308	$153.00
X	Cylinder With Compression Ring & Spring:	Construction Core	Disposable	80-115	72.00
Y	L & N Escutcheons		Keyed	80-138	108.00
		Housing less Core		80-108	72.00
Dim. X = .252		(B/R keyways only)	Everest & Everest 29 Combinated Core	80-301	158.00
Y = .638	Cylinder With Compression Ring & Spring: and 1/4"	Construction Core	Disposable	80-109	81.00
	Blocking Ring: Rose Trim		Keyed	80-131	122.00
		Housing less Core		80-101	81.00
Schlage L9060 Outside
K510-680 X Y		(B/R keyways only)	Everest & Everest 29 Combinated Core	80-304	$153.00
	Cylinder With Compression	Construction Core	Disposable	80-112	72.00
			Keyed	80-134	122.00
Dim. X = .338 Y = .778	Ring & Spring: L & N Escutcheons*	Housing less Core		80-104	72.00
	Von Duprin, Monarch and Other Straight Cam Applications
K510-730		(B/R keyways only)	Everest & Everest 29 Combinated Core	80-302	165.00
X Y			Disposable	80-110	81.00
		Construction Core	Keyed	80-132	122.00
Dim. X = .338 Y = .71 Also for Schlage K-Series (discontinued), Falcon® non-deadbolt functions, Von Duprin® exit devices, Adams Rite® 2331 deadlocks, Baldwin® mortise locks, Corbin Russwin® ML2242 inside and ML2255. To order dogging cylinders for Von Duprin® and Monarch® exit devices, specify complete cylinder (with core) and XQ11-948**. Available at no additional charge.	Cylinder With Compression Ring, Spring & 1/4" Blocking Ring			80-102	81.00

^** Extended factory lead time.

					Price Each
Cam	Description	Cylinder N	/lechanism	Complete Cylinder	Open
dams Rite MS, 4500 and 47	00-Series				,
K510-711 ↑ → ○ ← X		Everest & Everest 2 (B/R keyways only)		80-303	$165.00
Ý		Construction Core	Disposable	80-111	81.00
*( ( ) )	Cylinder With		Keyed	80-133	122.00
Dim. X = .187 Y = .562	7/16" Blocking Ring	Housing less Core		80-103	81.00
dams Rite 4070 Series		Everest & Everest 2 (B/R keyways only)		80-305	$165.00
Y X		(D/ It keyways offic)	Disposable	80-113	81.00
((())	Culinday Mith	Construction Core	Keyed	80-135	122.00
Dim. X = .323 Y = .627	Cylinder With Compression Ring, Spring & 1/4" Blocking Ring	Housing less Core		80-105	81.00
Notes:	Housing finishes: 605, 606, 609, 612, 613, 619, 625 and 626.
	All SFIC cylinders with Adams Rite MS or 4070 cams are furnished with set screw pack B220-050.

Interchangeable Core Cams
Part Number	Description	Price Each
B520-378	Adams Rite 4070	$12.30
K510-680	L9060 Outside	3.50
K510-711	Adams Rite MS	3.50
K510-730	Straight cam	3.50
L583-255	L-Series (except L9060 outside)	3.50

Other Full Size IC Mortise Cylinder Parts
Part	Description	Price
Number	Description	Each
B520-484	Cam screw (order in multiples of 100)	$0.42
B520-483	Throw member (driver)	6.30
B220-050	Adams Rite set screw pack	2.70

For pins, springs, etc., see CYL-50.

					Door Thickness
				1 3/8"	1 3/4"	2"	2 1/4"
	Function	Trim	Cylinder		Dimension
L9050, L9056,L9070,	L460, L464, L9460, L9464	Rose	30-001		118
L9076,L9080, L9080EL/	—	Escutcheon	30-021	118	114	138	112
EU, L9453, L9456, L9460 per XL11-886 or XL-635, L9464 per XL11-886, L9465, L9473,L9480	—	Concealed	30-004	118	114	138	112
		Rose	30-022		118
L9485 per XL11-557	—	Escutcheon	30-022	—	114	138	112
		Concealed	30-005	—	114	138	112
L9486		Rose	30-002	114	138	112	158
	—	Escutcheon	30-022	118	114	138	112
		Concealed	30-005	118	114	138	112
		Rose	30-001	114	138	112	158
L9496	—	Escutcheon	30-021	118	114	138	112
		Concealed	30-004	118	114	138	112
L9060, L9071, L9077, L9082,	L462, L463, L9462, L9463	Rose	30-001		118
L9082EL/EU*, L9457, L9462	—	Escutcheon	30-001	114	—	—	—
per XL11-886, L9464, L9466,	—		30-021	—	118	114	138
L9482	—	Concealed	30-004	—	118	114	138
		Rose	20-001		118
		Escutcheon	20-001	114	—	—	—
L9060 Outside	—		26-021	—	118	114	138
		Concealed	26-023	—	118	114	138

Dimensions for Mortise Cylinders
Cylinder Length Dimension
1 1/8"	118
1 1/4"	114
1 3/8"	138
1 1/2"	112
1 5/8"	158
1 3/4"	134

			Door Thickness
			1 3/8"	1 3/4"	2"	2 1/4"
Function		Trim			Dimension
	L9050, L9056, L9070, L9076, L9080, L9080EL/EU, L9453, L9456,	Rose	050	037	025	025
	L9460 per XL11-886 or XL-635, L9464 per XL11-886, L9465, L9473,	Escutcheon	025	012	N/R	N/R
L9480
L9485 per XL11-557	Rose	—	037	025	025
		Escutcheon	—	012	N/R	N/R
L9486, L9496		Rose	012	N/R	N/R	N/R
		Escutcheon	025	012	N/R	N/R
	L9060*, L9071*, L9077*, L9082*, L9457*, L9462* per XL11-886,	Rose	—	050	043	031
L9466*, L9482*		Escutcheon	025	012	N/R	N/R
L460, L464, L9460, L9464		Rose	050	037	025	025
L462*, L463*, L9462*, L9463*		Rose	—	050	043	031
Notes:	Specify blocking ring (36-082), finish and dimension.
	Blocking ring (36-082) must be used with compression ring (36-083).
	N/R = None Required.
	* 2 Blocking rings required.

			Door Thickness
			1 3/8"	1 3/4"	2"	2 1/4"
Function		Trim		Dimension
L9050, L9056, L9070, L9076, L9080, L9080EL/EU, L9453, L9456, L9460 per XL11-886 or XL-635, L9464 per XL11-886, L9465, L9473, L9480		Rose	037	025	012	N/R
		Escutcheon **	N/R	N/R	N/R	N/R
L9060*, L9071*, L9077*, l9082*, L9082EL/EU*, L9457*, L9462* per XL11-886, L9464*, L9466*, L9482*		Rose	—	050	037	025
		Escutcheon	018	N/R	N/R	N/R
L9496		Rose	025	012	N/R	N/R
		Escutcheon	N/R	N/R	N/R	N/R
	L460, L464, L496, L9460, L9464	Rose	037	025	012	N/R
	L462*, L463*, L9462*, L9463*	Rose	—	050	037	025
Notes:	Specify blocking ring (36-082), finish and dimension.
	Blocking ring (36-082) must be used with compression ring (36-083).
	N/R =None Required.
*	2 Blocking rings required.
**	Compression ring not required for doors over 1 9/16" thick.

Dimensions for Blocking Rings
Blocking Ring	Length Dimension
1/8"	012
3 /16"	018
1/4"	025
5/16"	031
3/8"	037
7/16"	043
1/2"	050

Blocking and Compression Rings
Part Number	Specify Finish	Description	Price Each
36-079*	•	Blocking ring for use without compression ring	$14.00
36-082*	•	Blocking ring for use with compression ring	12.20
36-083	•	Compression ring and spring	10.10
L583-195		Compression ring spring	1.60

			Cams for Schlage Cylinders
Description	Modular Cylinder 1 1/8", 1 3/8", 1 5/8	Modular Cylinder 1 1/4", 1 1/2", 1 3/4	Interchangeable Core SFIC and FSIC	Classic Standard Not available with cylinder	Everest and Primus non-IC Not available with cylinder
Schlage L-Series, Except L9060 O/S	L583-474	L583-475	L583-255	L583-254	L583-153
Schlage L9060 O/S	L583-476	L583-477	K510-680	B502-191	B502-948
Schlage K-Series (Discontinued)	L583-476	L583-477	K510-730	B502-191	B502-948
Falcon M-Series Non-deadbolt functions (Discontinued)	L583-476	L583-477	K510-730	B502-191	B502-948
Falcon M-Series Deadbolt functions (Discontinued)	B520-738	B520-739	XB12-046	A09894-001-00*	B502-907
Falcon MA-Series except MA381 function	L583-638	L583-639	B520-698	N/A	N/A
Von Duprin mortise exit device and Von Duprin removable mullion	L583-476	L583-477	K510-730	B502-191	B502-948
Von Duprin mortise exit device with dogging	L583-476	L583-477	K510-730 PER XQ11-948	B502-191	B502-948
Glynn-Johnson HL-6, except 9060 O/S	L583-474	L583-475	L583-255	L583-254	l581-153
Glynn-Johnson HL-6 9060 O/S	L583-476	L583-477	K510-680	B502-191	B502-948
Schlage CM5500, CM5600, PRO5500, VIP5500, 650 Keyswitch	L583-476	L583-477	K510-680	B502-191	B502-948
Falcon 718C Trim (Manufactured after 2/28/2011)	B520-730	B520-731	B520-254	B520-295	B520-366
Falcon 24/25 exit device with trims (except 718C and 718NL)	N/A	N/A	N/A	A09897-024-00*	A09897-024-00*
Falcon 24/25 exit device with trims (only 718C and 718NL) Falcon #24 cam	N/A	N/A	N/A	A09894-021-00*	A09894-021-00*

Cam	Price	Cam	Price	Cam	Price
B502-191	$3.50	K510-680	3.50	L583-474
B502-907	3.50	K510-730	3.50	L583-475
B502-948	3.50	L583-153	3.50	L583-476	$3.10
B520-254	12.30	L583-254	3.50	L583-477
B520-698	12.80	L583-255	3.50	L583-638
B520-738	12.30			L583-639	11.40
B520-739	12.30			XB12-046	11.80
B520-740	OBSOLETE - USE L583-476
B520-741	OBSOLETE - USE

B520-295 12.20

* Falcon cam available through the Falcon price book.

L583-477

ide iew	Lock Series	Cylinder Mechanism	Complete Cylinder	Pric Open	e Each Restricted	Keyway Type	Plug	Shell	Tailpiece/ Cam
ICW	LOCK Series		-	i .		Classic	33-137		Cum
		Standard	21-020	$64.00	$81.50	Everest & Everest 29	33-138	A508-652
	B611, T381	Primus	20-728	1/1.00		Classic	33-136		4700 031
	IS & W,	Primus XP	20-728-XP	141.00		Everest & Everest 29	33-119	4500 655	A700-031
ĺ	all except 561	Primus UL	20-528	17/ 00		Classic	33-154	A508-655
		Primus XP UL	20-528-XP	174.00		Everest & Everest 29	33-221	]
		Standard	24-031	64.00	81.50	Classic	33-137	A508-652
		Standard	24-031	04.00	01.50	Everest & Everest 29	33-138	A300-032
	T, all except	Primus	24-761	141.00		Classic	33-136		030730-001
	381 IS & 571	Primus XP	24-761-XP	141.00		Everest & Everest 29	33-119	A508-655	030730 001
		Primus UL	24-561	174.00		Classic	33-154	A300 033
		Primus XP UL	24-561-XP	174.00		Everest & Everest 29	33-221
		Standard	24-032	64.00	81.50	Classic	33-137	A508-652
				000	050	Everest & Everest 29	33-138	71300 032	_
	T571	Primus	24-762	141.00		Classic	33-136	_	030730-002
		Primus XP	24-762-XP	1		Everest & Everest 29	33-119	A508-655	|
		Primus UL	24-562	174.00		Classic	33-154
		Primus XP UL	24-562-XP	17 1100		Everest & Everest 29	33-221
		Standard	24-033	64.00	81.50	Classic	33-137	A508-652
						Everest & Everest 29	33-138		-
	W561, knobs	Primus	24-763	141.00		Classic	33-136	_	Q330-252*
	·	Primus XP	24-763-XP			Everest & Everest 29	33-119	A508-655
		Primus UL	24-563	174.00		Classic	33-154
		Primus XP UL	24-563-XP			Everest & Everest 29	33-221
		Standard	24-034	64.00	81.50	Classic	33-137	A508-652
		Deimous	24-764			Everest & Everest 29	33-138		-
	W561, levers	Primus Primus XP	24-764 24-764-XP	141.00		Classic Everest & Everest 29	33-136	4	Q330-165*
		-				Classic	33-119 33-154	A508-655
		Primus UL Primus XP UL	24-564 24-564-XP	174.00		Everest & Everest 29		-
		PIIIIUS AP UL	Z4-JU4-AP			Classic	33-221 33-137		Coo Com
		Standard	24-035	85.00	102.50	Everest & Everest 29	33-138	A508-652	See Cam
		Primus	24-765			Classic	33-136		chart on
	М	Primus XP	24-765-XP	163.00		Everest & Everest 29	33-119	-	page CYL-38 for
		Primus UL	24-565			Classic	33-154	A508-655	proper
		Primus XP UL	24-565-XP	190.00		Everest & Everest 29	33-221	-	cam
						Classic	33-137		cum
		Standard	23-013	64.00	81.50	Everest & Everest 29	33-138	A508-652
		Primus	20-750			Classic	33-136		1
	B, all except	Primus XP	20-750-XP	141.00		Everest & Everest 29	33-119	1	C604-243
		Primus UL	20-550			Classic	33-154	A508-655
		Primus XP UL	20-550-XP	174.00		Everest & Everest 29	33-221	1
						Classic	33-137
		Standard	24-139	64.00	81.50	Everest & Everest 29	33-138	A508-653
		Primus		1		Classic	33-136		Q330-393
	K	Primus XP	20-739	141.00		Everest & Everest 29	33-119	1	Q330-394
		Primus UL 437	22.52			Classic	33-154	A508-655	(T571)
		Primus XP UL437	20-539	174.00		Everest & Everest 29	33-221	1
$\backslash neg$						Classic	33-137		F506-878/
	H2	Standard	22-093	64.00	81.50	Everest & Everest 29	33-138	A508-652	B600-071

^* These part numbers represent Falcon part numbers and are available to order through Falcon.

Rim Cylinders					Finishes Available:
					605, 606, 609, 612, 613, 619, 625, 626, 629, 630, 643e
					Price Each
Type	Cylinder Mechanism	Tailpiece	Complete	Open	Restricted
Conventional	Standard	Horizontal	20-022
(non-IC)		Vertical	20-021	$81.00	$98.50
	Everest SL	Horizontal	91-075
	(B/R keyways only)	Vertical	91-074		98.50
	Primus	Horizontal	20-710
		Vertical	20-709		159.00
	Primus XP	Horizontal	20-710-XP
		Vertical	20-709-XP		159.00
	Everest SL Primus XP	Horizontal	91-775-XP	81.00
	(B/R keyways only)	Vertical	91-774-XP	158.50 199.00
	Primus UL437	Horizontal	20-510
		Vertical	20-509
	Primus XP UL437	Horizontal	20-510-XP
		Vertical	20-509-XP		199.00
Lockout	Primus		20-716
	Primus XP		20-716-XP		219.00
	Primus UL437	Horizontal	20-516
	Primus XP UL437		20-516-XP		237.00
Thumbturn	None	Horizontal	XB11-979		107.00
Notes		Housing finishes: 605, 606, 609, 612, 613, 619, 625 and 626.
	All items include collar, mounting screws and backplate.
	horizontal.	Tailpiece orientation may be changed in the field. For Von Duprin, Monarch and most other applications, tailpiece should be
	To order less logo, specify: "with K510-612 faceplate" for Conventional cylinder. "with 23-031 core" for full size interchangeable core cylinder.
	Conventional (non-IC) cylinders are available for application that is thicker than 3" ( combined door & device trim thickness) over 3" thick and available with special mounting screw locations for Sargent exit devices. See Special Cylinders CYL-51.

For keying in the field, order 10-piece Bulk Pack Cylinders.

Cylinders are sub-assembled to save time!

See CYL-5

Rim Cylinders
				Finishes Available: 605 606 609 612 613 619 622, 625 626 643e
					Price Each
Type	Cylinder Mechanism	Tailpiece	Complete	Open	Restricted
Full Size	Standard Core	Convertible	20-057*	$142.00	$159.50
Interchangeable Core	Everest SL Core (B/R keyways only)		91-170		159.50
	Primus Core		20-757	215.00
	Primus XP Core		20-757-XP	215.00
	Everest SL Primus XP Core (B/R keyways only)		91-870-XP		215.00
	Housing only-less core		20-079		61.00
Small Format	Everest & Everest 29 Combinated Core		80-329**		142.00
Interchangeable Core	Keyed Construction Core		80-159***		98.00
	Disposable Construction Core		80-116		61.00
	Housing only-less core	Horizontal	80-129		61.00

• * To order with construction core, see Keys and Keying: Full Size Construction Core Program.
• ** Key symbol must be specified. Everest B and Everest 29 R Families keyways are restricted. See Terms & Conditions for more information.
• *** Specify GRN for green or BRN for brown construction cores. A non-refundable handling charge (50-231) is assessed per core. See Keys and Keying: Small Format Construction Core Program for details.

Rim Cylinder Parts
Part Number	Description	Price Each
36-066	Collar, IC cylinders	$9.10
B202-328	Screws and backplate pack	8.00
B220-001*	Tailpiece & driver, full size IC	13.30
B502-200	Backplate	1.60
B502-209	Mounting screw	1.60
B502-310-604	Driver, Conventional (non-IC) cylinder	1.50
B502-899	Tailpiece, Conventional (non-IC) cylinder and SFIC housing	3.10
B520-153	Ring, cylinder, NL	9.00
B520-361*	Tailpiece retainer, full size IC (order in multiples of 100)	0.36
B520-365	Driver, SFIC	8.50
B600-107	Throw member for SFIC models	3.10

^* Not compatible with housings manufactured before July 1997. For replacement of older parts, order housings less core (20-079).

For plugs, shells, pins, springs, etc., see CYL-50, CYL-52, CYL-53, CYL-55.

For keying in the field, order 10-piece Bulk Pack Cores.

Cores are sub-assembled to save time!

See CYL-5

			Finishes Available: 606, 626
			Price Each
Description	Part Number	Open	Restricted
Standard core	23-030	$73.00	$90.50
Standard core less logo	23-031	73.00	90.50
Everest SL Core (B/R keyways only)	91-161		90.50
Everest SL Core less logo (B/R keyways only)	91-162		90.50
Primus core	20-740		152.00
Primus XP core	20-740-XP		152.00
Primus core less logo	20-741		152.00
Primus XP core less logo	20-741-XP		152.00
Everest SL Primus XP Core (B/R keyways only)	91-861-XP		152.00
Everest SL Primus XP less logo Core (B/R keyways only)	91-862-XP		152.00
Hotel function standard core for L9485 and L9486	30-120*	73.00	90.50
Hotel function standard core, less logo, for L9485 and L9486	30-121*	73.00	90.50

	Full Size Core Parts
Part Number	Description	Price Each
C503-115	Cap pin spring (Order in multiples of 100)	$0.22
C503-118	Cap (Order in multiples of 25)	1.60
C603-827	Cap pin (Order in multiples of 100)	0.26
C603-956	Actuating ring	7.10
C603-964	Actuating pin (control top pin)	0.68
C603-967	Control bottom pin (Order in multiples of 100)	0.28
23446339	Driver, FSIC, AD-Series CY, MS, MD, 993R, 993 S, 993M	4.90

For plugs, shells, pins, springs, etc., see CYL-50, CYL-52, CYL-53, CYL-55.

Everest® & Everest 29™ Patented Keyway Small Format Interchangeable Cores
Description	Part Number	Price Each
Everest combinated core, includes master keying	80-037	$84.00
Everest uncombinated core (Does not include keys, pins or springs)	80-036	56.00
Finishes: 606, 626 and 613 (simulated).

Best® Keyway Small Format Interchangeable Cores
	Description	Part Number	Price Each
7-Pin uncombinated, specify keyway		80-033	$38.00
	6-Pin uncombinated, specify keyway		38.00
Notes:	Finishes: 606 and 626.
	Uncombinated cores are furnished less keys, pins and springs. Factory keying is not available.
Specify keyway using B suffix: AB = A, BB=B, CB=C, DB = D, DDB=DD, EB = E, FB = F, GB = G, HB = H, JB = J, KB = K, LB = L, NB=N, MB = M, RB=R, TBB=TB, TDB=TD, QB=Q.

	AD-Series Tailpiece for Small Format Core
Chassis	Lever Design	Description	Tailpiece	Price Each
CY, MS, MD		SFIC Driver	23446347	13.80
	All	SFIC Driver, Spacer
		(for 6 pins core)	46929456	15.60
		and Instruction sheet
		SFIC Driver	N523-091	13.80
	Except ATH, 8AT	SFIC Driver, Spacer
		(for 6 pins core)	09-774	13.80
		and Instruction sheet
993R, 993S, 993M		SFIC Driver	23446347	13.70
	ATH, 8AT	SFIC Driver, Spacer
		(for 6 pins core)	46929456	15.60
		and Instruction sheet

For pins, springs, etc., see CYL-51.

Corbin Russwin®	Retro	fit Cylinder	Refer	ence T	able
	Lock		Pric	e Each	Complete	Keyway Type	Plug	Shell	Tailpiece
Side View	Series	Cylinder Mechanism	Open	Restricted	Cylinder	neyway iype	(See CYL-53)	(See CYL-55)	Taitpiece
		Standard	$64.00	$81.50	24-022	Classic	33-137	A508-653
		Stariualu	304.00	301.30	24-022	Everest & Everest 29	33-138	A200-022
		Everest SL (B/R keyways only)		81.50	91-020	Everest B & Everest 29 R	33-213	A508-660
	CL3300	Primus	1/	1.00	20-762	Classic	33-136	VEUO 922	N523-022
	CL3300	Primus XP	| 14	1.00	20-762-XP	Everest & Everest 29	33-119	A508-655	111323-022
		Everest SL Primus XP (B/R keyways only)		141.00	91-720-XP	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	174.00	4.00	20-562	Classic	33-154	A508-655
		Primus XP UL437	17	4.00	20-562-XP	Everest & Everest 29	33-221	A306-033
		Standard $64.00 $81.50	¢01 E0	24-139	Classic	33-137	A508-653
		Stariualu		24-139	Everest & Everest 29	33-138
		Everest SL (B/R keyways only)		81.50	91-027	Everest B & Everest 29 R	33-213	A508-660
	CL3400	Primus	1/	1.00	20-739	Classic	33-136	AE00 CEE	4201 220
	CL3600	Primus XP	| 14	1.00	20-739-XP	Everest & Everest 29	33-119	A508-655	A301-338
W		Everest SL Primus XP (B/R keyways only)		141.00	91-708-XP	Everest B & Everest 29 R	33-214	A508-661
		Primus UL437	17	4.00	20-539	Classic	33-154	A508-655
		Primus XP UL437	17	4.00	20-539-XP	Everest & Everest 29	33-221	A306-033
		Standard	$64.00	$81.50	24-127	Classic	33-060	A201-690
	CK4200	Stariualu	$04.00	$01.50	Z4-1Z1	Everest & Everest 29	33-232	A100-052
	UT5200	Primus	1/	1.00	20-727	Classic	33-081		None
	(since	Primus XP	| 14	1.00	20-727-XP	Everest & Everest 29	33-222	1 4201 600	None
	1963)	Primus UL437	17	4.00	20-527	Classic	33-080	A201-690
		Primus XP UL437	17	4.00	20-527-XP	Everest & Everest 29	33-223

	Lock	Cylinder	Pric	e Each	Complete	Keyway Type	Plug	Shell	Tailpiece
Side View	Series	Mechanism	Open	Restricted	Cylinder		(See CYL-53)	,	Taitpiece
		Standard	$64.00	$81.50	24-119	Classic	33-007	A201-849
		Stariuaiu	304.00	301.30	24-119	Everest & Everest 29	33-231	A100-050
	7L, 8L,	Everest SL (B/R keyways only)		81.50	91-042	Everest B & Everest 29 R	33-219	A508-660
	10 Line	Primus	1/	1.00	20-719	Classic	33-163	A201-683	C604-243
	Levers	Primus XP	| 14	1.00	20-719-XP	Everest & Everest 29	33-224	AZU1-003	C004-243
	Levels	Everest SL Primus XP (B/R keyways only)		141.00	91-742-XP	Everest B & Everest 29 R
		Primus UL437	17	. nn	20-519	Classic	33-162	A201-683
		Primus XP UL437	174.00		20-519-XP	Everest & Everest 29	33-225	AZU1-003	201-083
		Standard	$64.00	$64.00 $81.50		Classic	33-007	A100-045
		Stariualu	$04.00	$61.50	24-120	Everest & Everest 29	33-231	A100-049
	7, 8, 9	Everest SL (B/R keyways only)		81.50	91-043	Everest B & Everest 29 R	33-219	A508-660	C303-437
1	Line	Primus	1/1	1.00	20-720	Classic	33-163	A100-047	Assembly
		Primus XP	| 14	1.00	20-720-XP	Everest & Everest 29	33-224	A100-047	with cap
	KIIODS	Everest SL Primus XP (B/R keyways only)		141.00	91-743-XP	Everest B & Everest 29 R			Withtap
		Primus UL437	17	4.00	20-520	Classic	33-162	A100-047
		Primus XP UL437	17	4.00	20-520-XP	Everest & Everest 29	33-225	A100-047
		Standard	$64.00	$81.50	24-126	Classic	33-007	A100-046
		Stariualu	$04.00	301.30	24-120	Everest & Everest 29	33-231	A100-050
	6 Line	Everest SL (B/R keyways only)		81.50	91-045	Everest B & Everest 29 R	33-219	A508-662
	Except	Primus	141.00	1.00	20-726	Classic	33-163	A100-048	C604-243
	B Knob	Primus XP	14	1.00	20-726-XP	Everest & Everest 29	33-224	A100-040	C004-243
	B KIIOD	Everest SL Primus XP (B/R keyways only)		141.00	91-745-XP	Everest B & Everest 29 R
		Primus UL437	17	4.00	20-526	Classic	33-162	A100-048
		Primus XP UL437	| 17	4.00	20-526-XP	Everest & Everest 29	33-225	A100-048

Yale® Retrofit Cy	/linde	r Reference	Table
	Lock		Complete	Price	e Each	Keyway Type	Plug	Shell	Tailpiece
Side View	Series	Cylinder Mechanism	Cylinder	Open	Restricted	ed Reyway Type	(See CYL-53)	(See CYL-55)	ranpiece
		Standard	24-147	$64.00	$81.50	Classic	33-007	A201-849
		Standard	24-147	$04.00	301.30	Everest & Everest 29	33-231	A100-050
		Everest SL (B/R keyways only)	91-044		81.50	Everest B & Everest 29 R	33-219	A508-660
	5300LN 5400LN	Primus	20-747	1/1.00	Classic	33-163	A201-683	A301-043
	Levers	Primus XP	20-747-XP	141.00		Everest & Everest 29	33-224	AZUI-083	A301-043
		Everest SL Primus XP (B/R keyways only)	91-744-XP		141.00	Everest B & Everest 29 R
		Primus UL437	20-547	174.00		Classic	33-162	A201-683
		Primus XP UL437	20-547-XP			Everest & Everest 29	33-225
/		Standard 24-123 $64.00 $81.50	Classic	33-007	A201-849
		Standard	24-123	304.00	$64.00 $81.50	Everest & Everest 29	33-231	A100-050	] |
	5300,	Everest SL (B/R keyways only)	91-046		81.50	Everest B & Everest 29 R	33-219	A508-660
	5400, 6200	Primus	20-723	16	1.00	Classic	33-163	A201-683	B520-409
	Series	Primus XP	20-723-XP	141.	1.00	Everest & Everest 29	33-224	A201-003	DJ2U-409
	Knobs	Everest SL Primus XP (B/R keyways only)	91-746-XP		141.00	Everest B & Everest 29 R
		Primus UL437	20-523	17	, oo	Classic	33-162	A201 602
		Primus XP UL437	20-523-XP	1/4	4.00	Everest & Everest 29	33-225	A201-683

Tailpie	ces and Actuators
Part Number	Locksets	Price Each
A301-043	Yale Levers	$5.00
A301-338	Corbin Russwin CL3400/CL3600	9.50
B520-409	Yale Knobs	31.50
C303-437	Sargent 7, 8, 9 (Assembly with cap)	13.80
C604-243	Sargent 6, 7L, 8L, 10 Line	1.90

Miscellaneous
Part Number	Description	Price Each
A501-783	Blocking disc, Yale levers	$5.30
B520-408	Sleeve, Yale cylinders	5.20
B520-407	Washer, Sargent	6.60
C607-062	Spacer, Corbin Russwin CL3300	3.70

For pins, springs, etc., see CYL-51.

				Complete	Price	e Each
Cam		Description	Cylinder Mechanism	Cylinder	Open	Restricted
orbin Russwin Mast	er Ring
B502-946	B520-728		Standard	20-009	$207.00	$224.50
Everest & Primus	For cyl. length 11/8",13/8",15/8"		Primus Controlled Access	20-705	320	0.00
Dim. X = .328 Y = .893	Dim. X = .34 Y = .90		Primus XP Controlled Access	20-705-XP	320	0.00
B502-486	B520-729	Master Ring	Primus UL437 20-505	20-505	354	4.00
Classic Standard	For cyl. length 1 1/4", 11/2", 13/4"	(includes bushing)	Primus XP UL437	20-505-XP	354	4.00
Dim. X = .328 Y = .893	Dim. X = .34 Y = .90
Notes	Frices apply to 11/8", 11/4" and 13/8". For 11/2", 15/8" and 13/4" Primus add $45.00. For 11/2", 15/8" and 13/4" Conventional add $11.8				onal add $11.80
	Finishes: 605, 606, 60	19, 612, 613, 625 and 626.
	To order less Schlage	logo specify cylinder "with K510	)-612 facenlate"

Bushing, Corbin Russwin Master Ring
Part Number	Description	Price Each
B202-339 Reducing bushing and screws $100.00

Cams, Corbin Russwin Master Ring
Part Number	Description	Price Each
B502-486	Classic Standard - Non Modular Cylinders	$34.70
B502-946	Everest & Primus - Non Modular Cylinders	40.80
XB11-825	Interchangeable core - Non Modular Cylinders	35.90
B520-728	Modular Cylinders (all keyways) length 1-1/8", 1-3/8", 1-5/8"	40.70
B520-729	Modular Cylinders (all keyways) length 1-1/4", 1-1/2", 1-3/4"	40.70

Trim Collars Corbin Russwin Master Ring
Part Number	Specify Finish	Description	Price Each
38-033		Trim collar	$11.20

For plugs, shells, pins, springs, etc., see CYL-50 , CYL-52 , CYL-53 , CYL-55 .

Cam and Cam Substitutions for Schlage Mortise Cylinders to Operate Other Manufacturer's Locks Modular Cylinder Classic Standard Interchangeable Core Everest, Primus (introduced in July 2010) FSIC & SFIC Non-IC Non-IC For Standard Pinned For Primus & Everest CAM Substitutions only 20-059, 20-061, 26-064, allowed on these cylinder 20-001, 20-002, 20-500, Cylinders Manufactured Cylinders Manufactured 20-763, 20-771, 26-091, 20-501, 20-515, 20-700, hefore hefore numbers: 26-094, 80-302, 80-110. Order Example: 20-701, 20-715, 26-021 July 2010 July 2010 80-132, 80-102 20-001 X B210-731 626 S123 Not Available with Cylinder Not Available with Cylinder 11/8",13/8",15/8" 11/4",11/2",13/4" N/A B520-730 B520-731 B520-254 B520-295 B520-366 Corbin Russwin® (was XB11-426) (was XB11-458) (was XB11-656) DL4000 Series (Old Corbin 420 and 1/8 3/8 5/8 . 1/4 1/2 3/4 Russwin 1503) Dim. X = .153 Dim. X = .153 Y = .761 Y = .761B520-732 B520-733 B520-253 B520-233 B520-309 Corbin Russwin® (was XB11-352) (was XB08-899) (was XB11-629) ML2200 Series (Old Corbin 7000-9000 and Russwin 4000-5000) All functions except ML2255 and Dim. X = .236Y = .731Dim. X = .236 Y = .731 ML2242 inside (see straight cam) B520-735 B520-734 B520-360 B520-223 B520-367 Corbin Russwin A65 (was XB11-817) (was XB03-142) (was XB11-887) ML2200 master ring deadbolt functions manufactured before 6/10/93 and old Russwin cast iron residential locks. Dim. X = .242 Dim. X = .242For all Best 40H Series Y = .757& 30H Deadbolt function B520-736 B520-737 B520-296 B520-256 B520-329 Yale® (was XB11-461, (was XB11-430, (was XB11-631, 2160 replaces XB11-484) replaces XB10-659) replaces XB11-630) Arrow® #004 Sargent® 13-0660 All functions except 16 inside Dim. X = .187 Dim Dim. X = .187 and 50 outside Y = .727 X = .186Y = .718L583-476 L583-477 K510-730 B502-191 B502-948 Best Classic Standard Everest & Primus 30 Latch Function Dim. DIM X = 0.35" DIM Y = 0.72 Dim X = .338Cam substitution with Cylinders shown above are No Charge Not available for substitution

Cam	Price	Cam	Price	Cam	Price
B502-191	Ć2 EO	B520-296		B520-732
B502-948	$3.50	B520-309		B520-733
B520-223		B520-329		B520-734	ć12.20
B520-233		B520-360	612.20	B520-735	$12.30
B520-253	12.30	B520-366	$12.30	B520-736
B530-254		B520-367		B520-737
B520-256		B520-730		K510-730	3.50
'		B520-731

Competititor Cams for SL Modular Cylinder
CAM Substitutions only allowed on these cylinder numbers: Order Example: 91-051 X B520-780 626 R123	91-051 118	91-051 114
	1 1/8"	1 1/4"
Corbin Russwin® DL4000 Series (Old Corbin 420 and Russwin 1503)	B520-780	B520-781
Corbin Russwin® ML2200 Series (Old Corbin 7000-9000 and Russwin 4000-5000) All functions except ML2255 and ML2242 inside (see straight cam)	B520-782	B520-783
Corbin Russwin A65 ML2200 master ring deadbolt functions manufactured before 6/10/93 and old Russwin cast iron residential locks. For all Best 40H Series & 30H Deadbolt function	B520-784	B520-785
Yale® 2160 Arrow® #004 Sargent® 13-0660 All functions except 16 inside and 50 outside	B520-786	B520-787
Best 30 Latch Function	L583-802	L583-803

Cam	Price
B520-780
B520-781
B520-782
B520-783
B520-784
B520-785	$12.30
B520-786
B520-787
L583-802
L583-803

		Cam	Plug	Shell (See CYL-57)	Complete	Complete Cyl. Price
Description	Keyway Type	(See Below)	(See CYL-55)		Cylinder	Open	Restricted
American Device	Classic	C604-268	33-616	C203-726
	Everest & Everest 29	C604-268	33-234	A100-051	20-066
Auth, 466, 470, 480 Series	Classic	C604-269	33-616	C203-726	$96.00	$113.50
	Everest & Everest 29	C604-269	33-234	A100-051	20-067
Bommer vertical mail box	Classic	L583-476	33-137	N/A		85.00
	Everest & Everest 29	L583-476	33-138	N/A	20-001-118		102.50
Bommer & Florence, Cutler Mail	Classic	C604-269	33-616	C203-726
Chute, Federal Equipment	Everest & Everest 29	C604-269	33-234	A100-051	20-069
Corbin Wood Products	Classic	C604-271	33-616	C203-726
	Everest & Everest 29	C604-271	33-234	A100-051	20-033	96.00	113.50
Dura Steel	Classic	C604-088	33-806
	Everest & Everest 29	C604-419	33-233	A508-653	20-030
Notes:	Finishes: 606 and 626. 20-001 also available 605, 612, 613 and 625.
	Federal law prohibits the master keying of a letter box cylinder.

Miscellaneous Parts
Part Number	Description	Price Each
B502-468	Screw, 2 required, 20-030 Classic (order multiples of 100)	$0.34
B502-942	Screw, 20-030 Everest (order multiples of 100)	0.48
C503-346	Spacer, 20-033, 20-066, 20-067, 20-069	1.50
C604-050	Mounting bracket, 20-033	13.70
C604-051	Screw post, 2 req'd, 20-033	2.00
C604-052	Screw, 2 req'd, 20-033	2.70
C604-053	Lock washer, 2 req'd, 20-033	2.70

Miscellaneous Parts
Part Number	Description	Price Each
C604-088	Cam, 20-030 Classic	$36.20
C604-089	Bracket, 20-030	27.00
C604-226	Screw, 2 req'd, 20-033, 20-066, 20-067, 20-069 (order mult. of 100)	0.26
C604-234	Washer, 2 req'd, 20-033, 20-066, 20-067, 20-069 (order mult. of 100)	0.26
C604-268	Cam, 20-066	23.90
C604-269	Cam, 20-067, 20-069	23.90
C604-271	Cam, 20-033	29.30
C604-419	Cam, 20-030 Everest	36.40

For pins, springs, etc., see CYL-50.

	6 Extended Factory Lead Time
"X" Number	Description	Price Each
Extra Long Mortise Cylinders
XB03-418	Mortise cylinder (20-001, 30-001 or 30-004), 1 7/8" – 5" long Classic, Everest or Everest 29	$576.00
	Full size IC mortise cylinder (26-091 or 30-008), 2 1/4" – 5" long Classic, Everest or Everest 29	789.00
XB11-475*	Primus full size IC mortise cylinder (20-763 or 20-798), 2 1/4" – 5" long	1,050.00
	Full size IC mortise cylinder housing less core (20-059 or 30-007) 2 1/4" – 5" long	693.00
XB11-638	Primus mortise cylinder (20-700, 20-787 or 20-789), 1 7/8" – 5" long	1,050.00
Mortise Cylinder with Switch
XB09-195	Mortise cylinder (20-001) with "on" and "off" switch for key controlled electrical circuits, standard	$611.00
XB09-795	Same as XB09-195, but double position, Classic Standard only (no master keying available)	818.00
XQ11-804	Primus mortise cylinder (20-700) with "on" and "off" switch for key controlled electrical circuits	831.00
Rim Cylinders
	Conventional standard pinned cylinder (20-021 or 20-022) for doors over 3" thick
	Insure device/ trim thickness is included in addition to door thickness	$723.00
XB04-618	Primus cylinder (20-710) for doors over 3" thick	802.00
	Insure device/ trim thickness is included in addition to door thickness
XB11-789	Conventional standard pinned cylinder (20-022) with mounting holes for Sargent® exit device	137.00
XB11-790	Primus cylinder (20-710) with mounting holes for Sargent® exit device	280.00
	Full size IC, Standard core (20-057) for doors over 3" thick	754.00
	Insure device/ trim thickness is included in addition to door thickness
XB11-958	Full size IC, Primus core (20-757) for doors over 3" thick	1,014.00
	Insure device/ trim thickness is included in addition to door thickness
	Full size IC, housing less core (20-079) for doors over 3" thick	658.00
	Insure device/ trim thickness is included in addition to door thickness
	* Available in 1/4" increments. Order collars or blocking rings separately to fill any gaps.
Note:	If you are unable to find your required hardware solution in this price book, please use the Schlage Innovation Center Process in the

Origina Pins-Fu
Part			Price
Number	Type	Size	Each
34-101		#1
34-102	Top pins	#2
34-103		#3
34-202		#2
34-203		#3
34-204	Master pins	#4
34-205		#5
34-206		#6
34-207		#7
34-208		#8	Order in
34-209		#9	multiples of 100
34-300		#0	$0.08
34-301		#1
34-302		#2
34-303		#3
34-304	Dottom pins	#4
34-305	Bottom pins	#5
34-306		#6
34-307		#7
34-308		#8
34-309		#9
34-007	Everest &		Order in
	Everest 29		multiples of 50
	check pin		1.60

Primus® Finger Pins and Sidebars
Part Number	Description	Price Each
34-001	Finger pin #1
34-002	Finger pin #2
34-003	Finger pin #3	Order in
34-004	Finger pin #4	multiples of 100
34-005	Finger pin #5	$1.00
34-006	Finger pin #6
34-058	Finger pin #7
C603-950	Sidebar	4.00

Cap and Cap Pin
Part Number	Description	Price Each
C503-116*	Cap pin (non-IC)	Order in multiples of 100 $0.22
C503-118*	Сар	Order in multiples of 25 1.60
C603-827	Full Size IC Cap Pin	Order in multiples of 100 0.26

^* See CYL-13 for KC-Series cap and cap pin

Construction Balls, RCK
Part Number	Description	Price Each
34-401	Pack of 1,000 ball bearings	$32.00

Springs
Part Number	Description	Price Each
C503-113	Pin tumbler spring (including Primus)	0.1.
C503-115	Cap retainer pin spring (including Primus)	Order in
C603-951	Primus finger pin spring and Everest check pin spring	multiples of 100 $0.20
C603-952	Primus sidebar spring	J 0.20

Ward Ring	S
Part Number	Description	Price Each
K510-045	Stop ring for hotel function Everest & Everest 29 mortise cylinders	3.70
K510-434	Stop ring for hotel function Classic mortise cylinders	3.70

Ordering Shaded prices are specified in unit quantities (per piece) and must be ordered in multiples. Example: Order 100 34-300, Receive 1 bag of 100 pins. Price = $8.00

Original Manu	facturer Nickel	Silve	er Pins
Ongmat Mano	Description
Part Number	Туре	Size	PriceEach
34-902		#2B
34-903		#3B
34-904		#4B
34-905		#5B
34-906		#6B
34-907		#7B
34-908		#8B
34-909		#9B
34-910	Master/ build-up/	#10B
34-911	top pins	#11B
34-912	τορ μπο	#12B
34-913		#13B
34-914		#14B
34-915		#15B	Order in multiples of 100
34-916		#16B	$0.10
34-917		#17B	$5.10
34-918		#18B
34-919		#19B
34-800		#0A
34-801		#1A
34-802		#2A
34-803		#3A
34-804	Pottom nins	#4A
34-805	Bottom pins	#5A
34-806		#6A
34-807		#7A
34-808		#8A
34-809		#9A
34-950	Everest & Everest 29 check pin	_	1.60

Ordering Shaded prices are specified in unit quantities (per piece) and must be ordered in multiples. Example: Order 100 34-300, Receive 1 bag of 100 pins. Price = $8.00

SFIC Caps
Part Number	Description	Price Each
		Order in
34-952	21C Cap	multiples of 500
		$0.08

SFIC Springs
Part Number	Description	Price Each
C504-114	20S Tumbler spring	Order in multiples of 500 $0.08
C504-l16	Everest & Everest 29 check spring pin	Order in multiples of 100 0.20

SFIC Plug Retainer
Part N	umber	Description	Price Each
C603-936		Plug retainer	Order in multiples of 20 $1.90
Note:	Note: SFIC plug retainer is compatible with SFIC Everest products manufactured after		products manufactured after

Part Number Description Price Each 90-200 L-PIN, 0 90-201 L-PIN, 1 90-202 L-PIN, 2 90-203 L-PIN, 3 90-204 L-PIN, 4 90-205 L-PIN, 5 90-206 L-PIN, 6 90-207 L-PIN, 7 90-208 L-PIN, 8 90-209 L-PIN, 9 90-200-2 L-PIN, MASTER, 0,2 90-200-4 L-PIN, MASTER, 0,4 90-200-6 L-PIN, MASTER, 0,6 90-200-8 L-PIN, MASTER, 0,8 90-201-3 L-PIN, MASTER, 1,3 $1.00 90-201-5 L-PIN, MASTER, 1,5 90-201-7 L-PIN, MASTER, 1,7 90-201-9 L-PIN, MASTER, 1,9 90-202-4 L-PIN, MASTER, 2,4 90-202-6 L-PIN, MASTER, 2,6 90-202-8 L-PIN, MASTER, 2,8 90-203-5 L-PIN, MASTER, 3,5 90-203-7 L-PIN, MASTER, 3,7 90-203-9 L-PIN, MASTER, 3,9 90-204-6 L-PIN, MASTER, 4,6 90-204-8 L-PIN, MASTER, 4,8 90-205-7 L-PIN, MASTER, 5,7 90-205-9 L-PIN, MASTER, 5,9 90-206-8 L-PIN, MASTER, 6,8 90-207-9 L-PIN, MASTER, 7,9 Order single cut and master L pins in multiples of 100 90-201-3-5 L-PIN, CROSS-KEY, 1,3,5 90-201-3-7 L-PIN, CROSS-KEY, 1,3,7 90-201-3-9 L-PIN, CROSS-KEY, 1,3,9 90-201-5-7 L-PIN, CROSS-KEY, 1,5,7 90-201-5-9 L-PIN, CROSS-KEY, 1,5,9 90-201-7-9 L-PIN, CROSS-KEY, 1,7,9 90-203-5-7 L-PIN, CROSS-KEY, 3,5,7 90-203-5-9 L-PIN, CROSS-KEY, 3,5,9 90-203-7-9 L-PIN, CROSS-KEY, 3,7,9 90-205-7-9 L-PIN, CROSS-KEY, 5,7,9 90-201-3-5-7 L-PIN, CROSS-KEY, 1,3,5,7 90-201-3-5-9 L-PIN, CROSS-KEY, 1,3,5,9 90-201-5-7-9 L-PIN, CROSS-KEY, 1,3,7,9 90-203-5-7-9 L-PIN, CROSS-KEY, 3,5,7,9 90-201-3-5-7-9 L-PIN, CROSS-KEY, 1,3,5,7,9 1.00 90-200-2-4 L-PIN, CROSS-KEY, 0,2,4 90-200-2-6 L-PIN, CROSS-KEY, 0,2,6 90-200-2-8 L-PIN, CROSS-KEY, 0,2,8 90-200-4-6 L-PIN, CROSS-KEY, 0,4,6 90-200-4-8 L-PIN, CROSS-KEY, 0,4,8 90-200-6-8 L-PIN, CROSS-KEY, 0,6,8 90-202-4-6 L-PIN, CROSS-KEY, 2,4,6 90-202-4-8 L-PIN, CROSS-KEY, 2,4,8 90-202-6-8 L-PIN, CROSS-KEY, 2,6,8 90-204-6-8 L-PIN, CROSS-KEY, 4,6,8 90-200-2-4-6 L-PIN, CROSS-KEY, 0,2,4,6 90-200-2-4-8 L-PIN, CROSS-KEY, 0,2,4,8 90-200-2-6-8 L-PIN, CROSS-KEY, 0,2,6,8 90-202-4-6-8 L-PIN, CROSS-KEY, 2,4,6,8 90-200-2-4-6-8 L-PIN, CROSS-KEY, 0,2,4,6,8 Order cross-key L pins in multiples of 25	L Pins For SL Cylinders

Springs For SL Cylinders
Part Number	Description	Price Each
C604-472	SPRING, LOCKING SIDEBAR
C603-952	END CAP PIN SPRING
C603-951	L PIN SPRING	$0.22
C604-472	CHECK PIN SPRING
Order in multiples of 100

End Cap and End Cap Pin For SL
Part Number Description Price Each
90-211	END CAP	$ 1.80
90-002 END CAP PIN 0.22
Order in multiples of 50

Cylinder Parts For SL
Part Number	Description	Price Each
90-210	LOCKING SIDE BAR	$4.30
C604-471	RETAINING CLIP	0.60
34-950	CHECK PIN, EVEREST B, EVEREST 29 R	1.70
90-212	TOP COVER	0.12
Order in multiples of 50

Modular Housing Interchangeability
Housing		Cam	Cam Screw	Plug Extension
Part Number	Size		Part Number
B520-721	1-1/8"	L583-474	B520-690	_
B520-722	1-1/4"	L583-475	B520-690	_
B520-723	1-3/8"	L583-474	B520-691	B590-298
B520-724	1-1/2"	L583-475	B520-691	B590-298
B520-725	1-5/8"	L583-474	B520-692	B590-299
B520-726	1-3/4"	L583-475	B520-692	B590-299

Part Number	Description	Price Each
33-005*	5-Pin (except F51 and F80), C, CE, E and F keyways only
33-137	6-Pin Classic Standard	$40.40
33-007	Sargent & Yale, Classic Standard
33-059*	5-Pin, F, FA-Series Knobs, BEL, GEO, PLY, AND, DNB (C keyway only)
33-059-149*	5-Pin, F-Series Knobs, ORB, C keyway only	27.10
33-060	Corbin Russwin CK4200, UT5200 Classic Standard	40.70
33-065*	5-Pin, F, FA-Series Levers, ACC, AVA, FLA, CLT, CHP, STA (C keyway only)	27.20
33-080	Corbin Russwin CK4200, UT5200 Classic Primus UL437 / Classic Primus XP UL437	102.00
33-081	Corbin Russwin CK4200, UT5200 Classic Primus / Classic Primus XP	72.30
33-119	Everest Primus / Everest Primus XP and Everest 29 Primus / Everest 29 Primus XP	75.80
33-154	Classic Primus UL437 / Classic Primus XP UL437	97.60
33-136	Classic Primus / Class Primus XP	75.80
33-162	Sargent & Yale, Classic Primus UL437 / Classic Primus XP UL437	102.00
33-163	Sargent & Yale, Classic Primus / Classic Primus XP	72.80
33-167	B600 Plug, Classic	49.40
33-186	B600 Plug, Everest	53.30
33-213	PLUG, CYL, KIK, SL, 7-PIN	42.80
33-214	PLUG, CYL, KIK, SL, 7-PIN, PRIMUS	75.80
33-216	6-pin Classic, hotel function	57.40
33-221	Everest Primus UL437/Everest Primus XP UL437 & Everest 29 Primus UL437/ Everest 29 Primus XP UL437	102.00
33-222	Corbin Russwin CK4200, UT5200, Everest Primus / Everest Primus XP and Everest 29 Primus / Everest 29 Primus XP	11.00
33-223	Corbin Russwin CK4200, UT5200, Everest Primus UL437/Everest Primus XP UL437 & Everest 29 Primus UL437/ Everest 29 Primus XP UL437	102.00
33-224	Sargent & Yale, Everest Primus / Everest Primus XP and Everest 29 Primus / Everest 29 Primus XP	72.80
33-225	Sargent & Yale, Everest Primus UL437/Everest Primus XP UL437 & Everest 29 Primus UL437/ Everest 29 Primus XP UL437	102.00
33-138	Everest & Everest 29 Standard
33-231	Sargent & Yale, Everest & Everest 29 Standard
33-232	Corbin Russwin CK4200, UT5200, Everest & Everest 29 Standard	42.80
33-233	Mail box 20-030 Everest & Everest 29 Standard
33-234	Mail box 20-033, 20-066, 20-067, 20-069 Everest & Everest 29 Standard
33-235	Everest & Everest 29 hotel function	57.40
33-616	Mail box 20-033, 20-066, 20-067, 20-069 Classic Standard
33-806	Mail box 20-030 Classic Standard	43.00
Notes:	Specify finish: 606 (430 for F-Series Knobs & Levers) and 626 (429 for F-Series Knobs & Levers).

Modular Cylinders Plugs-Key In lever/ Knob
Part Number	Description	Price Each
33-137	6 Pins, Plug, Classic	$40.40
33-138	6 Pins, Plug, Everest	42.80
33-136	6 Pins, Plug, Classic Primus / Primus XP	75.80
33-119	6 Pins, Plug, Everest Primus / Primus XP	75.80

	Plugs, Full Size Interchangeable Core
Part Number	Description	Price Each
33-058*	Classic Standard
33-133	Everest & Everest 29 Standard hotel function	$44.30
33-139	Everest Primus / Everest Primus XP and Everest 29 Primus / Everest 29 Primus XP
33-160	Classic Primus / Classic Primus XP	76.40
33-236	Everest & Everest 29 Standard	60.40
Notes:	Specify 606 or 626 finish.
	IC cap pins and cap pin springs must be ordered separately.
	*For L-Series Classic hotel cylinders, specify "warded."

	Key in Lever/ Knob -Modular Cylinders Type
Part Number	Description	Price Each
A508-653	6 Pin, Body & Cover, Classic, Everest, Everest 29	$31.70
A508-655	6 Pin, Body & Cover, Primus/Primus XP	59.70
33-213	PLUG, CYL, KIK, SL, 7-PIN	42.80
33-214	PLUG, CYL, KIK, SL, 7-PIN, PRIMUS	75.80

Part Number	Back Housings-Modular Cylinder Description	Price Each
B520-721	Back Housing, Mortise 1-1/8"	$8.90
B520-722	Back Housing, Mortise 1-1/4"	8.90
B520-723	Back Housing, Mortise 1-3/8"	8.90
B520-724	Back Housing, Mortise 1-1/2"	35.40
B520-725	Back Housing, Mortise 1-5/8"	35.40
B520-726	Back Housing, Mortise 1-3/4"	35.40
B520-727	Back Housing, Rim	8.90
K110-480 316	Front housing 643e finish	8.90
K110-480 605	Front housing 605 finish	8.90
K110-480 606	Front housing 606 finish	8.90
K110-480 609	Front housing 609 finish	8.90
K110-480 612	Front housing 612 finish	8.90
K110-480 613	Front housing 613 finish	11.80
K110-480 619	Front housing 619 finish	8.90
K110-480 622	Front Housing 622 finish	8.90
K110-480 625	Front housing 625 finish	8.90
K110-480 626	Front housing 626 finish	6.10
K110-480 629	Front housing 629 finish	8.90
K110-480 630	Front housing 630 finish	8.90
		Order in Multiples of 100
B520-690	Screw, Cam , 5-40 X 1/2" (for modular cylinders length 1 1/8" & 1 1/4")	$0.24
B520-691	Screw, Cam , 5-40 X 3/4" (for modular cylinders length 1 3/8" & 1 1/2")	0.44
B520-692	Screw, Cam , 5-40 X 1"(for modular cylinders length 1 5/8" & 1 3/4")	0.60
B520-693	Modular cylinder housings screws, 8-32 X 7/8"	1.70
B590-298	Plug extension 1-3/8", 1-1/2"	2.70
B590-299	Plug extension 1-5/8", 1-3/4"	2.70

Ordering Shaded prices are specified in unit quantities (per piece) and must be ordered in multiples.

Example: Order 100 B520-690, Receive 1 bag of 100 cam screws. Price = $24.00

Part Number	Description	Price Each
A100-049	Sargent 8 Line Everest & Everest 29 Standard
A100-050	Sargent 6 Line Everest & Everest 29 Standard
A100-051	Mail box 20-033, 20-066, 20-067, 20-069 Everest & Everest 29 Standard	$36.70
C203-726	Corbin Russwin CK4200, UT5200 Everest & Everest 29 Standard
A508-655	6-Pin, Body & Cover, Primus / Primus XP	65.10
A201-690	Corbin Russwin CK4200, UT5200 Primus / Primus XP	63.80
A201-691	Corbin Russwin CK4200, UT5200 Classic Standard
A508-653	6 Pin, Body & Cover, Classic/Classic, Everest, Everest 29
A201-848	5-Pin Classic (except F-Series Knobs & Levers)	31.70
A100-045	Sargent 8 Line Classic Standard
A100-046	Sargent vertical Standard
A100-047	Sargent 8 Line Primus® / Primus XP
A100-048	Sargent vertical Primus / Primus XP	65.10
C203-726	Mail box 20-033, 20-066, 20-067, 20-069 Classic Standard	36.70

Shells, Interchangeable Core
Part Number	Specify Finish	Description	Price Each
B220-006	•	Everest & Everest 29 Standard
B220-117	•	Everest & Everest 29 hotel function, Schlage logo	$36.70
B220-280	•	Primus / Primus XP	74.60
B220-282	•	6-Pin Classic Standard (except hotel function)
B220-284	•	Classic hotel function, Schlage logo	35.30
Note:	Finishes: 606 and 626 only.

Part Number	Description	Price Each
	Service kit- Back Housing for 1 1/8" length
09-992	Back Housing B520-721 Mortise 1 1/8", 2 Housing screws B520-693, cam screw B520-690	$9.00
	Order front housing and cam separately
	Service kit-Back Housing for 1 1/4" length
09-993	B520-722 Mortise 1 1/4", 2 Housing screws B520-693, cam screw B520-690	10.40
	Order front housing and cam separately
	Service kit -back housing for 1 3/8" length
09-994	B520-723 Back Housing Mortise 1 3/8", plug extension B590-298, cam screw B520-691,	16.40
	2 housing screws B520-693. Order front housing and cam separately
	Service kit- back housing for 1 1/2" length Back Housing,
09-995	B520-724 Mortise 1 1/2", 2 Housing screws B520-693 , plug extension B590-298,	42.80
	cam screw B520-691. Order front housing and cam separately
	Service kit- back housing for 1 5/8" length
09-996	Back Housing, B520-725 Mortise 1 5/8", 2 Housing screws B520-693, plug extension	42.80
	B590-299, cam screw B520-692. Order front housing and cam separately
	Service kit-back housing for 1 3/4" length
09-997	Back Housing, B520-726 Mortise 1 3/4", 2 Housing screws B520-693 ,	42.80
	plug extension B590-299, cam screw B520-692. Order front housing and cam separately
	Service kit-back housing Rim Cyl
09-998	Back Housing Rim B520-727, housing screws B520-693, Tail piece B502-899,	21.40
	Driver B502-310, back plate & screws B202-328. Order front housing and cam separately

Ordering Procedures

To order Schlage products, descriptive data should be in the same sequence as shown below.

	Line			Out	side	Ins	ide							Additional
	Item	Qty	Product	DES	FIN	DES	FIN	Hand	Latch	Strike	Dr Thk	Ext	DIM	Details
ĺ	1	100	35-272 S123

Line Item: Line item number

Qty: Quantity

Product: Product number + keyway

Outside Des: Not Applicable Outside Fin: Not Applicable Inside Des: Not Applicable Inside Fin: Not Applicable Hand: Not Applicable Latch: Not Applicable Strike: Not Applicable Or Thk: Not Applicable Ext: Not Applicable Not Applicable Not Applicable Not Applicable Not Applicable Not Applicable

Additional

Details: Primus XP #, Everest 29 Facility Code, Locksmith ID#, Additional stamping instructions

Cut keys ordered with locks are priced according to appropriate extra cut key charge listed on page Keys-26. Grand master sections L, LP (Primus) and Y are supplied in stainless steel only and are recommended to be cut at the factory only. Stamping standards and charges are listed on page Keys-18. Keying services and associated charges are listed on page Keys-22. All primus Level 1+ and 7 key orders must contain the locksmith ID. All restricted key orders are subject to the restricted keyway sales policies are listed in Terms & Conditions. Master, grand master sections (H, J, K, L, etc.) for key blanks can be ordered in any quantity and are not subject to the purchasing in multiples of 50.

Table of Contents
Keys Ordered Separately	Keys-4
Classic Standard Key Blanks	Keys-4
Classic Standard Cut Keys	Keys-5
Everest® Full Size Standard Key Blanks and Cut Keys	Keys-б
Everest® Small Format IC Key Blanks and Cut Keys	Keys-7
Key Blanks, Best® Key Sections	Keys-7
Everest 29™ Full Size Standard Key Blanks and Cut Keys	Keys-8
Everest 29™ Small Format IC Key Blanks and Cut Keys
Classic Primus® Key Blanks, Cut Keys and I.D. Cards	Keys-10
Classic Primus® XP Key Blanks, Cut Keys and I.D. Cards	Keys-11
Everest® Primus® Key Blanks, Cut Keys and I.D. Cards	Keys-12
Everest® Primus® XP Key Blanks, Cut Keys and I.D. Cards	Keys-15
Split Key Construction Keys	Keys-17
Special Keys
Presentation Keys	Keys-18
Key Stamping	Keys-19
Cylinder Stamping	Keys-20
Construction Core Program	Keys-21
Full Size Construction Core Program
Small Format Construction Core Program	-
Keying Charges	Keys-23
Contract Master Keying
Contract Construction Keying (CK)/Split Key Construction Keying
Other Keying (Non-Master Keyed)
Residential Master Keying (RMK) and/or Residential Construction Keying (RCK)
Custom Presentation Keys, Homeowners Document Folders
Bitting Lists (Transcripts)
KSC Generic Key Charts
Keys Ordered with Locks or Cylinders
Pack Change Keys Independently (PKI)
SITEMASTER 200®	Keys-28
Key System Management Software
How To Order	Forms & Examples
Letter of Authorization
Primus Order Check List	•
Master Keyed Order Form and Example
Master Key System System Summary	•
Primus Face Sheet	-
Primus Signature Form	Keys-47

$\{\backslash bf\; Cylinders:\; Schlage\; \backslash ,\; Cylinder\; \backslash ,\; and\; \backslash ,\; Keyway\; \backslash ,\; Terminology.\}$

			Pric	e Each
Part Number		Description	Standard Sections	Restricted Sections
Standard B	ow
35-100	5-Pin	Standard bow, embossed both sides		der in bles of 50
35-130		Standard bow, unembossed both sides	$1.50	$5.30
35-101	6-Pin	Standard bow, embossed both sides		Order in multiples of 50
35-131		Standard bow, unembossed both sides	2.00	7.20
35-102	Emergency	Standard bow, embossed both sides, notched for all ward positions	6	.30
35-056		Standard bow, embossed both sides
35-076	Control	Standard bow, unembossed both sides		.50
35-077	Control	Hotel Function, embossed both sides		.50
35-079		Hotel Function, unembossed both sides
Large Bow
35-140	5-Pin	Large bow, embossed both sides	ė	5.90
35-141	6-Pin	Large bow, embossed both sides	3 .	3.90
Access Bow	1
35-143*	5-Pin	Access bow, embossed both sides	ė	5.90
35-144**	6-Pin	Access now, empossed norm sides	2:	טפּינ
Note:	Large bow cus	tom logo keys are available as key blanks only. Cut keys are not available.
*	Available with	C, CE, E, and F key sections only.
**	Available with	all sections except L and Y.

Keys Ordered Separately · KEYS & KEYING

Classic	: Standaı	rd Cut Keys
			Price	e Each
Part Number		Description	Standard Sections	Restricted Sections
Standard B	ow		·
48-100	5-Pin	Standard bow, embossed both sides
48-101	6-Pin	Stalldard bow, embossed both sides	$6.20	$16.30
48-130	5-Pin	Standard bow. unembossed both sides	$0.20
48-131	6-Pin	Statidata bow, orientibossed botti sides		_
48-102	Emergency	Standard bow, embossed both sides, notched for all ward positions	16.30	16.30
48-056		Standard bow, embossed both sides
48-076	Control	Standard bow, unembossed both sides	16.30	16.30
48-077	Control	Hotel Function, embossed both sides	10.30
48-079		Hotel Function, unembossed both sides
Large Bow
48-140	5-Pin	Large bow, embossed both sides	8.90	_
48-141	6-Pin	Laige bow, embossed both sides	0.90	_
Access Bow	ı
48-143*	5-Pin	Pin Access bow, embossed both sides		_
48-144**	6-Pin	Access now, ettinossed notifisides	8.90	_
*	Available with	C, CE, E, and F key sections only.
**	Available with	all sections except L and Y.

Classic	: Standa	rd Master Keys
Part Number		Description	Price Each
Standard Bow
49-100	5-Pin	Chandard hour ambassad bath sides
49-101	6-Pin	Standard bow, embossed both sides	10.80
49-130	5-Pin	Standard how unomberred both sides	10.80
49-131	6-Pin	Standard bow, unembossed both sides
49-102	Emergency	Standard bow, embossed both sides, notched for all ward positions
49-056		Standard bow, embossed both sides
49-076	Control	Standard bow, unembossed both sides	16.30
49-077	Control	Hotel Function, embossed both sides
49-079		Hotel Function, unembossed both sides
Large Bow
49-140	5-Pin	Large how emberred both cides	14.60
49-141	6-Pin	Large bow, embossed both sides	14.00
Access Bow	1
49-143*	5-Pin	Assess how ambassed both sides	14.60
49-144**	6-Pin	Access bow, embossed both sides	14.60

Full Size Everest Standard Key Blanks
Description	Part Number	C Family Open Sections	D Family Restricted Sections
		Order in multiples of 50
Standard embossed key	35-009		—
DO NOT DUPLICATE embossed key	35-002	$3.50
DO NOT DUPLICATE unembossed key	35-015		$7.20
Control key, DND embossed	35-003
Control key, DND, hotel function	35-016	5.80	7.20
Emergency key blank, DND	35-007	5.80	7.20

Note: 1) See page Keys-12 for key stamping options.

Description	Part Number	C Family Open Sections	D Family Restricted Sections
Standard key	48-009		—
DO NOT DUPLICATE key	48-002
DO NOT DUPLICATE key, unembossed	48-015	$9.10	$16.80
Set-up key	48-013
Master key	49-009		—
Master key, DO NOT DUPLICATE	49-002
Master key, DO NOT DUPLICATE, unembossed	49-015
Control key DND std., non-factory system	48-003
Control key DND std., factory system	49-003	16.80
Control key DND, hotel function, non-factory	48-016		16.80
Control key DND, hotel function, factory sys.	49-016
Emergency key DND, non-factory system	48-007
Emergency key DND, factory system	49-007

Small Format Interchangeable Core Keys, Everest Restricted Key Sections
Part Number	Description	Price Each
Key Blanks
35-401	Embossed key blank (control and operating)
35-021	Unembossed key blank (control and operating)	Order in multiples
35-425	Embossed key blank (Everest SL) (B keyways only)	of 50
35-426	Unembossed key blank (Everest SL) (B keyways only)	$6.80
Cut Keys
48-401	Embossed operating key
48-021	Unembossed operating key	13.30
49-401	Embossed master key
49-021	Unembossed master key
49-356	Embossed control key
49-022	Unembossed control key
49-425	Embossed master key (Everest SL) (B keyways only)	13.70
49-426	Unembossed master key (Everest SL) (B keyways only)
48-425	Embossed control key (Everest SL) (B keyways only)
48-426	Unembossed control key (Everest SL) (B keyways only)

Key Blanks, Best® Key Sections
Part Number	Description	Price Each
35-310	Key blank, 6 or 7-pin Specify keyway using B suffix: AB = A, BB=B, CB=C, DB = D, DDB=DD, EB = E, FB = F, GB = G, HB = H, JB = J, KB = K, LB = L, NB=N, MB = M, RB=R, TBB=TB, TBD=TD, QB=Q.	Order in multiples of 50 $3.10
Notes:	Key stamping not available on 35-310 key blanks.

Full Size Everest 29™ Standard Key Blanks
Description	Part Number	S Family Open Sections	T Family Restricted Sections
Characteristic and according to	25 270	Order in mu	oltiples of 50
Standard embossed key	35-270		-
DO NOT DUPLICATE embossed key	35-268	$3.60	ć7.30
DO NOT DUPLICATE unembossed key	35-272		$7.20
Control key, DND embossed	35-269	F 00	7.20
Control key, DND, hotel function	35-267	5.80 7.20
Emergency key blank, DND	35-271	6.10	7.20
Everest 29 Shim, duplicating (Order in packs of 10)	40-225	0.60

Full Size Everest 29 Standard Cut Keys
Description	Part Number	S Family Open Sections	T Family Restricted Sections
Standard key	48-270		_
DO NOT DUPLICATE key	48-268	$9.10
DO NOT DUPLICATE key, unembossed	48-272	$9.10	$16.80
Set-up key	48-034
Master key	49-270		_
Master key, DO NOT DUPLICATE	49-268
Master key, DO NOT DUPLICATE, unembossed	49-272
Control key DND std., non-factory system	48-269
Control key DND std., factory system	49-269	16.80	16.80
Control key DND, hotel function, non-factory	48-267		10.00
Control key DND, hotel function, factory system	49-267
Emergency key DND, non-factory system	48-271
Emergency key DND, factory system	49-271

Part Number	Description	Price Each
Key Blanks
35-400	Embossed key blank (control and operating)
35-429	Embossed key blank - Everest 29 SL (control and operating - R keyway only)	Order in multiples
35-264	Unembossed key blank (control and operating)	of 50 $7.20
35-430	Unembossed key blank - Everest 29 SL (control and operating - R keyway only)
Cut Keys
48-400	Embossed operating key
48-264	Unembossed operating key	15.70
49-400	Embossed master key
49-264	Unembossed master key
49-355	Embossed control key
49-000	Unembossed control key
49-429	Embossed master key (Everest SL - R keyway only)	15.70
49-430	Unembossed master key (Everest SL - R keyway only)
48-429	Embossed control key (Everest SL - R keyway only)
48-430	Unembossed control key (Everest SL - R keyway only)

Classic Pri	mus Key Blanks and Cut Keys
Part Number	Description	Price Each
Key Blanks
35-157	Standard bow, embossed both sides	Order in
35-053	Standard bow, unembossed one side, "PRIMUS" logo on one side	multiples of 50 $8.40
35-171	Standard Bow, Stainless steel LP section key	55.90
35-172	Control Key, Standard Bow Stainless Steel, LP section only	55.90
35-116	Large bow, embossed both sides
35-115	Access bow, embossed both sides	13.70
35-158	Control key, standard bow, embossed both sides	12.20
35-052	Control key, standard bow, unembossed one side, "PRIMUS" logo on one side	13.20
35-159	Lockout key, standard bow, embossed both sides	13.20
Cut Keys
48-157	Standard bow, embossed both sides	20.60
48-053	Standard bow, unembossed one side, "PRIMUS" logo on one side	20.00
48-171	Standard bow, stainless steel LP section key	78.90
48-116	Large bow, embossed both sides	26.30
48-115	Access bow, embossed both sides	20.30
48-158	Control key, standard bow, embossed both sides	20.10
48-052	Control key, standard bow, unembossed one side, "PRIMUS" logo on one side	20.10
48-172	Control key, stainless steel LP section control key	90.70
48-159	Lockout key, standard bow, embossed both sides	20.60
Master Keys
49-157	Standard bow, embossed both sides	20.60
49-053	Standard bow, unembossed one side, "PRIMUS" logo on one side	20.00
49-171	Standard bow, stainless steel LP section key	78.90
49-116	Large bow, embossed both sides	26.30
49-115	Access bow, embossed both sides	20.30
49-158	Control key, standard bow, embossed both sides	20.60
49-052	Control key, standard bow, unembossed one side, "PRIMUS" logo on one side	20.00
49-172	Control key, stainless steel LP section control key	90.70

Classic Primus I.D. Cards
Part Number	Level	Price Each
40-061	1	Order in multiples
40-065	1 Plus	of 50
40-062	2	$3.50

Part Number	Description	Price Each
Key Blanks
35-157-XP	Standard bow, embossed both sides	Order in multiples of 50
35-053-XP	Standard bow, unembossed one side, "PRIMUS" logo on one side	$8.40
35-171-XP	Standard Bow, Stainless Steel LP section	55.90
35-172-XP	Control Key, Standard Bow Stainless Steel, LP section only	55.90
35-116-XP	Large bow, embossed both sides	13.70
35-115-XP	Access bow, embossed both sides	15.70
35-158-XP	Control key, standard bow, embossed both sides	13.20
35-052-XP	Control key, standard bow, unembossed one side, "PRIMUS" logo on one side	15.20
35-159-XP	Lockout key, standard bow, embossed both sides	13.20
Cut Keys
48-157-XP	Standard bow, embossed both sides	20.60
48-053-XP	Standard bow, unembossed one side, "PRIMUS" logo on one side	20.00
48-171-XP	Standard bow, stainless steel LP section key	78.90
48-116-XP	Large bow, embossed both sides	26.30
48-115-XP	Access bow, embossed both sides	20.50
48-158-XP	Control key, standard bow, embossed both sides	20.10
48-052-XP	Control key, standard bow, unembossed one side, "PRIMUS" logo on one side	20.10
48-172-XP	Control key, stainless steel LP section control key	90.70
48-159-XP	Lockout key, standard bow, embossed both sides	20.60
Master Keys
49-157-XP	Standard bow, embossed both sides	20.60
49-053-XP	Standard bow, unembossed one side, "PRIMUS" logo on one side	20.00
49-171-XP	Standard bow, stainless steel LP section key	78.90
49-116-XP	Large bow, embossed both sides	26,30
49-115-XP	Access bow, embossed both sides	20.30
49-158-XP	Control key, standard bow, embossed both sides	20.60
49-052-XP	Control key, standard bow, unembossed one side, "PRIMUS" logo on one side	20.00
49-172-XP	Control key, stainless steel LP section control key	90.70

Classic Primus I.D. Cards
Part Number Level Price Each
40-061-XP	1	Order in multiples
40-065-XP	1 Plus	of 50
40-062-XP	2	$3.50

Everest Primus Key Blanks and Cut Keys
Part Number		Description	Price Each
Key Blanks
35-004	6-Pin	Standard bow, embossed one side	Order in multiples of 50
35-012		Standard bow, unembossed	$8.50
35-005	Control	Control key, standard bow, embossed one side
35-013		Control key, standard bow, unembossed
35-006	Lockout	Lockout key, standard bow, embossed one side	13.40
35-019		Lockout key, standard bow, unembossed
Cut Keys
48-004	6-Pin	Standard bow, embossed one side
48-012		Standard bow, unembossed
48-005	Control	Control key, standard bow, embossed one side
48-020		Control key, standard bow, unembossed	20.60
48-006	Lockout	Lockout key, standard bow, embossed one side
48-019		Lockout key, standard bow, unembossed
Master Keys
49-004	6-Pin	Standard bow, embossed one side
49-012		Standard bow, unembossed	20.60
49-005	Control	Control key, standard bow, embossed one side
49-020		Control key, standard bow, unembossed

Everest Primus I.D. Cards
Part Number	Price Each
40-060	1	Order in multiples of 50 $4.30

		Everest Primus XP Key Blanks and Cut Keys
Part Number		Description	Price Each
Key Blanks
35-004-XP		Standard bow, embossed one side	Order in
35-012-XP	6-Pin	Standard bow, unembossed	multiples of 50 $8.50
35-005-XP	Control	Control key, standard bow, embossed one side
35-013-XP		Control key, standard bow, unembossed
35-006-XP	Lockout	Lockout key, standard bow, embossed one side	13.40
35-019-XP		Lockout key, standard bow, unembossed
Cut Keys
48-004-XP	6-Pin	Standard bow, embossed one side
48-012-XP		Standard bow, unembossed
48-005-XP	Control	Control key, standard bow, embossed one side
48-020-XP		Control key, standard bow, unembossed	20.60
48-006-XP	Lockout	Lockout key, standard bow, embossed one side
48-019-XP		Lockout key, standard bow, unembossed
Master Keys
49-004-XP	6-Pin	Standard bow, embossed one side
49-012-XP		Standard bow, unembossed
49-005-XP	Control	Control key, standard bow, embossed one side	20.60
49-020-XP		Control key, standard bow, unembossed

Everest Primus XP I.D. Cards
Part Number	Price Each
40-060-XP	7 or 8	Order in multiples of 50 $4.30

Everest 29	Primus K	ey Blanks and Cut Keys
Part Number		Description	Price Each
Key Blanks
35-199	— 6-Pin	Standard bow, embossed one side	Order in multiples of 50
35-215	0-8111	Standard bow, unembossed	$8.80
35-273	Control	Control key, standard bow, embossed one side
35-138		Control key, standard bow, unembossed	14.00
35-216	Lockout	Lockout key, standard bow, embossed one side	14.00
35-218		Lockout key, standard bow, unembossed
Cut Keys
48-199	6-Pin	Standard bow, embossed one side
48-215		Standard bow, unembossed
48-273	Control	Control key, standard bow, embossed one side	21.60
48-014		Control key, standard bow, unembossed	21.00
48-216	Lockout	Lockout key, standard bow, embossed one side
48-218		Lockout key, standard bow, unembossed
Master Keys
49-199	6-Pin	Standard bow, embossed one side
49-215		Standard bow, unembossed	21.60
49-273	Control	Control key, standard bow, embossed one side	21.00
49-023		Control key, standard bow, unembossed

Everest 29 Primus I.D. Cards
Part Number	Price Each
40-060	7 or 8	Order in multiples of 50 $4.30

Part Number		Description	Price Each
Key Blanks
35-199-XP		Standard bow, embossed one side	Order in
35-215-XP	6-Pin	Standard bow, unembossed	multiples of 50 $8.80
35-273-XP	Control	Control key, standard bow, embossed one side
35-138-XP		Control key, standard bow, unembossed
35-216-XP	Lockout	Lockout key, standard bow, embossed one side	14.00
35-218-XP		Lockout key, standard bow, unembossed
Cut Keys
48-199-XP	6-Pin	Standard bow, embossed one side
48-215-XP		Standard bow, unembossed
48-273-XP	Control	Control key, standard bow, embossed one side
48-014-XP		Control key, standard bow, unembossed	21.60
48-216-XP	Lockout	Lockout key, standard bow, embossed one side
48-218-XP		Lockout key, standard bow, unembossed
Master Keys
49-199-XP	6-Pin	Standard bow, embossed one side
49-215-XP		Standard bow, unembossed
49-273-XP	Control	Control key, standard bow, embossed one side	21.60
49-023-XP		Control key, standard bow, unembossed

Everest 29 Primus XP I.D. Cards
Part Number	Level	Price Each
40-060-XP	7 or 8	Order in multiples of 50 $4.30

Everest 29 R Keyway Family Primus XP Key Blanks and Cut Keys

Part Number	Description	Price Each
Key Blanks
35-423-XP	Standard Bow, Embossed one side
35-424-XP	Standard Bow, Unembossed	Order in
35-431-XP	Standard Bow, Embossed - Control (Everest 29 SL - R keyway only)	multiples of 50 $8.80
35-432-XP	Standard Bow, Unembossed - Control (Everest 29 SL)
Cut Keys
48-423-XP	Standard Bow, Embossed one side
48-424-XP	Standard Bow, Unembossed
48-431-XP	Standard Bow, Embossed - Control (Everest 29 SL - R keyway only)	21.60
48-432-XP	Standard Bow, Unembossed - Control (Everest 29 SL - R keyway only)
Master Keys
49-423-XP	Standard Bow, Embossed one side
49-424-XP	Standard Bow, Unembossed
49-431-XP	Standard Bow, Embossed - Control (Everest 29 SL - R keyway only)	21.60
49-432-XP	Standard Bow, Unembossed - Control (Everest 29 SL - R keyway only)

Classic 35-104 Key Blank 48-104 Cut Key

Everest® 35-008 Key Blank 48-008 Cut Key

Everest 29 35-097 Key Blank 48-097 Cut Key

Standard

35-110 Classic Blank 48-113 Classic Cut 35-289 Everest Blank 48-289 Everest Cut

Hotel Cylindrical

35-111 Classic Blank 48-114 Classic Cut 35-231 Everest Blank 48-039 Everest Cut

35-057

Split Key Construction Keys				I
		Part Number
Description	Classic	Everest	Everest 29	Price Each
Key Blanks
Construction key, standard bow, embossed	35-104	35-008	35-097	$6.60
Construction insert	35-110	35-289	35-289	0.20
Construction insert, A85, AL85, D85, ND85, or H185 function	35-111	35-231	35-231	9.20
Extractor tool		35-057		22.50
Cut Keys
Construction key, standard bow, embossed	48-104	48-008	48-097	6.60
Construction insert	48-113	48-289	48-289	0.70
Construction insert, A85, AL85, D85, ND85, or H185 function	48-114	48-039	48-039	9.20
Notes: | Split key construction keys are NOT available for interchangeable core	cylinders.
Split key construcion keys are ONLY available in L, Y, 0000 and ZZZZ C T000 Everest 29 sections.	lassic sections, C000 and D00	00 Everest section	ns and S000 and

Special Key	' S
Part Number	Description	Price Each
35-250	Emergency key, A40, AL40, D40, or ND40 function	$5.30
35-251	Spanner key, A85, AL85, D85, ND85, or H185 function
L583-233-458	Emergency turn, L9040 function (note: for L9040 with outside indicator, a small flathead screwdriver is used instead of an emergency turn)	19.10
M504-271	Emergency key, F40 or S40 function	1.60
61-509	Emergency release key standard size, for occupancy deadbolts (Includes one key, ring, and instruction tag.)	11.00
61-510	Emergency release key large, for occupancy deadbolts (Includes one key, ring, and instruction tag.)	20.90

		Presentation Keys
Part Number		Description	Price Each
Key Blanks
35-223	5-Pin	Velvet case with 2 standard bow Classic gold plated blanks, embossed both sides	$175.00
35-224	6-Pin
35-227	5-Pin	Velvet case with 1 large bow Classic gold plated blank, embossed both sides
35-228	6-Pin
35-229	6-Pin	Velvet case with 1 Everest gold plated blank
Cut Keys
48-223	5-Pin	Velvet case with 2 standard bow Classic gold plated keys, embossed both sides	$191.00
48-224	6-Pin
48-227	5-Pin	Velvet case with 1 large bow Classic gold plated key, embossed both sides
48-228	6-Pin
48-229	6-Pin	Velvet case with 1 Everest gold plated key
Master Keys
49-223	5-Pin	Velvet case with 2 standard bow Classic gold plated keys, embossed both sides	$207.00
49-224	6-Pin
49-227	5-Pin	Velvet case with 1 large bow Classic gold plated key, embossed both sides
49-228	6-Pin
49-229	6-Pin	Velvet case with 1 Everest gold plated key

Key Stamping				Part
Description	Notes	Key Type	Specify	Number	Price Each Key
Visual Key Control (VKC)	1, 9	Classic Standard	Stamp key symbol on key	50-217	$2.80
with standard key symbols	1, 2	Everest & all Primus	(furnished as standard)	_	N/C
Non-standard code	1, 5, 8	All Standard & all Primus	Non-standard code	50-003	7.40 per side
		Classic Standard	Stamp key "Do Not Duplicate"	XQ06-878
DO NOT DUPLICATE		Everest C or Everest 29 S Family Standard	Use 35-002 blanks (C) or 35-268 (S)		N/C
DO NOT DUPLICATE	3	Everest B or Everest 29 R Family	(furnished as standard)	_	N/C
	٦	Everest D, Everest 29 T Family, all Primus	(
Custom die stamp	4, 5	All Standard & all Primus	Die Stamp Information	50-219	5.00 per side
Delete key section from bow		Classic and Everest Standard, Classic and Everest Primus/Primus XP, Everest Primus	Delete key section	50-220	5.00
Ditti-	9	Classic Standard	Delete key combination	50-221	2.80
Bitting not stamped		Everest & all Primus	(furnished as standard)	_	N/C
Stamp bitting		Classic Standard	(furnished as standard)	_	N/C
	6	Everest C or Everest 29 S Family Standard	Stamp key bitting	50-233	7.40
Stamp with Serial Number	7	Restricted Everest (B, D), Everest 29 (R, T)	Stamp Key with Serial Number	50-229	2.90
Notes:	1.) Maxim	num of 6 characters for VKC, Non Standard Cod	е
I	2.) Speci	fy "delete key symbol on key" if VKC is not requi	red. Available at no charge.
I	· ·	st B and Everest 29 R Family keys are stamped
		act product support, new dies are subject to a or erty of Schlage Lock Company.	ne time charge that is quoted through RFQ	process; all new	dies remain the
1	5.) Only a	available on unembossed keys.
I	6.) Not a	ıvailable on Primus or Everest B and D or Everes	t 29 R and T Family keys or on keys with ke	y symbols stamp	ed (VKC).
1	7.) Serial Number is a Straight Numerical Sequence comprised of 8 digits including leading zeros
1	8.) Seque	ential stamping will be charged as non-standar	d code (example: AA1-1, AA1-2, etc.).
	1 '	n selecting VKC (50-217) with DHI standard key ded at no charge.	symbols for Classic Standard systems, Dele	te Combination	(50-221) will be

When ordered with a lock or cylinder, 50-XXX charges will be added as an option to the product when applicable. Stand alone 50-XXX Charges will be separate lines and priced separately.

Cylinder Stamping	Cylinder Stamping
Description	Notes	Key Type	Specify	Part Number	Price Each
Visual Key Control (VKC) with standard key symbols or non standard codes	1	Classic Standard, Everest C & D, Everest 29 S & T Standard, (Not available for Primus or Primus XP)	Stamp key symbol or non- conventional code on face (VKC) or Cylinder or core.	50-002	$6.80
ney symbols of non-standard codes		Everest B Family and Everest 29 R (SFIC)		_	N/C
Concealed Key Control (CKC) with standard key symbols or Non-standard	ealed Key Control (CKC) with Standard, Primus and Primus Stamp key symbol or		50-216	$6.80
codes		Everest B Family and Everest 29 R (SFIC)	side (CKC) of core	_	N/C
Note:	Maximur	n of 6 characters for VKC, Non Star	ndard Code or Serial number stamping.

When ordered with a lock or cylinder, 50-XXX charges will be added as an option to the product when applicable. Stand alone 50-XXX Charges will be separate lines and priced separately.

Full Size Construction Core Program

Temporary construction cores may be ordered with full size interchangeable core locks, mortise cylinders and rim cylinders. These cores may also be ordered separately. All construction cores are assessed a non-refundable handling charge (50-231). See Terms & Conditions for more information.

Features:

• · 6-Pin C keyway.
• · Construction cores have a two-tone face: the faceplate is a flat black finish (622) and the plug is unfinished brass.
• Back of each core is marked with the letter that identifies the keyed alike group: A, B or C.
• · Construction cores are furnished with no keys (NCK). Cut keys must be ordered separately.
• A control key is required to install and remove construction cores. Control keys must be ordered separately. If a control key is not ordered, one will be supplied at a charge of $16.30.
• Construction cores may be returned for credit. Contact your Schlage representative for return authorization. Credit is issued\nupon receipt of cores at our factory.

Full Size Construction Core Program
Part Number	Description	Specify	Price Each
23-030-ICX	Construction core		$73.00
48-101-ICX	Cut key for construction phase (order separately)	New jobs: Specify "ICX" Existing jobs: Specify "ICA", "ICB" or "ICC".	8.20
48-056-ICX	Cut control key (order separately)		16.30
50-231	Non-refundable handling charge (per core)		10.40
Notes:	To order mortise and rim cylinders with full size construction cores for a ne number. Example: 30-008 ICX. For existing construction core combination Construction cores for a given project are keyed alike to one of a limited ni Schlage projects in the same area using the same or different contractors of security is desired, order a set of Standard or Primus» cores in 606 or 62 combination. Specify "KA Group 1". Such cores would not be assessed the	ns, specify ICA, ICB, or ICC . Umber of combinations nationwide. Other may use the same key. Where a higher degree 6 finish keyed alike to a random

Example:

Example for construction core charges and credits. distributor XYZ ordered 150 construction cores with 20 keys and one control key. The following charges apply to this order:

• 1. 23-030-ICX construction cores (150 units).
• 2. 48-101-ICX cut keys (20 units).
• 3. 48-056-ICX cut control key (1 unit).
• $4.\backslash ,50\backslash text\{--\}231\backslash ,Non\backslash text\{--\}refundable\; handling\; charge\; (150\backslash ,\backslash text\{units--\}one\backslash ,\backslash text\{per\; core\}\backslash ,\backslash text\{ordered\}).$

Upon return of the cores to the factory the distributor will be credited for the following:

1. 23-030-ICX construction cores (150 units).

There is no credit for the keys or handling fee.

Small Format Construction Core Program

Temporary construction cores may be ordered with small format interchangeable core locks, mortise cylinders and rim cylinders. These cores may also be ordered separately. All construction cores are assessed a non-refundable handling charge (50-231). See Terms & Conditions for more information.

Features:

• Best® A keyway
• · Construction cores have a green or brown face. Each color is keyed alike to its own operating and control key.
• Construction cores are furnished with no keys (NCK). Cut keys must be ordered separately. If construction operating keys are not ordered, one 48-310 cut key will be provided per order at a charge of $8.70 unless specifically stated to not include.
• A control key is required to install and remove construction cores. Control keys must be ordered separately. If a control key is not ordered, one will be supplied at a charge of $16.30.
• Construction cores may be returned for credit. Contact your Schlage representative for return authorization. Credit is issued\nupon receipt of cores at our factory.
• · Small format disposable cores may not be returned for credit.

Small Format Construction Cores
Part Number	Description	Specify	Price Each
48-310	Cut key for construction phase (order separately)	Schlage assigns the color for each	$8.70
48-311	Cut control key (order separately)	order at random. If a specific color is required, specify "GRN" for green and	16.30
80-035	Construction core	"BRN" for brown cores.	44.00
50-231	Non-refundable handling charge (per core)		10.40

Small Forma	t Disposable Cores
Part Number	Description	Price Each
M204-152	Disposable plastic construction core	$6.10

Example:

Example for construction core charges and credits. distributor XYZ ordered 150 construction cores with 20 keys and one control key. The following charges apply to this order:

• 1.80-035 construction cores (150 units).
• 2. 48-310 cut keys (20 units).
• 3. 48-311 cut control key (1 unit).
• 4. 50-231 Non-refundable handling charge (150 units-one per core ordered).

Upon return of the cores to the factory the distributor will be credited for the following:

1.80-035 construction cores (150 units).

There is no credit for the keys or handling fee.

Contract Master Keying
Part Number	Description	Price Each
50-210	Cylinder Master keyed (MK), grand master keyed (GMK), Emergency Master keyed (EMK), and Single keyed (SKD) groups (charge does not apply to interchangeable core)	$20.10
—	Interchangeable core Master keyed (MK), grand master keyed (GMK), and Single keyed (SKD) groups	N/C
Note:	The Schlage Master Key Department determines and makes the final decision in the selection and use of key sections. 100% Expansion is allowed for new master key systems unless.

	Contract Construction Keying (CK)/Split Key Construction Keying
Part Number	Description	Price Each
50-211	Cylinder Construction keyed (CK)	$11.80
Notes:	Construction keyed cylinder charges are in addition to master keying charges.
	Pack Keys Individual (PKI) 60-000 packing is included at no extra charge.
	Construction keying not available with Primus cylinders or interchangeable cores. Construction cores may be ordered for Interchangeable core locks, mortise cylinders or rim cylinders for use during construction. See Construction Core Program).
	Split Key construction keying requires 6 pin cylinders.
	Construction master keys must be ordered separately
	Extractor tool (35-057) will be added to all split key construction key orders unless specifically notes to exclude. Charge for 35-057 is $21.80.

	Other Keying (Non-Master Keyed)
Part Number	Description	Price Each
—	Cylinder keyed different (KD) or keyed alike to a Schlage selected combination (KA) in sets of 2 or more, include FSIC.	N/C
—	Cylinder 0-bitted or 1-bitted, as applicable*	N/C
50-001	Standard and Primus cylinder keyed to a specified combination	$10.00
*	Standard non-IC cylinders: Available 0-Bitted. 1-Bitted is not available and if specified, 0-bitted will be furnished. Standard IC cylinders: Furnished 1-bitted. 0-Bitted is not available and if specified, 1-bitted will be furnished. Primus cylinders: All Furnished 0-bitted. 1 bitted is not available and if specified, 0-bitted is furnished.

When ordered with a lock or cylinder, 50-XXX charges will be added as an option to the product when applicable. Stand alone 50-XXX Charges will be separate lines and priced separately.

Residential Master Keying (RMK) and/or Residential Construction Keying (RCK)

Qualifications:

• Residential projects.
• RMK and/or RCK must be specified on the order.
• Systems are available in 5-Pin C keyway only.
• Systems cannot be combined with Contract Master Key systems.
• Two levels of keying maximum (Change Key and Master Key levels only).
• Maison keying allowed.
• Door detailing and labeling allowable as listed below.

	Residential Master Keying (RMK)	Price Each $2.60 10.80
Part Number	Description
50-223	Cylinder Residential Master keyed (RMK)
49-100	Residential Master Key - Not offered for commercial products

	Residential Construction Keying (RCK)/Lost Ball Construction Keying
Part Number	Description	Price Each
50-224*	Cylinder Residential Construction keyed (RCK)	$2.60
48-100	Residential Construction Master Key	6.20
Notes:	Lost ball construction device is triggered by the highest level permanent key unless otherwise specified.
	Change keys packed in envelopes and packed in lock box. PKI packing available at no additional charge.
	Residential Construction keying charges are in addition to Residential Master keying charges.

When ordered with a lock or cylinder, 50-XXX charges will be added as an option to the product when applicable. Stand alone 50-XXX Charges will be separate lines and priced separately.

	Custom Presentation Keys
Part Number	Description	Price Each
35-135-C*	Large bow custom logo key (minimum order quantity: 400 keys)	$3.00
50-230	Die charge for key customization (one time charge on initial order)	252.00 net
*	Send Building Partnerships orders to address given at bottom of page.
Notes:	Large bow custom logo keys are available as key blanks only. Cut keys are not available.
	Customized presentation keys require high-resolution logo file in "tiff" or "eps" format.

	Homeowners Document Folders
Part Number	Description	Price Each
MS-J175*	Document folder, plain	$6.30
MS-J175*	Document folder, customized (minimum customized order quantity: 100 folders)	10.50
*	Send Building Partnerships orders to address given at bottom of page.
	Customized presentation keys require high-resolution logo file in "tiff" or "eps" format.

Send Building Partnerships orders to: Trade Marketing

Schlage Lock Company Residential Customer Service 2119 E. Kansas City Rd. Olathe, KS 66061 FAX: (800) 366-5625 email: res_contact_center@allegion.com

Part Number	Description	Price Each
50-123	Bitting list for factory master keyed products (requires written authorization from end-user).	$233.00*
50-120	Establish new master key system for field master keying (one-time charge). Each bitting is assessed a 50-121 or 50-122 charge below.	34.80
50-121	New master key bitting for cylinders keyed in the field. 50-120 charge assessed if this bitting establishes a new system.	4.50
50-122	New change key bitting for cylinders keyed in the field.	3.50
*	Can be used for SiteMaster download (keying and bitting details) if ordered as such. Please specify SiteMaster download file if applicable in the details column. Information reequired: is Structure or original order number, end user name, city and state (used to verify the structure number). Also required is an email address for the end user, include their full name to address the email and a "Letter Of Authorization".

	KSC Generic Key Charts
Part Number	Description	Price Each
50-600	6-Pin system with 4,096 change combinations furnished	$1,292.00
50-700	7-Pin system with 16,384 change combinations furnished	$1,674.00
Notes:	KSC systems are for dealer or end-user maintained master key systems. KSC systems cannot be converted or tied to factory established or factory maintained systems.
	KSC systems are furnished with instruction manual and binder.
	Number of valid/ usable change combinations provided in 50-600 is not guaranteed due to system constraints. 4,096 is the theoretical number possible, actual number of valid/ usable changes will vary.

When ordered with a lock or cylinder, 50-XXX charges will be added as an option to the product when applicable. Stand alone 50-XXX Charges will be separate lines and priced separately.

	Keys Ordered with Locks or Cylinders (2 std bow keys provided with keyed locks or cylinders)
Part Number	Description	Price Each
50-214	Extra cut Primus keys ordered with lock or cylinder.	$11.20
50-215	Extra cut standard bow Classic or Everest C or Everest 29 S Family keys ordered with lock or cylinder	4.30
50-227	Extra cut large bow or access bow keys ordered with lock or cylinder	6.70
50-228	Cut large bow or access bow keys substituted for standard bow Classic keys	3.10
50-232	Extra cut Classic restricted families, Everest B Family, Everest D, Everest 29 R and Everest 29 T family keys ordered with lock or cylinder.	8.20

	Pack Change Keys Independently (PKI)
Part Number	Description	Price Each
60-000	Pack change keys independently (PKI) for split key construction keying	N/C
60-001	Pack change keys independently (PKI)	$0.60

When ordered with a lock or cylinder, 50-XXX charges will be added as an option to the product when applicable. Stand alone 50-XXX Charges will be separate lines and priced separately.

	Key System Management Software
	Description	Part Number	Price Each
	Windows Full Version on CD	SM01-391	$2598.00
	Windows Full Version with Lockshop Enhancement	SM01-392	2,873.00
Notes:	SiteMaster manuals have been replaced by an extensive help menu on the CD
	SiteMaster comes without any information loaded. The download file needs to be ordered (see Part Number 50-123 Page 347 ordering instructions) and Schlage is not responsible to load personnel information, etc.

Forms
Description	Part Number	Price Each
Key Record Form (order in multiples of 50)	SM01-210	$0.48

Download Free Demonstration Software at allegion.com/us

End User Letterhead - REQUIRED

District 10 Schools 555 Main Street End User City, State 55555 (555) 555-5555

May 1, 2003 ← Date - REQUIRED

To: Schlage Dealer 100 East Avenue Dealer City, State 11111

Dealer Name -RECOMMENDED

RE: District 10, Jones Elementary School

Facility Name - REQUIRED

Include Registry Number & Facility Code (stamped on keys) for existing key systems

Please consider this authorization to ship product for the above-referenced project.

Jones Elementary School is to be keyed using a new Everest D Restricted Key System. For security reasons, we would like to have all keys for this facility shipped to a location other than the job site. Master keyed products, however, can be shipped directly to the site. This letter authorizes Schlage to ship our restricted products to the following addresses:

Master Keyed Products, Construction Keys, Locks Less

Cylinders, and Locks with Construction Cores

Attn: Building Project Manager District 10 Schools

District 10 Schools 555 Main Street

End User City, State 55555

Master Keys, Change Keys, Control Keys, and Key Blanks

Attn: Locksmith District 10 Lockshop 1201 Fifth Avenue

End User City, State 55555

Authorized Ship-To Addresses -REOUIRED

These two addresses above serve as our only authorized shipment addresses for all orders placed for our facility. We understand that this letter will be kept on file and referenced for our future orders and that a new letter is only required to add, remove, or change authorized shipping locations.

Sincerely,

End User Representative Facilities Manager

End User Representative Signature -REOUIRED

Letter may be mailed or faxed to Schlage

Schlage Restricted Order Processing 3899 Hancock Expressway Colorado Springs, CO 80911

PRIMUS AND EVEREST PRIMUS ORDERING CHECKLIST

TO FACILITATE ORDER ENTRY FOR KEYS, CYLINDERS, AND CARDS

IMPORTANT NOTES

To expedite processing of all Primus orders, it is highly recommended that Primus products be ordered separately

For Level One Plus and 7, All Cylinder Orders Will Be Supplied LESS KEYBLANKS Unless Otherwise Specified

For All Other Levels, All Cylinder Orders Will Be Supplied WITH KEYBLANKS Unless Otherwise Specified

PRIMUS	EVEREST PRIMUS
FOR LEVEL ONE	FOR LEVEL SEVEN
3 The Distributor's Primus number MUST be provided	3 The Distributor's Primus number MUST be provided
3 The Sequence number MUST be provided	3 The Locksmith's Facility code MUST be provided
FOR LEVEL ONE PLUS	3 The Keyway MUST be provided
3 The Distributor's Primus number MUST be provided
3 The Sequence number MUST be provided
3 The Locksmith number MUST be provided
FOR LEVEL TWO	FOR LEVEL EIGHT
3 The Dealer's Primus number MUST be provided	3 The Distributor's Primus number MUST be provided
3 The Sequence number and/or Section MUST be Provided	3 The Keyway MUST be provided
FOR LEVELS THREE & FOUR	FOR LEVEL NINE
3 Orders Originating a System MUST include both an Original Facesheet and a Signature Card	3 Orders Originating a System MUST include both an Original Facesheet and a Signature Card
3 An Original Facesheet MUST accompany all succeeding orders	3 An Original Primus Facesheet MUST accompany all succeeding orders
3 The Primus number MUST be indicated on the Facesheet	3 The Primus number MUST be indicated on the Facesheet
3 ALL fields on the Facesheet MUST be completed where applicable	3 ALL fields on the Facesheet MUST be completed where applicable

All Primus Orders & Supporting Documentation Should be Sent To:

Schlage Attn: Primus Order Processing 3899 Hancock Expressway Colorado Springs, CO 80911

MASTER KEYED ORDER

This form must be attached to the MASTER KEY SYSTEM SUMMARY FORM

Please provide as complete and accurate as possible so we can provide what you need for your Key System

Excel Soft copy - Print Instructions: To avoid printing more sheets than needed, Select <Print >, from the print screen select <Print range >, then select <Pages> from ____________________________________

					-					,					Г
Quote #:					Accol	Account No.:					P.O. #:
Shipping Instructions:	nstructio	ins:			Mark	: Cartons:					Date:
Order Written By:	ten By:				Custo	Customer Name and Address:	and Address:				Ship to:
For Furthe Name: Phone: Fax:	:r Informa	For Further Information Contact: Name: Phone: Fax:
*	Items Ordered	Irdered	TUO	OUTSIDE		INSIDE	IDE IDE		- IJEV	LANGE		Enter	Dimen-
	Lock Details	etails	DESIGN	FINISH		DESIGN	FINISH		LAICH	SIRINE	Enter door	when	sion for
. Ke	ey/Label Ir	Key/Label Instructions			HAND (Only one hand per line item)				) U			thickness is greater/equal to 2"	morrise cylinder, blocking ring, etc.	ADDITIONAL DETAILS
LINE	ÓΤΥ	PRODUCT				γτὸ	Heading	D00R#	Symbol- (s)	Symbol- (s)	DR THK	EXT	MIG

	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS	ADDITIONAL DETAILS
cymidel,	blocking ring, etc.	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ring, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc. DIM	blocking ing, etc.
if not is greater/ standard equal to 2"		DR THK EXT	ОВ ТНК ЕХТ	ОКТНК ЕХТ	рк тик ехт	рктик ехт	DR ТНК EXT	DR ТНК ЕХТ	DR THK EXT	рвтнк ехт	рктнк ехт	рвтик ехт	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	рвтик бхт	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT	DR THK EXT
¥	Symbol(s)
KEY	DOOR # Symbol(s)	_
	Heading DOOI
nand per line item)	YTQ
line it
Ney/Labet Histinctions	PRODUCT
	PRODI		_

MASTER KEY

This form must be attached to the Master Key Order form and P.O.

Please provide as complete and accurate as

	SYSTEM SUMMARY	Please provide as complete and accurate as possible so we can provide what you need for your Key System.
Job Name Address City / State Country		Account No. P.O.#
	For detailed instructions on how to complete this form please refer to pages 4 & 5
System Overview
o New	o	Existing (provide info below)
o Attached Dealer Specified Combinations		Registry #
	Structure or	Factory Order #
1. Select System
Schlage o Classic o	Falcon o o	Standard Schlage C
Classic Primus *	o	Restricted *
Everest ® o B (Small Format IC, Restricted *)	o	Interchangeable Core A2
o C (Open)	o	Interchangeable Core A4
o Primus® *
o D (Restricted *)
o Primus® *		Everest 29 key sections are backwards compatible to Everest
Everest 29™ o R (Small Format IC, Restricted *)		keyways and have the following relationships:
o S (Open)		R family sections > B family keyways
o Primus® *		S family sections > C family keyways
o T (Restricted *)		T family sections > D family keyways
o Primus® *
Type	Construction Keyed	o Yes o No
o 5-pin o 6-pin o 7-pin See compatibility chart on page 5	Full Size Construction Cores o ICA (Schlage Only)	o ICB o ICC
Keyway Specified **:	Small Format Construction Cores o Brown	o Green
	Construction Keyed Type o Falcon	o CK (BOK) o Lost Ball
** = The Commercial Master Key Department makes the final decision in the selection of key sections	o Schlage	o CK (Split) o RCK ( 5-Pin C only )

2. Select Keys & Key Stamping
Change Keys No. Of Keys per Symbol	No. Of Keys per Cylinder
Type
o Standard Bow	o Standard Bow (Unembossed)	o Access Bow (Schlage Only)	o Large Bow
Key Stamp Details
o Keyset Symbol	o Do Not Duplicate (DND)	o With Custom Die (Specify)
o Non-standard Code (Specify)
Change Key Packaging and Shipping Instructions
Pack Keys Independently (PKI) of Lock or Cylinder ***			*** = Furnished standard at no charge with Split-Key construction keying
o o Yes No
If PKI, ship change keys to:
o Dealer	o Other
o See Primus Facesheet
3. Select Cylinder Stamping
Cylinder Stamp Details
o With Industry Standard Key Symbol	o Non-Standard Code (Specify)
Cylinder Stamping Location
o Plug Face (N/A in Primus) - VKC		o Concealed (N/A in Falcon STD) - CKC

4. Select Key Quantitie	?s
Level	Qty. Per	Master Key Symbol (s)		Total Quantity
GGM
GM
MK or RMK
Control
Emergency
Others
Ship Master Keys To:
🖵 Dealer 🔲 See Primu	us Facesheet 🔲	Other
Special Function	Qty. Per			Qty. Per
RCK (Lost Ball) ****		Full Size Construction Core Key	s (Schlage Only)
CK (Split Key) ****		Full Size Construction Core Cor	ntrol Keys (Schlage Only)
Extractor Tools ****		Small Format Construction Co	re Keys
		Small Format Construction Co
		**** = Use with Construction K	eying
5. Master Key Future E	xpansion
5. Master Key Future E List Future MK Symbo		Approx. #	of Change Key Symbols U	nder Each Future MK
	ls	Approx. #	of Change Key Symbols U	nder Each Future MK
List Future MK Symbo	ls			nder Each Future MK
List Future MK Symbo Example: MK	ls			nder Each Future MK
List Future MK Symbo Example: MK GGM	ls			nder Each Future MK
List Future MK Symbo Example: MK GGM GM MK	ls			nder Each Future MK
List Future MK Symbo Example: MK GGM GM MK MK MK	ls			nder Each Future MK
List Future MK Symbo Example: MK GGM GM MK MK MK MK	ls			nder Each Future MK
List Future MK Symbo Example: MK GGM GM MK MK MK MK MK MK	ls			nder Each Future MK
List Future MK Symbo Example: MK GGM GM MK MK MK MK	ls			nder Each Future MK
List Future MK Symbo Example: MK GGM GM MK MK MK Others Others	B — — — — — — — — — — — — — — — — — — —		40 each	nder Each Future MK
List Future MK Symbo Example: MK GGM GM MK MK MK Others Others 6. Operating Instruction (Unless otherwise specifie	B	naster keys will operate cross-key	40 each
List Future MK Symbo Example: MK GGM GM MK MK MK Others Others	B — — — — — — — — — — — — — — — — — — —	naster keys will operate cross-key	40 each	nder Each Future MK \nerated by change keys
List Future MK Symbo Example: MK	B B Cons A A A A A A A A A A A A A	naster keys will operate cross-key	40 each	erated by
List Future MK Symbo Example: MK	Is B Cons \ned, all hierarchical n \nis operated by these change keys	naster keys will operate cross-key	40 each	erated by
List Future MK Symbo Example: MK GGM GM MK MK MK Others Others Cross Keyed Cylinder X	Is B Cons \ned, all hierarchical n \nis operated by these change keys	naster keys will operate cross-key	40 each	erated by
List Future MK Symbo Example: MK	Is B Cons \ned, all hierarchical n \nis operated by these change keys	naster keys will operate cross-key	40 each	erated by

7. Instructions and Compatibility

General Information

If you do not know the registry number (R#), structure number or the original factory order number for an existing system, contact Customer Service prior to placing the order:

Tel. 1-877-671-7011 Fax 1-800-452-0663

• Only one structure may be ordered on the same purchase order
• Classic refers to Obverse, Numbered (Paracentric), Quad, and Reverse key section families
• Classic Primus refers to Primus Obverse and Primus Quad key section families

Section 1: Select System

Full Size Construction Cores

• Schlage only

Small Format Construction Cores

• 7-pin only for Schlage
• 6- and 7-pin for Falcon

CK (Split)

• 6-pin for Schlage and Falcon
• Split key construction keying is not available for Classic Primus or Everest 29 Primus

RCK (Lost Ball)

• 5-pin (C keyway) only for Schlage
• 5-, 6-, and 7-pin for Falcon

System Selection

• Refer to the compatibility chart

Section 2: Select Keys and Key Stamping

Stamp Details

• Unless otherwise specified, industry standard key symbols are stamped on Everest 29™ and Primus® keys
• For custom die, attach RFQ approval for Schlage

Section 3: Select Cylinder Stamping

Type

• For cylinder type refer to the compatibility chart

Keyway (specify)

• Schlage Commercial's default key section for new Master Key Systems is Everest™ S145

Section 4: Key Quantities

Level

• Unless otherwise specified, the control key has the same cut as the highest-level key in the system (Except SFIC systems)

Special Function

• Construction keys are not furnished unless specified

Change Keys

• Unless otherwise specified 2 change keys are furnished per lock or cylinder

Section 5: Master Key Future Expansion

• Do not use the letters "I", "O", "CK", "KA, or "KD" for any master key symbols

Section 6: Operating Instructions

• Cross keying reduces the security and expansion of key systems
• Unless otherwise specified, all hierarchical master keys will operate cross-keyed cylinders

Compatibility Chart

	5 Pin	6 Pin	7 Pin	Split Key	Block O-Key	Lost Ball	Tempe Core	A2	A4	0.025	0.018
Schlage
Classic	X	X		X		X	X
Everest 29 S		X		X			X
Everest 29 T		X		X			X
Everest 29 R			X				X	X
Classic Primus (XP)		X					X
Everest 29 Primus (XP)		X					X
Falcon
Open	X	X	X		X	X					X
Restricted		X	X		X	X				X
Schlage C		X		X
SFIC Open		X	X				X	X	X
SFIC Restricted		X	X				X	X	X

	IF SOLD TO ANY ENTITY/INDIVIDUAL OTHER THAN END-USER SPECIFY NAME:
		29

Allegion

Schlage

Attn.: Primus Order Processing 3899 Hancock Expressway Security, CO. 80911

THE PRIMUS FACESHEET MUST BE COMPLETED AND ATTACHED TO YOUR ORDER FORM. AN INCOMPLETE PRIMUS FACESHEET WILL CAUSE UNNECESSARY DELAYS IN ORDER PROCESSING.

- FAXED COPIES NOT ACCEPTABLE -

For Internal Use Only
Primus# Order#
G/Z/E	S/M

Level 3, 4, and 9 Order Authorization

THIS SIGNA TURE CARD EST ABLISHES AUTHORIZA TION TO PURCHASE ADDITIONAL PRIMUS HIGH SECURITY PRODUCT FOR THE SECURITY SYSTEM INST ALLED A T THE ADDRESS BELOW .

THIS ORIGINAL FORM MUST BE MAILED TO SCHLAGE COMMERCIAL DIVISION WITH YOUR ORDER – F AXED COPIES NOT ACCEPT ABLE –

		PRIMUS SECURITY LEVEL:
	3U (no exclusivity) 3G (2-digit zip exclusivity)	4Z (time exclusivity) 4N (nationwide exclusivity)	9U (no exclusivity) 9G (2-digit zip exclusivity)	9Z (time exclusivity) 9N (nationwide exclusivity)
	C l a s s i c K e y w a y s		E v e r e s t 2 9	K e y w a y s
	PROJECT INFORMA TION
	Project Name (please print or type)
	Street Address (no P .O. Box)
City			State Zip Code
	other signers on this form.		If restrictions are not indicated and in multiple signature cases, the first signature will be regarded as the primary authorit y able to control
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number
	Name (please print or type)		Street (no P .O. Box)
Title or Position			City	State	Zip Code
Signature		Date	Phone Number

Title or Position City State Zip Code

Signature Date Phone Number

1.

2.

3.

4.

5.

DEALER OR LOCKSMITH AUTHORIZATION (OPTIONAL WITH OWNER AUTHORIZATION/SIGNATURE)

Dealer or Locksmith Account #		Primus #	Address (no P.O. Box)
Dealer or Locksmith Company Name			City	State	Zip Code
Phone Number		Fax Number	Contact 2 (Please print or type)
Contact 1 (Please print or type)			Contact 2 Signature
Contact 1 Signature
Effective From:	Date	to Date
Owners Authorization By (Please print or type)
Owners Authorization Signature		Date
	the material.		SPECIAL NOTE: In the case where the end user / owner has assigned the Dealer or Primus Locksmith Signature authorization (as noted above), the Dealer or Primus Locksmith agrees to take full responsibility for validating the owner' s signature as identified on the Primus Signature Card before ordering
SPECIAL INSTRUCTIONS:			Please indicate any restrictions to authorized individuals listed on this form when purchasing additional Primus product or duplicating keys.
this card will not be accepted.			Please fill out a new Primus Signature Card in the event of changes, additions or deletions in authorized signatures and send w ith letter requesting changes to Schlage at the address below . Primus Signature Cards are available from authorized Schlage Primus distrib utors and Schlage Commercial upon request. W e suggest that you make a copy of this completed form for your records. A photo copy or fax of
Please mail the original copy to: Please mail the original copy to:		IR Schlage	Schlage Attn: Key Control Department Attn.: Master Key Control Department

2315 Briargate Parkway, Suite 700 Colorado Springs, CO 80920 3899 Hancock Expressway Colorado Springs, CO 80911

MS-E130 Rev . 8/05 MS-E130 Rev. 3/14

Common Pricing Information 1. Locks are furnished with standard features unless otherwise specified. 2. Door thickness is 1-3/4" unless otherwise specified. 3. Split finishes and designs will be priced at the highest list price of the design and/or finish. 4. Engineering specials are denoted by a part number beginning with "X". 5. 6 denotes a lock or part that requires an extended lead time. 6. I denotes a handed product and requires handing to be specified. 7. For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus cylinders. See Terms and Conditions for ordering information and requirements. 8. Locks, keys and cylinders containing restricted keyways require additional documentation to order. Please see Terms and Conditions for the specific requirements. 9. Keyway must be specified for keyed functions and cylinders. If not specified, default keyway will be S123 for KA, KD and 0-bitted product and S145 for Factory managed masterkey systems. 10. Multiple keying options are available. Locks and cylinders are furnished KD unless otherwise specified or excepted by notation. 11. Control Keys for permanent and construction cores are not included with the lock or cylinder and must be ordered separately. 12. Locks specified C keyway and KD will receive 6 pin cylinders keyed 5 pin with 5 pin keys. Locks specified 0-bitted will receive 6 pin cylinders with 6 pin keys. 13. Full Size Interchangeable Cores (FSIC) are furnished 1-bitted unless otherwise specified. If 0-bitted is selected, the order will be entered as 1-bitted. This does not apply to FSIC Primus® cores. 14. Standard pinned cylinders, Primus cylinders (conventional and FSIC) can be supplied 0-bitted. If 1-bitted is selected, the order will be entered as 0-bitted. 15. Available plug face finishes are 606 and 626. For brass or bronze finish colors, the plug face finish is 606. For chrome, nickel or stainless steel finish colors, the plug face finish is 626. 16. Locks and cylinders will be furnished with 2 keys each as standard. Additional keys will be charge at the additional cut keys charge appropriate for the cylinder/key type

Keys

Table of Contents
Complete Locks CL-Series: Conventional Offering CL-Series: Full Size	CL-4 CL-4
Interchangeable Core Offering CL-Series: Small Format
Interchangeable Core Offering
Options	CL-7
Strikes
Non-Standard Door Thickness
Special Locks	CL-7
Parts	CL-8
Trim Collars	CL-8
Strikes	CL-8
Adapters	CL-8
Screws
Drivers and Accessories	CL-8
Cam Options
Ratchet Lock Accessories
Trim Collar Options
Complete Cylinders	See Cylinders Section
How To Order	Forms & Examples

Finish Codes and Descriptions

CodeDescription605(US 3)Bright Brass626(US 26D)Satin Chromium Plated

Standard Features

Certification ANSI A156.11, 1996, Series 4000, Grade 2 Bar CL100-Series 1" throw; CL200-Series 3/4" throw

Strike 1/2" Bar strike and 1/4" bar strike

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD) Door Range Spacers and strikes will accommodate doors 7/8", 1", and 11/8" thick

Keys Two nickel silver cut keys per lock, 6-pin, S123 section**

CL-Series
			Finishes
			605
Function	Description		626
Keyed
		Open	Restricted
CL100PB	Door cabinet lock, 6-pin cylinder, 1" bolt throw
CL200PB	Drawer cabinet lock, 6-pin cylinder, 3/4" bolt throw	$148.00	$165.50

	CL-Series: Primus XP/ Primus Controlled Access
Primus cylinders are offered for sale through specific channels of distribution based on security levels See Terms & Conditions for more information
	Finishes
		605
Function	Description	626
Keyed
CL174PB	Door cabinet lock, 6-pin cylinder, 1" bolt throw
CL174PB-XP	Door cabinet lock, 6-pin cylinder, 1" bolt throw
CL274PB	Drawer cabinet lock, 6-pin cylinder, 3/4" bolt throw	$174.00
CL274PB-XP	Drawer cabinet lock, 6-pin cylinder, 3/4" bolt throw

Primus cylinders are offered for sale through specific channels of distribution based on security levels. See Terms & Conditions for more information.
		Finishes
		605
Function	Description	626
Keyed
CL154PB	Door cabinet lock, 6-pin cylinder, 1" bolt throw
CL154PB-XP	Door cabinet lock, 6-pin cylinder, 1" bolt throw
CL254PB	Drawer cabinet lock, 6-pin cylinder, 3/4" bolt throw	$201.00
CL254PB-XP	Drawer cabinet lock, 6-pin cylinder, 3/4" bolt throw
Notes:	Keying options: see Keys & Keying.
	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to
	Primus families. See Terms & Conditions for more information.
	Primus locks are furnished 0-bitted, with two 6-pin keys entered as a separate line item, unless otherwise specified.
	Specify LKB if 0-bitted Primus cylinders are required "Less Key Blanks." Deduct $16.80 per cylinder.

	CL-Series: Full-Size Interchangeable Core
			Finishes
Function	Description		605 626
Keyed
		Open	Restricted
CL777R	Door cabinet lock, FSIC, 1" bolt throw
CL888R	Drawer cabinet lock, FSIC, 3/4" bolt throw	$182.00	$199.50
CL920R	FSIC Cam Lock	139.00	156.50

CL-Series: Full-Size Interchangeable Core Primus XP/ Primus Controlled Access
		Finishes
Function	Description	605 626
Keyed
CL774R	Door cabinet lock, FSIC, 1" bolt throw
CL774R-XP	Door cabinet lock, FSIC, 1" bolt throw
CL874R	Drawer cabinet lock, FSIC, 3/4" bolt throw	$212.00
CL874R-XP	Drawer cabinet lock, FSIC, 3/4" bolt throw
CL974R	FSIC Cam Lock
CL974R-XP	FSIC Cam Lock	184.00

CL-Series: Full Size Interchangeable Core Ratchet Lock
	Finishes
Function	Description		605 626
Keyed
		Open	Restricted
CL929R	Ratchet Lock, FSIC	$180.00	$197.50

Full Size Interchangeable Core Option
Description	Specify	Price
Full Size Construction Core *	T suffix Example:	N/C
Less Full Size Core	J suffix Example:	Deduct $35.00 from lock price
*	Locks are assessed a non-refundable handling charge (50-231) per core. See Keys & Keying .
Notes:	Keying options: see Keys & Keying.
For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families. See Terms & Conditions for more information.
	Specify LKB if 0-bitted Primus cylinders are required "Less Key Blanks." Deduct $16.80 per cylinder.

CL-Series: Everest Restricted Small Format Interchangeable Core
		Finishes
Function	Description	626
Keyed
		Open
CL721G	Door cabinet lock, SFIC, 1" bolt throw
CL771G	Drawer cabinet lock, SFIC, 3/4" bolt throw
CL725G	Everest Patented SFIC Rim Latch Lock	$145.00
CL775G	Everest Patented SFIC Rim Deadbolt Lock

CL-Series: Everest Restricted Small Format Interchangeable Core
		Finishes
Function	Description	626
Keyed
		Open
CL720G	Everest Patented SFIC Cam Lock	$137.00
CL728G	Everest Patented SFIC Mail Box Lock	113.00
CL729G	Everest Patented SFIC Ratchet Lock	174.00
Notes:	For small format construction core, specify suffix HD. Example: B560HD. Available at no additional charge. Locks
	are assessed one non-refundable handling charge (50-231) per core. See Keys & Keying for details.
	Please refer to Everest small format interchangeable core key control policies, under the Terms & Condition Section.

Strikes
Description	Specify	Add to Lock Price
Bar strike, 3/4" x 1 31/32" x 1/2", standard	CL10-355
Bar strike, 3/4" x 1 31/32" x 1/4", standard	CL10-354	N/C

Non-Standard Door Thickness
Description	Specify	Add to Lock Price
Lock for 1 3/8" door	1 3/8" door thickness - for CL door and drawer locks	$3.20

Special Locks
	6 Extended Factory Lead Time
Function	Description	Price Each
XB03-232	Cabinet Lock for doors 1/8" to 3/4" thick	$594.00
XB03-232P	Primus Cabinet Lock for doors 1/8" to 3/4" thick	594.00
XB06-530	Cabinet Lock for doors over 7/8" to 2" thick	716.00
XB06-530P	Primus Cabinet Lock for doors over 7/8" to 2" thick	716.00
Notes::	For slotted strike (CL10-352), see CL Parts: Strikes, Page CL-6.
	Locking provided by swinging cam. Attached to door with hex nut.
	Keying options: see Keys & Keying.
	If you are unable to find your required hardware solution in this price book, please refer to our Custom Product Request Process on page iv.
	For all restricted keyways (Everest D, Everest 29 T, Quad, Numbered, Reversed) add $17.50. This does not apply to Primus families. See Terms & Conditions for more information.
	Specify door hand and door thickness.

Trim Collars Part Number Finish Description Price Each 36-031 • 1 3/16" diameter x 5/8" depth $11.10

Strikes
Part Number	Description	Price Each
CL10-352	Slotted strike
CL10-354	Bar strike, 3/4" x 1 31/32" x 1/4", standard	$3.00
CL10-355	Bar strike, 3/4" x 1 31/32" x 1/2", standard

Adapters
Part Number	Description	Price Each
CL10-350	Spacer	$3.00
Screws
Part Number	Description	Price Each

Drivers and Accessories for CL100/200/ 725/721/ 777/888 Series
Part Number	Description	Price Each
CL10-360	Universal Driver bar for CL100/ 200	$2.70
CL10-361	Driver bar for CL100/ 200PB	2.70
CL10-362	Driver bar for CL100/ 200PB 1 3/8" long	2.70
CL7788-PA-D	Actuator for FSIC CL locks	2.30
CL725-1	Spacer for 6 pins SFIC	2.10
CL-ETS1	External trim plate spacer	2.90
CLTR78	Trim rings 626 or 605	3.10

CL-720G Cam
Part Number	Description	Price Each
CL720-3-1	CL720 short cam inverted hand	$3.00
CL720-3-2	CL720 long inbent cam, vertical hand	3.00
CL720-3-3	CL720 long offset cam, inverted hand	2.90
CL720-3-4	CL720 long straight cam, vertical hand	3.20
CL720-3-5	CL720 long shall offset cam, inverted hand2.40	2.10
CL775-SP	Strike pack for CL775 (Latch lock)	3.00
CL725-SP	Strike pack for CL725 (Deadbolt lock)	2.90

CL729-Ratchet Locks Accessories
Part Number	Description	Price Each
CL729S-2	Optional strap for 3/8" material thickness	$9.40
CL729S-3	Optional strap for 5/8" material thickness	13.40

CL720/920 Trim Collars
Part Number	Description	Price Each
TR201	Trim collar for CL720/ 920, 1/8" (626,605)$3.30	$3.00
TR202	Trim collar for CL720/ 920, 1/4" (626,605)	5.00
TR203	Trim collar for CL720/ 920, 3/8" (626,605)	5.40
TR200A	Trim collar package for CL720/ 920, includes all three	14.90

L	n
_	T
-	_
=	7
-	$\backslash geq$
	2
$\backslash subset$	)

Table of Contents
Keying Tools & Kits Tools-2
Full Size Pin Kits Tools-2
Full Size Keying Tools Tools-3
Small Format Interchangeable Core Pin Kits Tools-4 Small Format Interchangeable
Core Service Equipment Tools-4
Competitive Keying Kits Tools-5
Competitive Keying Tools Tools-5
Tools Tools-6
Installation Templates Tools-6
Installation Tools Tools-7
Torx® Tools . Tools-7
Kits Tools-8
Portable Security Repair Kit . Tools-8
Home Secure RCK Accessories . Tools-8
Maintenance Kits (Replacement Parts Assortments) Tools-8
Installation JIG Tools-9
Mortise JIG (wood) Tools-10
How To Order Forms & Examples

Part Number	Full Size Pin Kits Description		Contents		Price Each
40-070	Primus pin kit Sidebars	Finger pins	Sidebar springs		$508.00
		Finger pin springs	Plug holder
40-119	Pin kit, seal-tight metal box	Bottom pins	Retainer cap pins	Cylinder Cap Removal Tool	433.00
		Master pins	Retainer cap pin springs
		Top pins	Shim stock
		Pin springs	Tweezers
		Retainer caps	Follower bar
40-132	Retail Keying Kit, seal-tight	Bottom pins	B-Series cylinder bars	T-Pin Spring	236.00
metal box		Top pins	Key gage	T-Pin
		Pin springs	Follower bar	Removable Cap
		Cylinder caps	Cap-removal tool
		Cap spring and pins	Retaining Rings
40-133	Home Secure™ Pin kit	Bottom pins	Tweezers	Construction balls	407.00
		Top pins	Retaining rings	Retainer cap pins
		Master pins	Retainer caps	T-Pin Spring
		Follower bar	Retainer cap pin springs	T-Pin
		Removal tool	B-Series cylinder bars	Removable Cap
		Key gage	B-Series drivers
		Cylinder springs	Shim stock
40-134	Pin kit, snap-tight plastic box	Bottom pins	Key gage	Removable Cap	117.00
		Top pins	Follower bar
		Pin springs	T-Pins Spring
		Retainer cap pins	T-Pin

Note: 1) For replacement pins and springs, see Cylinders.

M540-000

Aluminum follower and Master Pin Remover

M204-200

40-099

Full Size Keying Tools
Part Number	Description	Price Each
40-066	Primus ® plug holder	$132.00
40-074*	Everest vise jaw upgrade kit	93.70
40-075**	Key bitting punch for Everest C Family, Everest 29 S and Obverse keyway families	3,157.00
40-104	Key gage (All Schlage keys except SFIC)	14.80
40-099	Key bitting punch for Everest D and Everest 29 T Families	3,784.00
M204-168	Lubriplate	9.30
M204-200	Tweezers	40.60
M204-201	Shim (pack of 25)	31.70
M540-051	Follower	3.30
M540-056	Cylinder cap removal tool	57.50
M540-000	Aluminum Follower and Master Pin Remover	59.40
M504-548	Follower for Modular Cylinder	19.60

• * Adds Everest C and Everest 29 S Family capability to Blue Punch key machines (designed for Obverse keys) with serial numbers below 990358, manufactured before July 1999.
• ** For all Standard and Primus keys with Obverse, Everest C and Everest 29 S Family sections only.

Small Format Interchangeable Core Pin Kits
Part Number	Description	С	ontents	Price Each
40-129	A2 System pin kit	Blocking pin springs Blocking pins Bottom pins Caps Master/build-up/top pins Tumbler spring	Plug retainers Capping block Capping tool Ejector tool Key gage Tweezers	$845.00

Note: 1) For pin kit refills, see Cylinders.

Small Format Interchangeable Core Service Equipment
Part Number	Description	Price Each
40-071*	Key bitting punch, Everest B and Everest 29 R Family keys only	$3,972.00
40-128	Key gage, A2 system	18.00
40-181	Key bitting punch, Falcon/Best®	3741.00
40-171	IC decode, rekey, dump tool	268.00
40-172	Ejector Tool	50.50
40-173	Staking Tool	50.50

* For service of this key machine, contact: Pro-Lok 655 North Hariton St. Orange, CA 92668 (714) 633-0681 FAX (714) 633-0471

SL Cylinder 7 pin A2 Pinning Kit
Part Number	Description	Cor	ntents	Price Each
40-247	SL A2 Pin Kit	L Pins, Single Cut (25 each) L Pins, Master pins (25 each) L Pin Springs Locking Side Bar Locking Side Bar Springs SL Plug Clip SL Plug Cover SL End Cap	SL End Cap Pin SL End Cap Pin Spring Everest SFIC Check Pin Everest SFIC Check Pin Spring A2 Key System Key Gauge Plug Holder Crimp Tool Tweezers	$1,343.00

SL Cylinder Plug Holder and CrimpTool
Part Number	Description	Price Each
40-296	SL Plug Holder Crimp Tool	$141.00

Strike Marking Chisels

Latch Marking Chisels

Part Number	Description	Price Each
40-017	AL and D-Series Lever castle nut wrench	$14.10
40-026	Bushing, 1 1/2", for 40-012 jig	53.50
40-029	Strike marking chisel - full lip strikes	85.40
40-030	Strike marking chisel - 1 1/8" x 2 3/4"	94.50
40-031	Latch marking chisel - 1" x 2 1/4"	81.50
40-032	Latch marking chisel - 1 1/8" x 2 1/4"	81.50
40-049	Tool box, for 40-006 kit	301.00
40-112	Circular strike bit for machine equipment	930.00
40-152	Backset Adapter for 1-3/8" doors and/or 2-3/8" Backset	240.00
40-153	Backset Adapter for 5" Backset	164.00
40-158	L-Series mortise pocket filler (edge)	174.00
40-035	Strike locator - 7/8"	55.00
40-015	7/8" Boring bit	206.00
40-179	Strike locator - 1"	55.30
40-175	1" Boring bit	106.00
40-176	2-1/8" Multi-spur bit	268.00
40-177	1-1/2" Muliti-spur bit	232.00
24002693	ND & L Lever removal tool	23.40
24341471	ND & L Lever removal tool - 20 pack	428.00
M204-198	Boring jig - ND and AL series locks	16.80
M504-271	Tool to remove AL and D-Series levers	1.60
M504-306	Circular faceplate wrench	2.70
021415	Spanner wrench, D-Series Knobs and L-Series	4.30
M504-347	Socket screw key, for 40-012 jig	3.60
M504-413	Installation tool, interchangeable core	17.90
N523-108	Tool to remove AL and D-Series levers	1.80
40-226	Installation template - AL, ND, NDE series	342.00
40-227	Installation template - L series	450.00
40-228	Installation template - H series	414.00
40-286	Universal Clamp	462.00

M504-271

N523-108

M204-198

Torx® Tools
Part Number	Description	Price Each
M504-424	Tool T-8	$43.30
M504-425	Tool T-15
M504-426	Tool T-20
M504-427	Tool T-30	41.70
M504-428	Tool T-10

Home Secure RCK Accessories
Part Number	Description	Price Each
P513-024	Home Secure Construction Key Envelopes	0.44
P513-023	Home Secure Owner Key Envelopes	0.44
34-401	Home Secure Replacement Construction Balls (pack of 1,000 construction balls)	32.00

Maintenance Kits (Replacement Parts Assortments)
Part		Price
Number	Description	Each
40-054	L-Series maintenance kit	$964.00
40-097	ND-Series lever maintenance kit	668.00
40-223	Modular Cylinder Service Kit	1,036.00

Portable Security Repair Kits
Part Number	Description	Price Each
	Portable Security Repair Kit supports all Portable
KZ390AL	Security Commercial Padlocks and Locking Cables,	$468.00
	SFIC and KNK. See PS-9 for additional details.

Installation Kits
Part Number	Description		Contents	Price Each
40-147	Installation Kit for Locksets & Deadbolts Kit includes JIG, Case, (2) Multi-spur bits, (4) latch/strike chisels, (2) Bushing Plates, 1" Auger bit & strike locator	40-148 M504-497 40-176 40-177 40-030	40-175 40-179 40-029 40-031 40-032	$2,527.00
M504-497	Case Only		—	224.00
40-148	Installation JIG only		—	1,914.00

• Notes: 1) For F-Series installation, 40-015 and 40-035 (Page Tool-7) is required.
  • 2) For 40-147, doors requiring thrubolt holes and/or 7/8" edge bores, bits sold separately. Reference Tool-7.

Installation Kits
Part Number	Description		Contents	Price Each
40-160	Installation kit for mortise lock Kit includes: Jig, Case (3 wood cutter bits and long boring shaft)	40-160 40-165 40-167	40-169 40-170	$1,329.00

Installation Tools
Part Number	Description	Price Each
40-161	5/8" Woodcutter Bit	$125.00
40-162	11/16" Woodcutter Bit	125.00
40-163	3/4" Woodcutter Bit	125.00
40-164	13/16" Woodcutter Bit	125.00
40-165	7/8" Woodcutter Bit	136.00
40-166	15/16" Woodcutter Bit	136.00
40-167	1" Woodcutter Bit	136.00
40-168	1-1/16" Woodcutter Bit	136.00
40-169	1-1/4" Woodcutter Bit	166.00
40-170	Long boring shaft for locks up to 6"	260.00

Table of Contents Display Mounts . . Merch-3 Solid Oak Mounts. . . Merch-3 Special Parts. . . Merch-3 Miscellaneous Merch-4 Finish Selector Kit . . Merch-4 Plastic Lock Case Cover. . . Merch-4 Promotional Items . . Merch-4 How To Order Forms & Examples

Product literature is available, contact Customer Service.

	Solid Oak Mounts
44-104	44-105	44-106*	44-107
®	®	®	®
44-108	44-109*	44-110	44-111
®	®	®	®
44-112	44-113	44-119*	44-120*
®	®	®	®
44-121	XL11-806	44-161	44-162
®		®	®

^* Top and bottom holes are 4" center to center.

Displa	Display Mounts
			Dime	ensions
Part Number	Description	A	В	С	Overall	Price Each
44-104	B (except BR260 & B260E)	2 3/8"	11/2"	11/8"	6" x 9 1/2"	$102.00
44-105	A, F, B (single) and BE	2 3/8"	21/8"	1"	6" x 9 1/2"	102.00
44-106	A with B, F, FE,and H (double)	2 3/8"	21/8"	1"	6" x 14"	122.00
44-107	A, F, B (triple)	2 3/8"	21/8"	1"	6" x 14"	130.00
44-108	A, F, B (quadruple)	2 3/8"	21/8"	]"	6" x 24 1/2"	163.00
44-109	F, FE300	2 3/8"	21/8"	1"	6" x 24 1/2"	134.00
44-212	L9000	2 3/4"	_	_	8 1/2" x 14"	140.00
44-111	A, B600/700/800, D Knob, S (single)	2 3/4"	21/8"	11/8"	8 1/2" x 14"	152.00
44-112	D Lever, AL (single), ND Lever	2 3/4"	21/8"	11/8"	8 1/2" x 14"	186.00
44-113	A, S, D Knob (triple)	2 3/4"	21/8"	11/8"	8 1/2" x 24 1/2"	216.00
44-115	Clear plastic mount ring	_	2 1/8"	_	2 1/2" x 1"	43.20
44-119	F300 BOW	2 3/8"	11/2" (top) 21/8" (bottom)	1"	6" x 24 1/2"	141.00
44-120	F300 CEN	2 3/8"	11/2" (top) 21/8" (bottom)	1"	6" x 24 1/2"	130.00
44-121	S200, H	2 3/8"	11/2" (top) 21/8" (bottom)	1"	6" x 14"	146.00
44-161	FE & BE Keypad Lock Mount	2 3/8"	21/8"	]"	6"x14"	96.50
44-162	FE & BE Keypad Lock & Keypad Deadbolt Mount	2 3/8"	11/2" (top) 21/8" (bottom)	1"	6" x 19"	124.00
44-165	CS200, FE400, H200 51/2" mount	2 3/8"	21/8"	ן"	6" x 19"	133.00
44-166	CS200, FE400, H200 4" mount	2 3/8"	21/8"	1"	6" x 19"	133.00

^* For special L lock mount, see Special Parts .

Notes: 1) Price does not include lock.

2) L400-Series mounts are not available.

Special Parts
∑ Extended Factory Lead Time
Part Number	Description	Price Each
XL11-806	Modified 44-110 display mount with see-through window	$507.00

Note: 1) If you are unable to find your required hardware solution in this price book, please use the Schlage Innovation Center Process in the forms and example section.

Finish Selector Kit
Part Number	Description	Price Each
39-029	Finish selector kit Finishes: 505, 605, 606, 609, 612, 613, 619, 620, 622, 625, 626, 629, 630, 716, 643e	$38.40

Plastic Lock Case Cover
Part Number	Description	Price Each
39-042	Plastic lock case cover (for display), L-Series	$78.30

Modular Cylinder Sales Kit
Part Number	Description	Price Each
40-224	Contents: FSIC Classic, SFIC Everest 29 R, Primus XP Classic, Everest 29 S, Everest 29 S Primus XP, Mortise Modular Cylinder, Rim Modular Cylinder	$868.00

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
01-001	65	09-157	192	09-611	188
01-002	65	09-158	192	09-632	183, 213
01-008	65	09-159	192	09-633	183, 213
01-009	65	09-189	192	09-634	183, 213
01-018	65	09-195	310	09-635	183, 213
01-026	65	09-196	310	09-636	183, 213
01-053	65	09-197 310		09-637	183, 213
01-055	67	09-198	310	09-638	183, 213
01-056	67	09-199	310	09-639	183, 213
01-057 67		09-200	310	09-640	213
01-058	67	09-401	183, 213	09-641	213
01-060	67	09-402	183, 213	09-655	184, 214
01-063	67	09-403	183, 213	09-661	185
02-037	324	09-403 xx	263	09-662	185
03-000	110	09-404	183, 213	09-663	185
03-030	110	09-409	307	09-664 185
03-031	110	09-410	307	09-665	185
03-032	110	09-411	307	09-666	185
03-042	112	09-412	307	09-667	185
03-200	110	09-416	310	09-668	185
03-230 03-231	110 110	09-417 310		09-669 09-670	185 185
03-232	110	09-418 09-446	310 180	09-671	185
03-233	110	09-447	180	09-672	185
03-234	110	09-449	180	09-713	185
03-235	110	09-451	180	09-717	185
03-236	110	09-454	180	09-718 185
03-237	110	09-455	180	09-751	307
03-244	110	09-456	180	09-752	307
03-255	110	09-459	263	09-753	307
03-266	110	09-473	181	09-754	307
03-277 110		09-474	181	09-756	310
04-001	92	09-475	181	09-757	310
04-002 92		09-477	181	09-764	307
04-006	92	09-483 134	182	09-765	307
04-007	92	09-483 138	182	09-766	307
04-020 93		09-483 200	182	09-767	307
04-021	93	09-483 212	182	09-774	113, 346
04-022	93	09-483 214	182	09-833	307
04-023	93	09-484 114	181	09-834	307
04-025	93	09-484 118	181	09-835	307
04-026 04-030 92	93	09-484 138 09-485 114	181 181	09-836 09-900 xx	307 186, 215
04-031	92	09-485 118	181	09-904 xx	186, 215
04-033	92	09-485 138	181	09-905 186, 215
04-034	92	09-486 263		09-907	215
04-060	79	09-487 xx	186, 215	09-992	360
06-242	230	09-488 134	182	09-993	360
08-000	254	09-488 138	182	09-994 360
08-020	252	09-488 200	182	09-995	360
08-020 xxx	272	09-488 212	182	09-996	360
08-021	272	09-488 214	182	09-997	360
08-027	252	09-493	182	09-998	360
08-027 xxx	272	09-494	181	10-001	123, 228, 229, 253, 263,
08-029	230	09-494 112	181		272
08-030	252	09-494 1316	181	10-001 100	66, 80
08-030 xxx	272	09-502	263	10-001 112	66, 80
08-032	252	09-506 184, 214		10-001 114	66, 80
08-034 08-035	252 252	09-508 183, 213 09-509 027	186, 215	10-001 118 10-001 134	66, 80 66, 80
09-019	310	09-509 033	186, 215	10-001 200	66, 80
09-060	113	09-509 040	186, 215	10-001 xx	123, 263, 272
09-061	113	09-509 047	186, 215	10-004	66, 80, 123, 263, 272
09-062	113	09-550	184, 214	10-013-112	93, 112
09-063	113	09-551	184, 214	10-013-118	93, 112
09-138	192	09-552	184, 214	10-016	93, 112
09-139	192	09-553	184, 214	10-025 112	66, 80
09-155	192	09-554	214	10-025-112	93, 112
09-156	192	09-555	214	10-025 138	66, 80, 272

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
10-025-138	93, 112	12-340	229	20-191-XP	137, 320
10-025 1316	66, 80, 123, 263, 272	12-617	147	20-200	311
10-025-1316	93, 112	12-618	147	20-201	311
10-025 xx	123, 263	12-625	147	20-202	311
10-026	66, 80, 228, 229, 253,	12-626	134, 147	20-203	311
	263, 272	12-627	146	20-204	311
10-027	66, 80, 228, 229, 253,	12-628	146	20-205	311
	263, 272	12-630	146	20-206	311
10-058	66, 80, 253	12-631	146	20-207	311
10-064	134, 146, 253	12-632	146	20-208	311
10-072 1316	185	12-633	134, 146, 229, 252	20-209	311
10-072 xx	185	12-640	146	20-210	311
10-073	185	12-641	146	20-211	311
10-075	185	12-642	146	20-212	311
10-078	185	12-643	146	20-213	311
10-079	185	12-650	146	20-214	311
10-087	134, 146	12-651	146	20-215	311
10-091	185	12-652	146	20-216 311
10-092	134, 146, 228, 229, 253	12-653	146	20-217	311
10-094	134, 146, 228, 229, 253	13-247	92, 112	20-218 311
10-095	134, 146, 228, 229, 253	13-248	92, 112	20-219 311
10-103	134, 146	14-010	92, 112	20-220	311
10-104	134, 146	14-028	92, 112	20-221	311
10-108	134	14-042	92, 112	20-222	311
10-109	228, 229, 253	14-047	92, 112	20-223	311
10-110	253	14-048	92, 112	20-224	311
10-111	253	16-132	229, 253, 272	20-225	311
10-112	134, 146, 253	16-203	272	20-226	311
10-116	228, 229	16-204	253, 272	20-227	311
10-121	228, 229	16-228	229, 253	20-228	311
10-122	228, 229	16-260	229	20-229	311
10-123	228, 229	16-480	253	20-500	195, 330
10-124	228, 229	16-481	253	20-500-XP	195, 330
10-140	113			20-501	195, 330
		16-482	253
10-141	113	16-483	229, 253	20-501-XP	195, 330
10-142	113	16-484	229, 253	20-505	349
10-143	113	20-001	195, 330, 339	20-505-XP	349
10-251	253	20-001-118	352	20-506	331
10-253	253	20-002	330	20-506-XP	331
10-256	253	20-009	349	20-508	331
10-257	253	20-013	331	20-508-XP	331
10-258	253	20-021	343	20-509	343
10-259 253		20-022	343	20-509-XP	343
11-068	65, 80	20-030	352	20-510	343
11-069	65, 80	20-033	352	20-510-XP	343
11-085	65, 80	20-057	344	20-515 195, 330
11-088	65, 80	20-059	335	20-515-XP	195, 330
11-091	65, 80	20-060	336	20-516	343
11-092	65, 80	20-061	335	20-516-XP	343
11-096	65, 80	20-062	336	20-517	195, 219, 330
11-103	65, 80	20-066	352	20-517-XP	195, 219, 330
11-104	65, 80	20-067	352	20-518	331
11-105	65, 80	20-069	352	20-518-XP	331
11-110	65, 80	20-071 320		20-519	347
11-111	65, 80	20-071-XP	320	20-519-XP	347
11-112	65, 80	20-072	320	20-520	347
11-113	65	20-072-XP	320	20-520-XP	347
11-116	65, 80	20-079	344	20-523	348
11-118	65, 80	20-090	336	20-523-XP	348
12-100	123	20-091	336	20-524	69, 95, 312, 314
12-103	123	20-172	317	20-524-122	69, 312
12-287	134	20-174	317	20-524-122-XP	312
12-288	134, 252	20-188	137, 320	20-524-XP	69, 95, 312, 314
12-289	134, 252	20-188-XP	137, 320	20-524-XP-122	69
12-290	134	20-189	137, 320	20-526	347
12-291	134, 229, 252	20-189-XP	137, 320	20-526-XP	347
12-297	146	20-190	137, 320	20-527	347
		20-190-XP	137, 320
12-317	146			20-527-XP	347
12-339	229	20-191	137, 320	20-528	83, 314, 342

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
20-528-XP	83, 314, 342	20-722	336	20-789-XP	333
20-529	125, 322	20-722-XP	336	20-793	195, 219, 330
20-529-XP	125, 322	20-723	348	20-793-XP	195, 219, 330
20-530	322	20-723-XP	348	20-798	335
20-530-XP	322	20-724	69, 95, 312, 314	20-798-XP	335
20-531	322	20-724-122	69, 312	20-854	313
20-531-XP	322			20-854-XP	313
20-539	342, 347	20-724-122-XP	312	21-000	113
		20-724-XP	69, 95, 312, 314
20-539-XP	347	20-726	347	21-002	69, 95, 312, 314
20-542	150, 327	20-726-XP 347		21-002-122	69, 312
20-542-XP	150, 327	20-727	347	21-003	69, 312
20-543	150, 327	20-727-XP	347	21-003-098	314
20-543-XP	150, 327	20-728	83, 314, 342	21-003-168	69, 312
20-544	150, 327	20-728-XP	83, 314, 342	21-020	83, 314, 342
20-544-XP	150, 327	20-729	125, 322	21-021	83, 314
20-545	137, 150, 320, 327	20-729-XP 125		21-059	254, 274, 316
20-545-XP	137, 150, 320, 327	20-730	322	22-001	125, 322
20-546	137, 150, 320, 327	20-730-XP	322	22-002	125, 322
20-546-XP	137, 150, 320, 327	20-731	322	22-003	137, 320
20-547	348	20-731-XP	322	22-004	137, 320
20-547-XP	348	20-739	342, 347	22-017	322
20-548	95, 314	20-739-XP 347		22-018 322
20-548-XP	95, 314	20-740	270, 345	22-019 322
20-550	313, 315, 342	20-740-XP	345	22-020	322
20-550-XP	313, 315, 342	20-741	345	22-061 323
20-552	254, 274, 316	20-741-XP	345	22-062	323
20-552-XP	254, 274, 316	20-742	150, 326	22-069	320
20-554	313	20-742-XP	150, 326	22-081 254, 322
20-554-XP	313	20-743	150, 326	22-082	322
20-562	347	20-743-XP	150, 326	22-085	150, 326
20-562-XP	347	20-744	150, 326	22-086	150, 326
20-565	113, 315	20-744-XP	150, 326	22-093	230, 322
20-565-XP	113, 315	20-745	137, 150, 320, 326	22-642	150, 326
20-572	317	20-745-XP	137, 150, 320, 326	22-643	150, 326
20-572-XP	317	20-746	137, 150, 320, 326	22-644	150, 326
20-574	317	20-746-XP	137, 150, 320, 326	22-645	137, 320
20-574-XP	317	20-747	348	22-646	137, 320
20-587	195, 219, 330	20-747-XP	348	23-000	315
20-587-XP	195, 219, 330	20-748	95, 314	23-001	95, 314
20-589	333	20-748-XP	95, 314	23-003	95, 314
20-589-XP	333	20-750	313, 315, 342	23-003-098	95
20-593	195, 219, 330	20-750-XP	313, 315, 342	23-013	313, 315, 342
20-593-XP	195, 219, 330	20-752	254, 270, 274, 316	23-014	315
20-700	195, 330	20-752-XP	254, 274, 316	23-030	345
20-700-XP	195, 330	20-757	344	23-030-ICX	381
20-701	195, 330	20-757-XP	344	23-031	345
20-701-XP	195, 330	20-762	347	23-065	113, 315
20-705	349	20-762-XP	347	23-118	313
20-705-XP	349	20-763	335	24-022	347
20-706	331	20-763-XP 335		24-031	342
20-706-XP	331	20-765	113, 315	24-032	342
20-708	331	20-765-XP	113, 315	24-033	342
20-708-XP	331	20-766	336	24-034	342
20-709	343	20-766-XP	336	24-035	342
20-709-XP	343	20-771	335	24-119	347
20-710	343	20-771-XP	335	24-120	347
20-710-XP	343	20-772	317	24-123	348
20-715	195, 330	20-772-XP	317	24-126	347
20-715-XP	195, 330	20-774	317	24-127	347
20-716	343	20-774-XP	317	24-139	342, 347
20-716-XP	343	20-776	335	24-147	348
20-717	195, 219, 330	20-776-XP	335	24-561	342
20-717-XP	195, 219, 330	20-782	335	24-561-XP	342
20-718	331	20-782-XP	335	24-562	342
20-718-XP	331	20-783	335	24-562-XP	342
20-719	347	20-783-XP 335		24-563	342
20-719-XP	347	20-787	195, 219, 330	24-563-XP	342
20-720	347	20-787-XP	195, 219, 330	24-564	342
20-720-XP	347	20-789	333	24-564-XP	342

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
24-565	342	33-154	312, 313, 314, 315, 316, 317,	34-904	355
24-565-XP	342		320, 327, 342, 347, 358	34-905	355
24-567	333	33-160 358		34-906	355
24-567-XP	333	33-162	347, 348, 358	34-907	355
24-569	254, 322	33-163	347, 348, 358	34-908	355
24-569-XP	254, 322	33-167	326, 358	34-909	355
24-570	322	33-186	326, 358	34-910	355
24-570-XP	322	33-213	312, 313, 314, 315, 316, 317,	34-911	355
24-761	342		320, 326, 347, 358, 359	34-912	355
24-761-XP 24-762	342 342	33-214	312, 313, 314, 315, 316, 317, 320, 326, 347, 358, 359	34-913 34-914	355 355
24-762-XP	342	33-216	312, 314, 315, 358	34-915	355
24-763	342	33-219	347, 348	34-916	355
24-763-XP	342	33-221	312, 313, 314, 315, 316, 317,	34-917	355
24-764	342		320, 327, 342, 347, 358	34-918	355
24-764-XP 342		33-222 347, 358		34-919	355
24-765	342	33-223	347, 358	34-950	355
24-765-XP	342	33-224	347, 348, 358	34-952	355
24-767	333	33-225	347, 348, 358	35-002	366
24-767-XP	333	33-231	347, 348, 358	35-003	366
24-769	254, 322	33-232	347, 358	35-004	372
24-769-XP	254, 322	33-233	352, 358	35-004-XP	373
24-770	322	33-234	352, 358	35-005	372
24-770-XP	322	33-235	312, 314, 315, 358	35-005-XP	373
26-021 26-023	195, 330, 339 333, 339	33-236 33-616	358 352, 358	35-006 35-006-XP	372 373
26-064	335	33-806	352, 358	35-007	366
26-072	331	34-001	354	35-008	377
26-073	331	34-002	354	35-009	366
26-091	335	34-003	354	35-012	372
26-094	335	34-004	354	35-012-XP	373
26-098	336	34-005	354	35-013	372
30-001	195, 219, 330, 339	34-006	354	35-013-XP	373
30-002	195, 330, 339	34-007	354	35-015 366
30-004 333, 339		34-058	354	35-016	366
30-005	333, 339	34-101	354	35-019	372
30-007	335	34-102	354	35-019-XP	373
30-008	335	34-103	354	35-021	367
30-010	335	34-202	354	35-039	377
30-016 30-021	335 195, 219, 330, 339	34-203 34-204	354 354	35-052 35-052-XP	370 371
30-022	195, 330, 339	34-205	354	35-053	370
30-030	335	34-206	354	35-053-XP	371
30-032	335	34-207	354	35-056	364
30-120	345	34-208	354	35-057	377
30-121	345	34-209	354	35-076	364
30-137	335	34-300	354	35-077	364
30-138 335		34-301	354	35-079	364
30-140	335	34-302	354	35-097	377
33-005	358	34-303	354	35-100	364
33-007	347, 348, 358	34-304	354	35-101	364
33-058	358	34-305	354	35-102	364
33-059	358	34-306	354	35-104	377
33-059-149 33-060	358 347, 358	34-307	354	35-110 35-111	377 377
33-065	358	34-308 34-309	354 354	35-115	370
33-080	347, 358	34-401	354, 423	35-115-XP	371
33-081	347, 358	34-800	355	35-116	370
33-119	312, 314, 315, 316, 317, 320,	34-801	355	35-116-XP	371
	326, 342, 347, 358	34-802	355	35-130	364
33-133	358	34-803	355	35-131	364
33-134	313	34-804	355	35-135-C	385
33-136	312, 313, 314, 315, 316, 317,	34-805	355	35-138	374
	320, 326, 342, 347, 358	34-806	355	35-138-XP	375
33-137	312, 313, 314, 315, 316, 317,	34-807	355	35-140 364
	320, 342, 347, 352, 358	34-808	355	35-141	364
33-138	312, 313, 314, 315, 316, 317,	34-809	355	35-143	364
33-139	320, 342, 347, 352, 358 358	34-902 34-903	355 355	35-144 35-157	364 370

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
35-157-XP	371	38-090	193	40-223	423
35-158	370	38-091	193	40-224	430
35-158-XP	371	38-092	193	40-225	368
35-159	370	38-093	193	40-226	422
35-159-XP	371	38-094	193	40-227	422
35-171 370		38-095	193	40-228	422
35-172-XP	370, 371	39-029	430	40-247	420
35-199	374	39-030	65, 80, 92, 112, 123, 134,	40-286	422
35-199-XP	375		146, 252, 253, 272	40-296	420
35-215	374	39-034	193	40-400	111
35-215-XP	375	39-042	191, 430	40-600	111
35-216	374	39-234	193	41-005	65
35-216-XP	375	40-015	422	43-005	80, 92, 112
35-218	374	40-017	422	44-104	429
35-218-XP	375	40-026	422	44-105	429
35-223	378	40-029	422	44-106	429
35-224	378	40-030 422		44-107	429
35-227	378	40-031	422	44-108	429
35-228	378	40-032	422	44-109	429
35-229	378	40-035	422	44-111	429
35-231	377	40-049	422	44-112	429
35-250	377	40-054	423	44-113	429
35-251	377	40-060	372, 374	44-115	429
35-264	369			44-119	429
		40-060-XP	373, 375
35-267	368	40-061	370	44-120	429
35-268	368	40-061-XP	371	44-121	429
35-269	368	40-062	370	44-161	429
35-270	368	40-062-XP	371	44-162	429
35-271	368	40-065	370	44-165	429
35-272	368	40-065-XP	371	44-166	429
35-273	374	40-066	419	44-212	429
35-273-XP	375	40-070	418	47-413	317
35-289	377	40-071	420	47-414	317
35-310	367	40-074	419	47-542	317
35-400	369	40-075	419	47-542-XP	317
35-401	367	40-097	423	47-543	317
35-421-XP	376	40-099	419	47-743	317
35-422-XP	376	40-104	419	47-743-XP	317
35-423-XP	376	40-112	422	47-744	317
35-424-XP	376	40-119	418	47-744-XP	317
35-425	367	40-128	420	48-002	366
35-427-XP	376	40-129	420	48-003	366
35-429	369	40-132	418	48-004	372
35-430	369	40-133	418	48-004-XP	373
35-431-XP	376	40-134	418	48-005	372
36-066	324, 344	40-147	424	48-005-XP	373
36-067	324	40-148	424	48-006	372
36-068	324	40-152	422	48-006-XP	373
36-069	324	40-153 422		48-007	366
36-070	324	40-158	422	48-008	377
36-071	324	40-160	425	48-009	366
36-072	324	40-161	425	48-012	372
36-079	340	40-162	425	48-012-XP	373
36-080	191	40-163	425	48-013	366
36-082	340	40-164	425	48-014	374
36-083	340	40-165	425	48-014-XP	375
36-085	324	40-166	425	48-015	366
36-086	321, 323, 324	40-167	425	48-016	366
37-001	67, 81, 93, 115	40-168	425	48-019	372
37-015	185	40-169	425	48-019-XP	373
37-016	134, 135, 146, 147, 229	40-170	425	48-020	372
38-016	123	40-171	420	48-020-XP	373
38-017	123	40-172	420	48-021	367
38-018	68, 94, 273	40-173	420	48-034	368
38-031	123, 135	40-175	422	48-039	377
38-032	123	40-176	422	48-052	370
38-033	349	40-177	422	48-052-XP	371
38-034	134, 147	40-179	422	48-053	370
38-070	334	40-181	420	48-053-XP	371

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
48-056	365	48-432-XP	376	49-400	369
48-056-ICX	381	49-000	369	49-401	367
48-076	365			49-421-XP	376
		49-002	366
48-077	365	49-003	366	49-422-XP	376
48-079	365	49-004	372	49-423-XP	376
48-097	377	49-004-XP	373	49-424-XP	376
48-100	365, 384	49-005	372	49-425	367
48-101	365	49-005-XP	373	49-426	367
48-101-ICX	381	49-007	366	49-429	369
48-102	365	49-009	366	49-430	369
48-104	377	49-012	372	49-431-XP	376
48-113	377	49-012-XP	373	49-432-XP	376
48-114	377	49-015	366	50-001	383
48-115	370	49-016	366	50-002	380
48-115-XP	371	49-020	372	50-003	379
48-116	370	49-020-XP	373	50-120	386
48-116-XP	371	49-021	367	50-121	386
48-130	365	49-022	367	50-122	386
48-131	365	49-023	374	50-123	386
48-140	365	49-023-XP	375	50-210	383
48-141	365	49-052	370	50-211	383
48-143	365	49-052-XP	371	50-214 387
48-144	365	49-053	370	50-215	387
48-157	370	49-053-XP	371	50-216	380
48-157-XP	371	49-056	365	50-217	379
48-158	370	49-076	365	50-219	379
48-158-XP	371	49-077	365	50-220	379
48-159	370	49-079	365	50-221	379
48-159-XP	371	49-100	365, 384	50-223	384
48-171	370	49-101	365	50-224	384
48-171-XP	371	49-102	365	50-227	387
48-172	370	49-115	370	50-228	387
48-172-XP	371	49-115-XP	371	50-229	379
48-199	374	49-116	370	50-230	385
48-199-XP 375		49-116-XP	371	50-231	381, 382
48-215	374	49-130	365	50-232	387
48-215-XP	375	49-131	365	50-233	379
48-216	374	49-140	365	50-600	386
48-216-XP	375	49-141	365	50-700	386
48-218	374	49-143	365	51-021	79
48-218-XP	375	49-144	365	51-022	79
48-223	378	49-157	370	51-023	79
48-224	378	49-157-XP	371	51-024	79
48-227	378	49-158	370	51-025 79
48-228	378	49-158-XP	371	51-026	79
48-229	378	49-171	370	51-037	81
48-264	369	49-171-XP 371		51-038	81
48-267	368	49-172	370	51-039	81
48-268	368	49-172-XP	371	51-040	81
48-269	368	49-199	374	51-041	81
48-270	368	49-199-XP	375	60-000	387
48-271	368	49-215	374	60-001	387
48-272	368	49-215-XP	375	61-500	137
48-273	374	49-223	378	61-501	137
48-273-XP	375	49-224	378	61-502	137
48-289	377	49-227	378	61-503	137
48-310	382	49-228	378	61-504	137
48-311	382	49-229	378	61-505	137
48-400	369	49-264	369	61-506	137
48-401	367	49-267	368	61-507	137
48-421-XP	376	49-268	368	61-509	135, 377
48-422-XP	376	49-269	368	61-510	135, 377
48-423-XP	376	49-270	368	68-001	252
48-424-XP	376	49-271	368	68-001 xxx	272
48-425	367	49-272	368	68-002 xxx	272
48-426	367	49-273	374	68-003	252, 272
48-429	369	49-273-XP	375	68-004	252, 272
48-430	369	49-355	369	68-011 xxx	272
48-431-XP	376	49-356	367	68-012 xxx	272

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
68-013 xxx	272	90-202-6 356		91-195	310
80-033	346	90-202-6-8	356	91-196	310
80-035	382	90-202-8 356		91-19 7	310
80-036	346	90-20 3	356	91-198	310
80-037	346	90-203-5	356	91-199	310
80-04 3	346	90-203-5-7	356	91-200	308
80-101	337	90-203-5-7-9	356	91-451	309
80-102	337	90-203-5-9	356	91-45 3	309
80-103	338	90-203-7	356	91-500	308
80-104	337	90-203-7-9	356	91-504-XP 69
80-105	338	90-203-9	356	91-505-XP	69
80-108	337	90-204	356	91-551	309
80-109	337	90-204-6	356	91-552	309
80-110	337	90-204-6-8	356	91-553	309
80-111	338	90-204-8	356	91-700	308
80-11 2	337	90-205	356	91-701-XP	320
80-113	338	90-205- 7	356	91-702-XP	320
80-115	337	90-205-7-9	356	91-703-XP	320
80-116	344	90-205-9	356	91-704-XP	69, 95, 312, 314
80-129	344	90-206	356	91-705-XP	69, 312
80-131	337	90-206-8	356	91-706-XP	83, 314
80-132	337	90-20 7	356	91-707-XP	125
80-133 338		90-207-9	356	91-708-XP	347
80-134	337	90-208	356	91-709-XP	150, 326
80-135	338	90-209	356	91-710-XP	150, 326
80-138	337			91-711-XP	150, 326
		91-001	317
80-159	344	91-002	317	91-712-XP	150, 320, 326
80-301	337	91-004	69, 95, 312, 314	91-713-XP	150, 320, 326
80-302	337	91-005	69, 312	91-714-XP	95, 314
80-303	338	91-006	83, 314	91-715-XP	313, 315
80-304	337	91-007	254, 274, 316	91-718-XP	113, 315
80-305	338	91-008	125	91-719-XP	317
80-308	337	91-009	320	91-720-XP	317, 347
80-329	344	91-010	320	91-721-XP	313
90-200	356	91-011	320	91-722-XP	254, 274
90-200- 2	356	91-014	320	91-729-XP	254
90-200-2-4	356	91-015	320	91-742-XP	347
90-200-2-4-6	356	91-016	95, 314	91-743-XP	347
90-200-2-4-6-8 356		91-017	313, 315	91-744-XP	348
90-200-2-4-8	356	91-018	113, 315	91-745-XP	347
90-200-2-6	356	91-019	313	91-746-XP	348
90-200-2-6-8	356	91-020	347	91-751-XP	195, 330
90-200-2-8	356	91-02 7	347	91-757-XP	195, 330
90-200-4	356	91-028	150, 326	91-758-XP	332
90-200-4-6	356	91-029	150, 326	91-759-XP	195, 332
90-200-4-8	356	91-030	150, 326	91-772-XP	316
90-200-6	356	91-031	150, 326	91-774-XP	343
90-200-6-8	356	91-032	150, 326	91-775-XP	343
90-200-8	356	91-042	347	91-874-XP	336
90-201	356	91-04 3	347	021415	422
90-201- 3	356	91-044	348	030730-001	342
90-201-3-5	356	91-04 5	347	030730-002	342
90-201-3-5-7	356	91-046	348	820406	301
90-201-3-5-7-9	356	91-051	195, 330	829632-26	286
90-201-3-5-9	356	91-059	195	840088-00	286
90-201-3-7	356	91-060	332	840613-00	286
90-201-3-9	356	91-061	332	840956-04	285
90-201-5	356	91-062	195, 330	840956-25	285
90-201-5- 7	356	91-074	343	840956-26	285
90-201-5-7-9	356	91-075	343	840956-32	285
90-201-5-9	356	91-163	335	840957-04	285
90-201- 7	356	91-165	335	840957-25	285
90-201-7-9	356	91-16 9	335	840957-26	285
90-201-9	356	91-172	336	840957-32	285
90-202	356	91-173	335	840964-03	285
90-202-4	356	91-174	336	840964-04	285
90-202-4-6	356	91-175	336	840964-1 3	285
90-202-4-6-8	356	91-175-XP	336	840964-25	285
90-202-4-8	356	91-194	310	840964-26	285

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
840965-31	285	46929456	346	A501-769	69
840965-32	285	48968887	217	A501-770	69
840967-64	285	49001704	218	A501-783	348
850410	300			A501-791	68, 82
		840964725	285
855101 299				A501-818	69
855118	299			A501-874	68, 82
855125	299	A		A501-878	67, 81, 93, 135, 273
855156	300	A100-045	347, 360	A501-901	68, 82
994800	301	A100-046	347, 360	A501-941	65
994848	299	A100-047	347, 360	A501-945	230
994862	301	A100-048	347, 360	A501-991	312, 318
999201	301	A100-049	347, 360	A508-399	68
999218	301	A100-050	347, 348, 360	A508-597	68, 82
999225	301	A100-051	352, 360	A508-598	68
999232	300	A100-052	347	A508-600 68
999249	301	A100-053	82	A508-605	68
999256	301	A100-054	82	A508-606	318
999263	301	A201-330	68	A508-614	318
999270	301	A201-370	68, 82	A508-640	68
999461	291, 301	A201-377	68	A508-641	68
999478	291, 301	A201-399	68	A508-649	69
23446339	345	A201-406	68	A508-650	69
23446347	346	A201-558	65	A508-652	342
23538077	318	A201-683	347, 348	A508-653	312, 313, 314, 315, 316, 317,
23538085	313, 318	A201-684	68		320, 326, 347, 352, 359,
24002693	422	A201-688	68		360
24085037	114			A508-655	312, 313, 314, 315, 316, 317,
24085060	114	A201-690	347, 360		320, 326, 327, 342, 347,
		A201-691	360
24088544	114	A201-811	69		359, 360
24088551	114	A201-812	69	A508-660	312, 313, 314, 315, 316, 317,
24302960	218	A201-814	69		320, 326, 347, 348
24341471	422	A201-848	360	A508-661	312, 313, 314, 315, 316, 317,
24353625	193	A201-849	347, 348		320, 326, 347
24358830	193	A201-934	318	A508-662	347
24457715	193	A301-043	348	A590-158 68, 82
24457723	193	A301-337	312, 314, 318	A590-159	68, 82
24483760	115	A301-338	312, 318, 347, 348	A590-180	68, 82
24511081	218	A301-339	312, 318	A590-181	68, 82
24594970	214	A301-386	68	A700-003	82
24616914	217	A301-387	68	A700-004	82
24616922	218	A301-391	68	A700-014	82
24616930	218	A301-402	68, 82	A700-015	82
24624892	218	A301-403	68	A700-016	82
24625642	218	A301-404	68	A700-017	68, 82
24625667	218	A301-405	68	A700-021 79
24625717	218	A301-406	68	A700-023	314, 318
24641714	218	A301-409	68	A700-028	81
24647265	217	A301-410	68	A700-029	81
24653917	218	A500-00	68	A700-030	81
24653925	218	A500-002	68	A700-031 314, 318, 342
24664997	217	A501-161	69	A700-032	83
24665002	217	A501-167	68, 82, 94	A700-033	81
24683542	218	A501-171	83, 95, 115	A700-034	81
24691750	217			A700-036	82
24691768	217	A501-305	68, 82	A700-039	79
24691776	217	A501-311	82	A700-041	79
24691784	217	A501-498	68	A700-043	81
		A501-499	68
24721714	217	A501-565	67, 81, 93, 115, 123, 135, 147	A700-044	79
24721722	217	A501-566	67, 81, 93, 115, 123, 135, 147	A700-045	79
24750408	217	A501-567	67, 81, 93, 115	A700-046	82
24756504	217	A501-615	68, 82	A700-047	79, 82
24759599	217	A501-633	68	A700-048	81
24759623	217	A501-693	312, 318	A700-049	81
24759656	217	A501-710	68	A700-050	81
24759664	217	A501-721	68, 82	A700-051	81
24792558	217	A501-746	83, 95	A700-052	79
24865057	218	A501-766	65	A700-056	82
24869893	218	A501-767	68	A700-057	82
24869901	218	A501-768	68	A710-001	82

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
A710-004	82	B520-236	324, 325	B520-782	351
A710-007	82	B520-237	324, 325	B520-783	351
A710-008	82	B520-240	323, 329	B520-784	351
A710-020	82	B520-242	324, 325	B520-785	351
		B520-243	324, 325	B520-786	351
				B520-787	351
		B520-253	350
B		B520-254	334, 341	B520-788	332
B202-269	324, 325	B520-256	350	B520-789	332
B202-328	344	B520-267	124	B530-254	350
B202-339	349	B520-268	124	B590-295	334
B202-369	324, 325	B520-269	124	B590-298	359
B202-370 324, 325, 329		B520-271	124	B590-299	359
B202-453	324, 325, 329	B520-295	341	B590-443	324
B202-509	125	B520-296	350	B600-017	147
B202-517	83, 95, 115, 125, 264	B520-298	136, 322, 328	B600-018	134, 147
B202-557	324, 329	B520-309	350	B600-029	321, 323, 329
B202-558	324, 325	B520-329	350	B600-032	323
B202-560	125	B520-360	350	B600-040	321
B202-578	230	B520-361	344	B600-041	321, 323
B202-580	321, 324, 325	B520-366	350	B600-045	321
B202-671	123	B520-367	350	B600-046	321
B202-672	123	B520-375	324	B600-047	136
B202-824	322	B520-378 336, 338		B600-048	136
B202-825	322	B520-407	348	B600-053	136
B202-957	321, 324	B520-408	348	B600-066	136
B220-001	344	B520-409	348	B600-070	328
B220-006	360	B520-483	338	B600-071	321, 323
B220-032	324, 329	B520-484	338	B600-078	136
B220-036	324	B520-541	321, 323, 324	B600-085	321
B220-043	125	B520-648	321	B600-086	321
B220-050	338	B520-649	135	B600-089	328, 329
B220-117	360	B520-650	135	B600-090	328
B220-280	360	B520-651	321	B600-092	321, 328
B220-282	360	B520-652	321	B600-100	136
B220-284	360	B520-653	321	B600-101	136
B250PD	121	B520-662	136	B600-106	321, 329
B300-057	230	B520-663	136	B600-107	321, 329, 344
B300-058	230	B520-667	321	B600-108	321, 329
B300-108	321	B520-685	323	B610-014	321, 329
B302-041	134	B520-690	334, 359	B610-024	328
B302-043	321	B520-691	334, 359	B610-025	328
B302-045	134	B520-692	334, 359	B610-028	321, 329
B502-191	333, 334, 341, 350	B520-693	334, 359	B610-031	321, 329
B502-200	344	B520-698	336, 341	B610-032 321, 329
B502-209	344	B520-721	359	B610-035	147
B502-292	334	B520-722	359	B610-040	321, 329
B502-310-604	344	B520-723	359	B610-041	321, 328, 329
B502-380	334	B520-724	359	B610-042	328
B502-468	334, 352	B520-725	359	B610-043	328
B502-486	349	B520-726	359	B610-044	328
B502-815	123	B520-727	359	B610-045	328
B502-873	230	B520-728 349		B610-046	328
B502-899	344	B520-729	349	B610-049	148
B502-907	341	B520-730	350	B610-050	148
B502-942	334, 352	B520-731	350	B610-051	148
B502-943	334	B520-732	350	B610-053	148
B502-944	334	B520-733	350	B610-054	148
B502-945	334	B520-734	350	B610-055	148
B502-946	349	B520-735	350	B610-056	148
		B520-736	350	B610-059	149
B502-948 B502-949	333, 334, 341, 350 324	B520-737	350	B610-061	149
		B520-738	341	B610-062	149
B502-998	254	B520-739	341	B610-063	149
B502-999	324, 325	B520-740	341	B610-064	149
B520-086	124	B520-741	341	B610-065	149
B520-087	124	B520-743	331, 334	B610-066	148, 149
B520-153	344	B520-744	331, 334	B610-071	328
B520-223 350		B520-780	351	B610-082	326, 327, 328
B520-233	350	B520-781	351	B610-083	326, 327, 328
B520-235	323

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
B610-084	326, 327, 328	C503-767	312, 314, 315, 318	CL10-355	416
B610-085	326, 327, 328	C503-768	94	CL10-360	317, 319, 416
B610-086	326, 327, 328	C503-775	92	CL10-361	319, 416
B610-203	321, 329	C503-940	92	CL10-362	319, 416
B610-204	321, 329	C503-965	94	CL100PB	412
B610-205	321, 329	C504-114	355	CL154PB	412
B610-281	321, 329	C504-116	355	CL154PB-XP	412
		C603-098	328	CL174PB	412
		C603-195	318	CL174PB-XP	412
C		C603-256	69, 83, 95, 115, 124, 148,	CL200PB	412
C100-059	94		273	CL254PB	412
C100-062	94	C603-262	92	CL254PB-XP	412
		C603-500	94	CL274PB	412
C102-522	93			CL274PB-XP	412
C102-524	93	C603-524	314, 318
C102-540	94	C603-569	92	CL720-3-1	416
C102-541	93	C603-623	123, 263	CL720-3-2	416
C102-542	93	C603-827	345, 354	CL720-3-3	416
C102-570	93	C603-897	69, 83, 95, 115, 124, 136,	CL720-3-4	416
C102-572	93		148, 254, 273	CL720-3-5	416
C102-837	94	C603-936	355	CL720G	414
C102-840	94	C603-950	354	CL721G	414
C203-034	94	C603-951	354	CL725-1	416
C203-311	69, 83, 95, 115, 125, 149,	C603-952	354	CL725G	414
	254, 273	C603-956	345	CL725-SP	416
C203-312	69, 83, 95, 115, 125, 149,	C603-964	345	CL728G	414
	273	C603-967	345	CL729G	414
		C604-050	352	CL729S-2	416
C203-376	94	C604-051	352	CL729S-3	416
C203-390	94	C604-052	352	CL771G	414
C203-391	94
C203-411	94	C604-053	352	CL774R	413
C203-726	352, 360	C604-088	352	CL774R-XP	413
C203-733	94	C604-089	352	CL775G	414
C203-736	83, 95, 115, 194	C604-106	314, 318	CL775-SP	416
C203-858	94	C604-107	318	CL777R	413
C203-947	94	C604-144	318	CL874R	413
C203-948	94	C604-187	94, 114	CL874R-XP	413
C303-006	94	C604-188	94, 114	CL888R	413
C303-007	95	C604-191	94, 114	CL920R	413
C303-028	95	C604-204	94	CL929R 413
C303-029	83	C604-205	94	CL974R	413
C303-400	94	C604-226	352	CL974R-XP	413
C303-421	83	C604-234	352	CL7788-PA-D	416
C303-437	347, 348	C604-243	313, 315, 318, 342, 347,	CL-ETS1	416
C303-438	83		348	CLTR78	416
C303-439	94	C604-268	352	CON-6	116, 196, 220
C503-008	68, 94	C604-269	352	CON-6P	116, 196, 220
C503-019	94, 114	C604-271	352	CON-6W 116, 196, 220
C503-113	354	C604-273	82, 94	CON-12	116, 196, 220
C503-115	345, 354	C604-307	65	CON-12P	116, 196, 220
		C604-312	94	CON-26	116, 196, 220
C503-116	354	C604-333	92	CON-26P	116, 196, 220
C503-118	345, 354			CON-32	116, 196, 220
C503-308	82, 94	C604-334	336
C503-314	94	C604-348	315, 318	CON-32P	116, 196, 220
C503-324	94	C604-354	82	CON-38	116, 196, 220
C503-331	114	C604-362	318	CON-38P	116, 196, 220
C503-334 94		C604-368	318	CON-44	116, 196, 220
C503-335	94	C604-369	318	CON-44P	116, 196, 220
C503-339	94	C604-371	318	CON-50	116, 196, 220
C503-346	352	C604-372	318	CON-50P	116, 196, 220
C503-359	94	C604-381	79	CON-192	116, 196, 220
C503-360	94	C604-395	83	CON-192P	116, 196, 220
C503-361	94	C604-400	82	CON-KIT	116, 196, 220
C503-362	94	C604-402	79	CS210-B500	227
C503-368	94	C604-419	352
C503-371	94	C607-062	348
C503-400	94	CL10-301	319, 416	D
C503-403	92	CL10-350	416	D500-000	79, 113
C503-524	318	CL10-352	416
C503-746	92	CL10-354	416

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
E		HANDLE.10231	285	HLPART.10060	286
E205-204	324, 325	HANDLE.10236	285	HLPART.10061	286
		HANDLE.10238	284	HLPART.10062 286
		HANDLE.10243	285	HLPART.10063 286
F		HANDLE.10248	283	HLPART.10064	286
F206-493	230	HANDLE.10254	284	HLPART.10065	286
F206-494	230	HANDLE.10261	284	HLPART.10066	286
F206-496	230	HANDLE.10262	284	HLPART.10067	286
F506-237	273	HANDLE.10264	284	HLPART.10068	286
F506-278 273		HANDLE.10266	284	HLPART.10069	286
		HANDLE.10267	284	HLPART.10070	286
F506-359	136	HANDLE.10268	284	HLPART.10071	286
F506-455	264
F506-864	230	HANDLE.10269	284	HLPART.10072	286
F506-867	230, 254	HANDLE.10270	284	HLPART.10073	286
F506-878	230	HANDLE.10271	284	HLPART.10074	286
F605-038	319	HANDLE.10272 284		HLPART.10075	286
		HANDLE.10273 284		HLPART.10076	286
		HANDLE.10275	283	HLPART.10077	286
G		HANDLE.10277	284	HLPART.10078	286
		HANDLE.10278	284	HLPART.10079	286
G506-815	67, 81, 93, 254, 273	HANDLE.10279	284	HLPART.10080	286
G570-232	68	HANDLE.10280	284	HLPART.10081	286
		HANDLE.10281	285	HLPART.10082	286
H		HANDLE.10282	285	HLPART.10083 286
HANDLE.10155	283	HANDLE.10285	285	HLPART.10153	286
HANDLE.10156	283	HANDLE.10286	285	HLPART.10154	286
HANDLE.10157	283	HANDLE.10289	284	HLPART.10155	286
HANDLE.10158	283	HANDLE.10290	285	HLPART.10156	286
HANDLE.10159	283	HANDLE.10291	285	HLPART.10158	286
HANDLE.10160	283	HANDLE.10296	284	HLPART.10159	286
HANDLE.10161	283	HANDLE.10297	284
HANDLE.10162	283	HANDLE.10298	285
		HANDLE.10306	283	J
HANDLE.10168	283	HANDLE.10308	283	J250-028 136
HANDLE.10170	283	HANDLE.10317	284
HANDLE.10176	283	HANDLE.10318	284
HANDLE.10178	283	HANDLE.10325	285	K
HANDLE.10179	283	HANDLE.10326	285
HANDLE.10180	283	HL6-2	280	K110-020	194
HANDLE.10181	283	HL6-3	280	K110-020 xx	214
HANDLE.10182	283	HL6-5	280	K110-480 316	359
HANDLE.10183	283	HL6-7	280	K110-480 605	359
HANDLE.10184	283			K110-480 606	359
HANDLE.10185	283	HL6-9000RK	281	K110-480 609	359
HANDLE.10186	283	HL6-9010	281	K110-480 612	359
HANDLE.10192	283	HL6-9040	281	K110-480 613	359
HANDLE.10194	283	HL6-9050	281	K110-480 619	359
HANDLE.10200	283	HL6-9060	281	K110-480 625	359
HANDLE.10202	283	HL6-9070	281	K110-480 626	359
HANDLE.10203	284	HL6-9080	281	K110-480 629	359
HANDLE.10205	284	HL6-9082	281	K110-480 630	359
HANDLE.10206	284	HL6-9092EL/EU	281	K110-550	191
HANDLE.10207	284	HL6-9095EL/EU	281	K110-947	194
HANDLE.10208	284	HL6-9453	281	K510-045	354
HANDLE.10209	284	HL6-9456	281	K510-053	185
HANDLE.10211	284	HL6-9465	281	K510-066	66, 80, 93, 112, 123, 146,
HANDLE.10212	284	HL6-9466	281		185, 263, 272
HANDLE.10213	284	HL6-9473	281	K510-320	191
		HL6-9485	281	K510-330	186, 215
HANDLE.10215	283	HL6-9486	281	K510-389	188, 216
HANDLE.10217	284	HLPART.10040	285	K510-390 188, 216
HANDLE.10218	284	HLPART.10041	285	K510-434	354
HANDLE.10219	284	HLPART.10042 285		K510-474	336
HANDLE.10220	284	HLPART.10043	285	K510-680	335, 336, 337, 338, 341
HANDLE.10221	285	HLPART.10044	285
HANDLE.10222	285	HLPART.10045	285	K510-711	336, 338
HANDLE.10225	283	HLPART.10047	285	K510-730	335, 336, 337, 338, 341,
HANDLE.10226	285	HLPART.10048	285		350
HANDLE.10229	284	HLPART.10049	285	K510-842	191
HANDLE.10230	285	HLPART.10051	285	KC215A130 293
				KC215B130	293

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
KC215E220	291	L283-056 43	186, 215	L283-412	182
KS11D1200	293			L283-413	187
		L283-056 48	186, 215
KS11F1200	293	L283-057	191	L283-414	187
KS21D1200	293	L283-060	188, 216	L283-415	187
KS21F1200 293		L283-061	188, 216	L283-416	187
KS23D2200	290, 292	L283-062	189	L283-417	187
KS23D2300	291	L283-064	188, 216	L283-418	187
KS23F2200	290, 292	L283-065	188, 216	L283-419	187
KS23F2300	291	L283-075	191	L283-420	187
KS41D1200	293	L283-099	189	L283-421	187
KS41F1200	293	L283-100	194	L283-422	187
KS43D2200	290, 292	L283-101 194		L283-423	187
KS43D2300	291	L283-112	191	L283-424	187
KS43D3200	290, 294	L283-121	194	L283-425	187
KS43F2200	290, 292	L283-122	194	L283-426	187
KS43F2300	291	L283-123	194	L283-427	187
KS43F3200	290, 294	L283-124 19	186, 215	L283-428	187
KS72F2300	291	L283-124 23	186, 215	L283-429 187
KZ11A10	297	L283-124 25	186, 215	L283-430	187
KZ11D10	297	L283-124 31	186, 215	L283-431	187
KZ11D20	297	L283-124 37	186, 215	L283-432	187
KZ11F10	297	L283-124 43	186, 215	L283-433	187
KZ11F40	297	L283-124 48	186, 215	L283-434	187
KZ11G10	297	L283-126	189	L283-435	187
KZ11G20	297	L283-127	191	L283-436 187
KZ11G40	297	L283-128	191	L283-438 187
KZ12D10	297	L283-131	189	L283-439 187
KZ12D20	297	L283-132	189	L283-440	187
KZ12D40	297	L283-133	189	L283-441	187
KZ12G10	297	L283-134	189	L283-442 187
KZ12G20 297		L283-137	189	L283-443	187
KZ12G40	297	L283-138	189	L283-444	187
KZ13D10	297	L283-139	189	L283-445	187
KZ13D20	297	L283-140	189	L283-446	187
KZ13D40	297	L283-141	189	L283-447	187
KZ13F10	297	L283-144	189	L283-448	187
KZ13F20	297	L283-145	189	L283-450	182
KZ13F40	297	L283-146	189	L283-452	191
KZ32BB0	319	L283-150	191, 218	L283-467	190
KZ32DA0	317, 319	L283-154 xx	194	L283-468	190
KZ33DC0	319	L283-170	189	L283-469	190
KZ34CA0	319	L283-171	189	L283-470	190
KZ34DA0	317, 319	L283-172 189		L283-471	190
KZ34ED0	319	L283-173 189		L283-472	190
KZ38BA1	319	L283-176	189	L283-473	190
KZ38BA2	319	L283-177	189	L283-474	190
KZ390AL	423	L283-178	189	L283-475	190
		L283-180	189	L283-476	190
		L283-181	189	L283-479	190
L		L283-182	189	L283-480	190
L0170 163, 165, 167, 169		L283-198	188, 216	L283-481	190
L0172	163, 165, 167, 169	L283-199	188, 216	L283-482	190
L283-003	191	L283-310	189	L283-483	190
L283-004	191	L283-311	189	L283-484	190
L283-006	191	L283-314	189	L283-680	218
L283-008	191	L283-316	189	L283-736	187
		L283-317 189		L283-750	189
L283-010	191
L283-029	191	L283-340	264	L460P	171
L283-030	191, 218	L283-341	264	L462P	171
L283-031	191, 218, 264	L283-344	218	L463P	171
L283-039	189	L283-347	190	L464P	171
L283-040	191, 218	L283-378	264	L480	171
L283-049	191	L283-392	190	L496P	171
L283-055	191, 218	L283-393	190	L583-004	191
L283-056 19	186, 215	L283-394	190	L583-015	191, 218
L283-056 23	186, 215	L283-395	190	L583-019	218
L283-056 25	186, 215	L283-396 190		L583-020	191, 218
L283-056 31	186, 215	L283-397	190	L583-021	191, 218
L283-056 37 186, 215		L283-398 190		L583-022	191, 218

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
L583-023	191, 218	L583-454	115, 192, 218	L9090LB	179
L583-024	191, 218	L583-468	192	L9091LB	179
L583-025	191, 218			L9092P	163, 165, 167, 169
		L583-474	330, 334, 341
L583-026	191	L583-475	330, 334, 341	L9094P	163, 165, 167, 169
L583-027	191	L583-476	330, 334, 341, 352	L9175	163, 165, 167, 169
L583-028	191	L583-477	330, 334, 341	L9176	163, 165, 167, 169
L583-029	191, 218	L583-481	192	L9440	163, 165, 167, 169
L583-030	191	L583-485	192, 218	L9444	163, 167
L583-031	191	L583-490	192, 218	L9453LB	179
L583-035	191	L583-492	192	L9453P	163, 165, 167, 169
L583-038	191	L583-494	192	L9456LB	179
L583-043	191	L583-496	192	L9456P	163, 165, 167, 169
L583-044	191	L583-497	188, 216	L9457P	163, 165, 167, 169
L583-045	191, 218	L583-498	188, 216	L9458P	163, 165, 167, 169
L583-047	191	L583-499	188, 216	L9460P	171
L583-048	191, 218	L583-500	188, 216	L9462P	171
L583-049	191	L583-501	188, 216	L9463P	171
L583-050	191, 218	L583-502	188, 216	L9464P	171
L583-051	191	L583-503	188, 216	L9465LB	179
L583-053	191	L583-504	188, 216	L9465P	163, 165, 167, 169
L583-056	191	L583-579	187	L9466P	163, 165, 167, 169
L583-057	191	L583-584	264	L9473LB	179
L583-058	191	L583-585	194	L9473P	163, 165, 167, 169
L583-063	191	L583-638	341	L9480LB	179
L583-064	191	L583-639	341	L9480P	163, 165, 167, 169
L583-065	192	L583-682	264	L9485LB	179
L583-066	192, 218	L583-684	264	L9485P	163, 165, 167, 169
L583-119	188, 216	L583-685	264	L9486P	163, 167
L583-120	188, 216	L583-705	187	L9492P	163, 165, 167, 169
L583-121	188, 216	L583-708	264	L9494P	163, 165, 167, 169
L583-122	188, 216	L583-709	187	L9496P	163, 167
L583-123	188, 216	L583-710	187	LM9210 203, 205, 207, 209
L583-133	83, 115, 188, 216	L583-711	187	LM9210F	203, 205, 207, 209
L583-153	333, 334, 341	L583-712	187	LM9210M	203, 205, 207, 209
L583-156	192	L583-717	187	LM9225	203, 207
L583-174	192	L583-739	187	LM9225F	203, 207
L583-187	183, 213	L583-748	191	LM9225M	203, 207
L583-192	192	L583-752	187	LM9250FP	203, 205, 207, 209
L583-195	340	L583-757	187	LM9250MP	203, 205, 207, 209
L583-196	192	L583-760	192	LM9250P	203, 205, 207, 209
L583-197	334	L583-761	192	LM9256FP	203, 205, 207, 209
L583-198	334	L583-773	332	LM9256MP	203, 205, 207, 209
L583-200	336	L583-774	332	LM9256P	203, 205, 207, 209
L583-211	188, 216	L583-800	330	LM9270FP	203, 205, 207, 209
L583-212	188, 216	L583-801	330	LM9270MP	203, 205, 207, 209
L583-213	188, 216	L583-802	330, 351	LM9270P	203, 205, 207, 209
L583-214	188, 216	L583-803	330, 351	LM9271	203
L583-215	188, 216	L9010	163, 165, 167, 169	LM9271FP	205, 207, 209
L583-216	188, 216	L9010B	179	LM9271MP	203, 205, 207, 209
L583-217	188, 216	L9025	163, 165, 167, 169	LM9271P	205, 207, 209
L583-218	188, 216	L9026P	163, 165, 167, 169	LM9280FP	203, 205, 207, 209
L583-219	188, 216	L9040	163, 165, 167, 169	LM9280MP	203, 205, 207, 209
L583-233	186, 215	L9040B	179	LM9280P	203, 205, 207, 209
L583-233-458	377	L9044	163, 167	LM9290EL or EU	203, 205, 207, 209
L583-245	188	L9050LB	179	LM9290FEL or EU	203, 205, 207, 209
L583-254	333, 334, 341	L9050P	163, 165, 167, 169	LM9290MEL or EU	203, 205, 207, 209
L583-255	335, 336, 337, 338, 341	L9056LB	179	LM9291EL or EU	203, 205, 207, 209
L583-286	192	L9056P	163, 165, 167, 169	LM9291FEL or EU	203, 205, 207, 209
L583-287	188, 216	L9060P	163, 165, 167, 169	LM9291MEL or EU	203, 205, 207, 209
L583-290	192	L9070LB	179	LM9292ELP or EUP	203, 205, 207, 209
L583-291	192	L9070P	163, 165, 167, 169	LM9292FELP or EUP	203, 205, 207, 209
L583-321	192	L9071P	163, 165, 167, 169	LM9292MELP or EUP	203, 205, 207, 209
L583-322	192	L9076P	163, 165, 167, 169	LM9293ELP or EUP	203, 205, 207, 209
L583-363	186, 187, 215	L9077P	163, 165, 167, 169	LM9293FELP or EUP	203, 205, 207, 209
L583-375	188	L9080LB	179	LM9293MELP or EUP	203, 205, 207, 209
L583-426	192	L9080P	163, 165, 167, 169	LM9294MELP or EUP	203, 205, 207, 209
L583-427	192	L9082LB	179	LM9295ELP or EUP	205, 207, 209
L583-446	331, 334	L9082P	163, 165, 167, 169	LM9295FELP or EUP 205, 207, 209
L583-447	331, 334	L9090 163, 165, 167, 169		LM9295MELP or EUP	203, 205, 207, 209

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
LM9310 165, 167, 169		N123-008	113	N623-017	114
LM9325	163, 167	N123-010	113	N623-030	115
LM9350P	165, 167, 169	N123-011	113
LM9370P	165, 167, 169	N123-012	113
LM9371P	165, 167, 169	N123-013	113	P
LM9380P	165, 167, 169	N123-020	115
				P513-023	423
LT10	258, 260	N123-021	111	P513-024	423
LT10F	258, 260	N123-022	111	PL7-2	280
LT40	258, 260	N123-032	111	PL7-3	280
LT40F	258, 260	N123-034	112	PL7-5	280
LT170	258, 260	N123-035	112	PL7-7	280
LT172	258, 260	N123-040	115
				PL8-2	280
LV9040	165, 167, 169	N123-043	111	PL8-3	280
LV9040B	179	N123-045	113	PL8-5	280
LV9044	165, 167, 169	N123-055	113	PL8-8	280
LV9050LB	179	N123-056	111	PL1001J	290
LV9050P	165, 167, 169	N123-057	111	PL1002J	290
LV9056LB	179	N123-059	113	PL1003J	290
LV9056P	165, 167, 169	N123-062	114	PL2001J	290
LV9060P	165, 167, 169	N123-076	113	PL2002J	290
LV9070LB	179	N123-085	112	PL2003J 290
LV9070P	165, 167, 169	N123-086	112	PL3001J	290
LV9071P	165, 167, 169	N123-087	112	PL3002J	290
LV9076P	165, 167, 169	N123-097	113
				PL4001J	290
LV9077P	165, 167, 169	N123-098	113	PL4002J	290
LV9080LB	179	N223-062	114	PL4003J	290
LV9080P	165, 167, 169	N223-063	114
LV9082LB	179	N223-066	113
LV9082P	165, 167, 169	N523-000	112
				Q
LV9440	165, 167, 169	N523-001	112	Q330-165	342
LV9444	165, 167, 169	N523-002	112	Q330-252	342
LV9453LB	179	N523-013	114
LV9453P	165, 167, 169	N523-019	114
LV9456LB	179	N523-020	114
LV9456P	165, 167, 169	N523-021	115	R
				R525-256	136
LV9457P	165, 167, 169	N523-022	315, 318, 347
LV9458P	165, 167, 169	N523-023	318
LV9480LB	179	N523-025	114	S
LV9480P	165, 167, 169	N523-041	114
LV9485LB	179	N523-054	114	S10D	270
LV9485P	165, 167, 169	N523-055	114	S40D	270
				S51PD	270
LV9496P	167	N523-063	114	S70PD	270
		N523-064	114	S80PD	270
		N523-065	113	S170	270
M		N523-066	113
M204-152	382	N523-067	114	S206-501	230
		N523-069	114	S206-502	230
M204-168	419			S206-504	230
M204-198	422	N523-091	113, 346	S206-515	230
M204-200	419	N523-092	115	S206-516	230
M204-201	419	N523-105	114	S206-517	230
M504-271	377, 422	N523-108	422
M504-306 422		N523-123	315, 318	S206-518	230
		N523-124	112	S206-523	230
M504-347	422			S210-B60	227
M504-413	422	N523-127	113	S210PD	250
M504-424	422	N523-131 114		S251PD	250
M504-425	422	N523-135	115	S270PD	250
M504-426	422	N523-149	114
M504-427	422	N523-177	114	S280PD	250
		N523-194	114	S290	250
M504-428	422			S306-135	323
M504-497	424	N523-209	112	S306-151	254
M504-548	419	N523-210	112	S306-180	273
M540-000	419	N523-211	112	S306-182	273
M540-051	419	N523-218	111
M540-056	419	N523-221	111	S306-183	273
		N523-222	111	S605-192	316, 319
MS-J175	385			S605-194	252, 272
		N523-223	111	S605-228	318, 319
		N523-224 111		S605-231	316, 318
N		N523-225	111	S605-241	252, 272
N123-007	113	N523-240	115

Part Number	Page Number	Part Number	Page Number	Part Number	Page Number
S605-242	252, 272	X		XL11-634	194
S605-289	254	XA10-594	319	XL11-636	194
S605-297	254	XB03-418	353	XL11-743	194
SM01-210	388	XB04-618	353	XL11-806	429
SM01-391	388	XB09-195	353	XL11-820	194
SM01-392	388	XB09-795	353	XL11-821	194
		XB11-475	353	XL11-848	194
		XB11-638	353	XL11-895	334
T		XB11-720	194	XL11-986	188
THP-021	264	XB11-789	353	XN12-012	114
THP-022	264	XB11-790	353	XN12-035	112
THP-8201-CH	263	XB11-825	349	XN12-045	112
THP-8201-F-CH	263	XB11-916	149	XN12-292	113
THP-8219-CH 263		XB11-917	149	XN13-052 114
THP-8219-F-CH	263	XB11-918	149	XN13-053	114
THP-8301-CH	263	XB11-919	149	XN13-054	114
THP-8301-F-CH	263	XB11-920	149	XQ02-309	94, 114
THP-8319-CH	263	XB11-921	149	XQ03-493 xx	125
THP-8319-F-CH	263	XB11-922	149	XQ03-494	94, 114
THP-S88806-IR	264	XB11-958	353	XQ06-878	379
TR200A	416	XB11-979	343	XQ07-351	82, 94, 114, 273
TR201	416	XB12-046	341	XQ07-351 xx	125
TR202	416	XC03-069	94, 114	XQ07-351 xxx 273
TR203	416	XK10-992	194	XQ11-804	353
		XL11-422	194	XQ11-935	334
		XL11-515	194
