This price list supersedes and cancels all previous price lists. Prices shown are subject to change without notice.

Administrative Offices

Allegion Administrative Office 11819 N. Pennsylvania St. Carmel, IN 46032 allegion.com/us

Placing orders

You can place orders with Allegion via the fax number or email listed below:

Fax#: 1-800-248-1460

Email: Order_LcnClosers@allegion.com

Customer Care

Our Customer Care Representatives are available for questions or assistance. You can reach them at 877-671-7011 (Press 1 for Sales Support | Press 2 for Product Support | Press 3 for RSO) or through the email addresses listed below:

Sales Support

support@allegion.com

Technical Product Support

Closers

Closers_TechProdSupport@allegion.com

Request for Quote

Carolinas

(North Carolina, South Carolina, Virginia) Carolinas.Ouotes@allegion.com

Central

(Arkansas, Illinois, Iowa, Kansas, Missouri, Nebraska, Oklahoma) Central.Quotes@allegion.com

Chicago

(Illinois-Northern, Wisconsin) Chicago.Quotes@allegion.com

Florida

Florida.Quotes@allegion.com

Great Lakes

(New York, Pennsylvania) GreatLakes.Quotes@allegion.com

Metro New York

Metro.Quotes@allegion.com

Michigan

Michigan.Quotes@allegion.com

Mid Atlantic North

(New York, Pennsylvania) Mid.Atlantics.north.guotes@allegion.com

Mid Atlantic South

(Delware, Maryland, New Jersey) Mid.Atlantics.south.quotes@allegion.com

Midwest

(Indiana, Kentucky, Ohio, West Virginia) Midwest.Quotes@allegion.com

Mountain States

(Colorado, Idaho, Montana, Nevada, Utah, Wyoming) Mtn.States.Quotes@allegion.com

New England

(Connecticut, Main, Massachusetts, New Hampshire, Rhode Island, Vermont) NewEngland.Quotes@allegion.com

North Central

(Minnesota, North Dakota, South Dakota) NorthCentral.Quotes@allegion.com

Northern California

NoCal.Quotes@allegion.com

Northwest

(Alaska, Oregon, Washington) Northwest.Quotes@allegion.com

South

(Alabama, Georgia, Louisiana, Mississippi, Tennessee) South.Quotes@allegion.com

Southern California

(California-Southern, Hawaii) SoCal.Quotes@allegion.com

Southwest

(Arizona, New Mexico) Southwest.Quotes@allegion.com

Texas

Texas.Quotes@allegion.com

TABLE OF CONTENTS

Contact Information 2	Control Box Components28-29
Table of Contents/How to Order 3	Actuator/Sensors Quick Find Guide30-31
Available Finishes/SRI4	Actuators, Sensors and Accessories	3249
Order Form5	Parts & Accessories50-63
General Terms6-9	Senior Swing Diagram	64
Door Closer Specialists10	Benchmark Diagram65
Complete Door Closers11-23	Glossary of Abbreviations	66
Magnets24	Wiring Diagrams67
Specialty Products, Fasteners25	Wiring Diagram Request Form	69

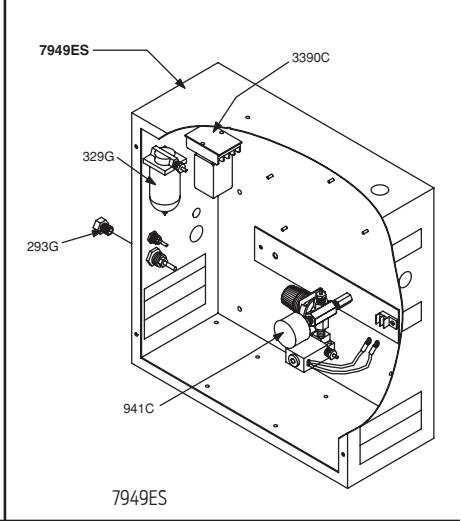

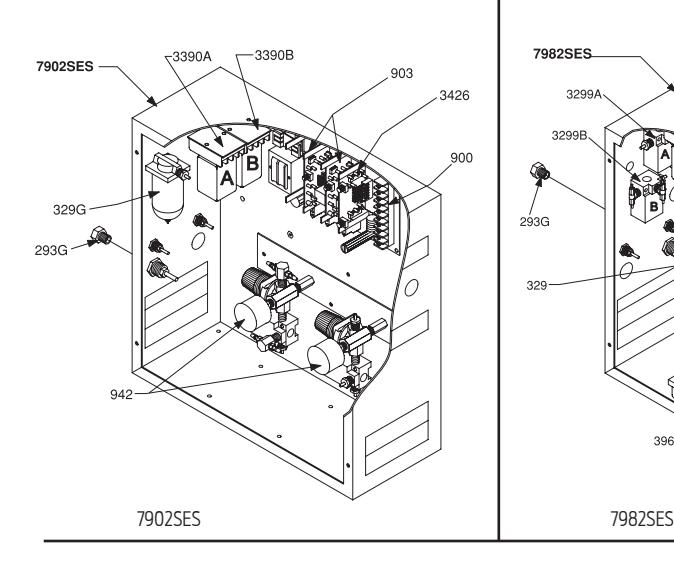

Control Boxes 26-27	LCN Warranty71

HOW TO ORDER CLOSERS, COMPONENTS, PARTS & ACCESSORIES

• 1. Identify the closer series; 1460, 2030, 4040XP, 4210T, 4310ME, 4640, 6030, etc.
• 2. Determine if any additional information is required, such as: handing, finish, spring size, voltage, etc.
• 3. Order the material using suffix number with the description and include all necessary information. Examples: 4111 Closer x RH x CUSH x AL or 4040SE Closer x 24v x DKBRZ
• 4. For additional information on how to order specific closers, please see the 'How to Order' page in each individual closer section of the LCN General Catalog or call LCN Customer Care .

SPECIAL NOTES

• 1. All RAL custom finishes will be powder coated and metal covers ( list add $10 for most series, list add $30 for 1450 and 4050 series ) will be substituted for standard covers for all closers except the 1460 series. 1460 series closers may be custom finished but a DS cover ( list add $32 ) must be selected.
• 2. LCN offers more than 180 RAL custom finishes. There is a list add of ( $40 ) per closer for an RAL finish. Most series require a metal cover ( MC ) ( $10 add ). LCN also offers a Brite Metallic ( MTLPC ) powder coat finish. There is a list add of ( $60 ) per closer for the MTLPC finish.
• 3. LCN plated list prices already include -72MC (1460 includes -72DS). Disregard the additional list add for metal cover ( MC ).
• 4. LCN powder finishes exceed ANSI/BHMA standard A156.4 for corrosion resistance by at least a factor of four. LCN powder coat finishes combined with the LCN Special Rust Inhibitor ( SRI ) pre-treatment exceed this standard even further.
• 5. Special Rust Inhibitor ( SRI ) is a pretreatment that is applied prior to the LCN powder coat finish and greatly exceeds ANSI/BHMA Standard A156.4 for corrosion resistance. LCN requires an additional ( list add $40 ) charge per closer, component or part.
• 6. LCN plated finishes exceed ANSI/BHMA standard A156.4 for corrosion resistance.
• 7. Optional TORX security screw packs can be substituted for standard screw packs on most closers. See ' Add for TORX Screw Pack ' for additional charge. In some cases, not all fasteners can be provided as TORX , consult factory for details.
• 8. LCN can mark individual closer boxes with door or opening #'s. Please specify 'itemized' when ordering. Markings (e.g., door number, stock reference numbers) on individual product cartons will be provided with no charge.
• 9. Special Template ( ST ) pricing is available by contacting LCN Technical/Product Support or LCN Customer Care.
• 10. All closers conform to standards UL10C and UBC 7-2 (1997).
• 11. If an item or price is not listed in the LCN July 9, 2018 Price List , consult factory for availability & pricing.
• 12. Prices listed in the LCN July 9, 2018 Price List are subject to change without notice. The current 'Terms of Sale' applies. All prices listed in the LCN July 9, 2018 are in US dollars.

Powder Coated Finishes

LCN closers can be specified in six standard or over 180 custom powder coated finishes. Powder coating provides superior protection against the effects of weathering and provides a durable, chip resistant finish. For information about custom finishes, plated finishes and a special rust inhibiting (SRI) process, see the LCN General Catalog.

Standard Powder Coated Finishes

See LCN General Catalog, page 5 for exact colors.

• AL (BHMA 689) Aluminum
• DKBRZ (BHMA 695) Dark Bronze
• BRASS (BHMA 696) Brass
• LTBRZ (BHMA 691) Light Bronze
• STAT (BHMA 690) Statuary
• BLACK (BHMA 693) Black

Optional Custom Powder Coated Finishes

• 180 Custom Finishes (contact customer service for availability)
• Superior Appearance
• Environmentally Friendly Process
• Durable and Chip Resistant
• Corrosion Resistant
• Match Doors, Frames, and Hardware

Optional SRI

When powder coated closers are installed in high humidity or potentially corrosive installations like swimming pools, water treatment facilities or near large bodies of water, specify LCN SRI Pretreatment. This optional process extends the corrosion protection offered by powder coat finishes.

Optional Plated Finishes

LCN offers 7 plated finishes at additional cost: US 3, US 4, US 10, US 11, US 15, US 26 and US 26D

For a list of available BAA/ARRA compliant products please contact your local RSO or sales representative to see the BAA/ARRA catalog.

ORDER FORM

Sold To:	Purchase Order #
	Purchase Order Date
	Requested Ship Date
	Project Name
	Shipping Instructions
Ship To:		THIS SPACE FOR FACTORY USE ONLY
	Acct #	WOG - Y / N
	Quantity	PL
	Ship Date	Inv #
	Itemize Code 1 _ 2 _ 3	Verify

		Arm Type	Hand		Finish
QTY	Closer Series	or Part #	Description As Listed in Catalog or Parts List	RH	LH	Painted	Plated

Orders can be faxed to (800) 248-1460 or emailed to Order_LCNClosers@allegion.com

Price Book 7

Allegion General Terms and Conditions of Sale and Service

1. GENERAL/ACCEPTANCE. (a) This Agreement contains the only terms and conditions by which Company will quote and sell Deliverables to Customer; (b) The terms "purchase order" or "order" for the purposes of this Agreement include the term "request for quotation," as appropriate; (c) This Agreement supersedes all pre-printed or boilerplate terms and conditions set forth in any purchase order issued by Customer; (d) No reference herein to Customer's purchase order will in any way incorporate different or additional terms and conditions, all of which Company hereby expressly objects to; (e) ANY ACCEPTANCE BY COMPANY OF CUSTOMER'S PURCHASE ORDER IS EXPRESSLY CONDITIONED ON THE CUSTOMER'S ASSENT TO AND ACCEPTANCE OF THE TERMS AND CONDITIONS CONTAINED IN THIS AGREEMENT; (f) Company reserves the right to decline any order, in whole or in part, for any reason.

2. ORDERS.

a. Order Processing. When Customer wishes to place an order for Deliverables, it will deliver to Company a purchase order. All such purchase orders must (i) be in a written format acceptable to Company, (ii) be legible, (iii) include a purchase order number, (iv) include Customer's account number, invoice address, ship to address, shipping method, shipper's letter of instruction for international shipments, part number, pricing, and designated contact information, (v) include, if applicable, any special configuration ID numbers, necessary programming information, special factory instructions, and requested specifications regarding a particular finish, handing, design, backset, or strike, (vi) reference any applicable pricing discounts under an ongoing buying program or based on a written quote from Company, along with the applicable buying program number or quotation number, and (vii) not combine buying program and quoted product on the same order.

b. Minimum Orders. In the event the order value does not meet any required minimum net Deliverable value, Company may, at its sole discretion, (i) increase the quantity of items in the order to meet the minimum net Deliverable value requirement; (ii) apply a minimum order charge; (iii) reject the order, or (iv) waive the requirement, provided that the waiver of a requirement for one order shall not constitute a waiver of the requirement for any future orders.

c. Acceptance of Purchase Orders. Company will endeavor to (i) acknowledge receipt of each purchase order issued in accordance with this Agreement, and (ii) notify Customer whether Company accepts or rejects the purchase order. If Company fails to accept or reject a purchase order within a reasonable time period, such failure to respond will be deemed a rejection of the entire order. Orders that combine buying program and quoted product on the same order will be routed back to your local RSO office in order to review subject purchase order.

d. Changes to Order/ Cancellation of Orders. Additional terms and conditions regarding order changes and cancellations are available on the Allegion customer website, WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE. Unless otherwise provided herein, Customer acknowledges that (i) requesting a Change Order may cause a delay in the scheduled shipment date, a longer lead time or result in a new scheduled shipment date; (ii) Orders may not be changed after 48 hours of Company's order acknowledgment; (iii) After 48 hours of Company's order acknowledgment, all changes to an accepted purchase order will be subject to a Change Order charge of 25% of the net Deliverable value, plus the cost of labor and fabrication or raw material that Company incurred prior to the receipt of the Change Order from Customer, or that may be required due to the Change Order; (iv) the requested change may result in additional charges for labor, fabrication, and raw material, and (v) if Customer cancels an order or portion of an order that includes Deliverables that have been manufactured and prepped for shipping, a 45% restocking fee will apply. Notwithstanding the foregoing, Customer cannot change or cancel credential orders, reader orders, biometrics orders or any non-cataloged, special, Custom or nonstandard items once they have been placed. All cancelled orders for a Non Recurring Expense (NRE), credential orders, reader orders, biometrics orders, and/or Custom orders will be subject to a cancellation charge of 100% of the acknowledged price.

e. Add-ons. Add-on orders will not be accepted. Additions to orders will be entered as separate stand-alone orders and must qualify for all terms of sale, including discounts, on an individual basis.

f. Fast-Track Orders. No changes or cancellations will be accepted on the 24-Hour Fast Track Program. For 3-day Fast Track orders, changes and cancellations may only be requested by Customer within 24 hours of Company's order acknowledgment if the order has not shipped. For 5-Day Fast Track orders, changes and cancellations may only be requested by Customer if the order has not shipped and if the request is made to Company within 48 hours of Company's order acknowledgment. Return Material Authorization (RMA) for Deliverables must be processed through Fast Track Customer Service.

g. Steelcraft Orders. For all Steelcraft orders, changes or cancellations are allowed without penalty only if made within 48 hours of Company's order acknowledgment, and provided that the order has not shipped. Some exceptions do apply – please consult the factory. Changes are not allowed on Rapid Program orders after the order has been entered and acknowledged. After 48 hours of Company's order acknowledgment, all changes or cancellations are subject to a charge of 25% of the order. Unless otherwise specified by Company in writing, any changes to orders acknowledged by Company that affect the delivery date will be deemed a new order and will require acknowledgement by Company as provided in this Section. Additional products, features, terms and conditions regarding the Rapid Program are available on the Allegion customer website, WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE.

3. PRICES, INVOICES AND PAYMENT.

a. Prices. The prices in Company's Price Book are subject to change at any time, without notice to Customer. Company may charge Customer additional amounts if Customer requests special packing, marking, shipment, product modification, or engineering services. Oral prices specified by Company are null and void. Quote numbers must be referenced on Customer's purchase order in order for the Company's quoted pricing to apply. Orders that do not reference a quote number will receive buy program pricing or book net pricing. Quoted prices are for those specific products quoted for a specified job, and are subject to the Price Book in effect at the time Company receives the order.

b. Taxes. Prices do not include any present or future federal, state or local property, license, privilege, sales, use, excise, gross receipts or other like taxes or assessments which may result from transactions or any services performed in connection therewith. Any taxes, charges, or duties imposed by any governmental authority on the sale of Deliverables will be paid by Customer, in addition to the selling price specified by Company. Credits for U.S. sales tax applied to invoices will only be granted if valid exemption documentation is provided within 30-days of the invoice date and a case is initiated by customer service. Exemption documentation may be emailed to sales.tax.certificates@allegion.com, this e-mail address cannot be used to request a credit for sales tax charged all such requests must be made with customer service. All certificates sent to the e-mail address must include the following information: (1) Customer account number(s); (2) Customer name; and (3) Allegion brand(s) the certificate should be applied to.

c. Payment Terms. Company will deliver to Customer an invoice with each shipment of Deliverables hereunder. Customer will pay all invoiced amounts within 35 days of the invoice date (subject to any early pay discounts that may be offered to Customer by Company in its sole discretion). Customer will make all payments in United States dollars. Past due invoices will be subject to a late payment service charge of 1.5% per month on any overdue unpaid balance, equivalent to 18% per annum, or the maximum rate permitted by law, whichever is less. Customer shall reimburse Company for all costs of collection, including, without limitation, reasonable attorneys' fees, for any overdue amount owed by Customer to Company, and such collection costs shall also be subject to interest charges.

4. QUOTATIONS.

a. Project Quotations. Project or new construction quotes are restricted to the specific project quoted for the quantities, finishes, and series of Deliverables referenced on the quote. Company reserves the right to require proof of sale of Company products for any quoted project.

b. Stock Quotations. Deliverables fulfilling stock quotations may only be used for the following: i) Stocking of the Customer's shelves for small, quick-turn, discretionary projects, or ii) Sale to a general contractor or installer for new construction. Stock quotations may not be used for any project containing any Company no-substitution, specified products. Deliverables purchased under Stock Quotations cannot be redistributed to other Customer branch locations or re-sold to other resellers or used for aftermarket sales, end-user annual contracts or sold over the counter to any walk in trade.

c. General. All quotes are subject to this Agreement, unless otherwise specified by Company, and are subject to change at any time prior to Company's acceptance of a purchase order referencing the applicable quote number. Company, its representatives and employees reserve the right, in their sole discretion and for any reason, to refuse a Customer's request to quote a price other than the standard list price, regardless of whether Company or its representatives or employees have previously quoted discounted prices to the Customer on some or all of its orders. Customer's failure to comply with this Section 4 will be considered a material breach of this Agreement, and will entitle Company to immediately terminate any purchase orders and/or Customer's ability to distribute Company's products.

5. SECURITY INTEREST. Customer grants Company, and Company retains, a purchase money security interest and lien on any and all of Customer's rights, title and interest in each Deliverable sold by Company to Customer, wherever located, until the invoice for the applicable Deliverable(s) is paid in full, including any late charges and costs of collection. Customer authorizes Company to, and will assist Company in, taking all necessary steps to perfect and maintain Company's interest in such Deliverables.

6. CREDIT TERMS. . Unless Customer pre-pays all of its purchase orders in advance, its purchase orders will be subject to the credit limit and other terms of credit ("Credit Terms") set forth in Company's credit application, which Credit Terms Customer acknowledges are subject to change by Company at any time. Company reserves the right to request payment in advance of shipment or any order or to request adequate assurances for Customer's payment of an order and may withhold or stop shipment, without any liability to Company, until Customer submits payment or adequate assurance of payment.

7. RESALE OF DELIVERABLES. Customer agrees and warrants that it will offer Company products in support of Company-written specifications and will maintain sufficient inventory to adequately support End Users, installers, and/or general contractors' needs. Company may implement an MSRP or a resale pricing programs at any time in its sole discretion. Failure to comply with such program(s) will be considered a material breach of this Agreement, and will entitle Company to immediately terminate any purchase order and/or Customer's ability to distribute Company's products. Customer shall, at its own expense, gain and maintain sufficient knowledge of the industry and products competitive with Deliverables so as to be able to (a) explain in detail to End Users, installers, and/or general contractors the differences between the Deliverables and competing products, (b) ensure that an adequate number of trained, capable and qualified technical personnel with sufficient knowledge of the Deliverables and who have obtained all necessary licenses and permits are available to assist End Users, installers, and/or general contractors, and (c) respond to such End Users, installers, and/or general contractors with respect to the general operation and use of the Deliverables including, but not limited to, (1) acting as a liaison between the End Users, installers and/or general contractors and Company in matters requiring Company participation, (2) providing general product information and configuration support on standard protocols and features, (3) collecting relevant technical problem identification information, and (4) posting and distributing any warranty information concerning the Products in accordance with Company's instructions. Customer is responsible for all service and support resulting from the re-sale of any Deliverable to End-Users, installers and/ or general contractors, examples of which may include, but are not limited to, support activities such as installation, initialization, software set-up, training, trouble-shooting, technical support and field service. In the event Customer is unwilling or unable to perform said support activities, Company reserves the right to recover from Customer any and all expenses incurred by Company to resolve the afore-mentioned End-User, installer and/or general contractor issues. Technical product training is recommended for Customer in order to fully service and support Deliverables purchased from Company that are resold to End-Users, installers and/or general contractors.

8. DEFAULT. If Customer is in default of payment or otherwise with respect to any purchase order or other contract with Company, Company shall have the right, in addition to all other legal remedies and without prejudice to any of its right hereunder, to defer further shipments under that or any other purchase order until such default is corrected and to declare all outstanding bills of Customer to be immediately due and payable.

9. INSPECTION AND DELIVERY.

a. Inspection. Customer will inspect all Deliverables immediately after receiving them. Customer will be deemed to have accepted the Deliverables unless Customer notifies Company in writing of any nonconformance within 10 days of delivery and provides Company written evidence reasonably documenting that nonconformance. Inspection of Deliverables at Company's facility is not permitted.

b. Delivery. Delivery schedules for Deliverables are based upon current production capacities, material or component availability, and inventory, and may be changed by Company as conditions require. Delivery schedules for services are based upon Company's prompt receipt of, and prompt access to, Customer's equipment and all information necessary to complete the services. In no event will any delivery date be construed as falling within the meaning of "time is of the essence." Partial delivery shall be accepted by Customer and paid for at the price and on the terms stated herein. Any partial delivery shall constitute a separate sale, and payment shall be separately made when due. If any part of a delivery hereunder is not delivered by Company in accordance with Customer's purchase order, this Agreement shall not be affected thereby.

10. TITLE & RISK OF LOSS. Unless otherwise specified by Company, (i) where the Customer is located in the United States, all Deliverables will be sold "Uniform Commercial Code, FOB Origin, Company's factory"; and (ii) where the Customer is located outside of the United States, all Products will be sold "Ex-works, Company's factory (Incoterms 2010)." In either instance, title and risk of loss will pass to Customer upon delivery to the carrier at Company's factory, provided, however, as set forth herein, Company shall retain a security interest in the Deliverables until full payment has been made therefore, and Customer agrees, upon request, to do all things and acts necessary to protect Company's interest by adequately insuring the Deliverables against loss or damage from any cause and to have Company named as an additional insured. Customer will promptly provide Company with a copy of the relevant certificate of insurance upon Company's request.

11. SHIPPING.

• a. Freight Charges. Company will ship all Deliverables in accordance with Company's freight shipment guidelines, which are set forth on the My Allegion Portal ("Freight Shipping Guidelines"), WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN.
• b. Rush Charges. Expedited order options are available as set forth in Company's Freight Shipping Guidelines.
• c. Packing and Marking. Company will pack, mark, and ship Deliverables according to its standard procedures for shipment, unless the parties agree, in writing, that Company will comply with any special instructions provided by Customer. Special instructions may result in an increased price.
• d. International Shipments. For all international orders, a Shipper's letter of instruction must be submitted in writing with the order. Failure to do so will result in the order being rejected. Complete adherence to this order requirement will be strictly enforced. Company will not be held liable for any charges resulting from delays due to lack of complete required information being supplied.
• e. Once received by the Company, a purchase order cannot be combined with any other order to increase average order size as it relates to Company's Freight Shipping Guidelines. However, for orders placed under Company's FastTrack 24 Hour/5 Day Program (available for Schlage, Von Duprin, LCN and Glynn-Johnson products); ii) FastTrack 24 Hour/3 Day Program (available for Ives products); or ProExpress (available for specific product lines stated in the ProExpress price book for Falcon, Ives, Glynn Johnson, LCN, Schlage and Von Duprin products), the applicable brands or product categories may, subject to certain order requirements identified by Company, be combined on a single order to increase average order size used in Company's Freight Shipping Guidelines.
• 12. CLAIMS. All claims must be submitted in writing to Company as follows: (i) All claims for prices must be submitted within thirty (30) days from the date of invoice; (ii) All claims regarding Deliverable quantity or incorrect orders must be submitted within ten (10) days from the date of delivery; (iii) All claims for damage to Deliverables (while in the care, custody, and control of Company) must be submitted within thirty (30) days from the date of invoice; (iv) All claims for loss or damage to Deliverables while in the care, custody, and/or control of a carrier will be the responsibility of Customer, unless otherwise agreed by the parties.
• 13. PRODUCT CHANGES. Company's product policy is one of ongoing update and revision, and accordingly, Company reserves the right to change, without notice, the design of, or the process of manufacturing, the Deliverables covered by this Agreement.
• 14. PRODUCT USAGE LIMITATION. Customer agrees: (i) not to sell or use a Deliverable in any manner contrary to the manner in which the Deliverable is intended to be used; and/or (ii) not to modify the design of any Deliverable for use with another product without the prior written consent of Company.
• 15. PRODUCT RETURNS. Unless otherwise agreed by the parties in writing, Deliverables that are correctly furnished by Company per the purchase order may not be returned unless Customer receives written authorization from Company. If returns are authorized by Company, a return merchandise authorization ("RMA") number must be provided by Company. Deliverables identified under such RMA must be returned to Company within 90 days of issuance of the RMA. Such RMA number and any accompanying RMA documents, the original invoice number, and a written explanation for the return must be included with the returned Deliverables in order for Company to inspect and approve a credit for the return. For warranty returns , a credit in the amount of the original purchase price will only be issued if, after Company's receipt and inspection of the returned Deliverables, Company confirms, in its sole discretion, the defect is valid and approves the return. For non-warranty returns/convenience returns , in the event Company approves such a return, in its sole discretion, the following shall apply: (a) the total amount of Deliverables requested to be returned shall be a minimum of $250.00; (b) a credit will be made to Customer's account in the amount of the original purchase price less freight and a handling charge of 45% of the net material on the original invoice; and (c) only Deliverables that are new, current, standard, non-obsolete, non-specially manufactured, unused, in their original condition as at the time of sale by Company to Customer, in their original packaging and in Customer's inventory less than 180 days from the date of shipment by the Company, and not ordered as part of a master key solution may be considered by Company for return. Such credit will only be issued if, after Company's receipt and inspection of Deliverables, Company approves the return. The amount of final credit will be determined upon receipt at the factory and following Company's inspection and analysis of the condition of the returned material. Company retains the right to deny credit to anyone for any reason.

16. CONFIDENTIAL INFORMATION.

• a. Non-Use And Non-Disclosure. Customer shall not use the Confidential Information of the Company except for the purpose of performing its obligations under this Agreement or exercising the rights granted herein (the "Purpose"). Customer shall protect Confidential Information of the Company from disclosure and unauthorized use in the same manner that it protects its own Confidential Information, but in no event shall such standard of care be less than reasonable care. Customer may disclose Confidential Information of the Company only to its employees who require such information for the Purpose and who are subject to confidentiality obligations at least as protective as those set forth herein.
• b. Proprietary Information and Advice. (a) All designs, data, and specifications provided by Company are proprietary and may not be disclosed or reused by Customer without the prior written consent of Company; (b) Company assumes no obligation or liability for any advice given by Company, the results obtained, or damages incurred as a result of such advice, and all such advice is given and accepted at Customer's risk.
• c. Return. Upon the termination or expiration of a purchase order or this Agreement or upon the request of the Company, the Customer agrees to end all further use of, to immediately return to the Company the original version of, and to delete or destroy all copies of, any and all Confidential Information of the Company.

17. TRADEMARKS. Except as agreed to by Company in writing, Customer agrees not to (a) use Company's name in any form of publicity; or (b) use, create, register or market, directly or indirectly, in whole or in part, Company's names, logos, brands, or any other trademarks, or names that are now or may hereafter be owned by Company, as part of Customer's corporate or business name, as part of an internet domain name, uniform resource locator (URL), or in any way connected with Customer's business, trade address or other designations. Upon termination of this Agreement or upon the request of company for any reason, any use of Company's trademarks or names will be immediately discontinued.

18. LIMITED WARRANTY.

COMPANY MAKES NO OTHER WARRANTIES EXCEPT THOSE STATED IN COMPANY'S LIMITED WARRANTY IN EFFECT ON THE DATE COMPANY ACCEPTS EACH APPLICABLE PURCHASE ORDER ("LIMITED WARRANTY"). THE LIMITED WARRANTY MAY BE FOUND IN THE APPLICABLE PRICE BOOK AND ON THE ALLEGION CUSTOMER WEBSITE, WHICH TERMS ARE EXPRESSLY INCORPORATED HEREIN BY REFERENCE. COMPANY WILL MAIL CUSTOMER A HARD COPY OF THIS WARRANTY UPON CUSTOMER'S WRITTEN REQUEST. IN THE EVENT THAT CERTAIN DELIVERABLE WARRANTIES ARE NOT FURNISHED BY THE COMPANY TO CUSTOMER, COMPANY WARRANTS ONLY TO CUSTOMER THAT THE DELIVERABLES WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF 12 MONTHS FROM THE DATE OF SHIPMENT OF THE DELIVERABLES. COMPANY'S SOLE OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING, AT COMPANY'S OPTION, THE DEFECTIVE DELIVERABLE, PROVIDED WRITTEN NOTICE OF THE DEFECT OR NONCONFORMANCE IS PROVIDED BY CUSTOMER WITHIN 30 DAYS OF DISCOVERY OF THE DEFECT OR NONCONFORMANCE. COMPANY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE DELIVERABLES, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.

• a. Exclusions. The provisions of this Limited Warranty do not apply to Deliverables that: (A) are not the proper size for the application; (B) are not installed in accordance with Company's published installation instructions; (C) are installed with improper or incorrect parts and/or are used for purposes for which they are not designed or intended; (D) have been repaired or altered without the Company's prior written consent; (E) have been subjected to misuse, abuse, negligence or accident; (F) have been improperly stored, installed, maintained or operated; (G) have been used in violation of written instructions provided by Company to Customer; (H) have been subjected to improper temperature, humidity, or other environmental conditions, or (I) have been affected by normal wear and tear. In addition, the provisions of this Limited Warranty do not apply to any defects or issues with the design or performance of equipment or products not manufactured by Company, nor does it apply to any code compliance or permit requirements for the assembly, installation, erection or construction of any goods. Company is not responsible for loss or damage resulting from use of Deliverables in conjunction with parts or systems not manufactured by Company. Accessories or products furnished by the Company, but manufactured by others, shall carry whatever warranty the manufacturers have conveyed to the Company and which can be passed to Customer.
• b. Services. Company warrants that its services will be free from defects in material and workmanship for a period of 12 months from the date of completion of the particular items of service. Company's sole obligation under this service warranty is limited to repair or reperformance, at its option of the service, provided however, if repair or reperformance is either impractical or impossible, the Company will refund to Customer that portion of the price paid to Company for any defective service, provided written notice of the defect or nonconformance is provided by Customer within 30 days of discovery of the nonconformance.
• c. Notification. Customer agrees to immediately notify Company in writing if any claim is made against Customer for any damages caused by any modules, parts, products, service or other Deliverables which may be the direct result of any defect in the manufacture of such aforementioned products. Customer agrees to cooperate with Company and its counsel in the defense of such claim and Customer agrees not to settle such claim without Company's written consent. If Customer fails to notify Company of such claim or fails to cooperate in such defense as aforesaid, then Company shall be discharged from any obligations under this Section and shall have no further liability to Customer.
• d. Exceptions. The following costs and expenses are not covered by the provisions of these limited warranties: (i) labor costs for the removal and reinstallation of Deliverables or other manufacturer's products; (ii) shipping and freight expenses required to return Deliverables to Company; (iii) normal maintenance; and (iv) economic losses. In addition, the provisions of this warranty are not applicable to anything other than defects in Company's material (products only) or workmanship.

19. LIMITATION OF REMEDIES.

CUSTOMER'S EXCLUSIVE AND SOLE REMEDY ON ACCOUNT OF, OR IN RESPECT OF, THE FURNISHING OF NON-CONFORMING DELIVERABLES, SHALL BE TO (A) SECURE REPAIR OR REPLACEMENT OF THE PRODUCTS; OR (B) SECURE REPAIR OR RE-PERFORMANCE OF THE SERVICES OR TO OBTAIN A REFUND OF THE PRICE PAID FOR THE DEFECTIVE SERVICE, ALL AT COMPANY'S OPTION. IN NO EVENT WILL THE COMPANY'S MAXIMUM LIABILITY EXCEED THE SELLING PRICE FOR THE DELIVERABLE. THE WARRANTY, OBLIGATIONS AND LIABILITIES OF COMPANY (INCLUDING ITS SUPPLIERS) AND THE RIGHTS AND REMEDIES OF CUSTOMER ARE EXCLUSIVE AND ARE IN LIEU OF AND CUSTOMER HEREBY WAIVES AND RELEASES ALL OTHER WARRANTIES, OBLIGATIONS, REPRESENTATIONS OR LIABILITIES EXPRESS OR IMPLIED ARISING BY LAW, IN CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE, INCLUDING BUT NOT LIMITED TO (I) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTY IMPLIED THROUGH COURSE OF PERFORMANCE, COURSE OF DEALING, OR USAGE OF TRADE OR (II) CLAIMS ARISING OUT OF THE NEGLIGENCE OF COMPANY OR COMPANY'S SUPPLIERS OR (III) ANY OTHER CLAIM ARISING OUT OF, CONNECTED WITH, OR RESULTING FROM THE PERFORMANCE OF COMPANY OR FROM THE DESIGN, MANUFACTURE, SALE, REPAIR, LEASE OR USE OF THE DELIVERABLE, OR ANY COMPONENT THEREOF, DELIVERED OR RENDERED HEREUNDER OR OTHERWISE.

20. INDEMNIFICATION AND LIMITATION OF LIABILITY . a. Customer shall indemnify, defend and hold Company, and its officers, directors, employees, customers, Affiliates, suppliers, users and agents, (collectively the "Indemnitees") harmless from and against any and all damages, claims, losses, expenses, costs, obligations, liabilities, including without limiting the generality of the foregoing, liabilities for court costs and attorneys' fees, suffered directly or indirectly by an Indemnitee by reason of, or arising out of any injury, death or loss to any person, or injury to any property (collectively, "Damages"), received or sustained by any person(s) or property, arising out of, occasioned by, attributable or related to i) any breach of any representation or warranty made by Customer, its officers, directors, employees, affiliates, users, agents, representatives or customers to Company or any third party, (ii) any failure by

Terms and Conditions

Customer to perform or fulfill any of its covenants, acts and/or omissions to Company or to any third party, or (iii) any litigation, proceeding or claim by any third party relating in any way to the obligations of Customer and/or the Deliverables sold by Company to Customer hereunder. Customer shall not consummate any settlement of any indemnified claim without the Indemnitees' prior written consent. Customer's obligation to indemnify Indemnitees will continue in full force and effect notwithstanding the termination or expiration of any order under this Agreement. In any claim against an Indemnitee by an employee of Customer or any subcontractor or anyone directly or indirectly employed by any of them or anyone for whose acts they may be liable, the indemnification obligations set forth in this Section shall not be limited in any way by or for Customer or any subcontractor under any applicable worker's compensation act, disability or other employee benefit act, or insurance coverage. This provision shall survive termination of any order or Agreement. IN NO EVENT WILL COMPANY, ITS OFFICERS, DIRECTORS, EMPLOYEES, CUSTOMERS, AFFILIATES, USERS AND AGENTS, (NOR COMPANY'S SUPPLIERS) BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND OR NATURE UNDER ANY CIRCUMSTANCES INCLUDING, BUT NOT LIMITED TO, LOSS OF USE OF THE PRODUCTS, SERVICE INTERRUPTION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF INTEREST, LOST GOODWILL, LOSS OF DATA, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, LOSS BY REASON OF SHUTDOWN OR NON-OPERATION, INCREASED EXPENSES OF OPERATION, OR CLAIMS OF CUSTOMER'S CUSTOMERS, OR ANY OTHER LOSSES OR DAMAGES ARISING OUT OF ANY LACK OR LOSS OF USE OF THE DELIVERABLES WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO, STRICT LIABILITY OR NEGLIGENCE), PATENT INFRINGEMENT, OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

b) INTELLECTUAL PROPERTY INDEMNITY. Company makes no representation or warranty to the Customer that the Deliverables shall not infringe any intellectual property rights including, without limitations, claims arising from patent, copyright, trademark, trade secret, or other intellectual property infringement. Customer agrees to hold Company harmless from and defend the Company against any such claim of intellectual property infringement, including any Damages resulting from that claim, the cost of complying with any preliminary or permanent injunction, and all other costs of defense (including the attorneys' fees and costs), in connection with the foregoing.

c) To the extent that applicable law does not permit any limitations set out in this Agreement, such limitation shall not be applied or invoked. Nothing in this Agreement will be interpreted to disclaim liability of Company or the Indemnitees for gross negligence or willful misconduct. The limitations of remedy and liability herein shall not be interpreted to affect Company's obligations, if any, for claims for (i) property damage, (ii) personal injury, or (iii) wrongful death asserted by persons who are not parties to or beneficiaries of this Agreement. Further, the limitations of remedy and liability herein shall not be interpreted to limit Company's or Customer's right, if permitted by applicable law, to assert a claim for contribution among joint tortfeasors in connection with a claim by a person who is not a party to this Agreement.

• 21. CERTIFICATIONS. Certification of Deliverables for compliance with UL and ANSI standards are tested and performed by third-party independent laboratories. Any field modification or alteration of certified Deliverables will void certification and Company is not liable to Customer to certify any modified or altered Deliverable.
• 22. TERM FOR CLAIMS. NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS AGREEMENT BY COMPANY MAY BE BROUGHT BY CUSTOMER MORE THAN ONE (1) YEAR AFTER THE CAUSE OF ACTION HAS ARISEN.

23. CONSUMER PRODUCTS

WITH RESPECT TO "CONSUMER PRODUCTS" AS DEFINED UNDER THE MAGNUSON-MOSS WARRANTY ACT ("MMWA"), THE FOLLOWING STATEMENTS ARE MADE. (A) SOME STATES OR LOCAL LAWS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU; (B) IF ANY IMPLIED WARRANTY IS PROVIDED UNDER THE MMWA, IT IS LIMITED TO THE DURATION OF THE WARRANTY PROVIDED IN SECTION 18 ABOVE. (C) SOME STATES OR LOCAL LAWS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU; AND (D) THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR LOCATION TO LOCATION.

• 24. FORCE MAJEURE/EXCUSABLE DELAY. Any delay or failure of Company to perform its obligations hereunder will be excused to the extent that it is caused by an event or occurrence beyond Company's control such as, by way of example and not by way of limitation, acts of God, acts by any governmental authority (whether valid or invalid), governmental laws and regulations not presently in effect, fires, floods, windstorms, explosions, riots, natural disasters, wars, sabotage, accidents, labor problems (including, without limitation, lockouts, strikes, and slowdowns) at Company's facility, its source plant or their suppliers, inability to obtain power, material, labor equipment, or transportation, or court injunction or order. The delivery date will be extended for a time equal to that of the delay and the schedule for Company's performance will be deemed adjusted to that effect.
• 25. ENTIRE AGREEMENT AND AMENDMENT. This Agreement, together with the attachments, exhibits, webpages, or supplements specifically referenced and incorporated herein, constitute the entire agreement between Company and Customer with respect to the matters contained herein and supersede all previous communications, representations, or agreements, either oral or written between Company and Customer. No agreement or understanding varying or expanding this Agreement will be binding upon either party unless it is in writing and signed by a duly authorized representative of each party hereto.
• 26. CONFLICTS. In the event of any conflict or inconsistency between the terms of any agreement, or any part of an agreement or the various documents (including, but not limited to, electronic documents) between Company and Customer, unless the parties agree otherwise in writing, the various components of the agreements shall be given the following precedence (in descending order of precedence): a) any master agreement or long term agreement between Company and Customer; b) any specific terms, conditions and/or warranties of the individual products or Deliverables; c) the terms and conditions of this Agreement, and d) any purchase order.
• 27. UNSATISFACTORY CREDIT/TERMINATION FOR INSOLVENCY OR DEFAULT. Customer shall furnish Company with statements evidencing Customer's financial condition as Company may, from time to time, reasonably request, and shall notify Company immediately of any and all events that may have a material adverse effect on Customer's business or financial

condition. If Company determines, in its sole discretion, that Customer's financial condition or creditworthiness is inadequate or unsatisfactory, then in addition to Company's other rights, Company may without liability or penalty, take any of the following actions: (i) modify the payment terms for any outstanding and/or future purchases; (ii) cancel any previously accepted orders; (iii) delay any further shipment of Deliverables to Customer; or (iv) any combination of the above.

Company may immediately terminate an order from Customer by giving written notice to Customer in the event of the happening of any of the following or any other comparable event: (i) insolvency of the Customer; (ii) filing of a petition in bankruptcy by or against the Customer; (iii) appointment of a receiver or trustee for the Customer; (iv) execution of an assignment for the benefit of creditors by the Customer, all of which will allow Company to demand reclamation of all affected orders; (v) Customer ceases or threatens to cease to trade; (vi) Company determines that Customer does not meet or no longer meets the credit requirements of Company or Customer's credit account is closed; (vii) any Customer violation of law, specifically including, without limitation, those laws set forth in this Agreement.

In the event of termination in accordance with this section, Company will not be obligated to accept any existing or additional orders from Customer and Company will be released from its obligation to deliver under orders accepted prior to such termination. The rejection or termination of any order by Company will not entitle Customer to any termination or severance compensation, or to any payment in respect to any goodwill established by Customer, or render Company liable for damages on account of the loss of prospective profits, or on account of any loss, expenditure, investment or obligation incurred or made by Customer.

No action taken under this Section 27 by Company (nor any failure of Company to act under this Section 27) will constitute a waiver by Company of any of its rights to enforce Customer's obligations, including the obligation of Customer to make payments as required under this Agreement. Upon termination of any order, all amounts owed by Customer to Company will become immediately due and payable, whether or not otherwise then due or payable.

• 28. CREDIT RISK ON RESALE OF DELIVERABLES. Customer is responsible for all credit risks with respect to, and for collecting payment for, all Deliverables sold to third parties (including End Users, installers, and/or general contractors) whether or not Customer has made full payment to Company for such Deliverables. The inability of Customer to collect payment for any Deliverable shall not affect Customer's obligation to pay Company for any Deliverable.
• 29. GOVERNING LAW; VENUE; AND EXPENSES. Any dispute or claim relating to this Agreement shall be governed by and construed according to the laws of the State of Indiana (excluding its conflict of laws principles); and not by the provisions of the 1980 United Nations Convention on the International Sale of Goods. Any disputes or claims shall be instituted and maintained in the courts of the State of Indiana. Customer consents to the exercise of jurisdiction over it by such courts and agrees that Indiana is not an inconvenient forum for any action arising from or relating to this Agreement. Customer agrees to pay for all expenses (including, but not limited to, collection costs, court costs and attorneys' fees) incurred by Company in enforcing the obligations of Customer under this Agreement.
• 30. RELATIONSHIP OF THE PARTIES. Nothing in this Agreement or any other document creates an employment, partnership, joint venture, or agency relationship between Company and Customer, including that of franchisee/franchisor. No party will have any power or authority to enter into any commitment on behalf of or otherwise bind the any other party on any matter. No employee of Customer will be deemed to be an employee of Company. If any provision of this Agreement is deemed to create a franchise relationship or business opportunity between the Parties, then Company may terminate any purchase order or this Agreement or the Parties shall negotiate in good faith to modify this Agreement so as to effect the original intent of the Parties as closely as possible in a mutually acceptable manner in order that the transactions contemplated hereby are consummated as a reseller agreement and not a franchise or business opportunity agreement.
• 31. SETOFF. Customer does not have the right to setoff or to back charge against any amounts which become payable to Company under this Agreement or otherwise. Company will not accept responsibility for backcharges for the cost of material or labor by Customer or any third party.
• 32. ELECTRONIC COMMUNICATIONS AND ELECTRONIC SIGNATURES. Both parties expressly agree to electronic transactions and acknowledge that documents they sign electronically will bind them to the same extent as a paper signature. Customer represents and warrants to Company that only employees authorized to bind Customer legally shall electronically sign any document under this Agreement. Customer shall comply with any method of electronic communication/payment processing specified by Company, including electronic funds transfer, pay-on-receipt processes/systems, order transmission, releases, electronic signature, and electronic communication systems, including, without limitation, the use of electronic data interchange ("EDI") portals. Notwithstanding the foregoing, e-mails, even those containing a signature block of one of Company's representatives, shall not constitute a signed writing.

33. COMPLIANCE WITH APPLICABLE LAWS.

a. General. Company and Customer will comply with all applicable federal, state and municipal laws, regulations, codes, ordinances and orders that pertain to the Deliverables, including but not limited to full compliance with any applicable provisions of The Health Insurance Portability and Accountability Act. Where the Customer is located outside the United States, or where the customer intends to ship the product outside the United States, the Customer shall be responsible for compliance with all U.S. export laws, and for filing all U.S. Electronic Export Information, as applicable.

b. The Customer acknowledges and agrees that: (i) it shall not violate applicable laws and regulations in performing its duties under this Agreement; (ii) it does not and shall not engage in any conduct that shall violate any applicable anti-bribery or anti-corruption laws or regulations; (iii) it (and its owners, officers, directors, employees and agents) shall not pay, offer, promise or authorize the payment of, either directly or indirectly, anything of value (including but not limited to cash, gifts and entertainment) to (a) any government official or employee of any government; (b) any official or employee of any department, agency, or instrumentality of a government; (c) any employee of any corporation or entity owned or controlled by a government; (d) any family member of such officials or employees; (e) any political party, party official, or political candidate; or (f) any other persons, owners, officers, directors, employees and agents of any corporation or entity; to improperly or illegally assist in obtaining or retaining business (including but not limited to any contracts, avoidance of duties or reduction of tariffs, reduction of taxes or

to obtain money owed, or to obtain regulatory approval) or for the purpose of causing, soliciting or inducing the sale and purchase of the Deliverables by any party, and (iv) it has full knowledge of and will comply with the Company's Code of Conduct for Business Partners as set forth on the Allegion customer website, WHICH IS HEREBY INCORPORATED BY REFERENCE.

c. The Customer shall indemnify and hold the Company harmless from any claim, demand, expense or cost arising from any breach of this Article.

d. The Customer shall permit the Company to conduct an audit or review of the Customer's financial books and records and business operations at such other times that the Company considers it necessary to confirm compliance with this provision. Such audit may be conducted by representatives of the Company or, at the Company's sole discretion, by a certified public accounting firm selected by the Company. The Customer shall cooperate with any inquiries from the Company's Ethics & Compliance Group.

e. A violation of this provision constitutes a material breach of this Agreement and the Company may terminate any purchase order or this Agreement immediately, with no opportunity to cure, in accordance with Section 27 of this Agreement.

f. Notwithstanding the foregoing provisions of this Section 33, (i) Company is not responsible for obtaining or maintaining any permits for the performance of services or the verification or compliance with any code requirements relative to the performance of services, (ii) to the extent any sale of Deliverables pursuant to this Agreement may require approval of the U.S. Government, Company's obligations under this Agreement are conditioned upon the grant of such approval and upon compliance by Customer with any restrictions imposed by the U.S. Government in connection with such approval, and (iii) in the event the Deliverables are to be used in a nuclear facility, the Customer shall, prior to such use, arrange for insurance or governmental indemnity protecting Company against liability. The Customer hereby releases and agrees to indemnify Company and its suppliers for any nuclear damage including, but not limited to, loss of use, in any manner arising out of the nuclear incident, whether alleged to be due, in whole or in part by Company or its suppliers.

g. No Inducements. Each party represents to each other that neither it nor any person acting on its behalf has, in contravention of any applicable law, given or offered to give or will give or offer to give, any sum of money or other material consideration to any person, directly or indirectly, as an inducement to obtain business hereunder or to influence the granting of licenses or other governmental permissions to enter into this Agreement or perform obligations hereunder.

h. Equal Employment Opportunity. Company is a U.S. federal contractor that complies with Executive Order 11246, as amended, and applicable regulations in 41 CFR Parts 60-1 through 60-60, 29 U.S.C. § 793 and applicable regulations in 41 CFR § 60-741; and 38 U.S.C. § 4212 and applicable regulations in 41 CFR Part 60-250 and 60-300. THE FOLLOWING PROVISIONS ARE INCORPORATED HEREIN BY REFERENCE: Executive Order 11246, as amended by Executive Order 13672, and 41 CFR § 60-4.3(a); Executive Order 11701 and 41 CFR §§ 60-250.5(a), 60-300.5; Executive Order 11758 and 41 CFR § 60-741.5(a); U.S. immigration laws, including the L-1 Visa Reform Act of 2004 and the H-1B Visa Reform Act of 2004; and Executive Order 13496.

i. Ethical Business Conduct. Customer shall adopt and comply with Company's Business Partner Code of Conduct which is EXPRESSLY INCORPORATED HEREIN BY REFERENCE.

34. REPRESENTATIONS AND WARRANTIES. Customer represents, warrants and covenants to Company that: (a) it has the right, power, and authority to enter into this Agreement and fully perform its obligations hereunder; (b) it has all necessary rights in and to its respective Content and Marks for use within the scope of this Agreement, including the licenses granted herein; and (c) it complies, and at all times shall comply, with all laws, rules, and regulations in effect that are applicable to its performance under this Agreement, including obtaining all such approvals and/or permits as may be required hereunder.

35. NO THIRD-PARTY BENEFICIARY. Each party is entering into this Agreement solely based on the representations contained herein for its own purposes and not for the benefit of any third party.

36. NOTICES AND CHANGE OF ADDRESS. All notices or other communications under this Agreement shall be in writing and delivered in person, or sent by receipted courier, express mail, e-mail, or postage prepaid certified or registered mail, addressed to the party for whom it is intended, at the addresses set forth in this Agreement. Either party may change its address for notice by giving written notice to the other party. Any notice or other communication shall be deemed given no later than the date actually received. Notice by courier, express mail, certified mail, or registered mail shall be deemed given on the date it is officially recorded as delivered and, in the absence of such record of delivery, it shall be rebuttably presumed to have been delivered on the third Business Day after it was deposited. Notices sent by e-mail require tangible confirmation of receipt from addressee.

37. ASSIGNMENT. Customer may not assign this Agreement without the prior written consent of Company. Company may assign its rights and delegate its duties under this Agreement, without the prior consent of Customer, to an Affiliate, or to a third party in the event of a spinoff, merger, business combination, consolidation or sale of all, or substantially all, of its assets or business that are related to this Agreement. The rights and duties in this Agreement shall bind and inure to the benefit of any such assignee.

38. SEVERABILITY. If any provision of this Agreement is held to be invalid, illegal, or unenforceable under any statute, regulation, ordinance, executive order, or other rule of law, that provision will be deemed severed to the extent necessary to comply with such statute, regulation, ordinance, order, or rule. In the event such provision is deemed severed, the parties will negotiate in good faith to arrive at an alternative arrangement approximating the original business objective of the parties. The remaining terms and conditions of this Agreement will remain in effect.

39. NO IMPLIED WAIVER. The failure of either party at any time to require performance by the other party of any provision of this Agreement will in no way affect the right to require such performance at any time thereafter, nor will the waiver of either party of a breach of any provision of this Agreement constitute a waiver of any succeeding breach of the same or any other provision.

40. MISCELLANEOUS. (a) This Agreement does not make either party the agent or legal representative of the other party. Neither party is authorized to create any obligation on behalf of the other party including, but not limited to, the obligation for payment of any service or warranty obligation hereunder; (b) The rights and remedies herein reserved to Company are cumulative and additional to any other rights and remedies provided at law or equity; (c) The official text of this Agreement is in the English language. If this Agreement is translated into another language, the English text will govern any question with respect to interpretation;

(d) The headings in this Agreement are for convenience of reference only and do not affect the meaning of this Agreement in any manner.

DEFINITIONS.

Capitalized terms have the meanings set forth in this Section, or in the Section in which they first appear in this Agreement.

"Agreement" means these Allegion Terms and Conditions of Sale and Service, together with any applicable Country Supplement or Region Supplement provided by Company, and all of the documents referenced herein or therein.

"Affiliate" means any Person that directly or indirectly, through one or more intermediaries, controls, is controlled by, or is under common control with, the Company. The term "control" (including the terms "controlled by" and "under common control with") means the possession, directly or indirectly, of the power to direct or cause the direction of the management and policies of a Person, whether through the ownership of voting securities, by contract or otherwise.

"Business Day" means any day except Saturday, Sunday or any other day on which commercial banks located in the United States are authorized or required by Law to be closed for business. "Company" means Schlage Lock Company, LLC or any subsidiary or affiliate thereof selling products that are part of the Allegion product portfolio. Schlage Lock Company and/or its subsidiary or affiliates will be severally but not jointly liable under the Agreement.

"Company Marks" refers to the Marks of Company.

"Confidential Information" shall mean any and all information provided by either party to the other party pertaining to the disclosing party's business. Confidential Information shall include, but not be limited to, any bitting lists, formulae for products, manufacturing processes, production techniques, packaging processes, methods, research materials, ideas, marketing plans and related materials, quality standards, test results and data, apparatus, engineering drawings, contract documents, computer software, hardware, or firmware, business activities information such as financial information, reports, projections, books and records, customer and supplier information, and operations, customer and supplier lists and data, specifications, know how, and other Proprietary Information or Trade Secrets (as defined herein) that either party may furnish to the other party. Confidential Information shall not include information that: (a) is or becomes publicly known if such public knowledge or disclosure is not the result of any act or failure to act on the part of the receiving party; (b) is, at the time of disclosure, already known to the Receiving Party without utilizing the Confidential Information; (c) is information disclosed to the Receiving Party by a third party which is not to the Receiving Party's knowledge, after inquiry of the third party, under a duty of confidentiality to the Disclosing Party; or (d) is independently developed by the Receiving Party without the use of Confidential Information. The Receiving Party shall have the burden of proof as to prior knowledge and absence of breach. Confidential Information may be furnished in any tangible or intangible form including, but not limited to, writings, drawings, computer and other electronic media, logic diagrams, component specifications, graphs, prototypes, samples, or verbal communications and regardless of whether such information is marked or designated as "confidential." For the avoidance of doubt, all information, knowledge or data disclosed by Company to Customer, regardless of whether disclosed in written, tangible, oral, visual or other form, including, without limitation, sample products, equipment, software, or other objects or material, provided by Company to Customer, and all information, knowledge or data which was obtained by Customer from visits to Company's facilities, shall be considered "Confidential Information" under this Agreement. "Content" means all information (including without limitation any text, music, sound,

photographs, video, graphics, data or software), in any medium, on a particular Company Web page or Website or in Marketing Materials.

"Customer" means the purchaser of Deliverables from Company.

"Deliverables" means any good or service or both purchased by Customer from Company under these General Terms and Conditions of Sale and Service.

"End Users" means the purchaser that (a) has acquired a Deliverable from Customer for (i) its own and its Affiliate's/Affiliates' internal use and not for resale, remarketing or distribution or (ii) incorporation into its own products and (b) is an individual or entity, other than any federal, state or local agency, office or division.

"IP" means all intellectual property and industrial property rights comprising or relating to/ of the following: (a) Patents; (b) Trademarks; (c) internet domain names, whether or not Trademarks, registered by any authorized private registrar or Governmental Authority, web addresses, web pages, website and URLs; (d) works of authorship, expressions, designs and design registrations, whether or not copyrightable, including copyrights and copyrightable works, software and firmware, application programming interfaces, architecture, files, records, schematics, data, data files, and databases and other specifications and documentation; (e) Trade Secrets; and (f) all other intellectual property and industrial property rights, and all rights, interests and protections that are associated with, equivalent or similar to, or required for the exercise of, any of the foregoing, however arising, in each case whether registered or unregistered and including all registrations and applications for, and renewals or extensions of, such rights or forms of protection pursuant to the Laws of any jurisdiction throughout in any part of the world. "Marketing Materials" means all marketing brochures, buckslips, pamphlets, emails, text, call

scripts or other material, whether in printed format, audio or audiovisual format, or in any other format, that contain any (i) Content relating to the Company Deliverables or (ii) Company Marks. "Marks" means collectively the domain names, trademarks, trade names, service marks, trade dress, logos, and the like used or provided by either party for use in connection with this Agreement.

"Patents" means all patents (including all reissues, divisionals, provisionals, continuations and continuations-in-part, re-examinations, renewals, substitutions and extensions thereof), patent applications, and other patent rights and any other Governmental Authority-issued indicia of invention ownership (including inventor's certificates, petty patents and patent utility models). "Person" means a person or entity.

"Price Books" mean Company's current Price Book in effect for the applicable Deliverable being purchased by Customer.

"Trade Secrets" means and includes business or technical information of either party, including processes, formulas, devices, techniques, compilations and other material that a party attempts to maintain in secret and that derive commercial value for such party from not being generally known to the public or readily ascertainable through independent development or reverse engineering.

DOOR CLOSER SPECIALISTS

Since its founding in 1926, LCN has specialized in solving door control problems through the use of high quality, innovative door control products. By adhering to high standards of performance, LCN has earned a leadership role within the industry and is committed to meeting door control challenges of the future. With representatives located throughout the world, LCN provides the products and services necessary to solve your door control problems.

The LCN formula for success

Materials

LCN is committed to providing the best door closers in the world. In addition to the mechanical advantages derived from proven designs, much of the durability of the closer and arm system is related to the materials used in their manufacturing.

Why do some hardware professionals claim that LCN stands for "Last Closer Needed?" LCN closers are put through grueling tests in which they exceed industry requirements.

Forged Steel Arms

The closing power and control generated within LCN closers is transferred to the door through forged steel arms. Forged steel arms have greater strength, better appearance and less bulk.

Chrome Silicon

Many closer manufacturers use less expensive oil-tempered springs, but LCN engineers know that such a spring loses up to 20% of its power after a few thousand cycles.

Heat-Treated

LCN steel pinions have larger, stronger teeth and are double heat-treated for the greatest possible strength on the shaft. Heat-treating makes the pinion harder, better able to resist wear after years of service and results in less stress on the cylinder.

Special Templates

When a standard door closer won't do the job, there is only one proven, reliable source for special solutions — LCN. With over 3,000 special templates on file, LCN can provide a door control solution for one-of-akind doors such as vault, balanced, over-sized and arch doors.

Hydraulic Fluid

LCN uses a special formula hydraulic fluid with special lubrication properties to keep closer components working smoothly. This unique all-weather hydraulic fluid eliminates the need for seasonal adjustments.

Customer Service

At a time when machines are picking up more and more customer calls, real people are answering the phones at LCN. Every member of our customer service staff is trained and qualified to assist you with orders, closer selection and special applications.

United State Minimum Advertised Pricing Policy (MAP) for LCN

Allegion through its Schlage Lock Company, LLC entity ("Allegion") has determined that certain advertising practices undermine Allegion's trade reputation, brands, and premium image within the target consumer population and discourage Allegion's Resellers (as hereinafter defined) from investing in the Allegion product lines and providing the best possible service and support to consumers. Accordingly, to protect the integrity of the Allegion brands, Allegion has adopted this unilateral Minimum Advertised Price Policy ("MAP Policy"), which applies to all distributors, wholesalers, retailers, and other resellers who are recognized as Authorized Sellers, Authorized Resellers or Authorized Retailers by Allegion (collectively, "Resellers") of Allegion products in the United States of America.

The MAP Policy applies to all products listed on the Allegion MAP Schedule ("Covered Products"). Allegion is solely responsible for establishing the minimum advertised price ("MAP") for each Covered Product and will communicate the MAP for each Covered Product to all Resellers through the Allegion MAP Schedule.

Commercial Product MAP Schedule

· The MAP for the "covered products" for LCN® 4000 and 1460 series offered by Allegion for resale in the United States of America shall be 43% off the list price identified in the most current price book issued by Allegion USA for use in the United States of America.

Manufacturer Suggested Retail Price:

• · MSRP will provide guidance to sellers to accurately position our product pricing in the market which represents our brand, quality, and value the products bring to our end customer.
• · MSRP will be 23% off list price for LCN 4000's series door closers and LCN 1460's series door closers

PRICE LIST

CLOSER SERIES	STANDARD POWDER COAT FINISHES		PLATED FINISHES	S H W
SERIES NUMBER ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	I E P I P G I H N T G	May 2019
1250 Series - Surface Mount
1250Rw/PA*	$205	N/A	N/A	8
1250 Rw/62A	220	N/A	N/A	7
1250 LONG	205	N/A	N/A	7
1250Hw/PA*	235	N/A	N/A	10
1250HLONG	235	N/A	N/A	10
1250EDA	255	N/A	N/A	8
1250HEDA (Handed)	290	N/A	N/A	8
1250 CUSH	290	N/A	N/A	9
1250HCUSH	350	N/A	N/A	9
1250SCUSH	350	N/A	N/A	9
1250SHCUSH	410	N/A	N/A	9	1250 Series

Add for; Slim Cover ( SLIM ) ( $15 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 )

*Note - When BAA (Buy American Act) is required for 1250 Rw/PA and Hw/PA in AL or DKBRZ please designate BAA when ordering. Buy American Act (BAA) ($30) for 1250 Rw/PA and Hw/PA in AL or DKBRZ.

For parts & accessories, see page 50

Add for; Slim Cover ( SLIM ) ( $16 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ) For parts & accessories, see page 50.

121 - 180

232 mm =

PRICE LIST

CLOSER SERIES STANDARD POWDER COAT FINISHES		PLAT	ED FINISHES	S H W
SERIES NUMBER	ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 1 US 4 US 1 US 10 US 2	5 P G	May 2019
1450 Series - Surface	Mount
1450		$275	N/A	N/A	9
1450		290	N/A	N/A	9
1450			N/A	N/A	8
1450		305	N/A	N/A	11
1450		305	N/A	N/A	II
1450		325	N/A	N/A	9
1450			N/A	N/A	9	1 ||| ||
1450		360	N/A	N/A	9	5 | | | | | |
1450		360	N/A	N/A	9	바 ||| ||
1450		420	N/A	N/A	10
1450		420	N/A	N/A	10	1 |||| 1"
1450		480	N/A	N/A	10	1/EO Covins
Add for; Delay Action	1 (DEL) ($40) F	Full Metal Cover (MC) ($	3U), Full Pla	astic Lover ( FC )	($10),	1450 Series
TURX Fasteners (10	KX) ($15), CUS	tom Powder Finish (RAI	L) ($40),	RLITE METAILIC (	MTLPC) ($60),

*Note - When BAA (Buy American Act) is required for 1450 Rw/PA and Hw/PA in AL or DKBRZ please designate BAA when ordering. Buy American Act (BAA) ($30) for 1450 Rw/PA and Hw/PA in AL or DKBRZ.

For parts & accessories, see page 50.

Special Rust Inhibitor (SRI) ($40)

1450T Series - Surface Mount (Coming S	oon)
1450TSTD	$360	NA	NA	12
1450TH	382	NA	NA	12
1450TBUMPER	370	NA	NA	12
1450TH BUMPER	390	NA	NA	12
ALIC FULLIC C (MAG)	(456) F II DI II C	(EG) (650)	TODY E	TODW /415

Add for; Full Metal Cover Cover (MC) ($30), Full Plastic Cover (FC) ($10), TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL__) ($40), Brite Metallic (MTLPC) ($60)

1460 Series - Surface Mount
1461 REG	$350	$630	$704	9	020
1461Rw/PA	356	687	777	11
1461Rw/62A	372	705	792	11
1461LONG	356	634	710	9	1460 Series
1461H	383	661	743	10
1461 Hw/PA	389	724	799	11	I H
1461 HLONG	389	649	733	10
1461HD	383	661	743	9
1461HD/PA	389	724	799	11
1461HDw/62A	405	744	833	11	O
1461 HD/LONG	389	724	799	10
1461EDA	410	771	849	12	1460 Series
1461EDA w/62G	416	777	853	12	| H w/DS Cover
1461HEDA (Handed)	443	804	885	12	W/ B3 Cover
1461 HEDA w/62G (Handed)	449	815	881	12
1461CUSH	449	815	881	11
1461HCUSH	504	853	951	| 11
1461SCUSH	504	853	951	| 11
1461 SHCUSH	565	914	1002	| 11

Add for; Delay Action ( DEL ) ($45), Designer Series Cover ( DS ) ($33), Full Cover ( FC ) ($12), TORX Fasteners ( TORX ) ($15), Special Rust Inhibitor ( SRI ) ($40), Custom Powder Finish ( RAL__ ) ($40), Brite Metallic ( MTLPC ) ($60)

For parts & accessories, see page 51.

1460T Series - Surface Mount
1460T, 1461TSTD	439	712	788	12
1460T, 1461TH	460	733	809	12
1460T, 1461TBUMPER	449	722	798	12
1460T, 1461TH BUMPER	472	745	821	12

Add for; Designer Series Cover ( DS ) ($33), Full Cover ( FC ) ($13), TORX Fasteners ( TORX ) ($15), Special Rust Inhibitor ( SRI ) ($40), Custom Powder Finish ( RAL ___) ($40), Brite Metallic ( MTLPC ) ($60) For parts & accessories, see page 51.

Indicates products that have EPD documentation available and meet LEED v4.

PRICE LIST

CLOSER SERIES		STANDARD POWDER COAT FINISHES		PLATED FINISHES	S H W
SERIES NUMBER	ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	I E P I P G I H N T G	May 2019
2010 Series - Concealed (Requires Handing) 2011, 2013-2016 STD 2011, 2013-2016H 2011, 2013-2016BUMPER 2011, 2013-2016H BUMPER		$661 682 671 694	$1,130 1151 1140 1163	$1,292 1313 1302 1325	13 14 13 14	2010 Series

Add for; TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ), Custom Powder Finish ( RAL___ ) ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

For parts & accessories, see page 52.

2030 Series - Concealed (Requires Handing)
2031-2035 STD $1,100	$1,551	$1,689	14
2031-2035H 1121	1,572	1,710	14
2031-2035BUMPER 1110	1,561	1,699	14	2030 Series
2031-2035H BUMPER 1133	1,584	1,722	14
Add for; TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL) ($40),

Brite Metallic ( MTLPC )* ( $60 ) For parts & accessories, see page 52.

2210 Series - Concealed (Requires Handing)
2213-2215STD	$914	$1,300	$1,382	17
2213DPS-2215DPSSTD	1,025	1,411	1,493	17

Add for; Advanced Variable Backcheck ( AVB ) ( $23 ), Special Rust Inhibitor (N/A with DPS) ( SRI ) ( $40 ),

Custom Powder Finish ( RAL___ ) ( $40 ), Brite Metallic ( MTLPC ) ( $60 )

For parts & accessories, see page 52.

2310ME Series - Concealed (Requires Handing & Voltage) 2314ME ...............................................STD $1,229 $1,566 $1,665 17

Add for; Bypass Cylinder ( B80 ) or ( B140 ) ( $88 ), TORX Fasteners ( TORX ) ( $15 ), Custom Powder Finish ( RAL___ )* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

For parts & accessories, see page 52.

2610 Series - Concealed (Requires Handing) 2613-2614...........................................STD $2,217 $2,619 $2,736 22 2613DPS-2614DPS .................................STD 2,429 2831 2949 22

Add for; Custom Powder Finish ( RAL___ )* ( $40 ), Brite Metallic ( MTLPC )* ( $60 ) See pages 20-21 for control boxes and compressors. Also, see pages 26-43 for actuators, tubing, & accessories.

For parts & accessories, see page 53.

PRICE LIST

CLOSER SERIES		STANDARD POWDER COAT FINISHES		PLATED FINISHES	S H W
SERIES NUMBER	ARM TYPE	ANCLR ANDKB	N/A	N/A	I E P I P G I H N T G	May 2019
2810 Series - Concealed (Requires Handing) 2811STD/CP 2811 STD/OP		$4,729 4,746 Header lengths available 33" to 48" on operators without POS or BKY (please specify). Header lengths available 36" to 48" on operators with POS or BKY (please specify).		ANCLR or ANDKB ANCLR or ANDKB	78 78

Add for; Double Door Header (49" to 98" – please specify) ( DD ) ( $242 ), Positive Mechanical Stop (STD/CP arm only) ( POS ) ( $26 ), Breakaway Stop (STD/CP arm only) ( BKY ) ( $95 ) Manual Prep (requires DD header and STD/OP arm) (49" to 98" - please specify) ( MPDD ) ( $658 )

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 53.

2850 Series - Concealed/Simultaneous Pair
2853STD/CP	$7,636	ANCLR or ANDKB	155
2853 STD/OP	7,664	ANCLR or ANDKB	155

Header lengths available 52" to 98" on operators without POS or BKY (please specify).

Header lengths available 70" to 98" on operators with POS or BKY (please specify).

STD/CP arm has 2 ¾" spindle center, STD/OP arm has 3 ¾" spindle center.

STD/CP arm has 2 ¾" spindle center, STD/OP arm has 3 ¾" spindle center.

Add for; Positive Mechanical Stop (STD/CP arm only) ( POS ) ( $52 ), Breakaway Stop (STD/CP arm only) ( BKY ) ( $190 )

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 53.

2850 Series

2860 Series - Concealed/Independent Pair
2863STD/CP		$9,406	ANCLR or ANDKB	155
2863 STD/OP		9,386	ANCLR or ANDKB	155

Header lengths available 65" to 98" on operators without POS or BKY (please specify).

Header lengths available 70" to 98" on operators with POS or BKY (please specify).

STD/CP arm has 2 ¾" spindle center, STD/OP arm has 3 ¾" spindle center.

Add for; Positive Mechanical Stop (STD/CP arm only) ( POS ) ( $52 ), Breakaway Stop (STD/CP arm only) ( BKY ) ( $190 )

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 53.

2860 Series

STANDARD CLOSER SERIES POWDER COAT FINISHES			PLATED FINISHES	S H W
SERIES NUMBER ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	I E P I P G I H N T G	May 2019
3030 Series - Concealed (Requires Handing) 3031-3034REG 3031-3034H Add for; TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 54.	$474 506	$682 714	$736 768	6 6	3030 Series
3130 Series - Concealed (Requires Handing) 3131-3133STD 3131-3133H 3131-3133BUMPER 3131-3133H BUMPER Add for; TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 54.	$555 576 565 588	$755 776 765 788	$813 834 823 846	8 8 8 8	3130 Series
3130SE Series - Concealed (Requires Handing & Voltage) 3133SE-3134SE STD 3133SE-3134SELONG Add for; TORX Fasteners (TORX) ($15), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 54.	$874 879	$1,074 1,101	$1,132 1,159	8 8	3130SE Series
4000T Series - Wall Pocket (SEM7800 Series Available Separately) 4003T-4004TSTD Add for; Metal Cover (MC) ($10), TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 54.	$552	$873	$977	15	4000T Series
4010 Series - Surface Mount (Requires Handing) 4011 or 4016REG 4011 or 4016H 4011 or 4016 FL Add for; Delay Action (DEL) ($43) (4011 only), Telephone Cylinder (TEL) ($43), Metal Cover (MC) ($10), TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) Note - 4010 Series is available as 4011 (Adjustable 1-5) or 4016 (Size 6 Only - Not ADA Compliant). For parts & accessories, see page 54.	$490 517 625	$924 951 NA	$1,067 1,094 NA	11 12 15	4010 Series
4010T Series - Surface Mount (Requires Handing) 4011T, 4013T-4014TSTD 4011T, 4013T-4014TH 4011T, 4013T-4014TBUMPER 4011T, 4013T-4014TH BUMPER	$546 567 556 579	$856 877 866 889	$948 969 958 981	16 16 16 16	4010T Series

Price Book 7

Indicates products that have EPD documentation available and meet LEED v4.

Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

4011T, 4013T-4014T..................................DE 592 902 994 16 4011T, 4013T-4014T...........................DE HO 613 923 1015 16 4011T, 4013T-4014T...............DE BUMPER 602 912 1004 16 4011T, 4013T-4014T...........DE H BUMPER 625 935 1027 16 Add for; Metal Cover ( MC ) ( $10 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ),

For parts & accessories, see page 55.

PRICE LIST

CLOSER SERIES		STANDARD POWDER COAT FINISHES		PLATED FINISHES		S H W
SERIES NUMBER	ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	I E P I P G I H N T G	May 2019

4020 Series - Surface Mount (Requires Handing)
4021 or 4026REG	$490	$913	$1,064	11
4021 or 4026LONG	491	912	1,058	11
4021 or 4026H	503	910	1,050	12
4021 or 4026 FL	617	NA	NA	12

Add for; Delay Action ( DEL ) ( $43 ) (4021 only) , Telephone Cylinder ( TEL ) ( $43 ), Metal Cover ( MC ) ( $10 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ), Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

Note - 4020 Series is available as 4021 (Adjustable 1-5) or 4026 (Size 6 Only - Not ADA Compliant). For parts & accessories, see page 55.

4020T Series - Surface Mount (Requires Handing)
4021T, 4023T-4024TSTD	$546	$856	$948	15
4021T, 4023T-4024TH	567	877	969	16
4021T, 4023T-4024TBUMPER	556	866	958	15
4021T, 4023T-4024TH BUMPER	579	889	981	16

Add for; Metal Cover ( MC ) ( $10 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ), Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 ) For parts & accessories, see page 55.

$419	$742	$853	8
424	802	931	9
441	820	948	8
396	700	793	8
402	760	871	8
418	779	890	8
424	747	860	8
452	766	876	8
457	825	947	9
457	771	881	8

4031HEDA (Handed)		490	884	981	9
4031CUSH		490	884	981	9
4031HCUSH		550	966	1,039	9
4031SCUSH		550	966	1,039	9
4031 SHCUSH		611	1024	1,096	9
Add for; Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60)
For parts & accessories, see page 56.

4031............................................................EDA 457 771 881 9

4030T Series - Surface Mount

4031TSTD	$489	$794	$882	9
4031T H	510	815	903	9
Add for; Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60)

For parts & accessories, see page 56.

Indicates products that have EPD documentation available and meet LEED v4.

PRICE LIST

CLOSER SERIES		STANDARD POWDER COAT FINISHES		PLATED FINISHES		S H W
SERIES NUMBER	ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	I E P I P G I H N T G	May 2019
4040XP Series - Surface Mount

4040XP Series - Surface Mount
4040XPREG	$507	$956	$1,109	13
4040XPRw/PA	512	1,016	1,182	13
4040XPLONG	512	962	1,116	14
4040XP XLONG	545	995	1,143	14
4040XPRw/62A	535	1,035	1,202	12
4040XPH	568	1000	1,156	13
4040XP Hw/PA	573	1,069	1,245	12
4040XPHLONG	573	1007	1,160	12
4040XPEDA	556	990	1,144	14
4040XPEDA w/62G	561	995	1,149	13
4040XPHEDA (Handed)	589	1023	1,171	14
4040XP HEDA w/62G (Handed)	594	1,028	1,176	13
4040XPCUSH	589	1,028	1,177	14
4040XPHCUSH	644	1,088	1,237	14
4040XPSCUSH	644	1,088	1,237	15
4040XP SHCUSH	698	1,142	1,291	15

Add for; Delay Action ( DEL ) ( $43 ) (Standard 4041 Cylinder - Not XP), Metal Cover (Handed) ( MC ) ( $10 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ), Custom Powder Finish (RAL___)* ( $40 ),

Brite Metallic ( MTLPC )* ( $60 )

For parts & accessories, see page 56.

4040XPTSTD	$566	$870	$960	15
4040XPTH	587	891	981	16
4040XPTBUMPER	576	880	970	15
4040XPTH BUMPER	599	903	993	16
4040XPT DE (Handed)	610	921	1,009	16
4040XPT DE H (Handed)	631	942	1,030	16
4040XPTDE BUMPER (Handed)	620	931	1,019	16
4040XPTDE H BUMPER (Handed)	643	954	1,042	16

Add for; Metal Cover (Handed) ( MC ) ( $10 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ),

Custom Powder Finish ( RAL___ )* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

For parts & accessories, see page 57.

4040SE Series - Surface Mount (Requires Voltage)
4040SESTD	$899	$1,219	$1,324	12
4040SELONG	899	1,219	1,324	12
4040SE DE (Handed)	947	1,266	1,371	12

Add for; Metal Cover (Handed) ( MC ) ( $10 ), TORX Fasteners ( TORX ) ( $15 ), Custom Powder Finish ( RAL ___)* ( $40 ),

Brite Metallic ( MTLPC )* ( $60 )

For parts & accessories, see page 57.

4040SEH Series - Surface Mount Arm & Track Only (Requires Voltage) (Closer Available Separately) 4040SEH ............4040SEH-3038 w/Arm $568 $752 $792 8

Add for; TORX Fasteners ( TORX ) ( $15 )

Note - Includes 4040SEH Track & 4040SEH Arm Only.

For parts & accessories, see page 57.

Indicates products that have EPD documentation available and meet LEED v4.

PRICE LIST

CLOSER SERIES		STANDARD POWDER COAT FINISHES		PLATED FINISHES	S H W
SERIES NUMBER	ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	I E P I P G I H N T G	May 2019
4050 Series - Surface Mount
4050Rw/PA 4050 LONG		$448 448	N/A N/A	N/A N/A	13 14
4050Rw/62A		468	N/A	N/A	13
4050Hw/PA		489	N/A	N/A	12
4050HLONG		489	N/A	N/A	12
4050EDA		479	N/A	N/A	14
4050 EDA w/62G		484	N/A	N/A	13
4050HEDA (handed)		510	N/A	N/A	14
4050HEDA w/62G (handed)		515	N/A	N/A	13
4050 CUSH		510	N/A	N/A	14
4050HCUSH		571	N/A	N/A	14
4050SCUSH 4050 SHCUSH		571	N/A	N/A	15	4050 Series
		633	N/A	N/A	15
Add for; Delay Action (DEL) ($43), Metal Cover (MC) ($10),
		TORX Fasteners (TORX) ($15), Custom Powder Finish (RAL) ($40), Brite Metallic (MTLPC) ($60),
Special Rust Inhibitor (SRI) ($40).
For parts & accessories, see page 57.
4050T Series - Surface Mount
4050T STD		505	N/A	N/A	15
4050TH 4050TBUMPER		531	N/A N/A	N/A N/A	16 15
4050TH BUMPER		515 541	N/A	N/A	16
4050TDE (Handed)		551	N/A	N/A	16
4050T DE H (Handed)		577	N/A	N/A	16
4050TDE BUMPER (Handed)		561	N/A	N/A	16
4050TDE H BUMPER (Handed)		587	N/A	N/A	16	4050T Series
		Add for; Metal Cover (MC) ($10), TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40),
		Custom Powder Finish (RAL) ($40), Brite Metallic (MTLPC) ($60).
For parts & accessories, see page 58.
4110 Series - Surface Mount (Requires Handing)
4111 or 4116EDA		$490	$919	$1,069	13
4111 or 4116EDA w/62G		495	924	1,074	13
4111 or 4116HEDA		523	948	1,074	13
4111 or 4116HEDA w/62G		523	948	1,100	13
4111 or 4116 FL		630	NA	NA	15	4110 Series
4111 or 4116CUSH		523	948	1,100	13
4111HCUSH		582	1005	1,163	14
4111 or 4116SCUSH		582	1005	1,163	15
4111 SHCUSH		637	1,060	1,208	15
		Add for; Delay Action (DEL) ($43) (4111 only), Advanced Variable Backcheck (AVB) ($21),
		Telephone Cylinder (TEL) ($43), Metal Cover (MC) ($10), TORX Fasteners (TORX) ($15),
		Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60)
		Note - 4110 Series is available as 4111 (Adjustable 1-5) or 4116 (Size 6 Only - Not ADA Compliant).
For parts & accessories, see page 58.
4110T Series - Surface Mount (Requires Handing)
4111T, 4113T-4114TSTD		$545	$854	$948	15
4111T, 4113T-4114TH		566	875	969	16
4111T, 4113T-4114TBUMPER		555	864	958	15
4111T, 4113T-4114TH BUMPER		578	887	981	16	4110T Series

For parts & accessories, see page 58.

Add for; Metal Cover ( MC ) ( $10 ), TORX Fasteners ( TORX ) ( $15 ), Special Rust Inhibitor ( SRI ) ( $40 ),

Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

PRICE LIST

CLOSER SERIES	STANDARD POWDER COAT FINISHES		PLATED FINISHES	S H W
SERIES NUMBER ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	I E P I P G I H N T G	May 2019
4210 Series - Surface Mount (Requires Handing) 4211 or 4216EDA 4211 or 4216CUSH 4211HCUSH Add for; Delay Action (DEL) ($43) (4211 only), Advanced Variable Backcheck (AVB) ($21), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) Note - 4210 Series is available as 4211 (Adjustable 1-5) or 4216 (Size 6 Only - Not ADA Compliant). For parts & accessories, see page 59.	$541 574 633	$899 959 1,046	$1,113 1,141 1,194	14 14 15	4210 Series
4210T Series - Surface Mount (Requires Handing) 4211T, 4213T-4214TSTD Add for; Advanced Variable Backcheck (AVB) ($23), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 59.	$662	$974	$1,064	15	4210T Series
4310HSA Series - Surface Mount (Requires Handing & Voltage) 4311HSASTD 4311HSADE Add for; Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 59.	$1,313 1,359	$1,674 1,720	$1,777 1,823	22 22	4310HSA Series
4310ME Series - Surface Mount (Requires Handing & Voltage) 4314MESF 4314MEDE	$1,257 1,302	$1,629 1,674	$1,731 1,776	17 17

4310ME Series - Surface Mount (Requires Handing & Voltage)
4314MESF	$1,257	$1,629	$1,731	17
4314MEDE	1,302	1,674	1,776	17
Add for; Bypass Cylinder (B80) or (B140) ($88), TORX Fasteners (TORX) ($15),

For parts & accessories, see page 59.

Indicates products that have EPD documentation available and meet LEED v4.

PRICE LIST

CLOSER SERIES	STANDARD POWDER COAT FINISHES		PLATED FINISHES		S H W
SERIES NUMBER ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	I E P I P G I H N T G	May 2019

4410HSA Series - Surface Mount (Requires Handing & Voltage) 4412HSA....................................................REG $1,253 $1,733 $18,391 22 4412HSA.................................................LONG 1,287 1,765 1,922 22

Add for; Custom Powder Finish ( RAL___ )* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

Closer price includes 4410HSA-18 for regular mount or 4410HSA-18G (please specify) plate for flush mount application.) For parts & accessories, see page 60.

4410ME Series - Surface Mount (Requires Handing & Voltage)

4414ME .....................................................REG $1,166 $1,646 $1,803 17 4414ME ..................................................LONG 1200 1,678 1,835 17

Add for; Bypass Cylinder ( B80 ) or ( B140 ) ( $87 ), TORX Fasteners ( TORX ) ( $15 ),

Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

Closer price includes 4410ME-18 for regular mount or 4410ME-18G (please specify) plate for flush mount application. For parts & accessories, see page 60.

4510 Series - Surface Mount (Requires Handing)

4511 or 4516 ..............................................EDA $553 $956 $1,100 14

Add for; Delay Action ( $43 ) (4511 only) , Advanced Variable Backcheck ( AVB ) ( $23 ),

Special Rust Inhibitor ( SRI ) ( $40 ), Custom Powder Finish ( RAL ___) ( $40 ), Brite Metallic ( MTLPC ) *( $60 ) Note - 4510 Series is available as 4511 (Adjustable 1-5) or 4516 (Size 6 Only - Not ADA Compliant)

4510T Series - Surface Mount (Requires Handing)

4511T, 4513T-4514T ................................STD $642 $940 $1,028 15 Add for; Advanced Variable Backcheck ( AVB ) ( $23 ), Special Rust Inhibitor ( SRI ) ( $40 ),

Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

For parts & accessories, see page 60.

For parts & accessories, see page 60.

4630 Series - Surface Mount

4631 ............................................................STD $5,682 $6,060 $6174 40

Add for; TORX Fasteners ( TORX ) ( $15 ), Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

Note - Optional Concealed On/Off Switch ( CS ) Available ( $0 ) - Please Specify.

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 60.

4640 Series - Surface Mount

4642 ...........................................................REG $5,585 $6,090 $6,246 40 4642 ........................................................LONG 5,585 $6,090 $6,246 40

Add for; TORX Fasteners ( TORX ) ( $15 ), Custom Powder Finish ( RAL ___)* ( $40 ), Brite Metallic ( MTLPC )* ( $60 )

Note - Optional Concealed On/Off Switch ( CS ) Available ( $0 ) - Please Specify.

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 61.

Indicates products that have EPD documentation available and meet LEED v4.

STANDARD CLOSER SERIES POWDER COAT FINISHES			PLATED FINISHES	S H W
SERIES NUMBER ARM TYPE	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	I E P I P G I H N T G	May 2019
4810 Series - Surface Mount 4811STD Add for; Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 61.	$2,164	$2,505	$2,620	19	4810 Series
4820 Series - Surface Mount 4822REG 4822 LONG Add for; Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) Closer price includes 4820-18 plate for regular mount or 4820-18G (please specify) plate for flush mount application. For parts & accessories, see page 61.	$2,062 2,084	$2,539 2,566	$2,697 2,722	19 19	4820 Series
4840 Series - Surface Mount 4841EDA 4841CUSH 4841SCUSH Add for; Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) See pages 24-25 for control boxes and compressors. Also, see pages 30-47 for actuators, tubing, & accessories. For parts & accessories, see page 61.	$2,106 2,139 2,194	$2,568 2,598 2,655	$2,729 2,757 2,813	20 20 20	4840 Series Shown w/4840-459 Door Loop (LCN)
5010 Series - Concealed (Requires Handing) 5011-5016REG 5011-5016H Add for; Delay Action (DEL) ($43), TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 61.	$611 644	$1,012 1,044	$1,165 1,197	12 13	4840 (PUSH SIDE MOUNTED AUTO-EQUALIZER WITH 4040 EDA ARM) 5010 Series
5030 Series - Concealed (Requires Handing) 5031, 5033-5036REG 5031, 5033-5036H Add for; TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 62.	$1,026 1,059	$1,540 1,572	$1,726 1,758	14 14	5030 Series
6030 Series - Concealed/Double Acting 6031-6035BUMPER 6031-6035H BUMPER Add for; TORX Fasteners (TORX) ($15), Special Rust Inhibitor (SRI) ($40), Custom Powder Finish (RAL)* ($40), Brite Metallic (MTLPC)* ($60) For parts & accessories, see page 62.	$1,321 1,344	1721 1,744	1967 1,990	17 17	6030 Series Shown w/ 7253 Pivot (Ives)

CLOSER SERIES	STANDARD POWDER COAT FINISHES		PLATED FINISHES	S H W
SERIES NUMBER ARM TYPE	ANCLR ANDKB	N/A	N/A	I E P I P G I H N T G	May 2019
9130 Series - Surface Mount 9131STD (Pull) 27" cover (MC) is standard - Optional 'Full Cover' (FC) (36") available (please specify) Add for Full Cover (FC) ($100) See pages 30-47 for actuators & accessories. For parts & accessories, see page 62.	$3,805		Plated finish not available ANCLR or ANDKB	38	9130 Series
9140 Series - Surface Mount 9142REG (Push) 9142LONG (Push) 27" cover (MC) is standard - Optional 'Full Cover' (FC) (36") available (please specify) Add for Full Cover (FC) ($103) See pages 30-47 for actuators & accessories. For parts & accessories, see page 62.	$3,708 3,713		Plated finish not available ANCLR or ANDKB ANCLR or ANDKB	38 38	9140 Series
9150 Series - Surface Mount 9153 REG2 (Push) 9153 LONG2 (Push) 72" cover (MC) is standard. Additional lengths are not available. See pages 30-47 for actuators & accessories. For parts & accessories, see page 62.	$7,356 7,366		Plated finish not available ANCLR or ANDKB ANCLR or ANDKB	85 85	9150 Series

PRICE LIST

9530 Series

CLOSER SERIES	STANDARD POWDER COAT FINISHES		PLATED FINISHES	S H W
SERIES NUMBER ARM TYPE	ANCLR ANDKB	N/A	N/A	I E P I P G I H N T G	May 2019

9530 Series - Surface Mount (Requires Handing) Plated finish not available

9531.................................................STD (Pull) $4,854 ANCLR or ANDKB 78 Header lengths available 33" to 48" (please specify).

Angle Brackets ( HL/B ) are standard, End Dress Plates ( HL/D ) are optional (please specify). STD arm has 2 ¾" spindle center.

Add for; Double Door Header (49" to 98" – please specify) ( DD ) ( $242

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 62.

9540 Series - Surface Mount (Requires Handing) Plated finish not available

9542 .............................................REG (Push) $4,729 ANCLR or ANDKB 78

9542 ...............................LONG (Long Push) 4,735 ANCLR or ANDKB 78

Header lengths available 33" to 48" (please specify).

Angle Brackets ( HL/B ) are standard, End Dress Plates ( HL/D ) are optional (please specify).

REG or LONG arm has 2 ¾" spindle center.

Optional 12 ¼" spindle available (requires minimum 43" header).

Add for; Double Door Header (49" to 98" – please specify) ( DD ) ( $242 )

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 63.

9550 Series - Surface Mount (DE Requires Handing) Plated finish not available

9553REG2 (Push Pair)	$8,017	ANCLR or ANDKB	155
9553LONG2 (Long Push Pair)	8,028	ANCLR or ANDKB	155
9553STD2 (Pull Pair)	8,201	ANCLR or ANDKB	155
9553REG/STD (Double Egress)	8,133	ANCLR or ANDKB	155

Header lengths available 52" to 98" (please specify) on operators with REG or LONG (push) arms.

Header lengths available 60" to 98" (please specify) on operators with STD (pull) arms.

Header lengths available 60" to 98" (please specify) on operators with REG/STD (double egress) arms. Angle Brackets ( HL/B ) are standard, End Dress Plates ( HL/D ) are optional (please specify).

REG, LONG, STD or REG/STD has 2 ¾" spindle center.

Optional 12 ¼" spindle available (requires minimum 71" header).

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 63.

9560 Series - Surface Mount (DE Requires Handing)Plated finish not available

		155
		155
		155
9,629	ANCLR or ANDKB	155
	$9,513 9,524 9,697	ANCLR or ANDKB ANCLR or ANDKB ANCLR or ANDKB

Header lengths available 65" to 98" (please specify) on operators with REG or LONG (push) arms. Header lengths available 65" to 98" (please specify) on operators with STD (pull) arms.

Header lengths available 65" to 98" (please specify) on operators with REG/STD (double egress) arms.

Angle Brackets ( HL/B ) are standard, End Dress Plates ( HL/D ) are optional (please specify).

REG, LONG, STD or REG/STD has 2 ¾" spindle center.

Optional 12 ¼" spindle available (requires minimum 84" header).

See pages 30-47 for actuators & accessories.

For parts & accessories, see page 63.

9560 Series

9550 Series

SEM SERIES MAGNETS

PRICE LIST

	SPECIALTY PRODUCTS	STANDARD POWDER COAT FINISHES	S H W
PRODUCT NUMBER	DESCRIPTION	AL (689) DKBRZ (695)	I E P I P G I H N T G	May 2019

SEM7800 Series Magnet Extension Kits

SEM7810-517....................................................................SEM Extension Kit (55 pcs) $1,015 8

Note - Extension Kit includes 1/2" extensions (10), 3/4" extensions (10), 1" extensions (10), 2" extensions (5) & ball pivot/connector links (20 ea). Individual extensions & ball pivot/connector links are available, please see page 50 in this price book for part number and list price.

SEM7800 Series Magnets
SEM7820 Floor Mount Magnet (Single Side)	$693	5
Low Profile Armature, Metal Housing, Tri Voltage (12v/24v/120v) w/ 35lbs. holding force.			SEM7820
SEM7830 Wall Mount Magnet Low Profile Armature, Metal Housing,	392	4
Tri Voltage (12v/24v/120v) w/ 35lbs. holding force. SEM7840 Recessed Wall Mount Magnet Low Profile Armature, Metal Housing, Tri Voltage (12v/24v/120v) w/ 35lbs. holding force.	392	4	SEM7830 SEM7840
SEM7850 Recessed Wall Mount Magnet Standard Profile Armature, Metal Housing,	392	4

Tri Voltage (12v/24v/120v) w/ 35lbs. holding force.

For parts & accessories, see page 50.

PAH60, PAINT AND FASTENERS

PRICE LIST

SPECIALTY PRODUCTS	STANDARD POWDER COAT FINISHES		PLATED FINISHES		S H W
PRODUCT NUMBER DESCRIPTION	AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	I E P I P G I H N T G	May 2019
Parallel Arm Holder
PAH60 (Handed) Door Holder	$138	$361		$421	3
Force Gauge						PAH60
ADA/FG Force Gauge	$61				1/2
LCN Spray Paint - Available in single cans or cases of 6 (same color) cans						ADA/FG
Can Spray Paint	$29	Per can			1
Case Spray Paint	132			Per case (6 cans, same color)	4
Fasteners - Individual & Sets
SRT (1 ea.) SRT Screw (1 ea.)	$1					Self reaming & tapping screw.
SRT (Set of 4 ea.) SRT Screw (4 ea.)	3.1					Size required. 1 ea. Self reaming & tapping screw. Size required. 4 ea.
MS (1 ea.) Machine Screw (1 ea.)	1	3		5		Machine screw. Size required. 1 ea.
MS (Set of 4 ea.) Machine Screw (4 ea.)	3.1	10		13		Machine screw. Size required. 4 ea.
WS (1 ea.) Wood Screw (1 ea.)	1	–		–		Wood screw. Size required. 1 ea.
WS (Set of 4 ea.) Wood Screw (4 ea.)	3.1	–		–		Wood screw. Size required. 4 ea.
TORX (1 ea.) TORX Screw (1 ea.)	2.1	6		9		TORX machine screw. Size required. 1 ea.
TORX (Set of 4 ea.) TORX Screw (4 ea.)	5	13		17		TORX machine screw. Size required. 4 ea.
TB 1 3/4" (1 ea.) Thru Bolt, Female	2.1	6		9		Through bolt. 1 3/4" length.
TB 1 3/8" (1 ea.) Thru Bolt, Female	2.1	6		9		Through bolt. 1 3/8" length
TB 1 5/8" (1 ea.) Thru Bolt, Female	2.1	6		9		Through bolt. 1 5/8" length
TB 1 3/4" (Set of 4 ea.) Thru Bolt, Female (4 ea.)	5	21		25		Through bolt. Set of 4 ea. Size required
TB 1 3/8" (Set of 4 ea.) Thru Bolt, Female (4 ea.)	5	21		25		Through bolt. Set of 4 ea. Size required.
TB 1 5/8" (Set of 4 ea.) Thru Bolt, Female (4 ea.)	5	21		25		Through bolt. Set of 4 ea. Size required.
TB/MS (1 ea.) TB(1) & MS(1)	2.1	7		9		TB & MS. Set of 1 ea. Size and Series required.
TB/MS (Set of 4 ea.) TB(4) & MS(4)	6	23		33		TB & MS. Set of 4 ea.
Torx (Security) Driver Bits
T-10 TORX Bit Torx Bit, T-10	$14					TORX driver bit, size T-10.
T-15 TORX Bit Torx Bit, T-15	14					TORX driver bit, size T-15.
T-20 TORX Bit Torx Bit, T-20	14					TORX driver bit, size T-20.
T-25 TORX Bit Torx Bit, T-25	14					TORX driver bit, size T-25.
T-27 TORX Bit Torx Bit, T-27	14					TORX driver bit, size T-27.
Adjustment Wrenches
T1157 Hold Open Wrench	$4					Hold Open Adjustment Wrench

One end has 3/32" hex for regulation valve adjustment and cover attachment. The other end has 5/32" hex for spring power adjustment. Great for training seminars.

GHW1 Green Hex Wrench	$9 Each	Green Hex Wrench. 1 Each.
GHW12 Green Hex Wrench	$88 / Pack of 12	Green Hex Wrench. Pack of 12
GHW100 Green Hex Wrench	$604 / Pack of 100	Green Hex Wrench. Pack of 100

CONTROL BOXES & COMPRESSORS PRODUCT NUMBER	PRODUCT DESCRIPTION	LIST PRICE	S H W I E P I P G I H N T G	May 2019
7980 Series Control Boxes
	7981 Control Box, Pnuematic, Internal Compressor. Self-contained control box/compressor combination for single door application. Includes -3960 Compressor Assembly.	$3,154	27
	7981ES Control Box, Pnuematic, Electric Strike (ES) Relay, Internal Compressor. Self-contained control box/compressor combination for single door application. Includes -3960 Compressor Assembly, -3390A Relay.	3,669	27
	7982 Control Box, Pnuematic, Internal Compressor Self-contained control box/compressor combination for either independent or simultaneous operation of two (2) door leaves. Includes -3960 Compressor Assembly.	4,465	34	7980 Series Control Box
	7982S Control Box, Pnuematic, Sequential (S) Feature, Internal Compressor. Self-contained control box/compressor combination for independent, simultaneous or sequential operation of two (2) door leaves. Includes -3960 Compressor Assembly, -3426 Sequencer Card.	4,848	34	(15˝ x 15˝ x 6˝)
	7982ES Control Box, Pnuematic, Electric Strike (ES) Relays, Internal Compressor. Self-contained control box/compressor combination for independent or simultaneous operation of two (2) door leaves. Includes -3960 Compressor Assembly, -3390A & -3390B Relays.	5,364	34
	7982SES Control Box, Pnuematic, Sequential (S) Feature, Electric Strike (ES) Relays, Internal Compressor. Self-contained control box/compressor combination for independent, simultaneous or sequential operation of two (2) door leaves. Includes -3960 Compressor Assembly, -3390A & -3390B Relays, -3426 Sequencer Card.	5,704	34
7900 Series Control Boxes
	7901 Control Box, Pnuematic Single door application or independent control of single door in multiple door systems. Two door leaves can be operated, if activated simultaneously. Requires a separate 900 Series compressor.	$2,161	14
	7901ES Control Box, Pnuematic Electric Strike (ES) Relay. Single door application or independent control of single door in multiple door systems. Two door leaves can be operated, if activated simultaneously. Includes -3390A Relay. Requires a separate 900 Series compressor.	2,677	14
	7902 Control Box, Pnuematic Independent operation of two (2) door leaves or simultaneous and/or sequential operation of four (4) door leaves. Requires a separate 900 Series compressor.	2,962	15	7900 Series Control Box (15˝ x 15˝ x 6˝)
	7902S Control Box, Pnuematic, Sequential (S) Feature Independent operation of two (2) door leaves or simultaneous operation and/or sequential operation of four (4) door leaves. Includes -3426 Sequencer Card. Requires a separate 900 Series compressor.	3,340	15
	7902ES Control Box, Pnuematic, Electric Strike (ES) Relays Independent operation of two (2) door leaves or simultaneous of four (4) door leaves. Includes -3390A & -3390B Relays. Requires a separate 900 Series compressor.	3,872	15
	7902SES Control Box, Pnuematic, Sequential (S), Electric Strike (ES) Relays Independent operation of two (2) door leaves or simultaneous and/or sequential operation of four (4) door leaves. Includes -3390A & -3390B Relays, -3426 Sequencer Card. Requires a separate 900 Series compressor.	4,239	15

Note - Locate a 7980 Series Control Box within 50 linear tubing feet of the door. Locate a 7900 Series Control Box within 100 linear tubing feet of the door. Use -925 Pnuematic Tubing to connect operator and control box. 7900 Series Control Boxes require a separate air source, LCN 900 Series Compressors are recommended. For parts & accessories, see pages 28-29.

CONTROL BOXES AND COMPRESSORS

PRICE LIST

CONTROL BOXES & COMPRESSORS PRODUCT NUMBER	PRODUCT DESCRIPTION	LIST PRICE	S H W I E P I P G I H N T G	May 2019
	7940 Series Control Boxes - (Requires LCN 900 series compressor) 7949 Control Box, Pneumatic, Auxiliary 'Blow-Open' Control box works with or without 7901/7902 Series Control Box and one or two pnuematic Auto Equalizers. Controlled by the smoke evacuation system, the 7949 Series Control Box will open the door(s) to allow fresh air into building.	$1,801	14
	7949ES Control Box, Pneumatic, Auxiliary 'Blow-Open', Electric Strike (ES) Relay. Auxiliary 'blow-open' control box works with or without 7901ES/7902ES Series Control Box and one or two pnuematic Auto Equalizers. Controlled by the smoke evacuation system, the 7949 Series Control Box will unlock and open the door(s) to allow fresh air into building.	2,238	14	7940 Series Control Box (15˝ x 15˝ x 6˝)

Note - A 'blow-open' system requires a separate air source. A 'blow-open' system that includes an automatic or power operator function also requires a separate air source and is limited to the operation of two (2) door leaves. In both cases, the LCN 900 Series Compressors are recommended. 7940 Series Control Boxes should be installed within 100 linear tubing feet of the automatic operator(s). For parts & accessories, see pages 28-29.

	CONTROL BOXES & COMPRESSORS
PRODUCT NUMBER	DESCRIPTION	LIST PRICE	PRODUCT DESCRIPTION	May 2019
	Control Box Components
293G 319 320 329 329G	Muffler Fitting, "T" Fitting, "Inline" Air Filter Assembly Air Filter Assembly	$28 3.3 3.3 69 225	Exhaust muffler for 7901, 7902, 7981, or 7982 Series Control Boxes. "T" fitting to connect 925 pneumatic tubing. "Inline" fitting to connect 925 pneumatic tubing. Replacement inlet air filter for the 7981 or 7982 Series Control Boxes. Replacement inlet air filter for the 7901 or 7902 Series Control Boxes. Includes -929 Air Filter Assembly.
900	Power Supply, 10T	516	Main power supply/input board for the 7901, 7902, 7981, & 7982 Series Control Boxes. Ten (10) terminals.	900
903	Timer Module	229	0-30 second timer module for 7901, 7902, 7981, & 7982 Series Control Box. Plugs into the -900 Power Supply Board.
925	Pneumatic Tubing	2.20/ft	Flexible pneumatic tubing with an 1/8" inner diameter & 1/4" outer diameter. Specify number of linear feet required when ordering.
929 941 941C 942 962	Filter & Seal Valve Assembly Valve Assembly Valve Assembly Isolator	30 776 776 1,498 24	Internal filter & seal component to the 329G Air Filter Assembly. Regulator valve assembly for the 7901 series control box. Regulator valve assembly for the 7949 series control box. Regulator valve assembly for the 7902 series control box. Rubber isolator for 7981 or 7982 compressor (-3960) assembly.	903
	Control Box Components
3299A	Solenoid Assembly Valve 'A'	439	Air valve assembly for the 7981 Series Control Box or the 'A' circuit valve assembly in the 7982 Series Control Box.
3299B	Solenoid Assembly Valve 'B'	475	Air valve assembly for the 'B' circuit in the 7982 Series Control Box.
3328	Copper Coupler	25	Converts pnuematic tubing connection to copper.
3390A	'A' Relay Package	518	Electric strike (ES) relay for 7901 and 7982 Series Control Boxes or the 'A' circuit ES relay assembly used in the 7902 and 7982. Series Control Boxes. Can be added to a standard control box to convert to ES operation. Includes -390 Relay, relay base and wire harness. The 3390A is included when either a 7901ES, 7902ES, 7981ES or 7982ES is ordered.	3299A
3390B	'B' Relay Package	518	Electric strike (ES) relay for 'B' circuit in either the 7902 or 7982 Series Control Boxes. Can be added to a standard control box to convert to ES operation. Includes -390 Relay, relay base and wire harness. The 3390B is included when either a 7902ES or 7982ES is ordered.
3390C	'C' Relay Package	518	Electric strike (ES) relay assembly for the 7949 series 'blow-open' control box. Includes -390C Relay, relay base and wire harness. The 3390C is included when a 7949ES is ordered.
3426	Sequencer Card	347	Dual, 0-30 second timer module for 7902 or 7982 Series Control Box. Can be added to a standard 7902 or 7982 Series Control Box to convert box to sequential operation3426 Sequencer card is included when either a 7902S or 7982S Series Control Box is ordered.	3426
3592	Compressor Service Kit	73	Service kit for air pressure adjustment in the either
3960	Compressor Assembly	1,947	the 7981 or 7982 Series Control Box. Internal air pump assembly for the 7981 or 7982 Series Control Box3960 Compressor Assembly includes starter

3960

Control Box. -3960 Compressor Assembly includes starter capacitor, -962 Isolators and -329 Air Filter Assembly.

CONTROL BOX COMPONENTS

Control Box Components

900 903 3426

941 941C 942

	ACTUATOR/SENSOR QUICK FIND GUIDE
PRODUCT NUMBER	ITEM PAGE(S)	LIST PRICE	May PRODUCT DESCRIPTION 2019
8310-800	40	$24	Ring, Weather, 4½" Round
8310-801	40	24	Ring, Weather, 4½" x 4½"
8310-802	40	24	Ring, Weather, 6" Round
8310-804-1	42	1,290	Sensor, Door Mount, Safety
8310-804-2	42	1,753	Sensor, Door Mount, Safety
8310-805	44	57	Switch, Door Position
8310-805C	44	57	Switch, Door Position
8310-806K	48	215	Switch, Key
8310-806R	48	215	Switch, Rocker
8310-807	48	215	Filter, Line
8310-813	34	946	Actuator, Wall Mount, 4¾" x 4¾"
8310-818	32	178	Actuator, Jamb Mount, Logo, 1½" x 4¾"
8310-818T	32	178	Actuator, Jamb Mount, Logo, Text, 1½" x 4¾"
8310-819F	40	39	Box Only, Jamb Mount, Flush Mount, 1½" x 4¾"
8310-819S	40	39	Box Only, Jamb Mount, Surface Mount, 1½" x 4¾"
8310-824	44	83	Transformer
8310-824P	44	83	Transformer
8310-836T	36	1,009	Actuator, Full Length, Logo, Text, 36" x 6"
8310-836TW	36	1,147	Actuator, Full Length, Logo, Text, Wireless, 36" x 6"
8310-844	46	202	Transmitter Kit, Wall Mount, 9v
8310-844J	46	202	Transmitter Kit, Jamb Mount, 3v
8310-845	48	330	Relay and Door Sequencer
8310-846	44	29	Harness, Header Mount
8310-847	44	116	Harness, Door Mount
8310-852	36	273	Actuator, Wall Mount, Logo, 6" Round
8310-852T	36	273	Actuator, Wall Mount, Logo, Text, 6" Round
8310-852TA	36	273	Actuator, Wall Mount, Active Logo, Text, 6" Round
8310-852TWP	36	710	Actuator, Wall Mount, Logo, Text, Wireless, Package, 6" Round
8310-852WP	36	710	Actuator, Wall Mount, Logo, Wireless, Package, 6" Round
8310-853	34	260	Actuator, Wall Mount, Logo, 4¾" x 4¾"
8310-853T	34	260	Actuator, Wall Mount, Logo, Text, 4¾" x 4¾"
8310-853TA	34	260	Actuator, Wall Mount, Active Logo, Text, 4¾" x 4¾"
8310-853TWP	34	710	Actuator, Wall Mount, Logo, Text, Wireless, Package, 4¾" x 4¾"
8310-853WP	34	710	Actuator, Wall Mount, Logo, Wireless, Package, 4¾" x 4¾"
8310-854	42	804	Sensor, Header Mount, Activation
8310-854ECA	44	208	Bracket, Drop Ceiling
8310-854ERA	44	141	Cover, Protective
8310-855	34	415	Actuator, Wall Mount, Logo, Dual Vestibule
8310-856	32	206	Actuator, Wall Mount, Logo
8310-856T	32	206	Actuator, Wall Mount, Logo, Text
8310-859 8310-861	44 46	178	Remote, Handheld Transmitter, Handheld, 1 Channel
8310-862	46	202 202	Transmitter, Handheld, 2 Channel
8310-863	46	202	Transmitter, Handheld, 3 Channel
8310-864	46	202	Transmitter, Handheld, 4 Channel
8310-865	32, 34, 36, 46	212	Receiver
8310-866	46	930	Post, Bollard, Accommodates Bollard Actuator, 42" x 4" x 6"
8310-866FLA	46	930	Post, Bollard, Accommodates Full Length Actuator, 42" x 4" x 6"
8310-866CAP	46	152	Cap

ACTUATOR/SENSOR QUICK FIND GUIDE
PRODUCT NUMBER	ITEM PAGE(S)	LIST PRICE	May PRODUCT DESCRIPTION 2019
8310-867F	40	$170	Box, Flush Mount, 4¾" x 4¾"
8310-867S	40	170	Box, Surface Mount, 4¾" x 4¾"
8310-868F	40	153	Box, Flush Mount, 4½" Round
8310-868S	40	153	Box, Surface Mount, 4½" Round
8310-869F	40	165	Box, Flush Mount, 6" Round
8310-869S	40	165	Box, Surface Mount, 6" Round
8310-874	40	379	Escutcheon, 4½" Round
8310-876	40	379	Escutcheon, 6" Round
8310-877S	44	166	Spacer, Header Mount
8310-3803	44	587	Conversion Kit, Wireless, Jamb Mount
8310-3809	44	587	Conversion Kit, Wireless, Wall Mount
8310-3818TWF	32	398	Actuator, Jamb Mount, Logo, Text, Wireless, Flush, 1½" x 4¾"
8310-3818TWS	32	398	Actuator, Jamb Mount, Logo, Text, Wireless, Surface, 1½" x 4¾"
8310-3818WF	32	398	Actuator, Jamb Mount, Logo, Wireless, Flush, 1½" x 4¾"
8310-3818WS	32	398	Actuator, Jamb Mount, Logo, Wireless, Surface, 1½" x 4¾"
8310-3822T	38	411	Actuator Package, Logo, Text, 1½" x 4¾"
8310-3822TW	38	805	Actuator Package, Logo, Text, Wireless, 1½" x 4¾"
8310-3836T	46	1,843	Full Length Actuator / Bollard Package
8310-3836TW	46	2,023	Full Length Actuator / Bollard Package, Wireless
8310-3852TWF	36	629	Actuator, Wall Mount, Logo, Text, Wireless, Flush, 6" Round
8310-3852TWS	36	629	Actuator, Wall Mount, Logo, Text, Wireless, Surface, 6" Round
8310-3852WF	36	629	Actuator, Wall Mount, Logo, Wireless, Flush, 6" Round
8310-3852WS	36	629	Actuator, Wall Mount, Logo, Wireless, Surface, 6" Round
8310-3853TWB	46	439	Actuator, Bollard, Logo, Text, Wireless, 4¾" x 4¾"
8310-3853TWF 8310-3853TWS	34 34	624 624	Actuator, Wall Mount, Logo, Text, Flush, 4¾" x 4¾" Actuator, Wall Mount, Logo, Text, Surface, 4¾" x 4¾"
8310-3853WB	46	439	Actuator, Bollard, Logo, Wireless, 4¾" x 4¾"
8310-3853WF	34	624	Actuator, Wall Mount, Logo, Wireless, Flush, 4¾" x 4¾"
8310-3853WS	34	624	Actuator, Wall Mount, Logo, Wireless, Surface, 4¾" x 4¾"
8310-3855WF	34	962	Actuator, Wall Mount, Logo, Wireless, Flush, Dual Vestibule, 4¾" x 4¾"
8310-3855WS	34	962	Actuator, Wall Mount, Logo, Wireless, Surface, Dual Vestibule, 4¾" x 4¾"
8310-3856TWF	32	555	Actuator, Wall Mount, Logo, Text, Wireless, Flush, 4½" Round
8310-3856TWS	32	555	Actuator, Wall Mount, Logo, Text, Wireless, Surface, 4½" Round
8310-3856WF	32	555	Actuator, Wall Mount, Logo, Wireless, Flush, 4½" Round
8310-3856WS	32	555	Actuator, Wall Mount, Logo, Wireless, Surface, 4½" Round
8310-3857T	38	820	Actuator Package, Logo, Text, 4¾" x 4¾"
8310-3857TW	38	1,449	Actuator Package, Logo, Text, Wireless, 4¾" x 4¾"
8310-3860T	38	683	Actuator Package, Logo, Text, 4½" Round
8310-878	42	4,383	Sensor Package
8310-879	42	8,332	Sensor Package
8310-3860TW	38	1,314	Actuator Package, Logo, Text, Wireless, 4½" Round
8310-3881	42	5,978	Sensor Package
8310-3882	42	9,999	Sensor Package
8310-3883	42	1,743	Sensor Package
8310-3888	44	37	Harness, Safety Module
8310-3889	44	524	Safety Module Kit
8310-3891	42	8,500	Sensor Package
8310-3892	42	9,999	Sensor Package

ACTUATORS & ACCESSORIES

PRICE LIST

	ACTUATORS & ACCESSORIES
PRODUCT NUMBER	DESCRIPTION	LIST PRICE	PRODUCT DESCRIPTION	May 2019

8310 Series Actuators - Jamb Mount - 1-1/2" x 4-3/4" Rectangle - Interior Installation Only

Actuator, Jamb Mount	$178	Actuator, 1-1/2" x 4-3/4" Rectangle, Logo
Actuator, Jamb Mount	178	Actuator, 1-1/2" x 4-3/4" Rectangle, Logo, Text
Actuator, Jamb Mount	398	Actuator, 1-1/2" x 4-3/4" Rectangle, Logo, Wireless, Flush Mount Includes 8310-818 Actuator, 8310-844J Transmitter Kit, 8310-819F Flush Box. Requires 8310-865 Receiver.
Actuator, Jamb Mount	398	Actuator, 1-1/2" x 4-3/4" Rectangle, Logo, Wireless, Surface Mount Includes 8310-818 Actuator, 8310-844J Transmitter Kit, 8310-819S Surface Box. Requires 8310-865 Receiver.
Actuator, Jamb Mount	398	Actuator, 1-1/2" x 4-3/4" Rectangle, Logo, Text, Wireless, Flush Mount Includes 8310-818T Actuator, 8310-844J Transmitter Kit, 8310-819F Flush Box. Requires 8310-865 Receiver.
Actuator, Jamb Mount	398	Actuator, 1-1/2" x 4-3/4" Rectangle, Logo, Text, Wireless, Surface Mount Includes 8310-818T Actuator, 8310-844J Transmitter Kit, 8310-819S Surface Box. Requires 8310-865 Receiver.
Receiver	212	Receiver, Wireless, 1 Channel, Sequencing Feature Used in conjunction w/ Wireless Actuators & Transmitters

8310-818

8310-818T

8310 Series Actuators - Wall Mount - 4-1/2" Round

8310-856	Actuator, Wall Mount	$206	Actuator, 4-1/2" Round, Logo
8310-856T	Actuator, Wall Mount	206	Actuator, 4-1/2" Round, Logo, Text
8310-3856WF	Actuator, Wall Mount	555	Actuator, 4-1/2" Round, Logo, Wireless, Flush Mount. Includes 8310-856 Actuator, 8310-844 Transmitter Kit, 8310-868F Flush Box, 8310-800 Weather Ring. Requires 8310-865 Receiver.
8310-3856WS	Actuator, Wall Mount	555	Actuator, 4-1/2" Round, Logo, Wireless, Surface Mount Includes 8310-856 Actuator, 8310-844 Transmitter Kit, 8310-868S Surface Box, 8310-800 Weather Ring. Requires 8310-865 Receiver.
8310-3856TWF	Actuator, Wall Mount	555	Actuator, 4-1/2" Round, Logo, Text, Wireless, Flush Mount Includes 8310-856T Actuator, 8310-844 Transmitter Kit, 8310-868F Flush Box, 8310-800 Weather Ring. Requires 8310-865 Receiver.
8310-3856TWS	Actuator, Wall Mount	555	Actuator, 4-1/2" Round, Logo, Text, Wireless, Surface Mount Includes 8310-856T Actuator, 8310-844 Transmitter Kit, 8310-868S Surface Box, 8310-800 Weather Ring. Requires 8310-865 Receiver.
8310-865	Receiver	212	Receiver, Wireless, 1 Channel, Sequencing Feature Used in conjunction w/ Wireless Actuators & Transmitters

8310-856

8310-856T

8310 Series Actuators

ACTUATORS & ACCESSORIES
PRODUCT DESCRIPTION NUMBER	LIST PRICE	PRODUCT DESCRIPTION	May 2019

8310 Series Actuators - Wall Mount - 4-3/4" Square

8310-853	Actuator, Wall Mount	$260	Actuator, 4-3/4" Square, Logo
8310-853T	Actuator, Wall Mount	260	Actuator, 4-3/4" Square, Logo, Text
8310-853TA	Actuator, Wall Mount	260	Actuator, 4-3/4" Square, Active Logo, Text
8310-853WP	Actuator, Wall Mount	710	Actuator, 4-3/4" Square, Logo, Wireless, Surface Mount Easy mount, 'all in one', low profile, surface mount, wireless actuator. Requires 8310-865 Receiver
8310-853TWP	Actuator, Wall Mount	710	Actuator, 4-3/4" Square, Logo, Text, Wireless, Surface Mount Easy mount, 'all in one', low profile, surface mount, wireless actuator. Requires 8310-865 Receiver
8310-3853WF	Actuator, Wall Mount	624	Actuator, 4-3/4" Square, Logo, Wireless, Flush Mount Includes 8310-853, 8310-844 Transmitter Kit, 8310-867F Flush Box, 8310-801 Weather Ring. Requires 8310-865 Receiver
8310-3853WS	Actuator, Wall Mount	624	Actuator, 4-3/4" Square, Logo, Wireless, Surface Mount Includes 8310-853, 8310-844 Transmitter Kit, 8310-867S Surface Box, 8310-801 Weather Ring. Requires 8310-865 Receiver
8310-3853TWF	Actuator, Wall Mount	624	Actuator, 4-3/4" Square, Logo, Text, Wireless, Flush Mount Includes 8310-853T, 8310-844 Transmitter Kit, 8310-867F Flush Box, 8310-801 Weather Ring. Requires 8310-865 Receiver
8310-3853TWS	Actuator, Wall Mount	624	Actuator, 4-3/4" Square, Logo, Text, Wireless, Surface Mount Includes 8310-853T, 8310-844 Transmitter Kit, 8310-867S Surface Box, 8310-801 Weather Ring. Requires 8310-865 Receiver
8310-865	Receiver	212	Receiver, Wireless, 1 Channel, Sequencing Feature

8310-853

8310-853T

8310-855

8310 Series Actuators - Wall Mount - 4-3/4" Square

8310-813	Actuator, Wall Mount	$946	Actuator, 4-3/4" Square, Touchless, Wall Mount 'K' Band Technology 'Hands Free' operation, system is activated by movement near actuator face. Mounts in 4" x 4" electrical box - Includes black plexiglass cover
8310-855	Actuator, Wall Mount	415	Actuator, 4-3/4" Square, Logo, Dual Vestibule
8310-3855WF	Actuator, Wall Mount	962	Actuator, 4-3/4" Square, Logo, Dual Vestibule, Wireless, Flush Mount Includes 8310-855 Actuator, 8310-844 Transmitter (2), 8310-867F Flush Box, 8310-801 Weather Ring. Requires 8310-865 Receiver (2)
8310-3855WS	Actuator, Wall Mount	962	Actuator, 4-3/4" Square, Logo, Dual Vestibule, Wireless, Surface Mount Includes 8310-855 Actuator, 8310-844 Transmitter (2), 8310-867S Surface Box, 8310-801 Weather Ring. Requires 8310-865 Receiver (2)
8310-865	Receiver	212	Receiver, Wireless, 1 Channel, Sequencing Feature Used in conjunction w/ Wireless Actuators & Transmitters

Used in conjunction w/ Wireless Actuators & Transmitters

8310 Series Actuators

ACTUATORS & ACCESSORIES

PRICE LIST

PRODUCT NUMBER	ACTUATORS & ACCESSORIES DESCRIPTION	LIST PRICE	PRODUCT DESCRIPTION	May 2019
8310 Series Actuators - Wall Mount - 6" Round
8310-852	Actuator, Wall Mount	$273	Actuator, 6" Round, Logo

8310-852T	Actuator, Wall Mount	273	Actuator, 6" Round, Logo, Text
8310-852TA	Actuator, Wall Mount	273	Actuator, 6" Round, Active Logo, Text
8310-852WP	Actuator, Wall Mount	710	Actuator, 6" Round, Logo, Wireless, Surface Mount Easy mount, 'all in one', low profile, surface mount, wireless actuator. Requires 8310-865 Receiver.
8310-852TWP	Actuator, Wall Mount	710	Actuator, 6" Round, Logo, Text, Wireless, Surface Mount Easy mount, 'all in one', low profile, surface mount, wireless actuator. Requires 8310-865 Receiver.
8310-3852WF	Actuator, Wall Mount	629	Actuator, 6" Round, Logo, Wireless, Flush Mount Includes 8310-852 Actuator, 8310-844 Transmitter Kit, 8310-869F Flush Box, 8310-802 Weather Ring. Requires 8310-865 Receiver.
8310-3852WS	Actuator, Wall Mount	629	Actuator, 6" Round, Logo, Wireless, Surface Mount Includes 8310-852 Actuator, 8310-844 Transmitter Kit, 8310-869S Surface Box, 8310-802 Weather Ring. Requires 8310-865 Receiver.
	8310-3852TWF Actuator, Wall Mount	629	Actuator, 6" Round, Logo, Text, Wireless, Flush Mount Includes 8310-852T Actuator, 8310-844 Transmitter Kit, 8310-869F Flush Box, 8310-802 Weather Ring. Requires 8310-865 Receiver.
	8310-3852TWS Actuator, Wall Mount	629	Actuator, 6" Round, Logo, Text, Wireless, Surface Mount Includes 8310-852T Actuator, 8310-844 Transmitter Kit, 8310-869S Surface Box, 8310-802 Weather Ring. Requires 8310-865 Receiver.

Used in conjunction w/ Wireless Actuators & Transmitters

8310-852WP

8310-852

8310-852T

8310-852TWP

8310 Series Actuators - Specialty

8310-836T	Actuator, Full Length	1,009	Actuator, 36" x 6" Full Length, Logo, Text
8310-836TW	Actuator, Full Length	1,147	Actuator, 36" x 6" Full Length, Logo, Text, Wireless Requires 8310-865. Easy Mount, All-In-One, Low Profile Surface Mount, Wireless Actuator.

8310-865 Receiver 212 Receiver, Wireless, 1 Channel, Sequencing Feature

836T

8310 Series Actuators

ACTUATORS & ACCESSORIES
PRODUCT DESCRIPTION NUMBER	LIST PRICE	PRODUCT DESCRIPTION	May 2019

8310 Series Actuators - Wall Mount - 4-3/4" Square

8310-3822T	Actuator Package	$411	Actuator Package, 1-1/2" x 4-3/4", Jamb Mount Includes 8310-818T (2) Jamb Mount Actuator, (2) 8310-819S Surface Mount Box. Recommended for interior use only.
8310-3822TW	Actuator Package	805	Actuator Package, 1-1/2" x 4-3/4", Wireless, Jamb Mount Includes 8310-818T (2) Jamb Mount Actuator, 8310-819S (2) Surface Mount Box, 8310-844J (2) Jamb Mount Transmitter, 8310-865 Receiver. Recommended for interior use only.
8310-3860T	Actuator Package	683	Actuator Package, 4-1/2" Round, Wall Mount. Includes 8310-856T (2) Wall Mount Actuator, 8310-868S (2) Surface Mount Box
8310-3860TW	Actuator Package	1,314	Actuator Package, 4-1/2" Round, Wireless, Wall Mount Includes 8310-856T (2) Wall Mount Actuator, 8310-868S (2) Surface Mount Box, 8310-800 (2) Weather Ring, 8310-844 (2) Transmitter, 8310-865 Receiver
8310-3857T	Actuator Package	820	Actuator Package, 4-3/4" Square, Wall Mount. Includes 8310-853T (2) Wall Mount Actuator, 8310-867S (2) Surface Mount Box
8310-3857TW	Actuator Package	1,449	Actuator Package, 4-3/4" Square, Wall Mount. Includes 8310-853T (2) Wall Mount Actuator, 8310-867S (2) Surface Mount Box, 8310-801 (2) Weather Ring, 8310-844 (2) Transmitter, 8310-865 Receiver

8310 Series Actuator Packages

853T (2) 867S (2)

ACTUATORS & ACCESSORIES

PRICE LIST

ACTUATORS & ACCESSORIES
	PRODUCT NUMBER	DESCRIPTION	LIST PRICE	PRODUCT DESCRIPTION	May 2019
		8310 Series Actuator Accessories
	8310-800	Ring, Weather	$24	Weather Ring, 4-1/2" Round Optional accessory. Can be used w/ any 4-1/2" round actuator
	8310-801	Ring, Weather	24	Weather Ring, 4-1/2" Square Optional accessory. Can be used w/ any 4-1/2" square actuator
	8310-802	Ring, Weather	24	Weather Ring, 6" Round Optional accessory. Can be used w/ any 6" round actuator	8310-800
	8310-819F	Box Only, Jamb Mount	39	Jamb Box Only, 1-1/2" x 4-3/4" Rectangle, Flush Mount Optional accessory. Should be used on an interior installation Can be used w/ any 1-1/2" x 4-3/4" jamb mount actuator
	8310-819S	Box Only, Jamb Mount	39	Jamb Box Only, 1-1/2" x 4-3/4", Rectangle, Surface Mount Optional accessory. Should be used on an interior installation only. Can be used w/ any 1-1/2" x 4-3/4" jamb mount actuator	8310-819S
	8310-867F	Box, Flush Mount	170	Box Only, 4-3/4" Square, Flush Mount Optional accessory. Can be used w/ any 4-3/4" square actuator
	8310-867S	Box, Surface Mount	170	Box Only, 4-3/4" Square, Surface Mount Optional accessory. Can be used w/ any 4-3/4" square actuator
	8310-868F	Box, Flush Mount	153	Box Only, 4-1/2" Round, Flush Mount Optional accessory. Can be used w/ any 4-1/2" round actuator	8310-867S
	8310-868S	Box, Surface Mount	153	Box Only, 4-1/2" Round, Surface Mount Optional accessory. Can be used w/ any 4-1/2" round actuator
	8310-869F	Box, Flush Mount	165	Box Only, 6" Round, Flush Mount Optional accessory. Can be used w/ any 6" round actuator	8310-868S
	8310-869S	Box, Surface Mount	165	Box Only, 6" Round, Surface Mount Optional accessory. Can be used w/ any 6" round actuator
	8310-874	Escutcheon	379	Escutcheon, 4-1/2" Round, Decorative, Protective Optional accessory. Can be used w/ any 4-1/2" round actuator

Optional accessory. Can be used w/ any 6" round actuator

8310-876 Escutcheon 379 Escutcheon, 6" Round, Decorative, Protective

8310-869S

8310 Series Actuator Accessories

8310-819F 8310-819S 8310-867F 8310-867S

8310-868F 8310-868S

8310-869F 8310-869S

8310-874 8310-876

ACTUATORS & ACCESSORIES
PRODUCT DESCRIPTION NUMBER	LIST PRICE	PRODUCT DESCRIPTION	804-1 May 2019

8310 Series Activation/Safety Sensors

8310-804-1	Sensor, Door Mount, Safety	$1,290	Door Mount Safety Sensor, Sensor with one element Used to sense obstruction(s) on leading edge of
8310-804-2	Sensor, Door Mount, Safety	1,753	Door Mount Safety Sensor, Sensor with two elements Used to sense obstruction(s) on full face of door	8310-804-1
8310-854	Sensor, Header Mount, Activation	804	Header Mount Activation Sensor, 'K' Band Technology
8310-877	Sensor, Header Mount, Safety	1,536	Header Mount Safety Sensor, 'Diffused Infrared' Technology Provides 'safety function' during door open & door closed position. Nine selectable/programmable patterns. Optional 8310-859	8310-804-2

Handheld Remote Control can be used to program 8310-877 Sensor from a distance. Includes 8310-846 Harness.

8310-854

8310 Series Activation/Safety Sensor Packages

8310-878	Sensor Package	$4,383	Monitored Safety Sensor Kit for single door applications. Contains two (2) door-mounted sensors and a control hub that perform the swing door safety functions and provides the sensor monitoring required by A156.10. All wire harnesses and mounting hardware included. 8310-877
8310-879	Sensor Package	8,332	Monitored Safety Sensor Kit for all double door applications. Contains four (4) door-mounted sensors and a control hub that perform the swing door safety functions and provides the sensor monitoring required by A156.10. All wire harnesses and mounting hardware included.
8310-3881	Sensor Package	5,978	Safety Sensor Package. Includes 8310-854 (2) Header Mount Activation Sensor & 8310-878 Monitored Safety Sensor Kit (Used with Senior Swing Only)
8310-3882	Sensor Package	9,999	Safety Sensor Package. Includes 8310-854 (2) Header Mount Activation Sensor & 8310-879 Monitored Safety Sensor Kit (Used with Senior Swing Only)
8310-3883	Sensor Package	1,743	Activation/Safety Sensor Package, Low Energy Convenience, Single Door. Includes 8310-804-1 Door Mount Safety Sensor, 8310-805C Door Position Switch (Concealed), 8310-845 Programmable Relay Module
8310-3891	Sensor Package	8,500	Activation/Safety Sensor Package, Health Care I, Simultaneous Pair Includes 8310-877 Header Mount Sensor, 8310-877S Header Mount Spacer, 8310-804-2 (4) Door Mount Sensor, 8310-847 (2) Harness.
8310-3892	Sensor Package	9,999	Activation/Safety Sensor Package, Health Care II, Independent Pair Includes 8310-877 (2) Header Mount Sensor, 8310-877S (2) Header Mount Spacer, 8310-804-2 (4) Door Mount Sensor, 8310-847 (2) Harness

8310 Series Activation/Safety Sensor Packages

854 (2)

877S

877S

847

847 (2)

	ACTUATORS & ACCESSORIES
PRODUCT NUMBER	DESCRIPTION	LIST PRICE	PRODUCT DESCRIPTION	May 2019

	8310 Series Activation/Safety Sensor Accessories
8310-805	Switch, Door Position	$57	Switch, Door Position, Surface Mount. Used when 8310-804-1 Surface Mount or 8310-804-2 Door Mounted Safety Sensor is installed in conjunction w/ either a 4630 or 4640 Series Automatic Operator. Disables approach side sensor when door is closed	8310-824
8310-805C	Switch, Door Position	57	Switch, Door Position, Concealed. Used when 8310-804-1 Concealed or 8310-804-2 Door Mounted Safety Sensor is installed in conjunction w/ either a 4630 or 4640 Series Automatic Operator. Disables approach side sensor when door is closed	854ECA
8310-824	Transformer	83	Transformer, 24v, Hardwired. Optional accessory - Used to remotely power any 24v sensor/receiver	8310-859
8310-824P	Transformer	83	Transformer, 24v, Plug In. Optional accessory - Used to remotely power any 24v sensor/receiver	854ERA
8310-846	Harness, Header Mount	29	Harness, Header Mount. Used w/ 8310-877 Header Mount Safety Sensor
8310-847	Harness, Door Mount	116	Harness, Door Mount. Used w/ 8310-804-1 or 8310-804-2 Door Mount Safety Sensor	8310-854ECA
8310-854ECA	Bracket, Drop Ceiling	208	Bracket, Drop Ceiling. Optional bracket used w/ 8310-854 Header Mount Activation Sensor
8310-854ERA	Cover, Protective	141	Cover, Protective Optional cover used w/ 8310-854 Header Mount Activation Sensor
8310-859	Remote, Handheld	178	Remote Control, Handheld. Optional handheld remote that can be used to program 8310-877 Header Mount Safety Sensor or 8310-854 Header Mount Motion Sensor	8310-854ERA
8310-877S	Spacer, Header Mount	166	Header Mount Safety Sensor Spacer. Required when 8310-804-1 or 8310-804-2 Door Mount Safety Sensors
8310-3803	Conversion Kit, Wireless, Jamb Mount	587	Wireless Conversion Kit, Jamb Mount, 3v Converts standard jamb actuator to wireless version Requires 8310-819 Jamb Box - Includes 8310-865 Receiver, 8310-844J (2) Jamb Mounted Transmitter Kit
8310-3809	Conversion Kit, Wireless, Wall Mount	587	Wireless Conversion Kit, Wall Mount, 9v Converts standard wall mount actuator to wireless version. Requires Surface Box & Weather Ring - Includes 8310-865 Receiver, 8310-844 (2) Wall Mount Transmitter Kit
8310-3888	Harness, Safety Module	37	Harness, Safety Module, Service Part. Safety Module Harness included in 8310-3889 Safety Module & Kit
8310-3889	Safety Module Kit	524	Safety Module & Kit Used w/ 7901, 7902, 7981, 7982 Control Boxes. Includes 8310-3888 Safety Module Harness, 8310-845 Time Delay Relay. Required when 8310-877 Header Mount Safety Sensor is used w/ Pneumatic

Automatic Operators (2610, 4810, 4820 or 4840 Series)

8310 Series Activation/Safety Sensor Packages

8310-805	8310-805C	8310-824	854ERA 8310-824P
		854ECA
8310-846	8310-847	8310-854ECA	8310-854ERA
8310-859	8310-877S	8310-3888	8310-3889
3803		3809
8310-3803		8310-3809

ACTUATORS & ACCESSORIES

PRICE LIST

PRODUCT NUMBER	ACTUATORS & ACCESSORIES DESCRIPTION 8310 Series Actuators, Sensors & Accessories Transmitter Kit, Wall Mount Transmitter Kit, Jamb Mount Transmitter, Handheld Transmitter, Handheld Transmitter, Handheld Transmitter, Handheld Receiver 8310 Series Actuators, Sensors & Accessories Post, Bollard Post, Bollard Cap Actuator, Bollard		May PRODUCT DESCRIPTION 2019
8310-844		$202	Transmitter, Wireless, 1 Channel, Wall Mount, 9v Used to convert standard wall mount actuator to wireless. Requires 8310-865 Receiver
8310-844J		202	Transmitter, Wireless, 1 Channel, Jamb Mount, 3v Used to convert standard jamb mount actuator to wireless. Requires 8310-865 Receiver	8310-844
8310-861		202	Transmitter, Wireless, 1 Channel, Handheld, 9v Requires 8310-865 Receiver
8310-862		202	Transmitter, Wireless, 2 Channel, Handheld, 9v Requires at least one 8310-865 Receiver
8310-863		202	Transmitter, Wireless, 3 Channel, Handheld, 9v Requires at least one 8310-865 Receiver	8310-861
8310-864		202	Transmitter, Wireless, 4 Channel, Handheld, 9v Requires at least one 8310-865 Receiver
8310-865		212	Receiver, Wireless, 1 Channel, Sequencing Feature Used in conjunction w/ Wireless Actuators & Transmitters
8310-866		$930	42" x 4" x 6" Bollard Post, Mounting Base, Actuator Cut-Out Requires 8310-3853WB Bollard Actuator or 8310-3853TWB Bollard Actuator. Can be used w/ 8310-853 Wall Mount Actuator, 8310-853T Wall Mount Actuator or 8310-855 Wall Includes 8310-866CAP. Available in AL or DKBRZ (please specify).
8310-866FLA		930	42" x 4" x 6" Bollard Post, Mounting Base, Full Length Actuator Only Requires 8310-836T Full Length Actuator or 8310-836TW Full Length Actuator. Includes 8310-866CAP. Available in AL or DKBRZ (please specify).
8310-866CAP		152	Plastic Cap, Protective Cover, Service Part. Formed plastic cap for 8310-866 Bollard Post
8310-3853WB		439	4-3/4" Square w/ Logo, Wireless. For use w/ 8310 866 Bollard Post. Includes 8310-853 Actuator, 8310-844 Transmitter Kit. Requires 8310-865 Receiver.	8310-866
	8310-3853TWB Actuator, Bollard	439	4-3/4" Square w/ Logo, Text, Wireless. For use w/ 8310-866 Bollard Post. Includes 8310-853T Actuator, 8310-844 Transmitter Kit. Requires 8310-865 Receiver.
8310-3836T	Actuator, Full Length	1,843	Actuator, 36" x 6" Full Length, Logo, Text Bollard Post Available In AL or DKBRZ (Please Specify).Includes 8310-866FLA Bollard Post and 8310-836T Full Length Actuator.
8310-3836TW	Actuator, Full Length	2,023	Actuator, 36" x 6" Full Length, Logo, Text, Wireless Includes 8310-844J. Requires 8310-865 Bollard Post Available In AL or DKBRZ (Please Specify). Includes 8310-866FLA Bollard Post, 8310-836T Full Length Actuator and 8310-844 Wireless Transmitter Kit.	8310-865

Used in conjunction w/ Wireless Actuators & Transmitters

8310-865 Receiver 212 Receiver, Wireless, 1 Channel, Sequencing Feature

8310 Series Actuators, Sensors & Accessories

ACTUATORS & ACCESSORIES

PRICE LIST

ACTUATORS & ACCESSORIES
PRODUCT DESCRIPTION NUMBER	LIST PRICE	PRODUCT DESCRIPTION	May 2019

8310 Series Accessories

8310-806K	Switch, Key	$215	Switch, Key Type, 3 Position (On/Off/Hold-Open) Optional switch used w/ Senior Swing, Benchmark, or 4630/4640 Operators with (CS) option
8310-806R	Switch, Rocker	215	Switch, Rocker Type, 3 Position (On/Off/Hold-Open) Optional switch w/ Senior Swing or Benchmark Operators.
8310-807	Filter, Line	215	Line Filter, AC, 120v. Optional filter used w/ Senior Operators to reduce 'line noise'.
8310-845	Relay and Door Sequencer	330	Programmable Relay and Door Sequencer Used to coordinate electric locking Programable device release for Senior Swing, also functions as door sequencer. Operator manufactured prior to 9/06. Also, is a component to the 8310-8337 Low Energy Convenience Package

8310-806K 8310-806R 8310-807

8310-845

PRICE LIST

	STANDARD POWDER	PLATED FINISHES			STANDARD POWDER COAT		PLATED FINISHES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	PARTS & ACCESSORIES				US26D	US 3 US 4 US 10	US 11 US 15 US 26
SEM7800 Series			1260-3049Hold Open Arm		115.00
SEM7810-E050 Extension 1/2"	21.00		1260-3049/PAHold Open Arm w/62PA		121.00
SEM7810-E075Extension 3/4"	28.00		1260-3049LHold Open Long Arm		121.00
SEM7810-E100Extension 1"	31.00		1260-3077EDA EDA Arm		142.00
SEM7810-E200Extension 2"	37.00		1260-3077EDA/GEDA Arm w/62G		148.00
SEM7810-E400Extension 4"	40.00		1260-3049EDAHEDA Arm		175.00
SEM7810-514Ball Pivot/Connection Link	31.00		1260-3049EDA/GHEDA Arm w/62G		181.00
SEM7820-515 Fastener Kit	63.00		1260-3077CUSH CUSH Arm		175.00
SEM7820-72Standard Cover & Base	474.00		1260-3049CUSH HCUSH Arm		236.00
SEM7820-825Door Armature	126.00		1260-72 Slim Cover		16.00
SEM7820-516 Magnet Core Assembly	173.00		1260-SRTScrew Pack 1260-TBSRTScrew Pack		23.00 23.00
SEM7830-515 Fastener Kit	23.00		1260-WMSScrew Pack		23.00
SEM7830-72Standard Cover	95.00		1260-TBWMSScrew Pack		23.00
SEM7830-268Surface Mount Box	35.00		1260-TORXScrew Pack		39.00
SEM7830-516 Magnet Core Assembly	159.00		1260-TBTRXScrew Pack		39.00
SEM7830-825Door Armature	126.00		1260-18Plate		46.00
SEM7840-515 Fastener Kit	23.00		1260-18PAPlate		46.00
SEM7840-72Standard Cover	95.00		1260-18QFPlate		46.00
SEM7840-516 Magnet Core Assembly	159.00		1260-30Cush Shoe Support		23.00
SEM7840-825Door Armature	125.00		1260-37Hold Open Stud		25.00
SEM7850-515 Fastener Kit & Bracket	23.00		1260-41Hold Open Nut		6.00
SEM7850-516 Magnet Core Assembly	159.00		1260-45Hold Open Shoe		23.00
SEM7850-72Standard Cover	95.00		1260-49Hold Open Main Arm		60.00
SEM7850-828Door Armature	181.00		1260-61Spacer		25.00
			1260-62AAuxiliary Shoe		39.00
1250 Series			1260-62PAPA Shoe		15.00
1250-3071Std Cylinder Assy	135.00		1260-77Arm & Forearm		80.00
1250-3077/PA Reg Arm w/62PA	70.00		1260-78H H Head & Tube		69.00
1250-3077/62AReg Arm w/62A 1250-3077LLong Arm	85.00 70.00		1260-78HLHead & Long Tube		74.00
1250-3049/PAHold Open Arm w/62PA	100.00		1260-79Rod & Shoe		27.00
1250-3049LHold Open Long Arm	100.00		1260-79LR Long Rod & Shoe		29.00
1250-3077EDA EDA Arm	120.00		1260-83Arm Screw		2.80
1250-3049EDAHEDA Arm	155.00		1260-83HH Arm Screw		2.80
1250-3077CUSH CUSH Arm	155.00		1260-146Shaft Cover		4.40
1250-3049CUSH HCUSH Arm	215.00		1260-159Arm Screw		2.80
1250-3077SCUSHS Cush Arm	215.00		1260-201Spacer		4.40
1250-3049SCUSHSpring H Cush Arm	275.00		1260-384Stop		21.00
1250-UNIVScrew Pack	21.00		1260-419Panel Adapter		61.00
1250-TORXScrew Pack	36.00		1260-3048Head & Tube Assy		78.00
1250-TBTRXScrew Pack	36.00		1260-3048LHead & Long Tube Assy		83.00
1250-72 Slim Cover	15.00		1260-Flat Box Flat Box w/Label		4.40
1250-18Plate	42.00		1260-Instruction Sheet Instruction Sheet		3.30
1250-18PAPlate	42.00		1260-Rebox KitBox & Instruction Sheet		5.00
1250-30Cush Shoe Support	21.00
1250-61Spacer	23.00		1450 Series
1250-62AAuxiliary Shoe	37.00		1450-3071Std Cylinder Assy		190.00	NA		NA
1250-62PAPA Shoe	14.00		1450-3071DEL Del Action Cylinder Assy		230.00	NA		NA
1250-146Shaft Cover	4.00		1450-3077/PA Reg Arm w/62PA		70.00	NA		NA
1250-201Spacer	4.00		1450-3077/62AReg Arm w/62A		85.00	NA		NA
1250-419Panel Adapter	55.00		1450-3077LLong Arm		70.00	NA		NA
1250-3080Spring CUSH Block	55.00		1450-3049/PAH Arm w/62PA		100.00	NA		NA
1250-Flat Box Flat Box w/Label	4.00		1450-3049LH Long Arm		100.00	NA		NA
1250-Instruction Sheet Instruction Sheet	3.00		1450-3077EDA EDA Arm		120.00	NA		NA
1250-Rebox KitBox & Instruction Sheet	5.00		1450-3077EDA/GEDA Arm w/62G		125.00	NA		NA
			1450-3049EDAH EDA Arm		155.00	NA		NA
1260 Series			1450-3077CNSCush Arm		155.00	NA		NA
1261-3071Std Cylinder Assy	192.00		1450-3049CNSH Cush Arm		215.00	NA		NA
1260-3077Reg Arm	82.00		1450-3077SCNSS Cush Arm		215.00	NA		NA
1260-3077/PA Reg Arm w/62PA	88.00		1450-3049SCNSSpring H Cush Arm		275.00	NA		NA
1260-3077/62AReg Arm w/62A	104.00		1450-72Standard Cover		15.00	NA		NA
1260-3077LLong Arm	88.00			1450-72FCFull Plastic Cover	25.00	NA		NA

1450 Series continued on next page

		STANDARD POWDER		PLATED FINISHES		STANDARD POWDER		PLATED FINISHES
	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26
1450 Series continued					1460-41Hold Open Nut	6.00
1450-72MCFull Metal Cover		45.00	NA	NA	1460-45Hold Open Shoe	23.00
1450-72ALTAlternate Cover		25.00	NA	NA	1460-49Hold Open Main Arm	60.00
1450-UNIVScrew Pack		21.00	NA	NA	1460-61Spacer 1460-62AAuxiliary Shoe	25.00 40.00	68.00 100.00
1450-TORXScrew Pack 1450-TBTRXScrew Pack		36.00 36.00	NA NA	NA NA	1460-62PAPA Shoe	15.00	90.00
1450-18Plate		54.00	NA	NA	1460-77Arm & Forearm	80.00
1450-18FCPlate		54.00	NA	NA	1460-77HDHeavy Duty Arm & Forearm	110.00
1450-18PAPlate		54.00	NA	NA	1460-78H H Head & Tube	69.00
1450-18PAFCPlate		54.00	NA	NA	1460-78HLHead & Long Tube	74.00
1450-30Cush Shoe Support		21.00	NA	NA	1460-79Rod & Shoe	27.00	85.00
1450-31 Cover Screw		2.50	NA	NA	1460-79LR Long Rod & Shoe	28.00	92.00
1450-61Spacer		23.00	NA	NA	1460-83Arm Screw 1460-83HH Arm Screw	2.80 2.80
1450-62AAuxiliary Shoe 1450-62PAPA Shoe		37.00 14.00	NA NA	NA NA	1460-124Plug	2.80
1450-146Shaft Cover		4.00	NA	NA	1460-146Shaft Cover	4.40
1450-419Panel Adapter		55.00	NA	NA	1460-159Arm Screw	2.80
1450-3080 Spring Cush Block		55.00	NA	NA	1460-163Arm Insert	2.80
1450-Flat Box Flat Box w/Label		4.00	NA	NA	1460-201Spacer	4.40
1450-Instruction Sheet Instruction Sheet		3.00	NA	NA	1460-384Stop	21.00
1450-Rebox KitBox & Instruction Sheet		5.00	NA	NA	1460-419Panel Adapter	61.00	156.00
					1460-3048Head & Tube Assy	78.00	158.00
1460 Series					1460-3048LHead & Long Tube Assy 1460-3080 Spring Cush Block	83.00 61.00	163.00
1461-3071Std Cylinder Assy		252.00			1460-3373Adapter Kit	4.40
1461-3071DEL Del Action Cylinder Assy		297.00			1460-Flat Box Flat Box w/Label	4.40
1460-3077Reg Arm 1460-3077/PA Reg Arm w/62PA		82.00 88.00	209.00 266.00	245.00 318.00	1460-Instruction Sheet Instruction Sheet	3.30
1460-3077/62AReg Arm w/62A		104.00	284.00	333.00	1460-Rebox KitBox & Instruction Sheet	5.00
1460-3077HDHeavy Duty Arm		115.00	240.00	284.00
1460-3077HD/PAHD Arm w/62PA		121.00	303.00	340.00	1460T Series
1460-3077HD/62AHD Arm w/62A		137.00	323.00	374.00	1460T-3071Std Cylinder Assy	280.00
1460-3077HD/LHD Long Arm		121.00	251.00	290.00	1461T-3071Std Cylinder Assy	280.00
1460-3077LLong Arm		88.00	213.00	251.00	1460T-3077T Standard Arm 1460T-3038Standard Track	82.00 61.00	202.00		240.00
1460-3049Hold Open Arm		115.00	240.00	284.00	1460T-3038B Track w/Bumper	71.00
1460-3049/PAH Arm w/62PA 1460-3049LH Long Arm		121.00 121.00	303.00 303.00	340.00 340.00	1460T-3038HTrack w/Hold Open	82.00
1460-3077EDA EDA Arm		142.00	350.00	390.00	1460T-3038HB Track w/Hold Open & Bumper	94.00
1460-3077EDA/GEDA Arm w/62G		148.00	356.00	394.00	1460T-72Standard Cover	16.00
1460-3049EDAH EDA Arm		175.00	383.00	426.00	1460T-72DS1Designer Series Cover	49.00	169.00		207.00
1460-3049EDA/GH EDA Arm w/62G		181.00	394.00	422.00	1460T-72FCFull Cover	28.00
1460-3077CNSCush Arm		175.00	383.00	426.00	1460T-SRTScrew Pack (incl -3034)	50.00	72.00		85.00
1460-3049CNSH Cush Arm		236.00	432.00	482.00	1460T-TBSRTScrew Pack (incl -3034) 1460T-WMSScrew Pack (incl -3034)	50.00 50.00	72.00 72.00		85.00 85.00
1460-3077SCNSS Cush Arm		236.00	432.00	482.00	1460T-TBWMSScrew Pack (incl -3034)	50.00	72.00		85.00
1460-3049SCNSSpring H Cush Arm 1460-72Standard Cover		297.00 16.00	493.00	543.00	1460T-TORXScrew Pack (incl -3034)	67.00	89.00		102.00
1460-72DS1Designer Series Cover		49.00	169.00	207.00	1460T-TBTRXScrew Pack (incl -3034)	67.00	89.00		102.00
1460-72FCFull Cover		28.00			1460T-HSRTHO Screw Pack (incl -3034H)	50.00	72.00		85.00
1460-SRTScrew Pack		23.00	45.00	56.00	1460T-HTBSRTHO Screw Pack (incl -3034H)	50.00	72.00		85.00
1460-TBSRTScrew Pack		23.00	45.00	56.00	1460T-HWMSHO Screw Pack (incl -3034H)	50.00	72.00		85.00
1460-WMSScrew Pack		23.00	45.00	56.00	1460T-HTBWMSHO Screw Pack (incl -3034H)	50.00	72.00		85.00
1460-TBWMSScrew Pack		23.00	45.00	56.00	1460T-HTORXHO Screw Pack (incl -3034H) 1460T-HTBTRXHO Screw Pack (incl -3034H)	50.00 50.00	72.00 72.00		85.00 85.00
1460-TORXScrew Pack		39.00	72.00	83.00	1460T-18Plate	60.00
1460-TBTRXScrew Pack 1460-18Plate		39.00 60.00	72.00	83.00	1460T-18DSPlate	60.00	203.00
1460-18DSPlate		60.00	203.00		1460T-18FCPlate	60.00
1460-18FCPlate		60.00			1460T-18GFCPlate	60.00
1460-18PAPlate		60.00			1460T-18PAPlate	60.00
1460-18PADSPlate		60.00	203.00		1460T-18PADSPlate	60.00	203.00
1460-18PAFCPlate		60.00			1460T-18PAFCPlate	60.00
1460-30Cush Shoe Support		23.00	66.00		1460T-30A Mounting Bracket	7.00
1460-30A Mounting Bracket		7.00			1460T-73End Cap 1460T-78Arm & Tube	9.00 71.00
1460-37Hold Open Stud		25.00
					1460T Series continued on next page

	STANDARD POWDER COAT	PLAT	ED FINI	SHES		STANDARD POWDER COAT	PLAT	ED FINI:	SHES
PARTS & ACCESSORIES	FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	PARTS & ACCESSORIES	FINISHES ANCLR ANDKB	US26D	US 3 US 4 US 10	US 11 US 15 US 26
1460T Series continued					2030-3002 Mounting/Finish Plat		286.00
1460T-82Rod	58.00				2030-3034 Track Rolle
1460T-83HH Arm Screw	2.70				2030-3034HHold Open Track Rolle
1460T-141-1Plug	2.70				2030-3054Hold Open Cli
1460T-141-2Plug	2.70				2030-SPL-3034
1460T-146Shaft Cover	4.30				2030-3964HHO Roller and Cli
1460T-159Arm Screw 1460T-163Arm Insert	2.70 2.70				2030-Flat Box
1460T-169Bumper Assy	20.00				2030-Instruction SheetInstruction Shee
1460T-425Roller Lock Screw	4.30				2030-Rebox KitBox & Instruction Shee
1460T-3034Track Roller	27.00
1460T-3034H Hold Open Track Roller	27.00				2210 Series
1460T-3054Hold Open Clip	28.00				2213(4,5)-3071Std Cylinder Ass	sy 689.00
1460T-Flat BoxFlat Box w/Label	4.30				2213(4,5)-3071AVBAVB Cylinder Ass
1460T-Instruction SheetInstruction Sheet	3.20				2210-3077T Standard Arr		368.00		391.00
1460T-Rebox KitBox & Instruction Sheet	5.00				2210-72Finish Plate (11&12	2)
					2210-3038Standard Trac
2010 Series					2210-TORXScrew Pac		72.00		83.00
2011(3,4,5,6)-3071Std Cylinder Assy	496.00				2210-11Finish Plat		107.00
2010-3077T Standard Arm	104.00	284.00	3.	28.00	2210-12Short Finish Plat		104.00
2010-3038 Standard Track	61.00				2210-31Cover Screv
2010-3038B Track w/Bumper	71.00				2210-159Arm Screv
2010-3038HTrack w/Hold Open	82.00				2210-3034Track Rolle
2010-3038HB Track w/Hold Open & Bumper	94.00	77.00			2210-Flat BoxFlat Box w/Labe 2210-Instruction SheetInstruction Shee
2010-WMSScrew Pack (incl -3034)	50.00	72.00		85.00	2210-Rebox KitBox & Instruction Shee
2010-TORXScrew Pack (incl -3034)	67.00	89.00		02.00	ZZIO-REDOX NILBOX & IIISUOCUOTI SHEE	:1 3.00
2010-HWMSHO Screw Pack (incl -3034H) 2010-HTORXHO Screw Pack (incl -3034H)	50.00 67.00	72.00 89.00		85.00 02.00	2210DPS Series
2010-11	46.00	186.00	11	02.00	2213(4,5)DPS-3071Std Cylinder Ass	sy 800.00	949.00	1	008.00
2010-31	2.80	100.00			2213(4,5)DPS-3071AVBAVB Cylinder Ass	•	972.00		1,031.00
2010-159Arm Screw	2.80				2210DPS-3077TStandard Arr	•	368.00		391.00
2010-169Bumper Assy	21.00				2210DPS-72 Finish Plate (11&12		204.00		263.00
2010-420Fire Shield	61.00				2210DPS-3038Standard Trac	k 94.00
2010-425Roller Lock Screw	4.40				2210DPS-TORXScrew Pac		72.00		83.00
2010-3034 Track Roller	28.00				2210DPS-11Finish Plat		107.00
2010-3034H Hold Open Track Roller	28.00				2210DPS-12Short Finish Plat		104.00
2010-3054Hold Open Clip	29.00				2210DPS-31Cover Screv
2010-SPL-3034P-1152 Roller	40.00				2210DPS-159Arm Screv
2010-SPL-3038	74.00				2210DPS-493
2010-3064HHO Roller and Clip	56.00				2210DPS-3034Track Rolle
2010-Flat BoxFlat Box w/Label 2010-Instruction Sheet	4.40				2210DPS-3340 Wire Harnes 2210DPS-Flat Box Flat Box w/Labe
2010-Rebox KitBox & Instruction Sheet					2210DPS-Instruction Sheet
ZOTO-REDOX KITBOX & ITSTRUCTION SHEET	5.00				2210DPS-Rebox KitBox & Instruction Shee
2030 Series						3.00
2031(2,3,4,5)-3071Std Cylinder Assy	929.00	1,189.00	1.2	277.00	2310ME Series
2031(2,3,4,5)-3971	838.00	.,	.,2		2314ME-3071Std Cylinder Ass		1,218.00	1	1,277.00
2030-3077T Standard Arm	110.00	301.00	3	351.00	2314ME-3071B80B80 Cylinder Ass	sy 1,157.00	1,306.00		,365.00
2030-3038 Standard Track	61.00				2314ME-3071B140B140 Cylinder Ass	sy 1,157.00	1,306.00	1,	,365.00
2030-3038B Track w/Bumper	71.00				2314ME-3971Cylinder Onl		1,218.00		1,277.00
2030-3038H Track w/Hold Open	82.00				2314ME-3971B80B80 Cylinder Onl
2030-3038HB Track w/Hold Open & Bumper	94.00				2314ME-3971B140B140 Cylinder Onl		2026		227.00
2030-WMSScrew Pack (incl -3034)	50.00	72.00		85.00	2310ME-3077TStandard Arr		287.00		327.00
2030-TORXScrew Pack (incl -3034)	67.00	89.00		02.00	2310ME-72 Finish Plate (11&12		204.00		263.00
2030-HWMSHO Screw Pack (incl -3034H)	50.00	72.00		85.00	2310ME-3038Standard Trac		72.00		85.00
2030-HTORX HO Screw Pack (incl -3034H)	67.00	89.00	I	02.00	2310ME-WMS Screw Pack (incl -3034 2310ME-TORX Screw Pack (incl -3034		72.00 89.00		85.00 102.00
2030-159Arm Screw 2030-169Bumper Assy	2.80 21.00				2310ME-10RXSciew Pack (incl -3034		107.00		102.00
2030-416		224.00			2310ME-12Short Finish Plat		104.00
2030-417		224.00			2310ME-31Cover Screv		.0 1.00
2030-420Fire Shield		22 1.00			2310ME-159Arm Screv
CODO TEOIIP MIRIT
2030-425Roller Lock Screw	4.40				2310ME-172Wiring Cove	er 9.00

	STANDARD POWDER		PLATED FINISHES			STANDARD POWDER		PLATED FINISHES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26
2310ME Series continued					2810-572HL/S*Header Only w/Stop Prep	221.00
2310ME-420Fire Shield	59.00				2810-572DD*Double Door Header Only	469.00
2310ME-425Roller Lock Screw	4.30				2810-572DD/S*Double Door Header Only w/Stop Prep	469.00
2310ME-3034Track Roller	27.00				2810-3018Rear Mount Bracket	103.00
2310ME-3210Transformer	69.00				2810-3072* Concealing Channel	227.00
2310ME-3431Input Jumper	6.00				2810-3107Bottom Pivot Assembly	163.00
2310ME-3351ME Switch Assy	84.00				2810-3155 Label Kit	28.00
2310ME-Flat Box Flat Box w/Label	4.30				2810-3454Motor Gearbox	2,304.00
2310ME-Instruction Sheet Instruction Sheet	3.20				2810-3462Controller	1,498.00
2310ME-Rebox KitBox & Instruction Sheet	5.00
					2850 Series - (ANCLR or ANDKB only)
2610 Series					2850-3077CPCenter Pivot Arm	242.00
					2850-3077OPOffset/Butt Hung Arm	201.00
2613(4)-3071Std Cylinder Assy	2,049.00	2,261.00		2,319.00	2850-3077OPCM*Offset Arm w/Track & Conc Channel	427.00
2613(4)-3071DPSDPS Cylinder Assy	2,261.00	2,473.00		2,532.00	2850-3572HL*Header Asy	587.00
2613(4)-3971 Cylinder Only	1,934.00				2850-3572HL/S*Header Asy w/Stop Prep	587.00
2613(4)-3971DPSDPS Cylinder Only	2,145.00				2850-MSScrew Pack	23.00
2610-3077T Standard Arm	107.00	297.00		356.00
2610-3038Standard Track	61.00				2850-11ASpindle Plate - 2 3/4"	77.00
2610-WMSScrew Pack (incl -3034)	50.00	72.00		85.00	2850-11BSpindle Plate - 3 3/4"	77.00
2610-61Spacer	13.00				2850-12*Blank Filler Plate	94.00
2610-78Arm & Tube	71.00				2850-78Arm & Tube	204.00
2610-82Rod	60.00				2850-82Rod	118.00
2610-83HH Arm Screw	2.80				2850-107Pivot Body	68.00
2610-155-1Caution Decal	5.00				2850-110Pivot Post	54.00
2610-155-2Activation Decal	5.00				2850-117 Bottom Pivot Plate	54.00
2610-159Arm Screw	2.80				2850-168Slide	39.00
2610-425Roller Lock Screw	4.40				2850-275Mounting Bracket - 2 3/4"	104.00
2610-3002 Mounting/Finish Plate	147.00	286.00			2850-334Header Endcaps	45.00
2610-3034Track Roller	28.00				2850-334-2End Cap	77.00
2610-Flat Box Flat Box w/Label	4.40				2850-375Mounting Bracket - 3 3/4"	103.00
2610-Instruction Sheet Instruction Sheet	3.30				2850-384BBreakaway Door Stop	153.00
2610-Rebox KitBox & Instruction Sheet	5.00				2850-384FFixed Door Stop	73.00
					2850-511*Dress Plate Extrusion Only	18.00 / ft
					2850-518Cable/Parts Bag	94.00
2810 Series - (ANCLR or ANDKB only)					2850-572*Header Extrusion Only	55.00 / ft
2810-3077CPCenter Pivot Arm	258.00				2850-572HL*Header Only	469.00
2810-3077OPOffset/Butt Hung Arm	214.00				2850-572HL/S*Header Only w/Stop Prep	469.00
2810-3077OPCM*Offset Arm w/Track & Conc Channel	427.00				2850-982 Companion Cable	70.00
2810-3572HL*Header Asy	345.00				2850-3018Rear Mount Bracket	103.00
2810-3572HL/S*Header Asy w/Stop Prep	345.00
2810-3572DD*Double Door Header Asy	587.00				2810-3072MPConcealing Channel-Manual Prep	230.00
2810-3572DD/S*Double Door Header Asy w/Stop Prep	587.00				2850-3107Bottom Pivot Assembly	163.00
2810-3572DD/MPDouble Door Header w/Manual Prep	1,245.00				2850-3155 Label Kit	28.00
2810-MSScrew Pack	23.00				2850-3454Motor Gearbox (Std Force)	2,304.00
2810-11ASpindle Plate - 2 3/4"	77.00				2850-3462Controller	1,498.00
2810-11BSpindle Plate - 3 3/4"	77.00
2810-12*Blank Filler Plate	94.00				2860 Series - (ANCLR or ANDKB only)
2810-78Arm & Tube	204.00				2860-3077CPCenter Pivot Arm	516.00
2810-82Rod	118.00				2860-3077OPOffset/Butt Hung Arm	427.00
2810-107Pivot Body	68.00				2860-3077OPCM*Offset Arm w/Track & Conc Channel	427.00
2810-110Pivot Post	54.00				2860-3572HL*Header Asy	587.00
2810-117 Bottom Pivot Plate	54.00				2860-3572HL/S*Header Asy w/Stop Prep	587.00
2810-168Slide	39.00				2860-MSScrew Pack	23.00
2810-275Mounting Bracket - 2 3/4"	104.00				2860-11ASpindle Plate - 2 3/4"	77.00
2810-334Header Endcaps	45.00				2860-11BSpindle Plate - 3 3/4"	77.00
2810-334-2End Cap	77.00				2860-12*Blank Filler Plate	94.00
2810-375Mounting Bracket - 3 3/4"	103.00				2860-78Arm & Tube	204.00
2810-384BBreakaway Door Stop	153.00				2860-82Rod	118.00
					2860-107Pivot Body	68.00
2810-384FFixed Door Stop	73.00				2860-110Pivot Post	54.00
2810-511*Dress Plate Extrusion Only	18.00 / ft				2860-117 Bottom Pivot Plate	54.00
2810-518Cable/Parts Bag	94.00				2860-168Slide	39.00
2810-572*Header Extrusion Only	55.00 / ft				2860-275Mounting Bracket - 2 3/4"	104.00
	221.00
2810-572HL*Header Only *Require length - please note when ordering					2860 Series continued on next page

	STANDARD POWDER		PLATED FINISHES			STANDARD POWDER		PLATED FINISHES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26
2860 Series continued					3130SE Series
2860-334Header Endcaps	44.00				3133(4)SE-3071Std Cylinder Assy	353.00
2860-334-2End Cap	75.00				3130SE-3077T Standard Arm	113.00	313.00		371.00
2860-375Mounting Bracket - 3 3/4"	100.00				3130SE-3077LLong Arm	118.00	318.00		376.00
2860-384BBreakaway Door Stop	149.00				3130SE-3038Standard Track	376.00
2860-384FFixed Door Stop	71.00				3130SEL-3038SELLong Track	376.00
2860-511*Dress Plate Extrusion Only	17.00 / ft				3130SE-WMSScrew Pack (incl81)	23.00	45.00		56.00
2860-518Cable/Parts Bag	91.00				3130SE-TORXScrew Pack (incl81)	39.00	72.00		83.00
2860-572*Header Extrusion Only	53.00 / ft				3130SE-59ACover Plate	5.00
2860-572HL*Header Only	455.00				3130SE-60Cover Plate Screw	2.80
2860-572HL/S*Header Only w/Stop Prep	455.00				3130SE-73End Cap	9.00
2860-3018Rear Mount Bracket	100.00				3130SE-78Arm & Tube	71.00
2860-3107Bottom Pivot Assembly	158.00				3130SE-81Connector w/Ring	5.00
2860-3155 Label Kit	27.00				3130SE-82Rod	60.00
2860-3454Motor Gearbox (Std Force)	2,237.00				3130SE-83HH Arm Screw	2.80
2860-3462 Control Box	1,454.00				3130SE-159Arm Screw	2.80
					3130SE-3034SE Track Roller with Slider	33.00
3030 Series					3130SE-425Roller Lock Screw	4.40
3031(2,3,4)-3071Std Cylinder Assy	353.00				3130SE-3210Transformer	71.00
3030-3077Reg Arm	121.00	329.00		383.00	3130SE-3436On/off Switch Assy	72.00
3030-3049Hold Open Arm	153.00	361.00		415.00	3130SE-Flat Box Flat Box w/Label	4.40
					3130SE-Instruction Sheet Instruction Sheet	3.30
3030-WMSScrew Pack	23.00	45.00		56.00	3130SE-Rebox KitBox & Instruction Sheet	5.00
3030-TORXScrew Pack	39.00	72.00		83.00
3030-37Hold Open Stud	25.00				4000T Series
3030-41Hold Open Nut	6.00
3030-48Hold Open Forearm	67.00				4003(4)T-3071Std Cylinder Assy	359.00
3030-49Hold Open Main Arm	60.00				4000T-3077T Standard Arm	104.00	246.00		300.00
3030-77Arm & Forearm	80.00				4000T-3038Standard Track	61.00
3030-79Rod & Shoe	27.00	85.00			4000T-72Standard Cover	28.00
3030-79HH Rod & Shoe	28.00	89.00		124.00	4000T-72MCMetal Cover	38.00	207.00		257.00
3030-83Arm Screw	2.80				4000T-WMSScrew Pack (incl -3034)	50.00	72.00		85.00
3030-83HH Arm Screw	2.80				4000T-TBWMSScrew Pack (incl -3034)	50.00	72.00		85.00
3030-159Arm Screw	2.80				4000T-TORXScrew Pack (incl -3034)	67.00	89.00		102.00
3030-421Arm Stud	9.00				4000T-TBTRXScrew Pack (incl -3034)	67.00	89.00		102.00
3030-Flat Box Flat Box w/Label	4.40				4000T-31 Cover Screw	2.80
3030-Instruction Sheet Instruction Sheet	3.30				4000T-61Spacer	13.00
3030-Rebox KitBox, Inst., & Screw Pk	5.00				4000T-73End Cap	9.00
					4000T-141-2Plug	2.80
3130 Series					4000T-159Arm Screw	2.80
3131(2,3)-3071Std Cylinder Assy	381.00				4000T-425Roller Lock Screw	4.40
3130-3077T Standard Arm	113.00	313.00		371.00	4000T-3034Track Roller	28.00
3130-3038Standard Track	61.00				4000T-Flat Box Flat Box w/Label	4.40
3130-3038B Track w/Bumper	71.00				4000T-Instruction Sheet Instruction Sheet	3.30
3130-3038HTrack w/Hold Open	82.00				4000T-Rebox KitBox & Instruction Sheet	5.00
3130-3038HB Track w/Hold Open & Bumper	94.00
3130-WMSScrew Pack (incl -3034)	50.00	72.00		85.00	4010 Series
3130-TORXScrew Pack (incl -3034)	67.00	89.00		102.00	4011(6)-3071Std Cylinder Assy	333.00
3130-HWMSHO Screw Pack (incl -3034H)	50.00	72.00		85.00	4011-3071DELDel Act Cyl Assy	376.00
3130-HTORXHO Screw Pack (incl -3034H)	67.00	89.00		102.00	4011(6)-3071TELTEL Cylinder Assy	376.00
3130-2Channel	10.00				4010-3077Reg Arm	129.00	384.00		477.00
3130-159Arm Screw	2.80				4010-3049Hold Open Arm	156.00	411.00		504.00
3130-169Bumper Assy	21.00				4010-3049FLFL Arm	264.00
3130-425Roller Lock Screw	4.40				4010-72Standard Cover	28.00
3130-3034Track Roller	28.00				4010-72MCMetal Cover	38.00	207.00		257.00
3130-3034H Hold Open Track Roller	28.00				4010-SRTScrew Pack	23.00	45.00		56.00
3130-3054Hold Open Clip	29.00				4010-TBSRTScrew Pack	23.00	45.00		56.00
3130-Flat Box Flat Box w/Label	4.40				4010-WMSScrew Pack	23.00	45.00		56.00
3130-Instruction Sheet Instruction Sheet	3.30				4010-TBWMSScrew Pack	23.00	45.00		56.00
3130-Rebox KitBox & Instruction Sheet	5.00				4010-TORXScrew Pack	39.00	72.00		83.00
					4010-TBTRXScrew Pack	39.00	72.00		83.00
					4010-18Plate	60.00	203.00
					4010-28Fusible Link	11.00
					4010 Series continued on next page

	STANDARD POWDER	PLAT	ED FINIS	SHES		STANDARD POWDER	PLAT	ED FINI	SHES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26
4010 Series continued					4020 Series
4010-31Cover Screw					4021(6)-3071Std Cylinder As	sy 333.00
4010-37Hold Open Stud	25.00				4021-3071DELDel Act Cyl As
4010-37FLFL Hold Open Stud					4021(6)-3071TELTEL Cylinder As			_
4010-41Hold Open Nut 4010-48Hold Open Forearm					4020-3077Reg Ar		373.00		474.00
4010-49 Hold Open Main Arm					4020-3077LLong Ar		383.00		482.00
4010-49FLFL Main Arm & Rod	63.00				4020-3049Hold Open Ar 4020-3049FLFL Ar		405.00	J	504.00
4010-77Arm & Forearm					4020-3049FLStandard Cov
4010-79Rod & Shoe		89.00			4020-72MCMetal Cov		207.00	)	257.00
4010-79HH Rod & Shoe	28.00	89.00			4020-SRTScrew Pa		45.00		56.00
4010-79LRLong Rod & Shoe	28.00	89.00			4020-TBSRTScrew Pa		45.00	)	56.00
4010-83Arm Screw	2.80				4020-WMSScrew Pa		45.00	)	56.00
4010-83HH Arm Screw	2.80				4020-TBWMSScrew Pa		45.00		56.00
4010-95	13.00				4020-TORXScrew Pa		72.00		83.00
4010-107 REGMetal Template 4010-159Arm Screw					4020-TBTRXScrew Pa		72.00		83.00
4010-159	2.80 4.40				4020-18		203.00
4010-Instruction Sheet					4020-18GPla 4020-28Fusible Lii		203.00	J
4010-Rebox KitBox & Instruction Sheet					4020-31
					4020-37Hold Open Stu
4010T Series					4020-37FLFL Hold Open Stu
4011(3,4)T-3071Std Cylinder Assy	349.00				4020-41Hold Open N
4010T-3077T Standard Arm		223.00		63.00	4020-48Hold Open Forear
4010T-3077DE		268.00	30	08.00	4020-49 Hold Open Main Ar	m 63.00
4010T-3038 Standard Track 4010T-3038B Track w/Bumper	59.00 69.00				4020-49FLFL Main Arm & Ro
4010T-3038HTrack w/Hold Open					4020-77Arm & Forear 4020-79Rod & Sho		89.00	1
4010T-3038HBTrack w/Hold Open & Bumper	91.00				4020-79HH Rod & Sho	pe 28.00	89.00
4010T-72Standard Cover	27.00				4020-79LRLong Rod & Sho	pe 28.00	89.00
4010T-72MCMetal Cover	37.00	202.00	2	50.00	4020-83Arm Scre	ew 2.80
4010T-SRTScrew Pack (incl -3034)	49.00	71.00		83.00	4020-83HH Arm Scre
4010T-TBSRTScrew Pack (incl -3034)	49.00	71.00		83.00	4020-159Arm Scre
4010T-WMSScrew Pack (incl -3034)	49.00	71.00		83.00	4020-Flat BoxFlat Box w/Lab
4010T-TBWMSScrew Pack (incl -3034) 4010T-TORXScrew Pack (incl -3034)	49.00 65.00	71.00 87.00		83.00 99.00	4020-Instruction SheetInstruction She 4020-Rebox KitBox & Instruction She
4010T-TBTRXScrew Pack (incl -3034)	65.00	87.00		99.00	4020-Redux NitBux & Ilistruction She	et 5.00
4010T-HSRTHO Screw Pack (incl -3034H)	49.00	71.00		83.00	4020T Series
4010T-HTBSRTHO Screw Pack (incl -3034H)	49.00	71.00		83.00	4021(3,4)T-3071Std Cylinder As	sv 359.00
4010T-HWMSHO Screw Pack (incl -3034H)	49.00	71.00		83.00	4020T-3077TStandard Ar		229.00	)	271.00
4010T-HTBWMSHO Screw Pack (incl -3034H)	49.00	71.00		83.00	4020T-3038Standard Tra	ck 61.00
4010T-HTORX	65.00	87.00		99.00	4020T-3038BTrack w/Bump
4010T-HTBTRXHO Screw Pack (incl -3034H) 4010T-18Plate	65.00 58.00	87.00 197.00		99.00 237.00	4020T-3038H Track w/Hold Ope
4010T-31		197.00	2	237.00	4020T-3038HBTrack w/Hold Open & Bump 4020T-72Standard Cov
4010T-73End Cap					4020T-72Metal Cov		207.00	1	257.00
4010T-78DEMain Arm & Tube					4020T-SRTScrew Pack (incl -303-		72.00		85.00
4010T-82Rod	58.00				4020T-TBSRTScrew Pack (incl -303		72.00		85.00
4010T-83HH Arm Screw	2.70				4020T-WMSScrew Pack (incl -303-	4) 50.00	72.00		85.00
4010T-141-2Plug					4020T-TBWMSScrew Pack (incl -303-	4) 50.00	72.00		85.00
4010T-159Arm Screw					4020T-TORXScrew Pack (incl -303	4) 67.00	89.00		102.00
4010T-169Bumper Assy 4010T-425Roller Lock Screw					4020T-TBTRXScrew Pack (incl -303/		89.00		102.00
4010T-3034Track Roller					4020T-HSRTHO Screw Pack (incl -3034i 4020T-HTBSRTHO Screw Pack (incl -3034i	*	72.00 72.00		85.00 85.00
4010T-3034H					4020T-HTBSRTHO Screw Pack (Incl -3034)		72.00		85.00 85.00
4010T-3054Hold Open Clip					4020T-HTBWMSHO Screw Pack (incl -3034)		72.00		85.00
4010T-3064HHold open Clip and Roller	54.00				4020T-HTORXHO Screw Pack (incl -3034)		89.00		102.00
4010T-Flat BoxFlat Box w/Label	4.30				4020T-HTBTRXHO Screw Pack (incl -3034)		89.00	)	102.00
4010T-Instruction Sheet					4020T-18Pla		203.00	)
4010T-Rebox KitBox & Instruction Sheet	5.00				4020T-31Cover Scre
					4020T-73End Ca 4020T-141-2Plu
						υ δ 2.00
					4020T Series continued on next page

US26D US 3 US 11 US26D US 3 US 11 FINISHES FINISHES US 4 US 15 US 4 US 15 AL (689) AL (689) US 10 US 26 US 10 DKBRZ (695) DKBRZ (695) PARTS & ACCESSORIES PARTS & ACCESSORIES BRASS (696) BRASS (696) LTBRZ (691) LTBRZ (691) STAT (690) STAT (690) BLACK (693) BLACK (693) 4030T-TBWMSScrew Pack 23.00 45.00 56.00 4030T-73End Cup 23.00 45.00 56.00 2.80 4030T-141-1Plug 2.80 21.00 4030T-141-2Plug 2.80 4.40 4030T-159Arm Screw 2.80 28.00 4030T-425Roller Lock Screw 4.40 28.00 4030T-3054Hold Open Clip 29.00 4020T-3054Hold Open Clip 29.00 4030T-Flat Box Flat Box w/Label 4.40 4020T-3064HHO Roller and Clip 56.00 4030T-Instruction Sheet Instruction Sheet 3.30 4020T-Flat Box Flat Box w/Label 4.40 4030T-Rebox KitBox & Instruction Sheet 5.00 4020T-Instruction Sheet Instruction Sheet 3.30 4020T-Rebox KitBox & Instruction Sheet 5.00 4040XP Series 4030 Series 4040XP-3071Std Cylinder Assy 345.00 4041-3071DELStd Cylinder Assy 388.00 4031-3071Std Cylinder Assy 279.00 4040XP-3077Reg Arm 134.00 404.00 507.00 4030-3077Reg Arm 112.00 266.00 333.00 4040XP-3077/PA Reg Arm w/62PA 139.00 464.00 580.00 4030-3077/PA Reg Arm w/62PA 117.00 326.00 411.00 4040XP-3077/62AReg Arm w/62A 162.00 483.00 600.00 4030-3077/62AReg Arm w/62A 134.00 344.00 428.00 4040XP-3077LLong Arm 139.00 410.00 514.00 4030-3077LD Light Duty Arm 89.00 224.00 273.00 4040XP-3077XLXL Reg Arm 172.00 443.00 541.00 4030-3077LD/PALight Duty Arm w/PA 95.00 284.00 351.00 4040XP-3049Hold Open Arm 195.00 448.00 554.00 4030-3077LD/62ALight Duty Arm w/62A 111.00 303.00 370.00 4040XP-3049/PAH Arm w/62PA 200.00 517.00 643.00 117.00 271.00 340.00 4040XP-3049LH Long Arm 200.00 455.00 558.00 145.00 290.00 356.00 4040XP-3077EDA EDA Arm 183.00 438.00 542.00 150.00 349.00 427.00 4040XP-3077EDA/GEDA Arm w/62G 188.00 443.00 547.00 150.00 295.00 361.00 4040XP-3049EDAH EDA Arm 216.00 471.00 569.00 150.00 379.00 431.00 4040XP-3049EDA/GH EDA Arm w/62G 221.00 476.00 574.00 183.00 408.00 461.00 4040XP-3077CNSCush Arm 216.00 476.00 575.00 4030-3077CNSCush Arm 183.00 408.00 461.00 4040XP-3049CNSH Cush Arm 271.00 536.00 635.00 4030-3049CNSHCush Arm 243.00 490.00 519.00 4040XP-3077SCNSS Cush Arm 271.00 536.00 635.00 4030-3077SCNSSCush Arm 243.00 490.00 519.00 4040XP-3049SCNSSpring H Cush Arm 325.00 590.00 689.00 4030-3049SCNSSpring HCush Arm 304.00 548.00 576.00 4040XP-72Standard Cover 28.00 4030-72MCMetal Cover 28.00 197.00 241.00 4040XP-72MCMetal Cover 38.00 207.00 257.00 4030-WMSScrew Pack 23.00 45.00 56.00 4040XP-SRTScrew Pack 23.00 45.00 56.00 4030-TBWMSScrew Pack 23.00 45.00 56.00 4040XP-TBSRTScrew Pack 23.00 45.00 56.00 4030-18PAPlate 60.00 203.00 4040XP-WMSScrew Pack 23.00 45.00 56.00 4030-18TJPlate 60.00 203.00 4040XP-TBWMSScrew Pack 23.00 45.00 56.00 4030-30Cush Shoe Support 23.00 66.00 4040XP-TORXScrew Pack 39.00 72.00 83.00 2.80 4040XP-TBTRXScrew Pack 39.00 72.00 83.00 25.00 68.00 4040XP-18Plate 60.00 203.00 40.00 100.00 4040XP-18GPlate 60.00 203.00 15.00 90.00 4040XP-18PAPlate 60.00 203.00 80.00 4040XP-18TJPlate 60.00 203.00 28.00 89.00 4040XP-30Cush Shoe Support 23.00 66.00 4030-79LR Long Rod & Shoe 28.00 89.00 4040XP-31 Cover Screw 2.80 4030-83Arm Screw 2.80 4040XP-37Hold Open Stud 25.00 4030-83HH Arm Screw 2.80 4040XP-37EDAEDA Hold Open Stud 25.00 4030-159Arm Screw 2.80 4040XP-41Hold Open Nut 6.00 4030-201Spacer 4.40 4040XP-45Hold Open Shoe 23.00 4030-419Panel Adapter 61.00 156.00 4040XP-48Hold Open Forearm 67.00 4030-3045Hold Open Shoe 20.00 4040XP-49Hold Open Main Arm 63.00 4030-3048Head & Tube Assy 78.00 158.00 4040XP-54 Snap-On Cover Clip Only 10.00 61.00 4040XP-58Spring & Screw (used with -80) 11.00 4.40 4040XP-61Spacer 25.00 68.00 3.30 4040XP-62AAuxiliary Shoe 40.00 100.00 5.00 4040XP-62PAPA Shoe 15.00 90.00 4030T Series 4040XP-77Arm & Forearm 126.00 4040XP-78H H Head & Tube 71.00 279.00 4040XP-78HLHead & Long Tube 77.00 4030T-3077T Standard Arm (includes 3034) 121.00 257.00 301.00 4040XP-79Rod & Shoe 28.00 89.00 4030T-3038Standard Track 61.00 4040XP-79LR Long Rod & Shoe 28.00 89.00 4030T-3038HTrack w/Hold Open 82.00 4040XP-79ELRXL Rod & Shoe 61.00 121.00 4030T-72MCMetal Cover 28.00 197.00 241.00 4040XP-80 Block (used with -58) 50.00 4030T-WMSScrew Pack 23.00 45.00 56.00		STANDARD POWDER	PLATED FINISHES		STANDARD POWDER	PLATED FINISHES
		COAT			COAT		US 26
	4020T Series continued
	4020T-159Arm Screw
	4020T-169Bumper Assy
	4020T-425Roller Lock Screw
	4020T-3034Track Roller
	4020T-3034H Hold Open Track Roller
	4030-3077LLong Arm
	4030-3049H Arm
	4030-3049/PAH Arm w/62PA
	4030-3049/LH Long Arm
	4030-3077EDA EDA Arm
	4030-3049EDAH EDA Arm
	4030-31 Cover Screw
	4030-61Spacer
	4030-62AAuxiliary Shoe
	4030-62PAPA Shoe
	4030-77Arm & Forearm
	4030-79Rod & Shoe
	4030-3080 Spring Cush Block
	4030-Flat Box Flat Box w/Label
	4030-Instruction Sheet Instruction Sheet
	4030-Rebox KitBox & Instruction Sheet
	4031T-3071Std Cylinder Assy
				4040XP Series continued on next page

PRICE LIST

	STANDARD POWDER	PLAT	ED FINIS	SHES		STANDARD POWDER	PLAT	ED FINI	SHES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26
4040XP Series continued					4040SE Series
4040XP-83Arm Screw					4040SE-3071Std Cylinder As	sy 345.00
4040XP-83HH Arm Screw	2.80				4040SE-3077TStandard Ar	m 148.00	289.00	)	344.00
4040XP-95Arm Stud	13.00				4040SE-3077DEDE AI	m 196.00	336.00	)	391.00
4040XP-107CUSHMetal Template	264.00				4040SE-3038Standard Tra
4040XP-107EDAMetal Template	264.00				4040SEL-3038SELLong Tra
4040XP-107REGMetal Template	264.00				4040SE-72Standard Cov
4040XP-107PAMetal Template					4040SE-72MCMetal Cov		207.00		257.00
4040XP-124Plug					4040SE-WMSScrew Pack (inc8		51.00		62.00
4040XP-159Arm Screw					4040SE-TBWMSScrew Pack (inc8	,	51.00		62.00
4040XP-201Spacer	4.40				4040SE-TORXScrew Pack (inc8	,	78.00		89.00
4040XP-384Stop					4040SE-TBTRXScrew Pack (inc8		78.00		89.00
4040XP-419Panel Adapter	61.00	156.00			4040SE-18Pla		203.00
4040XP-3048Head & Tube Assy					4040SE-18PAPla		203.00	)
4040XP-3048LHead & Long Tube Assy	84.00				4040SE-31Cover Scre
4040XP-3080Spring Cush Block Assy (incl -58 & -80					4040SE-59ACover Pla
4040XP-3107Metal Template Set					4040SE-60Cover Plate Scre
4040XP-Flat BoxFlat Box w/Label 4040XP-Instruction SheetInstruction Sheet	4.40				4040SE-61Spac
					4040SE-73End Co	•
4040XP-Rebox KitBox & Instruction Sheet	5.00				4040SE-78Arm & Tu
/O/OVDT Carios					4040SE-78DEMain Arm & Tu
4040XPT Series	272.00				4040SE-81Connector w/Ri
4040XPT-3071Std Cylinder Assy		220.00	,	0000	4040SE-82RI 4040SE-83HH Arm Scre
4040XPT-3077PF Standard Arm		229.00		269.00 318.00	4040SE-141Pl
4040XPT-3077DE		280.00	-	318.00	4040SE-141-1PI	•
4040XPT-3038Standard Track 4040XPT-3038BTrack w/Bumper	61.00 71.00				4040SE-141-2PI	0
4040XPT-3038HTrack w/Burnper					4040SE-159Arm Scre	0
4040XPT-3038HB Track w/Hold Open & Bumper	94.00				4040SE-425Roller Lock Scre
4040XPT-72Standard Cover	28.00				4040SE-3034SETrack Roller with slice
4040XPT-72MCMetal Cover	38.00	207.00	-	257.00	4040SE-3210SE Transform
4040XPT-SRTScrew Pack (incl -3034)	50.00	72.00		85.00	4040SE-3436On/Off Switch As
4040XPT-TBSRTScrew Pack (incl -3034)	50.00	72.00		85.00	4040SE-Flat BoxFlat Box w/Lab	•
4040XPT-WMSScrew Pack (incl -3034)	50.00	72.00		85.00	4040SE-Instruction SheetInstruction She
4040XPT-TBWMSScrew Pack (incl -3034)	50.00	72.00		85.00	4040SE-Rebox KitBox & Instruction She
4040XPT-TORXScrew Pack (incl -3034)	67.00	89.00		102.00
4040XPT-TBTRXScrew Pack (incl -3034)	67.00	89.00		102.00	4040SEH Series
4040XPT-HSRTHO Screw Pack (incl -3034H)	50.00	72.00		85.00	4040SEH-3077SEHSEH AI	m 190.00	374.00	)	414.00
4040XPT-HTBSRT HO Screw Pack (incl -3034H)	50.00	72.00		85.00	4040SEH-3038Standard SEH Tra
4040XPT-HWMSHO Screw Pack (incl -3034H)	50.00	72.00		85.00	4040SEH-59ACover Pla
4040XPT-HTBWMSHO Screw Pack (incl -3034H)	50.00	72.00		85.00	4040SEH-78SEHArm & Tu		262.00	)
4040XPT-HTORXHO Screw Pack (incl -3034H)	67.00	89.00	1	102.00	4040SEH-82SEHRI	od 95.00	210.00	)
4040XPT-HTBTRXHO Screw Pack (incl -3034H)	67.00	89.00	1	102.00	4040SEH-83SEHArm Scre	ew 2.80
4040XPT-18Plate		203.00			4040SEH-3034SEHTrack Roller and Slice	ler 33.00
4040XPT-18TJPlate		203.00
4040XPT-31Cover Screw					4050 Series
4040XPT-54Snap-On Cover Clip Only	10.00				4050-3071Std Cylinder As	sy 288.00
4040XPT-61Spacer	13.00				4050-3071DELDel Cylinder As	sy 330.00
4040XPT-73End Cap	9.00				4050-3077/PAReg Arm w/621	PA 129.00
4040XPT-78DEMain Arm & Tube					4050-3077/62AReg Arm w/6.	2A 149.00
4040XPT-82Rod	60.00				4050-3077LLong Ar
4040XPT-83HH Arm Set Screw					4050-3049/PAH Arm w/62
4040XPT-141-1					4050-3049LH Long Ar
4040XPT-141-2					4050-3077EDA EDA Ar
4040XPT-159Arm Screw					4050-3077EDA/GEDA Arm w/6
4040XPT-169Bumper Assy					4050-3049EDAH EDA Ar
4040XPT-425Roller Lock Screw					4050-3049EDA/GH EDA Arm w/6
4040XPT-3034Track Roller					4050-3077CNSCush Ar
4040XPT-3034HHold OpenTrack Roller	28.00				4050-3049CNS H Cush Ar
4040XPT-3054Hold Open Clip 4040XPT-Flat BoxFlat Box w/Label					4050-3077SCNSS Cush Ar	m 252.00
4040XPT-Instruction SheetInstruction Sheet	4.40 3.30
4040XPT-Rebox KitBox & Instruction Sheet
10 10/11 1 NEBOX MEDOX & HISHOCHOH SHEEL	5.00				4050 Series continued on next page

LCN_®

	STANDARD POWDER		PLATED FINISHES			STANDARD POWDER		PLATED FINISHES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26
4050 Series continued					4050T-480 Shaft Extender	53.00
4050-3049SCNSSpring H Cush Arm	314.00				4050T-3034Track Roller	28.00
4050-D Rw/pAReg arm w/62PA for Delay	129.00				4050T-3034H Hold OpenTrack Roller	28.00
4050-D Hw/PAH Arm w/62PA for Delay	170.00				4050T-3054Hold Open Clip	29.00
4050-62DAPAPA shoe for Delay	15.00				4050T-Flat Box Flat Box w/Label	4.40
4050-31 Cover Screw	2.80				4050T-Instruction Sheet Instruction Sheet	3.30
4050-72Standard Cover	31.00				4050T-Rebox KitBox & Instruction Sheet	5.00
4050-72ALTAlternative cover	31.00
4050-72MCMetal Cover	41.00				4110 Series
4050-SRTScrew Pack	23.00				4111(6)-3071Std Cylinder Assy	333.00
4050-TBSRTScrew Pack	23.00				4111(6)-3071AVBAVB Cylinder Assy	354.00
4050-WMSScrew Pack	23.00				4111-3071DELDelay Action Cylinder Assy	376.00
4050-TBWMSScrew Pack	23.00				4111(6)-3071TELTEL Cylinder Assy	376.00
4050-TORXScrew Pack	39.00				4110-3077EDA EDA Arm	129.00	379.00		479.00
					4110-3077EDA/GEDA Arm w/62G	134.00	384.00		484.00
4050-TBTRXScrew Pack	39.00				4110-3049EDAH EDA Arm	162.00	408.00		510.00
4050-18Plate	60.00				4110-3049EDA/GH EDA Arm w/62G	167.00	413.00		515.00
4050-18GPlate	60.00
4050-18PAPlate	60.00				4110-3077CNSCush Arm	162.00	408.00		510.00
4050-30Cush Shoe Support	23.00				4110-3049CNSH Cush Arm	221.00	465.00		573.00
4050-61Spacer	25.00				4110-3077SCNSS Cush Arm	221.00	465.00		573.00
4050-62AAuxiliary Shoe	40.00				4110-3049SCNSSpring H Cush Arm	276.00	520.00		618.00
4050-62PAPA Shoe	15.00				4110-3049FLFL Arm	269.00
4050-419Panel Adapter	61.00				4110-72Standard Cover	28.00
4050-3080 Spring Cush Block Assy (incl -58 & -80)	61.00				4110-72MCMetal Cover	38.00	207.00		257.00
4050-Flat Box Flat Box w/Label	4.40				4110-SRTScrew Pack	23.00	45.00		56.00
4050-Instruction Sheet Instruction Sheet	3.30				4110-TBSRTScrew Pack	23.00	45.00		56.00
4050-Rebox KitBox & Instruction Sheet	5.00				4110-WMSScrew Pack	23.00	45.00		56.00
					4110-TBWMSScrew Pack	23.00	45.00		56.00
4050T Series					4110-TORXScrew Pack	39.00	72.00		83.00
4050T-3071Std Cylinder Assy	309.00				4110-TBTRXScrew Pack	39.00	72.00		83.00
4050T-3077T Standard Arm	103.00				4110-18Plate	60.00	203.00
4050T-3077DEDE Arm	149.00				4110-18CUSHPlate	60.00	203.00
					4110-28Fusible Link	11.00
4050T-3038Standard Track	62.00				4110-30Cush Shoe Support	23.00	66.00
4050T-3038B Track w/Bumper	72.00				4110-31 Cover Screw	2.80
4050T-3038HTrack w/Hold Open	88.00				4110-37Hold Open Stud	25.00
4050T-3038HB Track w/Hold Open & Bumper	98.00
4050T-72Standard Cover	31.00				4110-41Hold Open Nut	6.00
4050T-72MCMetal Cover	41.00				4110-48Hold Open Forearm	67.00
4050T-SRTScrew Pack (incl -3034)	50.00				4110-49FL FL Main Arm & Rod	63.00
4050T-TBSRTScrew Pack (incl -3034)	50.00				4110-58Spring & Screw (used with -80)	11.00
4050T-WMSScrew Pack (incl -3034)	50.00				4110-61Spacer	25.00	68.00
4050T-TBWMSScrew Pack (incl -3034)	50.00				4110-62FLPA-FL Shoe	15.00
4050T-TORXScrew Pack (incl -3034)	67.00				4110-77EDAMain Arm	117.00
4050T-TBTRXScrew Pack (incl -3034)	67.00				4110-80 Block (used with -58)	50.00
4050T-HSRTHO Screw Pack (incl -3034H)	50.00				4110-107 EDAMetal Template	264.00
4050T-HTBSRTHO Screw Pack (incl -3034H)	50.00				4110-107 CUSHMetal Template	264.00
4050T-HWMSHO Screw Pack (incl -3034H)	50.00				4110-3107Metal Template	526.00
4050T-HTBWMSHO Screw Pack (incl -3034H)	50.00				4110-159Arm Screw	2.80
4050T-HTORXHO Screw Pack (incl -3034H)	67.00				4110-201Spacer	4.40
4050T-HTBTRXHO Screw Pack (incl -3034H)	67.00				4110-3048FL Forearm
4050T-18Plate	60.00				4110-3080Spring Cush Block (incl -58 & -80)	61.00
4050T-18GPlate	60.00				4110-419Panel Adapter	61.00	156.00
4050T-31 Cover Screw	2.80				4110-Flat Box Flat Box w/Label	4.40
4050T-73End Cap	9.00				4110-Instruction Sheet Instruction Sheet	3.30
4050T-78DEMain Arm & Tube	99.00				4110-Rebox KitBox & Instruction Sheet	5.00
4050T-82Rod	60.00				4110T Series
4050T-83HH Arm Set Screw	2.80				4111(3,4)T-3071Std Cylinder Assy	349.00
4050T-141-1Plug	2.80
4050T-141-2Plug	2.80				4110T-3077T Standard Arm	94.00	223.00		263.00
4050T-159Arm Screw	2.80				4110T-3038Standard Track	59.00
4050T-169Bumper Assy	21.00				4110T-3038B Track w/Bumper	69.00
4050T-425Roller Lock Screw	4.40				4110T-3038HTrack w/Hold Open	80.00
					4110T Series continued on next page

PRICE LIST

	STANDARD POWDER			STANDARD POWDER	PLAT	ED FINISI	HES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 4 US 10	US 11 US 15 US 26
4110T Series continued				4210T-3034Track Rolle
4110T-3038HBTrack w/Hold Open & Bumper	91.00			4210T-Flat Box w/Lab
4110T-72Standard Cover	27.00			4210T-Instruction SheetInstruction Shee	et 3.30
4110T-72MCMetal Cover	37.00	202.00	250.00	4210T-Rebox KitBox & Instruction Shee	et 5.00
4110T-SRTScrew Pack (incl -3034)	49.00	71.00	83.00	4310HSA Series
4110T-TBSRTScrew Pack (incl -3034)	49.00	71.00	83.00	4311HSA-3071Std Cylinder Ass	sy 1,061.00
4110T-WMSScrew Pack (incl -3034)	49.00	71.00	83.00	4311HSA-3971
4110T-TBWMS Screw Pack (incl -3034)	49.00	71.00	83.00	4310HSA-3077TStandard Ari	n 99.00	231.00	) 2	276.00
4110T-TORXScrew Pack (incl -3034)	65.00	87.00	99.00	4310HSA-3077DEDE Arr	m 145.00	277.00	) 3	322.00
4110T-TBTRXScrew Pack (incl -3034)	65.00	87.00	99.00	4310HSA-3038Standard Trac
4110T-HSRTHO Screw Pack (incl -3034H)	49.00	71.00	83.00	4310HSA-72MCMetal Cove		321.00		379.00
4110T-HTBSRTHO Screw Pack (incl -3034H) 4110T-HWMSHO Screw Pack (incl -3034H)	49.00 49.00	71.00 71.00	83.00 83.00	4310HSA-WMSScrew Pack (incl -3034		72.00		85.00
41101-HWMSHO Screw Pack (Incl -3034H) 4110T-HTBWMSHO Screw Pack (incl -3034H)	49.00 49.00	71.00	83.00	4310HSA-TBWMSScrew Pack (incl -3034		72.00		85.00
41101-HTBWMSHO Screw Pack (Incl -3034H) 4110T-HTORXHO Screw Pack (incl -3034H)	49.00 65.00	71.00 87.00	99.00	4310HSA-TORXScrew Pack (incl -3034 4310HSA-TBTRXScrew Pack (incl -3034	67.00 67.00	89.00 89.00		102.00 102.00
4110T-HTDRXHO Screw Pack (Incl -3034H) 4110T-HTBTRXHO Screw Pack (incl -3034H)	65.00	87.00	99.00	4310HSA-181 RXScrew Pack (Incl -3034 4310HSA-18Plai		311.00		102.00
4110T-18Plate	58.00	197.00	237.00	4310HSA-31Cover Scre		311.00
4110T-31	2.70	157.00	257.00	4310HSA-61Space
4110T-73End Cap	9.00			4310HSA-73End Ca
4110T-141-1	2.70			4310HSA-83Arm Scre	w 2.80
4110T-159Arm Screw	2.70			4310HSA-141-2Plu
4110T-169Bumper Assy	20.00			4310HSA-159Arm Scre
4110T-425Roller Lock Screw	4.30			4310HSA-425Roller Lock Scre
4110T-3034Track Roller	27.00			4310HSA-3034Track Rolle 4310HSA-3210Transforme
4110T-3034H Hold Open Track Roller	27.00			4310HSA-3428Scanner Modu
4110T-3054Hold Open Clip	28.00			4410HSA-3430HSA Solenoid Harnes
4110T-3064HHO Roller and Clip	54.00			4310HSA-3431Input Harnes
4110T-Flat Box w/Label	4.30			4410HSA-3448HSA PCB Modu
4110T-Instruction SheetInstruction Sheet	3.20			4310HSA-Flat BoxFlat Box w/Lab
4110T-Rebox KitBox & Instruction Sheet	5.00			4310HSA-Instruction SheetInstruction Sheet 4310HSA-Rebox KitBox & Instruction Sheet
4210 Series				/210ME Covins
4211(6)-3071Std Cylinder Assy 4211(6)-3071AVBAVB Cylinder Assy	373.00			4310ME Series	073.00
4211-3071DEL Del Action Cylinder Assy	394.00 416.00			4314ME-3071Std Cylinder Ass 4314ME-3071B80B80 Cylinder Ass
4210-307/EDA Det Action Cytinder Assy	130.00	319.00	483.00	4314ME-307IB40B140 Cylinder Ass
4210-3077CNS	163.00	379.00	511.00	4314ME-3971Cylinder On
4210-3049CNSH Cush Arm	222.00	466.00	564.00	4314ME-3971B80B80 Cylinder On
4210-72MCMetal Cover	38.00	205.00	257.00	4314ME-3971B140B140 Cylinder On
4210-TORXScrew Pack	39.00	72.00	83.00	4310ME-3077SFSwing Free Arr		274.00		318.00
4210-TBTRXScrew Pack	39.00	72.00	83.00	4310ME-3077DEDE Arr 4310ME-3038Standard Trac		319.00	3	363.00
4210-18	82.00 82.00	282.00 282.00		4310ME-72MCMetal Covi		321.00	. 3	379.00
4210-30	23.00	66.00		4310ME-WMSScrew Pack (incl -3034		72.00		85.00
4210-31	2.80	30.00		4310ME-TBWMSScrew Pack (incl -3034		72.00		85.00
4210-61	25.00	66.00		4310ME-TORXScrew Pack (incl -3034	,	89.00		102.00
4210-159Arm Screw	2.80			4310ME-TBTRXScrew Pack (incl -3034	67.00	89.00		102.00
4210-201Spacer	4.40			4310ME-18Plat		311.00	)
4210-419Panel Adapter	61.00	156.00		4310ME-31Cover Scre
4210-Flat BoxFlat Box w/Label	4.40			4310ME-61Space 4310ME-73End Ca
4210-Instruction Sheet	3.30 5.00			4310ME-83Arm Scre
7210 Nebox NitDux & IIISHUCHON SHeet	J.UU			4310ME-141-2Plu
4210T Series				4310ME-159Arm Scre	w 2.80
4211(3,4)T-3071Std Cylinder Assy	373.00			4310ME-425Roller Lock Scre
4211(3,4)T-3071AVBAVB Cylinder Assy	394.00			4310ME-3034Track Rolle
4210T-3077TStandard Arm	157.00	302.00	340.00	4310ME-3210Transforme
4210T-3038Standard Track	94.00			4310ME-3351ME Switch Ass 4310ME-3354ME Wire Harnes
4210T-72MCMetal Cover	38.00	207.00	257.00	4310ME-3431Input Harnes
4210T-TORX Screw Pack 4210T-TBTRX Screw Pack	39.00	72.00 72.00	83.00	4310ME-Flat Box
4210T-181RX	39.00 82.00	72.00 282.00	83.00	4310ME-Instruction SheetInstruction Sheet	et 3.30
4210T-31	2.80	202.00		4310ME-Rebox KitBox & Instruction Shee	et 5.00

LCN ®

	STANDARD POWDER		PLATED FINISHES		STANDARD POWDER		PLATED FINISHES
PARTS & ACCESSORIES	COAT FINISHES AL (689) DKBRZ (695) BRASS (696) LTBRZ (691) STAT (690) BLACK (693)	US26D	US 3 US 11 US 4 US 15 US 10 US 26	PARTS & ACCESSORIES	COAT FINISHES ANCLR ANDKB	US26D	US 3 US 11 US 4 US 15 US 10 US 26
4410HSA Series 4414HSA-3071Std Cylinder Assy 4414HSA-3071/18GStd Cyl. Assy w/18G 4414HSA-3971 Cylinder Only 4410HSA-3077Reg Arm	1,033.00 1,033.00 933.00 128.00	379.00	478.00	4511-3071DEL Del Action Cylinder Assy 4510-3077EDA EDA Arm 4510-72MCMetal Cover 4510-TORXScrew Pack 4510-TBTRXScrew Pack	416.00 142.00 38.00 39.00 39.00	376.00 207.00 72.00 72.00	470.00 257.00 83.00 83.00
4410HSA-3077LLong Arm 4410HSA-72MCMetal Cover 4410HSA-WMSScrew Pack 4410HSA-TBWMSScrew Pack 4410HSA-TORXScrew Pack 4410HSA-TBTRXScrew Pack	162.00 92.00 23.00 23.00 39.00 39.00	411.00 321.00 45.00 45.00 72.00 72.00	510.00 379.00 56.00 56.00 83.00 83.00	4510-18Plate 4510-31 Cover Screw 4510-159Arm Screw 4510-Flat Box Flat Box w/Label 4510-Instruction Sheet Instruction Sheet 4510-Rebox KitBox & Instruction Sheet	82.00 2.80 2.80 4.40 3.30 5.00	282.00
4410HSA-18Plate 4410HSA-18GMounting Plate 4410HSA-31 Cover Screw 4410HSA-77Arm & Forearm 4410HSA-77L Long Arm & Forearm	181.00 181.00 2.80 117.00 123.00	311.00 311.00		4510T Series 4511(3,4)T-3071Std Cylinder Assy 4511(3,4)T-3071AVBAVB Cylinder Assy 4510T-3077T Standard Arm	362.00 383.00 152.00	285.00	325.00
4410HSA-79Rod & Shoe 4410HSA-79L Long Rod & Shoe 4410HSA-83HH Arm Screw 4410HSA-159Arm Screw 4410HSA-3210Transformer	28.00 44.00 2.80 2.80 71.00	89.00 108.00		4510T-3038Standard Track 4510T-72MCMetal Cover 4510T-TORXScrew Pack 4510T-TBTRXScrew Pack 4510T-18Plate	91.00 37.00 38.00 38.00 80.00	202.00 71.00 71.00 275.00	250.00 81.00 81.00 324.00
4410HSA-3428 Scanner Module 4410HSA-3430HSA Solenoid Harness 4410HSA-3431Input Harness 4410HSA-3448HSA PCB Module 4410HSA-Flat Box Flat Box w/Label 4410HSA-Instruction Sheet Instruction Sheet 4410HSA-Rebox KitBox & Instruction Sheet	165.00 7.00 6.00 24.00 4.40 3.30 5.00			4510T-31 Cover Screw 4510T-159Arm Screw 4510T-3034Track Roller 4510T-Flat Box Flat Box w/Label 4510T-Instruction Sheet Instruction Sheet 4510T-Rebox KitBox & Instruction Sheet	2.70 2.70 27.00 4.30 3.20 5.00
4410ME Series 4414ME-3071Std Cylinder Assy 4414ME-3071/18GStd Cyl. Assy w/18G 4414ME-3071B80B80 Cylinder Assy	946.00 946.00 1,033.00			4630 Series 4631-3071Std Cylinder Assy 4631-3071CSCyl Assy w/Conc I/O Switch 4631-3971 Cylinder Only 4630-3077T Standard Arm	5,343.00 5,343.00 1,942.00 141.00	273.00	327.00
4414ME-3071B80GB80 Cyl. Assy w/18G 4414ME-3071B140B140 Cylinder Assy 4414ME-3071B140GB140 Cyl. Assy w/18G 4414ME-3971 Cylinder Only 4414ME-3971B80B80 Cylinder Only	1,033.00 1,033.00 1,033.00 846.00 933.00			4630-3038Standard Track 4630-72MCMetal Cover 4630-WMSScrew Pack (incl -3034) 4630-TBWMSScrew Pack (incl -3034) 4630-TORXScrew Pack (incl -3034)	61.00 137.00 77.00 77.00 94.00	383.00 98.00 98.00 115.00	443.00 108.00 108.00 125.00
4414ME-3971B140B140 Cylinder Only 4410ME-3077Reg Arm 4410ME-3077LLong Arm 4410ME-72MCMetal Cover 4410ME-WMSScrew Pack	933.00 128.00 162.00 92.00 23.00	379.00 411.00 321.00 45.00	478.00 510.00 379.00 56.00	4630-TBTRXScrew Pack (incl -3034) 4630-31 Cover Screw 4630-61Spacer 4630-73End Cap 4630-78Arm & Tube	94.00 2.80 13.00 9.00 71.00	115.00 179.00	125.00
4410ME-TBWMSScrew Pack 4410ME-TORXScrew Pack 4410ME-TBTRXScrew Pack 4410ME-18Plate 4410ME-18GMounting Plate 4410ME-31 Cover Screw 4410ME-77Arm & Forearm	23.00 39.00 39.00 181.00 181.00 2.80 117.00	45.00 72.00 72.00 311.00 311.00	56.00 83.00 83.00	4630-82Rod 4630-83HH Arm Screw 4630-141-2Plug 4630-155-1Caution Decal 4630-155-2Activation Decal 4630-159Arm Screw 4630-334End Cap	60.00 2.80 2.80 5.00 5.00 2.80 41.00	137.00
4410ME-77L Long Arm & Forearm 4410ME-79Rod & Shoe 4410ME-79LME Long Rod 4410ME-83HH Arm Screw 4410ME-159Arm Screw 4410ME-3210Transformer	123.00 28.00 44.00 2.80 2.80 71.00	89.00 108.00		4630-334-2End Cap, Plain 4630-334CS End Cap, Concealed Switch 4630-425Roller Lock Screw 4630-480Shaft Extension 4630-3018Mounting Plate Assy 4630-3034Track Roller	41.00 41.00 4.40 53.00 3,126.00 28.00
4410ME-3351ME Switch Assy 4410ME-3354ME Wire Harness 4410ME-3431Input Harness 4410ME-Flat Box Flat Box w/Label 4410ME-Instruction Sheet Instruction Sheet 4410ME-Rebox KitBox & Instruction Sheet	165.00 16.00 6.00 4.40 3.30 5.00			4630-3179-1On/Off Switch Assy 4630-3179-2Hold Open Switch Assy 4630-3180 I/O Board Assy 4630-3454 Motor/Clutch Assy 4630-3462Controller Assy 4630-3498-1Ribbon Cable Connector	49.00 49.00 335.00 1,590.00 1,810.00 24.00
4510 Series 4511(6)-3071Std Cylinder Assy 4511(6)-3071AVBAVB Cylinder Assy	373.00 394.00			4630-3498-2A/C Power Cable 4630-Flat Box Flat Box w/Label 4630-Instruction Sheet Instruction Sheet 4630-Rebox KitBox & Instruction Sheet 4630 Series continued on next page	49.00 4.40 3.30 5.00

		STANDARD POWDER	PLAT	ED FINISHES		STANDARD POWDER	PLAT	ED FIN	SHES
PARTS & A	CCESSORIES	COAT FINISHES ANCLR ANDKB	US26D	US 3 US 11 US 4 US 15 US 10 US 26	PARTS & ACCESSORIES	FINISHES ANCLR ANDKB	US26D	US 3 US 4 US 10	US 11 US 15 US 26
4640 Series					4822-3071/18GStd Cylinder Assy w/1
	Std Cylinder Assy	5,320.00			4822-3971 Cylinder O
	.Cyl Assy w/Conc I/O Switch	5,320.00			4820-3077		408.00		509.00
	Cylinder Only	1,920.00			4820-3077LLong A 4820-72MCMetal Co		435.00 343.00		534.00 400.00
	Reg Arm	128.00	387.00	483.00	4820-WMSScrew Pa		45.00		56.00
	Long Arm Metal Cover	155.00 137.00	414.00 383.00	510.00 443.00	4820-TBWMSScrew Po		45.00		56.00
	Screw Pack	49.00	70.00	80.00	4820-18Pl		344.00
	Screw Pack	49.00	70.00	80.00	4820-18GPl	ate 214.00	344.00
	Screw Pack	66.00	87.00	97.00	4820-31Cover Scr
	Screw Pack	66.00	87.00	97.00	4820-31LLong Cover Scr
4640-31	Cover Screw	2.80			4820-77Arm & Forea		265.00
4640-77	Arm & Forearm	118.00	265.00		4820-79Rod & Sh		89.00
	Rod & Shoe	28.00	89.00		4820-79LRLong Rod & Sh 4820-83Arm Scr		112.00
	Long Rod & Shoe	55.00	112.00		4820-155-1Caution De
	Arm Screw	2.80			4820-155-2Activation De
	Caution Decal	5.00 5.00			4820-159Arm Scr
	Activation Decat	2.80			4820-163Cover Ins
	End Cap	41.00			4820-182Stand
	End Cap, Plain	41.00			4820-334Cover End 0
	. End Cap, Concealed Switch	41.00			4820-3377DPS Conversion
4640-480	Shaft Extension	53.00			4820-Flat BoxFlat Box w/La
4640-3018	Mounting Plate Assy	3,126.00			4820-Instruction SheetInstruction Sh
	On/Off Switch Assy	49.00			4820-Rebox KitBox & Instruction Sh	eet 5.00
	Hold Open Switch Assy	49.00			4840 Series
	I/O Board Assy	335.00			4841-3071Std Cylinder A	ssy 1,788.00
	Motor/Clutch Assy	1,590.00			4841-3971
	Controller Assy	1,810.00 24.00			4840-3077EDAEDA A		437.00		541.00
	A/C Power Cable	49.00			4840-3077CNSCush A		467.00		569.00
	Flat Box w/Label	4.40			4840-3077SCNSSpring Cush A		524.00		625.00
	Instruction Sheet	3.30			4840-72MCMetal Co		343.00		400.00
	Box & Instruction Sheet	5.00			4840-WMSScrew Pa		45.00		56.00
					4840-TBWMSScrew Pa		45.00		56.00
4810 Series					4840-30Cush Shoe Supp		45.00		56.00
	Std Cylinder Assy	1,816.00			4840-31Cover Scr 4840-31LLong Cover Scr
	Cylinder Only	1,727.00	205.00	2/200	4840-61Spa		68.00
	Standard Arm	150.00	285.00	343.00	4840-124P		00.00
	Standard Track	61.00 137.00	343.00	400.00	4840-155-1Caution De
	Screw Pack (incl -3034)	50.00	72.00	85.00	4840-155-2Activation De
	Screw Pack (incl -3034)	50.00	72.00	85.00	4840-159Arm Scr	ew 2.80
	Plate	214.00	344.00	20.00	4840-163Cover Ins
	Cover Screw	2.80			4840-182Stand
4810-31L	Long Cover Screw	2.80			4840-201Spa
	Spacer	13.00			4840-334Cover End (		156.00
	End Cap	9.00	170.05		4840-419Panel Adap		156.00
	Arm & Tube	71.00	179.00		4840-460Pneumatic Hir
	Rod	60.00			4840-3080
	H Arm Screw	2.00 2.80			4840-Flat BoxFlat Box w/La
	Caution Decal	5.00			4840-Instruction SheetInstruction Sh
	Activation Decal	5.00			4840-Rebox KitBox & Instruction Sh
	Arm Screw	2.80
4810-163	Cover Insert	5.00			5010 Series
	Stand Off	13.00			5011(2,3,4,5,6)-3071Std Cylinder A		633.00		688.00
	Cover End Cap	12.00			5011(2,3,4,5)-3071DELDel Act Cyl A		676.00		731.00
	Roller Lock Screw	4.40			5010-3077Reg A		379.00		477.00
	Track Roller	28.00			5010-3049Hold Open A		411.00 66.00		509.00 81.00
	Flat Box w/Label	4.40			5010-TORXScrew Pa		72.00		83.00
	Box & Instruction Sheet	3.30 5.00			5010-10RX		209.00		05.00
4010-KEDOX VII	יייייייייייייייייייייייייייייייייייייי	0.00			5010-11DA		209.00
4820 Series					5010-31		205.00
	Std Cylinder Assy	1,788.00			5010-37Hold Open St
1022 3011		1,700.00			5010 Series continued on next page

US26D US 3 US 11 FINISHES FINISHES US 4 US 15 AL (689) ANCLR US 10 US 26 DKBRZ (695) ANDKB PARTS & ACCESSORIES PARTS & ACCESSORIES BRASS (696) LTBRZ (691) STAT (690) BLACK (693) 5010 Series continued 9130-3038 Track 71.00 9130-72MC*Metal Cover 150.00 5010-41Hold Open Nut 6.00 9130-72FC*Full Metal Cover 253.00 5010-45Hold Open Shoe 23.00 9130-MSScrew Pack 23.00 5010-48Hold Open Forearm 67.00 9130-73 Track End Cap 9.00 5010-49Hold Open Main Arm 63.00 9130-163Cover Insert 12.00 5010-77Arm & Forearm 117.00 9130-163-1Cover End Cap Insert 12.00 5010-79Rod & Shoe 28.00 89.00 9130-334Cover End Cap 41.00 5010-79HH Rod & Shoe 28.00 89.00 9130-36024v SO Kit 24.00 5010-83Arm Screw 2.80 9130-3018 Mounting Bracket 144.00 5010-83HH Arm Screw 2.80 9130-3155 Label Kit 28.00 5010-95Arm Stud 13.00 9130-3034Track Roller 33.00 5010-159Arm Screw 2.80 9130-3351-1Switch Bracket 29" 66.00 5010-3002 Mounting/Finish Plate 69.00 9130-3351-2Switch Bracket 41" 66.00 5010-Flat Box Flat Box w/Label 4.40 9130-3351-3Switch Bracket 51" 66.00 5010-Instruction Sheet Instruction Sheet 3.30 9130-3454Motor Gearbox Assembly 1,843.00 5010-Rebox KitBox & Instruction Sheet 5.00 9130-3454S Motor Gearbox Assembly w/Switch 1,843.00 9130-3462SCStandard Control Box 1,267.00 5030 Series 9130-3498-2AA/C Power Cable - 29" 40.00 5031(3,4,5,6)-3071Std Cylinder Assy 901.00 1,161.00 1,249.00 9130-3498-2BA/C Power Cable - 42" 40.00 5031(3,4,5,6)-3971 Cylinder Only 836.00 9130-3498-2CA/C Power Cable - 52" 40.00 5030-3077Reg Arm 125.00 379.00 477.00 9130-Rebox KitBox & Instruction Sheet 5.00 5030-3049Hold Open Arm 158.00 411.00 509.00 5030-WMSScrew Pack 23.00 66.00 81.00 9140 Series - (ANCLR or ANDKB only) 5030-TORXScrew Pack 39.00 72.00 83.00 9140-3077Regular Arm 148.00 5030-37Hold Open Stud 25.00 9140-3077LLong Arm 153.00 5030-41Hold Open Nut 6.00 9140-72MC*Metal Cover 150.00 5030-48Hold Open Forearm 67.00 9140-72FC*Full Metal Cover 253.00 5030-49Hold Open Main Arm 63.00 153.00 9140-MSScrew Pack 23.00 5030-77Arm & Forearm 117.00 259.00 9140-77Main Arm 113.00 5030-79Rod & Shoe 28.00 89.00 9140-79Rod 23.00 5030-79HH Rod & Shoe 28.00 89.00 9140-79LR Long Rod 46.00 5030-83Arm Screw 2.80 9140-163Cover Insert 12.00 5030-83HH Arm Screw 2.80 9140-163-1Cover End Cap Insert 12.00 5030-159Arm Screw 2.80 9140-334Cover End Cap 41.00 5030-416 Wood Clip Set 157.00 224.00 9140-3018 Mounting Bracket 144.00 5030-417 Wood Clip Set 157.00 224.00 9140-3155 Label Kit 28.00 5030-3002 Mounting/Finish Plate 147.00 286.00 9140-3351-1Switch Bracket 29" 66.00 5030-Flat Box Flat Box w/Label 4.40 9140-3351-2Switch Bracket 41" 66.00 5030-Instruction Sheet Instruction Sheet 3.30 9140-3351-3Switch Bracket 51" 66.00 5030-Rebox KitBox & Instruction Sheet 5.00 9140-3454Motor Gearbox Assembly 1,843.00 6030 Series 9140-3454S Motor Gearbox Assembly w/Switch 1,843.00 9140-3462SCStandard Control Box 1,267.00 6031(2,3,4,5)-3071Std Cylinder Assy 1,059.00 1,300.00 1,442.00 9140-3498-2AA/C Power Cable - 29" 40.00 6031(2,3,4,5)-3971 Cylinder Only 971.00 9140-3498-2BA/C Power Cable - 42" 40.00 6030-3077T Standard Arm 191.00 350.00 454.00 9140-3498-2CA/C Power Cable - 52" 40.00 6030-3038B Track w/Bumper 71.00 9140-Rebox KitBox & Instruction Sheet 5.00 6030-3038HB Track w/Hold Open & Bumper 94.00 6030-WMSScrew Pack (incl -3034) 50.00 72.00 85.00 9150 Series - (ANCLR or ANDKB only) 6030-TORXScrew Pack (incl -3034) 67.00 89.00 102.00 9150-3077Regular Arm 148.00 6030-83Arm Screw 2.80 9150-3077LLong Arm 153.00 6030-157 Snubber 16.00 9150-72MC*Metal Cover 253.00 6030-159Arm Screw 2.80 9150-MSScrew Pack 23.00 6030-169Bumper Assy 21.00 9150-77Main Arm 113.00 6030-416 Wood Clip Set 157.00 224.00 9150-79Rod 23.00 6030-425Roller Lock Screw 4.40 9150-79LR Long Rod 46.00 6030-3002 Mounting/Finish Plate 193.00 213.00 9150-163Cover Insert 12.00 6030-3034Track Roller 33.00 9150-163-1Cover End Cap Insert 12.00 6030-3034H Hold Open Track Roller 33.00 9150-334Cover End Cap 41.00 6030-3054Hold Open Clip 29.00 9150-36024v SO Kit 24.00 6030-Flat Box Flat Box w/Label 4.40 9150-3018 Mounting Bracket 144.00 6030-Instruction Sheet Instruction Sheet 3.30 9150-3155 Label Kit 28.00 6030-Rebox KitBox & Instruction Sheet 5.00 9150-3351-1Switch Bracket 29" 66.00 9130 Series - (ANCLR or ANDKB only) 9150-3351-2Switch Bracket 41" 66.00 9150-3351-3Switch Bracket 51" 66.00		STANDARD POWDER COAT	PLATED FINISHES		STANDARD POWDER COAT	PLATED FINISHES
9130-3077T Standard Arm 192.00
9130-3077PLCM Standard Arm w/Track 263.00 9150 Series continued on next page

	STANDARD POWDER COAT	PLATED FINISHES		STANDARD POWDER COAT	PLATED FINISHES
	FINISHES			FINISHES
	ANCLR			ANCLR
	ANDKB			ANDKB
PARTS & ACCESSORIES	ANDIND		PARTS & ACCESSORIES	ANDIND
9150 Series continued		'	9550 Series - (ANCLR or ANDK	B only)	•
9150-3454 Motor Gearbox Assembly	1,843.00		9550-3077Regular Arr
9150-3454S Motor Gearbox Assembly w/Switch	1,843.00		9550-3077LLong Arr
9150-3462SCStandard Control Box	1,267.00		9550-3077T Standard Arr	n 280.00
9150-3498-2AA/C Power Cable	40.00		9550-3077PLCMStandard Arm w/Trac
9150-Rebox KitBox & Instruction Sheet	5.00
			9550-3038
9530 Series - (ANCLR or ANDKE	3 only)		9550-3572HL*Header As
9530-3077T Standard Arm	280.00		9550-MSScrew Pac
9530-3077PLCMStandard Arm w/Track	351.00		9550-11ASpindle Plate - 2 3/4
9530-3038 Track			9550-11BSpindle Plate - 3 3/4
			9550-12*Blank Filler Plat
9530-3572HL*Header Asy			9550-18*Mounting Plate*	* 79.00 / ft
9530-3572DD*Double Door Header Assy			**Add 3 1/2" if Using Angled Bracket
9530-MSScrew Pack			9550-77Main Arr	m 193.00
9530-11ASpindle Plate - 2 3/4"	77.00		9550-79Rod & Sho	e 56.00
9530-11BSpindle Plate - 3 3/4"	77.00		9550-79LRLong Rod & Sho	e 62.00
9530-12*Blank Filler Plate			9550-82Ro
9530-18*Mounting Plate**			9550-82LLong Ro
**Add 3 1/2" if Using Angled Brackets			9550-275Mounting Bracket - 2 3/4
9530-73 Track End Cap	9.00		9550-334Header Endca
9530-275Mounting Bracket - 2 3/4"	104.00		9550-334-1Angled Bracket
9530-334Header Endcap	45.00		9550-334-2 End Dress Plat	te 77.00
9530-334-1 Angled Bracket			9550-375Mounting Bracket - 3 3/4
9530-334-2 End Dress Plate			9550-511Dress Plate Extrusion On
9530-375Mounting Bracket - 3 3/4"	104.00		9550-511DIESS PIGLE EXTINSION ON	ly 18.00 / ft
9530-511*Dress Plate Extrusion Only			9550-518
9530-518Cable/Parts Bag			9550-572*Header Extrusion On
9530-572*Header Extrusion Only			9550-572HL*Header On	ly 443.00
9530-5724L*Header Extrusion Only			9550-982Companion Cab	le 70.00
9530-572DD*Double Door Header Only			9550-3018Rear Mount Bracke
9530-3018Rear Mount Bracket	469.00		9550-3034Track Rolle
			9550-3155Label K	it 28.00
9530-3034 Track Roller			9550-3454Motor Gearbox (Std Force	2,304.00
9530-3155Label Kit			9550-3462Controlle	er 1,498.00
9530-3454Motor Gearbox (Std Force)	2,304.00
9530-3462Controller	1,498.00		9560 Series - (ANCLR or ANDK
9540 Series - (ANCLR or ANDKE	Ronly)		9560-3077Regular Ari
9540-3077Regular Arm			9560-3077LLong Arr	m 256.00
9540-3077LLong Arm			9560-3077T Standard Arr	m 272.00
9540-3572HL*Header Asy			9560-3077PLCMStandard Arm w/Trac
9540-3572DD*Double Door Header Assy			9560-3038Trac
	22.00		9560-3572HL*Header As	,
9540-MSScrew Pack	23.00		9560-MSScrew Pac
9540-11ASpindle Plate - 2 3/4"	77.00		9560-11ASpindle Plate - 2 3/4
9540-11BSpindle Plate - 3 3/4"	77.00		9560-11BSpindle Plate - 3 3/4	4" 75.00
9540-12*Blank Filler Plate			9560-12*Blank Filler Plat	te 91.00
9540-18*Mounting Plate**			9560-18*Mounting Plate*	* 77.00 / ft
**Add 3 1/2" if Using Angled Brackets			**Add 3 1/2" if Using Angled Bracket	ts
9540-77Main Arm			9560-77Main Arı
9540-79Rod & Shoe			9560-79Rod & Sho
9540-79LRLong Rod			9560-79LRLong Rod & Sho
9540-82Rod			9560-82Ro
9540-82LLong Rod			9560-82LLong Ro
9540-275 Mounting Bracket - 2 3/4"	104.00		9560-275Mounting Bracket - 2 3/4
9540-334Header Endcap			9560-334Header Endca
9540-334-1 Angled Bracket			9560-334-1Angled Bracke
9540-334-2 End Dress Plate			9560-334-1
9540-375Mounting Bracket - 3 3/4"
9540-511* Dress Plate Extrusion Only			9560-375Mounting Bracket - 3 3/4
9540-518Cable/Parts Bag			9560-511*Dress Plate Extrusion On
9540-572*Header Extrusion Only			9560-518Cable/Parts Ba	-
			9560-572*Header Extrusion On
9540-572HL*Header Only			9560-572HL*Header On
9540-572DD*Double Door Header Only			9560-3018Rear Mount Bracke
9540-3018 Rear Mount Bracket			9560-3034Track Rolle
9540-3155Label Kit			9560-3155 Label K
9540-3454 Motor Gearbox (Std Force)	2,304.00		9560-3454Motor Gearbox (Std Force
9540-3462Controller	1,498.00		9560-3462Controlle	,

Senior Swing, Basic Parts Diagram (2800 / 9500 Series)

Price Book 7 Effective May 4, 2019 • Rev. 05/19

Benchmark Basic Parts Diagram (9100 Series)

GLOSSARY OF ABBREVIATIONS

Arm Options

STD - Standard Arm REG - Regular Arm

Rw/PA - Regular Arm w/ Parallel Arm Shoe Rw/62A - Regular Arm w/ Auxiliary Parallel Arm Shoe

H - Hold Open Arm

Hw/PA - Hold Open Arm w/ Parallel Arm Shoe

HD - Heavy Duty Arm (1460)

HDw/PA - Heavy Duty Arm w/ Parallel Arm Shoe

LD - Light Duty Arm

LDw/PA - Light Duty Arm w/ Parallel Arm Shoe

LONG - Long Arm XLONG - Extra Long Arm HLONG - Hold Open Long Arm EDA - Extra Duty Arm

EDAw/62G - Extra Duty Arm w/ Thick Hub Shoe HEDA - Hold Open Extra Duty Arm HEDAw/62G - Hold Open Extra Duty Arm w/ 62G

CUSH (CNS) - Cush -n- Stop Arm

HCUSH (HCNS) - Hold Open Cush -n- Stop Arm SCUSH (SCNS) - Spring Cush -n- Stop Arm SHCUSH (SHCNS) - Spring Hold Open Cush -n- Stop Arm

SF - Swing Free Arm (4310ME) DE - Double Egress Arm FL - Fusible Link Arm

Cylinder Options

STD - Standard Cylinder DEL (DA) - Delay Action Cylinder AVB - Advanced Variable Backcheck B80 - Bypass 80 Degree ME Cylinder B140 - Bypass 140 Degree ME Cylinder TEL - Telephone Cylinder (4010/4020/4110)

Cover Options

STD - Standard Plastic Cover

MC - Metal Cover FC - Full Cover (1460)

DS (DS1) - Designer Series Cover (1460)

Track Options

STD - Standard Track H - Hold Open Track BUMPER - Track with Bumper

HBMP - Hold Open Track with Bumper

Fastener Pack Options

WMS - Wood & Machine Screws

TBWMS - Thru-Bolt, Wood & Machine Screws SRT - Self Reaming & Tapping Screws

TBSRT - Thru-Bolt, Self Reaming & Tapping Screws

TORX - TORX Machine Screws

TBTRX - Thru-Bolt, TORX Machine Screws

Finishes

AL - Aluminum DKBRZ - Dark Bronze BRASS - Brass LTBRZ - Light Bronze STAT - Statuary BLACK - Black

MTLPC - Bright Metallic

RAL - Custom Finish Designation (RAL xxxx)

ANCLR - Anodized Clear ANDKB - Anodized Dark Bronze

Swing Operator Terms

SF - Standard Force Motor Gearbox

SC - Standard Controller POS - Positive Mechanical Stop BKY - Breakaway Stop

Miscellaneous Terms

L - Long LR - Long Rod ELR - Extra Long Rod

B80 or B140 - Bypass (Fire/Life Safety) SRI - Special Rust Inhibitor

SE - Single Point Electronic (Fire/Life Safety) ME - Multi-Point Electronic (Fire/Life Safety)

PAH - Parallel Arm Holder (PAH60)

ES - Electric Strike (Control Boxes) S (SEQ) - Sequential (Control Boxes)

TJ - Top Jamb PA - Parallel Arm 18G - Flush Ceiling T - Track

DPS - Door Position Switch (2210DPS)

FP - Fire Protection Fluid

Header Options

Part	Extrusion (36˝ to 188˝) No Prep	Single Door* (36˝ to 49˝) (50˝ Prepped	Door Pair to 98˝) Prepped	Double Door Header** Prepped	Gearbox Brackets Included	Angle Brackets Included	End Caps Included	Filler Plates Included	Stop Prep*** Included
-572	X
-572HL		X	X
-572HL/S		X	X						X
-572DD				X
-572DD/S				X					X
-3572HL		X	X		X	X	X	X
-3572HL/S		X	X		X	X	X	X	X
-3572DD				X	X	X	X	X
-3572DD/S				X	X	X	X	X	X

^{*2810, 9530} or 9540 only **2850, 2860, 9550 or 9560 only

^{*** 2810, 2850} or 2860 only

A library of common wiring diagrams are available at no-charge for use in single and double door applications utilizing various configurations of Allegion door hardware products. These diagrams and much more can be accessed through our Knowledge Center tool at http://kc.allegion.com/, simply click on the link Common wiring diagrams.

Custom Wiring Diagrams

When common wiring diagrams do not meet the needs of the job requirements, Allegion offers a service to purchase custom wiring diagrams. All custom wiring diagrams include a point-to-point drawing, a riser diagram, and a detailed theory of operation. Custom wiring diagrams fall into two categories; Standard and Complex.

• ⁿ Standard drawings: All Allegion products with a single opening and a basic theory of operation. These drawings will be quoted a NET $250 for each drawing
• ⁿ Complex drawings: Generic contacts, 3rd party components, complex relay logic, timer circuit logic, any other additional advanced logic. Drawings that fall under this type will receive a NET quote depending on the time required to complete the drawings at an hourly rate of $200/hour with a $250 minimum NET

How to Request a Quote for a Custom Wiring Diagram

• ⁿ Custom wiring diagrams can only be ordered by and shipped to current Allegion Channel Partners
• ⁿ Wiring Diagram Request Forms can be obtained by:
  • Sending an email request to Wiring.Diagram.Request@allegion.com
  • Using the online Distributor Portal under; My Support / Orders & Invoicing
  • Using the form located on the following page
• ⁿ Once completed, email the completed request form to Wiring.Diagram.Request@allegion.com for processing
  • Be sure and include the following information to prevent delays to the request:
• All supporting documentation for non-Allegion products
• Hardware list with complete part numbers
• Detailed Theory of operation for all openings
• ⁿ Upon receipt the custom wiring coordinator will review and clarify the request as needed
• ⁿ Once all clarifications are resolved a QUOTE#, NET pricing, and lead time will be assigned and communicated to the requestor within 1 business day
• ⁿ QUOTE# is valid for 90 days
• ⁿ A purchase order with the QUOTE# must be received for the wiring diagrams to be produced
  • Send the completed PO to Wiring.Diagram.Request@allegion.com
• ⁿ Lead time is generally 2-3 weeks from time PO is received, more complex requests will have longer lead times
• ⁿ Changes to the original request after a quote approval may incur additional charges and affect lead time
• ⁿ Completed custom wiring diagrams will be emailed to the requestor

Notes

Wiring Diagram Request Form

Must be a Schlage Electronics, LCN, or Von Duprin Dealer

Project Name
Dealer/Distributor
Provide a Primary Technical Contact
	Phone Provide/Attach the Following n Included hardware list with complete part numbers. n Detailed Theory of Operation for all openings. Door Number; Door Size; Door Material;	n All supporting documentation for all non-Allegion products. Additional information that helps expedite the project:	Account # Dealer Contact Name Phone

Fire Rated Opening; Single/Pair; Double Egress; Interior/Exterior; Interlocked Opening; Basic Floor Plan/Traffic Flow

E-mail completed form and supporting documentation to

Wiring.Diagram.Request@allegion.com Phone: 877-671-7011

LCN Limited Warranty

Subject to the terms and conditions of this limited warranty, Schlage Lock Company, LLC (the "Company') extends a limited warranty against defects in material and workmanship for its LCN branded product(s) identified in the Product Table below ("Products") as installed in the original location.

This limited warranty applies to Products purchased on or after March 3, 2014 .

Product Table

4000 Series	30 Years
4050 Series	25 Years
1460 Series	30 Years
1450 Series	25 Years
1260 Series	20 Years
1250 Series	15 Years
Concealed, High Security (except 2210DPS)	15 Years
Automatic Operators; SE, ME, HSA, SEH Series; SEM Magnets; 2210 DPS (includes both electronic and mechanical components)	2 Years

Term: The limited warranty period for Products is as stated in the Product Table above. The "Commencement Date" for a limited warranty period shall be the date of Company's delivery to the original purchaser of the Products. Proof of Product purchase may be required by Company to confirm the Commencement Date.

What Company will do: Company may require proof of Product purchase in order to provide coverage under this limited warranty. As Company's only responsibility and user's only remedy under this limited warranty, Company will furnish a replacement Product upon receipt and confirmation by Company, in its sole opinion, that the Product has, in fact, failed due to a manufacturing defect under normal use and maintenance. In the event a replacement Product cannot be provided, Company will either provide a suitable replacement Product or a refund in the amount of the original purchase price.

What is not covered: The following costs, expenses, and damages are not covered by the provisions of this limited warranty: (i) labor costs including, but not limited to, such costs as removal and installation of Product; (ii) shipping and freight expenses required to return Product to Company; (iii) failures, defects, or damage caused by any third party product or service; (iv) any other incidental, consequential, indirect, special and/or punitive damages, whether based on contract, warranty, tort (including, but not limited to, strict liability or negligence), patent infringement, or otherwise, even if advised of the possibility of such damages.

The provisions of this limited warranty do not apply to Product that is: (i) not the proper size for the application for which the Product is used; (ii) not installed in accordance with Company's published Product installation instructions; (iii) installed with improper parts and/or incorrect parts (NOTE: It is recommended that Product be installed with LCN fasteners provided with Product); (iv) improperly stored, maintained, or operated; (v) modified, repaired, or altered in Company's sole opinion, in any manner, without the express written consent of Company; (vi) used for purposes for which the Product is not designed or intended; (vii) subjected to misuse, abuse, negligence, or accident; or (vii) subjected to improper temperature, humidity, or other environmental conditions.

Note: 900/7900 Series compressors are not manufactured by Company and are excluded from coverage under this limited warranty. For more information, parts, or repairs concerning the compressors, contact the compressor manufacturer directly at (269) 926-6171.

Additional Terms: This limited warranty is in lieu of all other warranties, express or implied. Company does not authorize any person to create for it any obligation or liability in connection with Product. Company's maximum liability hereunder is limited to the original purchase price of the Product. No action arising out any claimed breach of this limited warranty by Company may be brought by the user more than one (1) year after the cause of action has arisen.

How local law applies: This limited warranty gives you specific legal rights, and you may also have other rights as permitted by law. Some local laws do not allow limitations on how long an implied warranty lasts or the exclusions or limitation of incidental or consequential damages so the limitations or exclusions provided herein may not apply to you.

Program and Warranty Claims: If Product is to be claimed to be defective under this limited warranty, contact Customer Care at (877) 671-7011.

Price Book 7

Note: Please contact LCN Customer Care prior to returning any product back to the factory. You will need prior authorization and an RMA for your return.

About Allegion

Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 8,000 people and sells products in more than 120 countries across the world. Allegion comprises 27 global brands, including strategic brands CISA ®, Interflex ®, LCN ®, Schlage ® and Von Duprin ®.

For more, visit www.allegion.com
