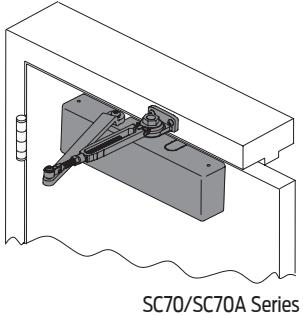

SC70/SC70A Series Heavy Duty

Model Arm Type Shipping Weight AL (689) DKB (695) BR(696) MTBK (622)1 SC71/SC71A RwPA 10 327 SC71/SC71A HwPA 10 350 SC71/SC71A HDPA 11 350

Model	Arm Type	Shipping Weight	AL (689) DKB (695) BR(696) MTBK (622)1
SC71/SC71A	RwPA	10	327
SC71/SC71A	HwPA	10	350
SC71/SC71A	HDPA	11	350
SC71/SC71A	FA1	11	367
SC71/SC71A	FAHO1	11	391
SC71/SC71A	DS	11	369
SC71/SC71A	DSHO1	12	437
SC71/SC71A	SS1	12	393
SC71/SC71A	SSHO1	12	455

REFERENCE NOTES:

• 1) SC71 FA, FA/HO, DS/HO, SS, and SS/HO are not available in matte black. All other matte black will transition to SC71A in Q3 2017.
• 2) SC71 ships standard with a FULL Cover.

Closer Options

Suffix	Description	List Adder
DEL1	Delayed Action Cylinder	30

REFERENCE NOTE:

Closer Parts and Accessories

Model	Description	Shipping Weight	List
SC71/SC71A-3071	Standard Cylinder	12	246
SC71/SC71A-3071DEL	Delay Cylinder1	12	280
SC70/SC70A-72	FULL Cover	1	17
SC70/SC70A-3077/PA	Regular Arm w/ PA Bracket	3	64
SC70/SC70A-3049/PA	Hold Open Arm w/ PA Bracket	3	87
SC70/SC70A-3077HD	Heavy Duty Parallel Arm	3	87
SC70/SC70A-3077FA	Forged Parallel Arm1	3	104
SC70/SC70A-3049FA	Hold Open Forged Parallel Arm1	3	127
SC70/SC70A-3077DS	Dead Stop Parallel Arm	5	106
SC70/SC70A-3049DS	Hold Open Dead Stop Parallel Arm1	5	129
SC70/SC70A-3077SS	Spring N Stop Arm1	5	173
SC70/SC70A-3049SS	Hold Open Spring N Stop Arm1	5	192
SC70/SC70A-18	Narrow Frame Back Plate	3	56
SC70/SC70A-18PA	Narrow Top Rail Drop Plate	4	56
SC70/SC70A-30	Cush Shoe Support	1	21
SC70/SC70A-61	Blade Stop Spacer	1	24
SC70/SC70A-62A	Offset Auxiliary Shoe	1	28
42992	SC70 Screw Pack RW/PA and HW/PA Arms (AL)		10
43096	SC70 Screw Pack RW/PA and HW/PA Arms (DRKB)		10
43097	SC70 Screw Pack RW/PA and HW/PA Arms (BR)		10
43065	SC70 Screw Pack for Affixed Parallel Arm Shoe (AL)		10	SC70-62A
43100	SC70 Screw Pack for Affixed Parallel Arm Shoe (DRK)		10
43101	SC70 Screw Pack for Affixed Parallel Arm Shoe (BR)		10

SC70/SC70A-18

SC70PA-18 SC70/SC70A-18PA

REFERENCE NOTE:

• 1) SC71/SC71A FA, FA/HO, DS/HO, SS, and SS/HO arms are not available in matte black.
• 2) Matte Black will transition to SC71A in Q3 2017.
• 3) Delay Action will transition to SC71A by end of 2017.
• 4) Matte Black and Dark Bronze Closers share the same screw finish.

Prices subject to change without notice

³⁾ SC71 is fully adjustable 1-6

¹⁾ Delay Action is not available in matte black and will transition to SC71A end of 2017

SC80/SC80A Series Medium Duty

Medium	Duty

Model	Arm Type	Shipping Weight	AL (689) DKB (695) BR (696) MTBK (622)1
SC81/SC81A	RwPA	8	209
SC81/SC81A	HwPA	8	231
SC81/SC81A	HDPA1	10	231
SC81/SC81A	DS	10	250
SC81/SC81A	DSHO1	10	273
SC81/SC81A	SS1	10	318
SC81/SC81A	SSHO1	10	336

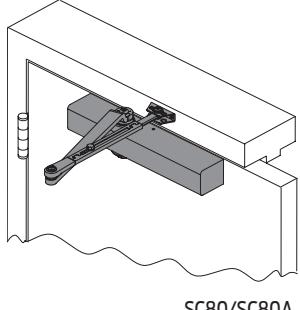

SC80/SC80A (w/ full cover shown)

REFERENCE NOTES:

• 1) SC81 delay action, HD, DS/HO, SS, and SS/HO arms are not available in matte black. All other matte black will transition to SC81A in Q3 of 2017.
• 2) SC81/SC81A ships standard with a SLIM Cover.

Closer Options

Suffix	Description	List Adder
FC	FULL Cover	5
DEL1	Delayed Action Cylinder	30

REFERENCE NOTE:

Closer Parts and Accessories

Model	Description	Shipping Weight	List
SC81/SC81A-3071	Standard Cylinder	10	134
SC81-3071DEL	Delay Cylinder1	10	168
SC80/SC80A-72	Slim Cover	1	12
SC80/SC81A-72FC	FULL Cover	1	17
SC80/SC81A-3077/PA	Regular Arm w/ PA Bracket	3	64
SC80/SC81A-3049/PA	Hold Open Arm w/ PA Bracket	3	87
SC80/SC81A-3077HD	Heavy Duty Parallel Arm1	3	87
SC80/SC81A-3077DS	Dead Stop Parallel Arm	5	106
SC80/SC81A-3049DS	Hold Open Dead Stop Parallel Arm1	5	129
SC80/SC81A-3077SS	Spring N Stop Arm1	5	173
SC80/SC81A-3049SS	Hold Open Spring N Stop Arm1	5	192
SC80/SC81A-18	Mounting Plate - Top Jamb	2	33
SC80/SC81A-18FC	Mounting Plate - Top Jamb for FULL Cover	2	33
SC80/SC81A-18PA	Mounting Plate - PA	2	33
SC80/SC81A-18PAFC	Mounting Plate - PA for FULL Cover	2	33
SC80/SC81A-30	Cush Shoe Support	1	21
SC80/SC81A-61	Blade Stop Spacer	1	24
SC80/SC81A-62A	Offset Auxiliary Shoe	1	28
043156626427	SC80A Standard Screw Pack AL Finish replacing 42824		10
043156626465	SC80A Standard Screw Pack DKB Finish replacing 42833		10
043156626441	SC80A Standard Screw Pack BR Finish replacing 42840		10
043156626434	SC60A/80A Screw Pack for Affixed Parallel Arm Shoe (AL) - in addition to 043156626427		10
043156626472	SC60A/80A Screw Pack for Affixed Parallel Arm Shoe (DKB) - in addition to 043156626465		10
043156626458	SC60A/80A Screw Pack for Affixed Parallel Arm Shoe (BR) - in addition to 043156626441		10
043156618422	SC60A/80A PINION CAP (AL)		6
043156618446	SC60A/80A PINION CAP (DKB)		6
043156618439	SC60A/80A PINION CAP (BR)		6
43924	SC60/80/90 PINION CAP (MTBK)		6

Price Book 7 Effective May 4, 2019 • Rev. 05/19

SC80/SC80A-18PA SC80/SC80A-18

REFERENCE NOTE:

• 1) SC80A delay action, HD, DS/HO, SS, and SS/HO arms are not available in matte black.
• 2) Delay action will transition to SC81A by end of 2017.
• 3) Matte Black finish will transition to SC81A in Q3 2017.
• 4) Matte Black and Dark Bronze Closers share the same screw finish.

Prices subject to change without notice

³⁾ SC81/SC81A is fully adjustable 1-6

¹⁾ Delay action is not available in matte black and will transition to SC81A end of Q3 2017.

SC90/SC90A Series Light- Residential Duty

Model	Arm Type	Size	Shipping Weight	AL (689) DKB (695) BR* (696)
SC91/SC91A	RwPA	1	5	122
SC91/SC91A	HwPA	1	5	144
SC93/SC93A	RwPA	3	5	122
SC93	HwPA	3	5	144
SC94/SC94A	RwPA	4	5	122
SC94	HwPA	4	5	144

SC90/SC90A Series (SC91 shown)

REFERENCE NOTES:

• 1) SC90 series ship standard as LESS Cover.
• 2) *Brass will not be available with SC91A/SC93A/SC94A.
• 3) Less Back Check option is available on SC91 RWPA AL, SC93 RWPA AL, SC94 RWPA AL & DKB at $10 Less List

Closer Options

Suffix	Description	List Adder
STD	Standard Cover (Only fits 93 and 94 models)	17

Closer Parts and Accessories

Model	Description	Shipping Weight	List
SC90/SC90A-18	Mounting Plate - Top Jamb	2	33
SC90/SC90A-18PA	Mounting Plate - Push Side	2	33
42901	SC60/80/90 PINION CAP (ALUM)		6
42902	SC60/80/90 PINION CAP (DRKBRZ)		6
42903	SC60/80/90 PINION CAP (BRASS)		6

SC90/SC90A-18PA (SC93A/94A only)
