Customer Support

Customer Care

Our Customer Service team is available to answer questions or provide any assistance you may need. You can reach them at

800-441-9692 or help@pdqlocks.com.

Monday through Friday – 8 am to 5 pm EST.

Placing Orders

You can place your orders with PDQ Manufacturing using the email below:

Email: orders@pdqlocks.com

Product and Technical Support

833-2-PDQTEC (833-273-7832) or techsupport@pdqlocks.com. Monday through Friday – 8 am to 5 pm EST.

Quotation and Cross Reference Requests

PDQ provides complete project quotation and Cross Reference services.

800-441-9692 or quotes@pdqlocks.com

World Headquarters Administrative Office U.S. Manufacturing Center

PDQ Manufacturing 2230 Embassy Drive Lancaster, PA 17603 USA

Remittances

PDQ Manufacturing P.O. Box 6426 Lancaster, PA 17607 USA

Regional Distribution Centers

Lancaster, PA, Norcross, GA, Kansas City, MO, Denver, CO, Henderson, NV, Auburn, WA

International Design, Sales and Distribution Centers

Milan, Italy Abu Dhabi, United Arab Emirates

Table of Contents

TERMS & CONDITIONS	1
WARRANTY	2
FINISHES	3

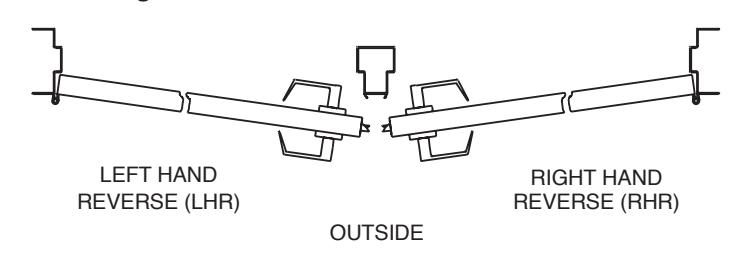

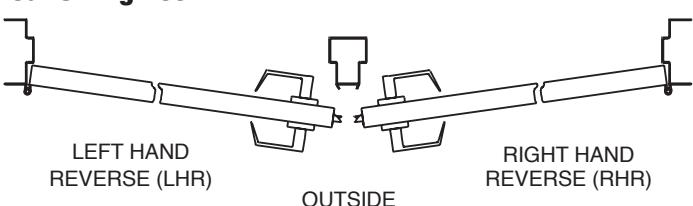

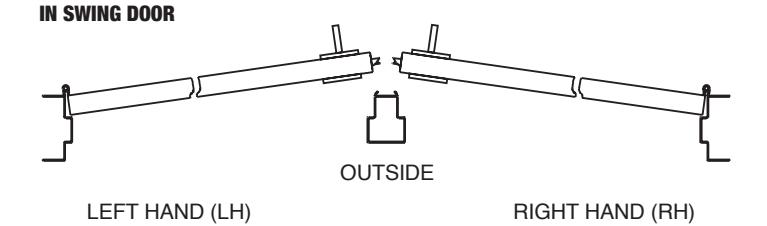

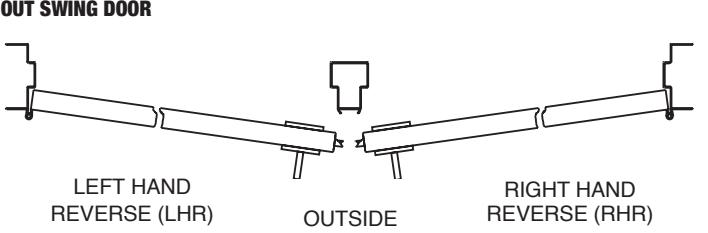

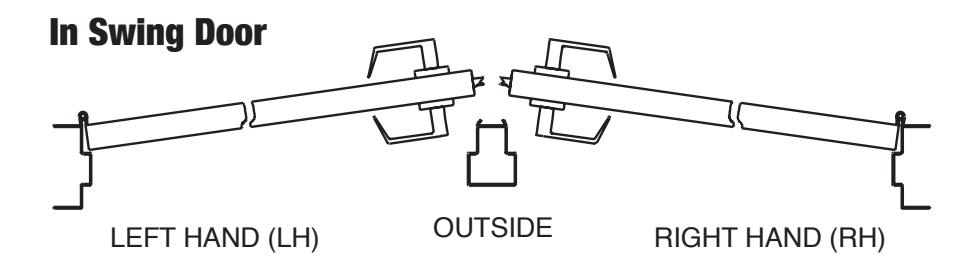

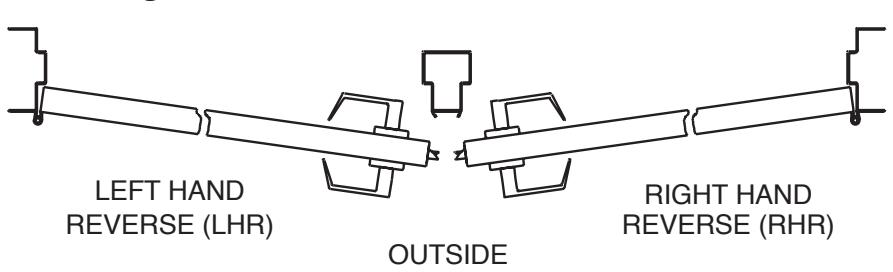

LOCK HANDING	298
pdqSMART	4
pdqSMART-STS	5
pdqSMART-XLS	6
Mortise Locks	8

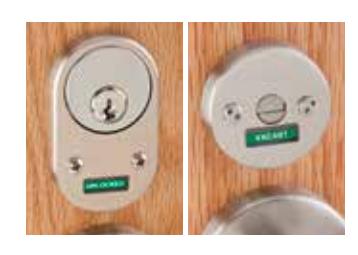

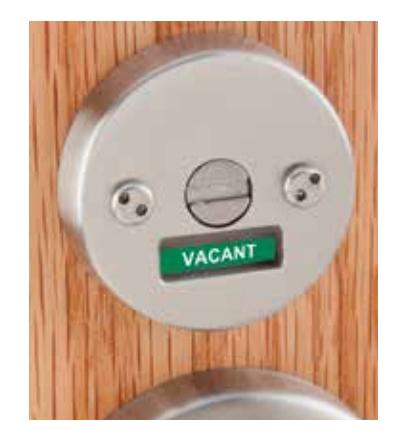

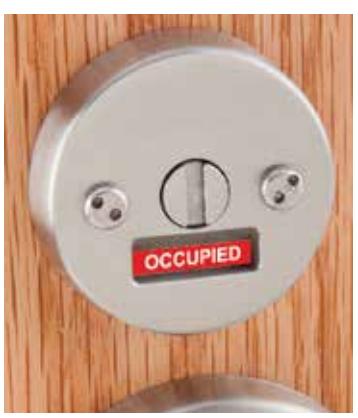

MR MORTISE INDICATORS	9

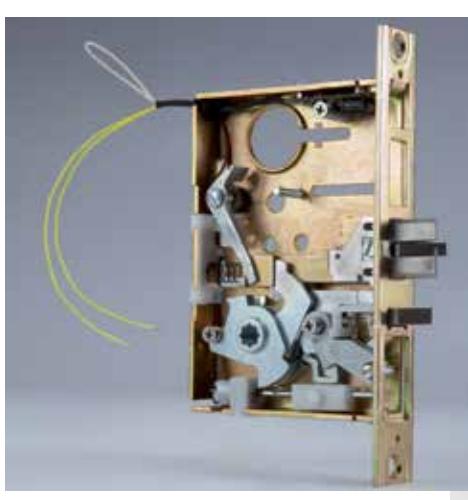

MR199A/MR200 SERIES GRADE 1 ELECTRIFIED MORTISE	10
EMR* — DISCONTINUED	11

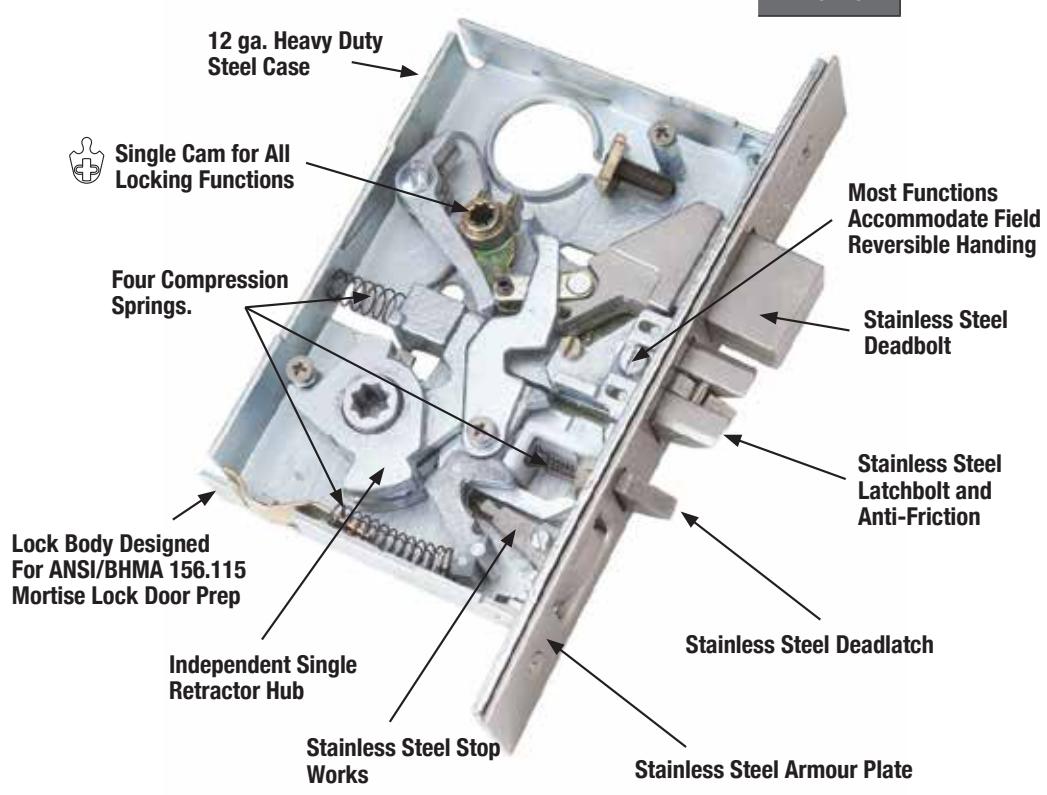

MR SERIES GRADE 1 MORTISE	13

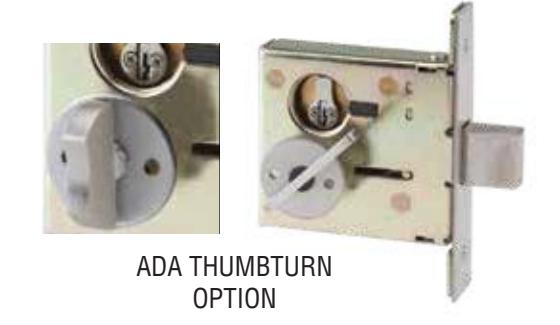

MJ MORTISE CYLINDER DEADBOLT	32
TJ TUBULAR TRIM SUITE	35
Cylindrical Locks	39
XGT/GT199A SERIES GRADE 1 ELECTRIFIED CYLINDRICAL	40
EGT* — DISCONTINUED	41
XGT/GT135LED CLASSROOM INTRUDER	42
XGT SERIES GRADE 1 CYLINDRICAL	45
GT SERIES GRADE 1 CYLINDRICAL	55
SX SERIES GRADE 1 BALL KNOB	67
GP SERIES GRADE 2 CYLINDRICAL	75
SD SERIES GRADE 2 CYLINDRICAL	83
SV SERIES GRADE 2 BALL KNOB	92
CL SERIES INTER-CONNECTED GRADE 2	99
SM SERIES GRADE 3 CYLINDRICAL	107
	112

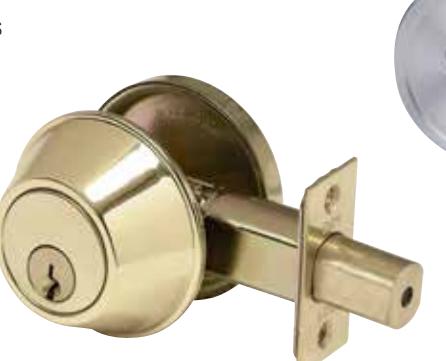

Deadbolts KM SERIES HEAVY DUTY BORED DEADBOLT — RIM CYLINDER	113
KT SERIES HEAVY DUTY BORED DEADBOLT — MORTISE CYLINDER	118
KV SERIES COMMERCIAL DUTY BORED DEADBOLT — RIM CYLINDER	122
MJ MORTISE CYLINDER DEADBOLT	127

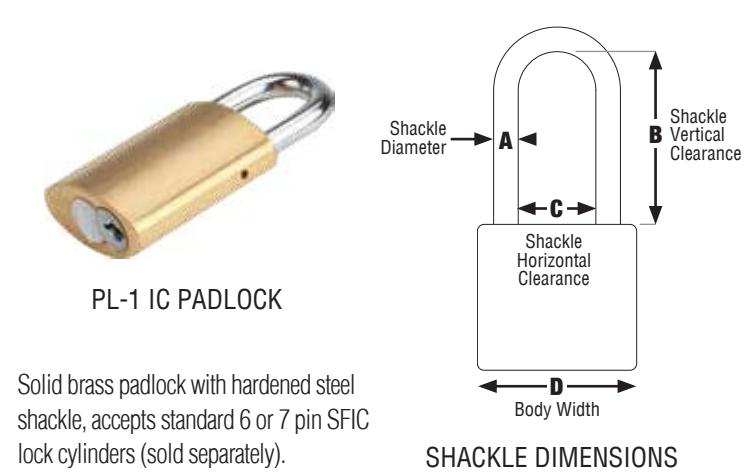

Padlocks, Euro Profile PL SERIES PADLOCK	129

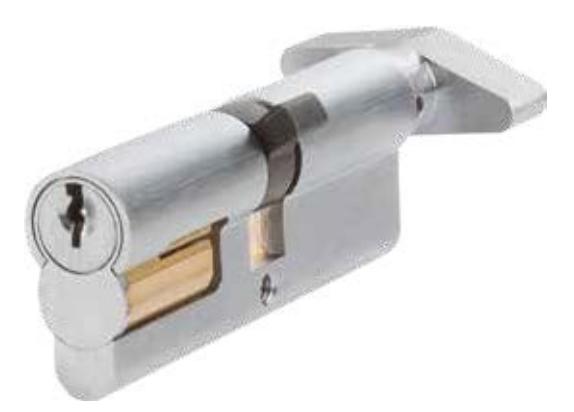

EPIC SERIES EUROPEAN PROFILE INTERCHANGEABLE CORE	131
	133

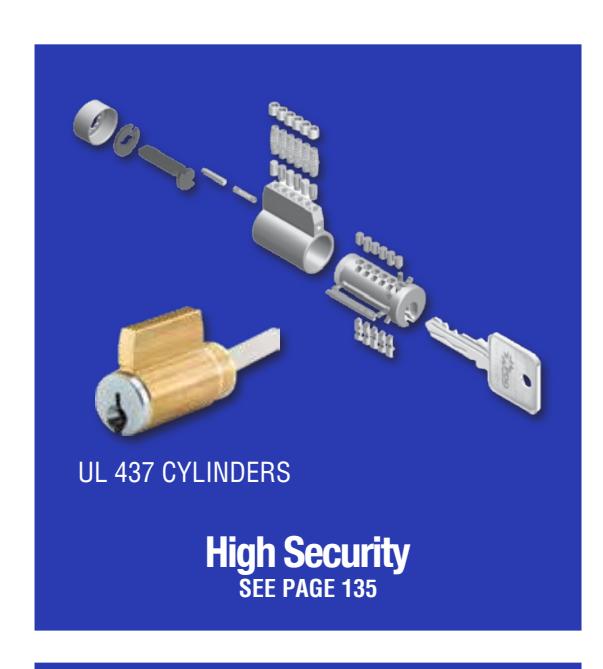

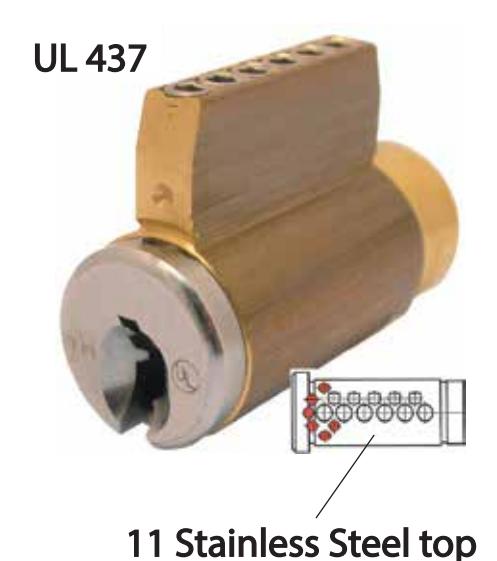

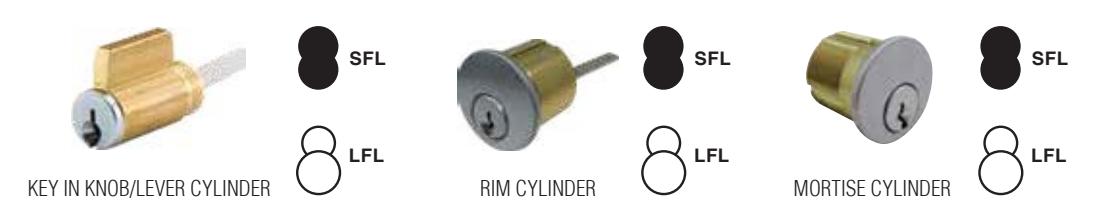

Cylinders, Keying Systems and Keys HIGH SECURITY CYLINDERS & CORES

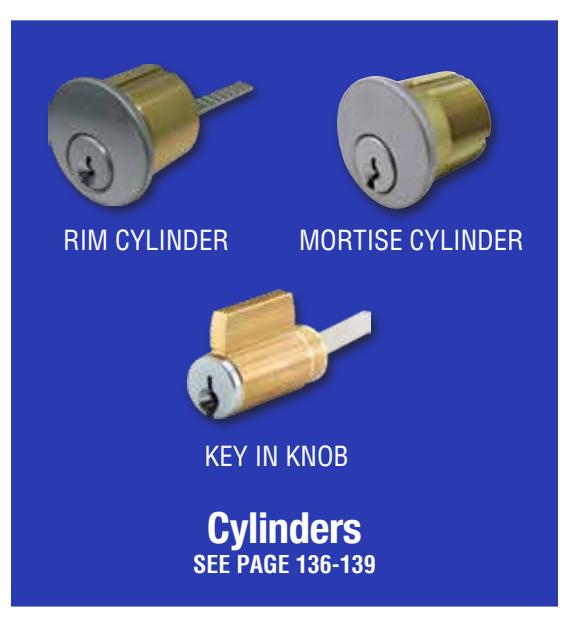

CYLINDERS, CORES, CAMS, KEYING SYSTEMS, KEYS AND MISC. PARTS	135 136
Exit Devices 6 EW SERIES EXIT DEVICE TRIM	145

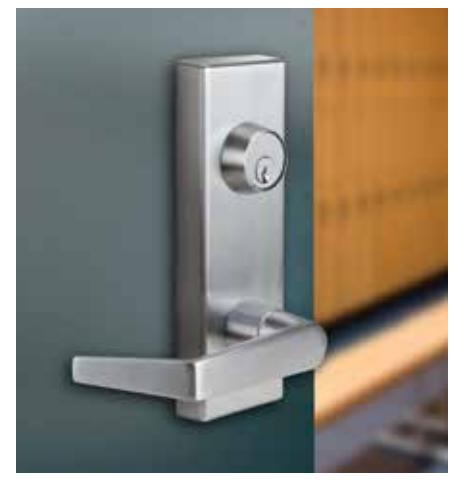

6EW199A SERIES ELECTRIFIED EXIT DEVICE TRIM	147
6200 MLR MOTORIZED LATCH RETRACTION	148
E629* — DISCONTINUED	149 150

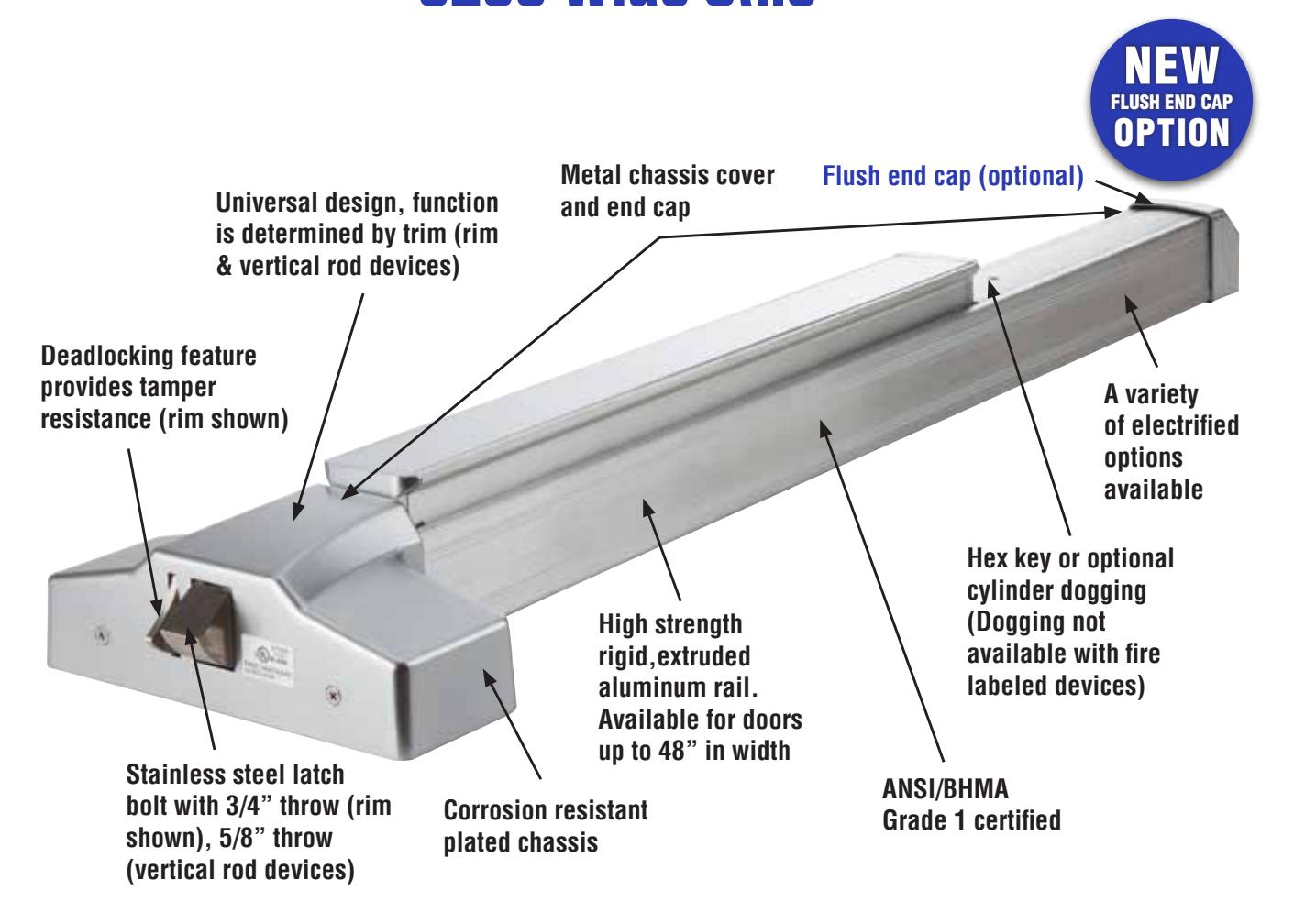

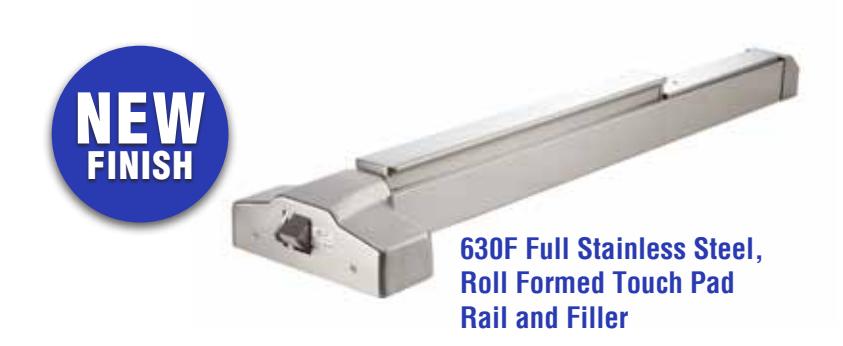

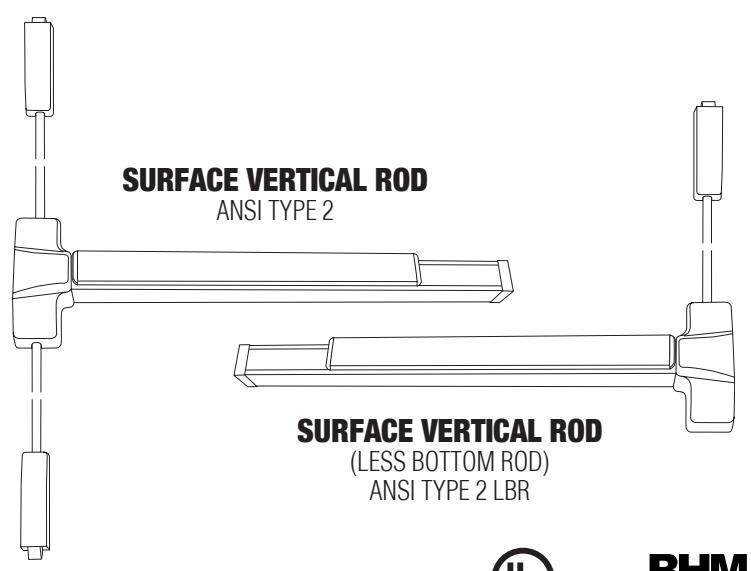

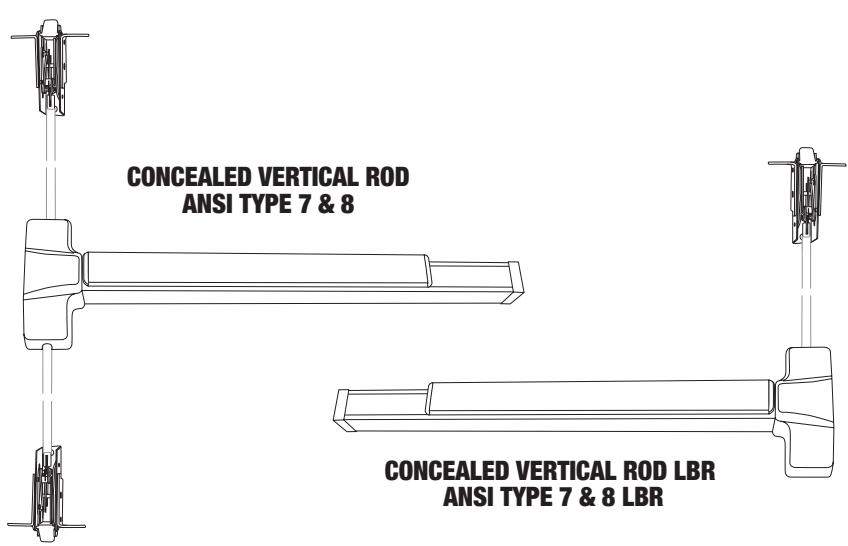

6200 SERIES GRADE 1 WIDE STILE ARCHITECTURAL EXIT DEVICE	151
6200 SERIES GRADE 1 WIDE STILE TRIM	168
6202 SERIES GRADE 1 NARROW STILE ARCHITECTURAL EXIT DEVICE	175
6202 SERIES GRADE 1 NARROW STILE TRIM	184

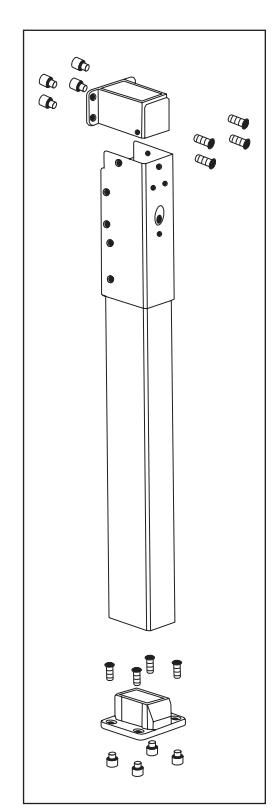

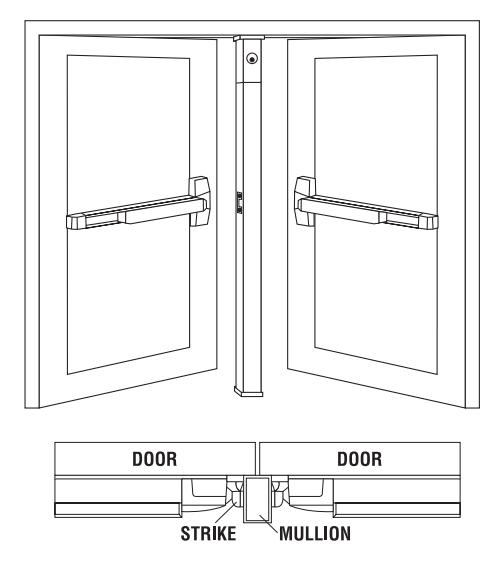

9200 SERIES MULLIONS	188
4200 SERIES COMMERCIAL EXIT DEVICE	190
4200 SERIES COMMERCIAL TRIM	195
Door Closers	201

5100 SERIES GRADE 1 CLOSER	210
5300/5500 SERIES GRADE 1 CLOSER	216
3100 SERIES GRADE 1 CLOSER	223
SCS SPRING CUSHION STOP	229
Electrified Solutions	230
MR199A/MR200 SERIES GRADE 1 ELECTRIFIED MORTISE	232
EMR* — DISCONTINUED	233
XGT/GT199A SERIES GRADE 1 ELECTRIFIED CYLINDRICAL	240
EGT* — DISCONTINUED	241
6200/6202 EXIT DEVICE ELECTRIFIED OPTIONS	245

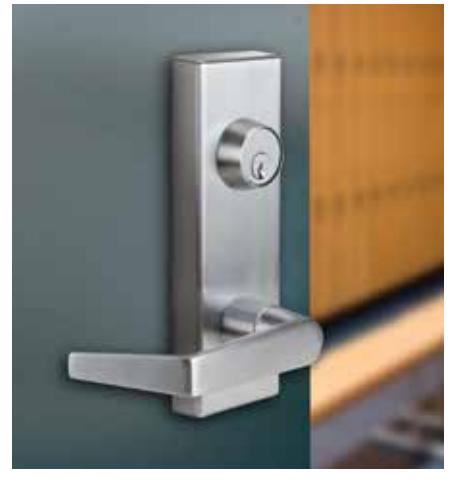

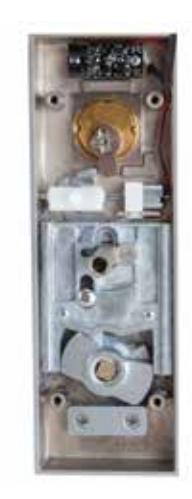

6EW199A SERIES ELECTRIFIED EXIT DEVICE TRIM	246
6200 MLR MOTORIZED LATCH RETRACTION E629* — DISCONTINUED	249
ELECTRIFIED HINGES	250 252

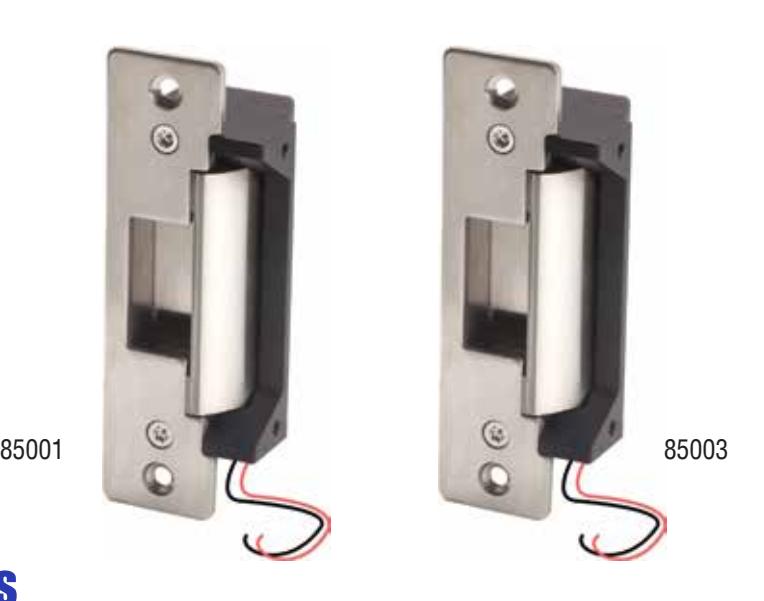

ELECTRIC STRIKES	253
KEY SWITCHES AND PUSH BUTTONS	254

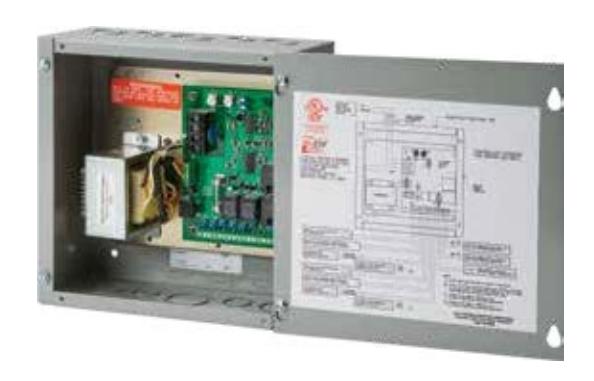

POWER SUPPLIES	255
Hinges	256

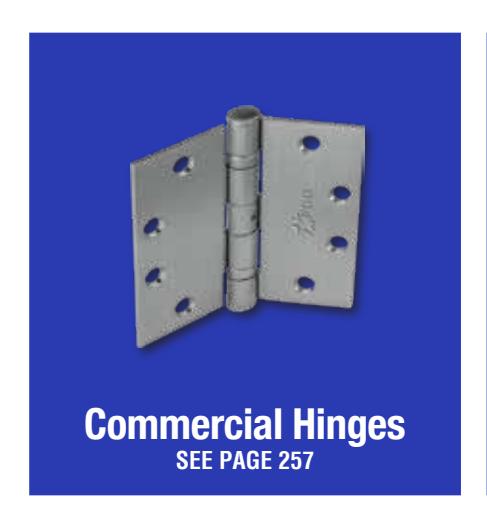

COMMERCIAL HINGES	257

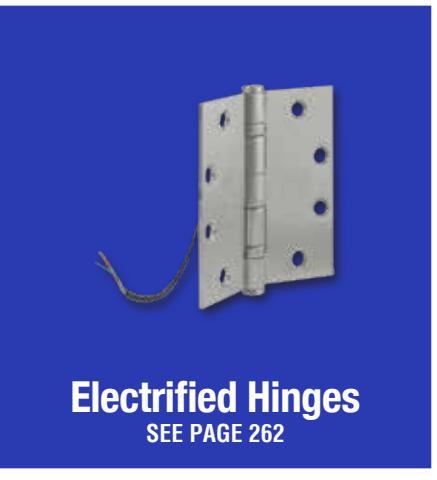

ELECTRIFIED HINGES	262
Flat Goods	263

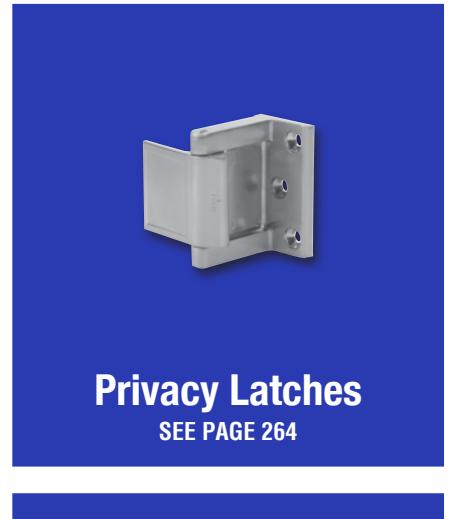

PRIVACY LATCHES	264

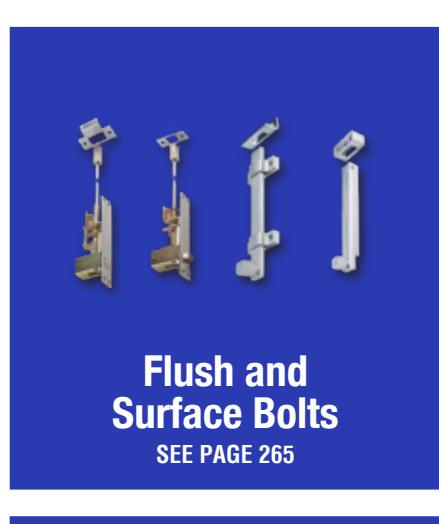

FLUSH AND SURFACE BOLTS	265

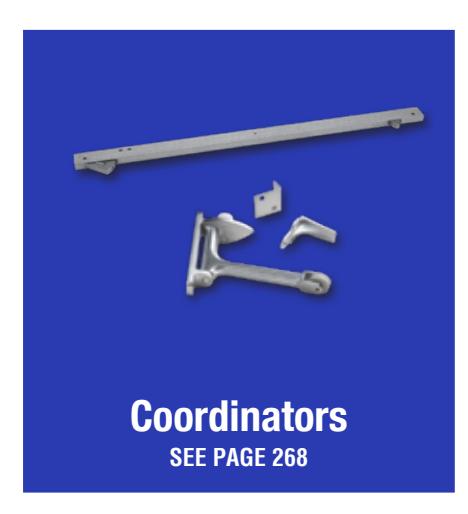

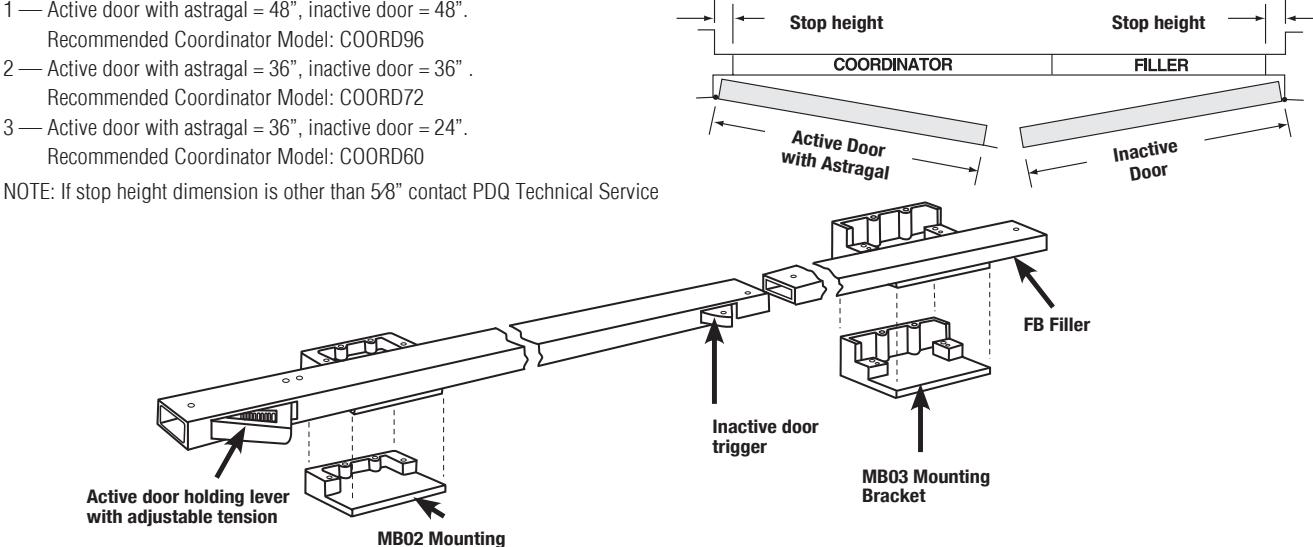

COORDINATORS	268

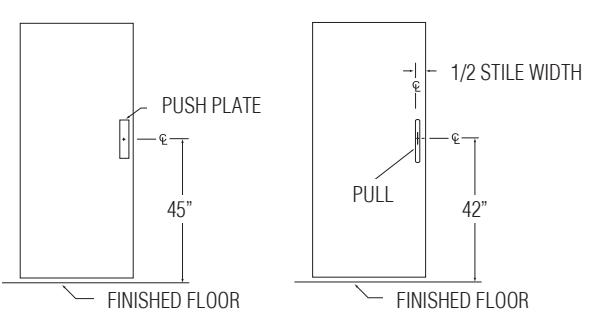

PUSH PLATES	271

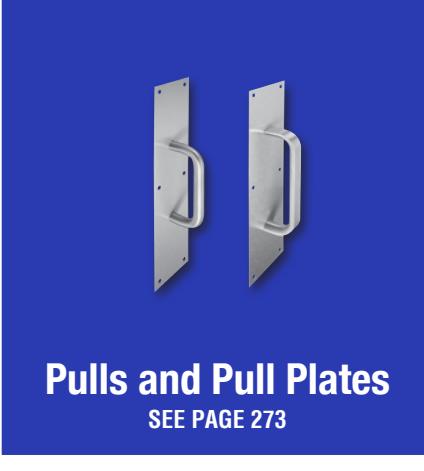

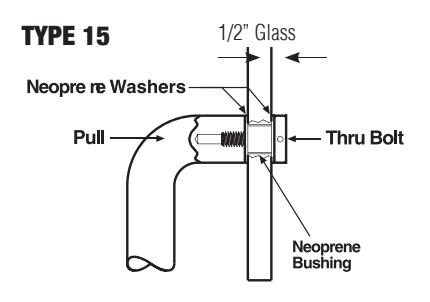

PULLS AND PULL PLATES	273

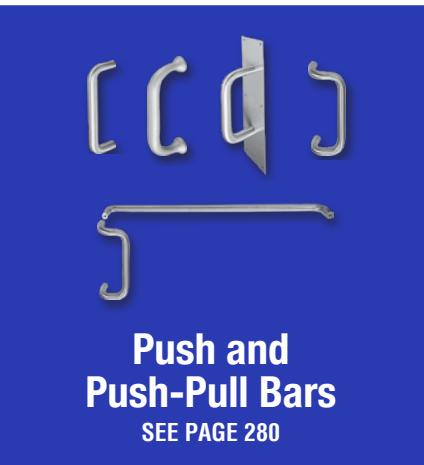

PUSH AND PUSH-PULL BARS	280

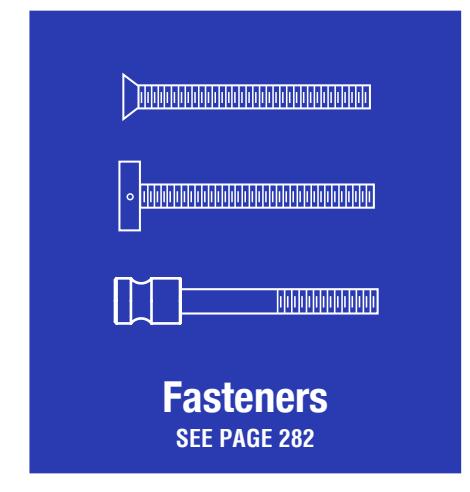

FASTENERS	282

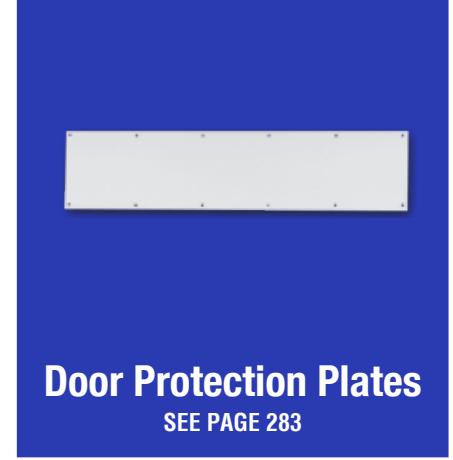

DOOR PROTECTION PLATES	283
General Hardware	285

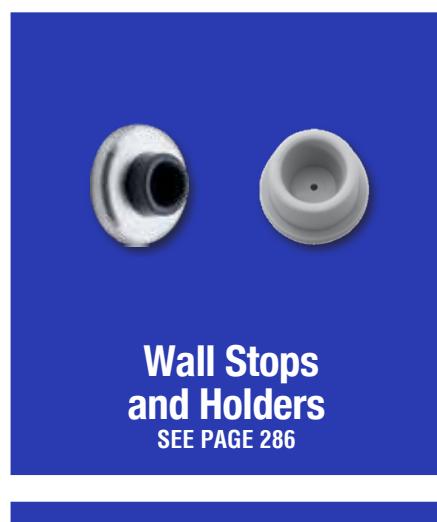

WALL STOPS AND HOLDERS	286

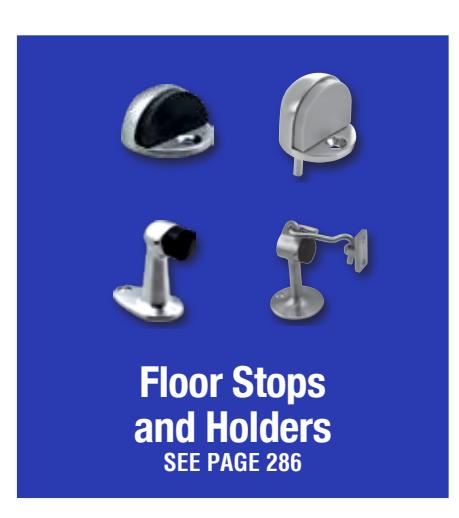

FLOOR STOPS AND HOLDERS	286

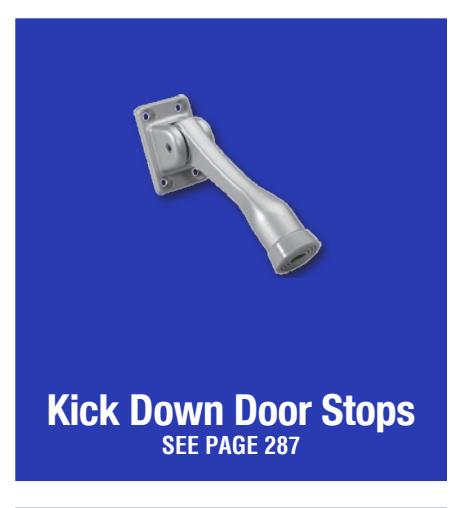

KICK DOWN DOOR STOPS	287

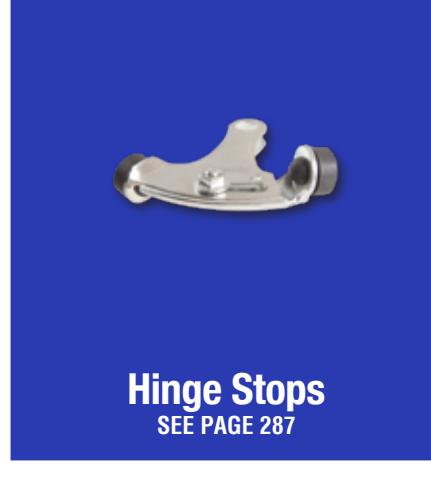

HINGE STOPS	287

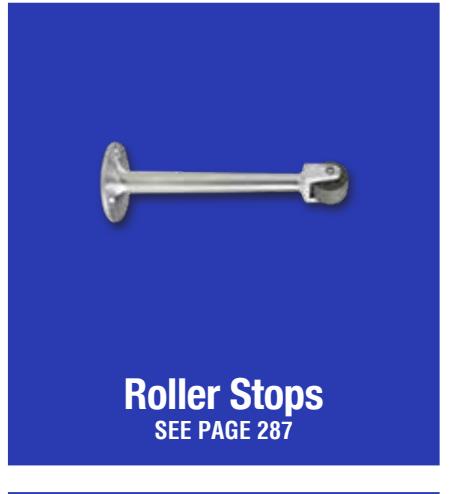

ROLLER STOPS	287

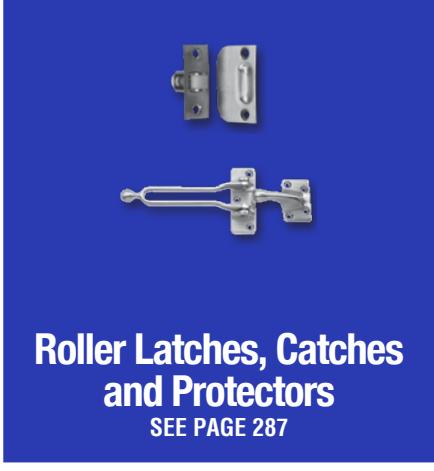

ROLLER LATCHES, CATCHES AND PROTECTORS	287

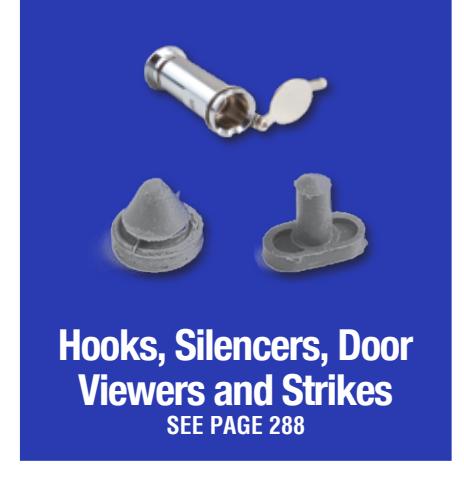

HOOKS, SILENCERS, DOOR VIEWERS, STRIKES	288
Sliding Barn Door Hardware	289
STS SERIES SLIDING BARN DOOR HARDWARE	289
Display Systems	291

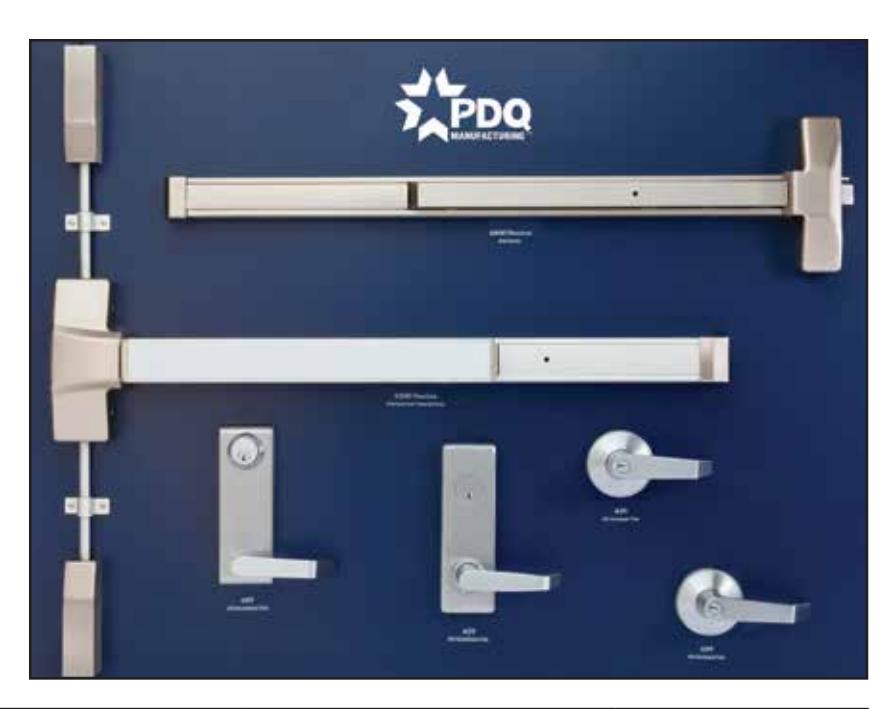

DISPLAY BOARDS, MOUNTED PRODUCT DISPLAYS	291
Key Systems and Keying Forms	294

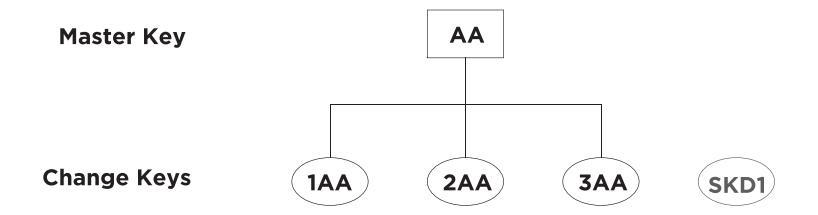

MASTER KEY SYSTEM PLANNING FORM	295
KEYING SYSTEM WORKSHEET	296
KEYING SCHEDULE FORM	297
Ordering	299
PDQ ORDER FORM	299
WEIGHT CHART	300
Resource Library LITERATURE, FLASH DRIVES	301 301

What's New at PDQ

New World Headquarters and U.S. Manufacturing Center

Our new 80,000+ sq. ft. facility located in Lancaster, PA includes a state of the art test lab and keying department as well as expanded production, warehousing, and office space.

New pdqSMART XLS Family Offers Multi-Credential Solutions

Smart Phone, Smart Watch, RFID, PIN and Key.

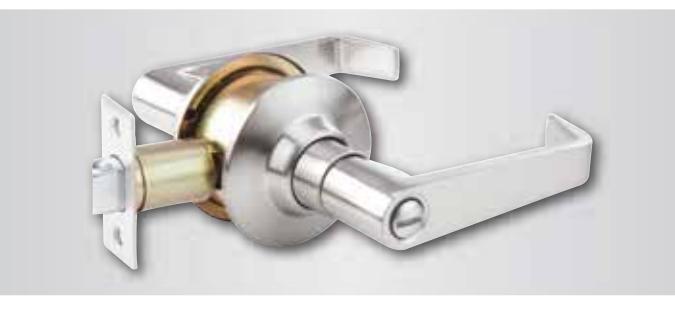

SM Series Grade 3 Cylindrical Lock

Ideal for Multi-Family, Assisted Living and Hospitality applications

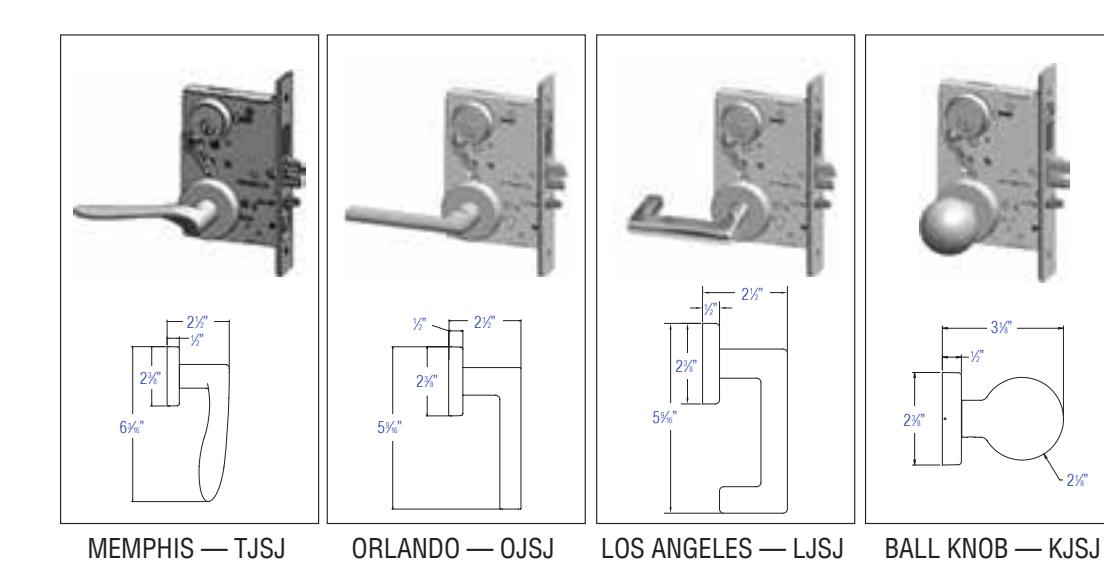

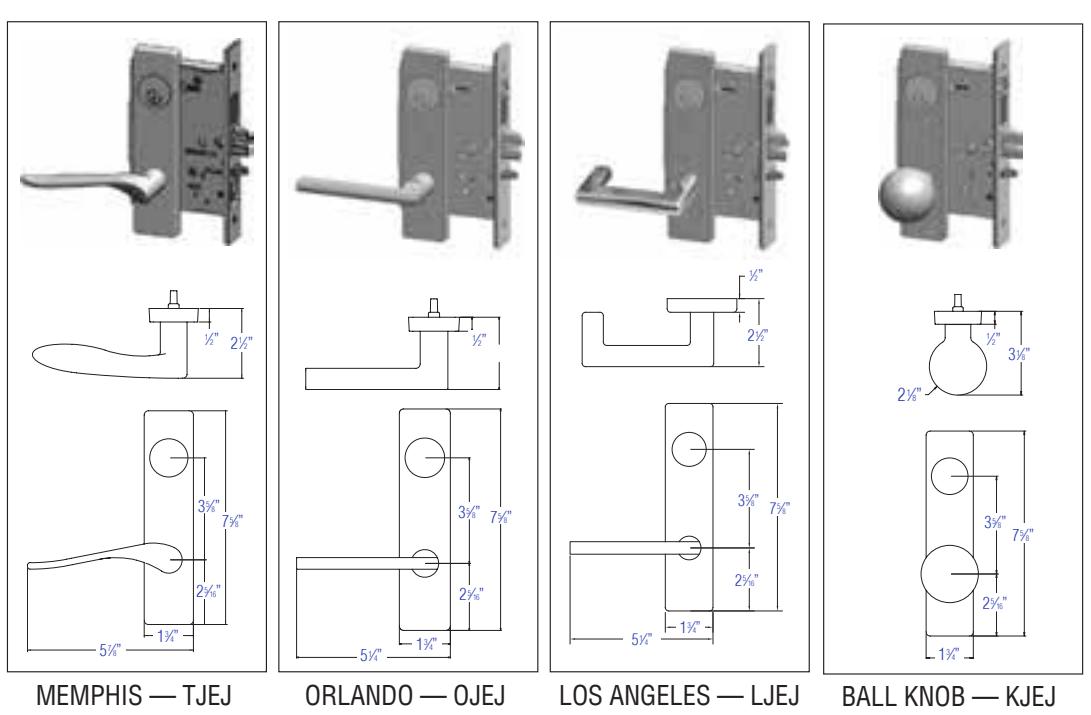

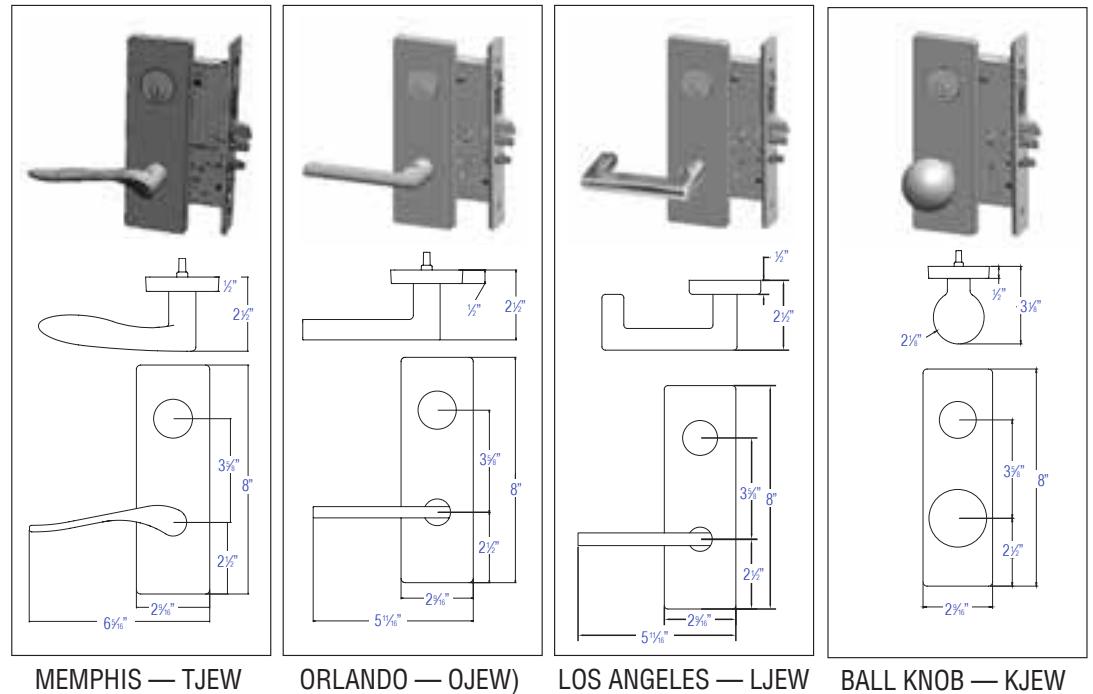

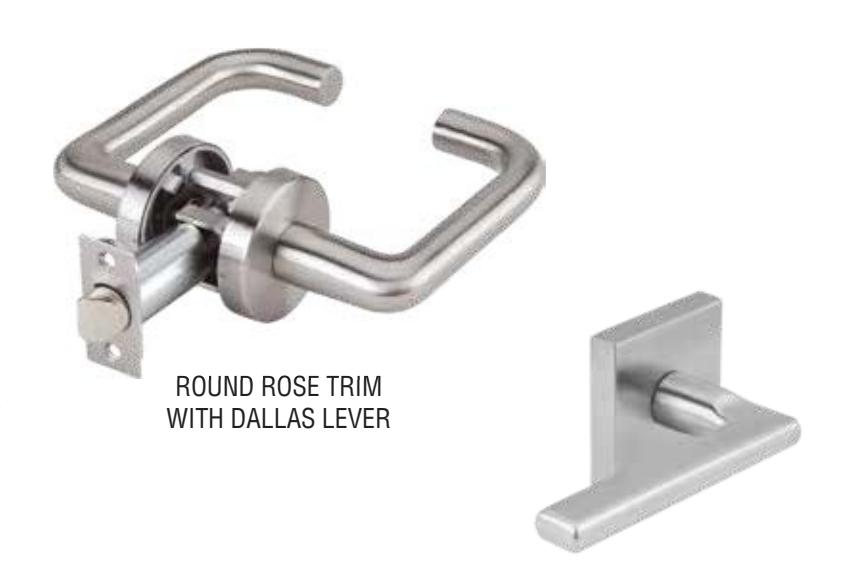

Beautifully Styled Los Angeles Lever

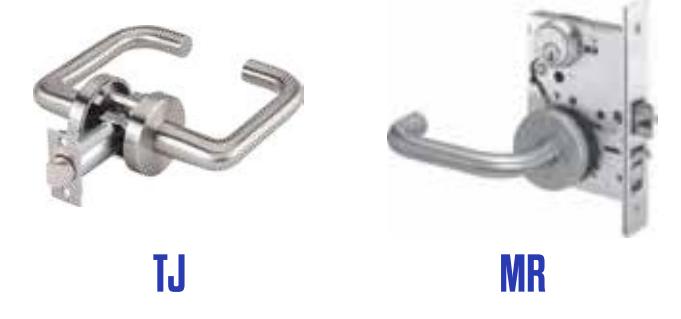

Expressly designed for MR Mortise and TJ Tubular Locks

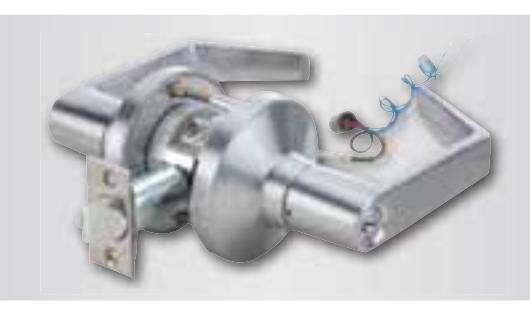

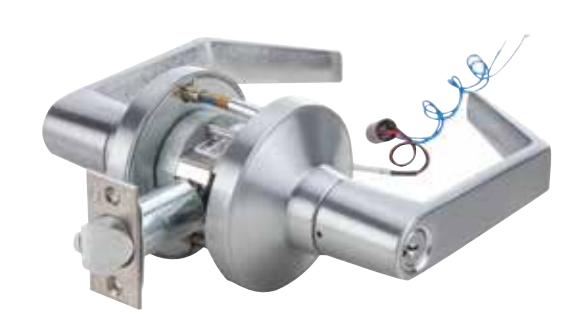

Redesigned GT199A Electrified Cylindrical Lock

Motorized locking/unlocking, Field selectable AC or DC voltage, and field changeable Fail Secure/Fail Safe.

What's New at PDQ

Dedicated Tech Support Toll Free Hotline

Product Information, Application, Installation and more. Monday through Friday – 8 am to 5 pm EST.

Phone: 833-2-PDQTEC (833-273-7832) Email: support@pdqlocks.com

Resource Library

Catalogs, Brochures, Flash Drives and More. Ordering Information page 301

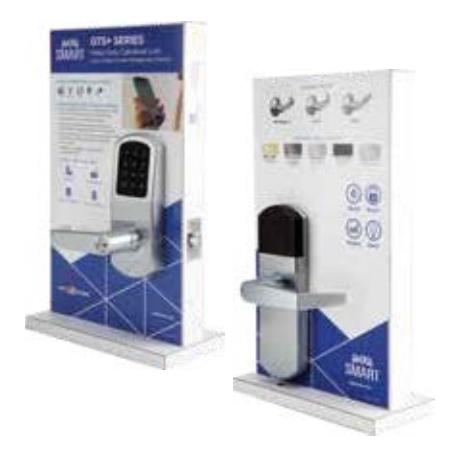

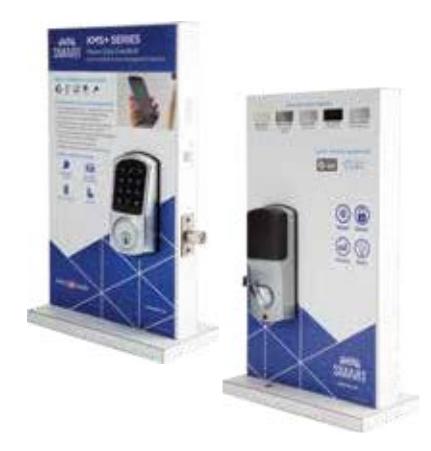

Exciting New Mounted Product Displays

Ideal for counters and customer presentations. Now available for SM Series and pdqSMART products, More to come!

Architectural Hardware Specification Writing Services

Let us help grow your sales. Complimentary service by professional consultants.

Flexible BIM Models for Architects

Simple, flexible files that help architects save time while generating high quality graphics.

Driven by family values and an independent spirit, PDQ has set the industry standard for service, quality and value for over 35 years. Our in-house engineering and manufacturing capabilities give us the flexibility to create innovative, cutting edge products that meet and exceed our customer's continually-evolving security and safety needs. From architectural hardware to cloud-hosted access management, PDQ prides itself on developing world-class, commercial-grade solutions that reliably deliver the confidence and control you need to effectively manage your business.

Built With Pride And The American Spirit.

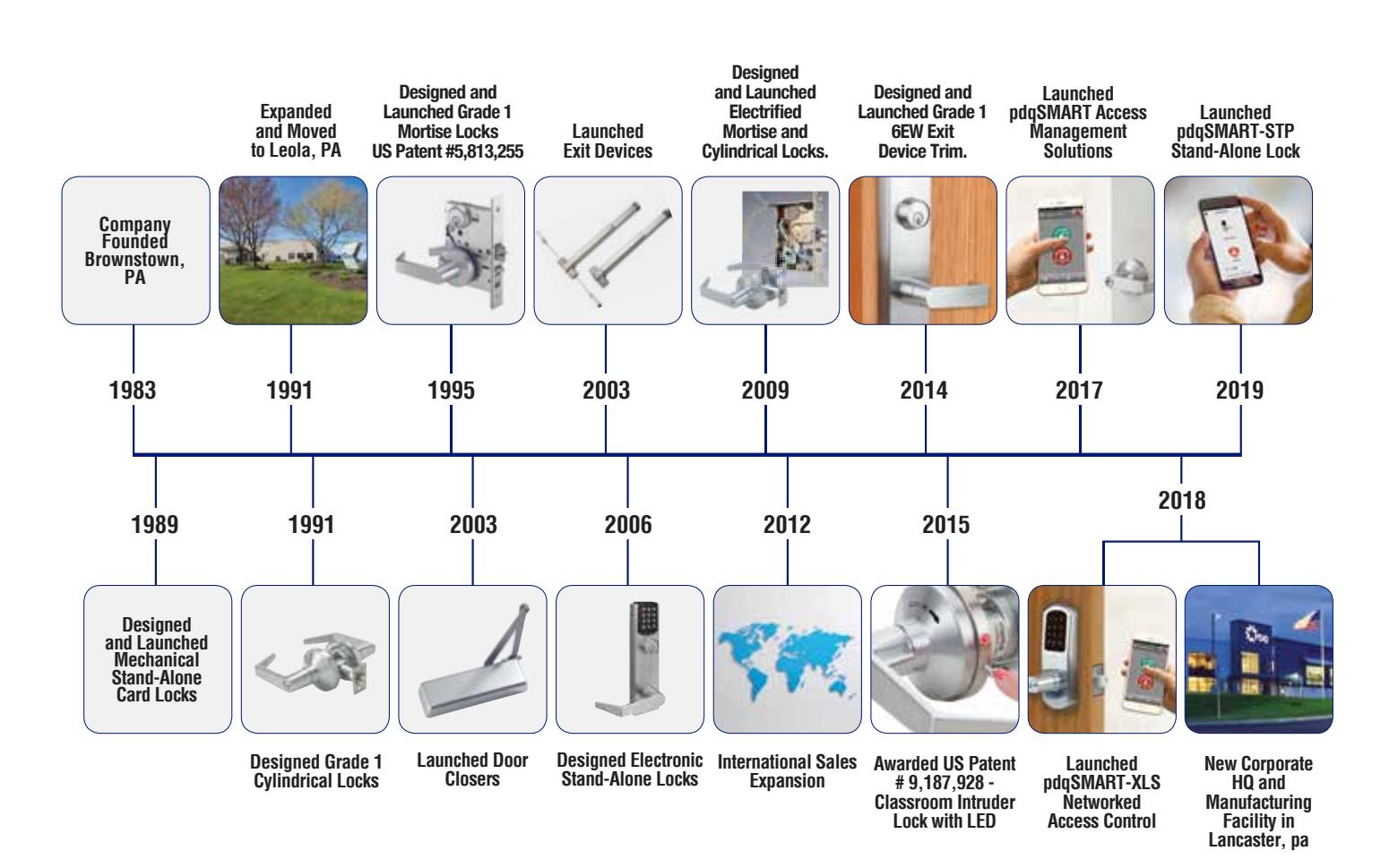

Timeline of Growth and Innovations

This Pric e List Supersedes and Cancels All Previous Price Lists. Prices Shown are Subject to Change Without Notice.

Terms & Conditions

Prices

All prices are subject to change without notice. All prices are per unit (each) unless otherwise specified and do not include freight.

Errors and Omissions

While PDQ Manufacturing makes every effort to provide an accurate price list, we are not responsible for errors and/or omissions that may appear. Customers will be invoiced the actual and true price on all orders.

Credit Terms

Standard credit terms are 1% 10 days net 30. Net 30 days payment must be received by PDQ on or before 30 days from the date of the invoice. Interest will be charged at the rate of 1-1/2% per month on past due accounts. A $25.00 fee will be charged for all returned payments.

Acceptance of Orders

Possession of prices from PDQ Manufacturing does not commit PDQ to accept any order. PDQ Industries reserves the right to refuse any order or request for quotation and will not be bound to fill any order until it has been accepted by a representative of PDQ and confirmed by a written acknowledgment. Quotations are valid for the period stated on the official quotation request form. Orders must be submitted in writing.

Acknowledgments

An Acknowledgment is an exact copy of a customer's order as entered by PDQ and should be verified by the customer. If the Acknowledgment does not agree with customer's understanding, PDQ should be advised within three (3) days or the order will be billed as acknowledged. PDQ Manufacturing's sales terms shall apply irrespective of any special stipulation appearing in customer orders, unless specifically acknowledged and accepted by PDQ Manufacturing, Inc. Estimates of delivery are made by PDQ Manufacturing in good faith and are not guaranteed. PDQ Manufacturing does not assume responsibility for delay in deliveries.

Product Will Call Orders

Product Will Call orders shall be picked-up within 3 working dates from the available date shown on the acknowledgment. Orders not picked-up after the 3 days shall be subject to cancellation charges.

Product Return

Products may not be returned unless customer receives written authorization from PDQ. If the return is authorized by PDQ a Return Goods Authorization (RGA) number will be issued to the customer. Products returned must have the RGA number clearly marked on the outside of the box and reach PDQ within 45 days from the date RGA is issued. All documentation and RGA number must accompany the return along with the original invoice number and an explanation why the material is being returned so that PDQ may inspect the material in question. Only material that has been in customer's inventory for less than 60 days from the invoice date, is current standard, non-obsolete and not specially manufactured, unused and in their original condition and original packaging will be considered for return. Master keyed items cannot be returned for credit. If the product is accepted for a return there will be minimum 35% processing charge of the net material value on the original invoice, less freight and cash discounts. Full credit against future purchases or replacements will be made at the option of PDQ. Care must be taken to package all returns to ensure that they are not damaged in shipment. PDQ will not credit items returned that have not been properly packed and as a result sustain damage in shipment back to our facility .

Force Majeure

PDQ will not be held responsible for delays in delivery caused by Strikes, acts by government agencies, fires, floods or any other causes beyond our control, including the delivery of material to us. Under no circumstances shall PDQ be liable or accountable for consequential damages due to failure of delivery.

Invoices

Copies of invoices and sales orders are posted and accessible on PDQ's website. Contact Customer Service on for obtaining secured access authorization.

Minimum ORDER

Minimum order is $100 net invoice value at current buying program, less freight. Orders less than $100 will be subject to parts discount.

Changes or Cancellations

Changes or cancellations to an order acknowledged must be made in writing subject to a 50% cancellation fee.

Claims

Every possible care is taken in the final examination and packing of goods, and no complaints can be entertained unless made promptly on receipt of goods. No claim will be allowed for work done by others, consequential damages, or other expenditure, and PDQ's undertaking to repair or replace defective goods is its only liability. No claim for damage, shortage or loss in transit will be considered unless notice in writing is given to the carrier and to PDQ Industries within ten (10) days.

Back Charges

PDQ is not responsible for, does not authorize, and will not accept any charges for the cost of labor or material incurred by anyone other than PDQ Manufacturing for any installation, repair, service or replacement unless incurred with PDQ's prior written consent and agreement.

Freight Charges

FOB point is Lancaster, PA, Norcross, GA, Kansas City, MO, Denver, CO, Henderson, NV or Auburn, WA. Ship location is at factory discretion. Freight charges are prepaid and added to invoice. If invoice exceeds $1,900 Net, full surface freight (UPS or truck) within contiguous U.S.A. is deductible, provided invoice is paid within terms. Air freight and other special shipments are not deductible. Freight allowance methods are at the discretion of PDQ. C.O.D. freight charges are paid by consignee.

Credit Card Payments

When paying by credit card a 3% surcharge will be added to the invoice at time of payment.

Discontinuance

PDQ Manufacturing, Inc. reserves the right to discontinue or change any price, product, design, function and finish without notice.

Quotations and Invoices

Quotations and Invoices are the proprietary property of PDQ Distributors and the Company. Distributors are not permitted to redistribute quotations or invoices to third parties. Any redistribution may result in the loss of the distributor's rights to the PDQ product line.

Warranty

	Grade 1 Lock Product
MR Series Mortise Locks	Lifetime Warranty
XGT Series	Lifetime Warranty
GT Series	25-Year Warranty
SX Series	5-Year Warranty
	Grade 2 Lock Product
GP Series	8-Year Warranty
SD Series	5-Year Warranty
SV Series	1-Year Warranty
CL Series	2-Year Warranty
	Grade 3 Lock Product
SM Series	1-Year Warranty
	TJ Series Decorative Tubular
TJ Series	5-Year Warranty
	Deadbolts
K Series	1-Year Warranty
	Keying
Keying	3-Year Warranty
	Closers
3100 Series	25-Year Warranty
5100 Series	25-Year Warranty
5300 Series	25-Year Warranty
5500 Series	25-Year Warranty
7100 Series	25-Year Warranty
	Exit Devices
4200 Series	5-Year Warranty
6200 Series	10-Year Warranty/1-Year Electric Components
	Mullions
Mullions	1-Year Warranty
	Hinges and Flat Goods
Commercial Hinges	5-Year Warranty
Flat Goods	5-Year Warranty
	Electrified Products
MR, XGT, GT, 6EW Series	2-Year Warranty
	PDQ Smart Products
Electronic Components	2-Year Warranty
Mechanical Locks and Exit Devices	Standard Warranty

PDQ Manufacturing Limited Warranty

PDQ Manufacturing ("PDQ") warrants that, during the applicable warranty period set forth in the chart to the left, its products will be free from defects in workmanship and materials under normal use and service conditions. If a product or a component part thereof is found to be defective, PDQ will, at its sole discretion, either repair or replace such defective item. If PDQ no longer manufactures the particular product or component, PDQ reserves the right to substitute an item which PDQ deems to be comparable or superior in its place.

A warranty claim must be initiated by calling PDQ's toll-free number at 800-441-9692. A brief description of the defect will be required, and further instructions for returning the product will be given. The provision of return instructions is not a guarantee that the product will be covered under this warranty.

This warranty does not cover:

• Defects or damage arising from improper installation; lack of or improper maintenance; improper storage, shipping or handling; corrosion; erosion; ordinary wear and tear; misuse or abuse; or accident.
• Products which have been modified in any way, regardless of whether such modification caused or contributed to the alleged defect.
• The protective coatings and finishes applied to the surface of the product (wear or tarnishing of such finishes is considered "ordinary wear and tear").
• Labor costs, including the costs of removing and reinstalling the product.
• Shipping charges incurred in returning the product to PDQ.
• This Limited Warranty does not apply to ANSI A156.2 Grade 2 Key-In-Lever product installed on Educational Facilities.

All products returned to PDQ will be inspected to verify that (1) the alleged defect does exist, and (2) none of the exclusionary conditions listed above (abuse, corrosion, modification, etc.) is present. Products deemed not to be "in warranty" will be returned to the customer at the customer's expense.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS AND IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

PDQ'S MAXIMUM LIABILITY HEREUNDER IS LIMITED TO THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.

PDQ SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, EXEMPLARY OR PUNITIVE DAMAGES, WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING STRICT LIABILITY AND NEGLIGENCE), PATENT IN-FRINGEMENT OR ANY OTHER THEORY OF LIABILITY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NO AGENT, SALES REPRESENTATIVE OR DEALER HAS THE AUTHORITY TO INCREASE OR ALTER PDQ'S OBLIGATIONS UNDER THIS WARRANTY.

Finishes

PDQ Manufacturing finishes are dura ble, top-quality finishes obtained by the processing of solid brass, bronze, stainless steel and other materials. It is important that usage, climate and other conditions be taken into consideration when selecting finishes. This is especially true in areas subjected to corrosive vapors, humid climate or sea air, which in short time may have a damaging effect on finishes. To preserve appearance, cleaning and care may be required. Non-clear coated finishes should not be cleaned with soap or solvents; organically coated surfaces should be cleaned periodically with mild, non-abrasive soap and buffed lightly with a clean cloth. Contact PDQ technical service for recommendations on the care of finished hardware.

BHMA symbols and U.S. Code Designations (noted below in parentheses) are used in some cases to indicate the similarity of finish appearance, regardless of the base material.

PDQ strives to stock all finishes shown in this price book for immediate shipment ( 1-2 days, less keying). However, we suggest you contact the factory to confirm availability for large jobs.

Refer to Each Lock Series Section for Standard Finish Availability.

Architectural

Painted

Finishes shown are representative only. PDQ cannot guarantee that product shipped will match finishes shown. Not all products are available in all finishes listed.

The Next Evolution in Wireless Access Control

pdqSMART-STS

Mobile-Based / Bluetooth Access Control

• Devices are managed and operated using smartphone/ tablet-based credentials
• Supports 100's of devices and users
• Local Bluetooth and remote functionality (requires network devices)
• Commercial level access control features
• End to End encrypted communications to all devices
• Mobile management of the cloud hosted software
• Multiple lock designs- GTS Grade 1 cylindrical, MRS Grade 1 Mortise, 6EWS Exit trim
• Solutions for gates, roll-up doors and garage doors

pdqSMART-XLS

Networked Access Control

• Multiple credential options and technologies in a single device
• Scalability for multiple sites, 1000's of devices and users
• iBeacon capable
• Commercial level access control features
• End to End encrypted communications to all devices
• Mobile management of the Cloud-Hosted software
• Multiple lock designs and form factors, not just a deadbolt
• Solutions for gates, roll-up doors and garage doors
• Integration with other "Smart" devices like Alexa, Google Home, Nest cameras

Credentials

Credentials

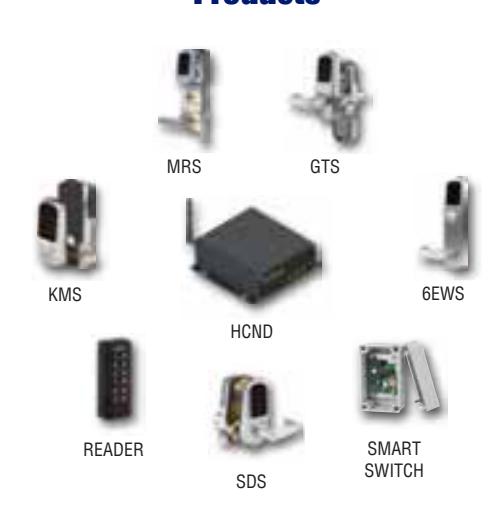

Products

GRADE 1 MORTISE

GRADE 1 CYLINDRICAL

HEAVY DUTY EXIT TRIM

SMART SWITCH

Products

Mobile-Based / Bluetooth Access Control

pdqSMART is a breakthrough in access management that combines cloud-hosted technology, intuitive interfaces, and powerful features giving you complete control of who can enter and exit your facility by using a smart phone.

Credentials Products

PHONE

SMART WATCH

KEY

More information at www.pdqsmart.com

MRS-STS Electronic Mortise

Applications

Wireless, "smart", heavy duty mortise lock built on the MR Grade 1 chassis, factory tested to over 11 million cycles. Applications include offices, multi-family, commercial and industrial facilities.

6EWS-STS Electronic Exit Device Trim

Applications

Wireless, "smart", heavy duty exit device trim built on the 6EW chassis. Applications include offices, multi-family, institutional and industrial facilities.

GTS-STS Electronic Cylindrical

Applications

Wireless, "smart", heavy duty cylindrical lock built on the GT Grade 1 chassis, factory tested to over 3 million cycles and torque resistant to 2,200 in-lbs. Applications include offices, multi-family, institutional and industrial facilities.

ZBOX Smart Switch

Applications

A Bluetooth controlled "smart" SPDT relay from which you can take over a "non-smart" device. Applications range from mag locks or existing access control devices such as electric Strikes or motorized latch retraction exit devices to lighting control and remote gate operation.

Networked Access Control

The pdqSMART-XLS wireless locking solution is designed to replace traditional keyed locks in a facility. They allow electronic access management to be applied to virtually all the doors in a facility. They support RFID, BLE, PIN and traditional keys. The management of these locks or devices can be preformed by authorized administrators via their mobile phone(s), tablet(s) or any internet enables computer via PDQ's Cloud Hosted Portal.

Multi-Credential Solutions

PHONE SMART WATCH 13.56 mHZ PIN KEY

Products

MRS-XLS Grade 1 Mortise

GTS-XLS Grade 1 Cylindrical

SDS-XLS Grade 2 Cylindrical

Applications

Cloud hosted, "smart," heavy duty mortise lock built on the MR Series chassis, factory tested to over 11 million cycles. Applications include offices, multi-family, assisted living and dormitory facilities.

Applications

Cloud hosted, "smart," heavy duty cylindrical lock built on the GT Series chassis, factory tested to over 3 million cycles and torque resistant to 2,200 in-lbs. Applications include offices, multi-family, institutional and industrial facilities.

Applications

Cloud hosted, "smart," standard duty cylindrical lock built on the SD Series chassis whose rugged design insures long life & durability. Applications include office, multi-family, assisted living and dormitory facilities.

KMS-XLS Deadbolt

6EWS-XLS Exit Device Trim

SRAC Reader Controller

Applications

Cloud hosted, "smart," heavy duty deadbolt built on the KM Series chassis Applications include offices, multi-family, assisted living and dormitory.

Applications

Cloud hosted, "smart," heavy duty exit device trim built on the 6EW chassis. Applications include offices, multi-family, institutional and industrial facilities.

Applications

Acts as a reader and controller that activates existing wired connected access control peripherals (i.e. Strikes, exit buttons, door sensors) and supports SMART access control peripherals.

ZBOX Smart Switch

ZBOX2 Smart Switch

Applications

A Bluetooth controlled "smart" SPDT switch that can take over a "non-smart" device. Applications range from mag locks or existing access control devices such as electric Strikes or motorized latch retraction exit devices to lighting control.

Applications

A Bluetooth controlled "smart" DPDT switch with two sets of contacts that can take over a "non-smart" device. Applications range from mag locks or existing access control devices such as electric Strikes or motorized latch retraction exit devices to lighting control. Excellent for gate/roll-up door applications.

Extra Heavy Duty Mortise Lock

Unparalleled Design and Performance

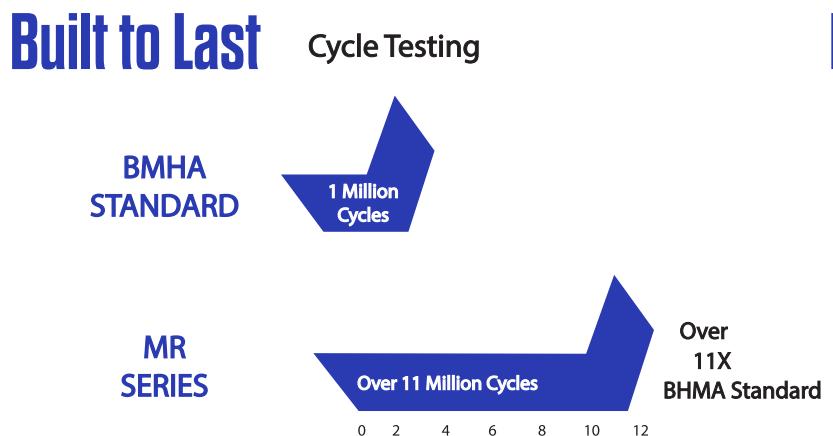

Tested to 11 million cycles and still counting! That's how PDQ backs up its claim to manufacture some of the toughest hardware in the market. Our mortise locks are built to withstand the rigors of daily use without fail, keeping people and their assets safe while delivering consistent reliable performance. Easy to install, and simple to repair and maintain. That means fewer callbacks for you and total safety and security for your customers.

Comprehensive Offering

MR Mechanical

Applications Healthcare, K-12, higher education, offices, commercial buildings and government facilities. — p. 13

MR199A Electro-Mechanical

Applications Computer rooms, storage areas, child care facilities, restrooms, nursing staff lounges and stairwell towers. — p. 10

MRS, MRS-XLS pdqSMART Electronic

Applications pdqSMART wireless IoT access management locks complete the offering by delivering all access control system hardware components required at the door in a single integrated design. — p. 5, 6

MR Visual Indicators

Applications

Classroom security, student housing and traditional OCCUPIED/VACANT and LOCKED/UNLOCKED applications. — p. 9

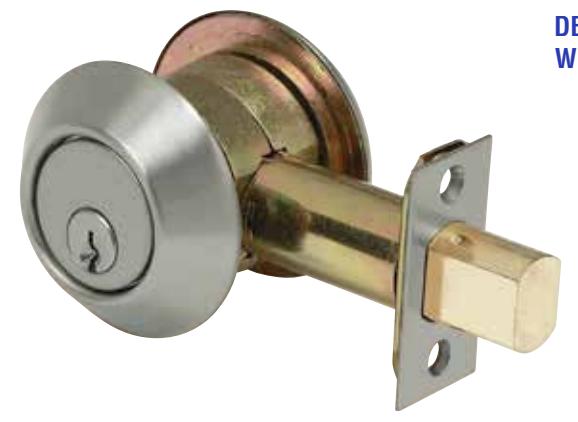

MJ Mechanical Deadbolt

Applications

Small body deadbolt provides an extra measure of protection at a competitive price. Uses include common areas, auxiliary doors, closets, storerooms, and equipment rooms in commercial, institutional and military applications. — p. 32

TJ Tubular Trim Suite

Applications

Interior doors in high-end residential, multi-family and commercial spaces. Trim matches MR mortise achieving a coordinated look throughout the property. — p. 35

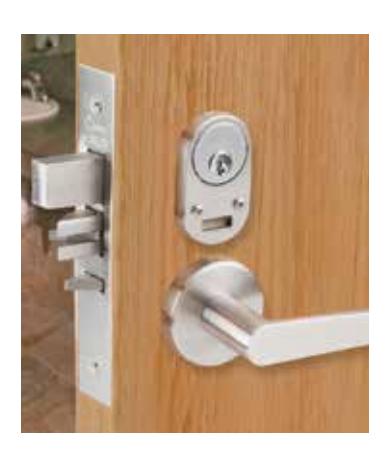

Mortise Indicators

Lock Status at a Glance

PDQ's MR Series mortise lock indicators offer exceptional visibility and flexibility. The unique features of the indicator make it ideally suited for classroom security applications as well as traditional occupied/vacant applications.

Typical Applications

• Classroom Security
• LOCKED/UNLOCKED Applications
• Student Housing
• Traditional OCCUPIED/VACANT Applications

Features and Functions

• Conforms to ANSI Z535.1 Safety Colors: Red and Green
• Optional Security Screws Available
• Intruder Deadbolt with Deadlatch for School Security Applications
• Dormitory Security
• Faculty Restroom with Deadbolt w/Indicator
• Privacy w/Indicator
• Privacy with Deadbolt w/Indicator
• Privacy with Deadbolt and Egress w/Indicator

HOW TO ORDER SEE PAGE 21.

MR200 Electrified Mortise Solutions

MR199A Electrified Storeroom MR200 Electrified Institutional

Innovative motor drive controls FAIL SECURE or FAIL SAFE locking mode.

Typical Applications

• Child Care Facilities
• Computer Rooms
• Nursing Staff Lounges
• Rest Rooms
• Stairwell Towers
• Storage Areas

Features

• Motorized locking/unlocking.

FAIL SECURE (Factory Default)– Outside trim is UNLOCKED when power is ON, and LOCKED when power is OFF. Lockset will lock in the event of a power failure.

FAIL SAFE – Outside trim is LOCKED when power is ON, and UNLOCKED when power is OFF. Lockset will unlock in the event of a power failure.

• Field changeable from FAIL Secure to FAIL SAFE.
• Built around PDQ's world class MR series mortise lock chassis platform.
• Designed for AC or DC input voltage. No need to select voltage when specifying or ordering.
• Meets requirements of the Buy American Act.
• SMARTSENSETM control board automatically accepts AC or DC input voltage.

HOW TO ORDER SEE PAGE 21.

Specifications ADA COMPLIANT

PERFORMANCE:	• Motor drive factory tested to over1.4 million cycles (1.4 times the ANSI/BHMA grade 1 std).
RECOMMENDED POWER SUPPLY:	• PDQ Model # 81440. – Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz – Output: 24VDC, 2A, filtered and regulated. • Rated for simultaneous operation of 2ea mortise lock assemblies. • Power Supply Requirements: – AC/DC Output Voltage – 1A min (filtered and regulated). • 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec. – AC Output Voltage. • 12-24VAC (60Hz) @ < 1A initial surge (1 sec),15mA standby after 30 sec
ELECTRICAL SPECIFICATIONS:	• Input voltage: 12-24VDC or 12-24VAC. • Max In-rush current: < 1.0A. • Standby current: – 12VAC: 12mA. – 24VAC: 10mA. – 12VDC: 3mA. – 24VDC: 5mA. Note: Operating voltage at ± 10% of rated voltage.
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• ANSI/UL10C and CAN/ULC-5104 Listed for "Fire Exit Hardware" up to 3 hours for 4'0" x 8'0" maximum single, 8'0" x 8'0" maximum pairs. • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.
WARRANTY:	• 2-Years

Stand-Alone Offline Keypad Mortise Lock

Typical Applications

• Glass Doors
• · Professional Offices within a Building
• · Server Rooms
• · Side Entrance in Commercial. Retail or Office
• Utility Areas or Supply Closets

Features

• Designed for Heavy Duty Grade 1 high use and abuse applications
• Non-volatile memory. Lock programming is retained in the event of a prolonged power outage
• Backlit Stainless Steel keypad buttons standard
• Full Outdoor Standard
• Color LED's illuminate a visual cue when the correct code is entered.
• · Simple installation and programming
• Mechanical Key override
• 3 Hour UL Fire Listed
• Hardwire input

Contact Customer Service for Details

dels require programming at the lock

ORDER RE 236.

Specifi

LOC

WEATHE

OPERATING TE

• 1-3/4" standard, 2-1/4" available Specify when ordering

• Standard ANSI A156.115 for Mortise Locks, modified with additional mounting holes depending on locking function (see template). DOOR PREP: BACKSET:

• 2-3/4" · Heavy duty zinc diecast, investment cast and stainless steel mechanism.

• PHL, BSN or MIA levers are solid zinc diecast. 41° lever rotation.

randard - both sides can be exposed to weather.

ESCUTCHEON:

Heavy duty cast alloy

STRIKE: LATCHBOLT:

CHASSIS:

• 4-7/8" x 1-1/4" (ASA) is standard.

y F to 130° F - both sides

• 3/4" throw with dead latch standard. 2-1/4" x 1-1/8" Stainless Steel or Brass front; Beveled 1/8" on 2" door.

HAND: LEVERS:

• Handed – field reversible Specify when ordering

KEYS:

Mechanical key bypass standard, 2 keys per lock

KEYWAYS:

Available in keyways of most major manufacturers

INTERCHANGEABLE CORE:

• Best compatible SFIC type 6 and 7 pin or Schlage compatible LFIC

KEYING:

Can be MK, CMK, GMK. Available Zero Bitted (K0), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers.

FINISHES:

• 605 Bright Brass 606 Satin Brass, 613 Oil Rubbed Bronze, 626 Satin Chrome

CERTIFICATIONS, LISTINGS. COMPLIANCES:

• UL listed for "Fire Exit Hardware" labeled for to 3 hrs, single swing doors 4'0" x 8"0"

• FCC part 15 • PCB RoHS compliant

COMPLIANT

WARRANTY:

• 24 months from date of manufacture

COUNTRY OF ORIGIN:

Proudly assembled in the USA. This product meets the requirements of the Buy American Act.

MR — Tough, Durable, Made in the USA

High Security Cylinders

• Standard High Security Cylinder
• UL 437 High Security Cylinder

Versatile

• Multiple Trim Families (J,F)
• Lever is easily field reversible
• Matches TJ Tubular Apartment Series levers and roses
• Indicator Functions
• Square Rose Trim

Industry First

• Field reversible handing
• Change handing in the field without disassembling the mortise case
• US Patent # 5, 813, 255

Dependable

• Lifetime Warranty
• ANSI Security and Operational Grade 1
• Florida HVHZ Approved
• Assembled in the USA

Grade 1 Extraordinary Heavy Duty Mortise

Typical Applications

• Assisted Living
• Government Facilities
• Healthcare
• Hospitality
• Houses of Worship
• Industrial
• Multi-family
• Offices
• Public Buildings
• Retail
• Higher Education
• K-12 Education

Specifications ADA COMPLIANT

FOR DOORS:	• 1-3/4" standard, 2" and 2-1/4" special order from factory.
BACKSET:	• 2-3/4"
CASE:	• 13-gauge cold rolled steel mechanism • Dichromated for corrosion resistance
ARMOR FRONT:	• Beveled 1/8" on 2" • 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material

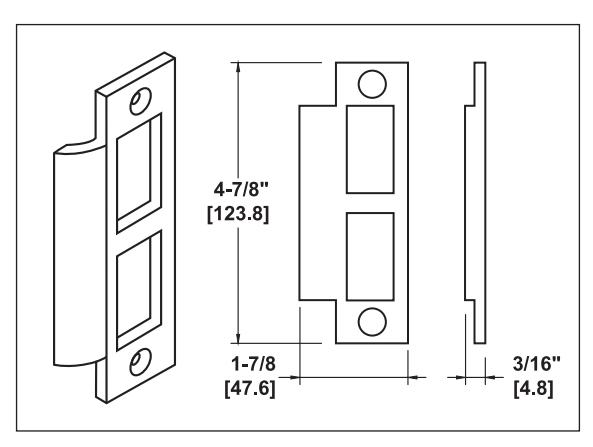

STRIKE:	• Handed Curved Lip Strike • 625 (US26) & 630 (US32D) use stainless steel as base material, all other finishes use stainless steel or brass as base material

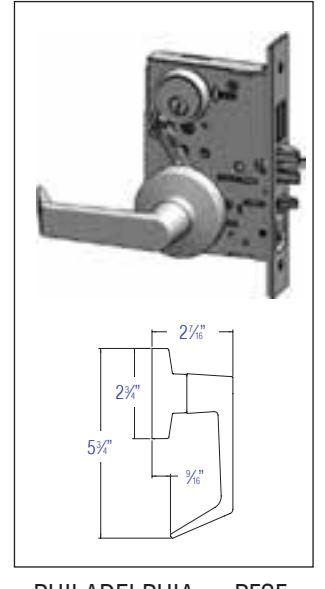

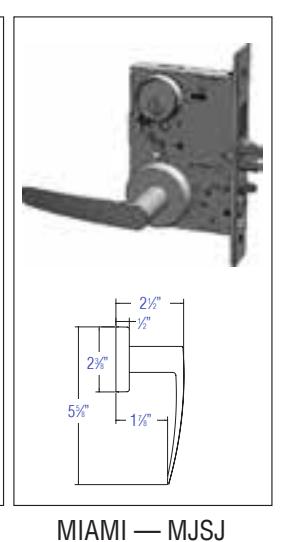

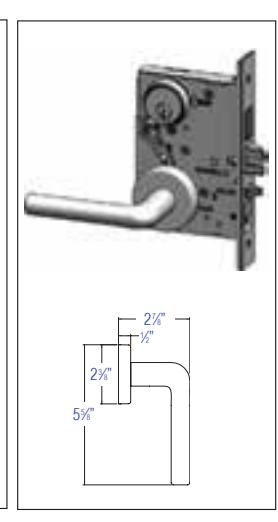

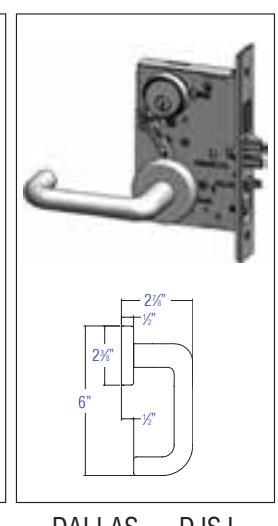

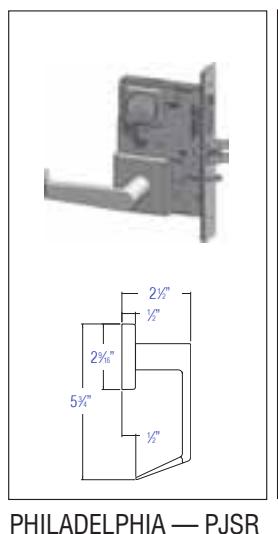

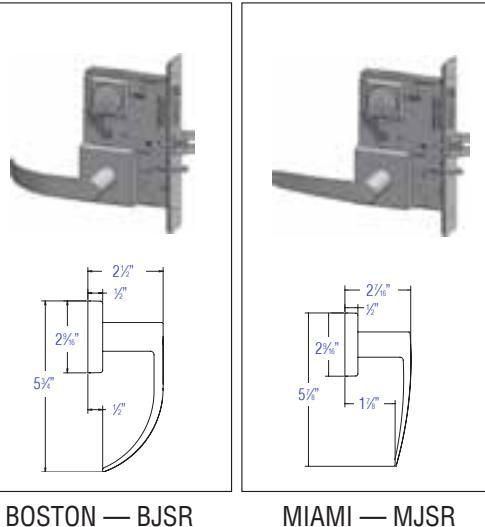

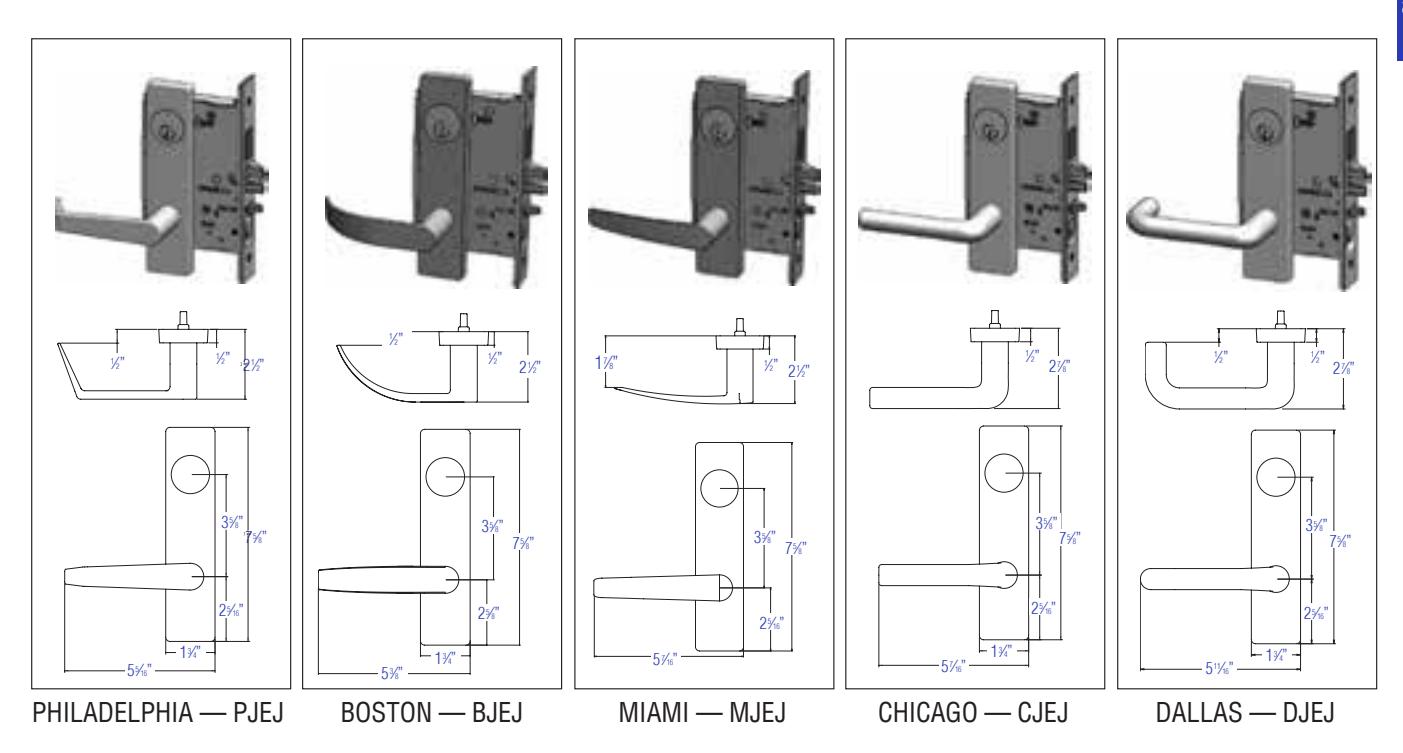

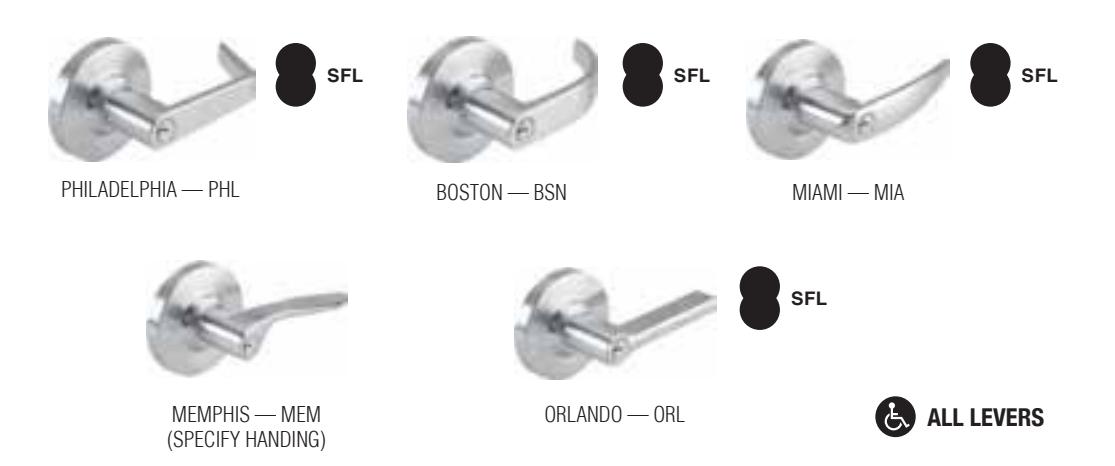

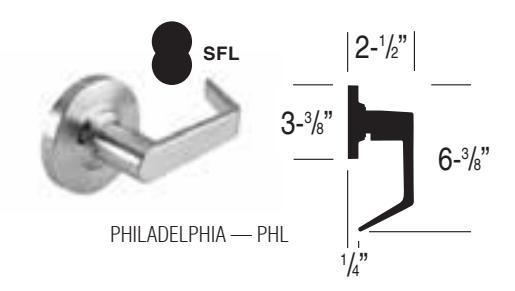

LEVERS:	• F Series Sectional/Escutcheon: Philadelphia, Boston, Miami • J Series Sectional/Escutcheon: Philadelphia, Boston, Miami, Chicago, Dallas, Los Angeles, Memphis, Orlando, Ball Knob
LATCHBOLT:	• 3/4" Throw • Investment Cast Stainless Steel • Anti-friction
DEADBOLT:	• 1" Throw • Investment Cast Stainless Steel
HAND:	• Most functions field reversible. Specify handing for Strikes, consult factory for details
TRIM:	• F trim - forged brass levers, escutcheons and turns. • Round and square rose available • J Standard and J Wide Trim - stainless steel escutcheon and levers, PHL, MEM, MIA and BSN are solid levers LAX, ORL, DAL and CHI are tube levers.
KEYS:	• Two (2) per Lock
KEYWAYS:	• SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:	• 6 or 7-pin • Compatible with Best, Falcon & Arrow • Large Format IC Cores compatible with Schlage.
CYLINDER:	• 6 or 7-pin Brass Mortise Cylinder • Standard High Security and UL437 Cylinders Available
KEYING:	• Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
	• F Series Trim: 626 (US26D)
FINISHES:	• J Standard and J Wide Trim: 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 629 (US32), 630 (US32D)
PERFORMANCE:	• Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series. • Tested to over 11 million cycles, 11X ANSI/BHMA standard.
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL listed for 3 hrs, for single doors up to 4'0" x 8'0" • Certified to ANSI/BHMA 156.13 Operational Grade 1 and Security Grade 1 • Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376.Design load rating: ± 70.0 PSF for single door (3' x 7') • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
	• J Wide Escutcheon Trim complies with Unified Facilities Guide Specification 08 71 00 (August 2008)
WARRANTY:	• Lifetime Limited Warranty
COUNTRY OF ORIGIN:	• Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

Note: Heavy Duty Spindle for High Abuse situations is available for F trim.

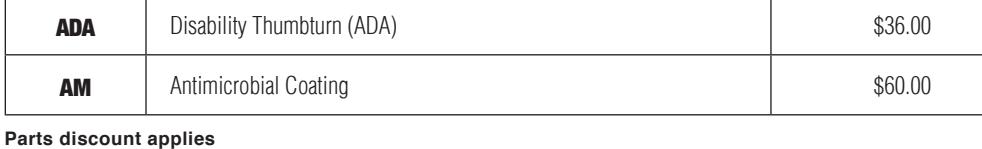

‡ Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.

LIST PRICE Effective May 13, 2019

PDQ Functions – Non Keyed

FUNCTION	FUNCTION NUMBER	OUTSIDE I INSIDE	DESCRIPTION	ANSI NUMBER
Passage	MR126		Latchbolt operated by lever from either side	F01
Privacy with Thumbturn on Both Sides	MR174		Latchbolt operated by lever from either side Thumbturn outside locks/unlocks outside lever Thumbturn inside locks/unlocks outside lever Closing door unlocks outside lever Rotating inside lever unlocks outside lever
Privacy	MR176		Latchbolt operated by lever from either side Emergency coin turn outside unlocks outside lever Thumbturn inside locks/unlocks outside lever Closing door unlocks outside lever Rotating inside lever unlocks outside lever
Privacy with Deadbolt	MR178		Latchbolt operated by lever from either side Emergency coin turn outside retracts deadbolt Thumbturn inside extends/retracts deadbolt Not field reversible Specify handing	F02
Privacy with Deadbolt and Egress	MR179		Latchbolt operated by lever from either side Emergency coin turn outside retracts deadbolt Thumbturn inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt	F19

LIST PRICE

Effective May 13, 2019

PDQ Functions – Keyed

FUNCTION	FUNCTION NUMBER	OUTSIDE I INSIDE	DESCRIPTION	ANSI NUMBER
Hold Back Single Cylinder	MR113		Latchbolt operated by lever from inside Key outside retracts latchbolt Rigid outside lever Auxiliary latch deadlocks latchbolt Key outside secures latchbolt when latchbolt is retracted by inside lever Not field reversible Specify handing	F06
Hold Back Double Cylinder	MR114		Latchbolt operated by lever from inside Key outside retracts latchbolt Rigid outside lever Auxiliary latch deadlocks latchbolt Key inside secures latchbolt when latchbolt is retracted by inside lever Not field reversible Specify handing	_
Storeroom	MR115		Latchbolt operated by lever from inside Key outside retracts latchbolt Rigid outside lever Auxiliary latch deadlocks latchbolt	F07
Entry	MR116		Latchbolt operated by lever from either side Toggle locks/unlocks outside lever Key outside retracts latchbolt Auxiliary latch deadlocks latchbolt	F04
Front Door	MR117		Latchbolt operated by lever from either side Toggle locks/unlocks outside lever Key outside retracts latchbolt Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt	F08 or F10
Institution with Deadbolt	MR128		Key outside retracts latchbolt Key inside retracts latchbolt Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Rigid outside lever Rigid inside lever Auxiliary latch deadlocks latchbolt	_
Entrance/ Storeroom	MR135		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt	F21
Dormitory/ Exit	MR136		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt	F13

INDICATES RIGID LEVER

LIST PRICE

Effective May 13, 2019

PDQ Functions – Keyed

FUNCTION	FUNCTION NUMBER	OUTSIDE I INSIDE	DESCRIPTION	ANSI NUMBER
Store Door	MR137		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Key locks/unlocks outside lever Latchbolt and deadbolt are independent of each other	F14
Institution	MR138		Key outside retracts latchbolt Key inside retracts latchbolt Rigid outside lever Rigid inside lever Auxiliary latch deadlocks latchbolt	F30
Closet / Storeroom	MR139		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt	_
Storeroom with Deadbolt	MR141	2 C	Latchbolt operated by lever from inside Key outside retracts latchbolt Key outside extends/retracts deadbolt Rigid outside lever Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt Thumbturn inside extends/contracts deadbolt but doesn't effect outside lever.	_
Classroom	MR148		Latchbolt operated by lever from either side Key outside retracts latchbolt Auxiliary latch deadlocks latchbolt	F05
Assisted Living	MR149		Latchbolt operated by lever from either side Key outside locks/unlocks outside lever Thumbturn inside locks/unlocks outside lever Closing door unlocks outside lever Rotating inside lever unlocks outside lever Auxiliary latch deadlocks latchbolt	_
Entrance	MR154	2 ET	Latchbolt operated by lever from either side Toggle locks/unlocks outside lever Key outside retracts latchbolt Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt Projecting then retracting the deadbolt releases the toggle	_
Intruder Deadbolt with Deadlatch	MR157		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt	F34
Dormitory	MR158	20 E. C. C. C. C. C. C. C. C. C. C. C. C. C.	Latchbolt operated by lever from either side Toggle locks/unlocks outside lever Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt	F11
Dormitory	MR159		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt	F33

PDQ Functions – Keyed

FUNCTION	FUNCTION NUMBER	OUTSIDE I INSIDE	DESCRIPTION	ANSI NUMBER
Apartment/ Corridor	MR162		Latchbolt operated by lever from either side Toggle locks/unlocks outside lever Key outside retracts latchbolt Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt
Office	MR181		Latchbolt operated by lever from either side Key outside locks/unlocks outside lever Thumbturn inside locks/unlocks outside lever Closing door unlocks outside lever Rotating inside lever unlocks outside lever Auxiliary latch deadlocks latchbolt
Apartment	MR186		Latchbolt operated by lever from either side Key inside locks/unlocks outside lever Key outside retracts latchbolt Auxiliary latch deadlocks latchbolt	F09
Electrified Storeroom	MR199A		Key outside retracts latchbolt Latchbolt operated by lever from inside Auxiliary latch deadlocks latchbolt Fail safe – latchbolt operated by lever from outside unless electrically locked Fail secure – latchbolt operated by lever from outside when electrically unlocked Motor drive locking/unlocking Not field reversible Specify handing Available with option: REX - Request to Exit	l
Electrified Institutional	MR200		Key outside retracts latchbolt Key inside retracts latchbolt Auxiliary latch deadlocks latchbolt Fail safe – latchbolt operated by either lever when electrically locked Fail secure– latchbolt operated by either lever when electrically unlocked Motor drive locking/unlocking Not field reversible Specify handing Available with option: REX - Request to Exit	I
Cylinder and Thumbturn Deadbolt with Dummy Trim	MR213		Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt Rigid outside lever Rotating inside lever retracts deadbolt	_
Double Cylinder Deadbolt with Dummy Trim	MR214		Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Rigid outside lever Rotating inside lever retracts deadbolt	_
Single Cylinder Deadbolt with Dummy Trim	MR215		Key outside extends/retracts deadbolt Rigid outside lever Rotating inside lever retracts deadbolt	_

LIST PRICE

Effective May 13, 2019

PDQ Indicator Functions

• Locked/Unlocked Indicator conforms with ANSI Z535.1 Safety Colors: Red and Green.

Shown with optional Security Screws. For more information, contact PDQ Customer Service

FUNCTION	FUNCTION NUMBER	OUTSIDE I INSIDE	DESCRIPTION	ANSI NUMBER
Intruder Deadbolt with Deadlatch	MR257		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt Indicator, inside LOCKED UNLOCKED	F34 w/Indicator
Dormitory	MR259		Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Indicator, inside — LOCKED UNLOCKED	F33 w/Indicator
Faculty Restroom with Deadbolt w/Indicator	MR260		Latchbolt retracted by key outside or lever inside Key outside extends/retracts deadbolt Rigid outside lever Thumbturn inside extends/retracts deadbolt Rotating inside lever retracts deadbolt and latchbolt simultaneously Inside lever is always free for immediate egress Indicator, outside VACANT OCCUPIED	ı
Privacy w/Indicator	MR276		Latchbolt operated by lever from either side Emergency coin turn outside unlocks outside lever Thumbturn inside locks/unlocks outside lever Closing door unlocks outside lever Rotating inside lever unlocks outside lever Indicator, outside VACANT OCCUPIED	F22 w/Indicator
Privacy with Deadbolt w/Indicator	MR278		Latchbolt operated by lever from either side Emergency coin turn outside retracts deadbolt Thumbturn inside extends/retracts deadbolt Indicator, outside — VACANT OCCUPIED	F02 w/Indicator
Privacy with Deadbolt and Egress w/Indicator	MR279		Latchbolt operated by lever from either side Emergency coin turn outside retracts deadbolt Thumbturn inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Indicator, outside — VACANT OCCUPIED	F19 w/Indicator

Notes: Functions MR257, MR259 and MR260 not available in 7 Pin SFIC or LFIC.

PDQ Functions – Deadlocks

FUNCTION	FUNCTION NUMBER	OCTION OUTSIDE | INSIDE DESCRIPTION
Single Cylinder Deadbolt	MR131	đ.	Key outside extends/retracts deadbolt	F18
Cylinder and Thumbturn Deadbolt	MR132	4	Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt	F17
Double Cylinder Deadbolt	MR133	dib	Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt	F16
Classroom Deadbolt	MR134	di.	Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Not field reversible Specify handing	F29

PDQ Functions – Non Keyed Dummy

FUNCTION	FUNCTION NUMBER	OUTSIDE I INSIDE	DESCRIPTION	ANSI NUMBER
Double Dummy	MR205		Rigid outside lever Rigid inside lever	-
Double Dummy with Chassis	MR206		Rigid outside lever Rigid inside lever
Double Dummy with Active Trim	MR207		Moveable outside lever Moveable inside lever	_
Single Dummy	MR211		• Rigid outside lever
Single Dummy with Chassis	MR212		• Rigid outside lever	_

INDICATES RIGID LEVER

LIST PRICE

Effective May 13, 2019

Cross Reference

ANSI #	PDQ FUNCTION	ARROW	BEST	CORBIN	DORMA	FALCON	MARKS	SARGENT	SCHLAGE	YALE
DUMMY 1 SIDE	MR211	BM/AM08	45H1DT	ML2050	M9001	MA12	DI/DO	8293	L0170	AU865
DUMMY 2 SIDES	MR207	BM/AM09	45H2DT	ML2071	M9002	MA18	DT	8294	L0172	AU838A
DUMMY 1 SIDE	MR212	N/A	N/A	N/A	M9003	N/A	N/A	N/A	L9175	N/A
DUMMY 2 SIDES	MR206	N/A	N/A	N/A	M9004	N/A	N/A	N/A	L9176	N/A
F01	MR126	BM/AM01	45HN	ML2071	M9010	MA101	5N	8215	L9010	AU8801FL
F31	SEE TJ SERIES	BM/AM07	45HNX	N/A	M9025	MA161	5EX	N/A	N/A	AU8828
F22	MR176	BM/AM26	45HLT	ML2060	M9040	MA321	5LJ	8265	L9040	AU8862FL
F04	MR116	BM/AM22	45HA	ML2051	M9050	MA521	5E	8205	L9050	AU8807FL
F09	MR186	BM/AM32	45HC	ML2042	M9060	MA381	5G	8216	L9060	AU8817-2FL
F05	MR148	BM/AM17	45HR	ML2055	M9070	MA561	5J	8237	L9070	AU8808FL
F06	MR113	N/A	45HR/HB	ML2056	M9076	MA551	5JM/JR	8289	L9076	AU8800
F07	MR115	BM/AM12	45HD	ML2057	M9080	MA581	5EW	8204	L9080	AU8805FL
	MR199A	BM/AM17/177	45HEL	ML22901	M9080EL	MA851	5EL	8270	L9080EL	AU8890FL
	MR199A	BM/AM17/178	45HEU	ML22904	M9080EU	MA881	5EU	8270	L9080EU	AU8891FL
	MR199A W/REX	N/A	45HEURQE	ML22901 M92	M9080ELRX	N/A	5EL W10	RX-8272	L9080ELRX	AU8890FLREX
	MR199A W/REX	N/A	45HEURQE	ML22904 M92	M9080ELRX	N/A	5EU W10	RX-8273	L9080EU-RX	AU8891FLREX
F30	MR138	BM/AM33	45HW	ML2032	M9082	MA411	5WW	N/A	L9082	AU8830-2FL
F19	MR179	BM/AM02	45HL	ML2030	M9940	MA311	5LF	8266	L9440	AU8802FL
F20	MR162	BM/AM20	45HAB	ML2067	M9953	MA531	5FD	8243	L9453	AU8847FL
F13	MR136	BM/AM19	45HT	ML2065	M9956	MA571	5FW	8225	L9456	AU8822FL
F11	MR158	N/A	N/A	N/A	M9957	N/A	5FA	N/A	N/A	AU8800
F17	MR132	BM41	45HAD	ML2013	N/A	M941	5P	8221	L9460	AU8815
F18	MR131	BM40	45HYB	NML2011	N/A	MA921	5S	8220	L9464	AU8814
F16	MR133	BM42	45HWD	ML2012	N/A	M931	5T	8222	L9462	AU8814-2
F29	MR134	BM44	45HRD	ML2017	MB9963	M911	5SC	8203	L9463	AU8813ST
F14	MR137	BM/A/31	45HG	ML2017	M9966	MA371	5C	8226	L9466	AU8860-2FL
F34	MR157	N/A	45HIDA	ML2022	M9967	MA431	5FC	8240	N/A	AU8812-2FL
F33	MR159	N/A	45HIND	N/A	M9968	N/A	5FX	N/A	L9457	AU8811-2FL
F21	MR135	BM/AM13	45HB	ML2024	M9973	MA541	5B	8224	L9473	AU8860FL
F02	MR178	N/A	N/A	ML2020	N/A	MA301	5-55L	8268	N/A	N/A

LEVER AND KNOB OPTIONS	PDQ	ARROW	BEST	CORBIN	DORMA	FALCON	MARKS	SARGENT	SCHLAGE	YALE
LEVER	PHILADELPHIA	X	15	NS NEWPORT	LR	D DANE	AMERICAN LEVER 92	L	06 RHODES	AU AUGUSTA
	BOSTON	BR	14	PS PRINCETON	LC	Q QUANTUM	CRESCENT LEVER 86	P	17SPARTA	PB PACIFIC BEACH
	CHICAGO	N	12	REGIS	LIIO	N/A	OMNI 78	W	02	PINEHURST PNR
	DALLAS	HS	3	LS LUSTR	LT	K KIM	PLAZA LEVER 82	J	03TUBULAR	CR CARMEL
	MIAMI	V	16	AS ARMSTONG	LG	A AVALON	TITAN LEVER 96	B	07ATHENS	JN JEFFERSON
	MEMPHIS	W	69	DIRKE	LD	N/A	DAYTON 83	A	12	VICTORIA TT
	LOS ANGLES	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	ORLANDO	N/A	N/A	N/A	N/A	N/A	N/A	N/A	LATITUDE	N/A

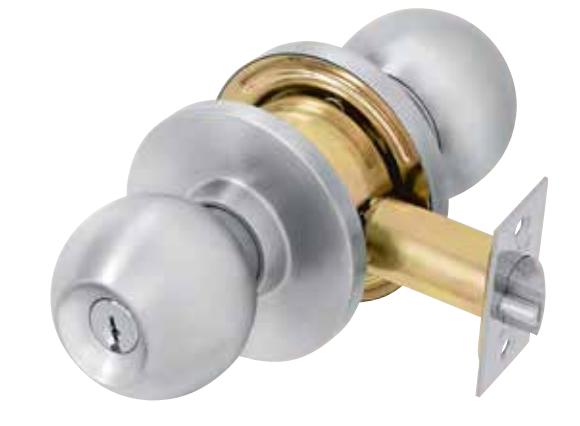

KNOB	KNOB	HB	4	YW	KB	T TROY	ROUND KNOB 10	C	41 PLYMOUTH	LF LITCHFIELD
	B	HT	N/A	GR	KB	H HANA	ROUND KNOB 10	B	42 ORBIT	CA CAROLINA
	N/A	A	R	F	KB	G GALA	RW	N/A	B	R

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

How to Order

SERIES	FUNCTION	LEVER	TRIM	FINISH	HANDING1	DOOR THICKNESS	CYLINDER	KEYWAY OR HOUSING	KEYING	OPTIONS
MR	136	PF	EF	626	RH	134	D	SCC	KD	—
NOTES: 1 - Specify handing for all functions 2 - PDQ Electrified Function Single Cylinder = PDQ Function MR138 Safe, Double Cylinder 4 - Factory Default: Fail Secure 5 - For Split Finishes, Contact PDQ Customer Service 6 - Compatible with all F, J and or Escutcheon.	PAGES 14-19 199A = PDQ Function MR115 Storeroom (ANSI F07) + Mo torized Fail Secure/Fail Safe, 3 - PDQ Electrified Function 200 Institutional (ANSI F30) + Motorized Fail Secure/Fail JW Series trim, any Sectional	F-TRIM PF — PHL BF — BSN MF — MIA J-TRIM PJ — PHL BJ — BSN MJ — MIA CJ — CHI DJ — DAL LJ — LA TJ — MEM OJ — ORL KJ —K	F-TRIM EF — Escutcheon SF — Sectional Round Rose J-TRIM EJ — Standard Escutcheon EW — Wide Escutcheon SJ — Sectional Round Rose SR — Sectional Square Rose		RH — Right Hand (Default) RHR — Right Hand Reverse LH — Left Hand LHR — Left Hand Reverse	134 — 1-3/4" 214 — 2-1/4"	D — Conventional Mortise Cylinder (Default) L — Less Cylinder SF6 — SFIC w/ Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schlage© Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing, less core LFL — Schlage© Compatible LFIC Housing less core	PAGE 29		REX — Request to Exit (Func tions 199A and 200only). AM — Antimicrobial Coating. LL — Lead Wrapped Case. ADA — Disability Turn. Additional options available
							PAGE 29			PAGE 30

LIST PRICE

Effective May 13, 2019

Locksets/Trim

Notes:

• 1 Lock adjustment for Square Rose and Wide J Trim. See page 23 for prices.
• 2 Finishes 605, 606 and 612 require factory lead-time. Contact PDQ Customer Service.
• 3 619 shown for reference only. PDQ offers full stainless steel levers, ball knobs, roses, collars and escutcheons which comply with ANSI/BHMA Finish 630. Specify 630 in lieu of 619.
• 4 List prices shown include conventional cylinder or SFIC housing. For LFIC housing, add $8 to list price.

4	SECT	TONAL		ESCUTCHEON
SERIES:	F SERIES	J SERIES	F SERIES	J SERIES
LEVERS:	PHL, BSN, MIA	ALL LEVERS & KNOB	PHL, BSN, MIA	ALL LEVERS & KNOB
ROSE/ ESCUTCHEON:	ROUND (SF)	ROUND (SJ) Square (SR)	2-1/16" W x 7-5/8" H	SOLID STAINLESS STEEL STANDARD: 1-3/4" W x 7-5/8" H WIDE: 2-9/16" W x 8" H

	ANSI No.	FUNCTION	DESCRIPTION	626	630	605, 606, 612, 613, 629	626	630	605, 606, 612, 613, 629
	F01	126	Passage	$686.00	$656.00	$736.00	$746.00	$706.00	$806.00
NON-KEYED		174	Privacy with Thumbturn Both Sides	$783.00	$753.00	$833.00	$843.00	$803.00	$903.00
	F22	176	Privacy	Ψ100.00	ψ100.00	φοσσ.σσ	ψ0-10.00	ψ000.00	ψ300.00
	F06	113	Classroom Hold back Single Cyl
	F07	115	Storeroom
SINGLE	F04	116	Entry	$821.00	$791.00	$871.00	$881.00	$841.00	$941.00
CYLINDER	F05	148	Classroom						·
		149	Assisted Living Office
		181 114
DOUBLE	F30	138	Classroom Hold back Double Cyl Institution	$911.00	$881.00	$961.00	$971.00	¢021.00	$1031.00
CYLINDER	F09	186	Apartment Entrance	$911.00	φοο1.00	$901.00	φ9/1.00	$931.00	$1031.00
NON-KEYED WITH	F02	178	Privacy with Deadbolt	$862.00	$832.00	$912.00	$922.00	$882.00	$982.00
DEADBOLT	F19	179	Privacy with Deadbolt and Egress	$889.00	$859.00	$939.00	$949.00	$909.00	$1009.00
	F08	117	Front Door
	F21	135	Entrance, Storeroom				$917.00	$877.00	$977.00
	F13	136	Dormitory, Entrance
SINGLE		139	Closet, Storeroom	$857.00	$827.00	$907.00
CYLINDER	F10	141	Storeroom with Deadbolt
WITH	F10	154	Entrance
DEADBOLT	F20	162	Apartment, Corridor
		213	Double Cylinder and Thumbturn Deadbolt with Dummy Trim	$821.00	$791.00	$871.00	$881.00	$841.00	$941.00
		215	Single Cylinder Deadbolt with Dummy Trim	$811.00	$781.00	$861.00	$871.00	$831.00	$931.00
		128	Institution with Deadbolt
	F14	137	Store Door
DOUBLE CYLINDER	F34	157	Intruder Deadbolt with Deadlatch		$901.00	$981.00	$991.00	$951.00	$1051.00
WITH	F11	158	Dormitory	$931.00
DEADBOLT	F33	159	Dormitory
		214	Double Cylinder and Thumbturn Deadbolt with Dummy Trim
	F18	131	Single Cylinder Deadbolt		$488.00	$568.00		$538.00	$638.00
DEADLOCK	F17	132	Cylinder and Thumbturn Deadbolt		$507.00	$587.00		$557.00	$657.00
DEADLUCK	F16	133	Double Cylinder Deadbolt		$509.00	$589.00		$559.00	$659.00
	F29	134	Classroom Deadbolt		$518.00	$598.00		$568.00	$668.00
ELECTRIFIED		199A	Storeroom, Single Cylinder	$1220.00	$1190.00	$1270.00	$1280.00	$1240.00	$1340.00
		200	Institutional, Double Cylinder	$1250.00	$1220.00	$1300.00	$1310.00	$1270.00	$1370.00
	F34*	257	Intruder w/Indicator		1 .
	F33*	259	Dormitory w/Indicator		$960.00	$1040.00		$1010.00	$1110.00
WITH	F15*	260	Faculty Restroom w/Deadbolt w/Indicator		+000.05	*******		+000.07	**********
INDICATORS	F22*	276	Privacy w/Indicator		$933.00	$1013.00		$983.00	$1083.00
	F02*	278	Privacy w/Deadbolt w/Indicator		$943.00	$1023.00		$993.00	$1093.00
	F19*	279	Privacy w/Deadbolt and Egress w/Indicator	0.40.4.00	$956.00 $464.00	$1036.00 $544.00	ΦΓΓ4.00	$1006.00 $514.00	$1106.00 $614.00
		OOL				$544 III	$554.00	1 $514 H()	1 $614 HH
		205	Double Dummy	$494.00
DUMMY/		206	Double Dummy with Chassis	$613.00	$583.00	$663.00	$673.00	$633.00	$733.00
DUMMY/ DUMMY TRIM

*w/Indicator

J Series Rose an d Escutcheon Lock Adjustment

CODE	DESCRIPTION	LOCK ADJUSTMENT
SJ	Sectional Round Rose - J Trim	N/C
SR	Sectional Square Rose - J Trim	$14.00
EJ	Standard Width Escutcheon - J Trim Dimensions: 1-3/4" W x 7-5/8" H	N/C
EW	Wide Width Escutcheon - J Trim Dimensions: 2-9/16" W x 8" H	$6.00

F Type Levers

PHILADELPHIA — PF BOSTON — BF MIAMI — MF

J Type Levers

PHILADELPHIA — PJ BOSTON — BJ MIAMI — MJ CHICAGO — CJ DALLAS — DJ

MEMPHIS — TJ ORLANDO — OJ LOS ANGELES — LJ BALL KNOB — KJ*

*Knobs are not ADA Compliant

ROUND ROSE (SF) F-TRIM

SQUARE ROSE (SR) J-TRIM ONLY

ROUND ROSE (SJ) J-TRIM

Sectional Trim Escutcheon Trim

EF STANDARD F

EJ STANDARD J

EW WIDE J

Trim Only = $ 60.00 Net per Side

LIST PRICE

Effective May 13, 2019

F Series Sectional Trim

• Levers: Solid Forged Brass
• Trim: Wrought

Body Only = $60.00 Net

BOSTON — BFSF

PHILADELPHIA — PFSF

MIAMI — MFSF

F Series Escutcheon Trim

• Levers: Solid Forged Brass
• Trim: Forged Brass

PHILADELPHIA — PFEF

BOSTON — BFEF

MIAMI — MFEF

J Series Sectional Trim with Round Rose

• Levers: Philadelphia, Boston, Miami, Memphis Solid Levers Chicago, Dallas, Los Angeles, Orlando — Hollow Tube Levers
• Trim: Wrought

PHILADELPHIA — PJSJ

CHICAGO — CJSJ

DALLAS — DJSJ

LIST PRICE

Effective May 13, 2019

J Series Sectional Trim with Square Rose

• Levers: Philadelphia, Boston, Miami, Memphis Solid Levers Chicago, Dallas, Los Angeles, Orlando – Hollow Tube Levers
• Trim: Wrought

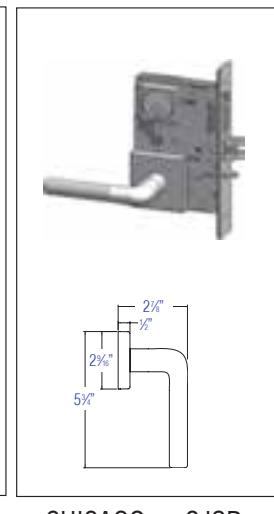

CHICAGO — CJSR

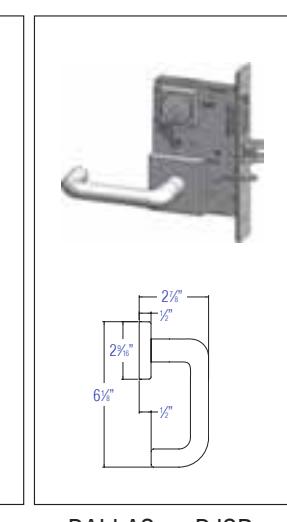

DALLAS — DJSR

ORLANDO — OJSR

LOS ANGELES — LJSR

BALL KNOB — KJSJ

J Series Escutcheon Trim

• Levers: Philadelphia, Boston, Miami, Memphis Solid Levers Chicago, Dallas, Los Angeles, Orlando Hollow Tube Levers
• Trim: Investment Cast Stainless

J Series Wide Escutcheon Trim

• Levers: Philadelphia, Boston, Miami, Memphis Solid Levers Chicago, Dallas, Los Angeles, Orlando Hollow Tube Levers
• Trim: Investment Cast Stainless

Cylinders

LIST PRICE

Effective May 13, 2019

WITH LOCK KEYWAY WITH	SOLD
AR1 Arrow / AR1
CO59A1 Corbin / 59A1
CO6 Corbin / 60
CL4 Corbin / L4
RUD Russwin / D1
SCE Schlage / E
SCC Schlage / C
SCC-K Schlage / C-K
SAL Sargent / LA N/C
RA-RC Sargent / RA-RC
YA8 Yale / E1R
GA Yale / GA
FAL Falcon / E-R
KW Kwikset
TA PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy —
T-Turn —
NON Less Cylinder Deduct $4.00

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic		$5.00	$5.00
LFIC CONSTRUCTION
Construction Core 6-pin only		$55.00	$80.00
and credited upon return.	IC Tailpiece Assembly Construction cores are invoiced at shipment	N/C	$7.60
LFIC COMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway
PDQ TA LFIC RESTRICTED		$55.00	$80.00
LFIC UNCOMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway	$55.00	$74.00
HIGH SECURITY IC CORES	SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

Mortise Cylinder

UL 437 and High Security Cylinders

NOTES:

• ⁿ Uncombinated cores do not include springs & pins
• ⁿ Combinated cores include master keying in the list price
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) BEST A2 & A4 Systems Available
• ⁿ Control Keys must be ordered separately

SFL/SFIC Core

LFL/LFIC Schlage Format

IC Mortise Housing

LIST PRICE Effective May 13, 2019

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
TC1IS	Tactile Abrasive Coating - Inside only (PHL and MIA levers only)
TC1OS	Tactile Abrasive Coating - Outside only (PHL and MIA levers only)	$43.00
TC2	Tactile Abrasive Strip - Both Sides (PHL and MIA levers only)	$306.00
LL	Lead-wrapped Case	$86.00
SSM	Sectional Single Sided Mounting Assembly	$46.00
SSH	Security Head Screws	$26.00
EASA	Extended Lip Strike	$16.00
REX	Request to Exit (Available for functions 199A and 200 only)	$320.00
SF	Split Finishes	Higher Finish Price
HDS	HD Spindle for high abuse applications (for F Trim Only)	$61.00
AM	Antimicrobial Coating - Sectional Mortise Lock inside lever, rose, thumbturn, outside lever
AM	Antimicrobial Coating - Escutcheon Mortise Lock inside lever, rose, thumbturn, outside lever	$60.00
ADA	Disability Turn (ADA) - for J Trim Only	$18.00
LM	Latch Bolt Monitoring	$160.00

MR SERIES PA RTS

Strikes

DESCRIPTION	LIP LENGTH	PDQ NO.	PART LIST PRICE

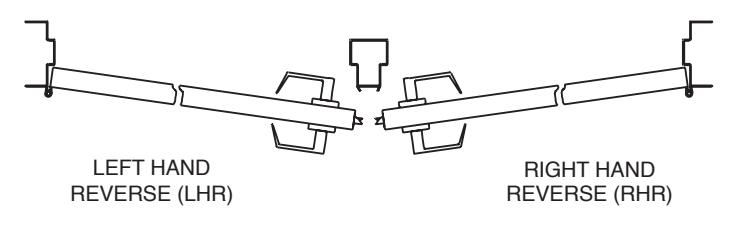

1-1/4" x 4-7/8" ANSI/ASA Curved Lip (LH/RHR)	1-3/16"	W51241-(designate finish)
1-1/4" x 4-7/8" ANSI/ASA Curved Lip (RH/LHR)	1-3/16"	W51242-(designate finish)	$22.00
Extended Straight Lip	1-7/8"	W51002-(designate finish)	$32.00

Parts discount applies

Electric Electrified Hinges Now Available - See Hinge Section

DESCRIPTION	PDQ NO.	PART LIST PRICE
Electric Strike for MR Locks WITHOUT Deadbolt function	85003	$486.00

Parts discount applies

Miscellaneous Parts

DESCRIPTION	PDQ NO.	PART LIST PRICE
Cam (Corbin A01) For #16 mortise Cylinder	1127-4201
IC Cam for SFIC Mortise Housing	154061	$6.20
IC Cam for LFIC Mortise housing	154261
Collar Cyl Vandal 3/8" (specify finish)	W51214	$13.00
Collar Spring	W51049	$4.20
Anti-Friction Latchbolt	W91904
1-3/8" Extended Straight Lip	W51002-1-3/8"	$32.00
1-3/4" Extended Straight Lip	W51002-1-5/8"

Extra Heavy Duty Mortise Cylinder Deadbolt

Typical Applications

• Auxiliary Doors
• Closets
• Commercial/Institutional/Military
• Common Areas
• Equipment Rooms
• Storerooms

Specifications

Small Mortise Body Type Prep

FOR DOORS:	• 1-3/4"
BACKSET:	• 2-3/4"
CASE:	Steel — Dichromated for corrosion resistance
FACEPLATE:	• 1-1/4" x 5-5/8"
FRONT:	• 2-1/4" x 1" • Stainless Steel.
STRIKE	:• 1-1/8" x 2-1/2"
DEADBOLT:	• 1" Throw. • Stainless Steel.
OPTIONAL THUMBTURN:	• ADA Compliant.
HAND:	Non-handed except for function MJ134 Classroom. (See Function Table and How to Order Guide).
KEYS:	• Two (2) per Lock.
KEYWAYS:	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:	● 6 or 7-pin ● Compatible with Best, Falcon & Arrow ● Large Format IC Cores compatible with Schlage.
CYLINDER:	• 6 or 7-pin Mortise Cylinder
KEYING:	Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:	• 630 (US32D) - Satin Stainless Steel
CERTIFICATIONS, Listings, compliances:	UL listed
WARRANTY:	• 10-YearLimited Warranty

Cross Reference*

ANSI # A156.5 (A156.13)	PDQ Function	BEST	CORBIN	DORMA	MARKS #31/32/33 SERIES	SARGENT	SCHLAGE	YALE
E06081 (F18)	MJ131	48H L	DL4111	D961	L	4876	L464	353
E06071 (F17)	MJ132	48H K	DL4113	D960	К	4875	L460	352
E06061 (F16)	MJ133	48H M	DL4112	D962	М	4874	L462	351
E06091 (F29)	MJ134LH	48H R	DI 4117	D963	S	4877	L463	357
L00091 (F29)	MJ134LH	40∏ N	DL4117	D903	5	4077	L403	30 1

^* Note: Functions are equal, but form may differ.

How to Order

SERIES	FUNCTION	FINISH	CYLINDER	KEYWAY OR HOUSING	KEYING	OPTIONS
MJ	131	630	D	SCC	KD	_
			D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pi SF7 — SFIC w/Core, 7 Pi LF — Schlage® Compatib SF6L — SFIC 6 Pin Hous SF7L — SFIC 7 Pin Hous LFL — Schlage® Compati Housing less core	n le LFIC w/Core ing less core ing, less core		ADA — Disability Thumbturn (ADA)

Mortise Deadbolt

FUNCTION	FUNCTION NUMBER	OUTSIDE | INSIDE	DESCRIPTION	630	605/606 612/613/629
Single Cylinder	131	\tag{\tag{\tag{\tag{\tag{\tag{\tag{	Key outside extends/retracts deadbolt	$349.00	$379.00
Single Cylinder with Thumbturn	132	a	Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt	$432.00	$462.00
Double Cylinder	133	2	Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt	$501.00	$531.00
Single Cylinder (Classroom) Left Hand	134LH	ain	Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Thumbturn rotates clockwise	$400.00	ф400 00
Single Cylinder (Classroom) Right Hand	134RH		Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Thumbturn rotates counter-clockwise	$469.00	$499.00

Note: For replacement T-Turn mortise cylinders for functions MJ134 RH and MJ134 LH, see the Cylinders and Keying Section.

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
ADA	Disability Thumbturn (ADA)	$36.00
АМ	Antimicrobial Coating	$60.00

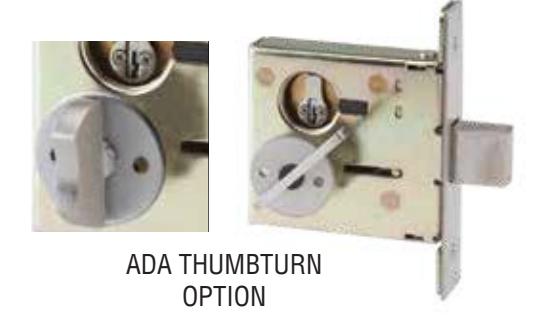

ADA Thumbturn

TJ — Sophisticated and Stylish

Versatile

• Designed to compliment the MR mortise in high-end properties
• Trim matches MR delivering a uniform look throughout the tenant space

Fashionable

• Contemporary high-end look for apartment and office.
• Stylish square and round rose trim
• 8 designer levers
• 7 designer finishes

Tubular Trim Suite High-End Decorative Apartment Series

Typical Applications

• High-End Residential
• Multi-family
• Offices

Features

• Contemporary decorative trim perfect for high end residential and office work
• Designed to compliment MR Series Mortise locks sharing the same sectional rose diameter and levers
• Investment cast stainless steel trim
• Range of lever styles available
• Available in round rose or square rose
• Uses a slender 1-3/8" diameter rose providing a clean contemporary look

SQUARE ROSE TRIM WITH ORLANDO LEVER

Specifications

FOR DOORS:	• For doors 1-3⁄8" (35mm) to 1-3⁄4" (44mm) thick standard
BACKSET:	• 2-3/4" (70mm) default. Optional: 2-3/8" (60mm);
STRIKE:	• "Full Lip" strike default. "T" strike and ANSI/ASA strike optional
LEVERS:	• Philadelphia, Boston, Miami, Chicago, Dallas, Los Angeles, Memphis, Orlando, Ball Knob
ROSE DIMENSIONS:	• Round Rose: 2-3/8" DIA • Square Rose: 2-9/16"
DOOR PREP:	• ANSI Standard 115.2, Type 161 for 2-3/4" Backset • Type 160 optional
LATCH BOLTS:	• 2-3/4" Backset has 1-1/8" faceplate. 2-3/8" Backset has a 1" faceplate filler
HAND:	• Non-handed, except Memphis and Orlando
FINISHES:	• 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze , 613 (US10B) Oil Rubbed Bronze, 629 (US32) Bright Stainless Steel, 630 (US32D) Satin Stainless Steel • Antimicrobial coating available on 630 only
TRIM:	• Stainless Steel Levers and Roses
LEVER DESIGNS:	• Philadelphia, Boston, Miami, Chicago, Memphis, Orlando, Los Angeles, Dallas and Ball Knob.
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY:	• Five (5) year limited warranty (except ball knob)

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
NON KEYED
Communicating	125	( ) ( ) ( ) ( ) ( ) ( ) ( ) ( ) ( ) ( )	Latchbolt operated by lever from inside Non removable blank outside	_
Passage Closet	126		Latchbolt operated by lever from either side	F75
Privacy Bedroom/ Bathroom	176		Latchbolt operated by lever from either side Outside lever locked by push button on inside Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door	F76
Double Dummy	205		Rigid lever both sides No mechanical operation	_
Single Dummy	211		Rigid lever outside No mechanical operation	_

INDICATES RIGID LEVER

Effective May 13, 2019

How to Order

QUANTITY	SERIES	FUNCTION	TRIM	ROSE OPTION	FINISH	BACKSET	HANDING	STRIKE	OPTION
5	TJ	176	PJ	_	630	234	_	FL	_
				BLANK — Round Rose (Default) SR — Square Rose		234 – 2-3/4" Default 238 – 2-3/8" Optional	LH – Left Hand RH – Right Hand	FL – Full Lip Strike (Default) T – 'T' Strike ASA – ANSI/ ASA Strike	PAGE 38

TJ Series

			SE	CTIONAL
ANSI NO.	FUNCTION	DESCRIPTION	630	605 1 , 606 1 , 612 1 613, 619 2 , 629
	125	Communicating	$209.00	$249.00
F75	126	Passage	$323.00	$363.00
F76	176	Privacy	$337.00	$377.00
	205	Double Dummy	$209.00	$249.00
	211	Single Dummy	$171.00	$211.00

Rose Option

CODE	DESCRIPTION	LOCK ADJUSTMENT
_	Round Rose	N/C
SR	Square Rose	$14.00

Notes:

• 1 Finishes 605, 606 and 612, consult factory for lead-time.
• 2 619 shown for reference only. PDQ offers full stainless steel levers, ball knobs, roses, collars and escutcheons which comply with ANSI/BHMA Finish 630. Specify 630 in lieu of 619.

Trim - Round Rose

PHILADELPHIA — PJ

DALLAS — DJ

BOSTON — BJ

MEMPHIS — TJ (Specify handing)

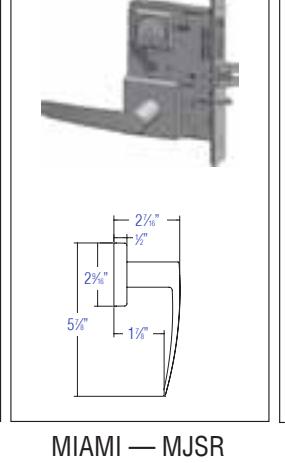

MIAMI — MJ

ORLANDO — OJ (Specify handing)

CHICAGO — CJ

LOS ANGELES — LJ (Specify handing)

BALL KNOB — KJ

Trim - Square R ose

PHILADELPHIA — PJ BOSTON — BJ MIAMI — MJ CHICAGO — CJ

DALLAS — DJ

MEMPHIS — TJ (Specify handing)

ORLANDO — OJ (Specify handing)

LOS ANGELES — LJ (Specify handing)

BALL KNOB — KJ

Options

CODE	DESCRIPTION	PART LIST PRICE
AM*	Antimicrobial Coating, Lever Set Includes Inside and Outside Lever and Rose	$60.00

^* Parts discount applies

Extra Heavy Duty Grade 1 Cylindrical Locks

More Heavy Duty Than You Can Handle

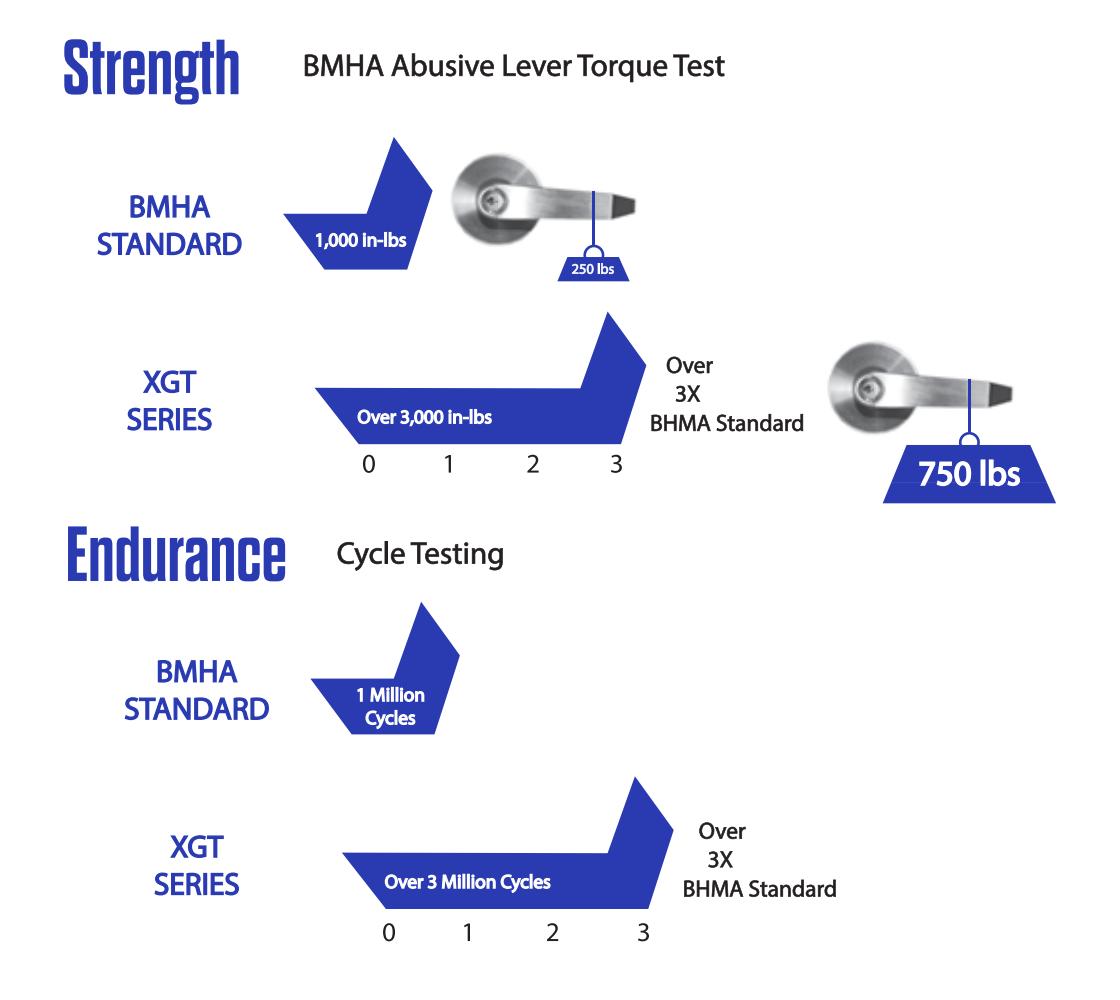

Most manufacturers' approach to lock design ends with simply meeting BHMA/ANSI standards but not PDQ. Our philosophy is to step out of the box and develop innovative designs that take our locks to the next level. We don't just meet the standard, we crush it. Our design doctrine delivers the confi dence that locks are built to last, whether the application calls for resistance to high abuse or to millions of cycles of operation without any degradation in performance

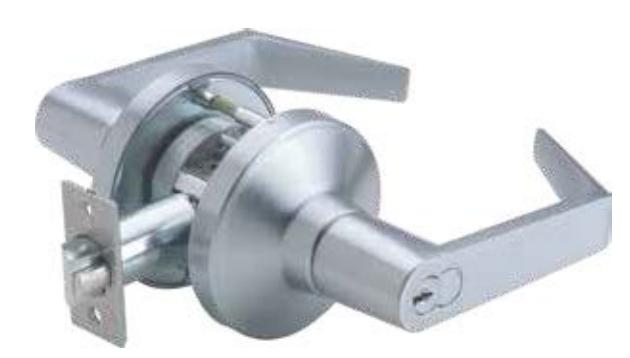

XGT/GT Mechanical

XGT/GT199A Electro-Mechanical

GTS, GTS-XLS pdqSMART Electronic

Applications

High traffi c doors, areas subject to severe abuse, K-12, higher education, Healthcare, public buildings and retro-fi t applications. — p. 45, 55

Applications

Stairwell towers, tenant spaces, pharmacies, computer rooms and high security areas. — p. 40

Applications

pdqSMART wireless IoT access management locks complete the offering by delivering all access control system hardware components required at the door in a single integrated design. — p. 5-6

XGT/GT135LED School Security Solution

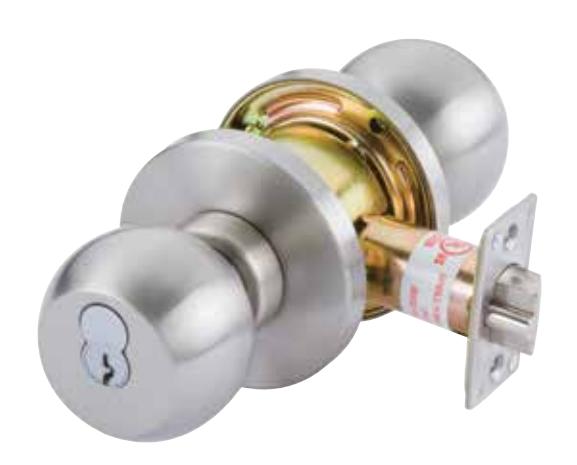

SX Ball Knob

Applications

In K-12 and higher education, indicators are part of the overall security plan. The GT135LED Classroom Intruder lock is designed to allow a staff member to use the inside cylinder to lock the outside of the door. The Intruder function eliminates the need to open the door to check for a locked lever. Simply press the button on the lock and if the red LED lights up the outside lever in locked and secure. If the LED does not light up, the outside lever is unlocked. — p. 42

Applications

High traffi c areas, Healthcare and commercial buildings. — p. 67

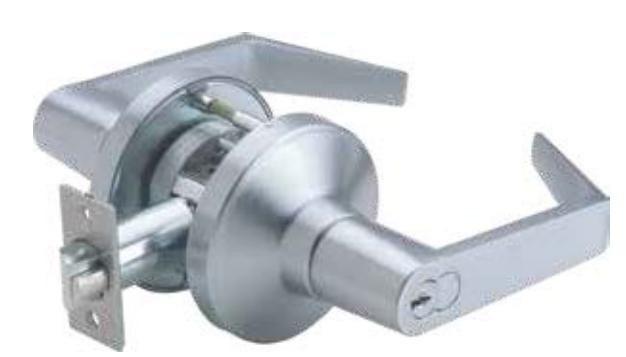

XGT/GT 199A Electrified Cylindrical Lock Grade 1 Heavy Duty

Typical Applications

• Computer Rooms
• High Security Areas
• Pharmacies
• Stairwell Towers
• Tenant Spaces

Specifications ADA COMPLIANT

HOW TO ORDER SEE PAGE 49,61.

PERFORMANCE:	• Motor drive factory tested to over1.4 million cycles (1.4 times the ANSI/BHMA grade 1 std).
RECOMMENDED POWER SUPPLY:	• PDQ Model # 81440. – Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz – Output: 24VDC, 2A, filtered and regulated. • Rated for simultaneous operation of 2ea mortise lock assemblies. • Power Supply Requirements: – AC/DC Output Voltage – 1A min (filtered and regulated). • 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec. – AC Output Voltage. • 12-24VAC (60Hz) @ < 1A initial surge (1 sec),15mA standby after 30 sec
ELECTRICAL SPECIFICATIONS:	• Input voltage: 12-24VDC or 12-24VAC. • Max In-rush current: < 1.0A. • Standby current: – 12VAC: 12mA. – 24VAC: 10mA. – 12VDC: 3mA. – 24VDC: 5mA. Note: Operating voltage at ± 10% of rated voltage.
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• ANSI/UL10C and CAN/ULC-5104 Listed for "Fire Exit Hardware" up to 3 hours for 4'0" x 8'0" maximum single, 8'0" x 8'0" maximum pairs. • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.
WARRANTY:	• 2-Years

Trim

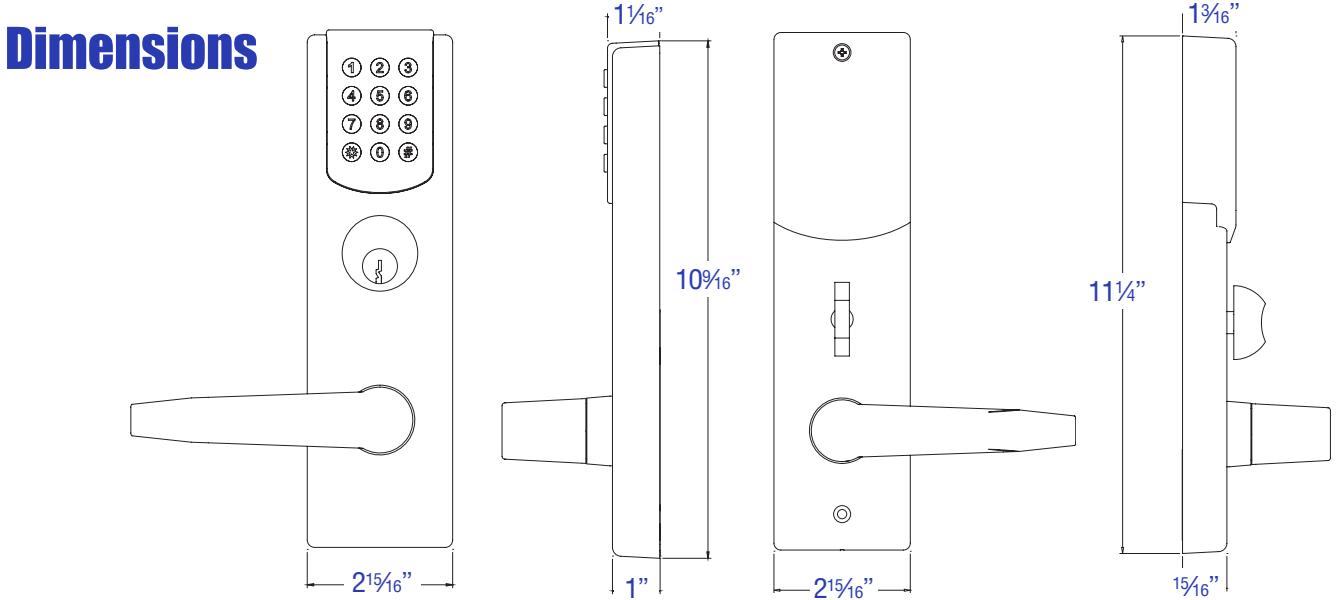

Stand-Alone Offline Keypad Cylindrical Lock

Typical Applications

• Glass Doors
• · Professional Offices within a Building
• · Server Rooms
• Side Entrance in Commercial, Retail or Office
• Utility Areas or Supply Closets

Features

• Designed for Heavy Duty Grade 1 high use and abuse applications
• Non-volatile memory. Lock programing is retained in the event of a prolonged power outage
• · Built around PDQ's World Class GT Series Cylindrical Lock Chassis
• · Backlit Stainless Steel keypad buttons standard
• Full Outdoor Standard
• · Color LED's illuminate a visual cue
• · Simple installation and programming
• Mechanical Kev override
• · 3 Hour UL Fire Listed

TO ORDER AGE 242.

re-Inck un credential is entered

Specifications

DISCONTINUED REPLACED BY PdqSMART GTS-STP Contact Customer Service for Details

the door for the configured number of seconds then relock.

a set of (4) AA alkaline batteries (not included).

Option K) models require programming at the lock.

rull outdoor standard - both sides can be exposed to weather.

OPERATING TEN 201

FOR DOORS: DOOR PREP:

• 1-3/4" standard, 2-1/4" available Specify when ordering
• Standard ANSI A156.115 (161) for Cylindrical Locks, modified with additional mounting holes.

BACKSET: CHASSIS:

• 2-3/4", 2-3/8" (must be ordered as complete unit)
• · Heavy duty zinc diecast, investment cast and stainless steel mechanism.

ESCUTCHEON:

· Heavy Duty cast alloy

• 0° F to 130° F - both sides

STRIKE:

• 4-7/8" x 1-1/4" (ASA) is standard. Other options available are the 'T' or 'FL', specify when ordering. All Strikes are non-handed and have a base material of stainless steel or brass.

LATCHBOLT:

• 9/16" throw with dead latch standard, 2-1/4" x 1-1/8" Stainless Steel or Brass front: Beveled 1/8" on 2" door,

LEVERS:

• Handed – field reversible Specify when ordering

KEYS:

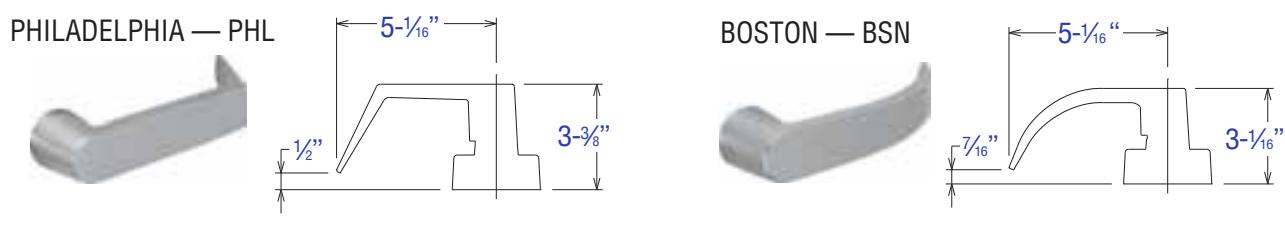

• PHL, BSN or MIA levers are solid zinc diecast. 41° lever rotation.

• 2 keys per lock

KEYWAYS:

· Available in keyways of most major manufacturers

INTERCHANGEABLE CORE:

• Best compatible SFIC 6 and 7 pin or Schlage compatible LFIC

KEYING:

FINISHES:

Can be MK, CMK, GMK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers.

• 605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 626 Satin Chrome, 626 Satin Chrome

CERTIFICATIONS, LISTINGS. COMPLIANCES:

• UL listed for "Fire Exit Hardware" labeled for to 3 hrs, single swing doors 4'0" x 8"0" • FCC part 15

PCB RoHS compliant

WARRANTY: COUNTRY OF ORIGIN:

• · 24 months from date of manufacture
• Proudly assembled in the USA. This product meets the requirements of the Buy American Act.

YOUR SCHOOL IS IN LOCKDOWN. ARE Y OUR KIDS SAFE?

KNOW FOR CERTAIN THAT YOUR CLASSROOM IS SECURE

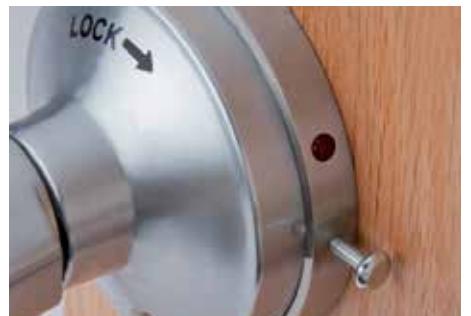

Our easy-to-read LED indicator confirms the door is locked

X GT/GT135LED School Security

Solutions

OUTSIDE LEVER UNLOCKED TO CHECK THE SECURITY OF THE OUTSIDE LEVER, PRESS THE BUTTON. IF THE RED LED LIGHTS UP, THAT CONFIRMS THE OUTSIDE LEVER IS LOCKED AND SECURE.

Status Indicator Locks

GT135LED GT135 GT145

Easy-to-Read LED Indicator Confirms the Door is Locked.

XGT/GT 135 LED Classroom Intruder Cylindrical Lock is designed to allow a staff member to use the inside cylinder to lock the outside of the door, without compromising safety to the occupants in the room. But how does a staff member know if the outside lever is locked?

Until now, it required opening the door and checking the lever. PDQ's 135 LED Classroom Intruder function eliminates the need to open the door. Simply press the button on the lock, and…if the Red LED lights up, the outside lever is locked and secure. If the Red LED does not light up, this indicates the outside lever is not locked and secure.

Features

• Complies with California Education Code (Functions GT135, GT135LED, GT145)
• Red LED (Light Emitting Diode) outside lever status indicator.
• Pushing the button located on the rose of the inside lock, Red LED illuminates indicating the outside lever is locked.
• Offered with cylinder housings compatible with Best® Small Format Inter-changeable cores, Schlage® Large Format Interchangeable cores and most others.
• Large Format Inter-changeable cores only available with PHL lever.
• Keying options available, compatible with most key systems.
• Battery life rating: 10 years*
• Battery type: CR1220
• Patented (US Patent #9,187,928)
• Factory tested to over 2 million cycles (2 times the ANSI/BHMA Grade 1 std)
• Lever torque tested to 2,100 in-lbs (3 times the ANSI/BHMA Grade 1 std)

Time Out Lock

Time Out Locks

GT173

School Security Functions

Vestibule Class Room Security with LED Status Indicator

Vestibule Class Room Security without LED Status Indicator

Vestibule Class Room Security with Lock Directional Arrow (No LED Indicator)

XGT — World Class Performance. Made in the USA

41° Lever Rotation

Longer Life • Reduced rotation

Less wear and tear

Quicker and Easier Operation

A flick of the wrist is all it takes

High Security Cylinders

• Standard High Security Cylinder
• UL 437 High Security Cylinder

Grade 1 Super Heavy Duty Cylindrical Lock

Typical Applications

• Federal and State Government
• Healthcare
• Higher Education
• Hospitality
• Houses of Worship
• Industrial
• K-12 Education
• Offices
• Public Buildings

Specifications

Specifications ADA COMPLIANT
• 1-3/4" to 2-1/4" thick • Preset for 1-3/4" door
• Through door thru-bolting
• Standard ANSI A156.115 (161) for Cylindrical Locks
• 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional (Ordered from factory only). • Heavy duty zinc diecast, investment cast, chromated cold rolled steel, stainless steel and EZAC™ diecast mechanism. Billet Steel spindles for locking functions
• 2-1/4" x 1-1/8" • Stainless Steel or Wrought Brass • Beveled 1/8" in 2"
• ASA standard • T-Strike or Full Lip Strike optional • Stainless Steel or Wrought Brass
• Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL)
• 3-3/8" DIA Wrought
• 9/16" Throw Deadlocking • 3/4" Latch projection for available as option.
• Non-handed
• Solid Zinc diecast PHL, BSN or MIA Levers • 41° Lever Rotation Standard with 2-3/4" Backset • Wrought Brass Roses, Concealed Screws • 65° Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only
• Two (2) per Lock
• SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers
• Available for all keyed functions • 6 or 7-pin • Large Format IC Core available for PHL Lever ONLY. • Compatible with Best, Falcon and Arrow.
• 6-pin Brass Insert Cylinder keyed to 5-pins • Standard High Security and UL437 Cylinders Available
• Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
• 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only‡
• UL listed for 3 hrs, for single doors up to 4'0" x 8'0" • Certified to ANSI/BHMA A156.2, Grade 1 • California Education Code Compliant (Functions XGT135, XGT135LED, XGT145) • Federal Specification FF-H-10C (Superseded by A156.2) • Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
• Limited Lifetime Warranty
• Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

‡ Available with antimicrobial powder coating, treated with silver ionic technology that is known to inhibit the growth of microbes.

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			NON KEYED
Passage / Closet	XGT126™		Latchbolt operated by lever from either side at all times	F75
Time Out Lock	XGT173		Latchbolt by lever from either side unless push button on outside is depressed. Lock returns to passage mode upon release of push button. Inside lever locked only when pushing button on outside lever. Inside lever unlocked by emergency release of button from outside.	_
Hospital Privacy	XGT175		Latchbolt operated by lever from either side or emergency turn piece in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency turn piece from outside, rotating inside lever, or closing door	_
Privacy Bedroom / Bathroom	XGT176™		Latchbolt operated by lever from either side or emergency release in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door	F76
Patio	XGT177		Latchbolt operated by lever from either side Outside lever locked by push button on inside Outside lever unlocked by rotating inside lever, or closing door Outside lever has non-removable security features	F77
			KEYED
Storeroom	XGT115		Latchbolt operated by inside lever or key in outside lever Outside lever always fixed	F86
Entrance	XGT116		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside When outside lever is locked by push button on inside — key from outside, or rotating inside lever unlocks outside lever When outside lever is locked by pushing and turning button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever	F109
Security	XGT120		Latchbolt operated by lever from either side Key on outside locks inside lever Key on outside unlocks inside lever Outside keyed lever always free Inside lever has non-removable security features	_
Utility Asylum / Institution	XGT128		Both levers rigid Latchbolt retracted by key on both sides Can only gain entry or exit by key	F87
Exit or Twin Communicating	XGT129		Latchbolt operated by key in inside lever Inside lever always fixed Blank plate outside Minimum clearance of 1-1/2" between doors Frame depth 7-1/8"	_
Vestibule Class Room Security	XGT135		Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free	F110

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			KEYED
Vestibule Class Room Security	XGT135LED		Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free Red LED Outside Lever Status Indicator Lock Directional Arrow Patent #9,187,928	F110
Store Door	XGT137		Latchbolt operated by lever from either side Both levers locked by key from either side Both levers unlocked by key from either side	F91
Communicating	XGT141		Latchbolt operated by lever from either side Key in either side locks or unlocks its own lever independently	F80
Vestibule Class Room Security	XGT145		Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free Lock Directional Arrow"	F110
Classroom	XGT148		Latchbolt operated by lever from either side Outside lever locked by key from outside Outside lever unlocked by key from outside Inside lever always operates latch	F84
Exit or Twin Communicating	XGT150		Latchbolt operated by inside lever Blank plate outside Inside lever locked by key inside Inside lever unlocked by key inside Minimum clearance of 1-1/2" between doors Use only in rooms with more than one exit Frame depth 7-1/8"	_
Service Station	XGT155		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push button on inside When outside lever is locked by push button on inside – key from outside, rotating inside lever, or closing door unlocks outside lever When outside lever is locked by pushing and turning the slotted button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever	F92
Dormitory / Corridor	XGT165		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by key on outside or push button on inside Outside lever unlocked by key in outside lever, closing door, or rotating inside lever Inside lever always free When key is used to lock outside, button on inside is disabled	F90
Entry	XGT182		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push button on inside Outside lever unlocked by key from outside, or rotating inside lever	F82

Cross Reference

ANSI # / FUNCTION	PDQ	SARGENT	CORBIN
F75 — PASSAGE	XGT 126	11U15	CL3110
F76 — PRIVACY	XGT 176	11U65	CL3120
F82 — ENTRY	XGT 182	11G24	CL3161
F84 — CLASSROOM	XGT 148	11G37	CL3155
F86 — STORE ROOM	XGT 115	11G04	CL3157
F90 — CORRIDOR	XGT 165	11G54	CL3175
F110 — INTRUDER CLASSROOM	XGT 135	11G38	CL3152
F110 — INTRUDER CLASSROOM W/LED INDICATOR	XGT 135 LED PDQ Exclusive - Patent #9,187,928	N/A	N/A

Lever Cross Reference

PDQ	SCHLAGE		CORBIN
PHILADELPHIA — PHL	RHO		NZD
BOSTON — BSN	SPA	P Lever	PZD
MIAMI — MIA	ATH	B Lever	AZD

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

How to Order

QUANTITY	SERIES	FUNCTION	TRIM	FINISH	BACKSET	STRIKE	CYLINDER	KEYWAY	KEYING	OPTION
6	XGT	116	PHL	626	234	ASA	D	SCC	KD	_
Functions / Case	weight is 31 lb	weight is 33 lbs. It is. Non-Keyed Fun trim first, then I/S	ctions/		234 — 2-3/4" (default) 238 — 2-3/8" 234FF — Fire Rated Latch 334 — 3-3/4" 5 — 5"	ASA — ANSI/ASA (default) FL — Full Lip T — "T" Strike	D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schlage® Compatible LFIC w/Core SFL — SFIC Housing less core LFL — Schlage® Compatible LFIC Housing less core	PAG	E 51	TC1IS — Tactile Abrasive Coating - Inside only TC10S — Tactile Abrasive Coating - Outside only TC2 — Tactile Abrasive Coating - Both Sides SF — Split Finishes LL — Lead-Lined Rose DB — Dust Box AM — Antimicrobial Coating REX — Request to Exit
						PAGE 50				PAGE 52

Locksets - Standard and Interchangeable Cores

ANSI NO.	FUNCTION	DESCRIPTION	626	605/606/612 613/619/625
		NON-CYLINDER
F89	124	Exit
	125	Communicating	$472.00	$502.00
F75	126	Passage
	173	Time Out
	175	Hospital / Privacy	$532.00	φEC2.00
F76	176	Privacy	φ332.00	$562.00
F77	177	Patio / Privacy
		SINGLE CYLINDER
F86	115	Store Room
F109	116	Entrance
F84	148	Classroom	$616.00	$646.00
	150	Exit / Twin Communicating
F82	182	Office / Entry
	120	Security	$642.00	$672.00
	129	Exit / Twin Communicating	ψ042.00	ψ012.00
F92	155	Service Station	$690.00	$720.00
F90	165	Dormitory / Corridor	φυσυ.υυ	Ψ120.00
		DOUBLE CYLINDER
F87	128	Institution	$702.00	$732.00
F110	135	Classroom / Security	,	,
F110	135LED	Classroom/Security w/Red LED Outside Lever Status Indicator	$910.00	$940.00
F110	145	Classroom / Security w/Locking Direction Arrow
F91	137	Store Door	$732.00	$762.00
F80	141	Communicating
		ELECTRIFIED
	199A	Store Room	$1188.00	$1218.00

CYLINDER OPTIONS	ICON	LOCK Adjustment
D	•	N/C
SFL		IV/G
LFL	8	$10.00

Core not included see page 51 for core options

NOTES:

■ Locks will be furnished with ASA Strike & SCC Keyway unless otherwise stated

MIAMI — MIA

Backset

CODE	DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" BACKSET
234	2-3/4" Deadlocking 2-1/4" x 1-1/8"
238	2-3/8" Deadlocking 2-1/4" x 1"	N/C
	3-3/4" BACKSET
334F	2-1/4" x 1-1/8"
334	2-1/4" x 1"	$32
	5" BACKSET
5	2-1/4" x 1-1/8"	$42
	2-3/8" BACKSET
	Contact Factory for Availability

Latchbolt

Strikes

CODE	DESCRIPTION	LOCK ADJUSTMENT
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"
T	T-Strike (any finish) 1-1/8" x 2-3/4"	N/C
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"

NOTES:

ⁿ Specify finish for Strikes & Latchbolts if ordered separately

Cylinders

HIGH SECURITY CYLINDERS AND CORES

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00

NOTES:

• ⁿ Specify finish for cylinders ordered separately
• ⁿ Kwikset cylinder available in 5 pin only
• ⁿ Specify KD, KA4, or 1 bitted
• ⁿ 6 pin cylinder keyed for 5 pin

Key in Knob/Lever Cylinder

UL 437 and High Security Cylinders

Cores and Keyw ays

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic		$5.00	$5.00
LFIC CONSTRUCTION
Construction Core 6-pin only		$55.00	$80.00
IC Tailpiece Assembly	Construction cores are invoiced at shipment and credited upon return.	N/C	$7.60
LFIC COMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway
PDQ TA LFIC RESTRICTED		$55.00	$80.00
LFIC UNCOMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway	$55.00	$74.00
HIGH SECURITY IC CORES
	SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

NOTES:

• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

LFL/LFIC Schlage Format

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

Options

CODE	DESCRIPTION	PART LIST PRICE
TC1IS	Tactile Abrasive Coating - Inside only	$43.00
TC1OS	Tactile Abrasive Coating - Outside only	$43.00
TC2	Tactile Abrasive Coating - Both Sides	$86.00
LL	Lead-Lined Rose	$346.00
DB	Dust Box	$4.00
FRL	Fire Rated Latch - 3/4" Throw for double doors	$162.00
AM	Antimicrobial Coating, Lever Set Includes Inside and Outside Lever and Rose	$62.00
REX	Request to Exit	$200.00

Parts discount applies

Accessories Electrified Hinges Now Available - See Hinge Section

DESCRIPTION	PDQ NO.	PART LIST PRICE
Electric Strike for Locks (U.L. Listed)	85001	$486.00

XGT SERIES PARTS

LIST PRICE

Effective May 13, 2019

	DECONUMENT	LIST				FINISHES
	DESCRIPTION	PRICE	N/A	605	606	612	613	625	626
	Push Button For Functions GT155, GT165, GT173, GT175, GT176, GT177, GT182	$9	_	VA91302-5	VA91302-8	VA91302-3	VA91302-6	VA91302-2	VA91302-7
0	Outside Rose for All Functions, Inside Rose For All functions except GT135LED, GT145	$30	_	V32006-5	V32006-8	V32006-3	V32006-6	V32006-2	V32006-7
0	Inside Rose w/Locking Directional Arrow For Functions GT135LED, GT145	$30		VA10093-5	VA10093-8	VA10093-3	VA10093-6	VA10093-2	VA10093-7
j	"T" STRIKE SQUARE CORNERS 1-1/8" X 2-3/4" X 3/32"	$12		V919050-5	V919050-8	V919050-3	V919050-6	V919050-2	V919050-7
	ASA ANSI STRIKE 1-1/4" X 4-7/8" X 3/32"	$29	_	V91905-5	V91905-8	V91905-3	V91905-6	V91905-2	V91905-7
	"FULL LIP" STRIKE 1-5/8" X 2-1/4" X 3/32"	$11	_	V919051-5	V919051-8	V919051-3	V919051-6	V919051-2	V919051-7
	SCREW PACK - INCLUDES MOUNTING SCREWS, HEX KEY(M5 X .8) AND PICK.	$8	_	VA10030-5	VA10030-8	VA10030-3	VA10030-6	VA10030-2	VA10030-7
	SPACER — For 1-3/8" doors. Sold as a pair. To be installed as a set.	$45				V32433
	EXTENSION — Converts standard latchbolt from 2-3/4" Backset to 5"	4.10	VA21902
	EXTENSION — Converts standard latchbolt from 2-3/8" Backset to 3-3/4""	$40	VA21903
	CENTERING PLATE — 1-1/8" latch Front Filler Plate. Centers and supports latch bolt when used in hollow stile doors must be ordered with lock from factory.	$52				V21904
	DISPOSABLE CORE FOR SFIC	$6				VA10100
	TAILPIECE WITH SPRING FOR SFIC HOUSING	$8				VP92905
	TAILPIECE FOR XGT/GT/GP KEY IN KNOB CYLINDER	$2				V32106
	DUST BOX FOR "T" STRIKE					10251
	DUST BOX FOR ASA (ANSI)	$7	Y025-SBX
7	DUST BOX FOR FULL LIP STRIKE		I0251R
	Boring Jig — Locates off 2-1/8" bore to drill 5/16"DIA anti-rotation through-bolts	$70				V11225
	LEVER RETURN SPRING	$3				V32015-1 V32015-2 V32015-3
	FIRE RATED LATCH— 3/4" throw for double doors	$162*			V	91904-711D	D

Parts discount applies

*Available in 626 only. 1-1/8" faceplate-lock must be 2-3/4" Backset.

XGT SERIES PARTS

LIST PRICE

Effective May 13, 2019

REPLACEMENT	DESCRIPTION	LIST			FINISHES			LIST	FINISH
LEVERS	DESCRIPTION	PRICE	605	606	612	613	625	PRICE	626
	Non-Cylinder Plain		V32319-5	V32319-8	V32319-3	V32319-6	V32319-2		V32319-7
0	Non-Cylinder with button lock		V32321-5	V32321-8	V32321-3	V32321-6	V32321-2		V32321-7
	Conventional Key in Knob/Lever		V32310-5	V32310-8	V32310-3	V32310-6	V32310-2		V32310-7
BOSTON	Small Format Interchangeable Core		V32327-5	V32327-8	V32327-3	V32327-6	V32327-2		V32327-7
	Non-Cylinder Plain		V32361-5	V32361-8	V32361-3	V32361-6	V32361-2		V32361-7
	Non-Cylinder with button lock	$108	V32360-5	V32360-8	V32360-3	V32360-6	V32360-2		V32360-7
	Conventional Key in Knob/Lever		V32362-5	V32362-8	V32362-3	V32362-6	V32362-2	$98	V32362-7
MIAMI	Small Format Interchangeable Core		V32364-5	V32364-8	V32364-3	V32364-6	V32364-2		V32364-7
	Non-Cylinder Plain		V32305-5	V32305-8	V32305-3	V32305-6	V32305-2		V32305-7
	Non-Cylinder with button lock		V32307-5	V32307-8	V32307-3	V32307-6	V32307-2		V32307-7
	Conventional Key in Knob/Lever		V32306-5	V32306-8	V32306-3	V32306-6	V32306-2		V32306-7
	Small Format Interchangeable Core		V32322-5	V32322-8	V32322-3	V32322-6	V32322-2		V32322-7
PHILADELPHIA	Large Format Interchangeable Core								V32427-7

Parts discount applies

LATCHBOLTS	DESCRIPTION	LIST	FINISHES
LAIUNDULIS	DESCRIPTION	PRICE	605	606	612	613	625	626
	Standard Latchbolt With Dead Latch 2-3/8" Backset, 1/2" Throw for locking functions. Faceplate: 2-1/4" X 1-1/8", Square Corners. See note 1.	$80	V91904-521	V91904-821	V91904-321	V91904-621	V91904-221	V91904-721
	Standard Latchbolt With Dead Latch 2-3/4" Backset, 9/16" Throw for all functions. Faceplate: 2-1/4" X 1-1/8", Square Corners	$92	V91904-511	V91904-811	V91904-311	V91904-611	V91904-211	V91904-711
	Latchbolt With DeadLatch For Double Doors 2-3/4" Backset, 3/4" Throw Faceplate: 2-1/4" X 1-1/8", Square Corners	$185	V91904-511DD	V91904-811DD	V91904-311DD	V91904-611DD	V91904-211DD	V91904-711DD

Note: Replacement latch for 3-3/4" Backset applications when used with V21902 extension or factory assembled locks with 2-3/8" Backset. NOT INTENDED FOR FIELD RETROFIT.

Grade 1 Extra Heavy Duty Cylindrical Lock

Typical

• Federal and State Government
• Healthcare
• Higher Education
• Hospitality
• · Houses of Worship
• Industrial
• K-12 Education
• Offices
• Public Buildings

Cnacifications

CYLINDER: • 6-pin Brass Insert Cylinder keyed to 5-pins • Standard High Security and UL437 Cylinders Available • Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only‡ • UL listed for 3 hrs, for single doors up to 4'0" x 8'0" • Certified to ANSI/BHMA A156.2, Grade 1 • California Education Code Compliant (Functions GT135, GT135LED, GT145) • Endead Compliant (Functions GT135, GT135LED, GT145)	Specification	C CERTIFIED ADA COMPLIANT
BACKSET: - 2-3/4" Standard ANSI A156.115 (161) for Cylindrical Locks BACKSET: - 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional (Ordered from factory only). - Blavy duty zinc diesast, investment cast, chromated cold rolled steel, stainless steel and EZAC™ diecast mechanism. Billet Steel spindles for locking functions - PRONT: - 2-1/4" x 1-1/8" - Stainless Steel or Wrought Brass - Beveled 1/8" in 2" - STRIKE - ASA standard - T-Strike or Full Lip Strike optional - Stainless Steel or Wrought Brass - Philadelphia, Boston, Miami - ROSE: - 3-3/8" DIA Wrought - AND: - Non-handed - Non-handed - Non-handed - Non-handed - Solid Zinc diecast PHL, BSN or MIA Levers - 41" Lever Rotation Standard with 2-3/4" Backset - Wrought Brass Roses, Concealed Screws - 65" Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets - Wrought Brass Roses, Concealed Screws - 65" Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets - Wrought Brass Roses, Concealed Screws - 65" Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets - Wrought Brass Roses, Concealed Screws - 65" Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets - Time (2) per Lock - XEYS - XEC standard (Schlage C Compatible) - Also available in keyways of other manufacturers - Available for all keyed functions - Available for all keyed functions - Available for all keyed functions - CYLINDER: - Approved for Findia Hyth (1) (Findia Kyole Different (KD) or Keyed Allike (KA) Can be keyed into existing master key systems - FINISHES: - Options: MK, CMK or GMK - Zero Bitted (KO), Keyed Different (KD) or Keyed Allike (KA) Can be keyed into existing master key systems - CERTIFICATIONS, - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible a	FOR DOORS:	• 1-3/4" to 2-1/4" thick • Preset for 1-3/4" door
CHASSIS: - 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional (Ordered from factory only). CHASSIS: - Heavy duty zinc diecast, investment cast, chromated cold rolled steel, stainless steel and EZAC™ diecast mechanism. Billel Steel spindles for locking functions - 2-1/4" x 1-1/8" - Stainless Steel or Wrought Brass - Beveled 1/8" in 2" STRIKE - ASA standard - T-Strike or Full Lip Strike optional - Stainless Steel or Wrought Brass - Philadelphia, Boston, Miami - Philadelphia, Boston, Miami - Philadelphia, Boston, Miami - Philadelphia, Boston, Miami - 9/16" Throw Deadlocking - 3/4" Latch projection for available as option. HAND: - Non-handed - Solid Zinc diecast PHL, BSN or MIA Levers - 41" Lever Rotation Standard with 2-3/4" Backset - 41" Lever Rotation Standard with 2-3/4" Backset - Wrought Brass Roses, Concealed Screws - 65" Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only) - Two (2) per Lock - Two (2) per Lock - Two (2) per Lock - Vavilable for all keyed functions - 6 or 7-pin - Large Format IC Core available for PHL Lever ONLY. - Compatible with Best, Falcon and Arrow. - CYLINDER: - Available for all keyed functions - 6 or 7-pin - Large Format IC Core available for PHL Lever ONLY. - Compatible with Best, Falcon and Arrow. - Certified to ANSI/BHMM A 156.2, Grade 1 - Celtified to ANSI/BHMM A 156.2, Grade 1 - California Education Code Compilant (Functions GT135, GT135LED, GT145) - Federal Specification FF-H-10C (Superseded by A156.2) - Approved for Florida HVHZ (High Velocity Hurricane Zone), PDQ Product Approval: FL 21376 Design load rating: - 7.0.0 PSF for sringle doors (3" X") - Complies with ADA (Americans with Disabilities Act) and ICCANSI 117.1 for Accessible and Usable Buildings	APPLICATION:	Through door thru-bolting
Heavy duty zinc diecast, investment cast, chromated cold rolled steel, stainless steel and EZAC™ diecast mechanism. Billet Steel spindles for locking functions 2-1/4" x 1-1/8" • Stainless Steel or Wrought Brass • Beveled 1/8" in 2" ASA standard • T-Strike or Full Lip Strike optional • Stainless Steel or Wrought Brass • Philadelphia, Boston, Miami ROSE: • 3-3/8" DIA Wrought LATCHBOLT: • 9/16" Throw Deadlocking • 3/4" Latch projection for available as option. HAND: • Non-handed • Solid Zinc diecast PHL, BSN or MIA Levers • 41" Lever Rotation Standard with 2-3/4" Backset • Wrought Brass Roses, Concealed Screws • 65" Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only) • Two (2) per Lock • Yever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only) • SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers • Available for all keyed functions • 6 or 7-pin • Large Format IC Core available for PHL Lever ONLY. • Compatible with Best, Falcon and Arrow. • 6-pin Brass Insert Cylinder keyed to 5-pins • Standard High Security and UL 437 Cylinders Available • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only‡ • Certified to ANS/BHIMA A156.2, Grade 1 • California Education Code Compliant (Functions GT135, GT135LED, GT145) • Federal Specification FF-H-10C (Superseeded by A156.2) • Approved for Florida HVHZ (High Velocity Hurricane Zone), PDQ Product Approval: FL 21376. Design load arting: * 70.0 PSF for single doors or 3 x 7' • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	DOOR PREP:	Standard ANSI A156.115 (161) for Cylindrical Locks
FRONT: • 2-1/4" x 1-1/8" • Stainless Steel or Wrought Brass • Beveled 1/8" in 2" • STRIKE • ASA standard • T-Strike or Full Lip Strike optional • Stainless Steel or Wrought Brass • Philadelphia, Boston, Miami • 3-3/8" DIA Wrought • 9/16" Throw Deadlocking • 3/4" Latch projection for available as option. • Non-handed • Solid Zinc diseast PHL, BSN or MIA Levers • 41" Lever Notation Standard with 2-3/4" Backset • Wrought Brass Roses, Concealed Screws • 65° Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only • SCC Standard (Schlage C Compatible) • Also available in keyways of other manufacturers • Available for all keyed functions • 6 or 7-pin • Large Format IC Core available for PHL Lever ONLY. • Compatible with Best, Falcon and Arrow. • Spin Brass Insert Cylinder keyed to 5-pins • Standard High Security and UL437 Cylinders Available • Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems • CERTIFICATIONS, STINGS, COMPLIANCES: • OSO (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only‡ • UL listed for 3 hrs, for single doors up to 4"0" x 8"0" • Certified to ANS/BHIMA A156.2, Grade 1 • California Education Code Compliant (Functions G1135, G1135LED, G1145) • Federal Specification FF-H-10C (Superseded by A156.2) • Approved for Florida HVHZ (High Velocity Hurricane Zone), PDQ Product Approval: FL 21376. • Design Load arting: ‡ 70.0 PSF for single doors with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	BACKSET:	• 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional (Ordered from factory only).
STRIKE - ASA standard - T-Strike or Full Lip Strike optional - Stainless Steel or Wrought Brass - Philadelphia, Boston, Miami - ROSE: - 3-3/8" DIA Wrought - LATCHBOLT: - 9/16" Throw Deadlocking - 3/4" Latch projection for available as option. - Non-handed - Non-handed - Solid Zinc diecast PHL, BSN or MIA Levers - 41" Lever Rotation Standard with 2-3/4" Backset - Wrought Brass Roses, Concealed Screws - 65" Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only - Two (2) per Lock - SCC standard (Schlage C Compatible) - Also available in keyways of other manufacturers - Tricklangeable Core: - Available for all keyed functions - 6 or 7-pin - Large Format IC Core available for PHL Lever ONLY Compatible with Best, Falcon and Arrow. - CYLINDER: - 6-pin Brass Insert Cylinder keyed to 5-pins - Standard High Security and UL437 Cylinders Available - KEYING: - Options: MK, CMK or GMK - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems - FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) - Optional Antimicrobial Coating 626 (USD26D) only‡ - UL listed for 3 hrs, for single doors up to 4"0" x 8"0" - Certified to ANS/JSHMA A156.2, Grade 1 - California Education Code Compliant (Functions G1135, G1135LED, G1145) - Federal Specification FF-H-10C (Superseded by A156.2) - Approved for Florida HWHz (High Velocity Hurricane Zone), PDQ Product Approval: FL 21376 Design load arting: ± 70.0 PSF for single door (3" x"7) - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	CHASSIS:
ROSE:	FRONT:	• 2-1/4" x 1-1/8" • Stainless Steel or Wrought Brass • Beveled 1/8" in 2"
ROSE: - 3-3/8" DIA Wrought - 9/16" Throw Deadlocking - 9/4" Latch projection for available as option. - Non-handed - Non-handed - Non-handed - Solid Zinc diecast PHL, BSN or MIA Levers - 41° Lever Rotation Standard with 2-3/4" Backset - Wrought Brass Roses, Concealed Screws - 65° Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only) - Two (2) per Lock - Two (2) per Lock - Two (2) per Lock - SCC standard (Schlage C Compatible) - Also available in keyways of other manufacturers - Available for all keyed functions - 6 or 7-pin - Large Format IC Core available for PHL Lever ONLY Compatible with Best, Falcon and Arrow. - CYLINDER: - 6-pin Brass Insert Cylinder keyed to 5-pins - Standard High Security and UL437 Cylinders Available - Options: MK, CMK or GMK - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems - FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) - Optional Antimicrobial Coating 626 (USD26D) only‡ - UL listed for 3 hrs, for single doors up to 4"0" x 8"0" - Certified to ANSI/BHMA A156.2, Grade 1 - California Education Code Compliant (Functions GT135, GT135LED, GT145) - Federal Specification FF-H-10C (Superseded by A156.2) - Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376 Design load rating: ± 70.0 PSF for single door (3" x 7") - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	STRIKE	• ASA standard • T-Strike or Full Lip Strike optional • Stainless Steel or Wrought Brass
HAND: Non-handed Non-handed Solid Zinc diecast PHL, BSN or MIA Levers 41º Lever Rotation Standard with 2-3/4" Backset Wrought Brass Roses, Concealed Screws 65º Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only) KEYS: Two (2) per Lock KEYWAYS SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers SCYLINDER: Available for all keyed functions 6 or 7-pin Large Format IC Core available for PHL Lever ONLY. CYLINDER: 6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available KEYING: Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems FINISHES: 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA A156.2, Grade 1 California Education Code Compliant (Functions GT135, GT135LED, GT145) Federal Specification FF-H-10C (Superseded by A156.2) Approved for Florida HYHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	LEVERS:	Philadelphia, Boston, Miami
HAND: Non-handed Solid Zinc diecast PHL, BSN or MIA Levers 41° Lever Rotation Standard with 2-3/4" Backset Wrought Brass Roses, Concealed Screws 65° Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only) KEYS: Two (2) per Lock SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers Available for all keyed functions 6 or 7-pin Large Format IC Core available for PHL Lever ONLY. CYLINDER: 6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available KEYING: Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems FINISHES: Obs (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANS//BHMA A156.2, Grade 1 California Education Code Compliant (Functions GT135, GT135LED, GT145) Federal Specification FF-H-10C (Superseded by A156.2) Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	ROSE:	• 3-3/8" DIA Wrought
**Solid Zinc diecast PHL, BSN or MIA Levers	LATCHBOLT:	• 9/16" Throw Deadlocking • 3/4" Latch projection for available as option.
TRIM:	HAND:	Non-handed
**SCC standard (Schlage C Compatible)	TRIM:	41° Lever Rotation Standard with 2-3/4" Backset Wrought Brass Roses, Concealed Screws 65° Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets
Available for all keyed functions	KEYS:	• Two (2) per Lock
• Large Format IC Core available for PHL Lever ONLY. • Compatible with Best, Falcon and Arrow. • CYLINDER: • 6-pin Brass Insert Cylinder keyed to 5-pins • Standard High Security and UL437 Cylinders Available • Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only‡ • UL listed for 3 hrs, for single doors up to 4'0" x 8'0" • Certified to ANSI/BHMA A156.2, Grade 1 • California Education Code Compliant (Functions GT135, GT135LED, GT145) • Federal Specification FF-H-10C (Superseded by A156.2) • Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	KEYWAYS	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
**EYING: Options: MK, CMK or GMK ** Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems **FINISHES: ** 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) ** Optional Antimicrobial Coating 626 (USD26D) only‡ **UL listed for 3 hrs, for single doors up to 4'0" x 8'0" **Certified to ANSI/BHMA A156.2, Grade 1 **California Education Code Compliant (Functions GT135, GT135LED, GT145) **Federal Specification FF-H-10C (Superseded by A156.2) **Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') **Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	INTERCHANGEABLE CORE:
FINISHES: • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only‡ • UL listed for 3 hrs, for single doors up to 4'0" x 8'0" • Certified to ANSI/BHMA A156.2, Grade 1 • California Education Code Compliant (Functions GT135, GT135LED, GT145) • Federal Specification FF-H-10C (Superseded by A156.2) • Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	CYLINDER:	• 6-pin Brass Insert Cylinder keyed to 5-pins • Standard High Security and UL437 Cylinders Available
UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA A156.2, Grade 1 California Education Code Compliant (Functions GT135, GT135LED, GT145) Federal Specification FF-H-10C (Superseded by A156.2) Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	KEYING:	• Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
Certified to ANSI/BHMA A156.2, Grade 1 California Education Code Compliant (Functions GT135, GT135LED, GT145) Federal Specification FF-H-10C (Superseded by A156.2) Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7') Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings	FINISHES:	• 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating 626 (USD26D) only‡
WARRANTY: • Twenty-five (25) year Limited Warranty	CERTIFICATIONS, Listings, compliances:	Certified to ANSI/BHMA A156.2, Grade 1 California Education Code Compliant (Functions GT135, GT135LED, GT145) Federal Specification FF-H-10C (Superseded by A156.2) Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7')
	WARRANTY:	Twenty-five (25) year Limited Warranty
COUNTRY OF ORIGIN: • Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.	COUNTRY OF ORIGIN:	Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

^‡ Available with antimicrobial powder coating, treated with silver ionic technology that is known to inhibit the growth of microbes.

GT — Tough, Dependable. Made in the USA

41° Lever Rotation

Longer Life

• Reduced rotation
• · Less wear and tear

Quicker and Easier Operation

A flick of the wrist is all it takes

High Security

• Standard High Security Cylinder
• UL 437 High Security Cylinder

437 Available

Strength BMHA Abusive Lever Torque Test BMHA 1,000 in-lbs STANDARD Over GT SERIES Over 2,000 in-lbs BHMA Standard 0 1 2 500 lbs Endurance Cycle Testing BMHA 1 Million STANDARD Cycles Over GT 3X SERIES Over 3 Million Cycles BHMA Standard 3 0 2

GT SERIES

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			NON KEYED
Exit	GT124		Latchbolt operated by inside lever at all times Outside lever always fixed Outside lever has non-removable security features	F89
Communicating	GT125		Latchbolt operated by inside lever Blank plate outside Minimum clearance of 1-1/2" between doors Frame depth 7-1/8"	_
Passage / Closet	GT126™		Latchbolt operated by lever from either side at all times	F75
Time Out Lock	GT173		Latchbolt by lever from either side unless push button on outside is depressed. Lock returns to passage mode upon release of push button. Inside lever locked only when pushing button on outside lever. Inside lever unlocked by emergency release of button from outside.	_
Hospital Privacy	GT175		Latchbolt operated by lever from either side or emergency turn piece in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency turn piece from outside, rotating inside lever, or closing door
Privacy Bedroom / Bathroom	GT176™		Latchbolt operated by lever from either side or emergency release in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door	F76
Patio	GT177		Latchbolt operated by lever from either side Outside lever locked by push button on inside Outside lever unlocked by rotating inside lever, or closing door Outside lever has non-removable security features	F77
Double Dummy	GT205		Pull lever both sides No mechanical operation	_
Single Dummy	GT211		Pull lever one side No mechanical operation	_

INDICATES RIGID LEVER

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			KEYED
Storeroom	GT115		Latchbolt operated by inside lever or key in outside lever Outside lever always fixed	F86
Entrance	GT116		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever When outside lever is locked by pushing and turning button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever	F109
Security	GT120		Latchbolt operated by lever from either side Key on outside locks inside lever Key on outside unlocks inside lever Outside keyed lever always free Inside lever has non-removable security features	-
Utility Asylum / Institution	GT128		Both levers rigid Latchbolt retracted by key on both sides Can only gain entry or exit by key	F87
Exit or Twin Communicating	GT129		Latchbolt operated by key in inside lever Inside lever always fixed Blank plate outside Minimum clearance of 1-1/2" between doors Frame depth 7-1/8"	_
Vestibule Class Room Security	GT135		Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free	F110
Vestibule Class Room Security	GT135LED		Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free Red LED Outside Lever Status Indicator Lock Directional Arrow Patent # 9,187,928	F110
Store Door	GT137		Latchbolt operated by lever from either side Both levers locked by key from either side Both levers unlocked by key from either side	F91
Communicating	GT141		Latchbolt operated by lever from either side Key in either side locks or unlocks its own lever independently	F80
Vestibule Class Room Security	GT145		Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free Lock Directional Arrow"	F110

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			KEYED
Classroom	GT148		Latchbolt operated by lever from either side Outside lever locked by key from outside Outside lever unlocked by key from outside Inside lever always operates latch	F84
Exit or Twin Communicating	GT150		Latchbolt operated by inside lever Blank plate outside Inside lever locked by key inside Inside lever unlocked by key inside Minimum clearance of 1-1/2" between doors Use only in rooms with more than one exit Frame depth 7-1/8"	_
Service Station	GT155		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push button on inside When outside lever is locked by push button on inside – key from outside, rotating inside lever, or closing door unlocks outside lever When outside lever is locked by pushing and turning the slotted button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever	F92
Dormitory / Corridor	GT165		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by key on outside or push button on inside Outside lever unlocked by key in outside lever, closing door, or rotating inside lever Inside lever always free	F90
Entry	GT182		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push button on inside Outside lever unlocked by key from outside	F82
Electrified Storeroom	GT199A		Key outside retracts latchbolt Latchbolt operated by lever from inside Auxiliary latch deadlocks latchbolt Fail safe—latchbolt operated by lever from outside unless electrically locked Fail secure—latchbolt operated by lever from outside when electrically unlocked Accepts 12VDC@.6A, 12VAC@.6A, 24VDC@.3A and 24VAC@.3A Furnished with 6" wire leads	_

Cross Reference

ANSI # / FUNCTION	PDQ	BEST	CORBIN	DORMA	FALCON T SERIES	HAGER	MARKS 95 SERIES	SARGENT	SCHLAGE	YALE
F75 PASSAGE	GT 126	93K N	CL3310	C810	101	3410	N	10U15	ND10S	5401LN
F76 PRIVACY	GT 176	93K L	CL3320	C840	301	3440	L	10U65	ND40S	5402LN
F82 ENTRY	GT 182	93K A	CL3361	C850	501	3450	A	10G24	ND50PD	5404LN
F109 ENTRANCE	GT 116	93K AB	CL3351	C853	N/A	3453	N/A	10G05	ND53PD	5404LN
F84 CLASSROOM	GT 148	93K R	CL3355	C870	561	3470	S	10G37	ND70PD	5408LN
F86 STORE ROOM	GT 115	93K D	CL3357	C880	581	3480	F	10G04	ND80PD	5405LN
F90 CORRIDOR	GT 165	93K KT	CL3375	C873	571	3473	Т	10G54	ND73PD	5422LN
F110 INTRUDER CLASS- ROOM	GT 135	93K IN	CL3352	C877	381	3495	DB	10G38	ND95PD	5418LN
F110 INTRUDER CLASSROOM W/LED INDICATOR	GT 135 LED PDQ Exclusive - Patent #9,187,928	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
SINGLE DUMMY	GT 211	93K 1DT	CL3350	C801	12	3417	DO	10U93	ND170	5455LN

Lever Cross Reference

PDQ	BEST	CORBIN	DORMA	FALCON	HAGER	MARKS	SARGENT	SCHLAGE	YALE
PHL — PHILADELPHIA	15	NZD	LR	D	WTS	195	L Lever	RH0	AU
BOSTON — BSN	14	PZD	LC	Q	ARC	295	P Lever	SPA	PB
MIAMI — MIA	16	AZD	LG	А	AUS	495	B Lever	ATH	MO

BOSTON — BSN

MIAMI — MIA

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

How to Order

QUANTITY	SERIES	FUNCTION	TRIM	FINISH	BACKSET	STRIKE	CYLINDER	KEYWAY	KEYING	OPTION
6	GT	150	PHL	626	234	ASA	D	SCC KD		_
Functions / Cas	e weight is 31	ase weight is 33 ll I Ibs. Non-Keyed J/S trim first, ther	Functions		234 — 2-3/4" (default) 238 — 2-3/8" 234FF — Fire Rated Latch 334 — 3-3/4" 5 — 5"	ASA — ANSI/ASA (default) FL — Full Lip T — "T" Strike	D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schlage® Compatible LFIC w/Core SFL — SFIC Housing less core LFL — Schlage® Compatible LFIC Housing less core	PAG	E 63	TC1IS — Tactile Abrasive Coating - Inside only TC1OS — Tactile Abrasive Coating - Outside only TC2 — Tactile Abrasive Coating - Both Sides SF — Split Finishes LL — Lead-Lined Rose DB — Dust Box AM — Antimicrobial Coating REX — Request to Exit
						PAG	E 62			PAGE 64

Locksets - Standard and Interchangeable Cores

ANSI NO.	FUNCTION	DESCRIPTION	626	605/606/612 613/619/625
		NON-CYLINDER
F89	124	Exit
	125	Communicating	$412.00	$442.00
F75	126	Passage
	173	Time Out
	175	Hospital / Privacy	$472.00	$502.00
F76	176	Privacy	φ472.00	φ302.00
F77	177	Patio / Privacy
	205	Double Dummy	$286.00	$316.00
	211	Single Dummy	$177.00	$207.00
		SINGLE CYLINDER
F86	115	Store Room
F109	116	Entrance
F84	148	Classroom	$556.00	$586.00
	150	Exit / Twin Communicating
F82	182	Office / Entry
	120	Security	$582.00	фС12 OO
	129	Exit / Twin Communicating	$302.00	$612.00
F92	155	Service Station	$630.00	$660.00
F90	165	Dormitory / Corridor	$030.00	φ000.00
		DOUBLE CYLINDER
F87	128	Institution	$642.00	$672.00
F110	135	Classroom / Security	$042.00	$072.00
F110	135LED	Classroom/Security w/Red LED Outside Lever Status Indicator	$850.00	$880.00
F110	145	Classroom / Security w/Locking Direction Arrow
F91	137	Store Door	$672.00	$702.00
F80	141	Communicating
		ELECTRIFIED
	199A	Store Room	$1128.00	$1158.00

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
D	•	N/C
SFL		N/C
LFL	8	$10.00

Core not included see page 63 for core options

NOTES:

■ Locks will be furnished with ASA Strike & SCC Keyway unless otherwise stated

MIAMI — MIA

Backset

CODE	DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" BACKSET
234	2-3/4" Deadlocking 2-1/4" x 1-1/8"
238	2-3/8" Deadlocking 2-1/4" x 1"	N/C
	3-3/4" BACKSET
334F	2-1/4" x 1-1/8"
334	2-1/4" x 1"	$32
	5" BACKSET
5	2-1/4" x 1-1/8"	$42

Latchbolt

Strikes

CODE	DESCRIPTION	LOCK ADJUSTMENT
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"
T	T-Strike (any finish) 1-1/8" x 2-3/4"	N/C
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"

NOTES:

ⁿ Specify finish for Strikes & Latchbolts if ordered separately

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00
	HIGH SECURITY CYLINDERS AND CORES

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

NOTES:

• ⁿ Specify finish for cylinders ordered separately
• ⁿ Kwikset cylinder available in 5 pin only
• ⁿ Specify KD, KA4, or 1 bitted
• ⁿ 6 pin cylinder keyed for 5 pin

Key in Knob/Lever Cylinder

UL 437 and High Security Cylinders

GT SERIES LIST PRICE

Cores and Keyw ays

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic		$5.00	$5.00
LFIC CONSTRUCTION
Construction Core 6-pin only		$55.00	$80.00
IC Tailpiece Assembly	Construction cores are invoiced at shipment and credited upon return.	N/C	$7.60
LFIC COMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway
PDQ TA LFIC RESTRICTED		$55.00	$80.00
LFIC UNCOMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway	$55.00	$74.00
HIGH SECURITY IC CORES
	SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

NOTES:

• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

LFL/LFIC Schlage Format

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
REX	Request to Exit	$200.00

Options

CODE	DESCRIPTION	PART LIST PRICE
TC1IS	Tactile Abrasive Coating - Inside only	$43.00
TC1OS	Tactile Abrasive Coating - Outside only	$43.00
TC2	Tactile Abrasive Coating - Both Sides	$86.00
LL	Lead-Lined Rose	$346.00
DB	Dust Box	$4.00
FRL	Fire Rated Latch - 3/4" Throw for double doors	$162.00
AM	Antimicrobial Coating, Lever Set Includes Inside and Outside Lever and Rose	$62.00

Parts discount applies

Accessories Electrified Hinges Now Available - See Hinge Section

DESCRIPTION	PDQ NO.	PART LIST PRICE
Electric Strike for Locks (U.L. Listed)	85001	$486.00

GT SERIES PARTS

Effective May 13, 2019

	DECODIDATION	LIST				FINISHES
	DESCRIPTION	PRICE	N/A	605	606	612	613	625	626
	Push Button For Functions GT155, GT165, GT173, GT175, GT176, GT177, GT182	$9	_	VA91302-5	VA91302-8	VA91302-3	VA91302-6	VA91302-2	VA91302-7
0	Outside Rose for All Functions, Inside Rose For All functions except GT135LED, GT145	$30	_	V32006-5	V32006-8	V32006-3	V32006-6	V32006-2	V32006-7
0	Inside Rose w/Locking Directional Arrow For Functions GT135LED, GT145	$30	_	VA10093-5	VA10093-8	VA10093-3	VA10093-6	VA10093-2	VA10093-7
Ì	"T" STRIKE SQUARE CORNERS 1-1/8" X 2-3/4" X 3/32"	$12	_	V919050-5	V919050-8	V919050-3	V919050-6	V919050-2	V919050-7
	ASA ANSI STRIKE 1-1/4" X 4-7/8" X 3/32"	$29	_	V91905-5	V91905-8	V91905-3	V91905-6	V91905-2	V91905-7
	"FULL LIP" STRIKE 1-5/8" X 2-1/4" X 3/32"	$11	_	V919051-5	V919051-8	V919051-3	V919051-6	V919051-2	V919051-7
	SCREW PACK - INCLUDES MOUNTING SCREWS, HEX KEY(M5 X .8) AND PICK.	$8	_	VA10030-5	VA10030-8	VA10030-3	VA10030-6	VA10030-2	VA10030-7
	SPACER — For 1-3/8" doors. Sold as a pair. To be installed as a set.	$45				V32433
	EXTENSION — Converts standard latchbolt from 2-3/4" Backset to 5"	440				VA21902
	EXTENSION — Converts standard latchbolt from 2-3/8" Backset to 3-3/4""	$40				VA21903
	CENTERING PLATE — 1-1/8" latch Front Filler Plate. Centers and supports latch bolt when used in hollow stile doors must be ordered with lock from factory.	$52				V21904
	DISPOSABLE CORE FOR SFIC	$6				VA10100
_0_	TAILPIECE WITH SPRING FOR SFIC HOUSING	$8				VP92905
	TAILPIECE FOR XGT/GT/GP KEY IN KNOB CYLINDER	$2				V32106
	DUST BOX FOR "T" STRIKE					10251
	DUST BOX FOR ASA (ANSI)	$7				Y025-SBX
7.7	DUST BOX FOR FULL LIP STRIKE					10251R
	Boring Jig — Locates off 2-1/8" bore to drill 5/16" DIA anti-rotation through-bolts	$70				V11225
	LEVER RETURN SPRING	$3				V32015-1 V32015-2 V32015-3
	FIRE RATED LATCH— 3/4" throw for double doors	$162*			V	/91904-711D	D

Parts discount applies

*Available in 626 only. 1-1/8" faceplate-lock must be 2-3/4" Backset.

GT SERIES PARTS

LIST PRICE

Effective May 13, 2019

REPLACEMENT	DESCRIPTION	LIST			FINISHES			LIST	FINISH
LEVERS	DESCRIPTION	PRICE	605	606	612	613	625	PRICE	626
	Non-Cylinder Plain		V32319-5	V32319-8	V32319-3	V32319-6	V32319-2		V32319-7
0	Non-Cylinder with button lock		V32321-5	V32321-8	V32321-3	V32321-6	V32321-2		V32321-7
	Conventional Key in Knob/Lever		V32310-5	V32310-8	V32310-3	V32310-6	V32310-2		V32310-7
BOSTON	Small Format Interchangeable Core		V32327-5	V32327-8	V32327-3	V32327-6	V32327-2		V32327-7
	Non-Cylinder Plain		V32361-5	V32361-8	V32361-3	V32361-6	V32361-2		V32361-7
	Non-Cylinder with button lock	4400	V32360-5	V32360-8	V32360-3	V32360-6	V32360-2		V32360-7
	Conventional Key in Knob/Lever	$108	V32362-5	V32362-8	V32362-3	V32362-6	V32362-2	$98	V32362-7
MIAMI	Small Format Interchangeable Core		V32364-5	V32364-8	V32364-3	V32364-6	V32364-2		V32364-7
	Non-Cylinder Plain		V32305-5	V32305-8	V32305-3	V32305-6	V32305-2		V32305-7
	Non-Cylinder with button lock		V32307-5	V32307-8	V32307-3	V32307-6	V32307-2		V32307-7
	Conventional Key in Knob/Lever		V32306-5	V32306-8	V32306-3	V32306-6	V32306-2		V32306-7
	Small Format Interchangeable Core		V32322-5	V32322-8	V32322-3	V32322-6	V32322-2		V32322-7
PHILADELPHIA	Large Format Interchangeable Core								V32427-7

Parts discount applies

LATCHBOLTS	DESCRIPTION	LIST			FINIS	SHES
LAIGHBULIS	DESCRIPTION	PRICE	605	606	612	613	625	626
	Standard Latchbolt With Dead Latch 2-3/8" Backset, 1/2" Throw for locking functions. Faceplate: 2-1/4" X 1-1/8", Square Corners. See note 1.	$80	V91904-521	V91904-821	V91904-321	V91904-621	V91904-221	V91904-721
	Standard Latchbolt With Dead Latch 2-3/4" Backset, 9/16" Throw for all functions. Faceplate: 2-1/4" X 1-1/8", Square Corners	$92	V91904-511	V91904-811	V91904-311	V91904-611	V91904-211	V91904-711
	Latchbolt With DeadLatch For Double Doors 2-3/4" Backset, 3/4" Throw Faceplate: 2-1/4" X 1-1/8", Square Corners	$185	V91904-511DD	V91904-811DD	V91904-311DD	V91904-611DD	V91904-211DD	V91904-711DD

Note: Replacement latch for 3-3/4" Backset applications when used with V21902 extension or factory assembled locks with 2-3/8" Backset. NOT INTENDED FOR FIELD RETROFIT.

Grade 1 Heavy Duty Ball Knob Cylindrical Lock

Typical Applications

• Apartments
• Back-of-House Hotel/Motel
• Commercial Buildings
• Government Buildings
• High Traffic Areas
• Healthcare
• · Houses of Worship
• Military Barracks
• Retail Backroom
• Retrofit/Repair/Replacement

Features

• UL listed for 3-hour fire door
• Exceeds ANSI/BHMA A156.2 Grade 1
• 5 standard functions
• · Various strike and latch options to accommodate any opening
• · Available in keyways of most major manufacturers
• Tactile abrasive coating option
• Antimicrobial coating option
• Five (5) year limited warranty

Specifications

FOR DOORS:	• 1-3/8" to 2" thick.
DOOR PREP:	• Fits Standard 160 or 161 Door Prep.
BACKSET:	• 2-3/8", 2-3/4", 5".
CASE:	Steel, Yellow Chromate Plate
FRONT:	• 2-1/4" x 1-1/8" or 2-1/4" x 1" • Stainless Steel or Wrought Bronze.
STRIKE:	• 4-7/8" x 1-1/4" (ASA). "T" or "FL" Strike Optional. • Stainless Steel or Wrought Bronze.
UL F LATCHBOLT:	• 3 hours of fire testing qualified, stainless steel latch bolt.
ROSE:	• 3" DIA Wrought.
HAND:	Non-handed.
TRIM:	CQ ball knob. Stainless steel or wrought brass.
KEYWAYS:	Available in keyways of most major manufacturers.
CYLINDER:	• Supplied standard to accommodate SFIC core. (Cylinder not included). • Standard High Security and UL437 Cylinders Available
KEYING:	Standard core is available and can be MK, CMK, GMK, or CK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing masterkey systems of other manufacturers.
FINISHES:	• 630 (US32D)
WARRANTY:	• Five (5) Year Limited Warranty
CERTIFICATIONS, LISTINGS, COMPLIANCES:	Meets ANSI/BHMA A156.2–2003 Grade 1, surpassed 800,000 cycles UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"

‡ Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			NON KEYED
Passage	126		Latchbolt operated by both knobs	F75
Privacy Bathroom	176	○₩₩ •	Latchbolt operated by both knobs Push button in inside knob locks outside knob Inside knob or closing door releases button Emergency opening from outside	F76
			KEYED
Storeroom	115		Latchbolt operated from outside by key, inside by knob Outside knob is rigid at all times Inside knob always free for immediate exit Deadlocking (guarded) latchbolt	F86
Entrance	116	@F !	Latchbolt operated by both knobs Outside knob locked or unlocked by turn/push button Inside knob always free Pushing and turning button locks outside knob requiring use of key until button is manually unlocked Pushing button only locks outside knob until unlocked with key or inside knob is turned	F109
Classroom	148		Latchbolt operated from outside by knob except when locked from outside by key Latchbolt operated from inside by knob at all times Deadlocking (guarded) latchbolt	F84

INDICATES RIGID KNOB

CYLINDER

OPTIONS

D

SFL

ICON

How to Order

QUANTITY	SERIES	FUNCTION	TRIM	FINISH	BACKSET	STRIKE	CYLINDER	KEYWAY	KEYING	OPTION
20	SX	116	CQ	630	234	ASA	D	scc	KD	_
NOTE: Case quantity is 10 / Case weight is 32 lbs. Keyed Functions / Case weight is 40 lbs. Non-Keyed Functions / For split finishes, designate O/S trim first, then I/S					234 — 2-3/4" 238 — 2-3/8" 334 — 3-3/4" 5 — 5"	ASA — ANSI/ASA (default) FL — Full Lip T — "T" Strike	D — Default L — Less Cylinder SF6 — SFIC w/ Core, 6 Pin SF7 — SFIC w/ Core, 7 Pin SFL — SFIC Hous-\ning less core	PAG	E 70	TC1IS — Tactile Abrasive Coating - Inside only TC10S — Tactile Abrasive Coating - Outside only TC2 — Tactile Abrasive Coating - Both Sides DB — Dust Box AM — Antimicrobial Coating
					PAGE	69	PAGE 70			PAGE 71

Locksets

FUNCTION	DESCRIPTION	630
	NON-CYLINDER
126	Passage	$295.00
176	Privacy	$358.00
	SINGLE CYLINDER
115	Storeroom
116	Entrance	$386.00
148	Classroom/Storage
	126 176 115 116	NON-CYLINDER 126 Passage 176 Privacy SINGLE CYLINDER 115 Storeroom 116 Entrance

Link	nricos	ahaum	include	conventions	I kov i	n knoh/lov	or oulindor	Earl C	list prices	do not include cor	_
LISI	DIREES	SHOWH	michia	CONVENIONA	II KEV II	II KIIOO/IEV	er cvillicer	. POI I-L	. USI DITCES	ao noi mande cor	н.

Trim

NOTES:

• Locks will be furnished with 2-3/4" Latchbolt, ASA Strike & SCC Keyway unless otherwise stated
• 2-3/4" Latchbolt will be furnished with 2-1/4" x 1-1/8" faceplate unless otherwise stated

LOCK

ADJUSTMENT

N/C

Backset

CODE	DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" BACKSET
234	2-1/4" x 1-1/8"
234F	2-1/4" x 1"	N/C
234FR	2-1/4" x 1" x 1/4" Radius	$5.00
	2-3/4" BACKSET
238F	2-1/4" x 1-1/8"
238	2-1/4" x 1"	N/C
238R	2-1/4" x 1" x 1/4" Radius	$5.00
	5" BACKSET
5	2-1/4" x 1-1/8"
5F	2-1/4" x 1"	$32
5FR	2-1/4" x 1" x 1/4" Radius	$37
	3-3/4" BACKSET
334F	2-1/4" x 1-1/8"
334	2-1/4" x 1"	$42
334R	2-1/4" x 1" x 1/4" Radius	$47

Latchbolt

Deadlatch

Strikes

CODE	DESCRIPTION	LOCK ADJUSTMENT
ASA	ASA Strike 1-1/4" x 4-7/8" 630 (US32D) Stainless Steel
T	T-Strike 1-1/8" x 2-3/4" 630 (US32D) Stainless Steel	N/C
FL	Full Lip Strike 1-5/8" x 2-1/4" (US32D) Stainless Steel

NOTES:

ⁿ Specify desired finish for Strikes & Latchbolts if ordered separately

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00

HIGH SECURITY CYLINDERS AND CORES

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

NOTES:

• ⁿ Specify finish for cylinders ordered separately
• ⁿ Kwikset cylinder available in 5 pin only
• ⁿ Specify KD, KA4, or 1 bitted
• ⁿ 6 pin cylinder keyed for 5 pin

Key in Knob/Lever Cylinder

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
	Dummy Construction Core Plastic $5.00 $5.00
	HIGH SECURITY IC CORES
	SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

Parts discount applies

NOTES:

• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

UL 437 and High Security Cylinders

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
TC1IS	Tactile Abrasive Coating - Inside only	$43.00
TC1OS	Tactile Abrasive Coating - Outside only	$43.00
TC2	Tactile Abrasive Coating - Both Sides	$86.00
DB	Dust Box	$4.00
AM	Antimicrobial Coating, Knob Set Includes Inside and Outside Knob and Rose	$62.00

Parts discount applies

Accessories Electrified Hinges Now Available - See Hinge Section

DESCRIPTION	PDQ NO.	PART LIST PRICE
Electric Strike for SX Locks (U.L. Listed)	85001	$486.00

Backset

CODE	TYPE	FACEPLATE	CORNERS	PDQ NUMBER	PART LIST PRICE
	2-3/4" BACKSET
234F	SPRINGLATCH	2-1/4" X 1	SQUARE	V21900-714
234		2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-712
234F		2-1/4" X 1	SQUARE	V21900-713
234	DEADLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-711
	2-3/8" BACKSET				$49.00
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-722
238F	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-724
238R		2-1/4" X 1	1/4" RADIUS	V21900-722R
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-721
238F	DEADLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-723
238R		2-1/4" X 1	1/4" RADIUS	V21900-721R
	3-3/4" BACKSET EXTENSION
	Extension for 2-3/8" latch (sold separately) to make 3-3/4" Backset. V21903
	5" BACKSET EXTENSION
	Extension for 2-3/4" latch (sold separately) to make 5" Backset.			V21902	$40.00

Parts discount applies

Strikes

CODE	DESCRIPTION	605	613	630	PART LIST PRICE
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"	V91900-5	V91900-6	V91900-1	$27.00
T	T-Strike (any finish) 1-1/8" x 2-3/4"	V91901-5	V91901-6	V91901-1	$12.00
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"	V919010-5	V919010-6	V919010-1	$10.00
	MOUNTING SCREW PACK			X91910	$8
	LATCHBOLT — 2-3/4" DEADLOCKING 2-1/4" X 1-1/8"			I04521-1	$80
	LATCHBOLT — 2-3/8" DEADLOCKING 2-1/4" X 1-1/8"			V91904-721	$80

Grade 2 Cylindrical Locks

Durability and Reliability at a Competitive Price

PDQ's Grade 2 and 3 mechanical lock offering includes a range of features, functions, and styles as well as a commitment to deliver durability, convenience, and unmatched value for a wide range of projects and applications.

Grade 2 Locks

GP Mechanical

SD Mechanical

SDS-XLS Electronic

Applications

Heavy-duty performance for high-traffic interior and exterior applications including offices, hospitality, assisted living, church, and other high/medium duty commercial applications. Strong like an ox, over 3x BHMA abusive lever torque test standard. — p. 75

Applications

Built to offer tough and reliable performance at a competitive price. Applications include multi-family, offices, hospitality, assisted living, and other standard duty commercial applications. — p. 83

Applications

Applications include multi-family, offices, hospitality, assisted living, and other standard duty commercial applications. — p. 6

CL Interconnected Mechanical

Applications

Offers the security of a deadbolt and lever combined in one product. Applications include hospitality, assisted living, multi-family, offices and retail. — p. 98

SV Ball Knob

Applications

Standard duty commercial buildings, offices, apartment buildings, Hospitality, residential housing, retail, Houses of worship, warehouses and retro-fit replacements. — p. 92

GP — Grade 1 Strength at a Grade 2 Price

High Security Cylinders

• Standard High Security Cylinder
• UL 437 High Security Cylinder

BMHA Abusive Lever Torque Test BMHA STANDARD 400 in-lbs Over 3X BHMA Standard 0 1 2 375 lbs

Versatile

Trim matches XGT and GT Grade 1 Locks, achieving a uniform look throughout the tenant space

Dependable

• 8 year warranty
• BHMA Certified Grade 2
• Assembled in the USA

Grade 2 Heavy Duty Cylindrical Lock

Typical Applications

• Government Facilities
• Healthcare
• Higher Education
• Hospitality
• Houses of Worship
• Industrial
• K-12 Education
• Multi-family
• Offices
• Public Buildings

Specifications

FOR DOORS:	• 1-3/8" to 1-3/4" thick • Preset for 1-3/4" door
APPLICATION:	Through door thru-bolting Fits 160 and 161 Door prep
BACKSET:	• 2-3/4" standard • 2-3/8", 5" optional
CHASSIS:	Heavy duty zinc diecast, investment cast, cold rolled steel, stainless steel mechanism
FRONT:	• 2-1/4" x 1-1/8" or 2-1/4" x 1" • Stainless Steel or Wrought Brass • Beveled 1/8" on 2"
STRIKE:	ASA standard Stainless Steel or Wrought Brass T-Strike or Full Lip Strike optional
LEVERS:	Philadelphia, Boston, Miami
ROSE:	• 3-3/8" DIA Wrought
LATCHBOLT:	• 1/2" Throw
HAND:	Non-handed
TRIM:	Solid Zinc diecast PHL, BSN or MIA Levers 65° Lever Rotation Wrought Brass Roses Concealed Screws
KEYS:	• Two (2) per Lock
KEYWAYS:	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:	Available for all keyed functions Large Format IC Core available for PHL Lever ONLY. For other lever shapes, contact PDQ Customer Service. 6 or 7-pin • Compatible with Best, Falcon & Arrow
CYLINDER:	6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available
KEYING:	Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:	• 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D) • Optional Antimicrobial Coating
CERTIFICATIONS, LISTINGS, COMPLIANCES:	UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA 156.2, Grade 2 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY:	Eight (8) Year Limited Warranty
COUNTRY OF ORIGIN:	Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

$\backslash ddagger\; \backslash \; \backslash text\{Available\; with\; antimicrobial\; coating,\; technology\; that\; is\; known\; to\; inhibit\; the\; growth\; of\; microbes.\}$

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			NON KEYED
Communicating	GP125		Latchbolt operated by inside lever Blank plate outside Minimum clearance of 1-1/2" between doors Frame depth 7-1/8" Deadlocking (guarded) latchbolt	_
Passage	GP126		• Latchbolt operated by lever from either side at all times	F75
Privacy Bedroom Bathroom	GP176		Latchbolt operated by lever from either side or emergency release in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door	F76
			KEYED
Storeroom	GP115		Latchbolt operated by inside lever or key in outside lever Outside lever always fixed	F86
Entrance	GP116		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever When outside lever is locked by pushing and turning button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever	F109
Classroom	GP148		Latchbolt operated by lever from either side Outside lever locked by key from outside Outside lever unlocked by key from outside Inside lever always operates latch	F84
Exit or Twin Communicating	GP150		Latchbolt operated by inside lever Blank plate outside Inside lever locked by key inside Inside lever unlocked by key inside Minimum clearance of 1-1/2" between doors Use only in rooms with more than one exit Frame depth 7-1/8"	_
Entry	GP182		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push button on inside Outside lever unlocked by key from outside, and rotating inside lever	F82
			DUMMY
Double Dummy	GP205		Pull lever both sides No mechanical operation
Single Dummy	GP211		Pull lever one side No mechanical operation	_

Cross Reference

ANSI # / FUNCTION	PDQ	ARROW	BEST	CORBIN	DORMA	FALCON	K2	SARGENT	SCHLAGE	YALE
F75 PASSAGE	GP 126	ML01	73K	CL3810	CL710	B101	QCL230	7U15	AL10	5301LN
F76 PRIVACY	GP 176	ML02	73K	CL3820	CL740	B301	QCL240	7U65	AL40	5303LN
F82 ENTRY	GP 182	NA	73K	CL3861	CL750	B501	NA	NA	AL50	5302LN
F109 ENTRANCE	GP 116	ML11	73K	CL3851	CL753	B511	QCL250	7G05	AL53	5307LN
F84 CLASSROOM	GP 148	ML17	73K	CL3855	CL770	B561	QCL260	7G37	AL70	5308LN
F86 STORE ROOM	GP 115	ML12	73K	CL3857	CL780	B581	QCL270	7G04	AL80	5305LN
SINGLE DUMMY	GP 211	ML08	73K	CL3850	CL701	B12	QCL220	7U93	AL170	5328LN

Lever Comparison

PDQ	ARROW	BEST	CORBIN	DORMA	FALCON	K2	SARGENT	SCHLAGE	YALE
MIAMI — MIA	VR	16	AZD	LG	NA	SLA	B	JUP	MO
PHILADELPHIA — PHL	BRR	15	NZD	LR	D	PNN	L	SAT	AU
BOSTON — BSN	SR	14	PZD	LC	Q	PEA	P	NEP	PB

PHILADELPHIA — PHL BOSTON — BSN MIAMI — MIA

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

PAGE 81

How to Order

QUANTITY	SERIES	FUNCTION	TRIM	FINISH	BACKSET	STRIKE	CYLINDER	KEYWAY	KEYING	OPTION
6	GP	116	PHL	626	234	ASA	D	SCC	KD	_
Functions / Case	weight is 29 l	e weight is 30 lbs lbs. Non-Keyed Fi S trim first, then I,	unctions /		234 — 2-3/4" 238 — 2-3/8" 334 — 3-3/4" 5 — 5"	ASA — ANSI/ASA (default) FL — Full Lip T — "T" Strike	D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schlage® Compatible LFIC w/Core SFL — SFIC Housing less core LFL — Schlage® Compatible LFIC Housing less core	PAGI	E 80	TC1IS — Tactile Abrasive Coating - Inside only TC10S — Tactile Abrasive Coating - Outside only TC2 — Tactile Abrasive Coating - Both Sides SF — Split Finishes LL — Lead-Lined Rose DB — Dust Box AM — Antimicrobial Coating

PAGE 79

PAGE 80

Locksets-Standard and Interchangeable Cores

ANSI No.	FUNCTION	DESCRIPTION	626	605/606 612/613/625
		NON-CYLINDER
	125	Communicating	#0.4C.00	#07C 00
F75	126	Passage	$246.00	$276.00
F76	176	Privacy	$282.00	$312.00
		SINGLE CYLINDER
F86	115	Store Room
F109	116	Entrance
F84	148	Classroom	$312.00	$342.00
	150	Exit / Twin Communicating
F82	182	Office / Entry
		DUMMY
	205	Double Dummy	$196.00	$226.00
	211	Single Dummy	$115.00	$145.00

CYLINDER OPTIONS	ICON	LOCK Adjustment
D	•	N/C
SFL	8	N/C
LFL	8	$10.00

Core not included see page 80 for core options

NOTES:

• Locks will be furnished with 2-3/4" Latchbolt, ASA Strike & SCC Keyway unless otherwise stated
• 2-3/4" Latchbolt will be furnished with 2-1/4" x 1-1/8" faceplate unless otherwise stated
• 1-1/8" faceplate unless otherwise stated
• 2-3/8" Latchbolt will be furnished with 2-1/4" x1" faceplate unless otherwise stated
• Split finishes priced at the highest finish price

Trim

Backset

CODE	DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" BACKSET
234	2-1/4" x 1-1/8"
234F	2-1/4" x 1"
	2-3/8" BACKSET	N/C
238F	2-1/4" x 1-1/8"
238	2-1/4" x 1"
238R	2-1/4" x 1" x 1/4" Radius	$5.00
	3-3/4" BACKSET
334F	2-1/4" x 1-1/8"	$32
334	2-1/4" x 1"
334R	2-1/4" x 1" x 1/4" Radius	$37
	5" BACKSET
5	2-1/4" x 1-1/8"	$42
5F	2-1/4" x 1"
5FR	2-1/4" x 1" x 1/4" Radius	$47

Spring Latchbolt

Deadlatching Latchbolt

Strikes

CODE	DESCRIPTION	LOCK ADJUSTMENT
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"
T	T-Strike (any finish) 1-1/8" x 2-3/4"	N/C
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"

NOTES:

ⁿ Specify finish for Strikes & Latchbolts if ordered separately

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
C059A1	Corbin / 59A1
C06	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	_
T-Turn	_
NON	Less Cylinder	Deduct $4.00

HIGH SECURITY CYLINDERS AND CORES

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT U	INCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	15207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E,	F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, T	B, ID, IE, & K
PDQ Exclusive PDQ1, PDQ2
PDQ Exclusive and	I Restricted
PDQ3	rriestricted
SFIC CONSTRUCT	ION
Construction Core 6-pin		$47.00	$61.00
Dummy Construction Cor		$5.00	$5.00
LFIC CONSTRUCT
Construction Core 6-pin	only	$55.00	$80.00
IC Tailpiece Assembly	piced at shipment and credited upon return.	N/C	$7.60
LFIC COMBINATEL	O COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DEL COMPANIA DE LA COMPANIA DEL COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DEL COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DEL COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DEL COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DE LA COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DE LA COMPANIA DEL COMPANIA DE LA COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COMPANIA DEL COM
Schlage compatible LFIC,	SCC (Schlage C compatible) keyway	$55.00	$80.00
PDQ TA LFIC RESTRICT	ED	φ33.00	$60.00
LFIC UNCOMBINA	TED
Schlage compatible LFIC, S	SCC (Schlage C compatible) keyway	$52.00	$74.00
HIGH SECURITY IC COR	ES
SEE HIGH SECURITY CYLIN	IDERS AND CORES SECTION, PAGE 135.— L	FIC REQUIRES LARGE FORMAT LI	EVER

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

NOTES:

• Specify finish for cylinders ordered separately
• Kwikset cylinder available in 5 pin only
• Specify KD, KA4, or 1 bitted
• 6 pin cylinder keyed for 5 pin

Key in Knob/Lever Cylinder

UL 437 and High Security Cylinders

NOTES:

• Combinated cores include master keying in the list price
• Specify finish for IC Cores ordered separately
• Control keys must be ordered separately
• PDQ1, PDQ2, PDQ3 (Restricted), Best A2 & A4 Systems Available

SFL/SFIC Core

LFL/LFIC Schlage Format

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
TC1IS	Tactile Abrasive Coating - Inside only
TC1OS	Tactile Abrasive Coating - Outside only	$43.00
TC2	Tactile Abrasive Coating - Both Sides	$86.00
SF	Split Finishes	Higher Finish Price
LL	Lead-Lined Rose	$346.00
DB	Dust Box	$4.00
AM	Antimicrobial Coating, Lever Set Includes Inside and Outside Lever and Rose	$62.00

Parts discount applies

Accessories Electrified Hinges Now Available - See Hinge Section

DESCRIPTION	PDQ NO.	PART LIST PRICE
Electric Strike for GP Locks (U.L. Listed)	85001	$486.00

Backset

CODE	TYPE	FACEPLATE	CORNERS	PDQ NUMBER	PART LIST PRICE
	2-3/4" BACKSET
234F		2-1/4" X 1	SQUARE	V21900-714
234	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-712
234F		2-1/4" X 1	SQUARE	V21900-713
234	DEADLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-711
	2-3/8" BACKSET
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-722	$49.00
238F	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-724
238R		2-1/4" X 1	1/4" RADIUS	V21900-722R
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-721
238F	DEADLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-723
238R		2-1/4" X 1	1/4" RADIUS	V21900-721R
	3-3/4" BACKSET EXTENSION
		Extension for 2-3/8" latch (sold separately) to make 3-3/4" Backset.		V21903	$40.00
	5" BACKSET EXTENSION
	Extension for 2-3/4" latch (sold separately) to make 5" Backset.			V21902	$40.00

Parts discount applies

Strikes

CODE	DESCRIPTION	605	613	630	PART LIST PRICE
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"	V91900-5	V91900-6	V91900-1	$27.00
T	T-Strike (any finish) 1-1/8" x 2-3/4"	V91901-5	V91901-6	V91901-1	$12.00
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"	V919010-5	V919010-6	V919010-1	$10.00

Grade 2 Standard Duty Cylindrical Lock

Typical Applications

• Assisted Living
• Hospitality
• Houses of Worship
• Industrial
• Medium/Light Commercial Installations
• Multi-family
• Offices
• Retail

Specifications

FOR DOORS:	1-3/8" to 1-3/4" thick
APPLICATION:	Through door thru-bolting
BACKSET:	• 2-3/4" standard • 2-3/8", 3-3/4", 5" optional
CHASSIS:	Heavy-gauge cold rolled steel mechanism Dichromated for corrosion resistance
FRONT:	• 2-1/4" x 1-1/8" or 2-1/4" x 1" • Beveled 1/8" on 2" • Stainless Steel or Wrought Brass
STRIKE:	◆ ASA standard ◆ T-Strike or Full Lip Strike optional ◆ Stainless Steel or Wrought Brass
LEVERS:	Philadelphia, Boston, Miami
ROSE:	• 3-3/8" DIA Wrought
LATCHBOLT:	• 1/2" Throw
HAND:	Non-handed (Except Memphis)
TRIM:	Solid Zinc diecast PHL, BSN, MIA, MEM and ORL Levers Wrought Brass Roses Concealed Screws
KEYS:	• Two (2) per Lock
KEYWAYS:	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:	◆ 6 or 7-pin ◆ Compatible with Best, Falcon & Arrow. Not available with Memphis lever.
CYLINDER:	6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available
KEYING:	Options: MK, CMK or GMK / Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:	• 605 (US3), 613 (US10B), 626 (US26D)
CERTIFICATIONS, Listings, compliances:	UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA A156.2 Grade 2 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings Meets requirements of the Buy American Act.
WARRANTY:	Five (5) year Limited Warranty

‡ Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.

SD — Most Valuable Grade 2 on the Market

Dependable

• BHMA Certified Grade 2
• 5-year warranty
• Meets Buy America

High Security Cylinders

• Standard High Security Cylinder
• UL 437 High Security Cylinder

437 Available

Versatile

• Removable through bolts make for easy installation
• 5 Lever Designs
• 3 Architectural finishes
• Trim matches CL interconnected locks achieving a uniform look throughout the tenant space

Orlando Lever

PHL Lever

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
NON KEYED
Communicating	SD125		Latchbolt operated by inside lever Blank plate outside Minimum clearance of 1-1/2" between doors Deadlocking (guarded) latchbolt	_
Passage	SD126		Latchbolt operated by lever from either side at all times	F75
Privacy Bedroom Bathroom	SD176		Latchbolt operated by lever from either side or emergency release in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door	F76
			KEYED
Storeroom	SD115		Latchbolt operated from outside by key, inside by lever Outside lever always fixed Inside lever always free Deadlocking (guarded) latchbolt	F86
Entrance	SD116		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever When outside lever is locked by pushing and turning the button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever Deadlocking (guarded) latchbolt	F109
Classroom	SD148		Latchbolt operated by lever from either side Outside lever locked or unlocked by key from outside Inside lever always operates latch Deadlocking (guarded) latchbolt	F84
Entry	SD182		Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push button on inside Outside lever unlocked by key from outside, and rotating inside lever	F82
			DUMMY
Single Dummy	SD211		Pull lever one side No mechanical operation	_

INDICATES RIGID LEVER

Cross Reference

ANSI # / FUNCTION	PDQ	ARROW	CAL ROYAL	CORBIN	DORMA	FALCON	HAGER	SARGENT	YALE
F75 PASSAGE	SD 126	RL01	SL30	CL3710	C510	W101	2510	6U15	4601LN
F76 PRIVACY	SD 176	RL02	SL20	CL3720	C540	W301	2540	6U65	4602LN
F109 ENTRANCE	SD 116	RL11	SL01	CL3751	C553	W511	2553	65G37	4607LN
F84 CLASSROOM	SD 148	RL17	SL03	CL3755	C570	W561	2570	6G37	4608LN
F86 STORE ROOM	SD 115	RL12	SL05	CL3759	C580	W581	2580	6G04	4605LN
SINGLE DUMMY	SD 211	RL08	SL40	CL3750	C501	W12	2517	6U93	4655LN

Lever Cross Reference

PDQ	ARROW	CAL ROYAL	CORBIN	DORMA	FALCON	HAGER	SARGENT	YALE
MIAMI — MIA		AG	AZD	LG			B	MO
PHILADELPHIA — PHL	BRR	GN	NZD	LR	D	WTS	L	AU
BOSTON — BSN	SR	SPA	PZD	LC	Q	ARC	P	PB
MEM — MEMPHIS
ORL — ORLANDO

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

How to Order

QUANTITY	SERIES	FUNCTION	TRIM	FINISH	BACKSET	STRIKE	CYLINDER	KEYWAY	KEYING	OPTION
10	SD	116	PHL	626	234	ASA	D	SCC	KD	_
NOTE: Case quar *Memphis keyed	,	ise weight is 37 lb unctions only.	IS.		234 — 2-3/4" 238 — 2-3/8" 334 — 3-3/4" 5 — 5"	ASA — ANSI/ASA (default) FL — Full Lip T — "T" Strike	D — Default L — Less Cylinder SF6 — SFIC w/ Core, 6 Pin SF7 — SFIC w/ Core, 7 Pin SFL — SFIC Housing\nless core	PAGI	E 89	TC1IS — Tactile Abrasive Coating - Inside only TC10S — Tactile Abrasive Coating - Outside only TC2 — Tactile Abrasive Coating - Both Sides SF — Split Finishes DB — Dust Box AM — Antimicrobial Coating
					PAGE	88	PAGE 89			PAGE 90

Locksets

ANSI NO.	FUNCTION	DESCRIPTION	626	605	613
		NON-CYLINDER
	125	Communicating	$204.00	$21	0 00
F75	126	Passage	φ204.00	Φ ΖΤ	0.00
F76	176	Privacy	$216.00	$23	0.00
		SINGLE CYLINE	DER
F86	115	Store Room
F109	116	Entrance	$222.00	$23	6.00
F84	148	Classroom	φ222.00		0.00
F82	182	Entry
		DUMMY
	211	Single Dummy	$107.00	$12	1.00
List pri	ces shown include	cylinder.

Note: Other finishes available including 619, 622 and 625. Contact customer service for lead time.

CORE OPTIONS	ICON	LOCK Adjustment
D	•	N/C
SFL	8	N/C

Core not included see page 89 for core options

NOTES:

• Locks will be furnished with 2-3/4" Latchbolt, ASA Strike & SCC Cylinder unless otherwise stated
• 2-3/4" Latchbolt will be furnished with 2-1/4" x 1-1/8" faceplate unless otherwise stated
• 2-3/8" Latchbolt will be furnished with 2-1/4" x 1" faceplate unless otherwise stated

Trim

LIST PRICE Effective May 13, 2019

Backset

CODE	DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" BACKSET
234	2-1/4" x 1-1/8"
234F	2-1/4" x 1"	N/C
234FR	2-1/4" x 1" x 1/4" Radius	$7
	2-3/8" BACKSET
238F	2-1/4" x 1-1/8"
238	2-1/4" x 1"	N/C
238R	2-1/4" x 1" x 1/4" Radius	$7
	3-3/4" BACKSET
334F	2-1/4" x 1-1/8"
334	2-1/4" x 1"	$32
334R	2-1/4" x 1" x 1/4" Radius
	5" BACKSET
5	2-1/4" x 1-1/8"
5F	2-1/4" x 1"	$42
5FR	2-1/4" x 1" x 1/4" Radius

Spring Latchbolt

Deadlatching Latchbolt

Strikes

CODE	DESCRIPTION	LOCK ADJUSTMENT
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"
T	T-Strike (any finish) 1-1/8" x 2-3/4"	N/C
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"

NOTES:

ⁿ Specify finish for Strikes & Latchbolts if ordered separately

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00

HIGH SECURITY CYLINDERS AND CORES

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic		$5.00	$5.00
LFIC CONSTRUCTION
Construction Core 6-pin only $55.00 $80.00
IC Tailpiece Assembly N/C $7.60 Construction cores are invoiced at shipment and credited upon return.
HIGH SECURITY IC CORES
SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

NOTES:

• ⁿ Specify finish for cylinders ordered separately
• ⁿ Kwikset cylinder available in 5 pin only
• ⁿ Specify KD, KA4, or 1 bitted
• ⁿ 6 pin cylinder keyed for 5 pin

Key in Knob/Lever Cylinder

UL 437 and High Security Cylinders

NOTES:

• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
TC1IS	Tactile Abrasive Coating - Inside only
TC1OS	Tactile Abrasive Coating - Outside only	$43.00
TC2	Tactile Abrasive Coating - Both Sides	$86.00
SF	Split Finishes	Higher Finish Price
DB	Dust Box	$4.00
LL	Lead Lined Rose	$146.00

Parts discount applies

Accessories Electrified Hinges Now Available - See Hinge Section

DESCRIPTION	PDQ NO.	PART LIST PRICE
Electric Strike for SD Locks (U.L. Listed)	85001	$486.00

Backset

CODE	TYPE	FACEPLATE	CORNERS	PDQ NUMBER	PART LIST PRICE
	2-3/4" BACKSET
234F		2-1/4" X 1	SQUARE	V21900-714
234	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-712
234F		2-1/4" X 1	SQUARE	V21900-713
234	DEADLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-711
	2-3/8" BACKSET
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-722	$49.00
238F	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-724
238R		2-1/4" X 1	1/4" RADIUS	V21900-722R
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-721
238F	DEADLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-723
238R		2-1/4" X 1	1/4" RADIUS	V21900-721R
	3-3/4" BACKSET EXTENSION
	Extension for 2-3/8" latch (sold separately) to make 3-3/4" Backset. V21903
	5" BACKSET EXTENSION
	Extension for 2-3/4" latch (sold separately) to make 5" Backset.	$40.00

Parts discount applies

Strikes

CODE	DESCRIPTION	605	613	630	PART LIST PRICE
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"	V91900-5	V91900-6	V91900-1	$27.00
T	T-Strike (any finish) 1-1/8" x 2-3/4"	V91901-5	V91901-6	V91901-1	$12.00
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"	V919010-5	V919010-6	V919010-1	$10.00

Grade 2 Standard Duty Ball Knob Cylindrical Lock

Typical Applications

• Apartments
• Back-of-House Hotel/Motel
• · Heavy-Duty Residential
• Houses of Worship
• Medium Traffic Commercial Applications
• Office:
• Retail Backroom
• Retrofit/Repair/Replacement
• Warehouses

Features

• UL listed for 3-hour fire door
• Exceeds ANSI/BHMA A156.2 Grade 2
• 10 standard functions
• · Various strike and latch options to accommodate any opening
• · Available in keyways of most major manufacturers
• Tactile abrasive coating option
• Antimicrobial coating option
• One (1) year limited warranty

Specifications

FOR DOORS:	• 1-3/8" to 1-3/4" thick
BACKSET:	• 2-3/4" standard • 2-3/8", 5" optional
FRONT:	• 2-1/4" x 1-1/8" or 2-1/4" x 1" • Stainless Steel or Wrought Brass
STRIKE:	• 4-7/8" x 1-1/4" (ASA). "T" or "FL" Strike optional. Stainless steel or wrought bronze.
ROSE:	• 3" DIA Wrought
LATCHBOLT:	• 1/2" throw. Solid brass. Adjustable for beveled doors.
HAND:	• Non-handed
KEYS:	Two change keys per lock.
KEYWAYS:	Available in keyways of most major manufacturers.
CYLINDER:	Brass 6-pin cylinder keyed to 5 pins. Standard High Security and UL437 Cylinders Available
TRIM:	Stainless Steel or Wrought Brass Knobs and Roses
KEYING:	Can be MK, CMK, GMK, or CK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing masterkey systems of other manufacturers.
FINISHES:	• 605 (US3), 613 (US10B), 630 (US32D) • Optional Antimicrobial Coating available
WARRANTY:	One (1) Year Limited Warranty
CERTIFICATIONS, Listings, Compliances:	Certified to ANSI/BHMA A156.2, Grade 2 UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"

‡ Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
			NON KEYED
Closet/ Communicating	SV125		Blank plate outside Inner knob always free Deadlocking (guarded) latchbolt
Passage	SV126		Latchbolt operated by both knobs	F75
Privacy Bedroom Bathroom	SV176	01110 01110	Latchbolt operated by both knobs Push button in inside knob locks outside knob Inside knob or closing door releases button Emergency opening from outside	F76
Patio	SV177	0 TI	Latchbolt operated by both knobs Push button in inside knob locks outside knob Inside knob or closing door releases button Deadlocking (guarded) latchbolt	_
			KEYED
Storeroom	SV115		Latchbolt operated from outside by key, inside by knob Outside knob is rigid at all times Inside knob always free for immediate exit	F86
Entrance	SV116	@#####################################	Latchbolt operated by both knobs Outside knob locked or unlocked by turn/push button Inside knob always free Pushing and turning button locks outside knob requiring use of key until button is manually unlocked Pushing button only locks outside knob until unlocked with key or inside knob is turned	F109
General Entrance	SV137		Latchbolt operated by both knobs Key on either side locks or unlocks	-
Classroom Storage	SV148		Latchbolt operated from outside by knob except when locked from outside by key Latchbolt operated from inside by knob at all times	F84
			DUMMY
Single Dummy	SV211		Single pull knob Single side surface No mechanical operation	_
Double Dummy	SV205		Double pull knob Both sides No mechanical operation 2-1/8" bored hole	_

How to Order

QUANTITY	SERIES	FUNCTION	TRIM	FINISH	BACKSET	STRIKE	CYLINDER	KEYWAY	KEYING
20	SV	116	CQ	630	234	ASA	D	SCC	KD
NOTE: Case quantity is 20 / Case weight is 43 lbs. Keyed Functions / Case weight is 40 lbs. Non-Keyed Functions / For split finishes, designate O/S trim first, then I/S				234 — 2-3/4" 238 — 2-3/8" 334 — 3-3/4" 5 — 5"	ASA — ANSI/ ASA (default) FL — Full Lip T — "T" Strike See page 94	D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin SFL — SFIC Housing less core	PAG	E 96
			PAG	E 95	PAGE 96

Locksets

ANSI No.	FUNCTION	DESCRIPTION	630	605/613
		NON-CYLINDER
	125	Communicating	$126.00	¢140.00
F75	126	Passage	$120.00	$140.00
F76	176	Privacy	$133.00	$147.00
F77	177	Patio	$138.00	$152.00
		SINGLE CYLINDER
F86	115	Store Room
F109	116	Entrance	$157.00	$171.00
F84	148	Classroom
		DOUBLE CYLINDER
F91	137	Store Door	$231.00	$245.00
		DUMMY
	205	Double Dummy	$115.00	$129.00
	211	Single Dummy	$68.00	$75.00
List price	List prices shown include conventional key in knob/lever cylinder. For I-C, list prices do not include core.

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
D	•	N/C
SFL	8	IN/C

NOTES

• Locks will be furnished with 2-3/4" Latchbolt, ASA Strike & SCC Keyway unless otherwise stated
• 2-3/4" Latchbolt will be furnished with 2-1/4" x 1-1/8" faceplate unless otherwise stated
• 2-3/8" Latchbolt will be furnished with 2-1/4" x 1" faceplate unless otherwise stated

Trim

BALL KNOB — CQ

Backset

CODE	DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" BACKSET
234	2-1/4" x 1-1/8"
234F	2-1/4" x 1"	N/C
234FR	2-1/4" x 1" x 1/4" Radius	$5
	2-3/4" BACKSET
238F	2-1/4" x 1-1/8"
238	2-1/4" x 1"	N/C
238R	2-1/4" x 1" x 1/4" Radius	$5
	3-3/4" BACKSET
334F	2-1/4" x 1-1/8"
334	2-1/4" x 1"	$32
334R	2-1/4" x 1" x 1/4" Radius	$37
	5" BACKSET
5	2-1/4" x 1-1/8"
5F	2-1/4" x 1"	$42
5FR	2-1/4" x 1" x 1/4" Radius	$47

Latchbolt

Deadlatch

Strikes

CODE	DESCRIPTION	LOCK ADJUSTMENT
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"
T	T-Strike (any finish) 1-1/8" x 2-3/4"	N/C
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"

NOTES:

ⁿ Specify finish for Strikes & Latchbolts if ordered separately

CYLINDRICAL LOCKS

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00
	HIGH SECURITY CYLINDERS AND CORES a220

Cores and Keyways

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
	Construction Core 6-pin only $47.00 $61.00
Dummy Construction Core Plastic		$5.00	$5.00
HIGH SECURITY IC CORES
SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

NOTES:

• ⁿ Specify finish for cylinders ordered separately
• ⁿ Kwikset cylinder available in 5 pin only
• ⁿ Specify KD, KA4, or 1 bitted
• ⁿ 6 pin cylinder keyed for 5 pin

Key in Knob/Lever Cylinder

UL 437 and High Security Cylinders

NOTES:

• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

Backset

CODE	TYPE	FACEPLATE	CORNERS	PDQ NUMBER	PART LIST PRICE
	2-3/4" BACKSET
234F		2-1/4" X 1	SQUARE	V21900-714
234	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-712
234F		2-1/4" X 1	SQUARE	V21900-713
234	DEADLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-711
	2-3/8" BACKSET				$49.00
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-722
238F	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-724
238R		2-1/4" X 1	1/4" RADIUS	V21900-722R
238		2-1/4" X 1	SQUARE (DEFAULT)	V21900-721
238F	DEADLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-723
238R		2-1/4" X 1	1/4" RADIUS	V21900-721R
	3-3/4" BACKSET EXTENSION
	Extension for 2-3/8" latch (sold separately) to make 3-3/4" Backset. V21903				$40.00
	5" BACKSET EXTENSION
	Extension for 2-3/4" latch (sold separately) to make 5" Backset. V21902

Parts discount applies

Strikes

CODE	DESCRIPTION	605	613	630	PART LIST PRICE
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"	V91900-5	V91900-6	V91900-1	$27.00
T	T-Strike (any finish) 1-1/8" x 2-3/4"	V91901-5	V91901-6	V91901-1	$12.00
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"	V919010-5	V919010-6	V919010-1	$10.00

CL — Built Around a Grade 2 Cylindrical Chassis

Awesome Aesthetics

• CL and SD share the same designer levers and finishes
• Integrated look throughout the apartment. Closets, bedrooms, bathrooms, and common areas match the entry

Strong and Durable

• Cylindricals out perform tubular designs
• CL, the "poor mans" mortise that gets the job done

Versatile Prep

• Works on 4" and 5 -1/2" center to centers right out of the box
• No adjustments necessary, gearing inside the escutcheon
• Field selectable

Designer Lever Collection

PHILADELPHIA — PHL

BOSTON — BSN

MIAMI — MIA

MEMPHIS — MEM

ORLANDO — ORL

Grade 2 Standard Duty Inter-Connected Lock

Typical Applications

• Assisted Living
• Hospitality
• Military Housing
• Multi-family
• Offices
• Retail

Specifications

FOR DOORS:	• 1-3/8" and 1-3/4" thick.
PREPARATION:	ANSI/BHMA A156.115 for 4" and 5-1/2" hole centers, field selectable.
DUST BOX:	• Included for Latchbolt and Deadbolt.
LATCHBOLT BACKSET:	• 2-3/8" or 2-3/4" (Default). Specify when ordering
DEADBOLT BACKSET:	• Field adjustable for 2-3/8" and 2-3/4" (Default).
STRIKE:	"T"-Strike (Default) ASA or Full-Lip optional
ROSE:	• 3-3/8" DIA
INSIDE ESCUTCHEON:	• 3-3/4"W x 9-3/4"H (Wrought)
LATCHBOLT:	• 1/2" Throw
DEADBOLT:	ADA compliant.
HANDING:	Non-handed (Except for Memphis Lever)
KEYS:	• Two (2) per Lock
KEYWAYS:	SCC Default (Schlage C Compatible). For additional keyways, see Cylinders and Keying section.
INTERCHANGEABLE CORE:	6-pin or 7-pin Compatible with Best SFIC. Not available in high security.
CONVENTIONAL KEY IN KNOB/LEVER CYLINDER:	• 6-pin Cylinder keyed to 5-pins
KEYING:	Options: MK, CMK, or GMK, Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems. See Keyways Section.
FINISHES:	• 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome (See Note)
CERTIFICATIONS, LISTINGS, COMPLIANCES:	ANSI/BHMA 156.12, Grade 2 UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY:	Two (2) year Limited Warranty

NOTE: OTHER FINISHES AVAILABLE. CONTACT CUSTOMER SERVICE FOR QUOTE AND LEAD-TIME.

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI Number
Entry Single Cylinder Passage Lever	126		Outside and Inside lever always free Deadbolt projected or retracted by key outside or turnpiece inside When deadbolt is projected, turning inside knob/lever retracts deadbolt and latchbolt simultaneously	F95
Storeroom Double Cylinder (See note) Passage Lever	115		Deadlocking latch bolt is operated by key outside or inside lever Key outside projects or retracts dead bolt. Operating inside lever or keys outside retracts dead bolt and deadlocking latch.	F98
Entry Double Cylinder (See note) Privacy Lever	116		Outside lever locked by turn button in inside knob/lever Inside lever always free Unlocking of outside lever requires use of key or manual return of inside turn button Deadbolt is activated by key in outside deadlock or turnpiece inside Turning inside lever retracts deadbolt and latchbolt simultaneously	F97
Privacy with Dead Bolt Indicator No Cylinder Passage Lever	176		Outside and Inside lever always free Indicator outside Thumbturn inside extends/retracts deadbolt Emergency key outside retracts deadbolt When deadbolt is projected, turning inside lever retracts deadbolt and latchbolt simultaneously	_

NOTE: Memphis lever not available in Small Format Interchangeable Core.

Cross Reference

ANSI NUMBER / FUNCTION	PDQ	CAL-ROYAL	DORMA	FALCON	HAGER	SCHLAGE®	STANLEY®	YALE
95 / ENTRY, SINGLE CYLINDER	CL 126	HIL00, JHIL00	J310	_	3710	CS/RS 210 SERIES	QCI230 SERIES	4851LN
97 / ENTRY, DOUBLE CYLINDER	CL 116	HIL30, JHIL30	J353	H101DG	3753	CS/RS 250 SERIES	QCI250 SERIES	4871LN
98 / STOREROOM, DOUBLE CYLINDER	CL 115	_	_	_	_	CS/RS 280 SERIES	QCI285 SERIES	_
PRIVACY W/INDICATOR, NO CYLINDER	CL 176	_	_	_	_	_	QCI285 SERIES	_

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

Lever Designs

NOTE: Specify handing when ordering Memphis levers.

Dimensions

Note: Dimensions in parenthesis in millimeters

Note: Fits ANSI/BHMA 156.115 door preparation for Interconnected Locks

How to Order

QUANTITY	ТҮРЕ	FUNCTION	TRIM	FINISH	BACKSET	HANDING	STRIKE	CYLINDER	KEYWAY	OPTION
10	CL	116	PHL	626	234	_	FL	D	SCC	_
		ordering Memph			238 — 2-3/8" 234 — 2-3/4"	LH — Left Hand RH — Right Hand	ASA — ASA FL — Full Lip T — "T" Strike (default)	D— Default L— Less Cylinder SF6— SFIC w/ Core, 6 Pin SF7— SFIC w/ Core, 7 Pin SFL— SFIC Housing less core	PAGE 104	TC1IS — Tactile Abrasive Coating - Inside only TC10S — Tactile Abrasive Coating - Outside only TC2 — Tactile Abrasive Coating - Both Sides AM — Antimicrobial Coating
						PAGE 103		PAGE 104		PAGE 105

Locksets

ANSI No.	FUNCTION	DESCRIPTION	626	605/613
		NON-KEYED
	176	Passage Lever with Deadbolt Indicator	$459.00	$484.00
		SINGLE CYLINDER
F95	126	Entrance, Passage Lever	$574.00	$599.00
		DOUBLE CYLINDER
F98	115	Storeroom, Privacy Lever	$596.00	$621.00
F97	116	Entrance, Privacy Lever	φυσ0.00	φυΖ1.00
List pric	es shown include	conventional key in knob/lever cylinder.

CYLINDER OPTIONS	ICON	LOCK Adjustment
D	•	N/C
SFL	8	$20.00

Core not included see page 104 for core options

NOTES:

• Prices do not include IC Cores
• Locks will be furnished with 2-3/4" Backset, T-Strike & SCC Keyway unless otherwise stated
• 2-3/4" Latchbolt will be furnished with 2-1/4" x 1-1/8" faceplate unless otherwise stated
• 2-3/8" Latchbolt will be furnished with 2-1/4" x 1" faceplate unless otherwise stated

VITER-CONNECTED LOCKS

Latchbolts

CL SERIES

CODE	BACKSET	FACEPLATE CORNERS		LOCK Adjustment
238		2-1/4" X 1	SQUARE (DEFAULT)
238F		2-1/4" X 1-1/8"	SQUARE
238R	2-3/8"	2-1/4" X 1	1/4" RADIUS
238	2-3/0	2-1/4" X 1	SQUARE (DEFAULT)
238F		2-1/4" X 1-1/8"	SQUARE
238R		2-1/4" X 1 1/4" RADIUS		N/C
234F		2-1/4" X 1	SQUARE
234		2-1/4" X 1-1/8"	SQUARE (DEFAULT)
234F	2-3/4"	2-1/4" X 1	SQUARE
234		2-1/4" X 1-1/8"	SQUARE (DEFAULT)
234R		2-1/4" X 1-1/8"	1/4" RADIUS

Dead Latch

Springlatch

Strikes

	CODE	DESCRIPTION	LOCK ADJUSTMENT
þ	ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"
	т	T-Strike (any finish) 1-1/8" x 2-3/4"	N/C
	FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"

Deadbolt

Note 1 - Dust Boxes for Deadbolt and Latchbolt included with the lock.

FL Full Lip Strike*

"T" Strike Square Corners* (Default)

Deadbolt Strike Square Corners*

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00

NOTES:

• ⁿ Specify finish for cylinders ordered separately
• ⁿ Kwikset cylinder available in 5 pin only
• ⁿ Specify KD, KA4, or 1 bitted
• ⁿ 6 pin cylinder keyed for 5 pin

Key in Knob/Lever Cylinder

Cores and Keyways

		SOLD WITH LOCK		SOLD
DESCRIPTION	PDQ NO.	FUNCTION 126	FUNCTION 116	WITHOUT LOCK
UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$94.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$94.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$156.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$156.00	$78.00
BEST® Compatible
	A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
	WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
	PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00		$61.00
Dummy Construction Core Plastic		$5.00		$5.00

Parts discount applies

NOTES:

• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

CL SERIES

CODE	DESCRIPTION	LOCK ADJUSTMENT
TC1IS	Tactile Abrasive Coating - Inside only
TC1OS	Tactile Abrasive Coating - Outside only	$43.00
TC2	Tactile Abrasive Coating - Both Sides	$86.00
DB	Dust Box	$4.00

Backset

BACKSET	TYPE	FACEPLATE	CORNERS	PDQ NUMBER	PART LIST PRICE
		2-1/4" X 1	SQUARE (DEFAULT)	V21900-722
	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-724
		2-1/4" X 1	1/4" RADIUS	V21900-722R
		2-1/4" X 1	SQUARE (DEFAULT)	V21900-721
2-3/8"	DEADLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-723
		2-1/4" X 1	1/4" RADIUS	V21900-721R
		2-1/4" X 1	SQUARE (DEFAULT)	I04507	$49.00
	ADJUSTABLE	2-1/4" X 1	1/4" RADIUS	I04507R
		2-1/4" X 1	SQUARE	V21900-714
	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-712
2-3/4"		2-1/4" X 1	SQUARE	V21900-713
	DEADLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-711

Parts discount applies

Deadbolts

BACKSET	TYPE	FACEPLATE	CORNERS	PDQ NUMBER	PART LIST PRICE
		2-1/4" X 1	SQUARE (DEFAULT)	I04507	$38.00
2-3/8" AND 2-3/4"	ADJUSTABLE	2-1/4" X 1	1/4" RADIUS	I04507R	$36.00
2-3/4" (DEFAULT)	FIXED	2-1/4" X 1-1/8"	SQUARE	I04510	$38.00

Parts discount applies

Strikes

CODE	DESCRIPTION	605	613	630	PART LIST PRICE
ASA	ASA Strike (any finish) 1-1/4" x 4-7/8"	V91900-5	V91900-6	V91900-7	$27.00
T	T-Strike (any finish) 1-1/8" x 2-3/4"	V91901-5	V91901-6	V91901-7	$12.00
FL	Full Lip Strike (any finish) 1-5/8" x 2-1/4"	V919010-5	V919010-6	V919010-7
W	Deadbolt Strike	I4072-5	I4072-6	I4072-7	$10.00

Grade 3 Light Commercial Cylindrical Lock

Typical Applications

• Assisted Living
• Bathrooms
• Closets and Bedrooms
• Condo Storage Closets
• Home Offices
• Hospitality
• Multi-family
• Pantries

ADA COMPLIANT

Specifications

ADA COMPLIANT
• 1-3/8" to 1-3/4" thick, wood or metal
• 2-3/4" - 2-3/8" Adjustable
2-1/4" x 1" 1/4" Radius (Default) 2-1/4" x 1" Square (Optional) Stainless Steel or Wrought Brass
Full Lip 1/4" Radius ASA and T-Strike available as options
• 2-3/4" Diameter Wrought
• 1/2" Throw
Non-handed
Diecast lever Stainless Steel or Wrought Brass Roses Philadelphia and Miami Levers
• Two (2) per Lock
SCC Default (Schlage C Compatible).
• 619 (US15) Satin Nickel, 626 (US26D) Satin Chromium
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
One (1) year Limited Warranty

SM — Reliability at a Great Price

Great Solution for Multi-Family, Assisted Living, and Hospitality

Versatile

• Retrofits all major competitor door preps
• Adjustable backset, 2-3/8", 2-3/4"
• Fits doors 1-3/8" to 1-3/4" thick
• 2-3/4" Diameter rose fits narrower style doors
• 4 Mechanical functions Privacy, Passage, Entry, Single Dummy

Cylindrical vs. Tubular

• Cylindricals include a "Kick-Off" feature not available with tubulars. The button pops out on the privacy function when the door closes.
• Cylindricals are more durable and of higher quality

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
Passage	SM126		Latchbolt operated by both levers	F75
Privacy	SM176		Latchbolt operated by outside lever Push button on inside locks lever Inside lever or closing door releases button Emergency opening from outside	F76
Entrance	SM182		Latchbolt operated by both levers Outside lever locked or unlocked by push button Pushing button only locks outside lever until unlocked with key or inside lever is turned	F82 (F109 ADA)
Single Dummy	SM211		Single pull lever one side Surface mount	_

How to Order

SERIES	FUNCTION	LEVER	FINISH	BACKSET	STRIKE
SM	182	PHL	619	ADJR	—
				ADJR — Radius Corner (default)	FLR — Radius Full Lip (default) FLS — Full Lip T — "T" Strike ASA — ASA 4-7/8"
					PAGE 111

Locksets

ANSI NO.	FUNCTION	DESCRIPTION	619, 626
		NON-CYLINDER
F75	126	Passage	$65.00
F76	176	Privacy	$74.00
		SINGLE CYLINDER2
F109	182	Entry	$84.00
		DUMMY
	211	Single Dummy	$38.00

Note: 2- Only available with SCC Cylinder.

Lever Designs

Trim

Round Rose – 2-3/4" Diameter

SM SERIES CYLINDRICALLOCKS

Backset

CODE	DESCRIPTION	PDQ NO.	PART LIST PRICE
	SPRINGLATCH — 2-3/4" - 2-3/8" ADJUSTABLE
ADJRKO	2-1/4" x 1" x 1/4"Radius Privacy	I04407KR	$18.00
	DEADLATCH — 2-3/4" - 2-3/8" ADJUSTABLE
ADJR	2-1/4" x 1" x 1/4"Radius	I04406	$18.00
FILL	1-1/8" Latch Front Filler Plate (Minimum of 100 pieces)	I099-100	$.80

Latchbolt

Deadlatch

Parts discount applies

Strikes

CODE	DESCRIPTION	PDQ NO.	PART LIST PRICE
FLR	Full Lip Strike Radius (default) (SM series only) 1-5/8" x 2-1/4" x 1/4" Radius	V919010 (designate finish)
FLS	Full Lip Strike (SM series only) 1-5/8" x 2-1/4"	V919004 (designate finish)
T	T Strike (SM series only) 1-1/8" x 2-3/4"	V919001 (desig nate finish)	$10.00
ASA	ASA Strike 1-1/4" x 4-7/8"

Parts discount applies

NOTES:

ⁿ Specify finish for Strikes & Latchbolts if ordered separately

Deadbolt Collection

Secure. Durable. Versatile.

Deadbolts are often paired with a cylindrical lock in commercial office spaces, residential applications and other spaces where there is a greater need for security—and, more specifically, a deadbolt that is more resistant to brute force attack. PDQ deadbolts provide security for a wide range of applications while allowing end users to meet their specific security needs.

KM Heavy Duty Rim Cylinder Mechanical

KMS-XLS Heavy Duty Rim Cylinder pdqSMART-XLS Electronic

Applications

Heavy duty performance. Ideal for commercial, institutional, government, military, hospitality, hospital, multi-family, offices, and retail applications. Typical installations include storerooms, auxiliary entrance locks, communication doors in hotels, and aluminum storefronts. — p. 113

Applications

pdqSMART wireless access management lock. Ideal for commercial, institutional, government, military, hospitality, hospital, multi-family, offices, and retail applications. Typical applications include storerooms, auxiliary entrance locks, communication doors in hotels, and aluminum storefronts. — p. 7

KT Extra Heavy Duty Mortise Cylinder

KV Commercial Duty Rim Cylinder

MJ Extra Heavy Duty Mortise Cylinder

Applications

Heavy duty performance. Ideal for commercial, institutional, government, military, hospitality, hospital, multi-family, offices, and retail applications. — p. 118

Applications

Standard duty performance, ideal for light commercial and residential applications. — p. 122

Applications

Small body deadbolt provides an extra measure of protection at a competitive price. Uses include common areas, auxiliary doors, closets, storerooms, and equipment rooms in commercial, institutional and military applications. — p. 127

Heavy Duty Deadbolt

Typical Applications

• Commercial
• Government
• Hospitality
• Institutional
• Military
• Multi-family
• Offices
• Retail

DEADBOLT IS GRADE COMPARABLE WITH GP AND SD SERIES GRADE 2 CYLINDRICAL LOCKS

Specifications

	ADA CUMPLIANI
FOR DOORS:	• 1-3/8" to 1-3/4" thick for Conventional Cylinder, 1-1/2" to 2" for SFIC
DOOR PREP:	• 2-1/8" DIA
BACKSET:	• 2-3/4" (Default) • Option–2-3/4" - 2-3/8" adjustable with 2-1/4" x 1" faceplate available
FRONT:	• 2-1/4" x 1-1/8" • Stainless Steel or Wrought Brass
STRIKE:	• 2-3/4" x 1-1/8" • Stainless Steel or Wrought Brass • Dust Box Included
DEADBOLT:	• 1" Throw • Brass Bolt containing one 1/4" case-hardened Steel Roll Pin
THUMBTURN:	ADA Compliant
HAND:	Non-handed
TRIM:	Stainless Steel or Wrought Brass Scalp Reinforced Zinc Diecast Rose
KEYS:	• Two (2) per Lock
KEYWAYS:	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:	● 6 or 7-pin ● Compatible with Best, Falcon and Arrow
CYLINDER:	6-pin Brass RIM Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available
KEYING:	Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:	• 605 (US3) - Bright Brass, 606 (US4) - Satin Brass, 613 (US10B) - Oil Rubbed Bronze, 626 (US26D) - Satin Chrome, 630 (US32D) - Satin Stainless Steel
CERTIFICATIONS, LISTINGS, COMPLIANCES:	ANSI "Positive Pressure Fire Tests of Door Assemblies" for up to a including 3 hrs. Assemblies" for up to and including 3 hrs. Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY:	One (1) year Limited Warranty

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
Single Cylinder	116		• Lock or unlock by key from outside, by thumb turn from inside	E1151
Double Cylinder	137		• Lock or unlock by key from both sides	E1141
NEW	148		Lock or unlock by key from outside Turnpiece inside retracts deadbolt, but will not project it	E1171

How to Order

QUANTITY	SERIES	FUNCTION	FINISH	BACKSET	CYLINDER	KEYWAY	KEYING
20	KM	116	630	234	D	SCC	KD
NOTE: Case quantity is 20 / Case weight varies		234 — 2-3/4" 238 — 2-3/8" ADJ — Adjustable 2-3/4"–2-3/8"	D — Default L — Less Cylinder SF6 — SF1C w/Core, 6 Pin SF7 — SF1C w/Core, 7 Pin SF7L — SF1C 7 Pin Housing, less core SF6L — SF1C 6 Pin Housing less core	PAGI	E 116
				PAGE 115	PAGE 116

Deadbolts

ANSI No.	FUNCTION	DESCRIPTION	605/606 613/626/630
		SINGLE CYLINDER
E1151	116	Entrance	$126.00
E1171	148	Classroom	$147.00
		DOUBLE CYLINDER
E1141	137	Store Door	$165.00

List prices shown include conventional RIM cylinder. For I-C, list prices do not include core.

CYLINDER OPTIONS	ICON	LOCK Adjustment
D	•	N/C
SFL	8	$20.00

NOTES:

Prices do not include IC Core

CODE	BACKSET DESCRIPTION	LOCK ADJUSTMENT
2-3/8" Backset
238	2-1/4" x 1-1/8" (Standard)	N/C
238R	2-1/4" x 1-1/8" x 1/4" Radius	$5.00
2-3/4" Backset
234	2-1/4" x 1-1/8" (Standard)	N/C
234R	2-1/4" x 1-1/8" x 1/4" Radius	$5.00
	2-3/4" - 2-3/8" ADJUSTABLE
ADJ	2-1/4" x 1-1/8" (Standard)	N/C
ADJR	2-1/4" x 1-1/8" x 1/4" Radius	$5.00

KM SERIES DEADBOLT LOCKS

Rim Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
ARA	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C	N/C
SCC-K	Schlage / C-K
SAL	Sargent / LA
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)	$3.00
NON	Less Cylinder	Deduct $8/Cylinder

NOTES:

ⁿ Specify finish for Mortise Cylinders ordered separately

Rim Cylinder

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic Construction cores $5.00 $5.00 are invoiced at shipment and credited upon return.
HIGH SECURITY IC CORES
		SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — NOT AVAILABLE WITH LFIC

UL 437 and High Security Cylinders

NOTES:

• ⁿ Combinated cores include master keying in the list price
• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

Keying Systems

Parts discount applies

SEE KEYING SYSTEMS CHART PAGE 143

Backset

BACKSET DESCRIPTION	605	613	630	PART LIST PRICE
2-3/8" Backset
2-1/4" x 1-1/8" (Default)	I04509-5	I04509-6	I04509-1
2-1/4" x 1-1/8" x 1/4" Radius	I04509-5R	I04509-6R	I04509-1R	$36.00
2-3/4" Backset
2-1/4" x 1-1/8" (Default)	I04510-5	I04510-6	I04510-1
2-1/4" x 1-1/8" x 1/4" Radius	I04510-5R	I04510-6R	I04510-1R	$38.000
2-3/4" - 2-3/8" ADJUSTABLE
2-1/4" x 1-1/8" (Default)	I04507-5	I04507-6	I04507-1
2-1/4" x 1-1/8" x 1/4" Radius	I04507-5R	I04507-6R	I04507-1R	$32.000
1-1/8" Latch Front Filler Plate (Minimum of 100 pieces)		I099-100		$0.85

Parts discount applies

Strikes

DESCRIPTION	605	613	630	PART LIST PRICE
Deadbolt Strike 2-3/4" x 1-1/8"	I4702-5	I4702-6	I4702-1	$18.00
Dust Box	I4701			$4.00

Extra Heavy Duty Deadbolt

Typical Applications

• Commercial
• Government
• Hospitality
• Institutional
• Military
• Multi-family
• Offices
• Retail

DEADBOLT IS GRADE COMPARABLE WITH XGT AND GT SERIES GRADE 1 CYLINDRICAL LOCKS

Specifications

FOR DOORS:	• 1-3/8" to 1-3/4" thick
DOOR PREP:	• 2-1/8" DIA
BACKSET:	• 2-3/4" (Default) • 2-3/8" available
FRONT:	• 2-1/4" x 1-1/8" or 2-1/4" x 1" • Stainless Steel or Wrought Brass
STRIKE:	2-3/4" x 1-1/8" Stainless Steel or Wrought Brass Dust Box Included
DEADBOLT:	1" Throw Brass Bolt containing two concealed 1/4" case-hardened Steel Roll Pins
HAND:	Non-handed
TRIM:	Wrought Brass Scalp Reinforced Zinc Diecast Rose
KEYS:	• Two (2) per Lock
KEYWAYS:	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
CYLINDER:	6-pin Brass Mortise Cylinder keyed to 5-pins
KEYING:	Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:	• 605 (US3) - Bright Brass, 606 (US4) - Satin Brass, 613 (US10B) - Oil Rubbed Bronze, 625 (US26) - Bright Chrome or 626 (US26D) - Satin Chrome
WARRANTY:	One (1) year Limited Warranty

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
Entrance	116		• Lock or unlock by key from outside, by thumb turn from inside	E1151
Single Cylinder	121		Lock or unlock by key from outside Blank mortise cylinder on inside	E1161
Single Sided	125		Deadbolt by inside thumb turn only Blank mortise cylinder on outside	E11111
Double Cylinder	137		• Lock or unlock by key from both sides	E1141
Classroom	148		Lock or unlock by key from outside Turnpiece inside retracts deadbolt, but will not project it	E1171

How to Order

QUANTITY	SERIES	FUNCTION	FINISH	BACKSET	CYLINDER	KEYWAY	KEYING
10	KT	116	626	234	D	SCC	KD
NOTE: Case quantity is 22 lbs. Double Cylinder				234 — 2-1/4" x 1-1/8" (Standard) 234R — 2-1/4" x 1-1/8" x 1/4" Radius 234D — Drive-in 238 — 2-1/4" x 1" 238R — 2-1/4" x 1" x 1/4" Radius 238D — Drive-in	D — Default L — Less Cylinder	PAGE	E 120
				PAGI	120

Deadbolts

ANSI NO.	FUNCTION	DESCRIPTION	605/606/612 613/625/626
		NON-CYLINDER
E11111	125	Communicating	$179.00
		SINGLE CYLINDER
E1151	116	Entrance	$232.00
E1171	148	Classroom	φ 2 32.00
E1161	121	Blank Single Cylinder	$221.00
		DOUBLE CYLINDER
E1141	137	Store Door	$246.00

List prices shown include conventional key in knob/lever cylinder. For I-C, list prices do not include core.

NOTES:

• Consult Customer Service for availability of Split Finish
• 2-3/4" Latchbolt will be furnished with 2-1/4" x 1-1/8" faceplate unless otherwise stated
• 2-3/8" Latchbolt will be furnished with 2-1/4" x 1" faceplate unless otherwise stated
• ADA thumbturn available special order

Backset

CODE	BACKSET DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" Backset
234	2-1/4" x 1-1/8" (Standard)	N/C
234R	2-1/4" x 1-1/8" x 1/4" Radius	$5.00
234D	Drive-in	N/C
	2-3/8" Backset
238	2-1/4" x 1" (Standard)	N/C
238R	2-1/4" x 1" x 1/4" Radius
238D	Drive-in N/C

Bolt

Mortise Cylinders and Keyways

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
ARA	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C	N/C
SCC-K	Schlage / C-K
SAL	Sargent / LA
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)	$3.00
NON	Less Cylinder	Deduct $8/Cylinder

NOTES:

ⁿ Specify finish for Mortise Cylinders ordered separately

Mortise Cylinder

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

Effective May 13, 2019

Backset

BACKSET DESCRIPTION	PDQ NO.	PART LIST PRICE
2-3/4" Backset
2-1/4" x 1-1/8" (Default)	I4301
2-1/4" x 1-1/8" x 1/4" Radius	I4301R
Drive-in	I4201-5
2-3/8" Backset		$38.00
2-1/4" x 1" (Default)	I4302
2-1/4" x 1" x 1/4" Radius	I4302R
Drive-in	I4202-5

Bolt

Parts discount applies

Strikes

DESCRIPTION	605	613	630	PART LIST PRICE
Deadbolt Strike 2-3/4" x 1-1/8"	I46021-5	I46021-6	I46021-1	$18.00
Dust Box		I4587		$4.00

Commercial Duty Deadbolt

Typical Applications

• Light Commercial Installations
• Low Security Applications
• Residential

DEADBOLTS ARE GRADE COMPARABLE WITH SD SERIES GRADE 2 AND SM SERIES GRADE 3 CYLINDRICAL LOCKS

UNOCCUPIED

OCCUPIED

KV WITH PRIVACY INDICATOR

Specifications

	ADA CUMPLIANI
FOR DOORS:	• 1-3/8" to 1-3/4" thick for Conventional Cylinder, 1-1/2" to 2" for SFIC
DOOR PREP:	• 2-1/8" DIA
BACKSET:	• 2-3/4"/2-3/8" adjustable (Default)
FRONT:	• 2-1/4" x 1" • Stainless Steel or Wrought Brass
STRIKE:	• 2-3/4" x 1" with filler plate • Stainless Steel or Wrought Brass • Dust Box Included
DEADBOLT:	• 1" Throw • Brass Bolt containing one 1/4" case-hardened Steel Roll Pin
HAND:	Non-handed
TRIM:	Stainless Steel or Wrought Brass Scalp
KEYS:	• Two (2) per Lock
KEYWAYS:	SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:	6 or 7-pin Compatible with Best, Falcon and Arrow
CYLINDER:	6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available
KEYING:	Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:	605 (US3 ) - Bright Brass, 606 (US4) - Satin Brass, 613 (US10B) - Oil Rubbed Bronze, 626 (US26D) - Satin Chrome or 630 (US32D) - Satin Stainless Steel
CERTIFICATIONS, LISTINGS, COMPLIANCES:	Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Building
WARRANTY:	One (1) year Limited Warranty

FUNCTION	FUNCTION	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
Single Cylinder	116		• Lock or unlock by key from outside, by thumb turn from inside	E2152
Single Sided	125		Deadbolt by inside thumb turn only Special door preparation required Surface mounted, 1-3/4" bore hole, one side	E2192
Single Sided	125 BK		Deadbolt by inside thumb turn only 2-1/8" bore hole, one side	E21112
Single Sided Indicator Deadbolt	125 IND		No key outside Indicator outside Thumbturn inside extends/retracts deadbolt Emergency key outside retracts deadbolt	_
Double Cylinder	137		• Lock or unlock by key from both sides N/A in SFIC	E2142

How to Order

QUANTITY	SERIES	FUNCTION	FINISH	BACKSET	CYLINDER	KEYWAY	KEYING	OPTION
20	KV	116	630	ADJ	D	SCC	KD	_
	NOTE: Case quantity is 20 / Case weight is 26 lbs. Single Cylinder / Case weight is 35 lbs. Double Cylinder		Cylinder	ADJ — 2-1/4" x 1" (Default) ADJR — 2-1/4" x 1" x 1/4" Radius	D — Default L — Less Cylinder SF6 — SFIC W/Core, 6 Pin SF7 — SFIC W/Core, 7 Pin SF7L — SFIC 7 Pin Housing, less core SF6L — SFIC 6 Pin Housing less core	PAGI	E 125	DB — Dust Box PAGE 124
				PAGE 124	PAGE 125

Deadbolts

ANSI NO.	FUNCTION	DESCRIPTION	626	605/606/613/630
		NON-CYLINDER - Thumb	oturn Inside
E2192	125	Communicating	$68.00	$75.00
E21112	125BK	Communicating	$74.00	$85.00
	125IND	Single Sided Indicator Deadbolt	$101.00	$116.00*
		SINGLE CYLINDER - Cyl	inder Outsic	le / Thumbturn Inside
E2152	116	Entrance	$105.00	$116.00
		DOUBLE CYLINDER
E2142	137	Store Door	$135.00	$137.00

CYLINDER OPTIONS	ICON	LOCK Adjustment
D	•	N/C
SFL	8	$20.00

List prices shown include conventional key in knob/lever cylinder. For I-C, list prices do not include core. $^\{*125IND\}$ available in 626, 613, 630 only

NOTES:

• Prices do not include IC Core
• 125 different prep
• 125BK different prep

CODE	BACKSET DESCRIPTION	LOCK ADJUSTMENT
	2-3/4" - 2-3/8" ADJUSTABLE
ADJ	2-1/4" x 1" (Default)	N/C
ADJR	2-1/4" x 1" x 1/4" Radius	$5.00

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
DB	Dust Box	$4.00

Rim Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
ARA	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C	N/C
SCC-K	Schlage / C-K
SAL	Sargent / LA
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)	$3.00
NON	Less Cylinder	Deduct $8/Cylinder

NOTES:

• ⁿ Combinated cores include master keying in the list price
• ⁿ Specify finish for IC Cores ordered separately
• ⁿ Control keys must be ordered separately
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) , Best A2 & A4 Systems Available

SFL/SFIC Core

UL 437 and High Security Cylinders

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
	SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
	Dummy Construction Core Plastic Construction cores are invoiced at shipment and credited upon return.	$5.00	$5.00
	HIGH SECURITY IC CORES
SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — NOT AVAILABLE WITH LFIC

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

KV SERIES DEADBOLT

LOCKS

BACKSET DESCRIPTION	605	613	630	PART LIST PRICE
2-3/4" - 2-3/8" ADJUSTABLE
2-1/4" x 1-1/8" (Default)	I04507-5	I04507-6	I04507-1
2-1/4" x 1-1/8" x 1/4" Radius	I04507-5R	I04507-6R	I04507-1R	$32.000
1-1/8" Latch Front Filler Plate (Minimum of 100 pieces)		I099-100		$0.85

Parts discount applies

Strikes and Dust Box

DESCRIPTION	605	613	630	PART LIST PRICE
Deadbolt Strike (any finish) 2-3/4" x 1-1/8"	I4702-5	I4702-6	I4702-1	$18.00
Dust Box		I4701		$4.00

Parts discount applies

Miscellaneous Parts

DESCRIPTION	PDQ NO.	PART LIST PRICE
Emergency Release Key for KV125IND Deadbolt	I4711-EKEY	$3.00

Extra Heavy Duty Mortise Cylinder Deadbolt

Typical Applications

• Auxiliary Doors
• Closets
• Commercial/Institutional/Military
• Common Areas
• Equipment Rooms
• Storerooms

Specifications

Small Mortise Body Type Prep

	ADA CUMPLIANI
FOR DOORS:	• 1-3/4"
BACKSET:	• 2-3/4"
CASE:	Steel — Dichromated for corrosion resistance
FACEPLATE:	• 1-1/4" x 5-5/8"
FRONT:	• 2-1/4" x 1" • Stainless Steel.
STRIKE	:● 1-1/8" x 2-1/2"
DEADBOLT:	• 1" Throw. • Stainless Steel.
OPTIONAL THUMBTURN:	ADA Compliant.
HAND:	Non-handed except for function MJ134 Classroom. (See Function Table and How to Order Guide).
KEYS:	• Two (2) per Lock.
KEYWAYS:	• SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:	• 6 or 7-pin • Compatible with Best, Falcon & Arrow • Large Format IC Cores compatible with Schlage.
CYLINDER:	• 6 or 7-pin Mortise Cylinder
KEYING:	Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:	• 630 (US32D) - Satin Stainless Steel
CERTIFICATIONS, Listings, compliances:	UL listed
WARRANTY:	• 10-YearLimited Warranty

Cross Reference*

ANSI # A156.5 (A156.13)	PDQ Function	BEST	CORBIN	DORMA	MARKS #31/32/33 SERIES	SARGENT	SCHLAGE	YALE
E06081 (F18)	MJ131	48H L	DL4111	D961	L	4876	L464	353
E06071 (F17)	MJ132	48H K	DL4113	D960	K	4875	L460	352
E06061 (F16)	MJ133	48H M	DL4112	D962	М	4874	L462	351
E06001 (E20)	MJ134LH	48H R	DL4117	D963	S	4877	L463	357
E06091 (F29)	MJ134LH	40F N	DL4117	D903	3	4077	L403	337

^* Note: Functions are equal, but form may differ.

How to Order

SERIES	FUNCTION	FINISH	CYLINDER	KEYWAY OR HOUSING	KEYING	OPTIONS
MJ	131	630	D	SCC	KD	_
			D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schlage® Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing, less core SF7L — SFIC 7 Pin Housing, less core LFL — Schlage® Compatible LFIC Housing less core			ADA — Disability Thumbturn (ADA)

Mortise Deadbolt

FUNCTION	FUNCTION NUMBER	OUTSIDE | INSIDE	DESCRIPTION	630	605/606 612/613/629
Single Cylinder	131	\tag{3}	Key outside extends/retracts deadbolt	$349.00	$379.00
Single Cylinder with Thumbturn	132	g	Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt	$432.00	$462.00
Double Cylinder	133	2 ·	Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt	$501.00	$531.00
Single Cylinder (Classroom) Left Hand	134LH	di D	Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Thumbturn rotates clockwise	ф400.00	$400.00
Single Cylinder (Classroom) Right Hand	134RH		Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Thumbturn rotates counter-clockwise	$469.00	$499.00

Note: For replacement T-Turn mortise cylinders for functions MJ134 RH and MJ134 LH, see the Cylinders and Keying Section.

Options

CODE	DESCRIPTION	LOCK ADJUSTMENT
ADA	Disability Thumbturn (ADA)	$36.00
АМ	Antimicrobial Coating	$60.00

ADA Thumbturn

Heavy Duty Interchangeable Core Padlock

Typical Applications

• Gates
• Higher Education
• Industrial
• K-12 Education

Shackle Size

A DIAMETER	B VERTICAL CLEARANCE	C HORIZONTAL CLEARANCE	D BODY WIDTH
5/16"	1-1/8"	25/32"	1-3/4"

How to Order

QUANTITY	SERIES	FUNCTION	KEYWAY	KEYING	OPTION
10	PL	1	PDQ1	KD	—
NOTE: Case quantity is 10 / Case weight varies	CC — Chain & Clevis

Padlocks

FUNCTION	DESCRIPTION	SHACKLE	PDQ NO.	PART LIST PRICE
1	PL-1 IC Padlock	1-3/4" x 1-1/8"	I8512-7	$62.00

NOTES:
n Prices do not include IC Core

Options

CODE	DESCRIPTION	PDQ NO.	PART LIST PRICE
CC	Chain & Clevis	I8512	$8.00

PL SERIES INTER CHANGEABLE CORE

LIST PRICE

Effective May 13, 2019

Cores

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY (I5206-A)
7 Pin Cores	I5207 + KEYWAY (I5207-B)	$47.00	$59.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY (I5206-1A)
7 Pin Cores	I5207-1 + KEYWAY (I5207-1B)	$47.00 $76.00
	A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q, WA, WB, WC, WG, WH, TB, TD, TE, & R
CONSTRUCTION CORES
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic return. Subject to 50% discount.	Construction cores are invoiced at shipment and credited upon	$ 5.00
VISUAL KEY CONTROL			PART LIST PRICE
	Cylinder Marking AA1, AA2, Etc. (Per Cylinder)
Key Marking AA1, AA2, Etc. (Per Key)	$10.00
Key Marking other than Keyset (Per Key)

NOTES:

• ⁿ IC Cores are available Combinated or Uncombinated
• ⁿ Uncombinated cores do not include springs & pins
• ⁿ Combinated cores includes master keying
• ⁿ Designate finish for IC Cores ordered separately: 606 or 626
• ⁿ Parts discounts applies

Features

• PDQ EPIC Series cylinders include a special format interchangeable core to retrofit into standard European Profile applications.
• Solid brass construction
• Can be incorporated into existing master key system
• Large thumbturn for ease of use
• EPIC Cores receive special machining to interface with housing. Specify (EP) designator for these cores (example: I5207EP-A)

EPIC SERIES

PDQ NO.	DESCRIPTION	PART LIST PRICE
I5131	EPIC, Single Cylinder 45MM	$108.00
I5131L	EPIC, Single Cylinder 55MM	$119.00
I5132	EPIC, Single Cylinder X Turn 45MM/40MM	$127.00
I5132LIS	EPIC, Single Cylinder X Turn 45MM/55MM
I5132LOS	EPIC, Single Cylinder X Turn 55MM/45MM	$138.00
I5133	EPIC, Double Cylinder 45MM/45MM	$127.00
I5133L	EPIC, Double Cylinder 55MM/45MM	$144.00

EPIC SERIES INT ERCHANGEABLE CORE

LIST PRICE

Effective May 13, 2019

Cores

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206EP + KEYWAY (I5206EP-A)
7 Pin Cores	I5207EP + KEYWAY (I5207EP-A)	$67.00	$79.00
COMBINATED
6 Pin Cores	I5206EP + KEYWAY (I5206EP-A)
7 Pin Cores	I5207EP + KEYWAY	$67.00	$96.00
	A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q, WA, WB, WC, WG, WH, TB, TD, TE, & R
CONSTRUCTION CORES
Construction Core 6-pin only
Dummy Construction Core Plastic return. Subject to 50% discount.	Construction cores are invoiced at shipment and credited upon	$67.00	$79.00
VISUAL KEY CONTROL			PART LIST PRICE
Cylinder Marking AA1, AA2, Etc. (Per Cylinder)
Key Marking AA1, AA2, Etc. (Per Key)			$10.00
Key Marking other than Keyset (Per Key)

NOTES:

• ⁿ IC Cores are available Combinated or Uncombinated
• ⁿ Uncombinated cores do not include springs & pins
• ⁿ Combinated cores includes master keying
• ⁿ Designate finish for IC Cores ordered separately: 606 or 626
• ⁿ Parts discounts applies

Cylinders, Keying Systems, and Keys

Take Security to the Next Level

UL 437 High Security Cylinders from PDQ

and bottom anti-drill pins

Mortise RimResistant to picking and key fitting tests

Mortise

Cylinder Availability

KIK (Key - in - Lever/Knob)

• Eleven strategically placed hardened stainless steel anti-drill pins
• Resistant to sawing, prying, pulling and bumping

Applications

• Government and Military Facilities
• Information Technology (IT) Rooms
• High Liability/High Cost Goods Areas
• Hospital Pharmacies
• Research Laboratories
• Banks and Financial Institutions
• Exterior Doors on High Security Buildings

HIGH SECURIT Y

LIST PRICE

Effective May 13, 2019

Standard High Security Cylinders

DESCRIPTION	PDQ NO.	626	605	613
6 Pin Key in Knob/Lever Cylinder KD/KA	HSC125	$66.00	$79.50	—
Mortise/Rim Combo Cylinder 1-1/8" 6 Pin KD/KA	HSC020
Mortise Cylinder 1 1/4" 6 Pin KD/KA	HSC030	$90.00	$107.50	$111.00
Mortise Cylinder 1 1/2" 6 Pin KD/KA	HSC050	$120.00	—	—

Includes Keying Charges and 2 Cut Keys. NOTE: Requires master keying, see below for charge.

Parts discount applies

NOTES:

• ⁿ Prices for LF IC Mortise & Rim Cylinder Housings do not include IC Core
• ⁿ Specify finish when ordering IC Housing & Cores
• ⁿ High Security Cylinders not available "0" bitted.
• ⁿ Key blanks for High Security Cylinders not available.

UL437 High Security Cylinders

DESCRIPTION	PDQ NO.	626	605	613
UL 437 6 Pin Key in Knob/Lever Cylinder KD/KA	HSC425	$81.00	$104.00	—
UL 437 Mortise Rim Combo Cylinder 1-1/8" KD/KA	HSC320
UL 437 Mortise Cylinder 1-1/4" KD/KA	HSC330	$105.00	$132.00	$135.50

Includes Keying Charges and 2 Cut Keys. NOTE: When ordering UL 437 Cylinders with PDQ Cylindrical or Mortise locks, the lock should be ordered Less Cylinder (LC) and a cylinder deduction applied. UL 437 and High Security Cylinders are priced at a parts discount.

NOTE: Requires master keying, see below for charge.

Parts discount applies

High Security Cylinder

High Security Keying Systems

DESCRIPTION	PDQ NO.	626
Cut Key, 6 pin	HSC065
SFIC Cut Key, IC 7 pin	HSC874	$12.00
LFIC Control Cut Key, IC 6 pin, TA	HSC965
Master Keying Charge		$11.80
Key Marking Charge		$4.80
Cylinder Marking Charge		$4.80

Includes Keying Charges and 2 Cut Keys

Parts discount applies

High Security Cores

DESCRIPTION	PDQ NO.	626
SFIC Cylinder, 6 Pin	HSC806	$90.00
SFIC Cylinder, 7 Pin	HSC807	$97.50
LFIC Cylinder Schlage® compatible, 6 Pin	HSC906	$131.25

Includes Keying Charges and 2 Cut Keys

Parts discount applies

SFL/SFIC Core

High Security Cams

DESCRIPTION	PDQ NO.	626
Adams Rite Type Cam	HSCCAM1
Yale Type Cam	HSCCAM2
Yale Narrow Type Cam	HSCCAM2A
Russwin Type Cam	HSCCAM3
Falcon Type Cam	HSCCAM4	$12.00
Schlage Type Cam	HSCCAM7
Sargent Offset Type Cam	HSCCAM8
PDQ Cam	HSCCAM3

Parts discount applies

LFL/LFIC Schlage Format

UL 437 and High Security Cylinders

Conventional Cylinders

PDQ's high quality conventional cylinders provide the standard level of security and functionality.

Interchangeable Core (IC) cylinders

SFIC

Interchangeable core (IC) offers maximum flexibility to the building owner. Whenever a key is lost or stolen, locks can be rekeyed quickly by non-locksmith personnel.All it takes is the special "control" key. This key is used to remove and install all cores in the system. Just go to the door, remove the old core and install the new one with the control key. Security is regained in seconds! Unlike most other brands, PDQ interchangeable cores can always be integrated into existing systems with no adverse effect on the key system. IC cylinders are available in two sizes:

Based on a plug diameter smaller than the standard 1⁄2",SFIC cores are interchangeable with other SFIC installations.

LFIC

Large Format Interchangeable Core (LFIC)

Based on the industry standard plug diameter of 1⁄2", PDQ large format interchangeable cores (LFIC) are available for a variety of different key system types from standard and basic, to restricted and high security.

High security key in knob cylinder

Standard High Security Cylinders

High security SFIC and LFIC cores (SFIC shown)

PDQ High Security cylinders are available in a number of formats, including the standard, KIK (Key In Knob or lever) cylinder used in most PDQ cylindrical locks, as well as a unique Mortise/Rim Cylinder that can be used in either configuration. All standard High Security cylinders feature 2 hardened anti-drill pins as well as our unique and proprietary PDQ keyway with sidebar.

UL 437 High Security Cylinders

437

For additional security, PDQ offers select cylinders in a UL437 package. These optional cylinders feature a minimum of 11 anti-drill, stainless steel pins and UL437 certification. UL437 available in all mortise, mortise rim and KIK keyed functions.

UL 437 High Security Cylinders

Key Systems, Cylinder and Keys Brochure

19 Pages of Technical and Application Information

Order LT7001 from PDQ Customer Service

Effective May 13, 2019

Conventional Key in Knob/Lever Cylinders

KEYWAY	CODE	606	626	PART LIST PRICE
PDQ TA (Restricted)	TA	V90504-844	V90504-744
Arrow AR1	AR1	V90504-830	V90504-730
Corbin 59A1	CO59A1	V90504-829	V90504-729
Corbin 60	CO6	V90504-819	V90504-719
Corbin L4	CL4	V90504-822	V90504-722
Falcon E-R	FAL	V90504-833	V90504-733
Kwikset	KW	V90504-850	V90504-750
Russwin 981	RUD981	V90504-821	V90504-721
Russwin D1	RUD	V90504-820	V90504-720	$58
Sargent LA	SAL	V90504-805	V90504-705
Sargent RA-RC	RA-RC	V90504-806	V90504-706
Schlage C (Default)	SCC (Default)	V4802-8	V4802-7
Schlage C-K	SCC-K	V90504-818	V90504-718
Schlage E	SCE	V90504-817	V90504-717
Yale E1R	YA8	V90504-831	V90504-731
Yale GA	GA	V90504-835	V90504-735

NOTES:

• ⁿ Specify finish for cylinders
• ⁿ Specify KD, KA4, or 1 bitted
• ⁿ 6 pin cylinder keyed for 5 pin
• ⁿ Specify lock series. Example: GT, SD, etc.

Rim Cylinders

KEYWAY	CODE	605	606	612	613	625	626	PART LIST PRICE
PDQ TA (Restricted)	TA	101705-6044	101708-6044	101703-6044	101706-6044	101702-6044	101707-6044
Arrow AR1	AR1	101705-6030	101708-6030	101703-6030	101706-6030	101702-6030	101707-6030
Corbin 59A1	C059A1	101705-6029	101708-6029	101703-6029	101706-6029	101702-6029	101707-6029
Corbin 60	C06	101705-6019	101708-6019	101703-6019	101706-6019	101702-6019	101707-6019
Corbin L4	CL4	101705-6022	101708-6022	101703-6022	101706-6022	101702-6022	101707-6022
Falcon E-R	FAL	101705-6033	101708-6033	101703-6033	101706-6033	101702-6033	101707-6033
Kwikset	KW	101705-6050	101708-6050	101703-6050	101706-6050	101702-6050	101707-6050
Russwin 981	RUD981	101705-6021	101708-6021	101703-6021	101706-6021	101702-6021	101707-6021	ው ርባ
Russwin D1	RUD	101705-6020	101708-6020	101703-6020	101706-6020	101702-6020	101707-6020	$62
Sargent LA	SAL	101705-605	101708-605	101703-605	101706-605	101702-605	101707-605
Sargent RA-RC	RA-RC	101705-606	101708-606	101703-606	101706-606	101702-606	101707-606
Schlage C (Default)	SCC (Default)	101705-6016	101708-6016	101703-6016	101706-6016	101702-6016	101707-6016
Schlage C-K	SCC-K	101705-6018	101708-6018	101703-6018	101706-6018	101702-6018	101707-6018
Schlage E	SCE	101705-6018	101708-6017	101703-6017	101706-6017	101702-6017	101707-6017
Yale E1R	YA8	101705-6031	101708-6031	101703-6031	101706-6031	101702-6031	101707-6031
Yale GA	GA	101705-6035	101708-6035	101703-6035	101706-6035	101702-6035	101707-6035
	Dummy	I01705-60D	I01708-60D	I01703-60D	I01706-60D	I01702-60D	I01707-60D	$51

LIST PRICE

Mortise Cylinders

CYLINDERS

LENGTH INCLUDES CAM

Effective May 13, 2019

KEYWAY	PDQ KEYWAY	CYLINDER LENGTH	605	606	612	613	625	626	630	PART LIST PRICE
		15/16"	101605-7030	101608-7030	101603-7030	101606-7030	101602-7030	101601-7030	_
Arrow AR1	AR1	1-1/8"	101605-7130	101608-7130	101603-7130	101606-7130	101602-7130	101601-7130	_	1
		1-1/4"	101605-7230	101608-7230	101603-7230	101606-7230	101602-7230	101601-7230	_	1
		15/16"	101605-7029	101608-7029	101603-7029	101606-7029	101602-7029	101601-7029	_	]
Corbin 59A1	C59A1	1-1/8"	101605-7129	101608-7129	101603-7129	101606-7129	101602-7129	101601-7129	_	]
		1-1/4"	101605-7229	101608-7229	101603-7229	101606-7229	101602-7229	101601-7229	_
		15/16"	101605-7019	101608-7019	101603-7019	101606-7019	101602-7019	101601-7019	_
Corbin 60	C06	1-1/8"	101605-7119	101608-7119	101603-7119	101606-7119	101602-7119	101601-7119	—
		1-1/4"	101605-7219	101608-7219	101603-7219	101606-7219	101602-7219	101601-7219	_
		15/16"	101605-7022	101608-7022	101603-7022	101606-7022	101602-7022	101601-7022	_
Corbin L4	CL4	1-1/8"	101605-7122	101608-7122	101603-7122	101606-7122	101602-7122	101601-7122	_
		1-1/4"	101605-7222	101608-7222	101603-7222	101606-7222	101602-7222	101601-7222	_	$83
		15/16"	101605-7020	101608-7020	101603-7020	101606-7020	101602-7020	101601-7020	_	$00
Russwin D1	RUD	1-1/8"	101605-7120	101608-7120	101603-7120	101606-7120	101602-7120	101601-7120	_	1
		1-1/4"	101605-7220	101608-7220	101603-7220	101606-7220	101602-7220	101601-7220	_	1
		15/16"	101605-7021	101608-7021	101603-7021	101606-7021	101602-7021	101601-7021	_	1
Russwin 981	RUD981	1-1/8"	101605-7121	101608-7121	101603-7121	101606-7121	101602-7121	101601-7121	_	]
		1-1/4"	101605-7221	101608-7221	101603-7221	101606-7221	101602-7221	101601-7221	_	1
		15/16"	101605-7017	101608-7017	101603-7017	101606-7017	101602-7017	101601-7017	_
Schlage E	SCE	1-1/8"	101605-7117	101608-7117	101603-7117	101606-7117	101602-7117	101601-7117	_	1
		1-1/4"	101605-7217	101608-7217	101603-7217	101606-7217	101602-7217	101601-7217	_	1
		15/16"	101605-7016	101608-7016	101603-7016	101606-7016	101602-7016	101601-7016	_	1
0.11	000	1-1/8"	101605-7116	101608-7116	101603-7116	101606-7116	101602-7116	101601-7116	_	1
Schlage C	SCC	1-1/4"	101605-7216	101608-7216	101603-7216	101606-7216	101602-7216	101601-7216	_	1 |
		1-1/2"	101605-7316	101608-7316	101603-7316	101606-7316	101602-7316	101601-7316	_	$109
		15/16"	101605-7018	101608-7018	101603-7018	101606-7018	101602-7018	101601-7018	_
Schlage C-K	SCC-K	1-1/8"	101605-7118	101608-7118	101603-7118	101606-7118	101602-7118	101601-7118	_	]
3		1-1/4"	_	101608-7218	101603-7218	101606-7218	101602-7218	101601-7218	_	i
		15/16"	101605-705	101608-705	101603-705	101606-705	101602-705	101601-705	_	1
Sargent LA	SAL	1-1/8"	101605-715	101608-715	101603-715	101606-715	101602-715	101601-715	_	1
odigoni Eri	O/IL	1-1/4"	101605-725	101608-725	101603-725	101606-725	101602-725	101601-725	_	-
		15/16"	101605-706	101608-706	101603-706	101606-706	101602-706	101601-706	_
Sargent RA-RC	RA-RC	1-1/8"	101605-716	101608-716	101603-716	101606-716	101602-716	101601-716		1
ourgont fire no	101110	1-1/4"	101605-726	101608-726	101603-716	101606-726	101602-716	101601-726		ł
		15/16"	101605-7031	101608-7031	101603-7031	101606-7031	101602-7031	101601-7031	_	1
Yale E1R	YA8	1-1/8"	101605-7131	101608-7131	101603-7131	101606-7131	101602-7131	101601-7131	_	-
Tale LIII	IAO	1-1/4"	101605-7131	101608-7131	101603-7131	101606-7131	101602-7131	101601-7131	_	-
		15/16"	101605-7035	101608-7035	101603-7035	101606-7035	101602-7035	101601-7035		1
Yale GA	GA	1-1/8"	101605-7035	101608-7035	101603-7035	101606-7035	101602-7035	101601-7035		$83
Tale UA	UA UA	1-1/4"	101605-7135	101608-7135	101603-7135	101606-7135	101602-7135	101601-7135		φυσ
		15/16"	101605-7233	101608-7233	101603-7233	101606-7233	101602-7233	101601-7233	_	1
Falcon E-R	FAL	1-1/8"	101605-7033	101608-7033	101603-7033	101606-7033	101602-7033	101601-7033		-
I dicuit L-n	TAL	1-1/4"	101605-7133	101608-7133	101603-7133	101606-7133	101602-7133	101601-7133		-
		15/16"							_	-
Kwikoot	IVM		101605-7050 101605-7150	101608-7050 101608-7150	101603-7050	101606-7050 101606-7150	101602-7050 101602-7150	101601-7050 101601-7150		ł
Kwikset	KW	1-1/8"			101603-7151		101602-7150			-
		1-1/4"	101605-7250	101608-7250	101603-7250	101606-7250		101601-7250	_	-
PDQ TA (Restricted.		15/16"	101605-7044	101608-7044	101603-7044	101606-7044	101602-7044	101601-7044	_	-
nited to Grandmaster stems w/4 masters)		1-1/8"	101605-7144	101608-7144	101603-7144	101606-7144	101602-7144	101601-7144	_	-
stems w/4 masters)		1-1/4"	101605-7244	101608-7244	101603-7244	101606-7244	101602-7244	101601-7244	_	-
	D.	1"	101605-70D	101608-70D	101603-70D	101606-70D	101602-70D	101607-70D		-
_	Dummy	1-1/8"	101605-71D	101608-71D	101603-71D	101606-71D	101602-71D	101607-71D	_	-
		1-1/4"	I01605-72D	101608-72D	I01603-72D	I01606-72D	I01602-72D	I01607-72D	_
		15/16"							_
_	T-Turn	1-1/8"	112605	112608	112603	112606	112602	112607		$53
	T.T., Division	1-1/4"	122605	122608	122603	122606	122602	122607	_	-
_	T-Turn, Right Hand, Function MJ134 RH	1-1/4"	_	_	_	_	_	_	MJ522-01	$70
_	T-Turn, Left Hand Function MJ134 LH	1-1/4"	_	_	_	_	_	_	MJ523-01

Interchangeable Cores

CORE TYPE	KEYWAY	PDQ KEYWAY	WITH LOCK	WITHOUT LOCK	PINS	606	626
			UNC	OMBINATED
	Best A (Default), B, C, D, E, F, G, H, J, K, L, M, Q, R, WA,	A (Default), B, C, D, E, F,G, H, J, K, L, M, Q, R, WA, WB, WG,	$47.00	$61.00	6	15206 - 8 - Specify Keyway	I5206 - 7 - Specify Keyway
	WB, WG, WH, TB, TD, TE, R	WH, TB, TD, TE, R	Ψ.1.00	ψ01.00	7	15207 - 8 - Specify Keyway	15207 - 7 - Specify Keyway
		COMBINATED
Small	Best A (Default), B, C, D, E, F, G, H, J, K, L, M, Q, R, WA,	A (Default), B, C, D, E, F,G, H, J, K, L, M, Q, R, WA, WB, WG,			6	15206 - 8-1- Specify Keyway	I5206 - 7-1- Specify Keyway
Format (SFIC) BEST	WB, WG, WH, TB, TD, TE, R	WH, TB, TD, TE, R			7	15207 - 8-1- Specify Keyway	| | | | | | | | | | | | | | | | | | |
Compatible		PDQ 1			6	15206 - 8 - 41	15206 - 7 - 41
	DDO Evelueine	FDQT	$47.00	$78.00	7	15207 - 8 - 41	15207 - 7 - 41
	PDQ Exclusive	DDO 0			6	15206 - 8 - 42	15206 - 7 - 42
		PDQ 2			7	15207 - 8 - 42	15207 - 7 - 41 15206 - 7 - 42
	PDQ Exclusive	DD 0 0			6	15206 - 8 - 43	15206 - 7 - 43
	and Restricted	PDQ 3			7	15207 - 8 - 43	15207 - 7 - 43
			UNC	OMBINATED
Large	Schlage C (Default)	SCC (Default)	$55.00	$74.00	6	I5206-8-16	I5206-7-16
Format (LFIC) Schlage			CC	MBINATED
Compatible	Schlage C (Default)	SCC (Default)	$55.00	$80.00	6	I5206-8-116	I5206-7-116
	PDQ Restricted	TA	φυυ.ου	φου.συ		See High Security Section
	Small Format 2 (BEST Compatible)	_	$47.00	$78.00	6 only	15206	15206
Construction	Dummy, Plastic	_	$5.00	$5.00	| - |	I13520	I13520
Cores 1	Large Format (Schlage Compatible)	_	$55.00	$80.00	_	I5206LFIC	I5206LFIC
	I-C Tailpiece and Spacer	_	_	$7.60	_	VP92905	VP92905

Notes 1: No finish designation required.

2: Available in "L" keyway only.

Parts discount applies

Housings

DESCRIPTION	PDQ NO.	PART LIST PRICE
SFIC Mortise Cylinder Housing 6-pin 1-1/4", BEST® compatible	I5306-(specify finish)	$68.00
SFIC Mortise Cylinder Housing 7-pin 1-3/8", BEST® compatible	I5307-(specify finish)	$71.00
SFIC Mortise Cylinder Housing (for both 6-pin/7-pin cores), 1-1/2", BEST® compatible	I5317-(specify finish)	$74.00
SFIC Mortise Cylinder Tapered 6-pin 1/2", BEST® compatible	l53013-067 (specify US3 or 26D)
SFIC Mortise Cylinder Tapered 7-pin 1/2", BEST® compatible	I53013-077 (specify US10B or 26D)	$68.00
SFIC Rim Cylinder Housing (for both 6-pin/7-pin cores)	I5308-(specify finish)
LFIC Mortise Housing, Schlage® compatible	I5304-(specify finish)	$80.00
LFIC Rim Housing, Schlage® compatible	I5303-(specify finish)	φου.υυ

Effective May 13, 2019

Same as Corbin/Russwin A06 Cam (Schlage Clover)

Cams

	CAM LAYOUT	DESCRIPTION	WHERE USED	CONVENTIONAL MORTISE CYLINDER	SMALL FORMAT HOUSING	LARGE FORMAT HOUSING	PART LIST PRICE
		Adams Rite AR Cam	KT Series Deadbolts	1127-4205	154011	154211
-		PDQ MR Cam	MR Series Mortise Locks	1127-4201	154061	I54261
		Straight Cam	6 EW Series Wide Stile Escutcheon Exit Device Trim	1127-4202	154031	154231	ቀ ፖ ባበ
-		Schlage Cloverleaf Cam		1127-4209	154051	I54221	$7.20
		Sargent Std Cam		1127-4204	154041	N/A
	(F)	Lockwood		1127-4203	154021	N/A

KEYWAYS/KEYS/ CONSTRUCTION KEYING

Keyways

Standard (Open) Keyways

Best suited for applications where fast and easy key duplication is required and low key control is required.

Exclusive Keyways (PDQ1, PDQ2)

PDQ offers two exclusive key systems that utilize key blanks that are very hard to find in the marketplace, thereby reducing the chances of unauthorized duplication.

Restricted Keyways (TA, PDQ3)

The PDQ restricted keyway is only available from PDQ and is shipped directly to the authorized end user. Restricted key systems are ideal when there is a significant need to eliminate an unauthorized duplication by lock shops, hardware and home centers. They provide a higher level of security, with authorization required for the order of key blanks for duplication. Each key is registered and no blank keys are sold. A letter of authorization on the end user's stationery must be submitted with the initial order to establish the authorized ship to location

Key Blanks

Conventional

Large Bow

Ideal for special keys which must be visibly distinctive within a key system, or for very specialized marking.

Only available in Schlage C

Interchangeable Core

Construction Cores

Temporary construction cores are an excellent way to ensure the security of a construction site. Another more secure way to ensure the security of the construction site is the use of temporary cores. PDQ offers both standard and disposable construction cores for this purpose. The standard cores are painted black above the keyway identifying them as construction cores. These can be returned at job's end for a full credit. Disposable cores are not key lockable and are discarded when the job is complete.

Construction Master Keying (CMK):

PDQ offers the CMK keying option which provides extra security during the transition from the construction phase to completion. A construction master key operates all PDQ cylinders while the building is under construction. Upon completion of the construction phase, it can be voided without removing the cylinders from the locks simply by turning the change key in each cylinder.

Effective May 13, 2019

CODE	KEYING SYSTEMS	PART LIST PRICE
KD	Keyed Random
OB	0-Bitted with 2 blank keys (For quality control purposes, PDQ "0" bit cylinders are actually keyed to a 1 bit and a 1 bit key is sent to open cylinders.)	N/C
KA2	Keyed Alike, 2 or less (KA2)
KA4	Keyed Alike, 3-4 (KA3 or KA4)	$3.00 each
KA	Keyed Alike, 5 or More (KA5)	$8.00 each
MK	Master Keyed	$16 each
CMK	Construction Master Keyed	$32 each
KE	Master Keyed to Existing Bittings: • Parts Discount Applies	$16 each
CODE	MASTER KEY SERVICES
	Number of Bittings
B100	1-100	$110
B300	101-300	$170
B1000	301-1000	$240
B2000	1001- 2000	$330
B5000	2001- 5000	$420
	Master Key Service is a custom master key system that is provided with the purchase of complete PDQ manufactured locks and locking devices. A master key service charge will be assessed for any order that includes only PDQ cylinders or cores for use on non-PDQ locks or locking devices.
BL	Bitting List for Factory Master Key Production	$95.00
CODE	VISUAL KEY CONTROL
VKC-KEY	Visual Key Control - Key Stamping	$4.20
VKC-CYL	Visual Key Control - Cylinder Stamping
VKC-COR	Visual Key Control - Core Stamping	$8.00
CODE	MASTER/CONTROL/CHANGE KEY CUT
MKC	Master Key
GMKC	Grand Master Key
GGMKC	Grand Grand Master Key
CMKC	Construction Master Key	$10.00
CTLC	Control Key
CKC	Change Key

Visual Key Control

Key Blanks (50 Piece Minimum Order)

PDQ	COMPATIBLE		PART LIST PRICE
KEYWAY	WITH	5-PIN	6-PIN
ARA	Arrow / AR1
CO59A1	Corbin 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCC	Schlage / C
SCE	Schlage / E		$2.30
SAL	Sargent / LA	$2.00
SAS	Sargent / SAS
RA-RC	Sargent / RA-RC
YA8	Yale / E11
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset / KW
Segal	Segal	$1.00
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 sub masters)	$1.35	$1.70
Large Bow Key	SCC
Large Bow Key	SCE	$2.80	$3.00
	INTERCHANGEABLE CORE KEY BLANKS		PRICE EACH
	Best Keyways: A, B, C, D, E, F, G, H, J, K, L, M, Q, WA, WB, WC, WD, WG, WH, TB, TD, TE, R, DD		$2.60
	IC Keyblank Stamped "U.S. Govt". Min order qty: 50ea		$3.40

Parts discount applies

Miscellaneous Parts

DESCRIPTION	PDQ NO.	PART LIST PRICE
1-1/4'' x 4-7/8'' ANSI Dust Box (Specified with Lock)	Y025-SBX
1-1/4'' x 4-7/8'' ANSI Dust Box	Y025-SBX	$6.20
T-Strike Dust Box (Specified with Lock)	I0251	$2.00
T-Strike Dust Box	I0251	$3.80
FL-Strike Dust Box (Specified with Lock)	I0251R	$2.00
FL-Strike Dust Box	I0251R
1-1/8'' x 2-3/4'' Deadbolt Dust Box	I4701	$3.80
IC Tailpiece assembly includes tailpiece and spacer	VP92905	$7.60
GP Screw pack (any finish) / GT Screw pack (any finish)	V91910 / VA10030	$6.00
1-1/8'' Latch Front Filler Plate (Minimum of 100 pieces)	I099-100	$1.00
COLLARS AND BLOCKING RINGS
Rim Cylinder Ring	I5502
Mortise Cylinder Ring Step 5/32"	I5501
Blocking Ring 1/8"	I55121	$3.00
Blocking Ring 5/32"	I034
Blocking Ring 1/4"	I55012
Vandal Collar 11/16"	I5504
Vandal Collar 13/16"	I5503	$13.00

^* Works with both GP and GT, SX and SD latches. (Grade 1 latches requires removal of breakaway center) Parts discount applies

NOTES:

• ⁿ Specify finish when ordering miscellaneous parts
• ⁿ Kwikset cylinder available in 5 pin only

6 Pin Key Blank / 5 Pin Key Blank

Collars

SFIC Tailpieces

Exit Devices

Security. Performance. Flexibility.

Exit devices are a critical part of a building's fire and life safety egress system. PDQ manufactures a full line of exit devices, including rim, vertical rod and mortise for both wide and narrow stile doors. These devices provide the best combination of simplicity, strength, durability, aesthetics, and innovation and are perfect for a vast array of applications.

Comprehensive Offering

6200 WIDE STILE

Applications

6200 Series Wide Stile Exit Devices incorporate modern push bar styling for heavy traffic applications. These Grade 1 certified devices are put to the ultimate test everyday in K-12, higher education, Healthcare, and government buildings. Other applications include offices, banks, assisted living facilities, retail stores, and other commercial buildings that have constant traffic. — p. 154

6202 NARROW STILE

Applications

6202 Series Narrow Stile Exit Devices incorporate contemporary design and durability. The 6202 is built from the 6200 Series but uses a narrow head configuration. — p. 175

4200 COMMERCIALWIDE STILE

Applications

When low cost and dependability are essential, the 4200 Series is a great choice. A reliable workhorse, the 4200 Series is an economical answer for stock doors and frames. — p. 190

6EW199A ELECTRO-MECHANICAL TRIM

Applications

Electrified trim complements the mechanical offering and is typically incorporated into a wired access control system or used independently with a remote access switch. — p. 148

6EWS, 6EWS-XLS pdqSMART ELECTRONIC

Applications

pdqSMART wireless IoT access management exit device trim completes the offering by delivering all access control system hardware component required at the door in a single integrated design. — p. 5, 7

9200 MULLIONS

Applications

Designed for quick removal, the 9200 mullion is ideal in situations where carts, gurneys and large machinery need to pass freely through an opening. Popular applications include Healthcare, industrial manufacturing, and commercial businesses. — p. 188

Stock One 6EW and Sell 12 Trims

with Adapter and Conversion Kits

Stock Requirements $892.00 List

• 6EW Trim
• 08 to 09 Function Conversion Kit, 629089
• 09 to 08 Function Conversion Kit, 629098
• Von Duprin 98/99 Adapter Kit, 88700
• Yale 7000 / Corbin Russwin ED 5000 Adapter Kit, 88705
• Precision 2100 Adapter Kit, 88706
• Dorma 9300 Adapter Kit, 88709

Built to Last. Unrivaled Accessibility.

Typical Applications

• Assisted Living
• Government Facilities
• Healthcare
• Higher Education
• Hospitality
• Houses of Worship
• Industrial

• K-12 Education
• Multi-family
• Offices
• Pairs of Doors
• Public Buildings
• Retail
• Single Exterior and Interior Doors

Features ADA COMPLIANT

• Designed for high use and abuse Grade 1 applications.
• Heavy duty cast alloy escutcheon thru-bolts directly into the exit device chassis.
• Designed for use with PDQ's 6200 series. RIM, Concealed Vertical Rod and Surface Vertical Rod exit devices.
• Lever remains rigid when locked.
• Simple installation.
• Handing is field reversible.
• Lever rotation: 28 degrees making the door easier and quicker to open.

Replace Von Duprin, Yale and Corbin Russwin Trimswith 6EW

• Simple kit allows replacement of existing trims with 6EW Series Heavy Duty Trim.
• Von Duprin 98/99.
• Yale 7000.
• Corbin Russwin ED5000.

Field Convertible Functions with a Simple Kit

• Simple and inexpensive kit converts 08 Classroom to 09 Storeroom (pn 629089)

• Simple and inexpensive kit converts 09 Storeroom to 08 Classroom (pn 629098)

HOW TO ORDER SEE PAGE 169

High Security and UL437 High Security Cylinders Available

Device Trim

Typical Applications

• Healthcare
• High Security Areas
• Higher Education
• Industrial
• K-12 Education
• Stairwell Towers

MOTORIZED LOCKING/UNLOCKING

Innovative motor drive controls FAIL SECURE or FAIL SAFE locking mode

Features

• Available in 6200 EW Series Wide Stile Escutcheon Trim
• Motorized locking/unlocking.

FAIL SECURE – Outside trim is UNLOCKED when power is ON, and LOCKED when power is OFF. Lockset will lock in the event of a power failure FAIL SAFE – Outside trim is LOCKED when power is ON, and UNLOCKED when power is OFF. Lockset will unlock in the event of a power failure.

• Field changeable from FAIL Secure to FAIL SAFE.
• Designed for AC or DC input voltage. No need to select voltage when specifying or ordering.
• Designed for use with PDQ Rim, Surface Vertical Rod and Concealed Vertical Rod Exit Devices only. Not available with Mortise Exit Devices
• Designed and assembled by PDQ in the USA

ADA COMPLIANT

Specifications

• Input voltage: 12-24VDC or 12-24VAC.
• Max In-rush current: < 1.0A.
• Standby current:
  • 12VAC: 12mA.
  • 24VAC: 10mA.
• 12VDC: 3mA.
• 24VDC: 4mA. Note: Operating voltage at ± 10% of rated voltage.
• Warranty: 2-Years

Recommended Power Supply

• PDQ Model # 81440.
• Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz

• Rated for simultaneous operation of 2 each trim assys.

• Output: 24VDC, 2A, filtered and regulated.
• Power Supply Requirements: – AC/DC Output Voltage – 1A min (filtered and regulated).
• 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec. – AC Output Voltage.
• 12-24VAC (60Hz) @ < 1A initial surge (1 sec), 15mA standby after 30 sec

When Quiet Operation is a Must

Typical Applications

• Child Care Facilities
• Healthcare
• Libraries
• Museums
• Theaters
• Where Ambient Noise Can Be Disruptive.

HOW TO ORDER SEE PAGE 163.

Features

• · Ultra Quiet Operation
• $\backslash bullet$ For use with PDQ 6200 Wide Stile or 6202 Narrow Stile exit devices, panic and fire listed.
• Unique motor drive retracts Push Pad.
• Dual operation -maintained or momentary operation.
• · Supports remote signaled electric dogging.
• Low power requirements. Interfaces with PDQ's 81440 2A 24VDC Filtered/Regulated Power Supply, and EL Series Electrified Power Transfer Hinges
• Suitable for pairing with Low Energy Power Operators
• Non-polarized leads
• On-board diagnostic LED lights
• ULL isted

Field Retrofit Kit

• Designed to field retrofit 6200 and 6202 series exit devices
• · Includes motor drive module, connectors and fasteners
• PN 81550K-MDT

Electrical Specifications

Note: Operating voltage at $\backslash pm$ 10% of rated voltage.

Input voltage: 24VDC

• Rated in-rush current: 1.0A.
• Operational in-rush current: .85A.
• Continuous current, electric dogging: .4A.
• Recommended Power Supply: PDQ Model # 81440. Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz Output: 24VDC, 2A, filtered and regulated.

E629 SERIES

Stand-Alone Offline Keypad Exit Device Trim

Typical Applications

• · Professional Offices within a Building
• Server Rooms
• Side Entrance in Commercial, Retail
• . Utility Areas or Supply Closets

Features

• · Updates and lock settings updated at each opening.
• · Auxiliary power input, remote release contacts and mechanical key bypass.
• Designed for use with PDQ 6200 Series RIM and Surface Vertical Rod Exit Devices
• Operates up to 100.000 lock/u of (4) AA batteries
• Full outd

DISCONTINUED REPLACED BY PdqSMART 6EWS-STP Contact Customer Service for Details Specif שטופ number of seconds then re-lock. and remain unlocked until a valid credential is entered SELECTABL ...aster credential the lock will unlock the door for a configurable number of seconds JVDC 300mA max current BATTE - 100,000 cycles on a set of (4) AA alkaline batteries (not included). PROGRAM...ING: No external devices or connections required. USB models. WEATHER RESISTANCE: · Full outdoor standard. OPERATING TEMPERATURE: • 0° F to 130° F - both sides DOORS: • 1-3/4" standard, 2-1/4" available, specify when ordering ESCUTCHEON: • 3"W x 11-1/8"H x 1" D (not including cylinder and lever) KEY OVERRIDE: • Standard (09 Storeroom) KEYWAYS: · Keyways available to match most major manufacturers. INTERCHANGEABLE CORE: • Best type 6 and 7 pin or Schlage LFIC • Can be MK, CMK, GMK. Available Zero Bitted (K0), Keyed Different (KD), Keyed A like (KA). Can be keyed into existing master key KEYING: systems of other manufacturers. FINISHES: • 626 - Satin Chrome • UL listed for "Fire Exit Hardware" labeled for up to 3 hrs. single swing doors 4'0" x 8"0" CERTIFICATIONS, LISTINGS, COMPLIANCES: • PDQ exit devices certified to ANSI/BHMA 156.3, Grade 1 WARRANTY: • 24 months from date of manufacture COUNTRY OF ORIGIN: • Designed and Assembled by PDQ in the USA. . Meets requirements of the Buy American Act.

Ar chitectural Exit Devices

6200/6202 Quick Reference Guide

		ARCHITECTUF	AL WIDE STILE		ARCHI	TECTURAL NARRO	W STILE
	6200R	6200V	6200 CV	6200M	6202R	6202V	6202 CV
	RIM	SURFACE VERTICAL ROD	CONCEALED VERTICAL ROD	MORTISE	RIM	SURFACE VERTICAL ROD	CONCEALED VERTICAL ROD
DEVICE
CERTIFICATIONS/LISTINGS/WARRANTY
BHMA CERTIFIED TO ANSI A156.3 GRADE 1	•	•	•	•	•	•	•
FIRE LISTED TO UL10C	•	•	•	•	•	•	•
UL 305 LISTED FOR PANIC	•	•	•	•	•	•	•
FBC WINDSTORM LISTED	•	•
LIMITED WARRANTY	10 YEAR	10 YEAR	10 YEAR	10 YEAR	10 YEAR	10 YEAR	10 YEAR
MECHANICAL OPTIONS
3 FT DOORS	•	•	•	•	•	•	•
4 FT DOORS	•	•	•	•	•	•	•
LESS BOTTOM ROD		•	•			•	•
CYLINDER DOGGING	•	•	•	•	•	•	•
ELECTRICAL OPTIONS				-
ALARM	•	•	•	•	•	•	•
LATCH BOLT MONITORING				•		1
MOTORIZED LATCH RETRACTION	•	•	•	•		•	•
REQUEST TO EXIT SIGNAL SWITCH	•	•	•	•		•	•
REQUEST TO EXIT DUAL SIGNAL SWITCH		•	•	•			•
TRIM
WIDE STILE ESCUTCHEON 1	•	•	•	•
NARROW STILE ESCUTCHEON		•		_	•	•	•
SECTIONAL SECTIONAL						|
GRIP PULL					•
PLATE AND PULL	+ -	+ -				+ -
ELECTRONIC ACCESS CONTROL
MOTORIZED LOCKING/UNLOCKING (FAIL SECURE/FAIL SAFE)	•	•	•
STAND ALONE KEYPAD	•	•
LEVER SHAPES
BOSTON	•	•	•
MIAMI	•	•	•
PHILADELPHIA	•	•	•	•	•	•	•
ORLANDO	•	•	•
FINISHES, DEVICES
605 (US5) POLISHED BRASS	•	•	•
606 (US4) SATIN BRASS	•	•
613 (US10B) OIL RUBBED BRONZE	•	•	•		•	•	•
626 (US26D) SATIN CHROME	•	•		•
630 (US32D) SATIN STAINLESS STEEL	•	•	•	•	•	•	•
630F (US32D) FULL SATIN STAINLESS STEEL	•	•	•	•
ANTIMICROBIAL	•	•	•	•	•	•	•

Door Width Chart

PART	DESCRIPTION	FOR DOOR	MIN DOOR	MAX CUT1	PUSH PAD
6201R	Rim Cylinder dogging	36"	30"	6"	18"
6200R	Rim Regular dogging	36"	30"	6"	18"
6200RF	Rim Fire	36"	27"	9"	18"
6201V	SVR Cylinder dogging	36"	30"	6"	18"
6200V	SVR Regular dogging	36"	30"	6"	18"
6200VF	SVR Fire	36"	27"	9"	18"
6201CV	CVR Cylinder dogging	36"	30"	6"	18"
6200CV	CVR Cylinder dogging	36"	30"	6"	18"
6200CVF	CVR Fire	36"	27"	9"	18"
6201RA	Rim Cylinder dogging	48"	35"	11"	24"
6200RA	Rim Regular dogging	48"	34"	12"	24"
6200RFA	Rim Fire	48"	33"	13"	24"
6201VA	SVR Cylinder dogging	48"	35"	11"	24"
6200VA	SVR Regular dogging	48"	34"	12"	24"
6200VFA	SVR Fire	48"	33"	13"	24"
6200MR	Mortise Cylinder dogging	36"	30"	6"	18"
6201MR	Mortise Regular dogging	36"	30"	6"	18"
6200MRF	Mortise Fire	36"	27"	9"	18"
6200MRA	Mortise Cylinder dogging	48"	35"	11"	24"
6201MRA	Mortise Regular dogging	48"	34"	12"	24"
6200MRFA	Mortise Fire	48"	33"	13"	24"

For electrified options, consult installation instructions or contact PDQ Technical Service.

Exit Device Cross Reference

	EXIT DEVICE SERIES/TYPE
MANUFACTURER	RIM	RIM FIRE	VERTICAL ROD	VERTICAL ROD FIRE	CONCEALED VERTICAL ROD	CONCEALED VERTICAL ROD FIRE	MORTISE	MORTISE FIRE
PDQ	6200R	6200RF	6200V	6200VF	6200CV	6200CVF	6200MR	6200MRF
CORBIN	ED5200	ED5200A	ED5400	ED5400A	ED5860	ED5860B	ED5600	ED5600A
DORMA	9300	F9300	9400	F9400	9100	F9100	9500	F9500
FALCON	18-R	F-18-R	18-V	F-18-V	18-C	F-18-C	25-M	F-25-M
HAGER	4501 RIM 0	4501 RIM FR	4501 SVR 0	4501 SVR FR	4500 CVR	4500 CVR FR	4500 MOR	4500 MOR FR
SARGENT®	8800	12-8800	8700	12-8700	8600	12-8600	8900	12-8900
VON DUPRIN	98/99	98/99-F	98/9927	98/9927-F	98/9947	98/9947-F	98/9975	98/9975-F
YALE	7100	7100F	7110	7110F	7160	7160F	7130	7130F

6200 Wide Stile

6200R SERIES

Architectural Wide Stile Rim Exit Device

RIM ANSI TYPE 1

Specifications

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Extruded aluminum • Specify 630F for full stainless tactile surfaces (roll formed)
LATCH:	• RIM (R) – Pullman with dead latching, stainless steel, 3/4" throw
BACKSET:	• 2-3/4" Backset , compatible with 161 prep.
HAND:	• Device is non-handed • Trim is non-handed or field reversible
DOGGING:	• Hex key dogging standard • Cylinder dogging optional • Dogging not available on fire listed devices
MINIMUM STILE WIDTH:	• 4-1/4"
DOOR THICKNESS:	• 1-3/4" standard, others vary by trim selection
DOOR WIDTH:	• Standard for 3 ft doors, option available for doors up to 4 ft width
FINISHES:	• 605 - Polished Brass, 606 - Satin Brass, 613 - Oil Rubbed Bronze, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Tactile Surfaces • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes sex nuts, machine screws and wood screws
WARRANTY:	• Ten (10) year limited warranty
ELECTRONIC ACCESS CONTROL OPTIONS:	• Motorized Latch Retraction • Stand Alone Key Pad Trim • Motorized Locking/Unlocking Trim • Request to Exit/Signal Switches SS/SS2 • Alarmed Exit • Latch Bolt Monitoring (rim only) • MLR Retrofit Kit - 81550K-MDT
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL 305 listed for "Panic", UL listed for "Fire Exit Hardware" up to 3 hours • Certified to ANSI/BHMA A156.3 Grade 1 • Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. Design load rating: ± 70.0 PSF for single door (3' x 7'), ± 65.0 PSF for pairs of doors door (6' x 7') with 9200 Series Mullion • Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy America Act

How to Order

QUANTITY	SERIES	DOGGING	DEVICE TYPE	LABELING	DOOR WIDTH	FINISH	OPTIONS
10	62	00	R	—	—	630	—
NOTE: 1 - Max 3' door width for Florida HVHZ. 2 - CD furnished less cylinder.		00 – Hex Key Dogging (Default)) 01 – Cylinder Dogging Dogging Not Fur nished With Fire Listed Devices	R – Rim	BLANK – Panic Listed (Default) F – Fire Listed	BLANK – 3' Doors (Default) A – Doors up to 4' Consult Door Width Chart to determine correct device for your application	605 – Polished Brass 606 – Satin Brass 613 – Oil Rubbed Bronze 626 – Satin Chrome 630 – Satin Stainless Steel 630F – Full Stainless Steel	AL LHR - Alarm Option, Left Hand Reverse AL RHR - Alarm Option, Right Hand Reverse LM - Latch Bolt Monitoring MLR - Motorized Latch Retraction SS -Signal Switch, Request to Exit or Monitoring SS-2 - Dual Signal Switch, Request to Exit and Monitoring AM – Antimicrobial Coating FEC - Flush End Cap HVHZ - Florida HVHZ EP – PDQ Smart Electronics Package

Exit Devices

PART	DESCRIPTION	630	630F	626	605/606/613
6200R	Rim, UL panic listed, hex key dogging, 3'0" door	$1086	$1248	$1156	$1234
6201R	Rim, UL panic listed, cylinder dogging 3'0" door	$1171	$1333	$1241	$1319
6200RF	Rim, UL fire listed, no dogging 3'0" door	$1253	$1415	$1323	$1401
6200RA	Rim, UL panic listed, hex key dogging, 4'0" door	$1146	$1338	$1216	$1294
6201RA	Rim, UL panic listed, cylinder dogging 4'0" door	$1231	$1393	$1301	$1379
6200RFA	Rim, UL fire listed, no dogging 4'0" door	$1313	$1475	$1353	$1461

Available with all electrified options.

PAGE 163

6200V SERIES

Specifications

Architectural Wide Stile Surface Vertical Rod Exit Device

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Extruded aluminum • Specify 630F for full stainless tactile surfaces (roll formed)
LATCH:	• Top Latch-Pullman with dead latching 5/8" throw - Bottom Latch- Pullman with 5/8" throw, held retracted during door swing
BACKSET:	• 2-3/4" Backset , compatible with 161 prep.
HAND:	• Device is non-handed • Trim is non-handed or field reversible
DOGGING:	• Hex key dogging standard • Cylinder dogging optional • Dogging not available on fire listed devices
MINIMUM STILE WIDTH:	• 4-1/4"
DOOR THICKNESS:	• 1-3/4" standard, others vary by trim selection
DOOR WIDTH:	• Standard for 3 ft doors, option available for doors up to 4 ft width
FINISHES:	• 605 - Polished Brass, 606 - Satin Brass, 613 - Oil Rubbed Bronze, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Tactile Surfaces • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes sex nuts, machine screws and wood screws
VERTICAL RODS:	• Stock for 7' doors standard. Extension rods available for doors up to 10'.
WARRANTY:	• Ten (10) year limited warranty
ELECTRONIC ACCESS CONTROL OPTIONS:	• Motorized Latch Retraction • Stand Alone Key Pad Trim • Motorized Locking/Unlocking Trim • Request to Exit/Signal Switches SS/SS2 • Alarmed Exit • MLR Retrofit Kit - 81550K-MDT
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376. ± 65.0 PSF for pairs of doors door (6' x 7') • Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings

• Meets requirements of the Buy America Act

6200 SURFACE VERTICAL ROD EXIT DEVICE

LIST PRICE

Effective May 13, 2019

How to Order

QUANTITY	SERIES	DOGGING	DEVICE TYPE	LABELING	DOOR WIDTH	DOOR HEIGHT	VERTICAL ROD	FINISH	OPTIONS
10	62	00	V	_	_	7	_	630	_
NOTE: 1 - HZ/Florida 3' door wid\nincludes re mounting h Device mus through-bo only or use trim. Availa\nelectrified of 2 - CD furnish\nless cylind 3 - Fire labeled devices ind #629030 fir per pair of	th. Option quired pardware. st be Ited for exit d with 6EW ble with all options.\ned\ner. I LBR clude 1 ea.\ne latch	00 – Hex Key Dogging (Default)) 01 – Cylinder Dogging Dogging Not Furnished With Fire Listed Devices	V – Surface Vertical Rod	BLANK — Panic Listed (Default) F — Fire Listed	BLANK — 3' Doors (Default) A — Doors\nup to 4' Consult Door Width Chart to determine correct device for your application	7 – 7ft (Default) 8 – 8ft 9 – 9ft 10 – 10ft	LBR – Less Bottom Rod	605 – Polished Brass 606 – Satin Brass 613 – Oil Rubbed Bronze 626 – Satin Chrome 630 – Satin Stainless Steel 630F – Full Stainless Steel	AL LHR – Alarm Option, Left Hand Reverse AL RHR – Alarm Option, Right Hand Reverse MLR – Motorized Latch Retraction SS – Signal Switch, Request to Exit or Monitoring SS-2 – Dual Signal Switch, Request to Exit and Monitoring AM – Antimicrobial Coating FEC - Flush End Cap HVHZ - Florida HVHZ EP – PDQ Smart Electronics Package

Exit Devices

PART	DESCRIPTION	630	630F	626	605/606/613
6200V	Surface vertical rod, UL panic listed, hex key dogging, 3'0" door
6200VLBR	Surface vertical rod, less bottom rod, UL panic listed, hex key dogging, 3'0" door	$1633	$1795	$1703	$1781
6201V	Surface vertical rod, UL panic listed, cylinder dogging, 3'0" door
6201VLBR	Surface vertical rod, less bottom rod, UL panic listed, cylinder dogging, 3'0" door	$1718	$1880	$1788	$1866
6200VF	Surface vertical rod, UL fire listed, no dogging, 3'0" door		$1962	$1870	$1948
6200VFLBR	Surface vertical rod, less bottom rod, UL fire listed, no dogging, 3'0" door	$1800
6200VA	Surface vertical rod, UL panic listed, hex key dogging,4'0" door		$1855	$1763	$1841
6200VALBR	Surface vertical rod, less bottom rod, UL panic listed, hex key dogging,4'0" door	$1693
6201VA	Surface vertical rod, UL panic listed, dogging, 4'0" door
6201VALBR	Surface vertical rod, less bottom rod, UL panic listed, hex key dogging,4'0" door	$1778	$1940	$1848	$1926
6200VFA	Surface vertical rod, UL fire listed, no dogging, 4'0" door
6200VFALBR	OVFALBR Surface vertical rod, less bottom rod, UL fire listed, no dogging, 4'0" door $1860		$2022	$1930	$2008

For devices over 7' high, add $25 per foot *Includes F

*Includes Fire Latch #629030, one per pair of doors

PAGE 163

6200CV SERIES

Architectural Wide Stile Concealed Vertical Rod Exit Device

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Extruded aluminum • Specify 630F for full stainless tactile surfaces (roll formed)
LATCH:	• Concealed (CV) vertical rod – Top Latch-Pullman with dead latching 5/8" throw - Bottom Latch- Pullman with 5/8" throw, held retracted during door swing
BACKSET:	• 2-3/4" Backset , compatible with 161 prep. CV requires a custom prep
HAND:	• Device is non-handed • Trim is non-handed or field reversible
DOGGING:	• Hex key dogging standard • Cylinder dogging optional • Dogging not available on fire listed devices
MINIMUM STILE WIDTH:	• 4-1/4"
DOOR THICKNESS:	• 1-3/4" standard, others vary by trim selection
DOOR WIDTH:	• Standard for 3 ft doors, option available for doors up to 4 ft width
FINISHES:	• 605 - Polished Brass, 606 - Satin Brass, 613 - Oil Rubbed Bronze, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Tactile Surfaces • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes sex nuts, machine screws and wood screws
VERTICAL RODS:	• Stock for 7' doors standard. Extension rods available for doors up to 10'.
WARRANTY:	• Ten (10) year limited warranty
ELECTRONIC ACCESS CONTROL OPTIONS:	• Motorized Latch Retraction • Stand Alone Key Pad Trim • Motorized Locking/Unlocking Trim • Request to Exit/Signal Switches SS/SS2 • Alarmed Exit • MLR Retrofit Kit - 81550K-MDT
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL 305 listed for "Panic", UL listed for "Fire Exit Hardware" up to 3 hours • Certified to ANSI/BHMA A156.3 Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy America Act

6200 CONCEALED VERTICAL ROD EXIT DEVICE

LIST PRICE

Effective May 13, 2019

How to Order

	DOGGING	TYPE	LABELING	DOOR WIDTH	DOOR HEIGHT	VERTICAL ROD	FINISH	OPTIONS
10 62	00	CV	_	_	7	_	630	_
NOTE: 1 - CD furnished less cylinder. 2 - Fire labeled LBR devices include 1 ea. #629030 fire latch per pair of doors.	OO – Hex Key Dogging (De- fault)) O1 – Cylinder Dogging Dogging Not Furnished With Fire Listed Devices	CV — Concealed Vertical Rod	BLANK — Panic Listed (Default) F — Fire Listed	BLANK — 3' Doors (Default) A — Doors up to 4' Consult Door Width Chart to determine correct device for your application	7 – 7ft (Default) 8 – 8ft 9 – 9ft 10 – 10ft	LBR – Less Bottom Rod	605 – Polished Brass 613 – Oil Rubbed Bronze 630 – Satin Stainless Steel 630F – Full Stainless Steel	AL LHR — Alarm Option, Left Hand Reverse AL RHR — Alarm Option, Right Hand Reverse MLR — Motorized Latch Retraction SS — Signal Switch, Request to Exit or Monitoring SS-2 — Dual Signal Switch, Request to Exit and Monitoring AM — Antimicrobial Coating FEC - Flush End Cap EP — PDQ Smart Electronics

Exit Devices

PART	DESCRIPTION	630	630F	613/605
6200CV	Concealed vertical rod, UL panic listed, hex key dogging, 3'0" door
6200CV LBR	Concealed vertical rod, less bottom rod, UL panic listed, hex key dogging, 3'0" door	$1889	$2051	$2037
6201CV	Concealed vertical rod, UL panic listed, cylinder dogging, 3'0" door
6201CV LBR	Concealed vertical rod, less bottom rod, UL panic listed, cylinder dogging, 3'0" door	$1974	$2136	$2122
6200CVF	Concealed vertical rod, UL fire listed, no dogging, 3'0" door
6200CVF LBR	Concealed vertical rod, less bottom rod, UL fire listed,no dogging, 3'0" door	$2056	$2218	$2204
6200CVA	Concealed vertical rod, UL panic listed, hex key dogging, 4'0" door	$1949	$2111	$2097
6200CVA LBR	Concealed vertical rod, UL panic listed, hex dogging, 4'0" door			φ209 1
6201CVA	Concealed vertical rod, UL panic listed, cylinder dogging, 4'0" door
6201CVA LBR	Concealed vertical rod, less bottom rod, UL fire listed, no dogging, 4'0" door	$2034	$2196	$2182
6200CVFA	Concealed vertical rod, UL panic Listed, no dogging,, 4'0" door
6200CVFA LBR	Concealed vertical rod, less bottom rod, UL Fire Listed, no dogging, 4'0" door	$2116	$2278	$2264

For devices over 7' high, add $25 per foot

6200M SERIES

Architectural Wide Stile Mortise Exit Device

Specifications

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Extruded aluminum • Specify 630F for full stainless tactile surfaces (roll formed)
STRIKE:	• ASA type
LOCK:	• Mortise, 13 gauge steel
LATCH:	• Stainless steel dead locking with 3/4" throw
HAND:	• Handed, field reversible • Trim is non-handed or field reversible
DOGGING:	• Hex key dogging standard • Cylinder dogging optional • Dogging not available on fire listed devices
MINIMUM STILE WIDTH:	• 4-1/4"
DOOR THICKNESS:	• 1-3/4"
DOOR WIDTH:	• Standard for 3 ft doors, option available for doors up to 4 ft width • Consult door width chart to determine correct device for your application
FINISHES:	• 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Tactile Surfaces • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes sex nuts, machine screws and wood screws
WARRANTY:	• Ten (10) year limited warranty
ELECTRONIC ACCESS CONTROL OPTIONS:	• Motorized Latch Retraction • Request to Exit/Signal Switches SS/SS2 • Alarmed Exit • MLR Retrofit Kit - 81550K-MDT
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL 305 listed for "Panic", UL listed for "Fire Exit Hardware" up to 3 hours • Certified to ANSI/BHMA A156.3 Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy America Act

How to Order

QUANTITY	SERIES	DOGGING	DEVICE TYPE	LABELING	DOOR WIDTH	FINISH	OPTIONS
10	62	00	MR 08	—	—	630	—
NOTE: 1 - CD furnished less cylinder.		00 – Hex Key Dogging (De fault)) 01 – Cylinder Dogging Dogging Not Furnished With Fire Listed Devices	MR 01 – Exit Only, No Trim MR 02 – Dummy Trim MR 03 – Night Latch MR 08 – Classroom MR 14 – Passage	BLANK – Panic Listed (Default) F – Fire Listed	BLANK – 3' Doors (Default) A – Doors up to 4' Consult Door Width Chart to determine correct device for your application	613 – Oil Rubbed Bronze 630 – Satin Stainless Steel 630F – Full Stain less Steel	AL LHR – Alarm Option, Left Hand Reverse AL RHR – Alarm Option, Right Hand Reverse MLR – Motorized Latch Retraction SS – Signal Switch, Request to Exit or Monitoring SS-2 – Dual Signal Switch, Request to Exit and Monitoring AM – Antimicrobial Coating FEC - Flush End Cap EP – PDQ Smart Electronics Package
							PAGE 163

Exit Devices

PART	DESCRIPTION	LIST PRICE
(SPECIFY FUNCTION)		613	630	630F
6200MR	Mortise, UL panic listed, hex key dogging, 3'0" door	$1917	$1769	$1931
6201MR	Mortise, UL panic listed, cylinder dogging, 3'0" door	$2002	$1854	$2016
6200MRF	Mortise, UL fire listed, no dogging, 3'0" door	$2084	$1936	$2098
6200MRA	Mortise , UL panic listed, hex key dogging, 4'0" door	$1977	$1829	$1991
6201MRA	Mortise , UL panic listed, cylinder dogging, 4'0" door	$2062	$1914	$2076
6200MRFA	Mortise, UL fire listed, no dogging, 4'0" door	$2144	$1996	$2153

626, 605, 606, 613 finishes available, contact PDQ Customer Service for Availability.

Options Electrified Hinges Now Available - See Hinge Section

CODE	DESCRIPTION	EXIT DEVICE ADJUSTMENT
AL LHR*	Alarm Option, Left Hand Reverse
AL RHR*	Alarm Option, Left Hand Reverse	$302
LM*	Latch Bolt Monitoring (6200 Device with option cannot be cut down)	$208
MLR*	Motorized Latch Retraction (6200R Only)	$889
SS*	Signal Switch - Request to Exit or Monitoring	$156
SS-2*	Dual Signal Switch - Request to Exit and Monitoring	$312
FEC	Flush End Cap	$45
AM*	Antimicrobial coating applied to Touchbar and Chassis Cover	$162
HVHZ	Florida HVHZ (Rim and Surface Vertical Rod Only)	$110
EP*	PDQ Smart Electronics Package factory installed (6200 Device with option cannot be cut down)	$50

*Parts discount applies. Notes for Florida HVHZ rated devices: Includes required mounting hardware. Device must be through-bolted for exit only or used with 6EW trim

Parts

PART NO.	DESCRIPTION	PART LIST PRICE
81440	Power Supply	$630
81550K-MDT	Kit for field installation of motorized latch retraction option into existing 6200/6202 devices	$889
NEW

Note: Parts discount applies.

Effective May 13, 2019

Accessories

PART NUMBER	DESCRIPTION	PART LIST PRICE Specify finish (where required)
629006	Top surface vertical rod for 7'0" door
629007	Top concealed vertical rod for 7'0" door (Specify Finish)	$40
629020	Top surface vertical rod for 8'0" door (Specify Finish for SVR)
629020	Top concealed vertical rod for 8'0" door	$50
629024	Bottom surface vertical rod (Specify Finish)	$50
629027	Rod guide (2 ea.)	$4
629037	1' extension vertical rod (Specify Finish for SVR)	$30
629023	2' extension bottom surface and concealed vertical rod (Specify Finish for SVR)	$40
629038	3' extension vertical rod (Specify Finish for SVR)
629059	Bottom concealed vertical rod	$40
629001	Sex Nuts and Bolts Set (Specify Finish)
629019	Strike, Double Door	$60
629013	Strike, SVR/CVR Bottom Panic Roller	$40
6290130	Strike, SVR Top Panic Roller
6290130C	Strike, CVR Top Panic Roller
6290131	Strike, SVR/CVR Bottom Fire
6290132	Strike, SVR Top Fire	$28
6290132C	Strike, CVR Top Fire
629036	Strike, Rim, Fire and Panic
629153-01	Strike, Mortise Exit Device, Panic and Fire
929012F	Strike, Mullion Rim Fire Interlocking for 9200 Series	$28
6290150	Universal Glass Bead Kit - Includes 2 each 1/8" spacers for 6200 Wide Stile.
629154	Universal Glass Bead Kit - Includes 2 each 1/8" spacers for 6202 Narrow Stile.	$90
629030	Auxiliary fire latch for SVR and CVR, LBR (less bottom rod) applications	$80
429043	Dogging Key	$4
629011	Latch, Top w/Cover SVR Panic & Fire	$96
629010	Latch, Bottom w/Cover SVR Panic & Fire	$92
629011C 629010C	Latch, Top w/Cover CVR Panic & Fire Latch, Bottom w/Cover CVR Panic & Fire	$96 $92
629028	Connector (union) Top Rod SVR/CVR	$12
629032	Connector (end) Top/Bottom Rod to Chassis SVR/CVR	$14
629008	Cover, Chassis RIM, 6200 Wide Stile
629008N	Cover, Chassis, RIM, 6202 Narrow Stile
629009	Cover, Chassis SVR, 6200 Wide Stile	$48
629048N	Cover, Chassis, CVR, 6202 Narrow Stile
629048	Cover, Chassis CVR, 6200 Wide Stile
629049	Cover, Chassis Mortise, 6200 Wide Stile
629040	Plug, Cover for SVR, LBR Applications	$4
629044	Cup, Cylinder Retaining	$11
629035	End Cap, With Mounting Bracket & Screws (All 6200 Series Devices)	$26
629035FEC	End Cap, With Mounting Bracket & Screws (All 6200 Series Devices)	$45
429002	Plate Latch Filler - Covers Type 160 or Type 161 Latch Prep.	$6
629025W	Screw Pack, Rim, All Wood Screws
	Screw Pack, Rim, All Machine Screws
629025M
629026W	Screw Pack, SVR, All Wood Screws
629026M	Screw Pack, SVR, All Machine Screws	$12
629045W	Screw Pack, MR, All Wood Screws
629045M 629046W	Screw Pack, MR, All Machine Screws Screw Pack, CVR, All Wood Screws

6200 SERIES EXIT DEVICE

LIST PRICE Effective May 13, 2019

Accessories

PART Number	DESCRIPTION	PART LIST PRICE Specify finish (where required)
629060	Dogging Assembly, Hex/Cylinder Replacement (new hook design)
629061	Cover Plate, Hex Dogging, 3' device (new hook design)
629062	Cover Plate, Hex Dogging, 4' device (new hook design, 22" push pad)
629064	Cover Plate, Cylinder Dogging, 3' device. (new hook design) Cylinder collar sold separately. Contact PDQ Technical Service for the compatible collar.
629065	Cover Plate, Cylinder Dogging, 4' device. (new hook design, 22" push pad) Cylinder collar sold separately. Contact PDQ Technical Service for the compatible collar.
629073	Cover plate, No Dogging, 3' device
629074	Cover plate, No Dogging, 4' device (22" push pad)	$40
629091	Cover plate, Hex Dogging, 4' device (new hook design), 24" push pad, Cylinder collar sold separately
629087	Cover plate, Cylinder Dogging, 3' device (new hook design), 24" push pad, Cylinder collar sold separately
629090	Cover plate, No Dogging, 4' device (24" touch pad)
629060-0HEX	Dogging Assembly - HEX Replacement (old design)
629060-0CD	Dogging Assembly - Cylinder Replacement (old design)
88678	Driver/spindle, use with 88677 conversion plate and 6EW trim adapts to Von Duprin 98/99 chassis, (active trim only)
88679	Yale/Corbin Russwin Retrofit plate for 6EW Trim. Converts 6EW Trim to install into existing Yale/Corbin Russwin door prep. Compatible only with PDQ 6200 Series RIM, Surface and Concealed Vertical Rod devices.	ΦΕΩ
88677	Von Duprin Retrofit plate for 6EW Trim. Note - Converts 6EW Trim to install into existing Von Duprin door prep. Compatible only with PDQ 6200 Series RIM, Surface and Concealed Vertical Rod devices.	$50
81550K-MDT	Motorized Latch Retraction kit. Retrofits Motorized Latch Retraction into existing 6200/6202 series devices.	$889
OTOGGIV IND T	HISTORIZO Editi Fidulation Mil. Fidulatio Historizo Editi Fidulation Historizo Skieling (2207) 6202 301100 d011000.	Ψ000
	CKING FUNCTION CONVERSION KITS
629089	Change from 08 Classroom to 09 Storeroom	$5
629098	Change from 09 Storeroom to 08 Classroom
	ING FIELD CONVERSION KITS
629543	Cylinder Dogging Conversion Kit for 3' device (Specify Finish)	$40
629544	Cylinder Dogging Conversion Kit for 4' device (Specify Finish)	ΨΙΟ

Rim

629036 RIM STRIKE FIRE & PANIC 629019 DOUBLE DOOR STRIKE

Vertical Rods

6290132 SVR TOP STRIKE FIRE

6290130 SVR TOP STRIKE PANIC

6290131 SVR / CVR BOTTOM STRIKE FIRE

629013 SVR / CVR BOTTOM STRIKE PANIC

Vertical Rods

6290132C CVR TOP STRIKE FIRE 6290132C CVR TOP STRIKE PANIC

Mortise

629153-01 MORTISE STRIKE FIRE AND PANIC (NON-HANDED)

Mullion

929012F RIM INTERLOCKING STRIKE FIRE (FOR USE WITH 9200MF MULLION)

6200 SERIES

Architectural Wide Stile Exit Device Trim

Lever Styles Trim Types

BOSTON — BSN

PHILADELPHIA — PHL ORLANDO — ORL

MIAMI — MIA

EW - ESCUTCHEON WIDE S - SECTIONAL

EN - ESCUTCHEON NARROW

CHICAGO — CJ

P - PULL GW - GRIP PULL WIDE

Trim Functions

FUNCTION*	DESCRIPTION
01	Exit only, no trim or blank escutcheon.
02	Entrance by trim when actuating bar is locked down (dummy trim).
03	Entrance by trim when latch bolt is released by key. Key removable only when locked (night latch).
04	Entrance by trim when latch bolt is retracted by key or set in retracted position by key (night latch with cylinder dogging). Requires 6201 device with cylinder dogging.
05	Entrance by thumb piece. Key locks or unlocks thumb piece (classroom thumb piece).
08	Entrance by knob or lever. Key locks or unlocks knob or lever (classroom).
09	Entrance by knob or lever when released by key. Key removable only when locked (storeroom).
14	Entrance by trim when latch is released by knob, lever. Always active, no cylinder (passage lever).
15	Entrance by trim when latch is released by thumb piece. Thumb piece is always active, no cylinder (passage thumb piece).
199A	Electrified Storeroom

^* All functions not available in every trim style

CODE*	DESCRIPTION
605 (US3)	Bright Brass
606 (US4)	Satin Brass
613 (US10B)	Oil Rubbed Bronze
625 (US26)	Bright Chrome
626 (US26D)	Satin Chrome
630 (US32D)	Satin Stainless Steel (Grip Pull Trim Only)

^* All finishes not available in every trim style

Finishes Handing

Out Swing Door

Effective May 13, 2019

How to Order

QUANTITY	SERIES	TYPE	FUNCTION	LEVER	HANDING	FINISH	CYLINDER OR HOUSING	KEYWAY	KEYING	OPTIONS
10	6	EW	08	PHL	—	626	D	SCC	KD	—
Notes: 1 - List price includes standard default cylinder 2 - Antimicrobial trim only 3 - LFIC available with PHL lever only 4 - 6EW Trim ordered less cylinder in cylinder lengths 1-1/8" to 1-1/4". 5 - All functions not trim style 6 - All finishes not trim style	available with wide stile and sectional cludes collar and spring washer for available in every available in every	EW — Escutcheon, Wide GW — Grip Pull, Wide P — Plate/Pull S — Sectional EN — Escutcheon, Narrow EWM — Escutcheon, Wide Mortise Only	01 — Exit only 02 — Dummy Trim 03 — Night Latch 04 — Night Latch w/Exit Device Cylinder Dogging 05 — Classroom w/Thumb Piece 08 — Classroom w/ Lever 09 — Storeroom 14 — Passage w/Lever 15 — Passage w/Thumb Piece	Boston — Bsn MIA — Miami ORL — Orlando Philadelphia — Phl	RHR LHR	605 — Bright Brass 606 — Satin Brass 613 — Oil Rubbed Bronze 625 — Bright Chrome 626 — Satin Chrome 630 — Satin Stain less Steel	D — Default L — Less Cylinder SF6 — SFIC w/ Core, 6 Pin SF7 — SFIC w/ Core, 7 Pin LF — Schlage© Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing less core LFL — Schlage© Compatible LFIC Housing less core PAGE 174	PAGE 174		AM – Antimicrobial Coating VD1 — Retrofit existing Von Duprin 98/99 prep with new 6 EW Trim and 6200R/V/CV exit device. VD2 — Adapts 6 EW Trim to fit existing Von Duprin 98/99 prep and exit device. YC1 — Adapts 6 EW Trim to fit existing Yale 7000 or Corbin Russwin ED 500 prep and exit device. PAGE 170, 172

Trim Cylinder Reference Guide

FUNCTION	DESCRIPTION	EW ESCUTCHEON WIDE STILE	EWM ESCUTCHEON WIDE STILE MORTISE	EN ESCUTCHEON NARROW STILE	S SECTIONAL	P PLATE/PULL	GW GRIP PULL WIDE STILE
03	Night Latch		Mortise	RIM		RIM	RIM
04	Night Latch w/Exit De vice Cylinder Dogging		Mortise	RIM		RIM	RIM
05	Classroom w/Thumb Piece						Mortise
08	Classroom w/Knob or Lever	Mortise	Mortise	Mortise	Key in Knob/Lever
09	Storeroom	Mortise			Key in Knob/Lever

KEY IN KNOB/LEVER CYLINDER RIM CYLINDER MORTISE CYLINDER

6200 SERIES EXIT DEVICE TRIM

LIST PRICE Effective May 13, 2019

Sectional Trim

6$	APPLICATION	FUNCTION	DESCRIPTION	LEVER	626	605/606 613/625
LEVER		02	Dummy Trim	BSN, MIA, PHL	$282	$312
2	RIM SURFACE VERTICAL ROD	08	Classroom w/ Lever	BSN, MIA, PHL	$410	$440
(A)		09	Storeroom w/ Lever	BSN, MIA, PHL	$410	Ф44 0
		14	Passage w/ Lever	BSN, MIA, PHL	$338	$368

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL	8	N/C
LFL	8	$10.00

Core not included see page 174 for core options

6GW	APPLICATION	FUNCTION	DESCRIPTION	613	630
6GW GRIP PULL		02	Dummy Trim (Grip Pull only)	$2	15
O	RIM	03	Night Latch	$2	86
2.	SURFACE VERTICAL ROD	05	Classroom w/ Thumbpiece	$5	20
		15	Passage w/ Thumbpiece	$4	48

GP	APPLICATION	FUNCTION	DESCRIPTION	689	695
PLATE/PULL	LATE/PULL 01 Exit only (Blank plate)		Exit only (Blank plate)	$	DE.
BLANK PLATE	RIM SURFACE VERTICAL ROD	02	Dummy Pull Trim	Φ(	55
PULL TRIM		03	Night Latch	$1	64

Options

CODE	DESCRIPTION	TRIM ADJUSTMENT
AM	Antimicrobial coating applied to tactile surfaces	$162

6200 SERIES EXIT DEVICE TRIM

LIST PRICE

Effective May 13, 2019

Escutcheon Trim

GEW	APPLICATION	FUNCTION	DESCRIPTION	LEVER	626	605/606 613/619 625
WIDE STYLE		02	Dummy Trim (Rigid Lever)	BSN, CHI, MIA, ORL, PHL	$518	$533
	RIM SURFACE VERTICAL ROD CONCEALED	08	Classroom w/ Lever	BSN, CHI, MIA, ORL, PHL	φ ር ጋጋ	φ C 27
(D)		09	Storeroom w/ Lever	BSN, CHI, MIA, ORL, PHL	$622	$637
-9	VERTICAL ROD	14	Passage w/ Lever	BSN, CHI, MIA, ORL, PHL	$540	$555
		199A	Electrified Storeroom	BSN, CHI, MIA, ORL, PHL	$1120	$1135

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL	8	N/C
LFL	8	$10.00

Core not included see page 174 for core options

6EWM	APPLICATION	FUNCTION	DESCRIPTION	LEVER	630
WIDE STYLE		02	Dummy Trim (Rigid Lever)	BSN, MIA, PHL	$570
9	MORTISE	03/04	Night Latch & Night Latch w/ Cylinder Dogging	BSN, MIA, PHL	$642
	WOTTIGE	08	Classroom w/ Lever	BSN, MIA, PHL
REQUIRES 1-1/2" CYLINDER LENGTH		14	Passage w/ Lever	BSN, MIA, PHL	$592

GEN	APPLICATION	FUNCTION	DESCRIPTION	LEVER	630	613
NARROW STYLE RIM		02	Dummy Trim (Rigid Lever)	PHL, BSN	$564	$579
		03/04	Night Latch & Night Latch w/ Cylinder Dogging	PHL, BSN	$640	$655
	SURFACE VERTICAL ROD	08	Classroom w/ Lever	PHL, BSN		·
2		14	Passage w/ Lever	PHL, BSN	$575	$590

^* Note: 2-3/4" Backset only.

For Mortise 6 EWM Trim only:

• 1 For conventional mortise cylinders (default), only available in SCC keyway.
• 2 Optional cylinders: Available in 6 and 7 pin SFIC. 3 1-1/2" cylinder length required.

Cylinder Only

Cylinder only functions use standard rim cylinder or IC rim housing (sold separately, see page 138)

15308 SFIC Housing (Pictured)

6EW Trim Adapts to Competitive Exit Devices.

• Von Duprin 98/99
• Precision 2100

• Yale 7000

• Dorma 9300
• Corbin Russwin ED5000

Field Adaption Kits NEW

DEVICE BRAND	PART NO.	DESCRIPTION	PART LIST PRICE
Von Duprin 98/99	88677	Kit adapts 6EW Trim and 6200 R/V/CV exit device to fit Von Duprin 98/99 Door prep.
Von Duprin 98/99	88700	Kit adapts 6EW Trim to fit Von Duprin 98/99 Device.
Yale/Corbin Russwin	88705	Kit adapts 6EW Trim to fit Yale 7000 or Corbin Russwin ED5000 Device.	$65
Precision	88705	Kit adapts 6EW Trim to fit Precision 2100 Device.
Dorma	88705	Kit adapts 6EW Trim to fit Dorma 9300 Device.

Parts discount applies.

Factory Installed Options

CODE	DESCRIPTION	TRIM ADJUSTMENT
VD1*	6EW Trim and 6200R/V/CV exit device adapted to fit existing Von Duprin 98/99 door prep.	N/C
VD2	6EW Trim adapted to fit existing Von Duprin 98/99 Device.
YC1	6EW Trim adapted to fit existing Yale 7000 / Corbin Russwin ED5000 Device.
PR1	6EW Trim adapted to fit existing Precision 2100 Device.	$50
DK1	6EW Trim adapted to fit existing Dorma 9300 Device.

6 EW Function Conversion Kits

PART NO.	DESCRIPTION	PART LIST PRICE
629089	Field conversion kit – converts 08 Classroom to 09 Storeroom
629098	Field conversion kit – converts 09 Storeroom to 08 Classroom	$5

Stock One 6EW/Sell 12 Trims

with Adapter and Conversion Kits

Stock Requirements $892.00 List

• 6EW Trim
• 08 to 09 Function Conversion Kit, 629089
• 09 to 08 Function Conversion Kit, 629098
• Von Duprin 98/99 Adapter Kit, 88700
• Yale 7000 / Corbin Russwin ED 5000 Adapter Kit, 88705
• Precision 2100 Adapter Kit, 88706
• Dorma 9300 Adapter Kit, 88709

Effective May 13, 2019

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00

Mortise Cylinder

UL 437 and High Security Cylinders

HIGH SECURITY CYLINDERS AND CORES

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

Cores and Keyways

SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive
PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic		$5.00	$5.00
LFIC CONSTRUCTION
Construction Core 6-pin only		$55.00	$80.00
	IC Tailpiece Assembly Construction cores are invoiced at shipment	N/C	$7.60
and credited upon return.
LFIC COMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway
PDQ TA LFIC RESTRICTED		$55.00	$80.00
LFIC UNCOMBINATED
Schlage compatible LFIC, SCC (Schlage C compatible) keyway $55.00 $74.00
HIGH SECURITY IC CORES
	SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

DESCRIPTION PDQ NO. SOLD WITH LOCK SOLD WITHOUT LOCK

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

NOTES:

• ⁿ Uncombinated cores do not include springs & pins
• ⁿ Combinated cores include master keying in the list price
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) BEST A2 & A4 Systems Available
• ⁿ Control Keys must be ordered separately

SFL/SFIC Core

LFL/LFIC Schlage Format

IC Mortise Housing

6202 Narrow Stile

6202 SERIES NA RROW STILE

Door Width Chart

PART	DESCRIPTION	FOR DOOR	MIN DOOR	MAX CUT1	PUSH PAD
6212R	Rim Cylinder Dogging	36"	30"	6"	18"
6202R	Rim Regular Dogging	36"	30"	6"	18"
6202RF	Rim Fire	36"	27"	9"	18"
6212V	SVR Cylinder Dogging	36"	30"	6"	18"
6202V	SVR Regular Dogging	36"	30"	6"	18"
6202VF	SVR Fire	36"	27"	9"	18"
6212CV	CVR Cylinder Dogging	36"	30"	6"	18"
6202CV	CVR Regular Dogging	36"	30"	6"	18"
6202CVF	CVR Fire	36"	27"	9"	18"
6212RA	Rim Cylinder Dogging	48"	35"	11"	24"
6202RA	Rim Regular Dogging	48"	34"	12"	24"
6202RFA	Rim Fire	48"	33"	13"	24"
6212VA	SVR Cylinder Dogging	48"	35"	11"	24"
6200VA	SVR Regular Dogging	48"	34"	12"	24"
6200VFA	SVR Fire	48"	33"	13"	24"

For electrified options, consult installation instructions or contact PDQ Technical Service.

6202R SERIES

Architectural Narrow Stile Rim Exit Device

Specifications

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Extruded aluminum • Specify 630F for full stainless tactile surfaces (roll formed)
LATCH:	• RIM (R) – Pullman with dead latching, stainless steel, 3/4" throw
HAND:	• Device is non-handed • Trim is non-handed or field reversible
DOGGING:	• Hex Key Dogging Standard • Dogging not available on Fire Listed Devices • Cylinder dogging optional
MINIMUM STILE WIDTH:	• 2-5/8"
DOOR THICKNESS:	• 1-3/4" Standard, others vary by trim selection
DOOR WIDTH:	• Standard for 3 ft doors option, available for doors up to 4 ft. width.
FINISHES:	• 613 – Oil Rubbed Bronze, 630 - Stainless Steel, 630F Full Satin Stainless Tactile Surface • Optional Anti Microbial Coating available on 630 finish only
FASTENERS:	• Includes sex nuts, machine screws and wood screws.
ELECTRONIC ACCESS CONTROL OPTIONS:	• Motorized Latch Retraction • Request to Exit/Signal Switches SS/SS2 • Alarmed Exit • MLR Retrofit Kit - 81550K-MDT
WARRANTY:	• Ten (10) year limited warranty
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL 305 listed for "Panic", UL10C Listed for "Fire Exit Hardware" up to 3 hours • Certified to ANSI/BHMA 156.3, Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act.

6202 SERIES NA RROW STILE RIM EXIT DEVICE

How to Order

QUANTITY	SERIES	DOGGING	DEVICE TYPE	LABELING	DOOR WIDTH	FINISH	OPTIONS
10	62	02	R	—	—	630	—
Notes: 1 - CD furnished less cylinder.		02 – Hex Key Dogging (Default)) 12 – Cylinder Dogging Dogging Not Furnished With Fire Listed Devices	R – Rim	BLANK – Panic Listed (Default) F – Fire Listed	BLANK – For 3' Doors (Default) A – For doors up to 4' Consult Door Width Chart to determine correct device for your application	613 – Oil Rubbed Bronze 630 – Satin Stain less Steel 630F – Full Satin Stainless Tactile Surfaces	AL LHR - Alarm Option, Left Hand Reverse AL RHR - Alarm Option, Right Hand Reverse MLR - Motorized Latch Retraction SS -Signal Switch, Request to Exit or Monitoring SS-2 - Dual Signal Switch, Request to Exit and Monitoring AM – Antimicrobial Coating FEC – Flush End Cap EP – PDQ Smart Electronics Package
							PAGE 183

Exit Devices

PART	DESCRIPTION	630	613	630F
6202R	Narrow stile rim, UL panic listed, hex key dogging, 3'0" door	$1128	$1276	$1290
6212R	Narrow stile rim, UL panic listed, cylinder dogging, 3'0" door	$1213	$1361	$1375
6202RF	Narrow stile rim, UL fire listed, no dogging, 3'0" door	$1295	$1443	$1457
6202RA	Narrow stile rim, UL panic listed, hex key dogging, 4'0" door	$1188	$1336	$1350
6212RA	Narrow stile rim, UL panic listed, cylinder dogging, 4'0" door	$1273	$1421	$1435
6202RFA	Narrow stile rim, UL fire listed, no dogging, 4'0" door	$1355	$1503	$1517

Architectural Narrow Stile Surface Vertical Rod Exit Device

Specifications

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Extruded aluminum • Specify 630F for full stainless tactile surfaces (roll formed)
LATCHES:	• Top Latch — Pullman with dead latching 5/8" throw Bottom Latch — Pullman with dead latching 5/8" throw, held retracted during door swing
HAND:	• Device is non-handed • Trim is non-handed or field reversible
DOGGING:	• Hex key dogging standard • Cylinder dogging optional • Dogging not available on Fire Listed Devices
MINIMUM STILE WIDTH:	•2-5/8"
DOOR THICKNESS:	• 1-3/4" standard, others vary by trim selection
DOOR WIDTH:	• Standard for 3' doors, option available for doors up to 4' width.
FINISHES:	• 613 – Oil Rubbed Bronze, 630 – Satin Stainless Steel, 630F Full Satin Stainless Tactile Surface • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes sex nuts, wood screws and machine screws.
VERTICAL RODS:	• Stock for 7' doors standard. Extension rods available for doors up to 10'.
WARRANTY:	• Ten (10) year limited warranty
CERTIFICATIONS, LISTINGS COMPLIANCES:	• UL 305 listed for "Panic", UL10C Listed for "Fire Exit Hardware" up to 3 hours • Certified to ANSI/BHMA 156.3, Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets the requirements of the Buy American Act.

6202 NARROW STILE SURFACE VERTICAL ROD EXIT DEVICE

How to Order

QUANTITY	SERIES	DOGGING	DEVICE TYPE	LABELING	DOOR WIDTH	DOOR HEIGHT	VERTICAL ROD	FINISH	OPTIONS
10	62	02	v	_	_	_	_	630	_
NOTE: 1 - CD furnished\nless cylinder. 2 - Fire labeled LBR devices include 1 ea. #629030 fire latch per pair of doors.		02 – Hex Key Dogging (De- fault)) 12 – Cylinder Dogging Dogging Not Furnished With Fire Listed Devices	V – Surface Vertical Rod	BLANK – Panic Listed (Default) F – Fire Listed	BLANK — 3' Doors (Default) A — Doors\nup to 4' Consult Door Width Chart to determine correct device for your application	7 – 7ft (Default) 8 – 8ft 9 – 9ft 10 – 10ft	LBR – Less Bottom Rod	613 – Oil Rubbed Bronze 630 – Satin Stainless Steel 630F – Full Satin Stainless Tactile Surfaces	AL LHR – Alarm Option, Left Hand Reverse AL RHR – Alarm Option, Right Hand Reverse MLR – Motorized Latch Retraction SS – Signal Switch, Request to Exit or Monitoring SS-2 – Dual Signal
									Switch, Request to Exit and Monitoring AM — Antimicrobial Coating FEC — Flush End Cap EP — PDQ Smart Electronics Package

Exit Devices

PART	DESCRIPTION	630	613	630F
6202 V	Surface vertical rod, UL panic listed, hex key dogging, 3'0" door	$1664	$1812	$1826
6202 V LBR	Surface vertical rod, less bottom rod, UL panic listed, hex key dogging, 3'0" door	φ100 4	φισιζ	φ1020
6212 V	Surface vertical rod, UL panic listed, cylinder dogging, 3'0" door	$1749	$1897	$1911
6212 V LBR	Surface vertical rod, less bottom rod, UL panic listed, cylinder dogging, 3'0" door	φ1749	$1097	фізіі
6202 VF	Surface vertical rod, UL fire listed, no dogging, 3'0" door	$1831	$1979	$1993
6202 VF LBR	Surface vertical rod, less bottom rod, UL fire listed, no dogging, 3'0" door	φιοσι		φ1995
6202 VA	Surface vertical rod, UL panic listed, hex key dogging,4'0" door	$1724	$1872	$1886
6202 VA LBR	Surface vertical rod, less bottom rod, UL panic listed, hex key dogging,4'0" door	φ172 4	φ1072	φ1000
6212 VA	Surface vertical rod, UL panic listed, cylinder dogging, 4'0" door	Φ1000	¢10E7	φ1071
6212 VA LBR	Surface vertical rod, less bottom rod, UL panic listed, cylinder dogging, 4'0" door	$1809	$1957	$1971
6202 VFA	Surface vertical rod, UL fire listed, no dogging, 4'0" door	¢10∩1	ტეტეტ	ቀንበርን
6202 VFA LBR	Surface vertical rod, less bottom rod, UL fire listed, no dogging, 4'0" door	$1891	$2039	$2053

For devices over 7' high, add $25 per foot

6202CV SERIES

Architectural Narrow Stile Concealed Vertical Rod Exit Device

Specifications

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Extruded aluminum • Specify 630F for full stainless tactile surfaces (roll formed)
LATCHES:	• Top Latch — Pullman with dead latching 5/8" throw Bottom Latch — Pullman with 5/8" throw, held retracted during door swing
HAND:	• Device is non-handed • Trim is non-handed or field reversible
DOGGING:	• Hex key dogging standard • Cylinder dogging optional • Dogging not available on fire listed devices
MINIMUM STILE WIDTH:	• 2-5/8"
DOOR THICKNESS:	• 1-3/4" standard, others vary by trim selection
DOOR WIDTH:	• Standard for 3 ft doors, option available for doors up to 4 ft width
FINISHES:	• 613 - Oil Rubbed Bronze, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Tactile Surfaces • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes sex nuts, machine screws and wood screws
VERTICAL RODS:	• Stock for 7' doors standard. Extension rods available for doors up to 10'.
ELECTRONIC ACCESS CONTROL OPTIONS:	• Motorized Latch Retraction • Request to Exit/Signal Switches SS/SS2 • Alarmed Exit • MLR Retrofit Kit - 81550K-MDT
WARRANTY:	• Ten (10) year limited warranty
CERTIFICATIONS, LISTINGS COMPLIANCES:	• UL 305 listed for "Panic", UL10C Listed for "Fire Exit Hardware" labeled for up to 3 hours • Certified to ANSI/BHMA 156.3, Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets the requirements of the Buy American Act.

6202 NARROW STILE CONCEALED VERTICAL ROD EXIT DEVICE

How to Order

QUANTITY	SERIES	DOGGING	DEVICE TYPE	LABELING	DOOR WIDTH	DOOR HEIGHT	VERTICAL ROD	FINISH	OPTIONS
10	62	02	cv	_	_	_	_	630	_
NOTE: 1 - CD furnish\nless cylind 2 - Fire labele devices in #629030 fir per pair of	ler. d LBR clude 1 ea. re latch	02 – Hex Key Dogging (De- fault)) 12 – Cylinder Dogging Dogging Not Furnished With Fire Listed Devices	CV – Concealed Vertical Rod	BLANK — Panic Listed (Default) F — Fire Listed	BLANK — 3' Doors (Default) A — Doors\nup to 4' Consult Door Width Chart to determine correct device for your application	7 – 7ft (Default) 8 – 8ft 9 – 9ft 10 – 10ft	LBR – Less Bottom Rod	613 – Oil Rubbed Bronze 630 – Satin Stainless Steel 630F – Full Stainless Steel Tactile Surface	AL LHR — Alarm Option, Left Hand Reverse AL RHR — Alarm Option, Right Hand Reverse MLR — Motorized Latch Retraction SS — Signal Switch, Request to Exit or Monitoring SS-2 — Dual Signal Switch, Request to Exit and Monitoring AM — Antimicrobial
									Coating FEC – Flush End Cap

Exit Devices

PART	DESCRIPTION	630	613	630F
6202CV	Concealed vertical rod, UL panic listed, hex key dogging, 3' door	¢1006	$2054	ቀጋበር በ
6202CVLBR	Concealed vertical rod, less bottom rod, UL panic listed, hex key dogging, 3' door	$1906	φ2004	$2068
6212CV	Concealed vertical rod, UL panic listed, cylinder dogging, 3' door	$1991	$2139	$2153
6212CVLBR	Concealed vertical rod, less bottom rod, UL panic listed, cylinder dogging, 3' door	фіээі		φ2133
6202CVF	Concealed vertical rod, UL fire listed, no dogging, 3' door		$2221	ቀ ባባባር
6202CVFLBR	Concealed vertical rod, less bottom rod, UL fire listed, no dogging, 3' door	$2073		$2235
6202CVA	Concealed vertical rod, UL panic listed, hex key dogging, 4' door	$1966	$2114	$2128
6202CVALBR	Concealed vertical rod, less bottom rod, UL panic listed, hex key dogging, 4' door	$1900	ֆ2114 |	ΦΖ1Ζ0
6212CVA	Concealed vertical rod, UL panic listed, cylinder dogging, 4' door	φ υ υστ	ф0400	ΦΩΩ1Ω
6212CVALBR	Concealed vertical rod, less bottom rod, UL panic listed, cylinder dogging, 4' door	$2051	$2199	$2213
6202CVFA	Concealed vertical rod, UL fire listed, no dogging, 4' door	$2133		$2295
6202CVFALBR	Concealed vertical rod, less bottom rod, UL fire listed, no dogging, 4' door	φ2133	$2281	φ2293

For 8' high devices add an adjustment of $50 to Exit Device price

PAGE 183

Options Electrified Hinges Now Available - See Hinge Section

CODE	DESCRIPTION	EXIT DEVICE ADJUSTMENT
AL LHR*	Alarm Option, Left Hand Reverse
AL RHR*	Alarm Option, Left Hand Reverse	$302
LM*	Latch Bolt Monitoring (6200R Only)	$208
MLR*	Motorized Latch Retraction	$889
SS*	Signal Switch - Request to Exit or Monitoring	$156
SS-2*	Dual Signal Switch - Request to Exit and Monitoring	$312
FEC	Flush End Cap	$45
AM*	Antimicrobial coating applied to Touchbar and Chassis Cover	$162
HVHZ*	Florida HVHZ (Rim and Surface Vertical Rod Only)	$110
EP*	PDQ Smart Electronics Package factory installed	$50

^* Parts discount applies.

Parts

PART NO.	DESCRIPTION
81440	Power Supply, used with motorized latch retraction (MLR) option	$630
81550K-MDT	Kit for field installation of motorized latch retraction option into existing 6200/6202 devices	$889

Note: Parts discount applies.

Accessories

	DESCRIPTION
See pages 164.

Note: Parts discount applies.

Architectural Narrow Stile Exit Device Trim

Lever Styles Trim Types

PHILADELPHIA — PHL

BOSTON — BSN

EN - ESCUTCHEON GN - GRIP PULL

Trim Functions

FUNCTION*	DESCRIPTION
01	Exit only, no trim.
02	Entrance by trim when actuating bar is locked down (dummy trim).
03	Entrance by trim when latch is released by key. Key removable only when locked (night latch).
04	Entrance by trim when latch is retracted by key or set in retracted position by key (night latch with cylinder dogging). Requires 6212 device with cylinder dogging.
08	Entrance by knob or lever. Key locks or unlocks knob or lever (classroom lever).
14	Entrance by trim when latch bolt is released by lever. Always active, no cylinder (passage lever).

^* All functions not available in every trim style

Finishes

CODE*	DESCRIPTION
613 (US10B)	Oil Rubbed Bronze, No Coating
626 (US26D)	Satin Chromium Plated, No Coating
630 (US32D)	Satin Stainless Steel, No Coating (Grip Pull Trim Only)

^* All finishes not available in every trim style

Handing

Out Swing Door

OUTSIDE

6202 SERIES N ARROW STILE EXIT DEVICE TRIM

How to Order

QUANTITY	SERIES	TYPE	FUNCTION	LEVER	HANDING	FINISH	CYLINDER OR HOUSING	KEYWAY	KEYING	OPTIONS
10	6	EN	08	PHL	—	626	D	SCC	KD	—
Notes: 1 - List price includes standard default cylinder		GN — Grip Pull, Narrow EN — Escutcheon, Narrow Stile	02 — Dummy Trim 03 — Night Latch 04 — Night Latch w/ Exit Device Cyl inder Dogging 08— Classroom w/ Lever 14 — Passage w/ Lever	PHL — Philadel phia BSN — Boston	RHR LHR	613 — Oil Rubbed Bronze 626 — Satin Chrome 630 — Satin Stainless Steel	D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schlage© Compatible LFIC w/Core SFL — SFIC Housing less core LFL — Schlage© Compatible LFIC Housing less core PAGE 187	PAGE 187		PAGE 186

Trim Cylinder Reference Guide

FUNCTION	DESCRIPTION	EN ESCUTCHEON FOR NARROW STILE	GN GRIP PULL, NARROW STILE
03	Night Latch	RIM	RIM
04	Night Latch w/Exit Device Cylinder Dogging	RIM	RIM
08	Classroom w/Lever	Mortise	—

RIM CYLINDER MORTISE CYLINDER

EXIT DEVICE

6202 SERIES NA RROW STILE EXIT DEVICE TRIM

Narrow Stile Trim

6EN	APPLICATION	FUNCTION	DESCRIPTION	LEVER	630	613
NARROW ESCUTCHEON		02	Dummy Trim (Rigid Lever)		$564	$579
	RIM SURFACE	03	Night Latch w/Lever
	VERTICAL ROD CONCEALED VERTICAL ROD	08	Classroom w/ Lever	PHL, BSN	$640	$655
		14	Passage w Lever		$575	$590

6GN	APPLICATION	FUNCTION	DESCRIPTION	LEVER	630	613
GRIP PULL
	RIM SURFACE VERTICAL ROD	02	Dummy Trim			$208
Compatible with Rim (R) and Surface Vertical Rod (SVR) devices only.	CONCEALED VERTICAL ROD (630 ONLY)	03	Night Latch			$286

Options

CODE	DESCRIPTION	TRIM ADJUSTMENT
AM	Antimicrobial coating applied to tactile surfaces	$162

Effective May 13, 2019

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

Mortise Cylinder

UL 437 and High Security Cylinders

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic		$5.00	$5.00
LFIC CONSTRUCTION
Construction Core 6-pin only		$55.00	$80.00
and credited upon return.	IC Tailpiece Assembly Construction cores are invoiced at shipment	N/C	$7.60
LFIC COMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway
PDQ TA LFIC RESTRICTED		$55.00	$80.00
LFIC UNCOMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway	$55.00	$74.00
HIGH SECURITY IC CORES	SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

NOTES:

• ⁿ Uncombinated cores do not include springs & pins
• ⁿ Combinated cores include master keying in the list price
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) BEST A2 & A4 Systems Available
• ⁿ Control Keys must be ordered separately

SFL/SFIC Core

LFL/LFIC Schlage Format

IC Mortise Housing

Typical Applications

• Most Commonly Used in Double Door Rim Exit Device Applications
• Applications Requiring the Periodic Movement of Large Furniture or Equipment

Features

• Keyed removable mullion is designed and UL listed for fire rated pairs of doors
• Designed for quick removal from the top bracket by a simple operation of the rim cylinder
• Once the mullion is removed, carts, gurneys, large machines can freely pass through the opening
• When the mullion is re-installed, the unit will self lock in place without the need for a key
• Mullion storage kits are available providing a safe and convenient way to store the mullion when removed
• Each keyed removable mullion set includes top and bottom bracket set, mullion tube and shims
• Rim cylinder sold separately

Specifications

TUBE DIMENSIONS:	• 2" W x 3" D • 1/8" wall thickness • 11 Gauge steel tube
CYLINDER TYPE:	• RIM - Furnished less cylinder, see cylinders section of this price list.
SIZE:	• 8' and 10' sizes available in Fire and Non-Fire Rated styles
COLOR:	• 600 - primed for painting
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL10C Listed for "Fire Exit Hardware" labeled for up to 3 hours • Florida Building Code HVHZ listed (9200MF in conjunction with PDQ 6200 rim devices) • Meets requirements of the Buy American Act.
WARRANTY:	• One (1) year limited warranty

Mullions - Key Removable3

PART	DESCRIPTION
9200M-11	Mullion, 8' non-fire rated	$972
9200MA-11	Mullion, 10' non-fire rated	$1045
9200MF-11	Mullion, 8' fire rated	$1232

Notes:

• 1 -Fire Rated mullion listed only when used with PDQ's 6200 Fire Rated Devices. Use with any other device will void UL Fire Rating.
• 2 -Mullions shipped UPS will be assessed an $8.00 handling up charge.
• 3 -Rim Cylinder sold separately.

9200 SERIES M ULLIONS

Effective May 13, 2019

Accessories Orientation

MULLION STRIKE KIT-929012F

MULLION STORAGE KIT-929010

Includes:

• Top mullion holder (1)
• Bottom bracket(1)
• 5/16"–18p–1-1/2" Hex socket head machine screw (8)
• 5/16"–18p Expansion anchor (8)

Accessories

PART	DESCRIPTION	PART LIST PRICE
929012F	Mullion Fire Strike (Includes fasteners)	$69
929010	Mullion Storage Kit	$260

Note: Strike sold as replacement only. Must provide Order number of previous purchased item.

4200 Series – Commercial Wide Stile

Architectural Finishes and No Plastic Parts.

Decorative Finish Collection

ARCHITECTURAL

605 Bright Brass, Clear Coated 626 Satin Chromium Plated 630 Satin Stainless Steel

PAINTED

689 Aluminum 695 Dark Bronze 696 Gold

4200 SERIES

Door Width Chart

PART	DESCRIPTION	FOR DOOR	MIN DOOR	MAX CUT	PUSH PAD
4200R	4200 Rim Regular dogging	36"	27"	9"	18"
4200RF	4200 Rim Fire Listed	36"	27"	9"	18"
4200V	4200 SVR Regular dogging	36"	27"	9"	18"
4200VF	4200 SVR Fire Listed	36"	27"	9"	18"
4200RA	4200 Rim Regular dogging	48"	39"	9"	30"
4200VA	4200 SVR Regular dogging	48"	39"	9"	30"

Cross Reference

DESCRIPTION	PDQ	CAL ROYAL	CORBIN/ RUSSWIN	DORMA	FALCON	HAGER	PRECISION	SARGENT	S PARKER	TELL	VON Duprin	YALE
RIM	4200R	2200	ED8200	8300	19 R	4700 Rim	5100	2828	UL520	8300	22	2100
SURFACE VERTICAL ROD	4200V	2260	ED8400	8400	19 V	4700 SVR	5200	2727	520V	8400	2227	2110

How to Order

QUANTITY	SERIES	DOGGING	APPLICATION	LABELING	SIZE	FINISH
10	42	00	R	F	A	630
		00 – Hex Key Dogging (Standard) Dogging Not Furnished With Fire Listed Devices	R — Rim V — Surface Vertical Rod	F – Fire Listed, Max. 3' Door Width No Designation – Panic	BLANK – 3' doors (Default) A – Doors up to 4' Consult Door Width Chart to determine correct device for your application	605 – Polished Brass 626 – Satin Chrome 630 – Satin Stainless Steel 689 – Aluminum 695 – Duro Bronze 696 – Gold

4200R SERIES

Commercial Wide Stile Rim Exit Device

Specifications

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Heavy gauge steel or stainless steel
LATCH:	• RIM (R) – 3/4" throw
BACKSET:	• 2-3/4" Backset Compatible with 161 prep
HAND:	• Device is non-handed
DOGGING:	• Hex key dogging standard • Dogging not available on fire listed devices
MINIMUM STILE WIDTH:	• 4-1/4"for device (exit only) • Minimum stile requirements with trim varies by trim type
DOOR THICKNESS:	• 1-3/4" standard
DOOR WIDTH:	• Standard for 3 ft doors, option available for doors up to 4'
FINISHES:	• 605 – Polished Brass, 626 – Satin Chrome, 630 – Satin Stainless Steel, 689 – Aluminum, 695 (N/A)- Duro Bronze, 696 – Gold • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes machine screws and wood screws • Sex nuts supplied with all Fire Listed devices
WARRANTY:	• Five (5) year limited warranty
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL 305 listed for "Panic" , UL listed for "Fire Exit Hardware" labeled for up to 1-1/2 hours • Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy America Act

Rim Exit Device

PART	DESCRIPTION	689/695/696	630	605/626
4200R	Rim, UL panic listed, hex key dogging, 3'0" door	$363	$698	$598
4200RA	Rim, UL panic listed, hex key dogging, 4'0" door	$431	$736	$614
4200RF	Rim, UL fire listed, no dogging, 3'0" door	$468	$782	$664

4200V SERIES

Specifications

Commercial Wide Stile Surface Vertical Rod Exit Device

CHASSIS:	• Corrosion resistant plated steel
RAIL:	• Heavy gauge steel or stainless steel
LATCH:	• SURFACE VERTICAL ROD (V) – Top Latch-Pullman with dead latching 5/8" throw - Bottom Latch- Pullman with 5/8" throw, held retracted during door swing
BACKSET:	• 2-3/4" Backset Compatible with 161 prep
HAND:	• Device is non-handed
DOGGING:	• Hex key dogging standard • Dogging not available on fire listed devices
MINIMUM STILE WIDTH:	• 4-1/4"for device (exit only) • Minimum stile requirements with trim varies by trim type
DOOR THICKNESS:	• 1-3/4" standard
DOOR WIDTH:	• Standard for 3 ft doors, option available for doors up to 4'
FINISHES:	• 605 – Polished Brass, 626 – Satin Chrome, 630 – Satin Stainless Steel, 689 – Aluminum, 695 (N/A)- Duro Bronze, 696 – Gold • Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS:	• Includes machine screws and wood screws • Sex nuts supplied with all Fire Listed devices
VERTICAL RODS:	• Stock for 7' doors standard. Extension rods available for doors up to 10'.
WARRANTY:	• Five (5) year limited warranty
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• UL 305 listed for "Panic" , UL listed for "Fire Exit Hardware" labeled for up to 1-1/2 hours • Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy America Act

4200 SURFACE VERTICAL ROD EXIT DEVICE

Surface Vertical Rod Exit Device

PART	DESCRIPTION	689/695/696	630	605/626
4200V	Surface vertical rod, UL panic listed, hex key dogging, 3'0" door	$688	$886	$852
4200VF	Surface vertical rod, UL fire listed, no dogging, 3'0" door	$793		$942
4200VA	Surface vertical rod, UL panic listed, hex key dogging,4'0" door	$756	$972	$902
4200VFA	Surface vertical rod, UL fire listed, no dogging, 4'0" door	$824	$1170	$1010

4200 SERIES

Commercial Wide Stile Exit Device Trim

Lever Styles Trim Types

BOSTON — BSN 4SH TRIM ONLY

MIAMI — MIA 4SH TRIM ONLY

PHILADELPHIA — PHL

EW - ESCUTCHEON WIDE

EN - ESCUTCHEON NARROW

GW - GRIP PULL WIDE

LEVER

SH - SECTIONAL

P03 - PULL P02 - PULL P01 - PLATE K - SECTIONAL KNOB

ANSI Trim Functions

ANSI FUNCTION	DESCRIPTION
01	Exit only, no trim or blank escutcheon.
02	Entrance by trim when actuating bar is locked down (dummy trim).
03	Entrance by trim when latch is released by key. Key removable only when locked (night latch).
05	Entrance by thumb piece. Key locks or unlocks thumb piece (classroom thumb piece).
08	Entrance by knob or lever. Key locks or unlocks knob or lever (classroom knob/lever).
09	Entrance by knob or lever only when released by key. Key removable when locked.
14	Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder (passage knob/lever).
15	Entrance by trim when latchbolt is released by thumb piece. Always active, no cylinder (passage thumb piece).

^* All functions not available in every trim style

Finishes

CODE	TYPE	DESCRIPTION
605 (US3)	Architectural	Bright Brass, Clear Coated
613 (US10B)	Architectural	Oil Rubbed Bronze, No Coating
626 (US26D)	Architectural	Satin Chromium Plated, No Coating
630 (US32D)	Architectural	Satin Stainless Steel, No Coating
689 (US28)	Color	Aluminum
695 (None)	Color	Dark Duranodic Bronze

^* All finishes not available in every trim style

Handing

Out Swing Door

4200 SERIES EX IT DEVICE TRIM

How to Order

all 4GW series trim

QUANTITY	SERIES	TYPE	FUNCTION	LEVER	HANDING	FINISH	DOOR THICKNESS	CYLINDER OR HOUSING	KEYWAY	KEYING
10	4	EW	08	PHL	—	626	—	D	SCC	KD
Notes: 1 - List price includes standard default cylinder 2 - All functions not available in every trim style 3 - All finishes not available in every trim style 4 - All cylinder options not available with every trim or lever style 5 - Boston and Miami levers available only with 4SH sectional trim 6 - Specify hand for		K — Knob GW — Grip Pull, Wide Stile P01 — Pull P02 — Plate SH — Sectional, Heavy Duty EN — Escutcheon, Narrow EW — Escutcheon, Wide	01 — Exit only 02 — Dummy Trim 03 — Night Latch 05 — Classroom w/Thumb Piece 08 — Classroom w/Lever 09 — Storeroom w/Lever 14 — Passage w/Lever 15 — Passage w/Thumb Piece	BSN — Boston MIA — Miami PHL — Philadelphia	RHR LHR	605 — Bright Brass 606 — Satin Brass 613 — Oil Rubbed Bronze 619 — Satin Nickel 625 — Bright Chrome 626 — Satin Chrome 630 — Satin Stainless Steel	1- 3/4 - 2"	D — Default L — Less Cylinder SF6 — SFIC w/ Core, 6 Pin SF7 — SFIC w/ Core, 7 Pin LF — Schlage© Compatible LFIC w/Core SFL — SFIC Housing less core LFL — Schlage© Compatible LFIC Housing less core PAGE 199		PAGE 199

Default Trim Cylinder Reference Guide

ANSI FUNCTION	DESCRIPTION	EW ESCUTCHEON WIDE	EN ESCUTCHEON NARROW	S SECTIONAL LEVER	P PLATE	GW GRIP PULL, WIDE STILE	K SECTIONAL KNOB
03	Night Latch	—	—	—	RIM	RIM	—
05	Classroom w/Thumb Piece	—	—	—	—	Mortise	—
08	Classroom w/Lever	Mortise	Mortise	Key in Knob/Lever	—	—	Key in Knob/Lever
09	Storeroom w/Lever	Mortise	—	Key in Knob/Lever	—	—	—

Effective May 13, 2019

Wide Stile Trim

	STYLE	FUNCTION	DESCRIPTION	TRIM TYPE	605	613	626	630	689/695
	WIDE ESCUTCHEON	02	Dummy Trim (Rigid Lever)	4 EW 02 PHL	$418
		08	Classroom w/ Lever	4 EW 08 PHL
4EW		09	Storeroom w/ Lever	4 EW 09 PHL			$438
		14	Passage w/ Lever	4 EW 14 PHL
	NARROW ESCUTCHEON	02	Dummy Trim (Rigid Lever)	4 EN 02 PHL	$210		$210		$195
4EN		08	Classroom w/ Lever	4 EN 08 PHL
		09	Storeroom w/ Lever	4 EN 09PHL	$236		$236		$206
		14	Passage w/ Lever	4 EN 14 PHL	$210		$210		$195
	SECTIONAL LEVER HEAVY DUTY	02	Dummy Trim (Rigid Lever)	4 S 02 BSN, MIA, PHL	$190
		08	Classroom w/ Lever	4 S 08 BSN, MIA, PHL	$278
4S		09	Storeroom w/Lever	4 S 09 BSN, MIA, PHL	$256
	Sectional lever trim not compatible when using SNB to through bolt device chassis	14	Passage w/ Lever	4 S 14 BSN, MIA, PHL	$190
	SECTIONAL KNOB	08	Classroom	4 K 08		$180		$148
4K		14	Passage	4 K 14		$154		$122
	PLATE PULL	01	Exit Only	4 P 01				$52
4P		02	Dummy Pull Trim	4 P 02					$52
	PLATE TRIM PULL TRIM	03	Night Latch	4 P 03					$96
	GRIP PULL	02	Dummy Trim (Grip Pull only)	4 GW 02	$224			$224	$177
		03	Night Latch	4 GW 03	$239			$239	$184
4GW		05	Classroom w/Thumb Piece	4 GW 05	$288			$288	$240
		15	Passage w/Thumb Piece	4 GW 15	$262			$262	$222

Note: Specify handing. For functions and finishes not shown, contact PDQ Customer Service.

Effective May 13, 2019

Accessories

PART (SPECIFY FUNCTION)	DESCRIPTION	PART LIST PRICE PLATED (605/626/630)	PART LIST PRICE PAINTED (689/695/696)
429020	Top surface vertical rod for 7'0" door
429021	1' extension, vertical rod (specify finish)		$32
429023	3' extension, vertical rod (specify finish)	$38	$34
429024	Bottom surface vertical rod (specify finish)		$32
429001	Sex nut and bolt set		$31
429002	Plate, Latch Filler-covers Type 160 or 161 prep	$6
429003	Plate, Strike filler	$6
429005	Strike, SVR Top, Fire and Panic w/2 ea. 1/16" shims
429006	Strike, SVR Bottom, Fire and Panic w/2 ea. 1/16" shims	$8
429036	Strike, Rim, Fire and Panic	$8
429019	Double door strike	$22
429014	Trim back plate (2-1/2" x 8"), use w/narrow escutcheon to cover 161 prep	$14	N/A
429017	Trim back plate (3-1/2" x 8"), use w/narrow escutcheon to cover 161 prep	$31
429018	Adapter plate	$6
429150	Universal Glass Bead Kit - Includes 2 ea. 1/8" spacers for chassis, end cap and rod guides.	$62
429043	Dogging Key	$6

Effective May 13, 2019

Cylinders

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
CO59A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster systems w/4 masters)
Dummy	—
T-Turn	—
NON	Less Cylinder	Deduct $4.00

SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135.

Mortise Cylinder

UL 437 and High Security Cylinders

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNCOMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	I5207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible
A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,
WA, WB, WC, WG, WH, TB, TD, TE, & R
PDQ Exclusive PDQ1, PDQ2
PDQ Exclusive and Restricted
PDQ3
SFIC CONSTRUCTION
Construction Core 6-pin only		$47.00	$61.00
Dummy Construction Core Plastic		$5.00	$5.00
LFIC CONSTRUCTION
Construction Core 6-pin only		$55.00	$80.00
and credited upon return.	IC Tailpiece Assembly Construction cores are invoiced at shipment	N/C	$7.60
LFIC COMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway
PDQ TA LFIC RESTRICTED		$55.00	$80.00
LFIC UNCOMBINATED
	Schlage compatible LFIC, SCC (Schlage C compatible) keyway	$55.00	$74.00
HIGH SECURITY IC CORES
	SEE HIGH SECURITY CYLINDERS AND CORES SECTION, PAGE 135. — LFIC REQUIRES LARGE FORMAT LEVER

Parts discount applies

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

NOTES:

• ⁿ Uncombinated cores do not include springs & pins
• ⁿ Combinated cores include master keying in the list price
• ⁿ PDQ1, PDQ2, PDQ3 (Restricted) BEST A2 & A4 Systems Available
• ⁿ Control Keys must be ordered separately

SFL/SFIC Core

LFL/LFIC Schlage Format

IC Mortise Housing

Effective May 13, 2019

429019 DOUBLE DOOR STRIKE 429005 SVR TOP STRIKE W/2 SHIMS PANIC AND FIRE

429006 SVR BOTTOM STRIKE W/2 SHIMS PANIC AND FIRE

429036 RIM STD. (2-3/4" BACKSET) FIRE & PANIC

Grade 1 Closer Collection

Making Door Control Easy

PDQ offers a comprehensive line of door closers designed and manufactured to ensure superior performance and reliability. They offer the perfect combination of reliability, appearance, and durability. With a wide range of models and features, PDQ has a door closer for most applications.

Comprehensive Offering

7100 INSTITUTIONAL

Applications

7100 — The 7100 Series is PDQ's top of line heavy duty closer. It is designed for high use, high abuse institutional applications such as K-12, higher education and government buildings. 7100 Series closers are ideal for retrofit and new construction applications where strength and durability are required. — p. 204

5100 COMMERCIAL

Applications

5100 — 5100 Series Door Closer is a heavy duty multi-feature closer that is perfect for high use, high abuse applications such as K-12, higher education, and government buildings. The 5100's compact design is ideal for interior door applications where it's distinctive lines harmonize with most decors. — p. 210

5500 COMMERCIAL

Applications

5500 (Full cover) — Designed for maximum versatility, the 5500 Series sports a full cover and can be used for both commercial and institutional applications. This rugged workhorse is perfect for high traffic applications including federal/state buildings, assisted living facilities, hospitality, retail, religious, and medical buildings. — p. 216

5300 COMMERCIAL

Applications

5300 (Slim cover) — The aesthetically pleasing 5300 Series comes standard with a slim line cover and offers the ideal combination of appearance, reliability, and durability for today's market. This rugged closer is perfect for high traffic applications such healthcare, hospitality, government, assisted living, retail, and religious facilities. — p. 216

3100 LIGHT COMMERCIAL

Applications

3100 — Designed for medium-light duty applications, the 3100 Series is ideal for aluminum storefronts, interior offices, multi family, hospitality and many other applications. The 3100 combines dependable operation, low maintenance and stylish look. — p. 223

Cross Reference

MANUFACTURER	CLOSER SERIES
PDQ	7100	5500	5300	5100	3100
CAL ROYAL	CR441	CR801	CR801S	900	300
CORBIN/RUSSWIN®	DC8000	DC6200	DC3200	N/A	N/A
DORMA	8900	8616FC	8616	7414/7436	3800
DOR-O-MATIC®	SC70	SC850FC	SC80	SC60/SC61	SC60
HAGER	5100	5200	5200	N/A	5300 LESS COVER
STANLEY COMMERCIAL	QDC100	QDC200F	QDC200S	N/A	QDC300
LCN®	4040	4010/4110	1460/1461	1370	1260
NORTON®	7500	8500	8300	160	1600
SARGENT®	281	350	1430	1130/1131	1130
STANLEY	D-4550	D-3550	N/A	N/A	D-1650
YALE	5800/4400	3500	3300	51	50

Arms

Regular Arm

Regular arm mount is a pull side application with double lever arm. The closer mounts on the door and the arm mounts to the frame. It provides the most efficient operation for door control and is commonly used on in-swing doors from corridors or other interior doors. Regular arm mount is a poor choice for exterior out-swinging doors as it would put the closer on the exterior of the building. The arm assembly projects directly out from the frame. That may be a concern for vandalism or aesthetics. Regular arm application can be used with non-hold open or hold open arms.

Top Jamb

Top jamb mount is a push side double lever arm application that offers the best alternative to regular arm mount. The closer mounts to the frame and the arm mounts to the door. This application is commonly used on exterior out-swinging doors. It is a poor application for in-swinging doors from a corridor as it places the closer arm in a visible application projecting into the corridor. The arm projects out similar to regular arm mount. Therefore, it can be a concern for vandalism or aesthetics. Top jamb application can be used with non-hold open or hold open arms.

Parallel Arm

Parallel arm mount is a push side double lever arm application. The closer is installed on the push side of the door and the arm is mounted to a parallel arm adapter plate installed to the frame soffit. The arm is approximately parallel with the face of the door, eliminating the projection condition evident with regular arm and top jamb applications. Parallel arm is often preferred where aesthetics or vandalism are concerns. Parallel arm is less efficient than regular or top jamb mounts due to the geometry of the arm. Parallel arm application can be used with non-hold open or hold open arms.

Parallel Stop Arm (DS/DSHO) Extra Duty PA Arm (EDA/EDAHO)

The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer's backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized. The parallel stop arm is available in non-hold open (DS) and hold open (DSHO) applications.

Recommend using the SCS Spring Cushion Stop for moderate to high abuse installations.

For Extra Duty PA Arm applications, specify EDA or EDAHO. Similar to DS/DSHO without the stop. Requires separate limiting stop by others.

Track Arm (TA)

The non-handed Track Arm mount incorporates a single stamped arm not designed to be used as a limiting dead stop. It's low profile helps to eliminate projecting arm conditions, which can reduce vandal damage.

SERIES

Grade 1 Institutional Full Featured Closer

Typical Applications

• Assisted Living
• Higher Education
• High Use/High Abuse Situations
• K-12 Education
• · Military and Government
• Multi-family
• Offices
• Public Buildings

FFATURES

· Heavy duty, fully featured architectural style door control

· High strength cast iron body and forged steel arm assembly provide maximum durability and reliability in the most brutal environments

• Backcheck positioning valve feature provides a consistent backcheck snubbing range for regular, top jamb and parallel arm applications, preventing costly damage during forceful opening of the door

• The 7100 series has a fully adjustable spring range that can be set to meet barrier free requirements
• Maximum 3" reveal for Top Jamb.

Specifications

BODY:	High Strength Cast Iron
ARMS:	Forged steel main arm
ARM OPTIONS:	PA – Parallel Arm HO – Hold Open DS/DSHO – Heavy Duty Parallel Stop RA – Regular Arm SCS/SCSHO – Spring Cushion Stop for DS/DSHO TA/TAHO – Track Arm EDA/EDAHO – Extra Duty Parallel Arm
PISTON:	• 1-1/2" diameter
ADJUSTMENT:	Hydraulic controlled closing Hydraulic backcheck standard Backcheck positioning valve standard (starts backcheck snubbing sooner) Optional delayed action (in addition to backcheck)
ADJUSTMENT VALVES:	All Adjustment Valves are STAKED to prevent removal during adjustment.
SIZE:	Adjustable
MOUNTING RETROFIT:	Mounting hole pattern retrofits LCN® 4040 • Tri-packed for regular, top jamb and parallel arm installations Includes sex nuts/bolts and screws for wood/metal doors/frames Self drilling self tapping screws available Separate limiting stop may be required for high abuse applications
COVER:	Full plastic cover standard, optional full metal cover available
COLOR & ARCHITECTURAL FINISHES:	• 605 – Polished Brass, 625 – Polished Chrome, 689 – Aluminum, 695 – Duro Bronze, 696 – Gold
WARRANTY:	Twenty-five (25) year Limited Warranty
CERTIFICATIONS, LISTINGS, COMPLIANCES:	UL listed for labeled swinging fire doors rated up to and including 3 hours Certified to ANSI/BHMA A156.4 Grade 1 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

SPRING CUSHION STOPS

RRON7F

. Meets requirements of the Buy American Act

605 BRIGHT BRASS

PDQ's SCS Series Spring Cushion Stop helps reduce wear and tear on the opening. As the door begins moving through backcheck to its maximum opening angle, the stop acts as a shock absorber, dampening the impact forces.

How to Order

QUANTITY	SERIES	DELAYED ACTION	BACKCHECK	ARM TYPE	FINISH	ACCESSORIES
10	71	01	BC	PA	689	—
		01 – Non-Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws PAGE 206

Closers

PART	SIZE	DESCRIPTION	PAINTED 689/695/696	PLATED 605/625
7101 BC PA	BF-6	Closer, full cover, SNB (Tri-pack)	$448	$668
7101 BC RA	BF-6	Closer, full cover, Regular Arm, SNB	$454	$674
7101 BC PA HO	BF-6	Closer, hold open, full cover, SNB (Tri-pack)	$586	$806
7101 BC DS	BF-6	Closer, door saver, full cover, SNB (PA Only)	$622	$842
7101 BC DSHO	BF-6	Closer, door saver hold open, full cover, SNB (PA Only)	$661	$881
7101 BC EDA	BF-6	Closer, extra duty arm, full cover, SNB (PA Only)	$622	$842
7101 BC EDA HO	BF-6	Closer, extra duty arm hold open, full cover, SNB (PA Only)	$661	$881
7101 BC SCS	BF-6	Closer, door saver w/spring cushion stop, full cover, SNB (PA Only)	$748	$968
7101 BC SCSHO	BF-6	Closer, door saver hold open w/spring cushion stop, full cover, SNB (PA Only)	$771	$991
7101 BC TA	BF-6	Closer, track arm, full cover, (SNB for closer body relay)	$573
7101 BC TA HO	BF-6	Closer, track arm hold open, full cover (SNB for closer body only)	$609

Options

PART NO.	DESCRIPTION	CLOSER ADJUSTMENT
7141	Delayed Action (when ordering, replace 7101 with 7141 in part number)	$40.00

Accessories

		PART LIST PRICE
CODE	DESCRIPTION	PAINTED 689/695/696	PLATED 605/625
BS	Blade Stop Spacer (no finish)	$48
BP	Back Plate
DPPA	Parallel Arm Drop Plate (PA mount)
DPTJ	Top Jamb Drop Plate (TJ mount)	$52
BPTJ	Top Jamb Back Plate - Required to mount TJ on frame face less than 4"
FCM	Full Metal Cover (specify hand)	$69	$106
NFB	Narrow Frame Bracket for DS/DSHO/EDS/EDAHO Arms, PA & BS Brackets	$31
SDST	Self Drilling Self Tapping Screws	$12

BP - BACK PLATE

BS - BLADE STOP SPACER

DPPA - PARALLEL ARM DROP PLATE

DPTJ - TOP JAMB DROP PLATE

FCM - FULL METAL COVER

NFB - NARROW FRAME BRACKET

SDST - SELF DRILLING SELF TAPPING SCREWS

Arms

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
RA	REGULAR ARM - Can be mounted REG/TJ/PA (requires PA bracket)	719003	$72	$145
EDA	EXTRA DUTY ARM - PA application only (bumper eliminated)	719005
DS	DOOR SAVER ARM (Limiting Stop) - PA application only	719005	$109 $182
DSHO	DOOR SAVER HOLD OPEN ARM (limiting stop) PA application only	719016	$124	$207
HO	HOLD OPEN ARM - can be mounted REG/TJ/PA (requires PA bracket)	719002	$92	$160
EDAHO	EXTRA DUTY ARM HOLD OPEN - PA application only (bumper eliminated)	719016	$124	$207
TA	TRACK ARM ASSEMBLY - (Includes track, arm and screws) 719025		$93
TAHO	TRACK ARM HOLD OPEN	719027	$105
PA	PARALLEL ARM BRACKET - HO and NHO	719001	$17	$48

RA - REGULAR ARM DS - DOOR SAVER (LIMITING STOP) ARM

DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN ARM

HO - HOLD OPEN ARM

EDA - EXTRA DUTY ARM EDAHO - EXTRA DUTY ARM HOLD OPEN

TA - TRACK ARM ASSEMBLY TAHO - TRACK ARM HOLD OPEN

PA - PARALLEL ARM BRACKET

Covers

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
FC	FULL PLASTIC COVER	719006	$38	$50
FCM	FULL METAL COVER - Optional (specify hand)	719006ST	$69	$106

Parts discount applies.

FC - FULL PLASTIC COVER FCM - FULL METAL COVER

Mounting Plates

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696
BP	BACK PLATE - For regular arm applications to clear mortised stop/holder	719008
BPTJ	TOP JAMB BACK PLATE - Required to mount TJ on frame face less than 4"	719024
DPTJ	TOP JAMB DROP PLATE - Required to mount TJ with limited ceiling clearance or to clear surface applied stop/holder	719023	$52
DPPA	PARALLEL ARM DROP PLATE - Required for parallel arm mount with limited top door rail	719018
BS*	BLADE STOP SPACER - Shims all PA brackets to clear 1/2" blade stop (no finish)	999026
NFB	NARROW FRAME BRACKET - For DS/DSHO/EDS/EDAHO arms, PA and BS brackets for added reinforcement (no finish)	999011	$31

Parts discount applies.

*Note: When using a Blade Stop Spacer in a narrow frame application you must use the (NFB) Narrow Frame Bracket for proper support.

BP - BACK PLATE

BPTJ - TOP JAMB BACK PLATE DPTJ - TOP JAMB DROP PLATE DPPA - PARALLEL ARM DROP PLATE

BS - BLADE STOP SPACER NFB - NARROW FRAME BRACKET

Fasteners

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
SDST	SELF DRILLING SELF TAPPING SCREWS	719007
SP	SCREW PACK	999004	$12	$24
SNB	SEX NUTS AND BOLTS -For through bolting on unreinforced hollow core, composite or labeled fire doors 1-3/4" only. (set of 4 each)

Parts discount applies.

SDST - SELF DRILLING SELF TAPPING SCREWS

SNB - SEX NUTS AND BOLTS SP - SCREW PACK

Parts

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
DSBS	DOOR SAVER BUMPER STOP - (no finish)	999010	$14
SPBL	PLASTIC SPACER BLOCK - For DS/DSHO/EDA/EDAHO and PA soffit brackets (no finish)	999031	$6
HO KIT	TA ARM TO MAKE TAHO (no finish)	999030	$24
SCS	SPRING CUSHION STOP* - USE with DS/DSHO for 3'0' doors (specify finish), for PA mount arms only	999032
SCS	SPRING CUSHION STOP* - For DS/DSHO for 4'0' doors, (specify finish), for PA mount arms only	999033	$128	$128

^* Spring Cushion Stop requires purchase of a PDQ DS or DSHO arm.

Parts discount applies.

DSBS - DOOR SAVER BUMPER STOP SPBL - PLASTIC SPACER BLOCK HO KIT - TA ARM TO MAKE TAHO SCS - SPRING CUSHION STOP

Spring Cushion Stop (SCS) Finish Match to Closers

SCS FINISH	CLOSER FINISH
605 (PVD)	605/696
613 (PVD)	695
630	625/626/689

5100 SERIES

Grade 1 Commercial Full Featured Closer

Typical Applications

• · Aluminum Storefronts
• Assisted Living
• · Government Facilities
• Higher Education
• Hospitality
• Houses of Worship
• Interior Office Doors
• Multi-family
• Offices
• Retail

Features

• Features a 1-1/2" diameter hardened steel piston
• Fully featured architectural style door control
• Full cover and flat design arm assembly provide both durability and aesthetically pleasing appearance in commercial and institutional applications
• The closer is ideally suited for installation on wood or metal doors and frames.
• The units are non-handed and fully adjustable from size one through six for maximum flexibility.
• The standard tri-pack feature provides versatility to permit regular,top-jamb and parallel arm installations.
• A range of sprayed and architectural finishes are available to compliment any décor.
• Maximum 4" reveal for Top Jamb.

Specifications

BODY:	High Strength Aluminum Alloy Body
ARM OPTIONS:	PA – Parallel Arm HO – Hold Open DS/DSHO – Heavy Duty Parallel Arm Stop RA – Regular Arm SCS/SCSHO – Heavy Duty Parallel Arm Cushion Stop TA/TAHO – Track Arm EDA/EDAHO – Extra Duty Parallel Arm
PISTON:	Hardened steel, 1-1/2" diameter
ADJUSTMENT:	Hydraulic controlled closing Separate hydraulic backcheck standard Optional delayed action (in addition to backcheck)
SIZE:	Adjustable 1 through 6
MOUNTING:	Tri-packed for regular, top jamb and parallel arm installations Includes sex nuts/bolts and screws for wood/metal doors/frames Self drilling, self tapping screws available Separate limiting stop may be required for high abuse application
COVER:	Full plastic cover standard, optional full metal cover available
COLOR & ARCHITECTURAL FINISHES:	• 605 – Polished Brass, 625 – Polished Chrome, 689 – Aluminum, 695 – Duro Bronze, 696 – Gold
WARRANTY:	Twenty-five (25) year Limited Warranty
CERTIFICATIONS, LISTINGS, COMPLIANCES:	UL listed for labeled swinging fire doors rated up to and including 3 hours Certified to ANSI/BHMA A156.4 Grade 1 Meets requirements of the Buy American Act

How to Order

QUANTITY	SERIES	DELAYED ACTION	BACKCHECK	ARM TYPE	FINISH	ACCESSORIES
10	51	01	BC	PA	689	—
NOTES 1 - Hold Open (HO) option not permitted for use on labeled fire doors. 2 - Separate limiting stop may be required.		01 – Non-Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDA HO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open DA – Delayed Action	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws PAGE 212

Closers

PART	DESCRIPTION	PAINTED 689/695/696	PLATED 605/625
5101 BC PA	Closer, 1-6, full cover, SNB (Tri-pack)	$335	$495
5101 BC RA	Closer, 1-6, full cover, regular arm, SNB	$341	$501
5101 BC PA HO	Closer, 1-6, hold open, full cover, SNB (Tri-pack)	$461	$621
5101 BC DS	Closer, 1-6, door saver, full cover, SNB (PA only)	$499	$659
5101 BC DSHO	Closer, 1-6, door saver hold open, full cover, SNB (PA only)	$538	$698
5101 BC EDA	Closer, 1-6, extra duty arm, full cover, SNB (PA only)	$499	$659
5101 BC EDA HO	Closer, 1-6, extra duty arm hold open, full cover, SNB (PA only)	$538	$698
5101 BC SCS	Closer, 1-6, door saver w/spring cushion stop, full cover, SNB (PA only)	$628	$788
5101 BC SCSHO	Closer, 1-6, door saver hold open w/spring cushion stop, full cover, SNB (PA only)	$635	$795
5101 BC TA	Closer, 1-6, track arm, full cover, SNB (for body only)	$431
5101 BC TAHO	Closer, 1-6, track arm hold open, full cover, SNB (for body only)	$466

Options

PART NO.	DESCRIPTION	CLOSER ADJUSTMENT
5141	Delayed Action (when ordering, replace 5101 with 5141 in part number)	$40.00

Accessories

		PART LIST PRICE
CODE	DESCRIPTION	PAINTED 689/695/696	PLATED 605/625
BS	Blade Stop Spacer (no finish)	$48
BP	Back Plate
DPPA	Parallel Arm Drop Plate (5500 only)	$52
DPTJ	Top Jamb Drop Plate
NFB	Parallel Arm NHO Bracket	$31
SDST	Self Drilling Self Tapping Screws	$8	$18

BP - BACK PLATE

BS - BLADE STOP SPACER

DPPA - PARALLEL ARM DROP PLATE DPTJ - TOP JAMB DROP PLATE

NFB - NARROW FRAME BRACKET

SDST - SELF DRILLING SELF TAPPING SCREWS

Arms

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
RA	REGULAR ARM - Can be mounted REG/TJ/PA (requires PA bracket)	999003	$60	$110
EDA	EXTRA DUTY ARM - PA application only (bumper eliminated)	999005
DS	DOOR SAVER ARM (Limiting Stop) - PA application only	999005	$116	$188
DSHO	DOOR SAVER HOLD OPEN ARM (limiting stop) PA application only	999016	$142	$204
HO	HOLD OPEN ARM - can be mounted REG/TJ/PA (requires PA bracket)	999002	$92	$168
EDAHO	EXTRA DUTY ARM HOLD OPEN - PA application only (bumper eliminated)	999016	$142	$204
TA	TRACK ARM ASSEMBLY - (Includes track, arm and screws)	999025	$92
TAHO	TRACK ARM HOLD OPEN	999027	$108
PA	PARALLEL ARM BRACKET - NON HOLD OPEN applications	999001	$17	$34
PAHO	PARALLEL ARM BRACKET- HOLD OPEN applications	999022	$24

RA - REGULAR ARM DS - DOOR SAVER (LIMITING STOP) ARM

DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN ARM

HO - HOLD OPEN ARM

EDA - EXTRA DUTY ARM EDAHO - EXTRA DUTY ARM HOLD OPEN

TA - TRACK ARM ASSEMBLY TAHO - TRACK ARM HOLD OPEN

PA - PARALLEL ARM BRACKET PAHO - PARALLEL ARM HO BRACKET

Covers

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
FC	FULL PLASTIC COVER	559006	$28	$50
FMC	FULL METAL COVER	519006ST	$60

Parts discount applies.

FMC - FULL METAL COVER (OPTIONAL)

Mounting Plates

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696
BP	BACK PLATE - For regular arm applications to clear mortised stop/holder	519008
DPTJ	TOP JAMB DROP PLATE - Required to mount TJ with limited ceiling clearance or to clear surface applied stop/holder	519023	$52
DPPA	PARALLEL ARM DROP PLATE - Required for parallel arm mount with limited top door rail	519018
BS*	BLADE STOP SPACER - Shims all PA brackets to clear 1/2" blade stop (no finish)	999026	$48
NFB	NARROW FRAME BRACKET - For DS/DSHO/EDS/EDAHO arms, PA and BS brackets for added reinforcement (no finish)	999011	$31

Parts discount applies.

*Note: When using a Blade Stop Spacer in a narrow frame application you must use the (NFB) Narrow Frame Bracket for proper support.

BP - BACK PLATE

DPTJ - TOP JAMB DROP PLATE DPPA - PARALLEL ARM DROP PLATE BS - BLADE STOP SPACER

NFB - NARROW FRAME BRACKET

5100 SERIES P ARTS LIST PRICE

Fasteners

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
SDST	SELF DRILLING SELF TAPPING SCREWS	999007
SP	SCREW PACK	999020	$8	$18
SNB	SEX NUTS AND BOLTS -For through bolting on unreinforced hollow core, composite or labeled fire doors 1-3/4" only. (set of 4 each)	999004	$12	$24

Parts discount applies.

SDST - SELF DRILLING SELF TAPPING SCREWS

SNB - SEX NUTS AND BOLTS SP - SCREW PACK

Parts

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
DSBS	DOOR SAVER BUMPER STOP - (no finish)	999010	$14
SPBL	PLASTIC SPACER BLOCK - For DS/DSHO/EDA/EDAHO and PA soffit brackets (no finish)	999031	$6
HO KIT	TA ARM TO MAKE TAHO (no finish)	999030	$24
SCS	SPRING CUSHION STOP* - USE with DS/DSHO for 3'0' doors (specify finish), for PA mount arms only	999032
SCS	SPRING CUSHION STOP* - For DS/DSHO for 4'0' doors, (specify finish), for PA mount arms only	999033	$128

^* Spring Cushion Stop requires purchase of a PDQ DS or DSHO arm.

Parts discount applies.

DSBS - DOOR SAVER BUMPER STOP SPBL - PLASTIC SPACER BLOCK HO KIT - TA ARM TO MAKE TAHO SCS - SPRING CUSHION STOP

Spring Cushion Stop (SCS) Finish Match to Closers

SCS FINISH	CLOSER FINISH
605 (PVD)	605/696
613 (PVD)	695
630	625/626/689

5300 Slim Cover 5500 Full Cover SERIES

Grade 1 Commercial Closer

Typical Applications

• Assisted Living
• Exterior Doors in Heavy Draft/Wind Conditions
• · Government Facilities
• Healthcare
• Higher Education
• Hospitality
• Houses of Worship

Specifications

• Industrial
• K-12 Education
• Offices
• Retail

Features

• 1-1/4" diameter hardened steel piston
• Heavy duty, fully featured architectural style door control
• Available with modern streamline cover or full sized cover
• Compact appearance and features meet the demands of institutional and commercial applications
• The standard tri-pack, full range spring adjustment and common 12" x ¾" mounting hole pattern make the 5300/5500 ideally suited for stocking distributors and retrofit applications
• Adjustable hydraulic backcheck prevents damage for uncontrolled door opening
• Perfect solution for a variety of applications requiring streamline architectural grade door controls
• Maximum 4" reveal for Top Jamb.

BODY:	Cast High Strength Aluminum Alloy Body
ARM OPTIONS:	PA – Parallel Arm HO – Hold Open DS/DSHO – Heavy Duty Parallel Arm Stop RA – Regular Arm SCS/SCSHO – Heavy Duty Parallel Arm Cushion Stop TA/TAHO – Track Arm EDA/EDAHO – Extra Duty Parallel Arm
ADJUSTMENT:	Hydraulic controlled closing Separate hydraulic backcheck standard Optional adjustable delayed action (in addition to backcheck)
RETROFIT:	• Common 12" x 3/4" mounting hole pattern retrofits Norton 8300/8500 ® and Yale 3300/3500
SIZE:	Adjustable GRARELER* BF through 6
MOUNTING:	Includes sex nuts/bolts and screws for wood/metal doors/frames Tri-packed for regular, top jamb and parallel arm installations Separate limiting stop may be required for high abuse applications
COVER:	• 5300 Series - Streamline plastic cover (non-handed) 5500 Series - Full plastic cover standard (field reversible)
COLOR & ARCHITECTURAL FINISHES:	• 605 – Polished Brass, 625 – Polished Chrome, 689 – Aluminum, 695 – Duro Bronze, 696 – Gold
WARRANTY:	Twenty-five (25) year Limited Warranty
CERTIFICATIONS, LISTINGS, COMPLIANCES:	UL listed for labeled swinging fire doors rated up to and including 3 hours Certified to ANSI/BHMA A156.4 Grade 1 Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings Meets requirements of the Buy American Act

53 53 – Slim Cover 55 – Full Cover	01 01 – Non-Delayed Action	BC BC – Adjustable Hydraulic Backcheck	PA DS – Door Saver Arm	689	—
	41 – Delayed Action (In Addition To Backcheck)		DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws
				TAHO – Track Arm Hold Open

DA – Delayed Action

Closers

PART	DESCRIPTION	PAINTED 689/695/696	PLATED 605/625
	5300 SERIES
5301 BC PA	Closer, BF-6, streamline cover, SNB (Tri-pack)	$306	$466
5301 BC RA	Closer, BF-6, regular arm, streamline cover, SNB	$312	$472
5301 BC PA HO	Closer, BF-6, hold open, streamline cover, SNB (Tri-pack)	$432	$592
5301 BC DS	Closer, BF-6, door saver, streamline cover, SNB (PA only)	$470	$630
5301 BC DSHO	Closer, BF-6, door saver hold open, streamline cover, SNB (PA only)	$509	$669
5301 BC EDA	Closer, BF-6, extra duty arm, streamline cover, SNB (PA only)	$470	$630
5301 BC EDAHO	Closer, BF-6, extra duty hold open, streamline cover, SNB (PA only)	$509	$669
5301 BC SCS	Closer, BF-6, door saver w/spring cushion stop, streamline cover, SNB (PA only)	$599	$759
5301 BC SCSHO	Closer, BF-6, door saver hold open w/spring cushion stop, streamline cover, SNB (PA only)	$606	$766
5301 BC TA	Closer, BF-6, track arm, streamline cover, SNB (for body only)	$402
5301 BC TAHO	Closer, BF-6, track arm hold open, streamline cover, SNB (for body only)	$437
	5500 SERIES
5501 BC PA	Closer, BF-6, full cover, SNB (Tri-pack)	$316	$476
5501 BC RA	Closer, BF-6, regular arm, streamline cover, SNB	$312	$472
5501 BC PA HO	Closer, BF-6, hold open, full cover, SNB (Tri-pack)	$442	$602
5501 BC DS	Closer, BF-6, door saver, full cover, SNB (PA only)	$480	$640
5501 BC DSHO	Closer, BF-6, door saver hold open, full cover, SNB (PA only)	$519	$679
5501 BC EDA	Closer, BF-6, extra duty arm, full cover, SNB (PA only)	$480	$640
5501 BC EDAHO	Closer, BF-6, extra duty arm hold open, full cover, SNB (PA only)	$519	$679
5501 BC SCS	Closer, BF-6, door saver w/spring cushion stop, full cover, SNB (PA only)	$609	$769
5501 BC SCSHO	Closer, BF-6, door saver hold open w/spring cushion stop, full cover, SNB (PA only)	$616	$776
5501 BC TA	Closer, BF-6, track arm, streamline cover, SNB (for body only)	$412
5501 BC TAHO	Closer, BF-6, rack arm hold open, streamline cover, SNB (for body only)	$447

Options

CODE	DESCRIPTION	CLOSER ADJUSTMENT
5341	Delayed Action 5300 Series (when ordering, replace 5301 with 5341 in part number)	$40.00
5541	Delayed Action 5500 Series (when ordering, replace 5501 with 5541 in part number)	$40.00

Accessories

		PART LIST PRICE
CODE	DESCRIPTION	PAINTED 689/695/696	PLATED 605/625
BS	Blade Stop Spacer (no finish)	$48
BP	Back Plate
DPPA	Parallel Arm Drop Plate (5500 only)	$52
DPTJ	Top Jamb Drop Plate (and PA Drop for 5300 only)
NFB	Parallel Arm NHO Bracket	$31
SDST	Self Drilling Self Tapping Screws	$8	$18

BP - BACK PLATE

BS - BLADE STOP SPACER

DPPA - PARALLEL ARM DROP PLATE DPTJ - TOP JAMB DROP PLATE

SDST - SELF DRILLING SELF TAPPING SCREWS

Arms

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
RA	REGULAR ARM - Can be mounted REG/TJ/PA (requires PA bracket)	999003	$60	$110
EDA	EXTRA DUTY ARM - PA application only (bumper eliminated)	999005
DS	DOOR SAVER ARM (Limiting Stop) - PA application only	999005	$116	$188
DSHO	DOOR SAVER HOLD OPEN ARM (limiting stop) PA application only	999016	$142	$204
EDAHO	EXTRA DUTY ARM HOLD OPEN - PA application only (bumper eliminated)	999016	$142	$204
HO	HOLD OPEN ARM - can be mounted REG/TJ/PA (requires PA bracket)	999002	$92	$168
TA	TRACK ARM ASSEMBLY - (Includes track, arm and screws)	999025	$92
TAHO	TRACK ARM HOLD OPEN	999027	$108
PA	PARALLEL ARM BRACKET - NON HOLD OPEN applications	999001	$17	$34
PAHO	PARALLEL ARM BRACKET- HOLD OPEN applications	999022	$24

RA - REGULAR ARM DS - DOOR SAVER (LIMITING STOP) ARM

DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN ARM

HO - HOLD OPEN ARM

EDA - EXTRA DUTY ARM EDAHO - EXTRA DUTY ARM HOLD OPEN

TA - TRACK ARM ASSEMBLY TAHO - TRACK ARM HOLD OPEN

PA - PARALLEL ARM BRACKET PAHO - PARALLEL ARM HO BRACKET NFB - NARROW FRAME BRACKET

5300/5500 S ERIES PARTS LIST PRICE

Covers

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
FC	5500 SERIES FULL PLASTIC COVER (field reversible)	559006		$50
SV	5300 SERIES STREAMLINE PLASTIC COVER (non-handed)	539006	$28

Parts discount applies.

FC - FULL PLASTIC COVER (5500) SV - STREAMLINE PLASTIC COVER (5300)

Mounting Plates

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696
BP	BACK PLATE - For regular arm applications to clear mortised stop/holder	539008/559008
DPTJ	TOP JAMB DROP PLATE - Required to mount TJ with limited ceiling clearance or to clear surface applied stop/holder	999023	$52
DPPA	PARALLEL ARM DROP PLATE - Required for parallel arm mount with limited top door rail	559018
BS*	BLADE STOP SPACER - Shims all PA brackets to clear 1/2" blade stop (no finish)	999026	$48
NFB	NARROW FRAME BRACKET - For DS/DSHO/EDS/EDAHO arms, PA and BS brackets for added reinforcement (no finish)	999011	$31

Parts discount applies.

*Note: When using a Blade Stop Spacer in a narrow frame application you must use the (NFB) Narrow Frame Bracket for proper support.

BP - BACK PLATE (539008/559008)

DPTJ - TOP JAMB DROP PLATE DPPA - PARALLEL ARM DROP PLATE BS - BLADE STOP SPACER

NFB - NARROW FRAME BRACKET

5300/5500 SE RIES PARTS LIST PRICE

Fasteners

				PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
SDST	SELF DRILLING SELF TAPPING SCREWS	999007		$18
SP	SCREW PACK	999020	$8
SNB	SEX NUTS AND BOLTS -For through bolting on unreinforced hollow core, composite or labeled fire doors 1-3/4" only. (set of 4 each)	999004	$12	$24

Parts discount applies.

SDST - SELF DRILLING SELF TAPPING SCREWS

SNB - SEX NUTS AND BOLTS SP - SCREW PACK

Parts

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696	PLATED 605/625
DSBS	DOOR SAVER BUMPER STOP - (no finish)	999010	$14
SPBL	PLASTIC SPACER BLOCK - For DS/DSHO/EDA/EDAHO and PA soffit brackets (no finish)	999031	$6
HO KIT	TA ARM TO MAKE TAHO (no finish)	999030	$24
SCS	SPRING CUSHION STOP* - USE with DS/DSHO for 3'0' doors (specify finish), for PA mount arms only	999032	$128	$128
SCS	SPRING CUSHION STOP* - For DS/DSHO for 4'0' doors, (specify finish), for PA mount arms only	999033	$128	$128

^* Spring Cushion Stop Function requires purchase of a PDQ DS or DSHO arm. Parts discount applies.

DSBS - DOOR SAVER BUMPER STOP SPBL - PLASTIC SPACER BLOCK HO KIT - TA ARM TO MAKE TAHO SCS - SPRING CUSHION STOP

Spring Cushion Stop (SCS) Finish Match to Closers

SCS FINISH	CLOSER FINISH
605 (PVD)	605/696
613 (PVD)	695
630	625/626/689

Grade 1 Light Commercial Closer

Typical Applications

• · Aluminum Storefronts
• Assisted Living
• Hospitality
• Interior Offices
• Multi-family

Features

• Traditional door style door control for use in commercial door applications
• Fasteners are provided to facilitate installation on wood, hollow metal and aluminum doors and frames
• The closers are non-hande versatility to permit regula arm installations
• The common 9-1/16" mou permits simple installation and retrofit applications.
• Maximum 3-11/16" reveal for Top Jamb.

Specifications

BODY:	High strength aluminum alloy
ARM OPTIONS:	PA – Parallel Arm HO – Hold Open DS/DSHO – Heavy Duty Parallel Arm Stop RA – Regular Arm SCS/SCSHO – Heavy Duty Parallel Arm Cushion Stop TA/TAHO – Track Arm
ADJUSTMENT:	Separate hydraulic backcheck standard Hydraulic controlled closing standard
SIZE:	• 3101 = Adjustable & BF - 4 • 3100 = Adjustable 3 - 6
MOUNTING:	Common 9-1/16" x 3/4" mounting hole pattern retrofits Yale® 50, Norton® 1600 Tri-packed for regular, top jamb and parallel arm installations Includes sex nuts/bolts and screws for wood, metal doors frames Self drilling self tapping screws available Separate limiting stop may be required for high abuse applications
COVER:	Streamline plastic cover optional
COLOR FINISHES:	● 689 – Aluminum, 695 – Duro Bronze, 696 – Gold
WARRANTY:	• Twenty-five (25) year Limited Warranty
CERTIFICATIONS COMPLIANCES:	UL listed for labeled swinging fire doors rated up to and including 3 hours Certified to ANSI/BHMA A156.4 Grade 1 Meets requirements of the Buy American Act Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

How to Order

QUANTITY	SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
10	31	00	BC	PA	689	—
		00 – Adjustable Size 3-6 01 – Adjustable Size BF - 4	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open	689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DP – Drop Plate NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws PAGE 215

Closers

PART	SIZE	DESCRIPTION	PAINTED 689/695/696
		3100 SERIES – ADJUSTABLE SIZES 3-6
3100 BC PA	3-6	Closer, SNB (Tri-pack)	$235
3100 BC RA	3-6	Closer, regular arm, SNB	$241
3100 BC PA SV	3-6	Closer, SNB (Tri-pack), Streamline Cover	$251
3100 BC PA HO	3-6	Closer, hold open, SNB (Tri-pack)	$351
3100 BC DS	3-6	Closer, door saver, SNB (PA Only)	$399
3100 BC DSHO	3-6	Closer, door saver hold open, SNB (PA Only)	$438
3100 BC SCS	3-6	Closer, door saver w/spring cushion stop, SNB (PA Only)	$528
3100 BC SCSHO	3-6	Closer, door saver hold open w/spring cushion stop,SNB (PA Only)	$535
3100 BC TA	3-6	Closer, track arm, SNB (body only)	$331
3100 BC TAHO	3-6	Closer, track arm hold open, SNB (body only)	$366
		3101 SERIES – ADJUSTABLE SIZES BF-4
3101 BC PA	BF-4	Closer, SNB (Tri-pack)	$235
3101 BC RA	BF-4	Closer, regular arm, SNB	$241
3101 BC PA SV	BF-4	Closer, SNB (Tri-pack), Streamline Cover	$251
3101 BC PA HO	BF-4	Closer, hold open, SNB (Tri-pack)	$351
3101 BC DS	BF-4	Closer, door saver, SNB (PA Only)	$399
3101 BC DSHO	BF-4	Closer, door saver hold open, SNB (PA Only)	$438
3101 BC SCS	BF-4	Closer, door saver w/ spring cushion stop, SNB (PA Only)	$528
3101 BC SCSHO	BF-4	Closer, door saver hold open w/spring cushion stop, SNB (PA Only)	$535
3101 BC TA	3-6	Closer, track arm, SNB (for body only)	$331
3101 BC TAHO	3-6	Closer, track arm hold open, SNB (for body only)	$366

ACCESSORIES

CODE	DESCRIPTION	PART LIST PRICE PAINTED 689/695/696
BS	Blade Stop Spacer (no finish)	$48
BP	Back Plate
DPTJ	Drop Plate Top Jamb	$52
NFB	Parallel Arm NHO Bracket	$31
SDST	Self Drilling Self Tapping Screws	$8

BP - BACK PLATE

BS - BLADE STOP SPACER DPTJ - DROP PLATE NFB - NARROW FRAME BRACKET

SDST - SELF DRILLING SELF TAPPING SCREWS

Arms

CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PART LIST PRICE PAINTED 689/695/696
RA	REGULAR ARM - Can be mounted REG/TJ/PA (requires PA bracket)	319003	$60
DS	DOOR SAVER ARM (Limiting Stop) - PA application only	999005	$116
DSHO	DOOR SAVER HOLD OPEN ARM (limiting stop) PA application only	999016	$142
HO	HOLD OPEN ARM - can be mounted REG/TJ/PA (requires PA bracket)	999002
TA	TRACK ARM ASSEMBLY - (Includes track, arm and screws)	999025	$92
TAHO	TRACK ARM HOLD OPEN	999027	$108
PA	PARALLEL ARM BRACKET - NON HOLD OPEN applications	999001	$17
PAHO	PARALLEL ARM BRACKET- HOLD OPEN applications	999022	$24

RA - REGULAR ARM DS - DOOR SAVER (LIMITING STOP) ARM

DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN ARM

HO - HOLD OPEN ARM

TA - TRACK ARM ASSEMBLY TAHO - TRACK ARM HOLD OPEN PA - PARALLEL ARM BRACKET PAHO - PARALLEL ARM HO BRACKET

Covers

CODE	DESCRIPTION	PART NO.	PART LIST PRICE PAINTED
		(SPECIFY FINISH)	689/695/696
SV	STREAMLINE PLASTIC COVER	319006	$11

Parts discount applies.

SV - STREAMLINE PLASTIC COVER

Mounting Plates

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696
BS*	BLADE STOP SPACER - Shims all PA brackets to clear 1/2" blade stop (no finish)	999026	$48
BP	BACK PLATE - For regular arm applications to clear mortised stop/holder	319008
DPTJ	TOP JAMB DROP PLATE - Required to mount TJ with limited ceiling clearance or to clear surface applied stop/holder	319009	$52
NFB	NARROW FRAME BRACKET - For DS/DSHO/EDS/EDAHO arms, PA and BS brackets for added reinforcement (no finish)	999011	$31

Parts discount applies.

*Note: When using a Blade Stop Spacer in a narrow frame application you must use the (NFB) Narrow Frame Bracket for proper support.

BP - BACK PLATE DPTJ - TOP JAMB DROP PLATE NFB - NARROW FRAME BRACKET BS - BLADE STOP SPACER

3100 SERIES PA RTS LIST PRICE Effective May 13, 2019

CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PART LIST PRICE PAINTED 689/695/696
SDST	SELF DRILLING SELF TAPPING SCREWS	999007
SP	SCREW PACK	319020	$8
SNB	SEX NUTS AND BOLTS -For through bolting on unreinforced hollow core, composite or labeled fire doors 1-3/4" only. (set of 4 each)	999004	$12

Parts discount applies.

SDST - SELF DRILLING SELF TAPPING SCREWS

SNB - SEX NUTS AND BOLTS SP - SCREW PACK

Parts

			PART LIST PRICE
CODE	DESCRIPTION	PART NO. (SPECIFY FINISH)	PAINTED 689/695/696
DSBS	DOOR SAVER BUMPER STOP - (no finish)	999010	$14
SPBL	PLASTIC SPACER BLOCK - For DS/DSHO/EDA/EDAHO and PA soffit brackets (no finish)	999031	$6
HO KIT	TA ARM TO MAKE TAHO (no finish)	999030	$24
SCS	SPRING CUSHION STOP* - USE with DS/DSHO for 3'0' doors (specify finish), for PA mount arms only	999032
SCS	SPRING CUSHION STOP* - For DS/DSHO for 4'0' doors, (specify finish), for PA mount arms only	999033	$128

^* Spring Cushion Stop requires purchase of a PDQ DS or DSHO arm. Parts discount applies.

DSBS - DOOR SAVER BUMPER STOP SPBL - PLASTIC SPACER BLOCK HO KIT - TA ARM TO MAKE TAHO SCS - SPRING CUSHION STOP

Spring Cushion Stop (SCS) Finish Match to Closers

SCS FINISH	CLOSER FINISH
605 (PVD)	605/696
613 (PVD)	695
630	625/626/689

SCS Spring Cushion Stop SERIES

SPRING CUSHION STOP

613 OIL RUBBED BRONZE

605 BRIGHT BRASS

PDQ's SCS Series Spring Cushion Stop helps reduce wear and tear on the opening. As the door begins moving through backcheck to its maximum opening angle, the stop acts as a shock absorber, dampening the impact forces.

Features

• The unit is an add-on kit that can be included as an option on DS/DSHO arms.
• It also can be installed on existing DS/DSHO arm applications using the existing threaded hole for the bumper stop and one of the mounting screw holes.
• The spring cushion kit is available in two spring sizes, allowing it to be tailored to provide more effective cushioning for specific door widths
• Designed to be self aligning, the unit works with any door that incorporates a PDQ DS/DSHO arm with a cushioned bumper (won't fit with old style metal bumper).
• Manufactured from investment cast stainless steel for corrosion resistance and durability
• The 99032/99033 does not alter or decrease the strength of the DS/DSHO arm.
• Hand is determined in the field and reversible for LH and RH doors

NOTE: PLUNGER HIGHLIGHTED TO ENHANCE THE CUSHIONING FEATURE.

STOP SHOWN BEFORE DOOR IS FULLY OPENED

STOP SHOWN WHEN DOOR IS FULLY OPENED

Specifications

HANDING: • Field Reversible

• SCS-1 for 3'0" X 8'0" doors

• SCS-2 for 4'0" X 8'0" doors

FINISHES: • 605 (US3) – Bright Brass (PVD), 613 (US10B) – Oil Rubbed Bronze (PVD), 630 (US32D) – Satin Stainless Steel Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear, durability and corrosion.

WARRANTY: • One (1) year limited warranty

Spring Cushion Stop

PART	CODE	DESCRIPTION	PART LIST PRICE 605
999032 Specify Finish	SCS-1	For 3'0" X 8'0" wood or hollow metal doors and frames
999033 Specify Finish	SCS-2	For 4'0" X 8'0" wood or hollow metal doors and frames	$128

Electrified Solutions

Locks

MR199A Electrified Mortise

EMR Stand-Alone Offline Keypad Mortise

EGT Stand-Alone Offline Keypad Cylindrical Lock

Applications

Electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch. — p. 232

Applications

Electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch. — p. 240

Applications

Electronic standalone, battery powered, keypad mortise lock solution that provides controlled access for basic and multi-level high security requirements. — Replaced by pdqSMART MRS-STP

Applications

Electronic standalone, battery powered, keypad cylindrical lock solution that provides controlled access for basic and multi-level high security requirements. — Replaced by pdqSMART GTS-STP

Exit Devices and Trim

6200/6202 Electrified Options

Applications

Access control exit device options including request to exit signal switch, latch bolt monitor, and battery powered alarms. — p. 245

6EW199A Electrified Trim

Applications

Electrified trim complements the mechanical offering and is typically incorporated into a wired access control system or used independently with a remote access switch. — p. 246

MLR Motorized Latch Retraction

Applications

An ideal solution for integrated exit device access control solutions requiring operational noise reduction such as Healthcare, K-12, higher education, museums, auditoriums, theaters, etc. — p. 249

E629 Stand-Alone Offline Keypad Trim

Applications

Electronic standalone, battery powered, keypad exit device trim solution that provides controlled access for basic and multi-level high security requirements. — Replaced by pdqSMART 6EWS-STP

Electrified Solutions

ELECTRIFIED HINGES

ELECTRIC STRIKES

Applications

Electric hinges are used when a locking device is mounted on a moving door and power and signals must be brought off the door to the controller and house wiring. Examples of such locking devices include an electrified lockset or electrically actuated trim, electric latch retraction device or a switching device such as a REX lever or touchbar. — p. 252

Applications

Electromechanical door locking device for use with various latch bolt locksets in lieu of conventional Strikes that provide additional security, traffic control and convenience of remote operation. — p. 253

KEY SWITCHES

PUSH BUTTONS

Applications

Key switches can be activated only by the use of a key. Typical applications include situations where access needs to be restricted to the switch's functions. — p. 254

Applications

Commonly used on ADA openings in conjunction with an automatic operator. — p. 254

Applications

Power sources used to support electronic access control devices. — p. 255

MR199A MR200

Grade 1 Electrified Mortise Lock

MR199A Electrified Storeroom MR200 Electrified Institutional

Innovative motor drive controls FAIL SECURE or FAIL SAFE locking mode.

Typical Applications

• Child Care Facilities
• Computer Rooms
• Nursing Staff Lounges
• Rest Rooms
• Stairwell Towers
• Storage Areas

Features

• Motorized locking/unlocking.

FAIL SECURE (Factory Default)– Outside trim is UNLOCKED when power is ON, and LOCKED when power is OFF. Lockset will lock in the event of a power failure.

FAIL SAFE – Outside trim is LOCKED when power is ON, and UNLOCKED when power is OFF. Lockset will unlock in the event of a power failure.

• Field changeable from FAIL Secure to FAIL SAFE.
• Built around PDQ's world class MR series mortise lock chassis platform.
• Designed for AC or DC input voltage. No need to select voltage when specifying or ordering.
• Meets requirements of the Buy American Act.
• SMARTSENSETM control board automatically accepts AC or DC input voltage.

HOW TO ORDER SEE PAGE 21.

PERFORMANCE:	• Motor drive factory tested to over1.4 million cycles (1.4 times the ANSI/BHMA grade 1 std).
RECOMMENDED POWER SUPPLY:	• PDQ Model # 81440. – Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz – Output: 24VDC, 2A, filtered and regulated. • Rated for simultaneous operation of 2ea mortise lock assemblies. • Power Supply Requirements: – AC/DC Output Voltage – 1A min (filtered and regulated). • 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec. – AC Output Voltage. • 12-24VAC (60Hz) @ < 1A initial surge (1 sec),15mA standby after 30 sec
ELECTRICAL SPECIFICATIONS:	• Input voltage: 12-24VDC or 12-24VAC. • Max In-rush current: < 1.0A. • Standby current: – 12VAC: 12mA. – 24VAC: 10mA. – 12VDC: 3mA. – 24VDC: 5mA. Note: Operating voltage at ± 10% of rated voltage.
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• ANSI/UL10C and CAN/ULC-5104 Listed for "Fire Exit Hardware" up to 3 hours for 4'0" x 8'0" maximum single, 8'0" x 8'0" maximum pairs. • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.
WARRANTY:	• 2-Years

Stand-Alone Offline Keypad Mortise Lock

Typical Applications

• Glass Doors
• · Professional Offices within a Building
• · Server Rooms
• · Side Entrance in Commercial. Retail or Office
• Utility Areas or Supply Closets

Features

• Designed for Heavy Duty Grade 1 high use and abuse applications
• Non-volatile memory. Lock programming is retained in the event of a prolonged power outage
• Backlit Stainless Steel keypad buttons standard
• Full Outdoor Standard
• Color LED's illuminate a visual cue when the correct code is entered.
• · Simple installation and programming
• Mechanical Key override
• 3 Hour UL Fire Listed
• Hardwire input

Contact Customer Service for Details

dels require programming at the lock

randard - both sides can be exposed to weather.

• Standard ANSI A156.115 for Mortise Locks, modified with additional mounting holes depending on locking function (see template).

ORDER RE 236.

COMPLIANT

Specifi

LOC

WEATHE

OPERATING TE

• 1-3/4" standard, 2-1/4" available Specify when ordering

DOOR PREP:

Backset: • 2-3/4"

CHASSIS:

· Heavy duty zinc diecast, investment cast and stainless steel mechanism.

ESCUTCHEON:

Heavy duty cast alloy

STRIKE: LATCHBOLT:

• 4-7/8" x 1-1/4" (ASA) is standard.

y F to 130° F - both sides

• 3/4" throw with dead latch standard. 2-1/4" x 1-1/8" Stainless Steel or Brass front; Beveled 1/8" on 2" door.

HAND:

LEVERS:

• Handed – field reversible Specify when ordering

KEYS:

Mechanical key bypass standard, 2 keys per lock

KEYWAYS:

Available in keyways of most major manufacturers

INTERCHANGEABLE CORE:

KEYING:

• Best compatible SFIC type 6 and 7 pin or Schlage compatible LFIC Can be MK, CMK, GMK. Available Zero Bitted (K0), Keyed Different (KD), Keyed Alike (KA).

• PHL, BSN or MIA levers are solid zinc diecast. 41° lever rotation.

Can be keyed into existing master key systems of other manufacturers. • 605 Bright Brass 606 Satin Brass, 613 Oil Rubbed Bronze, 626 Satin Chrome

FINISHES: CERTIFICATIONS,

• UL listed for "Fire Exit Hardware" labeled for to 3 hrs, single swing doors 4'0" x 8"0"

• FCC part 15 • PCB RoHS compliant

LISTINGS. COMPLIANCES: WARRANTY:

COUNTRY OF ORIGIN:

• 24 months from date of manufacture

Proudly assembled in the USA. This product meets the requirements of the Buy American Act.

EMR SERIES STAND-ALONE OFFLINE KEYPAD MORTISE LOCK

Functions

LOCK	FUNCTION
	AP - APARTMENT AP - RE-LOCK • Valid code will unlock the lock for a configurable number of seconds, then re-lock. • Deadbolt may be extended by outside key or thumb-turn for additional security but does not lockout any valid user code • Door is normally secure • Deadbolt retracted by outside key, valid code, inside lever or inside thumb-turn.
	SC - STOREROOM/CLASSROOM SC - STOREROOM • With any valid code the lock will unlock for a confice poor is normally secure SC - CLASSROOM • Valid code • Valid code Contact Customer Service for Details Contact Customer Service for Details Contact Customer Service for Details Contact Customer Service for Details Contact Customer Service for Details Contact Customer Service for Details Contact Customer Service for Details Contact Customer Service for Details Contact Customer Service for Details
	• Valid code of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property o
	PR – FACULTY • Valid code will unlock the lock for a configurable number of seconds, then re-lock. • Thumbturn on inside locks out all user codes but master • Exiting/Closing door returns lockset to normal state allowing all users access • Door is normally secure PR – SERVICE STATION • Occupied room secured by thumbturn on inside and locks out all user codes but master • Exiting/Closing door unlocks lockset • Valid code locks door • Valid code unlocks door

EMR SERIES STAND-ALONE OFFLINE KEYPAD MORTISE LOCK

LIST PRICE

Effective May 13, 2019

Functions

EMR SERIES STAND-ALONE OFFLINE KEYPAD MORTISE LOCK

LIST PRICE

Effective May 13, 2019

How to Order

QUANTITY	SERIES	INTERFACE	MODEL	FUNCTION	LEVER	FINISH	STRIKE	HANDING	DOOR THICKNESS	CYLINDER	KEYWAY	KEYING	OPTIONS
10	EGT	K	В	AP	PHL	626	ASA	RH	134	D	SCC	KD	_
		K — Keypad Only	B— Basic	AP — Apartment SC —	PHL — Phila- delphia	605 606	ASA — Curved Lip	RH — Right Hand	134 — 1-3/4" [45mm]	D — Default L — Less	SCC	KD KA	AM — Antimicrobial Coating
				Storeroom/ Classroom	BSN — Boston	| 613 | LH | 214 | Cylinder		Left Hand 2-1/4" PAG		PAGE 23	9
				OF — Office	MIA — Miami				[3711111]	SF6 — SFIC w/ Core, 6 Pin
				PR — Privacy						SF7 — SFIC w/ Core 7 Pin

Notes:

• 1 Door thickness 1-"3/4" and 2-1/4"
• 2 For other door thickness applications, contact PDQ Customer Service
• 3 Most common cylinders, housings, keyway and keying options shown. For additional options, consult Cylinders and Keying section of price list.
• 4 List price includes standard default cylinder
• 5 Other finishes available. Contact PDQ Customer S

nder ustomer s REPLACED BY pdqSMART MRS-STP REPLACED BY pdqSMART MRS-STP REPLACED BY pdqSMART MRS-STP REPLACED BY pdqSMART MRS-STP PAGE 238

Locksets

SERIES	_nFACE	MODEL	626	605*/606*/613*
EMR	K - Keypad	B - Basic	$880	$980

^* Architectural finishes require extended lead time. Contact PDQ Customer Service.

Note: Parts discount applies

EMR SERIES STAND-ALONE OFFLINE KEYPAD MORTISE LOCK

LIST PRICE

Effective May 13, 2019

RS

Lever Designs

Strikes

All EMR Strikes ship with screws and handed. S ing when o

*Not to scale—H

TOISCONTINUED REPLACED BY pagsmart MRS-STP Contact Customer Service for Details Contact Customer Service for Details

EMR SERIES STAND-ALONE OFFLINE KEYPAD MORTISE LOCK

Effective May 13, 2019

Cylinders and Keyways

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
C059A1	Corbin / 59A1
C06	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K	N/C
SAL	Sargent / LA
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R	-1211
KW	Kwikset
TA	PDQ / TA (Restricted. Limited to Grandmaster sur	ATINUED MRS-ST
NON	Less Cylinder	Inc-S

HIGH SECURITY CYLINDER

SEE HIGH SECURITY O

DISCONTINUED REPLACED BY pagsMART MRS-ST Contact Customer Service for Details

NOTES:

• Parts Discount Applies
• Designate desired finish for Rim Cylinders if ordered separately: 605, 606, 612, 613, 625 or 626
• Other finishes consult Customer Service

7-pin Housing with Adapter

EMR SERIES STAND-ALONE OFFLINE KEYPAD MORTISE LOCK

LIST PRICE

Effective May 13, 2019

Cores and Keyways

DESCRIPTION	PDQ NO.	SOLD WITH LOCK	SOLD WITHOUT LOCK
SMALL FORMAT UNG	COMBINATED
6 Pin Cores	I5206 + KEYWAY	$47.00	$61.00
7 Pin Cores	15207 + KEYWAY	$47.00	$61.00
COMBINATED
6 Pin Cores	I5206-1 + KEYWAY	$47.00	$78.00
7 Pin Cores	I5207-1 + KEYWAY	$47.00	$78.00
BEST® Compatible

A (DEFAULT), B, C, D, E, F, G, H, J, K, L, M, Q,

WA, WB, WC, WG, WH, TB, TD, TE, & R

PDQ Exclusive

PDQ1, PDQ2

PDQ Exclusive and Restricted

SFIC CONSTRUCTION

Construction Core 6-pin only

Dummy Construction Core Plastic

LFIC CONSTRUCTION Construction Core 6-pin only

IC Tailpiece Assembly and credited up

LFIC C

Schlage co.

PDQ TA LF

SEE HIGH SECURI

LFIC UNC Schlage compa HIGH SECURIT

NOTES:

• IC Cores are available Combinated or Uncombinated
• Uncombinated cores do not include springs & pins
• Combinated cores include master keying
• Designate finish for IC Cores ordered separately: 606 or 626
• Parts Discount Applies

LFL/LFIC Schlage Format

DISCONTINUED REPLACED BY pdqSMART MRS-STP Contact Customer Service for Details

LFIC REQUIRES LARGE FORMAT LEVER

Parts discount ap

Keying Systems

SEE KEYING SYSTEMS CHART PAGE 143

Options

CODE	DESCRIPTION	PART PRICE LIST
AM	Antimicrobial Coating, Lever Set Includes Inside and Outside Lever and Rose	$62.00

^* Parts discount applies

XGT/G T199A Electrified Cylindrical Lock Grade 1 Heavy Duty

Typical Applications

• Computer Rooms
• High Security Areas
• Pharmacies
• Stairwell Towers
• Tenant Spaces

HOW TO ORDER SEE PAGE 49,61.

Specifications ADA COMPLIANT

PERFORMANCE:	• Motor drive factory tested to over1.4 million cycles (1.4 times the ANSI/BHMA grade 1 std).
RECOMMENDED POWER SUPPLY:	• PDQ Model # 81440. – Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz – Output: 24VDC, 2A, filtered and regulated. • Rated for simultaneous operation of 2ea mortise lock assemblies. • Power Supply Requirements: – AC/DC Output Voltage – 1A min (filtered and regulated). • 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec. – AC Output Voltage. • 12-24VAC (60Hz) @ < 1A initial surge (1 sec),15mA standby after 30 sec
ELECTRICAL SPECIFICATIONS:	• Input voltage: 12-24VDC or 12-24VAC. • Max In-rush current: < 1.0A. • Standby current: – 12VAC: 12mA. – 24VAC: 10mA. – 12VDC: 3mA. – 24VDC: 5mA. Note: Operating voltage at ± 10% of rated voltage.
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• ANSI/UL10C and CAN/ULC-5104 Listed for "Fire Exit Hardware" up to 3 hours for 4'0" x 8'0" maximum single, 8'0" x 8'0" maximum pairs. • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.
WARRANTY:	• 2-Years

Trim

PHILADELPHIA — PHL BOSTON — BSN MIAMI — MIA

Stand-Alone Offline Keypad Cylindrical Lock

Typical Applications

• Glass Doors
• · Professional Offices within a Building
• · Server Rooms
• Side Entrance in Commercial, Retail or Office
• Utility Areas or Supply Closets

Features

• Designed for Heavy Duty Grade 1 high use and abuse applications
• Non-volatile memory. Lock programing is retained in the event of a prolonged power outage
• · Built around PDQ's World Class GT Series Cylindrical Lock Chassis
• · Backlit Stainless Steel keypad buttons standard
• Full Outdoor Standard
• · Color LED's illuminate a visual cue
• · Simple installation and programming
• Mechanical Kev override
• · 3 Hour UL Fire Listed

TO ORDER AGE 242.

re-Inck

Specifications

DISCONTINUED REPLACED BY PdqSMART GTS-STP Contact Customer Service for Details

un credential is entered

the door for the configured number of seconds then relock.

a set of (4) AA alkaline batteries (not included).

Option K) models require programming at the lock. rull outdoor standard - both sides can be exposed to weather.

201

FOR DOORS: DOOR PREP:

• 0° F to 130° F both sides
• 1-3/4" standard, 2-1/4" available Specify when ordering
• Standard ANSI A156.115 (161) for Cylindrical Locks, modified with additional mounting holes.

BACKSET: CHASSIS:

• 2-3/4", 2-3/8" (must be ordered as complete unit)
• · Heavy duty zinc diecast, investment cast and stainless steel mechanism.

ESCUTCHEON:

· Heavy Duty cast alloy

STRIKE:

• 4-7/8" x 1-1/4" (ASA) is standard. Other options available are the 'T' or 'FL', specify when ordering. All Strikes are non-handed and have a base material of stainless steel or brass.

LATCHBOLT:

• 9/16" throw with dead latch standard, 2-1/4" x 1-1/8" Stainless Steel or Brass front: Beveled 1/8" on 2" door,

LEVERS:

• Handed – field reversible Specify when ordering

KEYS:

PHL BSN or MIA levers are solid zinc diecast, 41° lever rotation.

• 2 keys per lock

KEYWAYS:

· Available in keyways of most major manufacturers

INTERCHANGEABLE CORE:

• Best compatible SFIC 6 and 7 pin or Schlage compatible LFIC

KEYING:

FINISHES:

Can be MK, CMK, GMK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers.

CERTIFICATIONS,

• 605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 626 Satin Chrome, 626 Satin Chrome

LISTINGS. COMPLIANCES:

• UL listed for "Fire Exit Hardware" labeled for to 3 hrs, single swing doors 4'0" x 8"0" • FCC part 15

WARRANTY:

· 24 months from date of manufacture

COUNTRY OF ORIGIN:

• Proudly assembled in the USA. This product meets the requirements of the Buy American Act.

PCB RoHS compliant

EGT SERIES STAND-ALONE OFFLINE KEYPAD CYLINDRICAL LOCK

LIST PRICE

Effective May 13, 2019

How to Order

QUANTITY	SERIES	INTERFACE	MODEL	LEVER	FINISH	BACKSET	STRIKE	HANDING	DOOR THICKNESS	CYLINDER	KEYWAY	KEYING	OPTIONS
10	EGT	К	В	PHL	626	234	ASA	RH	134	D	SCC	KD	_
Notes: 1 - Door thi		K — Keypad Only	B— Basic	PHL— Philadelphia BSN —	605 606	234 — 2-3/4" (Default)	ASA — Curved Lip	RH — Right Hand	134 — 1-3/4" [45mm]	D— Default L—Less	scc	KD KA	AM — Antimicrobial Coating
	er door ss appli-			Boston MIA — Miami	613 626	238 — 2-3/8" (Optional)		LH — Left Hand	214 — 2-1/4" [57mm]	Cylinder SF6 — SFIC w/		PAGE 24	4

3 - Most common cylinders, housings, keyway and keying options shown. For additional options, consult Cylinders and Keying section of price list.

cations, contact

PDQ Customer

Service

4 - List price includes standard default cylinder

5 - Other finishes available. Contact PDQ C tomer Servi

DISCONTINUED REPLACED BY padaSMART GTS-STP Contact Customer Service for Details Contact Customer Service for Details

SERIES		MODEL	626	605*/606*/613*
EGT	n - Keypad	B - Basic	$720	$820

^* Architectural finishes require extended lead time. Contact PDQ Customer Service.

Note: Parts discount applies

CYLINDER OPTIONS	ICON	LOCK Adjustment
D	•	N/C
SFL	8	N/C
LFL	8	$10.00

Core, 6 Pin

SF7

SFIC w/

Core, 7

Core not included see page 63 for core options

EGT SERIES STAND-ALONE OFFLINE KEYPAD CYLINDRICAL LOCK

LIST PRICE

Effective May 13, 2019

Lever Designs

EGT SERIES STAND-ALONE OFFLINE KEYPAD CYLINDRICAL LOCK

Effective May 13, 2019

Cylinders and Keyways

PDQ KEYWAY	COMPATIBLE WITH	SOLD WITH LOCK
AR1	Arrow / AR1
C059A1	Corbin / 59A1
CO6	Corbin / 60
CL4	Corbin / L4
RUD	Russwin / D1
SCE	Schlage / E
SCC	Schlage / C
SCC-K	Schlage / C-K
SAL	Sargent / LA	N/C
RA-RC	Sargent / RA-RC
YA8	Yale / E1R
GA	Yale / GA
FAL	Falcon / E-R
W	Kwikset	-111111
ГА	PDQ / TA (Restricted. Limited to Grandmast	IT IN C
Dummy		- c.15-3
T-Turn		TANK! U.
NON	Less	JaSNIA neta
HIGH SE	UID ORY	bun aice to Low
SEE HIGH SE	Yale / ETR Yale / GA Falcon / E-R Kwikset PDQ / TA (Restricted. Limited to Grandmast Less C REPLACED BY REPLACED BY Contact Cust C	pdqSMART GTS-S pdqSMART GTS-S omer Service for Detail
	REI Loct Custo
	contact

NOTES:

• Designate finish for cylinders ordered separately: 606 or 626
• Kwikset cylinder available in 5 pin only
• Specify KD, KA4, or 1 bitted
• Specify KD, KA or "0" Bit (TellCard "0" bit is keyed to a 1 bit and a 1 bit key is supplied)
• 6 pin or the keyed to 5 pins

combination Cylinder

Keying Sy

SEE KEYING SYSTEMS CHART PAGE 143

Options

CODE	DESCRIPTION	PART PRICE LIST
AM*	Antimicrobial Coating, Lever Set Includes Inside and Outside Lever and Rose	$62.00

^* Parts discount applies

6200/620 2 SERIES

Exit Device Electrified Options

Electrified Options for Panic Hardware

There are a number of electrified options available for panic hardware. They are often added for a number of reasons:

• Access control
• Remote monitoring of hardware status
• Alarms to discourage use of the door
• Code compliance for stairwell doors that require re-entry
• Code compliance for fire-rated doors where electric dogging is needed

CODE	DESCRIPTION
AL LHR	Alarm Option, Left Hand Reverse
AL RHR	Alarm Option, Right Hand Reverse
LM	Latch Bolt Monitoring (6200R Only)
MLR	Motorized Latch Retraction
SS	Signal Switch - Request to Exit or Monitoring
SS-2	Dual Signal Switch - Request to Exit and Monitoring

ORDER WITH EXIT DEVICE 6200 SERIES PAGES 163 6202 SERIES PAGES 183

Device Trim

Typical Applications

• Healthcare
• High Security Areas
• Higher Education
• Industrial
• K-12 Education
• Stairwell Towers

MOTORIZED LOCKING/UNLOCKING

Innovative motor drive controls FAIL SECURE or FAIL SAFE locking mode

Features

• Available in 6200 EW Series Wide Stile Escutcheon Trim
• Motorized locking/unlocking.

FAIL SECURE – Outside trim is UNLOCKED when power is ON, and LOCKED when power is OFF. Lockset will lock in the event of a power failure FAIL SAFE – Outside trim is LOCKED when power is ON, and UNLOCKED when power is OFF. Lockset will unlock in the event of a power failure.

• Field changeable from FAIL Secure to FAIL SAFE.
• Designed for AC or DC input voltage. No need to select voltage when specifying or ordering.
• Designed for use with PDQ Rim, Surface Vertical Rod and Concealed Vertical Rod Exit Devices only. Not available with Mortise Exit Devices
• Designed and assembled by PDQ in the USA

ADA COMPLIANT

Specifications

• Input voltage: 12-24VDC or 12-24VAC.
• Max In-rush current: < 1.0A.
• Standby current:
  • 12VAC: 12mA.
  • 24VAC: 10mA.
• 12VDC: 3mA. – 24VDC: 4mA.
• Note: Operating voltage at ± 10% of rated voltage.
• Warranty: 2-Years

Recommended Power Supply

• PDQ Model # 81440.
  • Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz
• Output: 24VDC, 2A, filtered and regulated.
• Rated for simultaneous operation of 2 each trim assys.
• Power Supply Requirements:
• AC/DC Output Voltage 1A min (filtered and regulated).
• 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec. – AC Output Voltage.
• 12-24VAC (60Hz) @ < 1A initial surge (1 sec), 15mA standby after 30 sec

6EW199A ELEC TRIFIED EXIT DEVICE TRIM MOTORIZED LOCKING/UNLOCKING

LIST PRICE

Effective February 1, 2018

PDQ Functions

FUNCTION	FUNCTION NUMBER	DESCRIPTION	ANSI
Electrified Storeroom	199A	• Key outside retracts latchbolt • Latchbolt operated by lever from inside • Auxiliary latch deadlocks latchbolt • Auxiliary fail safe – latchbolt operated by lever from outside unless electrically locked • Auxiliary fail secure– latchbolt operated by lever from outside when electrically unlocked	09

Levers

How to Order

QUANTITY	SERIES	TYPE	FUNCTION	LEVER	HANDING	FINISH	CYLINDER OR HOUSING	KEYWAY	KEYING	OPTIONS
10	6	EW	199A	PHL	—	626	D	SCC	KD	—
Notes: 1 - List price includes standard default cylinder 2 - 6EW Trim ordered less cylinder in cludes collar and spring washer for cylinder lengths 1-1/8" to 1-1/4".		EW — Escutcheon, Wide	199A — Electrified Storeroom w/Lever	Boston — Bsn MIA — Miami ORL — Orlando Philadelphia — Phl	RHR LHR	605 — Bright Brass 606 — Satin Brass 613 — Oil Rubbed Bronze 625 — Bright Chrome 626 — Satin Chrome	D — Default L — Less Cylinder SF6 — SFIC w/ Core, 6 Pin SF7 — SFIC w/ Core, 7 Pin LF — Schlage© Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing less core LFL — Schlage© Compatible LFIC Housing less core			AM – Antimicrobial Coating PAGE 248

LIST PRICE 6EW199A ELECT RIFIED EXIT DEVICE TRIM Effective February 1, 2018 MOTORIZED LOCKING/UNLOCKING

Escutcheon Trim

TYPE	FUNCTION	DESCRIPTION	TRIM TYPE	605	606	613 619	625	626
Rim Surface Vertical Rod	09	Storeroom w/ Lever	6 EW 199A (BSN, MIA, ORL or PHL)			$1135		$1120
Concealed Vertical Rod

Options

CODE	DESCRIPTION	LIST PRICE
AM	Antimicrobial coating applied to tactile surfaces	$62

Parts discount applies

Default Trim Cylinder Reference Guide

ANSI FUNCTION	DESCRIPTION	CYLINDER
09	Storeroom w/Lever	Mortise

When Quiet Operation is a Must

Typical Applications

• Child Care Facilities
• Healthcare
• Libraries
• Museums
• Theaters
• Where Ambient Noise Can Be Disruptive.

HOW TO ORDER SEE PAGE 163.

Features

• · Ultra Quiet Operation
• For use with PDQ 6200 Wide Stile or 6202 Narrow Stile exit devices, panic and fire listed.
• Unique motor drive retracts Push Pad.
• Dual operation -maintained or momentary operation.
• · Supports remote signaled electric dogging.
• Low power requirements. Interfaces with PDQ's 81440 2A 24VDC Filtered/Regulated Power Supply, and EL Series Electrified Power Transfer Hinges
• Suitable for pairing with Low Energy Power Operators
• Non-polarized leads
• On-board diagnostic LED lights
• ULL isted

Field Retrofit Kit

• Designed to field retrofit 6200 and 6202 series exit devices
• · Includes motor drive module, connectors and fasteners
• PN 81550K-MDT

Electrical Specifications

Note: Operating voltage at $\backslash pm$ 10% of rated voltage.

Input voltage: 24VDC

• Rated in-rush current: 1.0A.
• Operational in-rush current: .85A.
• Continuous current, electric dogging: .4A.
• Recommended Power Supply: PDQ Model # 81440. Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz Output: 24VDC, 2A, filtered and regulated.

E629 SERIES

Stand-Alone Offline Keypad Exit Device Trim

Typical Applications

• · Professional Offices within a Building
• Server Rooms
• Side Entrance in Commercial, Retail
• . Utility Areas or Supply Closets

Features

• · Updates and lock settings updated at each opening.
• · Auxiliary power input, remote release contacts and mechanical key bypass.
• Designed for use with PDQ 6200 Series RIM and Surface Vertical Rod Exit Devices
• Operates up to 100.000 lock/w of (4) AA batteries
• Full outd

DISCONTINUED REPLACED BY PdqSMART 6EWS-STP Contact Customer Service for Details Specif number of seconds then re-lock. and remain unlocked until a valid credential is entered SELECTABL master credential the lock will unlock the door for a configurable number of seconds JVDC 300mA max current BATTE 100,000 cycles on a set of (4) AA alkaline batteries (not included). PROGRAM...ING: No external devices or connections required. USB models. WEATHER RESISTANCE: Full outdoor standard. OPERATING TEMPERATURE: • 0° F to 130° F - both sides DOORS: • 1-3/4" standard, 2-1/4" available, specify when ordering ESCUTCHEON: • 3"W x 11-1/8"H x 1" D (not including cylinder and lever) KEY OVERRIDE: • Standard (09 Storeroom) KEYWAYS: Keyways available to match most major manufacturers. INTERCHANGEABLE CORE: • Best type 6 and 7 pin or Schlage LFIC Can be MK, CMK, GMK. Available Zero Bitted (K0), Keyed Different (KD), Keyed A like (KA). Can be keyed into existing master key KEYING: systems of other manufacturers. FINISHES: • 626 - Satin Chrome • UL listed for "Fire Exit Hardware" labeled for up to 3 hrs. single swing doors 4'0" x 8"0" CERTIFICATIONS, LISTINGS, COMPLIANCES: • PDQ exit devices certified to ANSI/BHMA 156.3, Grade 1 WARRANTY: 24 months from date of manufacture COUNTRY OF ORIGIN: • Designed and Assembled by PDQ in the USA. . Meets requirements of the Buy American Act.

E629 SERIES STAND-ALONE OFFLINE KEYPAD EXIT DEVICE TRIM

LIST PRICE

Effective May 13, 2019

How to Order

QUANTITY	SERIES	ТҮРЕ	COMPANION EXIT DEVICE	INTERFACE	MODEL	LEVER	HANDING	FINISH	DOOR THICKNESS	CYLINDER OR HOUSING	KEYWAY	KEYING	OPTIONS
10	E 6	29	1	K	В	PHL	_	626	_	D	scc	KD	_
Notes: 1 - List pricincludes standard default of 2 - Trim ord less cylincludes and spri washer for cylin lengths to 1-1/4*	d d cylinder dered inder s collar ing der 1-1/8"	29 — Electri- fied Escutch- eon, Wide Stile	1 — RIM 2 — SVR	K — Keypad	B— Basic	BSN — Boston MIA — Miami ORL — Orlando PHI — Philadelphia	RHR LHR	626 — Satin Chrome	1-3/4-2"	D — Default L — Less C— Less SF6 — SF1C w/ Core, 6 Pin SF7 — SF1C w/ Core, 7 Pin LF —			AM – Antimicrobial Coating PAGE 163

	TRIM TYPE	626
otoreroom w/ Lever	E6 29 (1 or 2) K, B, (BSN, MIA, ORL or PHL) (RHR or LHR) 626	$870

Trim Cylinder Reference Guide

.. Parts discount applies.

FUNCTION	DESCRIPTION	CYLINDERS
09	Storeroom w/Lever	Mortise

Handing

Out Swing Door

Electrified Hinges

How to Order

QUANTITY	SERIES	MATERIAL	STYLE	SIZE	FINISH	SECURITY FEATURE 2	ELECTRIFIED OPTIONS1
10	35	ST	BB	4545	630	NRP	_
Ordering example: Plain bearing hinge: 35 ST BB 4545 630 NRP 4 Wire Std Weight Hinge: EL 4 35 SS BB 4545 630 NRP Notes: 1- EL Series only available in 2 and 4 ball bearing. Includes NRP. 2 - NRP only available in 2 and 4 ball bearing. 3 - Not available in 4 ball bearing heavy weight hinges.	35 — Full Mortise	ST — Steel SS — Stainless Steel	PL — Plain Bearing BB — 2 Ball Bearing HB — 4 Ball Bearing SH — Spring Hinge	4040 — 4" X 4" 4540 — 4-1/2" X 4" 4545 — 4-1/2" X 4-1/2" 5045 — 5" x 4-1/2"	600 — Prime Coated 605 — Bright Brass 613 — Oil Rub Bronze 626 — Satin Chrome 630 — Satin Stainless Steel	NRP — Non Removable Pin	EL 2 — Concealed electric through-wire (2 wire, 22 ga) EL 4 — Concealed electric through-wire (4 wire, 28 ga) EL 10 — Concealed electric through-wire (10 wire, 28 ga) EL 24 — Concealed electric through-wire (2 wires @ 22 ga, 4 wires @ 28ga) ELM 3 — Concealed electric monitor (3 wire, 28 ga) ELM 4 — Concealed electric through-wire and monitor (4 through wires and 3 monitor wires, all 28GA) ELM 6 — Concealed electric through-wire and monitor (6 through wires and 3 monitor wires, all 28GA) ELM 8 — Concealed electric through-wire and monitor (6 through wires and 3 monitor wires, all 28GA)s ELM 8 — Concealed electric through-wire and monitor (8 through wires and 3 monitor wires, all 28GA)s

	FEATURES	QTY OF HINGES PER CARTON	CODE	DESCRIPTION	HINGE ADJUSTMENT
- France	C (UL) LISTED		EL 2	Concealed electric through-wire (2 wires, 22GA)	$720
	UL Fire Listed for use with electrified mortise or		EL 4	Concealed electric through-wire (4 wires, 28GA)	$570
	cylindrical locks, exit devices with electric latch retraction, electric Strikes, locks or exit		EL 10	Concealed electric through-wire (10 wires, 28GA)	$745
	devices with monitoring or request to exit switches	1ea	EL 24	Concealed electric through-wire (2 wires @ 22GA, 4 wires @ 28GA)	$742
ment	Electrical Specifications Concealed electric through-wire: 50 volts AC/DC @ 3.5 amps contiguous, 16 amps pulse (maximum		ELM 3	Concealed electric monitor (3 wires, 28GA)	$616
1			ELM 4	Concealed electric through-wire and monitor (4 through wires and 3 monitor wires, all 28GA)	$930
	pulse width:400msec.,10 sec minimum off time between pulses)Concealed electric monitor: 30 VDC @ .5 amps		ELM 6	Concealed electric through-wire and monitor (6 through wires and 3 monitor wires, all 28GA)	$1080
~	THORITO. 30 VDO @ .3 amps		ELM 8	Concealed electric through-wire and monitor (8 through wires and 3 monitor wires, all 28GA)	$1120

Accessories

PART	DESCRIPTION	PART LIST PRICE
85004	MORTAR GUARD FOR ELECTRIFIED HINGES	$79

Specifications

85001 ELECTRIC STRIKE:	• Designed for use with all PDQ Grade 1 and Grade 2 Cylindrical Locks
85003 ELECTRIC STRIKE:	• Designed for use with all PDQ MR Series Mortise Locks WITHOUT Deadbolt
FEATURES:	• Input voltage:12-24 VD • Field changeable from FAIL SECURE to FAIL SAFE • Factory tested to 1,000,000 cycle
CURRENT:	• 0.28A @ 12VD • 0.14A @ 24 VDC
FINISH:	• 630 (US32D) Satin Stainless Steel

Electric Strikes

Designed for use with PDQ's Grade 1 Mortise Locks, Grade 1 and 2 Cylindrical Locks

PART NO.	DESCRIPTION
85001	For Cylindrical Locks
85003	For Mortise locks (no Deadbolt)	$486

NOTE: Check with Factory for other finishes. Parts discount applies

8100 SERIES

Key Switches Push Buttons

Typical Applications

• Assisted Living
• Detention Facilities
• Healthcare
• Higher Education
• K-12 Education
• Offices

KEY SWITCH W/LIGHTS 81310-2MT / 81310-2MM

KEY SWITCH 81310-4MT / 81310-4MM

PUSH BUTTON SWITCH 81320-1MT / 81320-1MM

PUSH BUTTON SWITCH 81320-6MT / 81320-6MM

MUSHROOM PUSH BUTTON 81320-5MT / 81320-5MM

Electrified Accessories

PART NUMBER	DESCRIPTION	PART LIST PRICE
81310-2MT	62 Key Switch with Lights Maintained	$290
81310-2MM	62 Key Switch with Lights Momentary
81310-4MT	62 Key Switch Narrow Maintained
81310-4MM	62 Key Switch Narrow Momentary	$264
81320-1MT	62 Push Button Maintained
81320-1MM	62 Push Button Momentary	$185
81320-5MT	62 Push Button Mushroom Maintained
81320-5MM	$282 62 Push Button Mushroom Momentary
81320-6MT	62 Push Button Narrow Maintained
81320-6MM	62 Push Button Narrow Momentary	$211

Features

• Filtered/Regulated 24 Volts DC
• Up to Full 2 Amps Load Capacity
• Class 2 Rated Outputs
• Overload, Over Voltage and Short Circuit Protection
• Automatically Accepts 120VAC or 240VAC Input Without Requiring to Move Jumpers or Set Dip Switches
• Controls Fail Safe or Fail Secure Locking Devices
• interface Relay Isolates Locking Device Current from Control Switch
• Auxiliary 24VDC Constant Voltage Output for Powering Stand Alone Devices, Such as, Keypads, Motion Detectors and Status Indicators
• Surge Suppression on Fail Safe and Fail Secure Outputs
• UL Listed and Tested to 294 Standard for Access Control System Units

OPTION	DESCRIPTION	PART LIST PRICE
81440	Power Supply	$668

Note: Parts discount applies.

Commercial Hinges

PLAIN BEARING STANDARD WEIGHT

2 BALL BEARING STANDARD WEIGHT

4 BALL BEARING HEAVY WEIGHT

SPRING HINGE STANDARD WEIGHT

POWER TRANSFER STANDARD OR HEAVY WEIGHT

Specifications

MATERIALS:	• STEEL — Applications: Interior doors, non-corrosive environments. • STAINLESS STEEL — Applications: Exterior, doors, corrosive environments
PACKAGING:	• Qty Of Hinges Per Individual Carton: 3ea For Plain, 2 Ball Bearing and 4 Ball Bearing Hinges 3ea For Spring Hinges 1ea for Electrified Hinges • Qty Of Hinges Per Master Carton: 48ea For Plain, 2 Ball Bearing and 24 Ball Bearing Hinges
FASTENERS:	• All hinges packed with Machine Screws (12-24 x 1/2" FHMS) and Wood Screws (12 x 1-1/4" FHWS)
CERTIFICATIONS, LISTINGS, COMPLIANCES:	• Conforms with the requirements of NFPA 80-2010, Section 6.4.3.1. • Certified to ANSI/BHMA A156.1-2013: — Grade 1, 4 Ball Bearing (HB) 2,500,000 cycles — Grade 2, 2 Ball Bearing (BB) 1,500,000 cycles — Grade 3, Plain Bearing (PL) 350,000 cycles — Electrified hinges tested to over 100,000 cycles • UL listed: — SH Series Spring Hinges — EL Series Electrified Hinges
WARRANTY:	• Five (5) year limited warranty

Cross Reference

HINGE DESCRIPTION	PDQ	ANSI	BOMMER	HAGER	MCKINNEY	PBB	STANLEY
				1279	T2714
Plain Bearing, Standard Weight – Steel	35STPL	A8133	5000	EC1100	MP79	PB81	F179
				BB1279	TA2714
2 Ball Bearing, Standard Weight – Steel	35STBB	A8112	BB5000	ECBB1100	MPB79	BB81	FBB179
		A5112	BB5002	BB1191	TA2314
2 Ball Bearing, Standard Weight – Stainless Steel	35SSBB			(630/32D)	(630/32D)	BB51	FBB191
				BB1168	T4A3786
4 Ball Bearing, Heavy Weight – Steel	35STHB	A8111	BB5004	ECBB1102	MPB68	4B81	FBB168
				BB1199	T4A3386
4 Ball Bearing, Heavy Weight – Stainless Steel	35SSHB	A5111	BB5006	ECBB1103	MPB68	4B51	FBB199
				1250	1502
Spring Hinge, Self Closing – Steel	35STSH	K8107-1F	LB4310C	EC1105	MPS60	SP81	2060R

HINGES

LIST PRICE Effective May 13, 2019

Quick Reference G uide

PDQ HINGE MODEL*	FINISH ANSI (US)	ANSI NUMBER*	STYLE	BASE MATERIAL	SIZE	FREQUENCY	WEIGHT	THICKNESS	SWAGING
				FULL MORTISE HINGES
35 ST PL 4040 600	600 (P)
35 ST PL 4040 626	626 (26D)				4" x 4"
35 ST PL 4545 600	600 (P)	A8133	PLAIN			LOW		.130"±.005"
35 ST PL 4545 613	613 (10B)
35 ST PL 4545 626	626 (26D)
35 ST BB 4545 600 NRP	600 (P)			STEEL	4-1/2" x 4-1/2"
35 ST BB 4545 605 NRP	605 (3)	A8112 w/NRP
35 ST BB 4545 613 NRP	613 (10B)						STANDARD	.134"±.005"
35 ST BB 4545 626 NRP							MEDIUM
35 ST BB 4540 626 NRP	626 (26D)		2 BALL BEARING		4-1/2 x 4"
35 SS BB 4035 630 NRP		A5112 w/NRP	4" x 3-1/2" 4" x 4" STAINLESS STEEL 4-1/2 x 4"				2 LEAVES
35 SS BB 4040 630 NRP
35 SS BB 4540 630 NRP	630 (32D)
35 SS BB 4545 630 NRP
35 ST HB 4545 600 NRP	600 (P)
35 ST HB 4545 605 NRP	605 (3)			4-1/2" x 4-1/2"
35 ST HB 4545 613 NRP	613 (10B)	A8111 w/NRP		STEEL		HIGH		.180" ±.005"
35 ST HB 4545 626 NRP			4 BALL BEARING				HEAVY
36 ST HB 5045 626 NRP	626 (26D)				5" x 4-1/2"
35 SS HB 4545 630 NRP					4-1/2" x 4-1/2"
35 SS HB 5045 630 NRP	630 (32D)	A5111 w/NRP		STAINLESS STEEL	5" x 4-1/2"
				SPRING HINGES
35 ST SH 4545 613	613 (10B)
35 ST SH 4545 613	613 (10B)	K8107-1F		STEEL	4-1/2" x 4-1/2"	MEDIUM	STANDARD	.134+005	2 LEAVES
	626 (26D)
35 ST SH 4545 626

*NRP = Non-Removable Pin

Effective May 13, 2019

How to Order

QUANTITY	SERIES	MATERIAL	STYLE	SIZE	FINISH	SECURITY FEATURE2	ELECTRIFIED OPTIONS1
10	35	ST	BB	4545	630	NRP	—
	35 — Full Mortise	ST — Steel SS — Stainless Steel	PL — Plain Bearing BB — 2 Ball Bearing HB — 4 Ball Bearing SH — Spring Hinge	4035 — 4" X 3-1/2" 4040 — 4" X 4" 4540 — 4-1/2" X 4" 4545 — 4-1/2" X 4-1/2" 5045 — 5" x 4-1/2" 5050 — 5" x 5""	600 — Prime Coated 605 — Bright Brass 613 — Oil Rub Bronze 619 — Satin Nickel 630 — Satin Stainless Steel 652 — Satin Chrome	NRP — Non Removable Pin	EL 2 — Concealed electric through-wire (2 wire, 22 ga) EL 4 — Concealed electric through-wire (4 wire, 28 ga) EL 10 — Concealed electric through-wire (10 wire, 28 ga) EL 24 — Concealed electric through-wire (2 wires @ 22 ga, 4 wires @ 28ga) ELM 3 — Concealed electric monitor (3 wire, 28 ga) ELM 4 — Concealed electric through-wire and monitor (4 through wires and 3 monitor wires, all 28GA) ELM 6 — Concealed electric through-wire and monitor (6 through wires and 3 monitor wires, all 28GA)3 ELM 8 — Concealed electric through-wire and monitor (8 through wires and 3 monitor wires, all 28GA)3

Ordering example: Plain bearing hinge: 35 ST PL 4545 600 4 Wire Std Weight Hinge: EL 4 35 SS BB 4545 630 NRP

Notes:

• 1- EL Series only available in 2 and 4 ball bearing. Includes NRP.
• 2 NRP only available in 2 and 4 ball bearing.
• 3 Not available in 4 ball bearing heavy weight hinges.

HINGES

Effective May 13, 2019

FULL MORTISE HINGES	DESCRIPTION	QTY OF HINGES PER CARTON	FINISH ANSI (US)	PDQ HINGE MODEL	LIST PRICE PER HINGE
		PLAIN BEARING
-	5 Knuckle		600 (P)	35 ST PL 4040 600	$11.60
	Base Material: Steel Size: 4" x 4" Hinge Weight: Standard Frequency of Use: Low Thickness: .130" ± .005" Certified to ANSI 8133	3ea	626 (US26D)	35 ST PL 4040 626	$11.90
2	5 Knuckle		600 (P)	35 ST PL 4545 600	$12.40
( A A )	Base Material: Steel		613 (10B)	35 ST PL 4545 613	$14.90
0 H 3	Size: 4-1/2" x 4-1/2" Hinge Weight: Standard	3ea	619(US15)	35 ST PL 4545 619
Suci	Frequency of Use: Low Thickness: .130" ± .005" Certified to ANSI 8133		652 (US26D)	35 ST PL 4545 626	$12.40

FULL MORTISE HINGES	DESCRIPTION	QTY OF HINGES PER CARTON	FINISH ANSI (US)	PDQ HINGE MODEL	LIST PRICE PER HINGE
		2 BALL BEARING
	5 Knuckle Base Material: Stainless Steel Size: 4" x 3-1/2" Hinge Weight: Standard Frequency of Use: Medium Thickness: .134" ± .005" Certified to ANSI A5112	3ea	W €630 (US32D)	35 SS BB 4035 630 NRP	$36.00
	5 Knuckle Base Material: Steel with Steel Pin Size: 4" x 4" Hinge Weight: Standard Frequency of Use: Medium Thickness: .134" ± .005" Certified to ANSI A5112	3ea ≥N E	W €630 (US32D)	35 SS BB 4040 630 NRP	$40.30
	5 Knuckle Base Material: Steel Size: 4-1/2" x 4" Hinge Weight: Standard Frequency of Use: Medium Thickness: .134" ± .005" Certified to ANSI A8112	3ea	652 (US26D)	35 ST BB 4540 626 NRP	$13.80
	5 Knuckle Base Material: Stainless Steel Size: 4-1/2" x 4" Hinge Weight: Standard Frequency of Use: Medium Thickness: .134" ± .005" Certified to ANSI A5112	3ea	630 (US32D)	35 SS BB 4540 630 NRP	$47.70
-	5 Knuckle		600 (P)	35 ST BB 4545 600 NRP	$14.00
0 1	Base Material: Steel		605 (US3)	35 ST BB 4545 605 NRP	$20.00
8 # 6	Size: 4-1/2" x 4-1/2 " Hinge Weight: Standard	3ea	613 (US10B)	35 ST BB 4545 613 NRP	$18.80
6 1	Frequency of Use: Medium	NEVE	619(US15)	35 ST BB 4545 619 NRP
MC Selection	Thickness: .134"" ± .005" Certified to ANSI A8112		626 (US26D)	35 ST BB 4545 626 NRP	$14.00
	5 Knuckle Base Material: Stainless Steel Size: 4-1/2" x 4-1/2" Hinge Weight: Standard Frequency of Use: Medium Thickness: .134" ± .005" Certified to ANSI A5112	3ea	630 (US32D)	35 SS BB 4545 630 NRP	$47.90

Effective May 13, 2019

FULL MORTISE HINGES	DESCRIPTION	QTY OF HINGES PER CARTON	FINISH ANSI (US)	PDQ HINGE MODEL	LIST PRICE PER HINGE
		4 BALL BEARIN	G
-	5 Knuckle		600 (P)	35 ST HB 4545 600 NRP	$33.90
	Base Material: Steel Size: 4-1/2" x 4-1/2"		605 (US3)	35 ST HB 4545 605 NRP	φ27.00
	Hinge Weight: Heavy	3ea	613 (US10B)	35 ST HB 4545 613 NRP	$37.00
0110	Frequency of Use: High Thickness: .180" ± .005"	N.	W = 619 (US15)	35 ST HB 4545 619 NRP	$33.90
	Certified to ANSI 8111		652 (US26D)	35 ST HB 4545 626 NRP	φυσ.συ
	5 Knuckle Base Material: Stainless Steel Size: 4-1/2" x 4-1/2" Hinge Weight: Heavy Frequency of Use: High Thickness: .180" ± .005" Designed to meet ANSI 5111	3ea	630 (32D)	35 SS HB 4545 630 NRP	$74.50
	5 Knuckle Base Material: Steel Size: 5" x 4-1/2" Hinge Weight: Heavy Frequency of Use: High Thickness: .180" ± .005" Designed to meet ANSI 8111	3ea	652 (US26D)	35 ST HB 5045 626 NRP	$42.00
	5 Knuckle Base Material: Stainless Steel Size: 5" x 4-1/2" Hinge Weight: Heavy Frequency of Use: High Thickness: .180" ± .005" Designed to meet ANSI 5111	3ea	630 (32D)	35 SS HB 5045 630 NRP	$95.20
	5 Knuckle Base Material: Stainless Steel Size: 5" x 5" Hinge Weight: Heavy Frequency of Use: High Thickness: .180" ± .005" Designed to meet ANSI 5111	3ea	630 (32D)	35 SS HB 5050 630 NRP	$105.00

SPRING HINGES	DESCRIPTION	QTY OF HINGES PER CARTON	FINISH ANSI (US)	PDQ HINGE MODEL	LIST PRICE PER HINGE
CULLISTED	3 Knuckle Base Material: Steel Size: 4-1/2" x 4-1/2" Hinge Weight: Standard Frequency of Use: Medium	3ea	600 (P) 613 (10B) 619 (US15) 652 (US26D)	35 ST SH 4545 600 35 ST SH 4545 613 35 ST SH 4545 619 35 ST SH 4545 626	$29.00 $33.00
	Thickness: .134" ± .005" Designed to meet ANSI K8107-1F		605 (US3)	35 ST SH 4545 605	$35.50
CULLISTED	3 Knuckle Base Material: Stainless Steel Size: 4-1/2" x 4-1/2" Hinge Weight: Standard Frequency of Use: Medium Thickness: .134" ± .005" Designed to meet ANSI K5107-1F	3ea	630 (32D)	35 SS SH 4545 630	$81.00

HINGES

LIST PRICE Effective May 13, 2019

Electrified Hinges

	FEATURES	QTY OF HINGES PER CARTON	CODE	DESCRIPTION	HINGE ADJUSTMENT
floor	C (UL) LISTED		EL 2	Concealed electric through-wire (2 wires, 22GA)	$720.00
	UL Fire Listed for use		EL 4	Concealed electric through-wire (4 wires, 28GA)	$570.00
	with electrified mortise or cylindrical locks, exit devices with electric latch		EL 10	Concealed electric through-wire (10 wires, 28GA)	$745.00
	retraction, electric Strikes, locks or exit devices with monitoring or request to		EL 24	Concealed electric through-wire (2 wires @ 22GA, 4 wires @ 28GA)	$742.00
	exit switches Electrical Specifications Concealed electric through-wire: 50 volts AC/DC @ 3.5 amps contiguous, 16 amps pulse (maximum pulse width: 400msec., 10 sec minimum off time between pulses) Concealed electric monitor: 30 VDC @ .5 amps	1ea	ELM 3	Concealed electric monitor (3 wires, 28GA)	$616.00
ONO			ELM 4	Concealed electric through-wire and monitor (4 through wires and 3 monitor wires, all 28GA)	$930.00
			ELM 6	Concealed electric through-wire and monitor (6 through wires and 3 monitor wires, all 28GA)	$1080.00
			ELM 8	Concealed electric through-wire and monitor (8 through wires and 3 monitor wires, all 28GA)	$1120.00

Accessories

PART	DESCRIPTION	PART LIST PRICE
85004	MORTAR GUARD FOR ELECTRIFIED HINGES	$79

Privacy Door Latch

Great Solution for Hospitality and Dormitories

Features

• Perfect for situations with hall-to-room openings, such as, hotels, student housing or apartments.
• Prevents accidental lock out from the conventional flip-latch.
• Allows the door to be opened for identification while providing privacy for the guest or resident.
• Keeps guest from (illegally) propping open entry fire doors.
• Does not allow the door to be held open, avoiding door and frame damage.
• Meets the requirements of FFPA 80 Sections 5.2.4.2 and 5.2.13.3 that requires auxiliary hardware does not interfere or prohibit the proper operation of fire rated doors, and that doors are not blocked or wedged in the open position.
• Easy to install, fast retrofit.
• ADA Compliant.
• Simple to operate for guest or residents.

MODEL	DESCRIPTION	LIST PRICE 626
579	Privacy Door Latch	$78.00

Flush and Surface Bolts

Flush Bolts - Manual

MODEL			LIST PRICE
(SPECIFY FUNCTION)		DESCRIPTION	605	613	626
HOLLOW METAL DOOR
	93170	Flush Bolt, ANSI Type L04251 (1 ea)	$64.00		$56.00
COMPOSITE WOOD DOORS
	93270	Flush Bolt, ANSI Type L04261 (1 ea)		$72.00	$68.00

Flush Bolts - Automatic

MODEL		DESCRIPTION		LIST PRICE
(SPECIFY FUNCTION)			605	613	626
HOLLOW METAL DOOR
	93101	Flush Bolts, ANSI Type 25 (Included as a Pair)		$375.00
	93102	Flush Bolts - Push Button Release, ANSI Type 27 (Included as a Pair)
	93103	Flush Bolt - with Fire Pin, ANSI Type L04021 (Included as a Pair)	$378.00
COMPOSITE WOOD DOORS
	93201	Flush Bolts, ANSI Type 25 (Included as a Pair)		$391.00
	93202	Flush Bolts - Push Button Release, ANSI Type 27 (Included as a Pair)	$394.00
	93203	Flush Bolt - with Fire Pin, ANSI Type L04021

FLUSH BOLTS

LIST PRICE Effective May 13, 2019

Accessories

MODEL (SPECIFY FUNCTION)	DESCRIPTION		LIST PRICE
99101	Includes 93101 Series Automatic Flush Bolt, for Metal Doors (Specify Finish) (1 each)	605	613	626
99102	Includes 93102 Series Top Flush Bolt w/Push Button Release (Specify Finish) (1 each)	$210.00
99201	Includes 93201 Series Flush Bolt for Wood Doors (Specify Finish) (1 each)
99202	Includes 93202 Series Top Flush Bolt w Push Button Release for Wood Doors (Specify Finish) (1 each)	$226.00
909	Dust Proof Strike (Specify Finish), (1 each)		$58.00	$55.00
629030	Fire Pin for Hollow Metal Doors and Composite Wood Doors1, (1 each)		$110
93170E	24" Extension Rod for 93170 Series Manual Flush Bolts, (1 each)		$18

Notes: 1 - For fire labeled doors, must be used with PDQ UL fire listed automatic flush bolts to maintain UL listing status and fire code compliance.

Cross Reference

	PDQ	ABH	DCI	HAGER	IVES	ROCKWOOD	TRIMCO
DOOR TYPE				MANUAL FLUSH BOLTS
HOLLOW METAL	93170	1855S	780F	282D	FB458	555	3917-12
COMPOSITE WOOD	93270	1875S	790F	283D	FB358	557	3913
DOOR TYPE				AUTOMATIC FLUSH BOLTS
	93101	1860P	842	292D	FB31P	2842	3810x3810
HOLLOW METAL	93102	—	845	293D	FB51P	2845	3820x3810
	93103	—	805/8BFB	295M	FB52	2848	3820x3850
COMPOSITE WOOD	93201	1862P	942	291D	FB41P	2942	3815x3815L
	93202	—	945	293D	FB61P	2945	3825x3815L
	93203	—	960/9BFB	295W	FB42	2948	3815x3850

SURFACE BOLTS LIST PRICE

Effective May 13, 2019

Surface Bolts

MODEL		DESCRIPTION	LIST PRICE
	460 626	Surface Bolt - 8" (Includes Top and Bottom Strikes)	$54.00
	461 626	Surface Bolt - 12" (Includes Top and Bottom Strikes)
	462 626	Surface Bolt -Concealed Mounting (Includes Top and Bottom Strikes)	$66.00

ANSI Type 21A Coordinators

Features

• Non-handed.
• Override protection to prevent damage in case of abnormal force on door
• . Mechanism and filler bar completely fill width of opening
• Suitable for painting to match door and frame finish
• . Meets requirements of the Buy American Act.
• SMARTSENSE™ control board automatically accepts AC or DC input voltage.

- OPENING WIDTH

Specifications

BASE MATERIAL:	• Steel
FASTENERS:	■ 8 Ea. 12-24 x 1-1/4 PH MS. ■ 6 Ea. #8 x 3/4" Combo Screws. ■ Strike Plates.
FINISHES:	• 600 (USP) primer
COORDINATOR SIZES:	• COR42: 1-5/8W" x 5⁄8"H x 42L" • COR52: 1-5/8W" x 5/8"H x 52L" • COR60: 1-5/8W" x 5/8"H x 60L"
CERTIFICATIONS, LISTINGS, COMPLIANCES:	UL listed for 3 hours for use with a pair of swing doors incorporating an astragal Complies with ANSI/BHMA156.3 Type 21A Meets requirements of Buy American Act

How to Select the Right Size Coordinator

Bracket

DOOR OPENING WIDTH	MODEL Number	COORDINATOR PART NUMBER	COORDINATOR LENGTH	FILLER Part Number	FILLER LENGTH
48"- 54"	COORD54	COR42	42"	FB18	18"
55"- 60"	COORD60	COR52	52"	FB18	18"
61"- 72"	COORD72	COR52	52"	FB20	20"
73"-96"	COORD96	COR60	60"	FB36	36"

Coordinator size and length is a function of the active door size. It is recommended the coordinator extend a min of 6" beyond the active door width.

EXAMPLES:

1 — Active door with astragal = 48", inactive door = 48". Recommended Coordinator Model: COORD96

How to Order

DOOR OPENING WIDTH	MOUNTING BRACKET OPTION	FINISH
COORD72	MB02	600
COORD 54 — For Door Widths From 48"- 54" COORD 60 — For Door Widths From 55" - 60" COORD 72 — For Door Widths From 61" - 72" COORD 96 — For Door Widths From 73 - 96"	MB02 — Mounting Bracket - Soffit over 2-1/4" MB03 — Mounting Bracket - Soffit 7/8" - 2-1/4"	600 — USP Primer

Ordering Example Door Opening Width: 72", Soffit width: 7/8": COORD 72 MB03 600

MODEL	DESCRIPTION	LIST PRICE 600
COORD 54	Door Coordinator, for door widths from 48"- 54" (Includes 1ea FB18 18" Filler Bar)	$351.00
COORD 60	Door Coordinator, for door widths from 55" - 60" (Includes 1ea FB18 18" Filler Bar)
COORD 72	Door Coordinator, for door widths from 61" - 72" (Includes 1ea FB20 20" Filler Bar)	$385.00
COORD 96	Door Coordinator, for door widths from 73 - 96" (Includes 1ea FB36 36" Filler Bar)	$408.00

Options

CODE	DESCRIPTION	COORDINATOR ADJUSTMENT
MB02	Mounting Bracket - Soffit over 2-1/4" (Included as pair)
MB03	Mounting Bracket - Soffit 7/8" - 2-1/4" (Included as pair)	$126.00

Accessories

PART NUMBER	DESCRIPTION	LIST PRICE 600
COR42 600	COR42 Door Coordinator, 42", ANSI type 21A	$325.00
COR52 600	COR52 Door Coordinator, 52", ANSI Type 21A	$350.00
COR60 600	COR60 Door Coordinator, 60", ANSI type 21A	$365.00
FB18 600	FB18 - Filler 18"	$46.00
FB20 600	FB20 - Filler 20"	$54.00
FB36 600	FB36 - Filler 36"	$68.00

Accessories

			LIST PRICE
MODEL		DESCRIPTION	626	689	695
	910	Carry Bar (Specify finish)	—	$120.00
	93590	Gravity Coordinator, 6-1/2", ANSI Type 21B		—	—
	93591	Gravity Coordinator, 8-1/2", ANSI Type 21B	$256.00	—	—

Cross Reference

PDQ	DESCRIPTION	ABH	DCI	HAGER	IVES	ROCKWOOD	TRIMCO
COR54	Coordinator	3710	N6	297D	COR32	2660	3094A2
COR60/72	Coordinator	3720	6	297D	COR42/52	2672	3094B1
COR96	Coordinator	3730	L-6	297D	COR60/72	2696	3094C4
MB03	Mounting Bracket	3751	601AB	297M	MB-2	1601AB	3095
MB02	Mounting Bracket	3752	601C	297N	MB-1	1601C	3096
910	Carry Bar	3760	100	297C	CB1	1100	3090
93590/93591	Gravity Coordinator	3790	500	298D	COR7G	576	3093

Push Plates

Specifications

MOUNTING FASTENERS:	• #6 x 5/8 OH PH SMS
MATERIAL:	• Brass, Stainless Steel
THICKNESS:	• 0.050"
STANDARD CUTOUT FOR CYLINDER:	• 1-1/4" DIA
STANDARD CUTOUT FOR THUMBTURN:	• 3/8" DIA
FINISHES:	• 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum - Anodized, 630 US32D) Satin Stainless Steel • Antimicrobial Coating available on 630 (US32D) only

Plates are available with optional cutout for cylinders or thumbturns

OPTIONS FOR LOCKING HARDWARE

PREPS FOR THUMBTURNS

962/963 SERIES RH RIGHT HAND SHOWN

965/966 SERIES RH RIGHT HAND SHOWN

PREPS FOR CYLINDERS

HANDING

PULL POSITIONING

RECOMMENDED MOUNTING LOCATIONS

Note: Complies with ADA (Americans with Disabilities Act) Guidelines

How to Order

QUANTITY	SERIES	PLATE THICKNESS	SIZE	FINISH	HANDING	OPTIONS
10	9	6	2	630	RH	—
Ordering Example: 9 6 2 630		6 — .050"	2 — 3-1/2" X 15" 3 — 4" X 16" 5 — 6" X 16" (630 ONLY) 6 — 8" X 16"	605 — Bright Brass 606 — Satin Brass 612 — Satin Bronze 613 — Oil Rubbed Bronze 628 — Satin Aluminum, Anodized 630 — Satin Stainless Steel 630AM — Satin Stainless Steel With Antimicrobial	RH — Right Hand LH — Left Hand	CTC PREP B — 5-1/2" CTC C — 6" CTC D — 8" CTC E — 10" CTC F — 12" CTC PREP FOR LOCKING HARDWARE C — Cylinder T — Thumbturn AM — Antimicrobial Coating

MODEL		LIST PRICE
(Specify Finish)	DESCRIPTION	630	605	606	612	613	628
962	Push Plate 0.050" thick x 3-1/2"W x 15"H	$23.00	$65.00	$55.00	$58.00	$70.00	$30.00
963	Push Plate 0.050" thick x 4"W x 16"H	$24.00	$70.00	$67.00	$69.00	$73.00	$31.00
965	Push Plate 0.050" thick x 6"W x 16"H	$35.00			—
966	Push Plate 0.050" thick x 8"W x 16"H	$45.00			—

Options

CODE	DESCRIPTION	PLATE ADJUSTMENT
PREP FOR LOCKING HARDWARE
T	Thumbturn Prep
C	Cylinder Prep	$10
CTC PREP
B	5-1/2" CTC (Center to Center)
C	6" CTC
D	8" CTC	$10
E	10" CTC
F	12" CTC
AM	Antimicrobial protected coating applied to tactile surfaces	$36

Notes:

1 - Handing required for Plate Size 5. 2 - Cylinder and Thumbturn Prep not available in Pull Size F.

Pulls and Pull Plates

Pulls

Specifications

MOUNTING OPTIONS:	• Varies by product, see specific product details.
SIZES:	• Varies by product, see specific product details.
FINISHES:	• 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum - Anodized, 630 US32D) Satin Stainless Steel, see specific product for finish availability • Antimicrobial Coating available on 630 (US32D) only

How to Order

PULL	FINISH	MOUNTING	OPTIONS
2C	630	1	—
See Models Below	605 — Bright Brass 606 — Satin Brass	SINGLE 1 — TYPE 1 (DEFAULT) Thru Bolt for Metal, Composite or Wood Door	AM — Antimicrobial Coating
Ordering Example, Standard Mount: 2C 630 1	612 — Satin Bronze 613 — Oil Rubbed Bronze 626 — Satin Chrome	6 — TYPE 6 Surface Concealed for Metal Door (Door Reinforcement by Others) 6R — TYPE 6R Surface Concealed for Metal Door (Rivnut) 8 — TYPE 8 Surface Concealed for Wood Door (Knife Thread Insert)
Notes: 1 - See mounting options located on Page 276.	628 — Satin Aluminum, Anodized 630 — Satin Stainless Steel 630AM — Satin Stainless Steel	12 — TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head 15 — TYPE 15 Thru Bolt for Glass Door, Decorative Head
2 - For Mounting Option List Price Adds, see Page 274	with Antimicrobial	BACK TO BACK 5 — TYPE 5 (DEFAULT) Back to Back for Metal or Wood Door 13 — TYPE 13 Back to Back for Glass Door

Straight Pulls

					LIST PRICE
MODEL	DESCRIPTION	630	605	606	612	613	628
1B	5/8" Round Straight Pull 5-1/2" CTC	$42.00			$71.00		$22.00
2C	3/4" Round Straight Pull 6" CTC	$51.00			$75.00		$25.00
2D	3/4" Round Straight Pull 8" CTC	$54.00			$83.00		$35.00
3D	1" Round Straight Pull 8" CTC	$96.00			$148.00		$46.00
H3D	1" Round Straight Pull 8" CTC ADA	$106.00	—	$152.00	—	$168.00	—
H3E	1" Round Straight Pull 10" CTC ADA	$116.00	—	—	—	—	—
H3F	1" Round Straight Pull 12" CTC ADA	$128.00	—	—	—	—	—
5C	1" Flat Straight Pull 6" CTC	$92.00			$100.00		$36.00
5D	1" Flat Straight Pull 8" CTC	$104.00			$134.00		$42.00

For Mounting Options, see Page 275

PULLS

LIST PRICE Effective May 13, 2019

Cast Pulls

		LIST PRICE
	MODEL	DESCRIPTION	630	605	606	612	613	628
	11	Cast Pull 5-1/2" CTC	—			$44.00
	12	Cast Pull, Surface Mount, 5-1/2" CTC	$70.00	—	$70.00	—		$70.00

For Mounting Options, see Page 275

Offset Pull

MODEL	DESCRIPTION	LIST PRICE 630
9E	1" Round Offset Pull Handle, 10" CTC	$220

For Mounting Options, see Page 275

Back to Back Pulls

					LIST PRICE
MODEL	DESCRIPTION	630	605	606	612	613	628
22C	3/4" Round Straight BTB Pull 6" CTC	$122.00			$195.00
22D	3/4" Round Straight BTB Pull 8" CTC	$130.00			$216.00
H33D	1" Round Straight BTB Pull 8" CTC ADA	$276.00	—	$312.00	—	$370.00
H33E	1" Round Straight BTB Pull 10" CTC ADA	$302.00	—	—	—	—
H33F	1" Round Straight BTB Pull 12" CTC ADA	$333.00			—
99E	1" Round Straight BTB Pull 8" CTC	$490.00			—

For Mounting Options, see Page 275

Options

CODE	DESCRIPTION	PULL ADJUSTMENT
AM*	Antimicrobial coating applied to tactile surfaces	$36

*Notes: - Parts discount applies - 6 piece minimum required. Can be a mix of different products. - Orders with less than 6 pieces need to be quoted and the list price add adjusted. - Allow 2-3 weeks for delivery.

MOUNTING OPT IONS: PULLS

Effective May 13, 2019

Thru Bolt

CODE	PULL ADJUSTMENT
15	$27

Surface Concealed

1 N/C

METAL DOOR - TYPE 6

CODE	PULL ADJUSTMENT
6	$16

METAL DOOR - TYPE 6R

			-, -

CODE	PULL ADJUSTMENT
6R	$18

WOOD DOOR - TYPE 8

CODE	PULL ADJUSTMENT
8	$18

Back to Back

WOOD OR METAL DOOR - TYPE 5

CODE	PULL ADJUSTMENT
5	N/C

GLASS TYPE 13

CODE	PULL ADJUSTMENT
15	$18

MOUNTING OPTI ONS: PULLS

LIST PRICE

Effective May 13, 2019

Pull Mounting Quick Reference Guide

			MOUNTING OPTIONS
PULL TYPE	DESCRIPTION	HD*	1	5	6/6R	8	12	13	15
1B	5/8" Round Straight Pull 5-1/2" CTC		•				•		•
2C	3/4" Round Straight Pull 6" CTC		•		•	•	•		•
22C	3/4" Round Straight BTB Pull 6" CTC			•				•
2D	3/4" Round Straight Pull 8" CTC		•		•	•	•		•
22D	3/4" Round Straight BTB Pull 8" CTC			•				•
3D	1" Round Straight Pull 8" CTC	•	•		•	•	•		•
33D	1" Round Straight BTB Pull 8" CTC	•
H3D	1" Round Straight Pull 8" CTC ADA	•	•		•	•	•		•
H33D	1" Round Straight BTB Pull 8" CTC ADA	•		•				•
H3E	1" Round Straight Pull 10" CTC ADA	•	•		•	•	•		•
H33E	1" Round Straight BTB Pull 10" CTC ADA	•		•				•
H3F	1" Round Straight Pull 12" CTC ADA	•	•		•	•	•		•
H33F	1" Round Straight BTB Pull 12" CTC ADA	•		•				•
5C	1" 1/2 Round Straight Pull 6" CTC	•	•				•
5D	1" 1/2 Round Straight Pull 8" CTC	•	•				•
9E	1" Round Offset Pull Handle 10" CTC	•
99E	1" Round Offset Pull Handle BTB 10" CTC	•
11	Cast Pull 5-1/2" CTC		•				•
12	Cast Pull, Surface Mount, 5-1/2" CTC		•				•

^* HD Designation indicates 5/16" fasteners for 1 inch diameter pulls

PULL PLATES

Effective May 13, 2019

Specifications

PLATE SIZES:	• Varies by product, contact PDQ Customer Service for details.
PULL SERIES:	• Varies by product, see specific product details.
THICKNESS:	• 0.050"
PLATE MOUNTING FASTENERS:	• #6 X 5/8 CH PH SMS
FINISHES:	• 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum - Anodized, 630 (US32D) Satin Stainless Steel • Antimicrobial Coating available on 630 (US32D) only

How to Order

QUANTITY	SERIES	PLATE	PULL	FINISH	PREP FOR LOCKING HARDWARE1,2	HANDING1	MOUNTING3
10	86	3	2D	630	T	RH	1
Ordering Examples: Standard mount for Metal Door: 86 3 2D 630 1 Notes: 1 - Handing required for Plate Size 5, 6 2 - Cylinder and Thumbturn Prep not available in Plate Size 5 3 - For Mounting Options, see Page 276 4 - For Mounting Option List Price Adds, see Page 275		2 — 3-1/2" X 15" 3 — 4" X 16" 5 — 6" X 16" (630 ONLY) 6 — 8" X 16" (630 ONLY)	1B — 5/8" Round Straight Pull 5-1/2" CTC 2C — 3/4" Round Straight Pull 6" CTC 2D — 3/4" Round Straight Pull 8" CTC 3D — 1" Round Straight Pull 8" CTC H3D — 1" Round Straight Pull 8" CTC ADA H3E — 1" Round Straight Pull 10" CTC ADA H3F — 1" Round Straight Pull 12" CTC ADA 5C —1" Round Straight Pull 6" CTC 5D — 1" Round Straight Pull 8" CTC 11 — Cast Pull 5-1/2" CTC	605 — Bright Brass 606 — Satin Brass 612 — Satin Bronze 613 — Oil Rubbed Bronze 628 — Satin Alu minum, Anodized 630 — Satin Stain less Steel	C — Cylinder T — Thumbturn	RH — Right Hand LH — Left Hand	1 — TYPE 1 Thru Bolt for Metal, Composite or Wood Door (Default) 6 — TYPE 6 Surface Concealed for Metal Door (Door Reinforcement by Others) 6R —TYPE 6R Surface Concealed for Metal Door (Rivnut) 8 — TYPE 8 Surface Concealed for Wood Door (Knife Thread Insert) 12 — TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head

PULLS AND PULL PLATES

Effective May 13, 2019

SERIES	PLATE	PULL	DESCRIPTION	630	LIST PRICE 605/606/612/613	628
		1B	5/8" Round Straight Pull 5-1/2" CTC	$76.00	$151.00	$65.00
		2C	3/4" Round Straight Pull 6" CTC	$86.00	$157.00	$67.00
		2D	3/4" Round Straight Pull 8" CTC	$93.00	$152.00	$70.00
		3D	1" Round Straight Pull 8" CTC	$140.00	$232.00	$89.00
862		H3D	1" Round Straight Pull 8" CTC	$151.00	$243.00 (606/613 Only)	—
	3-1/" x 15"	5C	1" Flat 1/2 Round Straight Pull 6" CTC	$130.00	$178.00
	(Ref 962 Series	5D	1" Flat 1/2 Round Straight Pull 8" CTC	$143.00	$205.00	$86.00
	Push Plate)	11	Cast Pull 5-1/2" CTC	$65.00	$113.00	$60.00
		1B	5/8" Round Straight Pull 5-1/2" CTC	$82.00	$167.00	$69.00
		2C	3/4" Round Straight Pull 6" CTC	$93.00	$173.00	$72.00
		2D	3/4" Round Straight Pull 8" CTC	$99.00	$175.00	$76.00
		3D	1" Round Straight Pull 8" CTC	$151.00	$248.00	$95.00
		H3D	1" Round Straight Pull 8" CTC	$162.00	$259.00 (606/613 Only)	—
863		H3E	1" Round Straight Pull 10" CTC ADA	$185.00	—	—
	4" x 16" (Ref 963 Series	H3F	1" Round Straight Pull 12" CTC ADA	$199.00	—	—
		5C	1" Flat 1/2 Round Straight Pull 6" CTC	$138.00	$191.00	$95.00
		5D	1" Flat 1/2 Round Straight Pull 8" CTC	$141.00	$219.00	$95.00
	Push Plate)	11	Cast Pull 5-1/2" CTC	$69.00	$117.00	$65.00
		1B	5/8" Round Straight Pull 5-1/2" CTC	$91.00	—	—
		2C	3/4" Round Straight Pull 6" CTC	$102.00	—	—
		2D	3/4" Round Straight Pull 8" CTC	$105.00	—	—
		3D	1" Round Straight Pull 8" CTC	$159.00	—	—
		H3D	1" Round Straight Pull 8" CTC	$171.00	—	—
865		H3E	1" Round Straight Pull 10" CTC ADA	$194.00	—	—
		H3F	1" Round Straight Pull 12" CTC ADA	$208.00	—	—
		5C	1" Flat 1/2 Round Straight Pull 6" CTC	$145.00	—	—
	6"x16" (Ref 965 Series	5D	1" Flat 1/2 Round Straight Pull 8" CTC	$160.00	—	—
	Push Plate)	11	Cast Pull 5-1/2" CTC	$84.00	—	—
		2D	3/4" Round Straight Pull 8" CTC	$113.00	—	—
		3D	1" Round Straight Pull 8" CTC	$166.00	—	—
		H3D	1" Round Straight Pull 8" CTC	$179.00	—	—
866		H3E	1" Round Straight Pull 10" CTC ADA	$205.00	—	—
		H3F	1" Round Straight Pull 12" CTC ADA	$219.00	—	—
	8"x16" (Ref 866 Series	5C	1" Flat 1/2 Round Straight Pull 6" CTC	$151.00	—	—
	Push Plate)	5D	1" Flat 1/2 Round Straight Pull 8" CTC	$167.00	—	—

For Mounting Options, see Page 275.

Options – Lockin g Hardware Prep

CODE	DESCRIPTION	PULL PLATE ADJUSTMENT
T	Locking Hardware — Thumbturn Prep	$10
C	Locking Hardware — Cylinder Prep	$10
AM*	Antimicrobial protected coating applied to tactile surfaces	$46

Note: Please place antimicrobial coated orders separately, and allow 30 days for manufacturing. For additional product finishes or styles, please contact PDQ Technical Service.

Push and Push-Pull Bars

91 00 33 SERIES PUSH BAR

H3E SERIES STRAIGHT PULL

9E SERIES OFFSET PULL HANDLE

SEE PAGE 281 FOR MOUNTING OPTION PRICING

How to Order

QUANTITY	SERIES	PULL	PUSH BAR	FINISH	MOUNTING OPTIONS, PUSH BAR ONLY	MOUNTING OPTIONS, OFFSET PULL AND PUSH BAR SET
10	91	9E	33	630	—	S
Ordering Examples: Push Bar Only, Thru Bolt Mounting: 91 00 33 630 1HD Offset Pull Handle Push-Bar Set, Standard Mounting: 91 9E 33 630 S		00 — No Pull 3D — 1" Round Straight Pull 8" CTC H3D — 1" Round Straight Pull 8" CTC ADA H3E — 1" Round Straight Pull 10" CTC ADA H3FÆ — 1" Round Straight Pull 12" CTC ADA 9E — 1" Round Offset Pull Handle	XX — 1" Round Push Bar, Xx" CTC Example: 33 — 1" Round Push Bar, 33" CTC	630 — Satin Stainless Steel 630AM — Satin Stainless Steel With Antimicrobial	1 — Type 1 (Default) Thru Bolt For Met al, Composite Or Wood Door 6 — Type 6 Surface Concealed For Met al Door (Door Reinforcement By Others) 6R — Type 6R Surface Concealed For Metal Door (Rivnut) 8 — Type 8 Surface Concealed For Wood Door (Knife Thread Insert) 12 — Type 12 Thru Bolt For Metal, Composite Or Wood Door 15 — Type 15 Thru Bolt For Glass Door, Decorative Head	S — Standard (Default) D — Decorative M — Concealed For Metal Doors W — Concealed For Composite Or Wood Doors G — Decorative For Glass Doors

Push Bars

MODEL	DESCRIPTION	LIST PRICE 630	PUSH BAR ADJUSTMENT
	1" Round Push Bar, Including 33" CTC		—
91 00 33	1" Round Push Bar, Over 33" CTC	$362	$16 per inch
91 91 33	1" Round Push Bar BTB	$794	$32 per inch

Push-Pull Bars

MODEL		DESCRIPTION	LIST PRICE 630
	3D	1" Round Straight Pull 8" CTC	$136.00
	H3D	1" Round Straight Pull 8" CTC ADA	$146.00
	H3E	1" Round Straight Pull 10" CTC ADA	$166.00
	H3F	1" Round Straight Pull 12" CTC ADA	$178.00
	9E	1" Round Offset Pull, 10" CTC ADA	$270.00

For Mounting Options, see Page 281

PUSH AND PUSH -PULL BARS LIST PRICE

Effective May 13, 2019

Free End Details

Thru Bolt

Surface Concealed

Common End Details

Note: For measurement details see brochure

Options – Mounting for Offset Pull Handles – Push Bar Sets

TYPE	DESCRIPTION	MOUNTING TYPES	ADJUSTMENT
		COMMON END	FREE END
S	Std Thru Bolt For 1-3/4" Metal, Composite or Wood Doors (Default)	5	1	N/C
D	Decorative Thru Bolt for 1-3/4" Metal, Composite or Wood Doors	5	12	$40
M	Concealed for 1-3/4" Metal Doors	5	6	$26
W	Concealed for 1-3/4" Composite or Wood Doors	5	8	$43
G	Decorative Thru Bolt for 1/2" Glass Doors	13	15	$33

Fasteners

Screw Types

STANDARD THRU-BOLT FLAT HEAD MACHINE SCREW (FHMS)

NARROW FHMS WITH STEEL SLEEVE FOR CONCEALED AND BACK TO BACK

Fasteners for Door Pulls

Note: Fastener packs for 1-3/4" Steel and Composite Wood or 1/2" Thick Glass Doors. For other door thickness applications, contact PDQ Technical Service.

PART NUMBER (Specify Finish)	OPTIONS, MOUNTING TYP	E	DESCRIPTION	LIST PRICE 605, 613, 630
9001	1		2 ea. 1/4-20 x 2-1/4" FH MS, 2 ea. 1/4" Finish Washers.	$5.00
9001	I	HD	2 ea. 5/16-18 x 2-1/4 FH MS, 2 ea. 5/16" Finish Washers.	$5.00
9005	5		2 ea. 1/4-20 x 2-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. 1/4-20 x 1/2" Threaded Insert.	$14.00
9000	3	HD	2 ea. 5/16-18 x 2-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 1/4" Set Screws, 2 ea. 5/16" x 1/2" Steel Sleeves, 2 ea. 1/4-20 x 1/2" Threaded Insert.	$16.00
9006			2 ea. 1/4-20 x 1" Undersize Head FH MS, 2 ea. 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves.	$14.00
9000	6	HD	2 ea. 5/16-18 x 1" Undersize Head FH MS, 2 ea. 1/4-20 x 1/4" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves.	$16.00
2 ea. 1/4-20 x 1-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Scr 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. 1/4-20 Rivnut Inserts.		2 ea. 1/4-20 x 1-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. 1/4-20 Rivnut Inserts.	$14.00
90008	on	HD	2 ea. 5/16-18 x 1-5/8 Undersize Head FH MS, 2 ea. 1/4-20 x 1/4" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves, 2 ea. 5/16-18 Rivnut Inserts	$16.00
9008	8		2 ea. 1/4-20 x 1-5/8" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. 1/4 - 20 Knife Thread Inserts	$14.00
9000	0	HD	2 ea. 5/16-18 x 1-5/8 Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves, 2 ea. 5/16 - 18 Knife Thread Inserts.	$16.00
9012	12		2 ea. 1" DIA Head, 1/4-20 x 2-1/4" Decorative Cap Bolts.	$20.00
9012	12	HD	2 ea. 1" DIA Head, 5/16-18 x 2-1/4" Decorative Cap Bolts.	$21.00
0012	13		2 ea. 1/4-20 x 1-3/4" Undersize Head FH MS, 2 ea. 1/4-20 x 3/16" Set Screws, 2 ea. 1/4" x 1/2" Tapered Steel Sleeves, 2 ea. Bushings for 1/2" Thick Glass Door, 4 ea. Neoprene Washer.	$22.00
9013	13	HD	2 ea. 5/16-18 x 1-3/4" Undersize Head FH MS, 4 ea. 1/4-20 x 1/4" Set Screws, 2 ea. 5/16" x 1/2" Tapered Steel Sleeves, 2 ea. Bushings for 1/2" Thick Glass Door, 4 ea. Neoprene Washers.	$24.00
9015 15			2 ea. 1" DIA Head 1/4-20 x 1-1/8" Decorative Cap Bolts, 2 ea. Neoprene Bushings for 1/2" Thick Glass Door, 4 ea. Neoprene Washers.	$33.00
9010	5 15 F		2 ea. 1" DIA Head 1/4-20 x 1-1/8 Decorative Cap Bolts, 2 ea. Neoprene Bushings for 1/2" Thick Glass Door, 4 ea. Neoprene Washers.	$34.00

Ordering example: 9001 HD-630. Parts discount applies. HD is for 1" pulls

Door Protection Plates

Types

MOP PLATE UP TO 6" H X 48" W

6" TO 12" H X 48" W

ARMOR PLATE UP TO 48" H X 48" W AND AVAILABLE IN MOST FINISHES

General Guidelines for Determining Plate Width:

For Push Side of Door: Use 2" less than the total width of the door.

For Pull Side of the Door: Use 1-1/2" less than the total width of the door.

Features

• All PDQ door protection plates receive a light bevel in a secondary process to ensure a smooth edge.
• Provides protection for the bottom of the door from scuffing due to foot traffic or cleaning maintenance
• Recommended for all doors especially when using a door closer.
• $\backslash bullet$ Standard oval head undercut screws create a countersunk appearance.

Specifications

MATERIAL:	Stainless Steel
THICKNESS:	• 0.050"
MOUNTING FASTENERS:	• #6 x 5/8 OH PH SMS
FINISHES:	630 (US32D) Satin Stainless Steel, 613 (US10B)

How to Order

QUANTITY	SERIES	HEIGHT	WIDTH	FINISH
10	980	06	34	630
Ordering Example: 980 06 34 630		EXAMPLES: 06 — 6" 10 — 10"	EXAMPLES: 34 — 34" 345 — 34 - 1/2"	613 — Oil Rubbed Bronze 630 — Satin Stainless Steel

DOOR PROTECTI ON PLATES LIST PRICE

Effective May 13, 2019

Door Plate Hundred Square Inch Size Factors Chart

H/W	24"	26"	28"	30"	32"	34"	36"	38"	40"	42"	44"	46"	48" MAX
4	0.96	1.04	1.12	1.2	1.28	1.36	1.44	1.52	1.6	1.68	1.76	1.84	1.92
6	1.44	1.56	1.68	1.8	1.92	2.04	2.16	2.28	2.4	2.52	2.64	2.76	2.88
8	1.92	2.08	2.24	2.4	2.56	2.72	2.88	3.04	3.2	3.36	3.52	3.68	3.84
10	2.4	2.6	2.8	3	3.2	3.4	3.6	3.8	4	4.2	4.4	4.6	4.8
12	2.88	3.12	3.36	3.6	3.84	4.08	4.32	4.56	4.8	5.04	5.28	5.52	5.76
14	3.36	3.64	3.92	4.2	4.48	4.76	5.04	5.32	5.6	5.88	6.16	6.44	6.72
16	3.84	4.16	4.48	4.8	5.12	5.44	5.76	6.08	6.4	6.72	7.04	7.36	7.68
18	4.32	4.68	5.04	5.4	5.76	6.12	6.48	6.84	7.2	7.56	7.92	8.28	8.64
20	4.8	5.2	5.6	6	6.4	6.8	7.2	7.6	8	8.4	8.8	9.2	9.6
22	5.28	5.72	6.16	6.6	7.04	7.48	7.92	8.36	8.8	9.24	9.68	10.12	10.56
24	5.76	6.24	6.72	7.2	7.68	8.16	8.64	9.12	9.6	10.08	10.56	11.04	11.52
26	6.24	6.76	7.28	7.8	8.32	8.84	9.36	9.88	10.4	10.92	11.44	11.96	12.48
28	6.72	7.28	7.84	8.4	8.96	9.52	10.08	10.64	11.2	11.76	12.32	12.88	13.44
30	7.2	7.8	8.4	9	9.6	10.2	10.8	11.4	12	12.6	13.2	13.8	14.4
32	7.68	8.32	8.96	9.6	10.24	10.88	11.52	12.16	12.8	13.44	14.08	14.72	15.36
34	8.16	8.84	9.52	10.2	10.88	11.56	12.24	12.92	13.6	14.28	14.96	15.64	16.32
36	8.64	9.36	10.08	10.8	11.52	12.24	12.96	13.68	14.4	15.12	15.84	16.56	17.28
38	9.12	9.88	10.64	11.4	12.16	12.92	13.68	14.44	15.2	15.96	16.72	17.48	18.24
40	9.6	10.4	11.2	12	12.8	13.6	14.4	15.2	16	16.8	17.6	18.4	19.2
42	10.08	10.92	11.76	12.6	13.44	14.28	15.12	15.96	16.8	17.64	18.18	19.32	20.16
44	10.56	11.44	12.32	13.2	14.08	14.96	15.84	16.72	17.6	18.48	19.36	20.24	21.12
46	11.04	11.96	12.88	13.8	14.72	15.64	16.56	17.48	18.4	19.32	20.24	21.16	22.08
48 MAX	11.52	12.48	13.44	14.4	15.36	16.32	17.28	18.24	19.2	20.16	21.12	22.08	23.04

Protection Plate List Price

LIST PRICE ($ PER 100 SQ. IN.)
PLATE HEIGHT*	FINISH
	630	613
UNDER 8"		$66.20
8" UP 16"	$28.50	$67.70
16" UP TO 48"	$29.00	$70.10

Note: When ordering Armor Plates, add $50 lot charge for handling and packaging. Contact PDQ Customer Service for price and lead-time

Prices may be subject to change based on nickel surcharge, please consult factory

How to Price

• 1. Find the hundred square inch size factor on the factors chart above.
• 2. For odd or fractional sizes use the next higher price, Example. 8" x 31-1/2" price as 8" x 32" = 2.56 Factor
• 3. Find the Protection Plate list price per 100 square inch by selecting the plate height and finish you desire.
• 4. Complete pricing by multiplying the hundred square inch factor (Step 1) by the List Price/ Square Inch (Step 3)

Pricing Example:

8" High x 31-1/2" Wide Plate, 630 Finish

2.56 square inch factor x $29 per square inch = List Price $66.56

^* Maximum plate width of 48"

General Hardware

General Hardware

Wall Stops and Holders

MOD	EL	DESCRIPTION	OTY PER			LIST	PRICE
MODI (SPECIFY FU	NCTION)	DESCRIPTION	QTY PER BOX	605	613	619	625	626	630
( ®	101	Wall Stop - Convex Bumper ANSI Type L02101	50			¢11 E0			¢7.00
(0	102	Wall Stop - Concave Bumper ANSI Type L02251	50			$11.50			$7.90
0	106	Wall Stop - Adhesive Backed	50			$3	.00
0	107	Door Stop - Heavy Duty ANSI Type L02021	5	$42	2.00	_	_	$42.00	_
**	108	Door Stop - Heavy Duty with Keeper ANSI Type L01351	5	$56	6.00	_	_	$56.00	_
1	109	Door Stop ANSI Type L02031	5	$17.00	_	_	_	$17.00	_
1	110	Door Stop - Aluminum ANSI Type L02031	15			$7.00			_
-	112	Door Stop - Spring Base ANSI Type L02051	100		$4.00		_	_	_
	115	Angled Wall Stop ANSI Type L02051	20	_	_	_	_	$92.00	_
100	119	Door Holder with Stop	20	_	_	_	_	$121.00	_

Floor Stops and Holders

MOD	EL	DECORIDATION	OTY PER		LIST	PRICE
(SPECIFY FU	JNCTION)	DESCRIPTION	QTY PER BOX	605	613	625	626
•	220	Universal Dome Stop ANSI Type L02141 for plastic anchors ANSI Type L20161 for lead anchors	20	_	_	_	$23.00
	221	Floor Stop - Low Dome ANSI Type L02141	50		$16.00		$15.00
•	222	Floor Stop - High Dome ANSI Type L02061	50		$18.00		$17.00
0	223	Floor Stop - Riser ANSI Type L02141	50	_	_	_	$9.00
For	224	Floor Stop - Offset ANSI Type L02181	10	_	$38.00	_	$38.00
1	225	Floor Stop - Offset ANSI Type L02181	10	_	$45.00	_	$45.00
14	226	Floor Stop - Offset with Hold Open ANSI Type L01371	5	_	$45.00	_	$45.00
Ţ	227	Floor Stop ANSI Type L02131	5	$4	7.00		$47.00
1	228	Floor Stop - with Keeper ANSI Type L01371	5	$5	2.00	_	$52.00
	229	Stop ANSI Type L02131	10	$5	1.00	_	$51.00
	230	Stop ANSI Type L02131	10	$5	2.00	_	$52.00
9	231	Floor Stop, Low Profile	25	$2	5.00	_	$25.00
*	232	Floor Stop	25	$2	9.00	_	$29.00
J	233	Floor Stop	10	_		_	$28.00

GENERAL HARDWARE

LIST PRICE Effective May 13, 2019

Kick Down Door Stops

MODEL	DESCRIPTION	QTY PER	LIST PRICE
(SPECIFY FINISH)	DESCRIPTION	вох	605	613	626	689	695
240	Kick Down - 4" ANSI Type L01382	10	_	_	_	$24	1.00
241	Kick Down - 5" ANSI Type L01382	10	_	_	_	$25	5.00
242	Kick Down - 4" ANSI Type L01382	10		$36.00		_	_
243	Kick Down - 5" ANSI Type L01382	10		$48.00		_	_

Hinge Stops

MODEL	PECODINE	QTY PER	LIST PRICE
MODEL (SPECIFY FINISH)	DESCRIPTION	вох	605	613	626	689	695
245	Hinge Stop - 5" ANSI Type L02223	100		$8.00		_	_

Roller Stops

MODEL	DESCRIPTION	QTY PER	R LIST PRICE
(SPECIFY FINISH)	DESCRIFTION	вох	605	613	626	689	695
350	Roller Stop, 4-1/2" ANSI Type L02191	10		$35.00	_	_
351	Roller Stop, 6-1/2" ANSI Type L02191	10		ΦE1.00		_	_
352	Roller Stop, Curved ANSI Type L02211	ANSI Type L02211 10		$51.00		_	_

Roller Latches, Catches and Protectors

MODI	EL	DESCRIPTION	QTY PER			LIST PRICE
(SPECIFY F		DESCRIPTION	вох	605	613	626	689	695
(10)	571	Roller Latch with T Strike ANSI Type E09101	5		$43.00		_	_
(10	572	Roller Latch with ASA Strike	5	$53.00		1			_	_
	573	Roller Latch with Full Lip Strike	5		$33.00		_	_
oği n	574	Roller Latch with Angle Stop ANSI Type E09111	10	_	_	$107.00	_	_
-00	575	Roller Latch with Strike	10		#21.00		_	_
-dela	577	Ball Catch Adjustable	10		$21.00		_	_
	578	Door Guard	10	$57	7.00	_	_	_
順	579	Privacy Door Latch	10	_	_	$78.00	_	_
	582	Latch Protector	20	_	_	_	фОС	0.00
1	583	Latch Protector with 3-3/8" DIA Notched	20	_	_	$28.00		5.00
	584	12" Interlock Latch Protector	20	_	_	_	$22	2.00

Hooks

N	NODEL	DESCRIPTION	QTY PER	FINISH	LIST PRICE
(SPECIFY FINISH) DESCRIPTION		DESCRIPTION	ВОХ	N/A	605	613	625	626
C	901	Coat Hook - Medium ANSI Type L03111	10	_	_	_	_	$19.00
V	902	Wardrobe Hook - Small ANSI Type L03111	10			1	_	$21.00

Silencers

MODEL (SPECIFY FINISH)		DESCRIPTION	QTY PER	FINISH	LIST PRICE
		DESCRIPTION	вох	N/A	605	613	625	626
٠	904	Silencer - Metal Doors (Must be ordered in multiples of 100.) ANSI Type L03111	100	$28.00	_	_	_	_
Ь	905	Silencer - Wood Doors (Must be ordered in multiples of 100.) ANSI Type 03121	100	$44.00	_	_	_	_

Door Viewers

MODEL	PECODIDATION	QTY PER	FINISH	LIST PRICE
(SPECIFY FINISH)	DESCRIPTION	BOX	N/A	605	613	626
906	Door Viewer - 160 degrees UL ANSI Type 03222	25	_	$26.00		_

Strikes

MODEL	DESCRIPTION	QTY PER	FINISH		LIST PRICE
(SPECIFY FINISH)	DESCRIPTION	BOX	BOX N/A		613	625	626
909	Dust Proof Strike (Specify Finish), 1 each	_	_	$58	3.00	_	$55.00
95572	Strike, Roller Latch - ASA	25	_	$26.00		_	$26.00
95673	Strike, Roller Latch - Full Lip	50	_			_	φ20.00

Sliding Barn Door Hardware

Architecturally Designed for Hospitality, Multi-Family and Commercial Applications.

Features

• Exclusive Soft Close stop design. Specify option SC.
• . Max door weight: 220 lbs
• Nylon coated rollers
• Grade 304 Stainless Steel components
• . Finish: 630 satin stainless steel

Specifications

CONFIGURATIONS:	Single Bi-parting
INSTALLATION:	Side Wall Mount (only)
PERFORMANCE:	Meets ANSI/BHMA 156.14 Grade 1 Standard (100,000 cycles)
STANDARD KIT INCLUDES:	1 ea Track (specify length) 2 ea Wall Brackets 2 ea Track Stops 2 ea Top Mount Hangers with Anti-jump pins 1 ea Wood Guide Installation fasteners

Cross Reference

PDQ	HAFELE	HAGER	РЕМКО
STS SERIES	FLATEC II SERIES	9432 SERIES	W60 SERIES
STS WITH SOFT CLOSE	N/A	N/A	W60 WITH CUSHION STOP

SLIDING BARN D OOR HARDWARE LIST PRICE

Effective May 13, 2019

How to Order

QUANTITY	SERIES	DOOR MATERIAL	HANGER TYPE	TRACK (SPECIFY LENGTH)	FINISH	OPTIONS
10	STS	W	171	78	630	—
	STS — SLIDING TRACK SYSTEM	W — WOOD	171 — TOP MOUNT, SINGLE ROLLER	78 — 78-3/4" FOR 36" WIDE DOOR 98 — 98-7/16 " FOR 48" WIDE DOOR	630 — SATIN STAINLESS STEEL	SC — SOFT CLOSE

Ordering Examples: Kit for Wood Door: STS W 171 78 630 / Kit for Wood Door with Soft Close: STS W 171 78 630 SC

MODEL	DESCRIPTION	LIST PRICE
STS W 171 78 630	Sliding Barn Door Hardware for 36" Wood Door,	$825
STS W 171 98 630	Sliding Barn Door Hardware for 48" Wood Door,	$862

Options

CODE	DESCRIPTION	HARDWARE ADJUSTMENT
SC	Soft Close	$145

Accessories

PART NUMBER	DESCRIPTION	PART LIST PRICE
STSP17101-630	STOP	$16 each
STSP17103-630	TOP MOUNT ROLLER HANGER. INCLUDES INSTALLATION FASTENERS.	$65 each
STSP17104-630	SOFT CLOSE ASSEMBLY	$34 each
STSP17105-630	SOFT CLOSE TRIGGER BRACKET. INCLUDES INSTALLATION FASTENERS.
STSP17106-630	FLOOR GUIDE. INCLUDES INSTALLATION FASTENERS.	$13 each
STSP17107-630	BI-PARTING CONNECTOR MATERIAL: GRADE 304 STAINLESS STEEL FINISH: 630 STAINLESS STEEL. MATCHES RAIL FINISH. "O" RINGS MAKE FOR EASY INSERTION INTO TRACK AND HELPS DAMPEN UNWANTED VIBRATION NOISE.	$26 each

Parts discount applies

Bi-Parting Solutions

FOR OPENINGS UP TO 4 FT WIDE:

• Requires: 1ea STS Series Track Assy
  • 2ea STSP17103-630 Roller Assemblies
  • 2ea STSP7101-630 Stops
  • 1ea STSP17106-630 Floor Guide

Note: Refer to Installation Instructions

FOR OPENINGS OVER 4 FT WIDE:

• Requires: – 2ea STS Series Track Assys (specify size) – 1ea STSP17107-630

Bi-parting Connector

Note: Refer to Installation Instructions

Display Systems

Display Boards

Door Closers

DESCRIPTION	PART #	NET PRICE
7100, 5300, 3100 Series Closers SCS – Spring Cushion Stop	DISP CLOSER 1	$250

Exit Devices and Trim

DESCRIPTION	PART #	NET PRICE
6200, 4200 Series Devices 6200, 4200 Series Escutcheon and Sectional Trim	DISP DEVICE 1	$500

DISPLAY SYSTE MS

LIST PRICE Effective May 13, 2019

Mounted Product Displays

Mortise Locks – Grade 1 (MR)

DESCRIPTION	PART #	NET PRICE
MR Series, Sectional Trim, 626 Finish	I02500-04-S07	$135
MR Series, Escutcheon Trim, 626 Finish	I02500-04-E07	$135

Cylindrical Locks – Grade 1, Grade 2 (XGT, GP, SD)

DESCRIPTION	PART #	NET PRICE
XGT Series Grade 1, GP and SD Series Grade 2, SCC Keyway, 626 Finish	I02500-10-0716	$120
XGT Series Grade 1, GP and SD Series Grade 2, IC Core, 626 Finish	I02500-10-07IC	$120

Interconnected Cylindrical Locks – Grade 2 (CL)

DESCRIPTION	PART #	NET PRICE
CL Series, 605 Finish	I02500-02-05	$65
CL Series, 626 Finish	I02500-02-07	$60

Ball Knob and Deadbolt (SX, KM)

DESCRIPTION	PART #	NET PRICE
SX Series Ball Knob, KM Series Deadbolt, 626 Finish	I02500-11-07	$90

GT135LED Classroom Intruder Cylindrical Lock with Led Indicator – Grade 1

DESCRIPTION	PART #	NET PRICE
XGT135 LED Series Grade 1, Classroom Intruder with LED	DISP XGT 135 LED	$90

Cylindrical Locks – Grade 3 (SM)

DESCRIPTION	PART #	NET PRICE
SM Series, Grade 3, 176 Function with PHL Lever, 126 Function with MIA Lever	DISP SM 3	$90

DISPLAY SYST EMS

Effective May 13, 2019

pdqSMART

GTS-XLS Cylindrical – Grade 1

SDS-XLS Cylindrical – Grade 2

KMS-XLS Heavy Duty Deadbolt

6EWS-XLS Heavy Duty Exit Device Trim

pdqSMART/ pdqSMART-XLS

SMART SERIES	DESCRIPTION	PART #	NET PRICE
	GTS-XLS Series, Grade 1, with Rose Trim	GTS-XLS-116
	KMS-XLS Series Heavy Duty Deadbolt	DISP KMS-XLS
pdqSMART-XLS	6EWS-XLS Series Heavy Duty Exit Device Trim	DISP 6EWS-XLS	$280
	MRS-XLS Series Grade 1, Mortise Rose Trim	DISP-MRS-XLS
	SDS-XLS Series, Grade 2, with Rose Trim	DISP SDS-XLS	$220

Master Key System Design

2- Levels of keying

3- Levels of keying

4- Levels of keying

	Master Key System Planning Form
Sold To:	Ship To:	q Sheet 1 of q Date Purchase Order No
Job Name and Address: System Info: q NEW q Existing System PDQ SO # Your original PO# Original date of order	Key Quantity: Qty q GGGM q GGM q GGM q GM MK/Group	Change Keys: Qty q Per Cylinder q Per Keyed alike Group q Per Keyed different cyl Special Function Qty Control Main CMK HKP CMK Ctrl MECH EMK ENG SKD Ctrl JAN SKD CMK OTHR Blockout OTHR
System Level: q 1-SKD q 2-MK q 3-GM q 4-GGM q 4-GGGM q 4-GGGGM	Cross Keying: Key Symbol	Operated by (OB)
Type: q High Security q IC q Standard	q Other
Keys: q Standard SCC q Restricted* q Specific Keyway: *Restricted Keyway requires system approval q 5 Pin q 6 Pin q7 Pin	Additional Information: (Including system expansion and Special Remarks)
Key Control: q Visual Key Control Keys Only q Visual Key Control Keys and Cylinders q Visual Key Control Cylinders Only q Concealed Key Control Keys and Cylinders q Concealed l Key Control Cylinders Only q DND q US Property DO NOT DUPLICATE q Special Marking:	this project should clarification be required.	Name of individual in organization who is knowledgeable about Name: Phone: Email:
		2230 Embassy Drive, Lancaster, PA 17603 • 1-800-441-9692

This sheet to be used with Keying Schedule Form

Keying System Worksheet
* PDO

Job Reference		Grand Master Key	_	Instructions: Indicate the highest level master key symbol	er key symbol
Information			in the top line of a indicate the total	in the top line of each box. Identify the area or department, indicate the total number of key changes, including future	or department, cluding future	Page
Date	By			expansion. Do not use letters I, O, or Q in key symbols.	y symbols.
Approved By		Area/Dept	Selective Selective		Control Key	Used with IC cores only
Date			Master Key			Construction Master Keying
Master	Master	Master	Master	Master	Master
Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept
# of Changes	# of Changes	# of Changes	# of Changes	# of Changes	# of Changes
Master	Master	Master	Master	Master	Master
Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept
# of Changes	# of Changes	# of Changes	# of Changes	# of Changes	# of Changes	Direct
						Special Changes directly
Master	Master	Master	Master	Master	Master	master key # of Changes
Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept
# of Changes	# of Changes	# of Changes	# of Changes	# of Changes	# of Changes
Master	Master	Master	Master	Master	Master
Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept	Area/Dept
# of Changes	# of Changes	# of Changes	# of Changes	# of Changes	# of Changes
	Single Keyed Changes		Special Instructions
SKD	SKD	SKD
Door# or Area	Door# or Area	Door# or Area
Change key only, will not	Change key only, will not be operated by any other key within the system	cey within the system

				Keying Schedule Form
Customer Name:					Purchase Order No.			Page of
Quantity:	Series/Function/Trim:			Finish:		Options:
Special Stamping:
		Key			Hand (Specify Qty)		Door Number	Heading
Item	Quantity	Symbol	RH	LH	RHR	LHR	(Up to 10 Characters)	(Up to 10 Characters)

2230 Embassy Drive, Lancaster, PA 17603 • 1-800-441-9692

To be used with PDQ Master Keying Layout form

Lock Handing

What is Lock Hand ing?

The handing of a lock is important in order to ensure that the correct side of the door is secure, the levers are oriented properly, and that the door closes properly.

There are 2 parts to a door and lock handing, the handing (left or right) and the swing of the door (whether it is reversed or standard). There are 4 different lock handings; left hand (LH), right hand (RH), left-hand reverse (LHR), and right-hand reverse (RHR).

There are many ways to determine handing however PDQ recommends the following method:

• Stand on the outside (secure side) of the door
• Note the location of the hinges, not the lock
• If the hinges are on the left, it's a left-hand door
• If the hinges are on the right, it's a right-hand door
• Next note if the door swings toward you or away from you
• If the door swings away from you, it's a standard swing door
• If the door swings towards you, it's a reverse bevel door

See the illustration below for examples of how to determine the door handing you need when placing your PDQ order.

How to Determine Hand of Door

Out Swing Door

				PDQ Order Form
Customer Purchase Order Number			Ship Via	Date
Name		Ship To		Order Number
City				Customer Account Number
State		Zip			Customer Signature
Job Name			Mark Shipment

ITEM	QTY	MODEL DESCRIPTION OR ITEM NUMBER	EXTENDED DESCRIPTION	PRICE

SPECIAL INSTRUCTIONS

Email to: orders@pdqlocks.com

Headquarters: 2230 Embassy Drive • Lancaster, PA 17603 800.441.9692 Regional Distribution Centers: Lancaster, PA, Norcross, GA, Kansas City, MO, Denver, CO, Henderson, NV, Auburn, WA

www.pdqlocks.com

Weight Chart

		Locksets*
Item	Function	Case Quantity	Average Weight/Case (lbs.)**
MR (Rose)	Entrance	6	45
MR (Escutcheon)	Entrance	6	46
XGT	Entrance	6	33
GT	Entrance	6	33
GP	Entrance	6	30
SD	Entrance	10	37
SX Ball	Entrance	10	32
SV Ball	Entrance	20	43
CL	Entrance	10	52
		Deadbolts
Item	Function	Case Quantity	Average Weight/Case (lbs.)**
KT Single Cylinder	116	10	19
KT Double Cylinder	137	10	22
KM Single Cylinder	116	20	41
KM Double Cylinder	137	20	54
KV Single Cylinder	116	20	26
KV Double Cylinder	137	20	35
Item	Application	Closers Case Quantity	Average Weight/Case (lbs.)**
3100	Tri-Pack	10	61
5100	Tri-Pack	6	48
5300	Tri-Pack	6	41
5500	Tri-Pack	6	41
7100	Tri-Pack	4	50
		Exit Devices
Item	Application	Case Quantity	Average Weight/Case (lbs.)**
4200R 3'	Rim	4	43
4200V 3'	Surface Vertical	4	61
4200RA 4'	Rim	4	45
4200VA 4'	Surface Vertical	4	67
6200R 3'	Rim	4	55
6200V 3'	Surface Vertical	4	76
6200RA 4'	Rim	4	61
6200VA 4'	Surface Vertical	4	82
6200CV 3'	Concealed Vertical	4	72
6200CVA 4'	Concealed Vertical	4	83
6200MR 3'	Mortise	4	50
6200MRA 4'	Mortise	4	60
6200MRF	Mortise	4	50
6200MRFA	Mortise	4	60
6202R 3'	Rim	4	55
6202RA 4'	Rim	4	65
6202V 3'	Vertical	4	74
6202CV	Concealed Vertical	4	70
6202CVA	Concealed Vertical	4	81

^* Data is with PHL lever unless otherwise noted. **Add approximately 2 lbs. for fire rated device.

Resource Library – Order Form

General

	ITEM	PART #	DESCRIPTION	ORDER QTY.
	Price List	LT1007	Price List - Effective May 13, 2019
	Product Catalog	LT1002	Evolutions Product Catalog
	Project Listing	LT2030	PDQ Projects Listing
	Presentation Folder	LT1008	PDQ Pocket Presentation Folder
	PDQ Tool Box	LT1009	Flash Drive - Price List, Evolutions, Brochures, Project List, Arch. Submittal Sheets
General	3 Ring Binder	LT1000	PDQ Binder Complete with Brochures and Price List
	3 Ring Binder	LT1010	PDQ Binder Complete with Brochures, w/out Price List
	3 Ring Binder	LT1005	PDQ Binder Only - No Literature
	Binder Tabs	LT1006	Tab Set w/Price List Tab
	Binder Tabs	LT1011	Tab Set w/out Price List Tab
Specifications	Writing Services	LT9005	Architectural Hardware Specification Writing Services Brochure
BIM Models	Revit Files	LT9011	Revit Revolution Brochure and www.pdqlocks.com (for files)
Architectural Submittals	Specification Sheets	Website	www.pdqlocks.com
	Templates	Website	www.pdqlocks.com
Technical	Instruction Sheets	Website	www.pdqlocks.com
		LT9009	Northwest Warehouse Stock List
Regional Warehouse	Stock Lists	LT9010	Kansas City Warehouse Stock List
		LT9013	Denver Warehouse Stock List

Products

		PART #	DESCRIPTION
	Grade 1	LT2001	MR Series Brochure
Mortise Locks	Trim Suite	LT2013	TJ Series Brochure
	Grade 1	LT2002	XGT Series Brochure
	Grade 1	LT2003	GT Series Brochure
Cylindrical Locks	Grade 1	LT2014	Classroom Intruder XGT/GT 135LED Sell Sheet
	Grade 2	LT2004	GP Series Brochure
	Grade 2	LT2006	SD Series Brochure
	Grade 3	LT2064	SM Series Brochure
Interconnected Locks	Grade 2	LT2010	CL Series Brochure
	Grade 1/Grade 2	LT2071	pdqSMART XLS Vertical Markets Sell Sheet
pdqSMART	Grade 1/Grade 2	LT9014	pdqSMART XLS Sell Sheet
Stand Alone Locks	Electronic Key Pad	TL0002	E Series; EMR, EGT, E629
Ball Knob Locks	Grade 1/Grade 2	LT2007	SX / SV Series Brochure
Deadbolts	Heavy Duty	LT2012	KM, KT, KV, MJ Series Brochure
Keying Systems	Guide	LT7001	Key Systems, Cylinders and Keys
	Grade 1	LT5002	6200 / 6202 Series Brochure
Exit Devices	Commercial	LT5001	4200 Series Brochure
	Institutional	LT5004	9200 Mullions Brochure
	Institutional	LT4006	7100 Series Brochure
	Commercial	LT4003	5100 Series Brochure
Closers	Commercial	LT4005	5500 Series Brochure
	Commercial	LT4004	5300 Series Brochure
	Light Commercial	LT4002	3100 Series Brochure
	Institutional	LT5005	SCS Spring Cushion Brochure
Sliding Barn Door	Hardware	LT2046	Sliding Barn Door Hardware Brochure
Hinges	Commercial	LT9002	Architectural / Electrified Hinges
		LT2027	Automatic Flush Bolts, Coordinators
Flat Goods	Assorted	LT2026	Pulls, Push Plates, Pull Plates, Door Protection Plates
		LT2065	Privacy Door Latch Brochure
Hardware	Assorted	LT2028	General Hardware; Stops, Roller Latches, Door Viewers, etc.

Email Literature Request to help@pdqlocks.com or contact PDQ Customer Service.
