View PDFPRICE BOOK
October 1, 2017
ALARM LOCK SYSTEMS, LLC
345 Bayview Ave. Amityville, NY 11701 1-800-ALA-LOCK (252-5625) (631) 789-4871 Tel or (631) 789-3383 Fax
Important Things to Know about Doing Business with Alarm Lock Systems, Inc.
Prices shown in this book are list prices. All customers with direct accounts receive a discount letter along with each new price book. If you have a direct account with Alarm Lock you may request a copy of your discount letter in writing or by contacting you local sales representative.
The price book is for pricing purposes only and does not represent stocking levels. Certain items are manufactured to order. Please be sure to consult the factory or your Alarm Lock representative or Regional Sales Manager for availability.
Terms : Net 30
Freight Allowance : Shipments are F.O.B. Amityville, NY. Freight allowed within the continental U.S.A. is $7,500.00. Freight allowance not available on drop ship orders.
Drop Shipments: All orders shipping to an address other than the customer's or one of their branches, is subject to a $25.00 handling fee. Freight allowance not available on drop ship orders.
Minimum Order: The minimum order requirement has been changed to $250.00 for all customers.
Returns/Warranty : Please see last page of price book for details.
Website : Visit us at www.alarmlock.com for a complete list of sales representatives by state, product specifications, technical data, and downloadable PDF files of all Alarm Lock's products as well as the most current version of our software DL-Windows.
If you need to contact us:
Alarm Lock Systems, Inc. 345 Bayview Ave Amityville NY 11701
Toll free number – 1 800 ALA-LOCK (252-5625) Direct telephone – 631 789-4871 Direct fax – 631 789-3383
All prices published are suggested list prices in US Dollars. Some specifications are preliminary and subject to change without prior notice. Not responsible for typographical errors. Alarm Lock Systems, LLC, is a Division of Napco Security Technologies, Inc. (NASDAQ:NSSC) © Alarm Lock Systems, LLC, 9.16
Table of Contents
| Trilogy DL2700/DL2700LD | 100 user Lock/LocDown6 |
|---|---|
| Trilogy DL5200 | 100 user Double Sided Lock7 |
| Trilogy DL2700CR/DB T2 Series8-9 | |

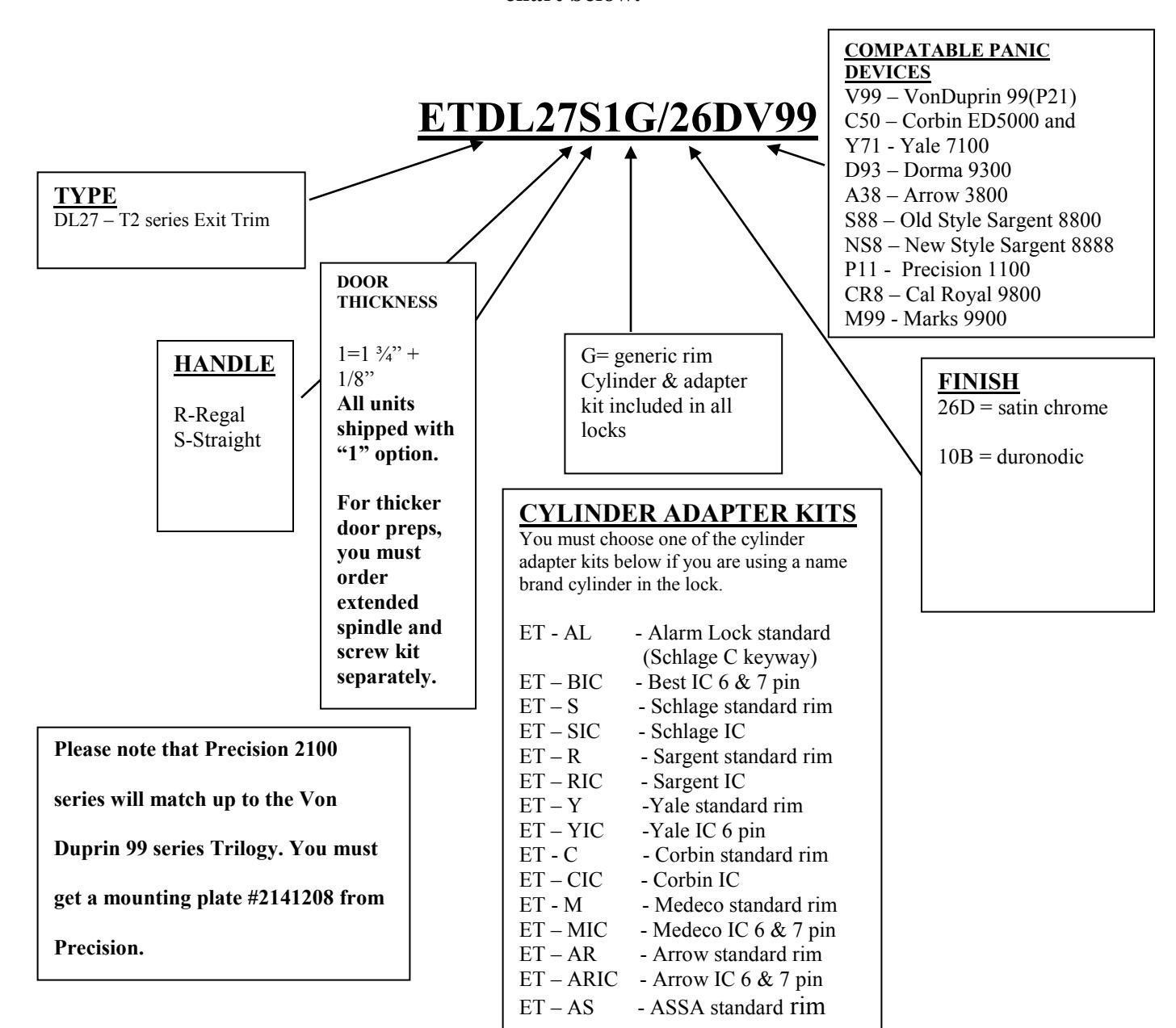

| Trilogy ETDL27 Series10-12 | |
| Trilogy DL2800 | 200 user Lock13 |
| Trilogy DL3000 | 300 user Lock14 |
| Trilogy DL3200 | 2000 user Lock15 |
| Trilogy DL5300 | 2000 user Double Sided Lock16 |
| Trilogy DL4100 | 2000 user Privacy/Residency Lock17 |
| Trilogy PDL3000 2000 user Proximity & Keypad Lock18 | |
| Trilogy PDL5300 2000 user Proximity Double Sided Lock19 | |
| Trilogy PL3000 | 2000 user Proximity Only Lock 20 |
| Trilogy PDL4100 2000 user Proximity w/Privacy/Residency Lock21 | |
| Trilogy Cylindrical Lock Parts22-23 | |
| Trilogy & Networx Remote Release Products24 | |
| Trilogy DL3500 | 300 user Mortise Lock25-26 |
| Trilogy DL4500 | 2000 user Mortise w/Privacy/Residency Lock27 |
| Trilogy PL/PDL3500 2000 user Proximity Mortise Lock28-29 | |
| Trilogy PDL4500 2000 user Proximity Mortise w/Privacy/Residency Lock30-31 |
Table of Contents (con't)
| Trilogy DL1200 |
100 user Narrow
stile Lock32 |
|---|---|
| Trilogy DL1300 |
2000 user Narrow
Stile Lock33 |
| Trilogy PDL1300 | 2000 user Narrow Stile Proximity Lock34 |
| Trilogy Narrow Stile Lock Parts & Accessories35 | |
| Trilogy DL1200ET, DL/PDL1300ET | Narrow Stile Exit Trim36-37 |
| Trilogy Narrow Stile Exit Trim Parts |
&
Accessories38 |

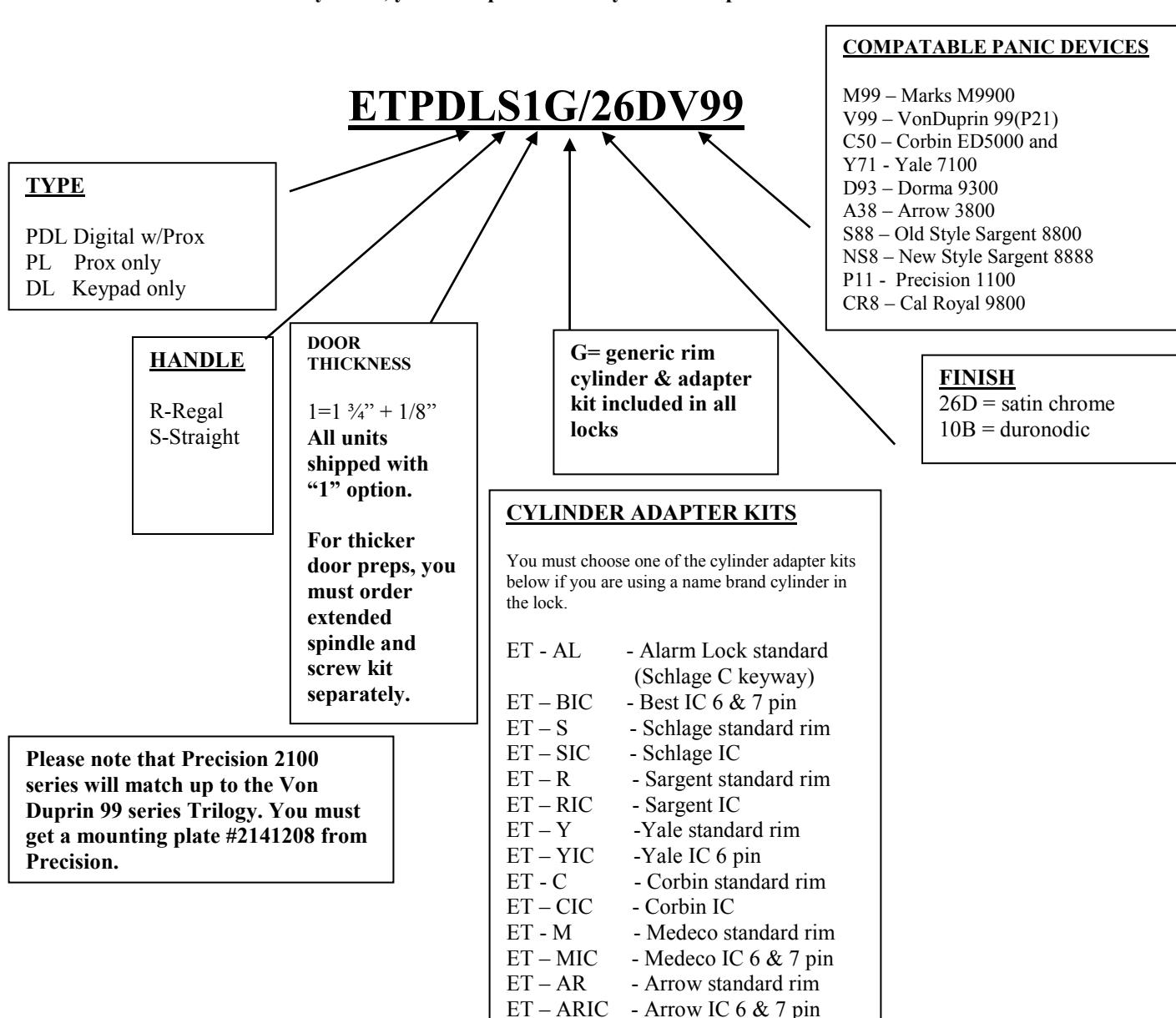

| Trilogy ETDL/ETPDL 2000 user Exit Trim Lock39-41 | |
| Trilogy DK3000 | 2000 user Keypad/Wall Mounted Reader42 |
| Trilogy PDK3000 | 2000 user Proximity Keypad/Wall Mounted Reader42 |
| Trilogy DL6100 | Networx Digital Lock, 5,000 user codes43 |
| Trilogy PDL6100 | Networx Proximity & Keypad 5,000 user codes44 |
| Trilogy Training Options 45 | |
| Trilogy PL6100/PDL6200 Networx Proximity Only 5,000 user codes46 | |
| Trilogy DL6500 | Networx Digital Mortise Lock 5,000 user codes47 |
| DL 6500 Mortise Lock Accessories48 | |
| Trilogy PDL6500/PL6500 Networx Proximity and Prox Only 5,000 user codes49 | |
|
PDL6500/PL6500/PDL6600 Mortise Lock
Accessories50 |
|
| PDL8200/PDL8600 iClass Networx Locks and Accessories51-53 | |
| New Networx Accessories54 | |

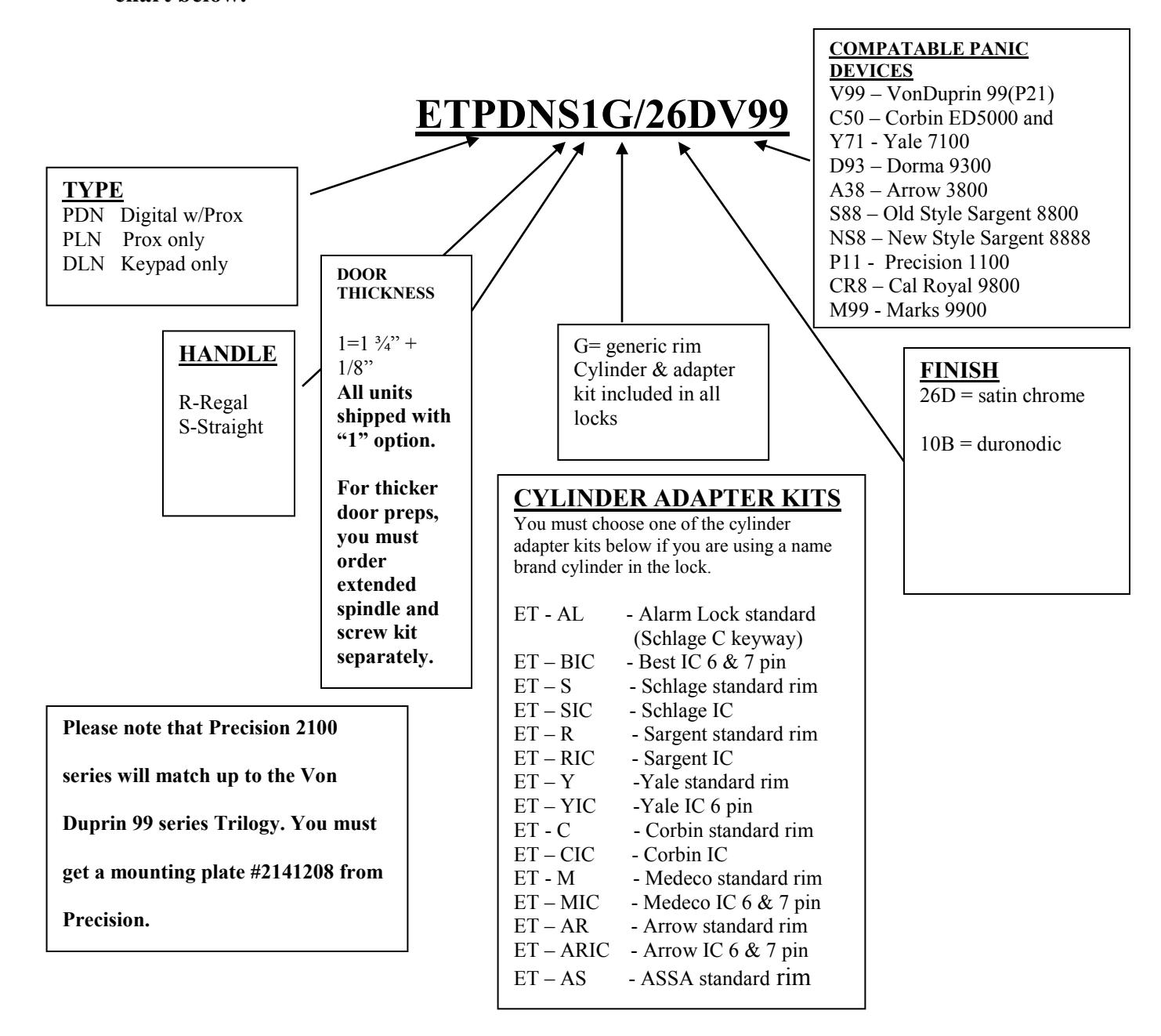

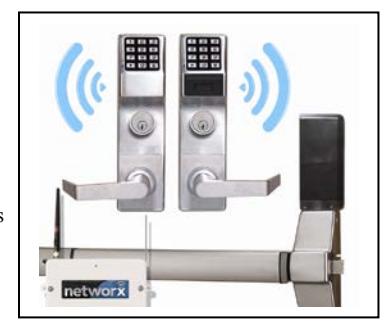

| ETPDNSRX Networx Exit Trim55 |
Table of Contents (con't)
|
Trilogy ETDLN Networx Exit Trim
5,000 user codes55-57 |
|
|---|---|
|
Trilogy ETPDN Networx Exit Trim
5,000 user codes55-57 |
|
| Trilogy ETPLN Networx Exit Trim 5,000 user codes55-57 | |
| NETDK Networx Digital wireless Keypad58 | |
| NETPDK Networx Proxmity & Digital Keypad58 | |
| NETDK/PDK Kits and Accessories59 | |
| Trilogy Remote Release60 | |
| Networx Upgrade Kits61 | |
| ArchiTechTM Series Locks and Accessories62-66 | |
|
Weather Resistant Alarmed Panic
Devices67 |
|
| Alarmed Panic Devices68 | |
| Door Alarms69 | |

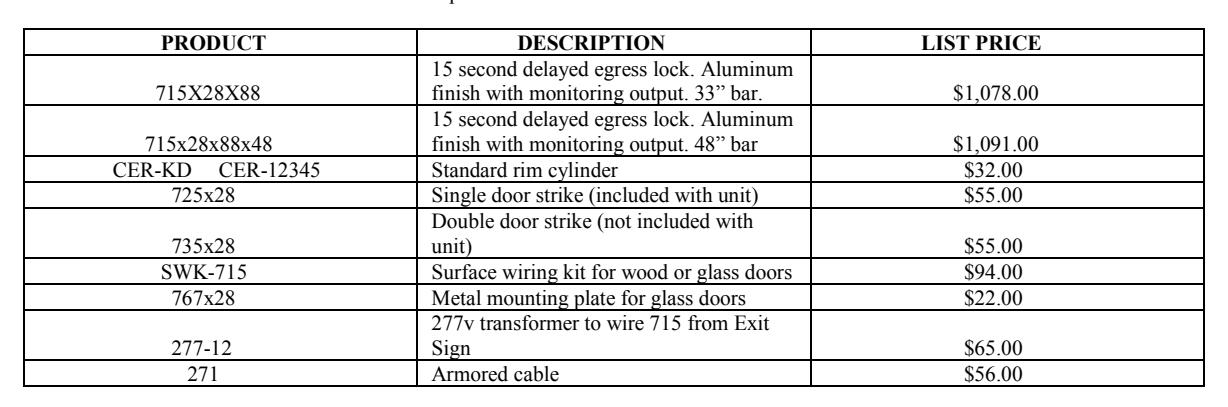

| Delayed Egress Panic Device70 | |
| Electric Deadbolts71 | |
| Remote Release Magnets71 | |
| Power Magnets71 | |
| Alarm Lock Warranty/Return Policy73 |
Extended sizes:
extended lock.
W54 - 2 1/8"
W57 - 2 1/4"
W60 - 2 3/8"
W64 - 2 1/2"
W70 - 2 3/4"
W83 - 3 1/4"
W89 - 3 1/2"
Note: Locks can be
adding or removing
adjusted by +/- 1/8" by
W76 - 3"
spacers.
WP standard and SFIC
extended for thicker doors.
$165.00 add on to list for
Extended lock legend:
cylinder preps can be
Price Book 2017
DL2700
DL2700LD
TRILOGY ELECTRONIC DIGITAL LOCKS
DL2700 SERIES -Electronic battery operated digital lock. Holds up to 100 user codes,
1 Master, 10 Manager codes & up to 3 one time user codes.
SPECIFICATIONS:
Fits 1 5/8" to 1 7/8". Other thickness, Door Thickness:
please consult factory 2 3/4" (2 3/8" also available) Backset:
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8
ASA strike included
Handing:
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible Non-handed
5 AA alkaline batteries (included) Power:
Keypad: All metal, 12 button. All functions programmed
through keypad.
Standard ANSI A115 Series prep, modified by Door prep:
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed
UL Listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
6 pin solid brass, SC1 keyway, furnished with all Cylinder:
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders
can also be used with HW620 tailpiece (supplied) Interchangeable Standard model accepts 6 & 7 pin cylinders from
Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Core Models: Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco,
Sargent, Corbin-Russwin & Schlage are also available
(LocDown<sup>TM</sup>) PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS SPECIFY "WP" FOR WEATHER RISISTENT MODEI
| SPECIFY "WP" FOR WEATHER RISISTENT MODEL | |||
|---|---|---|---|
| PRODUCT | FINISH | LIST PRICE | |
| DL2700 | US26D | $881.00 | |
| Standard key override | US3 & US10B | $1,009.00 | |
| DL2775 | |||
| Standard Key override | US26D | $941.00 | |
| Regal (curved) | US3 & US10B | $1,066.00 | |
| DL2700IC* | US26D | $916.00 | |
| Interchangeable core | US3 & US10B | $1,028.00 | |
| DL2775IC* | |||
| Interchangeable core | US26D | $976.00 | |
| Regal (curved) | US3 & US10B | $1,044.00 | |
| DL2700WP | US26D | $964.00 | |
| Weather proof key override | US3 & US10B | $1,025.00 | |
| DL2775WP | |||
| Weather proof key override | US26D | $978.00 | |
| Regal (curved) | US3 & US10B | $1,046.00 | |
| DL2700WPIC* | |||
| Weather proof | US26D | $978.00 | |
| Interchangeable core | US3 & US10B | $1,011.00 | |
| DL2775WIC* | |||
| New Regal (curved) lever | US26D | $998.00 | |
| Interchangeable core | US3 & US10B | $1,069.00 | |
| DL2700SK | Mounted DL2700 demo | Call Factory | |
| DL2700LD | US26D | $927.00 | |
| Standard Key override | |||
| DL2700LDIC | US26D | $958.00 | |
| Interchangeable core | |||
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
TRILOGY ELECTRONIC DOUBLE SIDED DIGITAL LOCKS
DL5200 SERIES – Double sided electronic battery operated digital lock. Holds up to 100 user codes,
1 Master, 10 Manager codes & up to 3 one time user codes. Programmable keypad on both sides of the door. Key override is only operable on the primary side. The key
on the secondary side is used only to remove the lever and access the batteries.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: All metal, 12 button. All functions programmed
through keypad on both sides of the door
Door prep: Standard ANSI A115 Series prep, modified by adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed
UL Listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from
Core Models: Best, Falcon, and Arrow only .
ALL DL5200 LOCKS ARE WEATHER RESISTANT
PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL5200 | US26D | $1,485.00 |
| Standard key override | US3 & US10B | $1,552.00 |
| DL5275 | ||
| Standard Key override | US26D | $1,513.00 |
| Regal (curved) | US3 & US10B | $1,576.00 |
| DL5200IC | US26D | $1,508.00 |
| Interchangeable core | US3 & US10B | $1,576.00 |
| DL5275IC | ||
| Interchangeable core | US26D | $1,524.00 |
| Regal (curved) | US3 & US10B | $1,604.00 |
| DL5200SK | Mounted DL5200 demo | Call Factory |
Note: Key override operates latch on primary side only. Key override on secondary side protects the battery pack.
NEW! ALARM LOCK TRILOGY T2 SERIES MORTISE LOCK
DL2700CR/DB series – Trilogy T2 keyless access lock for mortise door prep. Holds up to 100 use codes, 1 master, 10 manager codes and up to 3 one time user codes.
SPECIFICATIONS:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset: 2 3/4" standard
Strike: 1 1/4" x 4 7/8"strike included
Handing: Specify RH or LH when ordering, lock is reversible
In the field
Power: 4 C- cell batteries (included)
Keypad: All metal, 12 button. Basic functions programmed
through keypad.
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lock body meets BHMA specifications For Grade 1 locks. UL listed to the 10C Positive
Pressure Specification. FCC Certified. ADA
compliant levers
Functions: Classroom function feature stainless steel latchbolt
With 3/4" (1.91cm) projection and deadlocking latch Deadbolt function feature stainless steel deadbolt with 1" (2.55cm) projection, latchbolt with 3/4" (1.91cm) projection and deadlocking latch Deadbolt may be projected from key cylinder from outside door or
turn-piece from inside door.
Cylinder: 1 3/8" (3.5cm) mortise cylinder supplied. Will
Accept 1 3/8" to 1 1/2" (3.5 – 3.82cm) mortise Cylinder. Classroom function supplied with straight
Cam.
Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL DL2700CR/DB MORTISE LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY ON LEAD TIMES FOR SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL2700CRR | ||
| Straight lever classroom | 26D | $1,004.00 |
| Function right hand | ||
| DL2700CRL | ||
| Straight lever classroom | 26D | $1,004.00 |
| Function left hand | ||
| DL2700DBR | ||
| Straight lever deadbolt | 26D | $1,004.00 |
| Function right hand | ||
| DL2700DBL | ||
| Straight lever deadbolt | 26D | $1,004.00 |
| Function left hand | ||
| DL2775CRR | ||
| Regal (curved) lever classroom | 26D | $1,021.00 |
| Function right hand | ||
| DL2775CRL | ||
| Regal (curved) lever classroom | 26D | $1,021.00 |
| Function Left Hand | ||
| DL2775DBR | ||
| Regal (curved) lever deadbolt | 26D | $1,021.00 |
| Function right hand | ||
| DL2775DBL | ||
| Regal (curved) lever deadbolt | 26D | $1,021.00 |
| Function left hand |
NEW! EXPANDED TRILIGY T2 SERIES (con't)
DL2700CR/DB Parts
| CLASSROOM FUNCTION CAMS | DESCRIPTION | LIST PRICE |
|---|---|---|
| HW956-L | Alarm Lock Standard Straight Cam | $5.00 |
| HW956-M | Marks Straight Cam | $5.00 |
| HW956-C | Corbin-Russwin Straight Cam | $5.00 |
| HW956-S | Schlage Straight Cam | $5.00 |
| HW956-A | Arrow Straight Cam | $5.00 |
| HW956-R | Sargent Straight Cam | $5.00 |
| DEADBOLT FUNCTION CAMS | ||
| HW957-L | Alarm Lock Standard Cloverleaf Cam | $5.00 |
| HW957-M | Marks Cloverleaf Cam | $5.00 |
| HW957-C | Corbin-Russwin Cloverleaf Cam | $5.00 |
| HW957-S | Schalge Cloverleaf Cam | $5.00 |
| HW957-A | Arrow Cloverleaf Cam | $5.00 |
| HW957-R | Sargent Cloverleaf Cam | $5.00 |
| HW1141 | Schlage IC Cloverleaf Cam | $5.00 |
| HW904DBR | Right hand deadbolt lock body | $171.00 |
| HW903DBL | Left hand deadbolt lock body | $171.00 |
| HW870CRL | Left Hand Classroom lock body | $171.00 |
| HW875CRR | Right hand Classroom lock body | $171.00 |
| S6065 | Replacement Battery Pack | $38.00 |

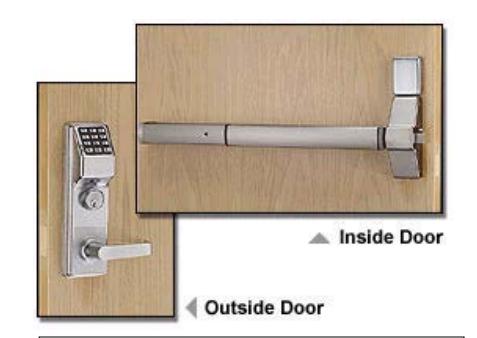

NEW! ALARM LOCK TRILOGY T2 SERIES EXIT TRIM
Battery operated Trilogy T2 keyless access outside trim works with Marks M9900, Von Duprin 99, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8800, Precision 1100, 2100 & Cal Royal 9800, series panic devices. Holds up 100 user codes, 1 master, 10 manager codes and up to 3 one time user codes.
SPECIFICATIONS:
Cylinder: Uses standard rim cylinder to operate key override
function. Will accept 6 or 7 pin interchangeable
core cylinders – see below.
Handing: Non-handed
Power: 5 AA alkaline batteries (included) mounted on inside
of door.
Keypad: Weather-resistant all metal, 12 button. All functions
Programmable through the keypad.
ALL ET SERIES LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| ETDL27 series | 26D | $876.00 |
| ETDL27 series | US3 & US10B | $943.00 |
| ETDL27 series w/Regal lever | 26D | $901.00 |
| ETDL27 series w/Regal lever | US3 & US10B | $969.00 |
| Specify finish on adapter kit | Alarm Lock Standard Rim Cylinder | |
| ET- AL Finish = 26D, US3 & US10B | Adapter kit (Schlage C keyway) | $57.00 |
| ET- AR Finish = 26D, US3 & US10B |
Arrow Standard Rim Cylinder
Adapter kit |
$57.00 |
| ET- AS Finish = 26D, US3 & US10B |
ASSA Standard Rim Cylinder
Adapter kit |
$57.00 |
| ET – C Finish = 26D, US3 & US10B |
Corbin Standard Rim Cylinder
Adapter kit |
$57.00 |
| ET – M Finish = 26D, US3 & US10B |
Medeco Standard Rim Cylinder
Adapter kit |
$57.00 |
| ET – R Finish = 26D, US3 & US10B |
Sargent Standard Rim Cylinder
Adapter kit |
$57.00 |
| ET - S Finish = 26D, US3 & US10B |
Schlage Standard Rim Cylinder
Adapter kit |
$57.00 |
| ET - Y Finish = 26D, US3 & US10B |
Yale Standard Rim Cylinder
Adapter kit |
$57.00 |
| ET – ARIC Finish = 26, 26D, 3, 4, 5, 10B |
Arrow IC 6 & 7 Pin Rim Cylinder
Adapter kit |
$79.00 |
| ET - BIC Finish = 26D, US3 & US10B |
Best IC 6 & 7 Pin Rim Cylinder
Adapter kit |
$79.00 |
| ET - CIC Finish = 26D, US3 & US10B |
Corbin IC Rim Cylinder
Adapter kit |
$79.00 |
| ET – MIC Finish = 26D, US3 & US10B |
Medeco IC 6 & 7 Pin Rim Cylinder
Adapter kit |
$79.00 |
NEW! ALARM LOCK TRILOGY T2 SERIES EXIT TRIM (con't)
| Product | Description | List Price |
|---|---|---|
| Sargent IC Rim Cylinder | ||
|
ET - RIC
Finish = 26D, US3 & US10B |
Adapter kit | $79.00 |
| Schlage IC Rim Cylinder | ||
|
ET - SIC
Finish = 26D, US3 & US10B |
Adapter kit | $79.00 |
| Yale IC 6 Pin Rim Cylinder | ||
|
ET – YIC
Finish = 26D, US3 & US10B |
Adapter kit | $79.00 |
EXTENDED SPINDLES MUST BE PURCHASED SEPARATELY
| S6146 | Extend exit trim to fit 2 – 2 ¾" doors | $112.00 |
|---|---|---|
| Extended Spindle and screws | ||
| S6147 | Extend exit trim to fit 3 – 4" doors | $112.00 |
| Extended Spindle and screws | ||
| S6195 | Extend exit trim to fit 4 ¼ - 5" doors | $112.00 |
| Extended Spindle and screws | ||
| Extended replacement screws with | ||
| SC544 | adjustable lengths (4 per unit) | $21.00 |
PLEASE SEE "HOW TO ORDER" CHART ON PAGE 46 TO PROPERLY ORDER YOUR TRILOGY EXIT TRIM.
IF YOU REQUIRE THE LOCK TO BE PREPPED FOR A THICKER DOOR, YOU MUST ORDER BASED ON THE SELECTIONS SHOWN. THE BASIC MODEL IS PREPPED FOR A 1 5/8" TO 1 7/8" DOOR.
**** PRECISION 2100 SERIES WILL WORK WITH THE VON DUPRIN 99 PREP. YOU MUST GET A MOUNTING PLATE PART # 2141208 FROM PRECISION****
HOW TO ORDER YOUR T2 TRILOGY EXIT LOCK
Below is a "How to Order" guide for the Trilogy Exit Trim products. Please follow this guide when placing orders to avoid any delay in processing your order.
All units are sold with a generic cylinder adapter installed. When you are using a specific brand of rim cylinder, you must purchase a Cylinder Adapter Kit from the chart below.
TRILOGY ELECTRONIC DIGITAL LOCKS
DL2800 SERIES – Electronic battery operated digital lock. Holds up to 200 codes, Master, Management, Supervisor & basic user. 150 event schedule, real time clock & 1,000 event audit trail.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4 " (2 3/8" also available) Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: All metal, 12 button. All functions programmed
through keypad.
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset.
UL listed, 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable
Core Models: Standard model accepts 6 & 7 pin cylinders from
Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
Extended sizes:
Standard and SFIC cylinder preps can be extended for
thicker doors.
$165.00 add on to list for extended lock.
Extended lock legend:
W54 - 2 1/8" W57 - 2 1/4"
W60 - 2 3/8" W64 - 2 1/2"
W70 - 2 3/4" W76 - 3" W83 - 3 1/4"
W89 - 3 1/2"
Note: Locks can be adjusted by +/- 1/8" by adding or removing spacers.
All DL2800 LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL2800 | US26D | $1,078.00 |
| Standard key override | US3 & US10B | $1,171.00 |
| DL2875 | ||
| Standard key override | US26D | $1,102.00 |
| Regal (curved) lever | US3 & US10B | $1,188.00 |
| DL2800IC* | US26D | $1,102.00 |
| Interchangeable core | US3 & US10B | $1,188.00 |
| DL2875IC* | ||
| Interchangeable core | US26D | $1,124.00 |
| Regal (curved) lever | US3 & US10B | $1,206.00 |
| DL2800SK | Mounted DL2800 demo | Call Factory |
| AL-DTMIII | Data Transfer Module | $448.00 |
| Computer interface cable for | ||
| AL-PCI2 | Serial connection includes | $129.00 |
| DL-Windows Software | ||
| USB computer interface cable | ||
| ALPCI2-U | includes DL-Windows software | $237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infrared Printer | $520.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
TRILOGY ELECTRONIC DIGITAL LOCKS
DL3000 SERIES – Electronic battery operated digital lock. Holds up to 300 codes, Master, Management, Supervisor & basic user. 150 event schedule, real time clock & 1,600 event audit trail.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: All metal, 12 button. All functions programmed
through keypad.
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset.
UL listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from Core Models Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks.
IC core models prepped for 6 & 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available.
Extended sizes:
WP standard and SFIC cylinder preps can be extended for thicker doors.
$165.00 add on to list for extended lock.
Extended lock legend: W54 - 2 1/8"
W57 - 2 1/4" W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4" W76 - 3" W83 - 3 1/4" W89 - 3 1/2"
Note: Locks can be adjusted by +/- 1/8" by adding or removing
spacers.
PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS SPECIFY "WP" FOR WEATHER RISISTENT MODEL
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL3000 | US26D | $1,309.00 |
| Standard key override | US3 & US10B | $1,400.00 |
| DL3075 | ||
| Standard key override | US26D | $1,303.00 |
| Regal (curved) lever | US3 & US10B | $1,378.00 |
| DL3000IC* | US26D | $1,303.00 |
| Interchangeable core | US3 & US10B | $1,378.00 |
| DL3075IC* | ||
| Interchangeable core | US26D | $1,328.00 |
| Regal (curved) lever | US3 & US10B | $1,400.00 |
| DL3000WP | US26D | $1,337.00 |
| Weather proof key override | US3 & US10B | $1,405.00 |
| DL3075WP | ||
| Weather proof key override | US26D | $1,360.00 |
| Regal (curved) lever | US3 & US10B | $1,405.00 |
| DL3000WPIC* | US26D | $1,360.00 |
| Weather proof interchangeable core | US3 & US10B | $1,428.00 |
| DL3075WPIC* | ||
| Weather proof interchangeable core | US26D | $1,366.00 |
| Regal (curved) lever | US3 & US10B | $1,404.00 |
| DL3000SK | Mounted DL3000 demo | Call Factory |
| AL-DTMIII | Data Transfer Module | $448.00 |
| Computer interface cable for serial | ||
| AL-PCI2 | connection with DL-Windows Software | $129.00 |
| USB computer interface cable | ||
| ALPCI2-U | includes DL-Windows software | $237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra red Printer | $520.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above**MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
TRILOGY ELECTRONIC DIGITAL LOCKS
DL3200 SERIES – Electronic battery operated digital lock. Holds up to 2,000 codes, Master, Management, Supervisor & basic user. 500 event schedule, multiple "one-time" user codes & 40,000 event audit trail.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: All metal, 12 button. All functions programmed
through keypad.
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical
lockset.
UL listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from
Core Models Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks.
IC core models prepped for 6 & 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
Extended sizes:
Standard and SFIC cylinder preps can be extended for thicker doors.
$165.00 add on to list for extended lock.
Extended lock legend: W54 - 2 1/8"
W57 - 2 1/4"
W60 - 2 3/8"
W64 - 2 1/2"
W70 - 2 3/4"
W76 - 3"
W83 - 3 1/4"
W89 - 3 1/2"
Note: Locks can be adjusted by +/- 1/8" by
adding or removing spacers.
ALL DL3200 LOCKS ARE WEATHER RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL3200 | US26D | $1,342.00 |
| Standard key override | US3 & US10B | $1,423.00 |
| DL3275 | ||
| Standard key override | US26D | $1,371.00 |
| Regal (curved) lever | US3 & US10B | $1,446.00 |
| DL3200IC* | US26D | $1,351.00 |
| Interchangeable core | US3 & US10B | $1,446.00 |
| DL3275IC* | ||
| Interchangeable core | US26D | $1,388.00 |
| Regal (curved) lever | US3 & US10B | $1,457.00 |
| DL3200SK | Mounted DL3200 demo | Call Factory |
| AL-DTMIII | Data Transfer Module | $448.00 |
| Computer interface cable for serial | ||
| AL-PCI2 | connection with DL-Windows Software | $129.00 |
| USB computer interface cable | ||
| ALPCI2-U | includes DL-Windows software | $237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infrared Printer | $520.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
TRILOGY ELECTRONIC DOUBLE SIDED DIGITAL LOCKS
DL5300 SERIES – Double sided electronic battery operated digital lock. Holds up to 2,000 codes, Master, Management, Supervisor & basic user. 500 event schedule, multiple "one-time" user codes & 40,000 event audit trail. Programmable keypad on both sides of the door. Only primary keypad has data transfer capability. Key override is only operable on the primary side. The key on the secondary side is used only to remove the lever and access the batteries.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: All metal, 12 button. All functions programmed
through keypad on both sides of
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset.
UL listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from
Core Models Best, Falcon, and Arrow only .
ALL DL5300 LOCKS ARE WEATHER RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL5300 | US26D | $1,869.00 |
| Standard key override | US3 & US10B | $1,918.00 |
| DL5375 | ||
| Standard key override | US26D | $1,884.00 |
| Regal (curved) lever | US3 & US10B | $1,952.00 |
| DL5300IC | US26D | $1,874.00 |
| Interchangeable core | US3 & US10B | $1,974.00 |
| DL5375IC | ||
| Interchangeable core | US26D | $1,883.00 |
| Regal (curved) lever | US3 & US10B | $1,986.00 |
| DL5300SK | Mounted DL5300 demo | Call Factory |
| AL-DTMIII | Data Transfer Module | $448.00 |
| Computer interface cable for serial | ||
| AL-PCI2 | connection with DL-Windows Software | $129.00 |
| USB computer interface cable | ||
| ALPCI2-U | includes DL-Windows software | $237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra red Printer | $520.00 |
Note: Key override operates latch on primary side only. Key override on secondary side protects the battery pack.
Extended sizes:
thicker doors.
extended lock.
Standard and SFIC cylinder preps can be extended for
$165.00 add on to list for
Extended lock legend: W54 - 2 1/8" W57 - 2 1/4" W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4" W76 - 3" W83 - 3 1/4" W89 - 3 1/2"
Note: Locks can be adjusted by +/- 1/8" by adding or removing
spacers.
Price Book 2017
TRILOGY ELECTRONIC DIGITAL LOCKS WITH PRIVACY & RESIDENCY FEATURES
DL4100 SERIES - Electronic battery operated digital lock. Holds up to 2000 codes, Master,
Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Privacy feature will lock out all users for programmed amount of time. Residency feature-allows
exiting without having to lock the door.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: Weatherproof all metal, 12 button. All functions
programmed through keypad.
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset.
UL listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Core Models:
Standard model accepts 6 & 7 pin cylinders from
Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 and 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
ALL DL4100 LOCKS ARE WEATHER RESISTANT
PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL4100 | US26D | $1,026.00 |
| Standard key override | US3 & US10B | $1,096.00 |
| DL4175 | ||
| Standard key override | US26D | $1,050.00 |
| w/Regal (curved) lever | US3 & US10B | $1,119.00 |
| DL4100IC* | US26D | $1,050.00 |
| Interchangeable core prepped for Best | US3 & US10B | $1,119.00 |
| DL4175IC* | ||
| Interchangeable core prepped for Best | US26D | $1,067.00 |
| W/Regal (curved) lever | US3 & US10B | $1,142.00 |
| DL4100SK | Mounted DL4100 Demo | Call Factory |
| AL-PCI2 |
Computer interface cable for serial
connection includes DL-Windows software |
$129.00 |
| USB computer interface cable | ||
| ALPCI2-U | includes DL-Windows software | $237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above.
TRILOGY ELECTRONIC DIGITAL PROXIMITY LOCKS
PDL3000 SERIES - Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: Weatherproof all metal, 12 button. All functions
programmed through keypad. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset.
UL listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from Core Models Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks.
IC core models prepped for 6 and 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
ALL PDL3000 LOCKS ARE WEATHER RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| Extended sizes: | |
|---|---|
Standard and SFIC cylinder preps can be extended for
thicker doors.
$165.00 add on to list for extended lock.
Extended lock legend:
W54 - 2 1/8" W57 - 2 1/4"
W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4" W76 - 3"
W83 - 3 1/4" W89 - 3 1/2"
Note: Locks can be adjusted by +/- 1/8" by adding or removing spacers.
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL3000K | US26D | $1,861.00 |
| Key override audit trail | US10B | $1,927.00 |
| PDL3000 | US26D | $1,836.00 |
| Standard key override | US3 & US10B | $1,916.00 |
| PDL3075 | ||
| Standard key override | US26D | $1,866.00 |
| Regal (curved) lever | US3 & US10B | $1,939.00 |
| PDL3000IC* | US26D | $1,866.00 |
| Interchangeable core | US3 & US10B | $1,939.00 |
| PDL3075IC* | ||
| Interchangeable core | US26D | $1,886.00 |
| Regal (curved) lever | US3 & US10B | $1,939.00 |
| PDL3000SKLE | Mounted PDL3000 demo | Call Factory |
| Computer interface cable for serial | ||
| AL-PCI2 | Connection includes DL-Windows | $129.00 |
| Software | ||
| ALPCI2-U | USB computer interface cable | $237.00 |
| includes DL-Windows software | ||
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $ 80.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
TRILOGY ELECTRONIC DOUBLE SIDED DIGITAL PROXIMITY LOCKS
PDL5300 SERIES – Double sided electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, 40,000 event audit trail. Programmable keypad on both sides of the door. Only primary keypad has data transfer capability Will read most HID card and keyfob formats. Key override is only operable on the primary side. The key on the secondary side is use only to remove the lever and access the batteries.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: Weatherproof all metal, 12 button. All functions
programmed through keypad. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset.
UL listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders
can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
Core Models Best, Falcon, and Arrow.
ALL PDL5300 LOCKS ARE WEATHER RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL5300 | US26D | $2,228.00 |
| Standard key override | US3 & US10B | $2,295.00 |
| PDL5375 | ||
| Standard key override | US26D | $2,251.00 |
| Regal (curved) lever | US3 & US10B | $2,324.00 |
| PDL5300IC | US26D | $2,245.00 |
| Interchangeable core | US3 & US10B | $2,287.00 |
| PDL5375IC | ||
| Interchangeable core | US26D | $2,273.00 |
| Regal (curved) lever | US3 & US10B | $2,314.00 |
| PDL5300SK | Mounted PDL3000 demo | Call Factory |
| Computer interface cable for serial | ||
| AL-PCI2 | Connection includes DL-Windows | $129.00 |
| ALPCI2-U | USB computer interface cable | $237.00 |
| includes DL-Windows software | ||
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
Note: Key override operates latch on primary side only. Key override on secondary side protects the battery pack.
TRILOGY ELECTRONIC DIGITAL PROXIMITY LOCKS
PL3000 SERIES - Electronic battery operated proximity only lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included) Programming: 9 prox programming cards included
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA certified Grade 1 heavy duty cylindrical lockset.
UL listed to the 10C Positive Pressure Specification.
FCC Certified. ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from
Core Models Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks.
IC core models prepped for 6 and 7 pin Yale, Medeco,
Sargent, Corbin-Russwin & Schlage are also available
ALL PL3000 PROXIMITY LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES
ON SPECIAL FINISHES AND IC PREPS
Extended sizes:
Standard and SFIC cylinder preps can be extended for
thicker doors.
$165.00 add on to list for extended lock.
Extended lock legend:
W54 - 2 1/8" W57 - 2 1/4"
W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4"
W76 - 3" W83 - 3 1/4" W89 - 3 1/2"
Note: Locks can be adjusted by +/- 1/8" by adding or removing
spacers.
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PL3000 | US26D | $1,836.00 |
| Standard key override | US3 & US10B | $1,916.00 |
| PL3075 | ||
| Standard key override | US26D | $1,866.00 |
| Regal (curved) lever | US3 & US10B | $1,939.00 |
| PL3000IC* | US26D | $1,866.00 |
| Interchangeable core | US3 & US10B | $1,939.00 |
| PL3075IC* | ||
| Interchangeable core | US26D | $1,886.00 |
| Regal (curved) lever | US3 & US10B | $1,939.00 |
| PL3000SK | Mounted PL3000 Demo | Call Factory |
| AL-PCI2 |
Computer interface cable for serial
connection includes DL-Windows software |
$129.00 |
| ALPCI2-U | USB computer interface cable | $237.00 |
| includes DL-Windows software | ||
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| ALHID1386 |
Proximity and Photo ID
Card 100 per box |
$927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
Extended sizes:
thicker doors.
extended lock.
Standard and SFIC cylinder preps can be extended for
$165.00 add on to list for
Extended lock legend: W54 - 2 1/8" W57 - 2 1/4" W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4" W76 - 3" W83 - 3 1/4" W89 - 3 1/2"
Note: Locks can be adjusted by +/- 1/8" by adding or removing
spacers.
TRILOGY ELECTRONIC DIGITAL PROXIMITY LOCKS WITH PRIVACY & RESIDENCY FEATURES
PDL4100 SERIES - Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats. Privacy feature will lock out all users for a programmed amount of time. Residency feature-allows exiting without having to lock the door.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible
Handing: Non-handed
Power: 5 AA alkaline batteries (included)
Keypad: Weatherproof all metal, 12 button. All functions
programmed through keypad. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA certified Grade 1 heavy duty cylindrical lockset.
UL listed to the 10C Positive Pressure Specification.
FCC certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders
can also be used with HW620 tailpiece (supplied) Interchangeable Standard model accepts 6 & 7 pin cylinders from Core Models: Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba
Peaks.
IC core models prepped for 6 pin and 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
ALL PDL4100 LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| US26D | $1,492.00 | |
| PDL4100 | US3 & US10B | $1,578.00 |
| US26D | $1,508.00 | |
| PDL4175 | US3 & US10B | $1,612.00 |
| US26D | $1,508.00 | |
| PDL4100IC* | US3 & US10B | $1,612.00 |
| US26D | $1,543.00 | |
| PDL4175IC* | US3 & US10B | $1,612.00 |
| PDL4100SK | Mounted PDL4100 demo | Call Factory |
| Computer interface cable for serial | ||
| AL-PCI2 | connection Includes DL-Windows | $129.00 |
| ALPCI2-U | USB computer interface cable | $237.00 |
| includes DL-Windows software | ||
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
TRILOGY CYLINDRICAL LOCK PARTS
| Part Number | Description | List Price |
|---|---|---|
| S6054 |
Complete outside housing for
DL2700WP available finishes 26D, 3, & 10B |
$358.00 |
| S6126 |
Complete outside housing for DL2800WP
available finishes 26D, 3, & 10B |
$457.00 |
| S6047 |
Complete outside housing for DL3000WP
available finishes 26D, 3, & 10B |
$696.00 |
| S6122 |
Complete outside housing for PDL3000
available finishes 26D, 3, & 10B |
$1,087.00 |
| S6163 |
Complete outside housing for DL4100
available finishes 26D, 3, & 10B |
$524.00 |
| S6164 |
Complete outside housing for PDL4100
available finishes 26D, 3, & 10B |
$893.00 |
| S6045 |
Standard key override lock body
complete |
$326.00 |
| S6046 |
Best prep interchangeable core lock body
complete |
$326.00 |
| S6045-C/R |
Corbin/Sargent prep interchangeable core
lock body complete |
$358.00 |
| S6045-Y/M |
Yale/Medeco prep interchangeable core
lock body complete |
$358.00 |
| S6045-S |
Schlage prep interchangeable core lock
body complete |
$358.00 |
| HW614C |
Outside lever standard prep available
finishes 26D, 3, & 10B Outside lever Best IC prep available |
$37.00 |
| HW616C |
finishes 26D, 3, & 10B
Inside lever for all cylindrical locks |
$37.00 |
| HW615D |
available finishes 26D, 3, & 10B
Battery Cover available finishes 26D, 3, |
$37.00 |
| HW592G |
& 10B
Latch bolt 2 ¾" available finishes 26D, 3, |
$21.00 |
| P5849 | & 10B | $26.00 |
| S5980-1 | Latch bolt 2 3/8" 26D finish | $26.00 |
| S5980-2 | Latch bolt 2 3/8" US5 finish | $26.00 |
| HW470 |
4 7/8" strike available 26D, 3, & 10B
2 ¾" strike available finishes 26D, 3, & |
$15.00 |
| HW577 | 10B | $16.00 |
| Standard cylinder w/2 keys available | ||
| HW596F | finishes 26D, 3, & 10B | $26.00 |
| S6148 | Lever return spring | $5.00 |
| S6061 | Replacement battery pack cylindrical | $47.00 |
|
S6172
HW580 |
Replacement battery pack Double sided
Schlage® key override tailpiece for |
$30.00 |
| Cylindrical locks | $11.00 | |
| HW620D |
Lori® key override tailpiece for
Cylindrical locks |
$11.00 |
| HW597E |
Alarm Lock cylindrical key override
tailpiece |
$11.00 |
| HW598D |
Cylindrical Interchangeable core
Tailpiece Best prep |
$11.00 |
| S6070 |
IC tailpiece bag assembly w/washer
Specify for the following: S – Schalge, B – Best, R – Sargent, M – Medeco, Y – Yale, C – Corbin |
$16.00 |
| MX942 | Replacement DTM cable | $20.00 |
TRILOGY CYLINDRICAL LOCK PARTS (con't)
| Part Number | Description | List Price |
|---|---|---|
| WA160C |
Washer used on HW620, HW597C &
HW598D |
$3.00 |
| S6072 | Set of spacers for doors 1 3/8" or less | $70.00 |
| CW-27AB | Wrap around plate in US5 | $65.00 |
| CW-27PB | Wrap around plate in US3 | $70.00 |
| CW-27S | Wrap around plate US32D | $70.00 |
| DL2700DJ | Drilling Jig for cylindrical locks | $417.00 |
TRILOGY LOCK ACCESSORIES
| Computer interface cable for serial | ||
|---|---|---|
| AL-PCI2 | Connection includes DL-Windows | $129.00 |
| Software | ||
| ALPCI2-U | USB computer interface cable | $237.00 |
| includes DL-Windows software | ||
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| Trilogy DL-Windows and Networx | ||
| Connectivity software training videos | ||
| divided into 4 easy to follow sections | ||
| ALTRAINDVD | conducted into a classroom style | $0.00 + $15.95 shipping and handling |
| environment. Training videos cover | charge. Please contact customer service at | |
| basics, getting started, schedules and | 1-800-ALA-LOCK to place your order via | |
| times zones, programming Trilogy locks | credit card, or email | |
| via a laptop and the DTM along with how | sales@alarmlock.com | |
| to connect and bring Networx on line. |
TRILOGY & NETWORX REMOTE RELEASE PRODUCTS
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| RR-TRILOGYKIT |
Remote release kit for all Trilogy
Cylindrical models includes the RR 1BUTTON for desk mount applications and RR-RECEIVER which is designed to be installed inside the battery compartment next to the battery pack of any cylindrical Trilogy lock. The RR RECEIVER connects to the 2 white remote release wires inside the battery compartment and to the black and red battery pack wires to power the receiver. These kits will retro fit to any existing cylindrical Trilogy manufactured since 1994. |
$221.00 |
| RR-RECEIVER |
RR-RECEIVER is designed to be
installed next to the battery pack of any cylindrical Trilogy lock. The RR RECEIVER connects to the 2 white remote release wires and to the black and red battery pack wires and will retro fit to any existing cylindrical Trilogy manufactured since 1994. You will need to purchase separately either an RR 1BUTTON OR 4BKEYFOB to activate the receiver |
$128.00 |
| RR-1BUTTON |
Remote release desk mounted button
designed to be used with any existing Networx lock enrolled with a simple keypad program. Must update the firmware of your existing Networx Lock. Also can be used with an RR-RECEIVER to any existing Trilogy Cylindrical Lock, RR-RECEIVER sold separately. |
$92.00 |
| RR-4BKEYFOB |
Remote release 4 button key fob designed
to be used with any existing Networx lock enrolled with a simple keypad program. Must update the firmware of your existing Networx Lock. Also can be used with an RR-RECEIVER to any existing Trilogy Cylindrical Lock, RR-RECEIVER sold separately. |
$103.00 |
|
RR-MORTISEKIT
RR-EXITTRIMKIT |
Remote release kit for Mortise Locks
Remote release kit for Exit Trim Locks *Both include RR-1BUTTON and RECEIVER mounted on a Lexan battery cover.* |
$242.00
$242.00 |
Note: The Remote Release Products follow the Networx Discount Structure. Will not work with Narrow Stile series locksets.
TRILOGY ELECTRONIC DIGITAL MORTISE LOCKS
DL3500 SERIES - Electronic battery operated digital mortise lock. Holds up to 300 codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail. SPECIFICATIONS:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset: 2 3/4" standard
Strike: 1 1/4" x 4 7/8"strike included
Handing: Specify RH or LH when ordering, lock is reversible
In the field
Power: 5 AA alkaline batteries (included)
Keypad: All metal, 12 button. All functions programmed
through keypad.
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lock body meets BHMA specifications
For Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA
compliant levers
Functions: Classroom function feature stainless steel latchbolt
With 3/4" (1.91cm) projection and deadlocking latch Deadbolt function feature stainless steel deadbolt with 1" (2.55cm) projection, latchbolt with 3/4" (1.91cm) projection and deadlocking latch Deadbolt may be projected from key cylinder from outside door or
turn-piece from inside door
Cylinder: 1 3/8" (3.5cm) mortise cylinder supplied. Will
Accept 1 3/8" to 1 1/2" (3.5 – 3.82cm) mortise Cylinder. Classroom function supplied with straight Cam and deadbolt function supplied with cloverleaf
Cam
Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL DL3500 MORTISE LOCKS ARE WEATHER-RESISTANT
PLEASE CHECK WITH FACTORY ON LEAD TIMES FOR SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL3500CRR | ||
| Straight lever classroom function | US26D | $1,516.00 |
| Right hand | US3 & US10B | $1,590.00 |
| DL3500CRL | ||
| Straight lever classroom function | US26D | $1,516.00 |
| Left Hand | US3 & US10B | $1,590.00 |
| DL3500DBR | ||
| Straight lever deadbolt function | US26D | $1,516.00 |
| Right hand | US3 & US10B | $1,590.00 |
| DL3500DBL | ||
| Straight lever deadbolt function | US26D | $1,516.00 |
| Left Hand | US3 & US10B | $1,590.00 |
| DL3575CRR | ||
| Regal (curved) lever classroom | US26D | $1,532.00 |
| Function right hand | US3 & US10B | $1,606.00 |
| DL3575CRL | ||
| Regal (curved) lever classroom | US26D | $1,532.00 |
| Function left hand | US3 & US10B | $1,606.00 |
| DL3575DBR | ||
| Regal (curved) lever deadbolt | US26D | $1,532.00 |
| Function right hand | US3 & US10B | $1,606.00 |
| DL3575DBL | ||
| Regal (curved) lever deadbolt | US26D | $1,532.00 |
| Function left hand | US3 & US10B | $1,606.00 |
TRILOGY ELECTRONIC DIGITAL MORTISE LOCKS (con't)
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| DL3500SK |
Mounted sales kit, straight lever.
Available in classroom or deadbolt function. |
Call Factory |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PCI2 |
Computer interface cable for serial
connection includes DL-Windows software |
$129.00 |
| ALPCI2-U |
USB computer interface cable
includes DL-Windows software |
$237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra red Printer | $520.00 |
| ALTRAINDVD |
Trilogy DL-Windows and Networx
Connectivity software training videos divided into 4 easy to follow sections conducted into a classroom style environment. Training videos cover basics, getting started, schedules and times zones, programming Trilogy locks via a laptop and the DTM along with how |
$0.00 + $15.95 shipping and handling
charge. Please contact customer service at 1-800-ALA-LOCK to place your order via credit card, or email sales@alarmlock.com |
| to connect and bring Networx on line. |
MORTISE LOCK PARTS
| CLASSROOM FUNCTION CAMS | DESCRIPTION | LIST PRICE |
|---|---|---|
| HW956-L | Alarm Lock Standard Straight Cam | $5.00 |
| HW956-M | Marks Straight Cam | $5.00 |
| HW956-C | Corbin-Russwin Straight Cam | $5.00 |
| HW956-S | Schlage Straight Cam | $5.00 |
| HW956-A | Arrow Straight Cam | $5.00 |
| HW956-R | Sargent Straight Cam | $5.00 |
| DEADBOLT FUNCTION CAMS | ||
| HW957-L | Alarm Lock Standard Cloverleaf Cam | $5.00 |
| HW957-M | Marks Cloverleaf Cam | $5.00 |
| HW957-C | Corbin-Russwin Cloverleaf Cam | $5.00 |
| HW957-S | Schalge Cloverleaf Cam | $5.00 |
| HW957-A | Arrow Cloverleaf Cam | $5.00 |
| HW957-R | Sargent Cloverleaf Cam | $5.00 |
| HW1141 | Schlage IC Cloverleaf Cam | $5.00 |
| S6123 |
DL3500 complete outside housing
available in 26D, US3 & US10B |
$1,008.00 |
|---|---|---|
| S6175 | Replacement lever support spring | $3.00 |
| S6192 |
Lever and spring upgrade kit
Standard lever – 26D, 10B, US3 |
$54.00 |
| S6193 |
Lever and spring upgrade kit
Regal lever – 26D, 10B, US3 |
$80.00 |
| HW904DBR | Right hand deadbolt lock body | $171.00 |
| HW903DBL | Left hand deadbolt lock body | $171.00 |
| HW870CRL | Left Hand Classroom lock body | $171.00 |
| HW875CRR | Right hand Classroom lock body | $171.00 |
| S6065 | Replacement Battery Pack | $38.00 |
TRILOGY ELECTRONIC DIGITAL MORTISE LOCKS WITH PRIVACY & RESIDENCY FEATURES
DL4500 SERIES - Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail. Privacy feature will lock out all users for programmed amount of time. Residency feature-allows exiting without having to lock the door.
SPECIFICATIONS:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset: 2 3/4" standard
Strike: 1 1/4" x 4 7/8"strike included
Handing: Specify RH or LH when ordering, lock is reversible
In the field
Power: 5 AA alkaline batteries (included)
Keypad: All metal, 12 button. All functions programmed
through keypad.
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lockbody meets BHMA specifications
For Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA
compliant levers
Functions: Deadbolt function feature stainless steel deadbolt with
1" (2.55cm) projection, latchbolt with 3/4" (1.91cm) projection and deadlocking latch Deadbolt may be projected from key cylinder from outside door or
turn-piece from inside door
Cylinder: 1 3/8" (3.5cm) mortise cylinder supplied. Will
Accept 1 3/8" to 1 1/2" (3.5 – 3.82cm) mortise Cylinder. Deadbolt function supplied with cloverleaf
Cam
Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL DL4500 LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL4500DBR | ||
| Straight lever deadbolt function | US26D | $1,142.00 |
| Right hand | US3 & US10B | $1,216.00 |
| DL4500DBL | ||
| Straight lever deadbolt function | US26D | $1,142.00 |
| Left Hand | US3 & US10B | $1,216.00 |
| DL4575DBR | ||
| Regal (curved) lever deadbolt | US26D | $1,164.00 |
| Function right hand | US3 & US10B | $1,233.00 |
| DL4575DBL | ||
| Regal (curved) lever deadbolt | US26D | $1,164.00 |
| Function left hand | US3 & US10B | $1,233.00 |
| Computer interface cable for serial | ||
| AL-PCI2 | connection includes DL-Windows | $129.00 |
| software | ||
| Computer interface cable for serial and | ||
| ALPCI2-U | USB computer interface cable includes | $237.00 |
| DL-Windows software | ||
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| DL4500SK | Mounted DL4500 Demo | Call Factory |
TRILOGY ELECTRONIC PROXIMITY MORTISE LOCKS
PDL3500/PL3500 - Electronic battery operated digital mortise lock. Holds up to 2000 user codes, Master, Management, Supervisor & basic user. 500 scheduled events, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats.
SPECIFICATIONS:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset: 2 3/4" standard
Strike: 1 1/4" x 4 7/8"strike included
Handing: Specify RH or LH when ordering, lock is reversible
In the field
Power: 5 AA alkaline batteries (included)
Keypad: Weatherproof all metal, 12 button. All functions
programmed through keypad. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lockbody meets BHMA specifications
For Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA
compliant levers
Functions: Classroom function feature stainless steel latchbolt
With 3/4" (1.91cm) projection and deadlocking latch Deadbolt function feature stainless steel deadbolt with 1" (2.55cm) projection, latchbolt with 3/4" (1.91cm) projection and deadlocking latch Deadbolt may be projected from key cylinder from outside door or
turn-piece from inside door
Cylinder: 1 3/8" (3.5cm) mortise cylinder supplied. Will
Accept 1 1/4" to 1 1/2" (3.5 – 3.82cm) mortise Cylinder. Classroom function supplied with straight Cam and deadbolt function supplied with cloverleaf
Cam
Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL PDL3500 LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL3500CRR | ||
| Straight lever classroom function | US26D | $1,940.00 |
| Right hand | US3 & US10B | $2,020.00 |
| PDL3500CRL | ||
| Straight lever classroom function | US26D | $1,940.00 |
| Left Hand | US3 & US10B | $2,020.00 |
| PDL3500DBR | ||
| Straight lever deadbolt function | US26D | $1,940.00 |
| Right hand | US3 & US10B | $2,020.00 |
| PDL3500DBL | ||
| Straight lever deadbolt function | US26D | $1,940.00 |
| Left Hand | US3 & US10B | $2,020.00 |
| PDL3575CRR | ||
| Regal (curved) lever classroom | US26D | $1,956.00 |
| Function right hand | US3 & US10B | $2,037.00 |
| PDL3575CRL | ||
| Regal (curved) lever classroom | US26D | $1,956.00 |
| Function left hand | US3 & US10B | $2,037.00 |
TRILOGY ELECTRONIC PROXIMITY MORTISE LOCKS (con't) PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | DESCRIPTION | LIST PRICE |
| PDL3575DBR | ||
| Regal (curved) lever deadbolt | US26D | $1,956.00 |
| Function right hand | US3 & US10B | $2,037.00 |
| PDL3575DBL | ||
| Regal (curved) lever deadbolt | US26D | $1,956.00 |
| Function left hand | US3 & US10B | $2,037.00 |
| Mounted sales kit, straight lever. | ||
| PDL3500SK/26D | Available in classroom or deadbolt | Call Factory |
| function. | ||
| PL3500CRR | ||
| Straight lever classroom function | US26D | $1,940.00 |
| Right hand | US3 & US10B | $2,020.00 |
| PL3500CRL | ||
| Straight lever classroom function | US26D | $1,940.00 |
| Left Hand | US3 & US10B | $2,020.00 |
| PL3500DBR | ||
| Straight lever deadbolt function | US26D | $1,940.00 |
| Right hand | US3 & US10B | $2,020.00 |
| PL3500DBL | ||
| Straight lever deadbolt function | US26D | $1,940.00 |
| Left Hand | US3 & US10B | $2,020.00 |
| PL3575CRR | ||
| Regal (curved) lever classroom | US26D | $1,956.00 |
| Function right hand | US3 & US10B | $2,037.00 |
| PL3575CRL | ||
| Regal (curved) lever classroom | US26D | $1,956.00 |
| Function left hand | US3 & US10B | $2,037.00 |
| PL3575DBR | ||
| Regal (curved) lever deadbolt | US26D | $1,956.00 |
| Function right hand | US3 & US10B | $2,037.00 |
| PL3575DBL | ||
| Regal (curved) lever deadbolt | US26D | $1,956.00 |
| Function left hand | US3 & US10B | $2,037.00 |
| Computer interface cable for serial | ||
| AL-PCI2 | connection includes DL-Windows | $129.00 |
| software | ||
| USB computer interface cable includes | ||
| ALPCI2-U | DL-Windows software | $237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| Trilogy DL-Windows and Networx | ||
| Connectivity software training videos | ||
| divided into 4 easy to follow sections | ||
| ALTRAINDVD | conducted into a classroom style | $0.00 + $15.95 shipping and handling |
| environment. Training videos cover | charge. Please contact customer service at | |
| basics, getting started, schedules and | 1-800-ALA-LOCK to place your order via | |
| times zones, programming Trilogy locks | credit card, or email | |
| via a laptop and the DTM along with how | sales@alarmlock.com | |
| to connect and bring Networx on line. |
TRILOGY ELECTRONIC DIGITAL PROXIMITY MORTISE LOCKS WITH PRIVACY & RESIDENCY FEATURES
PDL4500 - Electronic battery operated digital proximity lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail. Will read most HID card and keyfob formats. Privacy feature will lock out all users for a programmed amount of time. Residency feature-allows exiting without having to lock the door.
SPECIFICATIONS:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset: 2 3/4" standard
Strike: 1 1/4" x 4 7/8"strike included
Handing: Specify RH or LH when ordering, lock is reversible
In the field
Power: 5 AA alkaline batteries (included)
Keypad: Weatherproof all metal, 12 button. All functions
programmed through keypad. Proximity antenna housing
molded of ultra high strength, impact resistant Lexan®
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lockbody meets BHMA specifications
For Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA
compliant levers
Functions: Deadbolt function feature stainless steel deadbolt with
1" (2.55cm) projection, latchbolt with 3/4" (1.91cm) projection and deadlocking latch Deadbolt may be projected from key cylinder from outside door or
turn-piece from inside door
Cylinder: 1 3/8" (3.5cm) mortise cylinder supplied. Will
Accept 1 1/4" to 1 1/2" (3.5 – 3.82cm) mortise
Cylinder. Deadbolt function supplied with cloverleaf cam Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL PDL4500 LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL4500DBR | ||
| Straight lever deadbolt function | US26D | $1,664.00 |
| Right hand | US3 & US10B | $1,744.00 |
| PDL4500DBL | ||
| Straight lever deadbolt function | US26D | $1,664.00 |
| Left Hand | US3 & US10B | $1,744.00 |
| PDL4575DBR | ||
| Regal (curved) lever deadbolt | US26D | $1,682.00 |
| Function right hand | US3 & US10B | $1,757.00 |
| PDL4575DBL | ||
| Regal (curved) lever deadbolt | US26D | $1,682.00 |
| Function right hand | US3 & US10B | $1,757.00 |
| PDL4500SK/26D | Mounted Sales Demo | Call Factory |
| AL-PCI2 |
Computer interface cable for serial
connection includes DL-Windows software |
$129.00 |
| ALPCI2-U | USB computer interface cable | $237.00 |
| includes DL-Windows software | ||
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
MORTISE LOCK ACCESSORIES
| ALHID1326 |
Proximity Access Cards 100 Per Box
$505.00 |
|
|---|---|---|
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| Trilogy DL-Windows and Networx | ||
| Connectivity software training videos | ||
| divided into 4 easy to follow sections | ||
| ALTRAINDVD | conducted into a classroom style | $0.00 + $15.95 shipping and handling |
| environment. Training videos cover | charge. Please contact customer service at | |
| basics, getting started, schedules and | 1-800-ALA-LOCK to place your order via | |
| times zones, programming Trilogy locks | credit card, or email | |
| via a laptop and the DTM along with how | sales@alarmlock.com | |
| to connect and bring Networx on line. | ||
MORTISE LOCK PARTS
| CLASSROOM FUNCTION CAMS | ||
|---|---|---|
| HW956-L | Alarm Lock Standard Straight Cam | $5.00 |
| HW956-M | Marks Straight Cam | $5.00 |
| HW956-C | Corbin-Russwin Straight Cam | $5.00 |
| HW956-S | Schlage Straight Cam | $5.00 |
| HW956-A | Arrow Straight Cam | $5.00 |
| HW956-R | Sargent Straight Cam | $5.00 |
| DEADBOLT FUNCTION CAMS | ||
| HW957-L | Alarm Lock Standard Cloverleaf Cam | $5.00 |
| HW957-M | Marks Cloverleaf Cam | $5.00 |
| HW957-C | Corbin-Russwin Cloverleaf Cam | $5.00 |
| HW957-S | Schalge Cloverleaf Cam | $5.00 |
| HW957-A | Arrow Cloverleaf Cam | $5.00 |
| HW957-S | Sargent Cloverleaf Cam | $5.00 |
| HW1141 | Schlage IC Cloverleaf Cam | $5.00 |
| S6165 |
PDL3500 complete outside housing
available in 26D, US3 & US10B |
$1,087.00 |
|---|---|---|
| S6175 | Replacement lever support spring | $3.00 |
| S6192 |
Lever and spring upgrade kit
Standard lever – 26D, 10B, US3 |
$54.00 |
| S6193 |
Lever and spring upgrade kit
Regal lever – 26D, 10B, US3 |
$80.00 |
| HW904DBR | Right hand deadbolt lock body | $171.00 |
| HW903DBL | Left hand deadbolt lock body | $171.00 |
| HW870CRL | Left Hand Classroom lock body | $171.00 |
| HW875CRR | Right hand Classroom lock body | $171.00 |
| S6065 | Replacement Battery Pack | $38.00 |
TRILOGY NARROW STYLE LOCK PRODUCTS
DL1200 SERIES – Aluminum door retrofit outside trim. Works with Adams Rite®
4500, 4700 & 4900 series deadlatch. 4070, MS18505 & MS19505
series deadbolts. 100 user codes, master,
Manager, basic user and 3 "one-time" user codes.
SPECIFICATIONS:
Door thickness: supports style 1 ¾" only
Backset: supports 31/32", 1 1/8", & 1 ½"
Latch: works with Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 Series spring latch and MS1850S & MS1950S series deadbolts
Handing: non-handed
Power: uses 2 DL123A lithium batteries
Keypad: all metal, vandal resistant 12 button keypad supports 3-5 digit
PIN codes
Cylinder: supplied with 6 pin mortise standard mortise cylinder SC1
Keyway. Use 1 3/8" or 1 ½" cylinders
Cams: cam supplied works with generic Alarm Lock cylinder. Other
Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent & Schlage. IC type cams for Best, Corbin-Russwin,
Medeco, Schlage & Yale are also available
ALL DL1200 SERIES LOCKS ARE WEATHER-RESISTANT
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| Lever set works with Adams Rite® | ||
| 4500, 4700, & 4900 series deadlatch | ||
| DL1200/26D1 | 26D finish | $672.00 |
| Lever set works with Adams Rite® | ||
| 4500, 4700 & 4900 series deadlatch | ||
| DL1200/10B1 | 10B finish | $672.00 |
| Thumb turn works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| DL1225/26D2 | 26D finish | $672.00 |
| Thumb turn works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| DL1225/10B2 | 10B finish | $672.00 |
| Knob works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| DL1250/26D2 | 26D finish | $672.00 |
| Knob works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| DL1250/10B2 | 10B finish | $672.00 |
TRILOGY NARROW STYLE LOCK PRODUCTS
DL1300 SERIES – Aluminum door retrofit outside trim. Works with Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 series spring latch and MS18505 & MS19505 series deadbolts. 2,000 user codes, master, Manager, basic user and multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail.
SPECIFICATIONS:
Door thickness: supports style 1 ¾" only Backset: supports 31/32", 1 1/8", & 1 ½"
Latch: works with Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900
Series spring latch and MS1850S & MS1950S series deadbolts
Handing: non-handed
Power: uses 2 DL123A lithium batteries
Keypad: all metal, vandal resistant 12 button keypad supports 3-5 digit
PIN codes
Cylinder: supplied with 6 pin mortise standard mortise cylinder SC1
Keyway. Use 1 3/8" or 1 ½" cylinders
Cams: cam supplied works with generic Alarm Lock cylinder. Other
Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent & Schlage. IC type cams for Best, Corbin-Russwin,
Medeco, Schlage & Yale are also available
ALL DL1300 SERIES LOCKS ARE WEATHER RESISTANT
|
PRODUCT
DESCRIPTION |
|||
|---|---|---|---|
| Lever set works with Adams Rite® | LIST PRICE | ||
| 4500, 4700, & 4900 series deadlatch | |||
| DL1300/26D1 | 26D finish | $843.00 | |
| Lever set works with Adams Rite® | |||
| 4500, 4700, & 4900 series deadlatch | |||
| DL1300/10B1 | 10B finish | $843.00 | |
| Thumb turn works with Adams Rite® | |||
| 4070, MS18505, MS1950 series | |||
| deadbolt | |||
| DL1325/26D2 | 26D finish | $843.00 | |
| Thumb turn works with Adams Rite® | |||
| 4070, MS18505, MS1950 series | |||
| deadbolt | |||
| DL1325/10B2 | 10B finish | $843.00 | |
| Knob works with Adams Rite® | |||
| 4070, MS18505, MS1950 series | |||
| deadbolt | |||
| DL1350/26D2 | 26D finish | $843.00 | |
| Knob works with Adams Rite® | |||
| 4070, MS18505, MS1950 series | |||
| deadbolt | |||
| DL1350/10B2 | 10B finish | $843.00 | |
| Computer interface cable for serial | |||
| AL-PCI2 | connection includes DL-Windows | $129.00 | |
| software | |||
| USB computer interface cable includes | |||
| ALPCI2-U | DL-Windows software | $237.00 | |
| AL-IR1 | Infra-red Printer | $520.00 | |
| AL-DTMIII | Data Transfer Module | $448.00 | |
TRILOGY NARROW STILE LOCK PRODUCTS
PDL1300 SERIES – Aluminum door retrofit outside trim. Works with Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 series spring latch and MS18505 & MS19505 series deadbolts. 2,000 user codes, master, Manager, basic user and multiple "one-time" user codes. Proximity capabilities. 500 event schedule, real time clock & 40,000 event audit trail.
SPECIFICATIONS:
Door thickness: supports style 1 ¾" only Backset: supports 31/32", 1 1/8", & 1 ½"
Latch: works with Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900
Series spring latch and MS1850S & MS1950S series deadbolts
Handing: non-handed
Power: uses 2 DL123A lithium batteries
Keypad: all metal, vandal resistant 12 button keypad supports 3-5 digit
PIN codes and HID proximity cards and fobs. Proximity antenna housing molded of ultra high strength, impact
resistant Lexan®
Cylinder: supplied with 6 pin mortise standard mortise cylinder SC1
Keyway. Use 1 3/8" or 1 ½" cylinders
Cams: cam supplied works with generic Alarm Lock cylinder. Other
Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent & Schlage. IC type cams for Best, Corbin-Russwin,
Medeco, Schlage & Yale are also available
ALL NARROW STILE LOCKS ARE WEATHER RESISTANT
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| Lever set works with Adams Rite® | ||
| 4500, 4700, & 4900 series deadlatch | ||
| PDL1300/26D1 | 26D finish | $1,222.00 |
| Lever set works with Adams Rite® | ||
| 4500, 4700, & 4900 series deadlatch | ||
| PDL1300/10B1 | 10B finish | $1,222.00 |
| Thumb turn works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| PDL1325/26D2 | 26D finish | $1,222.00 |
| Thumb turn works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| PDL1325/10B2 | 10B finish | $1,222.00 |
| Knob works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| PDL1350/26D2 | 26D finish | $1,222.00 |
| Knob works with Adams Rite® | ||
| 4070, MS18505, MS1950 series | ||
| deadbolt | ||
| PDL1350/10B2 | 10BD finish | $1,222.00 |
| Computer interface cable for serial | ||
| AL-PCI2 | connection includes DL-Windows | $129.00 |
| software |
TRILOGY NARROW STYLE LOCK PRODUCTS (con't)
| USB computer interface cable includes | ||
|---|---|---|
| ALPCI2-U | DL-Windows software | $237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $520.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
PARTS
| STANDARD MORTISE CAMS | DESCRIPTION | LIST PRICE |
|---|---|---|
| HW1344 | Corbin-Russwin standard cam | $5.00 |
| HW1346 | Marks standard cam | $5.00 |
| HW1348 | Arrow & Sargent standard cams | $5.00 |
| HW1349 | Schlage standard cam | $5.00 |
| IC MORTISE CAMS | ||
| HW1345 | Corbin-Russwin IC cam | $11.00 |
| HW1347 | Medeco IC cam | $11.00 |
| HW1350 | Schlage IC cam | $11.00 |
| HW1343 | Best IC cam | $11.00 |
| S6169 |
Best IC housing with cam attached
26D, 10B |
$42.00 |
| Replacement Battery | ||
| S6161 | Inside Battery Kit | $61.00 |
| S6170 | Replacement Battery | $38.00 |
HOW TO ORDER THE TRILOGY NARROW STILE LOCKS
| Last two digits of the part number are | Used with Adams Rite Product | |
|---|---|---|
| 00 | Straight Lever | 4500, 4700 & 4900 Series Only |
| 25 | Thumb turn | MS1850, MS1950 & 4070 Series |
| 50 | Knob | MS1850, MS1950 & 4070 Series |
TRILOGY NARROW STYLE/EXIT LOCK PRODUCTS
DL1200ET, DL1300ET & PDL1300ET SERIES - Aluminum door retrofit outside trim. Works with Arrow, DCI, Von Duprin, Corbin, Dor-o-matic, Dorma & Jackson. DL1200ET has 100 user codes, master, Manager, basic user and 3 "one-time" user codes. DL1300ET & PDL1300ET have 2,000 user codes, multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. PDL1300ET also has proximity capabilities.
SPECIFICATIONS:
Door thickness: supports style 1 ¾" only
Handing: non-handed
Power: uses 2 DL123A lithium batteries
Keypad: all metal, vandal resistant 12 button keypad supports 3-5
digit
PIN codes
Cylinder: supplied with 6 pin mortise standard mortise cylinder SC1
Keyway. Use 1 3/8" or 1 ½" cylinders
Cams: cam supplied works with generic Alarm Lock cylinder. Other
Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent & Schlage. IC type cams for Best, Corbin-Russwin,
Medeco, Schlage & Yale are also available
Must order separate tailpiece for specific ET being installed (See page 31)
Note: ET Trim works w/V33 LH (RHR) only
ALL NARROW STILE/EXIT LOCKS ARE WEATHER RESISTANT
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
|
DL1200ET/26D
STRAIGHT LEVER 100 user codes |
Narrow Stile Lock for Arrow
S1200/S1250, DCI 1200/1300, Von Duprin 22, Corbin ED8200 & Von Duprin 33 panic LH (RHR) devices only |
$672.00 |
|
DL1200ET//10B
STRAIGHT LEVER 100 user codes |
Narrow Stile Lock for Arrow
S1200/S1250, DCI 1200/1300, Von Duprin 22, Corbin ED8200 & Von Duprin 33 panic LH (RHR) devices only |
$672.00 |
|
DL1225ET/26D
TURNPIECE 100 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$672.00 |
|
DL1225ET/10B
TURNPIECE 100 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$672.00 |
|
DL1250ET/26D
KNOB 100 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$672.00 |
TRILOGY NARROW STYLE/EXIT LOCK PRODUCTS (CON'T)
|
DL1250ET/10B
KNOB 100 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$672.00 |
|
DL1300ET/26D
STRAIGHT LEVER 2,000 user codes |
Narrow Stile Lock for Arrow
S1200/S1250, DCI 1200/1300, Von Duprin 22, Corbin ED8200 & Von Duprin 33 LH (RHR) devices only |
$878.00 |
|
DL1300ET/10B
STRIGHT LEVER 2,000 user codes |
Narrow Stile Lock for Arrow
S1200/S1250, DCI 1200/1300, Von Duprin 22, Corbin ED8200 & Von Duprin 33 LH (RHR) devices only |
$878.00 |
|
DL1325ET/26D
TURNPIECE 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$878.00 |
|
DL1325ET/210B
TURNPIECE 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$878.00 |
|
DL1350ET/26D
KNOB 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$878.00 |
|
DL1350ET/10B
KNOB 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$878.00 |
|
PDL1300ET/26D
STRAIGHT LEVER 2,000 user codes |
Narrow Stile Lock for Arrow
S1200/S1250, DCI 1200/1300, Von Duprin 22, Corbin ED8200 & Von Duprin 33 LH (RHR) devices only |
$1,222.00 |
|
PDL1300ET/10B
STRAIGHT LEVER 2,000 user codes |
Narrow Stile Lock for Arrow
S1200/S1250, DCI 1200/1300, Von Duprin 22, Corbin ED8200 & Von Duprin 33 LH (RHR) devices only |
$1,222.00 |
|
PDL1325ET/26D
TURNPIECE 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$1,222.00 |
|
PDL1325ET/10B
TURNPIECE 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$1,222.00 |
|
PDL1350ET/26D
KNOB 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$1,222.00 |
|
PDL1350ET/10B
KNOB 2,000 user codes |
Narrow Stile lock for Dor-o-Matic 2090,
Jackson 1095 & Dorma 5300 panic devices |
$1,222.00 |
TRILOGY NARROW STYLE/EXIT LOCK PRODUCTS (CON'T)
Tailpieces must be used with the Panic Devices as shown below
| TAILPIECE PART NUMBER | PANIC DEVICE | LIST PRICE |
|---|---|---|
| TP-1691 |
Used with Arrow S1200/1250, DCI
1200/1300, Von Duprin 22 & Dorma 5300 Panic Devices |
$57.00 |
| TP-1692 | Used with Dor-o-Matic 2090 Panic Device | $57.00 |
| TP-1693 | Used with Corbin ED8200 Panic Device | $57.00 |
| TP-1694 | Used with Von Duprin 33 LH (RHR) devices only | $57.00 |
| TP-1698 | Used with Jackson 1095 Panic Device | $57.00 |
TRILOGY NARROW STYLE/EXIT LOCK PRODUCTS
PARTS AND ACCESSORIES
| ACCESSORIES | DESCRIPTION | LIST PRICE |
|---|---|---|
| AL-PC12 | Computer interface cable for serial connection includes DL-Windows software | $129.00 |
| ALPCI2-U | USB computer interface cable includes DL-Windows software | $237.00 |
| MX1130 | USB Converter | $120.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| STANDARD MORTISE CAMS | DESCRIPTION | LIST PRICE |
|---|---|---|
| HW1344 | Corbin-Russwin standard cam | $5.00 |
| HW1346 | Marks standard cam | $5.00 |
| HW1348 | Arrow & Sargent standard cams | $5.00 |
| HW1349 | Schlage standard cam | $5.00 |
| IC MORTISE CAMS | ||
| HW1345 | Corbin-Russwin IC cam | $11.00 |
| HW1347 | Medeco IC cam | $11.00 |
| HW1350 | Schlage IC cam | $11.00 |
| HW1343 | Best IC cam | $11.00 |
| S6169 | Best IC housing w/cam attached 26D, 10B | $42.00 |
| Replacement Battery | ||
| S6161 | Inside Battery Kit | $61.00 |
| S6170 | Replacement Battery | $38.00 |
TRILOGY EXIT TRIM PRODUCTS
Battery operated Trilogy outside trim works with Marks M9900, Von Duprin 99, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8800, Precision 1100, 2100 & Cal Royal 9800, series panic devices. Available in DL series (keypad) or PDL (prox/keypad) formats. Features include 2,000 user codes, 500 scheduled events and 40,000 event audit trail.
SPECIFICATIONS:
Cylinder: Uses standard rim cylinder to operate key override
function. Will accept 6 or 7 pin interchangeable
core cylinders – see below.
Handing: Non-handed
Power: 5 AA alkaline batteries (included) mounted on inside
of door.
Keypad: Weather-resistant all metal, 12 button. All functions
Programmable through the keypad.
PDL version proximity antenna housing molded of ultra high strength, impact resistant Lexan®
crash bar not included except with M99 kit.
ALL ET SERIES LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| ETDL series | 26D | $1,320.00 |
| ETDL series | US3 & US10B | $1,388.00 |
| ETDL series w/Regal lever | 26D | $1,343.00 |
| ETDL series w/Regal lever | US3 & US10B | $1,400.00 |
| ETPDL series | 26D | $1,722.00 |
| ETPDL series | US3 & US10B | $1,792.00 |
| ETPDL series w/Regal lever | 26D | $1,744.00 |
| ETPDL series w/Regal lever | US3 & US10B | $1,812.00 |
| 26D | $1,722.00 | |
| ETPL series | US3 & US10B | $1,792.00 |
| 26D | $1,744.00 | |
| ETPL series w/Regal lever | US3 & US10B | $1,812.00 |
| Specify finish on adapter kit | Alarm Lock Standard Rim Cylinder | |
| ET- AL Finish = 26D, US3 & US10B | Adapter kit (Schlage C keyway) | $57.00 |
| Arrow Standard Rim Cylinder | ||
| ET- AR Finish = 26D, US3 & US10B | Adapter kit | $57.00 |
| ASSA Standard Rim Cylinder | ||
| ET- AS Finish = 26D, US3 & US10B | Adapter kit | $57.00 |
| Corbin Standard Rim Cylinder | ||
| ET – C Finish = 26D, US3 & US10B | Adapter kit | $57.00 |
| Medeco Standard Rim Cylinder | ||
| ET – M Finish = 26D, US3 & US10B | Adapter kit | $57.00 |
| Sargent Standard Rim Cylinder | ||
| ET – R Finish = 26D, US3 & US10B | Adapter kit | $57.00 |
| Schlage Standard Rim Cylinder | ||
| ET - S Finish = 26D, US3 & US10B | Adapter kit | $57.00 |
| Yale Standard Rim Cylinder | ||
| ET - Y Finish = 26D, US3 & US10B | Adapter kit | $57.00 |
| Arrow IC 6 & 7 Pin Rim Cylinder | ||
| ET – ARIC Finish = 26, 26D, 3, 4, 5, 10B | Adapter kit | $79.00 |
| Best IC 6 & 7 Pin Rim Cylinder | ||
| ET - BIC Finish = 26D, US3 & US10B | Adapter kit | $79.00 |
| Corbin IC Rim Cylinder | ||
| ET - CIC Finish = 26D, US3 & US10B | Adapter kit | $79.00 |
| Medeco IC 6 & 7 Pin Rim Cylinder | ||
| ET – MIC Finish = 26D, US3 & US10B | Adapter kit | $79.00 |
TRILOGY EXIT TRIM PRODUCTS (CONT'D)
| Product | Description | LIST PRICE |
|---|---|---|
| Sargent IC Rim Cylinder | ||
|
ET - RIC
Finish = 26D, US3 & US10B |
Adapter kit | $79.00 |
| Schlage IC Rim Cylinder | ||
|
ET - SIC
Finish = 26D, US3 & US10B |
Adapter kit | $79.00 |
| Yale IC 6 Pin Rim Cylinder | ||
|
ET – YIC
Finish = 26D, US3 & US10B |
Adapter kit | $79.00 |
|
ETDLSKZ/26D
V99, C50, A38, D93, Y71, S88, CR8, P11 |
Mounted sales kit
For demo purposes |
Call Factory |
|
ETPDLSKZ/26D
V99, C50, A38, D93, Y71, S88, CR8, P11 |
Mounted sales kit
For demo purposes |
Call Factory |
| AL-PCI2 |
Computer interface cable for serial
connection Includes DL-Windows software |
$129.00 |
| USB computer interface cable | ||
| ALPCI2-U | includes DL-Windows software | $ 230.00 |
|
AL-IR1
AL-DTMIII |
Infra-red Printer
Data Transfer Module |
$520.00
$448.00 |
| Al-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 |
Proximity Access Cards
100 per box |
$470.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| ALHID1386 |
Proximity and Photo ID
Card 100 per box |
$927.00 |
| ALHID1346 | Proximity keyfob packed 10 per box | $118.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
EXIT TRIM KITS W/MARKS M9900 PANIC BAR
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| ETDL-M99K | 26D Finish | $1,729.00 |
| ETPDL-M99K | 26D Finish | $2,118.00 |
EXTENDED SPINDLES CAN BE PURCHASED SEPARATELY
| S6146 | Extend exit trim to fit 2 – 2 ¾" doors | $112.00 |
|---|---|---|
| Extended Spindle and screws | ||
| S6147 | Extend exit trim to fit 3 – 4" doors | $112.00 |
| Extended Spindle and screws | ||
| S6195 | Extend exit trim to fit 4 ¼ - 5" doors | $112.00 |
| Extended Spindle and screws | ||
| Extended replacement screws with | ||
| SC544 | adjustable lengths (4 per unit) | $21.00 |
| 9ETBATCASE | Replacement Battery | $48.00 |
| S6175 | Lever return spring for ET | $3.00 |
| S6190 | Exit Trim/Mortise Lock Parts Kit | $151.00 |
| S6191 | Lever and spring upgrade kit | $61.00 |
| Standard lever – 26D, 10B | ||
| S6193 | Lever and spring upgrade kit | |
| Regal lever – 26D, 10B | $78.00 |
PLEASE SEE "HOW TO ORDER" CHART ON PAGE 18 TO PROPERLY ORDER YOUR TRILOGY EXIT TRIM. IF YOU REQUIRE THE LOCK TO BE PREPPED FOR A THICKER DOOR, YOU MUST ORDER EXTENDED SPINDLE/SCREW KIT. THE BASIC MODEL IS PREPPED FOR A 1 5/8" TO 1 7/8" DOOR.
**** PRECISION 2100 SERIES WILL WORK WITH THE VON DUPRIN 99 PREP. YOU MUST GET A MOUNTING PLATE PART # 2141208 FROM PRECISION****
HOW TO ORDER YOUR TRILOGY EXIT LOCK
Below is a "How to Order" guide for the Trilogy Exit Trim products. Please follow this guide when placing orders to avoid any delay in processing your order.
All units are sold with a generic cylinder adapter installed. When you are using a specific Brand of rim cylinder, you must purchase a Cylinder Adapter Kit from the chart below.
ET - AS
- ASSA standard rim
TRILOGY ELECTRONIC DIGITAL KEYPAD
DK3000/PDK3000 Series - Electronic digital keypad. Available in keypad only
and keypad plus prox. Holds up to 2,000 user codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail. Prox unit will read most HID cards and keyfobs.
Specifications:
Wall mount : Single gang box mounting .
Wiring : Unit provides flying leads for power, relays, tamper and remote
Release.
I/O Specs: 2 form C relays 5AMP minimum contact rating. Red & green LED
Indicators. 1 remote release input. Sounder and tamper.
Power: Operating voltage 12-24VAC/DC field selectable.
ALL DK3000/PDK3000 ARE WEATHER-RESISTANT
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DK3000 | Metallic silver (MS) Metallic bronze (MB) | $642.00 |
| 26D, US3 & US10B | $838.00 | |
| PDK3000 | Metallic silver (MS) Metallic bronze (MB) | $1,067.00 |
| 26D, US3 & US10B | $1,211.00 | |
| AL-PCI2 |
Computer interface cable for serial
connection includes DL-Windows software |
$129.00 |
| ALPCI2-U |
USB computer interface cable
includes DL-Windows software |
$237.00 |
| MX1130 | USB Converter | $118.00 |
| AL-IR1 | Infra-red Printer | $520.00 |
| AL-DTMIII | Data Transfer Module | $448.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 |
Proximity Access Cards
100 per box |
$505.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| ALHID1386 |
Proximity and Photo ID
Card 100 per box |
$927.00 |
| ALHID1346 | Proximity keyfob packed 10 per box | $118.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALTRAINDVD |
Trilogy DL-Windows and Networx
Connectivity software training videos divided into 4 easy to follow sections conducted into a classroom style environment. Training videos cover basics, getting started, schedules and times zones, programming Trilogy locks |
$0.00 + $15.95 shipping and handling
charge. Please contact customer service at 1-800-ALA-LOCK to place your order via credit card, or email |
|
via a laptop and the DTM along with how
to connect and bring Networx on line. |
sales@alarmlock.com |
Extended sizes:
thicker doors.
extended lock.
Standard and SFIC cylinder preps can be extended for
$165.00 add on to list for
Note: Locks can be adjusted by +/- 1/8" by adding or removing spacers.
Extended lock legend: W54 - 2 1/8" W57 - 2 1/4" W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4" W76 - 3" W83 - 3 1/4" W89 - 3 1/2"
Price Book 2017
TRILOGY NETWORX DIGITAL LOCKS
DL6100 SERIES – Digital cylindrical lock supporting 5,000 pin user codes (3-6 digits), 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible Handing: Non-handed
Power: 4 C-cell batteries (included)
Keypad: All metal, 12 button. Basic functions programmed
through the keypad.
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed
UL Listed 10C Positive Pressure Specification. FCC
Certified. ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from Core Models: Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba
Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco,
Sargent, Corbin-Russwin & Schlage are also available
ALL NETWORX LOCKS ARE WEATHER RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL6100 | 26D | $1,452.00 |
| Standard key override | 10B | $1,534.00 |
| DL6175 | ||
| Standard Key override | 26D | $1,472.00 |
| Regal (curved) | 10B | $1,586.00 |
| DL6100IC* | 26D | $1,472.00 |
| Interchangeable core | 10B | $1,550.00 |
| DL6175IC* | ||
| Interchangeable core | 26D | $1,503.00 |
| Regal (curved) | 10B | $1,565.00 |
| AL-IME |
Ethernet connected gateway w/AC
adapter to plug into standard wall outlet |
$510.00 |
| AL-IM80211 |
Wi-Fi gateway to connect to 802.11
network w/AC adapter to plug into standard wall outlet. |
$710.00 |
| AL-IMEPOEP |
Power Over Ethernet, plus hardwire
gateway interface capability. No AC Power required. |
$610.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above.
Extended sizes:
thicker doors.
extended lock.
Standard and SFIC cylinder preps can be extended for
$165.00 add on to list for
Note: Locks can be adjusted by +/- 1/8" by adding or removing spacers.
Extended lock legend: W54 - 2 1/8" W57 - 2 1/4" W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4" W76 - 3" W83 - 3 1/4" W89 - 3 1/2"
Price Book 2017
TRILOGY NETWORX PROXMITY DIGITAL LOCKS
PDL6100/PDL6200– Prox and digital cylindrical lock supporting 5,000 PIN user codes (3-6 digits), and/or HID
Proximity cards. 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible Handing: Non-handed
Power: 4 C-cell batteries (included)
Keypad: All metal, 12 button. Basic functions programmed
through the keypad.
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed
UL Listed 10C Positive Pressure Specification. FCC
Certified. ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangeable Standard model accepts 6 & 7 pin cylinders from Core Models: Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba
Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
ALL NETWORX LOCKS ARE WEATHER RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL6100 | 26D | $1,864.00 |
| Standard key override | 10B | $1,936.00 |
| PDL6200 | ||
| Standard Key override | 26D | $1,915.00 |
| w/door position switch | 10B | $1,987.00 |
| PDL6175 | ||
| Standard Key override | 26D | $1,890.00 |
| Regal (curved) | 10B | $1,951.00 |
| PDL6100IC* | 26D | $1,879.00 |
| Interchangeable core | 10B | $1,946.00 |
| PDL6175IC* | ||
| Interchangeable core | 26D | $1,962.00 |
| Regal (curved) | 10B | $2,060.00 |
| PDL6100SK |
Mounted PDL6100 demo w/ mounted
sales/demo kit including IME gateway and router mounted on plexi-glass for plug and play demonstrations with Alarm Lock carrying bag. |
$2,0000 |
| AL-IME |
Ethernet connected gateway w/AC
adapter to plug into standard wall outlet |
$510.00 |
| AL-IM80211 |
Wi-Fi gateway to connect to 802.11
network w/AC adapter to plug into standard wall outlet. |
$710.00 |
| AL-IMEPOEP |
Power Over Ethernet, plus hardwire
gateway interface capability. No AC |
$610.00 |
|---|---|---|
| AL-PRE |
Power required.
Prox Card Enroller |
$590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| ALHID1386 |
Proximity and Photo ID
Card 100 per box |
$927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
| AL-IME-USB | USB Gateway | $300.00 |
| AL-NSM | Networx Signal Meter | $296.00 |
| AL-NSG | Networx Signal Generator | $240.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
Networx training options available. See below for details.
Note:
Training and education options available for Networx products:
- 1. FREE On-Line certification Software and Networx connectivity video training available at: http://alarmlock.com/trainingvideos-list.asp
- 2. On site training may be available thru our in field rep agencies on a quote-by-quote basis. The minimum charge is $500. For a listing of the reps in your area, please go to our website at: http://alarmlock.com/contactn.html
AL Training DVD
| Trilogy DL-Windows and Networx | ||
|---|---|---|
| Connectivity software training videos | ||
| divided into 4 easy to follow sections | ||
| conducted into a classroom style | $0.00 + $15.95 shipping and handling | |
| ALTRAINDVD | environment. Training videos cover | charge. Please contact customer service at |
| basics, getting started, schedules and | 1-800-ALA-LOCK to place your order via | |
| times zones, programming Trilogy locks | credit card, or email | |
| via a laptop and the DTM along with how | sales@alarmlock.com | |
| to connect and bring Networx on line. |
Extended sizes:
thicker doors.
extended lock.
Standard and SFIC cylinder preps can be extended for
$165.00 add on to list for
Note: Locks can be adjusted by +/- 1/8" by adding or removing spacers.
Extended lock legend: W54 - 2 1/8" W57 - 2 1/4" W60 - 2 3/8" W64 - 2 1/2" W70 - 2 3/4" W76 - 3" W83 - 3 1/4" W89 - 3 1/2"
Price Book 2017
TRILOGY NETWORX PROXMITY DIGITAL LOCKS
PL6100 SERIES – Prox only cylindrical lock supporting 5,000 PIN user codes (3-6 digits), and/or HID Proximity cards. 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
Door Thickness: Fits 1 5/8" to 1 7/8". Other thickness,
please consult factory
Backset: 2 3/4" (2 3/8" also available)
Strike: 1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8"
ASA strike included
Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible Handing: Non-handed
Power: 4 C-cell batteries (included)
Door prep: Standard ANSI A115 Series prep, modified by
adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed
UL Listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied)
Interchangable Standard model accepts 6 & 7 pin cylinders from Core Models: Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba
Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage are also available
ALL NETWORX LOCKS ARE WEATHER RESISTANT
PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PL6100 | 26D | $1,864.00 |
| Standard key override | 10B | $1,936.00 |
| PL6175 | ||
| Standard Key override | 26D | $1,890.00 |
| Regal (curved) | 10B | $1,951.00 |
| PL6100IC* | 26D | $1,879.00 |
| Interchangeable core | 10B | $1,946.00 |
| PL6175IC* | ||
| Interchangeable core | 26D | $1,962.00 |
| Regal (curved) | 10B | $2,060.00 |
| Ethernet connected gateway w/AC | ||
| AL-IME | adapter to plug into standard wall outlet | $510.00 |
| Wi-Fi gateway to connect to 802.11 | ||
| AL-IM80211 | network w/AC adapter to plug into | $710.00 |
| standard wall outlet. | ||
| Power Over Ethernet, plus hardwire | ||
| AL-IMEPOEP | gateway interface capability. No AC | $610.00 |
| Power required. | ||
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. **MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
TRILOGY NETWORX ELECTRONIC DIGITAL MORTISE LOCKS
DL6500 SERIES – Digital mortise lock supporting 5,000 PIN user codes (3-6 digits), 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset: 2 3/4" standard
Strike: 1 1/4" x 4 7/8"strike included
Handing: Specify RH or LH when ordering, lock is reversible
In the field
Power: 4 C- cell batteries (included)
Keypad: All metal, 12 button. Basic functions programmed
through keypad.
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lock body meets BHMA specifications
For Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA
compliant levers
Functions: Classroom function feature stainless steel latchbolt
With 3/4" (1.91cm) projection and deadlocking latch.
Cylinder: 1 3/8" (3.5cm) mortise cylinder supplied. Will
Accept 1 3/8" to 1 1/2" (3.5 – 3.82cm) mortise Cylinder. Classroom function supplied with straight
Cam.
Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL DL6500 MORTISE LOCKS ARE WEATHER-RESISTANT
PLEASE CHECK WITH FACTORY ON LEAD TIMES FOR SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| DL6500CRR | ||
| Straight lever classroom function | 26D | $1,586.00 |
| Right hand | 10B | $1,658.00 |
| DL6500CRL | ||
| Straight lever classroom function | 26D | $1,586.00 |
| Left Hand | 10B | $1,658.00 |
| DL6575CRR | ||
| Regal (curved) lever classroom | 26D | $1,601.00 |
| Function right hand | 10B | $1,673.00 |
| DL6575CRL | ||
| Regal (curved) lever classroom | 26D | $1,601.00 |
| Function left hand | 10B | $1,673.00 |
TRILOGY NETWORX ELECTRONIC DIGITAL MORTISE LOCKS (con't)
| AL-IME |
Ethernet connected gateway w/AC
adapter to plug into standard wall outlet |
$510.00 |
|---|---|---|
| AL-IM80211 |
Wi-Fi gateway to connect to 802.11
network w/AC adapter to plug into standard wall outlet. |
$710.00 |
| AL-IMEPOEP |
Power Over Ethernet, plus hardwire
gateway interface capability. No AC Power required. |
$610.00 |
| ALTRAINDVD |
Trilogy DL-Windows and Networx
Connectivity software training videos divided into 4 easy to follow sections conducted into a classroom style environment. Training videos cover basics, getting started, schedules and times zones, programming Trilogy locks via a laptop and the DTM along with how to connect and bring Networx on line. |
$0.00 + $15.95 shipping and handling
charge. Please contact customer service at 1-800-ALA-LOCK to place your order via credit card, or email sales@alarmlock.com |
| AL-IME-USB | USB Gateway | $300.00 |
| AL-NSG | Networx Signal Generator | $240.00 |
| AL-NSM | Networx Signal Meter | $296.00 |
MORTISE LOCK PARTS
| CLASSROOM FUNCTION CAMS | DESCRIPTION | LIST PRICE |
|---|---|---|
| HW956-L | Alarm Lock Standard Straight Cam | $5.00 |
| HW956-M | Marks Straight Cam | $5.00 |
| HW956-C | Corbin-Russwin Straight Cam | $5.00 |
| HW956-S | Schlage Straight Cam | $5.00 |
| HW956-A | Arrow Straight Cam | $5.00 |
| HW956-R | Sargent Straight Cam | $5.00 |
| S6175 | Replacement lever support spring | $5.00 |
| S6192 |
Lever and spring upgrade kit
Standard lever – 26D, 10B |
$54.00 |
| S6193 |
Lever and spring upgrade kit
Regal lever – 26D, 10B |
$80.00 |
| HW870CRL | Left Hand Classroom lock body | $171.00 |
| HW875CRR | Right hand Classroom lock body | $171.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
TRILOGY NETWORX ELECTRONIC PROXMITY DIGITAL MORTISE LOCKS
PDL6500/PL6500/PDL6600 - Prox and Digital mortise lock supporting 5,000 PIN user codes (3-6 digits) and HID Proximity cards. 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
*Note:
PDL6600-
Request to exit
(REX); real time
when integrated
with CIC, Lenel,
Stanley B.A.S.I.S.
When used on
at door, will
Networx; sound
record on audit
trail. Must pull
audit log to view.
Handing:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset:
2 3/4" standard 1 1/4" x 4 7/8"strike included Strike:
Specify RH or LH when ordering, lock is reversible
In the field
4 C- cell batteries (included) Power:
Keypad: All metal, 12 button. Basic functions programmed
through keypad.
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lock body meets BHMA specifications For Grade 1 locks. UL listed to the 10C Positive
Pressure Specification. FCC Certified. ADA
compliant levers
Classroom function feature stainless steel latchbolt Functions:
With 3/4" (1.91cm) projection and deadlocking latch.
1 3/8" (3.5cm) mortise cylinder supplied. Will Cylinder:
Accept 1 3/8" to 1 1/2" (3.5 – 3.82cm) mortise Cylinder. Classroom function supplied with straight
Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL PDL6500 MORTISE LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY ON LEAD TIMES FOR SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL6500CR (L) or (R) | ||
| Straight lever classroom function | 26D | $1,951.00 |
| Specify left or Right Handing | 10B | $2,018.00 |
| PDL6600CR (L) or (R) | ||
| Straight lever classroom function | 26D | $2,003.00 |
| Specify left or Right Handing | 10B | $2,070.00 |
| w/door position switch | ||
| PDL6575CRR | ||
| Regal (curved) lever classroom | 26D | $1,967.00 |
| Function right hand | 10B | $2,034.00 |
| PDL6575CRL | ||
| Regal (curved) lever classroom | 26D | $1,967.00 |
| Function left hand | 10B | $2,034.00 |
| PL6500CRR (prox only) | ||
| Straight lever classroom function | 26D | $1,951.00 |
| Right hand | 10B | $2,018.00 |
| PL6500CRL (prox ony) | ||
| Straight lever classroom function | 26D | $1,951.00 |
| Left Hand | 10B | $2,018.00 |
| PL6575CRR (prox only) | ||
| Regal (curved) lever classroom | 26D | $1,967.00 |
| Function right hand | 10B | $2,034.00 |
| PL6575CRL (prox only) | ||
| Regal (curved) lever classroom | 26D | $1,967.00 |
| Function left hand | 10B | $2,034.00 |
TRILOGY NETWORX ELECTRONIC DIGITAL MORTISE LOCKS (con't)
| Ethernet connected gateway w/AC | ||
| AL-IME | adapter to plug into standard wall outlet | $510.00 |
| Wi-Fi gateway to connect to 802.11 | ||
| AL-IM80211 | network w/AC adapter to plug into | $710.00 |
| standard wall outlet. | ||
| Power Over Ethernet, plus hardwire | ||
| AL-IMEPOEP | gateway interface capability. No AC | $610.00 |
| Power required. | ||
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| Trilogy DL-Windows and Networx | ||
| Connectivity software training videos | ||
| divided into 4 easy to follow sections | ||
| conducted into a classroom style | $0.00 + $15.95 shipping and handling | |
| ALTRAINDVD | environment. Training videos cover | charge. Please contact customer service at |
| basics, getting started, schedules and | 1-800-ALA-LOCK to place your order via | |
| times zones, programming Trilogy locks | credit card, or email | |
| via a laptop and the DTM along with how | sales@alarmlock.com | |
| to connect and bring Networx on line. | ||
| AL-IME-USB | USB Gateway | $300.00 |
| AL-NSG | Networx Signal Generator | $240.00 |
| AL-NSM | Networx Signal Meter | $296.00 |
MORTISE LOCK PARTS
| CLASSROOM FUNCTION CAMS | DESCRIPTION | LIST PRICE |
|---|---|---|
| HW956-L | Alarm Lock Standard Straight Cam | $5.00 |
| HW956-M | Marks Straight Cam | $5.00 |
| HW956-C | Corbin-Russwin Straight Cam | $5.00 |
| HW956-S | Schlage Straight Cam | $5.00 |
| HW956-A | Arrow Straight Cam | $5.00 |
| HW956-R | Sargent Straight Cam | $5.00 |
| S6175 | Replacement lever support spring | $5.00 |
| S6192 |
Lever and spring upgrade kit
Standard lever – 26D, 10B |
$54.00 |
| S6193 |
Lever and spring upgrade kit
Regal lever – 26D, 10B |
$80.00 |
| HW870CRL | Left Hand Classroom lock body | $171.00 |
| HW875CRR | Right hand Classroom lock body | $171.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
Extended sizes:
thicker doors.
extended lock.
W54 - 2 1/8"
W57 - 2 1/4"
W60 - 2 3/8"
W64 - 2 1/2"
W70 - 2 3/4"
W83 - 3 1/4"
W89 - 3 1/2"
Note: Locks can be
adding or removing
adjusted by +/- 1/8" by
W76 - 3"
spacers.
Standard and SFIC cylinder
preps can be extended for
$165.00 add on to list for
Extended lock legend:
Price Book 2017
TRILOGY NETWORX iCLASS w/REX & DPS PROXMITY DIGITAL LOCKS
PDL8200 SERIES - Prox and digital cylindrical lock supporting 5,000 PIN user codes (3-6 digits), and a 13.56 MHz iClass smart card proximity reader. 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
Request to exit
(REX); real time
when integrated
with CIC, Lenel,
When used on
at door, will
Networx: sound
record on audit
trail. Must pull
audit log to view.
Stanley B.A.S.I.S.
Fits 1 5/8" to 1 7/8". Other thickness, Door Thickness:
please consult factory
Backset: 2 3/4" (2 3/8" also available)
1 1/8"x 2 3/4" T strike & 1 1/4" x 4 7/8" Strike:
ASA strike included Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw
reversible
Handing: Non-handed
4 C-cell batteries (included) Power: Keypad: All metal, 12 button. Basic functions programmed
through the keypad.
Standard ANSI A115 Series prep, modified by Door prep: adding additional through-bolt holes
Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listed
UL Listed 10C Positive Pressure Specification. FCC
Certified . ADA compliant levers
Cylinder: 6 pin solid brass, SC1 keyway, furnished with all
key override locks. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can also be used with HW620 tailpiece (supplied) Standard model accepts 6 & 7 pin cylinders from
Interchangable Core Models: Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco,
Sargent, Corbin-Russwin & Schlage are also available
ALL NETWORX LOCKS ARE WEATHER RESISTANT PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES AND IC PREPS
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL8200 | 26D | $2,018.00 |
| Standard key override | 10B | $2,090.00 |
| PDL8275 | ||
| Standard Key override | 26D | $2,044.00 |
| Regal (curved) | 10B | $2,106.00 |
| PDL8200IC* | 26D | $2,034.00 |
| Interchangeable core | 10B | $2,101.00 |
| PDL8275IC* | 26D | $2,054.00 |
| Interchangeable core Regal (curved) | 10B | $2,116.00 |
| Ethernet connected gateway w/AC | ||
| AL-IME | adapter to plug into standard wall outlet | $510.00 |
| Wi-Fi gateway to connect to 802.11 | ||
| AL-IM80211 | network w/AC adapter | $710.00 |
| Power Over Ethernet, plus hardwire | ||
| AL-IMEPOEP | gateway interface capability. No AC | $610.00 |
| Power required. | ||
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
| AL-IME-USB | USB Gateway | $300.00 |
| AL-NSG | Networx Signal Generator | $240.00 |
| AL-NSM | Networx Signal Meter | $296.00 |
* Add "C" for Corbin, "M" for Medeco, "R" for Sargent, "Y" for Yale and "S" for Schlage to end of the part number for specially prepped IC core models. Add $15.00 to the list price shown above. Note**MUST SPECIFY 7 PIN FOR CORBIN AND YALE**
*Note:
Request to exit
(REX); real time
when integrated
with CIC, Lenel,
Stanley B.A.S.I.S.
When used on
at door, will
Networx; sound
record on audit
trail. Must pull
audit log to view.
TRILOGY NETWORX ELECTRONIC ICLASS PROXMITY DIGITAL MORTISE LOCKS w/REX & DPS
PDL8600 – iClass Prox and Digital mortise lock supporting 5,000 PIN user codes (3-6 digits) with a 13.56 MHz iClass smart card proximity reader. 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).
Backset: 2 3/4" standard
Strike: 1 1/4" x 4 7/8" strike included
Handing: Specify RH or LH when ordering, lock is reversible
In the field
Power: 4 C- cell batteries (included)
Keypad: All metal, 12 button. Basic functions programmed
through keypad.
Door prep: Standard ANSI A115 Mortise prep, modified by
adding additional through-bolt holes
Compliances: Steelcase lock body meets BHMA specifications
For Grade 1 locks. UL listed to the 10C Positive Pressure Specification. FCC Certified. ADA
compliant levers
Functions: Classroom function feature stainless steel latchbolt
With 3/4" (1.91cm) projection and deadlocking latch.
Cylinder: 1 3/8" (3.5cm) mortise cylinder supplied. Will
Accept 1 3/8" to 1 1/2" (3.5 – 3.82cm) mortise Cylinder. Classroom function supplied with straight
Cam.
Cams: Cams for other manufacturer's cylinders are available
See "Mortise Lock accessories" for part numbers &
Manufacturers
ALL PDL8600 MORTISE LOCKS ARE WEATHER-RESISTANT PLEASE CHECK WITH FACTORY ON LEAD TIMES FOR SPECIAL FINISHES
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| PDL8600CRR | ||
| Straight lever classroom function | 26D | $2,106.00 |
| Right Hand | 10B | $2,173.00 |
| PDL8600CRL | ||
| Straight lever classroom function | 26D | $2,106.00 |
| Left Hand | 10B | $2,173.00 |
| PDL8675CRR | ||
| Regal (curved) lever classroom | 26D | $2,121.00 |
| Function right hand | 10B | $2,188.00 |
| PDL8675CRL | ||
| Regal (curved) lever classroom | 26D | $2,121.00 |
| Function left hand | 10B | $2,188.00 |
| PL8600CRR (prox only) | ||
| Straight lever classroom function | 26D | $2,106.00 |
| Right hand | 10B | $2,173.00 |
| PL8600CRL (prox ony) | ||
| Straight lever classroom function | 26D | $2,106.00 |
| Left Hand | 10B | $2,173.00 |
| PL8675CRR (prox only) | ||
| Regal (curved) lever classroom | 26D | $2,121.00 |
| Function right hand | 10B | $2,188.00 |
| PL8675CRL (prox only) | ||
| Regal (curved) lever classroom | 26D | $2,121.00 |
| Function left hand | 10B | $2,188.00 |
TRILOGY NETWORX ELECTRONIC DIGITAL MORTISE LOCKS (con't)
| AL-IME |
Ethernet connected gateway w/AC
adapter to plug into standard wall outlet |
$510.00 |
|---|---|---|
| AL-IM80211 |
Wi-Fi gateway to connect to 802.11
network w/AC adapter to plug into standard wall outlet. |
$710.00 |
| AL-IMEPOEP |
Power Over Ethernet, plus hardwire
gateway interface capability. No AC Power required. |
$610.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| ALHID1386 |
Proximity and Photo ID
Card 100 per box |
$927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| ALTRAINDVD |
Trilogy DL-Windows and Networx
Connectivity software training videos divided into 4 easy to follow sections conducted into a classroom style environment. Training videos cover basics, getting started, schedules and times zones, programming Trilogy locks via a laptop and the DTM along with how to connect and bring Networx on line. |
$0.00 + $15.95 shipping and handling
charge. Please contact customer service at 1-800-ALA-LOCK to place your order via credit card, or email sales@alarmlock.com |
| AL-IME-USB | USB Gateway | $300.00 |
| AL-NSG | Networx Signal Generator | $240.00 |
| AL-NSM | Networx Signal Meter | $296.00 |
MORTISE LOCK PARTS
| CLASSROOM FUNCTION CAMS | DESCRIPTION | LIST PRICE |
|---|---|---|
| HW956-L | Alarm Lock Standard Straight Cam | $5.00 |
| HW956-M | Marks Straight Cam | $5.00 |
| HW956-C | Corbin-Russwin Straight Cam | $5.00 |
| HW956-S | Schlage Straight Cam | $5.00 |
| HW956-A | Arrow Straight Cam | $5.00 |
| HW956-R | Sargent Straight Cam | $5.00 |
| S6175 | Replacement lever support spring | $5.00 |
| S6192 |
Lever and spring upgrade kit
Standard lever – 26D, 10B |
$54.00 |
| S6193 |
Lever and spring upgrade kit
Regal lever – 26D, 10B |
$80.00 |
| HW870CRL | Left Hand Classroom lock body | $171.00 |
| HW875CRR | Right hand Classroom lock body | $171.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
NEW TRILOGY NETWORX ACCESSORIES
| AL-IME2 |
Ethernet connected gateway w/AC
adapter to plug into standard wall outlet. Version 2 - allow use of expander |
$475.00 |
|---|---|---|
| AL-IM2-80211 |
Wi-Fi gateway to connect to 802.11
network w/AC adapter to plug into standard wall outlet. Version 2 - allow use of expander |
$675.00 |
| AL-IME2-POEP |
Power Over Ethernet, plus hardwire
gateway interface capability. No AC Power required. Version 2 - allow use of expander |
$575.00 |
| AL-IME2-EXP |
Wireless expander designed to expand
the coverage area of version 2 gateways. AC power required. Up to 7 expanders per version 2 gateway |
$250.00 |
| AL-IME2-PIE |
Plug-in wireless expander designed to
expand the coverage area of version 2 gateways. Plugs into a standard AC outlet. Up to 7 expanders per version 2 gateway |
$250.00 |
Note: AL-IME2-EXP and AL-IME2-EXP will only work with v2 gateways
TRILOGY NETWORX EXIT TRIM PRODUCTS
Battery operated Trilogy outside trim works with Marks M9900, Von Duprin 99, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8888, Precision 1100, 2100 & Cal Royal 9800 series panic devices. Available in DL series (keypad) or PDL (prox/keypad) formats. Features include 5,000 user codes, 500 scheduled events and 35,000 event audit log.
SPECIFICATIONS:
Cylinder: Uses standard rim cylinder to operate key override
function. Will accept 6 or 7 pin interchangeable
core cylinders – see below.
Handing: Non-handed
Power: 4 C-cell batteries (included) mounted on inside
of door.
Keypad: Weather-resistant all metal, 12 button. Basic functions
Programmable through the keypad.
PDL version proximity antenna housing molded of ultra high strength, impact resistant Lexan®
ALL ET SERIES LOCKS ARE WEATHER-RESISTANT
PLEASE CHECK WITH FACTORY FOR LEAD TIMES ON SPECIAL FINISHES
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| ETDLN series | 26D Finish | $1,426.00 |
| ETDLN series | 10B Finish | $1,493.00 |
| ETDLN series w/Regal lever | 26D Finish | $1,447.00 |
| ETDLN series w/Regal lever | 10B Finish | $1,503.00 |
| ETPDN series | 26D Finish | $1,766.00 |
| ETPDN series | 10B Finish | $1,828.00 |
| ETPDN series w/Regal lever | 26D Finish | $1,781.00 |
| ETPDN series w/Regal lever | 10B Finish | $1,843.00 |
| ETPDNSRX w/REX and DPS | 26D Finish | $1,817.00 |
| ETPDNISRX iClass w/REX and DPS | 26D Finish | $1917.00 |
| 26D Finish | $1,766.00 | |
| ETPLN series | 10B Finish | $1,828.00 |
| 26D Finish | $1,781.00 | |
| ETPLN series w/Regal lever | 10B Finish | $1,843.00 |
| Specify finish on adapter kit | Alarm Lock Standard Rim Cylinder | |
| ET- AL Finish = 26D & US10B | Adapter kit (Schlage C keyway) | |
| $57.00 | ||
| Arrow Standard Rim Cylinder | ||
| ET- AR Finish = 26D & US10B | Adapter kit | $57.00 |
| ET- AS Finish = 26D & US10B |
ASSA Standard Rim Cylinder
Adapter kit |
$57.00 |
| Corbin Standard Rim Cylinder | ||
| ET – C Finish = 26D & US10B | Adapter kit | $57.00 |
| Medeco Standard Rim Cylinder | ||
| ET – M Finish = 26D & US10B | Adapter kit | $57.00 |
| Sargent Standard Rim Cylinder | ||
| ET – R Finish = 26D & US10B | Adapter kit | $57.00 |
| Schlage Standard Rim Cylinder | ||
| ET - S Finish = 26D & US10B | Adapter kit | $57.00 |
| Yale Standard Rim Cylinder | ||
| ET - Y Finish = 26D & US10B | Adapter kit | $57.00 |
| Arrow IC 6 & 7 Pin Rim Cylinder | ||
| ET – ARIC Finish = 26D & 10B | Adapter kit | $79.00 |
| Best IC 6 & 7 Pin Rim Cylinder | ||
| ET - BIC Finish = 26D & US10B | Adapter kit | $79.00 |
| Corbin IC Rim Cylinder | ||
| ET - CIC Finish = 26D & US10B | Adapter kit | $79.00 |
| Medeco IC 6 & 7 Pin Rim Cylinder | ||
| ET – MIC Finish = 26D & US10B | Adapter kit | $79.00 |
TRILOGY NETWOX EXIT TRIM PRODUCTS (CONT'D)
| Product | Description | LIST PRICE |
|---|---|---|
| Sargent IC Rim Cylinder | ||
|
ET - RIC
Finish = 26D, 10B |
Adapter kit | $79.00 |
| Schlage IC Rim Cylinder | ||
|
ET - SIC
Finish = 26D, 10B |
Adapter kit | $79.00 |
| Yale IC 6 Pin Rim Cylinder | ||
|
ET – YIC
Finish = 26D, 10B |
Adapter kit | $79.00 |
| Ethernet connected gateway w/AC | ||
| AL-IME | adapter to plug into standard wall outlet | $510.00 |
| Wi-Fi gateway to connect to 802.11 | ||
| AL-IM80211 | network w/AC adapter to plug into | $710.00 |
| standard wall outlet. | ||
| Power Over Ethernet, plus hardwire | ||
| AL-IMEPOEP |
gateway interface capability.
No AC Power required. |
$610.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| Proximity, Magnetic Stripe and Photo | ||
| ALHID1336 | ID cards 100 per box | $1,030.00 |
| Proximity and Photo ID | ||
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| S6196 | Networx Replacement Battery Pack | $45.00 |
| S6190 | Exit Trim Service Kit | $151.00 |
| S6191 | Lever and spring upgrade kit | $61.00 |
| Standard lever – 26D, 10B | ||
| S6193 | Lever and spring upgrade kit | |
| Regal lever – 26D, 10B | $78.00 |
NETWORX EXIT TRIM KITS W/MARKS M9900 PANIC BAR
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| ETDLN-M99K | 26D Finish | $1,850.00 |
| ETPDN-M99K | 26D Finish | $2,190.00 |
TRILOGY EXIT TRIM PRODUCTS PARTS
| EXTENDED SPINDLES MUST BE PURCHASED SEPARATELY | ||||
|---|---|---|---|---|
| S6146 | Extend exit trim to fit 2 – 2 ¾" doors | $112.00 | ||
| Extended Spindle and screws | ||||
| S6147 | Extend exit trim to fit 3 – 4" doors | $112.00 | ||
| Extended Spindle and screws | ||||
| S6195 | Extend exit trim to fit 4 ¼ - 5" doors | $112.00 | ||
| Extended Spindle and screws | ||||
| Extended replacement screws with | ||||
| SC544 | adjustable lengths (4 per unit) | $21.00 | ||
PLEASE SEE "HOW TO ORDER" CHART ON PAGE 46 TO PROPERLY ORDER YOUR TRILOGY EXIT TRIM.
IF YOU REQUIRE THE LOCK TO BE PREPPED FOR A THICKER DOOR, YOU MUST ORDER BASED ON THE SELECTIONS SHOWN. THE BASIC MODEL IS PREPPED FOR A 1 5/8" TO 1 7/8" DOOR.
**** PRECISION 2100 SERIES WILL WORK WITH THE VON DUPRIN 99 PREP. YOU MUST GET A MOUNTING PLATE PART # 2141208 FROM PRECISION****
HOW TO ORDER YOUR TRILOGY NETWORX EXIT LOCK
Below is a "How to Order" guide for the Trilogy Exit Trim products. Please follow this guide when placing orders to avoid any delay in processing your order.
All units are sold with a generic cylinder adapter installed. When you are using a specific brand of rim cylinder, you must purchase a Cylinder Adapter Kit from the chart below.
TRILOGY NETWORX WIRELESS KEYPADS AND NETPANEL
Trilogy Networx Wireless Keypads and Netpanel combine to provide the ideal wireless keypad solution for use with mag locks, strikes and electrified exit devices in a smart access system with advanced features and functions, like automatic schedules, event logs and supports for 2000 doors and 5000 existing Prox ID Cards/Badges.
SPECIFICATIONS:
Networx Keypads NETDK / NETPDK
- Power Requirements: 12VDC supplied by NETWORXPANEL
- Idle Current: 10mA
- Maximum Wire Length: 200 feet (61m)
- Proximity Card Formats Supported: Alarm Lock
- standard 36 bit format or HID standard 26 bit format
(for use with the model NETPDK only)
Networx Panel NETWORXPANEL
- Input Power: 16.5VAC via Class 2 Plug-In 50VATransformer (supplied model TRF-14)
- Maximum Lock Power Output Current: 1.5A @12VDC
- Maximum Wiegand Power Output Current:
- 250mA @ 12VDC
- Maximum Wiegand Red and Green LED Current: 20mA each output
- Maximum Sounder Current: 100mA
- Maximum Keypad Power Output Current: 200mA@ 12VDC
- Primary and Secondary Relays: SPDT Form C, N/O, N/C 8A @ 30VAC or VDC
- Supplied Backup Battery: Sealed Lead Acid 4AH
- Battery Backup Time: Approximately 2 hours at full load
Note: In order for NETDK OR NETPDK to operate you MUST include a NETWORXPANEL
ALL NETDK/PDK KEYPADS ARE WEATHER RESISTANT
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
|
NETDK
Digital wireless keypad only |
26D, 10B | $309.00 |
|
NETPDK
Digital & Prox wireless keypad only |
26D, 10B | $633.00 |
|
NETDKPAK
Digital wireless wall mounted keypad kit, includes wall mounted reader, control panel w/door position switch with RX, remote release, battery backup and plug in transformer. |
26D, 10B | $1,050.00 |
|
NETPDKPAK
Digital & HID wireless wall mounted keypad kit, includes wall mounted reader, control panel w/door position switch with RX, remote release, battery backup and plug in transformer. |
26D, 10B | $1,375.00 |
TRILOGY NETWORX WIRELESS KEYPADS AND NETPANEL (con't)
| NETWORXPANEL |
NETWORX wireless control panel only,
used with Networx NETDK and NETPDK readers and approved wiegand input readers. |
$741.00 |
|
NETHIDNSPAK
Networx Narrow Stile Pak |
HID Narrow Stile Prox point reader,
control panel w/door position switch with RX, remote release, and battery backup and plug in transformer. |
$957.00 |
|
NETHIDNS
Networx Narrow Stile Reader |
HID Narrow Stile Prox Point Reader Only | $157.00 |
| AL-IME |
Ethernet connected gateway w/AC
adapter to plug into standard wall outlet |
$510.00 |
| AL-IM80211 |
Wi-Fi gateway to connect to 802.11
network w/AC adapter to plug into standard wall outlet. |
$710.00 |
| AL-IMEPOEP |
Power Over Ethernet, plus hardwire
gateway interface capability. No AC Power required. |
$610.00 |
| AL-PRE | Prox Card Enroller | $590.00 |
| ALHID1326 | Proximity Access Cards 100 Per Box | $505.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box |
$1,030.00 |
| ALHID1386 |
Proximity and Photo ID
Card 100 per box |
$927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
| BT102 | Networx Panel Replacement Battery | $55.00 |
| S6187 | Replacement ET Networx Radio | $185.00 |
| S6185 (specify finish) |
Replacement Inside Housing for
DL/PDL6100 (includes radio) |
$288.00 |
| AL-IME-USB | USB Gateway | $300.00 |
| AL-NSG | Networx Signal Generator | $240.00 |
| AL-NSM | Networx Signal Meter | $296.00 |
| ALTRAINDVD |
Trilogy DL-Windows and Networx
Connectivity software training videos divided into 4 easy to follow sections conducted into a classroom style environment. Training videos cover basics, getting started, schedules and times zones, programming Trilogy locks via a laptop and the DTM along with how to connect and bring Networx on line. |
$0.00 + $15.95 shipping and handling
charge. Please contact customer service at 1-800-ALA-LOCK to place your order via credit card, or email sales@alarmlock.com |
TRILOGY & NETWORX REMOTE RELEASE PRODUCTS
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| RR-TRILOGYKIT |
Remote release kit for all Trilogy
Cylindrical models includes the RR 1BUTTON for desk mount applications and RR-RECEIVER which is designed to be installed inside the battery compartment next to the battery pack of any cylindrical Trilogy lock. The RR RECEIVER connects to the 2 white remote release wires inside the battery compartment and to the black and red battery pack wires to power the receiver. These kits will retro fit to any existing cylindrical Trilogy manufactured since 1994. |
$221.00 |
| RR-RECEIVER |
RR-RECEIVER is designed to be
installed next to the battery pack of any cylindrical Trilogy lock. The RR RECEIVER connects to the 2 white remote release wires and to the black and red battery pack wires and will retro fit to any existing cylindrical Trilogy manufactured since 1994. You will need to purchase separately either an RR 1BUTTON OR 4BKEYFOB to activate the receiver |
$128.00 |
| RR-1BUTTON |
Remote release desk mounted button
designed to be used with any existing Networx lock enrolled with a simple keypad program. Must update the firmware of your existing Networx Lock. Also can be used with an RR-RECEIVER to any existing Trilogy Cylindrical Lock, RR-RECEIVER sold separately. |
$92.00 |
| RR-4BKEYFOB |
Remote release 4 button key fob designed
to be used with any existing Networx lock enrolled with a simple keypad program. Must update the firmware of your existing Networx Lock. Also can be used with an RR-RECEIVER to any existing Trilogy Cylindrical Lock, RR-RECEIVER sold separately. |
$103.00 |
|
RR-MORTISEKIT
RR-EXITTRIMKIT |
Remote release kit for Mortise Locks
Remote release kit for Exit Trim Locks *Both include RR-1BUTTON and RECEIVER mounted on a Lexan battery cover.* |
$242.00
$242.00 |
Note: The Remote Release Products follow the Networx Discount Structure. Will not work with Narrow Stile series locksets.
TRILOGY NETWORX UPGRADE KITS
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| DL610026DUPGRD |
Component kit to upgrade a standard
Trilogy cylindrical model to a DL6100 Networx model. Kit includes a Networx outside digital keypad housing, inside housing with radio and a battery pack. Upgrade kit is designed to replace the existing and install in place same components, reusing the existing levers, cylinder, lock body & strike plate. Used with a Networx gateway purchased separately. |
$875.00 |
| PDL610026DUPGRD |
Component kit to upgrade a standard
Trilogy cylindrical model to a PDL6100 Networx model. Kit includes a Networx outside HID Prox & digital keypad housing, inside housing with radio and a battery pack. Upgrade kit is designed to replace the existing and install in place same components, reusing the existing levers, cylinder, lock body & strike plate. Used with a Networx gateway purchased separately. |
$1,287.00 |
| DL650026DUPGRD |
Component kit to upgrade a standard
Trilogy mortise lock model to a DL6500CR Networx model. Kit includes a Networx outside digital keypad housing, inside housing with radio, inside/outside levers and a battery pack. Upgrade kit is designed to replace the existing and install in place same components, reusing the existing cylinder, lock body & strike plate. Used with a Networx gateway purchased separately. |
$1,158.00 |
| PDL650026DUPGRD |
Component kit to upgrade a standard
Trilogy mortise lock model to a PDL6500CR Networx model. Kit includes a Networx HID Prox & outside digital keypad housing, inside housing with radio, inside/outside levers and a battery pack. Upgrade kit is designed to replace the existing and install in place same components, reusing the existing, cylinder, lock body & strike plate. Used with a Networx gateway purchased separately. |
$1,493.00 |
| PDL8200/26DUPGD |
Component kit to upgrade a standard
Trilogy cylindrical model to a PDL8200 iClass Networx model. Kit includes a Networx outside iClass Prox & digital keypad housing, inside housing with radio and a battery pack. Upgrade kit is designed to replace the existing and install in place same components, reusing the existing levers, cylinder, lock body & strike plate. Used with a Networx gateway purchased separately. |
$1,437.00 |
ArchiTechTM Series Networx Locks
Ideal access control solution; elegantly blending advanced wireless access control convenience within any decor, in attractive, infinitely customizable designer locking form, in choice of trims and finishes.
Features:
5000 Users, 500 Scheduled Events & 40,000 Event Audit Trail Surface-Mount or Mortised - in Electronics and Battery Pack Lock available in Mortise and Cylindrical versions Real Time Clock - Uses 4 AA Batteries – 3 to 4-year battery life Operated via access card, fob, key fob etc DL-Windows Software for programming USB Radio Key Programming Method or Via Networx Gateways Manual Card Enrollment Option for Quick Installation Wireless programming range: up to 20 ft. from lock
Specifications:
ANSI / BHMA Grade 1 Certified, UL Listed 3 Hours Includes standard lever rose hardware design Compatible with all 300+ optional architectural trim / lever or knob designs Stainless steel latch, 2-3/4" backset Auto-Reverse lock body tested to 6 million cycles Lock Body - Self cleaning long life motor Door closure monitor / electronic deadbolt monitor Key override standard or high-Security Optional integrated door position indicator switch
Cylindrical Standard model ordering. Consult factory for ordering assistance.
| PRODUCT | LIST PRICE |
|---|---|
| N90S2195F26D | $880.00 |
| N90S1195F26D | $880.00 |
ArchiTech Cylindrical Lever and Lever Prep Options
| Options | 195 | 295 | 395 | 495 | Finish | Add-on | Cylinder Prep Code |
|---|---|---|---|---|---|---|---|
| Yale Conventional | Yes | No | No | No | 26D, 10B | $30.00 | F7 |
| Sargent Conventional | Yes | Yes | No | No | 26D, 10B | $30.00 | F8 |
| Corbin Conventional | Yes | Yes | No | No | 26D, 10B | $30.00 | F9 |
| Corbin 6 Pin IC | Yes | Yes | No | No | 26D, 10B | $30.00 | F12 |
| Corbin 7 Pin IC | Yes | No | No | No | 26D, 10B | $30.00 | F13 |
| Yale 6 Pin IC | Yes | Yes | No | No | 26D, 10B | $30.00 | F14 |
| Yale 7 Pin IC | Yes | No | No | No | 26D, 10B | $30.00 | F15 |
| Schlage 6 Pin IC | Yes | Yes | No | No | 26D, 10B | $30.00 | F19 |
| Sargent IC | Yes | Yes | No | No | 26D, 10B | $30.00 | F20 |
| Medeco IC (large format) | Yes | Yes | No | No | 26D, 10B | $30.00 | F21 |
Note: Please consult factory for availability of other finishes. Round rose place only available with cylindrical version (3.5" diameter). IC core models: tail piece included, core not included.
AtchiTech Cylindrical (con't)
195: American Lever 295: Crescent Lever 395: Monaco Lever 495: Titan Lever
The standard list price of a standard ArchiTech cylindrical lock is $880.00 (American Lever, SC1 keyway)
- add $100 onto list for iClass
- add $100 onto list for Bluetooth
- add $50 onto list for keying
How To Order for ArchiTech Cylindrical
Functions for ArchiTech Mortise Locks
FD (Apartment) - Latch by knob/lever either side except when outside locked by stop-button or projected deadbolt. Latch deadlocked by auxiliary latch or deadbolt. Deadbolt and latch by key outside. Deadbolt by turn piece inside. Inside knob/lever retracts latch & deadbolt simultaneously, leaving outside locked.
EW (Storeroom) - Latch by knob/lever inside, key outside. Outside knob/lever always rigid. Auxiliary latch deadlocks latch. Inside always open.
AD (Automatic deadbolt) - Latch deadlocked by deadbolt automatically when door closes. Deadbolt and latch by key or credential outside. Inside knob/lever retracts latch & deadbolt simultaneously, leaving outside locked.
ArchiTech Mortise
Standard model ordering. Infinite custom models available for mortise version. Consult factory for ordering assistance.
| PRODUCT | LIST PRICE |
|---|---|
| N95S2RX92FD26D | $1,100.00 |
| N95S1RW86FD26D | $1,100.00 |
How To Order for ArchiTech Mortise
ArchiTech Series – Mortise Lockset Options
- 1. Insert (N951) or Surface mount (N95S) electronics
- 2. Oval, square, or mag reader
- 3. Features: Bluetooth or iClass
- 4. Function: storeroom (EW), Apartment (FD), or automatic deadbolt (AD)
- 5. Lever style (knob is also available)
- 6. Rose plate style
- 7. If escutcheon plate will be needed (consult factory)
- 8. Keying needed
- 9. Finish currently 26D/32D and 10B is offered. Consult factory for other finishes.
The standard list price of a standard ArchiTech mortise lock is $1,100.00 (American Lever, round rose)
- add $100 onto list for iClass
- add $100 onto list for Bluetooth
- add $50 onto list for keying
- add $50 onto list for any other lever design other than American (92)
Lever, knob and rose options. The code would be the number/letter underlined.
| S | Round Knob 10 | Ball Knob 20 | Ball Knob 30 | Eclipse Knob 60 | RR: 2-9/16" dia. | |
|---|---|---|---|---|---|---|
| KNOBS | ( ) | RW: 2-9/16" dia. | ||||
| Stanhope Lever 44 |
Madison Lever
52
Specify handing |
Brompton Lever 55 |
Monaco Lever
57
Specify handing |
|||
| ROSES | RQ: 2-1/4" dia. | |||||
| 3S | Towne Lever 72 | Maxwell Lever 77 | Omni Lever 78 |
Plaza Lever
82
Specify handing |
_ | |
| LEVERS | RS: 2-1/4" dia. | |||||
|
Dayton Lever
83
Specify handing |
Crescent Lever 86 | American Lever 92 | Titan Lever 96 | BX:2-9 | /16"sq. RK:2-9/16"sq. | |
| V | I | Wrought |
Additional notes:
N95S (surface mount electronics, oval, square, and swipe (mag) reader available)
N95I (insert electronics, oval and square reader available)
N95J (insert electronics, Bluetooth, oval and square reader available)
N95T (surface mount electronics, Bluetooth, oval, square and swipe (mag) reader available)
ArchiTechTM Series Networx Locks Parts and Accessories
| Product | DESCRIPTION | LIST PRICE |
|---|---|---|
| AL-IME |
Ethernet connected gateway w/AC
adapter to plug into standard wall outlet |
$510.00 |
| AL-IM80211 |
Wi-Fi gateway to connect to 802.11
network w/AC adapter to plug into standard wall outlet. |
$710.00 |
| AL-IMEPOEP |
Power Over Ethernet, plus hardwire
gateway interface capability. No AC Power required. |
$610.00 |
| AL-IME-USB | USB Gateway | $300.00 |
|
AL-NSM
ALHID1326 |
Networx Signal Meter
Proximity Access Cards 100 Per Box |
$296.00
$505.00 |
| ALHID1336 |
Proximity, Magnetic Stripe and Photo
ID cards 100 per box Proximity and Photo ID |
$1,030.00 |
| ALHID1386 | Card 100 per box | $927.00 |
| ALHID1391 | MicroProx Tag 10 per box | $82.00 |
| ALHID1346 | Proximity keyfob 10 per box | $118.00 |
ArchiTechTM Series Networx Locks Mounted Samples
Cylindrical
| PRODUCT | LIST PRICE |
|---|---|
| N90S1295SK26D | consult factory |
| S90S1195SK26D | consult factory |
| N90S1195SK26D | consult factory |
| Mortise |
|---|
| PRODUCT | LIST PRICE | |
|---|---|---|
| N95S1RW86SK26D | consult factory | |
New! iLock App
PP100 Optional AC Power Supply
AC9 Optional AC Power Supply
S6173
$272.00
$77.00
$37.00
WEATHER-RESISTANT ALARMED PANIC LOCKS
Models 250, 260, 700, 710 Battery operated alarmed panic locks. All models
(except 11A) feature deadbolt & deadlatch for extra security.
Selectable 2-minute or constant alarm.
260/710. All models (except 11A) feature a 2-minute auto
re-set on the alarm.
SPECIFICATIONS:
Cover: Die-cast metal
Push Bar: Extruded Aluminum channel and push bar Handed: All models non-handed except 11A
Installation: Surface mounted for single or double doors
Cylinder: Accepts most standard size rim cylinders for inside And outside key control (not included)
Power: Uses 1 9v battery (included). Normal battery life 1
Year. Can be powered by AC power by using either
PP100 or AC9.
Lock bolt: 1" throw heavy die cast with reinforced
Steel inserts.
Alarm: Dual piezo siren measured at 95db
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| 250WP (PADDLE) | US28 | $538.00 |
| 700WP (36" BAR) | US28, US312 & Red | $654.00 |
| 700X48WP (48" BAR) | US28 & US312 | $654.00 |
| 710WP (36"BAR) | US28 | $677.00 |
|
CER-KD CER-12345
Rim Cylinder for Outside & Inside Key Control |
Solid Brass Body
Satin Chrome Face |
$32.00 |
|
730
Single Door Strike for 250,260,700 & 710 |
US28 & US312 | $47.00 |
|
732
Double Door Strike for 250,260,700 &710 |
US28 & US312 | $47.00 |
|
44
Double Door Holder |
Aluminum | $131.00 |
|
707
Exterior Door Pull use on 250,260 700 & 710 only |
Metallic Silver (MS)
Metallic Bronze (MB) |
$133.00 |
|
711
Exterior Finger Pull |
US28 & US312
Use on 250,260,700 & 710 only |
$32.00 |
|
767
Mounting Plate for Aluminum Glass Door |
US28 & US312
Use on 250,260,700 & 710 only |
$22.00 |
Aluminum
Aluminum
Replacement WP battery
ALARMED PANIC DEVICES
(except 11A) feature deadbolt & deadlatch for extra security. Selectable 2-minute or constant alarm. 260/710. All models (except 11A) feature a 2-minute auto
F H
Cover: Die-cast metal
Push Bar: Extruded Aluminum channel and push bar Handed: All models non-handed except 11A Installation: Surface mounted for single or double doors
Cylinder: Accepts most standard size rim cylinders for inside
And outside key control (not included) Power: Uses 1 9v battery (included). Normal battery life 1
Year. Can be powered by AC power by using either
PP100 or AC9.
Lock bolt: 1" throw heavy die cast with reinforced
Steel inserts.
Alarm: Dual piezo siren measured at 95db
| PRODUCT | FINISH | LIST PRICE |
|---|---|---|
| 250 (PADDLE) | US28 | $474.00 |
| 260 (PADDLE) | US28 | $517.00 |
| 700 (36" BAR) | US28, US312 & Red | $573.00 |
| 700X48 (48" BAR) | US28 & US312 | $613.00 |
| 710 (36"BAR) | US28 | $613.00 |
| 710X48 (48"BAR) | US28 | $628.00 |
| 11A | Deadbolt only exit lock. Handed order 11A or 11ALH. Use BP6 Battery. | $598.00 |
ACCESSORIES
|
CER-KD CER-12345
Rim Cylinder for Outside & Inside Key Control |
Solid Brass Body
Satin Chrome Face |
$32.00 |
|---|---|---|
|
730
Single Door Strike for 250,260,700 & 710 |
US28 & US312 | $47.00 |
|
732
Double Door Strike for 250,260,700 &710 |
US28 & US312 | $47.00 |
|
K24A
K28 |
11A Single door strike
11A Double door strike |
$37.00
$42.00 |
|
K210A
44 |
11A Strike for in-swing doors | $55.00 |
| Double Door Holder 22 | Aluminum | $131.00 |
| Emergency Exit Pull (250/260/11A) | Aluminum | $92.00 |
| 707 Exterior Door Pull use on 250,260 700 & 710 only |
Metallic Silver (MS)
Metallic Bronze (MB) |
$133.00 |
|
711
Exterior Finger Pull |
US28 & US312
Use on 250,260,700 & 710 only |
$32.00 |
|
767
Mounting Plate for Aluminum Glass Door |
US28 & US312
Use on 250,260,700 & 710 only |
$22.00 |
|
PP100
Optional AC Power Supply |
Aluminum | $272.00 |
| AC9 Optional AC Power Supply | Aluminum | $77.00 |
|
9936
9948 |
Used to mount 11A on 36" glass door
Used to mount 11A on 48" glass door |
$94.00
$99.00 |
|
261
BP6 |
Current Transfer Replacement battery for 11A |
$72.00
$37.00 |
DOOR ALARMS
PG10, PG21 & PG30 SERIES – Battery operated surface mounted door alarms. Alarms magnetically activated. Easy to install. Convenient plug-in "No cut" jumpers.
SPECIFICATIONS:
Power: PG21, PG30 use 9v battery (supplied). PG10 & LL1use BP6
(supplied). BP6 must be purchased from Alarm Lock.
AC power supply can also be used as a battery back up (see below).
Alarm: Dual piezo siren measured at 95db.
Cylinder: Accepts most 1¼" mortise cylinder used for interior activation
(not supplied) and standard size rim cylinder used for exterior
activation (not supplied).
Installation: Surface mounted for single or double doors.
Cover: Die cast metal.
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| Available in aluminum finish uses BP6 | ||
| PG10 | Battery replaced only through Alarm Lock | $298.00 |
| LL1 | Same as PG10 with strobe light on top. | $309.00 |
| Available in metallic silver and metallic | ||
| PG21MS PG21MB | bronze. Uses 9v battery. | $298.00 |
| PG21MSS/PG21MBS |
Available in metallic silver and metallic
bronze. Uses 9v battery with yellow strobe on top for noisy areas |
$366.00 |
| PG30MS PG30MB |
Available in metallic silver and metallic
bronze. No cylinders required. All exit, entry and security levels programmed through keypad. 3 security levels, master, management and passage. Use 9v battery. |
$355.00 |
| PG30KPD | Exterior keypad used with PG30 only. | $205.00 |
| CEM-KD CEM-12345 |
Standard mortise cylinder for interior
activation. Solid brass body, satin chrome face |
$32.00 |
|
CER-KD
CER-12345 |
Standard rim cylinder for exterior
activation. Solid brass body, satin chrome face. |
$32.00 |
| PP100 |
AC battery back-up complete with
armored cable and housing. |
$272.00 |
| AC9 | AC battery back-up housing only | $77.00 |
| BP6 | Replacement battery for PG10 & LL1 | $37.00 |
DELAYED EGRESS PANIC LOCKS
715 Series - Stand alone delayed egress panic lock. 15 second delayed latch,
instant alarm. Instant egress in case of emergency or fire. Meets NFPA 101 Life Safety Code. Includes monitoring output for secondary siren , CCTV or remote monitoring. Smoke detector input.
SPECIFICATIONS:
Cover: Die cast metal
Push bar: Extruded aluminum push bar and channel
Handed: Non-handed
Installation: Surface mounted for single or double doors Cylinder: Accepts most standard size rim cylinder used for
Inside and outside key control
Power: AC powered with 9v battery back-up for siren. Transformer
And armored cable included
Lock bolt: 1" throw heavy die cast with reinforced steel inserts
Alarm: Dual piezo siren measured at 95db
ELECTRIC DEADBOLTS
Models 103 & 104 Fail-safe or fail-secure electric deadbolts. Available In 12v or 24v AC or DC. Perfect for use on narrow stile Doors. Complete with angle, mortise or flush mount strikes. Use with standard key or push button switch.
SPECIFICATIONS:
Cover: Molded aluminum
Power : Requires 400 mA for 24v, 800mA for 12v unit Deadbolt: Powered by a continuous duty solenoid. 5/8" diameter
And 5/8" projection.
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| 24v AC or DC. Includes three strikes and | ||
| 103 | magnets. Fail-safe | $360.00 |
| 103x12 |
12v AC or DC. Includes three strikes and
magnets. Fail-safe |
$424.00 |
| 104RA |
24v AC or DC. Includes three strikes and
magnets. Fail-secure |
$429.00 |
| 104x12 |
12v AC or DC. Includes three strikes and
magnets. Fail-secure |
$474.00 |
| 221 / 241 | 24v Plug-in style transformers | $55.00 |
| 222 | 24v Wire-in style transformer | $55.00 |
REMOTE RELEASE MAGNET
RR-PM1200 SERIES – Stand alone remote operated infra-red mag lock. Allows remote
Lock control by a transmitting keyfob. Infra-red signal is detectable From interior and exterior sides of the door. Keyfob will operate From 10 feet on exterior side and 35 feet from interior side.
SPECIFICATIONS:
Magnet: 1200lb 12v DC magnet
Power: Includes 12v AC plug in transformer. A 12v DC power supply
Can be utilized (not included)
Keyfob: Single button, dual LED infra-red transmitting. Up to 100 keyfobs
Can be programmed into a single magnet.
Programming: Each keyfob must be presented to the magnet to enroll keyfob ID into
Software.
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| RR-PM1200PAK |
Includes 1 1200lb remote magnet, one
AL-REMOTE keyfob and one 12v AC |
|
| transformer | $642.00 | |
| RR-PM1200 | 1200lb remote magnet | $568.00 |
| AL-REMOTE | Remote keyfob | $66.00 |
POWER MAGNETS AND REQUEST TO EXIT BUTTONS
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| PM600BI |
600lb magnetic lock field selectable
12/24v DC 9 7/8" x 1 11/16" x 1" Aluminum finish |
$332.00 |
| PM600L |
600lb magnetic lock field selectable
12/24v DC 9 7/8" x 1 11/16" x 1" Aluminum finish L.E.D. indicator |
$390.00 |
| & door bond sensor for remote monitoring | ||
| PM1200 |
1200lb magnetic lock field selectable
12/24v DC 9 7/8" x 1 11/16" x 1" Aluminum finish |
$350.00 |
|
PM1200SL
PM1200SL40 (dark bronze) |
1200lb magnetic lock field selectable
12/24v DC 9 7/8" x 1 11/16" x 1" Aluminum finish L.E.D. indicator |
$406.00 |
| PM1200SLBI |
& door bond sensor for remote monitoring
1200lb magnetic lock field selectable 12/24v DC 21" x 1 11/16" x 1" Aluminum finish L.E.D. indicator & door bond sensor for remote monitoring for use on double doors |
$734.00 |
| PM120040 |
1200lb magnetic lock field selectable
12/24v DC 9 7/8" x 1 11/16" x 1" dark bronze finish |
$396.00 |
| PM1200SLBI40 |
1200lb magnetic lock field selectable
12/24v DC 21" x 1 11/16" x 1" dark bronze finish L.E.D. indicator & door bond sensor for remote monitoring for use on double doors |
$734.00 |
| PE1 |
Round red exit button non-illuminate
Standard switch plate |
$133.00 |
| PE2 |
Square green illuminated exit button
Standard switch plate |
$133.00 |
| PE2S |
Square green illuminated exit button
Narrow switch plate |
$131.00 |
| PMA-ANGL1 | Angle bracket 1 ½ x 10 ½ | $48.00 |
| PMA-ANGL2 | Angle bracket adjustable 1 ½ x2 3/8x 10½ | $92.00 |
| PMA-ANGL3 | Angle bracket adjustable 1 3/8x2 3/8x10½ | $92.00 |
| PMA-FILL1 | Filler plate 10 ½ x ¾ x 5/8 | $38.00 |
Note: Remote release and Power mag and accessories follow the Trilogy discounts.
POWER MAGNETS AND REQUEST TO EXIT BUTTONS (cont'd)
| PRODUCT | DESCRIPTION | LIST PRICE |
|---|---|---|
| PMA-FILL2 | Filler plate 10 ½ x ¾ x ½ | $38.00 |
| Z bracket adjustable use with PM600BI | ||
| PMA-Z1 | Series | $177.00 |
| Z bracket adjustable use with PM1200 | ||
| PMA-Z2 | series | $289.00 |
| PMA-ARMH1 | Armature plate 7 ¼" x 1 ½" x 19/32" | $172.00 |
| PMA-ARMH2 | Armature plate 7 ½" x 2 7/16" x 19/32" | $188.00 |
ALARM LOCK SYSTEMS, INC. WARRANTY/RETURN POLICY
Alarm Lock Systems Inc. warrants its products to be free from manufacturing defects in material and workmanship. The length of said warranty is 24 months on all products from the date of manufacture.
Any customer may get an over-the-counter exchange with the original seller (distributor) for any Alarm Lock product failing to operate properly.
For those customers who have direct accounts with Alarm Lock, please follow this procedure to return product for warranty replacement:
- 1. Email your request to: returns@alarmlock.com
- 2. In order to receive a return authorization number, you must provide the date code of the product.
- 3. The 4-digit date code sticker is the actual expiration date of the warranty.
- 4. Any out of warranty product returned to the factory will be scrapped and is not returnable.
- 5. If said product is found not to be operating properly because of a factory defect and is within the warranty period, Alarm Lock will issue a product replacement.
If you experience a problem with any Alarm Lock product, you may contact Alarm Lock's Technical Support directly at 1 800 252-5625.
All prices published are suggested list prices in US Dollars. Some specifications are preliminary and subject to change without prior notice. Not responsible for typographical errors. Alarm Lock Systems, LLC, is a Division of Napco Security Technologies, Inc. (NASDAQ:NSSC) © Alarm Lock Systems, LLC, 9.16
Notes
Notes
Alarm Lock Systems, Inc. 345 Bayview Ave Amityville, NY 11701 1 800 252-5625 1 631 789-3383 www.alarmlock.com
ALA132A.1 10/17
