1931 Cabinet Pull – Cut Sheet

Open the original PDF document

View PDF

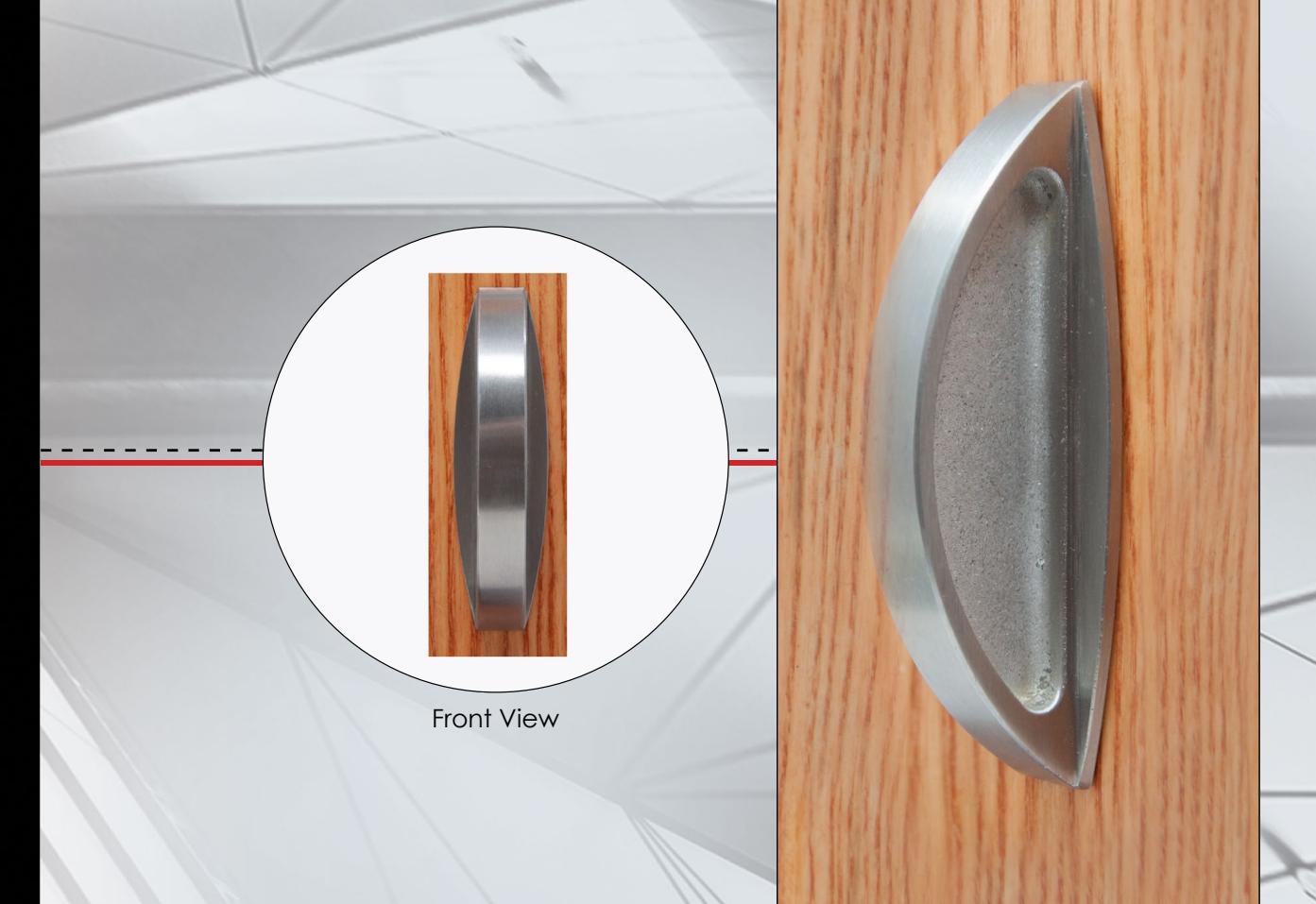

Cabinet Pull

Note:

1. 1-1/8" Projection from face of the caninet

Side View

  • 2. Sloped to eliminate ligature points
  • 3. Thru-bolted for maximum stabillity
