1893 Angle Stop Roller Latch with Cast Strike Template
Open the original PDF document

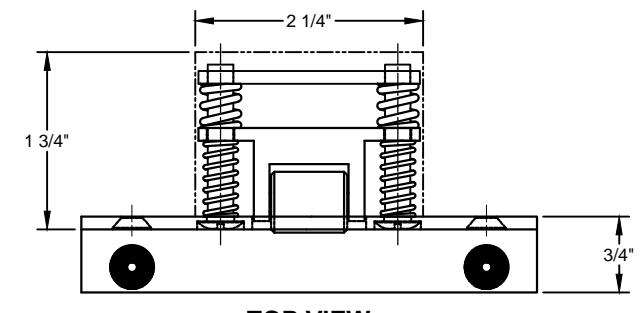

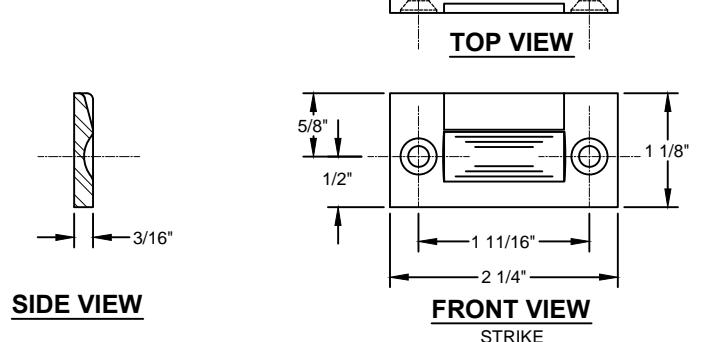

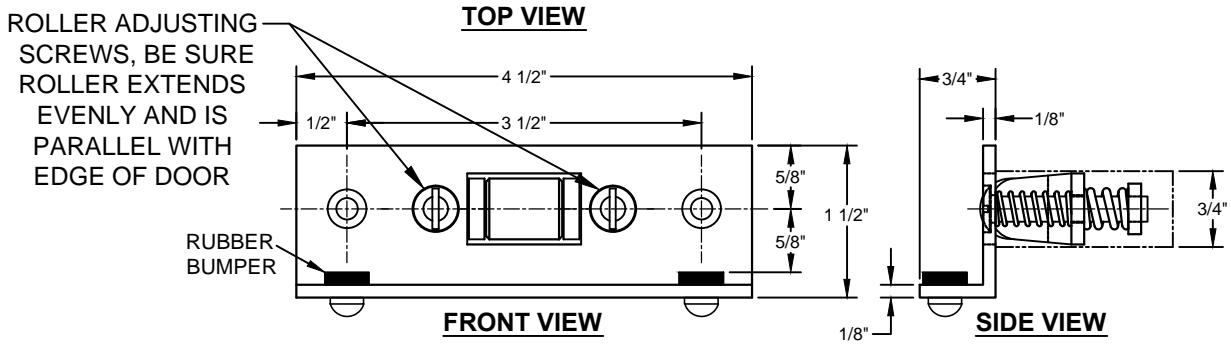

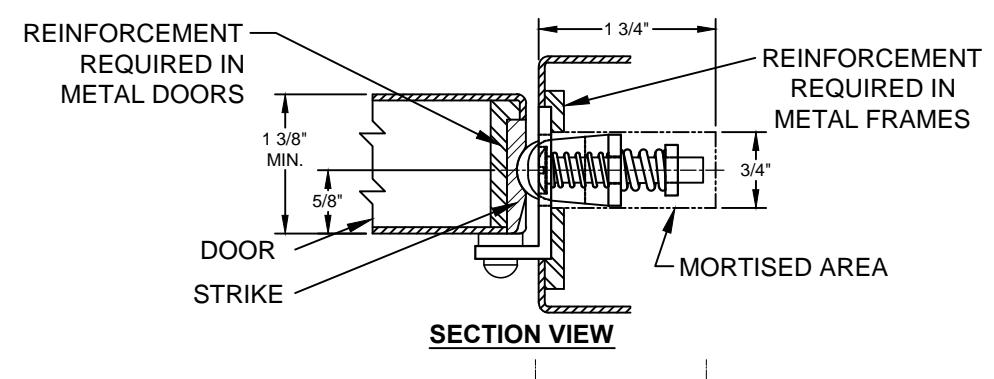

View PDF1893 ROLLER LATCH WITH APPLIED STOP WITH STRIKE
FOR USE WITH SINGLE DOORS WITHOUT STOP
| SCREW DETAIL | ||
|---|---|---|
| QTY | DESCRIPTION | |
| BODY | 2 | #10 x ¾" F.H. S.M.S. |
| STRIKE | 2 | #8 x ¾" F.H. S.M.S. |
DO NOT SCALE DRAWING
® www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
© 2010 ABH Mfg., Inc. printed in USA
1893-03.DWG
1893
PAGE 1 OF 1 REVISED 05-05-10
