1890 Roller Latch with Full Lip Cast Strike – Template
Open the original PDF document
View PDF1890 ROLLER LATCH WITH STRIKE

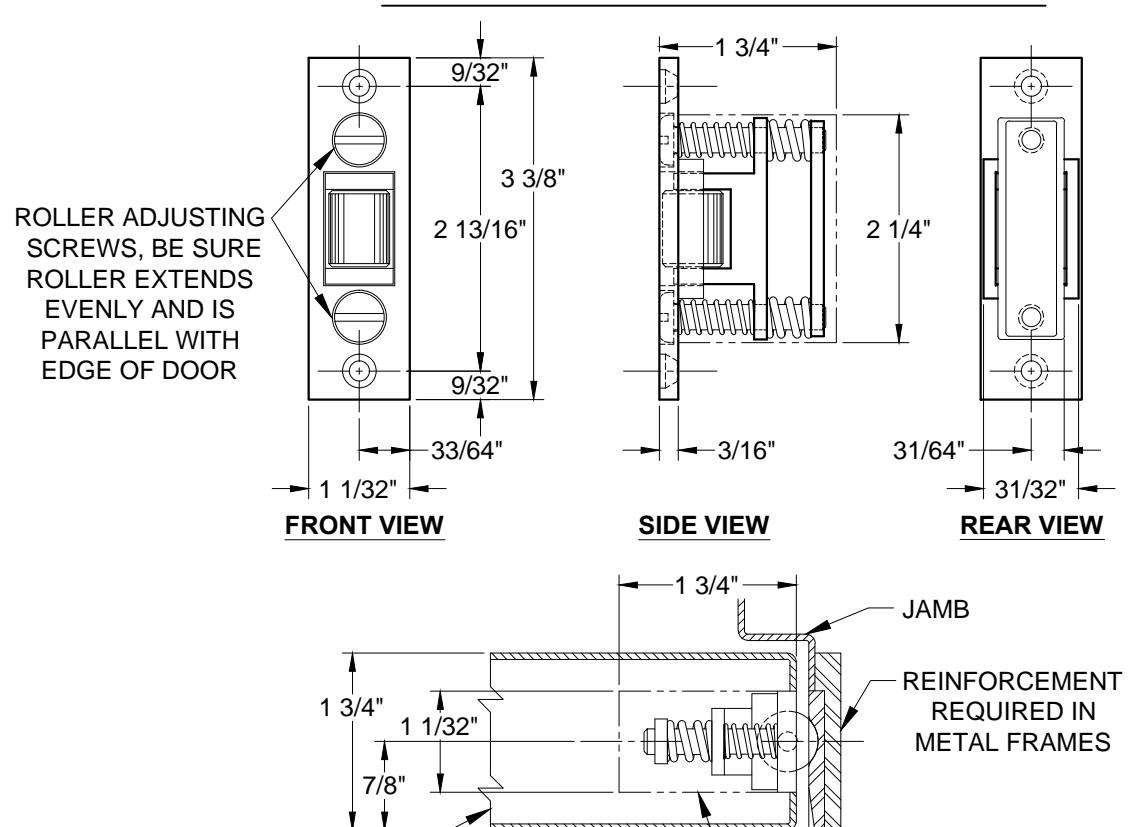

MORTISED AREA
SECTION VIEW
| SCREW DETAIL | |||
|---|---|---|---|
| QTY | WOOD | METAL | |
| BODY | 2 | #10 x 3/4" F.H.S.M.S. | 10-24 x 3/4" F.H.M.S. |
| STRIKE | 2 | #8 x 3/4" F.H.S.M.S. | 8-32 x 3/8" F.H.M.S. U/C |
DO NOT SCALE DRAWING
® www.abhmfg.com
DOOR
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
© 2018 ABH Mfg., Inc. printed in USA

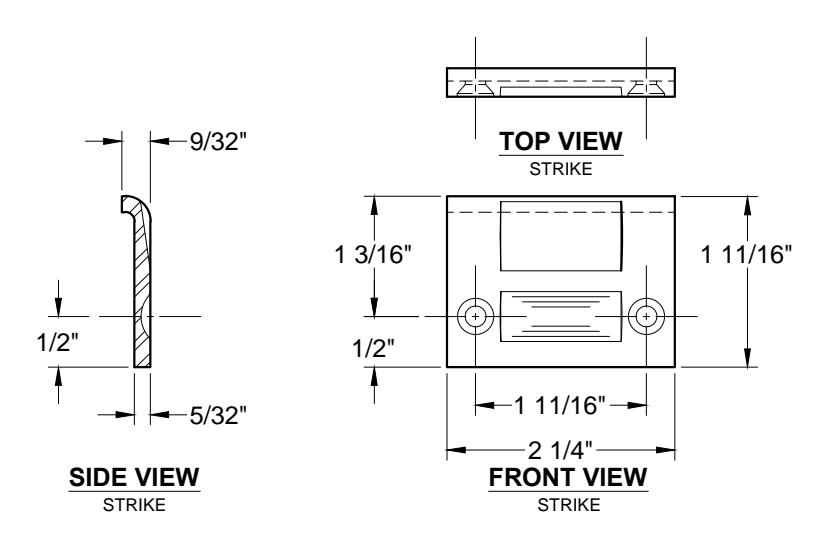

STRIKE
1890-02.DWG
1890 PAGE 1 OF 1 REVISED 05-17-18
