1884 SLIDEBOLT PADLOCK LATCH

FOR 161 PREP PATENT PENDING

INSTALLATION:

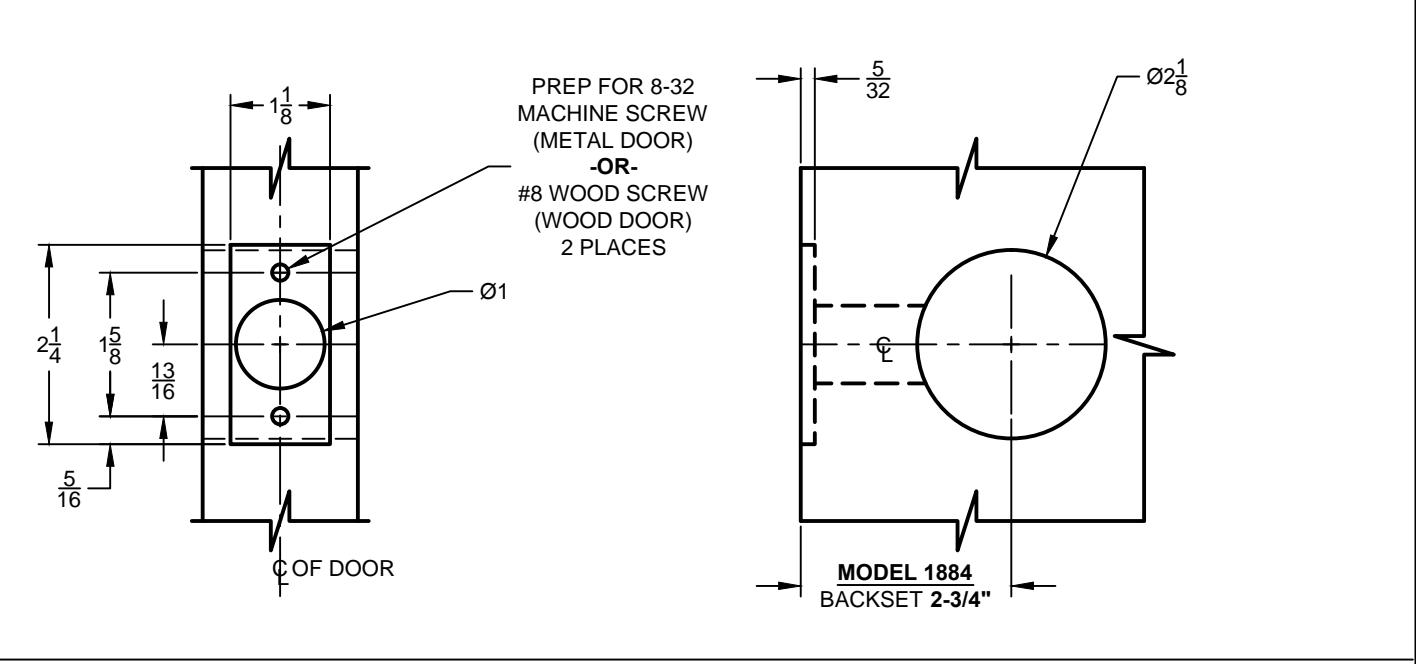

• 1. PREP THE DOOR ACCORDING TO YOUR MODEL ORDERED.
• 2. INSERT THE BOLT ASSEMBLY INTO THE BOLT GUIDE AND PLACE THE FACE PLATE ONTO BOLT GUIDE AND SCREW THE ASSEMBLY TO THE DOOR USING THE PROPER SCREW FOR THE APPLICATION.

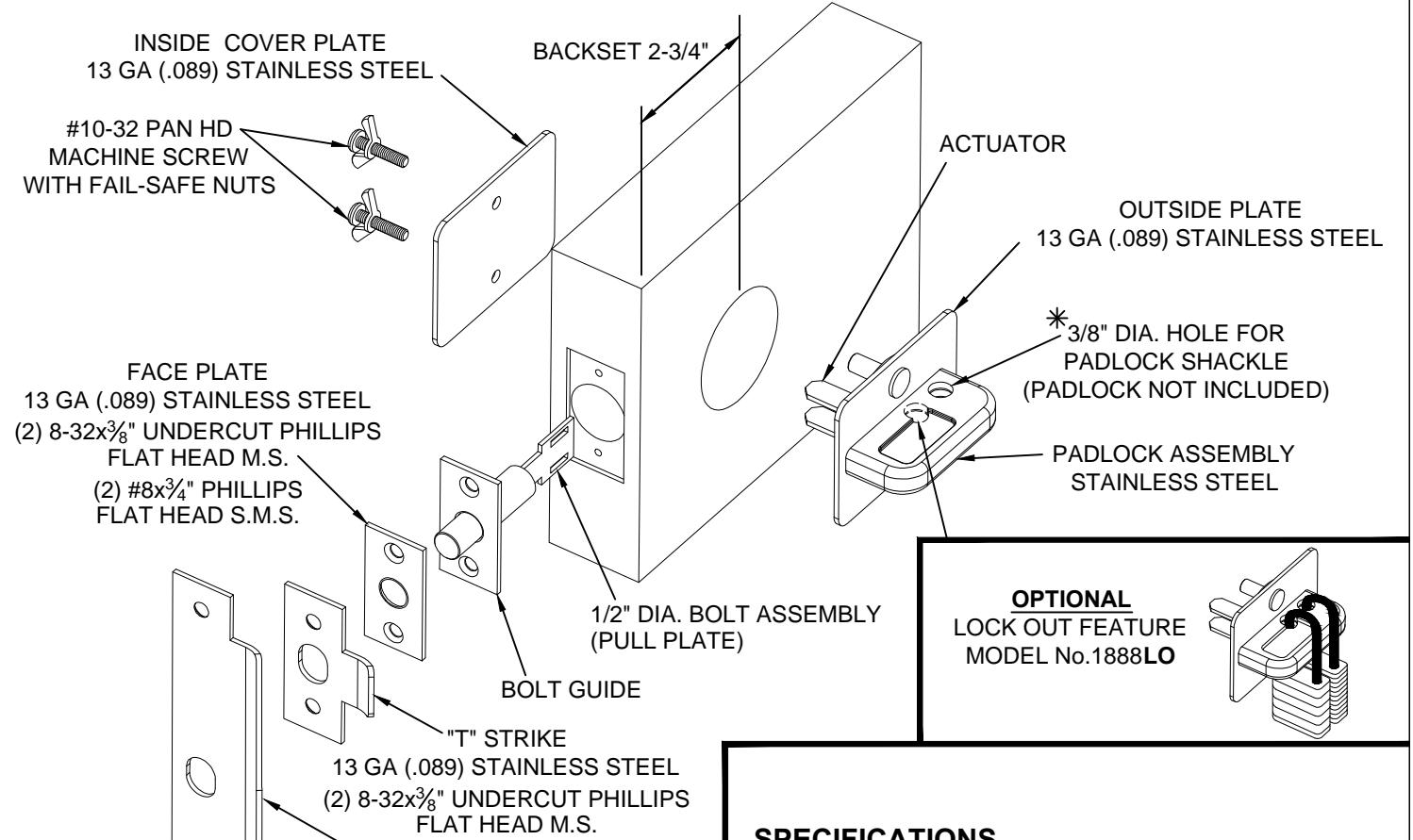

• 3. PLACE THE PADLOCK ASSEMBLY ON THE CORRECT SIDE OF THE DOOR MAKING SURE THE ACTUATOR GOES THRU THE SQUARE HOLES THAT ARE ON THE BOLT ASSEMBLY. *PADLOCK ASSEMBLY MUST BE INSTALLED WITH 3/8" HOLE ON OPPOSITE SIDE OF LATCH (AS SHOWN IN PICTURE)
• 4. PLACE THE INSIDE COVER PLATE ON THE OPPOSITE SIDE OF THE DOOR AND SCREW TOGETHER WITH THE 10-32 SCREWS WITH FAIL-SAFE NUT. CHECK FOR PROPER OPERATION BEFORE TIGHTING THE SCREWS.

SPECIFICATIONS

MODEL 1884 - 2 3/4" BACKSET 161 DOOR PREP

1/2" DIA. STAINLESS STEEL BOLT W/ 5/8" THROW.

PADLOCK ASSEMBLY: STAINLESS STEEL CASTING WITH NYLON INSTALLATION GUIDE.

INSIDE COVER PLATE: STAINLESS STEEL.

HANDING: REVERSIBLE/NON-HANDED.

STRIKE: 13 GAUGE (.089) STAINLESS STEEL 4-7/8" ASA OR 2-3/4" T STRIKE.

PLEASE SPECIFY 1-3/8" THICK DOOR OR 1-3/4" THICK DOOR WHEN ORDERING

1884 SLIDEBOLT INSTALLATION-1-00.DWG

R www.abhmfg.com

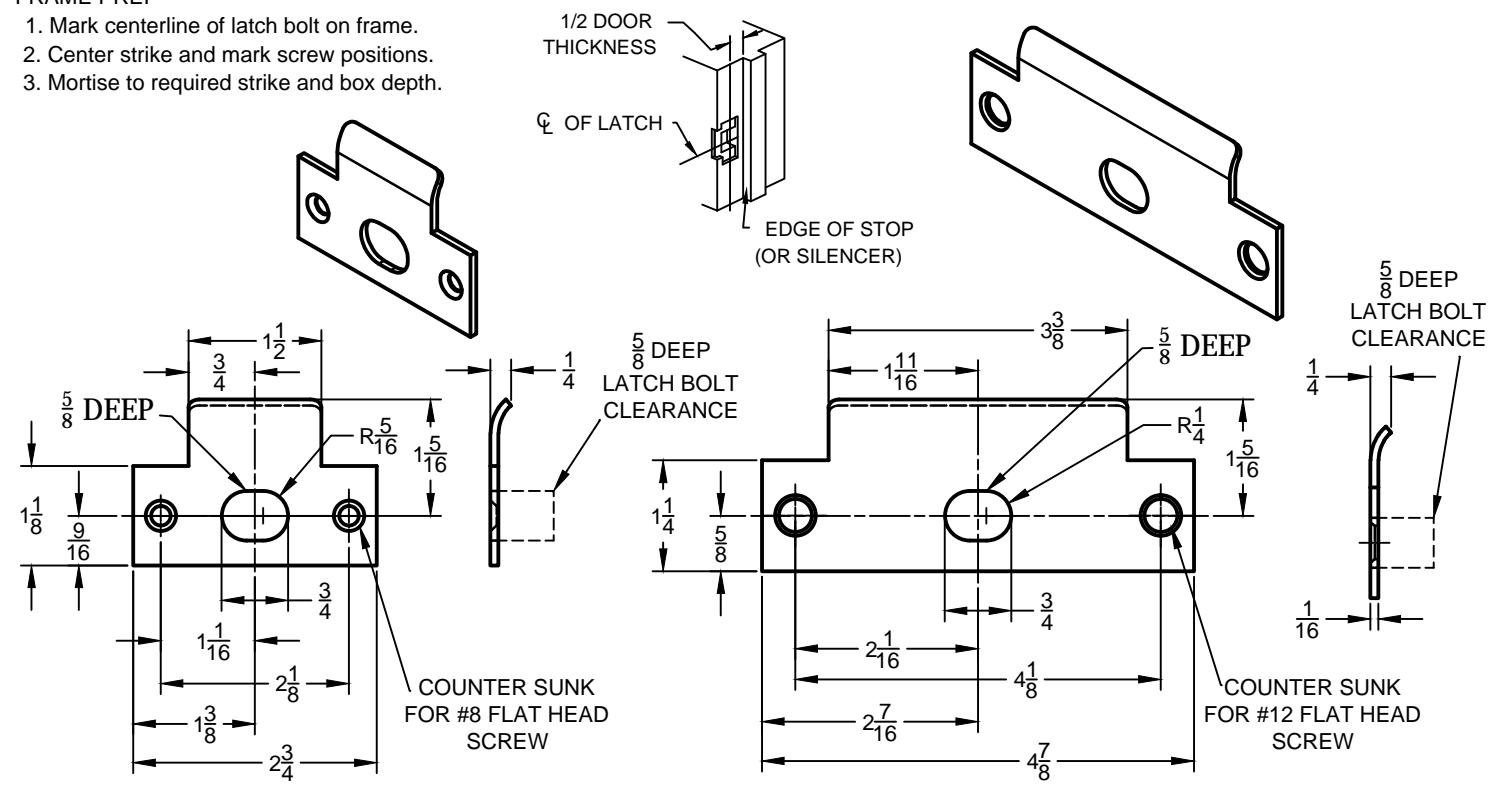

ASA STRIKE
