18300

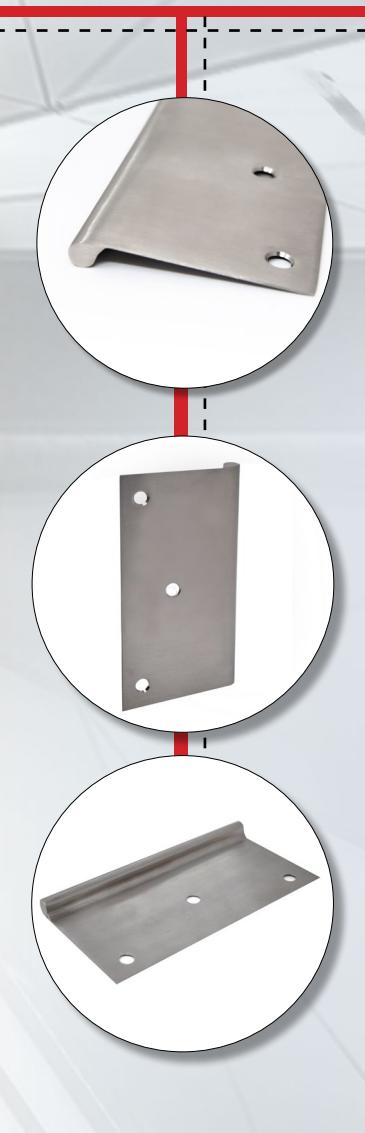

Custom Stainless Steel Round Edge Pull
Note:

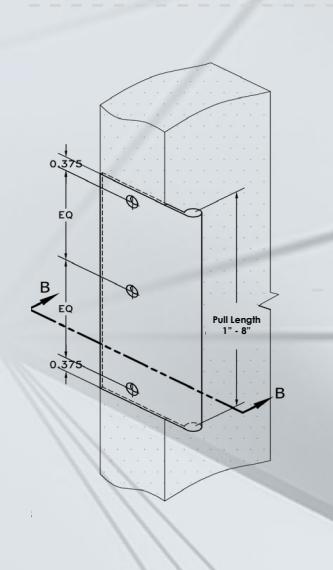

- 1. All Dimensions are in inches
- 2. Material: S.S. 0.0625 Thick
- 3. Screw: #6 x 5/8"
- 4. Finishes: US3, US4, US9, US10, US10B, US32, US32D

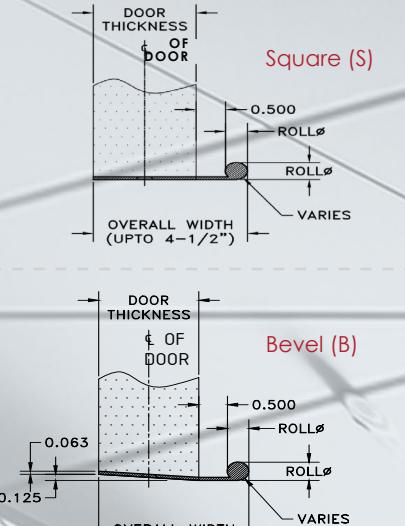

- 5. Square (S) or Bevel (B) option
Contact Factory for custom finishes
Order Form Below (see example)

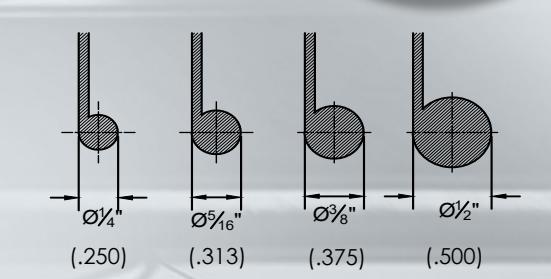

| Series # | Dia. | Door Thick | Length | S/B | Qty. |
|---|---|---|---|---|---|
| (example) 18300 | .250 | 1.75 | 6" | S | 25 |
| 1. | |||||
| 2. | |||||
| 3. |
