Pull & Plate

Overall Size

4" x 16"

CTC

10"

Finishes Available

• US3
• US4
• US10
• US10B
• US32
• US32D

Specifications

Material

• Stainless Steel

Features

• This set has no perimeter screw holes in either plate.
• Concealed mounting system. Any of the rod type door pulls are appropriate for this application.

Fasteners

• Type 9. Stud welded lugs on the back of the push plate are permanently attached to the 1/8" thick push plate. Cone Head MS attached to selected door pull.

Options

• Engraving on plates 4" wide or wider. Specify copy.
• Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)

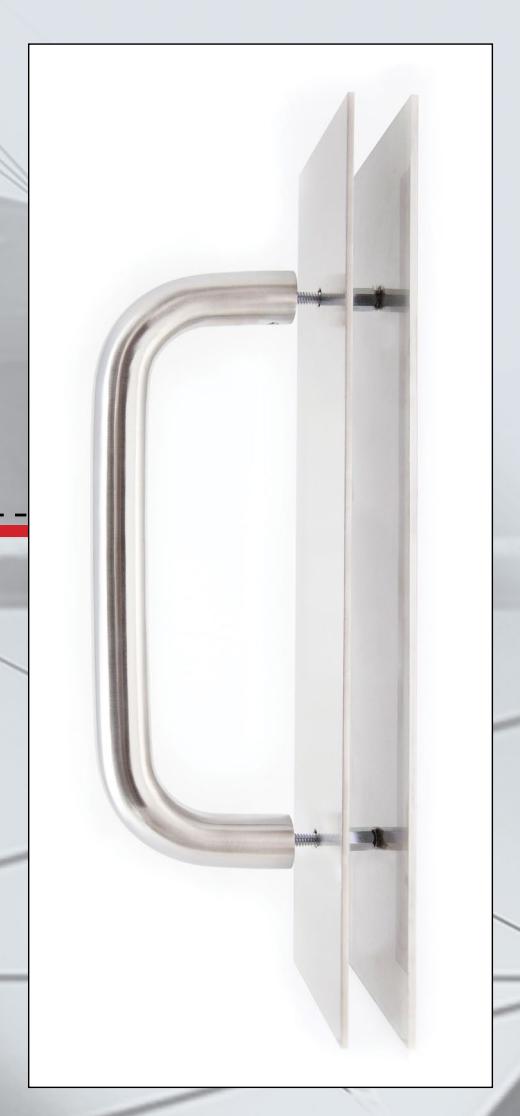

Side View

Front View
