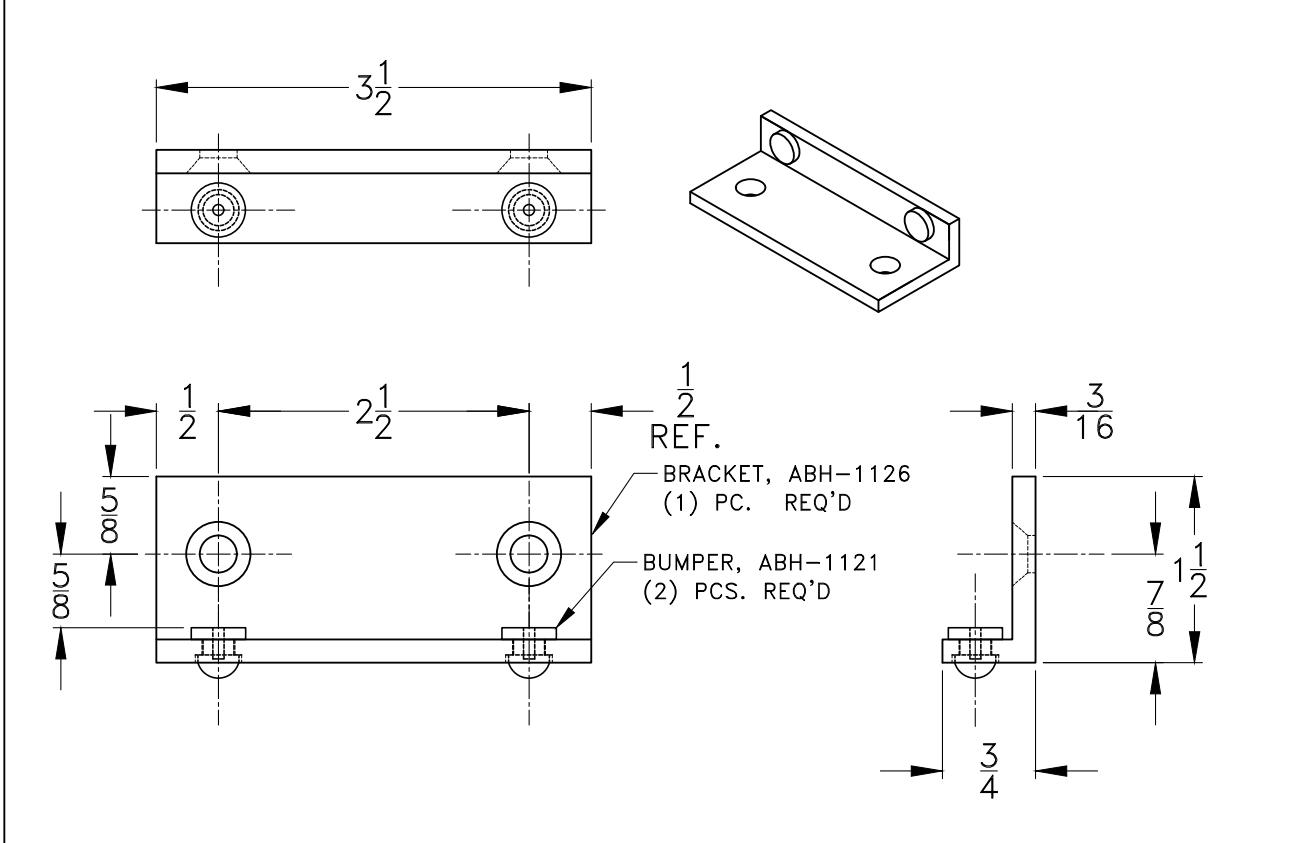

1801 APPLIED STOP

FOR USE WITH SINGLE OR PAIR DOORS WITHOUT STOP

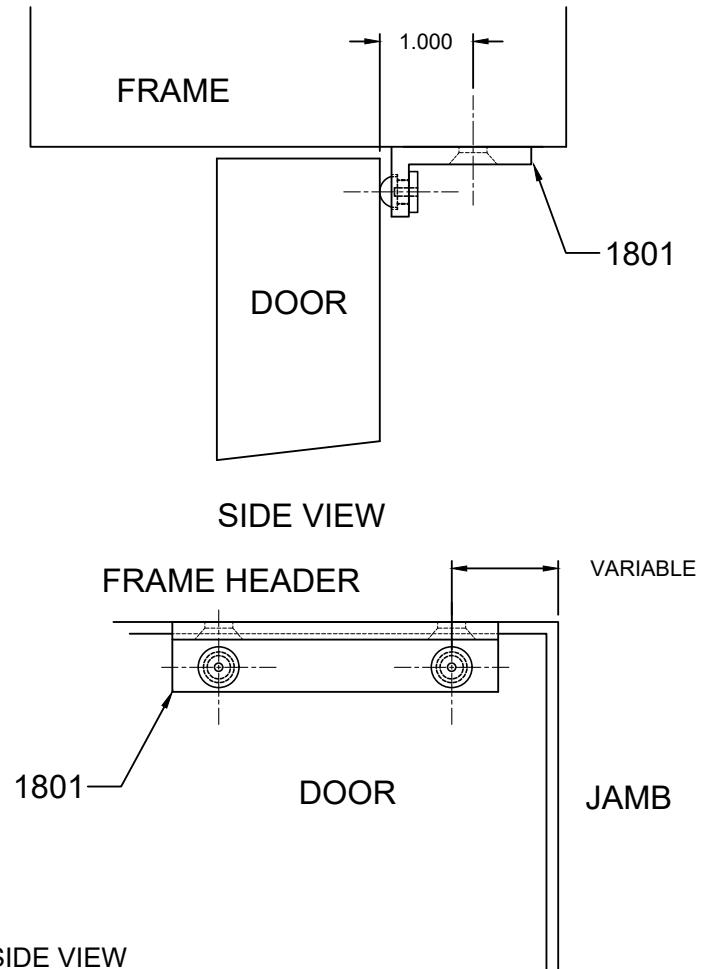

FRONT VIEW

1. PLACE STOP IN DESIRED LOCATION IN HEADER WIDTH, SEE FRONT VIEW
2. PLACE RUBBER BUMPER OF STOP AGAINST DOOR AND 1801 BODY AGAINST HEADER, SEE SIDE VIEW
3. MARK SCREW HOLE LOCATION ON HEADER (SHOULD BE 1" OFF THE FACE OF THE DOOR)
4. PREPARE MOUNTING HOLES FOR #14 X 1-1/2" F.H.W.S. OR 1/4-20 X 3/4" F.H.M.S.
5. MOUNT STOP WITH (2) #14 X 1-1/2" F.H.W.S. OR (2) 1/4-20 X 3/4" F.H.M.S.
