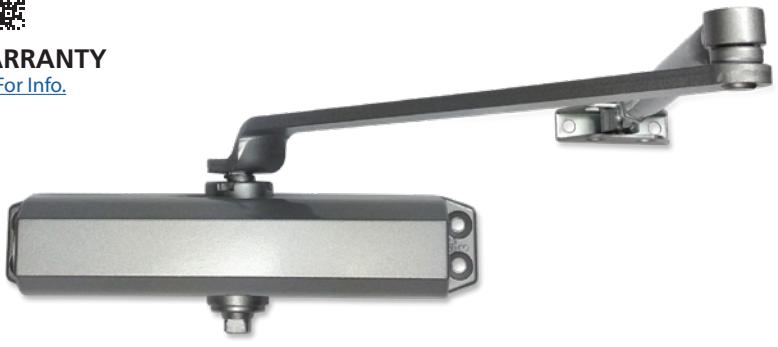

1800 SERIES FIXED SPRING POWER SURFACE APPLIED
GRADE 1 • FIRE RATED • HANDICAP
FEATURES
- Narrow design permits installation on most glass and aluminum doors without adapters
- Standard application for regular arm and Top Jamb installation; parallel arm installation
- Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves, adjustable after installation. (Three valves with optional back-check)
-
Ranges of Sizes
- Standard: 1803, 1804, and 1805
- Back-Check: 1803-BC, 1804-BC, and 1805-BC
FINISHES
- AL Aluminum
- DU Storefront Bronze
COMPLIANCE STANDARD
- Factory tested to meet or exceed ANSI 156.4 Grade 1
- Barrier Free operation to comply with Federal Accessibility Standards (ADA) complying with ANSI 117.1
OPTIONS AVAILABLE
- Slim or Full Plastic Cover
- Hold-Open Arm
- Drop Plates
- Sex Nuts and Bolts
• Closing and Latching Adjustment Valves
• 1803-BC, 1804-BC and 1805-BC Series Back-Check Adjustment Valve

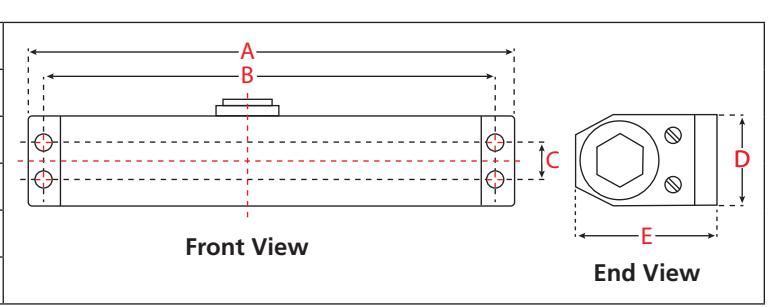

TECHNICAL DIMENSIONS
| Description | Dimensions |
|---|---|
| A. Length of Closer Body | 9-3/4" |
| B. Horizontal Mounting Holes | 9-1/16" |
| C. Vertical Mounting Holes | 3/4" |
| D. Closer Body Height | 1-31/32" |
| E. Projection from Door | 2-29/32" |

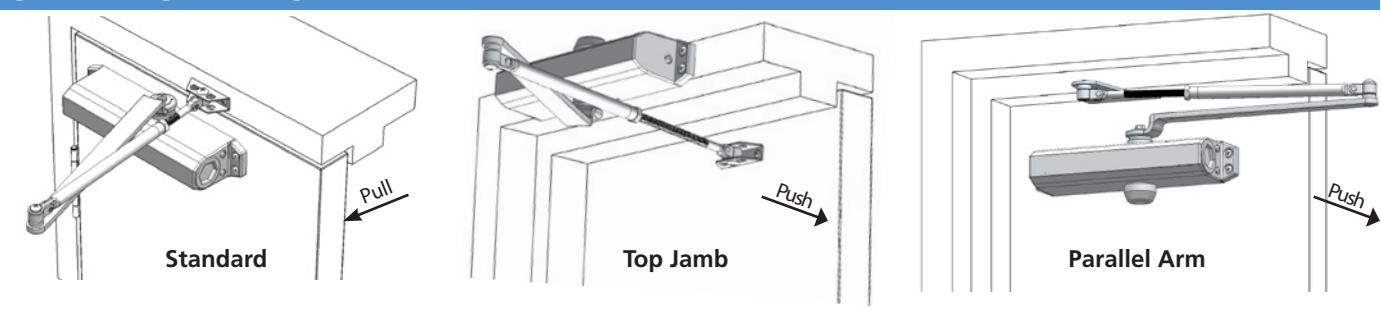

INSTALLATION TYPES
SELECTION CHART
| Regular & Top Jamb | Parallel Arm | ||||||
|---|---|---|---|---|---|---|---|
| Maximum Size of Door | Applicable Door | ||||||
| Closer Size | Interior |
Exterior
Inswing |
Exterior
Outswing |
Closer Size | Interior | Exterior | Weight Lbs (Kg) |
| 1 | 28" (0.71m) | 1 | 33-66 (15-30) | ||||
| 2 | 36" (0.91m) | 2 | 30" (0.76m) | 66-99 (30-45) | |||
| 3 | 42" (1.07m) | 30" (0.76m) | 36" (0.91m) | 3 | 36" (0.91m) | 30" (0.76m) | 99-143 (45-65) |
| 4 | 48" (1.22m) | 36" (0.91m) | 42" (1.07m) | 4 | 42" (1.07m) | 36" (0.91m) | 143-187 (65-85) |
| 5 | 54" (1.37m) | 42" (1.07m) | 48" (1.22m) | 5 | 48" (1.22m) | 42" (1.07m) | 178-264 (85-120) |
| 6 | 60" (1.52m) | 48" (1.22m) | 54" (1.37m) | 6 | 54" (1.37m) | 48" (1.22m) | 264-330 (120-150) |
PARTS AND ACCESSORIES - SERIES 1800
| Parts | Description | Part # | ||
|---|---|---|---|---|
| Main Arm | 520 |
NOTE:
Doors of unusual height or weight, or doors subject to severe wind or draft conditions, or abusive usage, require one or two more full turns of hex spring adjustment nut than shown on the Installation instructions. |
||
| Regular Forearm | 521 | |||
| Hold-Open Forearm | 522 | |||
| Parallel Bracket for Regular Arm |
SPECIFY:
Closer Model or Part Number |
|||
| Flat Drop Bracket for Closers - With Dress Cover | 547 |
SPECIFY FINISH:
Al-Aluminum DU -Storefront Bronze |
||
| Dress Cover | DC-8000 | |||
| Thru Bolt & Grommet Nut (Set of 4 each) | TBGN-50 | |||
| Sex Nuts & Bolts | 18-SN | |||
