180 / 280 Series Surface Mount Bolt Locks

UNIVERSAL MOUNTING CAPABILITY PROVIDES CONTROLLED ACCESS OF DOORS, CLOSETS AND CABINETS.

The SDC universal surface mount electric bolt locks are available in failsafe and failsecure. non-handed. The addition of a card reader, digital keypad or remote control provides access control and convenience of use for a variety of applications.

The SDC 180 and 280 series locks provide the ability to electronically secure several door configurations.

• Swinging or sliding doors
• Outswing or inswing doors
• Closet doors
• Pharmaceutical cabinets

• Gun cabinets
• Utility cabinets
• Museum display cases
• Retail display cases

SPECIFICATIONS

Bolt	Solid Stainless Steel, 1/2" dia. x 1/2" throw
Dual Voltage Coil	0.9 Amp @ 12VDC Continuous 0.45 Amp @ 24VDC Continuous
Lock Dimensions	6"L x 2"W x 2"H
Auto Relock	standard
Power Regulator	standard
Weight	2.5 lbs

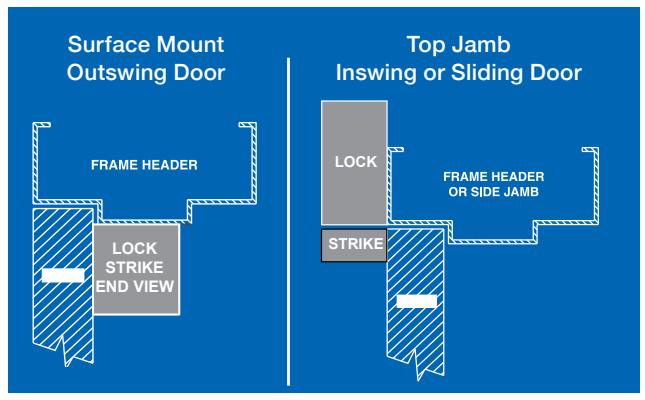

INSTALLATION

PRODUCT SKU SAMPLE: 180Al V MC-4 O HOW TO ORDER 1| SPECIFY MODEL Surface mount, failsafe, auto relock, 180AI power regulator standard 280AH Surface mount, or top jamb mount, failsecure, auto relock, power regulator standard 21 SPECIFY FINISH V 628 Aluminum (standard) 3| SPECIFY OPTIONS Door Contact Switch MC-4 (mounted separate from lock)
