1655 Locker Lock Template

TEMPLATE/DATA SHEET

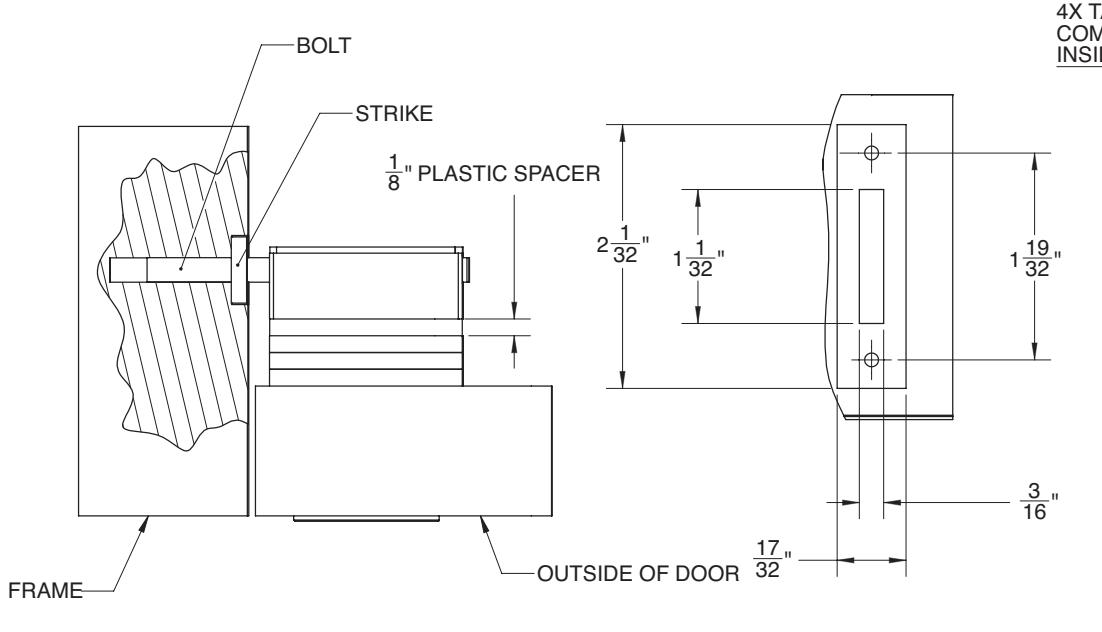

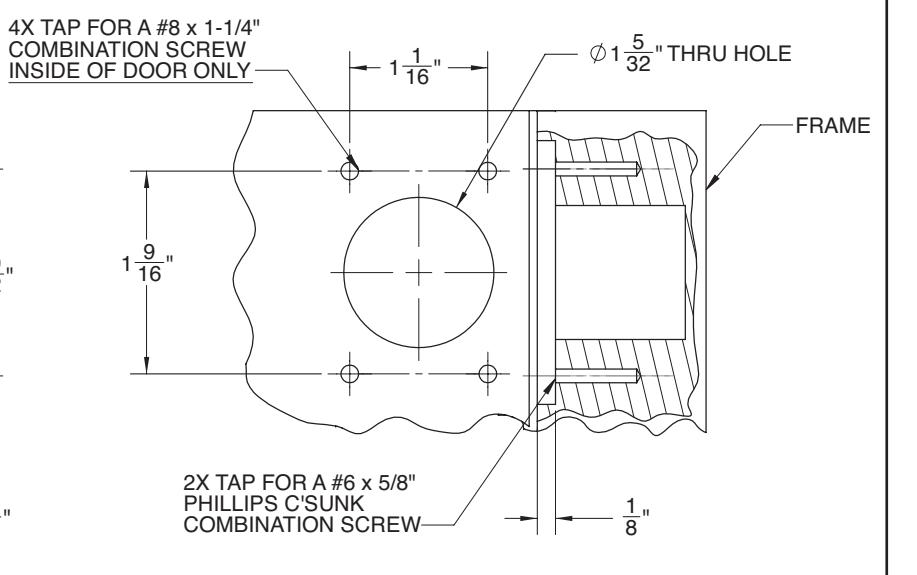

1655 Locker Lock Flush Mount Application 4696B

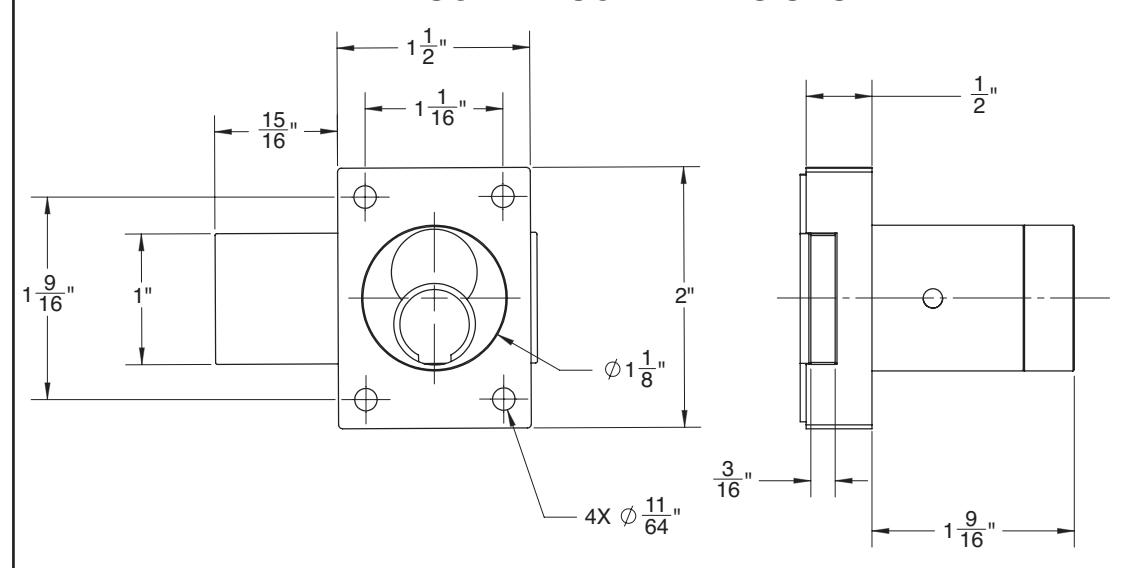

LOCKER LOCK DIMENSIONS

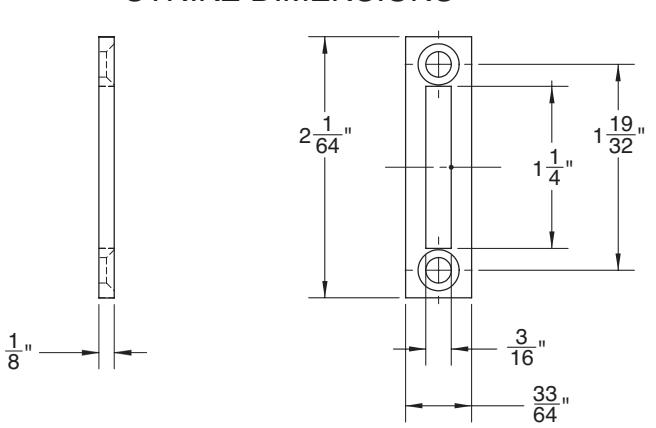

STRIKE DIMENSIONS

SARGENT

ASSA ABLOY
