INSTALLATION INSTRUCTIONS for 1655 Locker Lock

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

Installation

Insert locker lock into prepared door and secure with 4 screws provided.

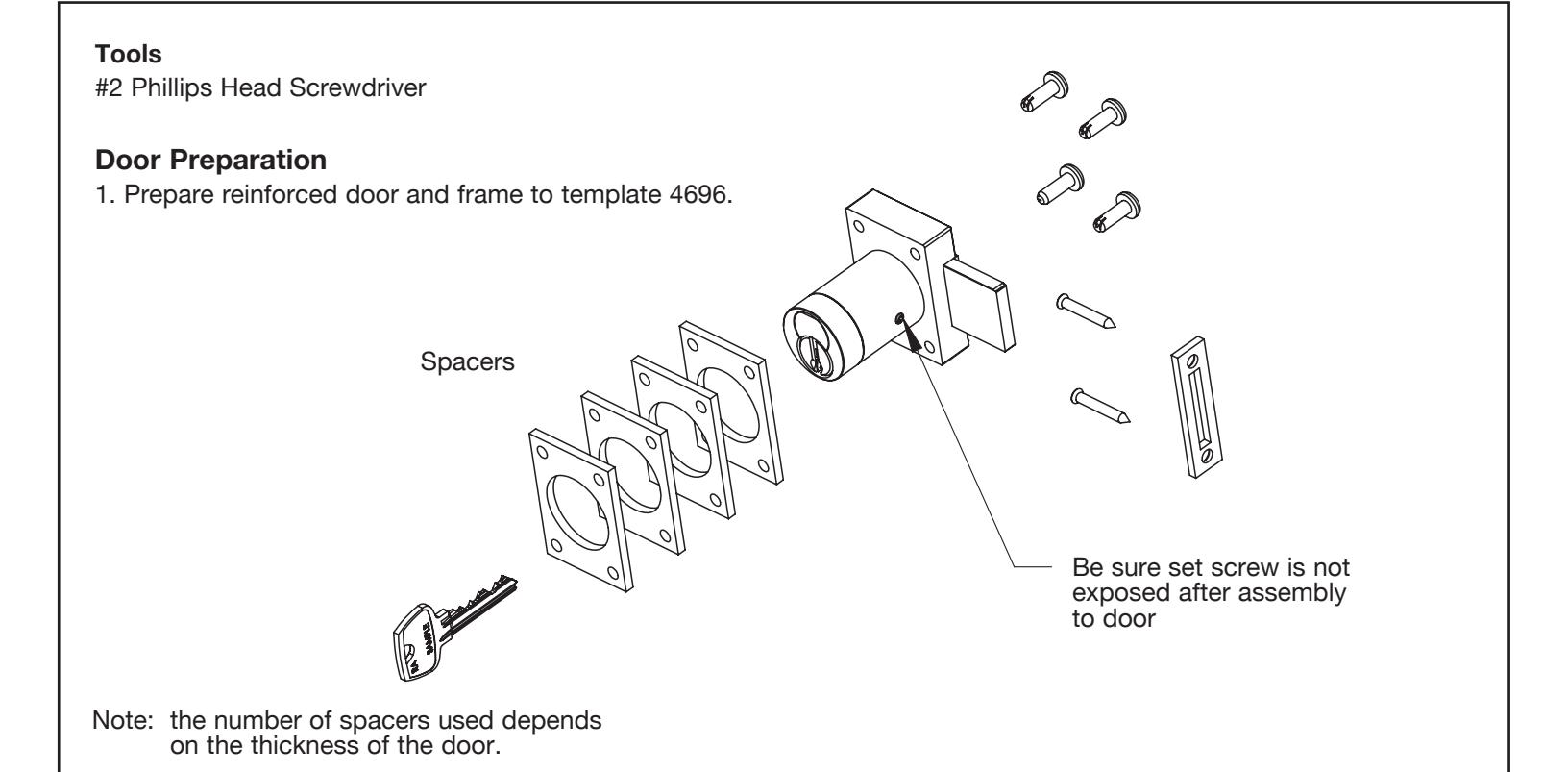

For doors between 1" and 1-1/2" thick use spacers provided to conceal cylinder retaining set screw. Secure strike with screws provided.

Re-pinning instructions

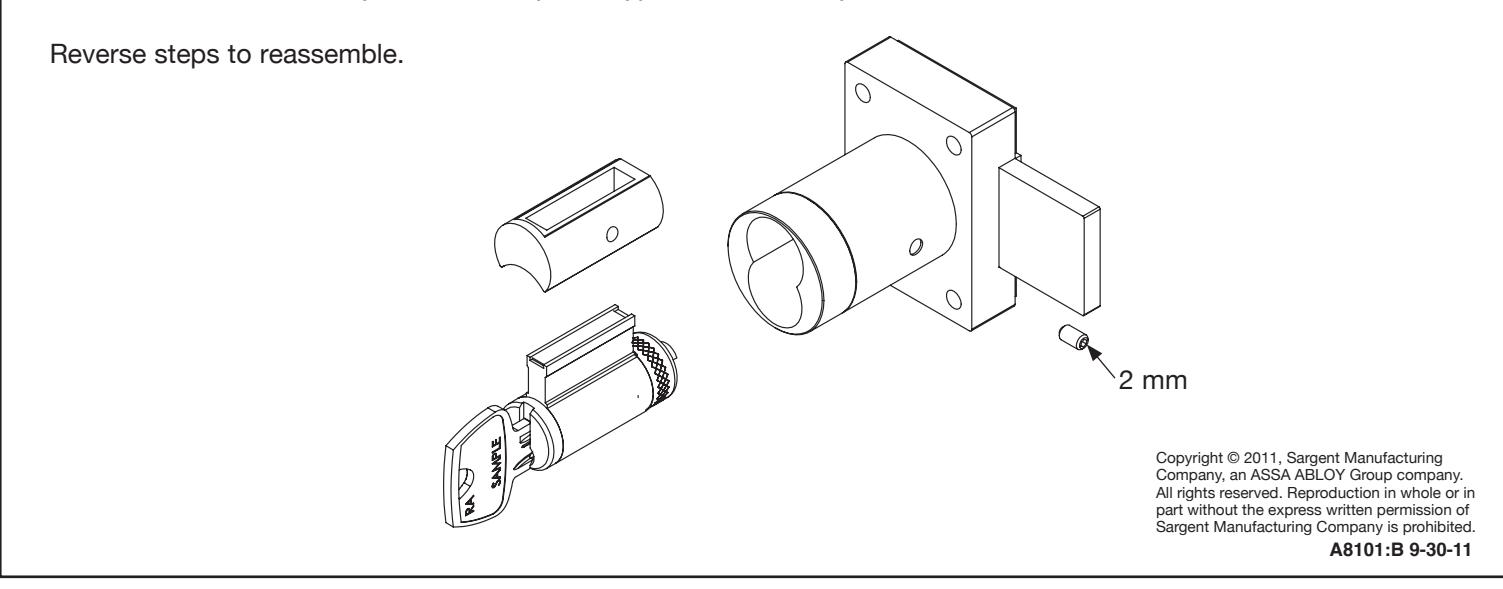

2. To re-pin cylinder remove lock from door. Using 2 mm Allen wrench, remove cylinder retaining set screw as shown. Insert key and turn 90º CW and pull key to extract cylinder and retainer from lock. Remove retainer from cylinder and re-pin as typical dead bolt cylinder.
