100 / 200 Conventional Mortise Bolt Lock

110/210 Series

The failsafe 110 and failsecure

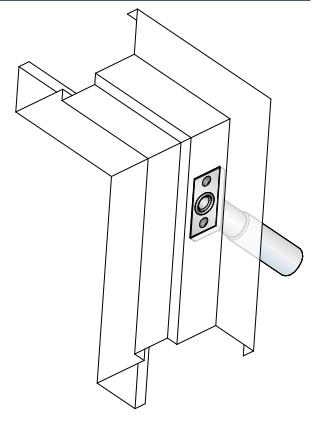

210 are the most basic bolt locks available. The bolt assembly is adjustable forward up to 1" past the face plate to accommodate wide door gaps or special applications (See figures 1 & 2).

Not for use in wood frames.

160/260 Series

The failsafe 160 and failsecure

260 bolt locks are equipped with an auto relock switch that keeps the bolt retracted when the door is open and causes the door to lock when closed. The auto relock switch and the bolt assembly are both adjustable for wide door gaps.

(See Fig. 3 & 4).

Not for use in wood frames.

MODELS

Failsafe

2-3/4" H x 1-1/4" W faceplate less auto relock switch

210HV Failsecure

2-3/4" H x 1-1/4" W faceplate less auto relock swich

160IV Failsafe

4-7/8" H x 1-1/4" W faceplate with auto relock switch

260HV Failsecure

4-7/8" H x 1-1/4" W faceplate with auto relock switch

OPTION

MC-4

Door Contact Switch (mounted separate from lock)

SPECIFICATIONS

Electrical Specifications
Voltage	Dual 900/450 mA @ 12/24 VDC
Mechanical S	pecifications
Finish	628 Anodized Aluminum
Faceplate	110IV, 210HV: 2-3/4" H x 1-1/4" W x 0.25" D 160IV, 260HV: 4-7/8" H x 1-1/4" W x 0.25" D
Strike	Mortise strike standard. Not for wood frames.
Bolt	1/2" dia. x 1/2" throw
Depth	5"
Weight	1.7 lbs

APPLICATION

• Pharmacy Cabinets
• Gun Cabinets
• Utility Cabinets
• Display Cabinets
• OEM Applications
• Swing and Sliding Doors
