1583 CABINET EMLOCK®

MAGNETIC LOCK

Micro Cabinet EMLock® Security Made Easy

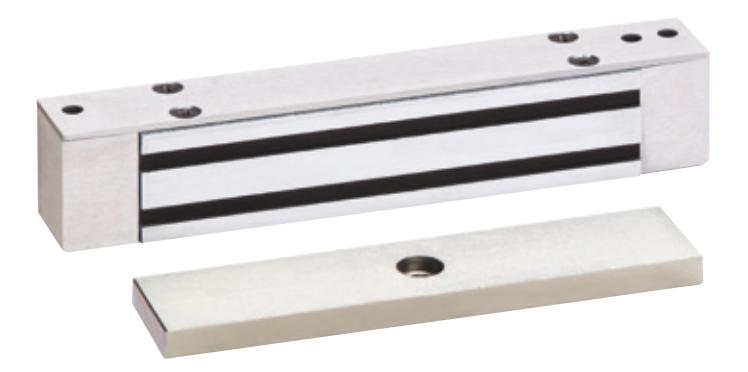

IDC's 1583 Micro Cabinet EMLock® is a compact specialized electromagnetic lock that produces 300lbs. of holding force. Versatile mounting capability with face drilled and surface mounting holes. The 1583 operating voltage is field selectable for either 12/24 VDC. Aluminum housing is standard.

Applications

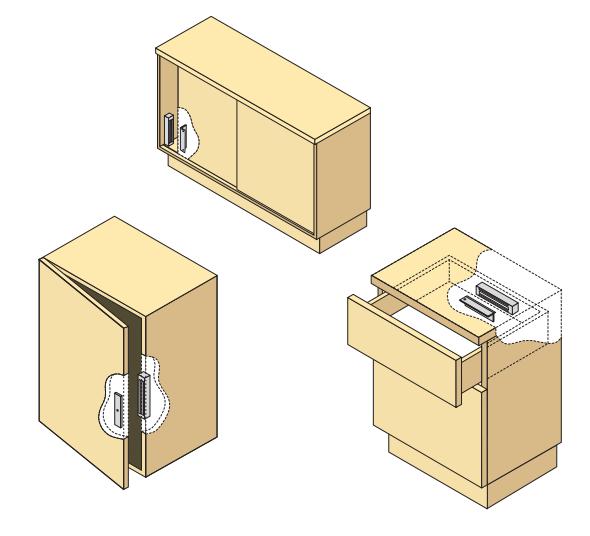

• Cabinets
• Drawers
• Display cases
• Machine equipment housings
• Gun safes
• Package pass through doors
• Dark rooms

Failsafe Operation

Security and safety with no moving parts. Positive and instantaneous failsafe un-locking operation is guaranteed.

Easy Installation

Compact size allows easy installation in small cabinets or restricted spaces. No special tools are required.

Durable, No Maintenance

With nothing to wear out and no moving parts, the 1583 EMLock® is virtually maintenance free.

Solid State Protection

The EMLock® provides spike and surge protection for solidstate devices on the same line.

Features

• 300lbs. of holding force
• An electronics module provides spike and surge protection for the EMLock®
• Dual voltage and modular design
• Strong enough even for large cabinet doors
• Protection of the EMLock® and other devices on same line without additional parts
• Operates on 12 or 24VDC

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

Specifications

1583V EMLock® 300lbs. holding force, 12/24VDC

Dimensions

EMLock®: 6.5''L x 1.125''W x 1.5''H

(159 x 29 x 38mm)

Armature: 5.125''L x 1.125''W x 0.25''H

(130 x 29 x 6mm)

Electrical Specifications

Connection: Wire leads with in-line spike and surge protection

Input Voltage: 12 or 24 VDC +/- 10%

Current: 500mA @ 12VDC

250mA @ 24 VDC

Battery back up capability when used with a power supply

and battery,

Note: Not recommended for life safety on pedestrian doors.

West: 800-544-4422 • East: 800-225-6737

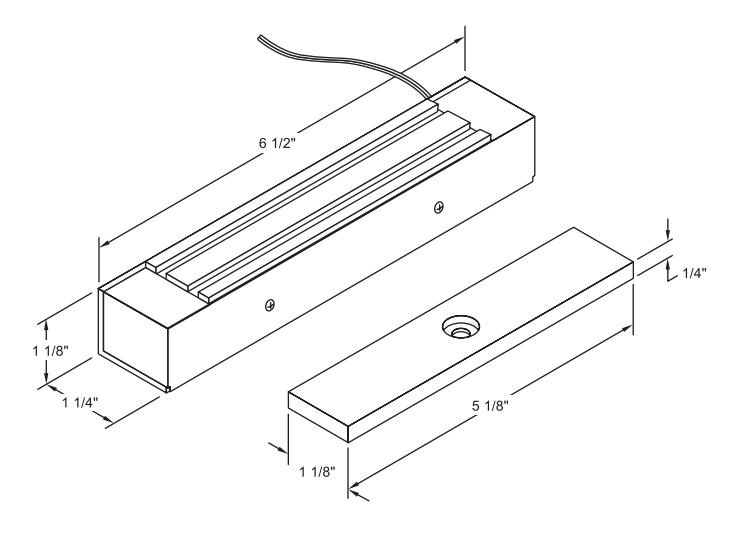

Figure 1. 1583 EMLock® Dimensions

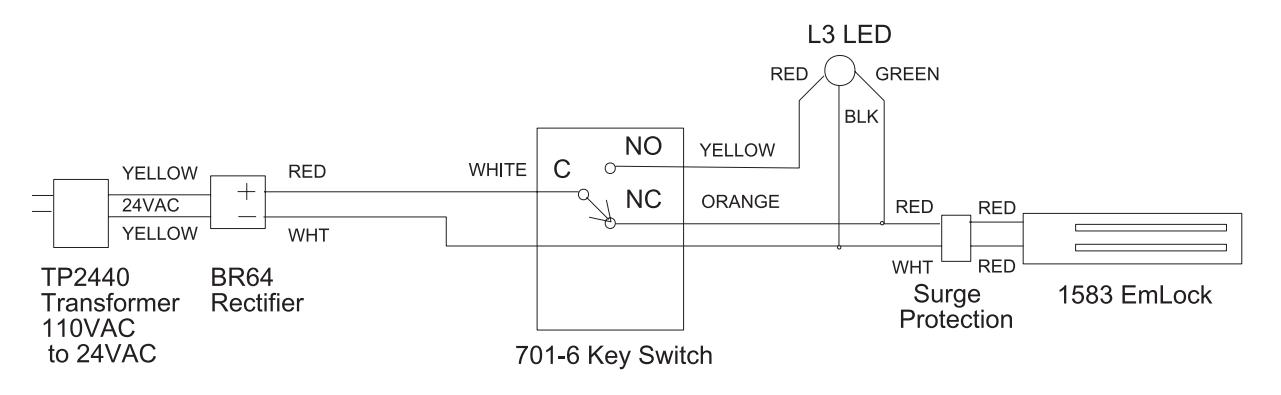

Figure 2. 1583 EMLock® with AC transformer, rectifier, key switch and LED (green when locked, red when unlocked)

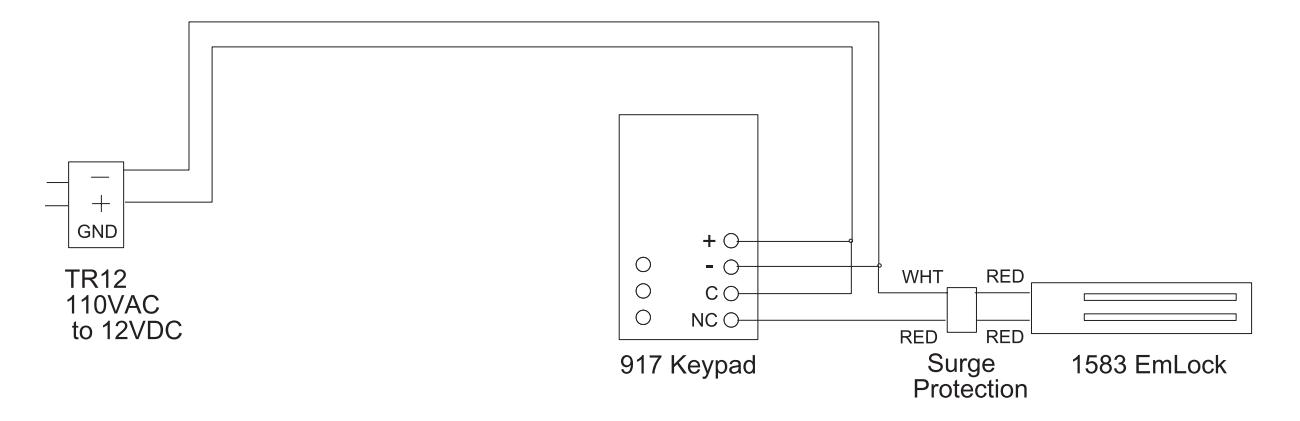

Figure 3. 1583 EMLock® with DC plug-in transformer and SDC 917 keypad
