• Small, Slim Design
• 650lb Holding Force

Application

When unauthorized egress is initiated, the Mini Exit Check® delays egress through the door for 15 seconds. Meanwhile, the person exiting must wait while personnel or security respond. The door unlocks after 15 seconds have elapsed, permitting egress. A signal from the fire/life safety system will release the lock for uninhibited egress in an emergency.

Exit Check® applications include:

• Restricting the egress of patients for their own safety.
• Restricting the egress of commercial center patrons for minimum security application needs.

Wondering Patient Systems

The IDC Exit Check® is compatible with wandering patient systems, like those used for protection against infant abduction from hospital nurseries, and in long term care facilities for the elderly.

Access Control

Access controls may be utilized for authorized egress or access. Access from the exterior of latching doors requires an additional means of mechanical lock release, such as a mechanical key or electric strike.

Local Approval

All installations must be approved by the Authority Having Jurisdiction (AHJ).

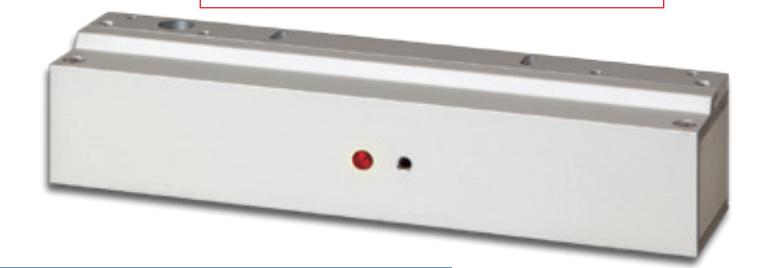

SMALL, SLIM DESIGN /650LB HOLDING FORCE

1581S DELAYED EGRESS

MINI EXIT CHECK

The Mini Exit Check® is designed to meet the needs of long term care and commercial facilities that require a smaller, less obtrusive, and less expensive delayed egress lock that is better suited for minimum security needs.

In addition, the subdued alarm tone is less disruptive to patients and staff. IDC has also maintained all the features and status outputs found in most higher holding force delayed egress locks on the market.

1581SND

• UBC, NFPA 101, NFPA 1, UFC, IBC, IFC and California Building Code Compliant
• 15 second exit delay, 2 second nuisance delay
• Station control required for lock reset following unauthorized egress
• Field selectable automatic or manual power-up after power outage and fire emergency release. Manual power-up is a UBC and California State requirement.

1581SBD

• BOCA & Chicago Building Code Compliant
• 15 second exit delay, 1 second nuisance delay
• Automatically resets and locks 30 seconds after door closure
• Manual reset station not required

Size Matters Standard Features

• 650 lbs Holding Force
• Subdued alarm with 2 distinct tones Alarm activation - intermittent Door release - continuous
• Choice of activation trigger Door movement Latching exit device with switch kit Non-latching REX bar
• Self-aligning and vandal resistant proximity sensor trigger
• 5 foot cable

Imputs and Outputs

• Sustained bypass input
• Access control / REX input, timed
• Door secure / unlocked output
• Alarm activation output
• Door Position Status (optional)
• Magnetic Bond Sensor (optional)

1581SND Field Selectable Automatic or Manual Power-Up Modes

After a power outage or fire alarm release

• When selected, automatic power-up occurs when facility power is restored and/or the fire panel is reset.
• Manual Power-up is an California Building Code Compliant. When selected, only after power restoration and fire panel reset, may the lock be manually energized by the reset switch adjacent to the opening

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

More Standard Features Functions

Slave Lock Output

The slave lock output enables the use of two units for pairs of doors and ensures that pushing on one door leaf will cause both doors to release.

Activation Triggers

The Exit Check® is equipped with a built-in activation trigger and a remote trigger device input.

Built-In Activation Trigger

The built-in activation trigger may only be used with doors equipped with a latch assembly (i.e. exit device or mechanical lockset).

The mechanical latch mechanism must be locked on the exterior and unlocked on the interior. From the inside, retracting the door latch and applying pressure causes limited door movement. The built-in activation trigger senses the door movement and initiates delayed egress operation.

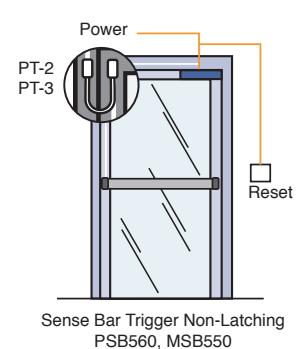

Remote Activation Trigger Input Activation Trigger For Non-Latching Doors

The remote trigger activation input must be used with doors without latch assemblies (i.e. latchless glass and herculite doors).

Activation may be triggered by the IDC MSB550 Switch Bar or the SDC PSB560 Sure Exit®, request-to-exit push bar. A power transfer device is required.

Pushing on the request-to-exit push bar immediately activates the delayed egress operation.

Activation Trigger For Latching Doors

Where preferred, activation may be accomplished by a latch monitoring strike, or a switch installed in a standard latching exit device or lockset. A power transfer device is required for exit devices equipped with a trigger switch.

Specifications

• Auto sensing 12/24VDC input.
• Current: 320 mA @ 24VDC 500 mA @ 12VDC
• Size: 10"L x 2"H x 2-3/8"D

ND UBC, California Building Code, OSHPD, NFPA 101, IBC & IFC Compliant

15 second fixed exit delay, 2 second nuisance delay. Field selectable manual power up after emergency release for California and OSHPD compliance

NH IBC, IFC, NFPA 101 Compliant 30 second fixed exit delay, 2 second nuisance delay

BD BOCA National Building Code Compliant

15 second fixed exit delay, 1 second nuisance delay, auto reset 30 seconds after door closure

BH BOCA National Building Code Compliant

30 second fixed exit delay, 1 second nuisance delay, auto reset 30 second after door closure

Finish

628 Clear Anodized Aluminum (standard)

Dark Bronze Powder Coat (313/613 equivalent)

335 Black Anodized

605 Bright Brass

606 Dull Brass

625 Bright Chrome

626 Dull Chrome

Optional Status Outputs

• D Door position status
• B Magnetic bond sensor

Accessories

Required when using two locks on a pair of doors, cables enable slave operation. Pushing either door triggers the delayed release of both doors.

1581S-TC3 Cable kit for connecting two locks through the frame header

1581S-TC-10 Cable kit for connecting wiring for two locks in a remote

270

junction box

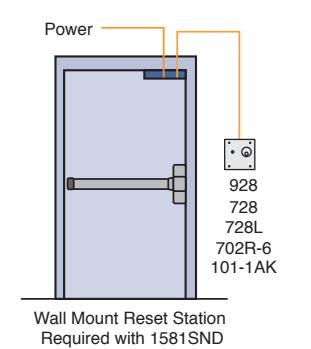

Reset Station Controls

Reset Station for ND and NH functions Reset not required for BD and BH function

928 EntryCheck™ digital keypad 480 user codes, Keyless Reset / manual power up / bypass

728 Key switch 2 keys, 1 gang Reset / manual power up / sustained bypass

728L Key switch 2 keys, 1 gang, LED status indicator Reset/ manual power up/ sustained bypass

702R Key switch assembly 1 gang, less cylinder Reset / manual power up / momentary bypass

101-AK Key switch assembly, 2 gang, LED status indicator, less cylinder Reset / manual power up / sustained bypass

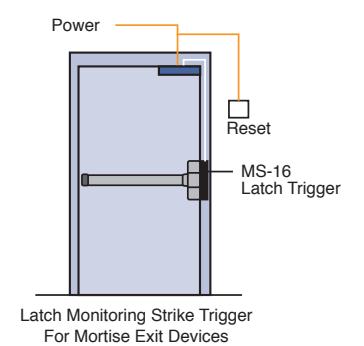

Latch Trigger

MS-16 Latch Trigger Switch For doors equipped with Mortise Locks and Mortise Exit Devices. Wiring from the door to frame is eliminated

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

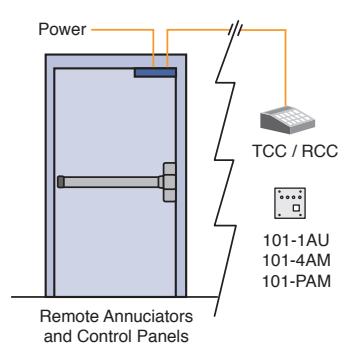

Wall mount annunciators identify unauthourized egress at remote locations such as nurses stations, enabling quick personnel response.

101-1A Remote or local single door annunciator with audible alarm and tri-color LED, 1 Gang

Green - Secure Amber - Egress initiated Red - Door unlocked

101-4AM Remote four door annunciator with audible alarm mute button. Four tricolor LEDs, 2 Gang Green - Secure Amber - Egress initiated Red - Door unlocked

101-PAM Remote single door annunciator with 3 push button switches for momentary access. On/off and audible alarm mute button with tri-color LED, 2 Gang Green - Secure

Amber - Egress initiated Red - Door unlocked Recommended for remote installation only

Control Consoles

TCC Desk Top

RCC Rack Mount CAB Desk Top Cabinet

Remote Wall Mount Annunciators Power Transfer Loops & Hinge

PT-2 Stainless steel armored power transfer loop

PT-3 Stainless steel armored power transfer loop with aluminum termination box

PTH-4 4 wire power transfer hinge: 1-pair 1 Amp; 1-pair 250 mA UL10B Listed for use with up to 3 hour fire rated doors

Exit Device Switch Kits

Recommended for retrofit applications, switch kits are field installed in the inactive hinge pad of rim mount exit devices, mortise exit devices, concealed vertical rod exit devices and surface vertical rod exit devices.

Make and Model to be fitted

510 Von Duprin 33, 35, 98, 99

510-2	Von Duprin 33, 35, 98, 99 DPDT
511	Von Duprin 55
512	Von Duprin 88
514	Dor-O-Matic 990, 1090, 1990, 2090
516	Sargent 9600, 9700, 9800, 9900
517	Adams Rite 8300, 8400, 8700, 8800
518	Precision Apex Series 1100
518A	Percision Apex Series 2100 - 2800
519	Jackson 1095
519-2	Jackson 1095 DPDT
521	Corbin 7000

Monarch 18 and 19 Sargent 80 527-2 Sargent 80 DPDT Sargent 20/60

531 Yale 7000 (Dogging mechanism required) & Corbin 4000

535 Kawneer Mid Panel Line Dor-O-Matic 1390

540 Arrow 53/5400 series

Sure Exit© Request-to-Exit Sense Bar

The Sure Exit® is a non-latching, heavy duty request-to-exit push bar that will activate the Exit Check when slight pressure is applied to the bar

PSB560V Aluminum Anodized PSB560Y Black Anodized PSB560C Bright Brass PSB560S Bright Stainless Steel PSB560U Brushed Stainless Steel

Stainless steel and brass optional. 36" is standard. For wider doors specify 42" or 48". May be field cut.

Actuation: Pressure Sense Technology; Tri-Failsafe

Voltage: 12/24VDC Voltage Sense Input Current: 20 mA at Rest, 115 mA Active Lock Output: SPDT, 3 Amp @ 30VDC Alarm Shunt/Status Output: SPDT, 3

Amp @ 30VDC

Request-to-Exit Switch Bar

The MSB550 is a non-latching, heavy duty request-to-exit push bar that will activate the Exit Check when slight pressure is applied to the bar

MSB550V 628 Aluminum Anodized MSB550Y 335 Black Anodized MSB550C 605 Bright Brass

MSB550S 629 Bright Stainless Steel MSB550U 630 Brushed Stainless Steel

Stainless steel and brass optional. 36" is standard. For wider doors specify 42" or 48". May be field cut.

Contact: SPDT Dry, 3 Amp @ 28VDC Two contacts optional

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737

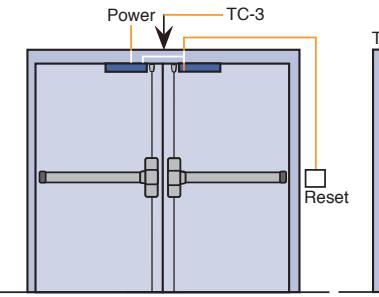

Pair of doors with two locks and required TC-3 cable for power and slave operation Pushing either door triggers the delayed release of both doors.

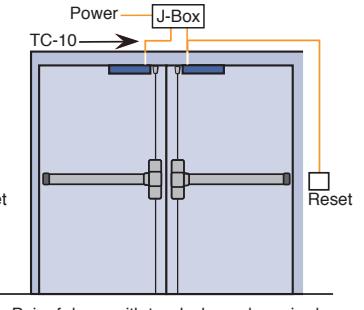

Pair of doors with two locks and required TC-10 cable for power and slave operation Pushing either door triggers the delayed release of both doors.

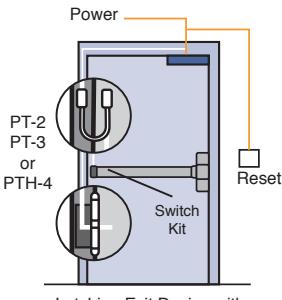

Latching Exit Device with Built-in Switch Kit Trigger

Power Supplies

Delayed egress applications require properly approved power supplies with emergency release capability.

621B Power supply module, 1 Amp 12/24VDC, Class 2 40VA, 24VAC transformer required to achieve 1 Amp output See SDC TP2440 plug-in or TJ2440 base mount transformers

621P Power supply module, 1 Amp, 12/24VDC, Class 2, with UL Listed plug-in transformer.

621PJ Power supply module, 1 Amp, 12/24VDC, Class 2 and small enclosure with cover mounted LED power supply status indicator and UL Listed plug-in transformer.

602RF 1 Amp class 2 output (4 outputs optional.)

631RF 1.5 Amp class 2 output (4 & 8 outputs optional.)

632RF 2 Amp class 2 output, (4, 8 & 12 outputs optional.

634RF 4 Amp; Field select one 4 Amp output or two 2 Amp class 2 outputs (4, 8, 12 & 16 outputs optional.)

636RF 6 Amp; Field select one 6 Amp output or three 2 Amp class 2 outputs (4, 8, 12, 16, 20 & 24 outputs optional)

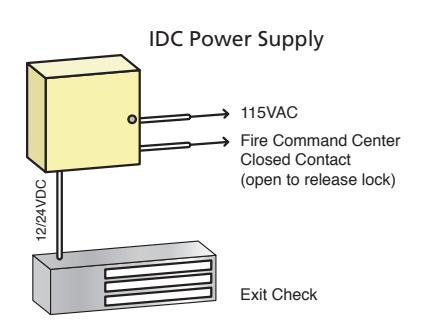

Emergency Release

600 Series Power Supply Emergency Release
