| Holding Power | 1200 Lbs. |
|---|---|
| Dual Voltage | 450 / 225 mA @ 12/24VDC |
| Sensor | Magnetic Bond Sensor and Door Position Sensor Standard |
| Cable | 3 Ft. cable |
| Finish | Brushed stainless steel housing |
| Conduit Fitting | 1/2" x 3/4" |
| Dimensions | 8-11/16" L x 2-1/2" H x 1-5/8" D |
MODEL DESCRIPTION

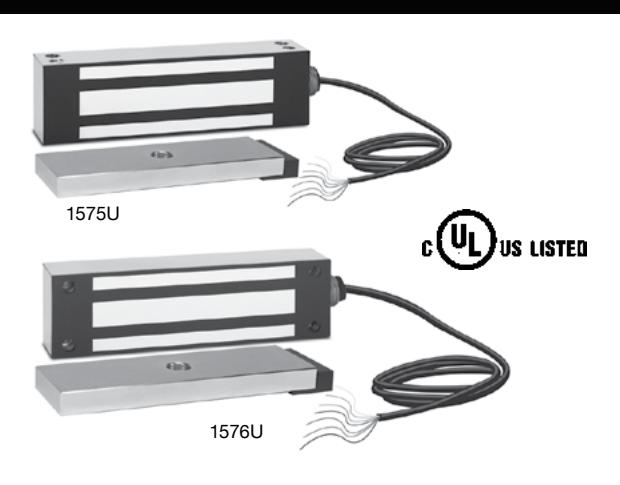

| 1575U | Single EMLock® with magnetic bond and door status sensors | 474.00 |
|---|---|---|
| 1576U | Single EMLock® face drilled mounting with magnetic bond and door status sensors | 474.00 |
1576-AB 1576-BK
Add to List ACCESSORIES MODEL DESCRIPTION

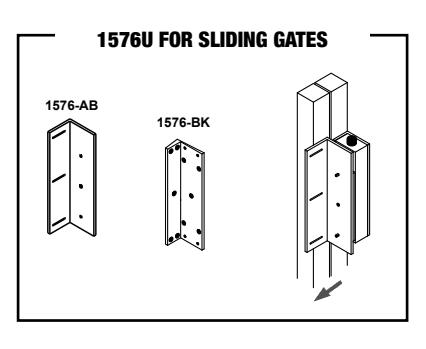

| For sliding gate applications | |||
|---|---|---|---|
| 1576-BK | Mounting Bracket for 1576 | 89.00 | |
| 1576-AB | Armature Mounting Bracket for 1576 | 89.00 | |

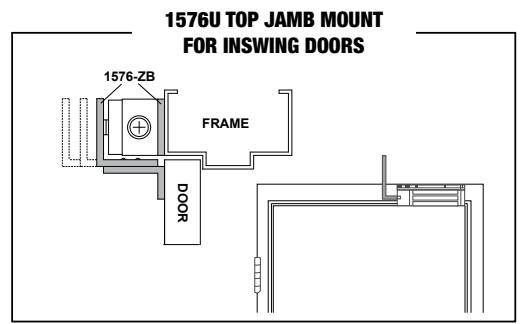

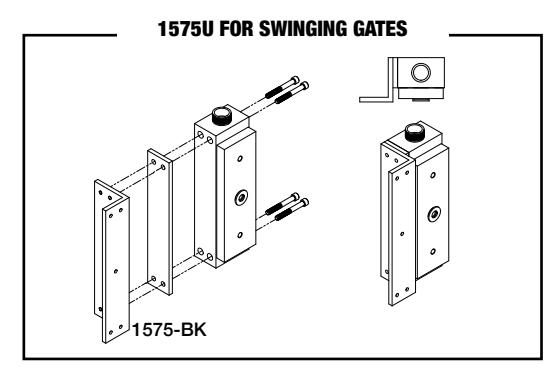

| For swinging gate or top jamb door application | |||
| 1575-BK | Mounting Bracket for 1575 | 112.00 | |
| 1576-MP | Lock Mounting Plate for 1576 | 61.00 | |

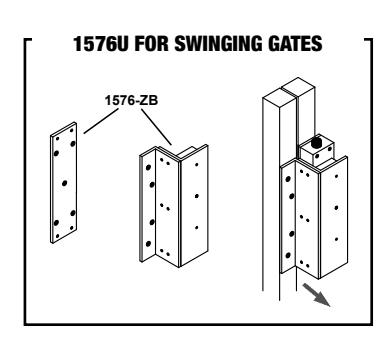

| 1576-ZBV | Lock Mounting Bracket for 1576 (Includes 1576-MP), 628 Finish Only | 177.00 | |
