1570 Series Gate EMLock®

SDC's Gate EMLock® provides 1200lbs of holding force and enables the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control.

Gate EMLocks® are compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.

WEATHERIZED

SDC Gate EMLocks® are totally sealed in an epoxy filled stainless steel case. A threaded conduit fitting ensures weather resistant protection of the wiring.

• Stainless Steel Case
• Epoxy filled for weather resistance
• Threaded conduit fitting
• Built-in voltage kickback protection
• Low power consumption
• Built-in bond sensor (BAS)
• Built-in door position sensor (DPS)

SPECIFICATIONS

1200lbs
450mA @ 12VDC; 225mA @ 24VDC
SPDT, 250mA @ 30VDC
24 AWG, 3ft. long
1/2" Length, 3/4" outside thread, 1/2" inside thread
ecifications
omodiono
8-11/16"L x 2-1/2"H x 1-5/8"D
8-11/16"L x 2-1/2"H x 1-5/8"D
8-11/16"L x 2-1/2"H x 1-5/8"D 7-3/4"L x 2-13/32"H x 5/8"D
8-11/16"L x 2-1/2"H x 1-5/8"D 7-3/4"L x 2-13/32"H x 5/8"D

with magnetic bond sensor & DPS

1576U Face drilled

with magnetic bond sensor & DPS

1

APPLICATION

With no moving parts to bind or wear, the Gate EMLock® is inherently failsafe and will unlock automatically during a power outage. For security applications, the SDC 600 series power supplies with battery backup capability, can provide continuous operation during a power outage.

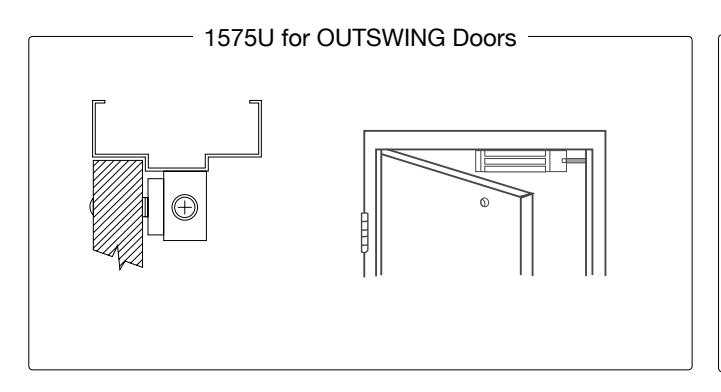

CONDUIT FITTING DOOR APPLICATION

CONDUIT FITTING GATE APPLICATIONS

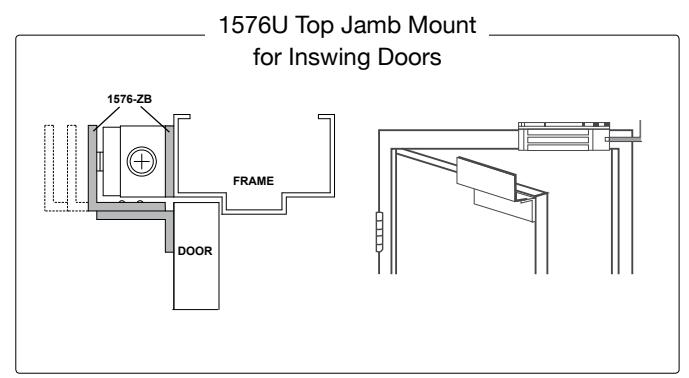

For top jamb door application

1576-MP

Lock Mounting Plate for 1576 Lock Mounting Z Bracket for 1576 (Includes 1576-MP)

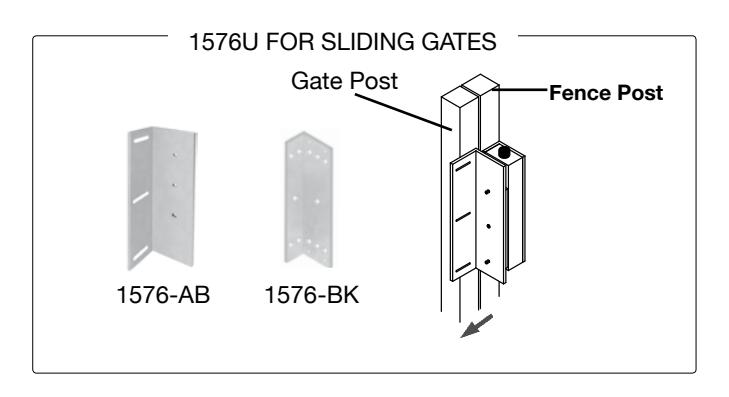

For sliding gate applications

1576-BK Mounting Bracket for 1576

4 Armature Mounting Bracket for 1576

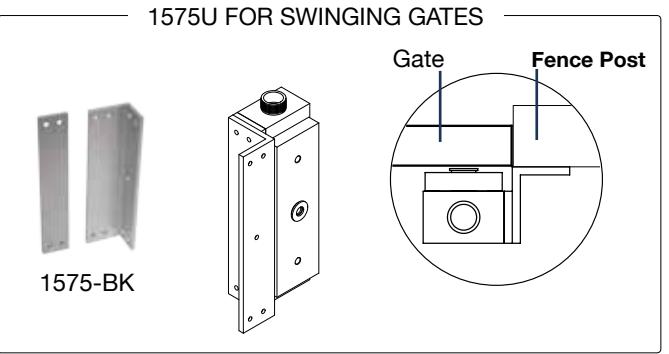

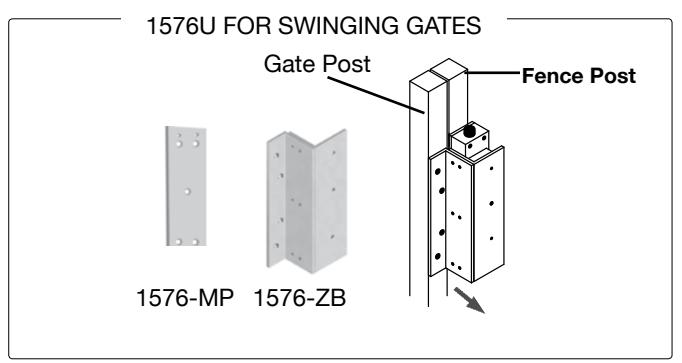

For swinging gate applications

1576-ZB Lock Mounting Bracket for 1576

(Includes 1576-MP) Lock Mounting Bracket for 1575

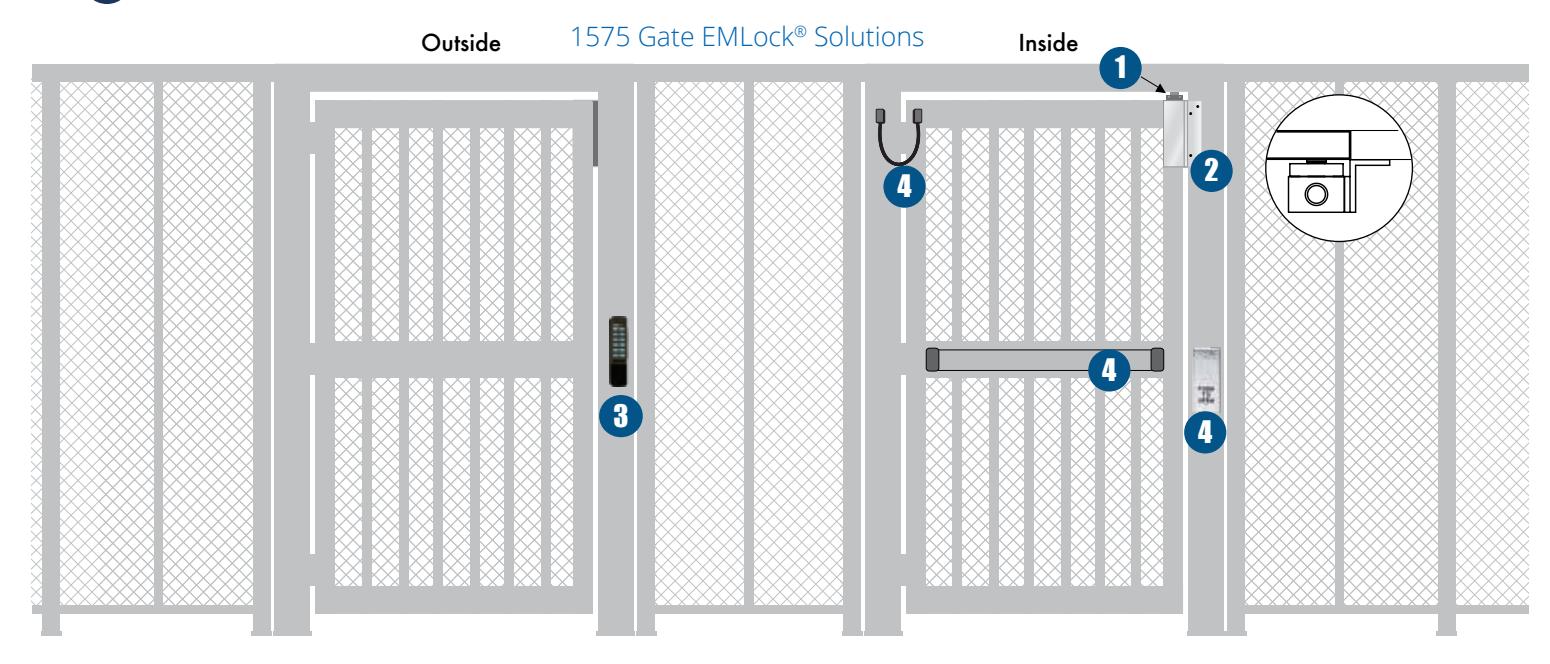

PAPPLICATION Gate Solution

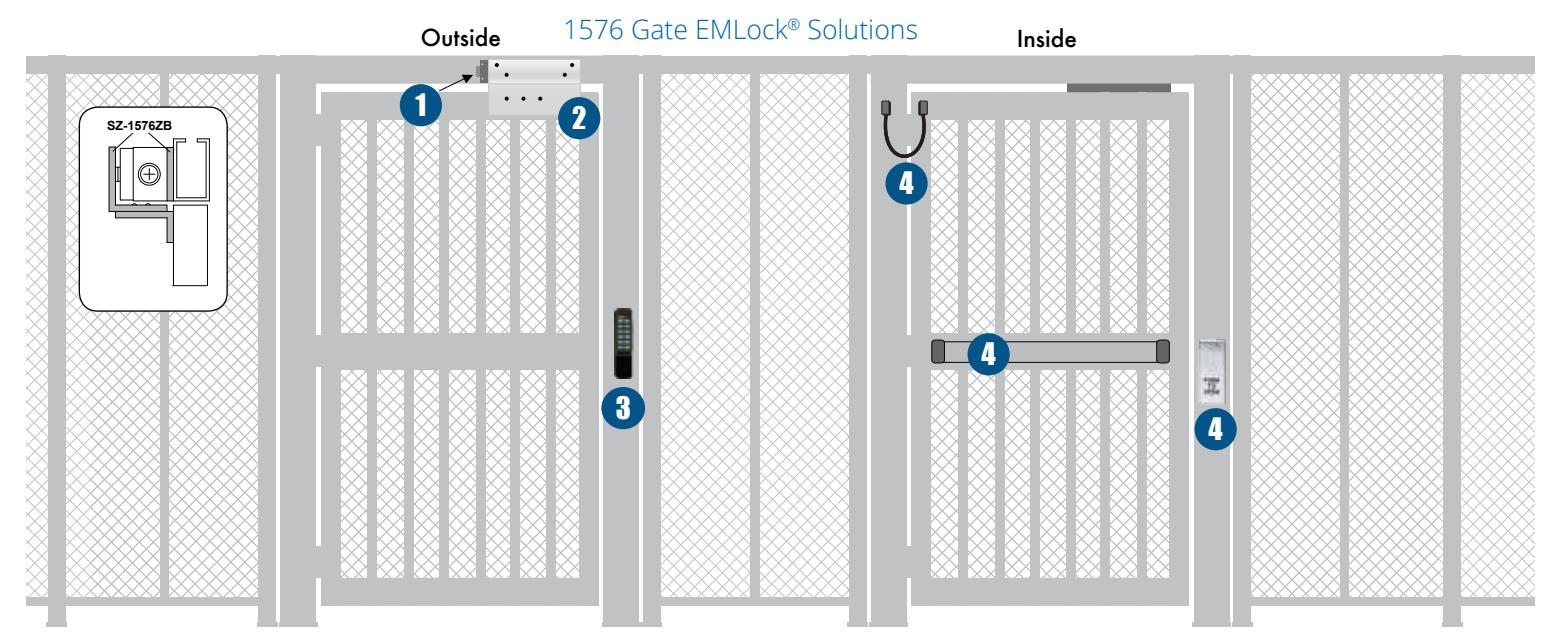

GATE EMLOCK® SOLUTIONS / ACCESSORIES

1 GATE MAGNETIC LOCK

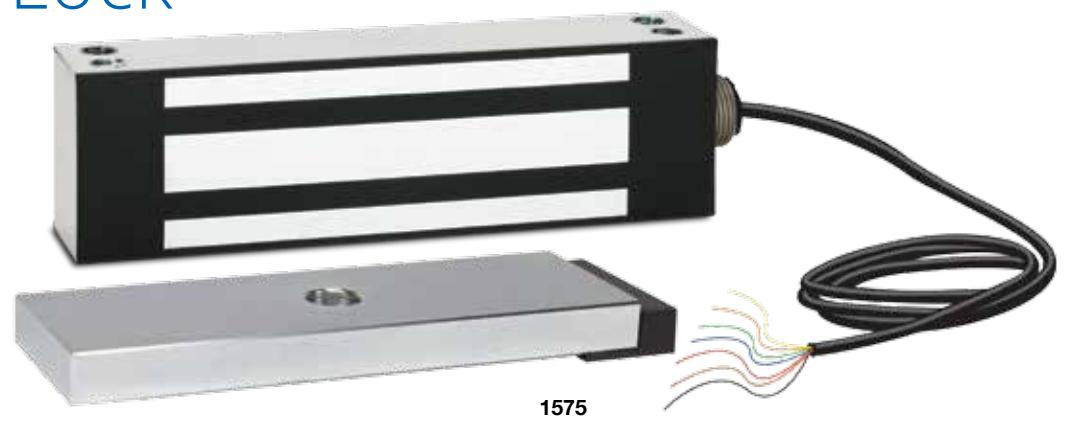

1575U Gate Magnetic Lock

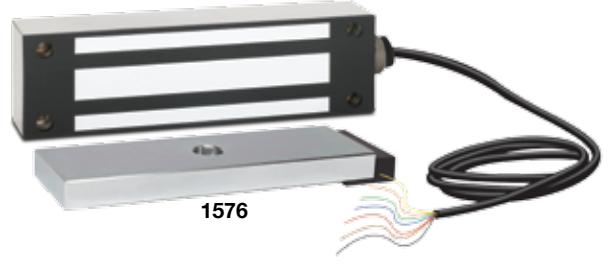

1576U Gate Magnetic Lock with face drilled mounting

2 GATE MOUNT BRACKETS

1575BK / 1576-ZBV / Application Specific Brackets 1576-AB / 1576-BK

3 OUTDOOR ACCESS CONTROL

923 Narrow Stand Alone Digital Keypad

4 Request-To-Exit

48201U ADA approved Narrow Mullion Push Plate Switch MSB550W Outdoor Weather Resistance Mechanical Switch Bar

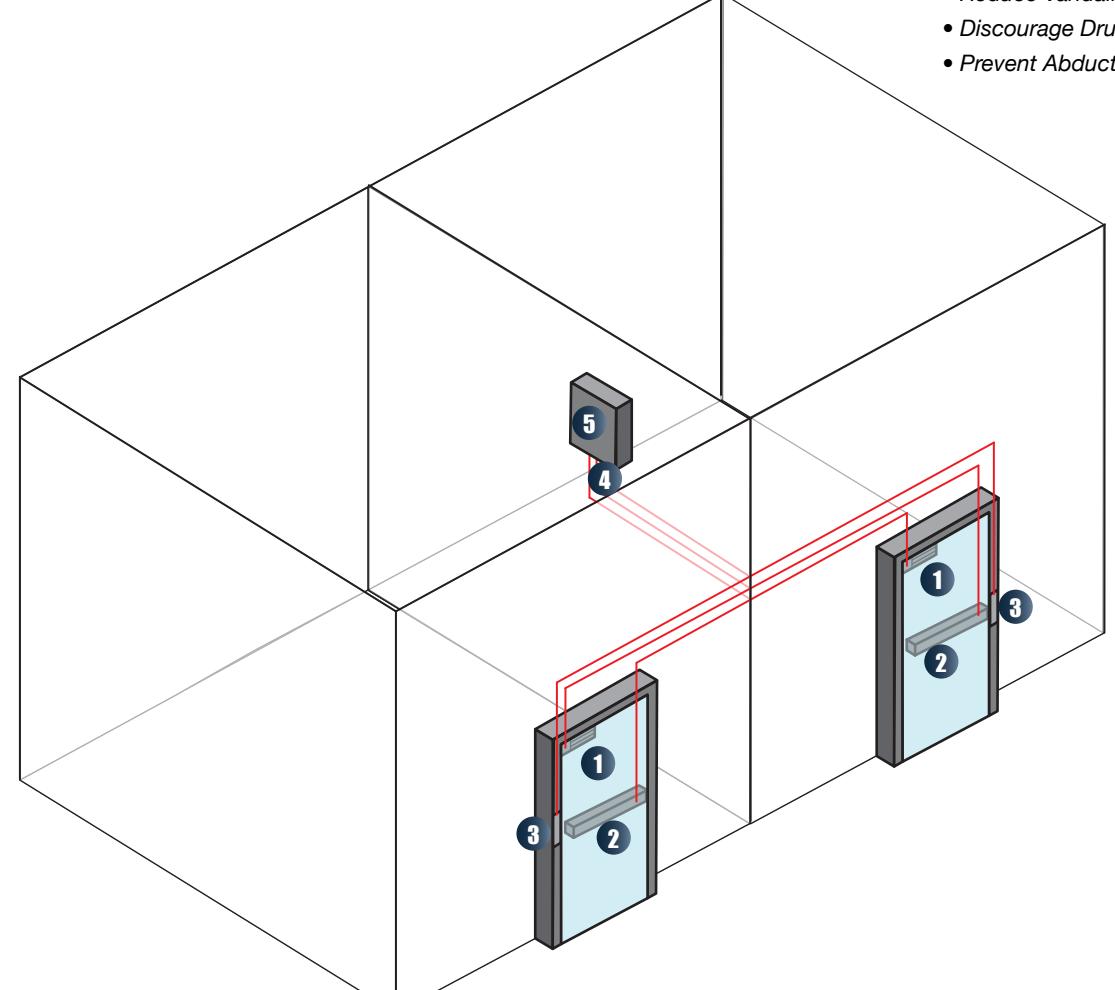

Public Park Safety After-Hour Restroom Security Solution

• Deter Homeless Occupancy
• Eliminate Daily Staff Unlock/Lock
• Weather Resistant Hardware
• Reduce Vandalism & Graffiti
• Discourage Drug Use Activity
• Prevent Abduction & Sexual Crimes

1a 1575U Electromagnetic Gate Lock

1 1576 Electromagnetic Gate Lock

1 E6200 Magnetic Lock

MSB550-2WV Mechanical Switch Bar

3 802ALN Single Gang Key Switches

4 631RFXUR-1 1.5 Amp Power Supply

LIT-1570 SERIES 01/17
