1546, 1547, 1548, 1549 Series Holders & Stops (Mounting Group 3)

	ACTUAL DOOR WIDTH	DEGREE OF OPENING AT HOLD OPEN (SEE NOTE 1 FOR STOP)
MODEL NO.		85°		90°		95°		100°		105°		110°
	BOOK WIBIT	A	В	A	В	A	В	A	В	A	B	A	B	C
1546	$18\backslash frac\{1\}\{2\}$ -25	4 3/8	3 3/8	4	3 1 8	3 5 8	2 7/8	3 3 8	2 5/8	3 1/8	$2\backslash frac\{3\}\{8\}$	3	2 1/4	$14\backslash frac\{1\}\{4\}$
1547	$25\backslash frac\{1\}\{8\}$ $-32\backslash frac\{1\}\{2\}$	6	6 1/2	5 5 8	6 1/8	5 1 4	5 3/4	5	5 3/8	4 5 8	5 1/4	4 3/8	5	16 3 / 8
1548	$32\backslash frac\{5\}\{8\}$ -40	8 5 8	9 3	8 1 8	8 7 8	7 1/2	8 1/2	7	8 1 8	6 3	7 3 4	6 3	7 1/2	19 1
1549	40 1 -48	10 1	14 1/4	9 5	$13\backslash frac\{3\}\{4\}$	9	13 1 8	8 1 2	123/4	8	$12\backslash frac\{1\}\{4\}$	7 5	11 7 8	$21\backslash frac\{3\}\{4\}$

1540 MOUNTING GROUP 3
HINGE TYPE	BUTT WIDTH OR OFFSET	DOOR THICKNESS
BUTT	4	$1\backslash frac\{3\}\{8\}\; -\; 1\backslash frac\{3\}\{4\}$

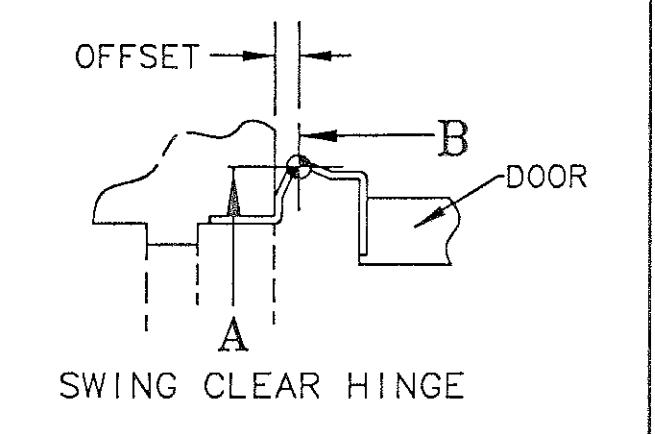

SWING CLEAR	ත| හ	1 3

EFFECTIVE DATE

APRIL 02

A7490 C

DATA SHEET:

1546-1549 SERIES HOLDERS & STOPS

- MOUNTING GROUP 3 -

3/32 ---

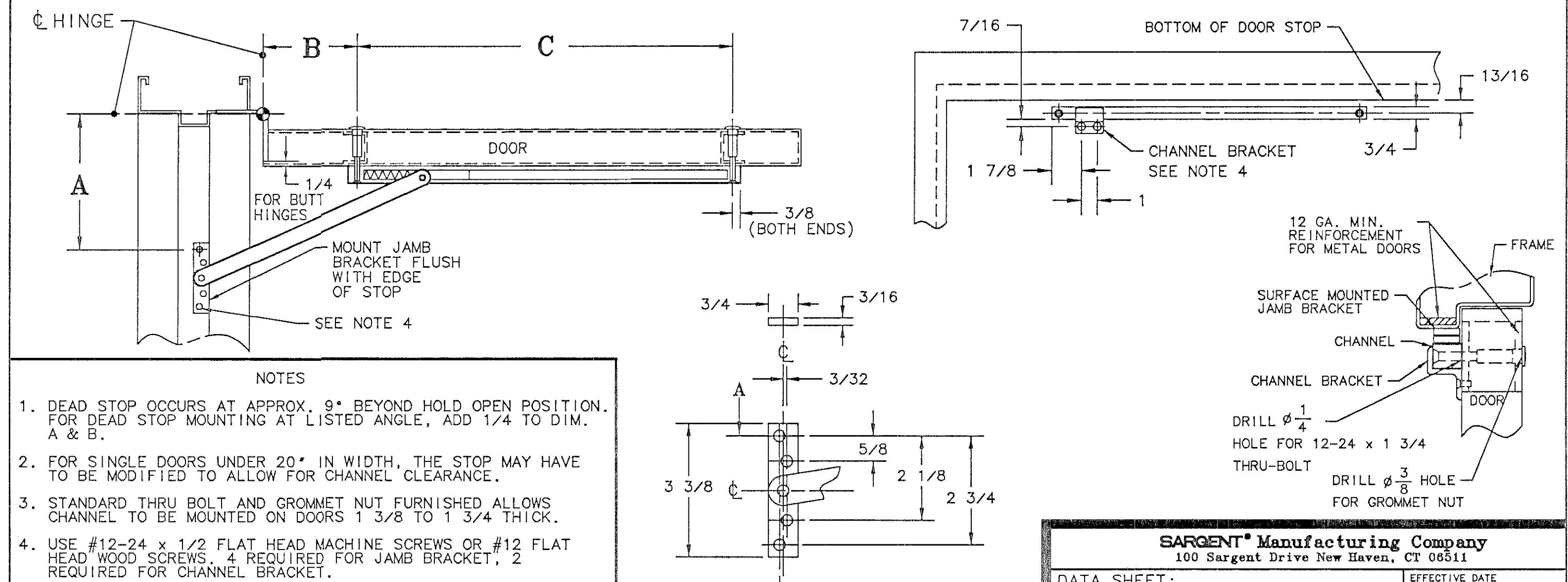

JAMB BRACKET DETAIL

5. 19 1/2 MIN. DOOR WIDTH WITH OFFSET HINGE.

6. FOR CONTINUOUS HINGES, USE SIMILAR BUTT HINGE VALUES.
