1546, 1547, 1548, 1549 Series Holders & Stops (Mounting Group 2)

Open the original PDF document

View PDF

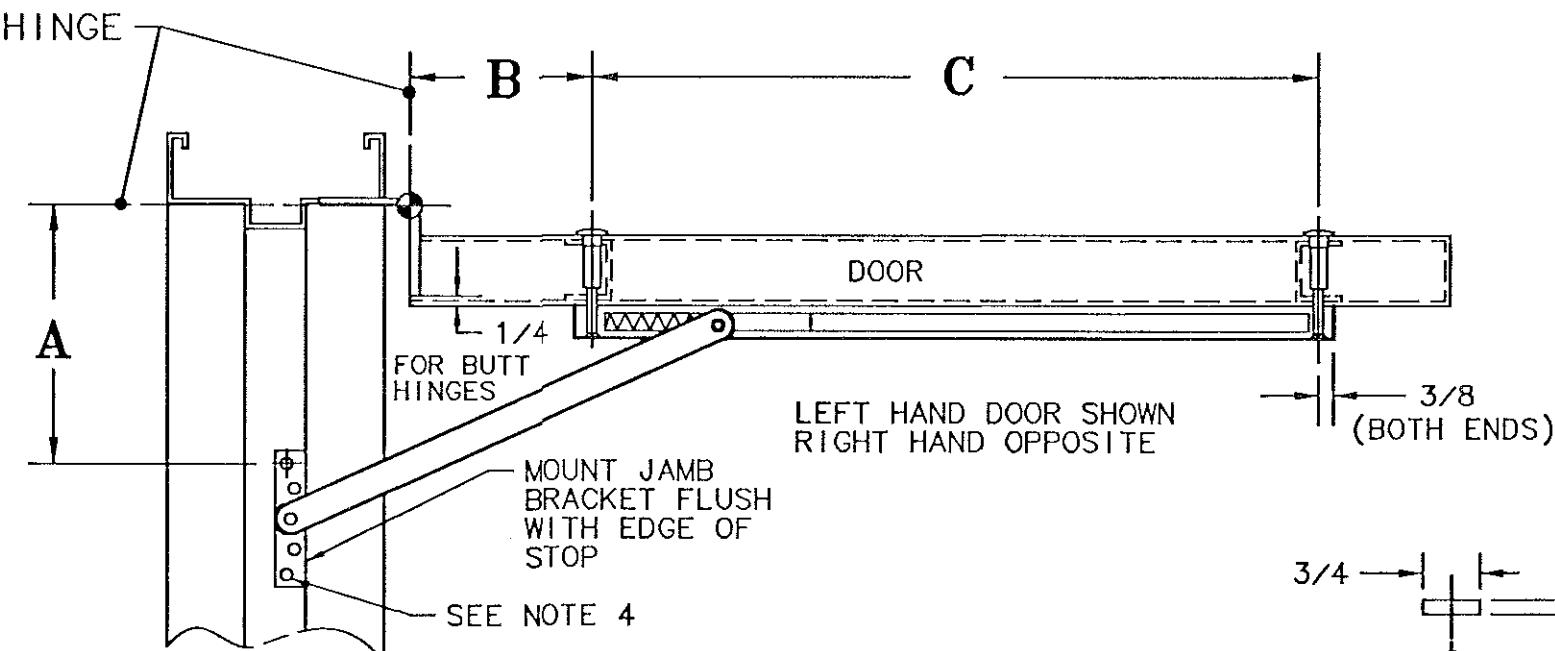

DEGREE OF OPENING AT HOLD OPEN OR STOP (SEE NOTE 1 FOR DEAD STOP)
MODEL ACTUAL DOOR WIDTH 85° 90° 95° 100° 105° 110° | |
INO. Doon Wildin A В A В A В A В A В A В C |-
1546 18\frac{1}{2} -25 (SEE NOTE 5) 4 3 3/8 3 3 3 3\frac{1}{2} 2 3/4 3 1/4 2\frac{1}{2} 3\frac{1}{4} 2\frac{1}{4} 14\frac{1}{4} 01
1547 25\frac{1}{8} -32\frac{1}{2} 6 6\frac{3}{8} 5 1 2 6 5 1 5 5 8 4 7/8 5 3 8 4 5
8 		5 4 3/8 4 3/4 16\frac{3}{8}
1548 32\frac{5}{8} -40 8 3 9 1/4 8 8 3/4 7 1/2 8 3 8 7 1 8 6\frac{3}{4} 7 5
8 		6\frac{3}{8} 7 3/8 19\frac{1}{2} ]
1549 40 1/8 -48 10\frac{1}{2} 14 9 7 13\frac{3}{8} 9 1/4 12 7 8 3 12\frac{3}{8} 8 1/4 12 8 11\frac{1}{2} 21\frac{3}{4}
€ HING SE To an |- B c — 7/16 ВС OTTOM OF D O
1540 MOUNTING GROUP 2
HINGE TYPE BUTT WIDTH
OR OFFSET 		DOOR
THICKNESS
BUTT 4 1/2 1\frac{3}{4} - 2\frac{1}{4}
OFFSET PIVOT 3
4 		1 3
OFFSET PIVOT 5
8 		1\frac{3}{4} - 2

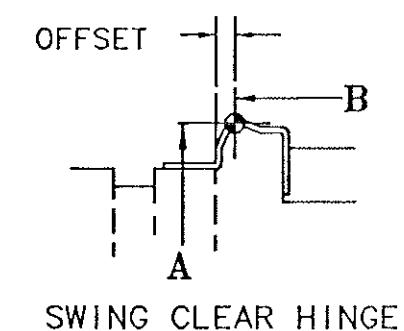

SWING CLEAR \frac{1}{2} \frac{17}{32} \frac{5}{8} 1 3
JITHO CLEAN 3
8 		2

NOTES

  • 1. DEAD STOP OCCURS AT APPROX. 9° BEYOND HOLD OPEN POSITION. FOR DEAD STOP MOUNTING AT LISTED ANGLE, ADD 1/4 TO DIM. A & B.
  • 2. FOR SINGLE DOORS UNDER 20 IN WIDTH, THE STOP MAY HAVE TO BE MODIFIED TO ALLOW FOR CHANNEL CLEARANCE.
  • 3. STANDARD THRU BOLT AND GROMMET NUT FURNISHED ALLOWS CHANNEL TO BE MOUNTED ON DOORS 1 3/8 TO 1 3/4 THICK.
  • 4. USE #12-24 x 1/2 FLAT HEAD MACHINE SCREWS OR #12 FLAT HEAD WOOD SCREWS. 4 REQUIRED FOR JAMB BRACKET, 2 REQUIRED FOR CHANNEL BRACKET.
  • 5. 19 1/2 MIN. DOOR WIDTH WITH OFFSET HINGE.
  • 6. FOR CONTINUOUS HINGES, USE SIMILAR BUTT HINGE VALUES.

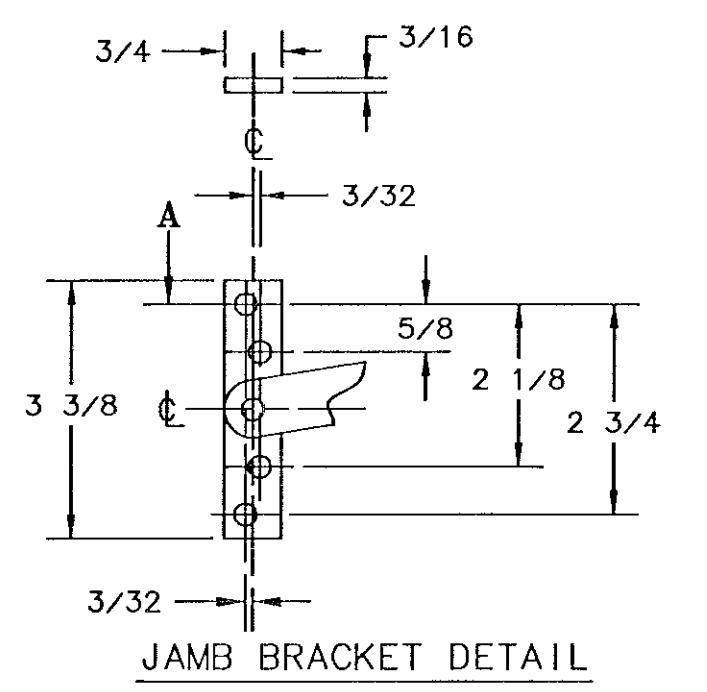

SURFACE MOUNTED JAMB BRACKET

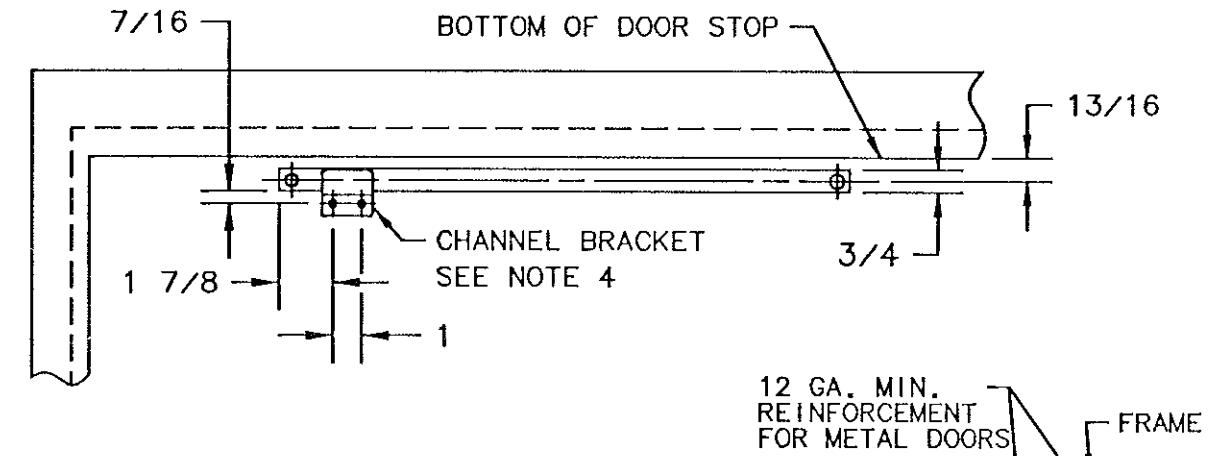

CHANNEL BRACKET

DRILL \phi \frac{1}{4}

THRU-BOLT

CHANNEL

HOLE FOR 12-24 \times 1 3/4

DATA SHEET: 1546-1549 SERIES HOLDERS & STOPS - MOUNTING GROUP 2 -

EFFECTIVE DATE MARCH 31-03 TEMPLATE NO. A7489 D

DOOR

DRILL \phi \frac{3}{8} HOLE

FOR GROMMET NUT
