15 Series Electric Strikes Specification Sheet

Open the original PDF document

Features

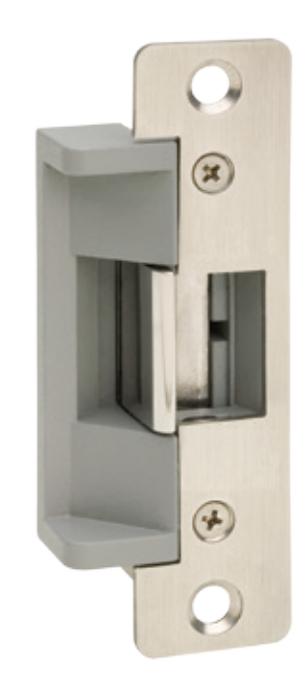

The IDC 15 Series electric strike is designed for use with cylindrical and mortise locksets. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid.

For use with 5/8'' latchbolt, or up to 3/4'' latchbolt with 1/8'' door gap
Choice of failsafe or failsecure
Non-handed
All stainless steel parts with durable die case body for corrosion resistance'
630 Satin stainless steel face plate
ANSI A156.31 compliant

Model

15-4S24U Failsecure, 24VDC 15-4F24U Failsafe, 24VDC 15-4S12U Failsecure, 12VDC 15-4F12U Failsafe, 12VDC

Specifications

Voltage : 240 mA @ 24VDC 200 mA @ 12VDC

Dimensions: 1-1/4'' W x 4-7/8'' H x 1-3/8'' D (31.8W x 124H x 34.9D mm)

274

Screw terminal connections
