15 Series Electric Strikes Datasheet

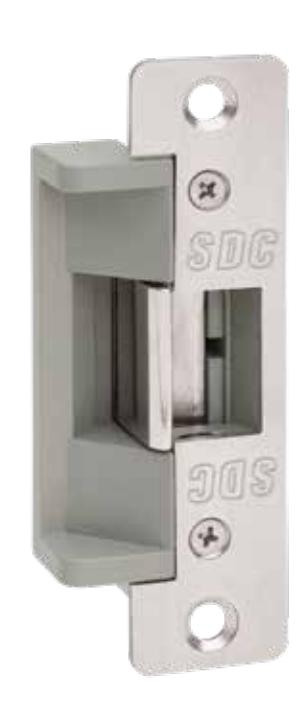

15 Series Electric Strike

The SDC 15 Series Electric Strike is a Centerline Latch Entry* strike designed for use with Cylindrical lockset with up to ¾" (19mm)) throw latchbolts. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid.

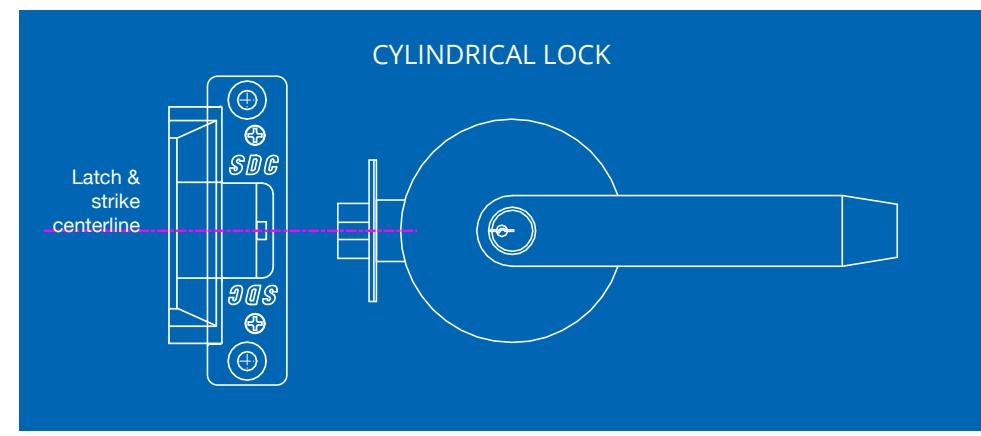

*Centerline Latch Entry: The latch must enter at the strike "Centerline" located exactly between the top and bottom of the strike faceplate. Refer to strike installation instructions and template to determine strike location prior to frame preparation for New and Retrofit installations. Not recommended for wood applications.

FEATURES

• For use with 5/8" latchbolt, or up to 3/4" latchbolt with 1/8" door gap

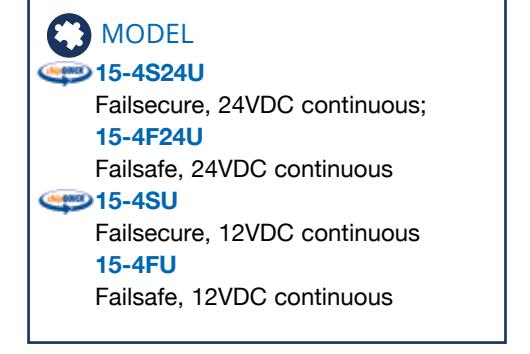

• · Choice of failsafe or failsecure
• Non-handed
• All stainless steel parts with durable die case body for corrosion resistance'
• 630 Satin stainless steel face plate
• Screw terminals

INSTRUCTIONS

SPECIFICATIONS

Voltage	150 mA @ 24VDC 200 mA @ 12VDC

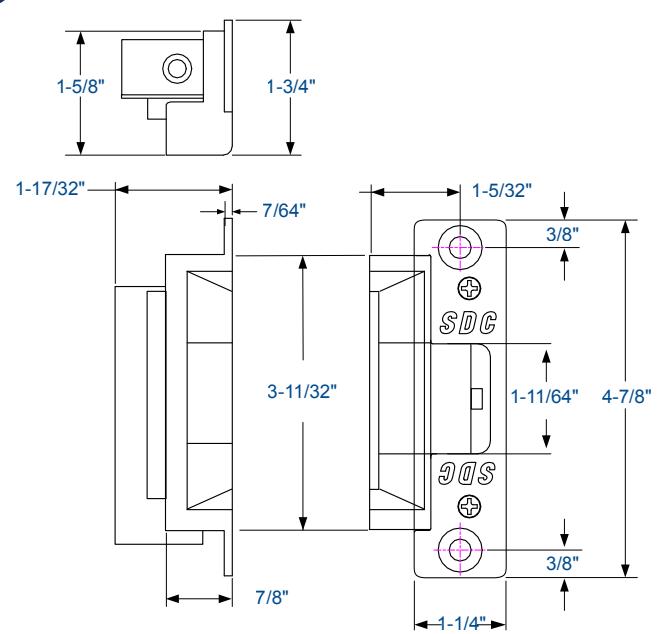

Dimensions	1-1/4" W x 4-7/8" H x 1-1/2" D

1

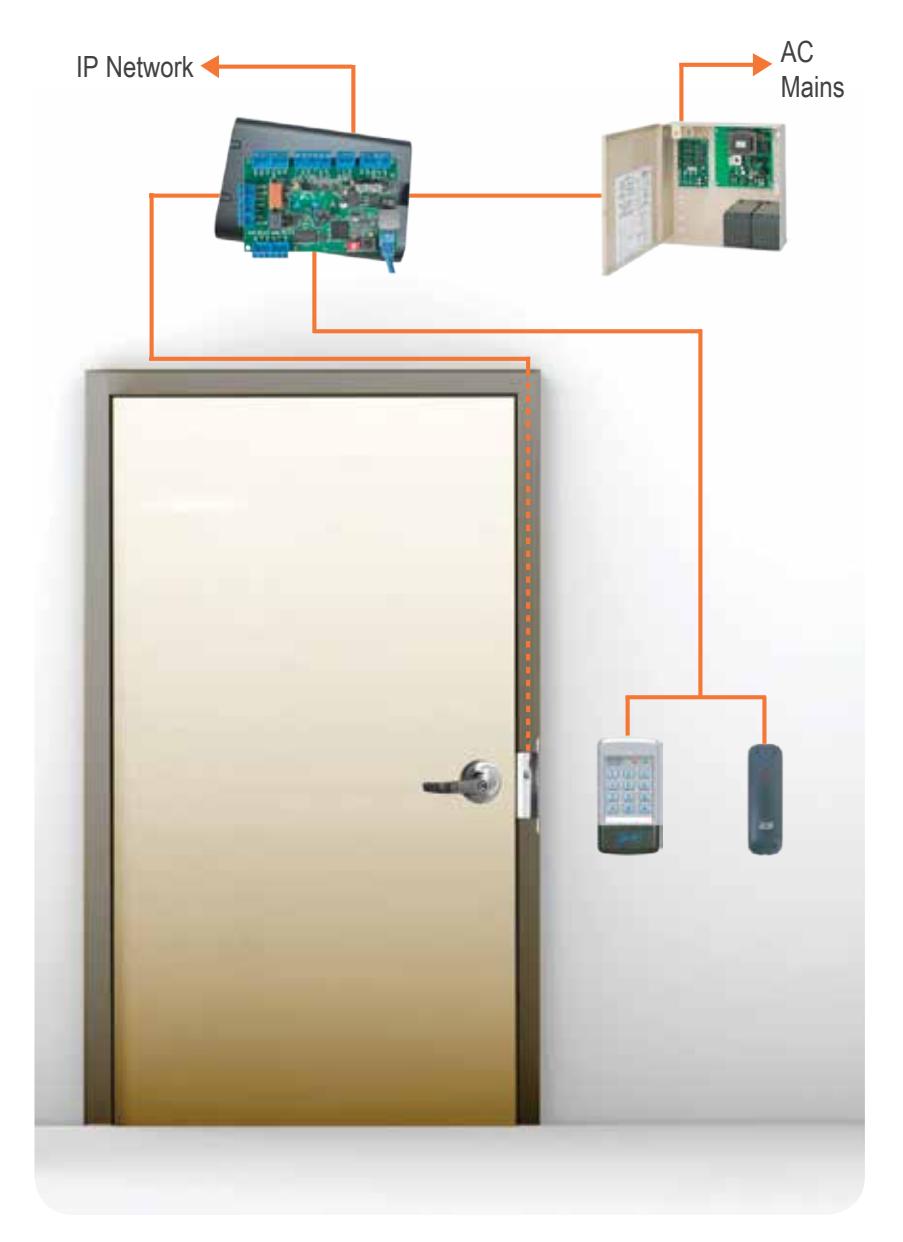

920 Wiegand IPRW Access Control Keypad or Reader

IPPro IP-based Access Control Controller

602RF 1 Amp, 12/24 VDC Class 2 Output Power Supply

LIT-15 SERIES STRIKE 02/18
