1431 Series x Standard Arm Hold Open Fusible Link Application
Open the original PDF document
View PDF|

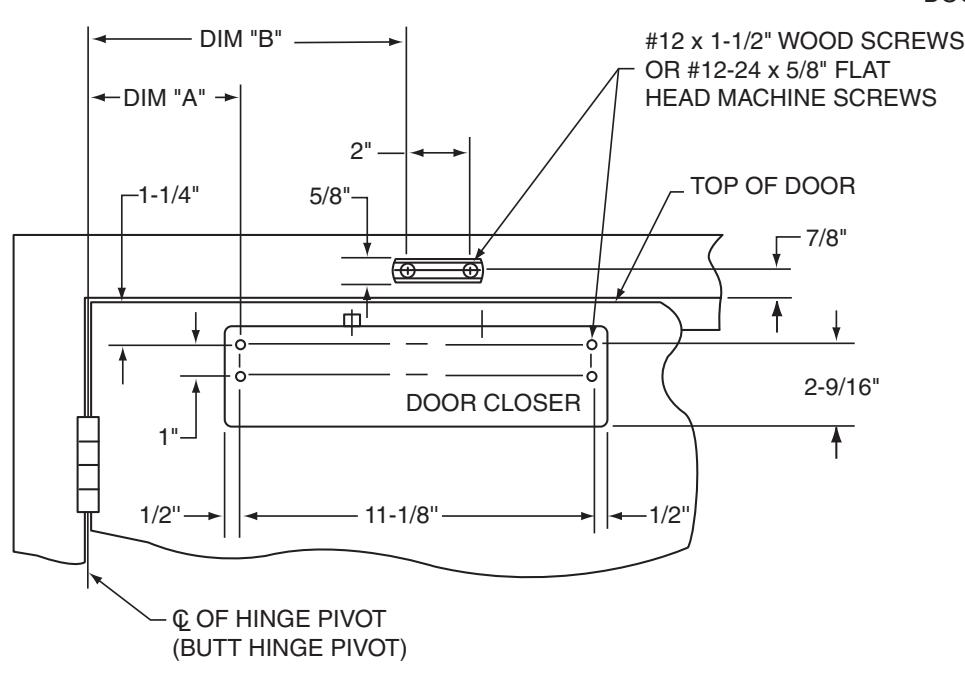

MAX DOOR
OPENING |
DIM.
A |
DIM.
B |
|---|---|---|
| 120° | 6-3/4" | 12-1/8" |
| 160°** | 4-3/4" | 10-1/8" |
**IF BUTT, FRAME AND WALL CONDITIONS PERMIT, DOOR WILL OPEN 180°
Notes:
- 1. 12 Guage Min. Reinforcement Req'd for Metal Doors & Frames.
- 2. Right Hand Door Shown. Left Hand Opposite.
- 3. 1430 Cover Plate may be used when closer is viewed thru glass panel.

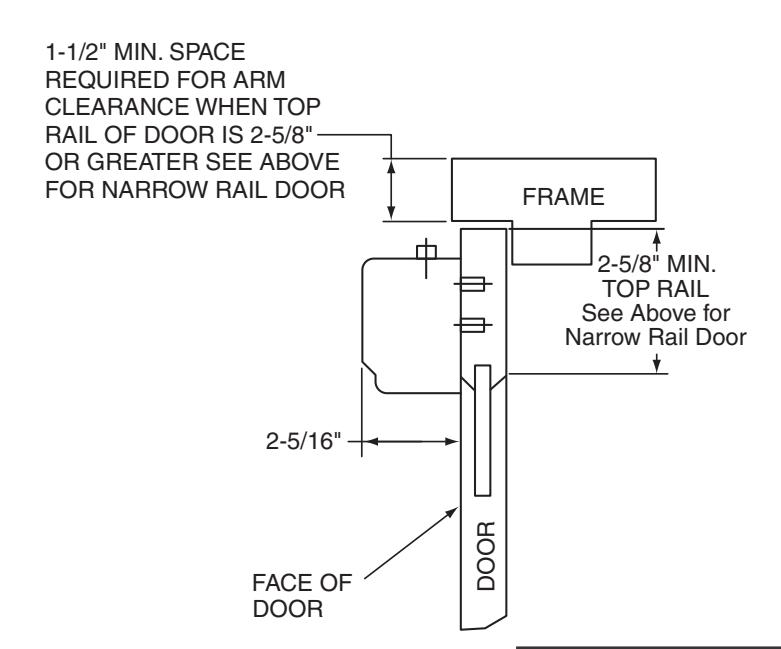

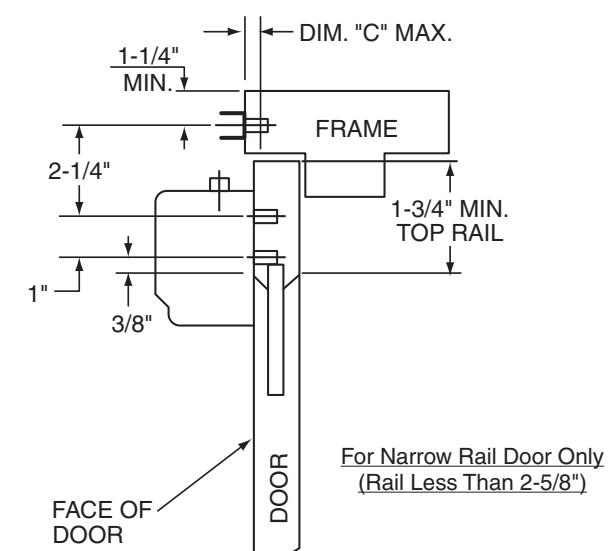

| Frame Projection Permitted | |||
|---|---|---|---|
| From Face of Door | |||
| Top Door Rail Min. | Dim. "C" | ||
| 2-5/8" | 7/16" | ||
| 2-1/8" - 2-9/16" | 1/8" | ||
| 1-3/4" - 2-1/16" | 0 | ||
x Standard Arm Hold Open Fusible Link Application - "F"
Copyright © 2014 ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. , Sargent Manufacturing Company, an ASSA
1430 Series Closer
03-14 DATE TEMP N0.
A7129D
