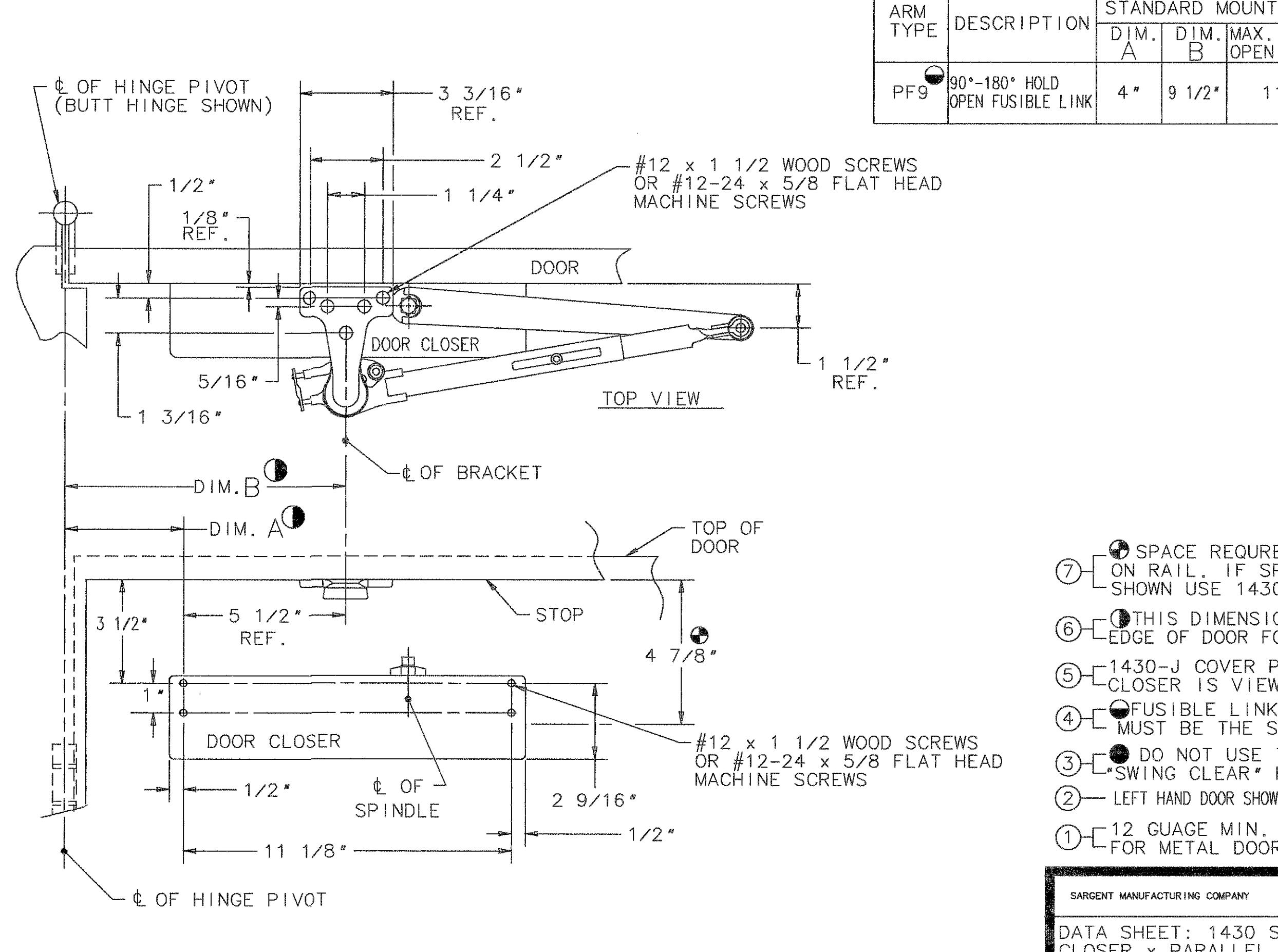

1431 Series Closer x ‘PF9’ Parallel Arm Application

IMPORTANT: USE ALTERNATE MOUNTING IF DOOR CAN OPEN BEYOND LIMITS SHOWN FOR STANDARD MOUNTING ALTERNATE MOUNTING STANDARD MOUNTING DIM. MAX. DOOR DIM. DIM. MAX. DOOR B OPENING OPENING 1 1/4" 6 3/4" 180° 110°

• SPACE REQURED TO MOUNT CLOSER ON RAIL. IF SPACE IS LESS THAN -SHOWN USE 1430-D DROP BRACKET.
• 6 THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.
• 5-1430-J COVER PLATE MAY BE USED WHEN CLOSER IS VIEWED THRU GLASS PANEL.
• 4-FUSIBLE LINK ARM IS HANDED AND MUST BE THE SAME HAND AS DOOR.
• 3 DO NOT USE THIS MOUNTING FOR SWING CLEAR" HINGES.
• LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE,
• 12 GUAGE MIN. REINFORCEMENT REQUIRED -FOR METAL DOORS & FRAMES.

SARGENT MANUFACTURING COMPANY	NEW HAVEN, CONN. 06511
DATA SHEET: 1430 SERIES CLOSER x PARALLEL ARM	1 SEPT. 97
APPLICATION-PF9 ARM	TEMPLET NO. A7120 A
