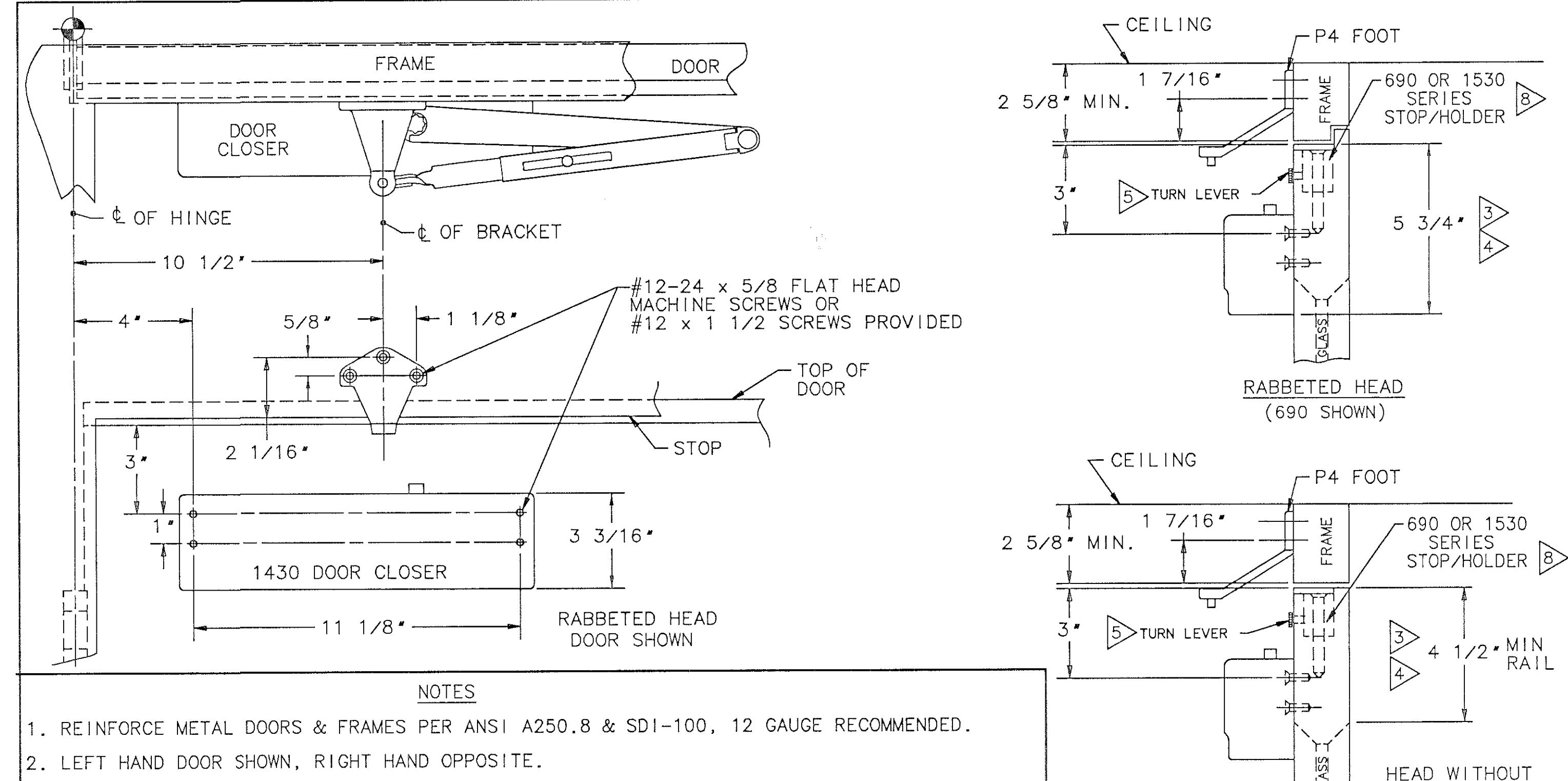

1431 Series Closer x P4 Parallel Arm x 1536-1539 or 697-699 Holders & Stops (Flush Frame Condition)

• 2. LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.
• 3. FOR NARROW TOP RAIL DOORS, USE 1430-D DROP PLATE, SEE TEMPLATE A7168.
• 4.> 1430-J COVER PLATE MAY BE USED WHEN CLOSER IS VISIBLE THROUGH GLASS PANEL.
• 5> TURN LEVER IS USED ON 690 HOLDERS ONLY & MAY BE INSTALLED ON EITHER SIDE OF DOOR.
• 6> FOR 697-699 INSTALLATION. SEE TEMPLATES A7482 A7484.
• 7. FOR 1536-1539 INSTALLATION, SEE TEMPLATES A7485 A7487.
• 8> THE 690/1530 CHANNEL & JAMB BRACKET MAY BE OFFSET BY 1/8 TO AVOID CONFLICT W/RABBET

1430 SERIES DOOR DATA SHEET: CLOSER WITH P4 ARM AND 697-699 OR 1536-1539 HOLDER/STOP (FLUSH FRAME CONDITION)

RELEASE DATE 2 JULY 02 TEMPLATE NO.

A7560A

SERIES

STOP

(690 SHOWN)

1/2 * MIN

RAIL
