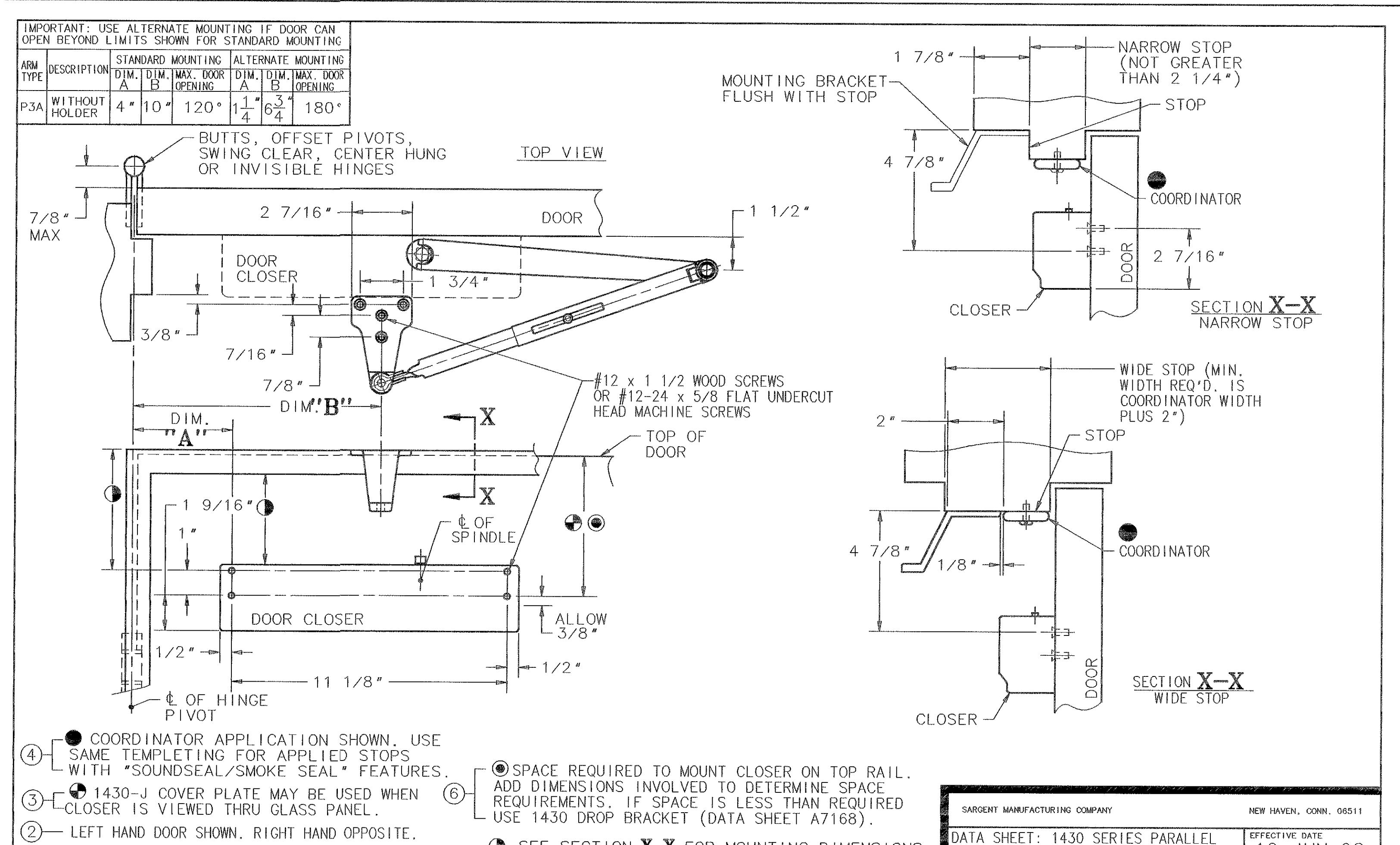

1431 Series Closer x ‘P3A’ Parallel Arm (for stop mounted coordinator)

SEE SECTION X-X FOR MOUNTING DIMENSIONS AND CORRECT POSITIONING OR LOCATION OF P3A FOOT BRACKET ON DOOR FRAME.

1 - 12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.

12 JUN 98

A7201 B

ARM CLOSER WITH TYPE P3A ARM &

ON STOP (ALSO FOR APPLIED STOPS)

DOOR FRAME WITH COORDINATOR MOUNTED TEMPLET NO.
