1431 Series Closer x ‘OT & HT’ Pull Side Track Application

Open the original PDF document

REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 AND SDI-100 STANDARDS, 12 GAUGE RECOMMENDED.
THIS DIMENSION IS TAKEN FROM THE HINGE, EDGE OF DOOR FOR INVISIBLE HINGES.
RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.
4. IF HINGE, FRAME, AND WALL CONDITIONS PERMIT, CLOSER WILL ALLOW DOOR TO OPEN 180°.
5. 1431-J COVER PLATE MAY BE USED WHEN CLOSER IS VISIBLE THRU GLASS.

DATA SHEET:

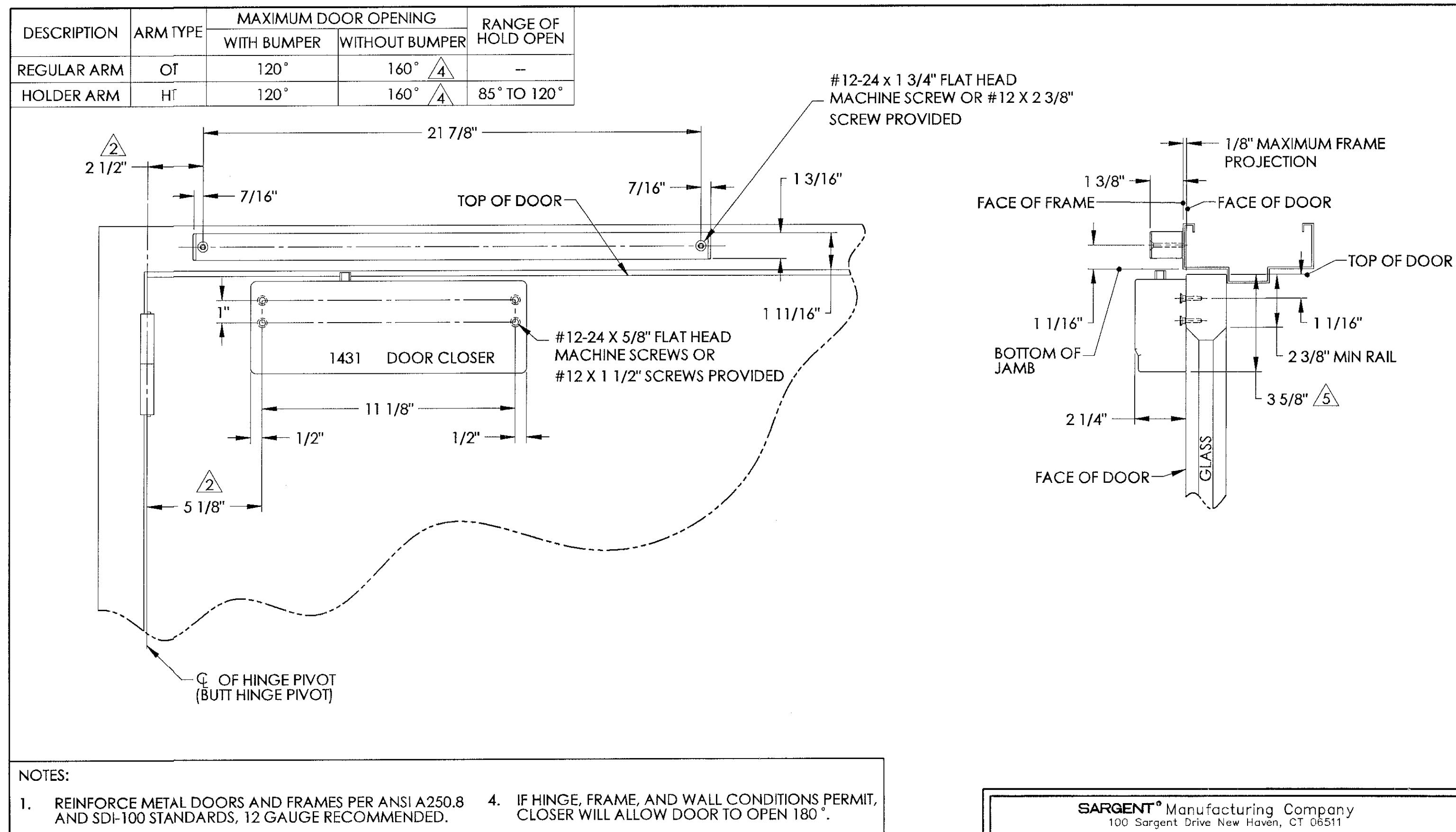

1431-OT AND HT SERIES CLOSERS PULL SIDE TRACK APPLICATION

TEMPLATE NO. A7188 B
