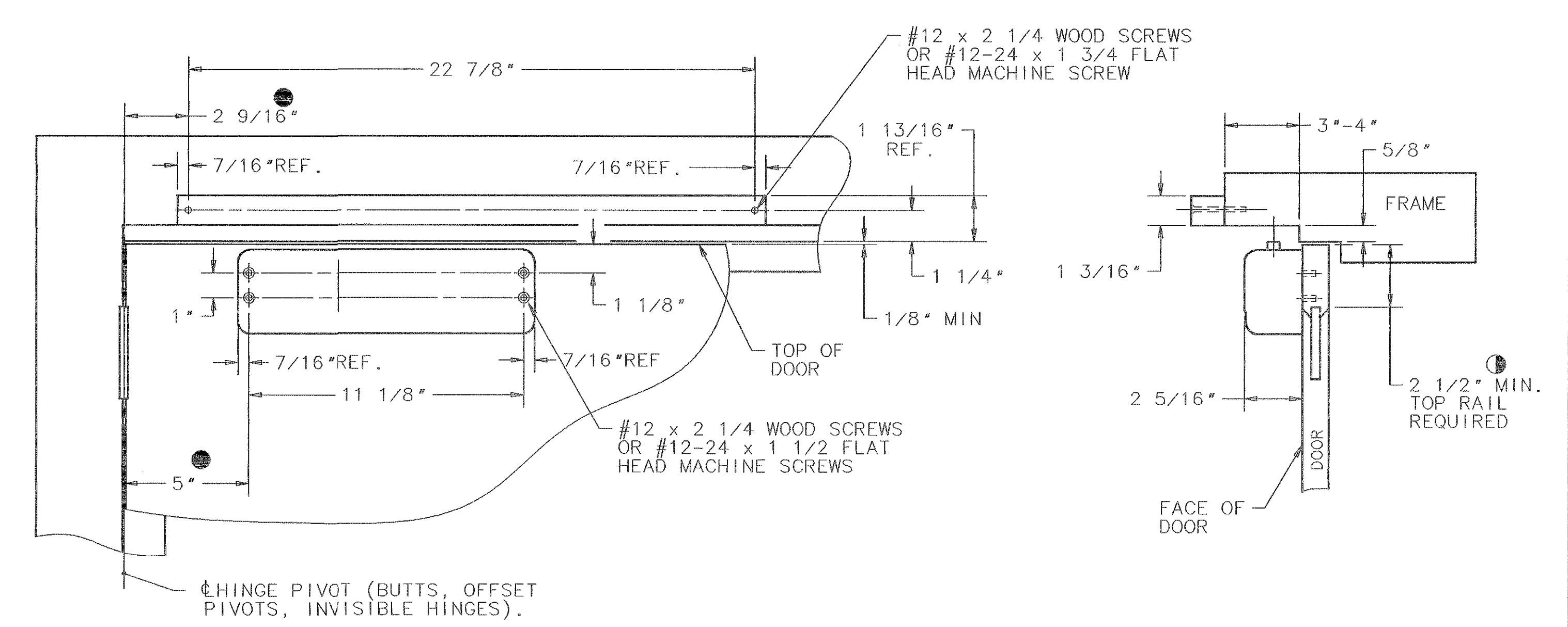

1431 Series Closer x ‘OD & HD’ Track Type Application (Double Egress Arms)

	DESCRIPTION		MAXIMUM E	OOR OPENING	RANGE OF
	DESCRIPTION		WITH BUMPER	WITHOUT BUMPER	HOLD OPEN
	REGULAR ARM	OD	120°	160° ⊕
	HOLDER ARM	HD	120° ●	160°₩	85° TO 120°

NOTES:

• 1. RIGHT HAND DOOR SHOWN, LEFT HAND DOOR OPPOSITE.
• 2. 12 GAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS AND FRAMES.
• 3. - THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGRS.
• 4. O TO OPEN DOOR 120° REMOVE BUMPER STOP.
• 5. IF DOOR AND FRAME CONDITION PERMIT.
• 6. () SPACE REQUIRED TO MOUNT CLOSER ON RAIL. IF SPACE IS LESS THAN SHOWN USE DATA SHEET A7168 FOR DETAILS.
