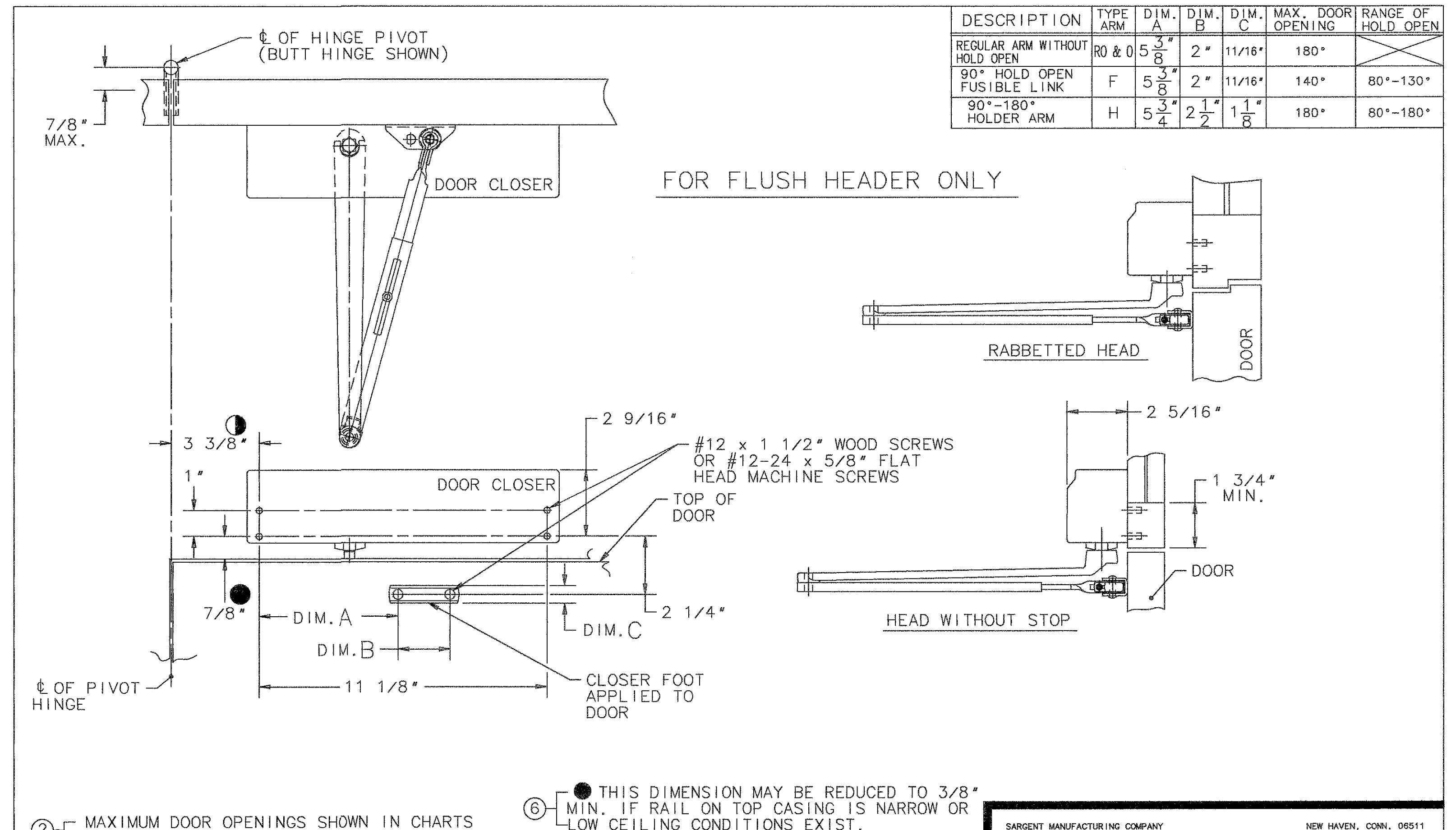

1431 Series Closer x ‘O-RO-H-F’ Top Jamb Application

2- MAXIMUM DOOR OPENINGS SHOWN IN CHARTS APPLY TO DOORS UP TO 2 1/4" THICK ONLY.

12 GUAGE MIN. REINFORCEMENTS REQUIRED FOR METAL DOORS AND FAMES.

LOW CEILING CONDITIONS EXIST.

LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.

THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

SARGENT MANUFACTURING COMPANY	NEW HAVEN, CONN. 06511
DATA SHEET: 1430 SERIES CLOSER x TOP JAMB	effective date 1 SEPT, 97
APPLICATION - 0, RO, H & F ARMS	TEMPLET NO. A7145 A
