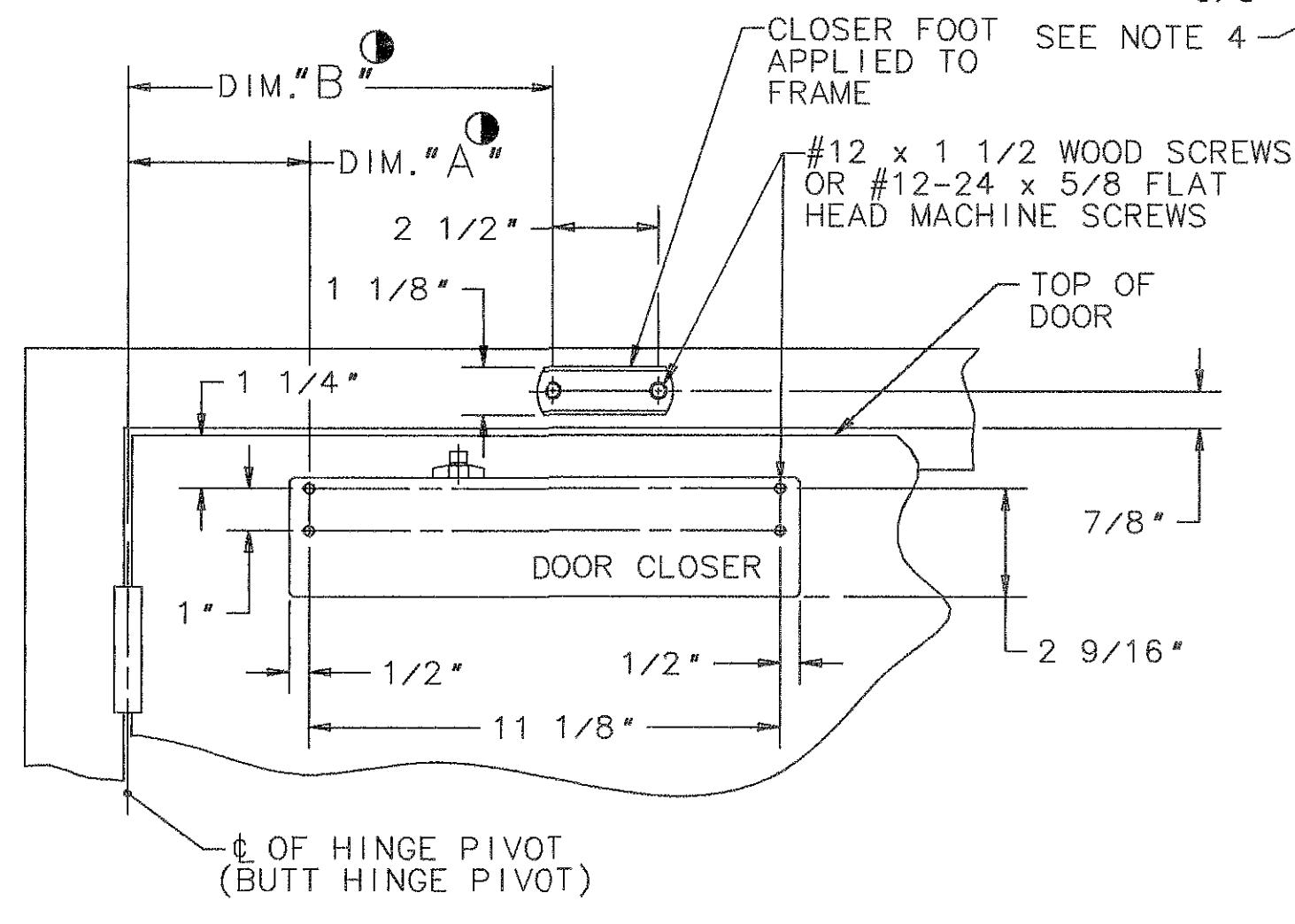

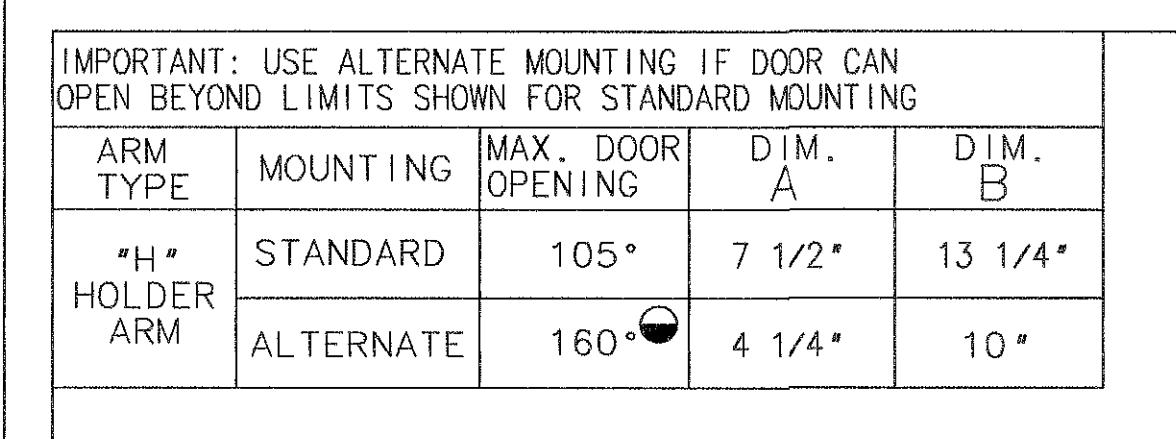

1431 Series Closer x ‘H’ Standard Arm Application

FRAME PROJECTION PERMITTED FROM FACE OF DOOR TOP DOOR DIM. MAX. C A 1/8 - 2 9/16 7/16 1 3/4 - 2 1/16 0

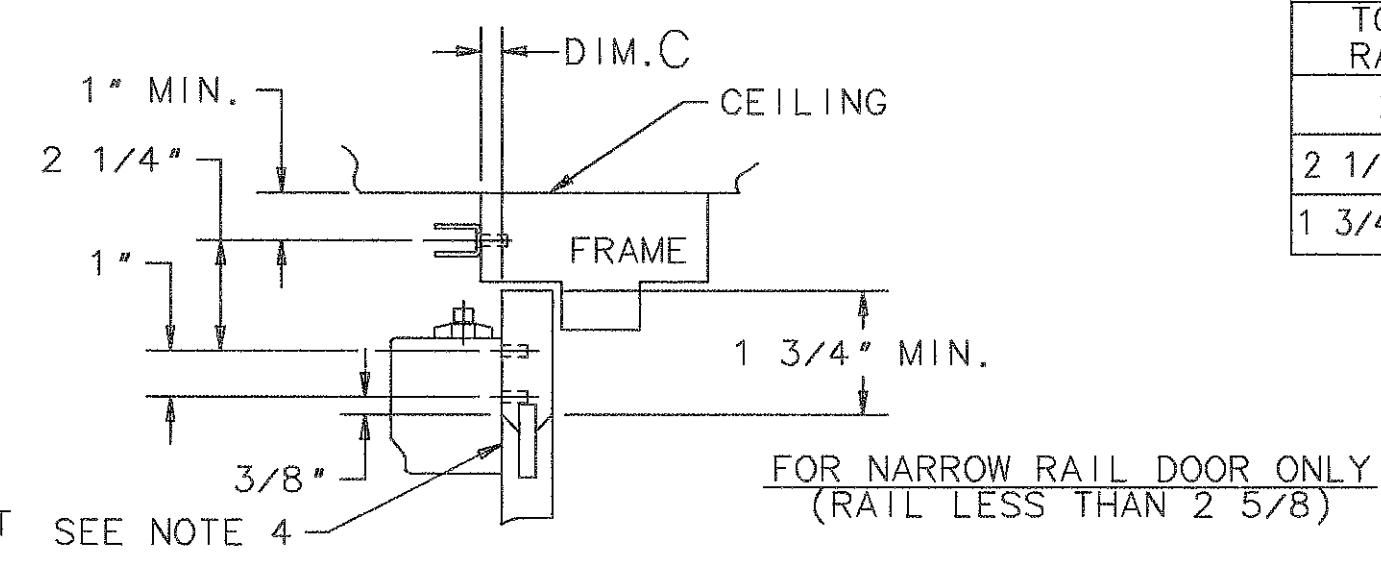

1 7/8" MIN. SPACE REQUIRED FOR ARM CLEARANCE WHEN TOP RAIL OF DOOR IS 2 5/8 OR GREATER SEE ABOVE FOR NARRROW RAIL DOOR FRAME PROJECTION DIM. C MAX. SEE NOTE 4 SEE NOTE 4 CEILING CEILING FRAME 1 5/8" MIN. RAIL SEE ABOVE IF RAIL IS LESS

• 3-F BUTT, FRAME AND WALL CONDITIONS PERMIT, CLOSER WILL ALLOW DOOR TO OPEN 180°.
• 2 RIGHT HAND DOOR SHOWN. LEFT HAND OPPOSITE.
• 12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.

• 5-THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.
• 4-L1430-J COVER PLATE MAY BE USED WHEN CLOSER IS VIEWED THRU GLASS PANEL.

en en se de la companya de la companya de la companya de la companya de la companya de la companya de la compa Companya de la companya de la companya de la companya de la companya de la companya de la companya de la compa
SARGENT MANUFACTURING COMPANY	NEW HAVEN, CONN. 06511
PATA SHEET: 1430 SERIES CLOSER × STANDARD ARM	effective date 1 SEPT. 97
PPLICATION - "H" TYPE ARM	TEMPLET NO. A7127 A
