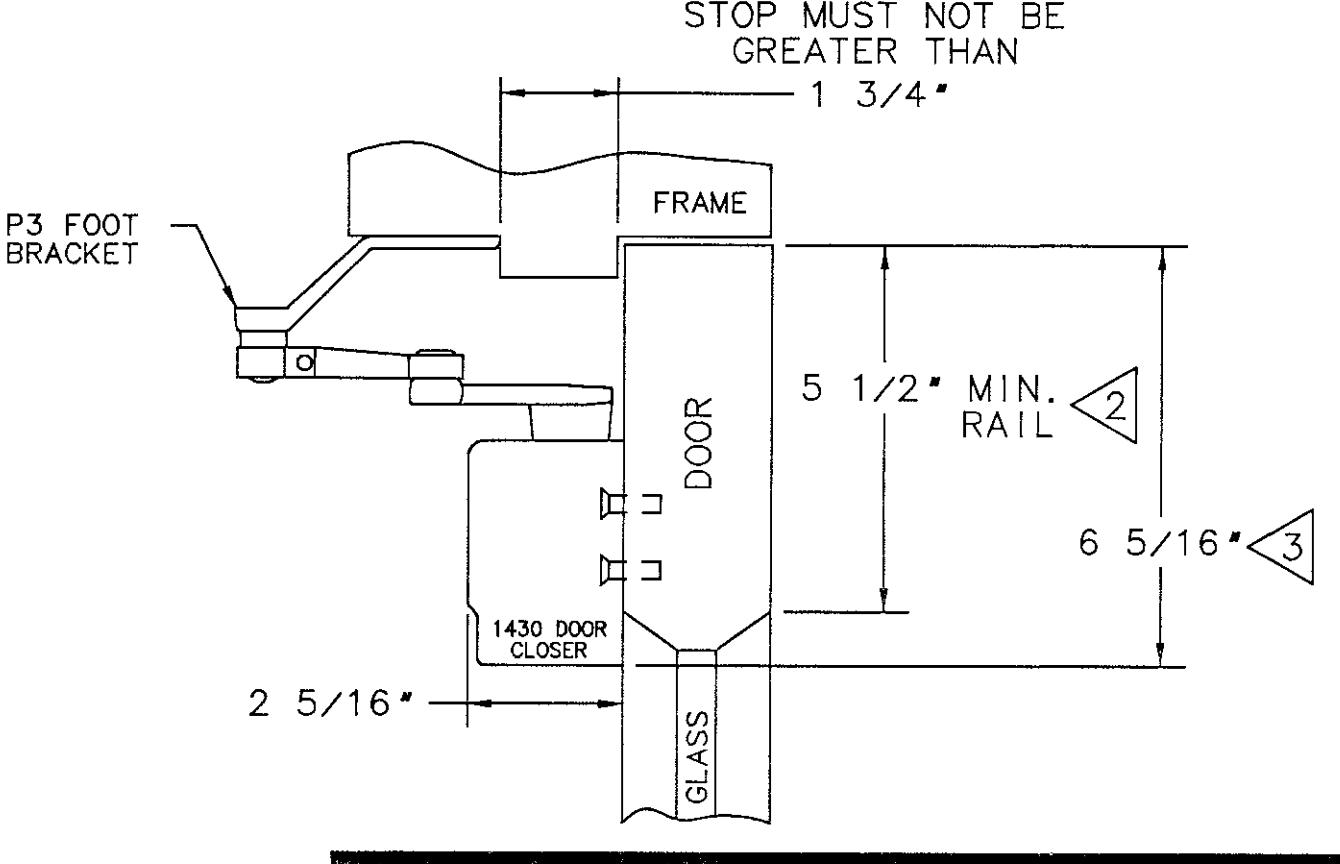

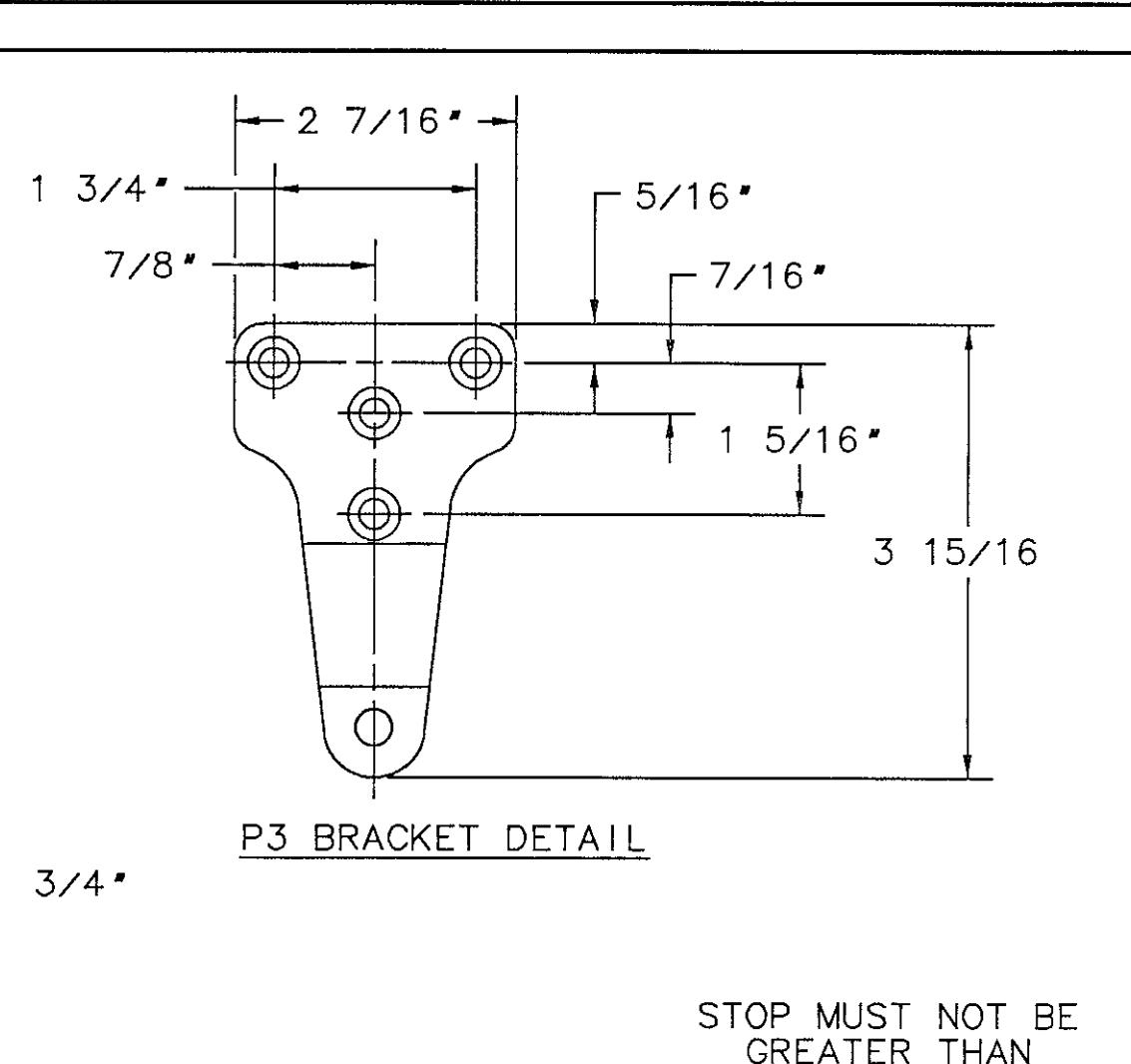

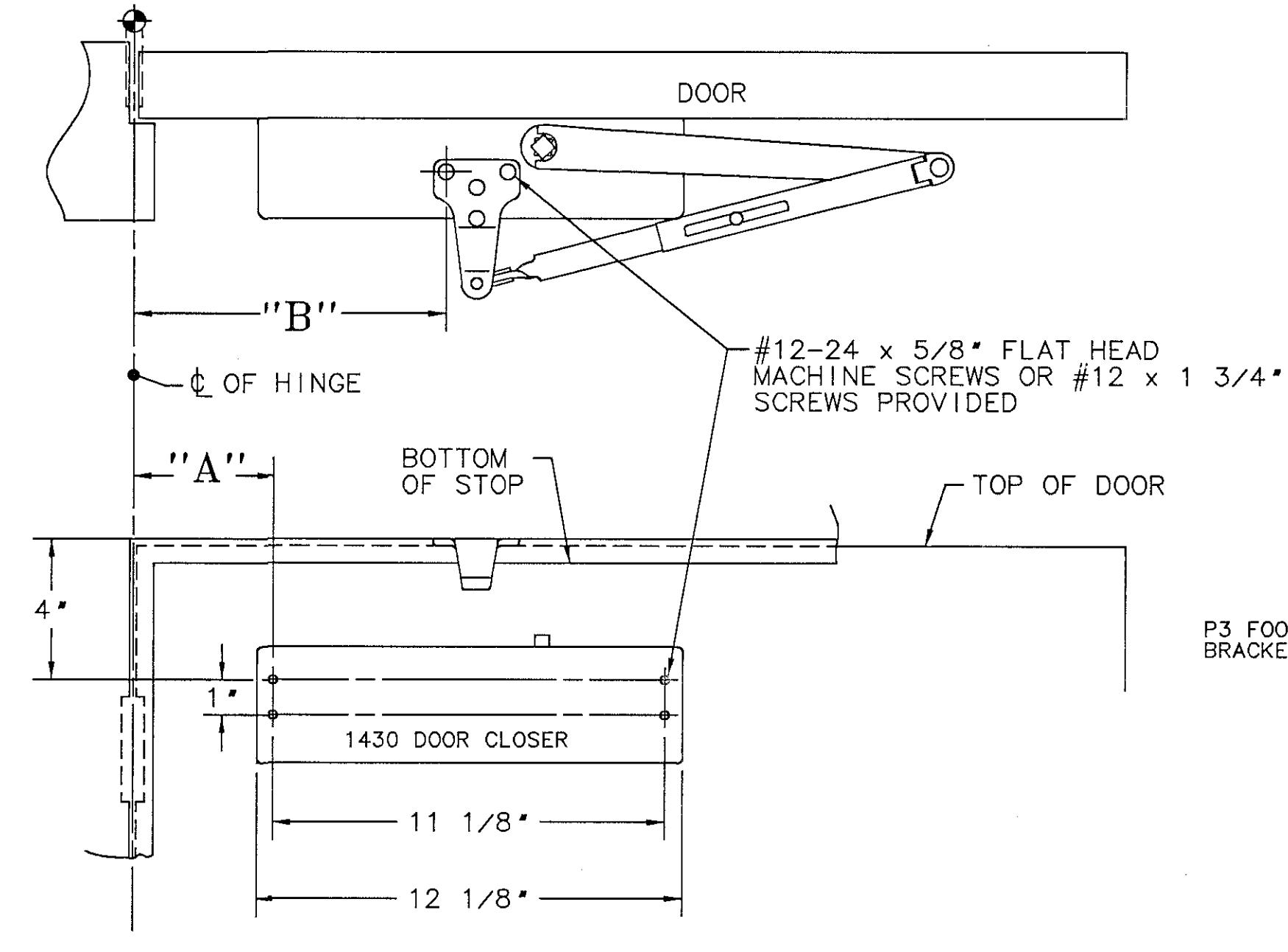

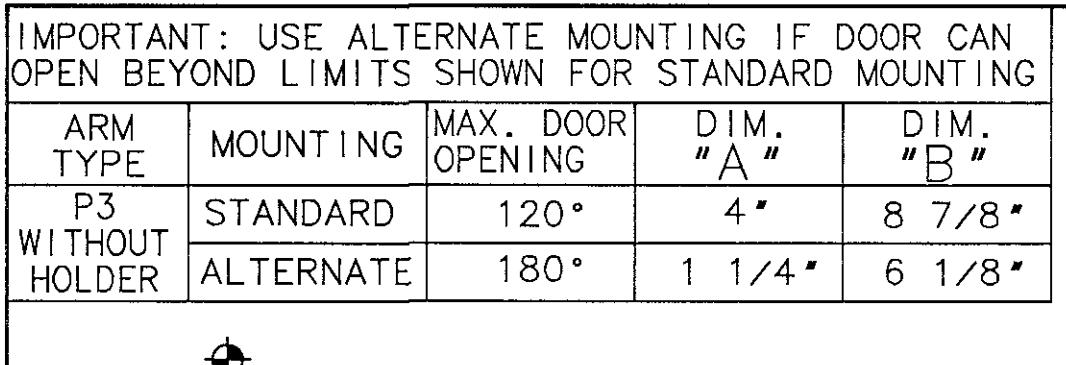

1431 Series Closer w ‘P3’ Parallel Arm x Door Frame w Narrow or Unreinforced Stop

<u>NOTES</u>

1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 & SDI-100 12 GUAGE RECOMMENDED.

FOR THIN RAIL DOORS, USE 1430-D DROP PLATE, SEE TEMPLATE A7168. 1430-J PLATE MAY BE USED WHEN CLOSER IS VISIBLE THROUGH GLASS.

4. LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DATA SHEET: 1430 SERIES CLOSER WITH A P3 PARALLEL ARM WITH NARROW AND OR UNREINFORCED STOP

RELEASE DATE AUG 02 TEMPLATE NO. A7166 C
