1431-D Drop Bracket

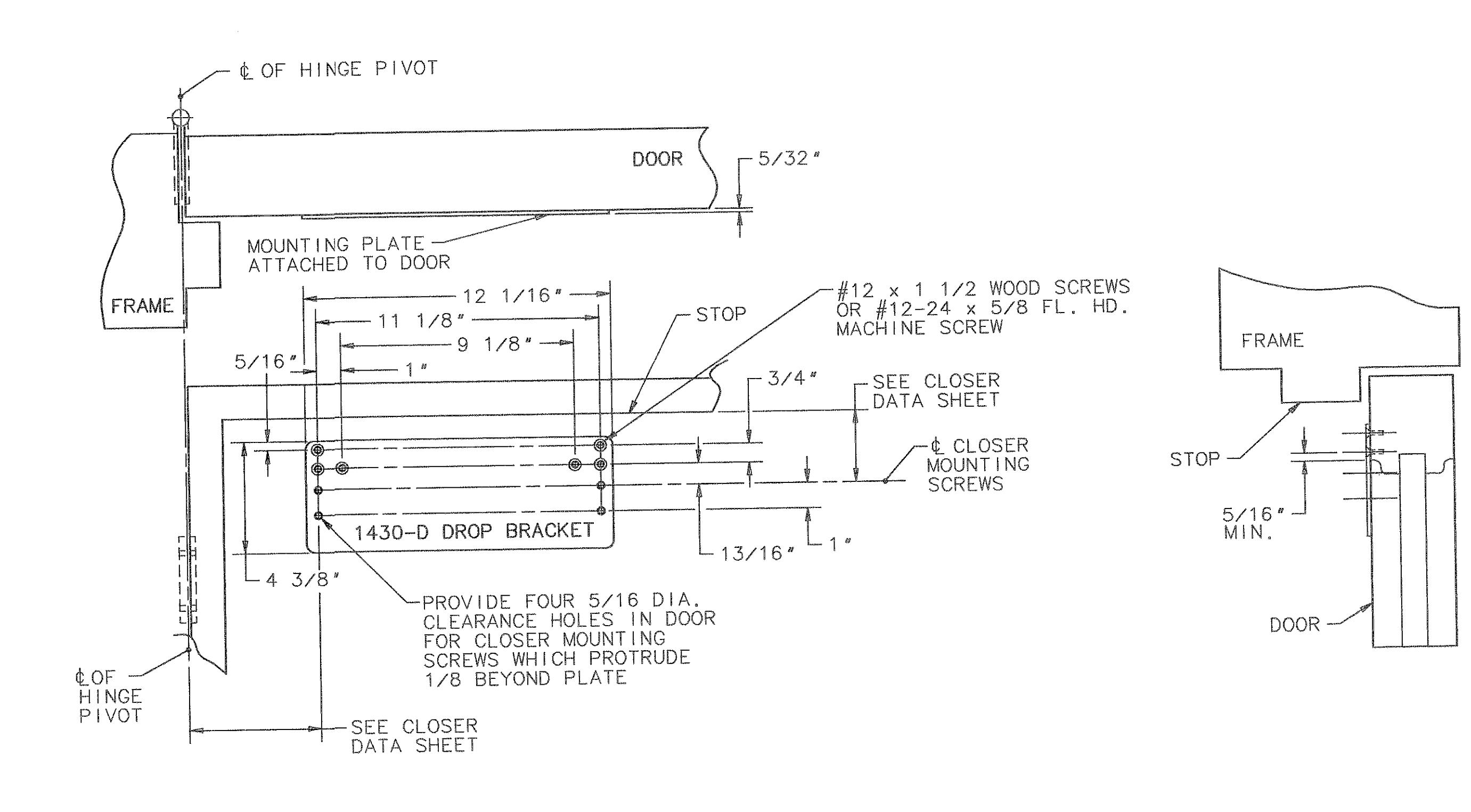

SARGENT MANUFACTURING COMPANY DATA SHEET: 1430-D DROP BRACKET × PARALLEL ARM APPLICATION NEW HAVEN, CONN. 06511 EFFECTIVE DATE 1 SEPT. 97 TEMPLET NO. A7168A

2-L 12 GUAGE MIN. REINFORCEMENTS REQUIRED FOR METAL DOORS AND FRAMES.

1- REFER TO DOOR CLOSER DATA SHEET FOR POSITION OF CLOSER ON DOOR OR FRAME.
