1431-B Mounting Plate
Open the original PDF document
View PDF
NOTES:
- 1. 12 GAUGE MIN. REINFORCEMENTS REQUIRED FOR METAL DOORS AND FRAMES.
- 2. REFER TO DOOR CLOSER DATA SHEETS, A7558 AND A7167, FOR POSITION OF CLOSER ON DOOR OR FRAME.
Copyright © 2012, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

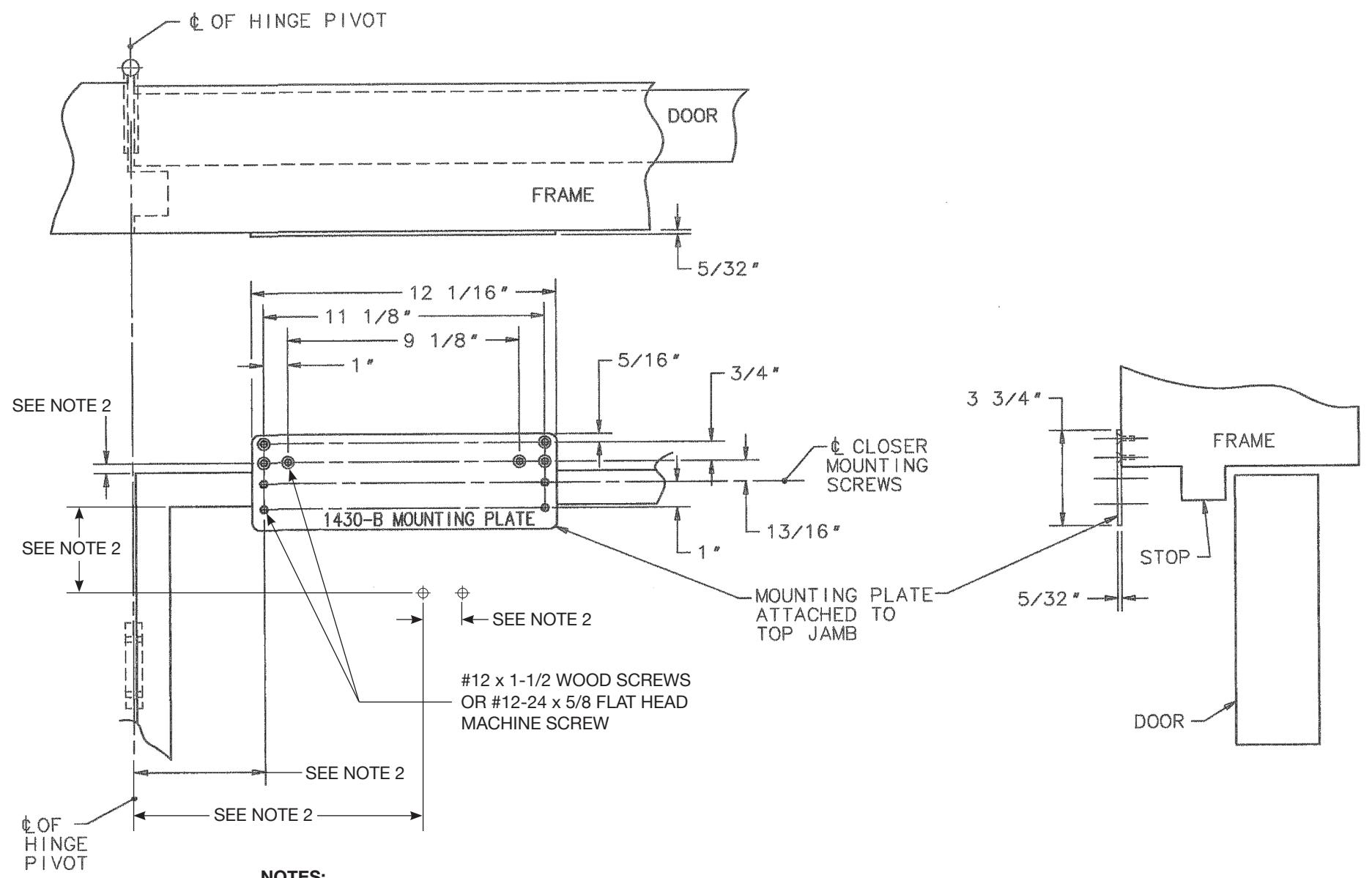

DATA SHEET: 1430-B MOUNTING PLATE x TOP JAMB APPLICATION A7169B
RELEASE DATE 08/23/12
TEMP. NO.
