INSTALLATION INSTRUCTIONS

413NU & 423U 1-60 SECOND ADJUSTABLE TIME DELAY PUSH SWITCH

When the button is pressed, the lock releases for 1-60 seconds. If pressed again during the lock release period, the unit will "Retrigger" starting a new release period.

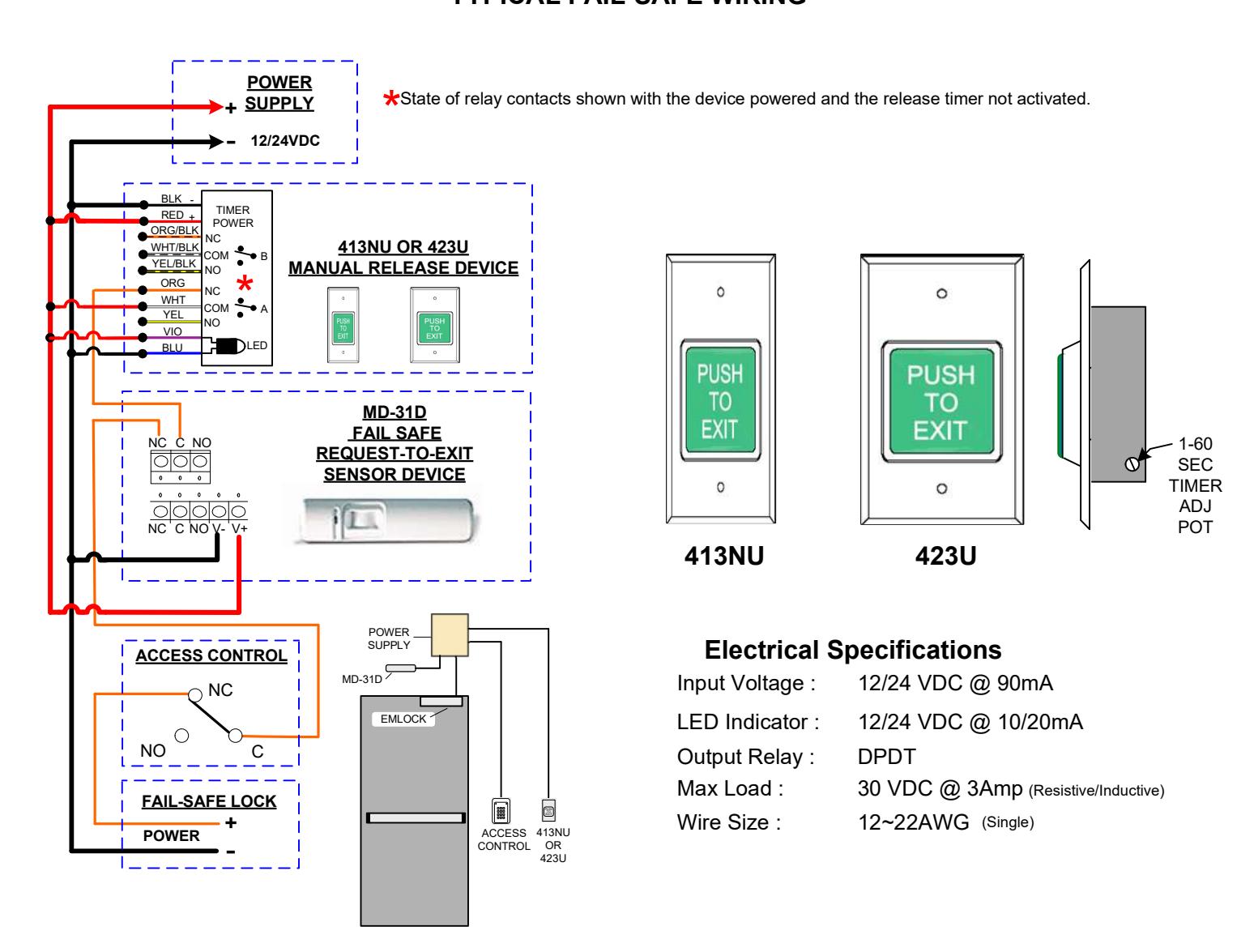

TYPICAL FAIL-SAFE WIRING

To be used with a Class 2 power supply or voltage compatible UL 294 or UL 603 listed power supply

Compliance with ANSI/NFPA 70 National Electrical Code

All peripheral modules for UL compliance are required to be UL Listed UL 294.

UL 294 Performance Rating

Level I: Line Security / Destructive Attack / Standby

Power

Level IV: Endurance

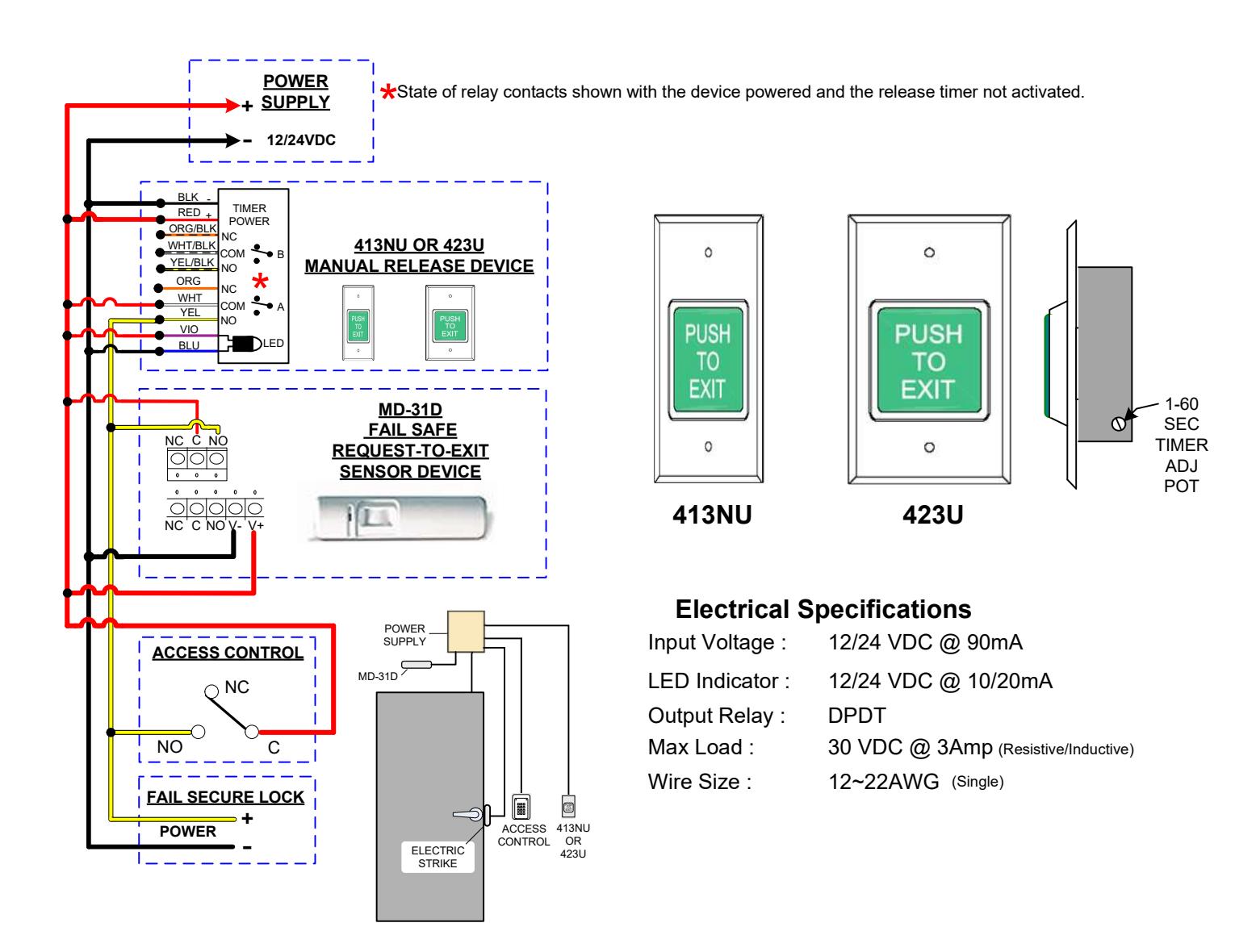

TYPICAL FAIL-SECURE WIRING

To be used with a Class 2 power supply or voltage compatible UL 294 or UL 603 listed power supply

Compliance with ANSI/NFPA 70 National Electrical Code

All peripheral modules for UL compliance are required to be UL Listed UL 294.

UL 294 Performance Rating

Level I: Line Security / Destructive Attack / Standby

Power

Level IV: Endurance
