SARGENT® 1331 & DOOR CLOSER INSTALLATION INSTRUCTIONS WITH JUH (HOLD OPEN) ARMS

SARGENT ASSA ABLOY

Strength Adjustable From Size 1 Thru 6

CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE. FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477 or www.sargentlock.com

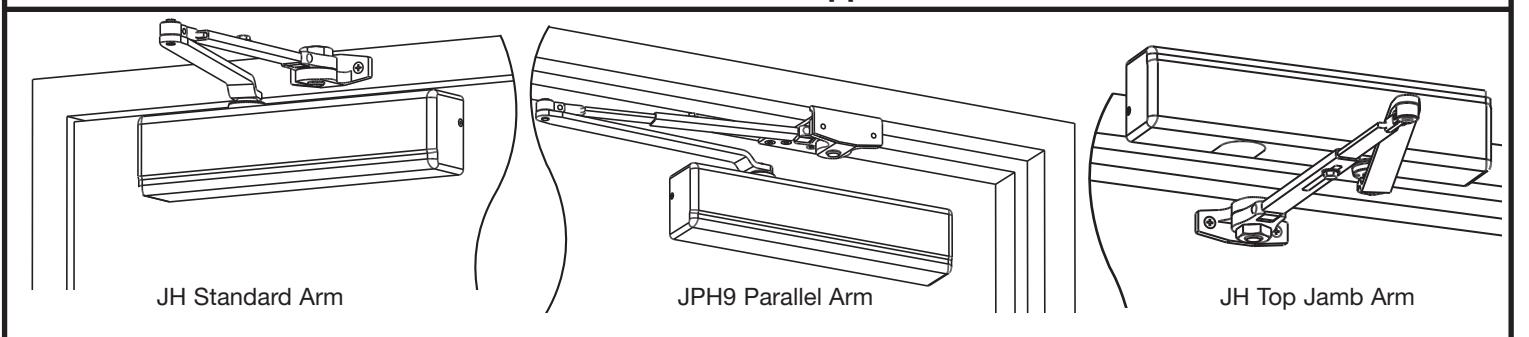

Choose From 1 of the 3 Applications Below

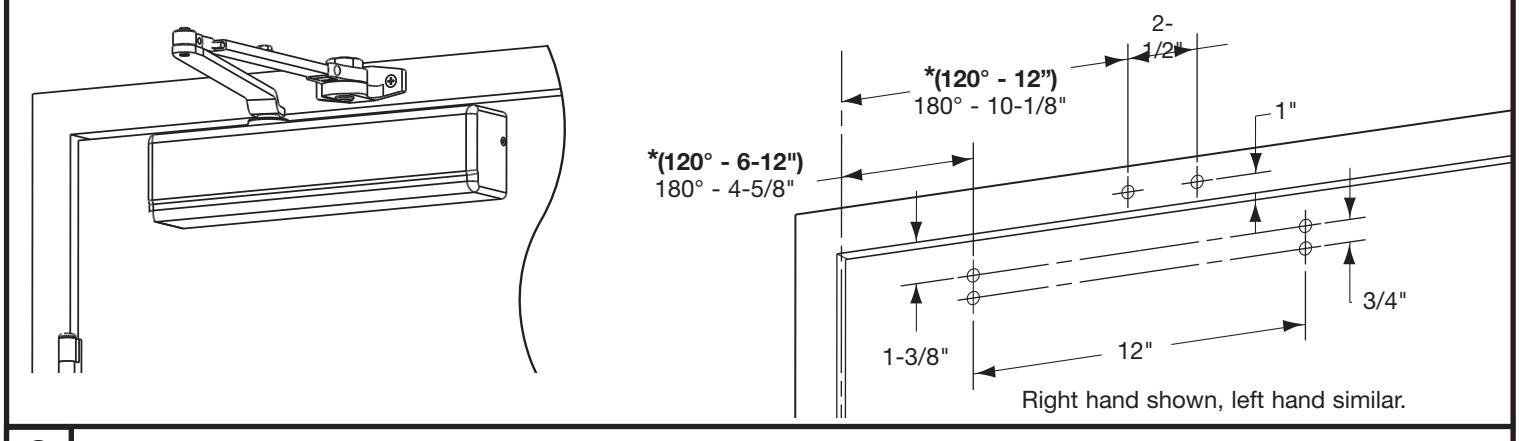

Use Standard & Parallel Full Size Templates Provided

NOTE: With swing clear hinges, use data sheets provided.

* 1/4" Variance allowed for retrofit of existing closers

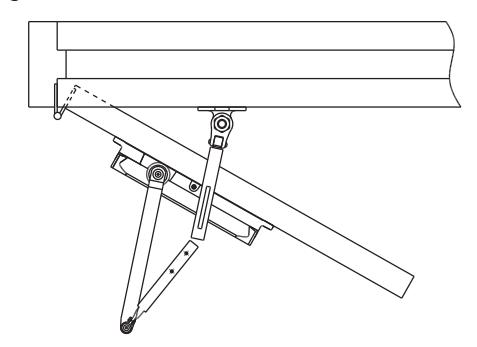

1331 STANDARD APPLICATION JH HOLD OPEN ARM INSTRUCTIONS

SARGENT

ASSA ABLOY

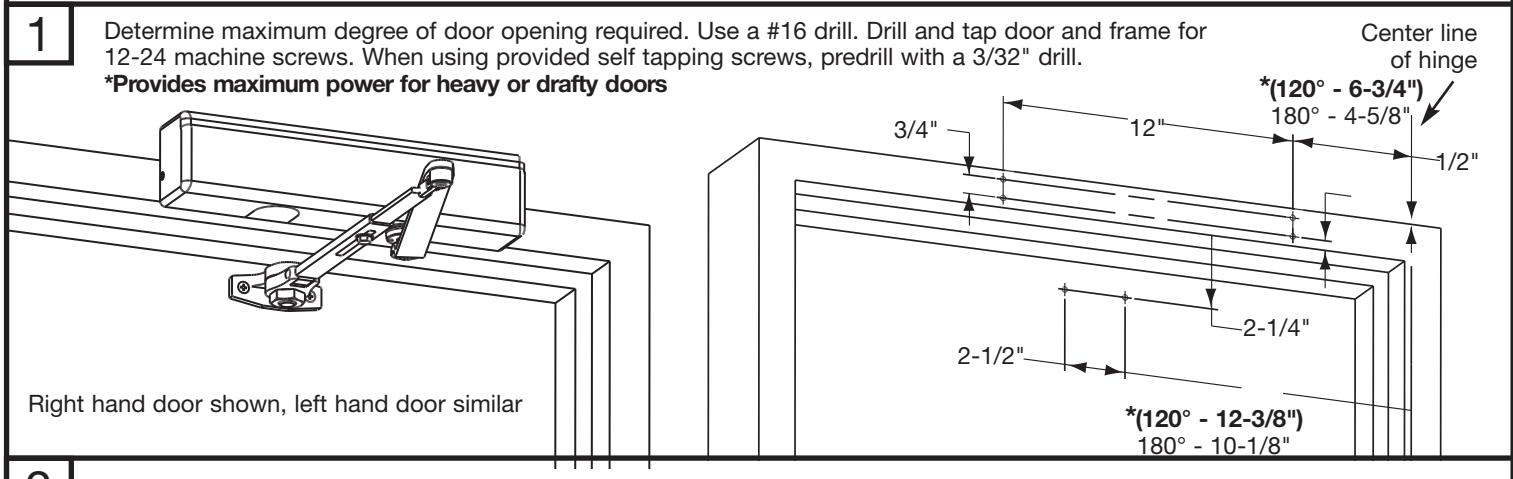

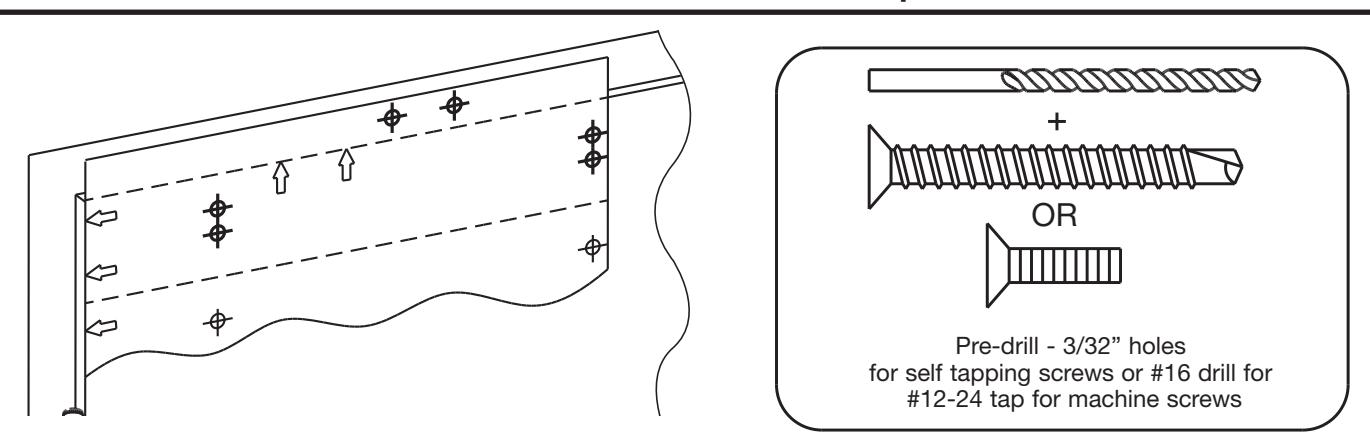

Determine maximum degree of door opening required. Use a #16 drill. Drill and tap door and frame for 12-24 machine screws. When using the included self tapping screw, predrill with a 3/32" drill. *Provides maximum power for heavy or drafty doors

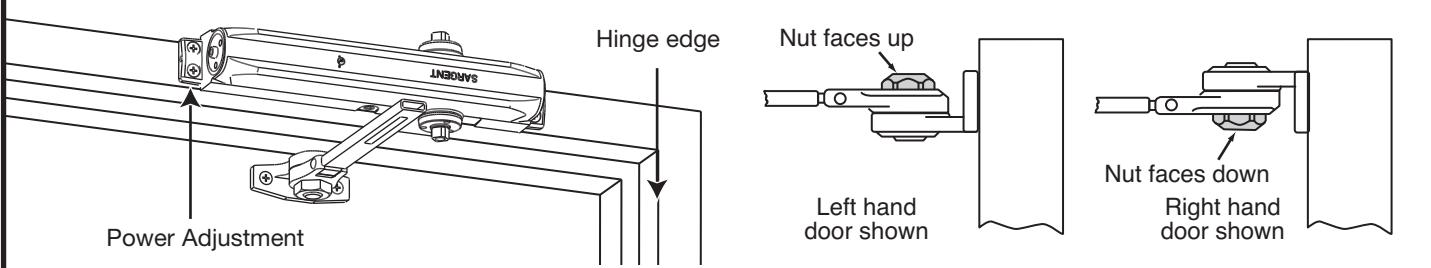

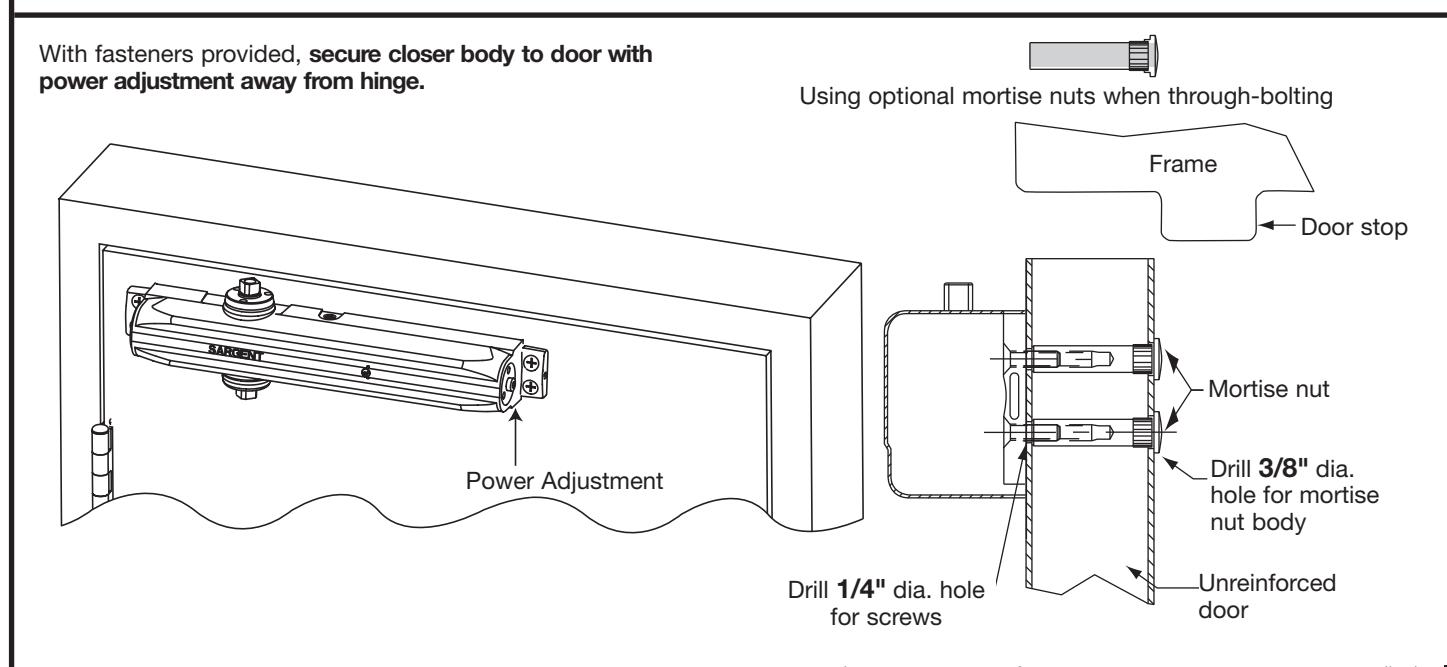

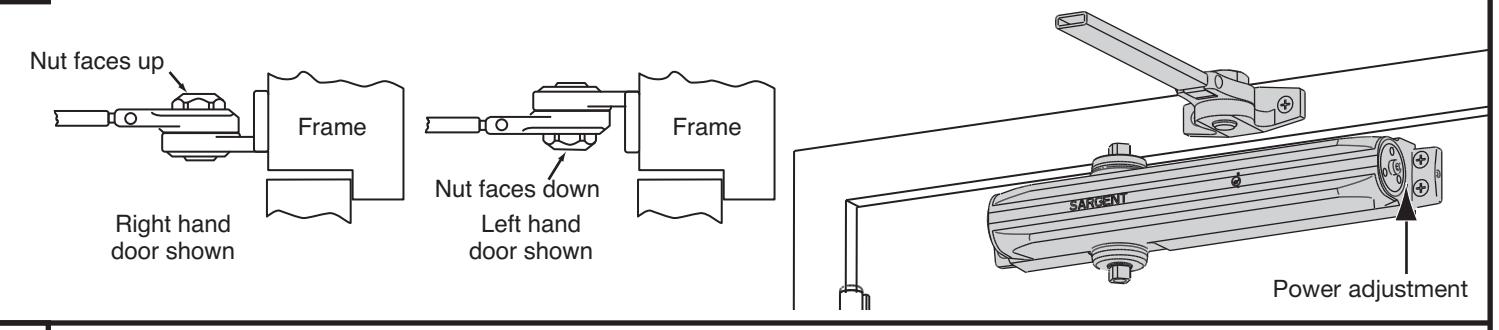

With provided fasteners, install foot to frame and secure closer body to door with power adjustment away from hinge

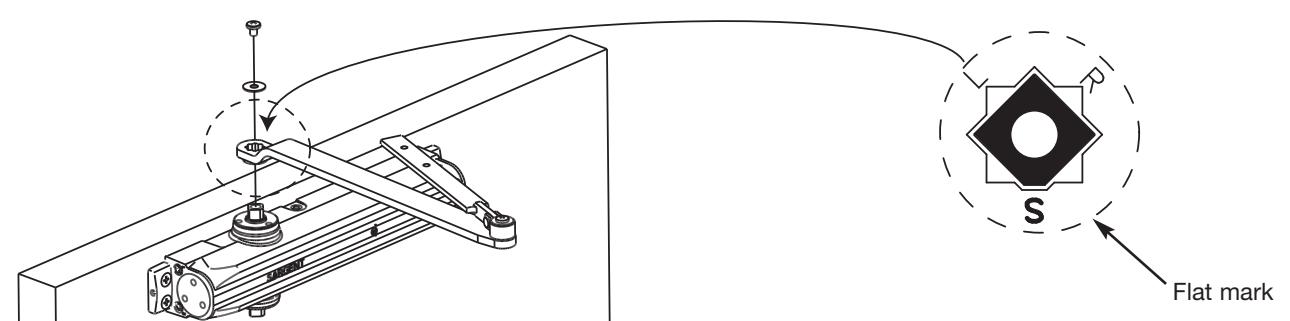

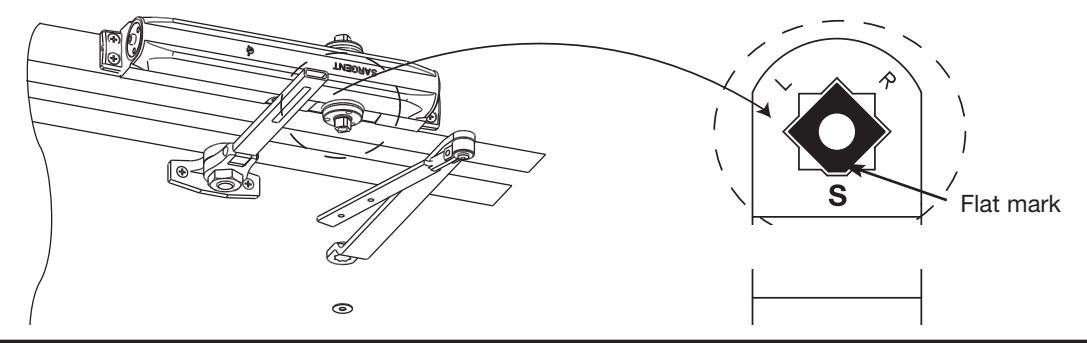

3 On both right and left hand doors, secure main arm to top spindle with screw and washer provided. Align flat mark as shown

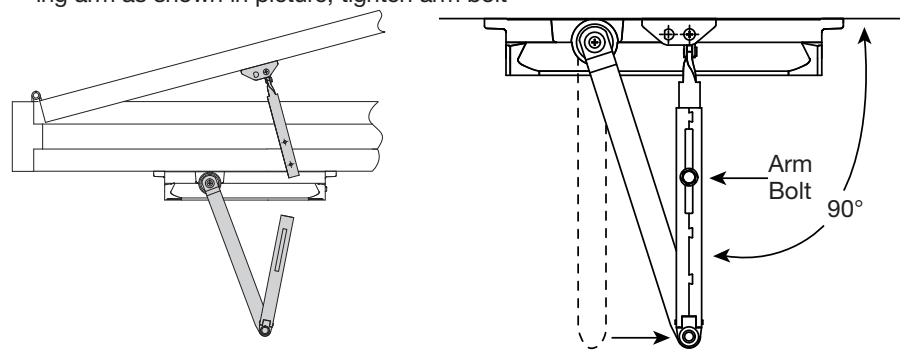

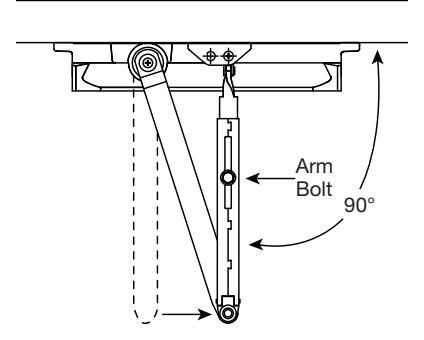

Open door and insert foot into main arm. Close door fully, and while pushing arm as shown in picture, tighten arm bolt

See page 5 for closer adjustment and cover installation.

5

Copyright © 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. A7742A

1331 JH TOP JAMB PARALLEL HOLD OPEN INSTRUCTIONS

SARGENT

ASSA ABLOY

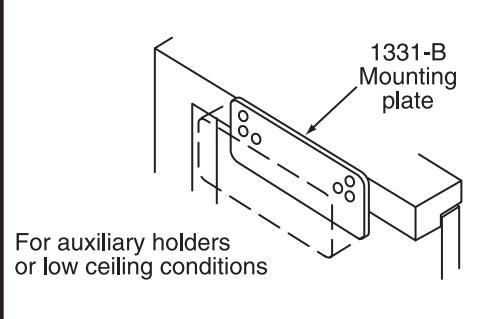

With provided fasteners, install foot to door as shown and closer body to frame with power adjustment away from hinge

On both right and left hand doors, secure main arm to spindle with screw and washer provided. Align flat mark as shown

Open door and insert foot into main arm. Close door fully, and while pushing arm as shown in picture, tighten arm bolt

5 See page 5 for adjustment and cover installation

CLOSER ADJUSTMENT AND COVER INSTALLATION

SARGENT

THE 1331 IS FACTORY ADJUSTED FOR MOST APPLICATIONS, HOWEVER, ADDITIONAL ADJUSTMENT MAY BE REQUIRED DUE TO ACTUAL CONDITIONS

ASSA ABLOY

5

MINIMUM RECOMMENDED DOOR CLOSING TIME FOR DOORS OPENED TO 90° IS 6 SECONDS.

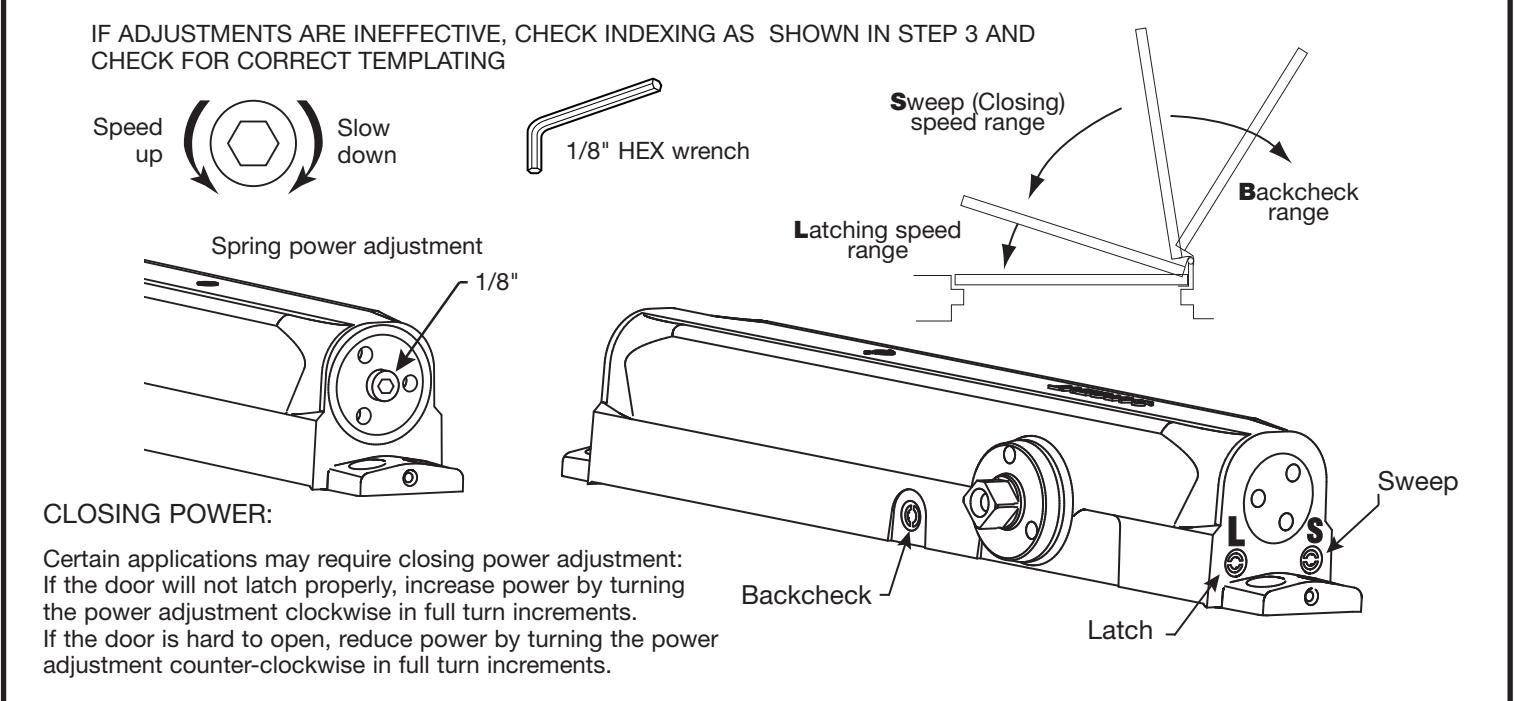

Use 1/8" hex (Allen) wrench to adjust valves as needed.

SWEEP AND LATCHING SPEEDS:

Turn valves clockwise to slow down or counterclockwise to speed up door movement BACKCHECK:

To regulate the intensity of backcheck action, turn valve clockwise to increase or counterclockwise to decrease checking CAUTION: SET VALVE FOR SLIGHT CUSHIONING EFFECT. CLOSER CAN BE DAMAGED IF THE CHECKING ACTION IS TOO ABRUPT. NEVER USE THE BACKCHECK AS A DOOR STOP. ALWAYS USE A DOOR STOP TO STOP THE DOOR

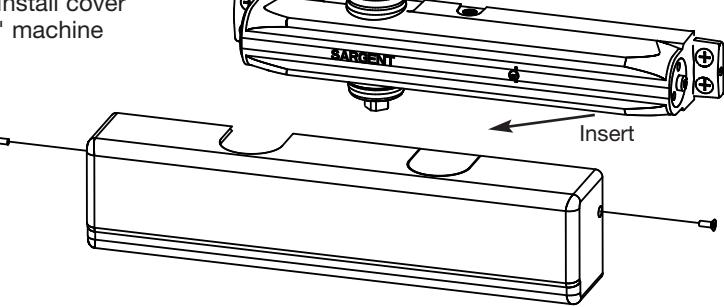

Move insert if needed. Install cover with two #6- 32 X 5/16" machine screws as shown.

7

ADJUSTMENT HOLD OPEN ARM

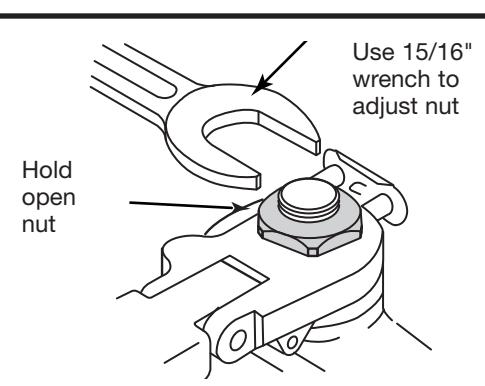

Slight tightening or loosening of hold open nut changes holding position of door.

NOTE: To protect wall, trim and closer, use a door stop located 5° beyond hold open positions, but not beyond the max. door opening shown on instructions.

SARGENT ASSA ABLOY

, B ,	$13\backslash frac\{1\}\{4\}$	$9\backslash frac\{1\}\{2\}$	, 8 6

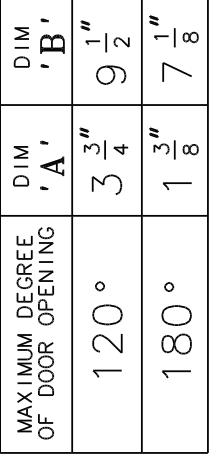

DIM 'A'	$7\; \backslash frac\{3\}\{4\}\text{'}\text{'}$	4 "	$5\backslash frac\{1\}\{8\}\text{'}\text{'}$
HOLDER SIZE	1546 & 1547	1548	1549

TOP OF DOOR

\<u>\</u>

1540 SERIES HOLDER/STOP

FRAME

1-3/4 * MIN

3-1/2"

CΓ∀ZZ

/8 MIN. RAIL

DOOR

1. REINFORCE METAL DOORS & FRAMES PER ANSI A250.8 AND SDI-100 STANDARDS, 12 GAUGE RECOMMENDED. 2. FOR 1540 INSTALLATION, SEE TEMPLATES A7488,A7489 & A7490

Copyright @ 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. <math display="block">A7742A

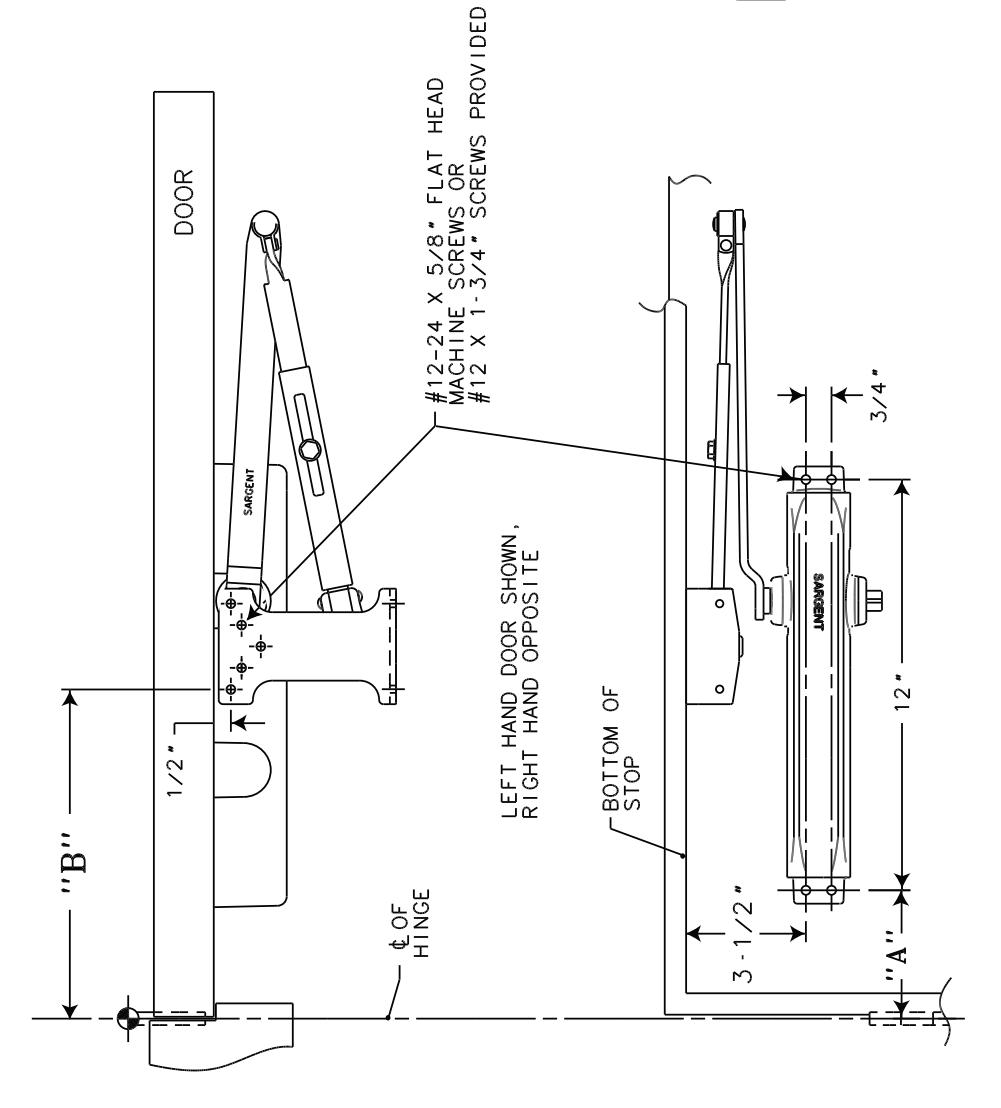

TEMPLATE A7750. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 AND SDI-100 STANDARDS, 12 GAUGE RECOMMENDED. SEE THIN TOP RAIL DOORS, USE 1331-D PLATE. NOTES FOR

TEMPLATE NO. A7745

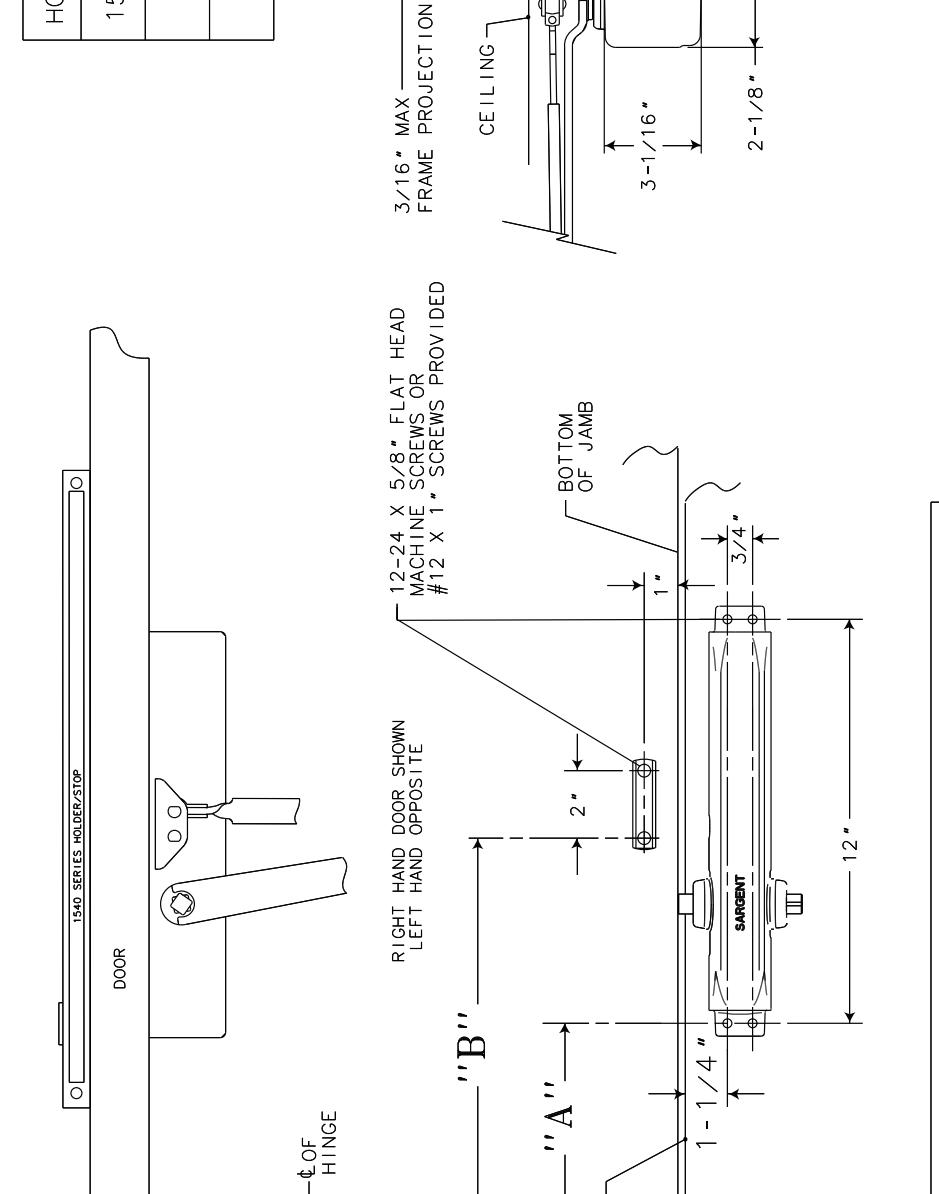

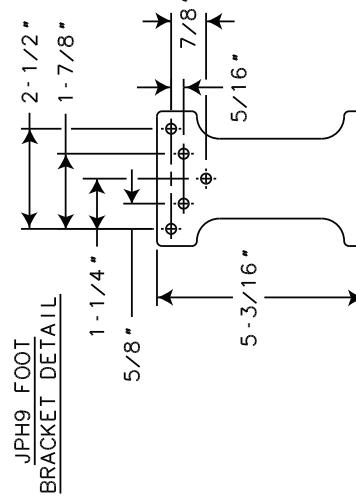

DATA SHEET: 1331 DOOR CLOSER WITH JPH9 HOLD OPEN ARM, PARALLEL ARM APPLICATION

RELEASE DATE

SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

SARGENT ASSA ABLOY

DEGREE OPENING

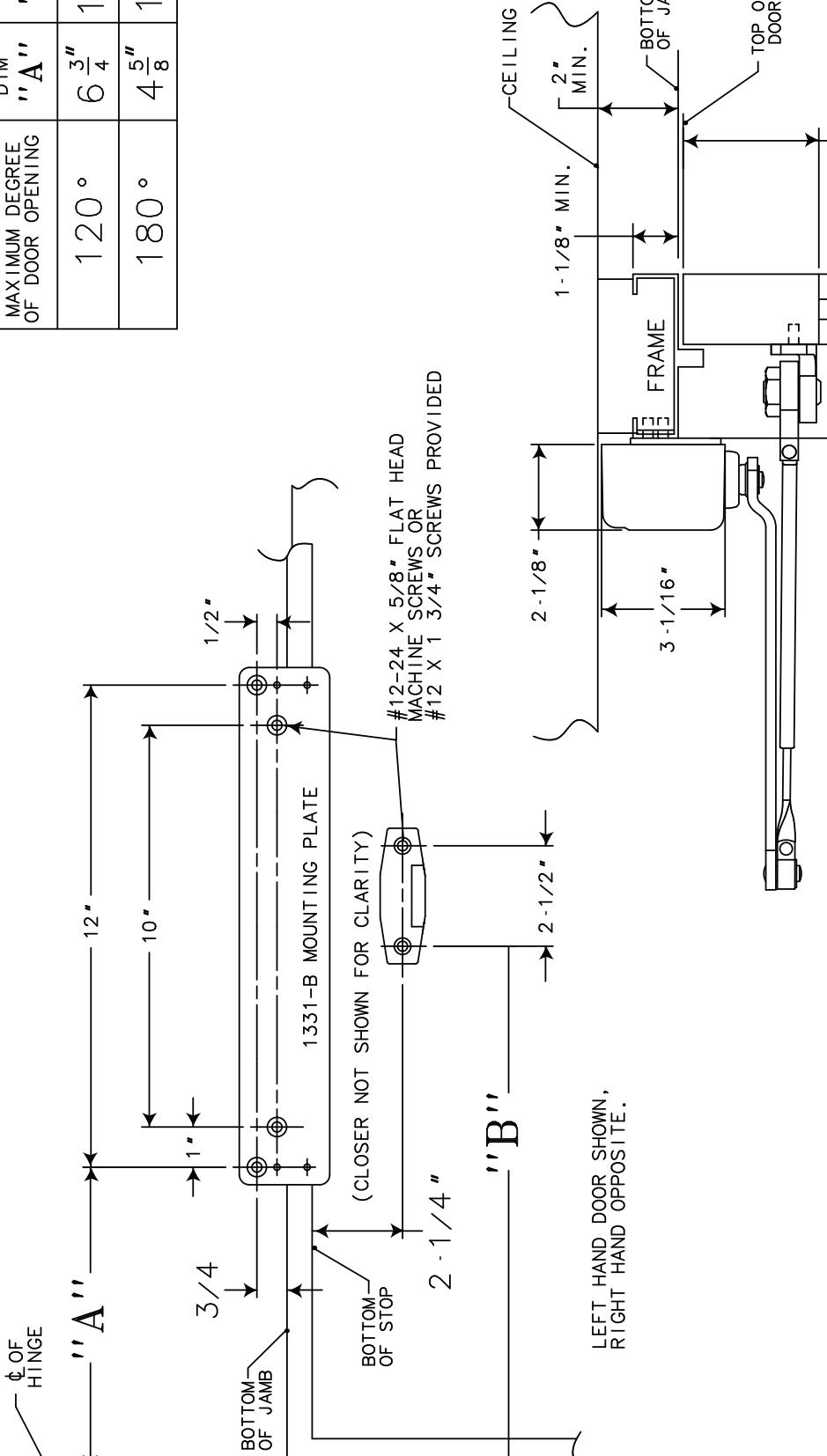

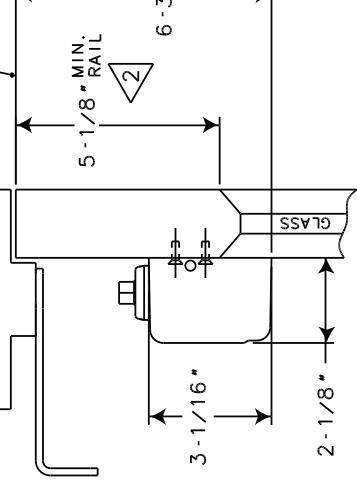

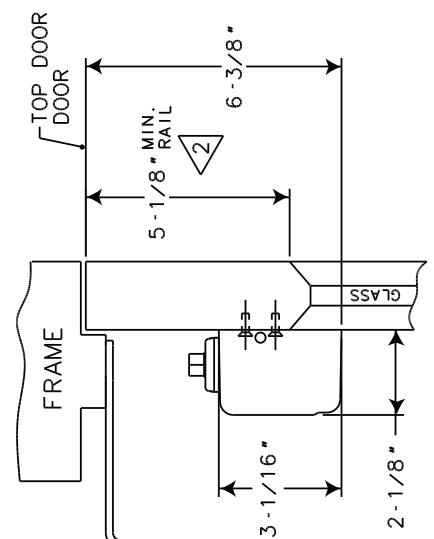

SARGENT^® Manufacturing Company 100 Sargent Drive New Haven, CT 06511 DATA SHEET: 1331 DOOR CLOSER WITH JH ARM AND 1331-B MOUNTING PLATE, TOP JAMB LOW CEILING APPLICATION AND FRAMES PER ANSI A250.8 AND GAUGE RECOMMENDED.

TEMPLATE NO. A7751

RELEASE DATE

3-3/8" MIN. RAIL

2" MAX REVEAL

REINFORCE METAL DOORS SDI-100 STANDARDS, 12
