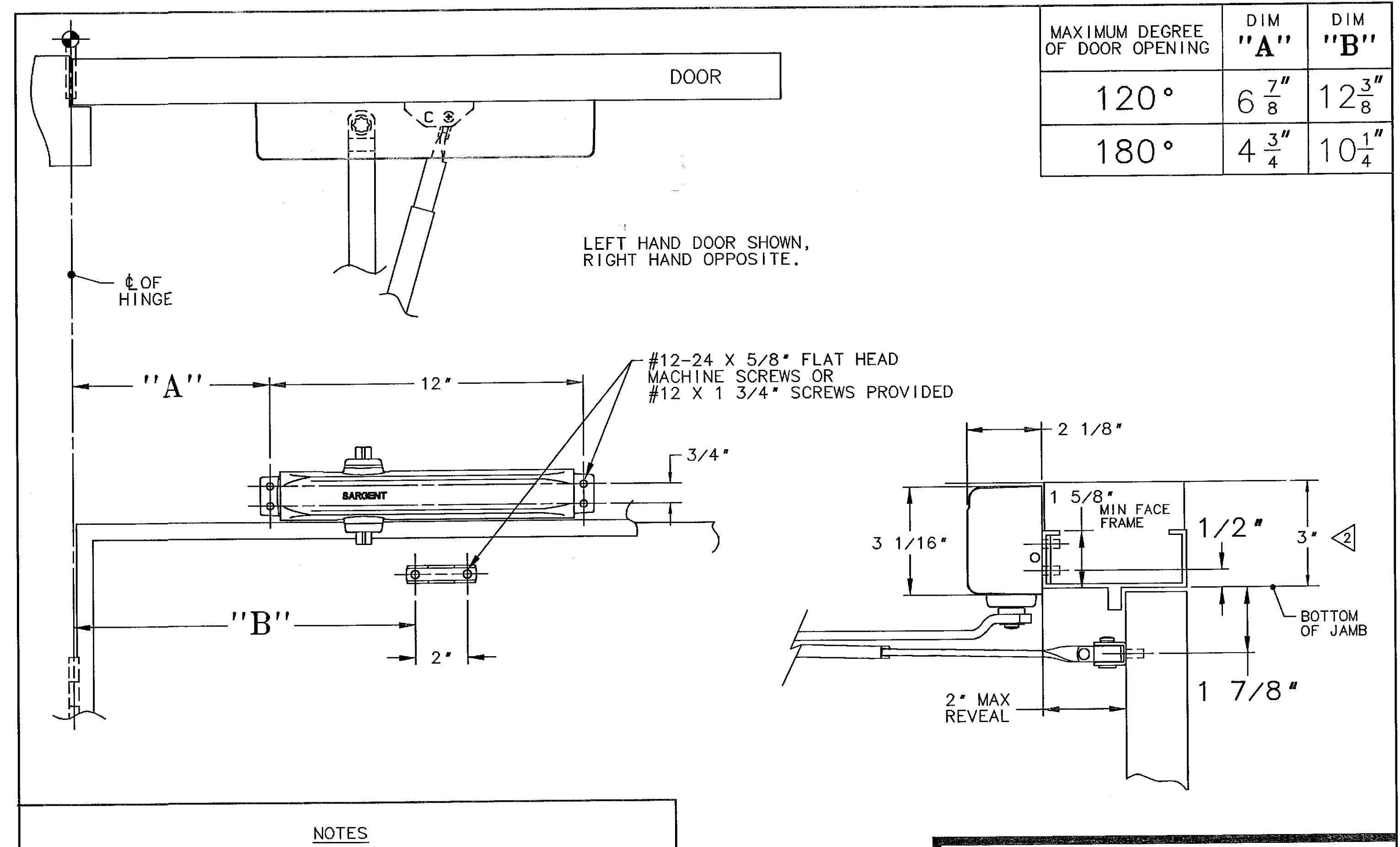

1331 Door Closer Series with Standard JO Arm (Top Jamb Application)

• 1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 AND SDI-100 STANDARDS, 12 GAUGE RECOMMENDED.
• 2. FOR LOW CEILING APPLICATIONS USE A 1331-B PLATE, SEE TEMPLATE A7734.

SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DATA SHEET: 1331 DOOR CLOSER WITH JO ARM TEMPLATE NO.

RELEASE DATE APR-16-04 A7730
