127mm t380m
Open the original PDF document
View PDFRev. '96
SIZE: 127.00
-DO NOT SCALE-
| CATALOG NUMBER | |
|---|---|
|
STEEL
HINGES |
METAL
GAUGE |
| BB1266 | 4.75 |
| BB7523 | 4.75 |

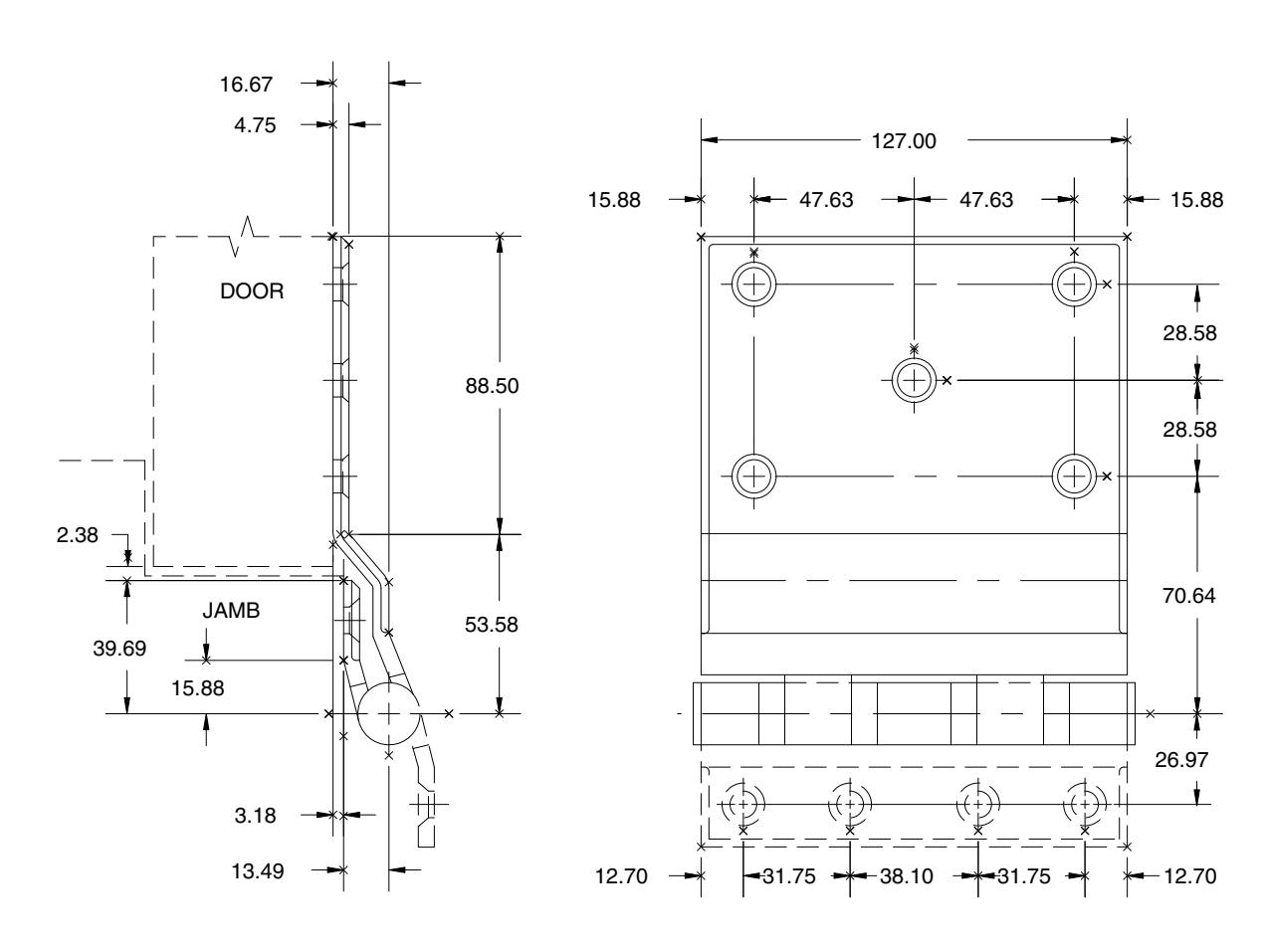

ALL DIMENSIONS ARE IN MILLIMETERS.
Machine Screw Size: Door Leaf- 1/4-20 x 2" O.H. WITH GROMMET NUTS. Jamb Leaf- 1/4-20 x 1/2" F.H.
NOTE: This hinge alters the normal pivot point of door. For door closers, friction or overhead door holders to be used in conjunction with this hinge, consult manufacturer of the device for for application details.
Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
Template No. T
