View PDF1130 Series Non-Handed Door Closer
Arm Model 1131
Installation Instructions
Non-hold Open arm model, adjustable size 1-6 (&)
ASSA ABLOY
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65warnings.ca.gov.
READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
SARGENT
ASSA ABLOY
ATTENTION:
An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.
- For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
- Doors should be hung on ball bearing or anti-friction hinges.
- A separate door stop is recommended.
1130 Series Non Hold Open Closer
- Always consult door/frame manufacturer for fastener compatibility.
- Door and frame must be properly reinforced.
- Adjust closing time speed between 3 and 7 seconds from 90° to 0°.
- These door closers should NOT be installed on exposed side (weather side) of exterior doors.
- Dimensions are given in inches (millimeters).

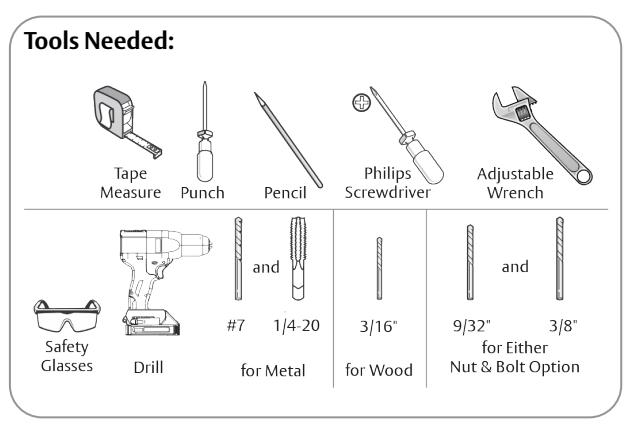

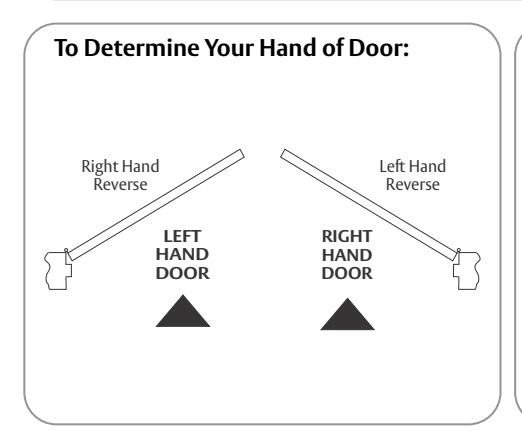

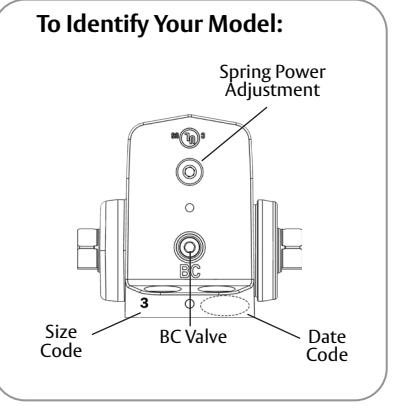

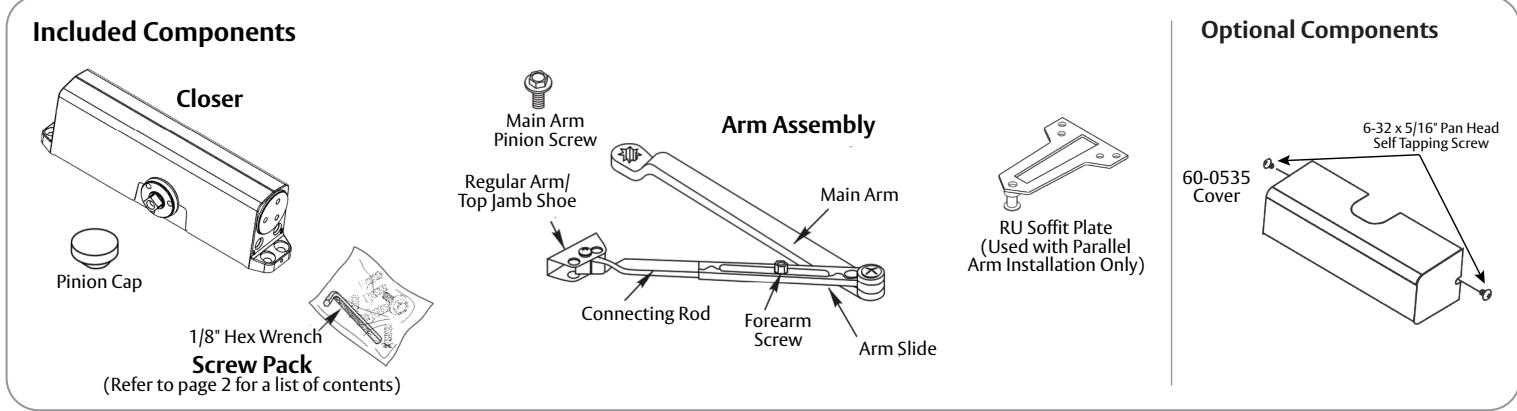

Supplied Hardware
| Mounting Hardware | Door or Frame | Drill | ||
|---|---|---|---|---|
|
Closer, PA Bracket:
1/4-14 x 1-1/2 Oval Flat Head Self Drilling Screw |
Wood/Metal | 3/16" (4.8mm) for wood | ||
| ()MMMM |
Closer, PA Bracket:
1/4-20 x 3/4 Oval Flat Head Mach. Screw |
Metal | Drill #7 (.201 dia. or 5.1mm) | |
| ()unum |
Arm Shoe to Jamb or Door:
1/4-20 x 5/8 Round Head Mach. Screw |
Tap 1/4-20 | ||
|
Arm Shoe to Jamb or Door:
1/4-14 x 1-1/2 Round Head Self Drilling Screw |
Wood/Metal | 3/16" (4.8mm) for wood | ||
| Closer: Sleeve Nut and Bolt (SNB) (optional) | Hollow Metal |
9/32" (7.0mm) thru
3/8" (9.5mm) door face opposite to closer |
||
|
with 1/4-20 x 3/4 Oval Flat Head Mach. Screw
(recommended) |
Aluminum or Wood | 3/8" (9.5mm) thru | ||
| Decement of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the st |
Closer:
Thru Bolt and Grommet Nut (TBGN) (optional) |
All |
9/32" (7.0mm) thru
3/8" (9.5mm) dia. x 3/8" (9.5mm) deep, door face opposite to closer |
|

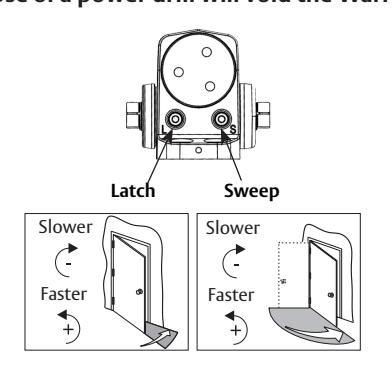

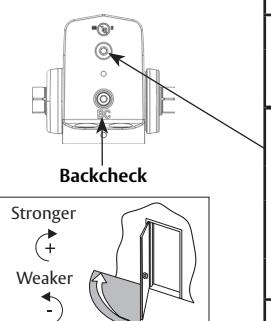

Closer Adjustments
Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve. Door must be open to adjust spring closing power. Refer to the chart.
Use of a power drill will void the Warranty.
| Spring Closing Power | Number of Turns Required | |||||||
|---|---|---|---|---|---|---|---|---|
| _ | Type of Installation | * | Maximum Door Size | |||||
| Doc |
34"
(0.85M) |
36"
(0.90M) |
40"
(1.00M) |
44"
(1.10M) |
48"
(1.20M) |
|||
| 1131 | Interior |
Regular Arm
Top Jamb |
Full 360° Turns | 2 | 4 | 6 | 10 | 12 |
| Parallel Arm | 3 | 5 | 8 | 11 | 14 | |||
| Exterior |
Regular Arm
Top Jamb |
3 | 5 | 8 | 11 | 14 | ||
| Parallel Arm | 5 | 8 | 11 | 16 | 19 | |||
| *30 Full (360°) turns maximum available = turns as shipped | ||||||||

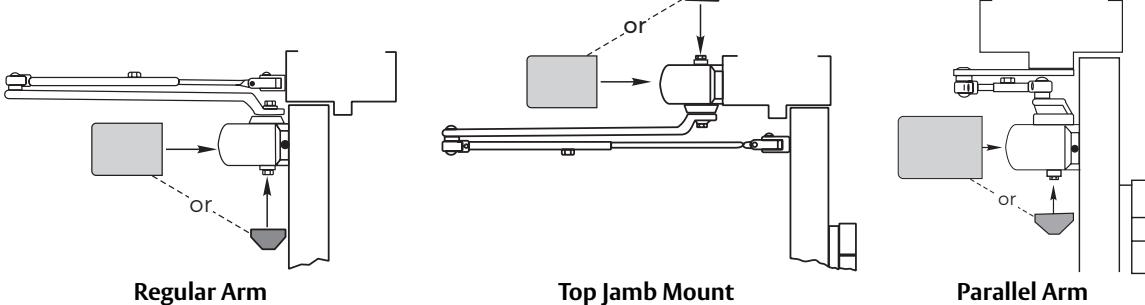

Pinion Cap or Cover
Do not over tighten cap or cover screws.

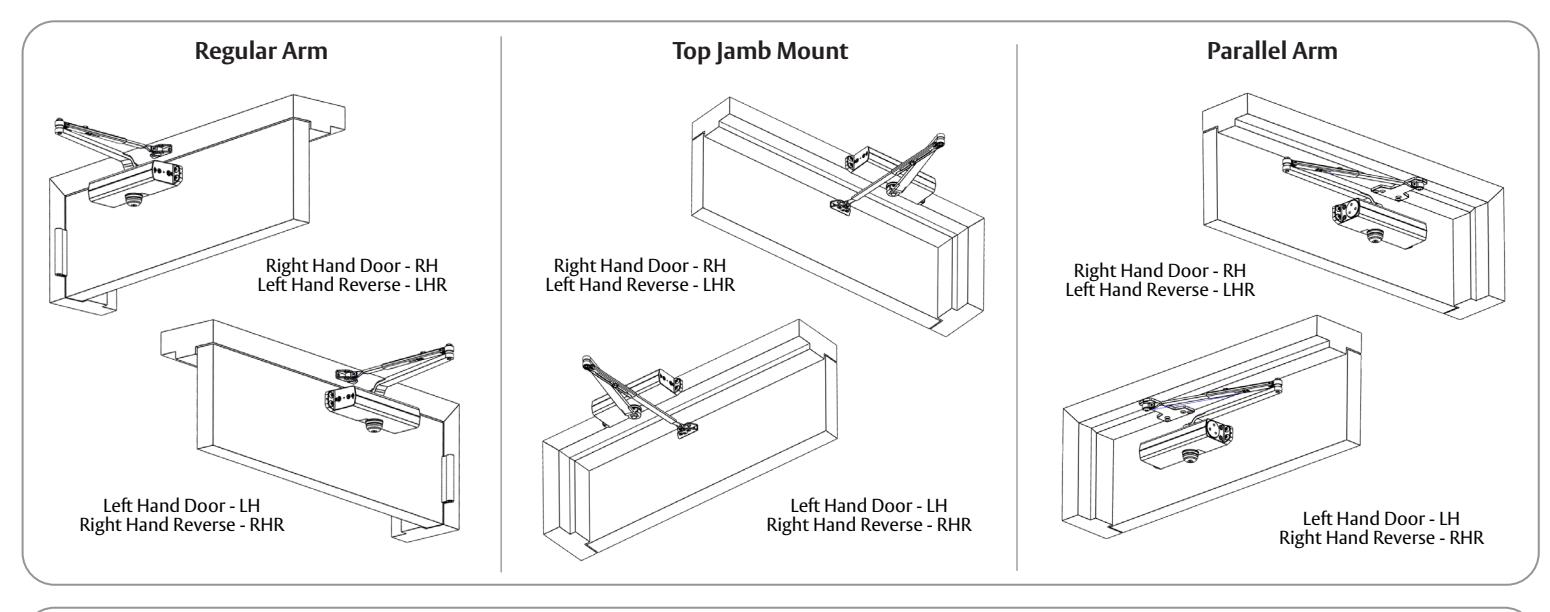

1130 Regular Arm Installation (Right Hand Shown)
1. Prepare door and frame.
2. Mount closer to door.

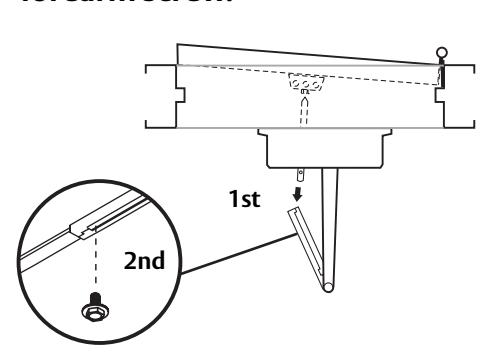

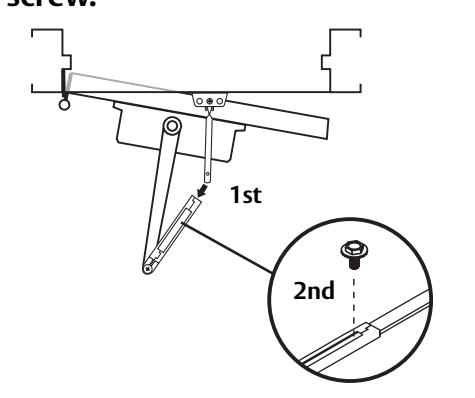

4. Connect arms and install forearm screw.

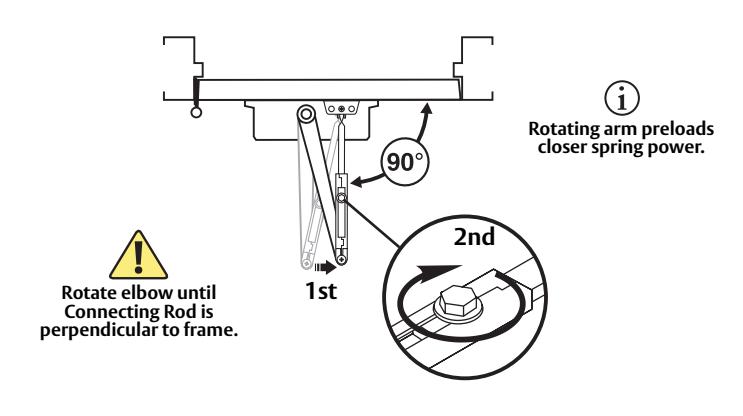

5. Preload spring and tighten forearm screw.
The 1130 Non Hold Open Closer - Regular Arm has now been installed.
Go to page 2 for closer adjustments and decorative cap or cover installation.
1130 Top Jamb Arm Installation (Right Hand Shown)

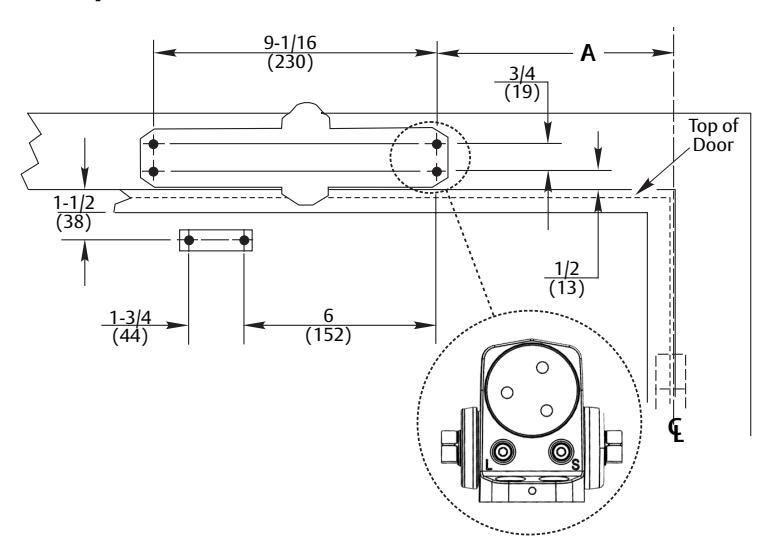

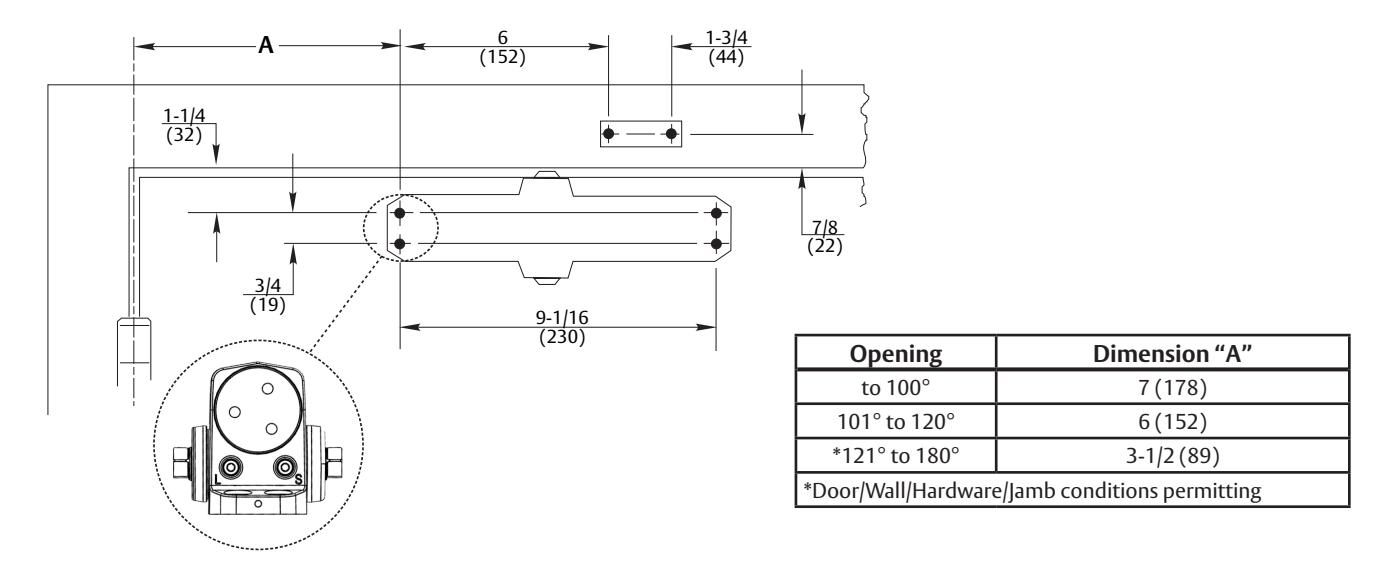

1. Prepare door and frame.
| Opening | Dimension "A" | ||
|---|---|---|---|
| to 100° | 7-1/2 (191) | ||
| 101° to 120° | 6 (152) | ||
|
*121° to 180°
3-1/2 (89) |
|||
| *Door/Wall/Hardware/Jamb conditions permitting | |||

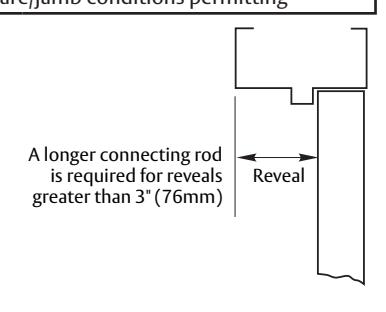

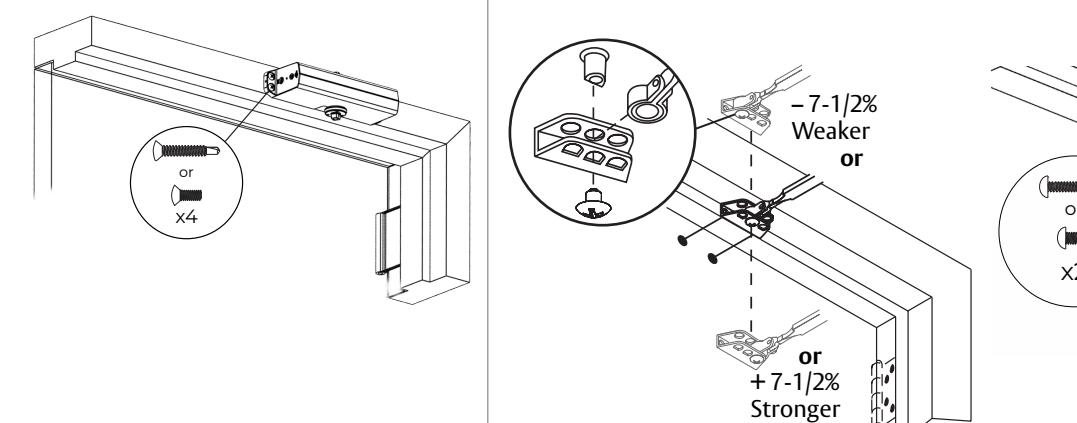

2. Mount closer to frame.

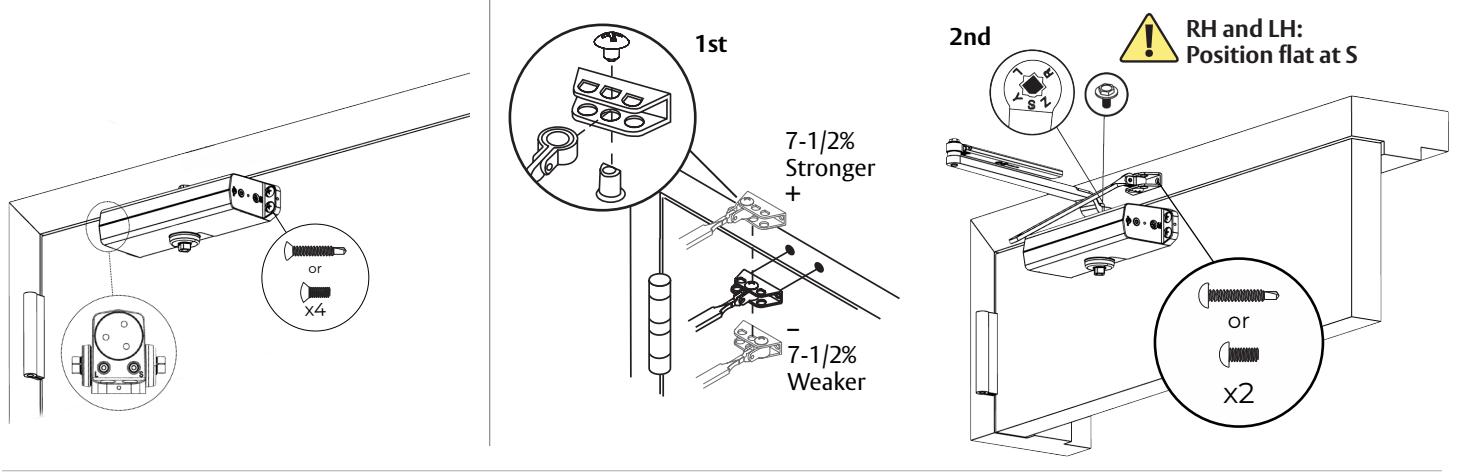

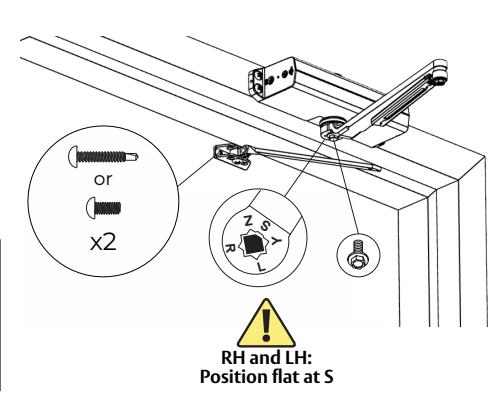

3. Choose arm placement in shoe and install separate arms.
4. Connect arms and install forearm screw.

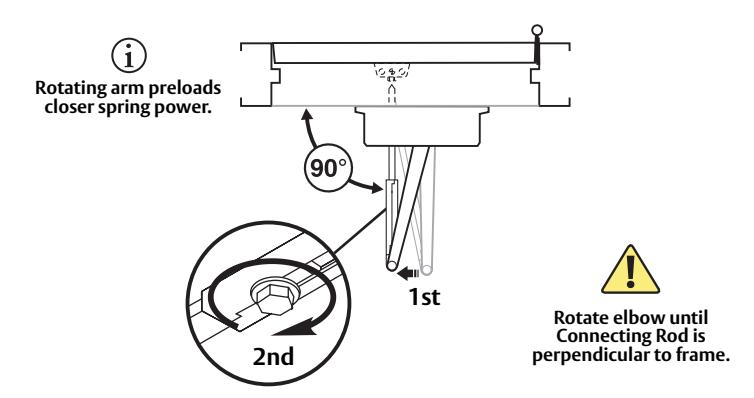

5. Preload spring and tighten forearm screw.
The 1130 Non Hold Open Closer - Top Jamb Mount has now been installed.
Go to page 2 for closer adjustments and decorative cap or cover installation.

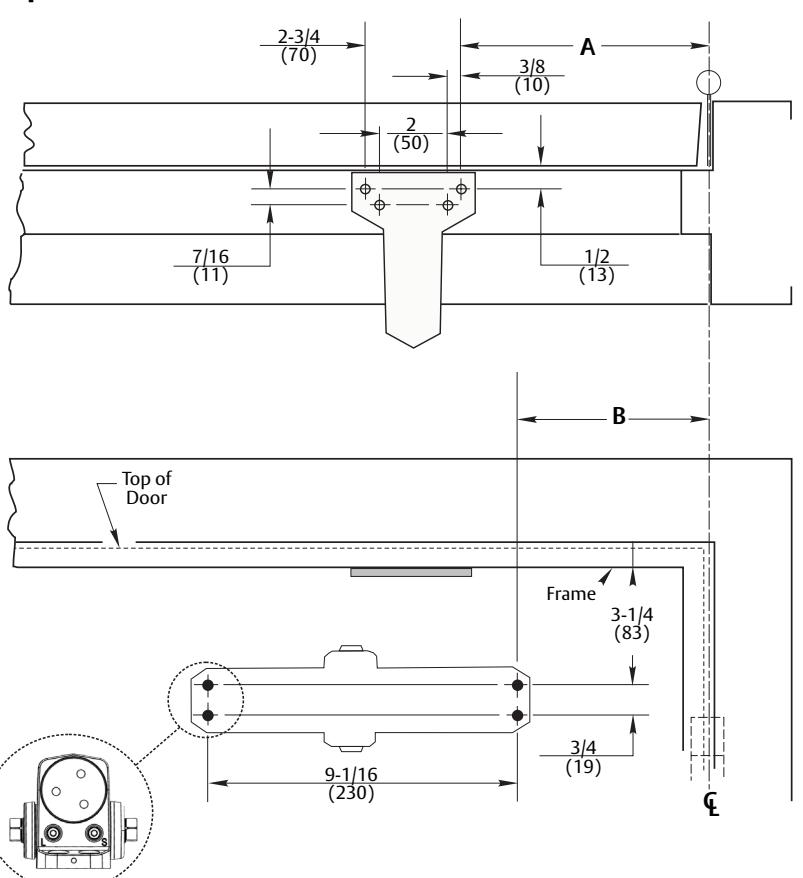

1130 Parallel Arm Installation (Right Hand Shown)
1. Prepare door and frame.
|
Door
Opening |
Dimension
"A" |
Dimension
"B" |
||
|---|---|---|---|---|
| to 100° | 9-1/4 (235) | 7-5/8 (194) | ||
| 101° to 130° | 7-3/4 (197) | 6-1/8 (156) | ||
| *131° to 180° | 5-3/4 (146) | 4-1/8 (105) | ||
| *Door/Wall/Hardware/Jamb conditions permitting | ||||

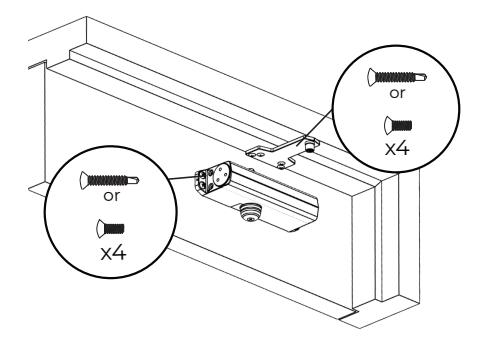

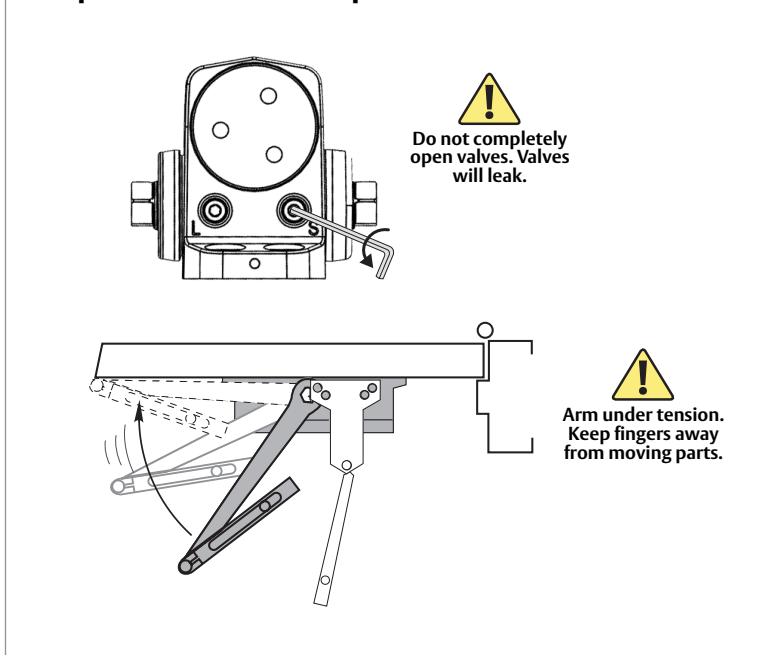

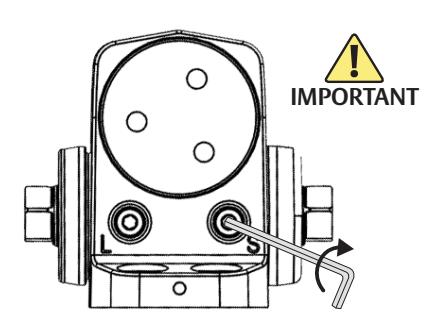

2. Close latch and sweep valves. 3. Install soffit plate and mount closer.

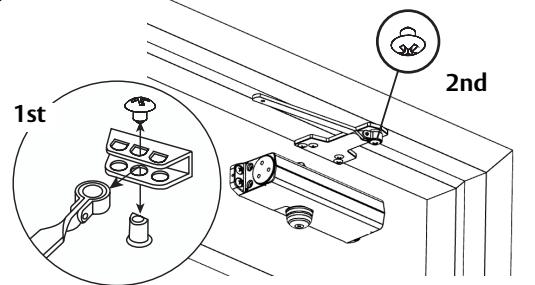

4. Remove arm shoe and install forearm to plate.

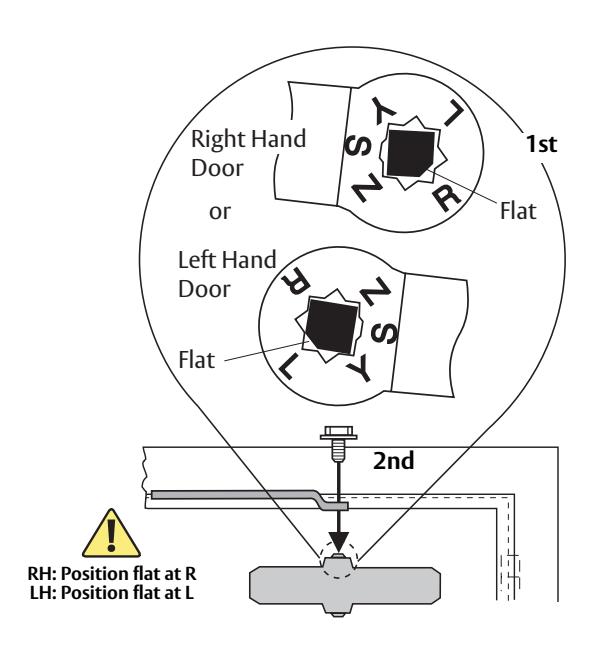

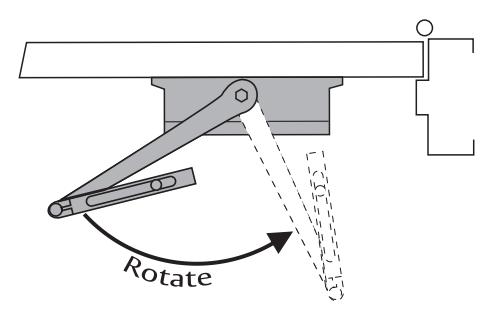

5. Place main arm on closer spindle and rotate
The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.
1130 Parallel Arm Installation (Right Hand Shown) cont.
6. Remove arm and attach as shown.
7. Open latch and sweep valves.

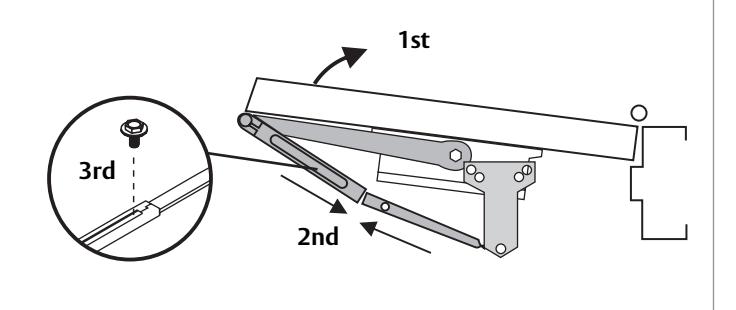

8. Connect arms and install forearm screw.

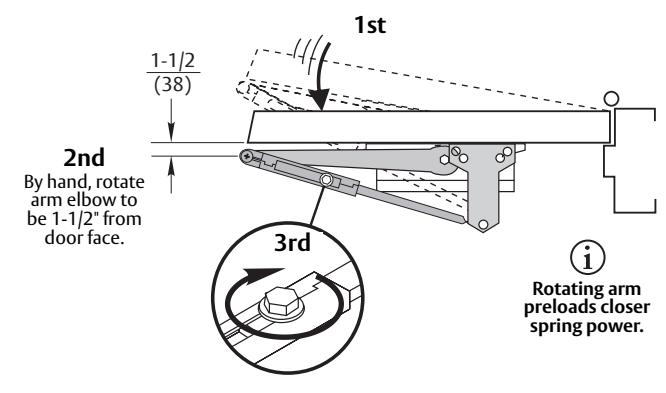

9. Preload spring and tighten forearm screw.
The 1130 Non Hold Open Closer - Parallel Arm Mount has now been installed.
Go to page 2 for closer adjustments and decorative cap or cover installation.
